Normative Values for Electrochemical Skin Conductances and Impact of Ethnicity on Quantitative Assessment of Sudomotor Function

Abstract

Background:

Sudomotor dysfunction is one of the earliest pathophysiologic abnormalities in diabetes. Sudoscan™ (Impeto Medical, Paris, France) was developed as a noninvasive, rapid, and quantitative assessment of sudomotor function and has been shown to be sensitive in the detection of neuropathy. This global collaborative analysis aimed to establish reference values in healthy subjects of different ethnic groups, age, and gender, to define factors potentially affecting results, and to provide standardization of the methodology.

Materials and Methods:

Data from 1,350 generally healthy study participants who underwent sudomotor function testing were collected and analyzed. The relationship between age, height, weight, gender, glycemic and lipid profiles, ethnicity, and hand and foot electrochemical skin conductance (ESC) was assessed among subgroups of participants.

Results:

Lower mean hands and feet ESC values were observed in African American, Indian, and Chinese subjects (P < 0.0001). No participant discomfort or safety concern was reported in 1,376 tests. No significant difference in ESC was observed between women and men at the hands (75 [57–87] vs. 76 [56–89] μS; P = 0.35) or feet (83.5 [71–90] vs. 82.5 [70–91] μS; P = 0.12). The coefficient of correlation between right and left side ESC was r = 0.96, P < 0.0001 for hands and r = 0.97, P < 0.0001 for feet. A significant but weak correlation was observed between ESC and age: for hands, r = −0.17, P < 0.0001; for feet, r = −0.19, P < 0.0001.

Conclusions:

A normative reference range was established in whites showing that there was no effect of sex or body mass index and a slight decrease in ESC with age. Ethnicity influenced ESC scores, but additional studies are necessary to validate this effect and determine its mechanism and impact on nerve function.

Introduction

Changes in peripheral autonomic nervous system function may be the earliest manifestation of distal symmetric polyneuropathy with small fiber involvement, occurring in many neurologic or metabolic diseases, including diabetes.¹ As eccrine sweat glands are innervated by a rich supply of sympathetic C nerve fibers, sudomotor function represents one of the best tests to evaluate the peripheral autonomic system.^2,3 Several methods have been developed to evaluate the structure or function of sweat gland innervation.^4
–6

Sudoscan™ (Impeto Medical, Paris, France) is a simple, noninvasive, rapid, objective, and quantitative test recently developed as an objective measure of small nerve fiber function.^7,8 The underlying technology is based on the electrochemical reaction between the chloride ions in sweat and stainless steel plate electrodes in contact with the palms and soles where sweat gland density is the highest. Results are provided as electrochemical skin conductance (ESC) generated from the derivative current associated with the stimulus voltage. The method has been compared with reference tests, and its diagnostic utility in the detection of diabetic peripheral neuropathy has been validated in previous clinical studies.^6,9
–11 However, small fiber or sweat function, when assessed by other validated tools, has been shown to be influenced in healthy subjects by factors such as age, gender, race, or testing conditions, and there remains a need to define normative reference values for this new technology.^12,13

The aim of this analysis is to present normative ESC values among 1,350 healthy subjects enrolled in multiple clinical trials across the world and to explore factors potentially influencing them, including age, sex, body mass index (BMI), blood pressure, glycemic and lipid parameters, and ethnicity. Validation of the normative ESC derived from a primary cohort was then conducted among (1) subgroups with precise examination of the peripheral nervous system using reference tests, (2) groups with glycemic, lipid, or renal profiles, and (3) subjects measured before and after exercise.

Research Design and Methods

This global collaboration aimed to collect and analyze data obtained in healthy subjects involved in clinical studies performed in France, Finland, the United States, Mexico, India, and China between 2009 and 2014. All study protocols were approved by local ethics committees and institutional review boards, and participants provided written informed consent.

Study population

ESC results were obtained from a total of 1,350 participants, ages 21–80 years inclusive.

The effect of age, BMI, and sex was studied on a large white population (termed the Primary Cohort) (n = 657) who participated in studies completed in France and Finland.^14
–16 Eligibility criteria for inclusion as healthy subjects in the analysis were age ≥18 years, BMI <25 kg/m², and absence of cardiovascular disease, symptoms of peripheral neuropathy, or medical conditions known to cause neuropathy, including diabetes, impaired glucose tolerance, or alcohol abuse. Fasting plasma glucose or hemoglobin A1c was available in a subgroup of 244 participants to confirm health status. Physical fitness was evaluated in a majority of participants with estimated maximum volume of O₂ of >7 metabolic equivalents required for women and >9 metabolic equivalents for men. Eighty-seven participants of this cohort, all age >70 years and part of the PROgnostic indicator OF cardiovascular and cerebrovascular events (PROOF) study, underwent additional assessments to exclude autonomic neuropathy, metabolic syndrome, or sleep apnea.¹⁶ In this older subgroup, criteria for defining health included sleep apnea–hypopnea index of <30/h, spontaneous cardiac baroreflex activity slope of ≥6 mm Hg, minimal arterial O₂ saturation value recorded during sleep of ≥90%, oxygen desaturation index of <7.5 (n/h), and body fat index (total body fat mass divided by the squared height in meters) of <9.3 kg/m².

Healthy control participants (n = 142) recruited in three U.S. research centers underwent concurrent evaluation of peripheral nerve function with questionnaires (the Michigan Neuropathy Screening Instrument), structured examination (total neuropathy score, Neuropathy Impairment Score Lower Limbs), tests of small-diameter nociceptive function (quantitative sensory testing for heat pain threshold), or cardiac autonomic reflex testing. Similarly, data from 525 healthy control participants enrolled in four previously published studies^10,17
–19 were extracted to examine the effect of race/ethnicity on ESC results. These participants underwent extensive metabolic testing (glycemic, lipid, and/or renal profiles with measurement of estimated glomerular filtration rate using the Modification of Diet in Renal Disease formulation). ESC results from well-characterized Mexican subjects (normal glycemic and lipid profiles; no chronic illness, cancer, or pregnancy) were used to explore the effect of Hispanic ethnicity.¹⁷ The effect of race on ESC values was studied in groups of healthy African American (n = 117), Indian (n = 96), and Chinese (n = 120) subjects in comparison with the white population (of comparable age) precisely described in previous publications.^10,18,19

Sudomotor function assessment

Sudoscan is a patented device designed to perform a precise quantitative evaluation of sweat gland function based on an electrochemical reaction with sweat chloride ions using reverse iontophoresis and chronoamperometry.^20,21 Neither special subject preparation nor specially trained medical personnel are required to complete the test. The apparatus consists of two sets of stainless steel electrodes connected to a computer for recording and data management purposes. To conduct the test, the individual places his or her palms and soles—where sweat gland density is highest—in contact with the electrodes during a 2-min testing period. The sweat chloride ions attracted when low direct current (incremental voltages ≤4 V) is applied create a current through an electrochemical reaction with the nickel incorporated in the electrodes. ESC (i.e., the ratio between chloride-specific current generated and the voltage of constant direct current stimulus) is displayed immediately after the test in units of microSiemens (μS), with separate results for hands and feet.

To confirm that the conductance measurements are independent of the subject's sweating status, a comparison was done between a first ESC measurement performed at rest and a second performed under identical conditions immediately following a bicycle ergometer graded exercise test used to reach maximum volume of O₂ uptake (n = 26).¹⁵

Statistical analyses

A blinded analysis of the data was performed by an independent statistician. Results for quantitative variables are shown as mean ± SD values or median and 5^th–95^th percentile intervals. Student's t test was used for significant differences between means, and Mood's test was used for medians to detect differences in gender and ethnicity. In the small subgroup of participants who were exercised, we compared hands and feet ESC values before and after exercise using the Wilcoxon signed-rank test. Pearson's correlation coefficient was used to evaluate the association between hand/foot ESC, age, and BMI, as well as the correlation between hand/foot conductance on the left and right sides. Multiple linear regression analyses were performed with foot ESCs as dependent variables, adjusted for age, sex, and BMI or height and weight, in order to confirm relevant correlated variables. The same model was replicated with hand ESC as the dependent variable. All statistical analyses were performed with R version 2.13.1 software.²²

Results

The measurement of ESC was completed in all subjects without incident: none of the 1,350 participants experienced any discomfort, and there were no adverse events, complications, or safety concerns.

For the 570 subjects in the Primary Cohort (excluding participants older than 70 years), mean age was 45.6 ± 11.2 years, and median (5^th–95^th percentile intervals) ESC was 76 (62–86) μS for hands and 83 (75–89) μS for feet. Coefficient of correlation between the right and left side in this population was r = 0.96, P < 0.0001 for ESC of hands and r = 0.97, P < 0.0001 for ESC of feet (Fig. 1). The reproducibility of ESC measurement between two devices used sequentially in the same encounter was established in previous studies (r = 0.85 for hands and 0.93 for feet, P < 0.001).²³

FIG. 1.

Correlation between right and left sides for (a) hand and (b) foot electrochemical skin conductance (ESC) values.

Hands and feet ESC values according to gender and age deciles in the Primary Cohort are given in Table 1. No difference was observed between women and men for hands (75 [57–87] vs. 76 [56–89] μS; P = 0.35) and feet ESC (83.5 [71–90] vs. 82.5 [70–91] μS; P = 0.12). A weak but significant negative correlation between ESC and age was found for the hands (r = −0.17, P < 0.0001) and for the feet (r = −0.19, P < 0.0001) in this population (Fig. 2). No significant correlation between BMI and hands or feet conductance was detected (r = 0.01, P = 0.84 and r = −0.02, P = 0.65, respectively). Multivariate analysis using age, sex, and BMI or height and weight demonstrated that only age remained significantly correlated with hands and feet ESC values: −0.11 (−0.16, −0.06) μS per year for hands ESC and −0.09 (−0.12, −0.05) μS per year for feet ESC (by Student's t test, P < 0.0001 for both).

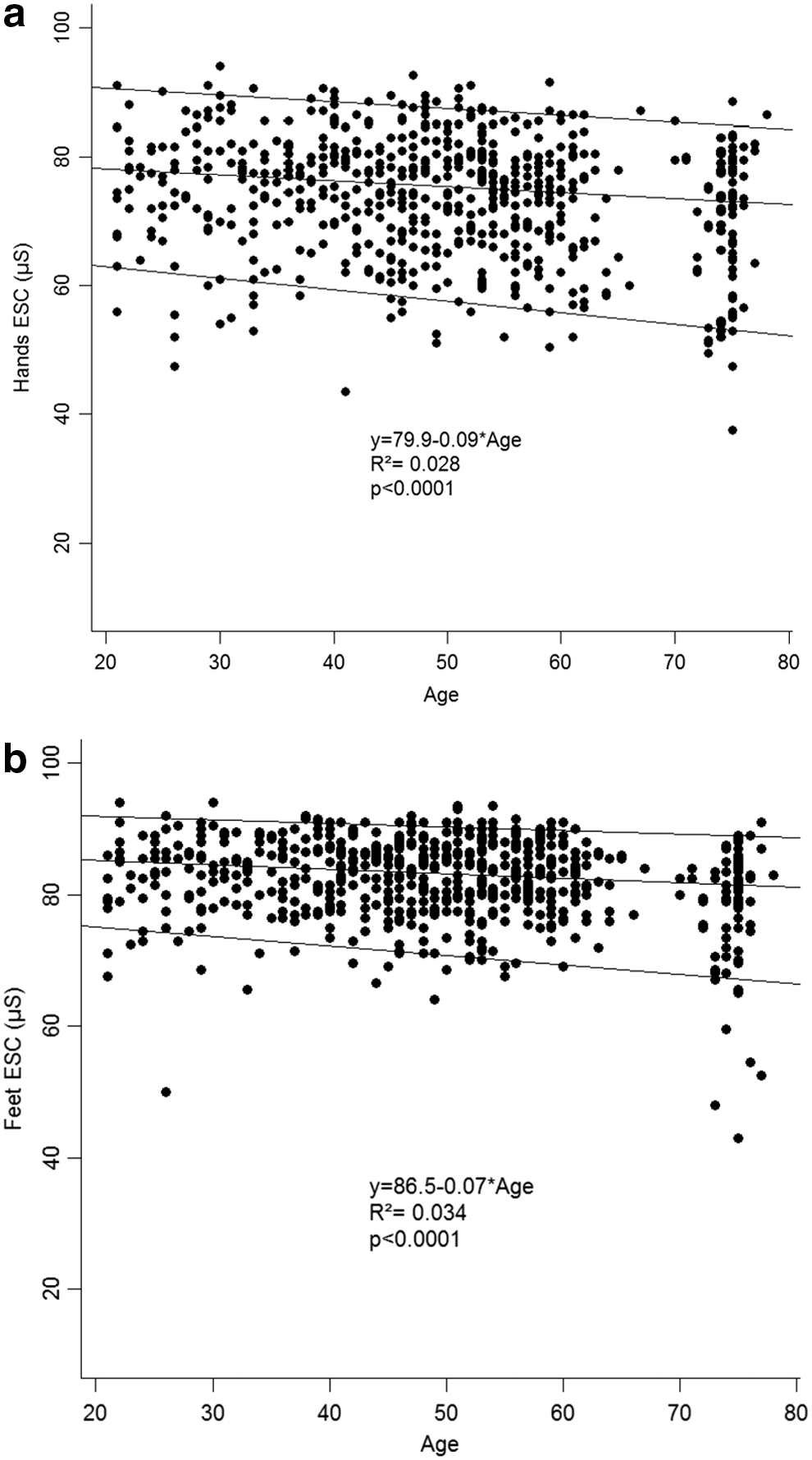

FIG. 2.

Evolution of (a) hand and (b) foot electrochemical skin conductance (ESC) values with age. Straight lines are 5^th, 50^th, and 95^th percentiles, respectively.

Table 1.

Body Mass Index and Hand and Foot Electrochemical Skin Conductances by Gender and Age Deciles in a Large Population of Healthy White Subjects (the Primary Cohort)

		Age decile (years)
Gender, characteristic	Overall	21–30	31–40	41–50	51–60	61–70	71–80
Female (n)	455	29	73	136	143	28	46
Age (mean ± SD) (years)	50.0 ± 12.5	26.7 ± 2.7	36.4 ± 2.7	45.8 ± 2.8	55.3 ± 2.8	62.2 ± 1.6	74.7 ± 1.3
BMI (mean ± SD) (kg/m²)	22.4 ± 1.7	21.5 ± 2.0	22.2 ± 1.6	22.6 ± 1.5	22.6 ± 1.7	22.6 ± 1.5	22.1 ± 1.9
ESC (μS)
Hands
Mean ± SD	73.7 ± 9.1	74.7 ± 9.6	75.9 ± 8.8	74.0 ± 8.4	73.8 ± 8.3	71.1 ± 10.1	70.4 ± 11.5
Median	75.0	75.0	77.0	74.5	75.0	70.3	73.5
5^th–95^th percentile interval	57.0–87.0	55.5–87.5	58.5–89.0	60.5–86.5	59.5–86.5	57.5–86.5	51.0–83.0
Feet
Mean ± SD	82.4 ± 6.3	83.9 ± 5.8	84.2 ± 4.8	83.1 ± 5.2	82.7 ± 5.6	82.2 ± 4.2	76.0 ± 9.9
Median	83.5	84.5	85.0	84.5	83.0	83.0	79.0
5^th–95^th percentile interval	71.0–90.0	68.5–91.0	76.5–91.0	74.5–91.0	72.0–90.0	76.0–88.0	54.5–87.5
Male (n)	202	46	30	33	42	10	41
Age (mean ± SD) (years)	48.2 ± 17.8	25.2 ± 3.2	35.7 ± 3.4	45.6 ± 2.9	55.0 ± 3.0	64.3 ± 3.3	74.5 ± 1.2
BMI (mean ± SD) (kg/m²)	22.8 ± 1.7	22.5 ± 1.9	22.7 ± 1.9	23.0 ± 1.4	22.6 ± 1.4	22.6 ± 1.5	22.9 ± 1.8
ESC (μS)
Hands
Mean ± SD	74.5 ± 9.7	76.0 ± 10.1	77.4 ± 6.6	75.2 ± 10.7	75.8 ± 7.7	72.3 ± 11.6	69.3 ± 10.2
Median	76.0	77.5	78.3	78.0	76.3	75.0	72.0
5^th–95^th percentile interval	56.0–88.5	56.0–90.0	64.0–88.0	56.0–89.5	62.5–87.5	52.0–86.5	52.0–81.0
Feet
Mean ± SD	81.5 ± 6.9	81.7 ± 7.6	81.2 ± 5.6	81.0 ± 7.1	84.0 ± 5.7	81.5 ± 4.4	76.6 ± 7.9
Median	82.5	82.5	81.0	83.0	84.5	81.8	81.5
5^th–95^th percentile interval	70.0–90.5	72.5–91.0	71.0–89.5	68.5–91.0	75.0–90.0	73.5–88.0	68.0–88.5

BMI, body mass index; ESC, electrochemical skin conductance.

Among a subgroup of 244 participants of the Primary Cohort with normoglycemia (hemoglobin A1c <6% or fasting plasma glucose <6 mmol/L), median hands (72.5 [54.0–82.5] μS) and feet (83.0 [68.5–89] μS) ESC values were not significantly different from those of the entire cohort. Among 26 participants of the Primary Cohort (mean age, 45 ± 8 years), the median (5^th–95^th percentile interval) difference between measurements performed before and after exercise was 0.5 (−3.5, 9.5) μS for feet ESC (by Wilcoxon test, P = 0.2544) and 9.2 (1.5, 35.5) μS for hands ESC (by Wilcoxon test, P < 0.0001).

Table 2 presents ESC and demographics of the entire study population except for whites >70 years of age. Each column represents a unique clinical site except Columns B (n = 26 whites) and G (n = 24 African Americans) in Norfolk, VA, as well as Columns E (n = 73 whites) and H (n = 93 African Americans) in Winston-Salem, NC. Among subgroups of whites with documented assessment of the peripheral nervous system or renal function, or of Mexican ethnicity, hands and feet ESC were comparable to values observed in the less well-characterized Primary Cohort (Table 2). Significantly lower hands and feet ESC were observed for African American, Indian, and Chinese populations compared with the white population (Table 2, P < 0.0001 for means of hands or feet ESC). Correlation with age and absence of significant correlation with BMI were confirmed in these populations, similar to the Primary Cohort.

Table 2.

Impact of Ethnicity, Age, and Body Mass Index on Hand and Foot Electrochemical Skin Conductances by Ethnicity (White, African American, Indian, and Chinese)

	White (n = 904)						African American (n = 117)
	A	B	C	D	E	F	G	H	I: Indian (n = 96)	J: Chinese (n = 120)
n	570	26	45	47	73	143	24	93	96	120
Age (years)	45.6 ± 11.2	56.2 ± 15.6	45.0 ± 16.2	49.6 ± 9.8	45.3 ± 13.8	41.7 ± 7.3	52.0 ± 13.0	44.4 ± 11.6	42.9 ± 9.2	47.0 ± 16.2
BMI (kg/m²)	22.5 ± 1.7	29.1 ± 5.2	27.1 ± 6.3	23.0 ± 2.7	27.3 ± 6.4	22.9 ± 1.6	30.6 ± 4.8	31.0 ± 7.0	27.7 ± 4.8	24.5 ± 3.3
ESC (μS)
Hands
Mean ± SD	74.6 ± 8.8	70.5 ± 12.5	66.5 ± 18.5	67.5 ± 17.5	71.9 ± 11.3	73.2 ± 12.9	56.7 ± 17.2	58.6 ± 15.1	67.3 ± 15.3	61.2 ± 15.5
Median	76.0	72.0	71.0	73.0	72.5	77.0	57.0^a	60.5	70.0^b	NA
5^th–95^th percentile interval	62.0–86.0	47.0–87.0	31.0–86.0	28.0–86.0	50.0–86.0	49.0–88.5	25.0–80.0	32.0–81.5	38.0–86.5	NA
Feet (μS)
Mean ± SD	82.8 ± 5.6	80.2 ± 6.3	77.2 ± 13.9	75.9 ± 13.2	80.4 ± 7.4	77.2 ± 7.8	66.7 ± 14.3	71.1 ± 12.9	65.5 ± 13.6	69.1 ± 16.8
Median	83.5	80.2	82.0	79.0	82.5	78.5	70.0^a	74.0	69.0^a	NA
5^th–95^th percentile interval	75.0–89.0	69.0–89.0	46.0–−89.0	59.0–87.0	67.5–90.0	62.0–86.5	40.0–84.0	44.6–86.5	37.0–83.5	NA

White subgroups were as follows: Column A, population 18–70 years of age, with body mass index of <25 kg/m² and good fitness level; Column B, subgroup with normal total neuropathy score, Neuropathy Impairment Score of Lower Limbs, and heat pain perception; Column C, subgroup with normal Utah Early Neuropathy Score and Michigan Neuropathy Screening Instrument Part A; Column D, subgroup with normal Michigan Neuropathy Screening Instrument Part B and no metabolic syndrome risk factor; Column E, subgroup with mean hemoglobin A1c level of 5.5 ± 0.3% and estimated glomerular filtration rate (using the Modification of Diet in Renal Disease formulation) of 89 ± 16 mL/min/1.73 m²; and Column F, subgroup of Mexican ancestry with hemoglobin A1c level of <5.7% and fasting plasma glucose of <110 mg/L. The African American subgroups were as follows: Column G, subgroup with normal total neuropathy score, Neuropathy Impairment Score of Lower Limbs, and heat pain perception; and Column H, subgroup with mean hemoglobin A1c level of 5.8 ± 0.7% and estimated glomerular filtration rate (using the Modification of Diet in Renal Disease formulation) of 105 ± 15 mL/min/1.73 m². The Indian subgroup (Column I) had triglyceride levels of <180 mg/dL and a 2-h plasma glucose level in an oral glucose tolerance test of <140 mg/dL. The Chinese subgroup (Column J) had a mean fasting plasma glucose level of 5.1 ± 0.6 mmol/L.

P < 0.0001 compared with median hands electrochemical skin conductance (ESC) in whites.

P = 0.0013 compared with white median feet ESC; P < 0.0001 between white and African American or Indian mean ESC, hands or feet.

NA, not available.

Discussion

Assessment of skin chloride ion transport as ESC, a putative sweat surrogate measurement obtained using a noninvasive, rapid, objective, and quantitative technique, has emerged as a useful tool for the study of peripheral neuropathy.^7,9,11 This analysis performed on 1,350 healthy participants enrolled in clinical trial centers constitutes a large population compared with published normative data for other methods of peripheral nerve function measurement. The inclusion of participants with different ethnicities, sex, weight, BMI, and height provides reference values for ESC across a wide spectrum of conditions that could broaden its clinical use. There is excellent symmetry between right- and left-sided measures of ESC, without differences related to gender or BMI, but with a slight decrease in ESC with age. Finally, significantly lower normal values for ESC were observed in African American, Indian, and Chinese groups relative to whites; validation of this finding is warranted in larger studies.

ESC is a measure of small-diameter peripheral nerve function. Other small fiber functional measures include the quantitative sudomotor axon reflex test (QSART) and quantitative sensory testing for heat pain and temperature detection thresholds.^24,25 Three-millimeter punch skin biopsy for intraepidermal fiber nerve density (IENFD) and corneal confocal microscopy are structural measures of small nerve axon integrity.^12,24
–26 The good correlation observed between the right and left sides is in accordance with and possibly superior to the symmetry between sides observed in QSART and in skin biopsy.^13,26

No sex difference in ESC was observed. This is in accordance with the absence of sex effect generally observed in the analysis of corneal small fibers through corneal confocal microscopy.¹² In contrast, a sex effect was observed in many of the reference small nerve fiber tests: IENFD is lower in healthy men compared with women; QSART volumes are higher in men compared with women, likely explained by men's higher sweat secretion per gland^13,27; and women show higher cold and heat pain sensitivity with quantitative sensory testing.²⁸

Similar to results observed with IENFD or corneal confocal microscopy,^12,26 BMI appeared to have no significant effect on ESC results. A slight decrease with age was observed in hands and feet ESC values. Different studies of IENFD and corneal confocal microscopy have reported contradictory results regarding the effect of age on these measures.^{12,29

–33} Low et al.,¹³ using the QSART, found a decrease in sudomotor function with age more or less pronounced depending on the site of measurement. The reduction of sweat function with aging observed in QSART is mainly due to a lower sweat output per sweat gland along with a less marked decrease in the number of sweat glands.¹³ This concurs with studies performed on mice that evidenced identical findings: reduced sweating with age was mainly due to a lower sweat output per sweat gland, with a less marked decrease in the number of secreting sweat glands.³⁴ This could explain the lesser relationship with age observed in hand and foot ESC values, which are independent of sweat volumes, contrary to QSART.¹³ Overall, measurement of ESC has higher between-limb symmetry and age-related stability compared with other measures of small fiber function.

An important effect of ethnicity on normal ESC was observed. African American, Indian, and Chinese subjects had mean hands and feet ESC values 10–15 μS lower than those of whites. This difference was also observed between the subgroups of whites and African Americans confirmed to have normal peripheral nerve function during detailed assessments. Few data on differences in sudomotor function related to ethnicity are available, but a recent study has reported that QSART volumes are smaller in Chinese subjects.³⁵ Whether differences in the inherent mechanisms of sweating (i.e., ion transport or small nerve fibers) or other factors are responsible for ESC ethnic variations remains to be established. Furthermore, the small numbers of African American and Asian subjects in this study do not allow for an adequate population comparison with white subjects or establishment of normative ESC ranges for these ethnicities.

The limited variation observed in hands ESC between a first measurement made at rest and a second measurement performed just after exercise and the absence of variation in feet ESC agrees with the reproducibility between two measurements at rest observed in previous studies and with the lack of effect of exercise on a population of more than 100 subjects, including some with higher BMI.¹⁵ These results confirm that feet ESC could be used for large-scale screening where the observance of a sufficient period of rest before measurement cannot be ensured¹⁵ or for evaluation of autonomic function change in lifestyle intervention studies.

Tests of sudomotor function are recognized as valuable in the evaluation of peripheral small fiber neuropathies, but their clinical and research use has been restricted by test complexity, lack of access, or limited accuracy and reproducibility. Table 3, comparing the reported performance of sudomotor tests, indicates that simple ESC measurements perform very competitively against validated sudomotor standards.

Table 3.

Sudomotor Testing Performance for Evaluation of Distal Small Fiber Dysfunction

		Small fiber dysfunction
Test	Reproducibility	Sensitivity	Specificity
Thermoregulatory sweat testing	High reproducibility³⁶	72–74% (distal anhydrosis)	High
Sympathetic skin response	CV for latency = 9–16%; CV for amplitude = 13–30%³⁷	Low–moderate^36,38	Not available
Quantitative sudomotor axon reflex test	ICC foot = 0.48–0.52^39,40	74–90%^41,42	>90%⁴¹
ESC (Sudoscan)	Feet ESC CC = 0.93, hands ESC CC = 0.85 between two devices	75–80%⁴³	76.2–100%^7,11,43
Sweat gland nerve fiber density	Inter-rater variability = 10.2 ± 8.4%^a	Not available	Not available
Neuropad	CV = 4.1–5.1%⁴⁴	52–97.8%^45 –47	66–96%⁴⁸

Internal laboratory quality assurance data on file at Therapathcommunicated to the authors.

CC, correlation coefficient; CV, coefficient of variation; ESC, electrochemical skin conductance; ICC, intraclass correlation coefficient.

This study has limitations: (1) The absence of peripheral neuropathy was not confirmed by a complete neurological clinical examination in the Primary Cohort, although it was performed in smaller subsets of white and African American subjects.^7
–9,11 (2) ESC measurements were carried out by different investigators using different devices. However, the hardware, stimulus intensity, and software algorithm are identical, the measurement is objective and not operator-dependent, and the reproducibility between two devices has been tested previously.²³ (3) Although only data from healthy participants were used in this analysis, different testing centers selected participants using different criteria. Regardless, mean and median ESC results were relatively comparable across studies. (4) Some age and ethnic groups are underrepresented. Normative data for children are not examined in this study, and larger studies in different ethnic groups are necessary to define normative values for these subgroups. (5) Finally, additional comparisons among IENF structure, sweating per se, and ESC measurements are necessary to establish correlations between the structure and function of sweat glands and the peripheral nervous system as a whole. Such information would augment the value of this simple, rapid, and highly reproducible and stable test (1) in the diagnosis and management of patients with peripheral nerve damage, (2) for use as a screening tool, and (3) as an end point in clinical trials in neuropathy.

In conclusion, this analysis performed on 1,350 healthy subjects demonstrates that factors influencing ESC measurements include ethnicity and, to a lesser extent, age, which compares favorably with more invasive or technically complex reference methods for identification and evaluation of neuropathy. The normative ranges presented here should help to interpret ESC results and to enhance the value of their measurement when evaluating peripheral nerve fiber function. Further work is required to validate the measurements among all ethnic groups.
