Cu(II) Catalytic Reduction of Cr(VI) by Tartaric Acid Under the Irradiation of Simulated Solar Light

Materials

All the chemicals used were of analytic reagent and used without further purification. K₂Cr₂O₇, used as a source of hexavalent chromium, was dried at 120°C for 2 h before weighing. The stock solutions of Cr(VI), Cu(II), and tartaric acid were prepared with deionized water and their concentrations were 4, 8, and 40 mM, respectively. 1,5-Diphenylcarbazide (DPC; purchased from Sigma-Aldrich Company), acting as the chromogenic agent, was prepared by dissolving 0.25 g DPC in 100 mL acetone, which was stored in an amber bottle and then kept in a refrigerator before use. 2,2′-Biquinoline, a characteristic reagent for Cu(I), was also obtained from Sigma-Aldrich Company. NaOH and HCl were used to adjust the initial pH of solutions. All the glassware used in the experiments was soaked in 1 M HCl for at least 6 h and thoroughly rinsed with tap water and then deionized water.

Experiments

Cu(II) photocatalytic reduction of Cr(VI) by tartaric acid was conducted in an XPA-7 photochemical reactor (Xujiang Electromechanical Plant) that was equipped with a magnetic stirrer and a device controlling temperature. A 500-W xenon lamp was used as a light source of simulated solar light at the wavelengths from 300 to 800 nm, which was positioned inside a cylindrical Pyrex vessel surrounded by a circulating water Pyrex jacket to cool the lamp. The schematic diagram was illustrated in our previous paper (Tian et al., 2010). For typical photocatalytic reactions, the stock solutions of Cu(II) and tartaric acid were introduced into a 50 mL quartz tube, and the mixed solution was diluted with deionized water to ∼35 mL. Then, 0.1 M NaOH and HCl were used to adjust the initial pH to the desired values (3, 4, 5, and 6). Third, the solution was diluted to 39 mL with deionized water again and kept in a thermostatic bath at the desired temperatures (15–35°C) for 30 min. Finally, 1 mL Cr(VI) stock solution was added to the tube and the total volume of the solution was 40 mL. The solution was rapidly mixed before being placed in the photochemical reactor. The temperature was maintained with the thermostatic bath, and the solution was stirred with a magnetic bar at 500 rpm during the irradiation. At appropriate time intervals, 1 mL aliquot of solution was withdrawn from the quartz tube using a pipette for Cr(VI) analysis.

The reduction of Cr(VI) by tartaric acid in the presence of Cu(II) in dark as a control was also performed in the photochemical reactor under the other same conditions. The initial concentrations of Cu(II), tartaric acid, and Cr(VI) were 400, 1,000, and 100 μM, respectively.

Analytical methods

Cr(VI) concentrations in the solution were determined by the DPC colorimetric method (Jiang et al., 2012). One milliliter sample was added to the mixture of 1 mL DPC and 1 mL H₂SO₄ (1:20 v/v), which was used to adjust the pH for color development. The volume was adjusted to 10 mL with deionized water. The concentration of Cr(VI) was measured by monitoring its absorbance at 540 nm with an Alpha-1502 Spectrophotometer. Cu(I), an intermediate, was detected using 2,2′-biquinoline acting as the chromogenic agent, which was extracted with isoamyl alcohol (Wei and Qian, 2002) and the absorbance was measured at 545 nm (see Supplementary Fig. S1 for the adsorption curve). The concentration of tartaric acid in the stock solution was measured on a high-performance liquid chromatography (Waters 2487). The mobile phase consisted of 25 mM diammonium phosphate at pH 2.8 with 3% (v/v) MeOH. Lichrospher C₁₈ (5 μm, 250×4.6 mm) was used as the separation column, and the component in the effluent was detected at 214 nm. The concentrations of Cu(II) in the stock solution were determined by atomic absorption spectrometry (HITACHI 180-80). Total organic carbon (TOC) in aqueous solution was determined with Shimadzu TOC-L analyzer. Oxygen was used as carrier gas with a pressure of 200 kPa at the following velocity of 150 mL/min.

Effect of Cu(II) on the Cr(VI) reduction by tartaric acid

The Cr(VI) reduction by tartaric acid in the presence and absence of Cu(II) is illustrated in Fig. 1. Almost no reduction of Cr(VI) was observed within 2 h without light whether in the presence of Cu(II) or not. The results showed that the reduction of Cr(VI) by tartaric acid alone was very slow, and the effect of Cu(II) on the removal of Cr(VI) by tartaric acid without light was negligible. The irradiation of simulated solar light weakly affected the reduction of Cr(VI) by tartaric acid, and the removal percentage of Cr(VI) increased by ∼5% as compared with the experiment in the dark. However, 100 μM Cr(VI) was almost completely removed within 80 min in the presence of 400 μM Cu(II) with the simulated solar light, demonstrating that Cu(II) can significantly improve photochemical reduction of Cr(VI) by tartaric acid.

OPEN IN VIEWER

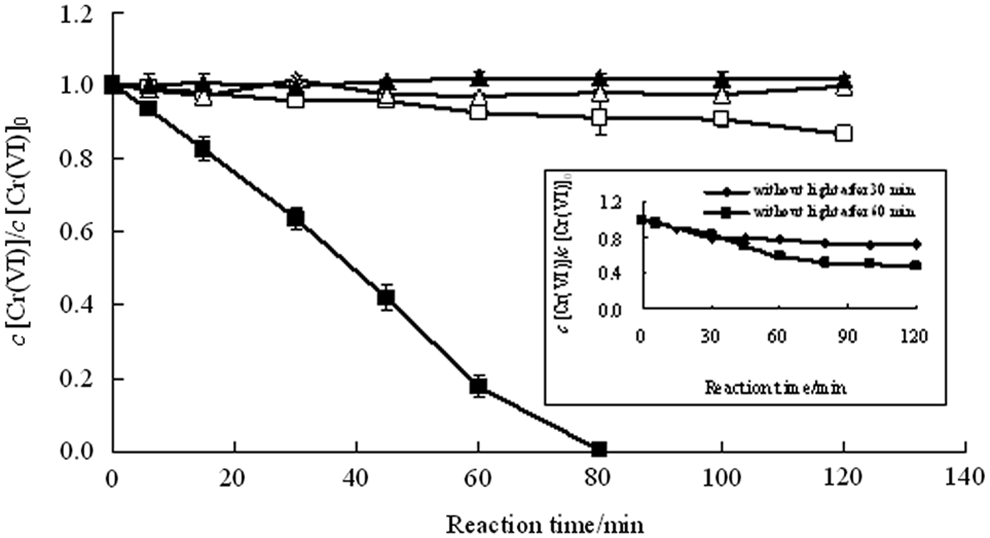

FIG. 1.

Reduction of Cr(VI) by tartaric acid at pH 4 and 25°C. Experimental conditions: c[Cr(VI)]₀=100 μM, c(tartaric acid)₀=1 mM. □ 0 μM Cu(II) with light; ■ 400 μM Cu(II) with light; Δ 0 μM Cu(II) without light; ▲ 400 μM Cu(II) without light.

It has been reported that Mn(II) without light can strongly catalyze the reduction of Cr(VI) by citric acid under weakly acidic conditions because of the formation of Cr(VI)-citric acid-Mn(II) complex (Li et al., 2007; Lan et al., 2008), and Fe(III) photocatalytic reduction of Cr(VI) by organic acids with α-OH is extremely fast due to the formation of a photochemically active complex, which releases stronger reductants by shuttling electrons (Sun et al., 2009). Similar to Fe(III), Cu(II) reacted with tartaric acid to form a complex and also had a lower oxidation state, Cu(I). Under the irradiation of light, Cu(II)-tartaric acid complex produced Cu(I) and tartaric acid radicals through a pathway of metal–ligand–electron transfer. To prove this hypothsis, a full-length scan experiment was performed and it verified the formation of Cu(II)-tartaric acid complex (Supplementary Fig. S2). Furthermore, we introduced 2,2′-biquinoline into the reaction system and a red complex in isoamyl alcohol solution as extracting agent was observed, which confirmed the generation of Cu(I) during the reaction (Wei and Qian, 2002). A similar result was also reported by Ciesla et al. (2004), who revealed that Cr(III)–EDTA complex could generate a Cr(II) center and the EDTA^• radicals by a photoinduced inner sphere electron transfer.

Cr(VI) photochemical reduction is a complicated reaction. Hug et al. (1997) reported that Fe(III) photocatalytic reduction of Cr(VI) by oxalic acid involved four processes: (1) photolysis of Fe(III)-oxalate and formation of products such as Fe(II)-oxalate, CO₂^•−, and O₂^•−; (2) reactions of Cr(VI) and Cr(VI) intermediates [Cr(V), Cr(IV)] with Fe(II), HO₂/O₂^•−, and CO₂^•− in the presence of oxalic acid; (3) other reactions, including the reaction of Fe(II) and reactive oxygen species; and (4) formation of Fe(III)-oxalate. Based on the determination of previously discussed intermediates by this study and the mechanism proposed by Hug et al. (1997) and taking into account the fact that an irradiation of simulated solar light could also cause a slow photoreduction of Cr(VI) by tartaric acid alone (Fig. 1), it was hypothesized that organic radicals could also be yielded due to the absorption of light by tartaric acid itself. In the presence of both Cu(II) and tartaric acid, Cu(I) (E^o_Cu(II)/Cu(I)=0.153 V) (Lide, 2005) along with organic radicals and CO₂^•− converted Cr(VI) to Cr(III) step by step, accompanied with the reproduction of Cu(II). Again, Cu(II)-tartaric acid complex formed. Consequently, a cycle process of converting Cu(II) to Cu(I) in the reaction system was established. The main reactions mentioned earlier were summarized as follows: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} {\rm Cu (II)} + {\rm Tar} \rightarrow {\rm Cu ( II)} - {\rm Tar} \tag {1} \end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm Cu ( II ) } - { \rm Tar} {{hv} \atop {\rightarrow}} { \rm Cu ( I ) } + { \rm Tar}^\blacksquare \tag {2} \end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm Tar} {{hv} \atop {{\rightarrow}}} { \rm Tar}^\blacksquare \tag{3}\end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm Tar}. {{hv} \atop {{\rightarrow}}} { \rm CO}_2^{-} \blacksquare \tag{4}\end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm Tar}^\blacksquare + { \rm Cr ( VI ) } \rightarrow { \rm Cr ( III ) } + { \rm Tar \ intermediates} + { \rm H}_2{ \rm O} + { \rm CO}_2 \tag{5}\end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm CO}_2^{-} \blacksquare + { \rm H}^{ + } + { \rm Cr ( VI ) } \rightarrow { \rm Cr ( III)} + { \rm H}_2{ \rm O} + { \rm CO}_2 \tag{6}\end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm Cu ( I ) } + { \rm Cr ( VI ) } \rightarrow { \rm Cu ( II ) } + { \rm Cr ( III ) } \tag{7}\end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm Tar \ intermediates} + { \rm Cr ( VI ) } \rightarrow { \rm Cr ( III ) } + { \rm H}_2{ \rm O} + { \rm CO}_2 \tag{8}\end{align*} \end{document}

In order to further investigate the effect of irradiation on Cr(VI) reduction, the solution after the reactions for 30 and 60 min with light was transformed to an amber bottle (see insert in Fig. 1). It was observed that Cr(VI) was still reduced. The reaction rate was much slower than that with light, but faster than that in the dark. This demonstrated that Tar intermediates continuously converted Cr(VI) to Cr(III) according to Equation (8).

In addition, TOC in aqueous solution was determined and it was observed that ∼4% of TOC by the end of the reaction was removed. The decrease of TOC after the reaction possibly resulted from the release of CO₂, as summarized in Equations (5), (6), and (8).

Effect of pH on the photochemical reduction of Cr(VI) by tartaric acid

The effect of initial pH on the reduction of Cr(VI) by tartaric acid in the presence and absence of Cu(II) was investigated, and the results are shown in Fig. 2. In the absence of Cu(II), the reduction rate of Cr(VI) by tartaric acid obviously increased with pH decreasing from 6 to 3, although all the reactions were slow. However, a different tendency of pH effect on the Cr(VI) reduction in the presence of Cu(II) was observed. The removal of Cr(VI) increased with pH increasing from 3 to 4, but decreased with pH increasing from 4 to 6. The optimal removal of Cr(VI) was achieved at initial pH 4. The phenomenon observed in this study was not completely consistent with the phenomena described in the literature (Hug et al., 1997; Sun et al., 2009), in which it was reported that Fe(III)-photocatalytic reduction of Cr(VI) increased with pH decreasing from 3.0 to 4.5 in the presence of tartaric acid (Sun et al., 2009), and decreased almost linearly with pH increasing above pH 5.5 in the presence of oxalic acid (Hug et al., 1997). This implied that the effect of pH on the reduction of Cr(VI) by organic acids assisted by transition metal ions might be complicated.

OPEN IN VIEWER

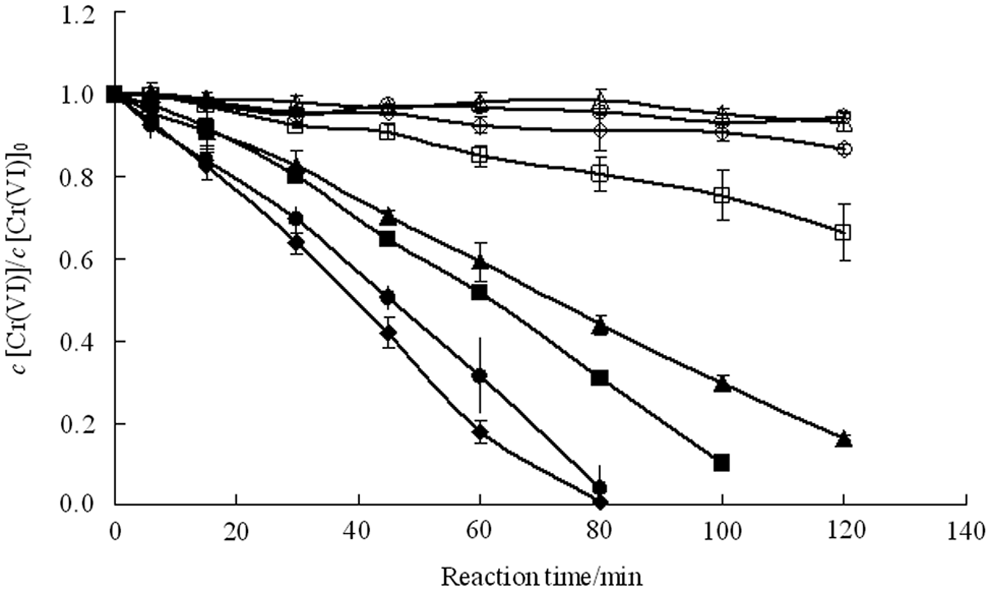

FIG. 2.

Effect of pH on Cu(II) photocatalytic reduction of Cr(VI) by tartaric acid with 500 W xenon lamp at 25°C. Experimental conditions: c[Cr(VI)]₀=100 μM, c(tartaric acid)₀=1 mM, and c[Cu(II)]₀=400 μM. Initial pH: ■ 3 [□ control without Cu(II)]; ♦ 4 (◊ control); ● 5 (◯ control); ▲ 6 (Δ control).

Cr(VI) mainly exists in the form of HCrO₄⁻ at pH from 1 to 6 and CrO₄²⁻ (or Cr₂O₇²⁻ at a high concentration) above pH 7 (Kotas and Stasicka, 2000). Cr(VI) in the form of HCrO₄⁻ at pH 3–6 was reduced to Cr(III) as follows: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm HCrO}_4^{ - } + 7{ \rm H}^{ + } + 3{ \rm e}^{ - } \rightarrow { \rm Cr}^{3 + } + 4{ \rm H}_2{ \rm O} \tag{9}\end{align*} \end{document}

According to Equation (9), the rate of Cr(VI) reduction was closely related to the concentration of H⁺ in the solution. The solution pH by the end of the reaction was measured and it was found that in the all tests, pH increased, which demonstrated that the reaction is consuming H⁺. Therefore, the increase of H⁺ concentration enhanced the conversion of Cr(VI) into Cr(III). As a result, in the absence of Cu(II), ∼30% of the initial Cr(VI) was reduced by tartaric acid at pH 3 within 2 h, but only <10% of the initial Cr(VI) was converted to Cr(III) at higher pH.

Tartaric acid exists in three states in water: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{\rm H}_2 {\rm Tar} \mathop{\rightleftharpoons}^ {K_{{\rm a}_1}} {\rm HTar}^{-} + \, {\rm H}^{+} \mathop{\rightleftharpoons}^{K_{{\rm a}_2}} {\rm Tar}^{2-} + 2 {\rm H}^{+} \tag {10} \end{align*} \end{document}

Obviously, the decrease of H⁺ concentration caused the equilibrium of Equation (10) to shift to the right, resulting in increased Cu(II)-tartaric acid complex. Thus, the reduction of Cr(VI) was significantly enhanced due to more production of Cu(II)-tartaric acid complex with high photochemical activity. However, a low concentration of H⁺ (high pH value) is not conducive to the transformation of Cr(VI) to Cr(III) as previously discussed. Another negative effect on Cr(VI) reduction rate with pH increasing from 4 to 6 possibly resulted from an increase of Cu(II) hydrolysis, which does not benefit the formation of Cu(II)-tartaric acid complex. Therefore, the optimal pH for Cr(VI) removal by tartaric acid in the presence of Cu(II) was 4 in a pH range of 3–6.

Effects of initial concentration of Cu(II) and tartaric acid on the photochemical reduction of Cr(VI)

Effects of the initial concentrations of Cu(II) and tartaric acid on the photochemical reduction of Cr(VI) with an irradiation of 500 W xenon lamp at pH 4 and 25°C were further investigated, and results are depicted in Figures 3 and 4, respectively. In the presence of 1 mM tartaric acid, the removal of Cr(VI) significantly increased with the initial concentration of Cu(II) from 0 to 1,200 μM (Fig. 3). Obviously, with the initial concentration of Cu(II) increasing, more photochemically active complexes of Cu(II)-tartaric acid formed in the reaction system, which accelerated the reduction of Cr(VI). However, in the absence of Cu(II), a slight increase in the reduction of Cr(VI) was observed with increasing the initial concentration of tartaric acid from 0.5 to 4 mM, but it was enlarged in the presence of 400 μM Cu(II) (Fig. 4). This result further confirmed that the reduction of Cr(VI) by tartaric acid alone was weak and Cu(II) played an important role in accelerating Cr(VI) removal with light.

OPEN IN VIEWER

FIG. 3.

Effect of Cu(II) concentration on photocatalytic reduction of Cr(VI) by tartaric acid with 500 W xenon lamp at pH 4 and 25°C. Experimental conditions: c[Cr(VI)]₀=100 μM, c(tartaric acid)₀=1 mM. c[Cu(II)]₀: □ 0 μM; ■ 100 μM; ▲ 200 μM; ♦ 400 μM; ● 800 μM; ─ 1,200 μM.

OPEN IN VIEWER

FIG. 4.

Effect of the concentration of tartaric acid on Cu(II) photocatalytic reduction of Cr(VI) with 500 W xenon lamp at pH 4 and 25°C. Experimental conditions: c[Cr(VI)]₀=100 μM, c[Cu(II)]₀=400 μM. c(tartaric)₀: ■ 0.5 mM [□ control without Cu(II)]; ♦ 1 mM (◊ control); ● 2 mM (◯ control); ▲ 4 mM (Δ control).

The reaction of Cr(VI) removal by tartaric acid with or without Cu(II) could be described as a pseudo zero-order kinetics model as the decrease of c[Cr(VI)]/c[Cr(VI)]₀ was almost linear with reaction time (Figs. 3 and 4). The reaction rate constant (k) and correlation coefficient (R²) are listed in Table 1. The rate constants of Cr(VI) reduction by 1 mM tartaric acid in the presence of 100, 200, 400, 800, and 1,200 μM Cu(II) increased by 5.6, 8.56, 11.8, 15.5, and 18.8 times, respectively, as compared with that in the absence of Cu(II). The removal rates of Cr(VI) increased with the initial concentration of tartaric acid alone from 0.5 to 4 mM, but as previously discussed, the amplitude was much small in comparison with that in the presence of Cu(II).

Effect of temperatures on photochemical reduction of Cr(VI)

The effect of temperatures on the photochemical reduction of Cr(VI) by 1 mM tartaric acid at pH 4 with and without Cu(II) is illustrated in Fig. 5. In the absence of Cu(II), the temperature exerted a very weak impact on the reduction of Cr(VI) by tartaric acid, and almost no difference in the reaction rate was observed when the temperature increased from 15°C to 35°C. However, in the presence of 400 μM Cu(II), the temperature played an important role in accelerating the removal of Cr(VI) by tartaric acid. Cr(VI) with an initial 100 μM was almost completely converted to Cr(III) within 2 h at 15°C, but it took only 1 h at 35°C. The rate constants were 0.89, 1.29, and 1.60 μM/min at 15, 25, and 35°C, respectively.

OPEN IN VIEWER

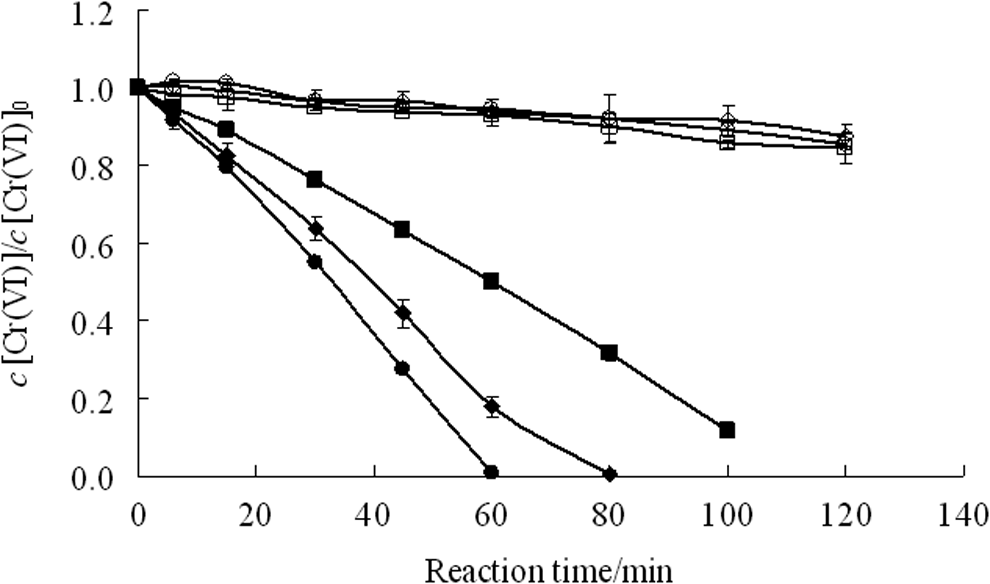

FIG. 5.

Effect of temperature on Cu(II) photocatalytic reduction of Cr(VI) by tartaric acid with 500 W xenon lamp at pH 4. Experimental conditions: c[Cr(VI)]₀=100 μM, c(tartaric acid)₀=1 mM, and c[Cu(II)]₀=400 μM. ■ 15°C [□ control without Cu(II)]; ♦ 25°C (◊ control); ● 35°(◯ control).

The activation energy (E_a) for the Cu(II) photocatalytic reduction of Cr(VI) by tartaric acid was evaluated by plotting ln k versus 1/T (K⁻¹), and the value was 21.48 kJ/mol.
