Hydrolyzed Poly(acrylonitrile) Electrospun Ion-Exchange Fibers

Reagents

PAN polymer (M_w 150,000 g/mol) was purchased from Scientific Polymer Products, Inc. Micron-sized staple PAN fibers were supplied by William Barnet & Son, Inc. NaOH (10 N) was purchased from Fisher Scientific, and N,N′-Dimethylformamide (DMF, 99%) was purchased from Sigma Aldrich Co. A sample of weak-acid cation-exchange resin of carboxylate functional group, Amberlite CG-50, produced by the Dow Chemical Company, was purchased from Fisher Scientific. Its nominal particle size was 75–150 μm, and its IEC was determined to be 3.3 meq/g. De-ionized water was used to dilute the sodium hydroxide solution to a required concentration and for washing the samples. All other chemicals and reagents were purchased from Sigma Aldrich Co.

Electrospinning

PAN/DMF solution, with a concentration of 10 wt.%, was prepared by stirring at a temperature of 70°C until a homogeneous solution was obtained. The viscosity of this solution was measured to be around 2280 cP. PAN fibers were electrospun at a constant flow rate of 2.4 mL/h, which was maintained using a syringe pump (Harvard Apparatus). A voltage of 20 kV was applied between the needle and collector plate using a high-voltage power supply (Gamma High Voltage Research), and the tip to collector distance was maintained at 21.6 cm. The electrospinning process was carried out at 20°C±2°C. Electrospun fibers were collected on an aluminum plate that was placed on an insulated platform. Fiber collection was random and in the form of a nonwoven mat. Electrospinning of PAN has been studied in detail (Liu and Hsieh, 2006; Moroni et al., 2006; Sutasinpromprae et al., 2006; Wang and Kumar, 2006; Zhang et al., 2010a; Chiu et al., 2011) for various applications, including carbon fiber preparation and environmental engineering applications, and the parameters used for electrospinning in the present study were chosen based on a review of existing literature.

Apparatus and instrumentation

Viscosity of the electrospinning solution was measured using a DV II+viscometer from Brookfield that was equipped with a temperature controller TC-102.

A Fourier-Transform infra-red spectrometer (FTIR) - FTS 3000MX, (Digilab) - supplemented with a Bio-Rad UMA 500 Infrared microscope was used to analyze the sample composition before and after hydrolysis.

Surface characteristics of electrospun fibers and micron-sized fibers were analyzed using a JEOL M5610 (Peabody) scanning electron microscope (SEM). The fiber samples were placed on an SEM stub that was covered with double-sided sticky carbon tabs, and they were sputter coated with gold using a Denton Vacuum Desk IV sputtering machine. Fiber diameter was measured using image-processing software (ImageJ; National Institute of Health).

X-ray photoelectron spectroscopy (XPS) (PHI Quantum 2000; Physical Electronics, Inc.) was used to analyze the surface elemental composition of the material before and after functionalization.

IEC was determined from mass balance in binary isotherm tests. The IXF preloaded with one cation (Na⁺) was placed in a solution with a known concentration of another counterion (e.g., Ca²⁺). After 24 h of stirring, while the pH was maintained between 8 and 9, equilibrium was assumed to be attained. The mass of one counterion lost from the solution (Ca²⁺) and the other (Na⁺) released into the solution from the IXF was obtained from ion chromatography analysis (Dionex ICS-90) of the initial and final solution. The ICS-90 was run with 20 mM methanesulfonic acid as the eluent, 100 mM tetrabutylammonium hydroxide as the cation regenerant, and a flow rate of 1.5 mL/min. These data were used to determine the IEC, hereafter reported as milliequivalents per dry gram (meq/g) of the material (Helfferich, 1995). Significance testing was done using Analysis-of-Variance (ANOVA) test, and the significance was set at a p-value that was less than or equal to 0.05.

An atomic absorption spectrophotometer (Perkin Elmer AAnalyst 300, flame mode) was used to determine the copper concentration of various initial and final solutions for selectivity factor and kinetic uptake experiments.

Hydrolysis

Two forms of PAN, micron-sized fibers and electrospun fibers, were treated chemically with an alkali to obtain an ion-exchange material by converting the nitrile groups present in the native PAN to carboxylic acid groups. The material was hydrolyzed based on the conditions reported by Zhang et al. (2009). Briefly, about 1 g of PAN was added to 250 mL solution of 2 N NaOH or 2 N KOH prepared in deionized water at different time and temperature conditions under stirring. After treatment, the material was allowed to cool and then washed extensively with de-ionized water. The functionalized PAN was dried in an oven at 40°C and placed in an appropriate solution for determination of IEC. The experiments were replicated identically at least thrice for IEC determination.

Separation factor coefficient determination

Hydrolyzed electrospun fibers preloaded with copper were regenerated using 0.01 M nitric acid. Next, they were loaded with Ca²⁺ by stirring them in a calcium nitrate solution (10,000 mg/L as Ca⁺²). The pH was maintained >8 by addition of calcium hydroxide solution over the period of 24 h. After the specified time interval, fibers were again filtered, thoroughly rinsed with DI water, and loaded with different concentrations of copper nitrate solution (30–150 mg/L as Cu⁺²). No pH adjustment was made over the time interval of the process and after 24 h, the fibers were filtered and stored in DI water until further use. The solutions were analyzed for Cu and Ca concentrations. The experiments were replicated identically thrice for selectivity factor determination.

Uptake kinetics

After hydrolysis, a predetermined mass of fibers (prepared in the lab according to the procedure outlined in Electrospinning section) or resin of the same functional group (carboxylate - commercial name Amberlite CG-50 available from the Dow Chemical Company, no commercial endorsement implied) was inserted in a rapidly stirred 0.1 M NaCl solution for 24 h to achieve saturation Na⁺ loading. pH >8.0 was maintained through use of 0.1 N NaOH. Next, the fibers or resin beads were filtered, thoroughly rinsed with DI water, and loaded with calcium nitrate solution (133.33 mg/L as Ca⁺²) for 24 h under stirring with the pH maintained at >8 through use of calcium hydroxide solution. After 24 h, fibers or resin beads were filtered and loaded with copper nitrate solution for kinetic uptake determination (initial Cu⁺² conc.=100 mg/L). pH was not adjusted, and a predetermined volume of the solution was withdrawn at each time point (30 s–24 h) for copper analysis. Calcium concentration of the samples was carried out to establish equivalent exchange.

Column experiment

Fixed-bed column runs were carried out in Adjusta Chrom^® (Ace Glass, Inc.) glass columns that were 300 mm long with a 25 mm inner diameter. A predetermined mass of micron-sized, hydrolyzed PAN fibers was packed into the column. The influent was pumped into the column in a downflow direction using synchronous pumps, FMI Lab Pump, Model QSY (Fluid Metering, Inc.). Effluent sample from the column was collected by a Spectra/Chrom® CF-1 Fraction Collector (Spectrum Chromatography). The flow was adjusted to maintain constant EBCT for all the column runs at 3.5 min. An online pH meter was also connected in the system to monitor the effluent pH. Regeneration of the bed was performed similarly by passing the regenerant (0.01 M nitric acid) in a downflow direction, and the spent regenerant samples were also collected in a similar fashion. The regenerated bed was rinsed with deionized water, after which a 10,000 mg/L (as Ca²⁺) calcium nitrate solution was passed for 10 BV to be preloaded with Ca²⁺ and to be used for another exhaustion run.

Fiber characterization

Figure 1 depicts the SEM images of the electrospun PAN fibers and micron-sized staple PAN fibers. The corresponding diameter distribution for both types of fibers is shown in Fig. 2. For the electrospun fibers, before functionalization, the SEM image reveals a uniform and nonbeaded fiber morphology. The average fiber diameter is ca. 720 nm and the diameter distribution shows a small tail, which is characteristic of the size distribution for electrospun fibers (Chen et al., 2006). Diameter analysis of the micron-sized staple fibers revealed an average fiber diameter of 19.66 μm, with a much smaller variability in the fiber size distribution. This behavior is attributed to the difference in the spinning technique that is utilized to form the two fibers. During fiber formation by electrospinning, the initial stages of whipping instability result in a massive jet thinning, resulting in uneven fiber stretching (Fang et al., 2010). This phenomenon is absent in the solution spinning process that was used to generate micron-sized staple fibers.

OPEN IN VIEWER

FIG. 1.

SEM image of (a) Electrospun poly(acrylonitrile) (PAN) fibers (b) Micron-sized staple PAN fibers (Magnification: 500, Scale bar: 50 μm).

OPEN IN VIEWER

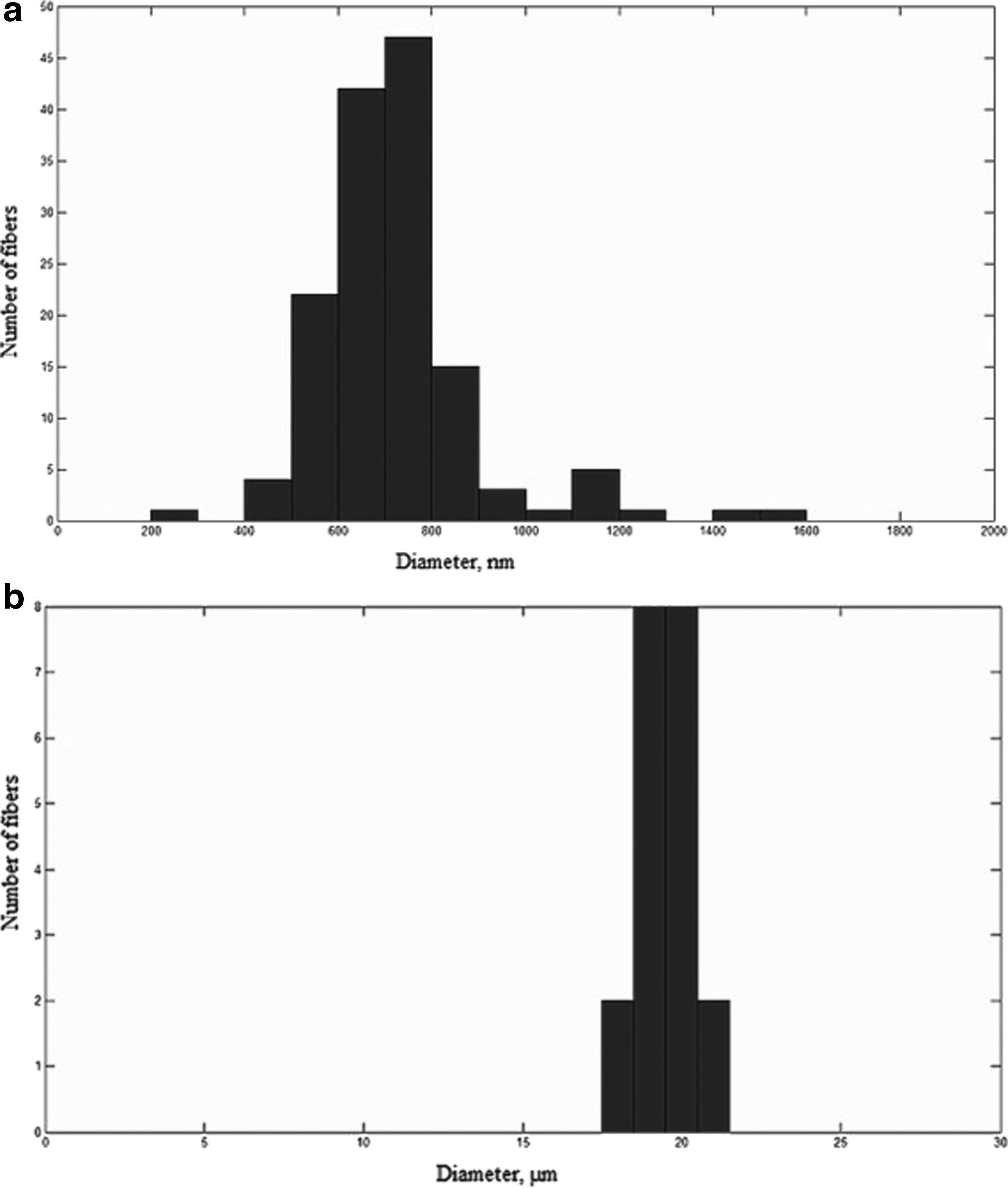

FIG. 2.

(a) Diameter distribution of electrospun PAN fibers, average fiber diameter 720 nm, (b) Diameter distribution of micron-sized staple PAN fibers, average fiber diameter 19.66 μm.

Hydrolysis chemistry

Table 1 shows the XPS data of atomic weight% of elements in electrospun PAN before and after hydrolysis with 2 N NaOH. The results depict an increase in the oxygen to carbon ratio from 0.017 to 0.829 and a decrease in the nitrogen to carbon ratio from 0.297 to 0.018. The nitrile group of PAN can be hydrolyzed to amide and carboxylic groups by reacting it with an alkali (Yang and Tong, 1997; Bajaj and Kumari, 1988). Litmanovich and Platé (2000) hypothesized that, initially, hydrolysis results in≈20% amidines which are situated in the nearest neighborhood of carboxylate groups, and after complete hydrolysis of the amidines, poly[(sodium acrylate)-co-acrylamide] is formed. However, we did not find any evidence of this reaction scheme. The almost complete absence of nitrogen in the hydrolyzed sample obviously indicates the absence of any amide. Figure 3 shows the XPS survey and elemental scan of alkali hydrolyzed electrospun PAN, where the binding energy values are reported for carbon 1s (285 eV), oxygen 1s (533 eV), nitrogen 1s (around 400 eV), and sodium 1s (1072 eV). It is obvious that the nitrile bonds present in unfunctionalized PAN have been converted into carboxylic acid groups, with the hydrogen being replaced with sodium ions as the carboxylic functionality would remain mostly in the form of–COO⁻Na⁺ (Zhang et al., 2010b). It has been reported that PAN with a certain content of–COOH swells easily when it is exposed to an aqueous medium (Wang et al., 2007). The same phenomenon was observed after the hydrolysis reaction in the present experiments, further indicating the presence of carboxylic acid groups.

OPEN IN VIEWER

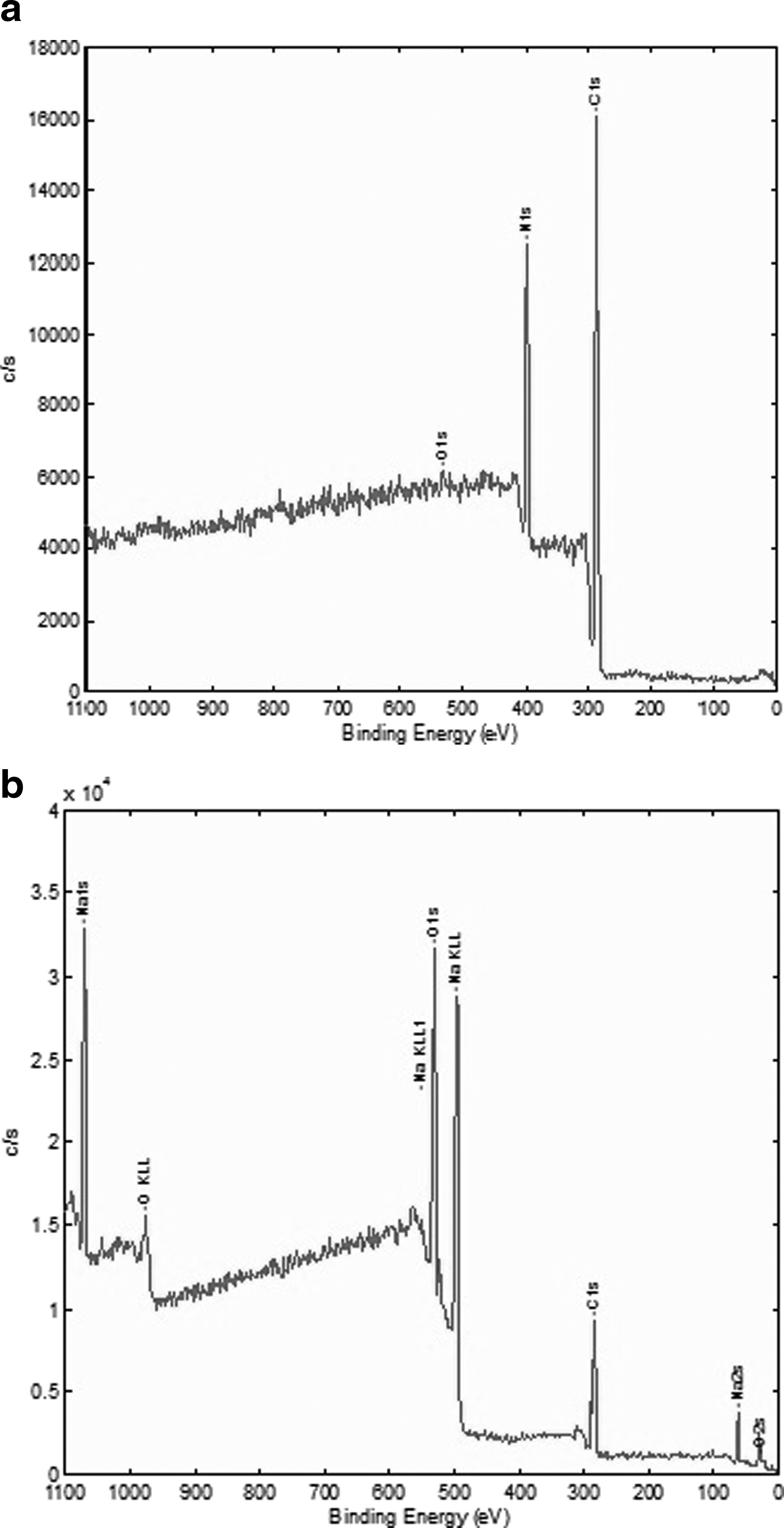

FIG. 3.

X-ray photoelectron spectroscopy analysis of electrospun PAN fibers before (a) and after (b) hydrolysis with sodium hydroxide.

Figure 4 shows the FTIR scan for various electrospun PAN fibers before and after hydrolysis with NaOH and KOH. Here, control refers to electrospun fibers treated with water under same conditions to rule out any effect of water on the fibers at high temperature (70°C). The electrospun PAN fibers and the control PAN fibers show a characteristic peak around 2,242 cm⁻¹ that corresponds to the–CN bond. The hydrolysis, with both NaOH and KOH, leads to the development of peaks around 1,700 cm⁻¹, which is attributed to the C=O bond stretching for the carboxylic acid group and a broad peak around 3,300 cm⁻¹, that corresponds to the–OH bond stretching present in the carboxylic acid (Oh et al., 2001a, 2001b; Lohokare et al., 2006; Zhang et al., 2010b). It is evident from these results that the nitrile bonds present in PAN polymer are being hydrolyzed to carboxylic acid groups, which can be utilized for ion-exchange applications.

OPEN IN VIEWER

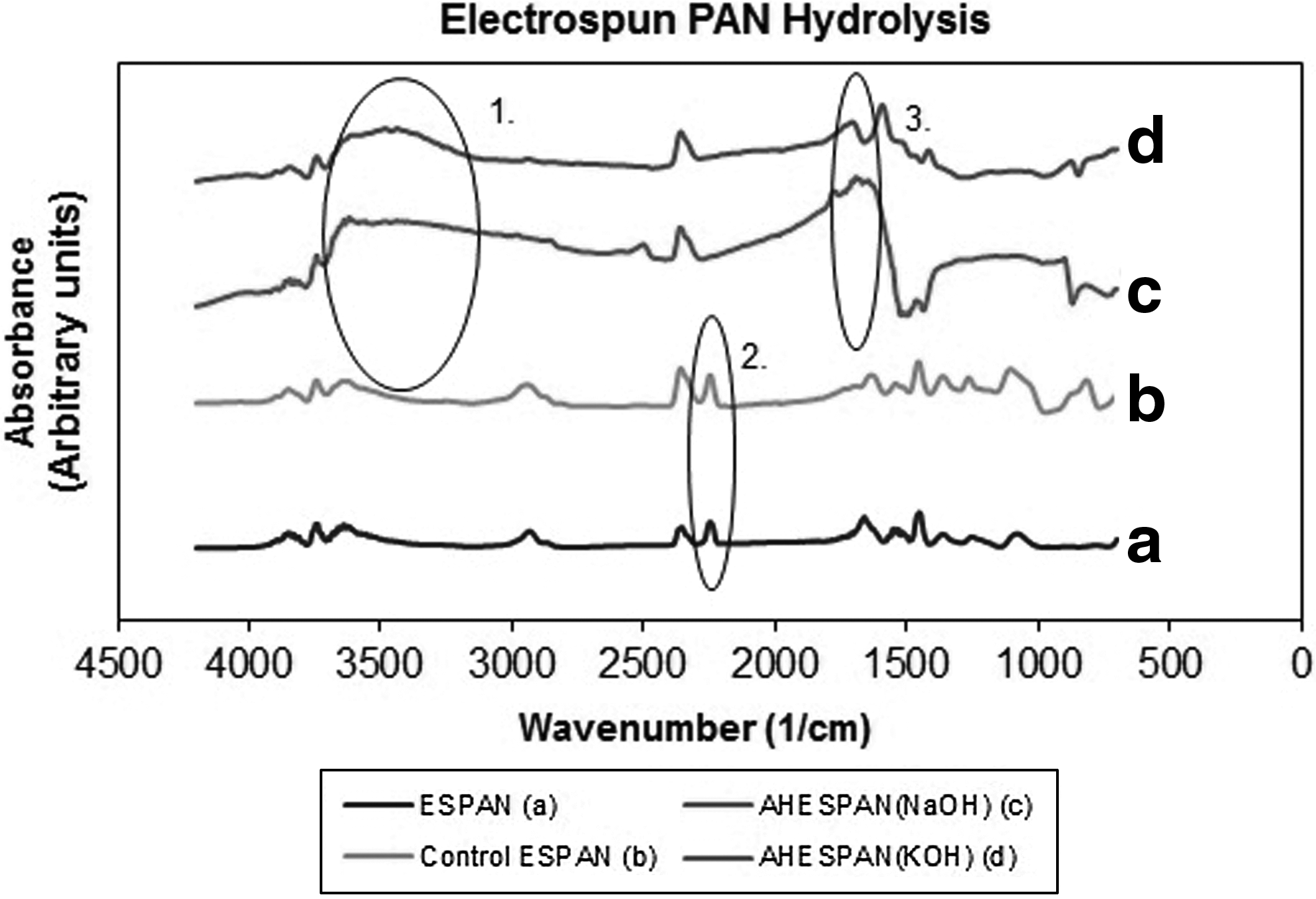

FIG. 4.

FTIR spectra for electrospun PAN fibers before and after hydrolysis with sodium hydroxide and potassium hydroxide (1: -OH group, 2: -CN group, 3: -C=O group, ESPAN: Electrospun PAN, AHESPAN: Alkali Hydrolyzed Electrospun PAN).

Optimization of hydrolysis conditions

Based on experiments performed at different time and temperature conditions (data not shown), hydrolysis process conditions were optimized at 70°C and 30 min to obtain maximum IEC for electrospun fibers. Table 2 shows the IEC after hydrolysis with either NaOH or KOH for electrospun as well as for micron-sized fibers. Control samples were prepared by treating electrospun fibers with de-ionized water (under the same reaction conditions utilized for functionalization by alkali hydrolysis) to determine whether it resulted in the formation of hydrolyzed functional groups. Negligible IEC was found in the control samples, indicating that alkali treatment alone hydrolyzes nitrile groups of the PAN polymer and, therefore, is responsible for formation of the carboxylate functional groups. Further, the results indicate that the electrospun fibers show higher IEC as compared with the micron-sized fibers. Statistical significance analysis shows that the results obtained for the electrospun fibers are significantly different from the micron-sized fibers (p<0.05). This could be due to the higher surface area obtained by using sub-micron-sized fibers, which present more nitrile groups on the surface for hydrolysis. Our results are consistent with the work done by Neghlani et al. (2011), where a comparison of metal adsorption capacity of aminated PAN nanofibers and microfibers revealed the functionalization percentage to be 30% and 6%, respectively. They attributed this effect to the higher specific surface area provided by smaller-diameter nanofibers and a large number of chelating amine sites present on the aminated nanofibers.

From Table 2, it is evident that the treatment with KOH gives higher values as compared with treatment with NaOH. Zhang et al. (2009) observed the difference in functionalization of PAN membranes due to the two different alkali species and attributed the difference (in the degree of hydrolysis) to the attack strength of the hydroxyl group. Young (2002) posited this to the tendency to form ion pairs; that is, the tendency to form ion pairs is greatest in LiOH followed by NaOH, although experimental evidence was missing to support ion pair formation in KOH. In the present work, although the results are not significantly different, they are in agreement with the results reported by Zhang et al. (2009).

Although alkali hydrolysis resulted in a significant increase in IEC, the functionalization reaction resulted in degeneration of the fiber morphology. A similar hydrolysis protocol was followed by Chiu et al. (2011) but they did not report any degeneration of fiber morphology. This could be due to their use of PAN polymer that is basically a copolymer of acrylonitrile and vinyl acetate, instead of pure PAN (100% homopolymer) used in the present study. However, their reported ligand capacity (∼0.44 meq/g) was significantly less than that obtained in the present study (∼1.96 meq/g). Preserving the morphology of the electrospun nanofibers immediately after hydrolysis created a challenging situation. After hydrolysis, the fibers turned into a gel-like state and if subsequently dried, would turn into a hardened mass. Figure 5a shows the SEM image taken after drying the hydrolyzed fibers. However, it was observed that after immersing the fibers into different aqueous solutions for measuring IEC, the fibers regained their morphology as depicted in Fig. 5b. Yang and Tong (1997) observed that at high pH, the poly(acrylic acid) (PAA) layer present on the hydrolyzed fibers swell and turn into a hydrogel. During hydrolysis, the electrospun fibers are subjected to a very high pH (∼13) in the 2 N NaOH or KOH solution. This may give rise to the hydrogel layer of PAA in the present case. However, during the subsequent processes, the pH of various rinsing and loading solutions is near neutral and this might reduce/eliminate the hydrogel formation, leading to the reappearance of the fiber morphology.

OPEN IN VIEWER

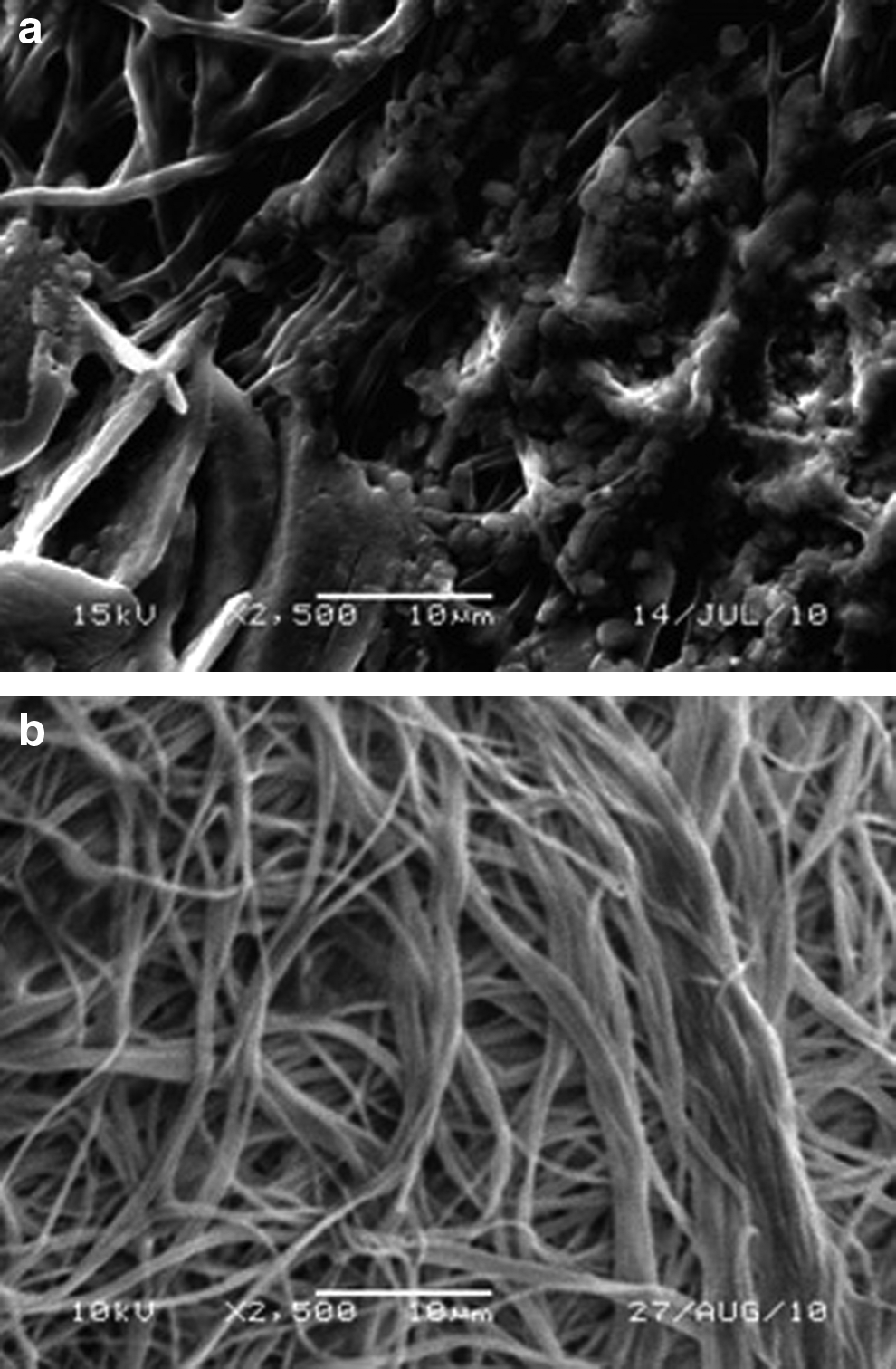

FIG. 5.

SEM images of electrospun fibers after (a) hydrolysis (b) calcium loading for capacity determination (Magnification: 2500, Scale bar: 10 μm).

In order to have a better control over the fiber morphology, trials were done with alternative process conditions and the results are listed in Table 3. The results show that if the time of hydrolysis is reduced from 30 min to 15 min or mechanical agitation is not applied during hydrolysis, the fiber morphology is better preserved. Conversely, if the fibers are immersed in the hydrolyzing solution for a long time, the IEC increases, but the fibers are again converted into a gel-like state.

Separation factor

Chelating exchangers are coordinating polymers with covalently bound side chains which contain one or multiple donor atoms (Lewis bases) that can form coordinate bonds with most of the toxic metal ions (Lewis acids). Due to coordination-type interactions, chelating exchangers offer extremely high selectivity toward commonly encountered toxic Me(II) cations, namely, Cu²⁺, Pb²⁺, Ni²⁺, Cd ²⁺, and Zn²⁺, over competing alkaline (Na⁺, K⁺) and alkaline-earth

(Ca²⁺, Mg²⁺) metal cations.

In the case of Cu²⁺ - Ca²⁺ exchange described in Separation factor coefficient determination section, the ion-exchange reaction may be written as \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}\overline{ ( R^ + COO^ - ) _2 Ca^{2 + }} + Cu^{2 + } \leftrightarrow \overline{ ( R^ + COO^ - ) _2 Cu^{2 + }} + Ca^{2 + } \tag{1}\end{align*} \end{document}

A modified form of the equilibrium relationship for this reaction is given by the Separation Factor, which is a dimensionless measure of relative selectivity between two competing ions, and, in this case, equal to the ratio of distribution coefficient of Cu(II) concentration between the exchanger phase and the aqueous phase to that of calcium ion and is given as follows: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}\alpha_{Cu / Ca} = \frac { [\overline{(R^ + COO^-)_2 Cu^{2+}}] \; [Ca^{2 +}]} {[\overline{R^ + COO^ - )_2 Ca^ {2 +}}] \; \lceil Cu^{2 +} \rceil} \tag {2} \end{align*} \end{document}

For this reaction, the Coulombic and hydrophobic interactions play an insignificant role as both the ions are divalent. However, Lewis acid-base interaction plays a critical role as the binding constant for Cu with the closest ligand analog in the aqueous phase (acetate) is almost 10 times higher than that with Ca - log CaL binding constant=1.2, while log CuL binding constant=2.2 and CuL₂=2.6 (Morel and Herring, 1993). Figure 6 shows the profile of α_Cu/Ca for the hydrolyzed electrospun fiber. The results match data obtained by Roy (1989) and SenGupta et al. (1991) for carboxylate resin. Sengupta et al. (2002) have demonstrated a linear relationship between experimentally determined metal/calcium separation factor for a commercial carboxylate resin (DP-1, no commercial endorsement implied) and aqueous-phase metal-acetate stability constant values. Data available in Fig. 6 also agree with theoretical explanations of the reduction of heavy metal separation factor value with an increase in the aqueous-phase heavy metal concentration (Hudson, 1986; Warshawsky, 1988; and Helfferich, 1995). Thus, it can be stated that equilibrium properties of the carboxylate electrospun fiber are no different from the carboxylate ion-exchange resin.

OPEN IN VIEWER

FIG. 6.

Plot of selectivity factor of copper over calcium for hydrolyzed electrospun PAN fibers.

Uptake kinetics

Figure 7a shows the profile of fractional uptake of Cu by IXF and commercially available resin beads of the same functional group (carboxylate) versus time of contact. Fractional uptake, F(t)=M_t/M_∞, is the ratio of mass of Cu transferred into the exchanger from the aqueous phase at a particular time to the equilibrium mass uptake that was experimentally confirmed to be achieved after 24 h of contact. A detailed discussion of the kinetic model of ion uptake is outside the central objective of this article. In IXF, particle diffusion is usually considered the rate-limiting step (as opposed to liquid film diffusion or chemical reaction) (Stevens and Davis, 1981; Helfferich, 1995; Vuorio et al., 2003). For a two-dimensional analysis of the fiber (Fig. 7b), the governing equation to model the ion-exchange kinetics can be written as follows (Chen et al., 1996): \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} \frac {{\partial} {\overline{C}}} {\partial t} = \overline{D} \frac {{\partial^2} \overline {C}} {\partial r^2} , \end{align*} \end{document}

where \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} $$\overline{D}$$ \end{document} =diffusivity of fiber, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} $$\overline{c}$$ \end{document} =ion concentration in the fiber as a function of space and time,

R₀-r₀=depth of penetration of counter ion from the bulk solution, and L=length of the fiber.

Initial and boundary conditions for the equation just cited are

where k_f=mass transfer coefficient of the film at the interphase of solid–liquid boundary, c(t)=bulk ion concentration, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} $$\overline{c}$$ \end{document} (R_0,t)=ion concentration at r=R₀ at the surface of the fiber, and K=partition coefficient.

From this model, it is obvious that the rate of uptake is inversely proportional to the diameter of the fiber. It is easily noticeable from Fig. 7a that at contact time<10 min, the range which is most likely to be the case for a real packed-bed operation, the ion-exchange fibers show a much faster rate of uptake than ion-exchange resin beads. This can be easily attributed to the difference in their size: IXF have an average diameter of 20 μm, while the resin beads have a nominal diameter range of 75–150 μm.

OPEN IN VIEWER

FIG. 7.

(a) Comparison of kinetic uptake of copper for hydrolyzed IXF and ion-exchange beads with carboxylate functionality (M_t/M_∞ represents the uptake of copper at a specified time as compared with equilibrium copper uptake at 24 h). (b) Fiber schematic for ion-exchange kinetics model.

Column experiment

The most common application for any chelating ion exchanger is in the packed-bed mode. Figure 8 shows the effluent profile for a micron-sized fiber packed bed that was fed an influent solution containing a benign ion (Ca²⁺) which is approximatelyfour times the concentration of a target heavy metal ion (Cu²⁺). The effluent Cu concentration was below detection limit (100 μg/L) or <0.5 mg/L (10% of the influent concentration) for 80 bed volumes. Although a practical packed-bed application will have more complex influent characteristics, this simple experiment proves that (1) the ion-exchange fibers can be packed in a column with sufficient porosity to enable smooth passage of water at EBCT comparable to that used in ion-exchange resin columns, and (2) the chelating ion-exchange fiber can selectively remove a heavy metal cation from the background of a benign, competing cation.

OPEN IN VIEWER

FIG. 8.

Effluent profile of Cu and Ca for packed-bed fiber column.

Any chelating exchanger synthesized, regardless of its morphology, should be regenerable so that it can be used for multiple cycles. Figure 9 shows the Cu elution profile using 0.01 M HNO₃ as the regenerant with an EBCT of 3.5 min (same as for exhaustion run). Evidence of efficient regeneration is obvious from this graph. Mass balance calculations proved that >95% of Cu in the bed was eluted in 8 bed volumes. After regeneration with 0.01 M HNO₃ solution, a 10,000 mg/L (as Ca²⁺) calcium nitrate solution was passed for 10 BV to be preloaded with Ca²⁺ and then used for another exhaustion run. The two-step process, while appearing more complicated, is, nevertheless, highly efficient. A weak-acid functional group (carboxylate in this case) has the maximum affinity for H⁺ and, thus, is efficiently regenerated with mineral acid (0.01 M HNO₃ in our case). The subsequent step of replacing H⁺ on the resin with Ca²⁺ is also efficient, because this exchange is accompanied by neutralization of H⁺ (with a low concentration of OH⁻ present with the Ca²⁺). The 2-step process was necessary in this case, because the synthetic copper solution was unbuffered. Three cycles of the chelating ion-exchange fiber in the packed-bed column have been run with each cycle consisting of exhaustion and regeneration, without any deterioration in column performance. Although any practical application will require tens of cycles, preliminary evidence presented here shows promise of applicability of this material for a heavy-metal decontamination scenario.

OPEN IN VIEWER

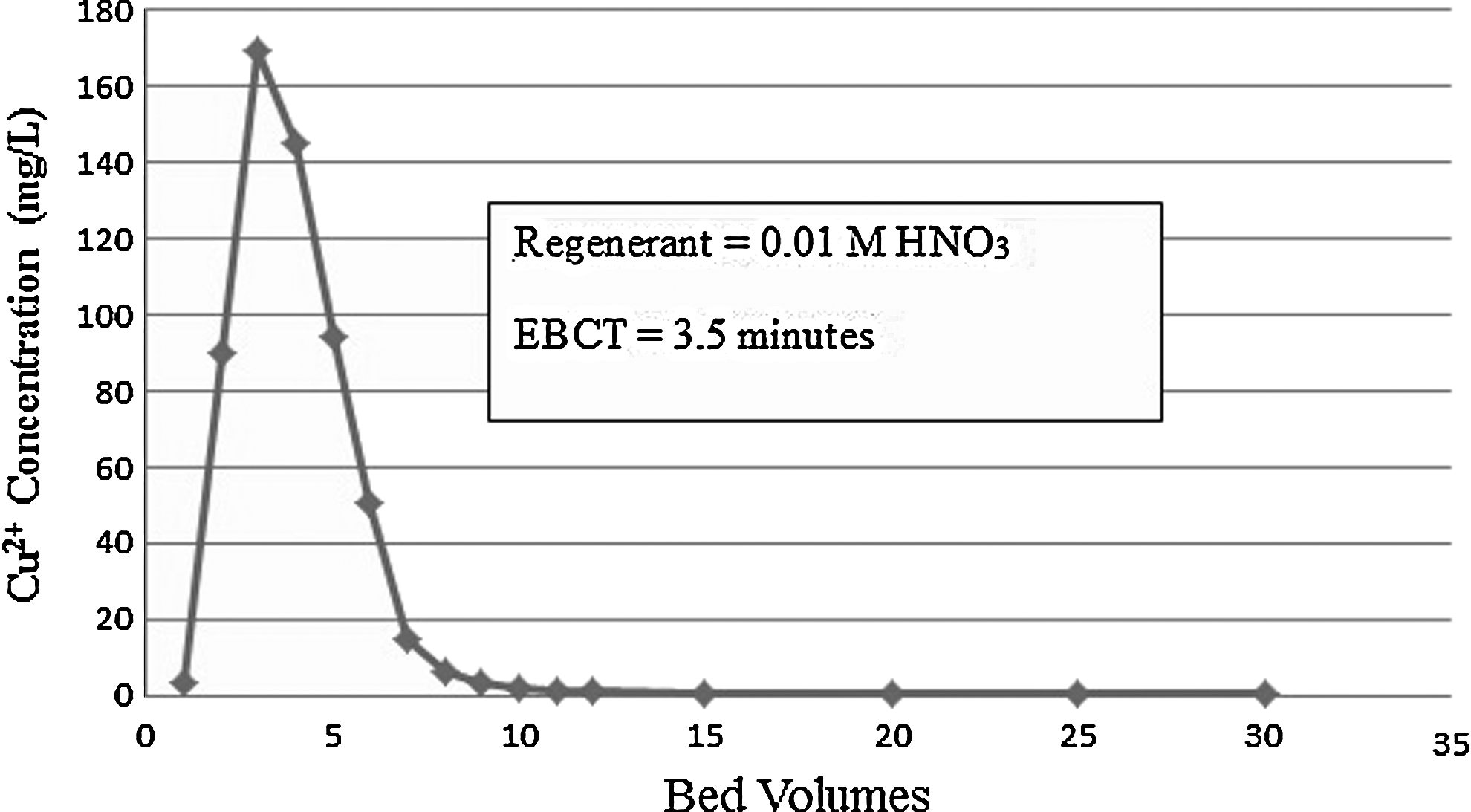

FIG. 9.

Regeneration profile for packed-bed column.
