An Environmental Science and Engineering Framework for Combating Antimicrobial Resistance

Risk modeling and assessment

Substantial advances have recently been made in the field of quantitative microbial risk assessment (QMRA). These advances provide a framework for determining concentrations of pathogens via various environmental exposure routes that are capable of causing illness (Haas et al., 2014; Haas, 2015). However, there is an urgent need to extend the QMRA concept in a way that captures the environmental dimension of antibiotic resistance (Ashbolt et al., 2013). Progress toward risk assessment is essential to link human exposure to antibiotic-resistant bacteria (ARBs) able to infect humans and antibiotic resistance genes (ARGs) present in the environment or excreted by domestic animals or humans.

Identifying critical risk thresholds for ARB and ARG exposures through food, water, and air that influence human health will be particularly key to develop mitigation strategies (Vikesland et al., 2017). For traditional pathogens, such information can be derived from dose–response studies; however, antibiotic resistance requires a different paradigm. For example, instances of multiple exposures to bacteria carrying ARGs, asymptomatic colonization that may be followed by delayed onset of illness with an AMR organism, multiple interacting/competing strains of susceptible/resistant pathogens, and horizontal gene transfer in the environment and/or host complicate the traditional dose–response paradigm (Wassenaar et al., 2007; Evans et al., 2009; Garner et al., 2016) and are likely to be important and challenging for risk assessment. While the most meaningful monitoring targets are yet to be identified, methods that provide quantitative measures of exposure and health effects will provide the greatest value from a risk characterization and assessment standpoint. Epidemiological studies that document the extent of acquisition of AMR organisms from environmental exposures or that quantify the acquisition of such bacteria from human or animal dose–response studies would be of value.

As a first step, a source, fate, and transport-based framework are logical means to capture the complexity of antibiotic resistance movement in the environment and to identify human exposure “hot spots” as well as points of targeted intervention. Such a framework, where animals, humans, and the “environment” represent three reservoirs or “stocks” of antibiotic resistance between which there are bidirectional transports or “flows” (Fig. 1), could be adapted from prior work (Haas, 1983, 2000; Rose and Haas, 1999; Pujol et al., 2009; Haas et al., 2014). Example flows between compartments include pharmaceutical wastewater discharges to receiving waters, carriage of pathogenic bacteria or other biota carrying ARGs on meat or produce, classic exposure routes to human and animal excreta through air, water, and soil, irrigation with contaminated water, and application of manure or biosolid-derived soil amendments. The configuration and relative impact of each of these compartments may differ substantially in more developed and resource-rich countries where there is more rigorous implementation and enforcement of sanitation barriers, in contrast to countries where barriers between anthropogenic outputs and the environment as well as other sanitation strategies may be limited or nonexistent.

OPEN IN VIEWER

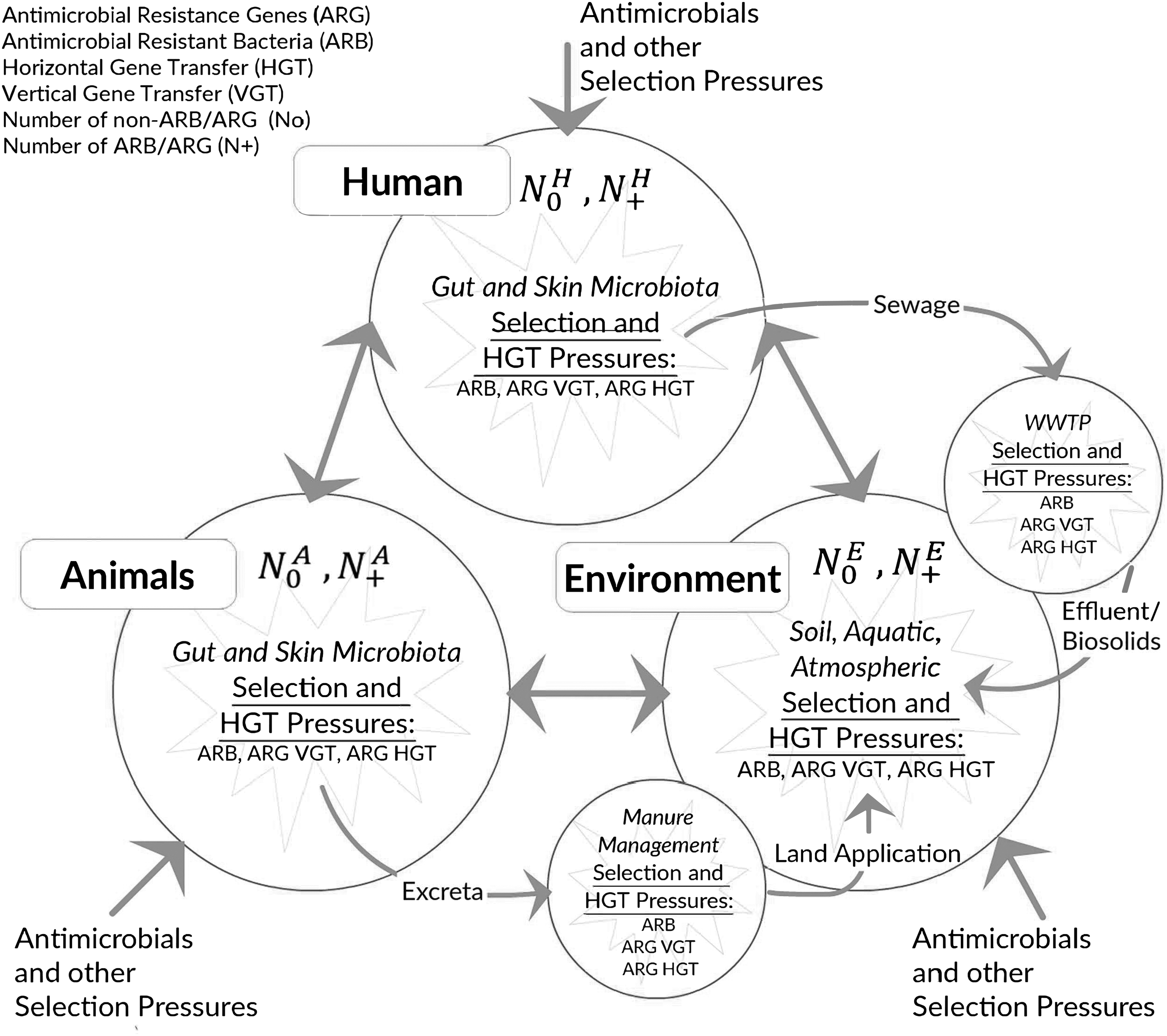

FIG. 1.

Stocks and Flows Framework Conceptualizing the Movement of Antimicrobial Resistance in the Environment. N₀ is defined as the total number of bacteria sensitive to antibiotics and other selective pressures. N+ is defined as the total number of bacteria resistant to antibiotics and other selective pressures. N₀ and N+ are a function of growth rates (i.e., μ₀, μ+) to be applied in fate and transport models.

Complex dynamics within each reservoir, largely governed by microbial ecological processes, determines the prevailing levels of resistance. For example, the physicochemical conditions (e.g., concentration of antimicrobials, metals, or other stressors) and biotic factors (e.g., presence of mobile genetic elements [MGEs]) may interact in the selection of resistant versus susceptible strains. Importantly, in the absence of antibiotics, the actual competitive advantage of resistant strains relative to susceptible strains is currently unclear. In this context, the perspective from which the environmental engineering and science (EES) community defines “antimicrobial resistance” may play a role in the resolution at which risk is defined. For example, defining antibiotic resistance from a broad perspective (e.g., as one composite contaminant) could aid in identifying key environmental hot spots as well as in comparing their relative significance in terms of overall risk. On the contrary, a deeper look that separates ARGs into health risk classifications, such as those proposed by Martínez et al. (2015), within an environmental context, could yield higher resolution models that lead to more specific recommendations.

Coupling environmental monitoring of exposure sources with human epidemiological studies, for example, studies involving livestock farm workers and wastewater treatment plant (WWTP) operators (Rosenberg Goldstein et al., 2014), could be particularly informative toward advancing exposure monitoring, health effects analysis, and risk assessment. Risk assessment coupled with surveillance monitoring could guide the development of fruitful strategies for mitigating the spread of antibiotic resistance (Pruden et al., 2013). For example, modeling and sensitivity analysis can help identify which parameters are most influential, and thus, the most promising targets for control in environmental systems.

Surveillance monitoring

International institutions such as the World Health Organization (WHO), the European Union health organizations (EU Commission, 2017) and the nations adhering to the Joint Programming Initiative on Antimicrobial Resistance (JPIAMR, 2017), strongly advocate the need for increased and coordinated monitoring of antibiotic resistance (WHO, 2014a, 2015; Wuijts et al., 2017). Monitoring characterizes the landscape of antibiotic resistance, identifies key routes of exposure, and informs where to most effectively place barriers to the spread of resistance. However, the lack of agreed-upon environmental monitoring targets is a major challenge. One potential approach is to adapt standard fecal bacterial monitoring, which forms much of the global regulatory fabric, but focus specifically on resistant strains and genes of concern. For example, the WHO, the EU, and select countries in Asia and Africa have recently initiated a pilot surveillance program targeting extended-spectrum beta lactamase (ESBL)-producing Escherichia coli (Matheu et al., 2017). The spread of ESBL is of utmost concern as a human health threat, whereas monitoring capabilities for E. coli are readily available and accessible worldwide. Other culture-based targets are also worthy of consideration, and it may be advisable at a minimum to culture representative gram-positive and gram-negative indicator bacteria, since antibiotic classes generally vary in their effectiveness toward these two groups. Culturing verifies the viability of target organisms and standardized assays (e.g., CLSI) and can be used to classify resistant strains (McLain et al., 2016). However, viable but nonculturable strains, similarly important to human health risks, will not be captured.

It is important to recognize that culturing misses the majority of bacteria and fails to fully capture the ecological processes driving the dynamics within and between the various reservoirs of resistance (Fig. 1). In this study, nucleic acid-based methods such as next-generation DNA sequencing, metagenomics, and quantitative polymerase chain reaction (qPCR), provide the capacity for monitoring ARG movement within and between environmental compartments. In addition, molecular monitoring can provide data to identify the mechanisms contributing to the spread of antibiotic resistance, such as selection pressures, horizontal gene transfer, or transport of bacteria carrying ARGs. Knowing such mechanisms can help inform risk assessments and lead to more effective mitigation (Luby et al., 2016).

Even as the majority of ARGs and MGEs can be captured with emerging metagenomic capabilities (i.e., the resistome) (Wright, 2007), it remains necessary to accurately identify them and appropriately analyze and interpret the data (Bengtsson-Palme et al., 2017; Lakin et al., 2017). Analogous to the fecal indicator paradigm, it would be useful to identify meaningful ARG and/or MGE targets indicative of AMR potential that could be subject to standardized monitoring. When selecting suitable ARG targets, important considerations include whether the form of resistance an ARG encodes is relevant to human health, if the ARG targets are associated with MGEs and have the capability to spread among different types of bacteria, if the ARG is present inside a human pathogen, and if the ARG is functional or deactivated (e.g., following disinfection) (Martínez et al., 2015).

Importantly, even after cellular deactivation, extracellular DNA may remain functional with the potential to be taken up by other bacteria via transformation (Allen et al., 2010; Dodd, 2012). Furthermore, it is essential that the EES community move toward standards in reporting, such as the types and methods of DNA extraction used and any QA/QC, detection limits, specificity, providing data in both normalized and un-normalized formats, sequencing depths, and criteria and cutoffs for identifying an ARG or MGE. Studies must be reported in a manner that is repeatable. In addition, metagenomic methods need to be improved to obtain absolute quantification, rather than just relative abundance.

Wastewater treatment

WWTPs, given their high bacterial densities and that they receive antibiotics, metals, and other selective agents, are a logical focal point of the EES community. Numerous studies have now profiled and tracked ARGs and ARBs through municipal WWTPs, as well as the impacts of effluent and biosolids on their receiving environments, but there is a need for translation of findings into practical, meaningful, and actionable guidance for WWTP designers and operators. Future studies should inform quantitative estimates of relative loadings from solid versus liquid product streams as a guide for where to focus attention for mitigation (Munir et al., 2011) and to provide context with respect to WWTP-associated loadings relative to other potential sources. A key challenge is to identify if there are critical AMR and/or selective agent loading rates that may lead to measurable concentration increases or decreases, to inform possible control targets. Also, it is essential for wastewater management strategies to be relevant to local conditions. For example, cost-effective and low-technology solutions are particularly critical in lesser developed countries. Ensuring basic sanitation as the primary barrier for AMR spread should be the first and foremost goal of any antibiotic resistance management action plan (Laxminarayan, 2014; Andremont and Walsh, 2015).

A clear quantitative analysis of the ecological processes occurring within biological treatment systems is needed to assess their net contribution toward attenuating (e.g., reducing fitness of resistance strains) or propagating (e.g., providing an environment ideal for selection and horizontal gene transfer) antibiotic resistance. Furthermore, moving beyond observational studies toward more controlled, mechanistic studies that may better identify factors that promote or diminish antibiotic resistance transfer during biological treatment is necessary. Of interest are the relative roles of antibiotics, metals, virulence factors, and resistant bacteria and pathogens in the influent and effluent, versus operational conditions such as suspended or attached growth, aerobic versus anaerobic, mesophilic versus thermophilic, solids retention time, and hydraulic residence times (Diehl and LaPara, 2010; Zhang and Li, 2011; Bengtsson-Palme et al., 2016; Neyestani et al., 2017a, 2017b). Studies that address physiology, ecology, and processes for managing the microbial ecology of AMR during wastewater treatment are needed, along with prioritization of waste streams with high potential to spread AMR, such as those from antibiotic production processes and hospitals.

A multibarrier approach to wastewater treatment may be most advisable to minimize the impacts of ARBs and ARGs from the application of residual biosolids as a soil amendment and in wastewater reuse. For biosolids, hydrolytic treatments, anaerobic digestion (particularly thermophilic), and composting are potential options (Diehl and LaPara, 2010; Zhang and Li, 2011; Bengtsson-Palme et al., 2016). Ideally, effluent treatment strategies should disinfect and destroy ARGs and remove potential selecting agents such as residual antibiotics or metals (Dodd, 2012). For the final effluent, membrane-based treatments will likely offer the most stringent treatment. Although several studies have addressed the efficacy of disinfection strategies against antibiotic resistance (McKinney and Pruden, 2012; Czekalski et al., 2016; Chang et al., 2017), currently, surprisingly little is known about potential unintended effects of various disinfectants, including chlorine, chloramines, ozone, and other advanced oxidation processes, other than the possibility that they select for more resistant (and multidrug-resistant) strains (Luo et al., 2014; Guo et al., 2015). Some studies have identified circumstances that select for resistant strains, which then have the opportunity to preferentially regrow downstream (Xi et al., 2009). This observation highlights the need to consider monitoring environmental pathogens (e.g., Aeromonas or Arcobacter spp.) that grow during and following treatment (Banting et al., 2016; Rasmussen-Ivey et al., 2016). Overall, mitigation strategies must be harmonized with the need for water sustainability and reuse, because the societal need for water overrides the possible risks of antibiotic resistance.

Agriculture

Antibiotics are widely used in the livestock industry, more so on a mass basis than in humans (Van Boeckel et al., 2015). The EU phased out subtherapeutic use of antibiotics over a decade ago, while the United States only recently followed suit (December 2016) with the Veterinary Feed Directive requiring a prescription for antibiotic use in livestock and prohibiting the use of antibiotics as growth promoters (FDA, 2012, 2013, 2017). More recently, in 2017, the WHO published its “Guidelines on use of medically important antimicrobials in food-producing animals” following the 5th revised list of “critically important antimicrobials for human medicine” published in 2014 (WHO, 2014b, 2017). An interdisciplinary system perspective along the full “farm to fork” continuum is recommended to investigate the impacts of these policies.

Collaborating with and learning from the food and agricultural sciences can aid in identifying promising on-farm mitigation opportunities, including manure management, pre- and postharvest practices, and meat processing and packing. With this approach, there are clear synergies with current calls to advance the efficiency of food–energy–water systems. System complexity and nonpoint contributions are major challenges to address. As with wastewater treatment, multiple barriers are advisable (O'Neill et al., 2015), especially given the complexity of nonpoint source mitigation. In contrast to the management and treatment of municipal wastewater, food animal waste management has no regulated fecal microbial reduction requirements in the United States and most other countries. Developing effective and economical approaches to minimize ARBs and ARGs in animal manure is a critical challenge.

Key issues in recommending mitigation strategies for agricultural sources of antibiotic resistance include the following. Are current guidelines and policies effectively implemented in practice and spirit, if so, are they working beneficially with respect to both animal health and environmental conservation, and what are the synergies with other drivers such as consumer preference and the “organic” movement? There is an opportunity to learn from Europe and other countries regarding successful interventions. Furthermore, attenuation of resistance may require decades to be observable, particularly if resistant bacteria have acquired a permanent niche within the livestock microbiome. Environmental modeling could help predict the effects of changes in antibiotic use policies and mitigation options. Recognizing that farmers are typically operating with marginal profits makes it critical that recommendations do not put people out of business and hurt the food supply in years to come, especially as population growth and food demands become increasingly acute.
