Histotripsy of VX-2 Tumor Implanted in a Renal Rabbit Model

Introduction

H istotripsy is a noninvasive focused ultrasound (US) technology that delivers short bursts (1–10 μs) of acoustic energy to a targeted volume at a low (<1%) duty cycle to induce cavitation with negligible thermal contribution. ¹ Cavitation is a phenomenon where rapid cycling from compressive to rarefactive pressures generates a highly dynamic cluster of microbubbles that oscillate and collapse producing mechanical tissue fractionation. ^{1 –4} Histologic analysis of tissues after application of histotripsy typically demonstrates architectural disruption and a slurry of subcellular debris. ⁵ Histotripsy is different from high-intensity focused US and other conventional ablative modalities as the destructive force is mechanical, not thermal. ^{6 –8}

The effect of histotripsy treatment on normal kidney tissue has previously been studied. A wide range of pulse repetition frequencies and peak acoustic intensities were evaluated in an in vitro porcine kidney model to identify acoustic parameter regions with distinct modes of ablation (nonthermal, thermal, and mixed). ⁸ The parameter region yielding nonthermal damage characterized by cell fractionation and tissue architecture disruption without evidence of thermal coagulative necrosis was defined to be the histotripsy region. Histotripsy was applied in an in vivo rabbit model establishing the feasibility of extracorporeal tissue fractionation. ¹ A chronic in vivo study was then performed to assess local tissue response to histotripsy. ⁵ In the first week after histotripsy treatment, an acute inflammatory response was seen within and around the targeted regions consistent with a typical wound healing response. Resorption of the fractionated material occurred rapidly and was completed by 60 days with minimal scar formation. ⁵ These exciting preliminary results have provided the motivation for continued research and development of histotripsy as a potential noninvasive treatment modality for small renal masses and other solid organ malignancies.

VX-2 is a rabbit papilloma cell line that has been used as a model for malignancy in several organs, including liver, rectum, and kidney. ^{9 –13} Injection of VX-2 suspension and direct implantation of tumor into the rabbit kidney have both been described with good tumor growth. Our objective in this study was to characterize the histologic effects after histotripsy treatment of VX-2 tumor implanted in renal tissue and thereby demonstrate feasibility of histotripsy tumor ablation.

Methods

A total of 27 kidneys were implanted with VX-2 tumor. Twenty were treated with histotripsy and 7 served as controls. Three nonimplanted kidneys were also treated to validate previous effects of histotripsy on normal renal parenchyma. All described procedures and protocols were approved by the University of Michigan Committee for Use and Care of Laboratory Animals.

Viable VX-2 tumor tissue was harvested from the hind-legs of carrier rabbits immediately after euthanasia, sectioned into 2 × 2 × 2 mm cubes, and maintained in Hanks balanced solution (Krackeler Scientific Inc.) for implantation within 3 hours. To minimize variability of tumor behavior during the course of this study, viable VX-2 cells were continuously maintained in a series of carrier rabbits.

Experimental setup and procedure

The histotripsy therapeutic US system (Fig. 1) consisted of four confocally aligned piezocomposite therapy transducers (Imasonic) and a 10 MHz linear imaging probe (General Electric). Each transducer was square in shape with a 50 mm width and 70 mm focal distance and operated at 1 MHz. The transducer system was placed within a tank of warm (38°C) degassed water.

OPEN IN VIEWER

FIG. 1.

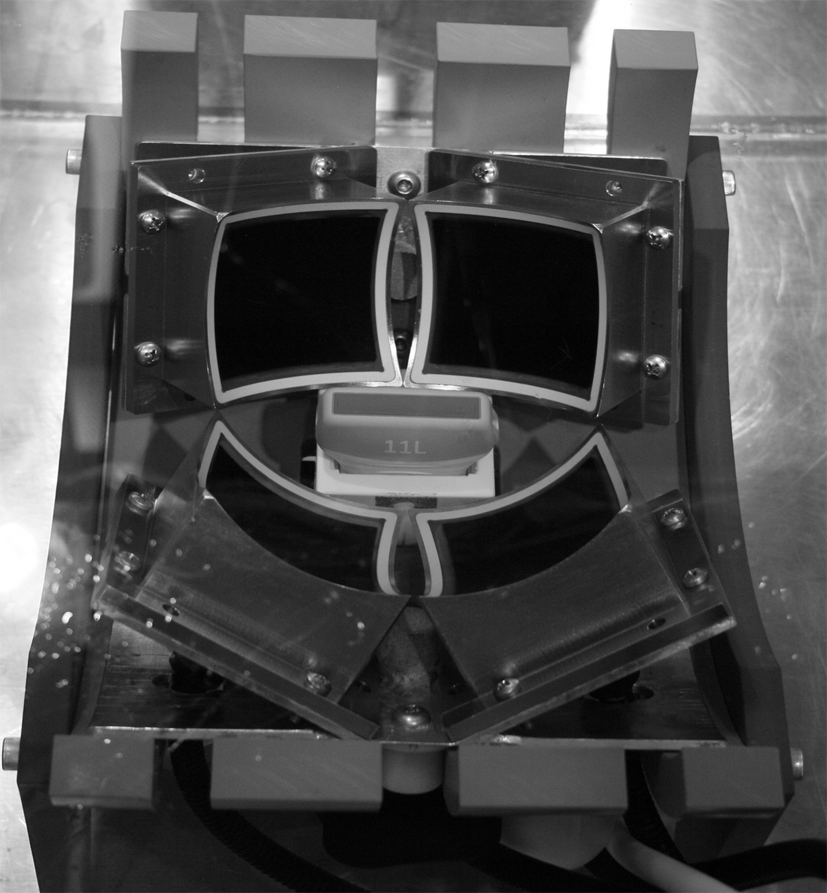

Histotripsy therapeutic transducer composed of four individual 1-MHz elements each with a 70 mm focal distance. A 10-MHz diagnostic ultrasound imaging probe was positioned between the therapeutic elements and provides real-time images of the focal volume.

Two weeks after implantation, the rabbits were anesthetized and fur was again removed from the flank region with clippers. Kidneys were imaged with a 10 MHz US imaging transducer to localize the tumor. Each rabbit was then placed in decubitus position on a thin plastic membrane suspended in the tank containing the therapeutic transducer system. The three-axis positioning system allowed precise translation of the rabbit and localization of the tumor within the focal volume of the histotripsy transducer (Fig. 2). Good acoustic coupling was achieved by instilling a thin layer of degassed water between the shaved skin and plastic membrane.

OPEN IN VIEWER

FIG. 2.

Sketch of experimental setup. An anesthetized rabbit in flank position with the therapeutic transducer focal volume localized within the VX-2 tumor.

Histotripsy pulses consisting of three cycle bursts of 1 MHz acoustic energy at amplitudes exceeding 20 MPa were delivered at a repetition frequency of 300 Hz. During calibration, precise measurement of acoustic amplitude (in excess of 20 MPa) was confounded by formation of a bubble cloud around the hydrophone. In tumors not identifiable with US imaging, a 1 cm³ volume of tissue centered on the fiducial marker was targeted. Histotripsy treatment time averaged 5 minutes but varied in length based on subjective assessment of the quality of cavitation observed with real-time US feedback. In cases where cavitation was felt to be suboptimal, the acoustic amplitude was increased. Ten rabbits were euthanized immediately after treatment. Five rabbits were recovered and monitored for 24 hours before euthanasia.

Results

Three normal rabbit kidneys (not implanted with tumor) were treated in vivo. In each case, a hyperechoic bubble cloud (indicative of cavitation) was noted on real-time US imaging during histotripsy treatment. Small areas of hemorrhage within the targeted renal parenchyma and contained subcapsular hematoma were noted histologically. Regions of amorphous pink material admixed with particulate subcellular debris replaced the normal tissue architecture within the targeted volumes (Fig. 3).

OPEN IN VIEWER

FIG. 3.

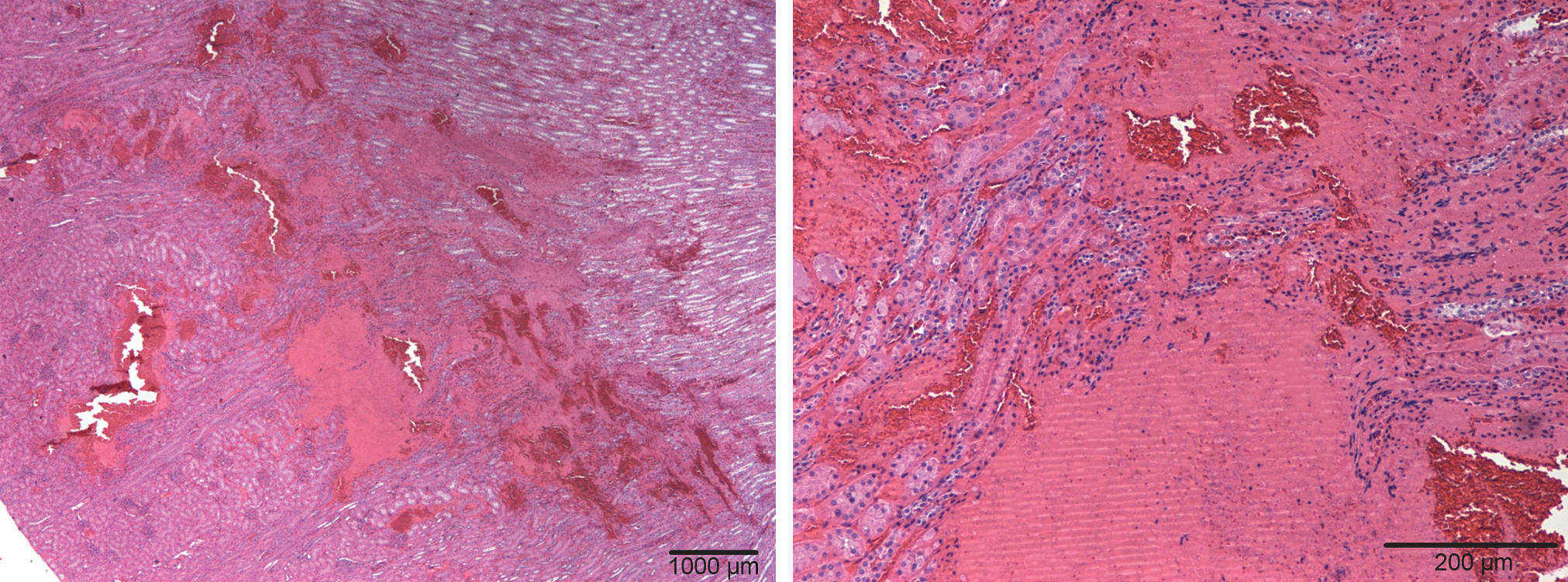

H&E-stained slide of normal rabbit kidney treated with histotripsy. Architectural damage is evident (left) with pockets of fractionated pink material within the treated region. At higher power (right), the pink material is seen to be largely acellular with small areas of localized hemorrhage. H&E = hematoxylin and eosin.

Tumor was localized with US imaging in 24 of 27 implanted kidneys (Fig. 4). Average tumor diameter at harvest measured 7 mm (range 2–12) and demonstrated exophytic and endophytic growth patterns. Histology confirmed viable tumor in 27 of 27 implanted kidneys (20 treatment, 7 control). Tumor cells were identified by their irregular cell walls and strongly basophilic nuclei (Fig. 5). Zones of central necrosis characterized by faint cellular staining, shrunken cell walls, and absence of nuclei were identified in 14 of 27 tumors (Fig. 6). Infiltration of leukocytes was seen in a thin band at the interface between VX-2 tumor and normal renal parenchyma.

OPEN IN VIEWER

FIG. 4.

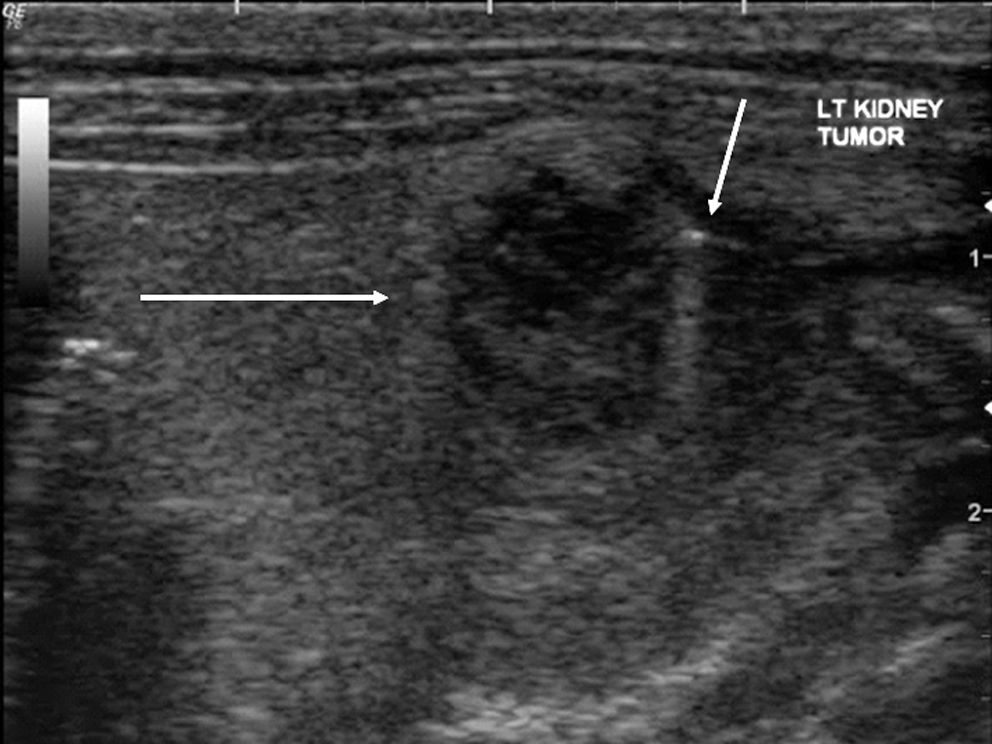

A representative ultrasound image of VX-2 tumor within rabbit kidney after histotripsy treatment demonstrates a hypoechoic treatment defect. The left arrow represents the margin of tumor; right arrow points to surgical clip used as fiducial marker.

OPEN IN VIEWER

FIG. 5.

H&E-stained slide of untreated rabbit kidney with normal parenchyma (top left edge) and invasive VX-2 tumor staining strongly basophilic. A thin rim of leukocytic infiltration (L) is noted at the tumor margin.

OPEN IN VIEWER

FIG. 6.

H&E-stained slide of untreated VX-2 tumor demonstrating central necrosis. Low-power (left) view reveals tumor (T) surrounded by zones of faint cellular staining representing central necrosis (CN). High-power view of the same region (right) reveals shrunken cell walls and absence of nuclei.

Histotripsy produced a bubble cloud visible with US imaging in all 20 targeted tumors. Gross inspection revealed small areas of hemorrhage within the targeted region of the tumor and subcapsular hematoma overlying the tumor (Fig. 7). In 16 of 20 treated tumors, acellular material and subcellular debris characteristic of histotripsy fractionation (Fig. 8) and distinct from central necrosis was clearly identified. Treated areas were bordered by intact basophilic tumor cells. Kidneys harvested 24 hours after treatment demonstrated similar areas of tissue fractionation; however, this treated region was nearly obscured by a predominantly neutrophilic inflammatory response (Fig. 9).

OPEN IN VIEWER

FIG. 7.

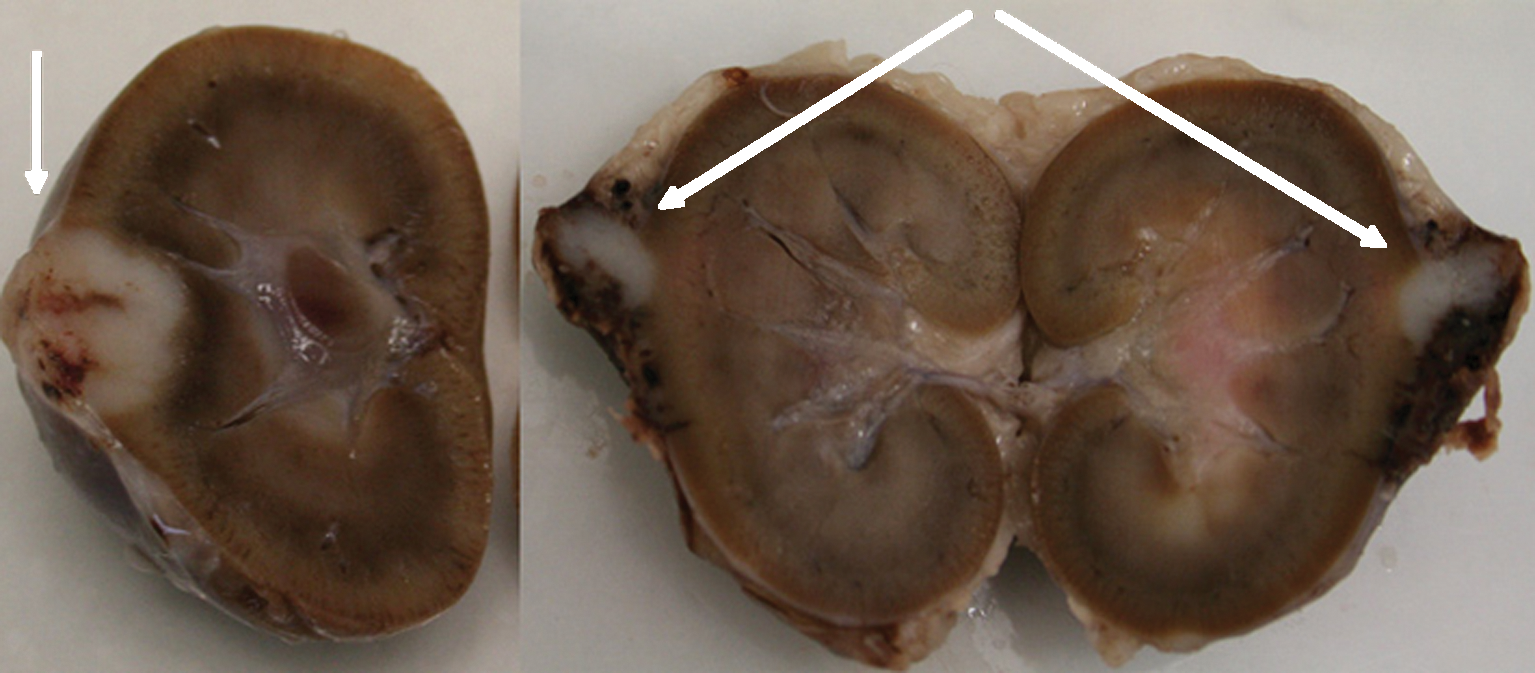

Rabbit kidney as it appeared immediately after harvest. (Left) Large endo/exophytic VX-2 tumor is apparent as a white round area on surface of the bi-valved kidney (arrow). (Right) Bi-valved rabbit kidney demonstrating exophytic VX-2 tumor and small contained subcapsular hematoma resulting from histotripsy treatment (two arrows).

OPEN IN VIEWER

FIG. 8.

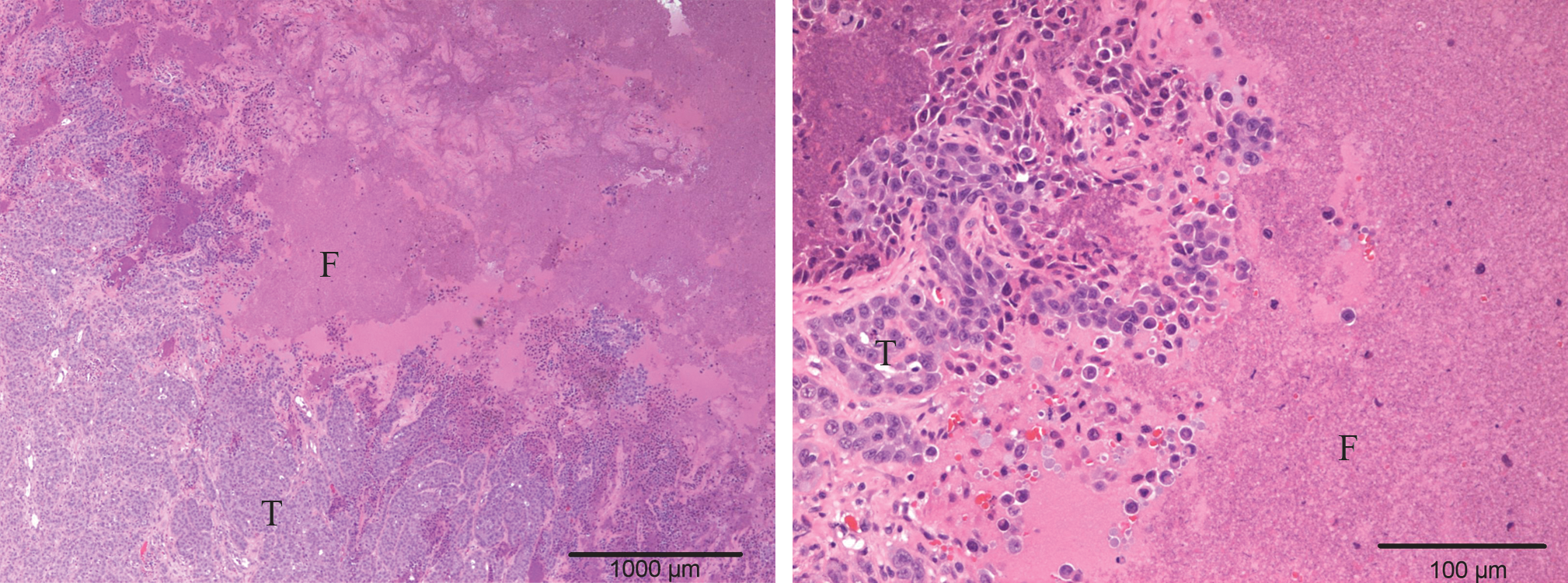

H&E-stained slide of renal implanted VX-2 tumor after treatment with histotripsy. (Left) Magnification of fractionated debris (F) consisting of pink predominantly acellular slurry of material adjacent to basophilic viable VX-2 tumor (T). (Right) Higher magnification confirms nests of VX-2 tumor adjacent to fractionated material composed of cytoplasmic and nuclear debris.

OPEN IN VIEWER

FIG. 9.

H&E-stained slide of implanted VX-2 tumor harvested 24 hours after histotripsy treatment. Low-power magnification (left) reveals areas of VX-2 tumor (T) with contained hemorrhage (H) and acellular debris, consistent with histotripsy treatment (F). Increased magnification (right) reveals a local predominantly neutrophilic inflammatory reaction surrounding the treated area (N).

None of the rabbits suffered complication or death during VX-2 tumor implantation or histotripsy treatment, and none required early euthanasia. An average of 36 (range 3–51) metastatic tumor foci were counted on whole-mount lung sections from each tumor-implanted rabbit.

Discussion

The aggressiveness of VX-2 tumor proved advantageous in this study as 100% of implants were viable and 24 of 27 grew to a size identifiable with US imaging 2 weeks after implantation. As such, only three kidneys required histotripsy targeting based exclusively on the location of the fiducial marker. However, multiple lung metastases were found in all rabbits at harvest, which may be a limitation in future studies where longer follow-up is desirable.

Histotripsy ablates tissue by mechanical rather than thermal means and thus produces unique histologic findings. Cells within targeted volumes are fractionated, leaving regions devoid of cellular and architectural features and containing only subcellular particulate debris amid homogenous amorphous material. ¹ This is in contradistinction to thermal coagulative necrosis produced by high-intensity focused US where cells are thermally fixed and though nonviable retain their architectural appearance. In the current study histotripsy applied to VX-2 tumor produced tissue fractionation and histologic patterns no different from those seen after histotripsy of normal renal tissues. ^1,5 These unique histologic patterns are easily distinguishable from those seen with central necrosis where faint cellular staining, shrunken cell walls, and absence of nuclei are typical findings of a tumor that outgrows its blood supply.

Histologic tissue fractionation was evident in 80% of treated tumors in this study, which confirms that histotripsy is capable of mechanical ablation of malignant tissue. No fractionation was seen in four tumors despite US confirmation of a bubble cloud. Three of these cases occurred in kidneys that were harvested 24 hours after treatment, and the inflammatory response may have obscured the zones of fractionation. Another possible explanation is that the method of bi-valving the kidney through the treated region during specimen preparation may have resulted in the region of interest being inadvertently discarded during processing. Typically, the front surface of the specimen block is shaved down to a completely flat surface before sections for slides are taken.

Histotripsy offers several potential advantages over conventional ablative modalities. Previous work in an in vitro porcine kidney model demonstrated that the collecting system was resistant to damage when exposed to histotripsy. In contrast, medullary tissue exhibited damage and cortical tissue was completely fractionated with identical histotripsy doses. ¹⁴ This differential threshold for histotripsy tissue effect is likely due to differences in tissue composition and may facilitate treatment of central renal lesions without damage to the collecting system. Further, the nonthermal mechanisms underlying histotripsy are not subject to the same limitations as conventional ablative modalities, where heat sink effects from adjacent large vessels can alter treatment boundaries and may preclude complete tumor destruction. ¹⁵ A study in an in vivo rabbit model demonstrated that debris resulting from histotripsy fractionation of normal kidney tissue was completely resorbed within 60 days of treatment. ⁵ Should this finding be validated with ablation of larger lesions, it could simplify postablation surveillance strategies that are complicated by the slow and incomplete resorption of many cryoablated and thermally coagulated tumors after tumor treatment. ¹⁶ Experimental evidence from a canine prostate model suggests that histotripsy, in addition to being noninvasive, may also exhibit hemostatic properties that could further lower the risk of hemorrhage during tumor ablation. ¹⁷

One particularly useful advantage of histotripsy is the immediate feedback achieved with US observation of the cavitation bubble cloud. This method of feedback provided confirmation of cavitation in all targeted kidneys and allowed subjective monitoring of the quality of cavitation. In four cases, the quality of cavitation was weak, when only a small or intermittent bubble cloud was seen, or when formation of the bubble cloud was delayed. Suboptimal cavitation can be attributed to a number of factors, including poor acoustic coupling, attenuation from a long skin to tumor distance, and aberration due to ribs or an overlying skin incision in the acoustic path.

The initial results achieved in a VX-2 tumor model are encouraging and demonstrate the feasibility of histotripsy treatment of malignant tissue. However, the translation of these findings to other tumor models is uncertain and requires further investigation. Additional work is also planned to better understand the systemic effects that may result from histotripsy on malignant tissues.

Conclusions

Transcutaneous application of histotripsy to implanted VX-2 tumor in rabbit kidney produced fractionation of malignant tissue. These findings support the further study and development of histotripsy for potential oncologic application.
