Flexible Vesiculovasoscopy Using a Microoptical System in a Human Cadaver Model: An Experimental Approach for Atraumatic Endoscopy of the Seminal Tract

Introduction

The most important pathologies of the seminal tract are hematospermia, seminal vesicle stones, and seminal duct occlusion. The standard diagnostic approach commonly involves transrectal ultrasound (TRUS), MRI, or urethrocystoscopy. In clinical practice, endoscopy of the seminal duct structures has marginal importance in the diagnostic work-up of hematospermia and is mostly applied on an experimental basis aside from international guideline recommendations. The reason for endoscopy's marginality might have to do with both the male internal genital tract's complex anatomy and the lack of an appropriate technical armamentarium. Few reports demonstrating satisfactory clinical outcome following medical attempts to endoscopically access the seminal tract have been published so far. ^{1 –11}

These articles primarily describe techniques of forced transutrical insertion of ureteroscopic devices to visualize the seminal tract's endoluminal anatomy, primarily focusing on the seminal vesicles. ^{1,9 –11} However, this approach is problematic because of the potential negative long-term effects and as paracollicular scarring may obstruct the iatrogenic peripheral ejaculatory duct. Conclusive follow-up data of these investigations, including semen analysis, are usually not collected. Short- and long-term adverse events have not been explored and published so far.

Since the anatomy of the ejaculatory duct has been studied extensively, we know that its orifice is located lateral to the verumontanum and not in the cavum utriculi of the colliculus seminalis. ^12,13 Anatomically speaking, any transutricular endoscopy of the seminal tract must be considered traumatic and potentially risky to the patient. It would therefore be desirable to have an atraumatic minimally invasive option for inspecting the human seminal tract structures for diagnostic and therapeutic purposes.

Rapid development of medical instruments in terms of their miniaturization and further evolution of flexible endoscopy systems might provide new technical possibilities for accessing male internal genital organs. In this study, we investigated the applicability and feasibility of a novel flexible microoptical endoscopic device for atraumatic vesiculovasoscopy (flexible vesiculovasoscopy [FVV]) of the seminal tract in a male human cadaver model.

Materials and Methods

The endoscopic procedure was conducted via transurethral access on a male nonformalin-fixed cadaver. No premortal interventions or pathologies were reported in the genitourinary tract. The cadaver was examined in supine position. The urethra was lubricated by applying 10 mL Instillagel^® (Farco-Pharma^®, Cologne, Germany). Initially, a urethroscopy was performed using a standard cystoscope (CH 22; Storz^®, Tuttlingen, Germany). The prostatic utricle was intubated using a semirigid ureteroscope (7.5F; Richard Wolf, Knittlingen, Germany). As we were unable to accurately identify the ejaculatory duct orifice at the seminal colliculus initially, a high scrotal incision of about 1 cm was made and the vas deferens (VD) isolated microsurgically. After carefully cannulating the VD with a 23-gauge needle, methylene blue solution was injected antegradely. Once the lateral wall of the colliculus revealed bluish discoloration, the seminal orifice could be cystoscopically identified and intubated using a ureteral catheter (5F). A hydrophilic nitinol core guidewire (HiWire™; Cook^®, Bloomington, IN) was inserted into the ejaculatory duct, and the ureteral catheter was advanced into the duct via the Seldinger technique.

After removing the guidewire, the seminal tract was inspected endoscopically using a specially made miniaturized flexible endoscope (Schölly^® Fiberoptic GmbH, Denzlingen, Germany). The outer diameter of the endoscope measured 0.35 mm (1.05F). Working length was 500 mm, and the optical resolution was 3,000 pixels (Fig. 1). The endoscope was connected to a compact endourology video camera unit (CMOS Full HD Camera, PV 470; Aesculap AG, Tuttlingen, Germany) and a light source with a common light cable (Power LED 175 SCB; Storz). A supportive irrigation system with a double-ended Luer lock adapter (Cook) was connected to the ureteral catheter and a conventional Luer lock 20-mL syringe. We also carried out antegrade vasoscopy from the high scrotal isolation of the VD. The entire examination was videorecorded (see Supplementary Video 1; Supplementary Data are available online at www.liebertpub.com/end).

OPEN IN VIEWER

FIG. 1.

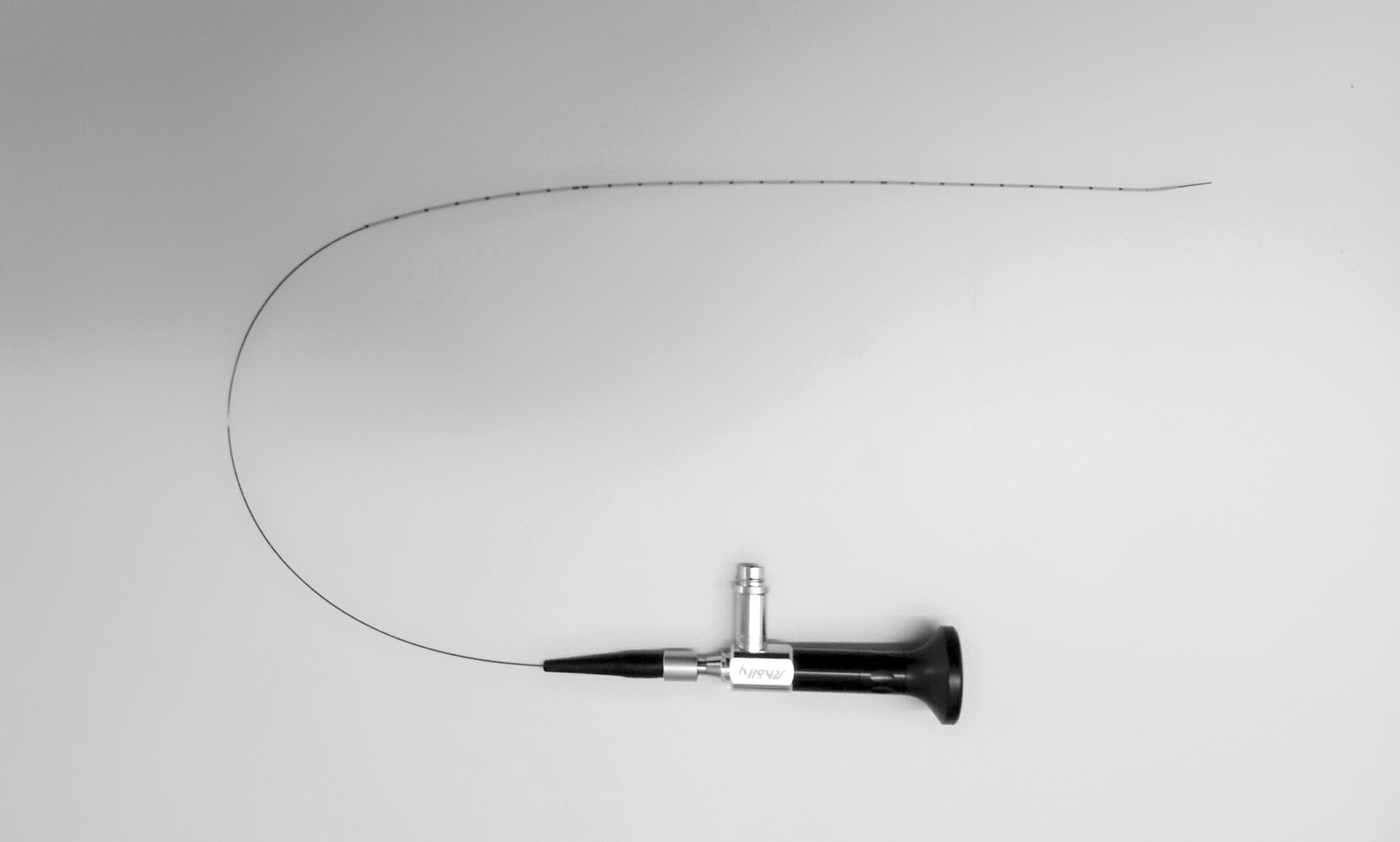

Miniaturized flexible endoscope 0.35 mm (1.05F) with ureteral catheter (5F). Working length 500 mm and optical resolution 3,000 pixels.

Results

Routine urethroscopy revealed no signs of urethral pathology. The ejaculatory duct's opening was not initially visible during conventional urethroscopy of the prostatic urethra. The orifice of the ejaculatory ducts could not be identified until methylene blue had been injected into the VD. The seminal tract's anatomical location was lateral to the seminal colliculus flanking the prostatic utricle. Its opening into the urethra was lined by two longitudinal lip-shaped structures. After methylene blue was injected into the proximal deferent duct via the high scrotal access, these structures opened, releasing the fluid into the urethra. Intubation of the ejaculatory ducts with the hydrophilic guidewire was only possible once we had visualized the orifice.

Before that, an initial attempt to microoptically visualize the deferent duct was made anterograde from the high scrotal approach. Irrigation with physiological saline was necessary to dilate the duct and advance the endoscope atraumatically. Extensive long-segment anterograde inspection into the VD was hampered by tissue adhesions, most probably because of postmortal alterations in the cadaver model. Image quality was sufficient for identifying the anatomical structures and for the endoluminal characterization of tissue properties, although image resolution was restricted to 3000 pixels.

After antegrade visualization of the deferent duct, methylene blue was injected, and the orifice of the ejaculatory duct into the urethra was retrogradely intubated cystoscopically. Following intubation with a ureteral catheter, the microoptical endoscopy system was advanced into the ejaculatory duct (Fig. 2). We were able to differentiate the ejaculatory duct, the intersection with the seminal vesicles, and transition into the deferent duct. We observed no iatrogenic tissue lesions while retracting the microoptic fiber. In the last step, we intubated the prostatic utricle using a semirigid ureterorenoscope. Inspection revealed a blind-ending saccule, not leading to any other anatomical structure. No physiological connection to the ejaculatory duct could be identified. Access to the ejaculatory ducts and seminal vesicles was only possible by blunt forced penetration of the prostatic utricle's lateral wall (Fig. 3).

OPEN IN VIEWER

FIG. 2.

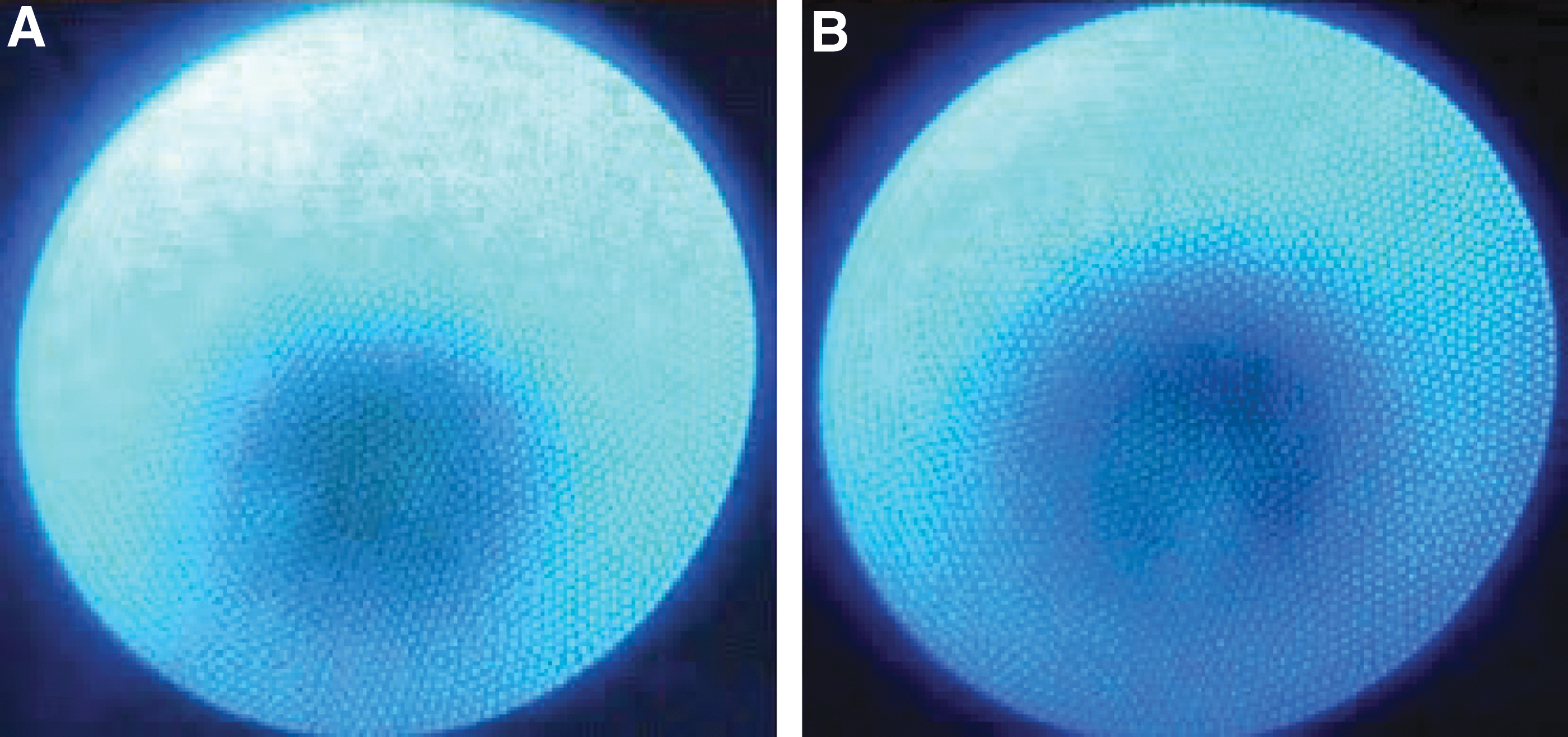

(A, B) Intraluminal frame sequences using the microoptical device. Retrograde view from the ejaculatory tract to the distal seminal duct (ductus deferens).

OPEN IN VIEWER

FIG. 3.

Intraluminal frame sequences using the ureteroscope. (A) Transutricular access into the ejaculatory duct. (B) Retrograde endoluminal view of the ejaculatory duct. (C) Bifurcation of the deferent duct and seminal vesicle. (D–F) Ejaculatory duct and seminal vesicle with seminal lithiasis.

Discussion

To the best of our knowledge, this is the first endoscopic characterization of the seminal tract using a specialized miniaturized flexible optical system. Since the first in vivo reported endoscopy of the distal seminal tract in 2002, ¹¹ several studies have been published focusing on transurethral seminal vesiculoscopy for diagnosis and treatment purposes targeting ejaculatory duct obstruction and recurrent hematospermia. ^{1,4,6 –8} Although their results appear encouraging, transurethral seminal vesiculoscopy has not become established in the clinical routine so far for reasons that are multifactorial. The male internal genitourinary tract's complex anatomy makes accessing the ejaculatory duct challenging and potentially harmful to the patient. The latest endourologic instruments, for example, various cystoscopes und ureteroscopes, seem particularly unsuitable for this application. Nevertheless, common cystoscopic or ureteroscopic equipment was used in most of the published studies: forced blind insertion of the endoscope through the prostatic utricle or exposure of the ejaculatory ducts after transurethral resection of the seminal colliculus has been reported. ^1,5,9,11 This access strategy carries the high risk of iatrogenic injury to the surrounding tissue resulting in scarring and raises the risk of secondary ejaculatory duct occlusion, followed by azoospermia or persistent hematospermia. Hence, a physiological approach via the ejaculatory duct's orifice would minimize intervention-associated complications and make this access preferable as the standard endoscopic approach. We used a microoptical system in this investigation to take an atraumatic retrograde approach through the physiological opening of the ejaculatory duct. Interestingly, since its dorsolateral location is so difficult to discern, the orifice could only be visualized after a methylene blue injection, that is also what made retrograde intubation so initially challenging.

Insertion of the instrument via the Seldinger technique was only possible by making use of a hydrophilic guidewire. This may be because the lip-shaped structures lining the orifice seal the ducts, physiologically functioning as a valve mechanism. This complex valve mechanism prevents the duct from opening adequately when the verumontanum is relaxed, thereby causing the ejaculatory ducts to collapse. Physiologically, this mechanism prevents urine from leaking into the ejaculatory ducts during micturition and seals the urethra during ejaculation to prevent retrograde ejaculation. ¹² Furthermore, the absence of endothelial turgor and the cadaver's considerable postmortal rigor (resulting in greater tissue rigidity) most likely additionally hampered the intubation of the ejaculatory structures. In vivo experiments may not be compromised by such conditions; atraumatic access may be facilitated, and the valve mechanism overcomes simply due to the surrounding structures' increased elasticity.

Once these limitations are overcome, an atraumatic approach may also offer new diagnostic options for common seminal pathologies. Current clinical routine imaging options for diagnosing seminal tract diseases, including common ultrasound and TRUS, ¹⁴ have proven to be insufficient in terms of spatial resolution or functional contrast and thus not able to yield reliable information since by their nature ultrasound modalities rely on indirect findings. ¹⁰ CT and especially MRI are increasingly used for prostate and testicular imaging. Nevertheless, the lack of sufficient resolution may be the key debilitating factor for diagnostic work-up in male infertility and hematospermia. With the latest advances in endoscopy and optical imaging technologies, such as miniaturized flexible microoptical devices and digital video processing, the atraumatic inspection of the seminal tract might come significantly closer to being clinically implemented. Endoscopy of the internal male genital system would therefore gain importance as an effective and reliable tool for direct on-site diagnostics and therapy. Nevertheless, using an atraumatic tool for FVV may also cause other clinical complications. Retrograde vasoscopy may possibly increase the risk for serious iatrogenic infection of the male adnexa. Hence, an additional antibiotic treatment must possibly be discussed, preventing prostatitis, epididymitis, or even sepsis. Furthermore, also atraumatic retrograde endoscopy may result in intraoperative lesions with consecutive secondary scarring maximizing trauma to the seminal tract. Having in mind the possible clinical challenges, we strongly believe that this new technology offers an overall benefit for patients with conceivable new applications in endosurgical therapy in andrology, for example, obstructive azoospermia therapy by laser tissue vaporization and hematospermia diagnosed and treated via direct endoscopic modalities. ^5,9 With the atraumatic benefits associated with microoptic fibers, vasoscopy might eventually enable us to obtain histological probes from the seminal duct for pathological or microbiological investigation. Moreover, selective embolism of the VD during vasoscopy may become an alternative treatment strategy for male fertility control, competing with conventional surgical vasectomy. Using a removable plug or novel intelligent materials, even reversible endoocclusion of the VD is imaginable. ^{15 –17} However, translating this new technology to clinical routine depends strongly on its clinical implications, handling, and affordability. Our experimental setup is focusing on an atraumatic access to the human ejaculatory duct offering a sufficient image quality. This study is limited by its design since the experiments were performed on a single cadaver model. Although no premortal urogenital interventions had been reported, potential postmortal changes in the genitourinary tract anatomy and morphology, that is, tissue adhesion and rigor, as well as technical limitations in system maneuverability, may have compromised our results substantially. Further technical developments, and especially in vivo clinical tests of feasibility, and functional characterization of the above-described system are therefore required.

Conclusions

The initial results of atraumatic microoptical flexible endoscopy of the male seminal tract in a cadaver model are encouraging. Image quality and spatial resolution are sufficient for routine clinical use. Nevertheless, complex anatomical and technical limitations reveal the need for further refinements of this concept for routine clinical implementation. Moreover, in vivo examinations still need to be conducted. The presented technique might contribute to the improvement of diagnostics and the treatment of different genitourinary diseases in the future.
