Can Artificial Intelligence Accurately Detect Urinary Stones? A Systematic Review

Search strategy

A systematic review of literature was carried out on September 4, 2023, using the Scopus, Web of Science, Embase, and PubMed databases. No time period limited the literature research and every publication was considered for screening without restriction.

The search terms (“automatic” OR “machine learning” OR “convolutional neural network” OR “artificial intelligence” OR “detection” AND “stone volume”) were used. Reference lists of selected articles were checked manually for eligible additional articles.

Inclusion and exclusion criteria

Inclusion criteria were: (1) stone volume (SV) or stone detection or distinction with other anatomical structures as vascular or nonvascular calcifications as the main topic of the article; (2) automation or AI process (supervised learning, ML, convolutional neural network) as the main method; (3) full-text available for screening and analysis of the methodology or data; and (4) English-written publications only. Original studies as well as conference abstracts on in vivo studies were considered. Systematic reviews, editorials, and letters were not considered. Exclusion criteria were: (1) manual measurement of SV or manual stone detection only; (2) linear measurement of stones only; (3) ambiguous report of results such as the absence of accuracy on stone detection or SV; and (4) publications in any other language than English.

Data extraction

Two authors (F.P. and D.S.) extracted data independently using a standardized-item form. Conflicts were resolved by selective analysis and consensus. Included studies were assessed for study characteristics and relevant outcomes. Primary outcomes of interest were automation or AI processes and results in either in vitro or in vivo studies. Imaging modalities were also extracted when available, as well as patients' demographics.

Quality assessment: risk-of-bias

A risk-of-bias (RoB) assessment for nonrandomized studies was undertaken independently by two authors (F.P. and D.S.) using the validated Joanna Briggs Institute Critical Appraisal Checklist for nonrandomized studies. ⁹ The ROBVIS tool was used for a graphical representation, assuming the randomization bias was not applicable in all studies. ¹⁰ Finally, each included study underwent the Checklist for Artificial Intelligence in Medical Imaging (CLAIM). ¹¹ Conflicts were resolved by consensus. Comprehensive description of the quality of bias assessment can be found in Supplementary Figure S1.

Statistical analysis

Considering the heterogeneity of the study outcomes and the lack of comparative trials, a meta-analysis was not performed. The structure of the article was decided based upon the consensus of authors.

Literature search

The search identified 94 studies through the database searches and 1 additional study from reference lists of which 12 studies were selected for the final review. ^{12 –23} All studies were retrospective, including three multicenter ^15,19,20 and nine single-center ^{12 –14,16 –18,21 –23} studies (Table 1). The selection process is detailed in Figure 1.

OPEN IN VIEWER

FIG. 1.

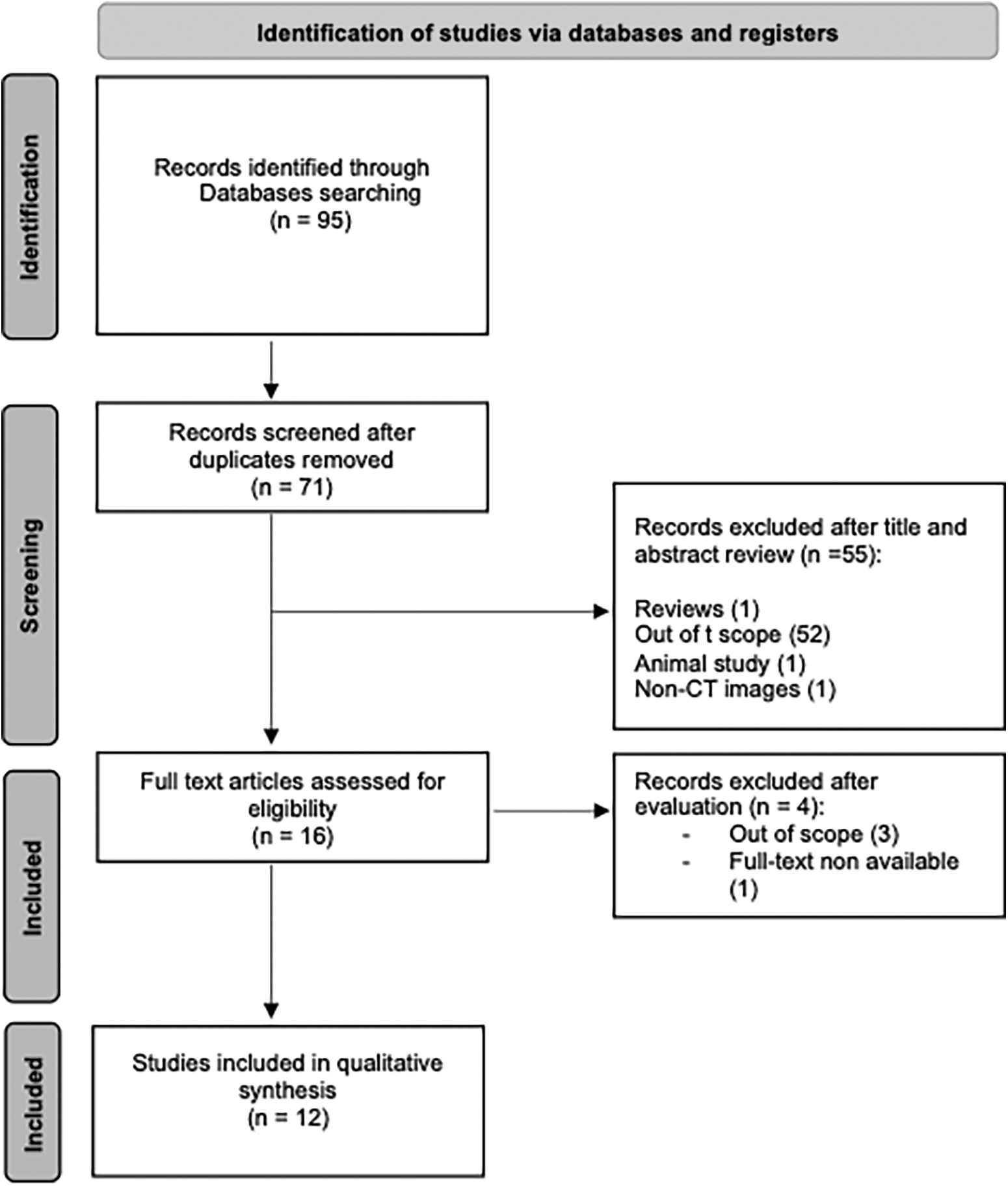

PRISMA flow diagram. PRISMA = Preferred Reporting Items for Systematic Review and Meta-Analysis.

Quality assessment: RoB

RoB assessment was applicable to all included studies. Only one study had a high RoB, ²¹ with all other studies having moderate RoB (Supplementary Fig. S1a, b). According to the CLAIM checklist, 6 and 11 studies completed at least 80% and 50% of the 42 checkpoints, respectively (Supplementary Fig. S1c). The high RoB study was the only study not reaching 50% of CLAIM checkpoints. ²¹

Study design, participants

Among the included studies, all were retrospective and three were multicenter (25%) (Table 1). Studies were focusing on various locations of stones: kidney (5/12, 42%), ureter (2/12, 16%), or both (5/12, 42%). The main objective was always described clearly but differed among studies: stone detection (12/12, 100%), stone characterization (maximum diameter, volume, density, complexity) (5/12, 42%), and stone distinction from a differential diagnosis (2/12, 16%). Regarding the two last articles, one intended to automate distal ureteral stone distinction from phleboliths, ¹³ whereas the other one aimed to distinct urinary stones from vascular calcifications. ¹² The description of included patients and NCCT varied significantly also among the publications. In regard of the population description, a control group (without urinary stones) was retrieved in four studies (33%).

Patients were selected from a stone former cohort in 10/12 (83%), from “another purpose” NCCT cohort in 1/12 (8%) studies ²⁰ : six studies included adult ^{12,14,15,17,18,22} stone formers, while a single one included pediatric stone formers. ¹⁹ Two studies included ARC patients. ^13,16 Mukherjee et al. used a multiorgan segmentation data set that included stone disease but was not designed as a dedicated stone former cohort, ²³ while Elton et al.'s study used colonography computed tomography with incidental stones. ²⁰ In the last one (Park et al.), we did not find details on the cohort constitution. ²¹

NCCT protocol

The imaging modalities were heterogeneously described among included studies. Authors reported at least the number of NCCT stations in eight publications. ^{12 –14,16,18,20,22,23} Indeed, no detail from NCCT protocols were found for two studies, ^15,21 whereas Babajide et al. reported only the slice thickness (Table 1). ¹⁹ About NCCT characteristics, the slice thickness was the most reported characteristic (nine studies), followed by tube tension (seven studies). The remaining characteristics were the modulation/intensity +/− rotation duration and interval reconstruction rate. The radiation dose was not retrieved in any studies.

AI method

Method section of each included studies provided a detailed presentation of the AI process used for network training (Table 2). Network's names were systematically cited and if they were pretrained, newly or reshaped designed networks. The data set splitting used “validation” or “test” titles for internal validation in all studies that did not include an external validation. Data set splitting was described in 10 studies. Elton et al. conducted an external validation, whereas other included publications reported an internal validation. ²⁰ Supervised training was the chosen method for DL network training in all studies. An automated NCCT annotation was done in two studies, in which an automated kidney segmentation followed by a threshold-based segmentation was realized. ^20,23 One study aimed to define a composite method to differentiate vascular calcifications from stones (shape feature and texture criteria). ¹²

The other studies ensured the ground truth definition by a manual annotation, that is, stone segmentation, of each NCCT certified by at least one radiologist or urologist. The network compilation and training characteristics were described in five studies, as well as overfitting dealing methods or data augmentation. ^{13,14,17,18,20,22}

Outcomes and statistics

All included studies presented results from a described statistic method (Table 2). However, statistical contents were heterogenous with various calculations or criteria: Dice score, F1 score, sensitivity, specificity, false positive, accuracy, positive predictive value, negative predictive value, concordance, or correlation. For studies using a first step of kidney segmentation followed by threshold-based segmentation, excellent performances were reported: 0.968 Dice score with a manual-automated SV concordance of 0.995 [0.993–0.996] in Mukherjee et al.'s work, and sensitivity/specificity of 88% and 91%, respectively, with 0.95 correlation between manual and automated segmentation in the external validation cohort for Elton et al. ^20,23 Finally in Cui et al.'s study, the kidney segmentation Dice was 0.97 with an excellent concordance. ¹⁵ One-step stone segmentation achieved stone detection and SV Dice scores of 0.79 and 0.66, respectively. ^17,19

For stone detection, trained networks reported sensitivity and specificity rates ranging from 58.7% to 100% ^{13 –23} and 68.5% to 100%, ^{14,16 –21} respectively. According to the clinical context, sensitivity varied from 66.1% to 97.5%, 88%, 94% to 100%, 87.5% to 88% in studies that included adult, pediatric stone formers, suspected ARC, nonstone formers, respectively. In Park et al.'s study, a 90% sensitivity rate was reported but no clinical context was given. Studies that focused on suspected acute colic patients included also control cases without stones. ^13,16 In three studies, eligibility criteria considered stone size limits. ^18,20,23

Using the two-step segmentation methods, Mukherjee et al. limited the stone size as 3 to 250 mm, ³ while Elton et al. considered stone to be greater than 3 mm³, providing similar stone detection sensibilities (87%–88%). Caglayan and colleagues divided cases according to the axial diameter (0–10, 10–20, and >20 mm), showing higher sensitivities in larger stones. ¹⁸

Considering accuracy, six studies found 63% to 99.95% rates in the stone detection. ^{14,16 –18,21,22} Overall Dice score ranged from 0.83 to 0.97. ^15,17 Focusing on the quantitative comparison between AI-automated and manual SV measurements, five studies reported included such comparisons. ^{19,20,22 –24} Overall, the correlation between network-generated and manual SV (ground truth) ranged from 88.44% to 99.5%. ^20,22,23 Moreover, a 0.31 ± 0.92 mm³ SV difference was reported in Elton et al.'s study, with higher SV by manual measurements according to Babajide et al. ^19,20

Furthermore, a distinction has to be made according to the NCCT annotation method used is these studies (one-step stone segmentation or two-step kidney segmentation followed by 130 HU-threshold segmentation). The latter one was associated with better AI-manual SV concordance/correlation that a one-step stone segmentation, even if we can legitimately consider 88.4% as a clinically impactful correlation for SV estimation. However, the two-step annotation method was only feasible on kidney stones and could not include ureteral stones consecutively.

Kidney and ureteral stone detections were associated with similar outcomes but distinct methods were available to achieve the ground truth definition (NCCT annotation). For kidney stones, an automated kidney segmentation and threshold-based segmentation was achievable, which could not be transposed to ureteral stones, because of the absence of contrast agent injection in NCCT. A single study aimed to differentiate distal ureteral stones from phleboliths. ¹⁶ Jendeberg and colleagues DL method was associated with a sensitivity, specificity, and accuracy of 94%, 90%, and 92%, and a higher accuracy than the mean radiologist accuracy (92% vs 86%, p = 0.03).

NCCT and stone diagnosis

AI efficiency in stone detection

Turing introduced AI in the well-known essay “The Imitation Game” in 1950. ⁵ Replacing the question “Can a machine think?” by the different steps of task learning as close as an anime mind could do, Turing acknowledged for the first time the concepts of “rules,” “stores,” and “control,” still used in current AI experiments. Thus, with almost infinite possible combinations, AI can automate tasks for which a model or network is trained with input and output material. Training consists in defining the rules to find a path from given native to annotated data. That being said, AI can achieve one action in several ways, as shown in the present review. In the field of stone detection, various methods and networks have been described for data preprocessing (annotation), with two predominating segmentation methods: kidney segmentation followed by threshold-based segmentation or direct stone segmentation.

These methods presented similar outcomes, but only the second one can achieve an efficient ureteral stone segmentation in NCCT. Indeed, in Park et al., the Fast R-CNN was able to segment the urinary tract, a second method (“watershed”) was needed to reach an 84% detection rate only. ²¹ Furthermore, segmentation seems to overpass other detection methods, with a simple quantification process. A segment is a three-dimensional region of interest (voxel) that can be recorded also as cubic millimeter (mm³). If currently the SV is not the gold-standard measurement (i.e., stone maximum diameter [SMD]) in international guidelines, SV seems more accurate to estimate the stone burden, especially for irregular or complex stone shapes. ^3,7,32 Moreover, obtaining the maximum linear dimension, that is, SMD, its maximum density (HU) from a segment is feasible with several free user-friendly imaging software on daily practice. ^{33 –35}

Our review found 2D and 3D networks with distinct architectures and reported better outcomes with 3D ones for stone detection. ²² When comparing several 3D networks, Li et al. reported the Res U-Net as the most efficient for kidney stones. Recently, Elton et al. first reported a trained network for kidney stone detection with a proper external validation, that is, data from another center that have never been shown by the network during training. ²⁰ Four studies used cross-validation to improve an internal validation and increase the training data set. ^15,17,21,22

The cross-validation method consists in multiple data sets splitting (k times, i.e., k-fold cross-validation) and multiple training phases with various positions of the validation fold in the data set. At the end of each cycle (training and validation), performance metrics are calculated to assess how the network is performing. It tries to demonstrate that the network performance is not due to the random split of data, and would perform similarly in real-world conditions, but is less robust than an external validation. ³⁶

Transfer learning represents another technical aspect of AI processes. In addition to input and output data, a network and its architecture are required to achieve an efficient automated task. ³⁶ Researchers are given two options: build their own network or reuse a previous network that has been trained for a similar task. The first option is more challenging than the second one because it requires high coding skills. On the contrary, the second one is easier to infer as ML has spread in the research community with a large offer of pretrained networks for segmentation or image classification. Our review recorded 10 studies that chose to use pretrained networks. ^{12,14,15,17 –23} The last two publications were focusing on a new task (phlebolith-distal ureteral stone distinction, 2021) or the first intending to achieve urinary stone detection (2018). ^13,16

Up to date, no algorithm has been validated for urinary (kidney and ureter) stone detection and distinction between distal ureteral stones and phleboliths. Regarding this last task, a single study showed promising results (sensitivity, specificity, and accuracy of 94%, 90%, and 92% and a higher accuracy than the mean radiologist accuracy [92% vs 86%, p = 0.03]) but without external validation. ¹⁶ Furthermore, most studies excluded complex cases such the presence of foreign bodies (nephrostomy tubes, ureteral stents, hip prosthesis) or phleboliths. Indeed, solitary kidneys, atrophic kidneys, renal anomalies, calcified renal masses, renovascular calcifications, regional lymph node calcifications, metallic implants, pigtail ureteral catheters, percutaneous nephrostomy catheters, artifacts were excluded from Caglayan et al.'s study. ¹⁸ Therefore, integrating these trained networks in the clinical decision-making process does not seem feasible at the moment.

Moreover, studies primary objective differed on the location of the stone that was looked for detection, quantification, and distinctions from phlebolith or vascular calcifications, as said before. Furthermore, a single study conducted a proper external validation. Thus, to further advance in integrating trained neural network models in daily practice, further studies should focus on both ureteral and kidney stone detection, coupled with phlebolith distinction. Using a pretrained 3D network with both internal and external validations seems adequate for this purpose.

Design, outcomes, and statistics

As part of the heterogeneity in the reviewed data, participants, outcomes, and statistics varied among studies. First, the NCCT selection and database screening involved nonkidney stone formers in some studies, as shown in Elton et al.'s study with colonography CTs, for example. ²⁰ The presence of a control group without urinary stones was reported in only six studies. ^{14,16 –18,20,21} In case of ureteral stones, the great variability of the stone location can justify the absence of a control group: all images without stones but an “empty” ureter can be considered control images. On the contrary, kidney stones' location varies slightly. Therefore, a control group without stone appears mandatory, but was described only for studies that used a direct stone segmentation. ^17,18,20 As shown previously, the two remaining studies conducted a two-stage kidney stone segmentation method, explaining why authors judged unnecessary to include a control group. ^15,23

Our research found also a high variability rate regarding the provided clinical data: no data, ^12,13,21 clinical data (including age, gender, or urinary abnormality or variation), ^{14 –16,18,19,22,23} and stone characteristics (SMD, density [HU], or SV). ^{14 –20,22,23} Clinical and stone data are primordial in AI studies as well as in clinical trials for both outcomes analysis and generalization. Therefore, providing demographic and stone characteristics appears mandatory for further studies. Similarly, NCCT details were partially lacking in a non-negligible number of included studies, and a high degree of heterogeneity in NCCT protocols. However, AI-network performances differed in an acceptable range, but most studies conducted an internal validation that lowers the reliability of their findings for clinical practice.

Furthermore, the data annotation method varied among studies, without any detail on how the bone window was defined (manually or presetting) for stone segmentation. If a consensus has been reached on using the bone window for stone measurements on NCCT to avoid overestimation, it has been show that a manual bone window is reliable and accurate. ^{37 –39}

Heterogeneity lay also in the outcomes and statistics. Among the 12 included studies, we recorded 11 different statistical criteria. On one hand, standard probability tests such as sensitivity, specificity, and positive and negative predictive values were frequently reported. Thus, they are common measures to assess the performance of diagnostic tests or classification models, such as ML networks. On the other hand, the Dice score, also known as the Sorensen-Dice coefficient or F1 score, is a statistical measure used to assess the similarity or overlap between two sets or groups, ranging from 0 (no overlap) to 1 (total similarity). It is commonly used in various fields, including image segmentation, natural language processing, and information retrieval, to evaluate the agreement or similarity between two sets of data. ⁴⁰

Accuracy differs from Dice by measuring only true values (percentage of correct detection), whereas Dice score includes also false values. ⁴¹ Dice score could represent the best criteria to analyze AI network performances in the field of image segmentation and was recorded in four studies. ^15,17,19,23 Table 3 summarizes the encountered metrics and provides an ML-oriented definition for each.

Clinical implications and surgical planning

Our literature review intended to report the current evidence on urinary stone automated detection on NCCT. This radiologic classification task, among other oncologic and nononcologic imaging interpretations, can benefit from AI and supervised learning, with a direct improvement for patients. Involving AI processes in the radiology field does not aim to and will not overcome radiologists, but radiologists with AI will provide better interpretations compared with radiologists without AI. ^42,43 In the initial stage of ARC, an automated stone detection would help to improve patients' path from emergency departments to urology clinics in several ways. First, radiologists will have more time dedicated to find what is usually missed on NCCT because of focusing on finding the stone (the “unreported data”), such as urologic (anatomical variation, clots, small renal mass, vascular abnormalities) and non-urologic findings.

Moreover, the decision of contrast agent injection for nonstone-related ARC will be facilitated by the gained time on standard cases. Therefore, an etiologic diagnosis will be given to a higher proportion of patients, even in case of nonstone-related ARC. Then, a greater amount of NCCT can be interpreted in the same amount of time, which would increase NCCT access in emergency for patients, currently limited because of human resources. ³ Regarding this last aspect, we acknowledge that the new potential human limit for NCCT access in case of ARC would be the reasonable number of NCCTs a radiographer can perform. A recent clinical audit conducted by the British Association of Urological Surgeons (BAUS) of ureteral stone care pathways reported female patients to have lower access to NCCT performed within 24 hours of ARC presentation (13% vs 7.3% for men [chi-squared p = 0.01]). ⁴ We can reasonably think AI-aided imaging to solve discrepancies in access. Finally, an AI-detected stone could trigger an automated clinic apportionment with the urology department, improving without any doubt the follow-up. Thus, recent publications have demonstrated a threefold reduction of the duration between referral and treatment by the creation of a dedicated ARC clinic. ⁴⁴ Consequently, having an automated method for stone detection could reduce even more this waiting time, but will reach the available human resource limit and the reasonable delay for spontaneous passage or medical expulsive therapy (2–4 weeks). ⁷

A step further in integrating AI to clinical practice could consist in large language models for automated radiology reports given to radiologists. A recent experiment using ChatGPT has shown promising results in generating accurate reports. ⁴⁵ However, authors emphasized some incorrect statements, missed relevant medical information, and potentially harmful passages. AI integration, instead of practitioner replacement, will solve the responsibility issue inherent with AI misdiagnosis or unreported data, but a special attention has to be given to ethical principles for the application of AI to health care and in urology. ⁴⁶

Finally, automated stone detection will facilitate endourologic procedures planning by automated stone burden estimation. From NCCT segments, SV is easily accessible in daily practice, from which a lithotripsy duration can accurately be calculated for flexible ureteroscopy. ^32,35,47,48 After being applied to the stone diagnosis and quantification, AI networks will carry on surgical planning and pursue to improve patients' care.
