Long-Term Preservation of Cones and Improvement in Visual Function Following Gene Therapy in a Mouse Model of Leber Congenital Amaurosis Caused by Guanylate Cyclase-1 Deficiency

Abstract

Leber congenital amaurosis (LCA) is a severe retinal dystrophy manifesting from early infancy as poor vision or blindness. Loss-of-function mutations in GUCY2D cause LCA1 and are one of the most common causes of LCA, accounting for 20% of all cases. Human GUCY2D and mouse Gucy2e genes encode guanylate cyclase-1 (GC1), which is responsible for restoring the dark state in photoreceptors after light exposure. The Gucy2e ^–/– mouse shows partially diminished rod function, but an absence of cone function before degeneration. Although the cones appear morphologically normal, they exhibit mislocalization of proteins involved in phototransduction. In this study we tested the efficacy of an rAAV2/8 vector containing the human rhodopsin kinase promoter and the human GUCY2D gene. Following subretinal delivery of the vector in Gucy2e^–/– mice, GC1 protein was detected in the rod and cone outer segments, and in transduced areas of retina cone transducin was appropriately localized to cone outer segments. Moreover, we observed a dose-dependent restoration of rod and cone function and an improvement in visual behavior of the treated mice. Most importantly, cone preservation was observed in transduced areas up to 6 months post injection. To date, this is the most effective rescue of the Gucy2e^–/– mouse model of LCA and we propose that a vector, similar to the one used in this study, could be suitable for use in a clinical trial of gene therapy for LCA1.

Introduction

L eber congenital amaurosis (LCA) is a genetically heterogeneous autosomal recessive disorder causing severe retinal degeneration (den Hollander et al., 2008). It is generally diagnosed in early infancy and is characterized by poor vision or blindness with nystagmus and dramatically reduced or absent electroretinogram. LCA1 is caused by mutations in the GUCY2D gene and is the most prevalent form of LCA, accounting for up to 20% of all LCA cases (Hanein et al., 2004; Hunt et al., 2010).

Human GUCY2D and mouse Gucy2e genes encode the retinal guanylate cyclase-1 (GC1) protein, which is located in disc membranes of photoreceptor outer segments. The role of GC1 is to replenish cGMP levels after light exposure (reviewed in Koch et al., 2002). In the dark, cGMP levels are sustained at a steady rate, keeping the cGMP-gated channels open and maintaining partial depolarization of the cells by allowing influx of the inward current. Exposure to light leads to cGMP hydrolysis and channel closure, facilitating a sharp decline in intracellular Ca²⁺ and hyperpolarization of the cells. Under low Ca²⁺ concentrations, guanylate cyclase-activating proteins (GCAPs) stimulate GC1 activity resulting in cGMP synthesis, reopening of the channels, and dark state restoration. Mutations that inactivate GC1 lead to inability to produce cGMP, persistent closure of the cGMP-gated channels, and therefore a state equivalent to constant light exposure (Larhammar et al., 2009; Hunt et al., 2010).

The phenotype of the Gucy2e^–/– mouse differs from that of patients with LCA1 regarding rod function. Patients with LCA1 have no detectable rod function as measured by electroretinography (ERG), whereas Gucy2e^–/– mice exhibit diminished, but persistent rod function. This results from functional redundancy provided by the GC2 gene expressed in mouse rods, although why this mechanism appears not to be operating in humans is unclear (Baehr et al., 2007; Helten et al., 2007). In both mouse and human, cone function is absent from birth. Cone degeneration in the mouse is detectable from 9 weeks of age and continues over the next 6 months (Coleman et al., 2004). It has been shown that, despite poor rod function, the retina of patients with LCA1 may still be largely intact in patients ranging from 20 to 53 years of age (Pasadhika et al., 2010). LCA1 may therefore be more amenable to gene therapy than other forms of LCA in which photoreceptor cell survival is compromised much earlier.

Gene therapy for LCA1 has previously been evaluated in the GUCY1*B chicken (Williams et al., 2006) and Gucy2e^–/– mouse (Haire et al., 2006; Boye et al., 2010). The initial studies, using a bovine GC1 transgene and either a lentiviral vector (Williams et al., 2006) or rAAV2/5 vector (recombinant adeno-associated virus type 2 [AAV2] vector pseudotyped with AAV5 capsid) (Haire et al., 2006) resulted in short-term improvement of retinal function in the GUCY1*B chicken, but no improvement in the Gucy2e^–/– mouse. The more recent study, using rAAV2/5 and a mouse transgene, achieved significant restoration of visual function in the Gucy2e^–/– mouse (Boye et al., 2010). In treated Gucy2e^–/– eyes, cone-mediated (photopic) b-wave amplitudes increased up to 45% of wild-type levels, and cones were preserved for up to 3 months posttreatment. Furthermore, behavioral analyses demonstrated improvement in visual acuity and contrast sensitivity. No improvement in rod function was reported.

In this study, we assessed the long-term efficacy of rAAV2/8-mediated transfer of a human GC1 transgene and have achieved the most effective rescue of the Gucy2e^–/– mouse model of LCA to date.

Materials and Methods

Experimental animals

Gucy2e^–/– animals were provided by D.L. Garbers (Dallas, TX). The homozygous line was maintained on a mixed 129/SvJ and C57BL/6J background. To determine whether any improvements following gene therapy fell within the normal range for wild-type animals, pure inbred C57BL6/J were used as wild-type controls. All the experiments were approved by the University College London (London, UK) Ethics Committee and were performed under U.K. Home Office license. The procedures were conducted in accordance with the Association for Research in Vision and Ophthalmology (Rockville, MD) Statement for the Use of Animals in Ophthalmic and Vision Research.

Plasmid construction and production of rAAV2/8

Human GUCY2D and mouse Gucy2e cDNAs were cloned into the pD10_hRK_GFP construct (Khani et al., 2007). Before cDNA insertion, the gene encoding green fluorescent protein (GFP) was removed and cDNA was inserted in between the human rhodopsin kinase (hRK) promoter and the simian virus 40 (SV40) polyadenylation site to form the following constructs: pD10_hRK_hGUCY2D (total length, 8162 bp) and pD10_hRK_mGucy2e (total length, 7979 bp). The constructs were verified by sequencing.

Recombinant AAV2/8 was produced by a previously described tripartite transfection method (Gao et al., 2002) into 293 cells. AAV8 packaging, helper, and pD10_hRK_hGUCY2D or pD10_hRK_mGucy2e plasmids were combined with polyethylenimine (PEI; Polysciences, Eppelheim, Germany) and left to form complexes for 10 min. The mixture was added to HEK293 cells and left for 24 hr. The cells were harvested and concentrated 2 days after transfection, and lysed using repeated freeze–thaw cycles to release the vector. The HEK293 cell nucleic acid component was removed by Benzonase (Sigma-Aldrich, Dorset, UK) treatment and virus preparation was cleared of cellular debris by multiple centrifugation steps, followed by previously described purification by ion-exchange chromatography (Davidoff et al., 2004). The virus preparation was concentrated in a Vivaspin 4 concentrator (10 kDa; Sartorius Stedim Biotech/Fisher Scientific, Loughborough, UK), washed in phosphate-buffered saline (PBS), and concentrated further to 100–150 μl. Viral particle titers were determined by dot-blot analysis of purified virus preparations and plasmid controls of known concentrations.

Subretinal injections

Subretinal injections of viral vectors were performed on postnatal day 10 (P10) in the right eyes of Gucy2e^–/– mice. Left eyes were left as untreated internal controls. Double injections of 1.5 μl each were performed per eye, targeting superior and inferior hemispheres of the retina. The technique used to deliver subretinal injections was previously described (Tan et al., 2009).

Electroretinographic analysis

Electroretinograms (ERGs) were recorded from both eyes of injected Gucy2e^–/– mice and age-matched C57BL6/J wild-type controls starting from 2 weeks post injection. ERGs were subsequently recorded on a 2-weekly basis up to week 8, and then monthly up to 6 months post treatment when the animals were sacrificed. Uninjected left eyes of treated animals were regarded as untreated controls. All animals were dark adapted overnight before ERG recordings. The animals were anesthetized with a single intraperitoneal injection of a 0.01-ml/g mixture of Domitor (1 mg/ml medetomidine hydrochloride), ketamine (100 mg/ml), and water at a ratio of 5:3:42 before recording. The pupils were dilated with a drop of Minims Tropicamide 1% (Bausch & Lomb/Chauvin Pharmaceuticals, Essex, UK). Midline subdermal ground and mouth reference electrodes were first placed, followed by eye electrodes that were allowed to lightly touch the corneas. A drop of Viscotears 0.2% liquid gel (Dr. Robert Winzer Pharma/OPD Laboratories, Watford, UK) was placed on top of the electrodes to keep the corneas moistened during recordings. ERGs were recorded with commercially available equipment (Espion E2; Diagnosys, Lowell, MA). Bandpass filter cutoff frequencies were 0.312 Hz (low-frequency cutoff ) and 1000 Hz (high-frequency cutoff ). Scotopic, rod-mediated responses were obtained from dark-adapted animals at the following increasing light intensities: 0.001, 0.01, 0.1, 1, 3, 5, and 10 cd/m². Ten responses per intensity were recorded for the first three intensities with 10-sec dark adaptation between each. Five responses were recorded for all the subsequent steps with 30-sec dark adaptation between each. Responses were averaged for each intensity. For the rod-mediated b-wave responses amplitudes were analyzed at a scotopic light intensity of 0.01 cd/m².

Photopic, cone-mediated responses were performed after a 10-min light adaptation on a background light intensity of 20 cd, which was used as background intensity for the duration of photopic recordings, flash and flicker. Recordings were obtained at the following increasing light intensities: 0.1, 1, 3, 5, 10, and 20 cd/m². Twenty-five responses were averaged for each intensity, with a 60-sec light adaptation interval between each step. For the cone-mediated b-wave responses amplitudes were analyzed at a photopic light intensity of 20 cd/m².

Photopic flicker followed photopic flash recordings, and consisted of 25 flashes per frequency at the following frequencies: 0.5, 2, 5, 10, 15, and 30 Hz.

Optomotor testing

Contrast sensitivities and visual acuities of treated and untreated eyes were measured by observing the optomotor responses of mice to rotating sinusoidal gratings (OptoMotry©; CerebralMechanics, www.cerebralmechanics.com/CerebralMechanics_Inc./OptoMotry.html). Mice reflexively respond to rotating vertical gratings by moving their head in the direction of grating rotation. The protocol used yields independent measures of the acuities of right and left eyes, based on the unequal sensitivities of the two eyes to pattern rotation: right and left eyes are most sensitive to counterclockwise and clockwise rotations, respectively (Douglas et al., 2005; Alexander et al., 2007). Gucy2e^–/– mice were previously described to have normal optomotor rod behavior (Boye et al., 2010). Therefore, to exclude any rod input, mice were light adapted for at least 30 min before testing. A double-blind two-alternative forced choice procedure was employed, in which the observer was blinded to both the direction of pattern rotation and to which eye received treatment. Acuity was defined as the highest spatial frequency (at 100% contrast) yielding a threshold response, and contrast sensitivity was defined as 100 divided by the lowest percent contrast yielding a threshold response. For photopic acuity, the initial stimulus was a 0.200 cycles/degree sinusoidal pattern with a fixed 100% contrast. For photopic contrast sensitivity measurements, the initial pattern was presented at 100% contrast, with a fixed spatial frequency of 0.128 cycles/degree. Visual acuity and contrast sensitivity were measured under photopic conditions (62 log cd m^–2). Visual acuities and contrast sensitivities were measured for both eyes of each mouse at least four times on independent days. Data for naive Gucy2e^–/– mice are presented alongside for comparison (animals 1 and 2).

Tissue preparation for immunohistochemistry and crude membrane protein preparation

All animals treated with low-titer vector were taken for immunohistochemistry. For immunohistochemistry performed on dark-adapted eyes, the animals were dark adapted overnight and sacrificed in the dark, with the red light head torch as the only light source. For those eyes collected in the light a cautery mark was placed on the superior limbus to aid in orientation. The cornea was pierced and the eye placed in 4% paraformaldehyde (PFA) at 4°C overnight. Corneas were removed and a small V-shaped mark was cut out of the sclera, where the cautery mark was present. Lenses were removed and eyecups placed in a 20% sucrose–PBS solution until sunken. The eyecups were then embedded in optimal cutting temperature (OCT) embedding medium (Raymond A. Lamb/Thermo Fisher Scientific, East Sussex, UK), and frozen in isopentane previously cooled in liquid nitrogen. Embedded eyes were kept at −80°C until sectioned.

For Western blotting, a crude membrane preparation was used to extract protein from the snap-frozen retinas. Each retina was placed in 100 μl of low-salt homogenization buffer (10 mM morpholinepropanesulfonic acid [MOPS], 5 mM mercaptoethanol in water, and protease inhibitors added). Tissue was broken up by multiple passages through a 25-gauge needle. Salt content was then raised to 0.25 M by adding 5 M NaCl and the homogenate was centrifuged at 4°C for 5 min at 900×g to remove large debris. The extract was further centrifuged at 15,000×g for 30 min at 4°C, after which membrane pellets were resuspended in 50 μl of the low-salt homogenization buffer.

Immunohistochemistry

Immunofluorescence for GC1, cone arrestin, and α-transducin was performed on freshly cut, frozen retinal sections (thickness, 18 μm). Slides were incubated in blocking buffer (2% normal goat serum [Dako, Ely, UK], 1% bovine serum albumin [BSA], 0.1% Triton X-100 in PBS) for 1 hr at room temperature. Antibodies were diluted and added to their respective slides at the following dilutions: polyclonal rabbit anti-GC1, 1:1000 (GC1 antibody used for immunohistochemistry was generously provided by A. Dizhoor, Salus University, Elkins Park, PA); polyclonal rabbit anti-cone arrestin, 1:10,000 (Millipore, Watford, UK); and polyclonal rabbit anti-cone α-transducin, 1:2000 (Santa Cruz Biotechnology, Santa Cruz, CA), and left to incubate at 4°C overnight. Slides were thoroughly washed in PBS and the following secondary antibodies were diluted in block solution and applied: for GC1 and cone arrestin, Alexa Fluor 488 goat anti-rabbit IgG conjugate was used (diluted 1:2500; Molecular Probes, Paisley, UK), and for α-transducin Alexa Fluor 594 donkey anti-rabbit IgG conjugate was used (diluted 1:1000; Molecular Probes). Slides were incubated with secondary antibodies for 2 hr at room temperature, followed by PBS washes. Hoechst (Sigma-Aldrich) nuclear counterstain was used diluted to 1 μg/ml in PBS. Slides were mounted in fluorescent mounting medium (Fluormount; Dako) and staining was analyzed by microscopy (Leica TCS SPE confocal microscope; Leica, Mannheim, Germany).

Western blotting

Membrane protein extracts were quantified in a Bio-Rad protein assay (Bio-Rad, Hemel Hempstead, UK). Equal concentrations of each sample were left at 37°C for 30 min before 10× sample buffer was added. The samples were then loaded onto 6% polyacrylamide gels and, after gel electrophoresis, transferred to nitrocellulose membrane for Western blotting. After blocking the membrane in block solution (5% skimmed milk powder–1% bovine serum albumin [BSA; Sigma-Aldrich]–0.05% Tween 20 in PBS) overnight at 4°C, goat polyclonal anti-GC1 antibody [diluted 1:250; ROS-GC1 (C-13), Santa Cruz Biotechnology] was added and left at room temperature for 2 hr. Membrane was thoroughly washed in PBS–0.05% Tween 20 and incubated with a horseradish peroxidase (HRP)-conjugated rabbit anti-goat IgG antibody (diluted 1:5000; Dako) in block solution for 1 hr at room temperature. After PBS–0.05% Tween 20 washes, signal was developed with Amersham enhanced chemiluminescence (ECL) Plus Western blotting detection reagents (GE Healthcare, Chalfont St Giles, UK). Subsequent to image analysis, the membrane was stripped of antibodies, using prewarmed stripping buffer (100 mM mercaptoethanol, 2% sodium dodecyl sulfate [SDS], 62.5 mM Tris-HCl), and the stripping procedure was verified by repeating the signal detection process followed by thorough washes in PBS–0.05% Tween 20. The membrane was reblocked with the same blocking solution as described previously and mouse monoclonal anti-Kv2.1 potassium channel protein antibody (diluted 1:10,000; UC Davis/NIH NeuroMab facility, Davis, CA) was added and left at 4°C overnight. The next morning the membrane was washed thoroughly in PBS–0.05% Tween 20 and incubated with an HRP-conjugated anti-mouse IgG antibody diluted 1:10,000 in block solution for 1 hr at room temperature. Signal detection was repeated as described previously.

Real-time RT-PCR

RNA was extracted from retinas treated with the high-titer vector at 5 months post injection. The numbers for all real-time RT-PCR analyses were as follows: treated group, n=6 eyes; untreated group, n=5 eyes; C57BL/6J wild-type group, n=3 eyes. RNA was extracted with an RNeasy mini kit (Qiagen, Crawley UK). Equal quantities and up to 1 μg of RNA were used as a template for cDNA manufacture for each sample. cDNA was produced with a QuantiTect reverse transcriptase kit (Qiagen). Real-time quantitative RT-PCR (qRT-PCR) was performed with a commercial thermal cycler (7900HT; Applied Biosciences, Foster City, CA). All reagents were obtained from Roche Diagnostics (Burgess Hill, UK). The technique was based on FAM-labeled hydrolysis probes (Roche Diagnostics), and primers were designed for specific probe-binding regions using the Roche Universal Probe Library. The primers used to detect endogenous mouse Gucy2e were as follows: CATGGACCTCACCTTTGACC (forward) and CTGTGCGTTCTCGGATCA (reverse) in combination with Roche universal probe #67. To detect the introduced human GUCY2D transcript the following primers were used: CGGCTGCTTACACAGATGC (forward) and GTACTCGGGCTCCACTGGT (reverse) in combination with Roche universal probe #5. To measure cone arrestin levels, the following primers were used: TGTGTTTGTTCAGGAGTTCACA (forward) and AGGCCCTGCTTCTGACAGT (reverse) in combination with Roche universal probe #71. Cycling conditions for the endogenous mouse Gucy2e and cone arrestin reactions were 40 cycles of 94°C for 30 sec, 60°C for 1 min; and for the human GUCY2D transcript 40 cycles of 94°C for 30 sec, 50°C for 1 min. All reactions were performed in duplicate or triplicate. Absolute mRNA amounts were calculated on the basis of the standard curve of control DNA sample dilutions of known concentration, which was included for every PCR performed. Water control was also included for every primer–probe combination.

Statistical analyses

To analyze qRT-PCR, optomotry, and cone quantification data, one-way analysis of variance (ANOVA) was used with Tukey's multiple comparison post-tests. Two-way ANOVA for repetitive measures with Bonferroni post-tests was used to statistically evaluate ERG data. The Student t test was used to evaluate cone arrestin as a marker of cone numbers. All statistical analyses were performed with GraphPad Prism version 5.01 for Windows (GraphPad Software, San Diego, CA).

Results

GC1 protein localization and levels in eyes of Gucy2e^–/– mice following subretinal injections of AAV2/8 vector carrying a GUCY2D transgene

Human GUCY2D cDNA was cloned into the AAV2 plasmid backbone with an hRK promoter and SV40 polyadenylation site. We have previously shown that this rhodopsin kinase promoter mediates efficient transgene expression in both rods and cones (Khani et al., 2007; Pawlyk et al., 2010; Sun et al., 2010). The plasmid was packaged with AAV8 capsids to generate a recombinant AAV2/8 vector (rAAV2/8_hRK_hGUCY2D), using a tripartite transfection method in HEK293 cells, and purified by ion-exchange chromatography (Gao et al., 2002). Gucy2e^–/– mice were treated with two injections of 1.5 μl of vector at 7×10¹¹ vector genomes (VG)/ml (low titer) or 4×10¹² VG/ml (high titer).

GC1 is localized to outer segments of mouse photoreceptors (Fig. 1a). Following subretinal injections of rAAV2/8_hRK_hGUCY2D in postnatal day 10 (P10) Gucy2e^–/– mice, abundant GC1 was detected exclusively in photoreceptor outer segments for up to 6 months post treatment (latest time point examined; Fig. 1b), whereas no GC1 staining was observed in the untreated eyes (Fig. 1c). Western blot analysis confirmed that the transgene product was of the correct size at 120 kDa (Fig. 1d). We also examined, using real-time RT-PCR, the levels of GUCY2D transcript produced in Gucy2e^–/– eyes 5 months after injection of high-titer rAAV2/8_hRK_hGUCY2D (Fig. 2). Total RNA was extracted from six treated retinas, as well as from the retinas of four untreated mice and three C57BL/6J wild-type controls. The human GUCY2D transcript levels in Gucy2e^–/– eyes that had received high-titer vector were on average 30-fold higher than endogenous transcript levels in C57BL/6J wild-type retinas (p<0.01, one-way ANOVA). However, as the transgene transcript lacks the natural 5′ untranslated region (UTR), it may not be translated with the same efficiency as the endogenous mRNA. These results are consistent with our immunohistochemical staining (Fig. 1a–c), but not our Western blot data (Fig. 1d), which suggests that Gucy2e^–/– mice that received either low- or high-titer vector have lower levels of GC1 compared with wild-type C57BL6/J mice. The inconsistency between the immunohistochemistry, qPCR, and immunoblot data might be explained by the use of two different antibodies for Western blotting and immunohistochemistry. However, it is not appropriate to use immunoblotting or immunohistochemistry as a way of comparing the levels of GC1 in treated Gucy2e^–/– mice and untreated wild-type mice because the polyclonal antibodies used are raised against human GC1 and so most likely bind the human transgene product more efficiently than endogenous mouse GC1. It is therefore not possible to determine the levels of transgene product relative to endogenous protein in wild-type mice.

FIG. 1.

Correct size and localization of guanylate cyclase-1 (GC1) protein in treated Gucy2e^–/– eyes. GC1 immunofluorescence (green) was detected in the outer segments of photoreceptor cells in (a) wild-type eyes and (b) Gucy2e^–/– eyes treated with low-titer (LT) vector. (c) No staining was observed in untreated Gucy2e^–/– eyes. 4′,6-Diamidino-2-phenylindole (DAPI) nuclear counterstaining is shown in blue. (d) Western blot showing 120-kDa GC1 protein in Gucy2e^–/– eyes treated with low-titer (LT) or high-titer (HT) vector and in C57BL/6J wild-type controls, but not in Gucy2e^–/– untreated eyes (UT). Kv2.1 was used as a loading control. OS, outer segments; IS, inner segments; ONL, outer nuclear layer. Scale bar: 25 μm. Color images available online at www.liebertonline.com/hum

FIG. 2.

GUCY2D transcript levels in Gucy2e^–/– eyes treated with high-titer vector. Real-time RT-PCR analyses comparing levels of GUCY2D transcript in high-titer vector-treated Gucy2e^–/– eyes with endogenous Gucy2e transcript in C57BL/6J wild-type eyes and untreated Gucy2e^–/– eyes. The levels of introduced GUCY2D transcript in treated eyes are 30-fold higher than those seen in C57BL/6J wild-type control eyes (p<0.01, one-way ANOVA). Transcript levels detected in untreated controls are significantly lower than the levels of GUCY2D transcript detected in treated Gucy2e^–/– eyes (p<0.001, one-way ANOVA).

Restored localization and increased levels of cone α-transducin in treated retinas

To modulate the sensitivity of the photoresponse and also to protect photoreceptors in bright light, key components of the phototransduction cascade, including arrestin and the G-protein transducin, translocate between photoreceptor compartments in mouse rods and cones (Elias et al., 2004; Lobanova et al., 2010). In dark-adapted rods, arrestin is dispersed throughout the cell and translocates to the outer segments on exposure to light; the reverse is true for transducin. In cones, arrestin translocates in the same manner as in rods (Elias et al., 2004). However, cone α-transducin translocation is triggered only by high light intensities and the cones need to be saturated and unresponsive for a prolonged period of time (Lobanova et al., 2010). It has been demonstrated previously that localization of cone α-transducin is perturbed in Gucy2e^–/– cone photoreceptors, with α-transducin localized to the inner segments and synaptic regions of cones (Coleman and Semple-Rowland, 2005). Our results are consistent with these findings; we observed weak and mislocalized cone α-transducin staining in untreated Gucy2e^–/– eyes. In the treated eyes, however, immunohistochemical staining revealed increased levels of cone α-transducin, correctly localized to the cone outer segments (Fig. 3a). It has also been reported previously that localization of cone arrestin is perturbed in Gucy2e^–/– cone photoreceptors (Coleman and Semple-Rowland, 2005), and that cone arrestin remains in the outer segments and synaptic terminals regardless of light conditions. However, we did not observe a major difference in cone arrestin staining in C57BL/6J wild-type and untreated Gucy2e^–/– mice (Fig. 3b). Although there was faint immunostaining throughout Gucy2e^–/– cones that was not seen in wild-type cones, in light-adapted animals the bulk of the signal, as in wild-type animals, was present in cone outer segments and synaptic terminals. Furthermore, after dark adaptation, arrestin translocated normally throughout cone photoreceptor cells. The localization and translocation of cone arrestin was not altered after administration of vector (Fig. 3b).

FIG. 3.

Cone α-transducin levels and localization are restored in Gucy2e^–/– treated eyes. C57BL/6J wild-type, Gucy2e^–/– eyes treated with low-titer (LT) vector and untreated (UT) retinas were stained with antibodies against cone α-transducin (a, red) and cone arrestin (b, green). (a) Restored cone α-transducin localization to the outer segments of cones in the treated eyes, comparable to wild-type eyes. The images in the first three columns were taken using the same microscope settings, whereas the images in the last column, designated as Gucy2e^–/– UT*, are identical to those in the Gucy2e^–/– UT column except that they were taken with a long exposure and lighting levels were manipulated in Adobe Photoshop 7.0 Elements to reveal the signal in the red channel. The results indicate substantially reduced levels of cone α-transducin in untreated Gucy2e^–/– eyes, and restored levels in treated eyes. (b) The two left-hand columns are images of retinal sections of eyes harvested and processed under normal light conditions and the right-hand columns are images of those harvested and processed in the dark. In the light, cone arrestin is localized in the cone outer segments and synaptic regions of wild-type as well as treated and untreated Gucy2e^–/– eyes. In the dark, cone arrestin is localized throughout the cone cells in wild-type eyes, and in treated and untreated Gucy2e^–/– eyes. DAPI nuclear counterstain is shown in blue. Scale bars: 15 μm. Color images available online at www.liebertonline.com/hum

Dose-dependent, long-term restoration of photoreceptor function in Gucy2e^–/– mice

The effect of treatment on photoreceptor function was tested over a 6-month period by electroretinography (ERG). ERGs were performed on treated and untreated Gucy2e^–/– mice and on age-matched C57BL/6J wild-type control animals. The average scotopic (rod-mediated) b-wave amplitude of untreated Gucy2e^–/– mice was approximately 35% of that of C57BL/6J wild-type animals at all time points examined. There was no significant difference in scotopic b-wave amplitudes after injection of control rAAV2/8_hRK_hrGFP or low-titer vector (data not shown). Scotopic b-wave amplitudes in Gucy2e^–/– mice treated with high-titer vector were, over time, significantly higher than those of untreated mice (p=0.0005, two-way ANOVA). The b-wave amplitudes were restored to 65–100% of wild type (Fig. 4a and b).

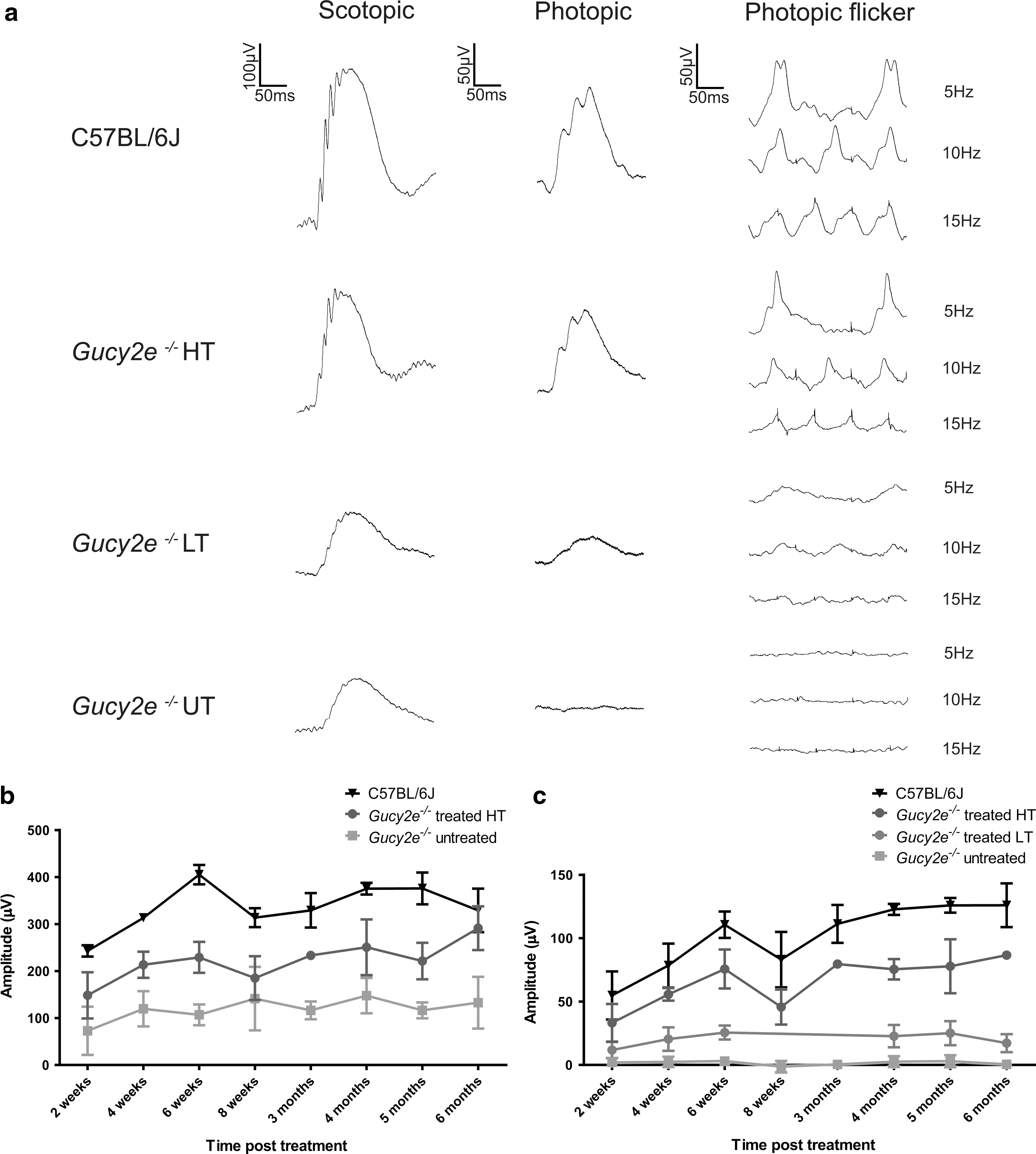

FIG. 4.

Improvement in cone and rod function in treated Gucy2e^–/– eyes. (a) Representative electroretinographic (ERG) traces from C57BL/6J wild-type mice, Gucy2e^–/– mice 6 months after treatment with high-titer (HT) or low-titer (LT) vector, and untreated Gucy2e^–/– (UT) mice. Rod-mediated b-wave responses of Gucy2e^–/– animals treated with low-titer vector were no different from those of untreated eyes, whereas responses of animals treated with high-titer vector were restored to an average of 65% of wild-type amplitudes. Cone-mediated ERG of Gucy2e^–/– animals treated with low-titer vector improved on average to 20% of wild-type amplitudes, whereas the responses of animals treated with high-titer vector were restored to 65% compared with wild-type eyes. (b) Over time, scotopic b-wave amplitudes in Gucy2e^–/– mice treated with high-titer vector were significantly higher than those in untreated mice (p=0.0005, two-way ANOVA). (c) Data from animals treated with low-titer vector were significantly different from those of untreated and wild-type eyes at all time points examined (p<0.05, two-way ANOVA). Cone-mediated ERG responses of eyes treated with high-titer vector were significantly higher than those of untreated eyes at all time points (p<0.001, two-way ANOVA) and significantly lower than in wild-type eyes at all time points (p<0.05, two-way ANOVA), except at 2 weeks post injection.

Restoration of cone function was achieved with both high- and low-titer vector (Fig. 4c). After injection of low-titer vector, cone-mediated b-wave amplitudes were on average 20% of that from wild-type mice and were significantly different from those of untreated Gucy2e^–/– mice at all time points examined (p<0.05, two-way ANOVA). In animals treated with high-titer vector, cone-mediated b-wave amplitudes were improved even further—on average 65% of wild type. Cone-mediated b-wave amplitudes from treated animals were significantly greater than those from untreated controls at each time point examined (p<0.001, two-way ANOVA). The cone-mediated ERG after injection of control rAAV2/8_hRK_hrGFP vector was not different from untreated controls (data not shown).

After subretinal injection of high-titer rAAV2/8_hRK_mGucy2e (vector carrying the mouse Gucy2e transgene) we observed an increase in scotopic and photopic b-wave amplitudes that was not significantly different from that achieved after administration of high-titer rAAV2/8_hRK_hGUCY2D (p>0.05, two-way ANOVA; Fig. 5a and b). This similarity in the efficacy of the two vectors probably reflects the 87% homology between mouse and human GC1 proteins.

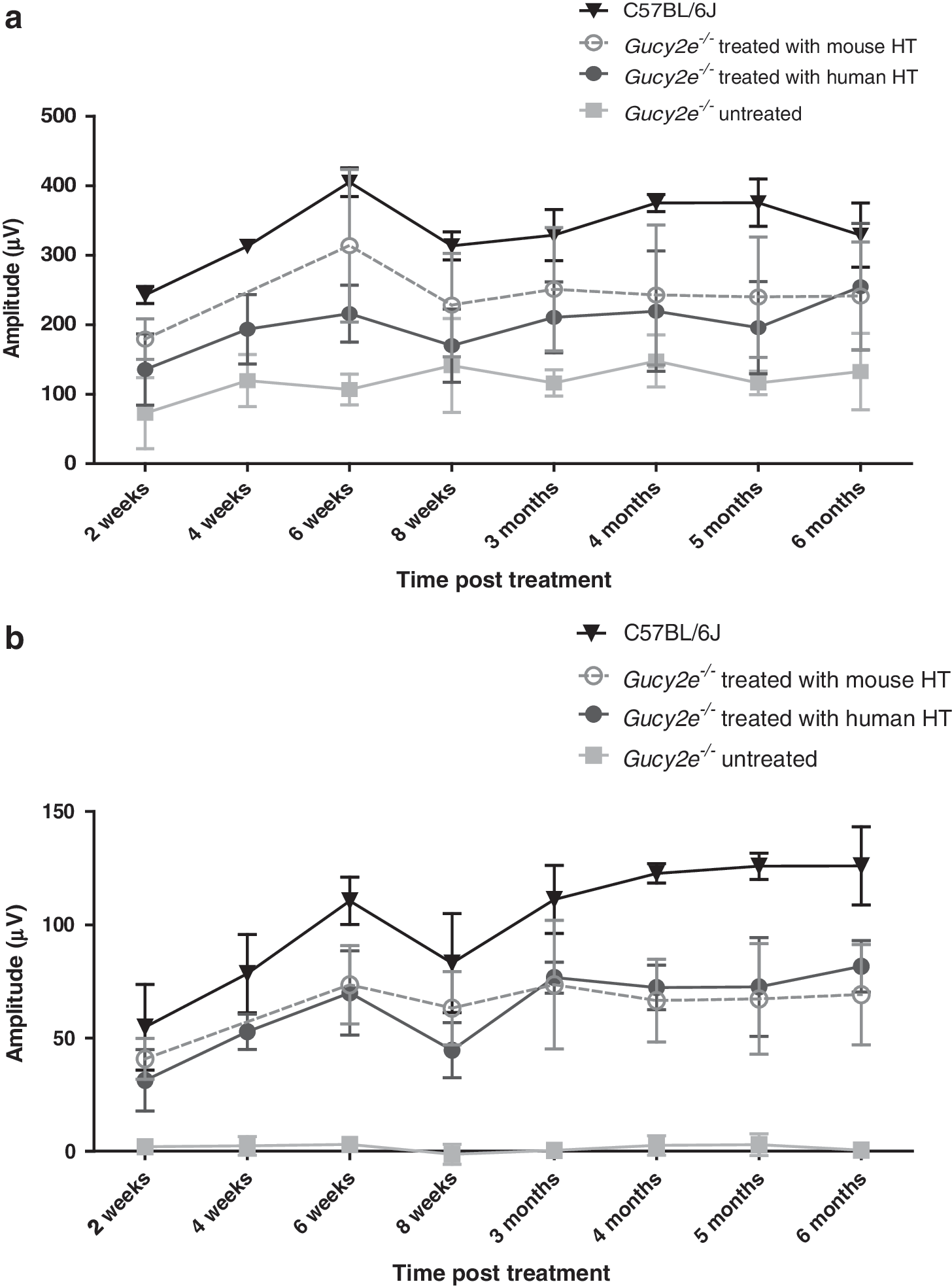

FIG. 5.

Comparison of photoreceptor function restoration after transfer of human GUCY2D and mouse Gucy2e transgenes. (a) Consistent rod ERG improvement was observed in eyes treated with both vectors (mean±SD). No statistically significant difference was observed between the efficacy of rescue using both vectors (p=0.587, two-way ANOVA). (b) Cone-mediated ERG b-wave responses of Gucy2e^–/– eyes treated with the mouse transcript did not differ from those treated with the human transcript (p=0.9887, two-way ANOVA). Cone-mediated ERG responses achieved with the mouse transcript were approximately 62% of the response seen in C57BL/6J wild-type eyes, compared with 65% achieved with the human transgene.

Improvement in cone-mediated optomotor responses in Gucy2e^–/– mice after treatment

As reported previously (Boye et al., 2010), residual rod function in Gucy2e^–/– animals is sufficient for robust scotopic, rod-mediated optomotor behavior that is equivalent to that in wild-type animals (data not shown). To assess restoration of cone-mediated behavioral responses, optomotor analysis was performed under photopic conditions on Gucy2e^–/– mice 4 months after the animals received subretinal injection of high-titer vector in one eye. We observed a substantial improvement in cone-mediated optokinetic head tracking behavior as a result of treatment (Fig. 6). Cone-mediated visual acuity in untreated Gucy2e^–/– eyes was 0.102±0.011 cycles/degree (±SD, n=10 eyes; Fig. 6a), whereas average visual acuity in treated eyes was 0.386±0.064 cycles/degree (p<0.0001, one-way ANOVA). The visual acuity of treated eyes was significantly lower than that of C57BL/6J wild-type controls, which had an acuity of 0.518±0.033 cycles/degree (p<0.05, one-way ANOVA). However, the Gucy2e^–/– mice used for these experiments were of a mixed C57BL6/Sv129 genetic background and the acuity of treated eyes falls within the normal range for other strains of wild-type mice including a mixed C57BL/6J/Sv129 strain (0.418±0.046 cycles/degree) (Alexander et al., 2007; Haruta et al., 2009; Boye et al., 2010). Contrast sensitivity of treated Gucy2e^–/– eyes improved significantly following treatment (1.0±0.0 vs. 5.0±2.8; p<0.05, one-way ANOVA) (Fig. 6b), although it remained significantly lower than the mean contrast sensitivity of C57BL/6J wild-type controls (29.3±5.2; p<0.05, one-way ANOVA).

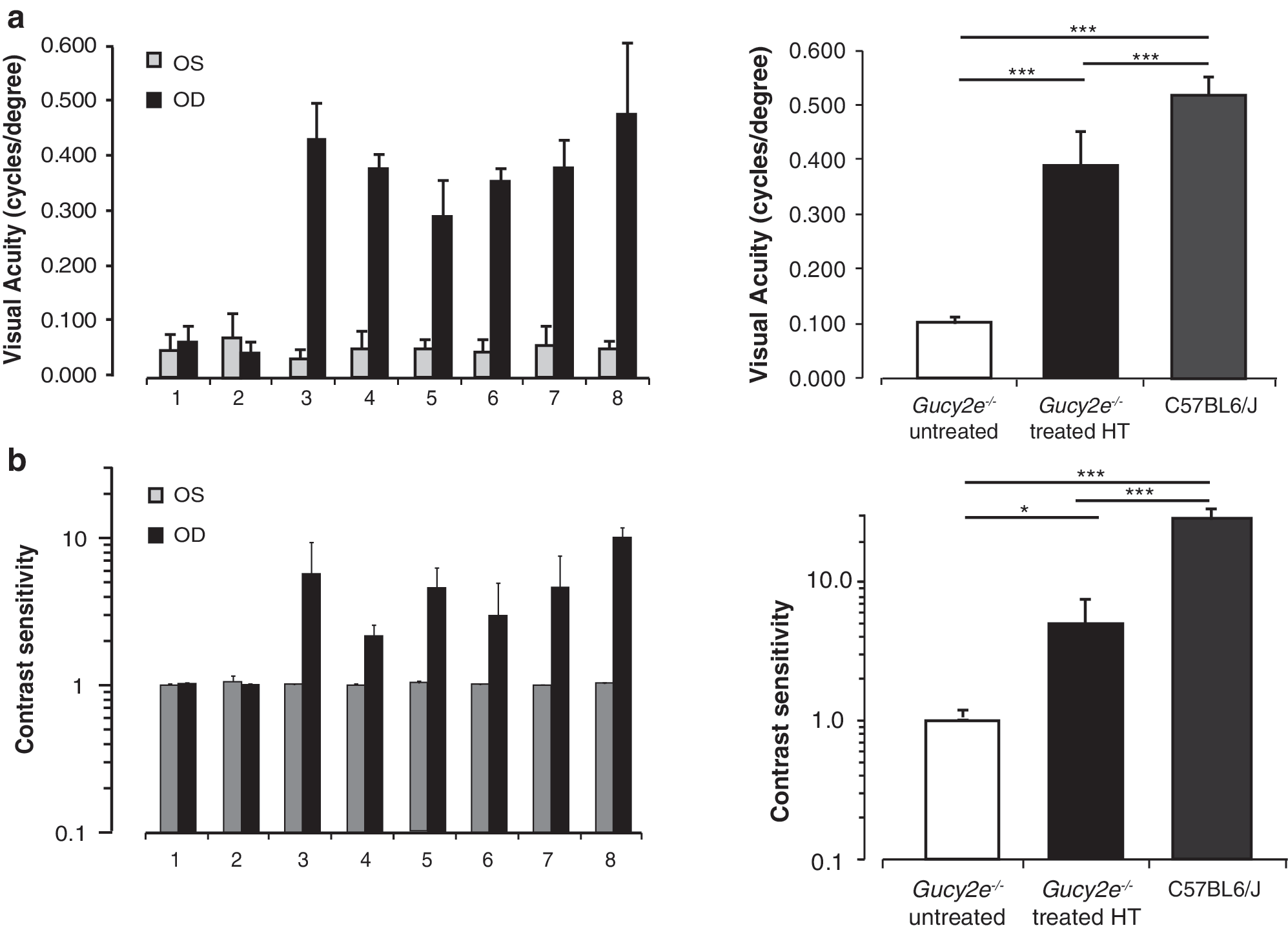

FIG. 6.

Restoration of cone-mediated optomotor behavior in Gucy2e^–/– treated eyes. Shown is the photopic visual acuity and contrast sensitivity measurements in two untreated Gucy2e^–/– mice (animals 1 and 2), and six mice treated with high-titer vector (animals 3–8) 4 months post treatment. Results are presented for each animal and averaged per group in the right-hand graphs. (a) Robust improvement in visual acuity was consistently observed in treated eyes (p<0.0001, one-way ANOVA). (b) A significant improvement in contrast sensitivity was detected in treated eyes (p<0.05, one-way ANOVA). OD, right eye; OS, left eye.

Cone preservation in transduced areas of retinas

By using immunolabeling against cone α-transducin and peanut agglutinin (PNA) lectin, Coleman and colleagues have shown that cone degeneration in Gucy2e^–/– mice starts to be apparent from 9 weeks of age and is slowly progressive (Coleman et al., 2004). Loss of cones is more pronounced in the inferior retina, and by 6 months few cones are present in this region, whereas nearly 50% of cones still remain in the superior retina (Coleman et al., 2004). Because of these regional differences we carried out two subretinal injections in order to administer vector to both superior and inferior retina. Six months after administration of low-titer vector, we analyzed serial sections of treated eyes, using antibodies against cone α-transducin and GC1 and used age-matched untreated eyes as controls. By staining adjacent sections of the eye we were able to determine whether cone preservation took place in the regions transduced by the vector (Fig. 7). At 6 months posttreatment, both GC1 (green) and cone α-transducin (yellow) immunostaining were visible in superior and inferior regions of the treated retina, (Fig. 7a, insets e and g; and Fig. 7b, insets f and h). In the areas surrounding transduced regions, where GC1 immunofluorescence was undetectable (Fig. 7a, insets I and k), no cone α-transducin staining was seen (Fig. 7b, insets j and l). In untreated Gucy2e^–/– eyes (Fig. 7c, insets m and o), only superior regions of the retina contained cones expressing cone α-transducin (Fig. 7d, inset n). The staining in these regions was also considerably weaker compared with that in treated retinas. Few cones were detected in the inferior regions of untreated eyes (Fig. 7d, inset p). Quantification of cones in whole eye sections of Gucy2e^–/– eyes treated with low-titer vector and stained with cone α-transducin revealed a significant overall increase in cone numbers (20%) in treated compared with untreated retinas (p<0.01, one-way ANOVA) (Fig. 7r).

FIG. 7.

Cone preservation in the transduced areas of Gucy2e^–/– treated eyes. Shown are adjoining retinal sections of Gucy2e^–/– eyes 6 months post treatment with low-titer vector (a and b) and untreated contralateral eyes (c and d) stained with antibodies against GC1 (a and c, green) and cone α-transducin (b and d, yellow). (e–l) Insets are images of corresponding regions outlined in (a) and (b). In the areas where GC1 staining is evident in the treated eyes (e and g) there is also expression of cone α-transducin (f and h). In the untransduced areas, where there is no GC1 (i and k), there is no cone α-transducin staining (j and l). (m and n) Images of the superior retina, and (o and p) of the inferior retina of the untreated eye (c and d). There is no GC1 staining in the untreated eye (c). Weak cone α-transducin staining is evident in the superior untreated retina (n) with few cone cells present in the inferior part of the retina (p). Scale bars: (a) 500 μm; (e) 100 μm. (r) Number of cone cells determined by cone α-transducin staining in Gucy2e^–/– eyes treated with low-titer vector, compared with untreated Gucy2e^–/– eyes and C57BL/6J wild-type controls. The cone number in treated eyes was 20% higher than in untreated eyes (p<0.001, one-way ANOVA). (s) Real-time RT-PCR quantification of cone arrestin mRNA (CAR) in wild-type, Gucy2e^–/– untreated eyes and eyes 5 months post treatment with high-titer vector. The levels of cone arrestin are 1.3 times higher in treated eyes compared with untreated eyes (p<0.0001, one-way ANOVA) and have increased to 70% of the levels in wild-type eyes. Color images available online at www.liebertonline.com/hum

By comparing the cone counts described previously with real-time RT-PCR data, we found that there was no statistically significant difference in cone arrestin levels per cone cell between C57BL/6J wild-type (26.6±3.9 molecules/cone) and untreated Gucy2e^–/– animals (19.9±5.2 molecules/cone, p=0.1, Student t test), suggesting that cone arrestin transcript levels are a good indicator of cone numbers. This allowed us to use the previously isolated mRNA samples from the Gucy2e^–/– eyes injected with high-titer vector to determine whether cone preservation was present 6 months post treatment. The levels of cone arrestin mRNA in Gucy2e^–/– eyes treated with high-titer vector were 1.3-fold higher than the arrestin levels in untreated eyes (p<0.0001, one-way ANOVA; Fig. 7s). Cone arrestin transcript levels in the treated eyes were restored to 70% of the levels seen in C57BL/6J controls (p<0.001, one-way ANOVA).

Discussion

Gene supplementation studies have been performed in a number of animal models of retinal degeneration, with increasingly encouraging results (Ali et al., 2000; Acland et al., 2001; Pawlyk et al., 2005; Alexander et al., 2007; Tan et al., 2009; Komaromy et al., 2010; Simons et al., 2011). Furthermore, clinical trials have demonstrated the safety and efficacy of AAV2/2-mediated gene therapy for the treatment of LCA2, which is caused by deficiency in RPE65 (Bainbridge et al., 2008; Hauswirth et al., 2008; Maguire et al., 2008).

In this study we assessed the efficacy of an rAAV2/8 vector carrying a human GUCY2D transgene in the Gucy2e^–/– model of LCA1. It follows two previous studies in which AAV2/5 vectors carrying either the bovine or mouse GC1 transgene were used to treat the Gucy2e^–/– mouse (Haire et al., 2006; Boye et al., 2010). Use of the bovine transgene did not improve retinal function (Haire et al., 2006). Although use of an rAAV2/5 vector carrying the mouse transgene resulted in significant improvements in cone ERGs (photopic b-wave amplitudes up to 45% of wild type), and also in cone-mediated vision, no improvements were seen in rod ERGs (Boye et al., 2010). Although cone preservation was demonstrated, the assessments were made at 3 to 4 months of age, at a time when cones are still plentiful in the superior regions and degenerating in inferior retinas.

In this study we used an rAAV2/8 serotype as previously we and other groups have demonstrated more efficient transduction of photoreceptor cells as well as higher levels of transgene expression after the use of this serotype compared with AAV2/5 (Yang et al., 2002; Allocca et al., 2007; Natkunarajah et al., 2008). After administration of the vector, we achieved the most successful rescue of the Gucy2e^–/– mouse model to date. We demonstrated appropriate localization of the GC1 transgene product to the outer segments of rods and cones and increased levels and appropriate localization of cone α-transducin. In addition to the restoration of cone ERG function to near wild-type levels and a robust improvement in cone-mediated visual function, we also demonstrated for the first time a significant improvement in rod ERG function and long-term preservation of cones.

A study of adult patients with LCA1 ranging in age from 20 to 53 years has reported preservation of retinal structures despite markedly impaired visual acuity (Pasadhika et al., 2010). This suggests that LCA1 is a fairly stationary condition with minor structural deterioration with age, and that there might be a relatively long opportunity for treatment compared, for instance, with patients of a similar age with RPE65 mutations whose retinal structures are compromised to a greater extent (Pasadhika et al., 2010). Thus vectors similar to the one used in this study could be suitable for use in a clinical trial and have the potential to be highly effective in patients with LCA1.
