Gene Therapy Fully Restores Vision to the All-Cone Nrl −/− Gucy2e −/− Mouse Model of Leber Congenital Amaurosis-1

Abstract

Mutations in GUCY2D are the cause of Leber congenital amaurosis type 1 (LCA1). GUCY2D encodes retinal guanylate cyclase-1 (retGC1), a protein expressed exclusively in outer segments of photoreceptors and essential for timely recovery from photoexcitation. Recent clinical data show that, despite a high degree of visual disturbance stemming from a loss of cone function, LCA1 patients retain normal photoreceptor architecture, except for foveal cone outer segment abnormalities and, in some patients, foveal cone loss. These results point to the cone-rich central retina as a target for GUCY2D replacement. LCA1 gene replacement studies thus far have been conducted in rod-dominant models (mouse) or with vectors and organisms lacking clinical translatability. Here we investigate gene replacement in the Nrl^−/−Gucy2e^−/− mouse, an all-cone model deficient in retGC1. We show that AAV-retGC1 treatment fully restores cone function, cone-mediated visual behavior, and guanylate cyclase activity, and preserves cones in treated Nrl^−/−Gucy2e^−/− mice over the long-term. A novel finding was that retinal function could be restored to levels above that in Nrl^−/− controls, contrasting results in other models of retGC1 deficiency. We attribute this to increased cyclase activity in treated Nrl^−/−Gucy2e^−/− mice relative to Nrl^−/− controls. Thus, Nrl^−/−Gucy2e^−/− mice possess an expanded dynamic range in ERG response to gene replacement relative to other models. Lastly, we show that a candidate clinical vector, AAV5-GRK1-GUCY2D, when delivered to adult Nrl^−/−Gucy2e^−/− mice, restores retinal function that persists for at least 6 months. Our results provide strong support for clinical application of a gene therapy targeted to the cone-rich, central retina of LCA1 patients.

Introduction

Retinal guanylate cyclases (retGCs) are enzymes expressed in the outer segments of photoreceptors that play a pivotal role in photoreceptor recovery from photoexcitation. In response to light stimulation, cGMP-gated channels close, leading to a reduction in intracellular Ca²⁺. This lowering of Ca²⁺ serves as a signal for Ca²⁺ sensing, guanylate cyclase activating proteins (GCAPs) to active retGCs that produce cGMP, reopen cGMP-gated channels, and return the photoreceptor to its partially depolarized state.^1,2 Humans possess two retGC isoforms (retGC1 and retGC2) and three GCAPs (GCAP1, GCAP2, and GCAP3).^{3

–11} Multiple studies evaluating expression of retGCs in human retina confirm that, while retGC1 is expressed in the outer segments of both rods and cones, it is expressed at relatively higher levels in cones.^3,5,12,13 It was recently reported that retGC1 is the preferred target of GCAP1 in vivo. ¹⁴ It is not surprising, therefore, that diseases primarily affecting cone photoreceptors have been linked to defects in both retGC1 and GCAP1. Recessive Leber congenital amaurosis type 1 (LCA1) and dominant and recessive forms of cone–rod dystrophy, CORD6 and CORD, respectively, are associated with mutations in the gene encoding retGC1 (GUCY2D).^15

–18 Mutations in the gene encoding GCAP1 (GUCA1A) are associated with dominant forms of cone and cone–rod dystrophy.^{19

–26}

AAV-mediated gene replacement has proven safe and efficacious for the treatment of retinal disease.²⁷ To date, clinical trials targeting retinal pigment epithelium to address RPE65 Leber congenital amaurosis (LCA2) and choroideremia (CHM), retinal ganglion cells to address Leber hereditary optic neuropathy (LHON), or broad ocular cell types to address wet age-related macular degeneration have been performed.^28

–31 It remains to be seen whether photoreceptor-mediated diseases such as LCA1 will be amenable to treatment. We have evaluated the effects of gene replacement on photoreceptor structure/function and higher order visual processing in two mammalian models of LCA1, each with unique disease presentation, the retGC1 knockout (GC1KO) and the retGC1/GC2 double knockout (GCDKO) mouse.^32
–34 GC1KO mice carry a null mutation in Gucy2e, the homolog of human GUCY2D, and exhibit loss of cone function and progressive cone degeneration with maintenance of rod structure and variable levels of rod function. GCDKO mice carry null mutations in both Gucy2e and Gucy2f and exhibit loss of both cone and rod function and progressive loss of photoreceptor structure.^35,36 Use of the GCDKO mouse in earlier studies was motivated by several factors. First, clinicopathologic observations reported at that time suggested that LCA1 was associated with degeneration of both cones and rods.^37,38 In addition, because it lacked confounding retGC2 activity, this was the only model in which the effects of retGC1 replacement in rods and the functional efficiency of the AAV-delivered enzyme could be precisely determined. In anticipation of possible clinical trials, a thorough clinical characterization of LCA1 was recently performed.³⁹ Interestingly, this revealed that the primary functional deficit in patients resides in cone photoreceptors. The majority of patients had no cone-mediated visual function, a life-long lack of color perception and a severe loss of visual acuity. In spite of this, patients retained normal retinal laminar architecture exhibiting only abnormalities in cone outer segments and, in a few patients, foveal cone losses. Patients also exhibited preservation of rod structure and variable levels of rod function. Notably, the finding in many patients that central cones are maintained despite their profound dysfunction points squarely to the fovea as the logical treatment target.

The unique retinal anatomy of primates, that is, the presence of a central, cone-rich “fovea,” presents a challenge for evaluating cone-targeted therapy in animal models. The obvious drawback of mouse models is their rod-dominant retina that lacks a cone-rich central retina.⁴⁰ The GUCY1*B chicken model of LCA1 is cone-dominant, but has several shortcomings, including the considerable phylogenetic distance from placental mammals, its rapid rate of cone loss (necessitates embryonic intervention), and the inability to evaluate cone health using antibodies predominantly designed for use in rodents.⁴¹ The Nrl^−/− mouse exhibits a structural and functional switching of rods to an S-cone-like phenotype, verified by ultrastructural, immunohistochemical, molecular, and electrophysiological analyses.^42
–44 Utilizing the Nrl^−/− mouse as a genetic background on which to examine other mutations/alleles associated with cone dysfunction has been useful for understanding the mechanisms of cone degeneration in various forms of achromatopsia and LCA, as well as modeling retinal dystrophies with unique foveal presentation, for example, CEP290-LCA.^45
–47 We recently crossed the GC1KO mouse onto an Nrl^−/− background, thereby creating an all-cone model of retGC1 deficiency. The purpose of our study was to determine the impact of AAV-mediated retGC1 expression on cone structure and function and cone-mediated visual behavior in the Nrl^−/−Gucy2e^−/− mouse, a model with a retina containing a high density of exclusively cone photoreceptors. We also sought to determine if a clinically relevant vector (i.e., an AAV serotype and cellular promoter with proven efficacy in primate photoreceptors driving human GUCY2D) would prove therapeutic in this model at a treatment age consistent with early stage clinical application (i.e., adult mouse). We rationalized that results obtained in this study would be informative in terms of the implementation of AAV-mediated gene therapy in planned clinical trials to treat LCA1 patients.

Materials and Methods

Mice

The Nrl^−/− mouse line on a C57BL/6 background was provided by Dr. Anand Swaroop (National Eye Institute, Bethesda, MD) and the GC1^−/− mouse line was provided by Dr. Wolfgang Baehr (University of Utah). Cross mating was performed to generate Nrl^−/−Gucy2e^−/− mice at the University of Oklahoma Health Science Center. Founder pairs of mice were transferred to the University of Florida, where they were bred and maintained in the University of Florida Health Science Center Animal Care Services Facility under a 12 hr/12 hr light/dark cycle. Food and water were available ad libitum. All experiments were approved by the University of Florida's Institutional Animal Care and Use Committee and conducted in accordance with the ARVO Statement for the Use of Animals in Ophthalmic and Vision Research and NIH regulations.

Adeno-associated virus vectors

Vector plasmids containing the photoreceptor-specific human rhodopsin kinase, −112 to +180 (numbers represent nucleotide positions relative to transcriptional start site), promoter (hGRK1)⁴⁸ driving either murine Gucy2e or human GUCY2D cDNA were generated and packaged into AAV8-based vector containing a single tyrosine-phenylalanine mutation at residue 733 (Y733F) or AAV5, respectively. AAV vectors were purified and titered according to previously described methods.^49,50 Resulting titers for AAV8(Y733F)-hGRK1-Gucy2e and AAV5-hGRK1-GUCY2D were 1.4×10¹³ and 2.5×10¹³ vector genomes/milliliter (vg/ml), respectively.

Subretinal injections

One microliter of AAV8(Y733F)-hGRK1-Gucy2e was delivered subretinally to one eye of either Nrl^−/−Gucy2e^−/− or Nrl^−/− mice. Contralateral eyes remained uninjected. Injections were performed in multiple cohorts of Nrl^−/−Gucy2e^−/− mice that varied in their treatment age. Cohort 1 (n=16) was injected between postnatal day 35 and 47 (P35–P47). These mice were evaluated alongside age-matched Nrl^−/− controls (n=8) over the long-term with electroretinography (ERG), visually guided behavior tests, optical coherence tomography (OCT), immunohistochemistry (IHC), and immunoblot. Cohort 2 (n=7) was injected at P18 and used alongside age-matched Nrl^−/− controls (n=9) for ERG analysis and Western blot at 1 month postinjection. Cohort 3 was injected at P35 (n=6) and used alongside age-matched Nrl^−/− controls (n=3) for guanylate cyclase activity assays at 3 months postinjection. Cohort 4 (n=7) was injected at P40 with 1 μl of AAV5-hGRK1-GUCY2D and analyzed with ERG at 1 month and 5 months postinjection. Lastly, one cohort of Nrl^−/− mice (n=10) was injected with AAV8(733)-hGRK1-Gucy2e at P35 and analyzed by ERG analysis and IHC 1 month postinjection. A summary of all cohorts is contained within Table 1. Subretinal injections were performed as previously described.⁵¹ Further analysis was carried out only on animals that received comparable, successful injections (>60% retinal detachment and minimal complications). It is well established that the area of vector transduction corresponds to at least the area of retinal detachment.^30,51,52

Table 1.

A summary of cohorts evaluated

Strain	n	Age of injection	Vector	Outcome measures	Time points evaluated
Nrl^−/−Gucy2e^−/−	16	P35–P47	AAV8(Y733F)-hGRK1-Gucy2e	ERG	1, 2, 3, and 5 months PI
Nrl^−/−	8	na	na	OKN	3 and 6 months PI
				OCT	6 months PI
				IHC	6 months PI
				WB	6 months PI
Nrl^−/−Gucy2e^−/−	7	P18	AAV8(Y733F)-hGRK1-Gucy2e	ERG	1 month PI
Nrl^−/−	7	na		WB	1 month PI
Nrl^−/−Gucy2e^−/−	6	P35	AAV8(Y733F)-hGRK1-Gucy2e	GC activity assay	3 months PI
Nrl^−/−	3	na
Nrl^−/−Gucy2e^−/−	7	P40	AAV5-hGRK1-GUCY2D	ERG	1 and 5 months PI
Nrl^−/−	10	P35	AAV8(733)-hGRK1-Gucy2e	ERG	1 month PI
				IHC	1 month PI

ERG, electroretinogram; IHC, immunohistochemistry; na, not applicable; OCT, optical coherence tomography; OKN, optokinetic reflex testing; P, postnatal; PI, postinjection; WB, Western blot.

Electroretinogram

Light-adapted ERGs of Nrl^−/−Gucy2e^−/− mice treated with AAV8(Y733)-hGRK1-Gucy2e at P35–P47 and age-matched Nrl^−/− control mice were recorded using a UTAS Visual Diagnostic System equipped with a Big Shot Ganzfeld (LKC Technologies, Gaithersburg, MD). Mice were measured at 1 month and 2, 3, and 5 months postinjection. ERGs of Nrl^−/−Gucy2e^−/− mice treated with AAV5-hGRK1-GUCY2D were performed at 1 month and 5 months postinjection. ERGs of Nrl^−/−Gucy2e^−/− mice treated at P18 with AAV8(Y733)-hGRK1-Gucy2e were performed at 1 month postinjection. ERGs of Nrl^−/− mice treated with AAV8(733)-hGRK1-Gucy2e were performed at 1 month postinjection. Full-spectrum responses were generated in all cohorts at all time points. M- and S-cone-derived responses were collected during the final ERG recordings (5 months postinjection). Following overnight dark adaptation, mice were exposed to a 30 cds/m² white background for 2 min. Photopic cone responses were elicited with four increasing light intensities (1.25, 5, 10, and 25 cds/m²). Fifty responses with interstimulus intervals of 0.4 sec were recorded in the presence of a 20 cds/m² white background and averaged at each intensity. For M- and S-cone-derived signals, we used similar methods to those previously published.⁵³ First, mice were exposed to a rod-desensitizing 30 cds/m² white background for 10 min. With a background light on, M- and S-cone responses were evoked with a UV light-emitting diode (LED) of 520 and 360 nm, respectively. M cones were elicited at 0.025, 0.25, 2.5, and 25 cds/m² and S-cone responses were elicited at 0.0025, 0.025, 0.25, and 2.5 cds/m². Twenty-five flashes were applied and averaged at each intensity with interstimulus intervals of 0.43 for both M- and S-cone recordings. Amplitudes of full-spectrum, M- and S-cone-driven responses were compared with Student's t-test. Significance was defined as a p-value <0.05.

Behavioral analysis

Cone-mediated behavior was evaluated in AAV8(Y733)-hGRK1-Gucy2e-treated Nrl^−/−Gucy2e^−/− and Nrl^−/− control mice at 3 and 6 months of age using the optokinetic reflex test (optomotry, cerebral mechanics). Light-adapted spatial frequency measurements were collected as previously described.⁵⁴ Spatial frequency thresholds were compared with Student's t-test. Significance was defined as a p-value <0.05.

Guanylate cyclase activity assays

A separate cohort of Nrl^−/−Gucy2e^−/− mice treated with AAV8(Y733)-hGRK1-Gucy2e at P35 was verified for functional rescue by ERG and then used alongside age-matched Nrl^−/− control mice for guanylate cyclase activity assays as previously described.^34,55,56

Optical coherence tomography

Spectral domain OCT was performed on Nrl^−/−Gucy2e^−/− mice treated with AAV8(Y733)-hGRK1-Gucy2e at P35–P47 and age-matched Nrl^−/− control mice at 6 months of age in a similar fashion to that previously published.⁵⁷ Briefly, scans were collected noninvasively using the Bioptigen System (Durham, NC). Because of the disorganization (rosette formation) in Nrl^−/− retinas, autosegmentation could not be used to calculate thickness of retinal layers. Instead, outer nuclear layer (ONL) thickness was manually calculated as previously described.⁵⁷ Briefly, three lateral images (nasal to temporal) were collected: (1) 3 mm above the meridian crossing through the optic nerve head (ONH), (2) the meridian passing through the ONH, and (3) 3 mm below the ONH meridian. Three points were placed on identical locations on each meridian across samples. ONL thickness was measured at each point and values from treated and untreated Nrl^−/−Gucy2e^−/− mice and Nrl^−/− controls were compared with a paired t-test, with p-values of <0.05 considered significant.

Immunoblot

Mice were sacrificed, and retinas were prolapsed through a corneal incision, rapidly frozen, and stored at −80°C. Total retinal protein extracts were obtained from dissected retinas by sonication in 200 μl of sonication buffer (0.23 mM sucrose, 2 mM MgCl₂, 10 mM Tris-HCL, pH 7.5) containing inhibitors (Halt Protease and Phosphatase Inhibitor Cocktail; Thermo Scientific, Rockford, IL; cat #78410) at the supplier's recommended 1×concentration. Benzonase (Sigma-Aldrich, St. Louis, MO; cat #E1014) was added (0.1 μl) to each sample and the sample incubated for 15 min at 37°C. After incubation, 200 μl of 2×Laemmli buffer (BioRAD, Hercules, CA; cat #161-0737) was added. The samples were spun at 14,000 RPM for 5 min. A total volume of 20 μl per sample was loaded and electrophoresis was performed on 4–10% denaturing polyacrylamide gels and then transferred to polyvinylidene fluoride membrane using the Trans-Blot Turbo Transfer System (BioRad; cat #170-4155). Blots were incubated in Odyssey blocking buffer (Li-Cor, Lincoln, NE; cat #927-40000) for 1 hr to block nonspecific binding. Membranes were incubated overnight at 4°C with primary antibodies diluted in blocking buffer containing 0.2% Tween-20: rabbit anti-GC1 (1:1000; Santa Cruz, Biotechnology, Dallas, TX; cat #50512), rabbit anti-cone transducin (1:1000; Santa Cruz; cat #390), rabbit anti-rod transducin (1:1000; Santa Cruz; cat #389), rabbit anti-GC2 (1:5000, “L670”), rabbit anti-GCAP1 (1:30,000, “UW101”; kindly provided by Dr. Wolfgang Baehr), mouse-anti-RD3 (1:5; kindly provided by Dr. Robert Molday), rabbit anti-opsin red/green (1:1000; Millipore, Billerica, MA; cat #AB5405), rabbit anti-opsin, blue (1:1000; Millipore; cat #AB5407), rabbit anti-cone PDE6a′ (1:2000; “3184P” generously provided by Dr. Ramamurthy), or mouse anti-β-actin (1:1000; clone C4; Santa Cruz; cat #47778).

The following day, membranes were washed 4 times with 1×PBS and 0.1% Tween-20 for 10 min each at room temperature and were incubated for 1 hr with corresponding secondary antibodies: donkey anti-mouse (1:10,000; LiCor 680 RD; cat #926-68072), donkey anti-rabbit (1:10,000; LiCor 800CW; cat #923-32213), or donkey anti-goat (1:10,000; LiCor 800CW; cat #923-32214) antibodies diluted in blocking buffer with 0.2% Tween-20. Membranes were washed 4× with 1×PBS and 0.1% Tween-20 for 10 min each at room temperature. Detection was performed using infrared imager (Li-Cor). β-actin was used as loading control. Protein from six Nrl^−/− retinas, five untreated Nrl^−/−Gucy2e^−/− retinas, and four AAV-treated Nrl^−/−Gucy2e^−/− retinas was pooled, and each protein of interest was probed on three separate immunoblots. Protein expression was normalized to β-actin on individual blots. The average of those three values was then normalized against Nrl^−/− . Raw data obtained from each immunoblot are contained in Supplementary Table S1 (Supplementary Data are available online at www.liebertpub.com/hum).

Immunohistochemistry/microscopy

Nrl^−/−Gucy2e^−/− mice treated with murine Gucy2e and Nrl^−/− control mice were sacrificed at various ages depending on the stated purpose of each cohort and processed for IHC as previously described.^32,58 Briefly, eyes were enucleated, corneas punctured, and tissue placed in 4% PFA for 12 hr at 4°C. Cornea/lens were then removed and eyecups were transferred to 1× PBS followed by immersion in 30% sucrose for at least 2 hr at 4°C. Eyecups were then embedded in cryostat compound (Tissue-Tek OCT 4583; Sakura Finetek USA, Inc., Torrance, CA), quick-frozen in a bath of dry ice/EtOH, and serially sectioned at 12 μm with a cryostat (Leica CM3050 S). Retinal cross sections were stained with antibodies raised against retGC1 (rabbit polyclonal; Santa Cruz; sc50512; 1:200), M opsin (rabbit polyclonal; Chemicon; 1:200), and S opsin (Santa Cruz; sc14365; 1:200) or GCAP1 (rabbit polyclonal, “UW101,” 1:5000; generously provided by Dr. Wolfgang Baehr, University of Utah). All primary antibodies were incubated overnight (retGC1 and GCAP1, 37°C; M opsin, 4°C; S opsin, 4°C). Alexafluor secondary antibodies were applied for 1 hr at room temperature. Mounting media containing 4′,6′-diaminio-2-phenylindole (DAPI) was applied and sections were then imaged using spinning disk confocal microscopy (Nikon Eclipse TE2000 microscope equipped with Perkin Elmer Ultraview Modular Laser System and Hamamatsu O-RCA-R2 camera), and 20× and 40× images of retGC1, M opsin, or S opsin were obtained using identical settings (exposure, gain, laser power) at each objective with Volocity 6.3 software (PerkinElmer, Waltham, MA).

Results

Subretinal injection of AAV-Gucy2e fully restores retinal function to Nrl^−/−Gucy2e^−/− mice over the long-term

Previously, it has been shown that gene replacement as late as ∼P43 in the GCDKO mouse is sufficient to preserve photoreceptors.³⁴ Taken together with the expectation of treating postadolescent patients in early clinical trials, we chose to treat Nrl^−/−Gucy2e^−/− mice at approximately 41 days of age (i.e., P37–P45). In order to determine the effects of AAV-mediated retGC1 expression on retinal function, we performed ERG analysis out to 6 months of age. Full-spectrum photopic ERGs were performed at approximately 1 month and 2, 3, and 5 months postinjection (approximately 2, 3, 4, and 6 months of age) and compared with age-matched Nrl^−/− controls. We observed robust ERG responses in the injected eyes of treated mice over the long-term, whereas untreated eyes exhibited no discernible wave forms (Fig. 1A). The amplitudes of full-spectrum cone responses in treated mice were significantly higher than Nrl^−/− controls at 2 out of 4 time points (2 months, p=0.036; 3 months, p=0.624; 4 months, p=0.754; 6 months, p=0.045) (Fig. 1B). We further analyzed retinal function in treated and untreated Nrl^−/−Gucy2e^−/− mice and age-matched Nrl^−/− controls by utilizing ERG conditions designed to isolate M- and S-cone-driven responses. M- and S-cone ERGs were performed at 1 month and 5 months postinjection (Fig. 1C). M-cone responses in treated Nrl^−/−Gucy2e^−/− mice were significantly higher than those found in age-matched Nrl^−/− controls at both 2 and 6 months of age (p<0.001). S-cone responses in treated mice were not significantly higher than Nrl^−/− controls at 2 months but became so by 6 months (p=0.002). Our results show that AAV treatment results in complete restoration of retinal function over the long-term in the Nrl^−/−Gucy2e^−/− mouse.

Figure 1.

Long-term improvements in retinal function are achieved following AAV-Gucy2e treatment. Shown are representative cone ERG traces from treated and untreated Nrl^−/−Gucy2e^−/− mice (n=16) and Nrl^−/− controls (n=8) obtained under full-spectrum, M- or S-cone-isolating conditions at 2 and 6 months of age (A), full-spectrum maximum cone b-wave amplitudes (B), and M-/S-cone-derived maximum b-wave amplitudes (C) in treated and untreated Nrl^−/−Gucy2e^−/− mice over time. Error bars in (B) and (C) represent±1 SD.

Treatment restores useful vision to Nrl^−/−Gucy2e^−/− mice over the long-term

To validate whether restoration of retinal function in treated Nrl^−/−Gucy2e^−/− mice translated to gains in useful vision, optokinetic reflex testing was performed. Measurable visual acuity was observed in Nrl^−/−Gucy2e^−/− mice treated with AAV-Gucy2e over the long-term (at least 6 months of age) (Fig. 2). Spatial frequency thresholds in treated Nrl^−/−Gucy2e^−/− mice were significantly higher than those in age-matched Nrl^−/− controls at both 3 and 6 months of age (p<0.001). Nrl^−/− mice lost the ability to track at 6 months of age. Treated Nrl^−/−Gucy2e^−/− mice exhibited a threshold decline between 3 and 6 months of age (p<0.001) (Fig. 2).

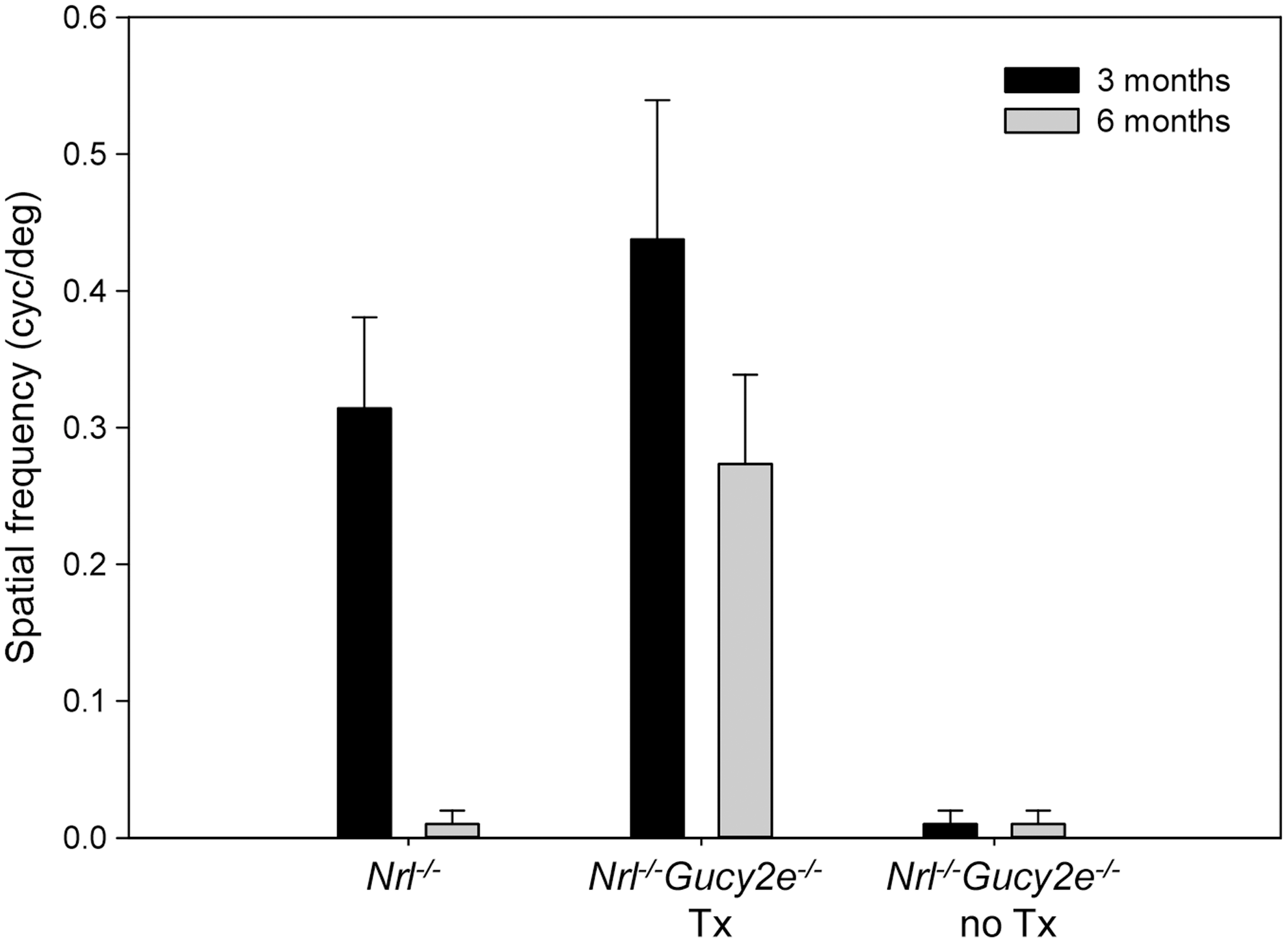

Figure 2.

Visually guided behavior testing (optokinetic reflex) reveals long-term restoration of useful vision after AAV-Gucy2e treatment. Shown are average cone-mediated spatial frequency thresholds in treated and untreated Nrl^−/−Gucy2e^−/− mice (n=16) and Nrl^−/− controls (n=8) at 3 (black bars) and 6 (gray bars) months of age. Error bars represent±1 SD.

Functional efficiency of AAV-delivered retGC1

Guanylate cyclase activity assays were performed to evaluate the function of retGC1 enzyme encoded by AAV-delivered Gucy2e in the retinas of ∼4-month-old treated and untreated Nrl^−/−Gucy2e^−/− mice as well as age-matched Nrl^−/− controls (Fig. 3). Because Nrl^−/− mice lack retGC2 (Supplementary Fig. S1), there was no measurable retGC activity in untreated Nrl^−/−Gucy2e^−/− retinas (Fig. 3).⁴⁵ As such, this assay measures the functional efficiency of only the enzyme expressed from the AAV vector. Interestingly, retGC activity was significantly higher in the AAV-treated Nrl^−/−Gucy2e^−/− retinas relative to Nrl^−/− controls (p<0.001). The Ca²⁺ _1/2 in treated retinas was similar to that in Nrl^−/− controls (0.08 μM), indicating that the calcium sensitivity of AAV-mediated retGC1 was normal. This result is consistent with our previous finding that calcium sensitivity of AAV-mediated retGC1 in treated GCDKO mice was also normal.³⁴

Figure 3.

Functional efficiency of AAV-mediated retGC1 in vivo. Shown are guanylate cyclase activities (mean±SE) in AAV-Gucy2e-treated and untreated Nrl^−/−Gucy2e^−/− mice, and Nrl^−/− controls titrated with different free Ca²⁺ at 1 mM free Mg²⁺ (A) and retGC1 activities in all cohorts (mean±SE) in low (<0.01 μM) versus high (2–60 μM) Ca²⁺ at saturating Mg²⁺ (B).

“Supernormal” treatment effects are not the result of retGC1 insufficiency in Nrl^−/− cones

Previous proof-of-concept studies evaluating the effects of retGC1 replacement in GC1KO and GCDKO mice revealed that only partial ERG recovery was possible, with treated ERG responses reaching, at best ∼50–60% of WT, despite the vector-mediated retGC1 having identical calcium sensitivity and catalytic efficiency.^32
–34,59 In contrast, the current study shows that both retinal function and visual acuity were significantly better in AAV-treated Nrl^−/−Gucy2e^−/− mice than in Nrl^−/− controls. As previously mentioned, functional efficiency of retGC1 was greater in the AAV-treated Nrl^−/−Gucy2e^−/− mice than in age-matched Nrl^−/− controls. This led us to question whether Nrl^−/− mice simply express less retGC1 per cone photoreceptor than WT cones and/or are amenable to its “overexpression” by AAV. We therefore investigated the consequences of retGC1 supplementation via AAV on cone function in P35-treated Nrl^−/− mice. Full-spectrum, M- and S-cone-derived ERG responses recorded 1 month postinjection reveal that responses in treated eyes (under all conditions) were not improved (Supplementary Fig. S2). IHC analysis of retinal cross sections from treated and untreated Nrl^−/− mice reveals no visible difference in the level of retGC1 expression (data not shown). Our results indicate that the “supernormal” responses seen in the treated Nrl^−/−Gucy2e^−/− mice are unlikely the result of higher retGC1 expression on a per-cone basis.

In vivo retinal structure of Nrl^−/−Gucy2e^−/− mice and treatment efficacy

OCT was performed in 6-month-old treated and untreated Nrl^−/−Gucy2e^−/− mice and age-matched Nrl^−/− controls to quantify cone cell densities. Average ONL thickness measurements from identical retinal locations were calculated and averaged for all cohorts. At 6 months of age, ONLs of untreated Nrl^−/−Gucy2e^−/− mice were 28% thinner than Nrl^−/− controls (p<0.001), indicating that, as in other models of retGC1 deficiency, lack of the cyclase results in cone degeneration (Fig. 4A).^32,34,36,60 AAV-Gucy2e treatment resulted in significant cone preservation in Nrl^−/−Gucy2e^−/− retinas relative to that seen in untreated contralateral controls (p<0.001) with ONLs on average being 35% thicker (Fig. 4A). Our measurements also revealed that ONLs of treated mice were 10% thicker than age-matched Nrl^−/− controls. This result was statistically significant (p=0.022). Representative OCT scans from each cohort are shown in Supplementary Fig. S3. To examine whether cone degeneration/preservation followed a spatial pattern, we analyzed ONL thicknesses separately in superior versus inferior retinas of all cohorts (Fig. 4B). Six-month-old Nrl^−/− control mice had significantly fewer cones in their inferior versus superior retinas (p=0.036). The same was true in untreated Nrl^−/−Gucy2e^−/− mice (p=0.031). Relative to untreated Nrl^−/−Gucy2e^−/− mice, significant cone preservation (p<0.001) was achieved in both the superior and inferior retinas of AAV-treated mice. Cone preservation was achieved to a greater extent in the superior retinas of treated mice. There were significantly more cones in the superior retinas of treated Nrl^−/−Gucy2e^−/− mice relative to Nrl^−/− controls (p<0.001), while the number of cones in the inferior retinas of each strain did not significantly differ (p=0.474). Previous results indicate that inferior cones of the Nrl^−/− retina have an increased susceptibility to death, as evidenced by the earlier and higher levels of microglial activation in this region.⁶¹

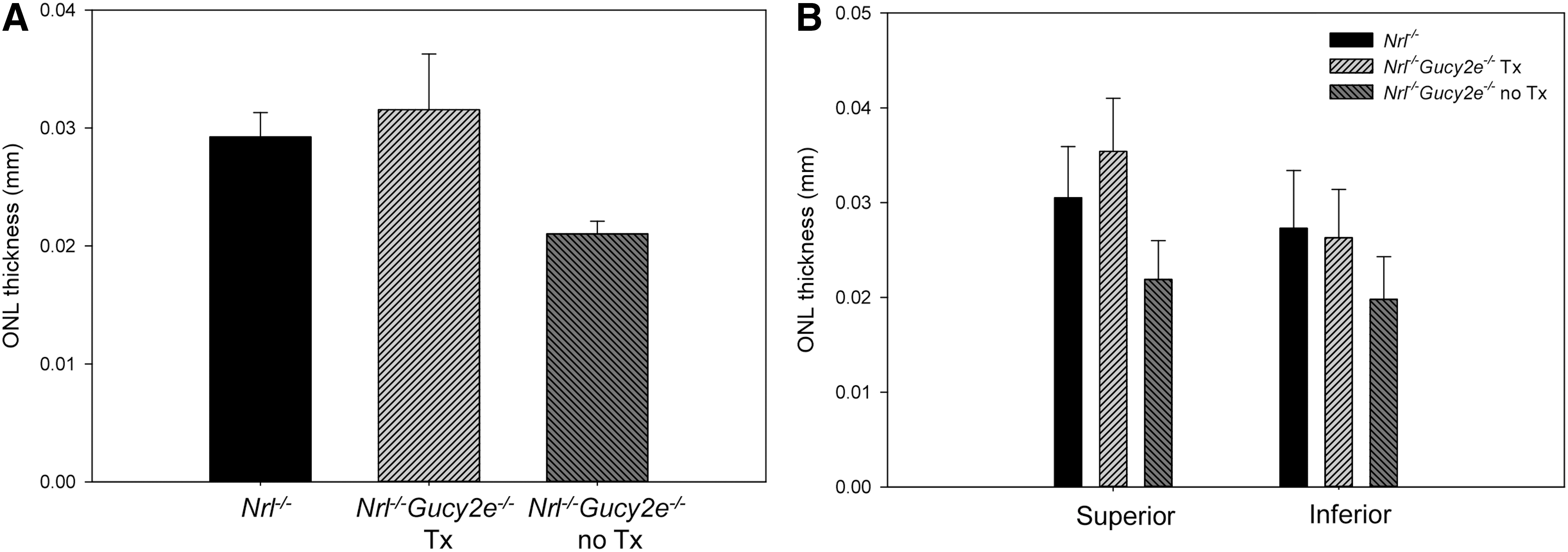

Figure 4.

Cones are preserved in AAV-Gucy2e-treated Nrl^−/−Gucy2e^−/− mice over the long-term. Shown are outer nuclear layer thicknesses derived from identical retinal regions of AAV-Gucy2e-treated and untreated Nrl^−/−Gucy2e^−/− mice, and Nrl^−/− controls at 6 months of age. Values from eight points encompassing all retinal regions are plotted (A) as well as those from superior vs. inferior retina (B). Error bars represent±1 SD.

retGC1 deficiency until at least postnatal day 35 is required to confer supernormal functional improvements to AAV-treated Nrl^−/−Gucy2e^−/− mice

The modest but statistically significant increase in ONL thickness exhibited in 6-month-old treated Nrl^−/−Gucy2e^−/− compared with age-matched Nrl^−/− retina suggests that the absence of retGC1 lasting at least up to P35 has a structurally protective effect. This early but transient absence of cyclase “poises” the Nrl^−/−Gucy2e^−/− retina for treatment, ultimately allowing for thicker ONLs (Fig. 4), higher retGC1 activity (Fig. 3), ERG (Fig. 1), and behavioral responses (Fig. 2) in 6-month-old treated mice relative to Nrl^−/− controls. However, long-term absence of retGC1 does result in thinning as evidenced by comparing the untreated Nrl^−/−Gucy2e^−/− mice relative to age-matched Nrl^−/− controls, or the treated Nrl^−/−Gucy2e^−/− mice (Fig. 4). We hypothesized that the observed structural protection can be, for a reason presently unknown, related to retGC1 deficiency in early development. To investigate this, we subretinally injected AAV-Gucy2e into younger (P18) Nrl^−/−Gucy2e^−/− mice and tested whether supernormal retinal function was achieved at 1 month postinjection (Fig. 5). Consistent with our hypothesis, ERG responses (full-spectrum, M- and S-cone-driven) were now lower in treated Nrl^−/−Gucy2e^−/− mice than in Nrl^−/− controls, suggesting that introduction of retGC1 into Nrl^−/−Gucy2e^−/− cones at this early time point converted them phenotypically back into Nrl^−/− cones that were no longer protected.

Figure 5.

Retinal function in Nrl^−/−Gucy2e^−/− mice treated at P18 with AAV-Gucy2e. Shown are average maximum cone b-wave amplitudes obtained under full-spectrum, M- or S-cone-isolating conditions in treated Nrl^−/−Gucy2e^−/− mice (n=7) (gray, striped bars) and Nrl^−/− controls (n=9) (black bars) at 2 months of age. Error bars represent±1 SD.

Effect of AAV treatment on the expression of relevant phototransduction proteins

Immunoblots were performed to evaluate relative expression of various phototransduction proteins within pooled whole retinas of treated (n=4) and untreated (n=5) Nrl^−/−Gucy2e^−/− mice and age-matched Nrl^−/− controls (n=6) (Fig. 6). Each protein was probed on three separate immunoblots and representative images are shown in Fig. 6A. Not surprisingly, retGC1 expression was absent from the untreated Nrl^−/−Gucy2e^−/− retinas but was restored to the level seen in age-matched Nrl^−/− retinas following treatment (Fig. 6A). Consistent with the enzyme activity assays (Fig. 3) and previous reports, retGC2 expression was absent from all strains on the Nrl^−/− background (Supplementary Fig. S1).⁴⁵ A comparison of both retGC2 and rod transducin expression in rod-dominant C57BL/6 and GCDKO retinas alongside those on the Nrl^−/− background revealed the absence of both proteins in the cone-dominant retinas (Supplementary Fig. S1). Interestingly, GCAP1, whose preferential target in vivo is retGC1, was expressed at comparable levels in untreated Nrl^−/−Gucy2e^−/− and Nrl^−/− control retinas (Fig. 6A).¹⁴ This starkly contrasts previous reports demonstrating downregulation of GCAP1 in other models of retGC1 deficiency.^36,59,62 Unlike all other proteins analyzed, which approached normal Nrl^−/− control levels following AAV-Gucy2e treatment, GCAP1 expression was ∼25% higher in the treated Nrl^−/−Gucy2e^−/− retinas relative to Nrl^−/− controls (Fig. 6A).

Figure 6.

Expression of retGC1 and other relevant phototransduction proteins in pooled retinas of treated (n=4) and untreated (n=5) Nrl^−/−Gucy2e^−/− mice and Nrl^−/− controls (n=6). Shown are semiquantitative immunoblots from whole retinal extracts probed with antibodies against retGC1, its biochemical partner GCAP1, and trafficking partner, RD3 (A) and relevant cone phototransduction proteins, M opsin, S opsin, cone transducin (CTα), and cone PDE6α′ (B). β-actin was used as loading control. Each protein was probed on three separate immunoblots and representative images are shown in (A). For densitometric analysis, expression of each protein was first normalized to β-actin on each blot. These ratios were averaged and values were then normalized to Nrl^−/− controls.

Expression of RD3, a protein required for the transport of retGC1 to photoreceptor outer segments,⁶³ was downregulated in untreated mice and returned to normal levels following treatment (Fig. 6A). RD3's appearance on immunoblot (i.e., a doublet) was identical to that previously shown using the same antibody a doublet.^64,65 Both M and S opsin were downregulated in untreated Nrl^−/−Gucy2e^−/− retinas and also returned to normal following treatment (Fig. 6B). The same was true of cone PDE6α′, another protein thought to traffic with retGC1 to the outer segments.⁶⁶ The alpha subunit of cone transducin (CTα) was also downregulated in untreated Nrl^−/−Gucy2e^−/− retinas. AAV-Gucy2e treatment promoted higher levels of expression but, unlike the other proteins examined, CTα expression was only restored to approximately half that seen in Nrl^−/− controls (Fig. 6B).

AAV treatment of Nrl^−/−Gucy2e^−/− restores expression of M and S opsin to cone outer segments

To evaluate localization of AAV-mediated retGC1 and opsin proteins, we analyzed frozen retinal cross sections from treated and untreated Nrl^−/−Gucy2e^−/− mice alongside Nrl^−/− controls at 6 months. As reported for other models of LCA1, AAV-mediated retGC1 expression was restricted to photoreceptor outer segments in subretinally treated Nrl^−/−Gucy2e^−/− mice^32
–34,58 (Fig. 7A). Consistent with in vivo analysis, DAPI-stained cross sections reveal higher cone densities in treated Nrl^−/−Gucy2e^−/− and Nrl^−/− retinas relative to that seen in untreated Nrl^−/−Gucy2e^−/− mice (Fig. 7A and B). M opsin expression was more apparent in treated Nrl^−/−Gucy2e^−/− retinas than in untreated contralateral controls or Nrl^−/− retinas. S opsin expression was similar in treated and Nrl^−/− control mice, whereas it was notably reduced in untreated Nrl^−/−Gucy2e^−/− retina (Fig. 7B).

Figure 7.

Expression of retGC1 and cone opsins in retinal cross sections of AAV-Gucy2e-treated and untreated Nrl^−/−Gucy2e^−/− mice and Nrl^−/− controls. Shown are retGC1 (red) (A) M opsin (red) and S opsin (green) (B) expression in representative 40× images from all three cohorts at 6 months of age. All sections were counterstained with DAPI (blue). Scale bars=50 μm.

GCAP1 localization is altered on the Nrl^−/− background

Intrigued by the finding that GCAP1 was not downregulated in untreated Nrl^−/−Gucy2e^−/− mice, as it is in all other models of retGC1 deficiency previously evaluated, we analyzed its expression in retinal cross sections (Fig. 8). Unlike C57BL/6 retinas where GCAP1 expression is seen exclusively in the photoreceptor IS/OS and synaptic termini, its localization is altered in Nrl^−/− controls and untreated and treated Nrl^−/−Gucy2e^−/− mice. High-magnification images reveal that GCAP1 staining is found throughout the ONL of all three cohorts. While it is more difficult to decipher OS morphology in mice on the Nrl^−/− background, we noted brighter punctate areas of GCAP1 expression in OS of treated Nrl^−/−Gucy2e^−/− mice (denoted by white arrows) that were not typical for untreated mice or Nrl^−/− controls (Fig. 8).

Figure 8.

GCAP1 expression in representative retinal cross sections of AAV-Gucy2e-treated and untreated Nrl^−/−Gucy2e^−/− mice, C57BL/6 WT, and Nrl^−/− controls. Shown in the top row are GCAP1 (green) expression in 20× images counterstained with DAPI (blue) and a secondary only control. White boxes in 20× images are magnified in the bottom row, where only GCAP1 (green) is shown. White arrows in the high-magnification image of AAV-treated Nrl^−/−Gucy2e^−/− mice denote cone outer segments with more obvious GCAP1 staining. GC, ganglion cells; INL, inner nuclear layer; IS, inner segments; no Tx, no treatment; ONL, outer nuclear layer; OS, outer segments; Tx, treatment. Scale bars=30 μm.

Retinal function is restored to Nrl^−/−Gucy2e^−/− mice treated at postnatal day 45 with a clinically relevant vector, AAV5-hGRK1-GUCY2D, expressing human retGC1

Gene therapy for color blindness has proven successful in primate using an AAV5 vector.⁶⁷ Furthermore, we have shown that AAV5 and the hGRK1 promoter drive efficient transgene expression in both foveal and parafoveal cones of macaque following subretinal injection.⁵² Given that the locus of dysfunction in LCA1 patients is the fovea, a clinical vector for LCA1 comprising an AAV5-based capsid containing the hGRK1 promoter driving the human retGC1 gene, GUCY2D, would be warranted. Demonstration that AAV5-hGRK1-GUCY2D can restore retinal function to a disease model within a translatable therapeutic window would be highly advantageous. Here, we asked whether the Nrl^−/−Gucy2e^−/− mouse model was amenable to treatment with species nonspecific retGC1, that is, GUCY2D, in the adult mouse. Full-spectrum ERG analysis of Nrl^−/−Gucy2e^−/− mice treated at P40 with AAV5-hGRK1-GUCY2D revealed robust restoration of cone function at ∼2 months of age (Fig. 9A). Responses in treated eyes were not significantly different from age-matched Nrl^−/− controls (p=0.366). Cones treated with AAV5-hGRK1-GUCY2D had significantly lower responses than those treated with AAV8(733)-hGRK1-Gucy2e (p=0.018). Based on our unpublished work using the human transgene and the relative strength of AAV5 and AAV8(733) in murine photoreceptors, we believe that this difference was attributed both to serotype differences and the nature of the delivered cDNA (human vs. murine).³³ The full-spectrum response in AAV5-hGRK1-GUCY2D-treated eyes was undetectable by 6 months of age (Fig. 9A). However, isolation of the S-cone-mediated ERG revealed maintenance of retinal function at this time point (Fig. 9B).

Figure 9.

Retinal function is restored to Nrl^−/−Gucy2e^−/− mice following treatment at P40 with AAV5-hGRK1-GUCY2D. Shown are full-spectrum maximum cone b-wave amplitudes at 2 and 6 months of age (A) and S-cone-derived maximum b-wave amplitudes at 6 months (B) in treated and untreated Nrl^−/−Gucy2e^−/− mice (n=7) and Nrl^−/− controls (n=8). Error bars represent±1 SD.

Discussion

We have shown that subretinal delivery of an AAV8(733) vector containing the photoreceptor-specific human rhodopsin kinase promoter is capable of restoring retGC1 expression to the cone-only Nrl^−/−Gucy2e^−/− mouse. Notably, gene replacement resulted in full and long-term restoration of retinal function and visually guided behavior. Cone photoreceptors were preserved with densities in AAV-treated mice surpassing those found in Nrl^−/− controls at 6 months of age. Relevant phototransduction proteins such as M opsin, S opsin, cone transducin, and PDE6α′, all of which were downregulated in untreated mice, were upregulated following treatment. Additionally, we show that an AAV5 vector containing human retGC1 cDNA is capable of rescuing cone function following treatment of adult Nrl^−/−Gucy2e^−/− mice.

Several interesting observations were made over the course of this study. First, retinal function as measured by ERG was equal to or better in the treated Nrl^−/−Gucy2e^−/− mice relative to age-matched Nrl^−/− controls. This is in stark contrast to previous results where only partial recovery of retinal function was observed (∼50–60% of WT) in GC1 KO and GCDKO mice using the same vector.^32,33,59 We also found that guanylate cyclase activity in AAV-treated Nrl^−/−Gucy2e^−/− retinas was substantially higher than that seen in Nrl^−/− controls. Because Nrl^−/− retinas contain fewer total photoreceptors and because their outer segments are significantly shorter/contain fewer discs, it was not surprising that retGC activity in this strain is lower than that reported in WT mice.^34,45 It was also expected that, because Nrl^−/− mice lack retGC2, that untreated Nrl^−/−Gucy2e^−/− mice would have no enzyme activity, as we indeed found. What was not expected was that AAV-Gucy2e treatment of Nrl^−/−Gucy2e^−/− mice resulted in substantially higher guanylate cyclase activity than that seen in age-matched Nrl^−/− controls. This prompted us to speculate whether retGC1 expression was limiting in Nrl^−/− controls. In other words, perhaps cones in treated Nrl^−/−Gucy2e^−/− mice simply expressed more retGC1 per cone than in Nrl^−/− mice. However, two observations suggested that this was not the case. First, immunoblot revealed that retGC1 was expressed at slightly lower levels in treated Nrl^−/−Gucy2e^−/− retinas relative to Nrl^−/− controls, even with the former containing a thicker ONL. Second, attempts to overexpress retGC1 in Nrl^−/− mice via AAV did not lead to improvements in retinal function. Therefore, insufficiency of retGC1 is not the basis for the observed difference in activity. Additionally, we do not believe that the reason for higher retGC1 activity in treated Nrl^−/−Gucy2e^−/− mice relative to Nrl^−/− controls is simply a function of higher cone densities in the former. The relative ONL thickness difference between treated Nrl^−/−Gucy2e^−/− and Nrl^−/− mice at 6 months is modest (∼10%). Taken together with the fact that the area of mouse retina transduced by subretinally delivered AAV rarely exceeds 80%, it is hard to envision that there are enough additional photoreceptors expressing retGC1 in treated Nrl^−/−Gucy2e^−/− mice to account for this difference in cyclase activity. The results of the immunoblot for retGC1 again argue that this is not the case. This leads us to GCAP1 and the role that it may be playing in determining the difference in cyclase activity.

The impact of retGC1 deficiency on GCAP1 expression in Nrl^−/−Gucy2e^−/− mice is different from all previous LCA1 models studied to date. In rod-dominant GC1KO and GCDKO mice, GCAP1 expression is severely downregulated in the absence of retGC1.^33,34,60 In the cone-dominant GUCY1*B chicken, GCAP1 is nearly absent from predegenerate retinas.⁶¹ Here we found, via immunoblot, that the absence of retGC1 in Nrl^−/−Gucy2e^−/− retina had little effect on GCAP1 expression. Furthermore, unlike most phototransduction proteins evaluated, which approached normal (Nrl^−/− ) levels following AAV-treatment, GCAP1 was overexpressed. This contrasts previous studies where GCAP1 levels were restored to, but not above, WT levels.^33,34 These differences prompted our analysis of its localization in retinal cross sections. As previous studies have shown, GCAP1 localized very distinctly to photoreceptor inner and outer segments (IS/OS) and synaptic termini of C57BL/6 mice.^14,34,36 This pattern was altered in Nrl^−/− cones, with staining spread diffusely throughout the remnant OS, ONL, and synaptic termini. Expression was similarly diffuse in cross sections of untreated and treated Nrl^−/−Gucy2e^−/− mice, but in treated eyes, punctate foci of higher GCAP1 expression were noted in OS. This led us to speculate whether reduced availability of GCAP1 in the OS of Nrl^−/− cones (i.e., reduced availability of a functional GCAP1/retGC1 complex) was the reason for the low observed retGC1 activity in these retinas relative to WT, despite its high abundance in immunoblots of whole retina.^34,45 Supporting this is the observation that supplementation of GCAP1 protein to the Nrl^−/− retinal extract in the guanylate cyclase activity assay results in at least a 2-fold increase in retGC1 activity, comparable to what was observed in treated Nrl^−/−Gucy2e^−/− mice (Dizhoor et al., unpublished results).

Why is GCAP1 distribution altered in Nrl^−/− and Nrl^−/−Gucy2e^−/− mice? GCAP1 localization on the Nrl^−/− background is likely to be affected by the physiological state of photoreceptors in this unique retina. Several lines of evidence suggest that oxygen stress in the Nrl^−/− retina is higher than that in WT.^42,61 Oxidative stress causes rapid increases in Ca²⁺ concentration in the cytoplasm of diverse cell types, including cones.^68,69 Prolonged high Ca²⁺, which comes from both the extracellular environment as well as intracellular stores, can lead to apoptotic death of photoreceptors, a pathway that has been implicated in inherited retinal disease.^69,70 It is reasonable to assume that oxidative stress in Nrl^−/− cones could lead to abnormal increases in intracellular Ca²⁺. In its Ca²⁺-bound form, GCAP1 inhibits retGC1.^56,71 We therefore hypothesize that the Ca²⁺-free form of GCAP1, rather than GCAP1 alone, is limiting based on its robust expression in untreated Nrl^−/−Gucy2e^−/− mice (immunoblot and IHC of retinal cross sections). So, why isn't GCAP1 downregulated in Nrl^−/−Gucy2e^−/− mice as it is in other models of LCA1, like the GUCY1*B chicken and GC1KO and GCDKO mouse? While these models ultimately suffer photoreceptor death, which is believed to result from retGC1 deficiency, leading to chronic hyperpolarization, cGMP accumulation, and/or Ca²⁺ depletion, they all possess a normal complement of rods and cones early in development. This early retinal homeostasis likely does not induce hyperoxia as seen in Nrl^−/− mice. It is known that Ca²⁺ stabilizes GCAP1 by altering its tertiary structure and increasing folding stability.^72,73 At saturating Ca²⁺ concentrations, GCAP1 can dimerize.⁷² One could suggest that hyperoxia in cones of Nrl^−/− and Nrl^−/−Gucy2e^−/− mice leads to increases in cytosolic Ca²⁺ in the inner segment that bind and stabilize GCAP1. It is tempting to further speculate that Ca²⁺-bound GCAP1 is trafficked less efficiently to cone outer segments and/or is degraded in the inner segment less effectively. While there is currently no direct evidence to support this hypothesis, it is a possible explanation for the relatively high GCAP1 expression detected in immunoblots and altered distribution in retinas of Nrl^−/− and Nrl^−/−Gucy2e^−/− mice.

Another intriguing observation was the apparent protective effect conferred by the absence of retGC1 during the first ∼40 days in the Nrl^−/− retina. The role of retGC1 is to produce most of the cGMP required to open cyclic nucleotide gated channels and allow Na⁺ and Ca²⁺ influx into photoreceptors.¹ Under hyperoxic conditions resulting in high intracellular Ca²⁺ in Nrl^−/− cones, it is not unreasonable to expect that retGC1 deficiency could have a transient protective effect by keeping cGMP-gated channels closed and preventing further increases in Ca²⁺. Protection of photoreceptors following shRNA-mediated knockdown of retGC1 in the PDE6b^H620Q mutant mouse was reported to occur via a related mechanism.⁷⁴ Yet somehow this protective effect is not sustained after the Nrl^−/− retina reorganizes/stabilizes (after 4 months), after which the detrimental effects of retGC1 deficiency would manifest as in other models of LCA1.⁶¹ We speculate that the lowering of cGMP/prevention of additional Ca²⁺ influx into cones of young Nrl^−/−Gucy2e^−/− mice slowed their rate of loss relative to that seen in Nrl^−/− controls during a period when the latter undergoes rapid cone loss/reorganization. The single-stranded AAV vector used in this study was delivered ∼P40 mediating appreciable levels of retGC1 expression ∼3 weeks postinjection. In 2-month-old Nrl^−/−Gucy2e^−/− mice, it is likely that a higher number of cones were therefore available for transduction. We speculated that retGC1 deficiency would exert its protective effects only if sustained over a significant period of time during which the Nrl^−/− retina is exposed to hyperoxic stress (before 4 months of age). In other words, if retGC1 was supplemented too early, the Nrl^−/−Gucy2e^−/− mouse would phenotypically revert back to the Nrl^−/− state.

To test this, we introduced retGC1 back into Nrl^−/−Gucy2e^−/− cones at P18. Indeed, earlier treatment failed to confer supernormal ERG responses to treated Nrl^−/−Gucy2e^−/− mice. It is likely that retGC1 supplementation at this early age further contributed to Ca²⁺ toxicity, causing accelerated death of photoreceptors and reduced overall retinal function akin to what occurs in the Nrl^−/− retina. The ∼23% reduction in ERG response in P18-treated Nrl^−/−Gucy2e^−/− mice is consistent with injection-related damage, suggesting that retinal function in treated mice and Nrl^−/− controls was identical. Previous studies show that retinal changes on the Nrl^−/− background affect more than just photoreceptors.⁶¹ By 6 months of age, Nrl^−/− mice exhibit optic nerve palor, indicating that degeneration of ganglion cells has also occurred. Our finding that 6-month-old Nrl^−/− mice lack visually guided behavior complements this finding and highlights the need for caution when using Nrl^−/− mice in visually guided behavior experiments at advanced ages. Via mechanisms that remain to be elucidated, we show that early and transient retGC1 deficiency also protected the inner retina, allowing for maintenance of useful vision over the long-term.

It is worth considering our findings in the context of recent studies evaluating other mutations on the Nrl^−/− background. The Nrl^−/−Aipl1^−/− mouse was used to investigate the mechanism of cone cell death in AIPL1 LCA.⁴⁶ Investigators found that the Aipl protein was essential for the stability of retGC1 in cones and that, in its absence, retGC1 trafficking was defective, cGMP was decreased, and cones were lost much more rapidly than in Nrl^−/− controls.⁴⁶ Authors speculated that cone death in the Nrl^−/−Aipl1^−/− mouse and AIPL1-LCA patients may be because of a loss of retGC1 function. However, cone degeneration in P200 Nrl^−/−Aipl1^−/− mice was much more pronounced than that seen in Nrl^−/−Gucy2e^−/− mice at a similar age. This suggests that Aipl1 has an additional function in cones, which is not surprising given the better cone preservation in GUCY2D LCA1 patients versus those with AIPL1 deficiency.^39,75

In a recent study evaluating the effects of cGMP accumulation on the death of cones in an all-cone model of CNGA3 Achromatopsia, the Cnga3^−/−Nrl^−/− mouse, very low levels of cGMP were observed in Nrl^−/− control retinas until the latest time point evaluated, P90, when they began to increase.⁴⁵ This would be consistent with a hypothesis that hyperoxia leads to increases in intracellular Ca²⁺, which binds GCAP1, preventing it from activating retGC1 in young Nrl^−/− cones. Some level of reorganization/stabilization and sufficient lowering of Ca²⁺ to allow for retGC1 activity within at least a fraction of Nrl^−/− cones is likely to have occurred by P90, an age when cGMP levels began to rise.⁴⁵ On the other hand, a drastically different Ca²⁺ homeostasis would be expected to affect the sensitivity and/or the shape of the cone photoresponse. Yet that was not observed in single-cell recordings from Nrl^−/− cones, which were indistinguishable from normal S cones.⁴² This appears to contradict the idea of the Nrl^−/− cones having Ca²⁺ constantly elevated to the point where it blocks retGC1 activation by GCAP1. One possible explanation to reconcile the contradiction between the existing observations is that the Nrl^−/− cone population is highly heterogeneous, and those that have abnormally high Ca²⁺ would not be responsive in single-cell recording procedure. Another problem with the elevated Ca²⁺ as a protective factor is that the increase in free Ca²⁺ can trigger photoreceptor degeneration.⁷² Hence, if hyperoxia in Nrl^−/− retinas were responsible for the effects observed in our study, its effect has to be much more complex than just affecting the metal-liganded state of GCAP1.

How do the observations made in the Nrl^−/−Gucy2e^−/− mouse relate to the human condition and are the therapeutic outcomes achieved in this model predictive of results in a clinical trial? We do not believe that there is shared mechanism associated with the preservation of cones in Nrl^−/− mice that occurs in the absence of retGC1 and the relative foveal sparing seen in LCA1 patients. There are no reports of disorganization/rosette formation or broad areas of retinal detachment in patient foveas as seen in Nrl ^−/− mice.⁶¹ In fact, LCA1 patients are generally characterized as having a normal fundus and preserved retinal laminar architecture.³⁹ Additionally, it is not known whether patient retinas are subjected to the hyperoxia and Ca²⁺ flux that occur in Nrl^−/−Gucy2e^−/− mice. We believe that the supernormal therapeutic outcomes in this study are dependent on the specific set of circumstances experienced in the Nrl^−/− mouse retina, the possible protective effects of early/transient retGC1 depletion, and the specific timing of gene replacement intervention. We therefore do not expect that GUCY2D gene replacement will confer supernormal function to LCA1 patients. However, this by no means suggests that gene replacement in patients will not be successful. It is important to note that this is now the third model of retGC1 deficiency in which AAV-mediated gene replacement has resulted in long-term restoration of retinal function, visually guided behavior, and preservation of photoreceptor structure.

Notably, we have demonstrated that the combination of AAV serotype, cellular promoter, and human transgene (GUCY2D) likely to be used in clinical trials restored long-term retinal function to Nrl^−/−Gucy2e^−/− mice when treatment was administered at P45. Before this study, the only demonstration of rescue using human GUCY2D was achieved in the GC1KO mouse only after administration of AAV8-GUCY2D before eye opening (∼P10).^59,76 Even then, the consistency of therapeutic response (i.e., the number of mice within a treated cohort to show improvements) was low relative to that achieved with AAV vectors delivering the murine cDNA (Gucy2e).⁷⁶ The reason why human retGC1 is less effective in mouse than the species-specific murine homolog (∼87% similar) remains unclear. Early work also showed that, despite its ability to transiently restore useful vision to a chicken model of LCA1, bovine retGC1 was incapable of rescuing the GC1KO mouse phenotype, further highlighting the species sensitivity encountered in this system.⁷⁷ It may be because of the reduced efficiency of GCAP1 and retGC1 complex formation or function. Because retGC/GCAP complexes are unstable in detergents, in vivo studies to evaluate how efficiently GCs bind to and function with GCAPs of different species relative to same-species combinations will be difficult. In vitro studies are also not necessarily predictive because of the inability to recapitulate the compartmentalization (IS/OS) and trafficking machinery of photoreceptors in a dish.¹⁴ Nevertheless, the significant extension of the window of therapy and improvements in therapeutic outcome highlight the utility of the Nrl^−/−Gucy2e^−/− mouse model for testing of candidate clinical vectors. LCA1 patient characterization points to the cone-rich fovea as a treatment target. Our results showing the ability to restore cone structure and function in an all-cone model of LCA1, as well as our previous finding of robust AAV5-hGRK1-mediated transgene expression in foveal/parafoveal/perifoveal cones in subretinally injected primates (macaque), have further refined our strategy for clinical application of this therapy.

Footnotes

Acknowledgments

This study was supported by grants from the Foundation Fighting Blindness; National Institutes of Health (RO1EY024280 to S.E.B., R01EY11522 to A.M.D., R01EY019490 to X-Q.D., and P30EY021721 to W.W.H.); Creed's Cause Foundation; the Overstreet endowment; and unrestricted funding from the Research to Prevent Blindness.

We would like to acknowledge Dr. Swaroop for creation of the Nrl^−/− mouse line. We thank Drs. Baehr, Molday, and Ramamurthy for contributing reagents. Finally, we would like to acknowledge the efforts of Dr. Samuel G. Jacobson, who continues to characterize GUCY2D LCA1 patients and offer guidance on the safest and most effective path toward clinical application.

Author Disclosure

S.E.B., S.L.B., and W.W.H. have a U.S. patent pending (61/327,521) related to the use of AAV for the treatment of GUCY2D-LCA1. W.W.H. and the University of Florida have a financial interest in the use of AAV therapies and own equity in a company (AGTC, Inc.) that might, in the future, commercialize AAV vectors for the treatment of blindness. J.J.P., S.C., S.H.M., Q.R., K.T.M., Z.Z., E.V.O., I.V.O., X.Q.D., and A.M.D. have no conflicts to report.
