Induction of T-Cell Infiltration and Programmed Death Ligand 2 Expression by Adeno-Associated Virus in Rhesus Macaque Skeletal Muscle and Modulation by Prednisone

Abstract

Use of adeno-associated virus (AAV) to transduce genes into skeletal muscles can be associated with T-cell responses to viral capsid and/or to transgenic protein. Intramuscular mononuclear cell infiltrates primarily consisting of CD8+ T cells and also containing FOXP3+ regulatory T cells were present in rhesus macaque skeletal muscle treated with rAAVrh74.MCK.GALGT2 by vascular delivery. Administration of oral prednisone prior to AAV gene delivery and throughout the study reduced such infiltrates by 60% at 24 weeks post AAV delivery compared with AAV-treated animals not receiving prednisone, regardless of the presence of pre-existing AAV serum antibodies at the time of treatment. The majority of CD8+ T cells in AAV-treated muscles expressed activated caspase 3 and programmed cell death protein 1 (PD1), suggesting ongoing programmed cell death. AAV-transduced skeletal muscles also had elevated expression of programmed death ligand 2 (PDL2) on skeletal myofibers, and this increase in expression extended to muscles where transgene was not overexpressed. These data demonstrate that prednisone can reduce the extent of intramuscular T-cell infiltrates in AAV-treated muscles, which may aid in achieving long-term transgene expression, as may the induction of PDL2 expression on skeletal myofibers to promote PD1-mediated programmed T-cell death.

Introduction

Adeno-associated virus (AAV) has increasingly become the viral vector of choice for gene therapy clinical trials.¹ The advantages of using AAV include the episomal nature of the introduced gene, which allows for sustained transgene expression in postmitotic cells, the relative ease with which certain AAV serotypes can cross the vascular barrier to transduce multiple tissues, and the benign, nonpathogenic nature of AAV as an infectious agent. There are, however, significant obstacles posed by the host immune system to the successful use of AAV.²

One obstacle to AAV treatment is the induction of CD8+ cytotoxic T cells.³ T-cell clones specific to peptides within the AAV capsid protein or to peptides from the protein produced by the delivered transgene can weaken the expression of the therapeutic transgene over time.¹ High et al. demonstrated that hemophilia B patients treated with factor IX gene therapy developed positive T-cell responses in peripheral blood mononuclear cells (PBMCs) to the AAV8 capsid protein, and this sometimes coincided with elevated serum liver enzymes and lowered factor IX expression.⁴ The presence of capsid-responsive T cells, however, does not necessarily eliminate AAV-mediated transgene expression. Brantly et al. showed that patients with α1 anti-trypsin (AAT) deficiency treated by intramuscular injection of AAV1-AAT were able to maintain transgene expression a year after injection, despite the presence of T-cell responses to rAAV1 capsid peptides.⁵ Thus, some tolerance or exhaustion may occur in AAV-targeted T-cell populations. Additional studies in humans and in animal models of disease have implicated both CD8+ and regulatory T cells (Treg) as effectors of AAV-mediated transgene expression.^6

–11 Such T-cell responses can be reduced by treatment with immunosuppressants such as prednisone, mycophenolate mofetil, tacrolimus, and daclizumab.^12
–14

Another obstacle to AAV-mediated gene expression is the blockage of AAV entry into cells by pre-existing serum antibodies to the viral capsid protein. Humans show differential rates of infection to various AAV serotypes. For example, human antibody titers are more commonly found to rAAV2¹⁵ than to rAAV9.^15,16 Such differences can vary by geographic location and by age,¹⁷ but anti-AAV capsid antibodies exist in a significant fraction of humans due to previous exposure to AAV. Serum antibodies to AAV are induced in all patients and animal models after AAV administration and can typically block subsequent AAV transduction once present.^16,18 Serum antibodies to the introduced transgenic protein may also occur and are more common in animals undergoing gene replacement where the endogenous gene is deleted.^6,9 A variety of methods exist to reduce B cells or B-cell antibody production (e.g., rituximab^10,19,20 and rapamycin^6,21) or serum antibody levels (e.g., plasmapheresis^22,23), all of which can alleviate serum antibody blockage of AAV-mediated transgene expression.

In the development of rAAVrh74.MCK.GALGT2 gene therapy for the treatment of Duchenne muscular dystrophy (DMD), both cellular and humoral immune barriers to transgene expression in the skeletal muscles of nonhuman primates have been encountered.²⁴ rAAVrh74.MCK.GALGT2 is a gene therapy vector that utilizes the muscle creatine kinase (MCK) promoter to confine GALGT2 (now B4GALNT2) gene expression to skeletal and cardiac muscle and uses the rhesus 74 serotype of AAV, an AAV8-like serotype that allows for capsid delivery to tissues via the blood.²⁵ GALGT2 encodes the β1-4 N-acetylgalactosaminyltransferase needed to make the cytotoxic T-cell (CT) glycan (Neu5Acα2–3[GalNAcβ1–4]Galβ1–4GlcNAcβ-), also called the Sda or Cad blood group antigen, on certain glycoproteins and glycolipids.²⁶ Despite its original identification in CD8+ T cells, GALGT2 is most highly expressed in the human colon.^26,27 In adult skeletal muscle, GALGT2 expression is confined to the neuromuscular junction (NMJ) and the myotendinous junction (MTJ).^28,29 When overexpressed, however, GALGT2 induces CT glycan overexpression along the entirety of the muscle membrane and also induces the overexpression of a group of glycoproteins normally confined to the NMJ and MTJ, including agrin, laminin α5, utrophin, and plectin 1.^30
–32 Overexpression of these genes in skeletal muscle can ameliorate muscular dystrophy in several different genetic forms of the disease,^24,33,34 while deletion can increase disease severity.^35

–38 GALGT2 overexpression has been shown to inhibit the development of muscular dystrophy in the mdx model for DMD, the dy^W model for congenital muscular dystrophy 1A, the Sgca^–/– model for limb girdle muscular dystrophy 2D, and the FKRP P448L model for limb girdle muscular dystrophy 2I.^{31,32,39
–41}

While several genes, including GALGT2, have shown promise in small animal models of muscular dystrophy, attempts to move a therapeutic vector to nonhuman primates and subsequently to human clinical trials have had setbacks due to the induction of deleterious T-cell responses to the viral capsid proteins and to the delivered transgene product.^1,2 It was recently shown that vascular delivery of AAV to the gastrocnemius muscle of rhesus macaques could result in expansive GALGT2 gene expression lasting for at least 6 months.³⁰ Gene expression, however, depended heavily on the absence of pre-existing rAAVrh74 serum antibodies, as animals with high titers (seropositive) had significantly lower GALGT2 expression.³⁰ CD8+ T-cell infiltrates were occasionally present in treated muscles, and PBMC interferon gamma (IFN-γ) responses to viral capsid and transgene peptides were also present.³⁰ This study sought to explore the molecular underpinnings that might allow for continued transgene expression in the face of such T-cell-mediated immunity, including T-cell exhaustion.

A number of different viruses are able to induce immunologic exhaustion in their host.⁴² Viruses often stimulate T-cell exhaustion by inducing expression of programmed cell death protein 1 (PD1) on the surface of T cells.⁴³ Lymphocytic choriomeningitis virus, hepatitis virus, and recombinant adeno-associated virus (rAAV) have all been shown to induce PD1 expression on CD8+ T cells after infection.^42
–44 Immune function can be restored in exhausted T cells by suppressing PD1 signaling.⁴⁴ Loss of PD1 in the mouse also increases the incidence of autoimmunity, including lupus-like arthritis and glomerulonephritis. When crossed into other backgrounds, loss of PD1 can increase graft-versus-host disease,^22,45 again pointing to a central role for PD1 in controlling T-cell-mediated immunity. PD1 activation on T cells can be accomplished by binding to one of its two known PD1 ligands, programmed death ligand 1 (PDL1) or PDL2.⁴³ Both PD1 ligands are expressed in a variety of non-lymphoid tissues, and PDL2 is more highly expressed than PDL1 in human and mouse skeletal muscle.⁴⁶ Here, the expression of PD1 and its two known ligands have been studied in rAAVrh74.MCK.GALGT2-treated macaque skeletal muscle. In addition, the impact of prednisone, an immune suppressant commonly used as a standard of care in DMD,⁴⁷ on the presence of intramuscular T-cell infiltrates has been investigated.

Methods

Rhesus macaques

All procedures were performed with the approval of the Institutional Animal Care and Use Committee at the Research Institute at Nationwide Children's Hospital.

AAV production

rAAVrh74.MCK.GALGT2 and rAAVrh74.MCK.μDystrophin were produced by the Viral Vector Core at Nationwide Children's Hospital using methods and primers, as previously described.³⁰ rAAV was produced by standard triple transfection method in HEK293 cells,⁴⁸ with purification of packaged vector by sucrose density centrifugation and anion exchange chromatography, as previously described.⁴⁹

Isolated focal limb perfusion

Muscles were analyzed from experiments described in a previous study.³⁰ Briefly, 2 × 10¹² vg/kg of rAAVrh74.MCK.GALGT2 or 2 × 10¹² vg/kg rAAVrh74.MCK.μDystrophin was infused in 2.5 mL/kg of normal saline using a fluoroscopy-guided catheter to deliver AAV vector to the gastrocnemius muscle via the femoral artery through the sural branch of the popliteal artery. The catheter was inserted into the femoral artery via an incision site in the groin area. The gastrocnemius muscle was isolated by the presence of two standard phlebotomy tourniquets, one placed above the right knee just proximal to the tip of the catheter and one placed just below the gastrocnemius muscle. Prior to vector administration, a flush of saline (2.5 mL/kg) was delivered over 1 min, after which vector was infused over 1 min in an identical volume and allowed to dwell in the limb for 10 min. This was followed by an additional flush of 2.5 mL/kg of normal saline delivered over 1 min, after which the tourniquets were released and the catheter removed. Residual bleeding was stopped by applied pressure, and the incision was closed by suturing. All treated macaques were sacrificed at either 12 or 24 weeks post injection. Gastrocnemius muscles from each animal were removed and divided into 13–16 segments (0.75–1.0 × 0.5 cm blocks). Blocks were embedded in 7% gum tragacanth and snap-frozen in liquid nitrogen–cooled isopentane.

Anti-AAV serum antibody titers

Macaques were divided into seronegative groups and seropositive groups, depending on the presence of a twofold elevation in rAAV antibody titer at a dilution of 1:50 compared to wells containing no AAV using an enzyme-linked immunosorbent assay (ELISA). Macaques were considered AAV seronegative if they had no measurable antibody titer to rAAVrh74 using a 1:50 serum dilution. Absolute serum antibody titer signals at a 1:800 dilution were also compared for seropositive and seronegative groups. Serostatus cutoff measures were based on previous studies that assessed the relationship between muscle transgene expression and total serum antibody ELISA values.^23,30

Prednisone treatment

Two weeks prior to rAAVrh74.MCK.GALGT2 injection, one cohort of macaques was given daily doses of prednisone (0.75 mg/kg/day), and this treatment regimen was continued for the full 24 weeks after AAV delivery.

Lectin staining to measure GALGT2 activity in transduced muscles

Frozen cross-sections of skeletal muscle (10 μm thick) were cut on a cryostat, blocked in 10% donkey serum, and probed with biotinylated Wisteria floribunda agglutinin (WFA; Vector Laboratories, Burlingame, CA). Sections were later incubated with streptavidin-conjugated secondary antibody (Jackson ImmunoResearch Laboratories, West Grove, PA) and mounted with ProLong Gold Antifade Mountant with DAPI (Thermo Fisher Scientific, Carlsbad, CA). A Zeiss Axioskop2 Plus epifluorescence microscope was used to visualize staining, and a Zeiss AxioCam MRC5 camera (Carl Zeiss Microscopy, Thornwood, NY) was used to capture four representative 10 × images (each 977,500 μm² in area) per muscle block, for which the exposure was time-matched between all cohorts. The percentage of fibers that stained with WFA was calculated relative to the total myofibers in each image and averaged for each cohort. Both the medial and lateral heads of each gastrocnemius muscle were analyzed, with 13–16 blocks analyzed per muscle head and two to three animals analyzed per condition. There were 90–120 images analyzed per macaque, with each image having about 350 myofibers. Investigators were blinded to conditions, and a 16% inter-investigator error was calculated between those who counted the same images. Significant differences between the average WFA expression for each cohort were determined using an ordinary one-way analysis of variance (ANOVA) and Sidak's multiple comparisons test.

Quantitative polymerase chain reaction to detect viral genomes

TaqMan quantitative polymerase chain reaction (qPCR) was used to quantify AAV vector genome copies in treated gastrocnemius muscles and saline-treated control muscles. Genomic DNA was extracted as previously described³⁰ from seven different muscle blocks spaced throughout the rostral–caudal axis of each head of the gastrocnemius muscle. DNA purity and quantity was measured using an ND-1000 spectrophotometer (NanoDrop; Thermo Fisher Scientific). A vector-specific primer/probe set (forward: 5′-CCTCAGTGGATGTTGCCTTTA, probe: 5′-AAAGCTGCG/ZEN/GAATTGTACCCGC/3IABkFQ, and reverse: 5′-ATCTTGAGGAGCCACAGAAATC) was used to amplify a portion of the vector DNA encompassing the 3′ end of the MCK promoter and the 5′ end of the human GALGT2 cDNA. No amplification of the endogenous macaque (Macaca mulatta) GALGT2 was observed in control samples using this vector-specific primer/probe set. The plasmid used to make rAAVrh74.MCK.GALGT2 was linearized with ClaI, repurified, and utilized to generate a standard curve from 50 to 5 million copies in log increments. The correlation coefficient of the standard curve always equaled or exceeded 0.99. Copy number was reported as vector genomes per microgram of genomic DNA assayed. Each sample was measured in duplicate, with an average intra-sample error of 8%. Values for each cohort were averaged, and differences between the cohorts were analyzed using an ordinary one-way ANOVA and Sidak's multiple comparisons test.

Semi-quantitative reverse transcription PCR

Relative transcription levels were assessed by quantitative reverse transcription PCR (qRT-PCR) using the ΔΔCT method,⁵⁰ with 18S ribosomal RNA as an internal reference. Total RNA was isolated from gastrocnemius muscle blocks using Trizol reagent (Invitrogen Life Technologies, Grand Island, NY) and purified on a silica gel–based membrane (Direct-zol RNA miniPrep; Zymo Research, Irvine, CA). RNA purity and content was measured using an ND-1000 spectrophotometer (NanoDrop; Thermo Fisher Scientific). RNA was reverse transcribed with a high capacity cDNA archive kit (Applied Biosystems, Thermo Fisher Scientific) per the manufacturer's guidelines. Using a TaqMan ABI 7500 sequence detection system (Applied Biosystems, Thermo Fisher Scientific) with 18S as an internal reference, samples underwent RT-PCR in duplicate. Primer/probe sets were designed using PrimerQuest DNA software and synthesized by Integrated DNA Technologies (Coralville, IA). A primer/probe set for 18S was purchased from Applied Biosystems (Thermo Fisher Scientific) and primer/probe sets were designed only to recognize Homo sapiens GALGT2 (CTACGATGGAATCTGGCTGTT (forward), 56-FAM/AGCCAACAA/Zen/AGAGCAGGGAGGTTA/3IABkFQ (probe),GCCATAGGCATCCTGAAAGT (reverse)) or Macaca mulatta GALGT2 (TGAGGAGACAGGCTGAATTTG (forward), 56 FAM/ACTTTCAGA/Zen/GGAGAGAAGGGCTGC/3IABkFQ (probe), TCCATTGATGACGAGCTTCC (reverse)). Human GALGT2 levels were then compared to rhesus macaque GALGT2 levels in each sample. Relative mRNA levels were averaged for each cohort and analyzed using an ordinary one-way ANOVA and Sidak's multiple comparisons test.

Scoring of intramuscular immune cell infiltrates

Snap-frozen blocks of skeletal muscle were cut on a cryostat to create cross-sections (10 μm thick), which were then stained with hematoxylin and eosin (H&E). For H&E staining, sections were fixed in 10% neutral buffered formalin, stained in Gill's 3 Hematoxylin (Fisher Scientific, Pittsburgh, PA), immersed in bluing reagent, stained with eosin (Fisher Scientific), and dehydrated in increasing concentrations of ethanol and, lastly, xylene. A Zeiss Axioskop40 microscope (Carl Zeiss Microscopy) was used to capture five representative 10 × images (each 977,500 μm² in area) from one H&E-stained section for each of the 13–16 blocks taken from each head of the gastrocnemius muscle. Each image was given a score reflecting the percentage of infiltration by mononuclear cells, termed the infiltration index. These scores were given as follows: “0” for infiltration in 0% of total cellular area in the image, “1” for 0% < x ≤ 5%, “2” for 5% < x ≤ 15%, and “3” for 15% < x ≤ 25%. No infiltration above 25% of the total cellular area was observed. Approximately 150 images per animal were analyzed in this manner. Infiltration index scores for each treatment group were then averaged and analyzed for differences using an ordinary one-way ANOVA and Sidak's multiple comparisons test.

IFN-γ Enzyme-Linked ImmunoSpot assays

Enzyme-Linked ImmunoSpot (ELISpot) assays were performed on fresh PBMCs, which were added at 2 × 10⁵ cells/well to duplicate wells of a 96-well plate. Three peptide pools were used for the rAAVrh74 capsid protein sequence. Each contained 34–36 peptides of 18 amino acids in length, with each peptide overlapping in sequence with the previous peptide by 11 residues. Two peptide pools of a similar nature were used to assay the human GALGT2 protein sequence. Concanavalin A (ConA) was used as a positive control and vehicle (0.25% dimethyl sulfoxide [DMSO]) was used as a negative control. Peptides were added at 1 mg/mL to Aim-V lymphocyte media (Invitrogen Life Technologies) supplemented with 2% human AB serum (Gemini-BioScience, Liverpool, United Kingdom). Monkey IFN-γ ELISpot kits were purchased from U-CyTech (Utrecht, The Netherlands). After addition of PBMCs and peptides, the plates were incubated at 37°C for 48 hours and developed according to the manufacturer's instructions. Spot formation was counted using a Cellular Technologies Systems analyzer (Cleveland, OH).

Immunostaining

Sections of skeletal muscle (10 μm thick) were blocked in 10% donkey serum and probed with biotinylated Wisteria floribunda agglutinin (WFA; Vector Laboratories), monoclonal antibody to cleaved caspase 3 (Asp 175; 5A1E; Cell Signaling, Danvers, MA), monoclonal antibody to the FLAG epitope tag (M2; Sigma–Aldrich, St. Louis, MO), monoclonal antibody to CD4 (L200; BD Biosciences, San Jose, CA), monoclonal antibody to CD8 (YTC182.20; AbD Serotec, Raleigh, NC), monoclonal antibody to CD11b (EP1345Y; Abcam, Cambridge, MA), monoclonal antibody to FOXP3 (236A/E7) (Abcam), PD1/CD279 antibody (Thermo Fisher Scientific), PDL1 antibody (EMD Millipore, Billerica, MA), PDL2 antibody (EMD Millipore), or monoclonal antibody to reticular fibroblasts and reticular fibers (ERTR7; Abcam). Sections were then incubated in fluorophore-conjugated secondary antibody, fluorophore-conjugated streptavidin (Jackson ImmunoResearch Laboratories) or fluorophore-conjugated α-bungarotoxin (Thermo Fisher Scientific). Stained slides were mounted with ProLong Gold Antifade Mountant with DAPI (Thermo Fisher Scientific). A Zeiss Axioskop2 Plus epifluorescence microscope was used to visualize staining and a Zeiss AxioCam MRC5 camera (Carl Zeiss Microscopy) was used to capture representative images. All images comparing individual stains between different experimental conditions or animals were time-matched using identical exposure settings.

Western blot analysis

Frozen skeletal muscle blocks were cut on a cryostat (50 μm/section) to obtain roughly 50 mg of muscle protein per sample. Muscle was digested in Tris-buffered saline (TBS; 25 mM of Tris, 150 mM of NaCl, pH 7.5) containing 1% NP-40, 0.5 mM of EDTA, and 1:50 cOmplete protease inhibitors (Roche, Indianapolis, IN) overnight. Extracts were homogenized with three to five pulses of 10 s each (Power Gen 125; Fisher Scientific). Samples were centrifuged at 21,000 g for 30 min at 4°C to remove unsolubilized material. The supernatant was collected, and the resulting protein concentration was determined by BCA assay (Thermo Fisher Scientific). Protein (80 μg) from each sample was boiled at 100°C for 10 min in NuPAGE LDS sample buffer (Thermo Fisher Scientific), separated on a Bolt 4–12% Bis-Tris Plus gel (Thermo Fisher Scientific), and transferred to a nitrocellulose membrane. The membrane was blocked in 5% nonfat dry milk in TBS containing 0.05% Tween 20 and then probed with PD1/CD279 antibody (Thermo Fisher Scientific), PDL1 antibody (EMD Millipore), PDL2 antibody (EMD Millipore), or GAPDH antibody (Sigma–Aldrich). Blots were then probed with horseradish peroxidase–coupled secondary antibody (Jackson ImmunoResearch Laboratories) and developed using the enhanced chemiluminescence (ECL) method (Lumigen, Southfield, MI). ImageJ 1.46r software (National Institutes of Health, Bethesda, MD) was used to measure relative band density in the 24-week rAAV74.MCK.GALGT2-treated macaque muscle samples (with or without prednisone), contralateral control limb muscle samples, and sham-treated control muscle samples. PD1, PDL1, and PDL2 protein expression were normalized to GAPDH expression in each instance (n = 6 per cohort). Densitometry measures for each cohort were averaged, and variation between cohorts was analyzed using an ordinary one-way ANOVA and Sidak's multiple comparisons test.

Results

Vascular delivery of rAAVrh74.MCK.GALGT2 to skeletal muscle

Skeletal muscles from a previous gene therapy study were also used in the current study.³⁰ In that study, a 2 × 10¹² vg/kg dose of either the human GALGT2 gene or the micro-Dystrophin (μDys) gene was delivered to the gastrocnemius muscle in a single limb using an isolated limb perfusion method with intra-arterial delivery in rhesus macaques. At endpoints of 12 and 24 weeks post injection, both the treated and the contralateral gastrocnemius muscles were removed and snap-frozen for further analysis, along with skeletal muscle from a phosphate-buffered saline (PBS)-injected macaque (sham control). Muscles were dissected into 13–16 blocks of tissue taken equally from the proximal, central, and distal regions of the lateral and the medial heads of the gastrocnemius. After snap-freezing, rAAVrh74.MCK.GALGT2-treated blocks were cut into cross-sections and immunostained to analyze the extent of GALGT2 transduction.

For the current study, macaques treated with human GALGT2 were divided into five experimental groups depending on the length of treatment, AAV serostatus at the time of treatment, and the presence or absence of prednisone as an additional treatment. Macaques were considered AAV seronegative if they had no measurable antibody titer to rAAVrh74 using a 1:50 serum dilution by ELISA. It is important to point out that the serum rAAV antibody titer was a measure of total rAAVrh74 antibodies and not a measure of neutralizing AAV antibodies. The control group (group 1) was injected with normal saline. Of the four rAAVrh74.MCK.GALGT2-treated experimental groups, group 2 was analyzed at 12 weeks post treatment, and groups 3–5 were analyzed at 24 weeks post treatment. Group 3 received no prednisone and had no measurable serum rAAV antibody titer at the time of treatment (sero–). Group 4 had positive serum rAAV antibody titers at the time of treatment (sero+) and received prednisone, while group 5 was rAAV antibody seropositive (sero+) but did not receive prednisone. At the time of treatment, the seropositive groups had average serum rAAVrh74 antibody ELISA signals of 0.336 (group 4) or 0.288 (group 5) using a 1:800 serum dilution, while the seronegative groups had average serum rAAVrh74 antibody ELISA signals of 0.057 (group 2) or 0.028 (group 3).

In each treated group, the gastrocnemius muscles from the treated limb and from the contralateral (untreated) limb were analyzed for GALGT2 activity using WFA staining (Fig. 1A). WFA recognizes the terminal β1-4GalNAc linkage that is unique to the CT glycan structure and therefore can be used to recognize the product of GALGT2 enzyme activity.^28,30 GALGT2 gene overexpression is easily scored in this manner, as CT glycan expression, like GALGT2 protein, is normally confined to the NMJ and MTJ in adult skeletal muscle (and in some intramuscular capillaries).^28,29 By contrast, when GALGT2 is overexpressed in skeletal muscle, the CT glycan is present along the entirety of each transduced myofiber membrane.³⁰ Contralateral (control) muscles showed almost no (<1% of total myofibers) CT glycan staining along myofibers, while rAAVrh74.MCK.GALGT2-treated muscles had GALGT2 overexpression in 56 ± 9% of myofibers at 12 weeks (group 2) and 34 ± 19% (group 3), 57 ± 7% (group 4), and 12 ± 2% (group 5) at 24 weeks (data are mean ± standard deviation [SD]; Fig. 1B). The presence of pre-existing antibodies to AAV significantly reduced CT glycan overexpression in group 5 relative to group 2 and to group 4 (p < 0.05). Group 4, which also had pre-existing Abs but received prednisone treatment, did not have CT glycan overexpression that was significantly different from the two seronegative cohorts (groups 2 and 3). WFA staining in myofibers was much more variable in the 24-week-treated group without prednisone (group 3) due to the presence in this cohort of one macaque with a Mamu-A0201 class I allele.³⁰ This allowed for T-cell responses to a GALGT2 peptide with human-specific amino-acid changes relative to the macaque sequence, resulting in transient breakage of T-cell tolerance to the transgenic protein at 20 weeks post treatment.³⁰ While not proven, this could have contributed to the significantly lowered CT glycan expression in this particular animal, which increased the variability of WFA staining in the group 3 cohort.

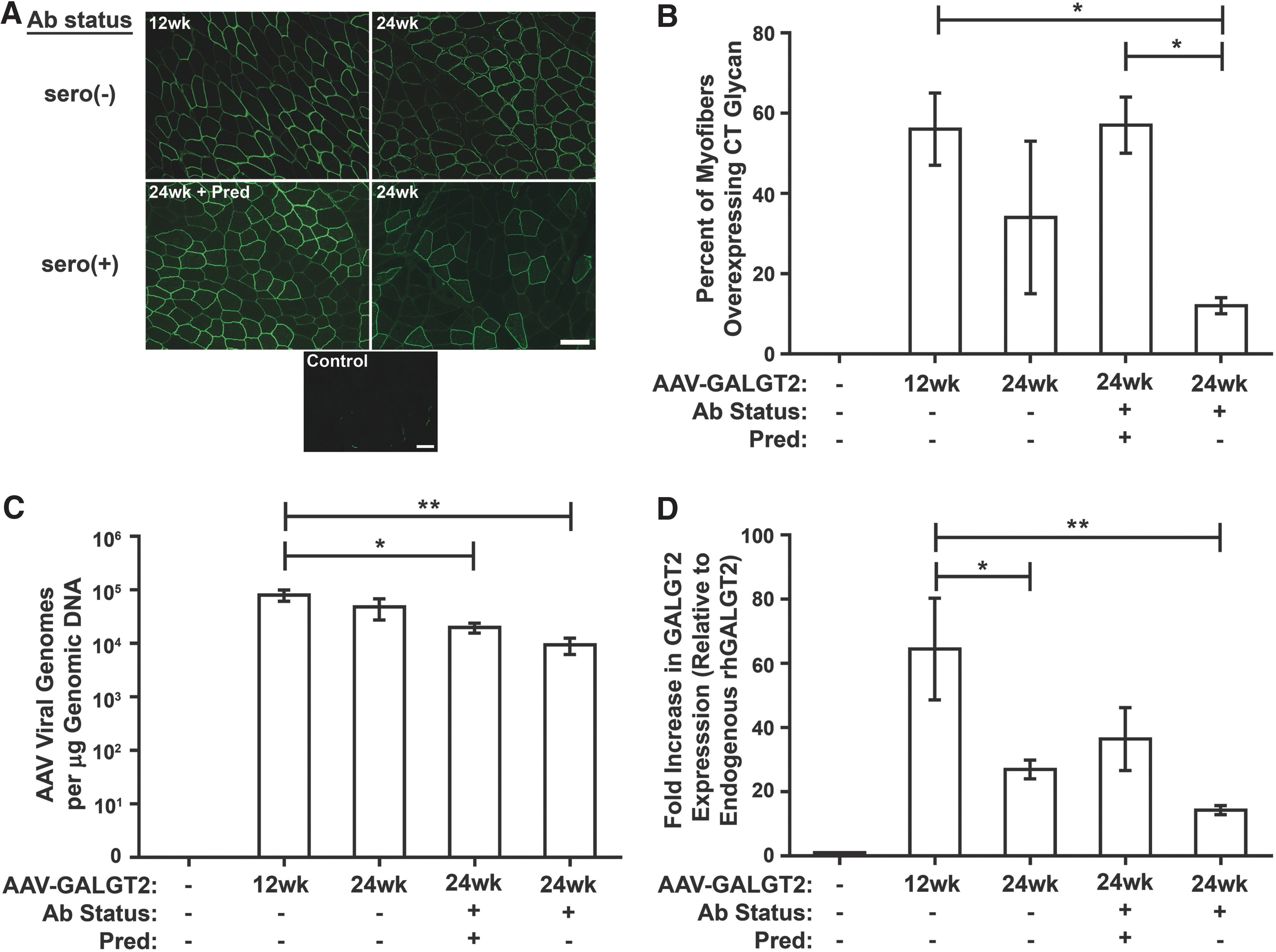

Figure 1.

GALGT2 expression and adeno-associated viral (AAV) vector biodistribution after vascular delivery of rAAVrh74.MCK.GALGT2. (A) GALGT2 overexpression is shown by Wisteria floribunda agglutinin (WFA) staining in rAAVrh74.MCK.GALGT2-treated gastrocnemius muscle in seronegative (–) or seropositive (+) macaques, of which one cohort was additionally treated with prednisone (Pred). Control represents time-matched WFA staining of an untreated muscle. Scale bar: 50 μm. (B) The percentage of myofibers overexpressing CT glycan was quantified for all muscle segments taken throughout both heads of the gastrocnemius muscle. Data are mean ± standard deviation (SD) for n = 2 (group 5) and n = 3 (groups 1–4) macaques per group. (C) AAV vector genomes were measured by quantitative polymerase chain reaction (qPCR) and normalized to total genomic DNA. Data are mean ± standard error of the mean (SEM) for seven muscle samples analyzed for two to three macaques per group. (D) Relative change in transgenic human GALGT2 mRNA expression, compared to endogenous rhesus macaque GALGT2 mRNA expression, was determined using quantitative reverse transcription PCR (qRT-PCR) with 18S ribosomal RNA as an internal reference. Data are mean ± SEM for seven muscles analyzed for two to three macaques per group. *p < 0.05, **p < 0.01 using one-way analysis of variance (ANOVA) in (B–D).

Next, qPCR analysis was performed to measure the number of viral genomes present in each treated skeletal muscle (Fig. 1C). Seropositive AAV-treated macaques, with or without prednisone (groups 4 and 5), showed a reduction in viral genomes per microgram of genomic DNA relative to seronegative macaques at 12 or 24 weeks post treatment, though this reduction was only significant compared with the 12-week-treated group 2 cohort (p < 0.05). Despite the reduction in viral genomes, group 4 showed increased transgene expression by qRT-PCR relative to the seronegative cohort treated similarly for 24 weeks (group 3; Fig. 1D). Additionally, group 2 had significantly higher hGALGT2 mRNA expression relative to groups 3 and 5 (p < 0.05 and p < 0.01, respectively; Fig. 1D). The increase in group 4 hGALGT2 mRNA expression, which may result from prednisone activation of the MCK promoter or stabilization of the GALGT2 mRNA, could in part account for the increased percentage of myofibers overexpressing the CT glycan in group 4 relative to group 5 (Fig. 1B). Additional effects of prednisone, for example, on GALGT2 protein expression, GALGT2 enzyme activity, or GALGT2 substrate expression or secretion may also be involved.

Prednisone suppresses T-cell infiltrates in AAV-transduced muscle

The presence of T-cell infiltrates in rAAVrh74.MCK.GALGT2-treated muscle sections was observed, as has been previously reported.³⁰ To quantify the abundance of such cellular infiltrates, an infiltration index was created. In this index, a score reflecting the percentage of infiltration was given to each H&E-stained muscle section. “0” represented no evident mononuclear infiltrates, “1” represented infiltration in 0–5% of the muscle section, “2” represented infiltration in 5–15%, and “3” represented infiltration in 15–25%. No sections showed infiltrates in >25% of the total muscle section area. Representative examples of muscle sections stained from all AAV-treated cohorts are shown in Fig. 2A, while examples for each infiltration index score between “0” and “3” are shown in Fig. 2B. Mononuclear cell infiltrates were significantly more abundant in all AAV-treated cohorts that did not receive prednisone than in the one cohort that did (p < 0.001; Fig. 2C). At 24 weeks post AAV treatment, administration of prednisone significantly reduced the presence of mononuclear T-cell infiltrates, showing an overall reduction of 60% compared with 24-week-treated cohorts either with or without pre-existing serum rAAVrh74 antibodies.

Figure 2.

Prednisone reduces intramuscular T-cell infiltrates. (A) Hematoxylin and eosin staining of gastrocnemius muscles treated with rAAVrh74.MCK.GALGT2 in the presence or absence of prednisone (Pred) and with or without pre-existing serum rAAV antibodies (Ab status + or −, respectively) at 12 and 24 weeks post injection. Scale bar: 100 μm. (B) Representative images reflecting infiltration index: “0” for 0% of imaged cellular area, “1” for 0% < x ≤ 5%, “2” for 5% < x ≤ 15%, and “3” for 15% < x ≤ 25%. Scale bar: 100 μm. (C) Average infiltration index for each rAAVrh74.MCK.GALGT2-treated cohort. Contralateral muscles from injected macaques were used as controls. Data are mean ± SEM with 150 images for n = 2 (group 5) and n = 3 (groups 1–4) macaques per group. ***p < 0.001 using one-way ANOVA. (D) Anti-rh74 serum antibody levels in seronegative (–) and seropositive (+) 24-week rAAVrh74.MCK.GALGT2-treated macaques, with or without prednisone (Pred; n = 2–3 per group). (E–F) Enzyme-Linked ImmunoSpot (ELISpot) peripheral blood interferon gamma (IFNγ) responses to GALGT2 peptides (E) or rAAVrh74 capsid peptides (F) in 24-week rAAVrh74.MCK.GALGT2-treated macaques. Each point represents one sample, with two to three macaques per group. IFN-γ responses were not determined at week 0 for the prednisone-treated cohort. Fifty spot forming colonies/10⁶ peripheral blood mononuclear cells (PBMCs; line) is considered a positive response.

In addition to characterizing the effect of prednisone on the extent of intramuscular T-cell infiltrates, anti-rAAVrh74 antibodies in serum (Fig. 2D) and IFN-γ positive T cells in PBMCs (Fig. 2E and F) were also measured. While anti-rAAVrh74 capsid antibody levels were low prior to AAV treatment, levels rose following treatment and continued to rise at 18 and 24 weeks. At these later time points, the prednisone-treated cohort showed reduced serum antibody levels compared with animals not receiving prednisone, regardless of pre-existing serum rAAVrh74 antibodies at the time of treatment. At 16 or 24 weeks after rAAVrh74.MCK.GALGT2 treatment, T-cell ELISpot assays for IFN-γ positive spot forming colonies (spf) in PBMCs in response to pooled peptides from either human GALGT2 transgenic protein (Fig. 2E) or rAAVrh74 capsid protein (Fig. 2F) showed some signals above the 50 spf level considered positive. Here again, ELISpot signals were generally lower in prednisone-treated animals. ELISpots from Concanavalin A-treated PBMCs, used as a positive control, always exceeded an average reading of 500 spf/10⁶ PBMCs, while DMSO alone, used as a negative control, never exceeded an average reading of 13 spf/10⁶ PBMCs. For both serum antibodies (Fig. 2D) and peripheral blood T cells (Fig. 2E and F), the reduced levels found with prednisone at these later treatment time points were not statistically significant due to the small number of samples (two to three macaques per group). This trend, however, suggested an immunosuppressive role for prednisone consistent with the reduced numbers of immune cell infiltrates found in prednisone-treated macaques (Fig. 2C).

Expression of markers for T-cell exhaustion in intramuscular infiltrates

Intramuscular infiltrates primarily consisted of CD8+ cytotoxic T cells (Fig. 3A). Some FOXP3+ Treg cells were also present, as were occasional CD11b+ macrophages and CD4+ T helper cells (Fig. 3A). The presence of CD8+ T-cell infiltrates in rAAVrh74.MCK.GALGT2-treated muscles suggested that cytotoxic T-cell responses to transgene or AAV capsid protein were occurring within the treated muscle. GALGT2 transgene expression, however, remained high in seronegative rAAVrh74.MCK.GALGT2-treated muscles, despite the presence of cytotoxic CD8+ T cells (Fig. 1B). Therefore, next, the study explored whether these CD8+ infiltrates were undergoing apoptosis by co-staining with CC3, an antibody that recognizes the activated (cleaved) form of caspase 3, a marker for certain apoptotic cells (Fig. 3B). Indeed, a majority of CD8+ T cells within such infiltrates showed positive staining for activated caspase 3. Activated caspase 3 staining was also present in the remaining infiltrates found in prednisone-treated muscles (Fig. 3B). Next PD1 and its ligands, PDL1 and PDL2, were stained for in both AAV-transduced (Fig. 4A) and non-transduced skeletal muscle (Fig. 4B and C). PD1 is a receptor found on T cells that, upon binding PDL1 or PDL2, can induce T-cell exhaustion and apoptosis.^51,52 Immunostaining for PD1, PDL1, and PDL2 in AAV-treated muscle showed that all three proteins were expressed in CD8+ T cells within infiltrates (Fig. 4A). In non-AAV-treated muscles, PD1 was not expressed, while PDL1 and PDL2 were highly expressed at the NMJ (identified by co-staining with α-bungarotoxin; Fig. 4B). In addition, PDL2 was expressed at low levels along the sarcolemmal membrane of some skeletal myofibers, while PDL1 was expressed in a punctate pattern consistent with its presence on intramuscular fibroblasts, which was confirmed by co-staining with ERTR7 (Fig. 4C). Thus, within skeletal muscle, PD1 expression was specific for immune cells, while PDL1 and PDL2 expression was present in immune cells, NMJs, intramuscular fibroblasts (PDL1), and skeletal myofibers (PDL2). Staining of immune cells in skeletal muscles in group 3 (24-week AAV-treated seronegative; Fig. 4) was similar to staining found in group 5 (24-week AAV-treated seropositive; not shown).

Figure 3.

Staining of immune cells in intramusuclar infiltrates. (A) Infiltrating mononuclear cells present in rAAVrh74.MCK.GALGT2-treated macaque gastrocnemius muscle were stained with monoclonal antibodies to recognize macrophages (CD11b), helper T cells (CD4), cytotoxic T cells (CD8), or regulatory T cells (FOXP3; all green). Tissue was costained with DAPI, a marker for cell nuclei, shown in blue. Scale bar: 50 μm. (B) Infiltrating T cells were co-stained with CD8 (green) and CC3 (activated caspase 3, red), a marker for apoptosis. Merged image on right shows overlap in yellow/orange. rAAVrh74.MCK.GALGT2-injected muscles treated with or without prednisone (Pred) are compared. Scale bar: 50 μm.

Figure 4.

Immunostaining of PD1, PDL1, and PDL2 in AAV-treated and -untreated macaque skeletal muscle. (A) Sections of macaque gastrocnemius muscles treated with rAAVrh74.MCK.GALGT2 containing intramuscular infiltrates were stained to identify overlapping expression of CD8 (green) with PD1, PDL1, or PDL2 (all red). Merged image is shown at right, with DAPI co-staining also shown (blue). Scale bar: 25 μm. (B) Skeletal muscle that had not been treated with AAV was stained for PD1, PDL1, or PDL2 (red) and for α-bungarotoxin (green), which stains the neuromuscular junction. Overlap is shown at right, with DAPI co-staining in blue. Scale bar: 50 μm. (C) Skeletal muscle that had not been treated with AAV was stained with PDL1 (red) and ERTR7 (green), a marker for intramuscular fibroblasts. Merged image is shown at right, with DAPI co-staining in blue. Scale bar: 25 μm.

Next, the study determined if AAV treatment of rhesus macaque skeletal muscle would induce increased expression of PD1, PDL1, or PDL2 that might protect transgene-expressing muscle cells from T-cell-mediated immunity. To compare expression of PD1, PDL1, and PDL2 in the AAV-treated and -untreated macaques, time-matched immunostaining images were taken from cohorts treated with rAAVrh74.MCK.GALGT2 or rAAVrh74.MCK.μDystrophin for 12 weeks or from cohorts treated with rAAVrh74.MCK.GALGT2 for 24 weeks, with or without prednisone (Fig. 5). μDystrophin (μDys) is a truncated cDNA form of the dystrophin-encoding gene that contains elements needed to protect dystrophin-deficient muscle fibers from injury.^23,53 Animals treated with rAAVrh74.MCK.μDys in addition to animals treated with rAAVrh74.MCK.GALGT2 were used here to discern if any changes in PD1, PDL1, or PDL2 expression were due to a specific transgene or were rather due to the common presence of the rAAVrh74 capsid protein. As macaques normally express full-length dystrophin in their skeletal muscles, μDys-expressing fibers were identified by staining for a FLAG epitope tag that was expressed on μDys protein. These cohorts were additionally compared to control animals receiving only sham treatment (PBS alone) and contralateral control muscles from rAAVrh74.MCK.GALGT2-treated muscles where the transgene was not expressed. The absolute levels of WFA expression in Fig. 5 do not match the averages calculated in Fig. 1B because they are single samples of staining rather than averages of hundreds of stained sections.

Figure 5.

Expression of PD1, PDL1, and PDL2 in AAV-transduced and non-transduced skeletal muscle. Gastrocnemius muscle in the rhesus macaque was treated with phosphate-buffered saline (PBS; sham control), rAAVrh74.MCK.μDystrophin (AAV-μDys), or rAAVrh74.MCK.GALGT2 (AAV-GALGT2) for 12 or 24 weeks, with or without prednisone (Pred). Contralateral limb muscles from rAAVrh74.MCK.GALGT2 treated macaques (24-week control and 24-week control + Pred) were also stained. Sections were immunostained for PD1 (A), PDL1 (B), or PDL2 (C), all in red, with co-staining for FLAG to identify μDys-expressing myofibers or WFA to identify GALGT2-overexpressing myofibers (both green). Merged images show overlap in yellow below, with DAPI co-staining shown in blue. Scale bar: 50 μm.

PD1 expression was primarily present on immune cell infiltrates and was identified only on such cells in muscles that had been transduced with AAV (Fig. 5A). Muscles that were transduced with AAV expressing either GALGT2 or μDys showed PD1-positive cells at 12 and 24 weeks post treatment. PD1-positive cells were not present in the image taken from the 24-week rAAVrh74.MCK.GALGT2-treated cohort that also received prednisone because such T-cell infiltrates were rarely observed in such muscles. PDL1 was also present in CD8+ T-cell infiltrates (Fig. 5B). When images were taken where such infiltrates were absent, PDL1 staining could also be seen in a punctate intramuscular staining pattern reminiscent of intramuscular fibroblasts (e.g., Fig. 4C). Such punctate PDL1 expression appeared unchanged across all cohorts (Fig. 5B). In contrast to PDL1, PDL2 expression was particularly elevated along the sarcolemmal membranes of skeletal myofibers in regions with high transgene expression (Fig. 5C). PDL2 also showed increased muscle cell expression, albeit less dramatically so, in contralateral muscles where no transgene was present (24-week control and 24-week control + prednisone; Fig. 5C).

The study further assessed the expression of PD1, PDL1, and PDL2 by Western blot (Fig. 6). Identical amounts of muscle protein lysate were separated by SDS-PAGE, transferred to a nitrocellulose membrane, and probed with antibodies to PD1, PDL1, or PDL2. Blots were also probed with an antibody to GAPDH as a control to ensure equal protein loading and transfer. Lymph node whole-cell lysate from a rhesus macaque was also run as a positive control to identify PD1, PDL1, and PDL2 protein. A representative example is shown in Fig. 6A, while quantification of all Westerns for particular 24-week AAV-treated cohorts is shown in Fig. 6B–D for PD1, PDL1, and PDL2, respectively. The immunoblotted proteins identified in skeletal muscle for PD1, PDL1, and PDL2 were often present as multiple bands at more than one molecular weight (Fig. 6A). This was also the case for blots of the lymph node cell lysate used as a positive control. While this complicated the interpretation of changes in expression, there was in each instance a primary protein band that represented the majority of the Western blot signal: for example 62 kDa for PD1, 58 kDa for PDL1, and 60 kDa for PDL2. PD1, PDL1, and PDL2 all appear to be heavily glycosylated in a number of cell types and tissues, often doubling their predicted 31–33 kDa molecular weight based on amino-acid sequence and frequently showing multiple protein species.^54

–58

Figure 6.

PD1, PDL1, and PDL2 protein expression is upregulated in AAV-transduced skeletal muscle. (A) Protein from rhesus macaque lymph node, PBS-treated control skeletal muscle, or AAV-treated gastrocnemius skeletal muscle was separated by SDS-PAGE and immunoblotted for PD1, PDL1, PDL2, or GAPDH. Muscles treated with rAAVrh74.MCK.μDystrophin (AAV-μDys) or rAAVrh74.MCK.GALGT2 (AAV-GALGT2) for 12 or 24 weeks, with or without prednisone (Pred), were compared to untransduced contralateral muscles from AAV-treated macaques and to PBS-treated (sham control) muscles. Protein expression of PD1 (B), PDL1 (C), or PDL2 (D) was quantified at 24 weeks. Protein amounts were normalized to GAPDH expression in all instances. Data are mean ± SEM for six muscle samples per group, three macaques per group. ***p < 0.001; **p < 0.01; *p < 0.05 using one-way ANOVA.

PD1, PDL1, and PDL2 all showed elevated expression at 24 weeks in rAAVrh74.MCK.GALGT2-treated muscles relative to all other conditions (Fig. 6A), and this elevation was statistically significant for all three proteins relative to group 1 sham control muscles (Fig. 6B–D). For PD1, muscle protein expression was significantly higher in AAV-treated muscles from macaques that did not receive the prednisone (group 3) compared with those that did receive prednisone (Group 4; Fig. 6B), and PDL1 showed a trend for this difference (Fig. 6C). PDL2 expression was similarly increased by Western blot analysis in the 24-week rAAVrh74.MCK.GALGT2-treated group 3 muscle compared with group 1 sham control. PDL2 protein was also overexpressed, though more variably so, in the contralateral muscles from AAV-treated macaques (Fig. 6D). This was the case regardless of prednisone treatment. Thus, unlike PD1 and PDL1, PDL2 protein appeared to be globally induced in muscles where no transgene was present after vascular delivery of AAV.

Discussion

One of the most perplexing aspects of the use of AAV as a gene therapy agent is that high levels of transgene expression can be sustained, even in the presence of T-cell-mediated responses to the gene therapy vector. Many investigators have shown sustained gene expression with a number of genes targeting various tissues in humans and in a number of animal models (e.g., Mingozzi and High,¹ Brantly et al.,⁵ Mueller et al.,¹¹ Chao et al.,⁵⁹ Flotte et al.,⁶⁰ Song et al.,⁶¹ Kessler et al.,⁶² Xiao et al.,⁶³ and Rodino-Klapac et al.⁶⁴). In this study, too, sustained expression of the GALGT2 transgene was observed when delivering rAAVrh74.MCK.GALGT2 to the gastrocnemius muscle in the rhesus macaque using intravascular AAV delivery.³⁰ As in a number of other studies, a mounting immune response involving the invasion of CD8+ T cells into treated muscles was observed, even in animals with low pretreatment serum titers to the rAAVrh74 capsid protein.³⁰ This study shows that these infiltrating CD8+ T cells in AAV-treated muscles express markers of T-cell exhaustion and programmed cell death (PD1 and activated caspase 3). It also shows elevated expression of PD1 ligands, PDL1 and PDL2, in immune infiltrates and elevated expression of PDL2 on skeletal myofibers after systemic AAV delivery. Elevation of PD1 expression in T cells and PDL2 expression in skeletal muscle was seen, regardless of the transgene delivered; rAAVrh74 containing the same muscle-specific promoter (MCK) to drive either GALGT2 or μDystrophin gene expression showed similar findings. Moreover, while PDL2 expression in skeletal myofibers was most increased in regions where transgene overexpression was high, PDL2 protein was also increased, though more variably so, in muscles of AAV-treated macaques where no significant transgene expression was present (e.g., the contralateral limb of a macaque treated only in the other limb using vascular delivery). Elevated PD1 expression on CD8+ T cells and elevated PDL2 expression on skeletal myofibers may be sufficient to drive the majority of intramuscular invading T cells to exhaustion and/or programmed cell death. This, in turn, may provide a privileged environment for sustained transgene expression to AAV-treated skeletal muscle. While PDL1 and PDL2 were also expressed in T cells along with PD1, the presence of PDL2 on skeletal myofibers may allow for trans-PD1 signaling to T cells from the skeletal myofiber. This study corroborates previous studies demonstrating the presence of CD8+ T-cell exhaustion and apoptosis in AAV-transduced skeletal muscle,⁶⁵ but additionally describes increased expression of PDL2 along skeletal myofiber membranes after AAV treatment and concentrated expression of both PDL1 and PDL2 at the NMJ in non-AAV-treated macaque muscle. The postsynaptic muscle membrane at the neuromuscular synapse may therefore be less susceptible to T-cell surveillance than the rest of the muscle membrane. Additional cellular mechanisms, for example the presence of infiltrating Treg cells, which can also express PD1 and PDL1, may also impact long-term AAV-mediated gene expression.^6,11,13,66

The persistence of inert CD8+ T cells observed following treatment with rAAV therapy is reminiscent of what has been seen in hosts undergoing chronic viral infections. Mice that are repeatedly exposed to infectious viruses, such as lymphocytic choriomeningitis virus or polyoma virus, experience failed immunity to the infection due to the exhaustion of CD8+ T cells.^42,67 Similar observations have been made in large animal models, such as chimpanzees infected with hepatitis C or B viruses.^68,69 CD8+ T-cell exhaustion in these instances has been linked to interactions between PD1 and its ligands, PDL1 and PDL2. High levels of PD1 expression on CD8+ T cells are associated with an exhaustion phenotype. In fact, PD1 blockade with anti-PD1 antibodies in a chronic infection model can restore CD8+ T-cell function, resulting in decreased infectivity of the virus.^44,70 With regard to AAV transduction of skeletal muscle, one would want to avoid the reactivation of CD8+ T cells, as T-cell exhaustion can be exploited to maintain therapeutic transgene expression. Alternatively, one could bypass the need for T-cell exhaustion by suppressing the presence of T cells in the AAV-transduced environment, for example with prednisone. This may prove particularly effective in patients with DMD, the disease for which the rAAVrh74.MCK.GALGT2 gene therapy vector was originally created, as the skeletal muscle exhibits increased inflammation in this disease.

Prednisone immunosuppression is a standard of care therapy for DMD due to the ability of prednisone therapy to prolong ambulation by several years in younger DMD boys.⁴⁷ While prednisone does not ultimately impact the long-term progression of DMD disease, it does reduce the incidence of dystrophin self-reactive T cells that can occur in DMD patients.⁷¹ In this study, macaques treated with prednisone prior to AAV delivery had reduced skeletal muscle T-cell infiltration in all instances. This suggests that DMD patients should ideally continue prednisone while receiving gene therapy treatment in order to optimize therapeutic gene expression. Such an immunosuppression regimen could bypass the worry that exhausted CD8+ T cells present in treated skeletal muscles may revert and restore their functional capabilities to attack myofibers expressing the therapeutic transgene. Indeed, the majority of the remaining T-cell infiltrates in prednisone- and AAV-treated muscles still showed high levels of expression for PD1 and activated caspase 3.

Despite reduced AAV vector transduction in macaques treated with prednisone, high glycosylation of muscle by the GALGT2 enzyme was still observed. This may be an added advantage of prednisone, which is a pleiotropic drug. Prednisone, for example, may increase the expression of GALGT2 enzyme substrates such as α dystroglycan. Pereira et al. showed that deflazacort, a glucocorticoid similar to prednisone, can increase the expression of dystroglycan protein in dystrophin-deficient muscles.⁷² Similar inductive effects of glucocorticoids on skeletal muscle have been shown for utrophin,⁷³ laminin α2,⁷⁴ and integrin α7.⁷⁴ While overexpression of GALGT2 in skeletal muscle alone can increase the expression of many of these same proteins,^{24,30,31,75,76} upregulation by prednisone may provide for a combinatorial effect. Indeed, prednisone can alter the expression of hundreds of muscle genes,^77,78 alter protein translation,⁷⁹ alter calcineurin/NFAT signaling,⁸⁰ and alter Foxo-dependent induction of muscle atrophy genes.⁸¹ Future studies will be needed to understand these effects, as well as the mechanism by which PDL2 expression in skeletal muscle is increased by AAV. Such studies might uncover additional immunomodulatory mechanisms that could be exploited to optimize particular gene therapies.

Footnotes

Acknowledgments

This work was supported by NIH grant R01 AR049722 to P.T.M. M.L.C. was supported by a T32 training grant award funded by NIH grant NS077984 and by a graduate training award from the Center for Muscle Health and Neuromuscular Disorders at The Ohio State University. Special thanks to Chris Walker and Bill Bremer (Nationwide Children's Hospital) for performance of T-cell ELISpot assays and to Jerry Mendell for support of the original study.

Author Disclosure

P.T.M. has a financial conflict of interest with regard to the rAAVrh74.MCK.GALGT2 vector, as he is the inventor and this technology has been licensed to a corporate interest. The authors have no other conflicts of interest to declare in the submission of this work.
