Dual ABCA4 -AAV Vector Treatment Reduces Pathogenic Retinal A2E Accumulation in a Mouse Model of Autosomal Recessive Stargardt Disease

Abstract

Autosomal recessive Stargardt disease is the most common inherited macular degeneration in humans. It is caused by mutations in the retina-specific ATP binding cassette transporter A4 (ABCA4) that is essential for the clearance of all-trans-retinal from photoreceptor cells. Loss of this function results in the accumulation of toxic bisretinoids in the outer segment disk membranes and their subsequent transfer into adjacent retinal pigment epithelium (RPE) cells. This ultimately leads to the Stargardt disease phenotype of increased retinal autofluorescence and progressive RPE and photoreceptor cell loss. Adeno-associated virus (AAV) vectors have been widely used in gene therapeutic applications, but their limited cDNA packaging capacity of ∼4.5 kb has impeded their use for transgenes exceeding this limit. AAV dual vectors were developed to overcome this size restriction. In this study, we have evaluated the in vitro expression of ABCA4 using three options: overlap, transplicing, and hybrid ABCA4 dual vector systems. The hybrid system was the most efficient of these dual vector alternatives and used to express the full-length ABCA4 in Abca4^−/− mice. The full-length ABCA4 protein correctly localized to photoreceptor outer segments. Moreover, treatment of Abca4^−/− mice with this ABCA4 hybrid dual vector system resulted in a reduced accumulation of the lipofuscin/N-retinylidene-N-retinylethanolamine (A2E) autofluorescence in vivo, and retinal A2E quantification supported these findings. These results show that the hybrid AAV dual vector option is both safe and therapeutic in mice, and the delivered ABCA4 transgene is functional and has a significant effect on reducing A2E accumulation in the Abca4^−/− mouse model of Stargardt disease.

Introduction

Stargardt disease (STGD1; MIM #248200) is the most common autosomal recessive form of early onset macular dystrophy with an overall prevalence of 1:8,000–10,000.¹ The disease is characterized by a loss of retinal pigment epithelium (RPE) cells and photoreceptors and, as a consequence, results in a progressive loss of central vision and visual acuity throughout life, usually beginning in the first or second decade of life. The most common form of Stargardt disease is caused by mutations in the ATP binding cassette transporter A4 (ABCA4) gene, which functions in photoreceptor outer segments.²

ABCA4 is a lipid transporter localized primarily to the rim region of rod and cone photoreceptor outer segment disks although low level expression in photoreceptor inner segments and the endolysosomes of the RPE has also been reported.^3

–6 The protein consists of two nonidentical halves, each containing a large extracellular domain protruding into the disk lumen, six transmembrane domains, and an intracellular domain with a nucleotide-binding domain.⁷ ABCA4 is critically important for the clearance of photoisomerized all-trans-retinal from the photoreceptor disk lumen. The preferred substrate for transport is N- retinylidene-phosphatidylethanolamine (N-ret-PE), a spontaneous condensation product of all-trans-retinal with phosphatidylethanolamine.⁸ ABCA4 flips the N-ret-PE from the luminal leaflet of the disks to the cytosolic leaflet from where it is reduced by the action of RDH8⁹ and transported to the RPE for recycling of the photopigment back to its 11-cis configuration. Loss of ABCA4 function leads to toxic accumulation of bisretinoids, specifically N-retinylidene-N-retinylethanolamine (A2E), a condensation product of all-trans-retinal with N-ret-PE in the outer segments. It is the major fluorescent compound of Stargardt lipofuscin aggregates.^10
–12 This fluorescence emanates from the RPE after ingestion of photoreceptor outer segment tips and is a key indicator for the early clinical diagnosis of Stargardt disease in humans.¹³ As a recessive monogenic disease with a well-described genotype–phenotype relationship, ABCA4-Stargardt presents as an excellent target for gene supplementation therapy.

Adeno-associated virus (AAV) has shown proven potential for gene therapy in the retina. It has demonstrated efficacy and safety in proof-of-concept studies and in clinical trials,^{14

–25} and recently the first retinal gene therapy in the United States was approved and employed an AAV vector.²⁶ Upon target cell entry, AAV genomes persist as episomal DNA in the nucleus, a stable condition in postmitotic cells. The major limitation of AAV is its small payload capacity of ∼4.5 kb. Although it was initially reported that an entire oversized transgene could be encapsulated in an AAV capsid,²⁷ it was later shown that packaging of such oversized transgene cassettes results in random truncations/deletions of the DNA during the vector packaging process.^28

–33 These fragmented genomes undergo homologous recombination after transduction of cells, which ultimately leads to the expression of protein. Compared with vectors with cDNAs <4.5 kb, the packaging of oversized cDNAs into AAV vectors is highly inefficient, resulting in low vector titers, and its transduction efficiency of target cells is poor.^28,29 Critically, the sequence randomness of the packaged DNA makes it impossible to characterize their precise composition after vector production, a necessary prerequisite for clinical applications. In addition, these sorts of fragmented transgenes present the clear risk of imperfect reconstitution of the normal coding sequence upon exposure to the cellular DNA double-strand break repair machinery.³³

To overcome these drawbacks for cDNAs exceeding the size limit of AAV vectors, dual vector strategies for oversized transgenes have been developed in which the oversized transgene cassette is split between two discreet vectors.^{25,34

–43} One vector contains a promoter and the 5′ portion of the cDNA and the other vector contains the 3′ portion of the cDNA and the polyadenylation signal (polyA). After coinfection, intermolecular concatemerization mediated through overlapping elements or the vector inverted terminal repeats (ITRs) ultimately lead to expression of the full-length protein.^44,45 Several improvements over the original dual vector platforms have been developed utilizing highly recombinogenic sequences shared between 5′ and 3′ vector or oligonucleotides to tether 5′ and 3′ vectors together.^35,42,46,47

In this study, we examine the potential of three principal AAV dual vector systems for a gene supplementation therapy for Stargardt disease and show the best performing system has the ability to express ABCA4 in vitro and in vivo and lead to therapeutic reduction of A2E in a mouse model.

Materials and Methods

Cloning

Three AAV dual vector platforms were created for this study. The principal arrangement of elements is shown in Fig. 1. In short, to create the overlap dual vector platform (Fig. 1B), the 5′ and 3′ portions of ABCA4 were amplified by PCR with Pfu-Turbo polymerase (Agilent Technologies, Santa Clara, CA) using primers P1/P2 and P3/P4, respectively. Restriction sites were introduced through the primers for cloning purposes (Table 1). The PCR products were treated with the respective restriction endonucleases (New England Biolabs [NEB], Ipswich, MA) and cloned into vectors described in a previous publication,³⁶ replacing the myosinVIIa coding sequence. The overlap platforms B2 and B3 were generated by digesting vector B1 with NotI/BamHI and NotI/FseI followed by blunt ending these restriction fragments with T4 DNA polymerase (NEB) and ligation with T4 DNA Ligase (NEB) according to the manufacturer's instructions. To create the transplicing vector platform (Fig. 1C), fragments of the ABCA4 sequence were amplified with primers P5/P6 and P7/P8, introducing splice donor and acceptor sites. The hybrid vector platform (Fig. 1D) was created by adding a highly recombinogenic element derived from the alkaline phosphatase gene (AP)^42,48 to the transplicing vector platform utilizing primers P9/P10 and P11/P12. All constructs were sequence verified by Sanger sequencing (University of Florida ICBR Sequencing Core, Gainesville, FL).

Figure 1.

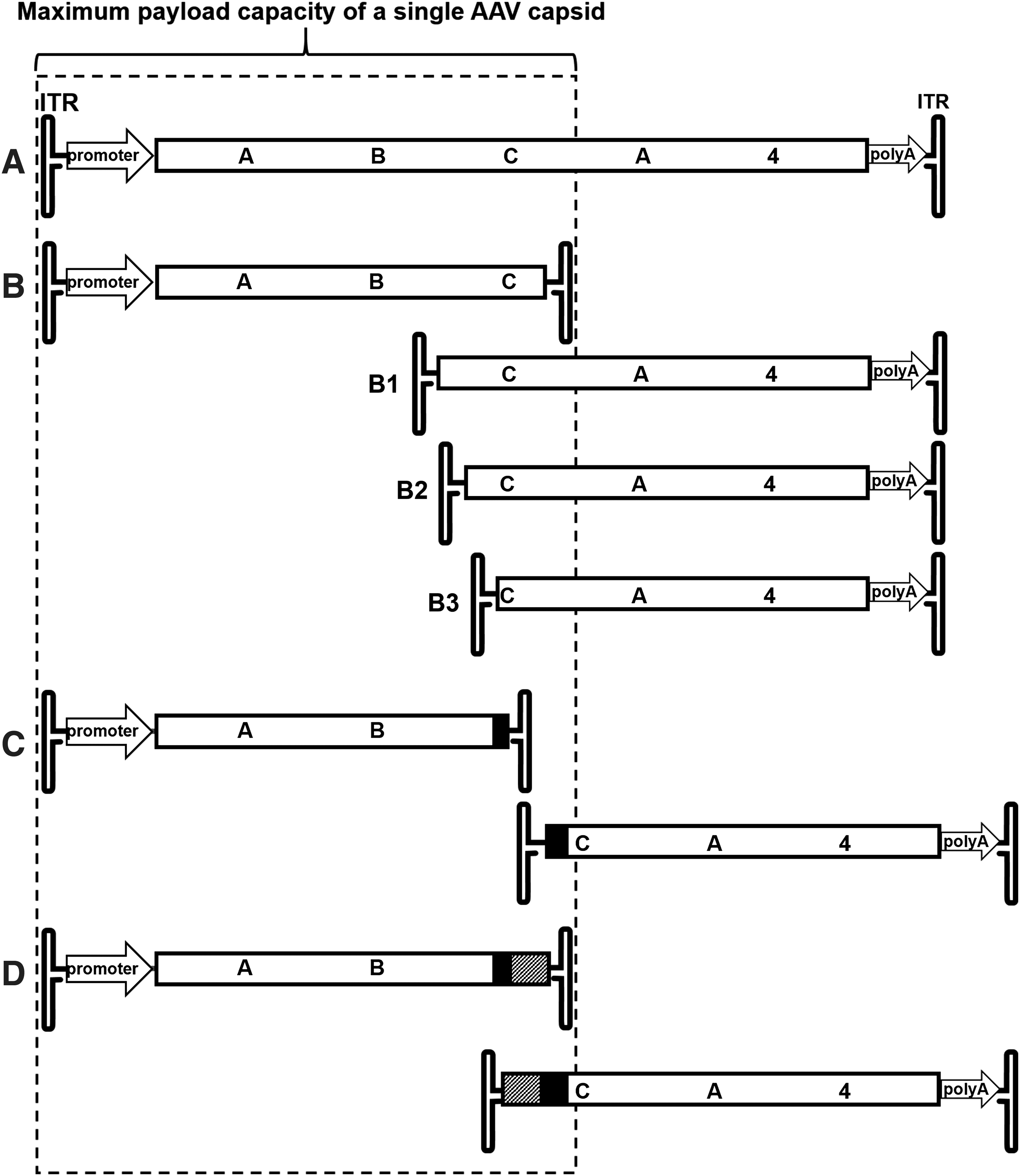

Schematic of ABCA4 dual AAV vector platforms created for this study. (A) Full-length ABCA4 expression cassette. (B) Overlap vector showing the three overlaps tested (B1–B3). (C) Transplicing vector. (D) Hybrid vector platform. Promoter, cytomegalovirus immediate early/chicken β-actin chimeric promoter; ITR, inverted terminal repeat; polyA, polyadenylation signal; splice donor/acceptor sites marked black regions; AP overlap sequences marked as hatched regions. AAV, adeno-associated virus; ABCA4, ATP binding cassette transporter A4; AP, alkaline phosphatase.

Table 1.

Oligonucleotide primers used to construct the ATP binding cassette transporter A4 dual vectors platforms

	Overlap Vectors
P1	GCGGCGGCCGCCACCATGGGCTTCGTGAGACAG	NotI
P2	GCGACTAGTGCTGGCATATGCTCTGTGC	SpeI
P3	GCGGCGGCCGCGCTTACTGTCTCCGGTGGC	NotI
P4	GCGGAGCTCTCAGTCCTGGGCTTGTCG	SacI

	Transsplicing Vectors
P5	AGATTTTTGAGCCCTGTGGC	(FseI)
P6	CTGCACTAGTGTCGACAGAAACGCAAGAGTCTTCTCTGTCTCGACAAGCCCAGTTTCTATTGGTCTCCTTAAACCTGTCTTGTAACCTTGATACTTACCTGATAGGTCCTGAGCCTC	SalI
P7	GACTGGCGGCCGCTCGCGATAGGCACCTATTGGTCTTACTGACATCCACTTTGCCTTTCTCTCCACAGGTGGCATGCAGAGAAAGCTG	NotI
P8	TGTTGTCTTCAGTTTCTAGATG	XbaI

	Hybrid Vectors
P9	GCTTGGTCGACGAAACGGTCCAGGCTATGTG	SalI
P10	GCTTGGTCGACCCCCGGGTGCGCGGCG	SalI
P11	CGTTCGCGGCCGCCCCCGGGTGCGCGGCG	NotI
P12	CGTTCGCGGCCGCGAAACGGTCCAGGCTATGTG	NotI

The restriction sites introduced through the primers are listed and underlined in the sequence (The FseI site is only partially contained in primer P5).

AAV vector production

The vectors were packaged in AAV2 capsids for in vitro analyses. Vectors for in vivo analyses were packaged in AAV8(Y733F) capsids.⁴⁹ All vectors were packaged and purified by standard methods as previously described.^50,51

Infections

Human embryonic kidney (HEK293) cells were seeded into six-well cell cultures plates. Infections with dual AAV vector pairs were then performed in HEK293 cells as well. In brief, cells were grown to 60–70% confluency and the vectors were diluted in balanced salt solution to the desired multiplicity of infection (MOI). If not otherwise mentioned, infections were carried out at 10,000 particles/cell of each vector, resulting in an MOI of 20,000 particles/cell total for each vector pair. Cells were incubated in 10% serum containing media for 3 days postinfection at 37°C under 7% CO₂ and were then analyzed through immunoblotting (details hereunder). Cells transfected with the full-length cDNA on a single plasmid were used as a positive control for immunoblot analyses to highlight the correct size of the full-length ABCA4 protein.

Animals

Vectors were injected subretinally into 4-week-old 129S-Abca4^tm1Ght/J mice (Jackson Laboratory, Bar Harbor, ME). Animals were maintained under standard laboratory conditions (18–23°C, 40% to 65% humidity) with food and water available ad libitum on a 12/12 h light (200 lux) dark cycle in the University of Florida Health Science Center's animal care facilities and were handled in accordance with the ARVO statement for Use of Animals in Ophthalmic and Vision Research and the guidelines of the Institutional Animal Care and Use Committee of the University of Florida.

Subretinal injections

One microliter of ABCA4 AAV8(Y733F) hybrid dual vector pairs was injected subretinally into one eye of 129S-Abca4^tm1Ght/J mice (Jackson Laboratory). Subretinal injections were performed as previously described.⁵² In brief, mouse eyes were dilated with 2.5% phenylephrine (Paragon Biotek, Portland, OR) and 1% atropine (Akorn, Lake Forest, IL). Mice were anesthetized with 100 mg/kg ketamine and 8 mg/kg xylazine. An incision in the peripheral cornea was made with a 30-gauge needle under a surgical stereomicroscope, followed by insertion of a blunt-tip 33-gauge needle on a Hamilton syringe. The retina was then punctured with the blunt needle and the 1 μL content of the syringe, either AAV vectors or buffer, was slowly injected into the subretinal space creating a temporary retinal detachment. Mice were kept on a 37°C heating pad during injection and recovery after anesthesia. Further analysis was carried out only on animals that received comparable successful injections. Eyes exhibiting significant damage or hemorrhage by fundus visualization or optical coherence tomography were excluded from further analysis. Two animals each in the experimental and the control group showed a permanent retinal detachment in the injected eye. In addition, in the experimental group, one mouse exhibited strong retinal bleeding upon injection and two mice developed cataract in both eyes. This resulted in 22 and 9 successful injected animals in the experimental and control group, respectively. During the course of the experiment, one animal in each group did not recover from anesthesia.

Fundus autofluorescence

Fundus autofluorescence accumulation in mice was measured with a confocal scanning laser ophthalmoscope (cSLO; Heidelberg Engineering, Heidelberg, Germany). Mice were dilated with tropicamide (Akorn), anesthetized with ketamine/xylacine and positioned on a platform. Measurement of autofluorescence was done as described elsewhere.⁵³ In brief, a drop of lubricant eye drops (GenTeal; Alcon, Fort Worth, TX) was applied to each eye and contact lenses were carefully placed and centered, avoiding air bubbles. The camera was positioned in infrared mode for maximal illumination of the inside of the eye, and the focus was adjusted to the point of maximal reflectance, which generally is the RPE layer in pigmented animals. The mode was then switched to fundus angiography to record 488 nm autofluorescence and the camera repositioned for maximal illumination if necessary. Photopigments were bleached for 1 min before measuring fundus autofluorescence with normalization off. Recorded pictures were exported into ImageJ and the grayscale value of the A2E signal was quantified by drawing an annular ring around the optic nerve disk utilizing the “make band” function. Individual background signals were subtracted from each measurement and the resulting background-corrected gray scale value was used for statistical analysis.

A2E quantification

Quantification of A2E was carried out as previously described.^6,54 In brief, two to four posterior eye cups from treated or untreated Abca4^−/− mice were pooled and homogenized in phosphate buffer. An equal volume of two parts chloroform and one part methanol was added to each sample. The organic phases from three such extractions were then pooled and dried under argon. The sample was then dissolved in methanol containing 0.1% trifluoroacetic acid (TFA). High-performance liquid chromatography (HPLC) analysis (Hewlett Packard 1100 Series HPLC; Agilent Technologies) was performed using a reverse phase C18 column and a 90% to 100% gradient of acetonitrile in water containing TFA followed by 100% acetonitrile. A2E was monitored at 430 nm and confirmed by spectral analysis as previously described.⁵⁵ The amount of A2E was determined in relation to an external A2E standard.

Protein extraction and immunoblotting

Transfected and infected HEK293 cells were harvested and washed twice in phosphate-buffered saline (PBS) (137 mM NaCl, 2.7 mM KCl, 10 mM Na₂HPO_4, and 1.8 mM KH₂PO₄). The final pellet was resuspended in 100 μL of PBS and added to an equal volume of PBS containing 2% Triton X-100, and complete protease inhibitor (Roche Applied Science). After 1 h at 4°C, the solution was centrifuged at 20,000 g for 10 min and the supernatant was retained for SDS gel electrophoresis. The protein concentration of the supernatant was measured with BCA (Thermo Fisher Scientific, Rockland, IL). Equal amounts of protein were denatured in Laemmli buffer (BioRad, Hercules, CA) containing 4% 2-mercaptoethanol and separated on 4–20% SDS-PAGE gels (BioRad) and transferred in Tris-glycine buffer (25 mM Tris, 192 mM glycine, pH 8.3) containing 5% methanol onto polyvinylidene fluoride membranes (Millipore, Billerica, MA). Blots were blocked with 1 × blocking buffer (Li-Cor, Lincoln, NE) and labeled with antibodies against ABCA4, rim3F4, or rim5B4,^5,56 and beta-actin (ab 34731, 1:5000; Abcam, Cambridge, MA) for 1 h. For visualization with the Odyssey system (Li-Cor), an antimouse and an antirabbit secondary antibody conjugated with CW800 and IR680 dyes (Li-Cor), respectively, were used.

Tissue processing and immunohistochemistry

Six weeks postinjection, 129S-Abca4^tm1Ght/J mice were enucleated and their eyes processed and immunostained as previously described with minor modifications.⁵⁷ The retinas were stained with the ABCA4-specific antibody rim5B4. Images were obtained with a spinning disk confocal microsope (Nikon Eclipse TE2000 microscope equipped with Perkin Elmer Ultraview Modular Laser System and Hamamatsu O-RCA-R2 camera) using 20 × (air) objective lenses. Image analysis was performed using Volocity 5.5 software (Perkin Elmer, Waltham, MA).

Statistical analysis

Statistical differences between groups were assessed by an unpaired t-test (GraphPad Prism 6.0; GraphPad Software, San Diego, CA). Error bars represent the mean ± standard error of the mean. Results were considered significant if p < 0.05.

Results

Expression of ABCA4 with AAV dual vectors

The well-established genotype/autofluorescence phenotype relationship makes autosomal recessive ABCA4 Stargardt disease a prototypical target to validate the feasibility of an AAV dual vector-mediated gene therapy. We, therefore, cloned the 6.8 kb coding sequence of human ABCA4 into a vector plasmid under the control of a strong ubiquitous cytomegalovirus/chicken β-actin (smCBA) promoter and followed it by a bovine growth hormone polyA (Fig. 1A). The overlap vectors then constructed share a 1.35 kb internal overlap sequence between 5′ and 3′ vector genomes (B1–B3 in Fig. 1) and provide a target for recombination to occur. To create the transplicing dual vectors (Fig. 1C), the coding sequence was split at the exon21/22 splice junction, making the 3′ end of exon21 the end of the front half vector and the 5′ end of exon22 the start of the back half vector. The natural splicing signals were replaced with consensus splice donor/acceptor sites. However, transplicing-only vectors must rely solely on the random interaction of the ITRs for homologous recombination or nonhomologous end joining. Therefore, overlap and transsplicing approaches were also combined in the hybrid dual vector system (Fig. 1D) that, in addition to the splice donor/acceptor sites, contain a short overlapping sequence known to facilitate high frequency in vivo recombination with improved recombination directionality.⁴²

ABCA4 dual vector platforms were constructed as diagramed and packaged into AAV2 for in vitro evaluation. Infection of HEK293 cells with overlap, transplicing, and hybrid dual vector platforms at an MOI of 10,000 of each vector revealed that ABCA4 is expressed and migrates at the same molecular weight as the transfection control of a plasmid containing the complete coding sequence of ABCA4 (Fig. 2). This confirms that when the full-length coding sequence split between dual vectors, it can be reconstituted to express the full-length protein when delivered to cells in vitro. All dual vector platforms expressed detectable levels of full-length ABCA4 with the hybrid platform clearly exhibiting the strongest expression followed by the transsplicing platform, which produced only ∼50% of that seen with the hybrid platform. In contrast, the overlap platforms tested did express ABCA4, however, at levels only barely above the detection minimum.

Figure 2.

Western blot comparison of the expression efficiency of ABCA4 dual vector platforms. HEK293 cells were transfected with plasmid containing full-length ABCA4 (left lane) or infected with ABCA4 dual vectors as indicated packaged in AAV2 at an MOI of 10,000 vector genomes per cell of each vector. HEK293, human embryonic kidney; MOI, multiplicity of infection.

Evaluation of ABCA4 expression in an ABCA4^−/− mouse model

The best performing dual vector platform from the in vitro experiments, the AAV hybrid system, was then repackaged into AAV8(Y733F), an efficient serotype for transduction of photoreceptors,⁴⁹ and analyzed in vivo (Fig. 3). ABCA4^−/− mice were subretinally injected into one eye with 3 × 10⁹ total vector genomes per eye (1 μL of 3 × 10¹² vg/mL) at 4 weeks of age. Four weeks postinjection, the mice were euthanized and the retinas were extracted for Western blotting (Fig. 3A) or whole eye cups were prepared for sectioning and immunohistochemistry (Fig. 3B, C). As a negative control, a 5′ half vector only was injected separately. Immunoblots stained with rim5B4, an antibody against the N-half of the protein, revealed that ABCA4 is expressed in knockout (KO) mice after treatment with hybrid dual AAV vectors. The relative amount of ABCA4 protein is <20% of the levels present in a C57BL/6 wild-type mouse. Critically, immunohistochemical evaluation of treated retinal sections of KO mice revealed that ABCA4 protein delivered by dual AAV vectors localizes properly to its endogenous location in photoreceptor outer segments.

Figure 3.

The most efficient ABCA4 dual vector system, based on the in vitro studies mentioned, the hybrid system, was repackaged in AAV8(Y733F) and subretinally injected into 1-month-old ABCA4^−/− mice with 1 μL of 3 × 10⁹ vg/mL of each half vector, and protein expression was then analyzed 4 weeks after injection by Western blot (A) or immunohistochemistry (B, C) with specific antibodies against the N-terminal (rim5B4) half of human ABCA4. As a control, the front half vector (5′ vector) only was injected (A, C) in some animals. GCL, retinal ganglion cell layer; INL, inner nuclear layer; IPL, inner plexiform layer; IS, inner segments; ONL, outer nuclear layer; OPL, outer plexiform layer; OS, outer segments; RPE, retinal pigment epithelium.

RNA from retinas of mice injected with the ABCA4 hybrid vector was extracted and the region containing the splice donor and acceptor sites in the 5′ and 3′ vectors from multiple independently isolated clones was analyzed by sequencing (Supplementary Fig. S1). Their perfect alignment relative to the ABCA4 reference wild-type sequence demonstrates that splicing of the pre-mRNA of concatemerized 5′ and 3′ vectors in the dual hybrid vector system occurs with high fidelity and specificity.

Autofluorescence and A2E accumulation in hybrid dual vector-treated ABCA4^−/− mice

A2E is the major fluorescent compound of pisciform lipofuscin aggregates in human patients.¹³ ABCA4^−/− mice also exhibit an increase of 488 nm autofluorescence with age due to the accumulation of A2E in the RPE.⁵³ This accumulation of lipofuscin/A2E autofluorescence was measured at monthly intervals with a cSLO up to 5 months postinjection (Fig. 4). Animals treated with the hybrid dual vector platform consisting of a 1:1 mixture of 5′ and 3′ vectors showed significantly reduced lipofuscin/A2E levels relative to the contralateral eye that was left untreated (Fig. 4). This was not observed in animals treated with the 5′ vector alone, confirming that A2E reduction required expression of functional full-length ABCA4 from the hybrid vector. The amount of A2E present in vector-treated and untreated retinas at various times post-treatment as determined by HPLC is shown Fig. 5 and confirms that A2E is significantly reduced in hybrid dual vector-treated eyes.

Figure 4.

FAF quantification of lipofuscin/A2E accumulation of ABCA4 hybrid dual vector-treated and untreated ABCA4^−/− mouse retinas. AAV hybrid dual vectors packaged in AAV8(Y733F) were subretinally injected at 1 month of age. One eye was injected while the contralateral eye was left untreated. Autofluorescence was measured with a Heidelberg Engineering cSLO HRA+OCT at monthly intervals after injection. (A, B) quantification of FAF as a function of months after vector treatment. (C, D) examples of FAF images from which the data in (A, B) were derived. (A, C) FAF of ABCA4^−/− animals treated with the 5′ vector only. (B, D) FAF in 5′ plus 3′ dual vector-treated animals. Error bars represent the mean ± SEM. ★p < 0.05. A2E, N-retinylidene-N-retinylethanolamine; cSLO, confocal scanning laser ophthalmoscope; FAF, fundus autofluorescence; HRA, Heidelberg retinal angiograph; OCT, optical coherence tomography; SEM, standard error of the mean.

Figure 5.

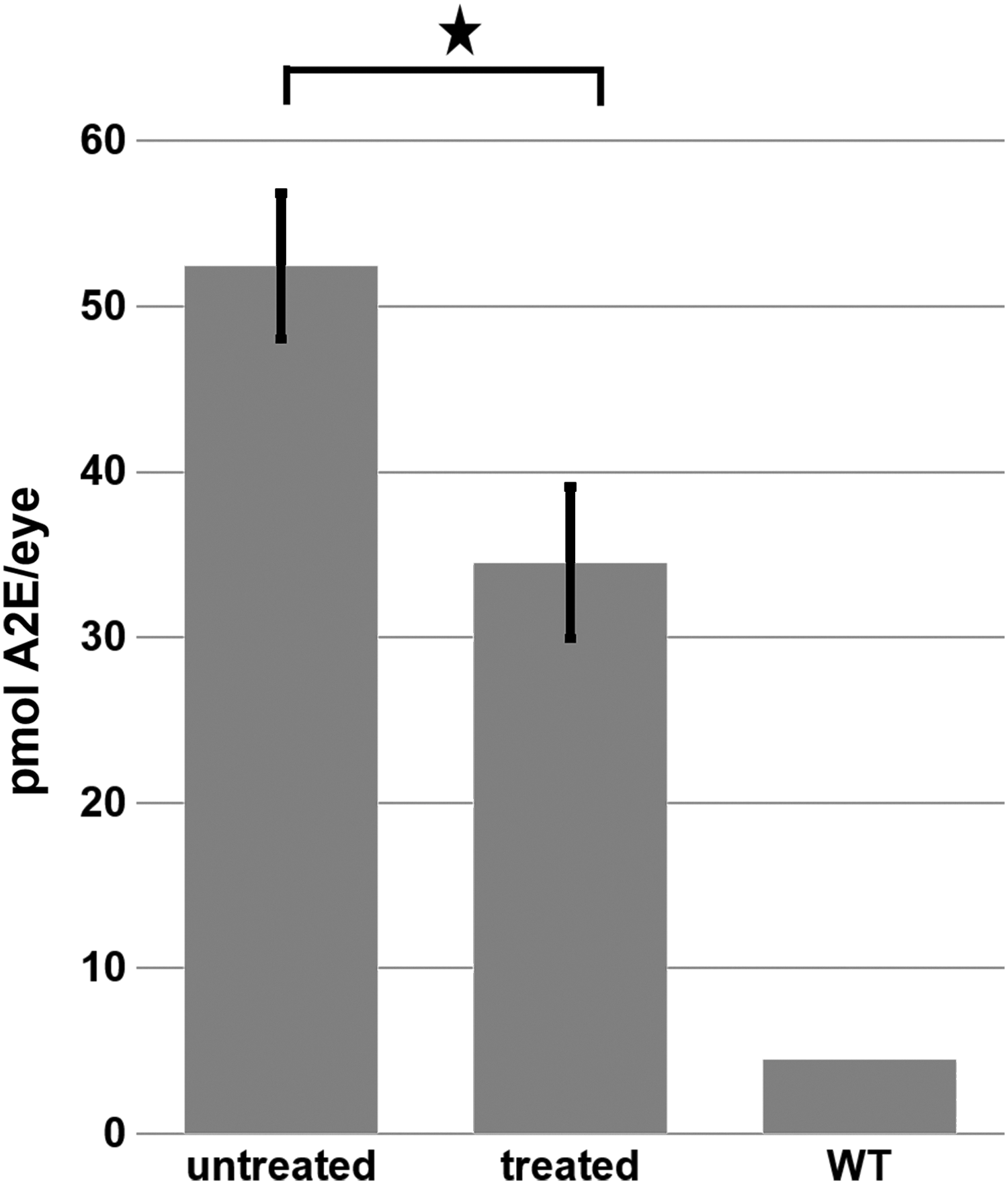

Quantification of A2E in the retinas of untreated and ABCA4 hybrid dual vector-treated ABCA4^−/− mice as measured by HPLC. Retinas were examined 5 months after vector treatment. Error bars represent the mean ± SEM. ★p < 0.05. HPLC, high-performance liquid chromatography.

In vivo anatomic integrity of the retinal outer nuclear layer was confirmed by optical coherence tomography at 5 months of age (Supplementary Fig. S2). Treated retinas showed only minor thinning of the outer nuclear layer consistent with the minor photoreceptor loss typically associated with transient retinal detachments caused by vector subretinal injection as well as damage in the periphery surrounding the injection retinotomy.⁵⁸

Discussion

AAV vector-mediated somatic gene therapy has had demonstrated success in multiple animal models and clinical trials of retinal degenerations, and recently the first clinical use of AAV-based retinal gene therapy was approved by the FDA.^{14
–16,18,22,51,59} The ability to deliver transgenes beyond the DNA size packaging limits of a single AAV vector would increase AAV-based vector utility as a more general gene delivery vehicle considerably. In this article, we compared the capacity of different AAV dual vector systems to deliver an oversized ABCA4 transgene in vitro and present the effect of AAV hybrid dual vector delivered ABCA4 on A2E bisretinoid formation in vivo.

Despite the inherent inefficiency of dual AAV vectors compared with single AAV vectors,⁶⁰ it was reported that a variety of AAV dual vector systems can produce measurable amounts of protein and exhibit a therapeutic effect,^{25,36,37,61,62} and three of these systems for expressing full-length protein from large cDNAs are evaluated here. McClements et al. recently showed in a mouse model of ABCA4 Stargardt disease that an optimized dual vector overlap system has a significant effect on lowering bisretinoid levels.²⁵ The AAV8Y733F serotype employed here is highly efficient for the transduction of photoreceptor cells⁴⁹ and was used both in McClements et al. and in this study. Those authors also reported that the total amount of ABCA4 protein produced by their optimized overlap system is only ∼1% of the wild-type levels. This is in accordance with our findings (Fig. 2) that three overlap systems of different overlap lengths produce protein in vitro barely above the detection minimum. The overlap lengths for our overlap vector systems B2 and B3 (Fig. 1) were chosen based on unique restriction sites within the ABCA4 sequence. Their expression of full-length ABCA4 protein appears to be similar in magnitude to the suboptimal overlap systems described by McClements et al. ²⁵ In addition, the length of dual vector overlaps appear to be limited in the degree to which they can be optimized. Although it was shown that the overlap does not have to be large for ABCA4,²⁵ probably because it contains a motif facilitating efficient recombination within the overlap region, this might not be true for other cDNAs. It might also be the case that a region facilitating efficient recombination cannot always be found in the area of the cDNA that can be used for the dual vector overlap, which is usually limited to the central region of the sequence.

Second, it is important to appreciate that the cellular DNA damage repair mechanism leading to reconstitution of the full-length sequence from simple overlap dual vectors must be a homologous recombination, and homologous recombination is downregulated in terminally differentiated cells such as photoreceptors. Therefore, the predominant repair mechanism in photoreceptor cells is nonhomologous end joining,⁶³ a process that may lead to incorrect joining of two simple overlap dual vectors.

The AAV dual vector hybrid system employed here and shown to be the most efficient at expressing full-length ABCA4 is independent of the DNA damage response mechanism for reconstitution of the full-length sequence. Its superiority over the simple overlap dual vector system might explain the much higher full-length protein production observed here, which reaches ∼10% of wild-type levels. Interestingly, McClements et al. injected about 3.3 times more vector genome copies per eye than was used in our experiments.²⁵ This suggests that an increase in hybrid dual vector genome copies per eye might further increase the efficiency of the AAV hybrid dual vector system to levels even closer to wild-type levels.

The increase of autofluorescence due to accumulation of bisretinoids is often used as the primary diagnostic tool for the early clinical evaluation of Stargardt disease.^13,64 The available rodent models for ABCA4 Stargardt disease also show an increase in autofluorescence with age. However, in human Stargardt disease, this fluorescence is initially visible as small, fish-shaped, or pisciform autofluorescent foci surrounding the central fovea,^13,64 whereas in mice it is seen as a generally uniform autofluorescence across the entire retina (Fig. 4).⁵³ Clearly the differences in the cone–rod distribution between their concentric organization in the human retina as compared with their relatively uniform distribution with eccentricity in the mouse retina may play a defining role in these phenotypic pattern differences in ABCA4-mediated autofluorescence. However, as the majority of the A2E accumulated is localized in the RPE, it remains unclear why autofluorescence in the mutant ABCA4 mouse exhibits a more uniform pattern than that seen in the human.

Previous studies showed that AAV dual vector ABCA4 treatment reduces the accumulation of toxic bisretinoids.²⁵ Other AAV dual vector approaches³⁷ and nanoparticle delivery⁶⁵ have also demonstrated that recombinant ABCA4 expression leads to a reduction of lipofuscin granules in the RPE. We present here for the first time in vivo data that AAV hybrid dual vector expressed ABCA4 reduces the autofluorescence phenotype caused by A2E/lipofuscine accumulation and demonstrate that this effect persists for at least 5 months post-treatment (Figs. 4 and 5).

Overall, the results of our study suggest that the supplementation of a functional form of ABCA4 protein delivered with hybrid dual AAV vectors can significantly reduce A2E accumulation in the ABCA4^−/− animal model of Stargardt disease, supporting its further development as a viable gene therapy option for the corresponding human condition.

Footnotes

Acknowledgments

The authors thank Dr. Seok-Hong Min and Dr. Ping Zhu for their excellent technical assistance.

Author Disclosure

The University of Florida and W.W.H. have a financial interest in the use of AAV therapies, and W.W.H. owns equity in a company (AGTC) that might in the future commercialize some aspects of this work. F.M.D., L.L.M., V.A.C., and R.S.M. declare no conflicts of interest.

Funding Information

W.W.H. and F.M.D. received research funding from AGTC for this project. This study was also funded, in part, by grants from the National Institutes of Health (Grant No. EY002422) and Canadian Institutes of Health Research (Grant No. PJT 148649) to R.S.M.

Supplementary Material

Supplementary Figure S1

Supplementary Figure S2
