Chemical Modifications of the Capsid for Redirecting and Improving the Efficacy of Adeno-Associated Virus Vectors

Abstract

Adeno-associated virus (AAV) vector-directed gene therapy is one of the most exciting modalities of biotechnology as more applications enter clinical stage. Although AAV vectors generally feature low toxicity, high stability, and long-lasting transgene expression, potential challenging issues of AAV include high vector dose, limited tissue tropism, and the host immune response and inflammation, which are all related to the capsid protein. To overcome these challenges, various strategies have been developed to engineer AAV capsids. Apart from widely employed genetic engineering of capsid protein, powerful and versatile chemical modification strategies are underexploited. This minireview summarizes recent advances and our perspectives for future direction in AAV capsid chemical modification to enhance its therapeutic use for gene therapy.

INTRODUCTION

For the past three decades, recombinant adeno-associated virus (rAAV) vectors have been proven to be successful tools for gene therapy against many genetic diseases. Wild-type (WT) adeno-associated virus (AAVs) are icosahedral single-stranded (ss) DNA parvoviruses with around 4.7 kilobase (kb) genome.^1,2 They are nonpathogenic and contain nonenveloped protein capsid. rAAV vectors have been used to conduct >200 clinical trials since 1989, with several achieving Food and Drug Administration (FDA) approval.³ WT AAV's genome consists of three open reading frames: rep, cap, and X genes. rep encodes for four proteins for regulation, replication, and assembly. cap encodes for three overlapping capsid proteins: VP1 (90 kDa), VP2 (72 kDa), and VP3 (60 kDa), with an abundance ratio of 1:1:10. Within an alternate reading frame of cap, AAP (assembly-activating protein) gene is also known to help with the capsid assembly. X gene is responsible for encoding replication supportive proteins.⁴ Viral capsid sequence is responsible for attachment to host cell receptors and subsequent internalization, which determines vector tropism.⁵ Owing to the requirement of high viral titers for productive transduction of the target tissue, the therapeutic index of AAV vectors is still relatively low compared with adenovirus or lentiviral-based gene therapy vectors. Their broad tissue tropism also provides an incentive for the development of vectors that can target rAAV to a specific tissue for more efficient transduction, which would reduce the titer of virus required for a therapy and also reduce adverse side effects caused by capsid immunogenicity. Although progress is underway, strategies for capsid modification to improve the clinical efficacy of AAV vectors have shown with strong potentials.

GENETIC MODIFICATION OF AAV'S CAPSID

A comprehensive review by Büning and Srivastava summarizes genetic approaches on AAV capsid modification.⁶ As a rational approach, incorporation of known ligands can be performed in packaging cell lines using genetic means as a VP2-fusion protein or using biochemical means such as split intein-mediated protein trans-splicing.⁷ These methods can be disruptive for viral packaging, which may require further optimization for the successful production of the vector in relevant quantities for laboratory or clinical studies. Directed evolution approaches utilize AAV vectors that code for their own rep and cap and apply a selection pressure in the growth environment. Combinations of rational design and directed evolution have also been performed, where a feature such as the binding sites of neutralizing antibodies against AAV8 can be identified, randomized, and then selected for packaging and transduction.⁸ Selection screens of AAV peptide display, error-prone PCR, or DNA shuffling library can also be a high-throughput approach for identifying targeting ligands (Fig. 1). Genetic modifications of the AAV capsid allow for selections to be performed and the amino acid sequence to get determined from the vector DNA. However, the process is often time consuming. Selecting for tissue tropism specificity with genetic engineering also comes at the expense of packaging efficiency and short-term or nonreproducible vector infectivity.^1,3,6

Figure 1.

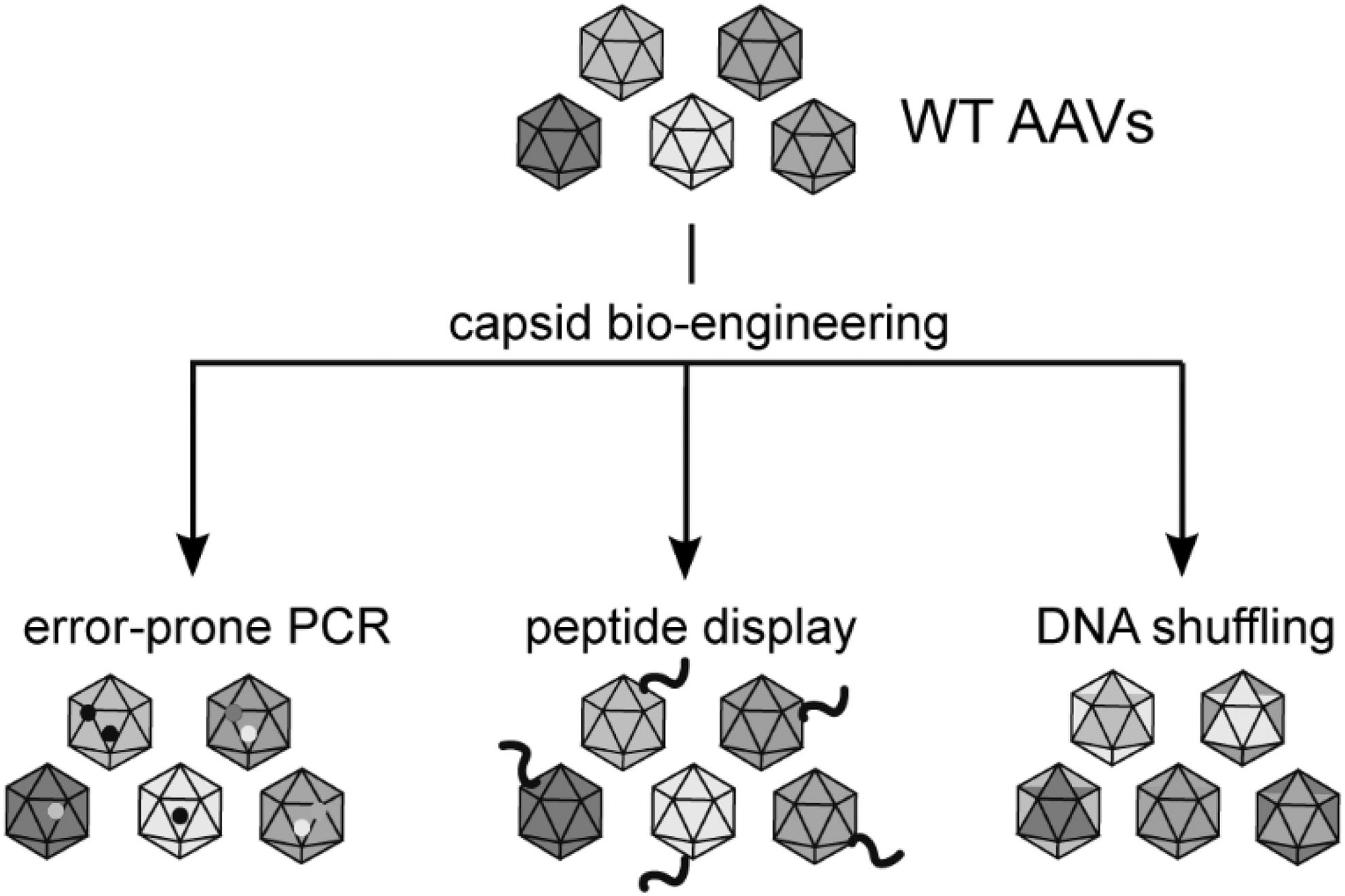

Summary of genetic modification approaches for AAV capsids. Generation of highly diverse mutants from either error-prone PCR, peptide display library, or DNA shuffling among different capsid serotypes offer in vivo selection screenings. Enhanced AAV transduction and/or evasion of neutralizing antibodies can be achieved through these approaches. AAV, adeno-associated virus.

PROTEIN CHEMICAL MODIFICATION

Among many approaches that have been developed to improve viral vectors in gene therapy, chemical modification has recently been exploited and gained a promising role. Chemical modification of proteins is an important approach in research and development of new and improved products from food, agriculture, to medicine. Proteins are predominantly modified through amino acids with the most reactive side chains. These modifications often rely on the chemical reactions of oxidation/reduction, and nucleophilic/electrophilic substitutions, which is well summarized previously.⁹ Specifically, the thiol group found on the amino acid, cysteine (Cys), is the most reactive target for protein chemical modification, followed by the primary amino functionality found on side chain of lysine (Lys). The average abundance of Cys residues (∼3%) on proteins is less than that of Lys (∼7%), which enables relatively site-specific modification or chemical labeling using thiol-reactive probes.¹⁰ The unprotonated amino groups of lysine are nucleophilic, which makes lysine the next key target for chemical modification. Depending on the availability of such functional groups exposed on a protein as well as its binding activity, either Cys or Lys residues can be targeted for specific modification. Some common chemical labeling reactions are shown in Fig. 2. The conjugation addition of thiol groups can be carried out using Michael acceptors such as maleimides or with alkyl halides and iodoacetamides to form thioethers (Fig. 2a). Maleimides and iodoacetamides can react with the free base form of amino groups (such as Lys) if the condition is above pH 8.¹¹ The primary amines can react with isothiocyanates to form thioureas, or with N-hydroxysuccinimide (NHS) esters to form carboxamides with stable amide bonds (Fig. 2b).¹²

Figure 2.

Common chemical modifications of proteins at cysteine (a), lysine (b), arginine (c), and histidine (d). P denotes protein; (a) shows the reaction of cysteine thiol group with either maleimides (top reaction) or with alkyl halides (bottom reaction) to form thioethers; (b) shows the reaction of lysine amino group with isothiocyanates to form thioureas (top) or with NHS esters to form carboxamides; (c) shows the reaction of arginine guanidinium group with α-dicarbonyl compounds to form hydroimidazolones; (d) shows the reaction of histidine imidazole group with epoxides under alkaline condition. NHS, N-hydroxysuccinimide.

In addition, tyrosine (Tyr) residues can be modified by either at the hydroxyl group or by aromatic ring substitution. One common method is esterification of the hydroxyl group, but hydroxyl modifications are often reversible during reagent removal. The guanidinium group of arginine (Arg) can react with α-dicarbonyl compounds such as methylglyoxal (Fig. 2c) to form hydroimidazolone products.^13,14 Other functional groups such as the indole of tryptophan (Trp) and imidazole of histidine (His) can also be modified using substitutions and alkylations or nucleophilic attacks.¹⁰ Epoxides are known for efficient labeling of histidine in alkaline condition (Fig. 2d). However, the reagents or conditions that are required to modify these functional groups are also reactive toward the thiol or amino groups of Cys and Lys residues, making the chemo-selectivity challenging.¹⁵

There are 60 monomeric proteins forming the icosahedral capsid that encases AAV genetic information and determining the tropism of the viral vector. The capsid can be chemically tailored to manipulate its therapeutic function. However, each rAAV serotype contains different capsid peptide sequences exposing unique amino acids. These exposed amino acids on the capsids are keys for selective chemical modifications. A minor change or addition to surface amino acids can ultimately alter the receptor binding motif of the vector or how it interacts with the host's immune response. However, a knowledge gap regarding the interaction of AAV capsid sequences and their binding receptors adds more challenges for chemical modification of AAV. The need for investigations of AAV's chemical modification is clearly unmet. This minireview focuses on current studies regarding rAAV capsid chemical engineering to enhance its therapeutic use in gene therapy.

AAV CAPSID CHEMICAL MODIFICATIONS

Nonselective PEGylation on Lys

Polymeric chemical moieties have long been utilized by cross-linking to the surface of viral vectors, which can act as a shield to evade neutralizing antibodies. They are covalently attached to the viral capsid using chemical reactivity of nucleophilic groups of exposed amino acids such as Lys and Cys residues. Conjugated addition of polyethylene glycol (PEG) has extensively been carried out on adenoviruses to reduce immune response and extend circulatory half-life.^16

–19 Lee et al. used biotin-PEG-NHS with functional group of electrophilic succinimidyl propionic acid to cross-link with Lys residues on AAV2 capsid. They examined three molecular weights of PEG-2000, -5000, and -20000 Da. Biotin acts as a label for the detection of PEGylated AAVs using horseradish peroxidase conjugated streptavidin through Western blotting. For each PEG molecular weight, the molar ratio of PEG:Lys also vary for systemic comparison in transduction efficiency and antibody neutralization. All three polymer sizes did not enhance the infectivity of the AAV virus, in fact, infectivity decreased significantly at high molar ratio of PEG:Lys. However, protection of AAV2 by PEG-2000 (molar ratio of 1,000: 1) from serum neutralization moderately increased ∼2.3-folds. Modification with a larger PEG-20000 alter AAV morphology significantly, and was proposed to block the cell receptor binding hence leading to low infectivity of the virus.²⁰

Nonselective small molecule modification on Arg and Lys

Without any peptide insertions, Horowitz et al. chemically glycated exposed arginine (Arg) residues on the capsid of AAV2 (which clustered around the primary receptor heparan sulfate) by using methylglyoxal. Methylglyoxal (MGO) is a α-dicarbonyl compound that is known to be highly reactive to form covalent adducts with Arg (chemical reaction as in Fig. 1d) and Lys residues. Glycated AAV2 was found to be significantly lower in heparin binding as well as more than twofold decrease in binding to monoclonal antibody A20. However, transduction efficiency was lowered 1,000-fold compared with unmodified AAV2. Intravenous tail vein injection of glycated AAV2 into mice showed expanded viral tissue tropism compared with unmodified AAV2. Interestingly, the transgene expression of luciferase found in cardiac and skeletal muscles was 100-fold more by glycated AAV2 than by AAV2 vectors. These results highlighted the feasibility of altering AAV morphology and tropism by simple chemical modification of AAV capsid.¹³ Pearce et al. also glycate the Arg residues on the capsid of AAV6 with 4-azidophenyl glyoxal (APGO). This APGO was then further covalently conjugated with a single-chain antibody (scFv) that is actively targeting inflamed endothelia through vascular cell adhesion molecule (VCAM-1). With optimized modification, the natural tropism of WT AAV6 was removed, and its transduction of endothelial cells was significantly enhanced about four- to fivefolds in vitro, highlighting the feasibility of retargeting AAV to a specific host cell by chemical modification of the capsid.²¹

In a different study, Mével et al. exploited surface Lys residues on the AAV capsid to react with amine-reactive molecules. Proof of concept was done using a fluorophore FITC (fluorescein isothiocyanate) and a control of fluorescein without the reactive isothiocyanate group (Fig. 3). Dot blot and Western blot analyses were performed to confirm the chemical reaction using either anti-AAV antibody to recognize the capsid, anti-FITC antibody, or direct fluorescence emission. Buffer TBS at pH 9.3 was chosen for labeling the primary amine that does not affect the AAV infectivity. The density of FITC molecules on the capsid was also modulated to fine-tune the viral therapeutic index. Using this concept, N-acetylgalactosamine (GalNAc)—a monosaccharide ligand that binds to a highly expressed receptor of hepatocytes—was coupled with the reactive isothiocyanate group (-NCS). The GalNAc-NCS molecule was chemically attached to AAV8 capsid and was shown, in vivo, to reduce serotype-specific neutralizing antibodies. Although significant increase in transduction efficiency was found for GalNAc-AAV at 10 days postadministration on mice, no difference showed at 21 days, when compared with unmodified virus. This study highlights a promising therapeutic advancement by using chemical modification on AAV capsid for redirecting the tropism as well as enhancing the transduction efficiency.²²

Figure 3.

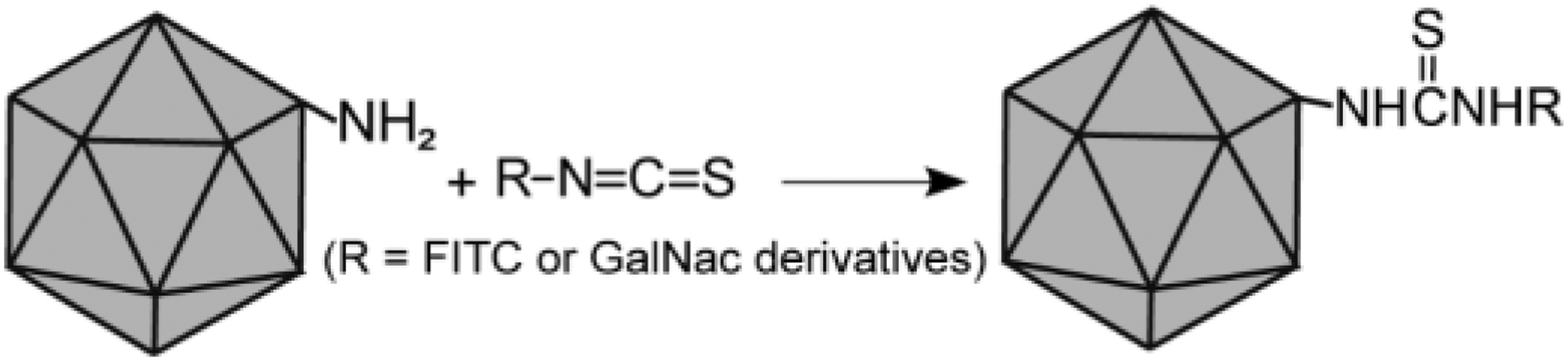

Modification of the AAV capsid Lys residues with isothiocyanate by Mével et al.²²

Site-specific modification through peptide insertion

For a more site-specific modification, Liu et al. implemented a genetic insertion of 13-amino-acid (including Cys) sequence into the cap gene of AAV2 (amino acid 587 within VP1/VP2/VP3 regions). Then inserted Cys was going under chemical modification to convert into an aldehyde tag. This aldehyde tag was further chemically modified with covalent conjugation of hydrazide- or hydroxylamine-functional fluorophore such as Alexa-hydrazide. Figure 4 shows the schematic flow of their approach. Monoclonal A20 antibody, which is specific for intact AAV2, was subsequently used to confirm the chemical reaction of the viral vector and the aldehyde tag by overlaid imaging.²³ To examine the transduction efficiency of this method, AAV-aldehyde-tag was conjugated with a monoclonal antibody against human leukocyte antigen (anti-HLA). HepG2 cells have limited permissiveness to WT AAV2, but anti-HLA-AAV2 expanded this tropism and significantly increased the transduction from ∼2% to ∼12%. This study indicated an active targeting approach for expanding AAV tropism using chemically modified AAV capsid bearing specific ligands, which could be a promise for cancer gene therapy.²³ In a similar concept, Chandran et al. inserted a tetracysteine-peptide into the capsid (amino acid 138 of VP1 and VP2) of AAV9 without compromising the viral infectivity.²⁴ The functional thiol groups of this tetracysteine allowed for further incorporation of a fluorescent dye to the capsid through a thiol-maleimide reaction. Fluorescent-labeled viruses enabled monitoring of the modified particles in vivo, leading to the generation of two capsid interactomes: blocking integrin αVβ6 receptor decreased AAV9 transduction, and lower expression of histone deacetylase 4 (HDAC4) increased its transduction.

Figure 4.

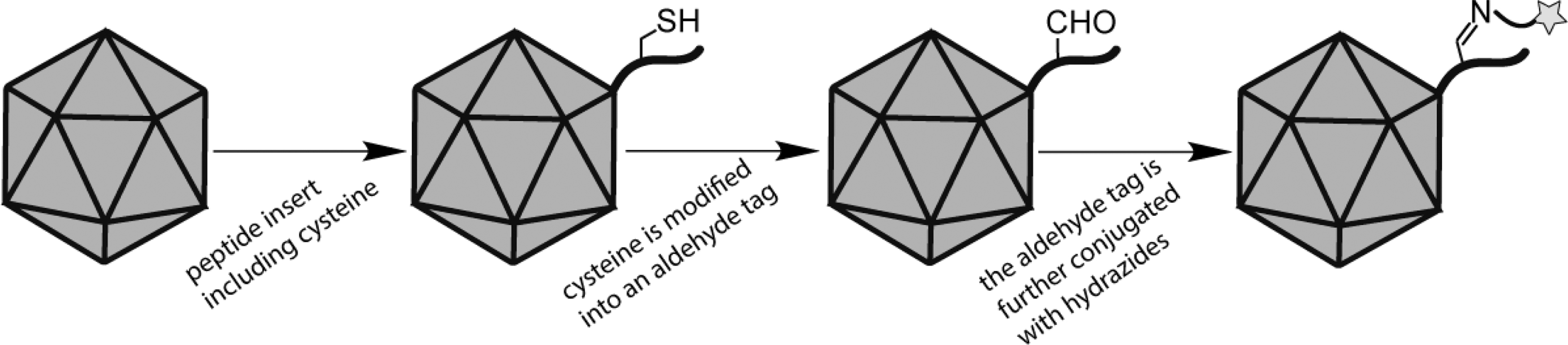

Schematic representation of Liu et al. modification process.²³

Site-specific modification through unnatural amino acid incorporation

Unnatural amino acids (UAAs) bearing bio-orthogonal chemical groups (e.g., azide group) can be incorporated into the AAV capsid during transfection to produce tagged-AAV particles for subsequent chemical modifications through specific cross-linking chemistries (Fig. 5). Specifically, Zhang et al. expanded the genetic code of AAV2 by adding a plasmid vector pAAV-RC-TAG (TAG, stop codon at different sites on the cap gene) and a UAA N-2-azideoethyloxycarbonyl-L-lysine to a typical triple-plasmid transfection.²⁵ This step allowed them to harvest azide-AAV2, and the azide functional group allowed for further bio-orthogonal conjugation of cRGD (cyclic tri-peptide of Arg-Gly-Asp that is known as a ligand of integrin avB3 molecules highly expressed in a wide variety of tumors) through azide-alkyne Huisgen cycloaddition in a site-specific manner. AAV2-N587 + 1/UAA/RGD was chosen for in vivo study since it best enhanced the transduction of the suicide agent Herpes simplex virus thymidine kinase (KT), which is most widely used in cancer gene therapy in response to the prodrug ganciclovir. At day 15, this modified AAV2-N587 + 1/UAA/RGD significantly suppressed the tumor volume in rats by ∼8-folds compared with the WT AAV2, and ∼3.5-folds compared with the AAV2-N587RGD (mutation without using UAA).

Figure 5.

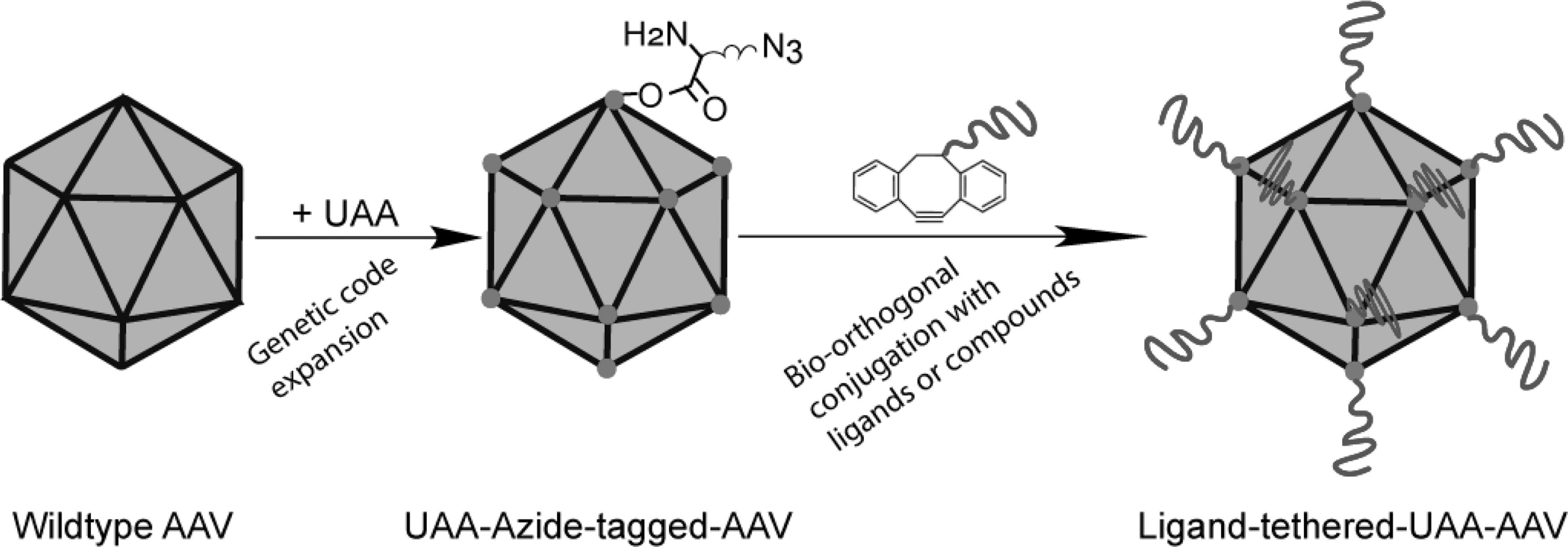

Representation of AAV modification through UAA approach. UAA, unnatural amino acids.

The same concept of altering the tropism of AAV2 by incorporating azido-modified UAA to the capsid site R588 for attaching the cRGD motif was also investigated by Kelemen et al. ²⁶ In vitro infectivity of AAV2-R588/UAA/cRGD was 20% lower than the WT control on the ovarian tumor-derived cells and completely lost on HEK293 cells.²⁵ Through a similar concept, Yao et al. modified AAV2 with azido-modified UAA at the capsid sites Q325 + 1, S452 + 1, and R585 + 1, for a subsequent site-selective PEGylation (20 kD PEG) into these azide groups. Viral titers of these modified viruses were several folds lowered than the WT control, but their protection against antibody recognition in rats was moderately improved (∼20%). However, the transduction of these modified viruses in vivo was not discussed.²⁷ In a different study, Katrekar et al. engineered AAV2 and AAV-DJ by combining the insertion of UAA with a reactive group and further chemical conjugation of that group. Four surface capsid residues R447, S578, N587, and S662 were co-translationally substituted with an azide-modified pyrrolysine derivative, which again allow specific chemical conjugation through azide-alkyne Huisgen cycloaddition.²⁸ Since AAV-DJ is a chimera of AAV serotypes 2, 8, and 9, its titer and infectivity outperform AAV2 about 10-folds in multiple cell lines and naive mice. Mutant AAV-DJ-N589UAA produced a titer 15-fold higher than AAV2-N587UAA; both mutants did not alter the virus infectivity. Later azido-alkyne click chemistry added an oligonucleotide of 10 kDa, which could be conjugated with multifunctionality probe such as biotin. Conjugated biotin was used to confirm the UAA-modified AAV. The oligo-AAV was masked with lipofectamine as a shield that protected the virus from neutralizing antibodies. One limitation is that the UAA-modified capsid leads to several folds lower in viral titer.²⁸ These studies show the successful incorporation of a UAA insert into the AAV capsid and using specific chemistry of the insert to tether the AAV capsid to a spectrum of different molecules for different purposes.

CONCLUSION

The rising knowledge of AAV biology has enabled more directed design of chemical modification for AAV capsid. Whether to protect the virus from neutralizing antibodies or to redirect its tropism to specific tissues, chemical modification is undoubtedly capable of. Future directions are not limited there, as chemical engineering can also tailor the capsid to be more controllable therapeutic agent. For instance, capsid was tethered with a fluorophore for in vivo imaging monitor²⁴ or to be altered the capsid geometry for enhancing its stability.²⁹ Although more and more AAV gene therapy drugs have entered clinical trials, challenges exist. One of them is the lack of a standard system for testing the efficacy and safety of AAV vectors on humans. Engineered AAV vectors could show great potentials in animal models or even humanized animals but might not transfer to other kinds of animals and humans. If AAV capsid can be engineered so that it becomes more specific tropism for a targeted tissue, its required doses would be reduced, leading to greater transduction efficiency and lower unwanted immunogenicity. Although investigations on AAV chemical modification are underexploited, the rate of novel innovation in gene and cell therapy will quickly produce more and more promising engineered candidates. As more and more complete structures of WT AAV capsids have been discovered and published, better and clearer strategies in chemical modification can be implemented and developed. Efforts are underway with one common goal—to benefit patients.
