Challenging Case in Clinical Practice—Refractory Systemic Nickel Allergy Syndrome Management: Five Cases and Chart Review Survey from an Integrative Medicine Practice

Abstract

Five patients with standard medical treatment-resistant symptoms of skin lesions, ear infections, allergic rhinitis, nasal congestion, asthma, heartburn, and failure to thrive were successfully treated with an integrative medicine assessment and integrative medicine treatment approach. The integrative medicine assessment method of autonomic response testing enabled the identification of nickel sensitivity as a common element in these patients. It guided the use of the integrative medicine therapies of low dose immunotherapy, gamma linolenic acid supplementation, chelation, dietary nickel restriction, and removal of nickel containing dental and cosmetic appliances. A chart review of 151 patients indicated a strong association of nickel and the simultaneous presence of skin lesions.

Introduction

Nickel and other metal allergies are problematic internationally.^1

–5 The United States has seen an increase in the number of nickel allergy cases appearing in the peer reviewed literature. It is estimated that 15%–20% of the Western population is allergic to at least one metal.¹

The most common form of allergic reaction to nickel is allergic contact dermatitis.^6,7 However, nickel allergy can manifest without direct contact to the skin. Included in these non-skin contact manifestations are asthma, allergic rhinitis, eczema, hand dermatitis, gastrointestinal, and neurological symptoms. These non-skin contact manifestations have been referred to as systemic contact dermatitis (SCD).^6,8 SCD caused by nickel is Systemic Nickel Allergy Syndrome (SNAS) which the authors consider a major factor in atopy. Sources of nickel exposure include dental materials, dietary intake, and jewelry.^{2,7

–15} In a case series of 20 patients with allergic rhinitis, 11 of whom also had asthma, Brera and Nicolini reported improvement in nasal and bronchial symptoms with a low nickel diet.¹⁶ Pigatto et al. described the removal of nickel dental sources which resulted in resolution of SCD within 12 months.¹⁵ Atsushi reported a case of successful resolution of eczema of the palm of the hand after removing dental crowns and replacing them with crowns composed of material non-allergenic to the patient.¹⁷

Here we extend our previous single case study of refractory SNAS related to a dental crown containing nickel which was approached with the integrative medicine assessment method of autonomic response testing (ART) and integrative medicine treatments.¹⁸ We describe four additional refractory cases and a chart review of 151 patients who were seen at the Chung Institute of Integrative Medicine (CIIM) in Moorestown, NJ. The chart review focused on the association of nickel sensitivity and the simultaneous presence of skin lesions. Most patients at CIIM have failed standard medical care and many have failed other integrative medical care. Mothers of the four underage patients in the case series gave informed consent. Informed consent was given by the fifth case subject who is now 18.

Integrative Medicine Assessment and Treatment Methods

The following are descriptions of the integrative medicine assessment method and the most pertinent integrative medicine treatments discussed in this article.

Autonomic Response Testing

ART is one of the versions of applied kinesiology. Applied kinesiology was originated by George Goodheart, Jr., DC.¹⁹ Other versions of applied kinesiology have been developed with the conviction that the newer versions are more accurate. A number of integrative medicine practitioners use some version of applied kinesiology to identify disease factors and possible therapeutic agents. Applied kinesiology expands on manual muscle testing assessment by introducing a stimulus such as a food, toxin, allergen, etc. The two assessments are compared, determining whether the response to the stimulus yielded strengthening, weakening, or no change in muscle function. This change in muscle function is used as a predictive assessment of positive, negative, or neutral responses to the stimulus, respectively.

The herein discussed version named ART was developed by Dietrich Klinghardt, MD, PhD and Louisa Williams, DC, ND. Dr. Klinghardt provides training programs on ART throughout the year.^20
–22 It is noted that different versions of applied kinesiology may give conflicting results. Thus far, there is only one peer reviewed evaluation of ART. We published a pilot study (14 patients) on the validity of ART for predicting the results of an Immunoglobulin E blood test for allergy identification.²³ The results of our study indicated that all measures of accuracy were either of useful or excellent strength. Those measures were: sensitivity, specificity, positive predictive value, negative predictive value, and overall accuracy. The strength of association of the phi coefficient and Cohen's Kappa were strong.

ART therapeutics draws on all available therapeutics including those from Chinese medicine, Ayurvedic medicine, homeopathy, osteopathic medicine, allopathic medicine, chiropractic medicine, dentistry, etc. ART helps to guide the choice of interventions. This guidance has resulted in positive clinical outcomes in patients who have failed standard medical therapy. The crux of ART is the assessment procedure, which is twofold. ART informs the identification of contributing factors to the ailment and the choice of intervention.

ART has been extremely helpful at the CIIM for helping patients who have failed standard medical assessment and treatment.^24

–28

Low Dose Immunotherapy

Low dose immunotherapy (LDI) uses extreme dilutions, similar to homeopathic dilutions of antigens in order to help desensitize the immune system. LDI, developed by Vincent.^29,30 evolved from Low Dose Antigen Immunotherapy (LDA) developed by Schrader^31,32 and is based on enzyme potentiated desensitization which was developed by McEwan.³¹ LDI treatments can be delivered to a patient sublingually to build immune tolerance to antigens. It is believed extreme low doses of a given antigen will stimulate the production of T regulator cells which are responsible for suppressing “allergic” reactions which can often progress to pathologic autoimmunity.³⁰ Dr. Vincent has expanded this concept to include mixtures for chemicals and environmental irritants as well as pathogens thought to play a pivotal role in the development of autoimmunity.

We have found LDI especially useful in our practice for airborne allergens and food sensitivities as well as skin lesions, nickel sensitivity, and almost any other inflammatory trigger. Our practice has modified the described methods by tailoring the base concentrations of the immune mixtures to the individual patient. This is accomplished by using ART to test different dilutions resulting in the administration of greater dilutions and more frequent dosing intervals. We have experienced excellent results using these modifications and rarely observe exacerbations of patient symptoms which is a stronger possibility when the more concentrated base mixtures are used.

Low Nickel Diet

Da Mata Perez et al. described the resolution of eczema with elimination of high nickel containing foods.³³ We are finding most individuals with ATOPY not only have contact sensitivity but have sensitivity to ingesting nickel from foods with high nickel content, nickel from liquids stored in stainless steel bottles, and metal dental appliances. Our clinical experience is in concordance with Da Mata Perez et al. who reported successful treatment of eczema with a low nickel diet. In addition, the dietary effects extend to other atopic symptoms such as chronic nasopharyngeal and airway inflammation. We believe nickel containing foods when ingested by nickel sensitive individuals can cause inflammation in not only the skin, but also in the mucosal lining of the upper and lower respiratory tract, the eye mucosal membrane, and the gut.

Nickel is found in a large quantity of foods, making a low nickel diet challenging. We instruct our patients to avoid all foods known for high nickel content. This includes tea, coffee, cocoa, chocolate, soybeans, oatmeal, nuts, almonds, fresh and dried legumes. Most animal products have lower nickel content except for some fish (tuna, salmon, mackerel, herring) which should be avoided. Green leafy vegetables should be used sparingly but most other vegetables can be consumed. We encourage avoiding canned food items and the use of stainless steel for cooking acidic foods as the metal may increase the nickel content of food.³⁴

Supplementation with Gamma Linolenic Acid

Little information is communicated to the public by the media about omega-6 polyunsaturated fatty acids (PUFA) because most American diets contain plenty of omega-6's in the form of linoleic acid. The average person can convert this PUFA in the body into another important PUFA called gamma linolenic acid (GLA) using the delta-6-desaturase enzyme. Atopic individuals are thought to have either a deficient or an ineffective delta-6-desaturase enzyme. GLA can eventually be converted to prostaglandin E-1 (PGE-1) which is an important anti-inflammatory messenger molecule. Reduced PGE-1 results in greater inflammation in the respiratory lining, skin, and nerves.³⁵

Supplementing with GLA can bypass this enzymatic defect in conversion or GLA deficiency. GLA then can be converted into PGE-1.³⁵ GLA can be found in three supplements: borage seed oil, evening primrose oil, and black currant seed oil. Our patients use either borage seed oil or evening primrose oil.

Ethylenediaminetetraacetic Acid

The oral chelating agent, LipoPhos^® EDTA manufactured by Allergy Research Group, 2300 North Loop Road, Alameda CA is used to reduce the nickel burden. EDTA (ethylenediaminetetraacetic acid) is a synthetic amino acid used to remove heavy metals from the body. It is usually given via intravenous infusion. The phospholipid blend LipoPhos EDTA is orally administered without gastrointestinal symptoms.³⁶

Case Reports

Case 1

Thirteen-year-old female eighth grader with severe refractory eczema. The patient's eczema was first noticed at age 3 and was managed with topical over-the-counter creams. A flare up the summer before coming to our practice lead to painful, raw, open skin. The itching and pain were severe enough to interfere with sleep. Treatment was sought at urgent care, allergist, dermatologist, and an eczema team at Children's Hospital of Philadelphia which included an allergist, dermatologist, and hematologist. Treatments included hydrocortisone cream, methylprednisolone, clobetasole ointment, and cetirizine cream. Symptoms worsened over the course of treatment. She began having chills, difficulty regulating body temperature, and fatigue. She developed hair loss on her scalp and eyebrows. The patient was unable to attend school the two months prior to our clinic visit due to the severity of symptoms.

The patient was seen at our clinic 16 times over the course of one year. She was assessed with ART. The ART assessment informed us of the contributing factors to the eczema and their remedies. ART indicated the following contributing factors: nickel, strep A and aluminum. Her treatments included: a low-nickel diet; acupuncture; ionic foot baths; LipoPhos EDTA; modified LDI for nickel, skin, staph/strep combination, general foods, and the patient's intestinal microbiome; cilantro; vitamin D3 5000 IU daily; vitamin K2 (MK7) 125 mcg daily; and GLA in the form of borage oil (240 mg) two capsules daily.

By one month after the initial visit, there was improvement in the rash, sleep and itch symptoms. The patient was able to resume some social activities, comfortably wear clothes and exercise. Six months after the initial visit (10 visits total), she started high school in person. By the 16th visit, her skin was >95% better without use of steroid creams. Her mother noted more social activities and normal functioning.

She had no recurrence for four years, until she had her belly button pierced with a nickel containing piece of jewelry. Her systemic eczema symptoms quickly developed and became severe. Follow up treatment was similar to our original approach along with removal of the metal belly ring. The eczema rash and itch resolved in a three-month period and did not require medication. Since then, the patient reports minor recurrences when she ingests high nickel containing foods.

Photos of patient at first treatment 2/4/18 (left) and after receiving treatment 9/5/18 (right). Patient photos published with permission.

Case 2

The patient presented in our office at two years of age with chronic runny nose and eight ear infections within a period of six months. He was treated with antibiotics for each of the ear infections. These provided only temporary relief. The symptoms returned within five days after the last dose of antibiotics.

ART testing revealed sensitivity to nickel and deficiency of GLA. The patient's mother was given careful instructions on a low nickel diet and borage oil supplementation. Four weeks after the initial visit, the patient's ears were 100% improved and allergy symptoms were 90% improved with some mild, sporadic nasal congestion. The patient returned to the office for follow up three years after the initial visit for allergy symptoms which were first noticed after one and a half asymptomatic years. At that time, the patient's mother reported the patient had no ear infections after the initial visit. At follow up, ART testing revealed an issue with airborne allergies, nickel and the measles, mumps and rubella vaccination (MMR). He was treated with a modified LDI for airborne allergens and MMR; LipoPhos EDTA; cilantro; and Nogier low level laser auricular therapy, which consists of stimulating ear acupuncture points identified by Rapheal Nogier with a low-level laser. The allergy symptoms were 90% improved after that single visit. The patient is now seen in the office annually for checkup and management of mild seasonal allergies. He has had no recurrence of ear infections.

Case 3

Eight-year-old girl presented at our clinic with history of asthma, allergic rhinitis, eczema, and history of multiple ear infections.¹⁸ The eczema rash at times was raw, bleeding, and with extreme itching. The asthma symptoms began approximately four years before the patient presented at our clinic. Her history included ear infections needing tube placement in ears four times and a metal dental cap that preceded asthma symptoms by four to five months.

Previous medical care included an allergist, ENT specialist, dentist, and homeopath. Previous treatments included oral steroids, an inhaler, topical steroid creams, homeopathic drops, and tube placement in ears on four occasions.

She was seen at our clinic four times in her first year as a patient. ART was used at each visit and revealed the following issues: nickel, dental cap, parasites, and airborne allergies. Treatments included Nogier low level laser auricular therapy, albendazole, tinidazole, GLA in the form of borage oil, and vitamin D with K2. The patient's mother was carefully instructed on a low nickel diet. The metal dental cap (which contained a small amount of nickel) was removed after the first visit. This resulted in a cessation of wheezing and eczema within three weeks.

The patient had infrequent follow-ups for minor conditions over the next three years. She then returned after an exercise induced asthma flare. ART was used at each visit and revealed issues with airborne allergies and nickel. She was treated with modified LDI for airborne allergies, LipoPhos EDTA, GLA in the form of borage oil, and body acupuncture. She has had infrequent follow-up visits over the past four years for minor complaints and has had no asthma recurrence over the past four years.

Case 4

Nine-week-old boy who developed reflux, constipation and irritability at two to three weeks of age. He stopped eating and lost weight. His pediatrician diagnosed him with a milk protein allergy. The pediatrician treated him with famotidine and a formula change to the amino acid formula Elecare™ (Abbott) with no relief of symptoms.

ART testing was performed at each visit and indicated an abnormal response to the following: nickel, cow's milk, baby formula Similac^® Alimentum (Abbott), yeast and aluminum. The patient was treated with modified LDI for baby formula. His reflux, constipation and irritability symptoms improved 75% after first visit and 100% after three visits (two and a half months from first visit). He returned for follow up three and a half years after the initial visit with nasal congestion. ART testing indicated an abnormal response to nickel, and airborne allergies. He was treated with modified LDI for airborne allergens, Nogier low level laser auricular therapy, vitamin D, and LipoPhos EDTA. Allergy symptoms improved after treatment. Patient visits office annually for treatment of mild allergy symptoms

Case 5

Thirteen-year-old boy with a two-year history of dry, scaly rash on his face and chronic heartburn. Previous medical care included primary care physician, orthodontist for braces, dermatologist, and allergist. The patient had received allergy testing. Prior treatments included citirizine, clocortolone and crisaborole.

ART testing, performed at each visit, indicated issues with nickel, dental braces, Helicobacter pylori, and GLA. Treatments included GLA, LipoPhos EDTA, low nickel diet, body acupuncture and modified LDI for nickel and H. pylori. Heartburn was 100% improved after his initial visit, the rash was 75% improved with braces in place. When the braces were removed, the rash and itch temporarily worsened. The rash was 100% improved 14 months after the initial visit, two months after braces were removed.

Clinical Practice Survey of Association of Nickel Sensitivity with Presence of Skin Lesions

We examined all records in our recently installed electronic records system for patients who were ART tested for nickel and the simultaneous presence of a skin lesion (excluding contact dermatitis) on the same day. We then populated a 2 × 2 table with nickel test results and skin lesion presence. The total number of patients was 151. The proportion of nickel positive patients who had skin lesions was 36% while the proportion of nickel negative patients was 0.8%. The difference was statistically significant (P < 0.0001) (Fig. 1).

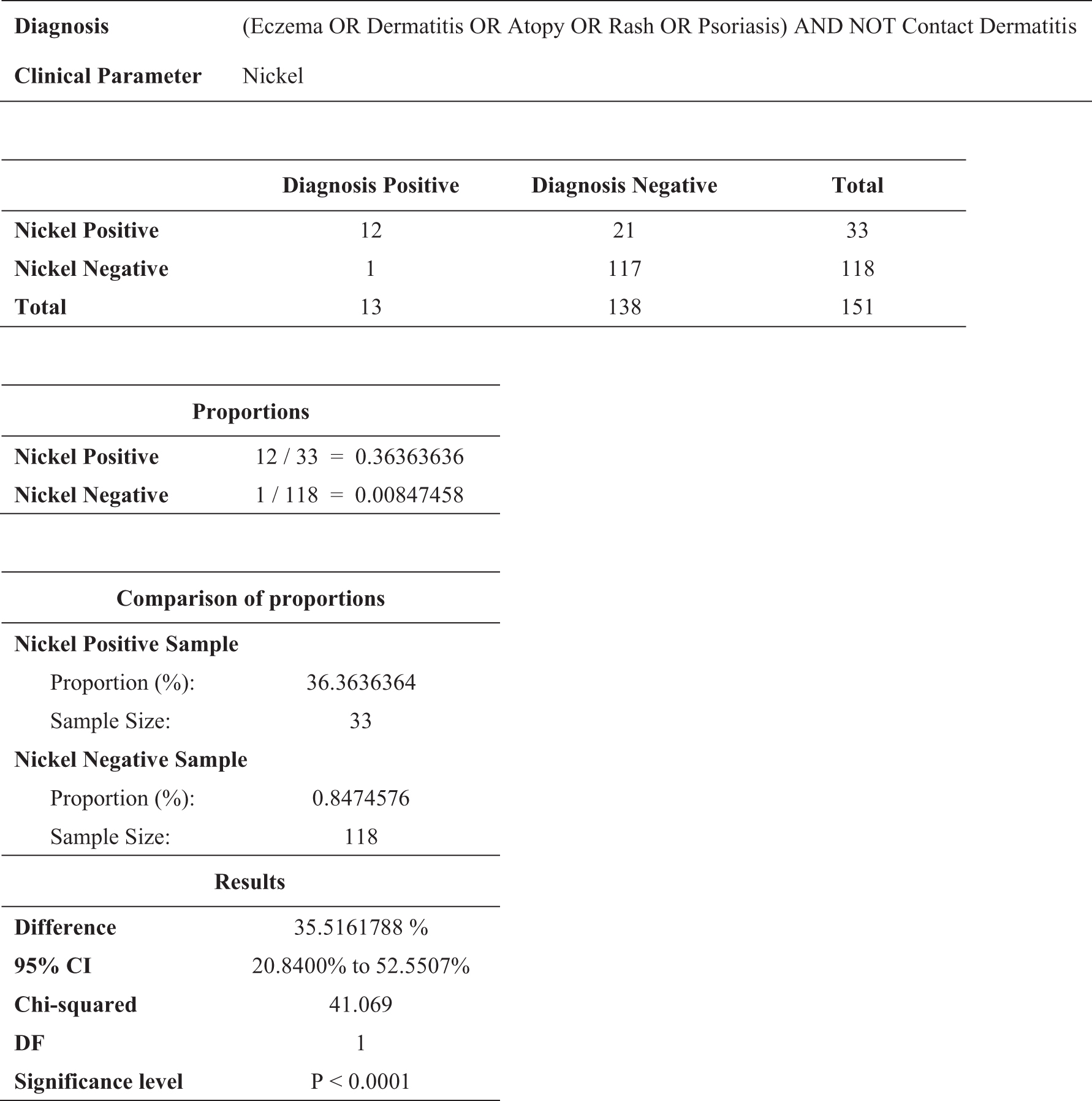

Figure 1.

Nickel sensitivity and skin lesion association data. This figure illustrates the diagnoses search terms used to obtain the data presented in the 2 × 2 table. A comparison of proportions from MedCalc (version 20; MedCalc Software Ltd., Ostend, Belgium) was used for the statistical analysis (https://www.medcalc.org/calc/comparison_of_proportions.php).

These results support our clinical observations of nickel often being a contributing factor to the presence of skin lesions other than direct contact dermatitis and are in line with other studies showing a relationship of nickel to skin lesions.^3
–5

Discussion

Five patients with standard medical treatment-resistant symptoms of skin lesions, ear infections, allergic rhinitis, nasal congestion, asthma, heartburn, and failure to thrive were successfully treated with an integrative medicine assessment and integrative medicine treatment approach. ART allowed the identification of nickel sensitivity and guided the use of the integrative medicine therapies of LDI, GLA, chelation, dietary nickel restriction, and removal of nickel containing dental and cosmetic appliances. Nickel was a factor in those instances of recurrent symptoms after original symptom resolution. The most dramatic example was Case 1 in which a belly button piercing of a nickel containing piece of jewelry resulted in recurrence of systemic eczema. A chart review of 151 patients indicated a strong association of nickel and the simultaneous presence of skin lesions.

We believe that SNAS was the underlying factor in our patients' chronic treatment-resistant illnesses. Since many of our patients had atopic symptoms, we also believe that SNAS along with genetics may underlie atopic syndrome in individual patients.

This report is a retrospective case series report and chart review survey thus occupying a place at the bottom of the evidence hierarchy. The patients received multiple forms of treatment. Thus, multiple confounders are present. It is not possible to state with certainty which treatment component had the biggest effect. Future rigorous research is required to determine the dominant factor, factors or combination of factors regarding disease manifestation and treatment. The purpose of this report is to stimulate: (1) consideration of nickel as a possible factor in chronic disease and (2) further evaluation of ART and the integrative medical treatments: LDI, GLA, chelation, dietary nickel restriction, and removal of nickel containing materials from the body in the management of nickel related chronic medical conditions. We welcome collaboration with others.

Conclusion

The integrative medicine assessment method of ART and the integrative treatment methods of LDI, GLA supplementation, chelation, dietary nickel restriction, and removal of nickel containing materials from the body in nickel related chronic disease deserve attention from the research community.

Footnotes

Informed Consent Statement

Informed consents were obtained for all subjects involved in the case series. Informed consent was given for inclusion of photographs.

Author Disclosure Statement

No competing financial interests exist.

Funding Information

The Won Sook Chung Foundation of Moorestown, NJ organized and supported this project.▪

References

Schmidt

, Goebeler

. Immunology of metal allergies. J Dtsch Dermatol Ges, 2015; 13:653–660.

Jacob

, Goldenberg

, Pelletier

, et al. Nickel allergy and our children's health: A review of indexed cases and a view of future prevention. Pediatr Dermatol, 2015; 32:779–785.

Mukovozov

, Kashetsky

, de Gannes

. Prevalence of contact allergy to nickel: A retrospective chart review. Dermatitis, 2022; 33:355–361.

Cattani

CAS

, Oppermann

, Perazzoli

, et al. Sensitizing agents found in children and adolescents with recalcitrant atopic dermatitis: A cross-sectional study with a pediatric battery. An Bras Dermatol, 2022; 97:307–314

Mahlberg

, Scarberry

, Nedorost

. Association between dyshidrotic dermatitis and metal allergy: An evaluation of 1,613 patch tests. Dermatitis, 2022; 33:e37.

Yoshihisa

, Shimizu

. Metal allergy and systemic contact dermatitis: An overview. Dermatol Res Pract, 2012; 2012:749561–749565.

Hsu

, Matiz

, Jacob

. Nickel allergy: Localized, Id, and systemic manifestations in children: Nickel allergy manifestations. Pediatr Dermatol, 2011; 28:276–280.

Zirwas

, Molenda

. Dietary nickel as a cause of systemic contact dermatitis. J Clin Aesthet Dermatol, 2009, 2, 39–43.

Hosoki

, Bando

, Asaoka

, et al. Assessment of allergic hypersensitivity to dental materials. Biomed Mater Eng, 2009; 19:53–61.

10.

Jensen

, Menné

, Duus Johansen

. Systemic contact dermatitis after oral exposure to nickel: A review with a modified meta-analysis. Contact Dermatitis, 2006; 54:79–86.

11.

Hadasik

, Bergler-Czop

, Miziołek

, et al. Pruritus ani and perianal eczema as a manifestation of systemic contact dermatitis. Postȩpy Dermatol Alergol, 2017; 34:174–176.

12.

Alanko

, Kanerva

, Jolanki

, et al. Oral mucosal diseases investigated by patch testing with a dental screening series. Contact Dermatitis, 1996; 34:263–267.

13.

Muris

, Feilzer

. Micro analysis of metals in dental restorations as part of a diagnostic approach in metal allergies. Neuro Endocrinol Lett, 2007; 27:49–52.

14.

Forsell

, Marcusson

, Carlmark

, et al. Analysis of the metal content of in vivo-fixed dental alloys by means of a simple office procedure. Swed Dent J, 1997; 21:161–168.

15.

Pigatto

, Brambilla

, Ferrucci

, et al. Systemic allergic contact dermatitis associated with allergy to intraoral metals. Dermatol Online J, 2014; 20.

16.

Brera

, Nicolini

. Respiratory manifestations due to nickel. Acta Otorhinolaryngol Ital, 2005; 25:113–115.

17.

Altsushi

. A case report of a metal allergy patient whose prosthesis was identified allergenic by non-destructive metal element analysis and a dermatological patch test. Nihon Hotetsu Shika Gakkai Zasshi, 2006; 50:276–279.

18.

Chung

, Richmond

, LaRiccia

. Successful integrative medicine assessment and treatment of chronic allergic rhinitis, asthma and eczema related to a metal dental crown: Case report. Chronicity, 2019; 11:11–16.

19.

Walther

. Applied Kineseology, Synopsis, 2nd ed. Shawnee Mission, KS: Triad of Health Publishing, 2016.

20.

Klinghardt

, Williams

. Autonomic Response Testing (Workshop Manual). Woodinville,, WA: Self-Published, 1996.

21.

Klinghardt Institute. Online document at: https://klinghardtinstitute.com/. Accessed March 30, 2023 .

22.

Klinghardt D; with editing Derksen

. ART I Autonomic Response Testing (Workshop Manual). Brighton UK: Klinghardt Education Ltd., 2009.

23.

Frandsen

, McClure

, Chung

, Lariccia

. Autonomic response testing compared with immunoglobulin e allergy panel test results: Preliminary report. Altern Ther Health Med, 2018; 24:10–14.

24.

Couture

, Chung

, Shinnick

, et al. Integrative medicine approach to pediatric obsessive-compulsive disorder and anxiety: A case report. Glob Adv Health Med, 2016; 5:117–121.

25.

Brobyn

. Successful treatment of chronic edema, recurrent cellulitis and leg pain using autonomic response testing assessment: Case report. J Sci Heal Outcomes, 2017; 9:10.

26.

Chung

, LaRiccia

. Successful integrative medicine assessment and treatment of chronic pain associated with breast surgery: A report of 3 cases. Holist Nurs Pract, 2017; 31:21–29.

27.

Brobyn

, Chung

. Clinical Roundup: Selected Treatment Options for Mood Disorders—Part 2 The use of autonomic response testing and the 5 phases paradigm to identify unresolved feelings in patients with mood disorders. Altern Complement Ther, 2015; 21:182–188.

28.

Chung

, LaRiccia

. How do you deactivate painful scars in your practice?. Med Acupunct, 2016; 28:162–167.

29.

Vincent

. Low Dose Immunotherapy (LDI) for Autoimmune Diseases and Chronic Inflammatory Disorders (Providers Manual). Kailua-Kona, HI: Global Immunotherapy, LLC, 2018.

30.

Global Immunotherapy LLC. Online document at: https://globalimmunotherapy.com/ Accessed March 30, 2023 .

31.

Shrader

. Low dose allergen immunotherapy (LDA): The allergy treatment of the future—Here now. Townsend Lett, 2012; 46.

32.

Santa Fe Center for Allergy and Environmental Medicine. Online document at: http://drshrader.com/ Accessed March 30, 2023 .

33.

Da Mata Perez

, Franca

, Zimmerman

. Systemic nickel allergy syndrome. World Allergy Organ J, 2015; 8:A89–A89.

34.

Sharma

. Low nickel diet in dermatology. Indian J Dermatol, 2013; 58:240.

35.

Horrobin

. Fatty acid metabolism in health and disease: The role of Δ-6-desaturase. Am J Clin Nutr, 1993; 57:732S–737S.

36.

Allergy Research Group. Online document at: https://www.allergyresearchgroup.com/content/97.pdf Accessed February 28, 2023 .
