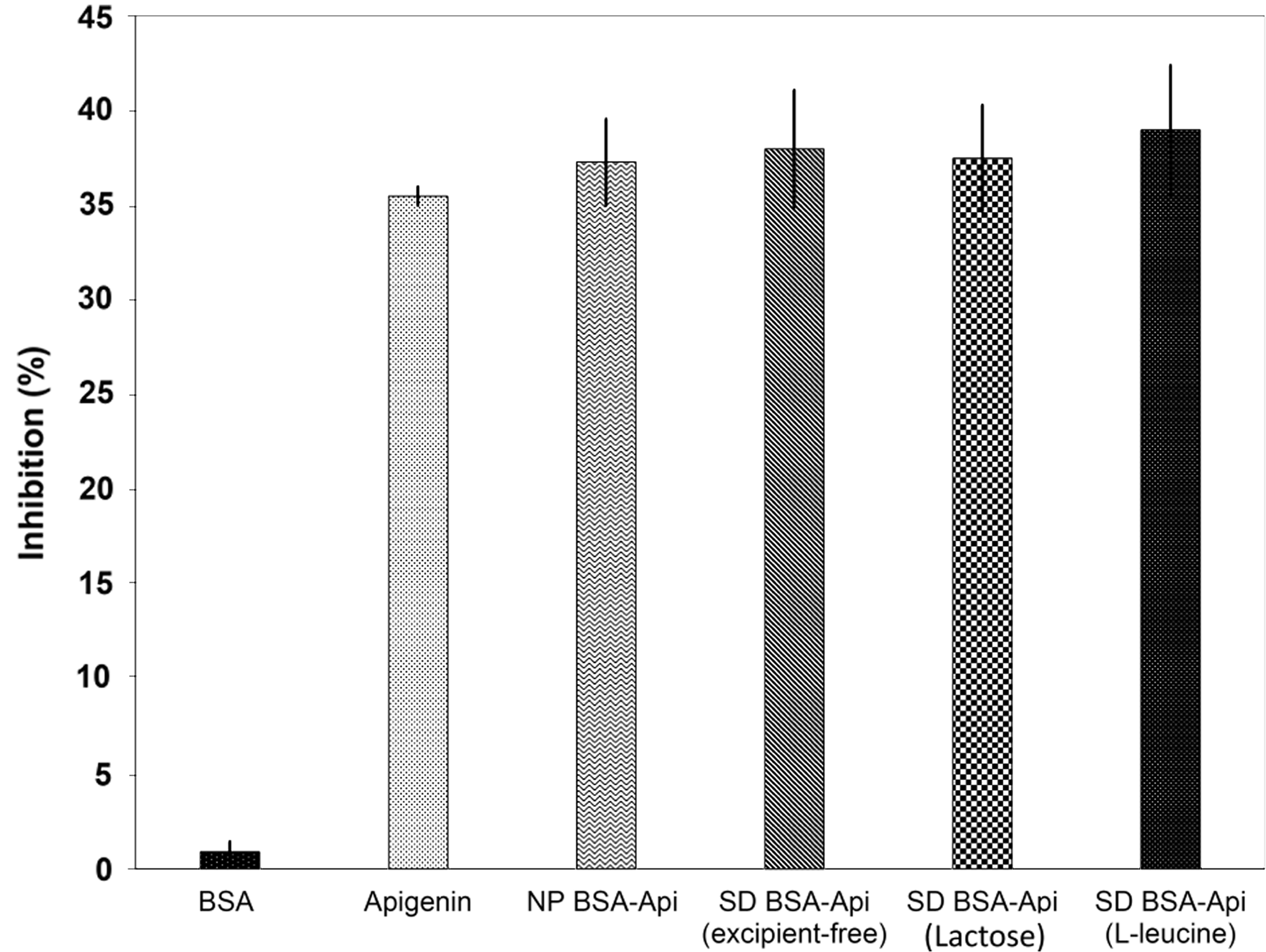

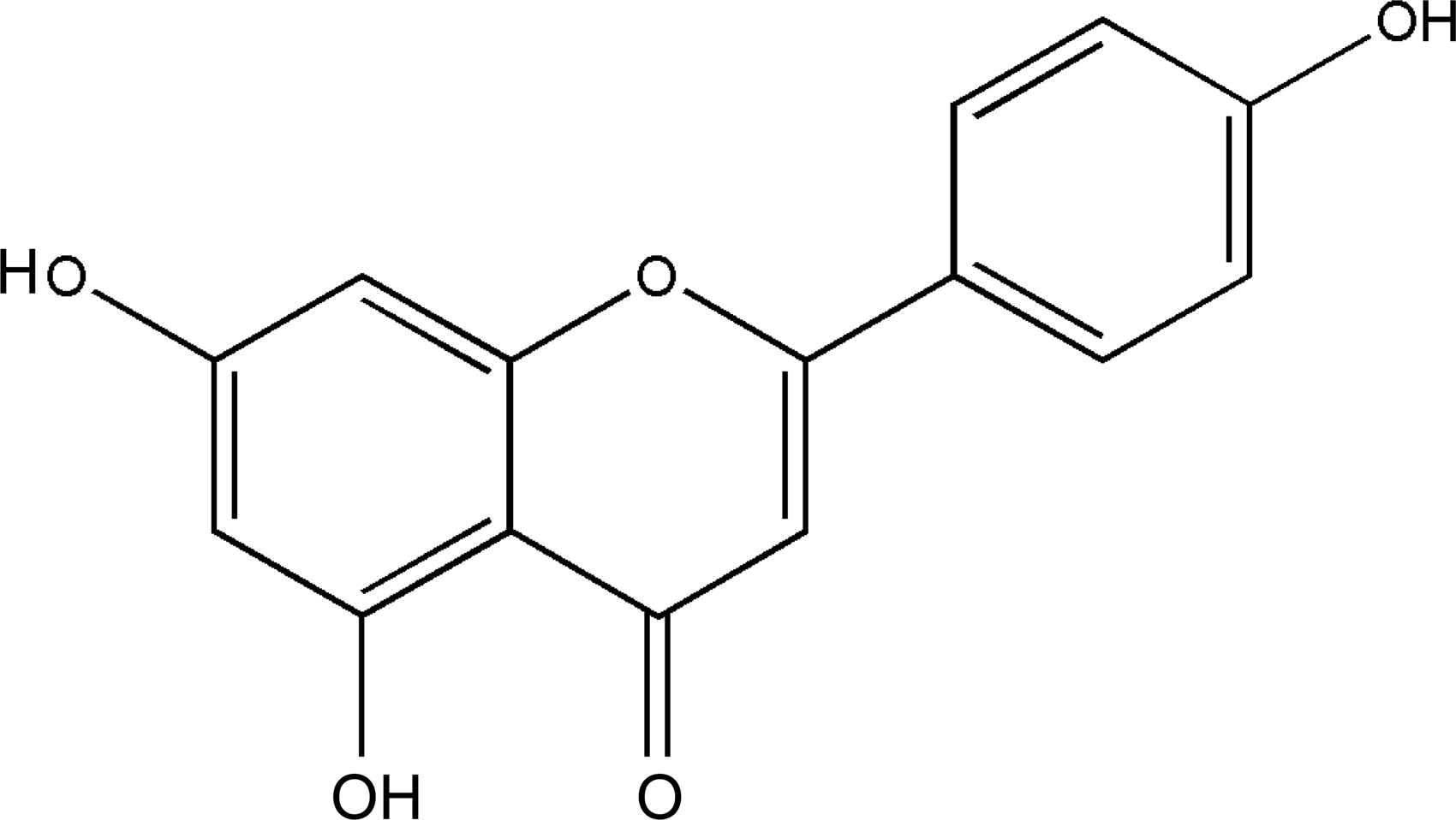

Study on the Pulmonary Delivery System of Apigenin-Loaded Albumin Nanocarriers with Antioxidant Activity

Particle size and zeta potential analysis

The average particle size and polydispersity index (PDI) were determined by dynamic light scattering using Zetasizer Nano ZS instrument (Malvern Instruments Ltd., Worcestershire, United Kingdom). Zeta potential of the particles was quantified with laser doppler velocimetry using the same instrument. All measurements were performed in triplicate (n = 3) at 25°C and presented as mean ± standard deviation.

Determination of drug loading and encapsulation efficiency

To determine the amount of Api, 1 mL sample from the BSA-Api formulation was withdrawn and the apigenin content was determined in mg/mL by adding 5 mL of dimethyl sulfoxide and methanol (DMSO:MeOH, 50:50% v/v) and sonicated for 10 minutes. The exact concentrations were determined after filtration (0.22 μm) by HPLC 1260 (Agilent Technologies, Inc., Santa Clara, CA) using the reverse-phase C₁₈ column (Phenomenex^®, 250 × 4.6 mm, 4 μm) as the stationary phase. The temperature was set to 25°C. The mobile phase consisted of 40% acetonitrile and 60% water containing 0.1% (v/v) TFA. The system was run isocratically at the flow rate of 1.2 mL/min and the Api was detected at 340 nm (t_R = 8.3). The injection volume was set to 10 μL. A calibration curve was conducted by diluting stock solution (0.1 mg/mL) with R² value of 0.999.

The drug loading efficiency (DL, %) and encapsulation efficiency (EE, %) were calculated according to the equations (Eqs. 1 and 2), comparing the encapsulated Api content (mg/mL, W_encapsulated) to total nanoparticle system, which means the weighted amount of BSA and Api together (mg/mL, W_total) and the amount of Api (mg/mL, W_theoretical) used in the formulations. \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} DL \; ( \% ) = { \frac { { W_ { encapsulated } } } { { W_ { total } } } } \times 100 \quad\quad\quad\quad (\rm Eq. \ 1) \end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} EE \; ( \% ) = { \frac { { W_ { encapsulated } } } { { W_ { theoretical } } } } \times 100 \quad\quad\quad\quad (\rm Eq. \ 2) \end{align*} \end{document}

Fluorescence spectroscopy

The fluorescence emission spectra of BSA and BSA-Api-NPs were measured with the Jobin Yvon-Horiba Fluoromax-3 (Paris, France) spectrofluorometer. The samples that contained the nanoparticles were diluted 10 times, and the fluorescence emission spectra were recorded between 300 and 450 nm at 25°C where the excitation wavelength was set to 285 nm. The data collection frequency was 0.5 nm and the integration time was 0.2 second. The excitation slit was set at a bandpass width of 2 nm and the emission slit at 5 nm. Each spectrum was recorded three times and the mean values were calculated automatically. The SPSERV V3.14 software (© Csaba Bagyinka, Institute of Biophysics, Biological Research Center of the Hungarian Academy of Sciences, Szeged, Hungary) was used for baseline correction, for five-point linear smoothing, and for the correction to the wavelength-dependent sensitivity changes of the spectrofluorometer. The subtraction of the Raman band at 390 nm was performed.

To obtain the three-dimensional (3D) projections and contour maps of fluorescence spectra of the samples, the fluorescence emission was recorded from 265 to 450 nm using different excitation wavelengths from 250 to 310 nm with 10 nm steps with the same instrument mentioned above. All emission scan ranges were set to start at least 15 nm away from the corresponding excitation wavelengths. Other settings were similar as described above. Each spectrum was recorded three times and the mean values were calculated automatically. The 3D fluorescence spectra were visualized with the software SURFER Version 10 (Golden Software, Inc., Golden, CO). Spectra were combined together into a 3D surface data set with axes of excitation and emission wavelengths and fluorescence intensity. Data were also converted into two-dimensional contour maps.

Determination of residual moisture

The moisture content of the spray-dried powders was measured by using Karl Fischer titration (Metrohm 758 KFD Titirino; Metrohm AG, Lichtenstein, Switzerland). For that purpose, ∼100 mg of the product was analyzed and the instrument was previously calibrated with 10 μL distilled water. The evaluation was conducted in triplicate and the standard deviation calculated.

Fourier transform infrared spectroscopy

Fourier transform infrared spectroscopy (FT-IR) spectra of BSA-Api spray-dried samples were evaluated using a PerkinElmer Spectrum 100 FT-IR spectrometer equipped with Universal ATR (attenuated total reflectance) accessory (PerkinElmer, Inc., Waltham, MA). Approximately 2 mg of the solid samples was placed between the plate and the probe. The spectra were recorded with three scans, in the frequency range between 4000 and 600 cm⁻¹ and with a resolution of 4 cm⁻¹ at room temperature. The data were analyzed using the PerkinElmer Spectrum Express software.

X-ray powder diffraction

X-ray powder diffraction (XRPD) diffractograms were obtained using an X-ray diffractometer (MiniFlex600; Rigaku Corporation, Tokyo, Japan). The analyses were performed at room temperature and the samples were scanned from 2° to 40° 2θ using a scanning speed of 2°/min with a step size of 0.05°.

Differential scanning calorimetry analysis

The spray-dried formulations were characterized by differential scanning calorimetry (DSC) (DSC Q2000 module; TA Instruments, New Castle, United Kingdom), which was calibrated using indium. Samples (3–5 mg) were weighed accurately and analyzed in sealed and pierced aluminum hermetic pans (TA Instruments). The pans were equilibrated at 25°C and then heated at a rate of 10°C/min in a range of 50°C–400°C.

Aerosol particle size analysis and redispersibility in water

The particle size analysis was conducted by using a Sympatec HELOS laser diffractometer (Sympatec GmbH System-Partikel-Technik, Clausthal-Zellerfeld, Germany). The powders were dispersed by compressed air (4–5 bar) into the measuring zone of the laser beam. The optical lens (0.45–87.5 μm size range) focused onto the detector to collect the diffracted light for calculation of size distribution. The values of 10th (D₁₀), 50th (D₅₀), and 90th (D₉₀) of the cumulative particle size distribution are generated. Samples were measured in triplicate.

The particle size was also determined after spray drying. Five milligrams of dry powder of each formulation could be easily redispersed in 5 mL distilled water and the particle size was determined without any further dilution by the abovementioned Zetasizer Nano ZS instrument (Malvern Instruments Ltd., Worcestershire, United Kingdom).

Solubility and drug release studies of BSA-Api formulations

The solubility of BSA-Api formulations was determined in PBS buffer (pH 7.4) and in mSLF (pH 7.4), which contained 0.02% (w/v) DPPC, prepared according to Son and McConville.⁽³⁰⁾ Fifty milligrams of samples of spray-dried powders was added to 100 mL solvent and shaken (150 rpm) for 2 hours at 37°C. At predetermined time points, 1 mL of samples was taken from each dissolution medium and replaced with the same volume of fresh medium. All of the samples were diluted with 1 mL methanol and filtered with Amicon^® Ultra Centrifugal filters (30K; Merck Millipore, Merck KGaA, Germany) before the injection and the amount of apigenin was determined by the HPLC-UV method.

The in vitro drug release study of the three formulations was conducted with the Franz cell apparatus. The mSLF was used as dissolution media and a 0.45 μm cellulose acetate membrane filter (Sartorius AG, Gottingen, Germany) was applied.

Briefly, an accurately weighed amount (10 mg) of spray-dried nanoparticles of each formulations were scattered onto the membrane, which was previously wetted with the dissolution media for 1 hour. One milliliter of samples was withdrawn at various time intervals for 5 hours and replaced with fresh dissolution medium. After the measurement, membrane was rinsed with 2 mL of MeOH and the drug content of the possibly remained powders was determined. The sample preparation and the measurement were the same as mentioned above. The cumulative amount of apigenin release over the time was plotted for each formulation. All measurements were performed in triplicate.

Aerosol delivery of BSA-Api formulations

In vitro aerodynamic performance of BSA-Api formulations was assessed using the NGI (Copley Scientific Ltd., Nottingham, United Kingdom), connected sequentially to a low-capacity pump via the critical flow controller (Model LCP5; Copley Scientific Ltd.). During the measurement, the pump was operated at an air flow rate of 60 L/min for 4 seconds. The 3 × 10 mg powder aliquots from each formulation were loaded manually into gelatin capsules (size 3) and placed into the inhaler device (Cyclohaler^®; Pharmachemie, London, United Kingdom), which was connected to the NGI via an airtight rubber adaptor and a stainless steel United States Pharmacopeia (USP) throat. The NGI stages were assembled with an induction port and a preseparator, and a filter was placed in the final stage.

Before the impaction, the collection plates were uniformly coated with 1 mL of 1% silicone oil in N-hexane solution and allowed to dry, leaving a thin film of silicone oil on the plate surface to prevent the re-entrainment of the particles and the preseparator was filled with 15 mL DMSO:MeOH (50:50%, v/v) mixture. After the deposition of the powders in the NGI, the amount of each formulation was cumulatively collected onto silicone-coated plates for each of the stages. The inhaler, mouthpiece, induction port, preseparator, and the collection plates were rinsed with DMSO:MeOH (50:50%, v/v) mixture, collected in volumetric flasks (10 or 25 mL), and made up to volume. The samples were determined by using the HPLC method as described previously.

To characterize the aerosol performance, the following parameters were calculated based on the drug mass of each fraction: emitted dose (ED, %): the percentage of the entire dose depositing from the mouthpiece of the inhaler device and recovered dose (RD, %): the total recovered drug mass. The fine particle fraction (FPF, <4.46 μm) is defined as the percentage of the ED, deposited from Stage 2–7 and the micro-orifice collector. The mass median aerodynamic diameter (MMAD) and geometric standard deviation (GSD) were calculated from the inverse of the standard normal cumulative mass distribution against the natural logarithm of the effective cutoff diameter of the respective stages. All measurements were carried out in triplicate.

Particle morphology

Morphology of Api powder and spray-died nanoparticles was examined using scanning electron microscopy (SEM) analysis. The dry powder of the formulations was placed on the sample holder using a double adhesive tape, and gold coating (∼20 nm thickness) was applied. Examinations were performed by the FEI Inspect™ S50 (Hillsboro, OR) scanning electron microscope at 20.00 kV accelerating voltage. Original magnifications were 8000 × , 10,000 × , and 20,000 × with accuracy of ±2%.

Size, zeta potential, and drug content

Albumin is a natural protein that has been widely used as a macromolecular carrier for many drugs with low water solubility. Several techniques are available to prepare albumin nanoparticles, including desolvation (coacervation), nab (nanoparticle albumin bound) technology, and self-assembly.⁽¹⁴⁾ In this study, the BSA-Api-NPs were prepared by using modified nab technology with ultrasonication. The achieved mean particle size of three samples was 376 ± 7.824 nm with a PDI of 0.285 ± 0.01. The size of albumin NPs less than 500 nm could localize effectively in the lung. The PDI value indicated narrow particle size distribution and the uniformity of the nanoparticles. The zeta potential was −19.20 ± 0.818 mV. The higher the zeta potential, the more stable the formulation is, less aggregation occurs.⁽³²⁾

The EE was determined to be 82.61% ± 4.56% and the DL was 7.51% ± 0.415%. Therefore, these results confirmed the high encapsulation efficiency of apigenin by BSA-NPs and that it can be an attractive tool in encapsulation of flavonoids for delivery. Similar data were found in the literature when encapsulating flavonoids into albumin nanoparticles. Human serum albumin (HSA)-bound curcumin nanoparticles resulted in 7.2% ± 2.5% loading efficiency⁽³³⁾ and scutellarin-loaded BSA nanoparticles possess 64.46% EE and 6.73% DL.⁽³⁴⁾

Fluorescence spectroscopy

The phenomenon of fluorescence quenching can result from various inter- and intramolecular interactions such as energy transfer, conformational changes, complex formation (static quenching), or collisional interaction (dynamic quenching). During static quenching, the quencher forms a stable nonfluorescent complex with the fluorophore, however, during dynamic quenching it collides with the fluorophore and facilitates nonradiative transitions to the ground state.⁽³⁵⁾ Therefore, quenching of the intrinsic fluorescence of the two tryptophan residues (Trp-134 and Trp-212) of BSA can offer information about the changes in molecular microenvironment of these fluorophores, located in domain I and II, respectively. Trp-134 residue is located close to the protein surface in a hydrophilic environment, whereas Trp-212 is within a protein pocket that is hydrophobic (subdomain II A). The Trp-214 in HSA is located similarly to Trp-212 in BSA.^(36–38)

The quenching effect of Api on fluorescence intensity of serum albumins (BSA and HSA) has been studied previously,^(36,39–42) but there are no data related to its behavior in a nanoparticulate system. Studies have shown that the increasing concentration of Api resulted in a decrease in the fluorescence emission intensity of serum albumin solutions. This was mainly attributed to complex formation (static quenching), however, it could be dynamic quenching at higher Api concentrations.⁽⁴²⁾ Nevertheless, all studies concluded that Api most likely binds to the subdomain IIA of Site I side with electrostatic and hydrophobic interactions, through which H-bonds and nonradiative energy transfer can occur. The binding could affect the conformation of Trp microregion, but the secondary structure of serum albumin is not altered.^(36,39,41) However, the pH and ionic concentrations (e.g., NaCl) can affect the fluorescence quenching on the binding parameters of apigenin to BSA.⁽⁴³⁾

Figure 2 demonstrates the fluorescence emission spectra of BSA solution, BSA-NPs, and BSA-Api-NPs. The fluorescence intensity of BSA-NPs decreased slightly compared to BSA solution with no obvious shift of the maximum position at 350 nm. It was probably due to the conformational changes of the protein. The significantly lower emission intensity of BSA-Api-NPs indicates that Api could quench the fluorescence of BSA, which is also reflected on the 3D projections (Fig. 3). All of these findings indicate that Api binds to the Trp region (Trp-212, subdomain II A), but the spectral maximum was not affected, and therefore, hydrophobicity and polarity of the fluorophore residues are not altered. It was concluded that Api can be bound to the Trp region of serum albumin nanoparticles similarly to the solutions.

OPEN IN VIEWER

FIG. 2.

Fluorescence emission spectra of BSA solution, BSA nanoparticles, and BSA-Api nanoparticles. The excitation wavelength was set to 285 nm. BSA, bovine serum albumin.

OPEN IN VIEWER

FIG. 3.

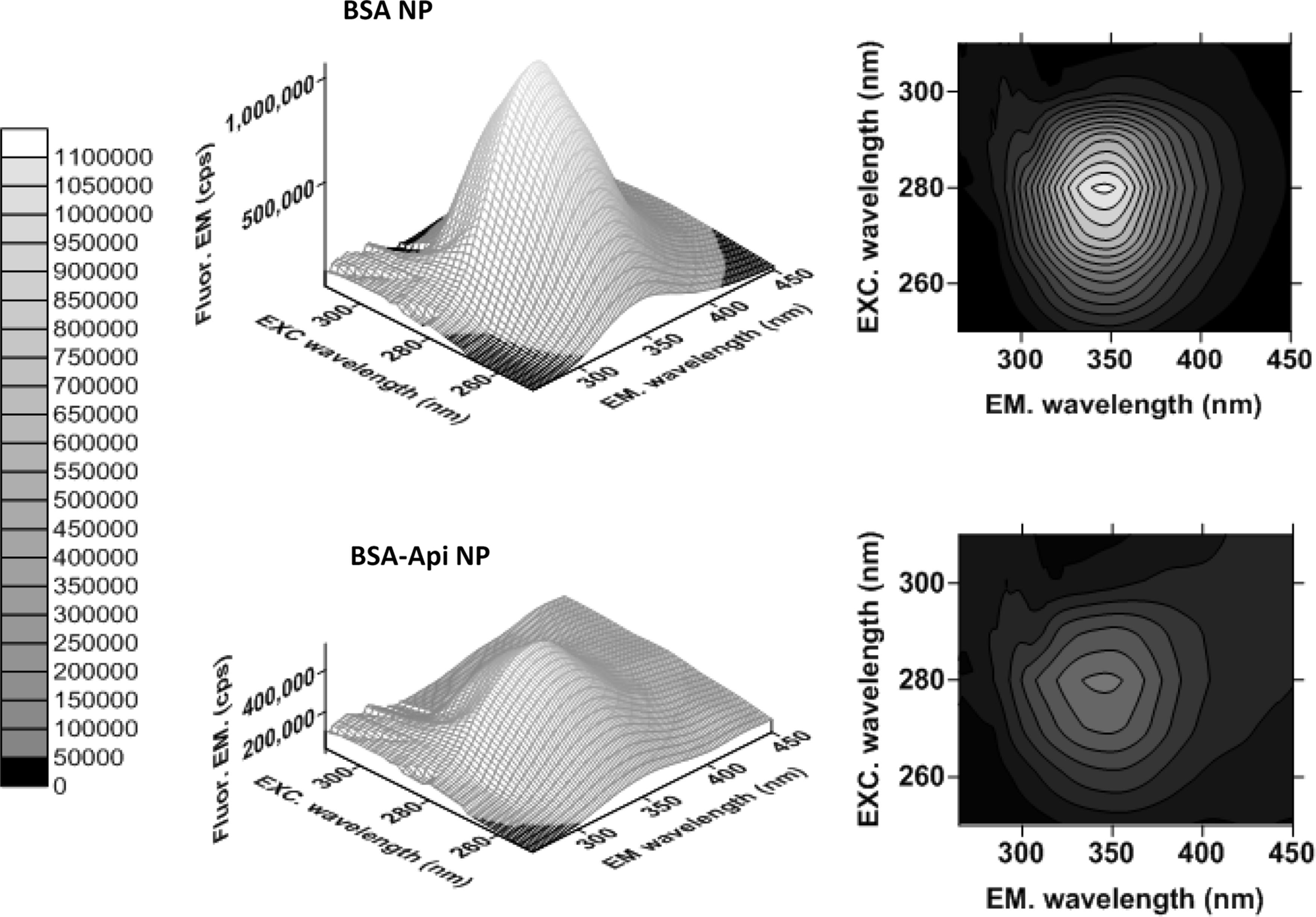

Three-dimensional fluorescence emission maps and two-dimensional contour maps of empty BSA nanoparticles and BSA-Api nanoparticles. Color scale displays the range of observed fluorescence intensities. EM, emission; EXC, excitation.

Determination of residual moisture

Moisture content is mainly influenced by the spray drying conditions. Increased heat energy availability provided by regulating inlet air temperature and aspirator capacity allows more efficient drying, thus resulting in the lower moisture content demonstrated. However, degradation of heat-sensitive materials such as proteins may occur; therefore, inlet air temperature should be kept below 120°C.⁽⁴⁴⁾ The water content is also affected by the type of excipients and the ratio with the nanoparticles.⁽⁴⁵⁾ Moisture content is an important factor that can significantly influence the aerodynamic properties of aerosols. It can change the surface of particles, promote aggregation, and influence the crystallinity of the spray-dried samples.⁽⁴⁴⁾

In this study, the residual water content was determined by using Karl Fisher titration. All formulations had relatively low moisture content, which followed the rank order of l-leucine (4.11% ± 0.21%, w/w) < excipient-free (4.55% ± 0.49%, w/w) < lactose (5.8% ± 0.36%, w/w) containing products. These results demonstrate that the optimized outlet air temperature (around 65°C) was suitable for serum albumin. The l-leucine containing formulation had the lowest water content due to the low hygroscopic behavior of this amino acid.^(46,47) The low moisture content can potentially improve the flowability and consequently enhance lung deposition due to reduced aggregation as expected. Storage conditions are also important, for example, the spray-dried amorphous lactose particles could transform into crystals easily in humidity above 30%.⁽⁴⁸⁾

Fourier transform infrared spectroscopy

FT-IR analysis allows a quick and efficient identification of the compounds and by their functional groups and bond vibrations. In the spectrum of raw Api, the following characteristic regions were observed: 2710–2580 cm⁻¹ O-H bond, 1730–1680 cm⁻¹ C = O stretch, and 1450–1380 cm⁻¹ C-H bend. A broad peak observed at 3300 cm⁻¹ can be attributed to O-H stretching and those bands at 1600–1400 cm⁻¹ (C-C stretch in ring) and 900–675 cm⁻¹ (C-H “oop”) can be assigned to the aromatic group (Fig. 4A). In the spectrum of BSA protein, the amide I band at 1635 cm⁻¹ (mainly C = O stretch) and amide II band at 1530–1500 cm⁻¹ (C–N stretching and N–H bend) can be seen. The medium broad peak at 3276 cm⁻¹ corresponds to bonded N-H stretch of amide and a smaller band at 1057 cm⁻¹ is the C-N stretch of aliphatic amine. In the spectra of the excipient-free formulation, the characteristic amide bands of BSA can be seen and peak at 830 cm⁻¹ indicating the presence of Api (aromatic), which is an indirect confirmation of Api encapsulation on BSA-NPs. Conformational changes can be suggested due to the lack of the peak of aliphatic amine.

OPEN IN VIEWER

FIG. 4.

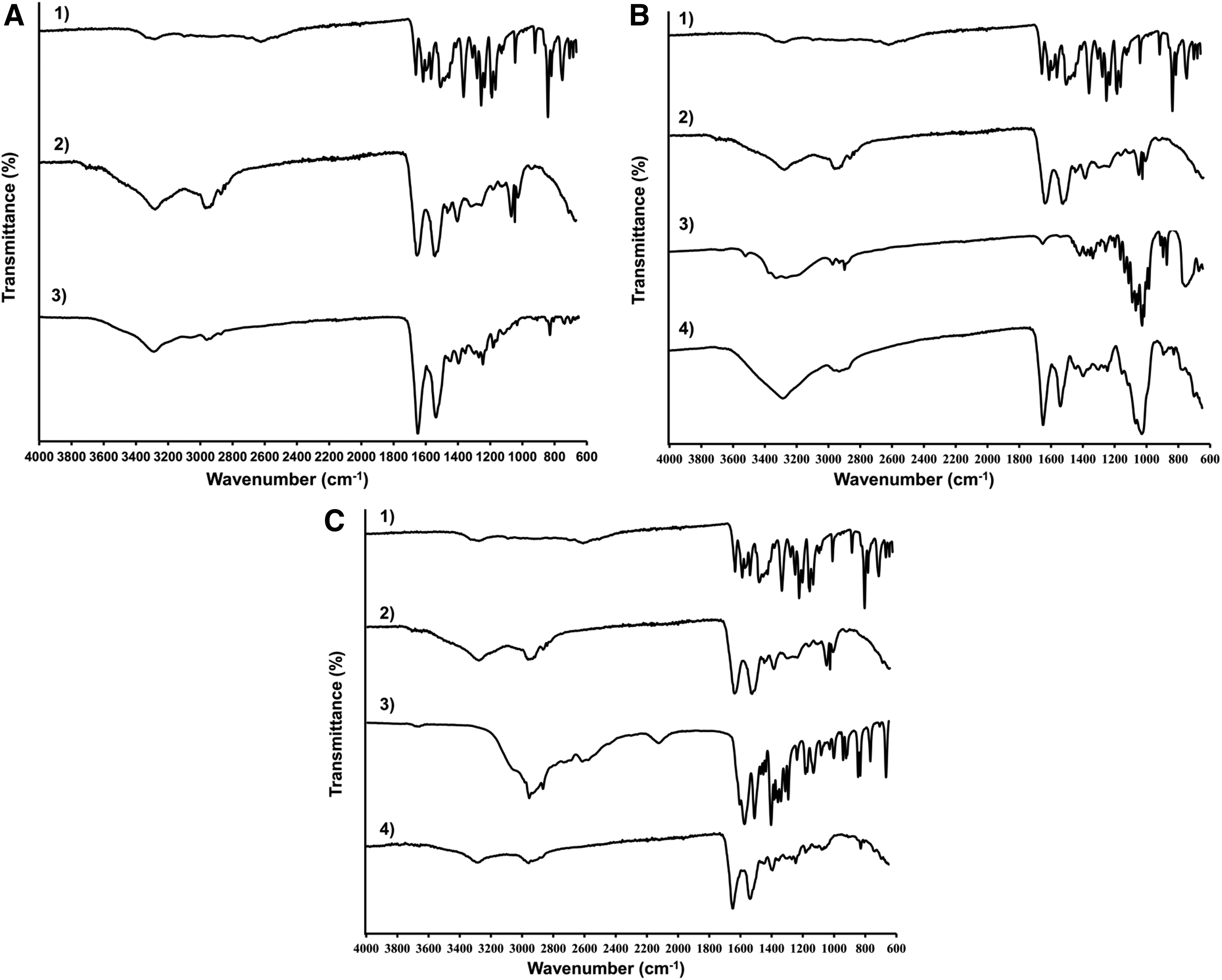

(A) FT-IR spectra of apigenin (1), BSA (2), and the excipient-free spray-dried BSA-Api nanoparticles (3). (B) FT-IR spectra of apigenin (1), BSA (2), lactose (3), and spray-dried BSA-Api nanoparticles with lactose (4). (C) FT-IR spectra of apigenin (1), BSA (2), L-leucine (3), and spray-dried BSA-Api nanoparticles with L-leucine (4). FT-IR, Fourier transform infrared spectroscopy.

The spectra of raw Api, BSA, lactose, and lactose containing product are displayed in Figure 4B. In the spectra of lactose, there is also a broad band around 3300 cm⁻¹ indicating the stretching vibration of hydroxyl group. A weak band at 1654 cm⁻¹ is the bending vibration of the crystalline water and peaks at 1200–1070 cm⁻¹ demonstrating the stretching vibration of C-O-C in the glucose and galactose. The spectrum of amorphous lactose has the less number and defined peaks and therefore it could be distinguished from the crystalline spectrum.⁽⁴⁹⁾ The characteristic broad band at 3300 cm⁻¹ in the spectrum of spray-dried product could originate from the residual water content that is further supported by the Karl Fischer titration data (lactose containing product had the highest water content). Similarly to the spectrum of excipient-free formulation, the amide bands of BSA and a small peak of Api could be observed. The peaks at 1200–1070 cm⁻¹ demonstrate the lactose content and the amorphous state could be assumed.

Functional groups of l-leucine lead to its characteristic spectrum (Fig. 4C). The strong band in the region of 2970–2910 cm⁻¹ can be accounted for the aliphatic C-H stretching. The bonded N-H stretch is present in the region of 2600–2450 cm⁻¹. The NH₂ bending and the C-N skeletal vibration appear in the regions of 1595–1550 cm⁻¹ and 1250–1020 cm⁻¹.⁽⁵⁰⁾ The presence of BSA characteristic peaks on the spray-dried formulation could be mainly observed with a small peak of Api, but the major characteristic peaks of l-leucine are obscured.

X-ray powder diffraction

XRPD is considered to be the most accurate method to study crystalline structure.⁽⁵¹⁾ The combined XRPD diffractograms of Api and spray-dried formulations are presented in Figure 5. The characteristic narrow diffraction peaks of Api are due to the crystalline state of the commercially available material. In comparison, broad diffuse peaks could be observed in the diffractograms of the spray-dried formulations suggesting the amorphous state of BSA-Api-NPs. The observed XRD patterns of spray-dried l-leucine and lactose were consistent with literature.^(48,52,53)

OPEN IN VIEWER

FIG. 5.

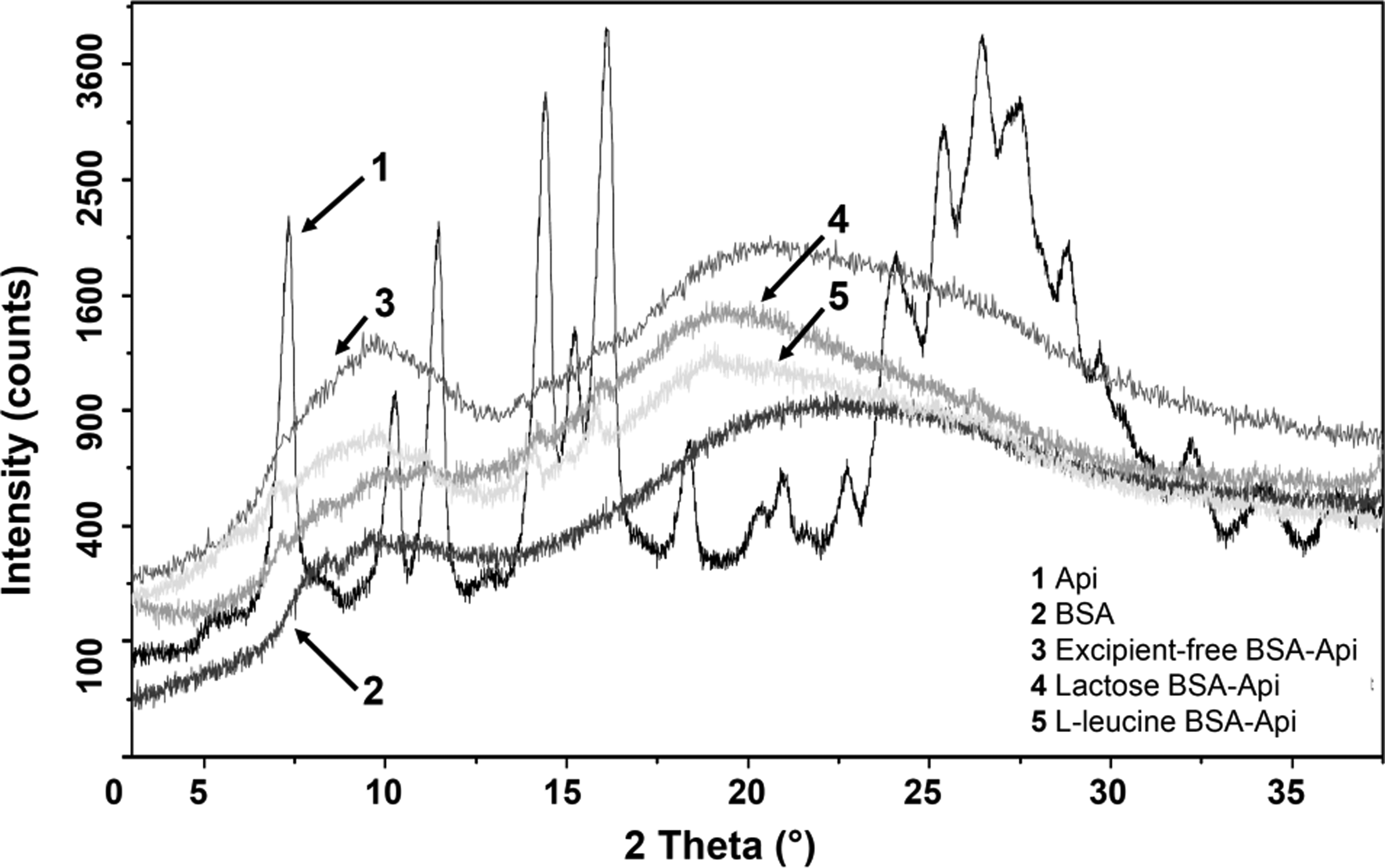

X-ray powder diffraction pattern of raw apigenin and the formulations.

DSC analysis

The DSC curves of raw Api, excipents, physical mixtures, and spray-dried formulations were studied to examine crystallinity. As seen in Figure 6, there is only one sharp endothermic peak at 360°C indicating the melting point of raw Api; no impurities were observed. Drug-free albumin exhibited two broad peaks with onset values of 220°C and 310°C. The evaporation of residual water occurred at 50–120°C. The melting point of Api on the thermograms of raw material and physical mixtures corresponds to the crystalline habitus.

OPEN IN VIEWER

FIG. 6.

(A) DSC thermograms of apigenin (1), BSA (2), physical mixture (3), and excipient-free spray-dried BSA-Api nanoparticles (4). (B) DSC spectra of apigenin (1), BSA (2), physical mixture (3), and spray-dried BSA-Api nanoparticles with lactose (4). (C) DSC spectra of apigenin (1), BSA (2), physical mixture (3), and spray-dried BSA-Api nanoparticles with L-leucine (4). DSC, differential scanning calorimetry.

In the thermograms of physical mixtures in Figure 6B, the endothermic peak at 140°C indicating the crystalline lactose⁽⁵⁴⁾ and the sublimation of l-leucine crystals occurred at 200°C–230°C (Fig. 6C).⁽⁵⁵⁾ However, in each spray-dried formulation, the absence of endotherms confirms the loss of crystallinity. No peak could be observed around 360°C indicating that Api is in an amorphous state due to the spray drying process, which is in agreement with the XRPD diffractograms. The amorphous form generated may result in higher solubility of the powders and dissolution of apigenin in lung fluids.

Aerosol particle size analysis and redispersibility in water

Dry powder formulations of BSA-Api-NPs were prepared with the aim of studying the influence of excipients on the particle size and aerodynamic behavior. The deposition of aerosols is significantly affected by particle size, which should be small enough to pass through the upper airways and large enough to avoid exhalation.⁽⁵⁶⁾ Gravitational sedimentation is the main driving force for deposition of a nanoparticulate system in the lung due to the formation of aggregates in the micrometer size range. Particle geometry and surface properties also play a significant role in reaching the bronchioles.^(22,32) It is well known that particles can be deposited efficiently deeper in the lung if their aerodynamic diameter is in the range of 1–5 μm and only those with 1–3 μm can reach the respiratory zone.⁽⁵⁷⁾ Particles, larger than 5 μm, tend to deposit in the oropharynx and the mucociliary clearance plays a role in clearing the particles toward the pharynx. However, very small particles, less than 1 μm are usually exhaled because of the low inertia.^(58,59)

Mucociliary clearance is part of the natural defense mechanism of the lung as well as the phagocytosis of macrophages in the alveolar region. The aerosol particle size was determined by Sympatec HELOS laser diffractometer (Table 1). The excipient-free and lactose containing products have similar sizes, while spray drying with l-leucine produced the smallest particles (D₅₀ = 2.473 μm). In all cases, the particle size could ensure the highest probability of delivery of apigenin into the respiratory zone.

Following the redispersion of spray powder formulations in distilled water, the size of the particles was preserved in the nanometer size range: without excipient (358.9 ± 5.3 nm, PDI: 0.315 ± 0.013), lactose (366.1 ± 4.8 nm, PDI: 0.382 ± 0.014), and l-leucine (343.7 ± 2.9 nm, PDI: 0.316 ± 0.011) containing products. Spray drying has no significant effect on the average size of the particles, suggesting the deposition of apigenin containing nanoparticles in the lung fluid. Moreover, the excipients did not affect adversely the particle size.

Solubility and drug release studies of BSA-Api formulations

The solubility of apigenin in nanoparticles was investigated in PBS buffer and mSLF (Fig. 7A). The results showed that the solubility was slightly increased in mSLF media (82%–98% within 5 minutes), however, it was high in PBS buffer as well (79%–95% within 5 minutes). These data indicated that the solubility of apigenin could be highly enhanced by BSA nanoparticles in aqueous medium. Nevertheless, the dispersibility enhancers could play a role in the solubility. In case of excipient-free formulation, 91% of the encapsulated apigenin was dissolved in mSLF within 5 minutes. Formulation prepared with lactose increased the solubility rate up to 98%, however, it was slower (82%) when using l-leucine and completed within 2 hours. These results could be attributed to the solubility of the excipients themselves; lactose has very good water solubility, but l-leucine possesses a low solubility in water.⁽⁵⁵⁾

OPEN IN VIEWER

FIG. 7.

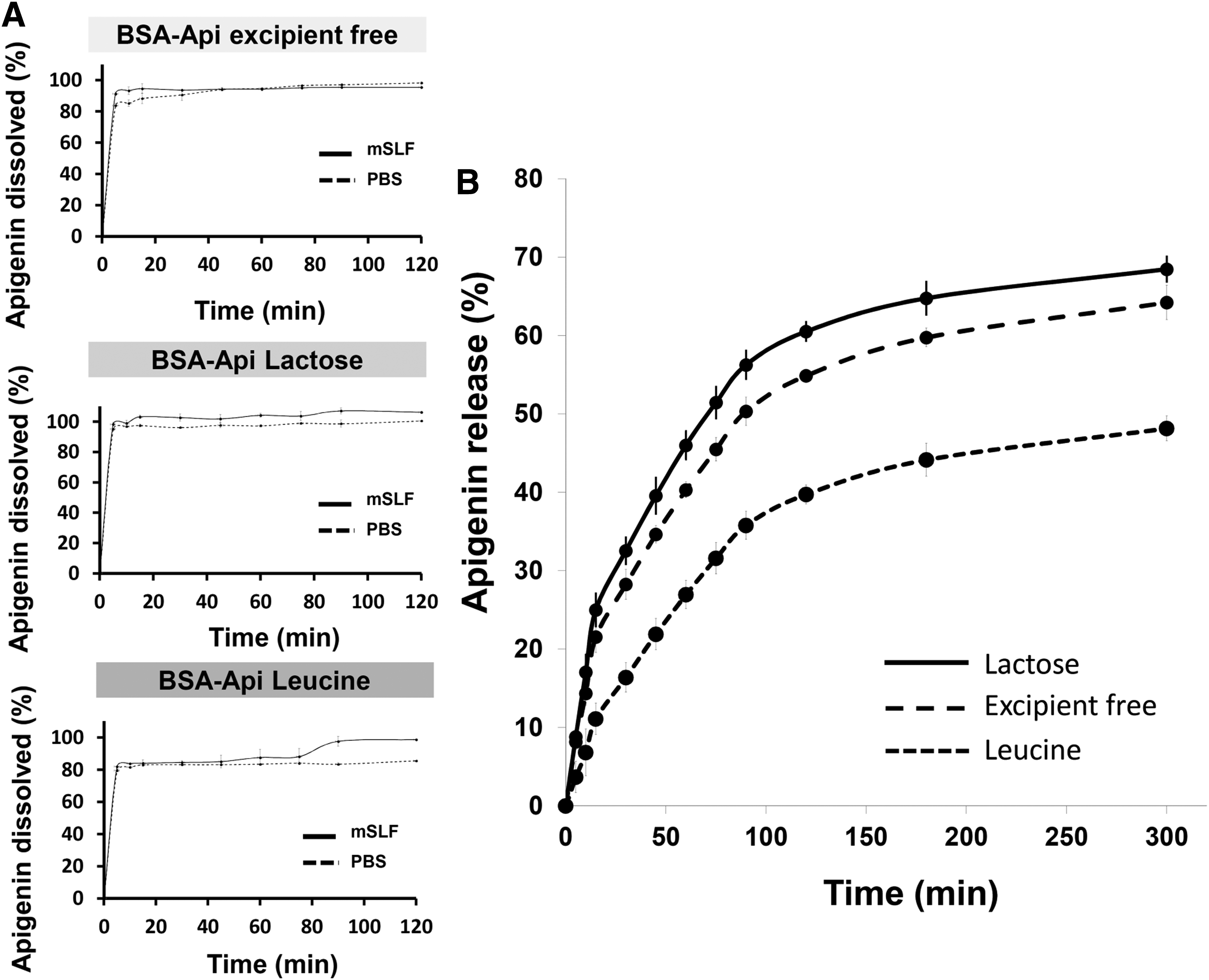

(A) Solubility of spray-dried BSA-Api formulations in PBS buffer and mSLF). (B) Dissolution of apigenin from the formulations as a function of time in mSLF. mSLF, modified simulated lung fluid.

The apigenin release from the spray-dried BSA-Api-NPs was investigated with Franz cell apparatus. It is a well-known device for the dissolution of semisolid dosage forms and approved by the USP. However, there is no standardized method for inhaled powders, Franz cell could be one of the alternative choices due to simulating the diffusion-controlled air–liquid interface of the lung. On the contrary, it has some limitations such as small air bubbles under the contact area of membrane to dissolution medium, wide range of SD, or recovery usually around maximum 90%.⁽⁶⁰⁾ Based on the solubility measurements, mSLF was applied.

The cumulative dissolution curves of the prepared formulations are shown in Figure 7B. As expected, the dissolution was affected by the cospray-dried excipients. Lactose containing product resulted the fastest and highest apigenin release due to the excellent water solubility. This enhancement of the dissolution is supported by previously published data.⁽⁶¹⁾ In contrast, the dissolution rate was decreased when l-leucine was applied. The coating layer of L-leucine slowed down the dissolution of apigenin, which could be well observed in the dissolution curve. The low water solubility of l-leucine is able to hinder the dissolution of the drug, which was published previously.⁽⁵⁵⁾ These results suggest that the excipients play an important role in the solubility and the dissolution as well.

Aerosol delivery of BSA-Api formulations

Particles can be taken up by alveolar macrophages, which influence the therapeutic outcome. Those nanoparticles that are soluble and above 200 nm are able to escape from the macrophages and therefore exhibit sustained therapeutic effect.⁽⁶²⁾ The lung deposition and therefore the efficacy of the inhaled therapeutics are governed by their aerosol properties.⁽⁵⁶⁾ Manufacturing respirable nanoparticles could be produced by aggregation in the favorable size range or their incorporation into microparticles (1–5 μm).⁽²⁶⁾

Lactose monohydrate is a well-known, traditional carrier for improving the performance of inhaled products; however, it is influenced by physicochemical properties and interaction with the active ingredient.^(63,64) It is the only FDA-approved carrier and has also been shown to be a potential excipient for protein encapsulation.^(27,64) Recently, novel materials such as specific amino acids have been developed for pulmonary formulations⁽²⁶⁾ and l-leucine is one of the most effective dispersibility enhancer among them.⁽⁴⁷⁾ Previous studies proved that 5% (w/w) l-leucine improved the aerosol performance of raw naringin⁽⁶⁵⁾ and inclusion up to 15% (w/w) l-leucine resulted in higher ED and FPF of powder formulation of gentamicin.⁽⁴⁶⁾

In this study, in vitro aerosol properties of three different dry powder formulations were evaluated using the NGI, which is regarded as an optimal instrument for analysis of aerodynamic behavior of aerosol formulations for pulmonary drug delivery⁽⁶⁶⁾ according to the European and US Pharmacopeias. The obtained data and deposition pattern are presented in Table 2 and in Figure 8. It can be seen that more than 90% of apigenin could be recovered from the NGI, which is in the acceptable pharmacopeia range (75–125%). The ED ranged between 91% and 96% indicating good flowability and high dispersibility of the powders. l-leucine containing formulation had the highest ED as it could improve significantly the flowability of the powders.^(47,53)

OPEN IN VIEWER

FIG. 8.

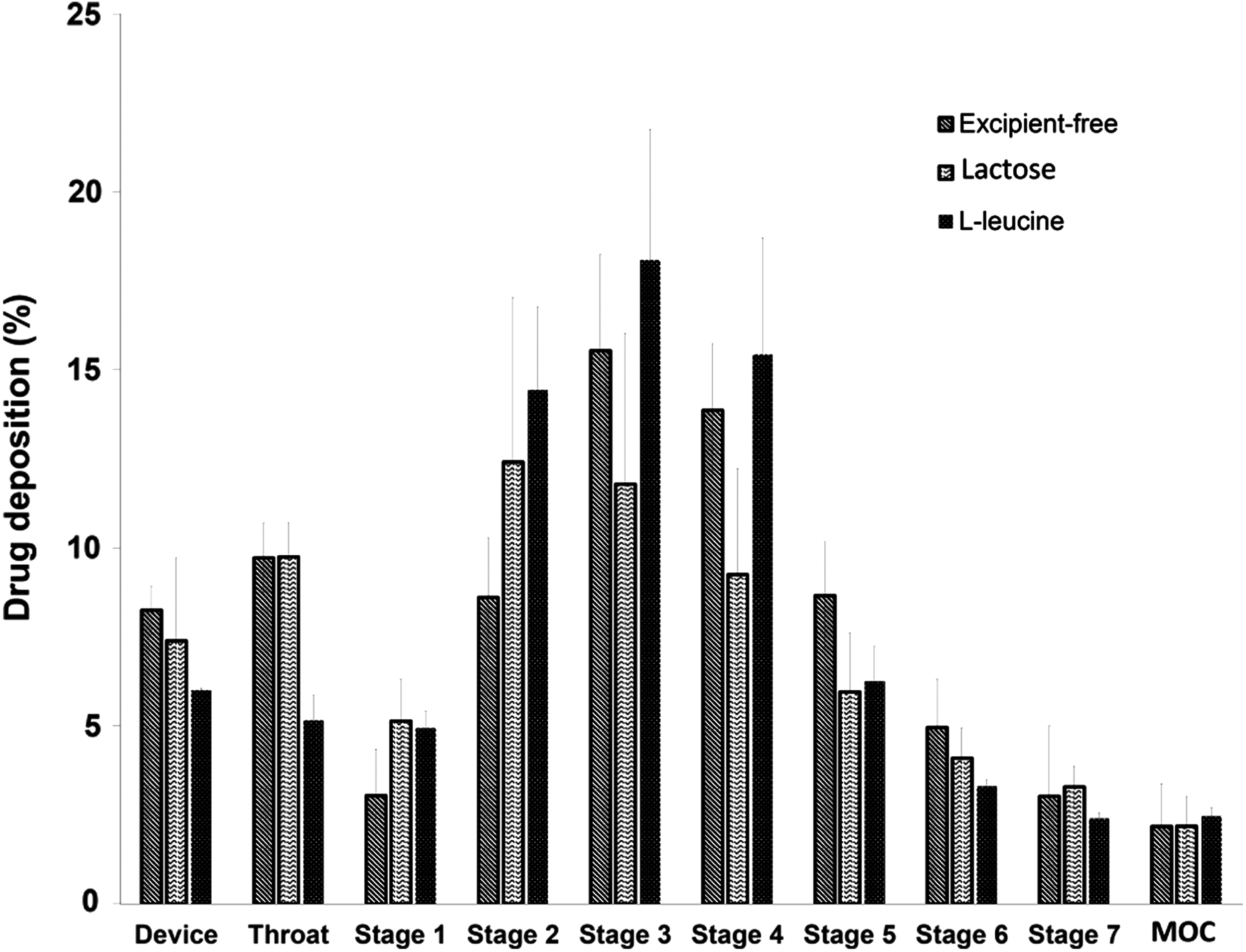

Next-generation impactor deposition pattern of the spray-dried BSA-Api formulations.

Figure 8 shows the amount of Api deposited on the throat device and Stages 1–7 expressed as a percentage of the total amount of recovered powder. All formulations exhibited increased deposition in Stage 2–4, indicating enhanced drug delivery to the alveolar regions. As expected, improved aerosol performance and deposition (Stage 3 and 4) could be observed when l-leucine was used an as excipient. The FPF is one of the key parameters in aerosol delivery and should be as high as possible.⁽⁶⁷⁾ In this study, the FPF values ranged between 58% and 66%, suggesting that the particles could be delivered into the peripheral regions. Spray drying of nanoparticles in the presence of l-leucine resulted a higher FPF value (66%) due to improved surface properties and morphology of the particles.⁽⁶⁴⁾

In general, MMAD values <5 μm are for pulmonary lung delivery and between 2 and 3 μm are optimal for deep lung deposition.⁽⁵⁶⁾ In each cases, the calculated MMAD data were in agreement with the physical diameter size of the particles measured by laser diffractometer. The data obtained (<5 μm) support good dispersibility of the particles into the lower airways and the deep lung. Therefore, local delivery to the alveoli could be assured by both excipient-free and lactose formulations generated (MMAD 3.2 and 3.1 μm). Moreover, formulation with l-leucine (MMAD 2.1 μm) would be more optimal for deep lung deposition. The size distribution of an aerosol is described best by GSD.⁽⁶⁸⁾ Based on the GSD data obtained, the l-leucine containing formulation had the narrowest size distribution (1.8 μm) but that of the others was also in the acceptable range (<3 μm).

The overall values demonstrate that the particles of each dry powder nanoparticle formulation are in the favorable aerodynamic size range, possess good dispersibility properties and particle deposition. Therefore, BSA-NPs are an attractive delivery system for pulmonary drug delivery. We demonstrated that l-leucine improved better the aerosolization properties of BSA-Api-NPs than lactose monohydrate. Therefore, it can be concluded that the use of excipients influences the aerosol performance of nanoparticles.

Particle morphology

SEM analysis was conducted to investigate the morphology of the powders (Fig. 9A, B). It is well known that the morphology of the particles is strongly affected by the solubility of the components and the nature of the excipients.^(46,47) The commercially available Api was a crystalline powder featuring needle-shaped crystals. The excipient-free spray-dried nanoparticles exhibited a spherical shape and smooth or wrinkled surface. Particles of lactose containing product had raisin-like surface and some of the particles were larger in accordance with the laser diffraction particle size analysis.

OPEN IN VIEWER

FIG. 9.

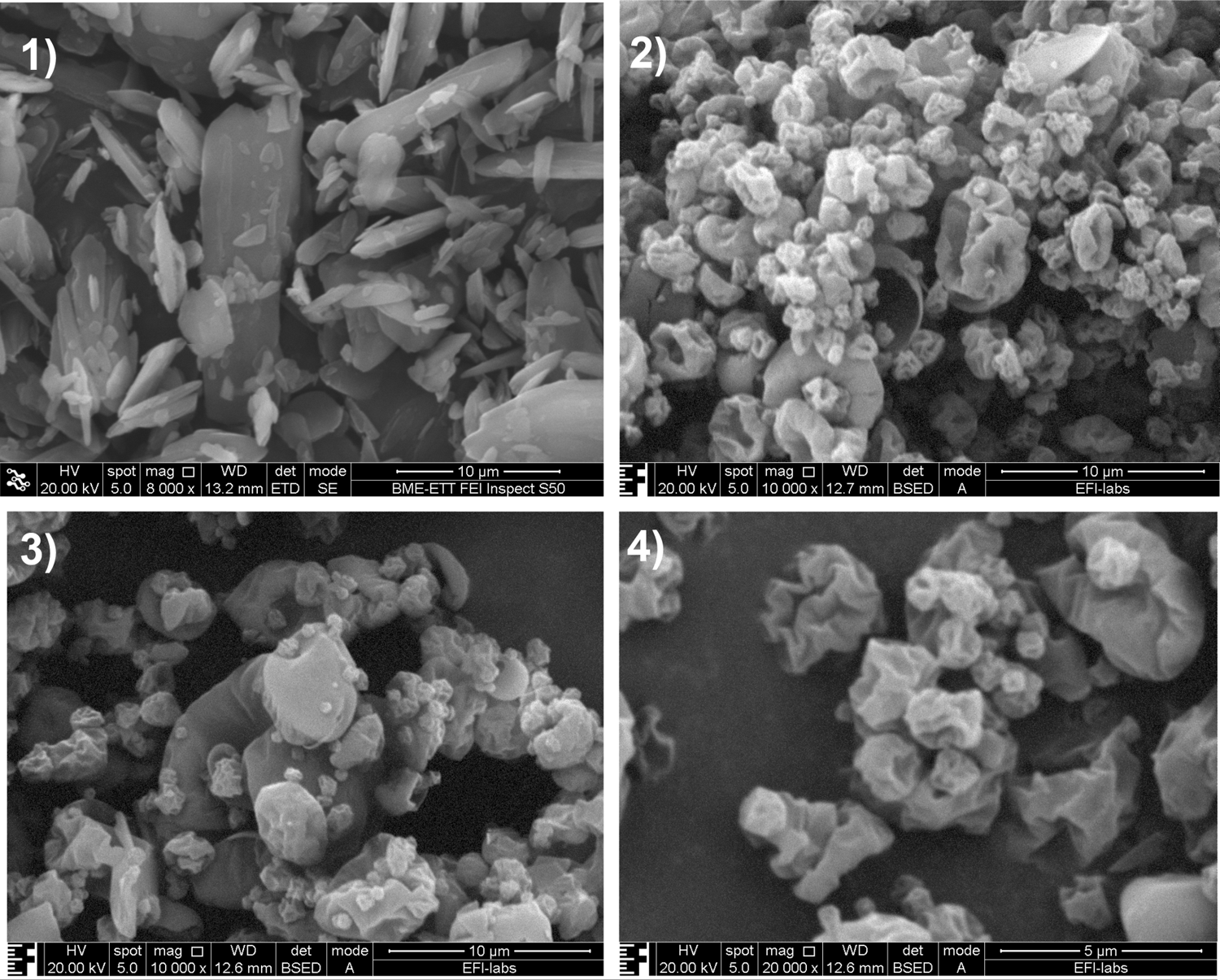

Scanning electron microscopy images of raw apigenin (1), excipient-free spray-dried BSA-Api nanoparticles (2), spray-dried BSA-Api nanoparticles with lactose (3), and spray-dried BSA-Api nanoparticles with L-leucine (4) 20,000 × magnification.

Powders prepared with l-leucine comprised small and collapsed particles with a strongly corrugated surface. The low aqueous solubility of l-leucine leading to a shell on the surface of the droplet that interferes with the diffusion of water; therefore, corrugated particles could form. This outcome was consistent with previous observations.^(46,53,69) Corrugated surface improves the dispersibility of the dry powder formulations and enhances respirability due to reduced interparticulate cohesion (Van der Waals forces), which is beneficial for particles intended for inhalation.⁽⁷⁰⁾
