Inhalation Profiles Through a Dry Powder Inhaler: Relation Between Inhalation Technique and Spirometric Measures

Abstract

Background:

The understanding of the real flow profiles through a dry powder inhaler (DPI), generated by asthma patients, is a prerequisite for satisfactory drug delivery to the lungs. The aims of the study were to assess the relationship between spirometric measures and inhalation profiles through a low-resistance DPI, and to compare parameters of those profiles between optimal and suboptimal inhalation technique type.

Methods:

Both healthy adult volunteers and patients with asthma were included in the study. Spirometry was conducted along with modified flow-volume test to detect expiratory levels (maximum “100%” exhalation to residual volume [RV] and halfway “50%” to RV). These were the reference levels of the depth of exhalation for each patient to simulate the effect of incomplete exhalation. Individual inhalation profiles were recorded using spirometry in-house software as the volumetric airflow through the inhaler versus time. Inspiratory flow parameters were extracted: time to peak inspiratory flow through inhaler (PIF_inh), time at which peak inspiratory flow occurs (tPIF_inh), total inhalation time (T), and inhaled volume during maneuver (V).

Results and Conclusions:

There are significant relationships between spirometric indices and parameters of inhalation through a low-resistance, cyclohaler-type DPI (assessed by single-factor analysis of Spearman's rank correlation coefficient). Multiple regression models were constructed, predicting inspiratory flow parameters (including spirometric indices, demographic parameters, and inhaler's usage history as determinants). The exhalation halfway to RV before inhalation did not affect significantly PIF_inh and tPIF_inh (and, thus, initial flow dynamics) in asthma patients. T and V parameters were then significantly decreased, but seemed sufficient for successful DPI performance. Both exhalation to RV and incomplete exhalation halfway to RV preceding inhalation allow for effective usage of low-resistance DPI.

Introduction

Adequate drug delivery through dry powder inhalers (DPIs) is one of the cornerstones of the effective management of obstructive airway diseases, including asthma. Forceful flow through DPI with a certain resistance should induce fluidization and dispersion of a drug powder, which is emitted as an inhalable aerosol. Flow rate, pressure drop, shear stresses, and generated power during the inhalation maneuver are the inter-related factors known to influence the disaggregation process.^(1–4) Superimposed onto the time-varying flow patterns are emission and transport “windows,” when the dose leaves a reservoir or a capsule and enters the oropharyngeal region and is inhaled to the lower airways.^(5,6) Given the complexity of DPI systems, the understanding of the real flow profiles through DPI generated by asthma patients is a prerequisite for estimation of the expected deposition of inhaled therapeutic agents.

Current recommendations on asthma management focus on matching inhaler device to the patient's inspiratory capabilities and on confirming the inhalation technique adequacy to achieve an optimal drug-device performance.⁽⁷⁾ A cardinal feature of asthma is an increased lower airway resistance due to airway narrowing caused by smooth muscle contraction, airway inflammation, mucus hypersecretion, and its intraluminal accumulation.^(8,9) These conditions lead to an increase in the resistive work of breathing.⁽¹⁰⁾ Considering that work of breathing (required inspiratory effort) is the rate of energy applied to the DPI platform during the whole inhalation and part of it is the energy input for the emission and dispersion processes, the increased airway resistance may negatively impact aerosol drug delivery.^(11,12) Moreover, a loss of lung elasticity may result in reduced inspiratory and expiratory capabilities. Thus, severity of asthma may be an important factor determining patient's compliance with a passive DPI, hypothetically resulting in unsatisfactory flow profiles through the device in patients with severe airflow limitation. Suboptimal flow patterns do not allow for consistent and reliable dose emission and, in consequence, preclude generation of a good quality aerosol (particle size characteristics) and its appropriate deposition in the desired bronchial regions.⁽⁶⁾

Regarding the effective inhalation technique, a great emphasis is placed on DPI mishandling, which can be eliminated by training, retraining, or seeking alternative inhalers by health care professionals managing asthma patients. A number of studies have been aimed at the identification of patient's key errors in DPI inhalation technique, both specific to a given type of inhaler (e.g. failure to achieve forceful and rapid inspiratory flow) and nonspecific ones, that is, common to all DPI devices (e.g., not taking sufficient exhalation before inhalation).^(6,13–21) The majority of inhalation errors have been shown to be repetitive and therefore, potentially possible to eradicate. However, irrespective of patients' dexterity and cognitive ability, it should be kept in mind that some individuals may demonstrate natural inhalation patterns being difficult or even impossible to be modified due to the reduced inspiratory capacity.

The relationship between patients' characteristics, including pulmonary function and generated inspiratory flow through DPIs (of different intrinsic resistance), has been evaluated in numerous studies.^(22–31) In this context, the unsteadiness of inhalation maneuver should be addressed, and in vitro/in silico analyses should include previously recognized indicators of DPI performance, which include peak inspiratory flow through inhaler (PIF_inh), time to peak inspiratory flow through inhaler (tPIF_inh), total inhalation time (T), and inhaled volume during maneuver (V).^(32,33) The dose delivery performance was studied extensively in terms of the impact of aforementioned parameters. In vitro studies covered topics related to dose emission characteristics and aerodynamic particle size characteristics of medicinal aerosol,^(34–43) while computational studies were focused on better understanding of the fluidization and mechanisms of powder dispersion, jet velocity, turbulence, fluid dynamics, and particle dynamics.^(44–48) To date, studies have been focused on collecting asthmatic or chronic obstructive pulmonary disease (COPD) inhalation profiles for experimental and modeling purposes to analyze realistic flow conditions.

The aims of the study were to assess the relationship between spirometric measures and inhalation profiles through a low-resistance DPI, and to compare parameters of those profiles between optimal and suboptimal inhalation technique type with different expiratory levels before inhalation (“maximum” and “halfway” to residual volume [RV]).

Materials and Methods

General study design

This was a basic research, investigator-initiated, open-label study. The study was designed to collect the inhalation profiles of asthmatics and healthy controls inhaling through a representative DPI together with the respective clinical characteristics of the subjects. All study procedures were performed during a single visit. First, a questionnaire, which included demographic data, questions on medical history with information on the inhalers' usage, and the smoking status, was completed. Then, spirometry and modified flow-volume test to record crucial expiratory levels were performed. Afterward, individual inhalation profiles of participants as they inspired through the cyclohaler-type DPI from the RV level and halfway to RV level were recorded.

Patients and volunteers

Adult patients with physician-diagnosed, well-controlled asthma treated on an outpatient basis in the tertiary university hospital in Warsaw were included. Well-controlled asthma was defined as the absence of daytime asthma symptoms more than twice a week, nocturnal symptoms, the need for bronchodilator reliever use, and activity limitations in the previous month according to global initiative for asthma (GINA) recommendations.⁽⁷⁾ The severity of asthma was assessed based on the level of treatment required to control symptoms and exacerbations according to GINA guidelines.⁽⁷⁾ Healthy volunteers without respiratory symptoms and history of chronic pulmonary diseases were recruited by investigators from the general population of Warsaw, Poland.

The exclusion criteria for both study groups were as follows: the diagnosis of respiratory diseases other than asthma, asthma exacerbation, contraindications for spirometry, or inability to perform acceptable and repeatable spirometry.⁽⁴⁹⁾ Healthy volunteers, in whom spirometry conducted during the visit revealed airway obstruction or reduced vital capacity, were also excluded. Ethics approval was obtained from the Institutional Review Board of the Medical University of Warsaw (KB 43/2013). All participants gave written informed consent.

Spirometry

Spirometry was performed with LungTest 1000 spirometer (MES, Cracow, Poland) according to the American Thoracic Society (ATS)/European Respiratory Society (ERS) recommendations.⁽⁵⁰⁾ Thirty-millimeter diameter reusable, sterilizable mouthpieces (MES) and reusable, sterilizable DV 40 pneumotachographs (MES) were used. Following parameters were measured: forced expiratory volume in 1st second (FEV₁), forced vital capacity (FVC), maximal vital capacity (VC_max), forced inspiratory volume in 1st second (FIV₁), peak expiratory flow (PEF), peak inspiratory flow (PIF), forced expiratory flow at 25%–75% (FEF_25–75), mean expiratory flow at 75% (MEF₇₅), 50% (MEF₅₀) and 25% (MEF₂₅) of the vital capacity. Percentages of predicted values (for FEV₁ and PEF) were calculated using The Global Lung Function Initiative (GLI) ERS Task Force equations for Caucasians.⁽⁵¹⁾

Modified flow-volume test

Modified flow-volume test was performed using the same LungTest 1000 spirometer supplemented by an in-house software (SpiroMon), developed by Laboratory for Diagnostics and Therapy of Cardiovascular-Respiratory System (Nalecz Institute of Biocybernetics and Biomedical Engineering, Polish Academy of Sciences, Warsaw, Poland). Participants were asked to breathe regularly during several voluntary respiratory cycles until a stable end-expiratory tidal volume was detected. Then, participants were asked to exhale slowly to RV to measure the expiratory reserve volume (ERV). The mean value of 3–6 repeatable measurements was used for further experiments. ERV repeatability was defined as a difference between the largest and the next largest ERV of ≤10%. On the basis of above measurements three crucial expiratory levels were determined: the resting expiratory level, the level of exhalation to RV, and the level of exhalation halfway to RV. The last two expiratory levels corresponded to different levels of exhalation (further referred to as “maximum” and “halfway” level) that were tested during inhalation maneuvers in the next phase of the study. These were the reference levels of the depth of exhalation for each patient to simulate the effect of incomplete exhalation.

Collection of inhalation profiles

The final phase of the study included the recording of individual airflow profiles during inhalation maneuver through the cyclohaler-type DPI using two levels of the inhalation onset: maximum and halfway. All participants received direct verbal instructions from medical staff on how to use a low-resistance DPI. Each subject was asked to inhale 10 times through the experimental setup (Fig. 1): five times from the maximal level and five times from the halfway level. Individual inhalation profiles through a cyclohaler-type inhaler in airtight housing connected to a pneumotachograph of spirometer were recorded as the volumetric airflow through the inhaler versus time, using the software protocol of 25 Hz sampling rate. RS01^® inhaler (Plastiape Spa, Osnago LC, Italy) was selected for this study, as a representative of breath-actuated low-resistance DPIs (intrinsic resistance = 0.017 kPa 0.5 L/min). Inhalation maneuvers were performed with DPI containing empty hard gelatin DPI Coni-Snap capsule (Capsugel, USA). No study drugs were administered in this protocol. No follow-up visits were required.

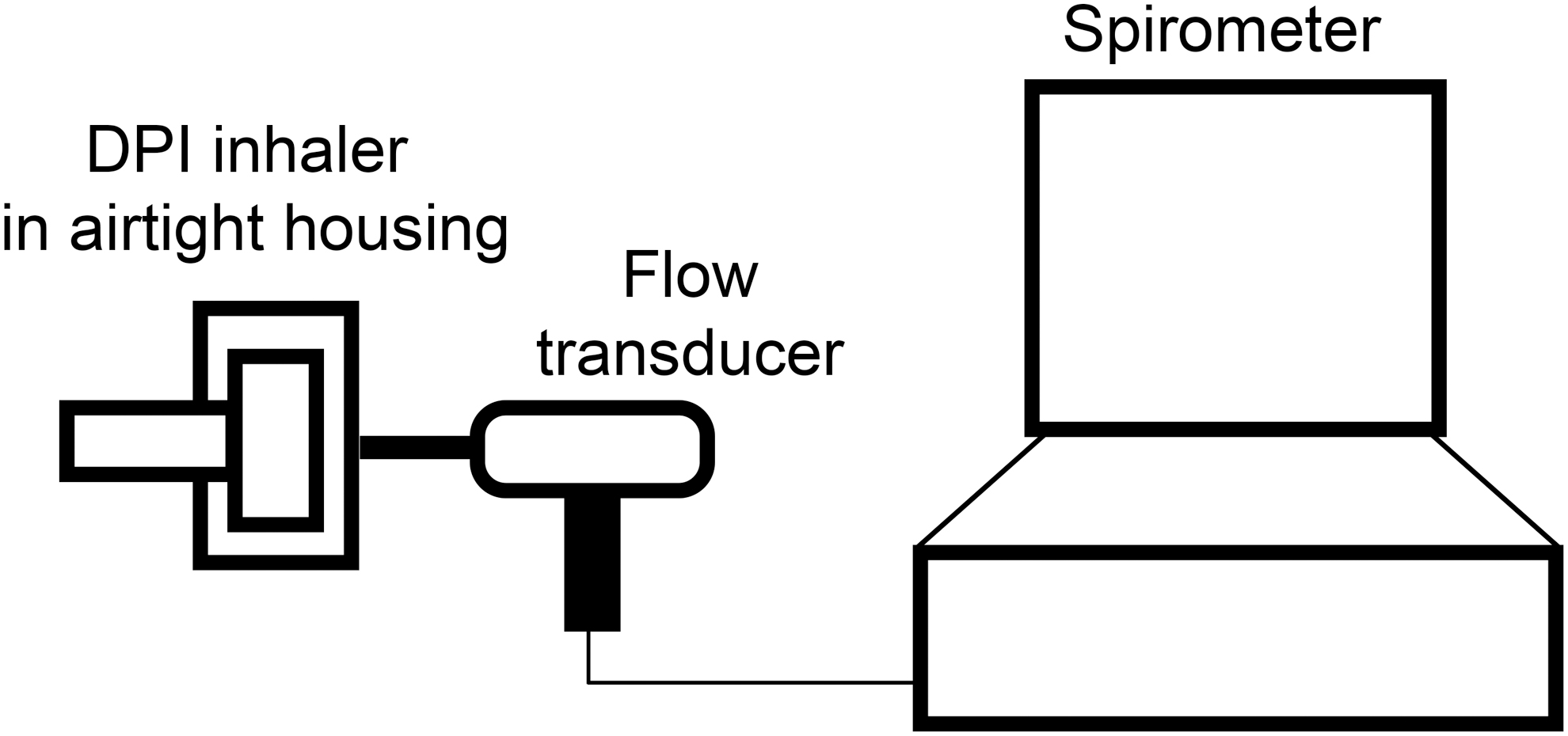

FIG. 1.

Experimental setup for modified flow-volume test. Individual inhalation profiles through a cyclohaler-type inhaler in airtight housing connected to a pneumotachograph of spirometer were recorded as the volumetric flow rate of air exiting the mouthpiece of the inhaler versus time, using the software protocol of 25 Hz sampling rate. DPI, dry powder inhaler.

Data analysis and statistics

Demographic and spirometry data are presented as mean ± standard deviation. Asthma patients' characteristics, including current and previous inhaler's usage, are presented as number and percentage. Inhalation profiles recorded during the modified pulmonary function test were analyzed to determine their association with two factors: level of exhalation before inhalation (“maximum” and “halfway”) and asthma diagnosis. For this purpose, typical inspiratory flow parameters were extracted from each inhalation profile: PIF_inh, tPIF_inh, T and V described previously elsewhere.⁽⁵²⁾ Sets of values for PIF_inh, tPIF_inh, T and V were assessed. The maneuver with preceding exhalation to RV resulted in the data set denoted PIF_inh100%, tPIF_inh100%, T100%, V100%. The maneuver with preceding exhalation halfway to RV resulted in the data set denoted PIF_inh50%, tPIF_inh50%, T50%, and V50%.

We used the independent t-Student test and the U Mann–Whitney test to assess differences between healthy and asthma group in normally and not-normally distributed variables, respectively (when the assumption of homogeneity of variance has been met). In case of normally distributed variables exhibiting heterogeneity of variances, the t-Student test with Cochran–Cox adjustment was used. The t-Student test for dependent variables and the Wilcoxon matched pairs test were used to assess the differences between maximum and halfway types of exhalation, depending on the fulfilled assumptions of normally distributed variables and homogeneity of variance.

Further inferential statistics were estimated as follows: the quantitative relationship between mean inspiratory flow parameters (PIF_inh, tPIF_inh, V, and T) and set of explanatory factors (independent determinants) was examined using multiple regression method. Regression coefficients of factors were investigated, concerning selected demographic factors, spirometric parameters, and inhaler's usage history. Potential independent factors were gender, age, height, body mass index (BMI), FEV₁% predicted (FEV₁%pred), PEF % predicted (PEF%pred) or PEF, PIF, “DPI then/now,” “pressurized metered dose inhaler (pMDI) then/now” concerning past and/or present DPI and pMDI usage, respectively. Additional independent variable was coded as occurrence of “expiratory limitation.” Expiratory limitation was defined by FEV₁/FVC_ex percentile (pseudo-Tiffeneau index percentile), where the index value below the fifth percentile of the reference population was applied to diagnose expiratory limitation.

General linear models were used to assess the chosen sets of independent determinants in terms of multicollinearity among the variables in a regression model.

Single-factor, nonparametric analysis of Spearman's rank correlation coefficient was done to test the relationship between mean inspiratory flow parameters (PIF_inh, tPIF_inh, V, T) and chosen spirometric parameters: FEV₁, FEV₁%pred, FIV₁, FVC_ex, FVC_in, VC_max, PEF, PIF, FEF_25–75, FEF_25–75% predicted (FEF_25–75%pred), MEF₇₅, MEF₅₀, MEF₂₅, MEF₇₅% predicted (MEF₇₅%pred), MEF₅₀% predicted (MEF₅₀%pred), MEF₂₅% predicted (MEF₂₅%pred). “In” and “ex” denote inspiratory and expiratory parameters, respectively.

For every statistical analysis conducted throughout the study, a p-value <0.05 was regarded as statistically significant. Normality of the residuals was judged by normal quantile plots, visual inspection of the distribution of residuals, and the result of Shapiro–Wilk test. Statistica 13.0 (StatSoft Inc., Tulsa, OK) was used for all statistical analyses.

Results

Subjects

Forty-three subjects were initially enrolled. However, 3 (7%) of them had to be excluded from analysis due to the following reasons: inability to perform repeatable maximal exhalations (one asthma patient), diagnosis of asthma–COPD overlap (one asthma patient), and inability to perform repeatable spirometric maneuvers (one healthy volunteer). Thus, data from 40 eligible subjects (19 M, 21 F) were included in the final analysis. These included 16 healthy volunteers and 24 asthma patients. The comparative demographic, clinical, and baseline spirometry characteristics of the study groups are shown in Table 1. In our cohort asthma patients were significantly older compared with healthy subjects (45.7 ± 17.0 years, p < 0.008 vs. 31.6 ± 9.4 years). Furthermore, we found that FEF_25/75%pred and MEF₅₀%pred were significantly lower in asthma patients compared with healthy subjects: (61.9 ± 26.9% vs. 83.4 ± 19.7%, p = 0.009 and 60.3 ± 26.8% vs. 86.7 ± 21.5%, p = 0.002, respectively). As expected, we recorded that significantly higher percentage of asthmatic patients currently or previously used pMDI compared with healthy subjects (91.7% vs. 18.8%, p < 0.0001). However, there was no significant difference between asthmatic patients and healthy subjects in terms of current or previous usage of DPI (41.7% vs. 18.8%, p = 0.13). In healthy subjects, pMDIs and DPIs were used incidentally in the past for the treatment of respiratory symptoms due to acute respiratory infections.

Table 1.

Summary of Subject Demographics, Spirometric Parameters, and Inhaler's Usage History by Occurrence of Asthma

	Overall		Healthy		Asthma		Healthy vs. Asthma
Demographics
Gender	Number of patients [−]	Percentage of patients [%]	Number of patients [−]	Percentage of patients [%]	Number of patients [−]	Percentage of patients [%]	Percentage of patients [%]
Females/males	21/19	52.5/47.5	8/8	50/50	13/11	54.2/45.8	0.8

Variable	Mean	SD	Mean	SD	Mean	SD	p
Age [years]	40.08	15.94	31.63	9.42	45.71	17.04	0.008 (C–C)
Height [sm]	171.55	8.39	170.81	6.68	172.04	9.47	0.66 (T)
Weight [kg]	77.59	16.02	71.19	19.22	81.85	12.12	0.06 (C–C)
BMI [kg/m²]	26.34	5.11	24.29	5.97	27.71	4.02	0.06 (C–C)

Spirometric parameters
Variable	Mean	SD	Mean	SD	Mean	SD	p
FEV₁%pred[%]	93.65	17.48	99.91	13.72	89.47	18.71	0.06 (T)
PEF [L/s]	7.84	2.1	8.48	2.03	7.41	2.08	0.12 (T)
PEF%pred [L]	98.76	17.54	101.51	15.25	96.93	19.01	0.43 (T)
PIF [L/s]	6.65	2.10	6.97	1.97	6.44	2.21	0.31 (M–W)
FEF_25/75%pred [%]	70.50	26.21	83.35	19.67	61.93	26.85	0.009 (T)
MEF₇₅%pred [%]	85.55	28.84	92.30	24.05	81.05	31.31	0.23 (T)
MEF₅₀%pred [%]	70.85	27.80	86.67	21.47	60.31	26.83	0.002 (T)
MEF₂₅%pred [%]	64.16	27.35	72.87	18.41	58.36	30.97	0.1 (T)

Inhaler's usage history concerning currently and/or previously used device
Inhaler	Number of patients [−]	Percentage of patients [%]	Number of patients [−]	Percentage of patients [%]	Number of patients [−]	Percentage of patients [%]	p
DPI	13	32.5	3	18.75	10	41.67	0.13
pMDI	25	62.5	3	18.75	22	91.67	<0.0001

(T) denotes t-test for independent groups, (C–C) denotes the Cochran–Cox test and (M–W) denotes the Mann–Whitney U test.

BMI, body mass index; DPI, dry powder inhaler; FEF_25/75%pred, percentage predicted of forced expiratory flow between 25% and 75% of forced vital capacity; FEV₁%pred, percentage predicted of forced expiratory volume in 1 second; MEF₇₅%pred, MEF₅₀%pred, MEF₂₅%pred, percentage predicted of maximal expiratory flow at 50%, 75%, and 25% of the forced vital capacity, respectively; PEF, peak expiratory flow; PEF%pred, percentage predicted of peak expiratory flow; PIF, peak inspiratory flow; pMDI, pressurized metered dose inhaler.

Inspiratory flow parameters

Data on inspiratory flow parameters measured after full exhalation and exhalation halfway to RV in asthma patients and healthy volunteers are presented in Table 2. We did not find significant differences between asthmatic patients and healthy volunteers in inspiratory flow parameters recorded after full exhalation and exhalation halfway to RV. We observed that time of inhalation and inhalation volume were significantly greater when measured after full exhalation compared with exhalation halfway to RV both in asthma patients and in healthy subjects. Furthermore, we recorded that tPIF_inh was significantly greater when measured after full exhalation compared with exhalation halfway to RV in healthy subjects. In asthmatic patients the above difference was not significant.

Table 2.

Descriptive Result Summary of Inspiratory Flow Parameters, by Occurrence of Asthma

	Healthy		Asthma
	Mean (±SD)	Range	Mean (±SD)	Range	Healthy vs. asthma
PIF_inh
PIF_inh100% [L/min]	135.62 (±23.12)	97.17–196.51	120.63 (±35.67)	62.85–189.87	p = 0.12 (C–C)
PIF_inh50% [L/min]	137.95 (±27.7)	86.20–209.14	122.80 (±32.9)	67.46–194.56	p = 0.16 (T)
100% vs. 50%	p = 0.33 (T)		p = 0.5 (T)
tPIF_inh
tPIF_inh100% [s]	0.95 (±0.4)	0.54–0.54	0.98 (±0.44)	0.32–2.13	p = 0.71 (M–W)
tPIF_inh50% [s]	0.76 (±0.3)	0.42–1.49	0.90 (±0.48)	0.29–2.54	p = 0.42 (M–W)
100% vs. 50%	p = 0.01 (W–M)		p = 0.15 (W–M)
T
T100% [s]	2.71 (±0.5)	1.87–3.74	2.79 (±0.79)	1.37–4.10	p = 0.70 (C–C)
T50% [s]	2.41 (±0.48)	1.57–3.41	2.51 (±0.69)	1.17–3.74	p = 0.62 (T)
100% vs. 50%	p = 0.0001 (T)		p = 0.014 (T)
V
V100% [s]	4.01 (±0.8)	2.60–6.13	3.65 (±1.01)	2.06–5.50	p = 0.23 (T)
V50% [s]	3.57 (±0.69)	2.26–5.30	3.30 (±0.87)	1.79–5.28	p = 0.31 (T)
100% vs. 50%	p < 0.0001 (T)		p = 0.004 (T)

(T) denotes t-test for independent groups or dependent samples, respectively. (C–C) denotes the Cochran–Cox test and (W–M) denotes the Wilcoxon matched pairs test. Parameters measured during the maneuver with preceding exhalation to residual volume are denoted as PIF_inh100%, tPIF_inh100%, T100%, and V100%. Parameters measured during the maneuver with preceding exhalation halfway to residual volume are denoted as PIF_inh50%, tPIF_inh50%, T50%, and V50%.

PIF_inh, peak inspiratory flow through inhaler; T, inhalation time; tPIF_inh, time to peak inspiratory flow through inhaler; V, inhalation volume.

The relationship between inspiratory flow parameters and spirometry results: single-factor analysis of Spearman's rank correlation coefficient

Correlations between the respective inspiratory flow parameters measured after full exhalation and exhalation halfway to RV (PIF_inh100%, PIF_inh50%, tPIF_inh100%, tPIF_inh50%, V100%, V50% and T100%, T50%) with individual spirometric parameters are shown in Tables 3 and 4. We found that both PIF_inh100% and PIF_inh50% correlated significantly with FEV₁, FVC_in, VC_max, PEF, and PIF in healthy subjects as well as in asthma patients. We also observed significant correlations of PIF_inh100% and PIF_inh50% with FEV₁%pred and of PIF_inh100% with FEF_25/75%pred, MEF₅₀%pred, and MEF₂₅%pred in healthy subjects. Furthermore, we demonstrated significant correlations of PIF_inh100% with FEV₁ and MEF₂₅%pred in asthma patients. We did not find significant correlations between tPIF_inh and spirometric measures, except for significant correlation between tPIF_inh100% and PIF in asthma patients. Inhalation time correlated significantly with several spirometric measures in healthy subjects (significant correlations of T100% with FEV₁, FIV₁, FVC_ex, and VC_max as well as of T50% with FEV₁, FEV₁%pred, FIV₁, and FEF_25/75%pred) and in asthma patients (significant correlations of T100% with FEV₁%pred, FEF_25/75, MEF₇₅, and MEF₂₅ as well as of T50% with FIV₁, FVC_ex, and VC_max). Moreover, both V100% and V50% correlated significantly with FEV₁, FVC_ex, FVC_in, VC_max, PEF, PIF in healthy subjects as well as in asthmatic patients. Finally, significant correlations of V100% and V50% with FEF_25/75, MEF₇₅, MEF₅₀, MEF₂₅ as well as of V100% with FEV₁%pred were demonstrated in asthma patients.

Table 3.

The Relationship between Peak Inspiratory Flow Parameters (PIF_inh and tPIF_inh) and Respective Spirometric Parameters, by Occurrence of Asthma

Spearman's rank-order correlations
Marked correlations are significant at p < 0.05
	Healthy				Asthma
	PIF_inh100%		PIF_inh50%		PIF_inh100%		PIF_inh50%
	R	p	R	p	R	p	R	p
FEV₁	0.17	0.52	0.24	0.38	0.47	0.02	0.38	0.07
FEV₁%pred	−0.58	0.019	−0.55	0.027	−0.055	0.80	0.018	0.93
FIV₁	−0.38	0.23	−0.18	0.57	0.33	0.19	0.03	0.89
FVC_ex	0.46	0.073	0.47	0.068	0.66	0.0005	0.52	0.009
FVC_in	0.59	0.016	0.58	0.019	0.63	0.0009	0.53	0.007
VC_max	0.51	0.042	0.50	0.047	0.65	0.0006	0.517	0.010
PEF	0.66	0.005	0.71	0.002	0.53	0.007	0.47	0.021
PIF	0.79	0.0003	0.76	0.0006	0.68	0.0002	0.57	0.004
FEF_25/75	−0.39	0.13	−0.24	0.37	0.23	0.28	0.19	0.38
FEF_25/75%pred	−0.57	0.02	−0.47	0.06	−0.24	0.27	−0.15	0.49
MEF₇₅	0.02	0.95	0.22	0.41	0.18	0.39	0.24	0.25
MEF₅₀	−0.48	0.06	−0.31	0.24	0.15	0.48	0.16	0.47
MEF₂₅	−0.29	0.28	−0.18	0.51	0.24	0.26	0.18	0.41
MEF₇₅%pred	−0.39	0.13	−0.17	0.52	−0.13	0.55	−0.01	0.95
MEF₅₀%pred	−0.62	0.01	−0.48	0.06	−0.01	0.95	0.07	0.73
MEF₂₅%pred	−0.50	0.05	−0.41	0.12	−0.42	0.04	−0.36	0.08

	tPIF_inh100%		tPIF_inh50%		tPIF_inh100%		tPIF_inh50%
	R	p	R	p	R	p	R	p
FEV₁	−0.23	0.40	0.02	0.94	−0.13	0.54	−0.02	0.94
FEV₁%pred	0.36	0.18	0.39	0.13	0.25	0.23	0.13	0.54
FIV₁	0.30	0.34	0.51	0.09	0.04	0.87	0.37	0.13
FVC_ex	−0.28	0.29	−0.08	0.77	−0.301	0.15	−0.12	0.59
FVC_in	−0.24	0.37	−0.12	0.66	−0.297	0.16	−0.09	0.69
VC_max	−0.29	0.28	−0.14	0.61	−0.28	0.19	−0.11	0.62
PEF	−0.18	0.50	−0.28	0.29	−0.16	0.46	−0.06	0.80
PIF	0.29	0.28	0.46	0.06	0.44	0.03	−0.13	0.53
FEF_25/75	0.16	0.54	0.18	0.51	−0.02	0.94	0.02	0.93
FEF_25/75%pred	0.41	0.12	0.28	0.29	0.29	0.17	0.17	0.43
MEF₇₅	0.38	0.14	0.15	0.59	0.14	0.50	0.07	0.73
MEF₅₀	0.29	0.27	0.24	0.37	0.07	0.73	0.07	0.75
MEF₂₅	0.04	0.88	0.10	0.71	−0.03	0.90	−0.01	0.97
MEF₇₅%pred	0.48	0.06	0.22	0.41	0.30	0.15	0.12	0.59
MEF₅₀%pred	0.41	0.12	0.24	0.37	0.17	0.42	0.08	0.72
MEF₂₅%pred	0.26	0.34	0.25	0.34	0.29	0.17	0.24	0.26

FEF_25/75, forced expiratory flow between 25% and 75% of forced vital capacity; FEV₁, forced expiratory volume in 1 second; FIV₁, forced inspiratory volume in 1 second; FVC_ex, forced expiratory vital capacity; FVC_in, forced inspiratory vital capacity; MEF₇₅, MEF₅₀, MEF₂₅, maximal expiratory flow at 50%, 75%, and 25% of the forced vital capacity, respectively; VC_max, maximal vital capacity.

Table 4.

The Relationship between Peak Inspiratory Flow Parameters (V and T) and Respective Spirometric Parameters, by Occurrence of Asthma

Spearman's rank-order correlations
Marked correlations are significant at p < 0.05
	Healthy				Asthma
	T100%		T50%		T100%		T50%
	R	p	R	p	R	p	R	p
FEV₁	0.60	0.01	0.57	0.02	0.40	0.05	0.44	0.03
FEV₁%pred	0.49	0.055	0.80	0.0002	0.47	0.021	0.21	0.32
FIV₁	0.62	0.03	0.59	0.04	0.44	0.06	0.64	0.004
FVC_ex	0.508	0.044	0.33	0.21	0.28	0.19	0.41	0.047
FVC_in	0.45	0.082	0.27	0.31	0.282	0.18	0.39	0.057
VC_max	0.514	0.042	0.34	0.20	0.3	0.15	0.41	0.044
PEF	0.32	0.23	0.18	0.50	0.27	0.20	0.30	0.15
PIF	0.18	0.499	0.03	0.92	0.029	0.89	0.29	0.17
FEF_25/75	0.31	0.24	0.49	0.05	0.41	0.05	0.37	0.08
FEF_25/75%pred	0.23	0.40	0.53	0.03	0.38	0.06	0.10	0.66
MEF₇₅	0.36	0.18	0.42	0.11	0.46	0.02	0.23	0.27
MEF₅₀	0.30	0.26	0.48	0.06	0.39	0.06	0.28	0.18
MEF₂₅	0.24	0.37	0.31	0.24	0.41	0.05	0.40	0.05
MEF₇₅%pred	0.17	0.53	0.38	0.14	0.40	0.05	0.07	0.74
MEF₅₀%pred	0.23	0.40	0.49	0.06	0.39	0.06	0.16	0.47
MEF₂₅%pred	0.24	0.36	0.41	0.12	0.38	0.07	0.11	0.62

	V100%		V50%		V100%		V50%
	R	p	R	p	R	p	R	p
FEV₁	0.69	0.003	0.62	0.01	0.82	<0.0001	0.86	<0.0001
FEV₁%pred	0.04	0.88	0.14	0.59	0.45	0.026	0.38	0.064
FIV₁	0.52	0.08	0.62	0.03	0.72	0.0007	0.79	<0.0001
FVC_ex	0.84	<0.0001	0.72	0.001	0.832	<0.0001	0.856	<0.0001
FVC_in	0.90	<0.0001	0.79	0.0003	0.828	<0.0001	0.862	<0.0001
VC_max	0.87	<0.0001	0.74	0.00099	0.84	<0.0001	0.85	<0.0001
PEF	0.81	0.0001	0.77	0.0004	0.73	<0.0001	0.78	<0.0001
PIF	0.79	0.0002	0.71	0.002	0.64	0.0008	0.77	<0.0001
FEF_25/75	−0.03	0.91	0.04	0.89	0.64	0.0007	0.66	0.0004
FEF_25/75%pred	−0.19	0.47	−0.07	0.80	0.18	0.41	0.17	0.44
MEF₇₅	0.42	0.10	0.49	0.05	0.64	0.0007	0.63	0.001
MEF₅₀	−0.08	0.78	−0.02	0.95	0.55	0.005	0.56	0.005
MEF₂₅	−0.14	0.61	−0.16	0.54	0.64	0.0007	0.69	0.0002
MEF₇₅%pred	0.03	0.91	0.15	0.58	0.33	0.11	0.28	0.19
MEF₅₀%pred	−0.21	0.44	−0.09	0.73	0.40	0.05	0.36	0.09
MEF₂₅%pred	−0.26	0.32	−0.24	0.38	−0.04	0.87	−0.04	0.85

Multiple regression models predicting inspiratory flow parameters

The multiple regression models predicting inspiratory flow parameters for inhalation preceded by maximal exhalation in asthma patients are presented in Tables 5 –8. We recorded the following independent significant predictors of inspiratory flow parameters: (1) for PIF_inh100%: BMI, the previous usage of DPI, PIF; (2) for tPIF_inh100%: the previous usage of DPI; (3) for V100%: height, FEV₁%pred, the presence of expiratory flow limitation; and (4) for T100%: FEV₁%pred, the presence of expiratory flow limitation, the previous usage of DPI.

Table 5.

Results of the Multiple Regression Model to Predict PIF_inh in Asthma Group for Maximal Exhalation Before Inhalation

N = 24	Regression summary for dependent variable: PIF_inh100%
N = 24	b^*	Standard error of b^*	B	Standard error of b	p
Intercept			186.12	50.047	0.001
BMI	−0.38	0.14	−3.40	1.22	0.012
DPI then/now	0.45	0.14	32.10	9.71	0.004
PEF%pred	−0.29	0.15	−0.55	0.27	0.06
PIF	0.66	0.13	10.64	2.07	<0.0001

For the full model, R² = 0.70 (p < 0.002). b^* denotes standardized coefficient of regression, b denotes coefficient of regression, R² denotes coefficient of determination.

Table 6.

Results of the Multiple Regression Model to Predict tPIF_inh in Asthma Group for Maximal Exhalation Before Inhalation

N = 24	Regression summary for dependent variable: tPIF_inh100%
N = 24	b^*	Standard error of b^*	b	Standard error of b	p
Intercept			−0.011	0.67	0.99
Age	0.29	0.20	0.007	0.005	0.17
Expiratory airflow limitation	0.13	0.23	0.11	0.20	0.58
PEF%pred	0.34	0.24	0.008	0.006	0.17
DPI then/now	−0.45	0.21	−0.40	0.18	0.044

For the full model, R² = 0.28 (p < 0.16). b^* denotes standardized coefficient of regression, b denotes coefficient of regression, R² denotes coefficient of determination.

Table 7.

Results of the Multiple Regression Model to Predict V in Asthma Group for Maximal Exhalation Before Inhalation

N = 24	Regression summary for dependent variable: V100%
N = 24	b^*	Standard error of b^*	b	Standard error of b	p
Intercept			−12.98	3.59	0.002
Age	−0.12	0.14	−0.007	0.008	0.41
Height	0.63	0.15	0.067	0.016	0.0005
BMI	0.15	0.14	0.038	0.036	0.30
FEV₁%pred	0.84	0.16	0.045	0.009	<0.0001
Expiratory airflow limitation	0.35	0.16	0.71	0.31	0.037

For the full model, R² = 0.74 (p < 0.00009). b^* denotes standardized coefficient of regression, b denotes coefficient of regression, R² denotes coefficient of determination.

Table 8.

Results of the Multiple Regression Model to Predict T in Asthma Group for Maximal Exhalation Before Inhalation

N = 24	Regression summary for dependent variable: T100%
N = 24	b^*	Standard error of b^*	b	Standard error of b	p
Intercept			−1.18	1.04	0.27
FEV₁%pred	0.92	0.19	0.04	0.008	0.0001
Expiratory airflow limitation	0.51	0.18	0.80	0.28	0.01
DPI then/now	−0.61	0.14	−0.96	0.22	0.0003
pMDI then/now	0.22	0.15	0.62	0.43	0.16

For the full model, R² = 0.65 (p < 0.003). b^* denotes standardized coefficient of regression, b denotes coefficient of regression, R² denotes coefficient of determination.

Discussion

We demonstrated that the most important descriptive parameters of inhalation through a representative low-resistance, cyclohaler-type DPI are related to spirometric measures both in asthma patients and in healthy adults. We also proposed spirometric predictors of the inhalation profile through a cyclohaler-type DPI. Incomplete exhalation before inhalation through a cyclohaler-type DPI was shown not to affect PIF_inh and corresponding tPIF_inh in asthma patients.

Our study includes some novelties. We used spirometry in-house software (SpiroMon), which enabled us to determine reference levels of the depth of exhalation for each patient to simulate the effect of incomplete exhalation. We also constructed an experimental setup consisting of a DPI in an airtight housing connected to a pneumotachograph. It allowed us to measure standard spirometric parameters and parameters characterizing inhalation profiles through a DPI using the same spirometer. To the best of our knowledge this is the first study in which parameters of inhalation profiles through a DPI were compared between asthma patients and healthy adults, and analyzed in relation to the optimal and suboptimal inhalation technique.

After full exhalation (100%), PIF_inh >90 L/min was achieved by all healthy subjects and by 75% of asthmatic patients (18 of 24). A halfway to RV exhalation (50%) preceded inhalation with PIF_inh >90 L/min in 93.75% of healthy subjects (15 of 16) and in 87.5% of asthma patients (21 of 24). A significant link between asthma occurrence and the ability to produce PIF_inh >90 L/min was only observed in the case of 100% exhalation before inhalation, and not observed in the case of 50% exhalation (Pearson's chi-square p = 0.03 vs. p = 0.52, respectively). We may hypothesize that shallower exhalation before inhalation may facilitate higher PIF_inh acquisition; a more thorough analysis should be undertaken in the future. Determination of pulmonary function indices, which may predict the value of PIF_inh through a low-resistance cyclohaler-type DPI, could help confirm the usefulness of this type of inhaler for a specific patient. As turbulence kinetic energy is a product of inhalation flow and inhaler resistance, PIF_inh through a low-resistance inhaler needs to be relatively high (>90 L/min) to produce sufficient energy to deagglomerate drug particles during inhalation.⁽¹⁵⁾ Lower values of PIF_inh are required for MDIs and high-resistance DPIs. However, appropriate use of MDIs requires good actuation–inhalation coordination, which is impossible for some patients, especially children and elderly.⁽¹⁵⁾ On the contrary, some patients with dyspnea, despite being able to achieve required PIF_inh through high-resistance DPIs, may not be able to achieve sufficient inhalation volume through a high-resistance inhaler.⁽⁵³⁾

PIF_inh is reported to be the key parameter predicting the effectiveness of the drug inhalation from DPI. The following parameters are influenced by the PIF_inh: the dose emitted by a DPI, the fine particles fraction, and the dose deposited in the lower airways.⁽²²⁾ Inspiratory flow through an inhaler, which has an intrinsic resistance, could not be measured in routine practice. Spirometric measurement of PIF is obtained at zero resistance and does not directly reflect the value of PIF_inh.⁽²³⁾ However, our results indicate that spirometric measures are well correlated with measures of inhalation profile through a low-resistance cyclohaler-type DPI. We demonstrated that PIF_inh through a low-resistance DPI and inhalation volume were well correlated with spirometric measures both in asthma patients and in healthy participants. On the contrary, inhalation time and time to PIF_inh seemed to be somewhat less correlated with spirometric measures. Also, based on the multiple regression analysis (presented in Tables 5, 6, and 8) it is clear that patient's history of DPI usage was found to be significant, since it affected dynamics of inhalation technique, namely PIF_inh, tPIF_inh, and T values. Using DPI in the past and/or at the moment is correlated with quicker and more forceful maneuver of higher PIF_inh with both lower tPIF_inh and T.

The relationship between spirometric measures and parameters of inhalation through DPI has previously been assessed mainly in COPD patients. Broeders et al.⁽²⁵⁾ observed that MEF₅₀ was a significant predictor for PIF_inh through Diskus^® inhaler, and inspiratory capacity (IC) was a significant predictor for PIF_inh through Turbuhaler^® in patients with an acute exacerbation of COPD. These authors found an average increase of PIF_inh of 7.3 (±2.1) L/min per 1 L/s increase in MEF₅₀ for Diskus and of 8.6 (±7.5) L/min per liter increase in IC for Turbuhaler.⁽²⁵⁾ We did not observe significant correlation between MEF₅₀ and PIF_inh through a low-resistance DPI in patients with asthma and in healthy participants.

Sarinas et al. demonstrated the lack of correlation between PIF_inh and FEV₁%pred in patients with COPD and cystic fibrosis.⁽²⁴⁾ In contrast, we found a significant correlation between the above parameters in healthy participants (R = −0.58 for full exhalation and R = −0.55 for halfway exhalation), but not in asthma patients. One recent paper reported moderate-to-strong significant correlations (R = 0.55–0.60) between PIF_inh and native PIF in COPD patients for three different DPIs (Breezhaler^®, Genuair^®, Turbuhaler), which is in line with our findings.⁽²²⁾ Similarly to our findings, the study by Farkas et al. showed only a weak-to-moderate correlation between PIF_inh and FEV₁ (R = 0.23–0.40 for different DPIs).⁽²²⁾ In terms of the relationship between PIF_inh and FVC, our study showed a moderate-to-strong correlation in asthmatics, whereas Farkas et al. demonstrated only weak correlation in COPD patients.⁽²²⁾

Price et al. measured PIF_inh after COPD exacerbation using In-Check DIAL^® (Clement Clarke International LTd., Harlow, UK), a portable inspiratory flow meter, intrinsic resistance of which was set to simulate characteristics of Aerolizer^® (inhaler similar to RS01 with identical resistance of 0.017 kPa 0.5 L/min), medium-resistance Diskus and medium/high-resistance Turbohaler^®.⁽²³⁾ The authors observed significant univariate associations between PIF measured with settings simulating Aerolizer, Diskus, and Turbohaler inhalers and FEV₁ (R² values 0.109, 0.172, and 0.230, respectively) and PEF%pred (R² 0.133, 0.134, and 0.294). In multivariate analysis, they observed that FEV₁ was the only variable retained for prediction of PIF through Aerolizer and Diskus (R² values as above), and the best model for prediction of PIF for Turbohaler included FEV₁ and PEF%pred (R² = 0.374). They also reported small positive correlation between PIF_inh and PEF%pred for different resistance settings (correlation coefficient range 0.1–0.5) and FEV₁ (correlation coefficient range 0.3–0.5), as well as a negative correlation between PIF through inhaler and age (the absolute value of correlation coefficient range 0.2–0.4). Noteworthily, associations between both clinical and spirometric measures and PIF through an inhaler recorded by Price et al. were weak, and authors suggested that PIF_inh against resistance should be measured directly.⁽²³⁾

Multiple regression models used in our study showed that in asthma patients PIF_inh measured during inhalation after full exhalation could be predicted by BMI, PIF, and the previous usage of DPI, independently from PEF%pred. Interestingly, in the regression model PIF_inh was found to be inversely related to PEF%pred (standardized coefficient of regression b* = −0.59, p = 0.06). However, it should be emphasized that PEF%pred was not found to be a significant predictor of the PIF_inh unlike other proposed variables introduced into the model. Possible explanation of this counterintuitive observation could be related to the small sample size and the fact that relatively high numerical value of flow rates, despite decreased PEF%pred, could be observed in the young and tall subjects with a high predicted value. We also showed that inhalation volume could be predicted by patient's height; FEV₁%pred and the presence of expiratory airflow limitation, independently from age and BMI. We also showed that inhalation time could be predicted by FEV₁%pred, the presence of expiratory airflow limitation, and the previous usage of DPI, independently from using pMDI currently/in the past. Furthermore, we demonstrated that the only significant predictor of time to PIF_inh through a low-resistance, cyclohaler-type inhaler in asthma patients is DPI's usage.

In another study, Grabowski et al. used In-Check DIAL (Clement Clarke International LTd.) to simulate characteristics of Aerolizer, Diskus, and Turbuhaler, and assessed PIF_inh in patients during and after exacerbation of COPD and asthma.⁽⁵⁴⁾ PEF and FEV₁ measured by spirometry in COPD patients during exacerbation correlated significantly with PIF through the valve simulating above devices (R values 0.87–0.89 and 0.75–0.82, respectively). Interestingly, the authors found a slightly weaker correlation when postexacerbation measurements were analyzed.⁽⁵⁴⁾ In patients with asthma exacerbation PEF correlated significantly with PIF_inh through valves imitating all of the above devices (R 0.72–0.79), whereas no significant correlations were found between FEV₁ and PIF_inh. In stable asthma, PIF_inh through Aerolizer, Diskus, and Turbuhaler correlated with PEF with the R value of 0.72–0.83, whereas PIF_inh through above devices correlated with FEV₁ with the R value of 0.57–0.70. For both spirometric measures and parameters of inhalation through the valve simulating Aerolizer, the authors reported slightly higher R values compared with our results. In another study, which included asthma patients, Prime et al. demonstrated significant correlations between spirometric measures and inhaler-specific (Ellipta^® DPI, medium resistance) inhalation parameters. These included the following: FEV₁ and PIF_inh (R = 0.52); FEV₁ and inhaled volume (R = 0.6); FVC and inhaled volume (R = 0.62); PEF and PIF_inh (R = 0.66); and PIF and PIF_inh (R = 0.69).⁽²⁹⁾ Furthermore, Prime et al. did not observe statistically significant difference in PIF_inh between healthy subjects and asthma patients.⁽²⁹⁾

The failure to exhale before inhaling through a DPI is one of the most frequent errors in the inhalation technique with reported frequency of 12%–77%.^(13,18) The ideal inhalation through a DPI should be preceded by the exhalation to the RV.⁽¹⁵⁾ However, concerns are raised that full exhalation to RV may cause temporary collapse of some airways and reduce the drug delivery.⁽⁵⁵⁾ Exhalation to the functional residual capacity (FRC), which is less likely to provoke cough and more comfortable for patients, was reported to be an acceptable alternative.^(13,56) We observed that the exhalation halfway to RV before inhalation did not significantly affect PIF_inh and tPIF_inh in asthma patients. As expected, inhalation time and inhalation volume were significantly decreased when measured after incomplete exhalation. However, the values of inhalation volume and time observed after exhalation halfway to RV seemed sufficient for a DPI to deliver the aerosol to the lower respiratory tract. In our cohort minimal values of inhalation time and inhalation volume after incomplete exhalation in asthma patients were 1.2 seconds and 1.8 L, respectively. For a DPI, a volume of 500 mL inhaled after reaching the minimum required PIF_inh and inhalation time >1 second are reported to be sufficient for drug delivery to the lower respiratory tract.^(57,58)

Only scarce data on the impact of incomplete exhalation on the parameters of inhalation through DPIs have been published. Engel et al. compared the efficacy of terbutaline inhalation from Turbuhaler using different techniques, including inhalation preceded by exhalation to RV and inhalation preceded by exhalation to FRC.⁽⁵⁶⁾ They reported comparable PIF_inh, level of bronchodilatation induced by terbutaline, amount of drug deposited on viral filters included in the experimental set, and plasma terbutaline concentrations when the above techniques were used. Although we confirmed that exhalation halfway to RV instead of full exhalation to RV does not impair PIF_inh and tPIF_inh in asthma patients, we cannot exclude that decreased inhalation time and volume after incomplete exhalation may impair drug deposition in the lower airways. Presented study on the suboptimal inhalation technique should be treated as the beginning of research within this area, which is of great interest for researchers conducting clinical trials, compendial inhaler's testing, while developing novel DPI designs. Further studies are needed to assess the impact of inhalation profile parameters on drug deposition in airways. The effect of type of exhalation before inhalation (with severity of asthma as categorical factor) on these secondary inhalation variables (and also PIF_inh and tPIF_inh) will be assessed using repeated-measures analysis of variance. This issue will be elaborated further as the continuation of the presented work.

We acknowledge that our study has several limitations. First, we included relatively small number of participants, which might have affected the strength of our findings. Therefore, the results should be treated as a preliminary quantification rather than as a definitive outcome. We also used empty drug capsule in RS01 inhaler, instead of placebo-filled capsule, which may have slightly influenced intrinsic resistance of the inhaler. Furthermore, patients with severe stages of asthma and significant impairment of lung function were under-represented in our study. Finally, we only included patients with stable, well-controlled asthma, whereas we could speculate that associations between pulmonary function parameters and parameters of inhalation through low-resistance DPI may change during exacerbation of the disease.

Conclusions

In conclusion, there are significant relationships between spirometric indices and parameters of inhalation through low-resistance, cyclohaler-type DPI. Most important parameters of inhalation through low-resistance DPI could be predicted by spirometric indices. Both exhalation to RV and incomplete exhalation halfway to RV preceding inhalation allow for effective usage of low-resistance DPI.

Footnotes

Author Disclosure Statement

The authors have no conflicts to declare. Supplies and equipment were purchased from commercial sources. No conflicts of interest exist.

Funding Information

This study was supported by the National Science Centre, Poland (project no. 2017/25/N/ST8/00809).

Reviewed by:

Tim Corcoran

References

Louey

, Van Oort

, and Hickey

: Standardized entrainment tubes for the evaluation of pharmaceutical dry powder dispersion. J Aerosol Sci. 2006; 37:1520–1531.

Azouz

, and Chrystyn

: Clarifying the dilemmas about inhalation techniques for dry powder inhalers: Integrating science with clinical practice. Prim Care Respir J. 2012; 21:208–213.

Longest

, Son

, Holbrook

, and Hindle

: Aerodynamic factors responsible for the deaggregation of carrier-free drug powders to form micrometer and submicrometer aerosols. Pharm Res. 2013; 30:1608–1627.

Clark

, and Hollingworth

: The relationship between powder inhaler resistance and peak inspiratory conditions in healthy volunteers—Implications for in vitro testing. J Aerosol Med Depos Clear Eff Lung. 1993; 6:99–110.

Chrystyn

, and Price

: What you need to know about inhalers and how to use them. Prescriber, 2009; 20:47–52.

Haughney

, Price

, Barnes

, Virchow

, Roche

, and Chrystyn

: Choosing inhaler devices for people with asthma: Current knowledge and outstanding research needs. Respir Med CME. 2010; 3:125–131.

Global Initiative for Asthma: Global Strategy for Asthma Management and Prevention. 2020. Available at: https://ginasthma.org/wp-content/uploads/2020/06/GINA-2020-report_20_06_04-1-wms.pdf. Accessed February 5, 2021.

Doeing

, and Solway

: Airway smooth muscle in the pathophysiology and treatment of asthma. J Appl Physiol. 2013; 114:834–843.

Burgel

, De Blic

, Chanez

, Delacourt

, Devillier

, Didier

, Dubus

, Frachon

, Garcia

, Humbert

, Laurent

, Louis

, Magnan

, Mahut

, Perez

, Roche

, Tillie-Leblond

, Tunon De Lara

, and Dusser

: Update on the roles of distal airways in asthma. Eur Respir Rev. 2009; 18:80–95.

10.

Kaminsky

, and Chapman

: Asthma and lung mechanics. Compr Physiol. 2020; 10:975–1007.

11.

De Boer

, Winter

HMI

, and Lerk

: Inhalation characteristics and their effects on in vitro drug delivery from dry powder inhalers Part 1. Inhalation characteristics, work of breathing and volunteers' preference in dependence of the inhaler resistance. Int J Pharm. 1996; 130:231–244.

12.

Pohlmann

, Hohlfeld

, Haidl

, Pankalla

, and Cloes

: Assessment of the power required for optimal use of current inhalation devices. J Aerosol Med Pulm Drug Deliv. 2018; 31:339–346.

13.

Lavorini

, Magnan

, Christophe Dubus

, Voshaar

, Corbetta

, Broeders

, Dekhuijzen

, Sanchis

, Viejo

, Barnes

, Corrigan

, Levy

, and Crompton

: Effect of incorrect use of dry powder inhalers on management of patients with asthma and COPD. Respir Med. 2008; 102:593–604.

14.

Melani

, Bonavia

, Cilenti

, Cinti

, Lodi

, Martucci

, Serra

, Scichilone

, Sestini

, Aliani

, and Neri

: Inhaler mishandling remains common in real life and is associated with reduced disease control. Respir Med. 2011; 105:930–938.

15.

Laube

, Janssens

, De Jongh

FHC

, Devadason

, Dhand

, Diot

, Everard

, Horvath

, Navalesi

, Voshaar

, and Chrystyn

: What the pulmonary specialist should know about the new inhalation therapies. Eur Respir J. 2011; 37:1308–1331.

16.

Chrystyn

, Van Der Palen

, Sharma

, Barnes

, Delafont

, Mahajan

, and Thomas

: Device errors in asthma and COPD: Systematic literature review and meta-analysis. NPJ Prim Care Respir Med. 2017; 27:1–9.

17.

Self

, Pinner

, Sowell

, and Headley

: Does it really matter what volume to exhale before using asthma inhalation devices?. J Asthma. 2009; 46:212–216.

18.

Luczak-Wozniak

, Dabrowska

, Domagala

, Miszczuk

, Lubanski

, Leszczynski

, and Krenke

: Mishandling of pMDI and DPI inhalers in asthma and COPD—Repetitive and non-repetitive errors. Pulm Pharmacol Ther. 2018; 51:65–72.

19.

Usmani

, Lavorini

, Marshall

, Dunlop

WCN

, Heron

, Farrington

, and Dekhuijzen

: Critical inhaler errors in asthma and COPD: A systematic review of impact on health outcomes. Respir Res. 2018; 19:10.

20.

Price

, Román-Rodríguez

, McQueen

, Bosnic-Anticevich

, Carter

, Gruffydd-Jones

, Haughney

, Henrichsen

, Hutton

, Infantino

, Lavorini

, Law

, Lisspers

, Papi

, Ryan

, Ställberg

, van der Molen

, and Chrystyn

: Inhaler errors in the CRITIKAL study: Type, frequency, and association with asthma outcomes. J Allergy Clin Immunol Pract. 2017; 5:1071.e9–1081.e9.

21.

Braido

, Chrystyn

, Baiardini

, Bosnic-Anticevich

, van der Molen

, Dandurand

, Chisholm

, Carter

, and Price

: “Trying, but failing”—The role of inhaler technique and mode of delivery in respiratory medication adherence. J Allergy Clin Immunol Pract. 2016; 4:823–832.

22.

Farkas Á, Szipőcs

, Horváth

, Gálffy

, Varga

, Galambos

, Kugler

, Nagy

, and Szalai

: Establishment of relationships between native and inhalation device specific spirometric parameters as a step towards patient tailored inhalation device selection. Respir Med. 2019; 154:133–140.

23.

Price

, Yang

, Ming

SWY

, Hardjojo

, Cabrera

, Papaioannou

, Loukides

, Kritikos

, Bosnic-Anticevich

, Carter

, and Dorinsky

: Physiological predictors of peak inspiRatory flow using Observed lung function resultS (POROS): Evaluation at discharge among patients hospitalized for a COPD exacerbation. Int J COPD. 2018; 13:3937–3946.

24.

Sarinas

PSA

, Robinson

, Clark

, Canfield

, Chitkara

, and Fick

: Inspiratory flow rate and dynamic lung function in cystic fibrosis and chronic obstructive lung diseases. Chest. 1998; 114:988–992.

25.

Broeders

MEAC

, Molema

, Hop

WCJ

, Vermue

, and Folgering

HTM

: The course of inhalation profiles during an exacerbation of obstructive lung disease. Respir Med. 2004; 98:1173–1179.

26.

Happonen

, Haahtela

, Rytila

, and Malmberg

: Inspiratory flows through dry powder inhaler in chronic obstructive pulmonary disease: Age and gender rather than severity matters. Int J COPD. 2010; 5:257–262.

27.

Seheult

, Costello

, Tee

, Bholah

, Al Bannai

, Sulaiman

, and Costello

: Investigating the relationship between peak inspiratory flow rate and volume of inhalation from a Diskus^TM Inhaler and baseline spirometric parameters: A cross-sectional study. Springerplus. 2014; 3:1–7.

28.

Dewar

, Jamieson

, McLean

, and Crompton

: Peak inspiratory flow through Turbuhaler^® in chronic obstructive airways disease. Respir Med. 1999; 93:342–344.

29.

Prime

, de Backer

, Hamilton

, Cahn

, Preece

, Kelleher

, Baines

, Moore

, Brealey

, and Moynihan

: Effect of disease severity in asthma and chronic obstructive pulmonary disease on inhaler-specific inhalation profiles through the ELLIPTA ^® dry powder inhaler. J Aerosol Med Pulm Drug Deliv. 2015; 28:486–497.

30.

Janssens

, VandenBrande

, Hardeman

, De Langhe

, Philps

, Troosters

, and Decramer

: Inspiratory flow rates at different levels of resistance in elderly COPD patients. Eur Respir J. 2008; 31:78–83.

31.

Brown

, Ning

ACWS

, Greening

, McLean

, and Crompton

: Peak inspiratory flow through Turbuhaler^® in acute asthma. Eur Respir J. 1995; 8:1940–1941.

32.

Azouz

, Chetcuti

, Hosker

, Saralaya

, and Chrystyn

: Inhalation characteristics of asthma patients, COPD patients and healthy volunteers with the Spiromax^® and Turbuhaler^® devices: A randomised, cross-over study. BMC Pulm Med. 2015; 15:1–9.

33.

Azouz

, Chetcuti

, Hosker

HSR

, Saralaya

, Stephenson

, and Chrystyn

: The inhalation characteristics of patients when they use different dry powder inhalers. J Aerosol Med Pulm Drug Deliv. 2015; 28:35–42.

34.

Bagherisadeghi

, Chrystyn

, Abadelah

, and Larhrib

: Real-life budesonide and formoterol dose emission from the medium and high strength fixed dosed combinations in a Spiromax^® dry powder inhaler using inhalation profiles from patients with chronic obstructive pulmonary disease. Eur J Pharm Sci. 2019; 139:105059.

35.

Bagherisadeghi

, Larhrib

, and Chrystyn

: Real life dose emission characterization using COPD patient inhalation profiles when they inhaled using a fixed dose combination (FDC) of the medium strength Symbicort^® Turbuhaler^®. Int J Pharm. 2017; 522:137–146.

36.

Chrystyn

, Safioti

, Keegstra

, and Gopalan

: Effect of inhalation profile and throat geometry on predicted lung deposition of budesonide and formoterol (BF) in COPD: An in-vitro comparison of Spiromax with Turbuhaler. Int J Pharm. 2015; 491:268–276.

37.

Ciciliani

, Langguth

, and Wachtel

: In vitro dose comparison of respimat^® inhaler with dry powder inhalers for COPD maintenance therapy. Int J COPD. 2017; 12:1565–1577.

38.

Colthorpe

, Voshaar

, Kieckbusch

, Cuoghi

, and Jauernig

: Delivery characteristics of a low-resistance dry-powder inhaler used to deliver the long-acting muscarinic antagonist glycopyrronium. J Drug Assess. 2013; 2:11–16.

39.

Kugler

, Nagy

, Kerekes

, Veres

, Rigó

, and Czitrovszky

: Determination of emitted particle characteristics and upper airway deposition of Symbicort^® Turbuhaler^® dry powder inhaler. J Drug Deliv Sci Technol. 2019; 54:101229.

40.

Olsson

, Borgström

, Lundbäck

, and Svensson

: Validation of a general in vitro approach for prediction of total lung deposition in healthy adults for pharmaceutical inhalation products. J Aerosol Med Pulm Drug Deliv. 2013; 26:355–369.

41.

Ung

, and Chan

: Effects of ramp-up of inspired airflow on in vitro aerosol dose delivery performance for certain dry powder inhalers. Eur J Pharm Sci. 2016; 84:46–54.

42.

Wei

, Hindle

, Delvadia

, and Byron

: In Vitro Tests for Aerosol Deposition. V: Using realistic testing to estimate variations in aerosol properties at the trachea. J Aerosol Med Pulm Drug Deliv. 2017; 30:339–348.

43.

Jõgi

, Lähelmä

, Vahteristo

, Happonen

, and Haikarainen

: In vitro flow rate dependency of delivered dose and fine particle dose of salmeterol/fluticasone propionate easyhaler and seretide diskus with patient flow rates collected in a randomized controlled trial. J Aerosol Med Pulm Drug Deliv. 2019; 32:88–98.

44.

Walenga

, Tian

, and Worth Longest

: Development of characteristic upper tracheobronchial airway models for testing pharmaceutical aerosol delivery. J Biomech Eng. 2013; 135:091010.

45.

Longest

, Tian

, Walenga

, Hindle

, Longest

, Tian

, Walenga

, and Hindle: M: Comparing MDI and DPI aerosol deposition using in vitro experiments and a new stochastic individual path (SIP) model of the conducting airways. Pharm Res. 2012; 29:1670–1688.

46.

Kadota

, Inoue

, Matsunaga

, Takemiya

, Kubo

, Imano

, Uchiyama

, and Tozuka

: Numerical simulations of particle behaviour in a realistic human airway model with varying inhalation patterns. J Pharm Pharmacol. 2020; 72:17–28.

47.

Sosnowski

, Moskal

, and Gradoń

: Mechanims of aerosol particle deposition in the oro-pharynx under non-steady airflow. Ann Occup Hyg. 2007; 51:19–25.

48.

Sosnowski

, Moskal

, and Gradoń

: Dynamics of oropharyngeal aerosol transport and deposition with the realistic flow pattern. Inhal Toxicol. 2006; 18:773–780.

49.

Graham

, Steenbruggen

, Barjaktarevic

, Cooper

, Hall

, Hallstrand

, Kaminsky

, McCarthy

, McCormack

, Miller

, Oropez

, Rosenfeld

, Stanojevic

, Swanney

, and Thompson

: Standardization of spirometry 2019 update an official American Thoracic Society and European Respiratory Society technical statement. Am J Respir Crit Care Med. 2019; 200:E70–E88.

50.

Miller

, Hankinson

, Brusasco

, Burgos

, Casaburi

, Coates

, Crapo

, Enright

, van der Grinten

CPM

, Gustafsson

, Jensen

, Johnson

, MacIntrye

, McKay

, Navajas

, Pedersen

, Pellegrino

, Viegi

, and Wagner

: Standardisation of spirometry. Eur Respir J. 2005; 26:319–338.

51.

Quanjer

, Stanojevic

, Cole

, Baur

, Hall

, Culver

, Enright

, Hankinson

, Ip

MSM

, Zheng

, Stocks

, and Schindler

: Multi-ethnic reference values for spirometry for the 3-95-yr age range: The global lung function 2012 equations. Eur Respir J. 2012; 40:1324–1343.

52.

Delvadia

, Wei

, Longest

, Venitz

, and Byron

: In vitro tests for aerosol deposition. IV: Simulating variations in human breath profiles for realistic DPI testing. J Aerosol Med Pulm Drug Deliv. 2016; 29:196–206.

53.

Hoppentocht

, Hagedoorn

, Frijlink

, and de Boer

: Technological and practical challenges of dry powder inhalers and formulations. Adv Drug Deliv Rev. 2014; 75:18–31.

54.

Grabowski

, Barg

, Chmielowicz

, Kopeć

, and Panaszek

: The variability of peak inspiratory flow (PIF) on valves imitating dry powder inhalers resistance during asthma and COPD exacerbations. Pneumonol Alergol Pol. 2007; 75:324–330.

55.

Khilnani

, and Banga

: Aerosol therapy. Indian J Chest Dis Allied Sci. 2008; 50:209–219.

56.

Engel

, Scharling

, Skovsted

, and Heinig

: Effects, side effects and plasma concentrations of terbutaline in adult asthmatics after inhaling from a dry powder inhaler device at different inhalation flows and volumes. Br. J Clin Pharmacol. 1992; 33:439–444.

57.

Haidl

, Heindl

, Siemon

, Bernacka

, and Cloes

: Inhalation device requirements for patients' inhalation maneuvers. Respir Med. 2016; 118:65–75.

58.

Kamin

WES

, Genz

, Roeder

, Scheuch

, Cloes

, Juenemann

, and Trammer

: The Inhalation Manager: A new computer-based device to assess inhalation technique and drug delivery to the patient. J Aerosol Med Depos Clear Eff Lung. 2003; 16:21–29.
