Technological Characterization and Stability of Ilex paraguariensis St. Hil. Aquifoliaceae ( Maté ) Spray-Dried Powder

Abstract

The present work was designed to produce an Ilex paraguariensis spray-dried powder (SDP), in semi-industrial scale, in order to characterize its technological and chemical properties as well as to evaluate the thermal stability and photostability of the main polyphenol constituents. The yield of the spray-drying process was satisfactory (67%). The resulting SDP showed to be a material presenting spherical particles with a mean size of 19.6 μm, smooth surface, and good flow properties. The four polyphenol compounds previously reported for the species—neochlorogenic acid, chlorogenic acid, cryptochlorogenic acid, and rutin—were identified. Regarding the photostability test, the polyphenols present in the SDP proved to be stable against ultraviolet C radiation for 48 hours, independently of the packaging material. In the thermal stability test, the polyphenols were demonstrated to be hygroscopic and responsive to temperature (40°C) under an atmosphere of high relative humidity (75%) for 4 months, especially when the SDP was conditioned in permeable flasks. These findings demonstrate that heat and residual moisture content play an important role in the stability of the polyphenols and reinforce the relevance of conditioning SDP in humid tight packages under low temperatures.

Introduction

I lex paraguariensis (St. Hil., Family Aquifoliaceae) is a native plant from the subtropical region of South America, including southern Brazil, Uruguay, Paraguay, and Argentina. It is widely consumed as an infusion of roasted and dried leaves (chimarrão), green dried leaves brewed with cold water (tererê), or roasted leaves brewed with hot water (maté tea).

Aqueous extract solutions (ESs) of I. paraguariensis (decoction or infusion) contain different bioactive constituents, in particular methylxanthines,^1,2 saponins,^3

–7 and phenolic compounds.^8,9 Several in vitro studies have shown the important role of polyphenols on the antioxidant activity of I. paraguariensis.^10

–13 These studies suggest the potential use of I. paraguariensis aqueous extracts for the development of natural products with the aim of protecting biological systems against oxidative stress-mediated damages.

However, under the technological point of view, it is well known that aqueous extracts obtained from medicinal plants, in general, exhibit low stability.¹⁴ Their phenolic compounds, in particular, are extremely sensitive to oxidation and thermal degradation in aqueous media.^15,16 Spray-drying has shown to be one of the most appropriate techniques of solvent elimination to overcome this problem.¹⁷ Our previous reports have demonstrated the feasibility of obtaining dried products, by the spray-drying technique, from aqueous extract solutions of I. paraguariensis.^18
–20 However, as far as we know, there are no references concerning the stability of polyphenols present in the corresponding dried products.

In this context, the present work was designed to produce, in semi-industrial scale, an I. paraguariensis spray-dried powder (SDP), to characterize its technological and chemical properties and to investigate the thermal and photostability of the main polyphenol constituents.

Materials and Methods

Chemicals

Colloidal silicon dioxide (Aerosil^® 200, Degussa, São Paulo, Brazil) was used as a drying excipient. Chlorogenic acid and rutin hydrate (Sigma-Aldrich, Steinheim, Germany) were used as external standards. Liquid chromatography (LC)-grade methanol (Tedia, Fairfield, OH, USA), acetic acid (Cromoline, São Paulo), and purified water (Milli-Q^® system, Millipore, Bedford, MA, USA) were used for mobile phase preparation.

Plant material

I. paraguariensis leaves and stems were collected in Ilópolis, Rio Grande do Sul State, in the south of Brazil. The specimen was identified and deposited (voucher number 142488) at the Herbarium of the Universidade Federal do Rio Grande do Sul, Porto Alegre, RS, Brazil. The traditional method for producing erva-mate was used; in brief, the raw material was stabilized by roasting, and afterward it was dried and ground.

SDP preparation

An aqueous ES was prepared by decoction of I. paraguariensis leaves at 96°C for 15 minutes, at a plant:solvent ratio of 1.5:10. The ES was cooled down to 40°C and filtered. Colloidal silicon dioxide was added to the ES at a 3:7 ratio (excipient:dry residue) and mixed for 30 minutes. The resulting dispersion was spray-dried using a Niro Production Minor atomizer (GEA, Copenhagen, Denmark) under the following operating conditions: 10,900 rpm disk rotation rate, 177°C inlet air temperature, 99°C outlet air temperature, and 143 mL/minute feed flow.

Technological characterization

Yield and moisture content

The yield of the SDP was calculated as the difference between the theoretical weight of solid materials present in the sprayed ES and the weight of the powder obtained at the end of the drying process, taking into account the residual moisture content determined by the titrimetric method.²¹

Particle size

The mean particle size of the SDP was determined using a laser light scattering system (Malvern Instruments Ltd., Malvern, United Kingdom).

Bulk and tapped density (Hausner's Ratio and Carr's Index)

The density parameters of the SDP were determined using 10.0 g of sample in a 50-mL graduated cylinder mounted on a mechanical tapping device²² (J. Engelsmann AG, Ludwigshafen, Germany). The bulk density was calculated as the ratio between the sample weight (in g) and the initial volume (in mL), and the tapped density was defined as the ratio between the sample weight (in g) and the final volume (in mL). Carr's Index²³ and Hausner's Ratio²⁴ were calculated according to the following equations: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland,xspace}\usepackage{amsmath,amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6} \begin{document} \begin{align*}&\hbox { \rm Carr's Index } = \frac { \hbox { ( \rm Tapped density} - Bulk \ density ) } { \hbox { Tapped density } } \times 100 \\&\hbox { \rm Hausner's Ratio } = \frac { \hbox { Tapped density }} { \hbox { Bulk density } } \end{align*} \end{document}

Angle of repose

The angle of repose²⁵ of the SDP was measured according to the following equation: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland,xspace}\usepackage{amsmath,amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6} \begin{document} \begin{align*}Tg \ \theta = h / r\end{align*} \end{document}

where Tg θ is the tangent of the angle of repose, h is the height, and r is the radius.

Scanning electron microscopy

The photomicrographs of the SDP were taken using a Jeol (Tokyo, Japan) JSM 6060 microscope at a voltage of 10 kV. The samples were previously mounted on aluminum stubs using double-sided adhesive tape and vacuum-coated with a thin layer of gold.

Polyphenol assay

Chromatographic conditions

The LC analysis of the SDP was performed as described by Silva et al.,²⁶ using a Shimadzu (Kyoto, Japan) Prominence device coupled to a SPD-20A ultraviolet (UV)/visible detector. The stationary phase was a Shimadzu RP-18 column [CLC-ODS (M) 250 × 4.6 mm i.d.; particle size, 5 μm] guarded by a Waters (Milford, MA, USA) precolumn (20 × 3.9 mm i.d.; particle size, 10 μm). The mobile phase consisted of (A) acetic acid 2.0% (vol/vol) and (B) methanol:water (85:15, wt/wt). The gradient elution was 31% B (0–10 minutes), 31–56% B (10–25 minutes), 56% B (25–33 minutes), 56–77% B (33–45 minutes), 77–56% B (45–50 minutes), and 56–31% B until 60 minutes. The flow rate was 0.7 mL/minute, and the injection volume was 20 μL. The detection wavelength was 340 nm, and the analysis was carried out at room temperature.

Calibration curves

Chlorogenic acid and rutin were used as external standards. They were dissolved in methanol:water (50:50, vol/vol) and diluted to obtain the concentrations of 2.0, 4.5, 6.0, 8.0, and 10.0 μg/mL. These solutions were filtered through a membrane filter (pore size, 0.45 mm; HVLP, Millipore). The linear equations were y = 67,255x − 13,006 (r ² = 0.9993) and y = 4,3584x − 7,053.5 (r ² = 0.9991) for chlorogenic acid and rutin, respectively.

Sample preparations

The SDP (54.5 mg) was dispersed in 50.0 mL of water. From this colloidal dispersion, an aliquot of 2.0 mL was diluted to 10.0 mL with a mixture of methanol:water (50:50, vol/vol). The resulting solution was filtered through a membrane (pore size, 0.45 mm; HVLP, Millipore) and analyzed by LC, taking into account the residual moisture content of the SDP. In the stability tests the moisture content was determined by the titrimetric method²¹ for the samples collected in each time. The content of neochlorogenic acid, chlorogenic acid, cryptochlorogenic acid, P4, P5, and P6 in the samples was calculated by the chlorogenic acid linear equation. The content of rutin was calculated by the corresponding linear equation.

Photostability test

The photostability test was carried out according to the method of the International Conference on Harmonisation.²⁷ The SDP was exposed to UVC radiation (Light Express LE UV [CSR, Tokyo, Japan], 254 nm, 30 W) for 48 hours under three different storage conditions: amber glass bottles, transparent glass bottles, or open dishes. The lamp was fixed to a chamber (100 × 16 × 16 cm) in a horizontal position, at a distance of approximately 10 cm. The chamber was internally coated with mirrors in order to uniformly distribute the radiation. A sample wrapped in aluminum foil was used as a dark control to evaluate the influence of temperature into the chamber (approximately 27°C) on the stability of the polyphenols. The polyphenol content in the samples was measured in triplicate at 0, 12, 24, and 48 hours after irradiation, using the above-described LC method.

Thermal stability test

The thermal stability test was carried out at 40 ± 2°C and 75 ± 5% relative humidity for 4 months to evaluate the stability of the polyphenols under accelerated conditions. SPD was conditioned in transparent glass bottles or poly(ethylene terephthalate) (PET) bottles. The polyphenol content in the samples was measured in triplicate at 0, 1, 2, 3, and 4 months after exposure in a climatic chamber (Nova Ética, São Paulo) using the above-described LC method. This condition was chosen to evaluate the effect of temperature and relative humidity on the stability of the polyphenols.

Statistical analysis

The results were analyzed either by Student's t test or by analysis of variance followed by Tukey's test for significance at P values <.05.

Results

SPD technological characterization and polyphenol assay

The spray-drying process of the aqueous ES of I. paraguariensis leaves yielded a fine yellow powder. The technological characteristics of the SDP are presented in Figure 1 and Table 1. The LC profile of polyphenols present in SDP is shown in Figure 2.

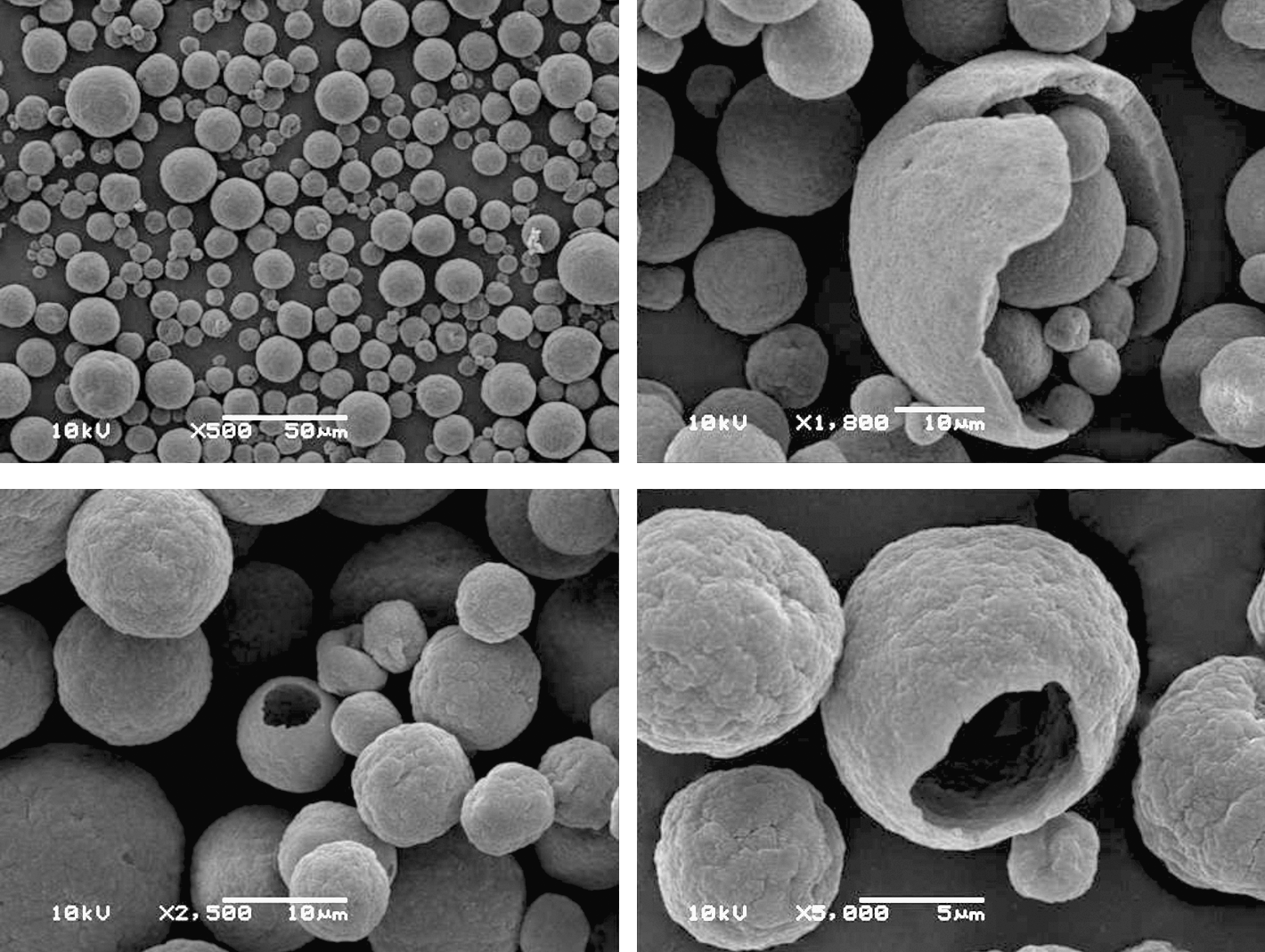

FIG. 1.

Photomicrographs of I. paraguariensis spray-dried powder.

FIG. 2.

Chromatographic profile of polyphenols present in I. paraguariensis spray-dried powder. CA, chlorogenic acid; CCA, cryptochlorogenic acid; NCA, neochlorogenic acid; P4, P5, and P6, isomeric dicaffeoyl esters of quinic acid; RU, rutin. mAU, milli-absorbance units.

Table 1.

Technological Parameters of Spray-Dried Powder of I. paraguariensis

Technological parameter	Value
Moisture content	6.64%
Yield	67%
Bulk density	0.75 g/mL
Tapped density	0.85 g/mL
Hausner's Ratio	1.13
Carr's Index	11.19%
Angle of repose	27.78°
Mean particle size	19.6 μm

Photostability test

After 48 hours of exposure to UVC radiation, the original macroscopic characteristics of SDP were not altered, and no change was detected in the LC profile (data not shown). The polyphenol content of the SDP was not significantly (P < .05) altered when it was stored in open dishes, amber glass bottles, or transparent glass bottles (Fig. 3). The residual moisture content of the SDP samples presented no significant difference (P < .05) over the photostability test (data not shown).

FIG. 3.

Polyphenol content of I. paraguariensis spray-dried powder stored under different conditions during 48 hours of exposure to ultraviolet C radiation (n = 3).

Thermal stability test

There was no change in the retention time of the polyphenols, and no new peak appeared in the chromatogram for the thermal stability test (data not shown).

The color of the SDP samples conditioned in PET bottles became brown. In these samples, the residual moisture content of the SDP was significantly (P < .05) increased from 6.64% (initial) to 13.96% (after 4 months). However, when the SDP samples were conditioned in transparent glass bottles, their residual moisture content and color were not altered (data not shown).

Simultaneously, after 4 months, a significant (P < .05) decrease was observed in the total polyphenol content of the SDP samples conditioned in both transparent glass bottles (from 209.52 mg/g to 141.98 mg/g) and PET bottles (from 209.52 mg/g to 132.03 mg/g), especially in the latter (Fig. 4).

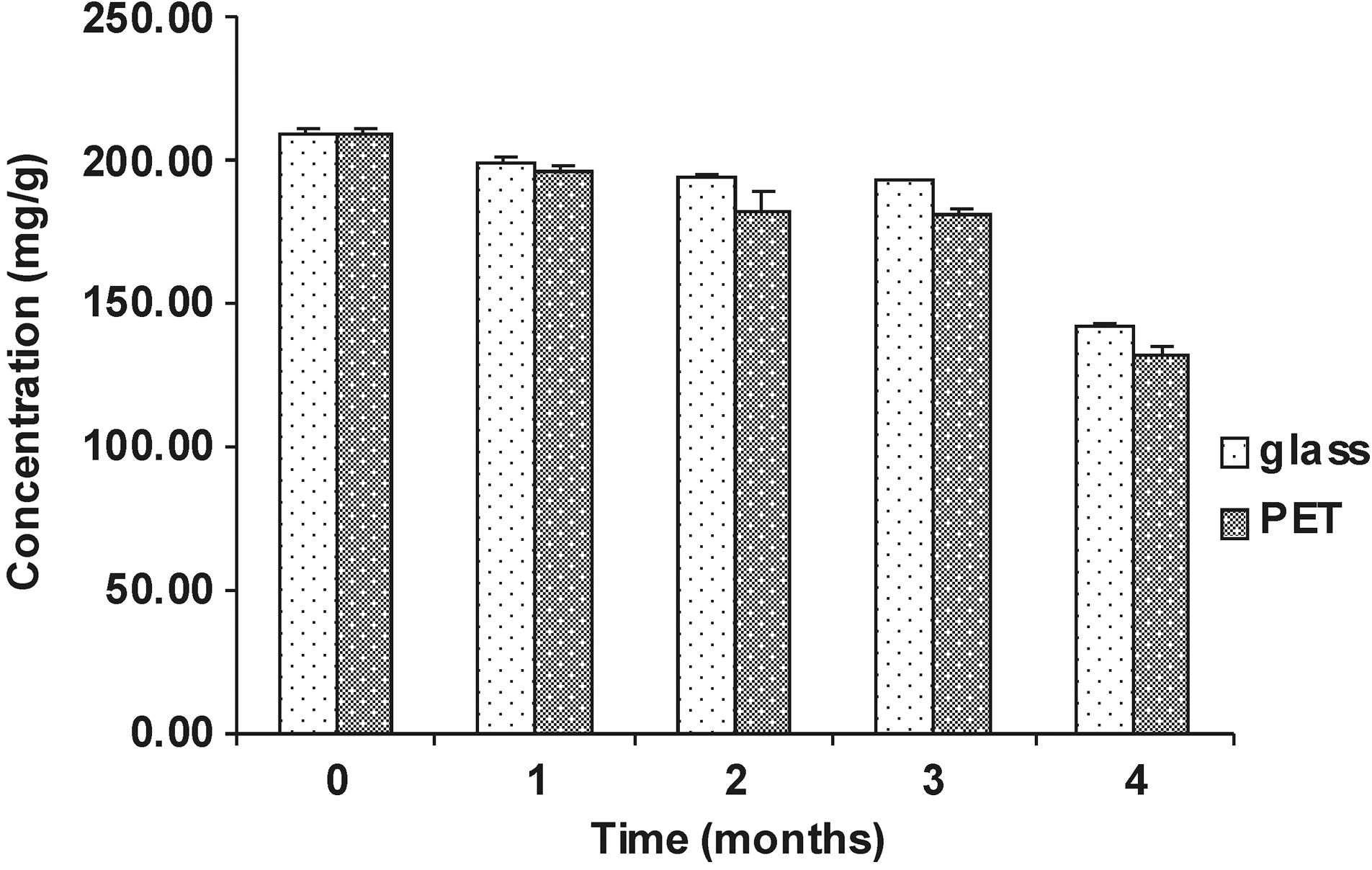

FIG. 4.

Total polyphenol content of I. paraguariensis spray-dried powder under accelerated conditions (40°C, 7% relative humidity, 4 months) (n = 3). Glass, conditioned in transparent glass bottles; PET, conditioned in poly(ethylene terephthalate) bottles.

However, an anomalous behavior was observed for cryptochlorogenic acid (Fig. 5). Until the third month, there was a significant (P < .05) increase in its concentration, which was more pronounced for the SDP samples conditioned in PET bottles (133.9%) than for those conditioned in transparent glass bottles (114.2%). In the fourth month, the cryptochlorogenic acid concentration decreased to a value (91.9% and 79.6% for PET bottles and transparent glass bottles, respectively) significantly (P < .05) lower than the initial result. The degradation kinetics of the polyphenol compounds present in the SDP could not be determined because their degradation was not greater than 50%.

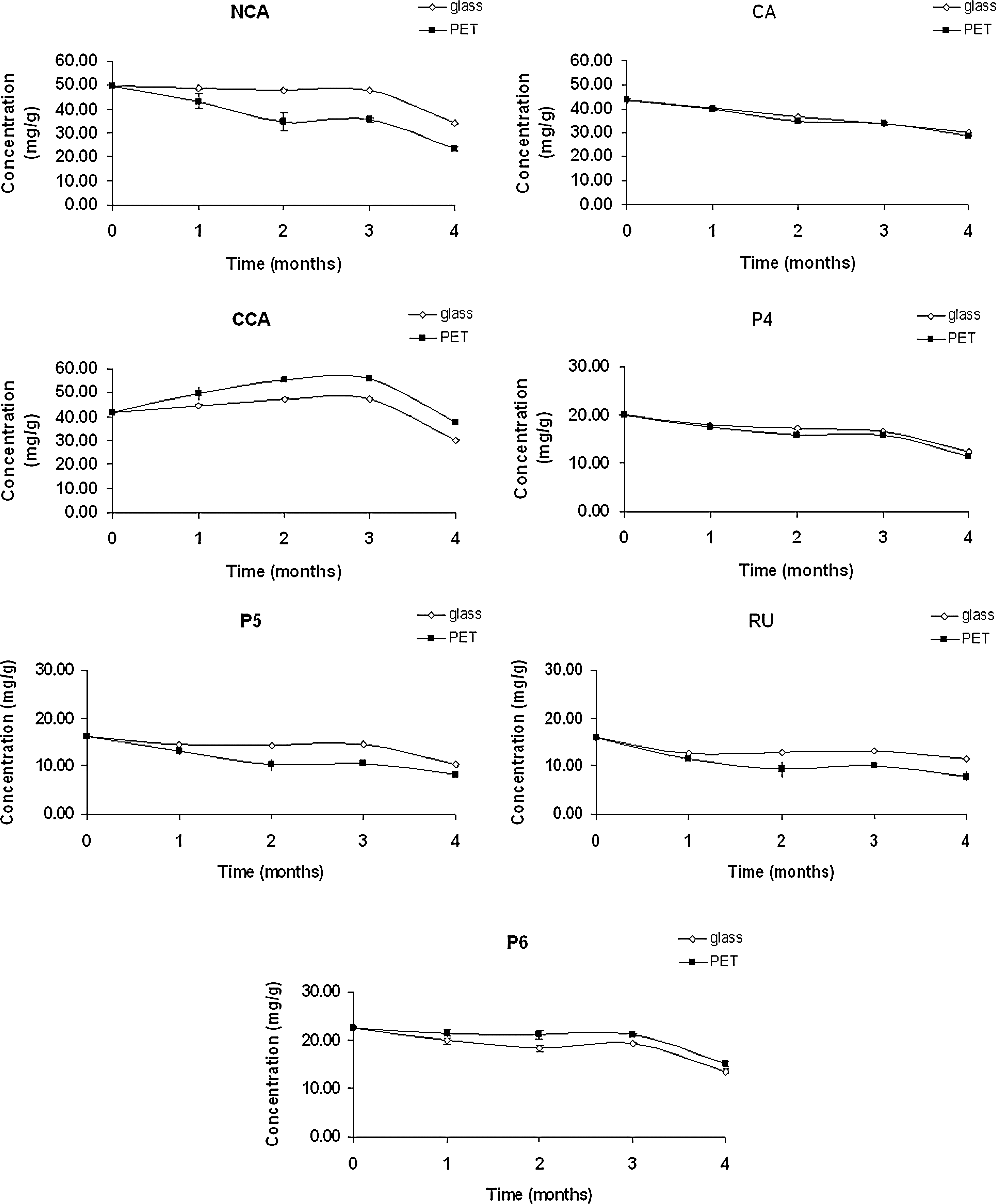

FIG. 5.

Polyphenol content of I. paraguariensis spray-dried powder under accelerated conditions (40°C, 75% relative humidity, 4 months) (n = 3).

Discussion

SPD technological characterization and polyphenol assay

Despite the hydrophilic characteristic of the herbal constituents extracted by hot water and the limitations for obtaining the corresponding dry powder, the yield of the spray-drying process can be considered satisfactory (67%). This yield is related, partially at least, to the presence of colloidal silicon dioxide as the excipient, which presents remarkable adsorbent and nonadherent properties. Additionally, it increases droplet density, thus promoting an improvement in powder recovery.^28,29

Carr's Index and Hausner's Ratio are frequently used as an indication of the flowability of a powder. A Carr's Index value below 15 and a Hausner's Ratio value lower than 1.25 indicate a good ability to flow. As an indirect measurement of flow, the angle of repose was also determined. Values of angle of repose lower than 30° characterize free-flowing materials. The results obtained indicate a material with particular stable accommodation and good flow properties. Moreover, the SDP particles showed to be spherical with a smooth surface, which probably contributed to its low agglomerating tendency.

The residual moisture content of the SDP (6.64%) was above the maximum limit (4.0%) set for herbal dry extracts by the official pharmaceutical code.³⁰ However, this value is below the maximum limit (7.0%) accepted for herbal powders with non-hermetic packaging.³¹

The peaks corresponding to the four polyphenol compounds previously reported for the species by Silva et al. ²⁶ were identified: neochlorogenic acid, retention time 7.0 minutes; chlorogenic acid, retention time 10.8 minutes; cryptochlorogenic acid, retention time 11.6 minutes; and rutin, retention time 30.4 minutes. The non-identified peaks P4 (at 27.0 minutes), P5 (at 27.7 minutes), and P6 (at 30.8 minutes), probably corresponding to isomeric dicaffeoyl esters of quinic acid (i.e., 3,4-O-dicaffeoyl, 4,5-O-dicaffeoyl, 3,5-O-dicaffeoyl, or 1,5-O-dicaffeoyl esters), could also be observed.

Photostability test

The polyphenols present in the SDP proved to be stable against UVC radiation, independently of the packaging material (amber glass bottles, transparent glass bottles, or open dishes). One hypothesis for this observation is the protective effect provided by the use of colloidal silicon dioxide as the excipient. The photoprotection mechanism of colloidal silicon dioxide is most likely similar to that reported for titanium dioxide and zinc oxide because of their physical similarity. These inorganic agents are able to reflect and scatter UV and visible radiation from a film of inert metal particles that forms an opaque barrier.³² However, we are not able to evaluate if this effect takes place in the SDP because it is a complex matrix.

Thermal stability test

Two different packaging materials—transparent glass bottles (impermeable) and PET bottles (semipermeable)—were chosen to evaluate the effect of temperature (40°C) on the stability of the polyphenols when the SDP was exposed to an atmosphere of high relative humidity (75%) for 4 months. The total polyphenol content was evaluated in this study because the biological effects of herbal drugs and their preparations very often occur because of the whole phytocomplex rather than of a single constituent.

The polyphenols appeared to be less affected by heat when the SDP was conditioned in impermeable flasks than when it was conditioned in semipermeable flasks. The SDP samples conditioned in semipermeable flasks were demonstrated to be hygroscopic, suggesting the influence of the high residual moisture content of these samples on the stability of the polyphenols. In this case, the presence of water facilitates the occurrence of the enzymatic reactions, which are accelerated by the effect of temperature.³³ Peroxidase and polyphenol oxidase have been considered the enzymes responsible for quality deterioration and browning in maté tea leaves.³³ Therefore, considering that peroxidase is a very thermostable enzyme, whose activity can be regenerated after thermal treatment,^34

–37 the degradation of polyphenol compounds in the present study may be associated, at least in part, with the residual activity of this enzyme. It should be noted that the degradation process of polyphenols also depends on other factors, such as the presence of oxidizing substances.

In the same way, the most pronounced increase of the cryptochlorogenic acid concentration observed for the SDP samples conditioned in semipermeable flasks, in the first 3 months of the thermal stability test, can also be attributed to the high residual moisture content of these samples. One hypothesis to explain this phenomenon, considering the presence of cryptochlorogenic acid isomers (chlorogenic acid and neochlorogenic acid) in the SDP, is the interconversion of polyphenol compounds under accelerated conditions.

In conclusion, an I. paraguariensis SDP was produced in semi-industrial scale with satisfactory technological properties and high content of polyphenols, which makes it a promising candidate for the development of derivative products with the aim to protect biological systems against oxidative stress-mediated damages. The findings also reinforce the relevance of conditioning SDP in humidity-tight packages under low temperatures in order to maintain the stability of the polyphenols.
