Black Tea Exhibits a Dose-Dependent Response in Saos-2 Cell Mineralization

Introduction

Findings from prospective and cross-sectional studies, mostly in postmenopausal women, suggest a positive association between habitual tea drinking and higher bone mineral density (BMD). ^{1 –7} In a prospective study of older women (>75 years old) who were at risk of fracture, habitual consumption of three or more cups of black tea (BT) per day was associated with a 30% reduction in fracture risk. ² There is a paucity of data in men with two studies showing no association and another study showing a positive association between higher tea intake and higher BMD. ^1,6,8 Whole BT (0.05 g/mL) has shown positive effects on bone histomorphometry, strength, and BMD in ovariectomized female rat models. ^9,10 The levels of BT in the aforementioned studies are steeped at concentrations of tea similar to dietary consumption. ^{9 –11} In vitro models have shown that providing BT can enhance mineralization in Saos-2 osteoblast cells, whereas decreasing cell toxicity and increasing cellular activity at a dose of 1 μg gallic acid equivalents (GAE)/mL. ¹² However, there is a paucity of information on an optimal dose of BT to stimulate bone mineralization. The objective of this study was to determine if BT has a dose-dependent effect on mineral production as well as elucidating what key proteins may be involved. It was hypothesized that BT would exert a positive effect on Saos-2 cell mineralization in a dose-dependent manner but would exhibit negligible increases in mineralization as the dose reaches the highest concentrations tested. Previously, a supplemental dose of BT (10 μg GAE/mL in Saos-2 cells) was not shown to stimulate mineralization, likely due to BT having pro-oxidant effects at this high dose. ¹²

Methods, Results, and Discussion

Experiments using Saos-2 cells were conducted between passages 60 and 90. All experiments were analyzed with one-way ANOVA (Prism V5, La Jolla, CA, USA). Tukey's post hoc analysis determined differences among specific groups, P < .05. Results are reported as mean (% of control) ± SEM.

To ensure consistency, a single batch of loose-leaf English Breakfast BT from a specialty tea shop was used. BT (200 mg) was steeped in dH₂O (5 mL) for 3 min to extract whole tea according to manufacturer recommendations. TPC was measured with Folin–Ciocalteau's methodology (ISO 14502-1:2005) with a gallic acid standard to determine GAE. ^{12 –14} Differing concentrations of BT according to TPC were measured at 0.1, 0.5, 0.75, 1, 2, 5, and 10 μg GAE/mL. Concentrations of 0.1–1 μg GAE/mL are likely relatable to consuming two to three cups of BT per day. Higher doses (≥2 μg GAE/mL) are representative of levels of polyphenols attained through supplementation or consumption of large quantities of tea (> 10 cups per day). ¹⁵

The free radical 2,2-diphenyl-1-picrylhydrazyl (DPPH) was used to measure the scavenging ability (representing potential antioxidant capacity [PAC]) of BT. The PAC of BT doses of 0.1–10 μg GAE/mL were tested by scavenging DPPH using a previously determined methodology. ^13,16 BT concentrations of 0.5–10 μg GAE/mL resulted in significantly greater inhibition of DPPH than control (P < .05). A significant difference in DPPH inhibition was seen between each BT concentration except between 0.5 and 0.75 μg GAE/mL and between 5 and 10 μg GAE/mL, respectively (Fig. 1a).

OPEN IN VIEWER

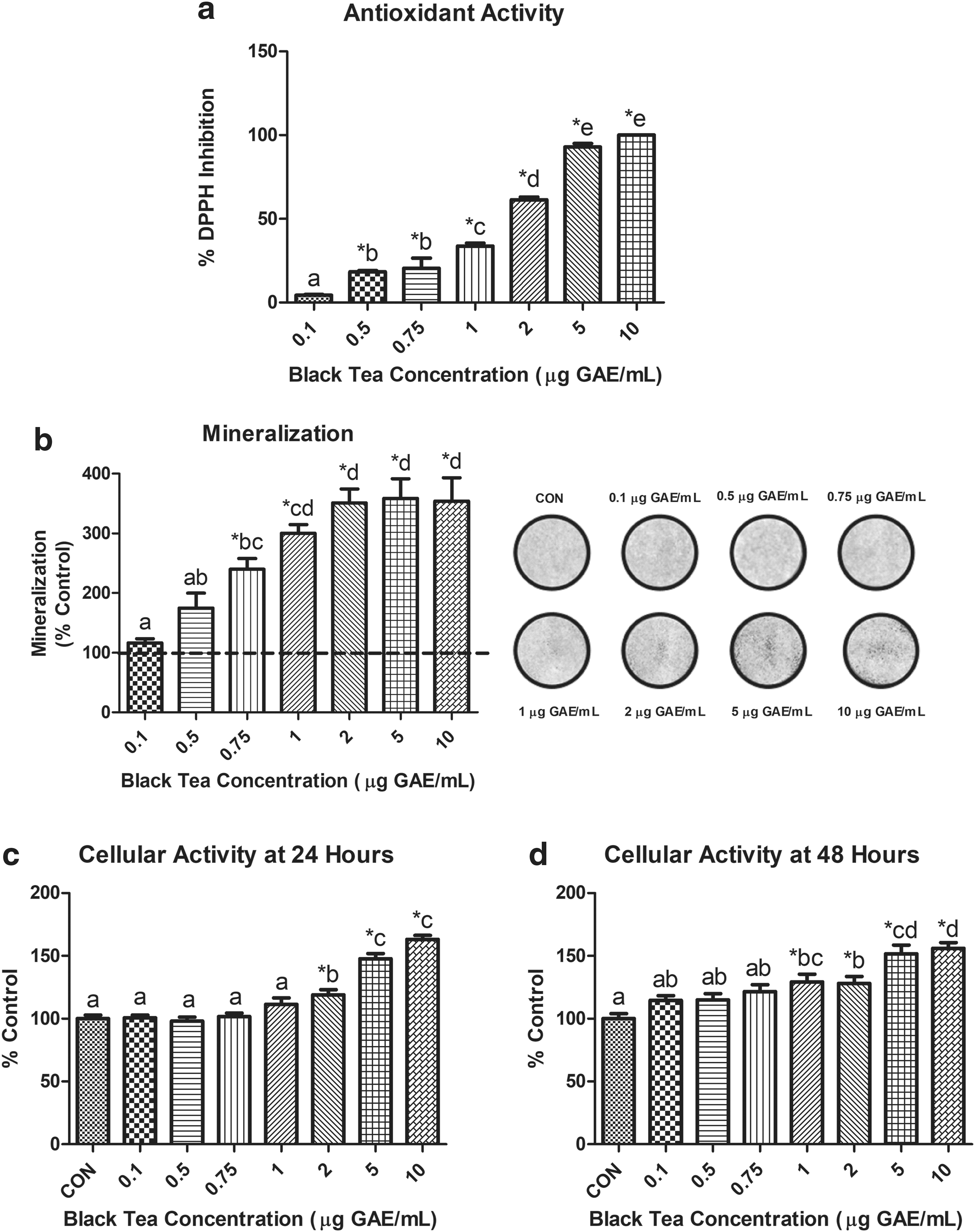

FIG. 1.

BT's effect on Saos-2 cells. All data are expressed as mean ± SEM. * indicates a significant difference (P < .05) between control and BT concentration, whereas differing letters indicate a significant difference (P < .05) between BT concentrations. (a) Ability of BT to scavenge DPPH (n = 4). (b) Mineralization after 5 days in the absence or presence of differing concentrations of BT, n = 6 (each sample was the resulting average of three wells). Graphs (c) and (d) show cellular viability through cellular metabolism observed in control and tea conditions after 24 (n = 12) and 48 h (n = 12) of exposure to MTT, respectively. * indicates a significant difference (P < .05) between control and BT concentration, whereas differing letters indicate a significant difference (P < .05) between BT concentrations. BT, black tea; DPPH, 2,2-diphenyl-1-picrylhydrazyl; MTT, 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide.

Cellular viability was measured through cellular activity using the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay after 24 and 48 h of cell exposure to BT (0.1, 0.5, 0.75, 1, 2, 5, or 10 μg GAE/mL) or control vehicle. ^17,18 After 24 h, Saos-2 cells displayed a significantly higher cellular activity (P < .05) at concentrations 2–10 μg GAE/mL. There was a dose-dependent response of BT doses at 24 h (CON, 0.1, 0.5, 0.75, 1, 2, 5, 10 μg GAE/mL). After 48 h, Saos-2 cells had a significantly higher cellular activity than control (P < .05) at BT concentrations 1–10 μg GAE/mL. There was also a dose-dependent response at 48 h (CON, 0.1, 0.5, 0.75, 1, 2, 5, 10 μg GAE/mL) (Fig. 1c, d).

Saos-2 cells (American Type Tissue Culture, Manassas, VA, USA) were subcultured weekly in media 1. ¹⁹ To measure mineralization and protein expression, cells were plated in 24-well plates in media 2 and replenished every 72 h for 8 days to allow for differentiation. ¹⁹ Cells were then introduced to media 3 in the presence of BT concentrations of 0.1–10 μg GAE/mL or dH₂O control. ¹⁹ Media was changed every other day until day 14, where cells were washed with phosphate-buffered saline. To prepare cells for mineralization, cells were fixed in 4% paraformaldehyde and stored overnight at 4°C. To extract proteins for expression, cells were lysed with radioimmunoprecipitation assay buffer containing phosphatase (PhosSTOP) and protease (cOmplete) inhibitors.

To quantify mineralization, an alizarin red assay was conducted on day 14 (day 5 of mineralization). ^12,19 150 μL aliquots of cell-stain mixture from each condition were measured in triplicate at an optical density of 550 nm to quantify staining. Cells treated with BT (0.75–10 μg GAE/mL) resulted in a significantly greater mineralization content than control (P < .05). No significant difference was observed between control, 0.1 and 0.5 μg GAE/mL of BT. A concentration of 10 μg GAE/mL did not have significantly different mineralization from concentrations of 1–5 μg GAE/mL of BT (Fig. 1b).

Expression of proteins of interest (alkaline phosphatase [ALP], osteopontin [OPN], ectonucleotide pyrophosphatase/phosphodiesterase-1 [NPP1]) was determined at day 3 of mineralization through immunoblotting using a previously established protocol. ¹⁷ Differences in the protocol included use of either a 0.2 μm polyvinylidene difluoride membrane (ALP and NPP1) or nitrocellulose membrane (OPN). Primary antibodies included ALP: 1:1000 (ab108337), 5% BSA/TBST; NPP1: 1:1000 (ab217368), 5% BSA/TBST; OPN: 1:1000 (ab33046), and 5% milk/TBST. The secondary antibody used was 1:10000 (ab205718) in 5% BSA/TBST (ALP and NPP1) or 5% milk/TBST (OPN) (Abcam, Cambridge, UK). Protein signals were detected with the ChemiDoc Imaging System (Bio-Rad, Mississauga, ON, Canada) and densitometry analysis was performed using Image Studio Lite software (LICOR Biosciences, Lincoln, NE, USA). No significant difference in ALP and NPP1 expression in cells treated with BT (Fig. 2a, b). A BT concentration of 0.75 μg GAE/mL resulted in significantly higher OPN expression than a BT concentration of 10 μg GAE/mL (Fig. 2c).

OPEN IN VIEWER

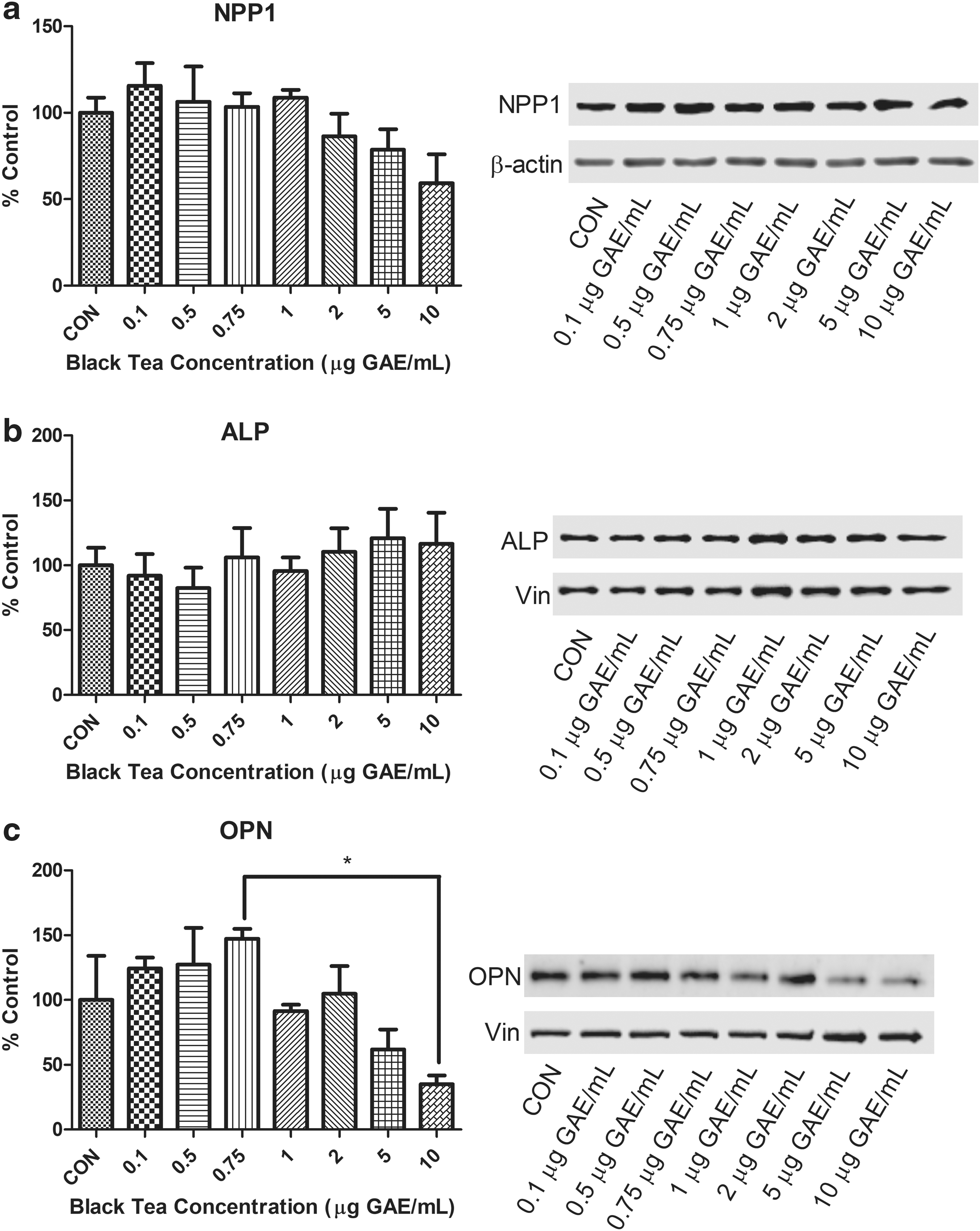

FIG. 2.

Influence of BT concentration on protein expression in Saos-2 cells. Mineralization after 3 days in the absence or presence of differing concentrations of BT polyphenols were densitometrically analyzed for the expression of (a) NPP1 (b) ALP and (c) OPN. Images are representative images of protein expressions of NPP1, ALP, and OPN, respectively. Values are mean ± SEM, n = 3 (each sample was the resulting average of three wells). ALP, alkaline phosphatise; NPP1, ectonucleotide pyrophosphatase/phosphodiesterase-1; OPN, osteopontin.

Our findings support the hypothesis that mineralization in Saos-2 cells increases with incremental BT doses but has negligible increases in mineralization as the dose reaches the highest concentrations that would be attained through supplementation. The current findings are similar to previous research that investigated a dietary (1 μg GAE/mL) and supplemental dose (10 μg GAE/mL) of BT. ¹² This may be due to antioxidant effects of BT at dietary levels of consumption. The optimal level of BT on bone mineralization (∼1 μg GAE/mL), in vitro, is estimated to resemble the level in two to three cups of BT per day. Cell viability increased with moderate and high doses of BT at both 24 h (2–10 μg GAE/mL) and 48 h (0.1–10 μg GAE/mL) of exposure, indicating that BT enhances the presence of viable mineral producing cells. Analysis of protein expression resulted in no change in expression of ALP—an indicator of bone formation or NPP1—a regulator of bone mineralization. ^20,21 Although ALP and NPP1 did not exhibit any changes in expression at day 3 of mineralization, it is unknown if the activity of these proteins was altered. A small but significant difference in expression of the mineralization inhibitor, OPN was seen between a mid-dose (0.75 μg GAE/mL) and the highest dose (10 μg GAE/mL). Visual observation of analysis indicates a potential trend of decreased OPN expression at 5 and 10 μg GAE/mL; however, only 10 μg GAE/mL was significant. Extremely high levels of BT may inhibit OPN but lowering its expression may not be associated with upregulating mineralization in Saos-2 cells. However, in a rodent model of ovariectomy, mice that were OPN deficient were protected from trabecular bone volume loss. ²² As ovariectomy is often used as a model of postmenopausal osteoporosis, a link may exist between decreased OPN expression and decreased osteoporosis incidence.

At most concentrations of BT, there was a greater ability to scavenge DPPH than control. It is suspected that the polyphenolic compounds in BT, including the theaflavins play a role in the antioxidant abilities of BT. ²³ Saos-2 cells can undergo apoptosis under conditions with high levels of reactive oxygen species (ROS) in a similar manner of osteoblasts and osteocytes in bone remodeling. ^24,25 Treatment with BT has been shown to decrease the levels of ROS, ²⁶ which may result in the presence of more viable cells to upregulate mineralization.

A limitation of this study was that whole BT was supplemented to cells instead of bioactive constituents that may reach the skeletal system in a physiological model. However, this in vitro model is a preliminary step in identifying the amount of BT to feed in vivo. A strength of this study includes being the first to study a large range of BT doses to determine the optimal dose–response in Saos-2 cells. A greater understanding of the optimal dose of BT in vitro may inform researchers of doses to investigate in preclinical and clinical models of bone health. Further research should determine if these doses of BT provide similar results in a preclinical animal model. In conclusion, we have shown that providing BT in vitro at levels attainable through dietary consumption of tea rather than supplementation can positively impact in vitro mineralization.
