Micelles: Promising Ocular Drug Carriers for Anterior and Posterior Segment Diseases

Abstract

Micelles have been studied in the targeting of drug substances to different tissues as a nano-sized delivery system for many years. Sustained drug release, ease of production, increased solubility, and bioavailability of drugs with low water solubility are the most important superiorites of micellar carriers. These advantages paved the way for the use of micelles as a drug delivery system in the ocular tissues. The unique anatomical structure of the eye as well as its natural barriers and physiology affect ocular bioavailability of the drugs negatively. Conventional dosage forms can only reach the anterior segment of the eye and are used for the treatment of diseases of this segment. In the treatment of posterior segment diseases, conventional dosage forms are administered sclerally, via an intravitreal injection, or systemically. However, ocular irritation, low patient compliance, and high side effects are also observed. Micellar ocular drug delivery systems have significant promise for the treatment of ocular diseases. The potential of micellar systems ocular drug delivery has been demonstrated by in vivo animal experiments and clinical studies, and they are continuing extensively. In this review, the recent research studies, in which the positive outcomes of micelles for ocular targeting of drugs for both anterior and posterior segment diseases as well as glaucoma has been demonstrated by in vitro, ex vivo, or in vivo studies, are highlighted.

Introduction

The eye is a unique organ that differs from other parts of the body due to its complex anatomy, physiology, and its natural effective barriers. Delivery of drug molecules at therapeutic levels to the targeted tissues of the eye with minimum side effects is crucial in drug development for use in treating anterior and posterior segment diseases where conventional dosage forms can only be effective to a certain level. Therefore, the development of drug carriers for ocular administration is a challenging but noteworthy part of pharmaceutical research.

The eye is anatomically divided into two parts: an anterior segment, which is the front one-third of the eye, and the posterior segment, which is the back two-third of the eye.¹ Its natural barriers include tear film, cornea, conjunctiva, sclera, blood-aqueous humor or iris-ciliary body, lens and blood-retina barriers, which limit the penetration of drug substances to the targeted ocular tissues.² However, the blood-retinal barrier affects the penetration of drugs to the posterior segment of the eye; other barriers mainly affect the delivery of drugs to its anterior segment.^2–4 Thus, the limitation of these barriers should be overcome to improve the ocular delivery of drugs and to provide therapeutic drug concentrations in the targeted tissues of the eye.

Topical drug delivery is considered the first choice for the treatment of ocular diseases. However, in most cases, conventional dosage forms could be inefficient to achieve effective drug concentrations in the target tissues.^5,6 To overcome this situation, drugs are generally administered via systemic route at high doses, but serious systemic side effects can be observed.² Thus, different topical drug delivery strategies have been developed to increase the penetration of drugs to the target tissue, bypassing the barriers of the eye.^2,4

In recent decades, the potential of nanocarriers for ocular drug delivery has been widely investigated and it is hoped that nanotechnology-based delivery systems improve the ocular delivery of drugs. Different types of nanocarriers, including nanoparticles, colloidal nanocarriers, vesicular nanocarriers, and dendrimers, have been developed to increase ocular permeability of drugs, providing improved drug delivery and decreased side effects.^7–14

The 29 (2) issue of the Journal of Ocular Pharmacology and Therapeutics, which was published in 2013 by the guest editor of Uday Kompella, addressed the ocular-targeted nanocarriers in different strategies.¹⁵ Molokhia et al. reviewed the ocular devices such as implants and inserts developed for use in the treatment of anterior ocular diseases,¹⁶ whereas Cholkar et al. examined the anterior ocular drug delivery systems for pharmaceutical formulation development.¹⁷ In the same journal, Rodriguez et al. described lipid nanoparticular systems that were developed for use in the treatment of retinal diseases whose clinical or preclinical studies are continuing.¹⁸ Besides, Kambhampati et al. examined only dendrimers as the ocular drug delivery system according to the targeted diseases¹⁹ and Novack provided updated information on commercial products developed as an ocular drug delivery system.²⁰

In recent years, micellar drug delivery systems have been investigated to deliver drugs for both anterior and posterior segment diseases due to numerous surperiorities of micelles in ocular drug delivery. In 2012, Pepic et al. reviewed ocular polymeric micelles in terms of their physicochemical properties, ability to pass ocular barriers, ocular toxicity, patient compliance, and industrial applicability.²¹ In the same year, Cholkar et al. classified micelles according to the treatment of anterior and posterior segment targets.²² In 2014, Vaishya et al. examined the research studies in which the structure of ocular micelles was argued about.²³ In 2017, Mandal et al. described polymeric micelles only by classifying them according to preparation methods; they also addressed micelle-based hydrogels for ocular delivery.²⁴

In this review, we mainly focus on the recent research studies on the development of micelles as ocular drug delivery systems. The characteristics of the micellar carriers are highlighted, the research studies based on ocular application of micellar carriers are summarized, and an overview of the potential of micelles for the treatment of anterior and posterior segment diseases of the eye is provided.

Anatomy and physiological barriers of eye—ocular drug administration routes

The eye that is embryologically an extension of the central nervous system is one of the complex and unique organs in the human body.²⁵ The eyeball, which is also knowns as “bulbus oculi,” is located in the orbita and orbital bones protect it.²⁶ There are three main layers, namely tunica fibrosa oculi (corneal-scleral layer), tunica vasculosa oculi (vascular layer), and tunica interna oculi (neural layer)²⁶ and two main segments are divided by the lens, anterior and posterior segments. The anterior segment includes the cornea, conjunctiva, pupil, aqueous humor iris, and ciliary body. The sclera, choroid, retinal pigment epithelium, retina, and vitreous humor are in the posterior segment.²⁷ The anatomy and segments of the eye are shown in Fig. 1.

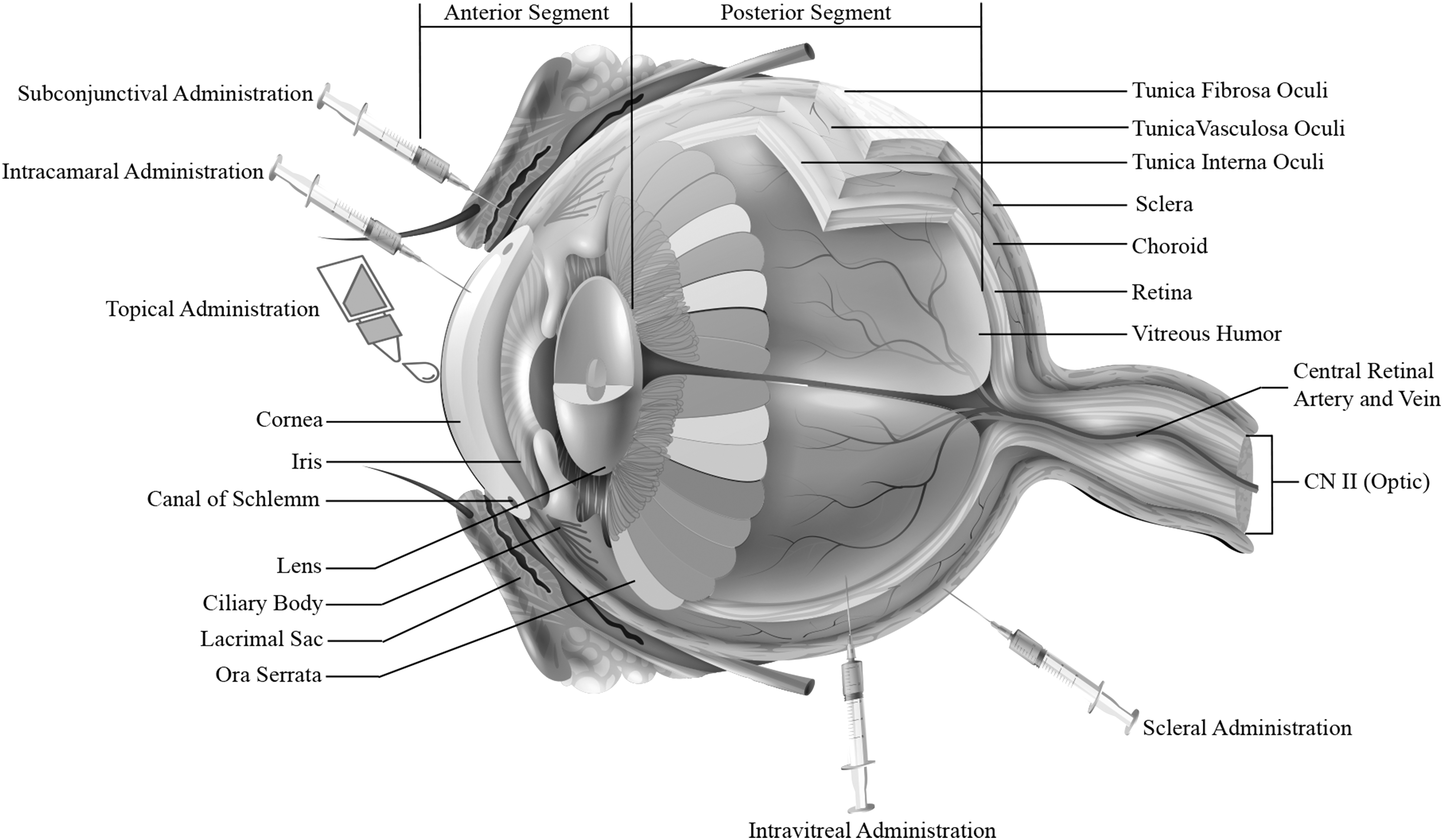

FIG. 1.

Anatomy of the eye and ocular drug administration routes.

Tunica fibrosa oculi is the fibrous layer of the eye. It does not contain blood and lymph vessels.²⁸ It consists of cornea, conjunctiva, and sclera. The cornea is the thick and transparent part of the eye.^29,30 The cornea consists of five layers, from front to back: corneal epithelium, bowman's membrane, stroma, Descemet's membrane, and endothelial layer.^31,32 The conjunctiva is a mucosal membrane where the corneal epithelium continues. It envelops the anterior part of the sclera. The sclera consists of collagen fibers and five layers: Tenon's capsule, episclera, scleral spur, limbus, and posterior sclera.^30,33,34 Tunica vasculosa oculi or uvea is the middle vascularized layer. This quite thick layer contains the choroid, ciliary body, and iris. The choroid is a tissue-containing dense capillary of this layer. The ciliary body provides the secretion of the aqueous humor filling the anterior segment. At the same time, it provides ocular accommodation.^28,31 Tunica interna oculi is the inner layer where the light is transformed into a neural impulse and transmitted to the brain.^35,36

The eye has complex anatomy and physiology as well as effective natural barriers that limit the ocular absorption of drugs and bioavailability. These barriers are tear film, cornea, conjunctiva, sclera, blood-aqueous humor or iris-ciliary body, lens and blood-retina barriers. The blood-retinal barrier affects the penetration of drugs to the posterior segment, whereas other barriers affect the anterior segment.^2–4

Different drug delivery routes have been developed to increase the penetration of drugs to the target tissue, bypassing the barriers. Drugs are mainly administered to the eye in three different routes. These are topical, periocular, and systemic administrations. Tear film and cornea are barriers for topical drugs.^2–4,37 Most of the ophthalmic drugs are applied topically. The tear film is the most important barrier for these topical drugs.^5,6 It is responsible for the removal of drugs by the nasolacrimal drainage and participation in the systemic circulation.^3,38–40 The cornea acts as a barrier for hydrophilic drugs due to tight junctions of the corneal epithelium. On the other hand, the corneal stroma is hydrophilic due to collagen fibers and acts as a barrier for lipophilic drugs.^2,4

In systemic administration, drugs are administered in high doses and the risk of systemic side effects increases.^2,37,41 As an alternative to them, periocular administration is used in four different routes: intracameral, subconjunctival, scleral, and intravitreal. However, these applications and methods have disadvantages, such as limited delivery; being used in the administration of drugs that do not pass through the cornea or target posterior segment; and problems for patient compliance, which are mainly based on the injection procedure and cause problems for patient compliance.^3,4,6,37 Conjunctiva, blood-aqueous humor, and blood-retina barriers also cause the elimination of drugs because of systemic circulation.^2,4,42,43 The lens acts as a barrier for drugs through active transport diffusion mechanisms.^2,42

Micelles

Micelles are nanocarriers consisting essentially of a hydrophobic core and a hydrophilic shell, consisting of amphiphilic copolymers or surfactants. The hydrophobic core is an alternative for targeting hydrophobic drugs, in particular.^7,8 The major feature that distinguishes micelles from other drug delivery systems is that they apply not only to lipophilic drugs but also to hydrophilic drugs. In some special cases, such as targeting hydrophilic drugs to hydrophobic environments, amphiphilic copolymers or surfactants may be misaligned to form “reverse micelles.”²³ The other important difference of the micelles is that they can remain stable in the circulation system for a long time.⁴³ Thus, they are eliminated more slowly than other drug delivery systems. Also, they passively accumulate in the inflammation area and tumors that exhibit enhanced permeability and retention effect due to their nano sizes.^44–46 Because of this feature, micelles provide advantages, especially in anti-inflammatory treatment.^46,47

Stability problems of micelles can be solved more easily than other drug delivery systems. It is important that the lyophilization process can be applied or the pH and molarity range where the micelle can remain stable can be easily adjusted by adding suitable buffers. Polyethylene glycol ( ) chain can be added to the polymers/surfactants to form the hydrophilic shell of the micelles. It is known that PEGylated micelles can remain stable for a longer period and can easily accumulate, especially in the tumor or inflamed area.^48,49 However, the most important point to be considered is the risk of being activated by the accelerated blood clearance system (ABC) by repeated application of PEGylated nanocarriers. Blood clearance of PEGylated nanocarriers that are administrated after ABC is activated increases, because these PEGylated nanocarriers accumulate in the spleen and liver.^50,51

The other advantages than as drug delivery systems are that they are easily prepared, the desired particle size can be adjusted, and they can be easily targeted to tissue by adding a mucoadhesive, thermosensitive, or pH-sensitive agent into the formulation.^{46,47, 52,53}

Micelles are used as a drug delivery system for drug targeting to different tissues. Different types of cancer derivatives,^54–57 nasal,^58,59 transdermal,^60,61 and ocular^21–24 targeting are examples of micellar systems studied so far.

Formation and preparation methods of micelles

Critical micelle concentration (CMC) is the most important parameter in the formation of micellar structures. Amphiphilic copolymers or surfactants, which are their components, are present in aqueous media separately at their low concentrations. However, the concentrations of a surfactant or amphiphilic copolymer molecules increase the interface and the system reaches saturation level. If the molecules are still added to the system after saturation, the aggregates that form micelles come into being by themselves. This concentration at which micelles are formed is called the CMC. The low CMC value of micelles as a drug delivery system provides a great advantage. Micelles with low CMC values cannot easily decompose to monomers in the systemic circulation and can maintain their stability for a long time.⁹ The structure and formation mechanisms of micelles are shown in Fig. 2.

FIG. 2.

Structure and formation mechanisms of micelles.

Different techniques are used for preparation of micelles, including the direct dissolution method, thin-film hydration method, lyophilization procedure, dialysis process, and oil-in-water emulsion (O/W) method.²⁴ The direct dissolution method is the simplest micelle preparation method known and is based on the principle that the drug and polymer/surfactant form micelles by themselves. To form micelles, the polymer/surfactant is present in water in an amount of CMC or greater. The main disadvantage of this method is that the amount of drug loaded is low. In the thin-film hydration, which is a very simple and fast preparation method, a solution of the drug and polymer/surfactant is formed in a volatile organic solvent. The organic solvent is then evaporated to give a thin film around the flask. This film is mixed by hydrating with an aqueous phase. In the lyophilization method where large-scale preparation can be done, the drug and the polymer/surfactant must be resistant to lyophilization. In the organic solvent that is suitable for lyophilization, the drug and polymer/surfactant are dissolved; then, this solution is lyophilized by mixing with water. In the dialysis method, the prepared solution of the drug and polymer/surfactant in the water-miscible organic solvent is filled into dialysis bags. The organic solvent in the dialysis bag placed in water is replaced by water over time. The biggest disadvantages of this method are that it is difficult to remove all micelles from the dialysis bag after preparation and is suitable only for laboratory-scale preparation. In the O/W emulsion method, after the solution of the drug is prepared in the organic solvent that is immiscible with water, this solution is mixed with water until a homogeneous emulsion is obtained. The organic solvent is then evaporated. The polymer/surfactant is soluble in the aqueous phase or the organic solvent.

Characteristic features of micelles

Increasing the penetration to the target tissue and high efficacy of the micelle depends on some of its characteristic features. These features are their particle size and its polydispersity index (PDI), surface charge, encapsulation efficiency, drug release behavior, and physical stability. Depending on the target tissue, different features of micelles also become important. For instance, pH and osmolarity of micellar carriers are important characteristic features for the ocular micellar system,^9,62,63 which is one of the main topic of this review.

The transport of nano-sized delivery systems to the target tissues by passing both dynamic and static barriers of the eye depends on their size. Nanocarriers with a particle size of less than 400 nm are known to have higher penetration into polarized epithelial cells.⁶⁴ For this reason, the particle size and PDI values of micelles are considered very important characteristic features. Studies have shown that micelles less than 100 nm can cross corneal barriers.²¹ On the other hand, it is known that the scleral pore has a size between 20 and 80 nm.⁶⁰ Therefore, those should be considered to develop a micellar ocular drug delivery system.

The physicochemical properties of the micelles that can remain stable with electrostatic and/or steric stabilization depend on the surface charge. On the other hand, surface charge affects the biological properties of micelles. Electrostatic interactions (e.g., hydrogen bonds or ionic) with the target tissue, cell, or membrane are directly dependent on surface charge of the micellar carrier.²¹ For instance, it has been shown that negatively charged micelles can bond better with negatively charged mucin than neutral or positively charged micelles.⁶⁵

Molecular properties of drug and drug-core interactions, polymer/surfactant used, and preparation method are factors affecting drug release from micelles.⁹ The target segment of ocular micelles changes the properties of the desired drug release. For example, micelles targeted to the anterior segment are expected to release faster than micelles targeted to the posterior segment because of the nasolacrimal drainage.²¹

One of the biggest factors that determines the success of the produced micelles as a drug delivery system is the stability of the micelles. Micelles that come into contact with many cells and proteins after administration and are exposed to physiological pH and tonicity undergo some changes.³⁹ The most important thing in these inevitable changes is that the micelles do not release the drug in their core quickly. Micelle stability is examined by thermodynamic and kinetic stability tests. Thermodynamic stability is directly related to the CMC value. Micelles are thermodynamically stable if the amount of polymer/surfactant in the aqueous medium is above the CMC value. However, below the CMC value, it tends to decompose to unimers. Kinetic stability defines the behavior of micelles in the aqueous solution over time.^9,48

There are different methods applied to increase the stability of the micelles. Lyophilization is the most preferred method. Micelles with stability problems in the dispersion medium can be lyophilized and have a longer shelf life. Another method to increase the stability of the micelles is to minimize the effect of physiological pH, tonicity, cells, and proteins that cause changes to the structure. For this purpose, the dispersion medium can be adjusted to the pH and molarity where the micelle can remain stable.^48,49 The most important issue to be considered here is that the adjustments to be made in pH and molarity to ensure the stability of the micelle do not go far beyond the physiological limits of the target tissue. Another method to increase stability is the addition of PEG chain to polymers/surfactants. This PEGylation process increases the stability of the micelles. However, it should be considered that the ABC system is active in long-term use.^50,51

A drug that can be applied to the eye must have a similar pH (6.5–7.6) and osmolarity (300 mOsm/kg) to the eye.⁶² Although there are exceptions to this,⁶⁶ pH and osmolarity buffers are added to commercial products for this purpose. The pH and osmolarity values of the micelles should be examined in terms of ocular applicability.

Structures of micelles

Micelles are classified into three types based on their structures as surfactant micelles, polymeric micelles, and poly-ion complex micelles.²⁴

Surfactant micelles

Surface-active agents, commonly known as surfactants, are amphiphilic molecules consisting of a hydrophilic (polar) head and lipophilic (nonpolar) tail, and they are known to reduce the interfacial surface energy.⁶⁷ The main use of surfactants in pharmaceutical science is to increase the solubility or permeability of the components. The usage of surfactants, which are also widely used in ocular drugs, varies depending on their physicochemical structure. Usage purposes of the ocular drugs are that they can be listed as solubilizers, emulsifiers, wetting agents, stabilizers, antimicrobial agents, charge inducers, gelling agents, and corneal permeation enhancers.⁶⁸ Surfactants are generally classified according to their surface loads and are divided into four groups: non-ionic, anionic, cationic, and zwitterionic.

One of the controlled drug release system micelles produced with surfactants that tend to form aggregates on or above the CMC value equilibrates with molecular bonds such as hydrogen bonding, electrostatic interactions, and vander waals forces. On the other hand, the ionic forces in the environment, temperature, pH, and total amount of surfactant in the environment affect the dimensions and stability of the micelles produced.⁶⁹ Surfactants used in ocular micelle preparation not only provide controlled drug release but also enhance the aqueous solubility of drugs and their penetration into the ocular tissues. As penetration is enhanced, they increase the corneal permeability of the drugs and allow the drugs to reach deeper tissues by overcoming the corneal barriers. Thus, the ocular bioavailability of the drug is increased.⁶⁸

There are some theories for surfactants to increase ocular penetration. One of them is that they increase the permeability of the cell membrane by reducing the expression of P-glycoprotein, which is responsible to reduce the absorption and bioavailability of drugs in cornea and RPE.^70,71 Another theory is that they increase the transcellular permeation by changing the physical properties of the lipid bilayer membrane of the corneal epithelium. However, the integrity of the lipid bilayer is very important. If penetration is enhanced in high doses, the physical changes caused can result in the removal of phospholipids from the cell membrane, dissolution of the cell membrane, and serious toxic effects.⁷² Other theories are that surfactants increase the direct intake of drugs into the cell by endocytosis^73,74 and decrease the nasolacrimal drainage by affecting the droplet size in liquid dosage form.⁷²

Brij 35/78/98, cremophor (EL, RH40), polyoxyl-40- stearate, tyloxapol, octoxynol-40, Solutol HS 15, polaxemer 407 (Pluronic F127), and d-α-Tocopherol polyethylene glycol 1000 succinate (TPGS 1000 succinate) are examples of the surfactants used in the preparation of ocular micelles. Surfactant micelles are not limited to experimental studies only.⁶⁸ Ophthalmic drug products that contain surfactants to solubilize the drug, which in principle are micellar formulation that have been approved, are available. Examples of some of these drugs are given in Table 1. An eye drop, named TJ Cyporin, produced by Taejoon Pharm contains cyclosporin A, which is also in a micellar form.⁷⁵ However, the micellar agent data are not in the literature because of the company rules. Thus, Table 1 does not include this product.

Table 1.

Micellar Ophthalmic Drug Products that Contain Surfactants

Disease	Commercial name	Drug loaded	Surfactant types	Company	References
Ocular inflammation (keratoconjunctivitis)	Cequa	CsA	Octoxynol-40/Polyoxyl 40 hydrogenated castor oil	Sun Pharma	76–78
	Papilock Mini		Polyoxyl-40 stearate	Santen Pharmaceutical	75
	Modusik-A Ofteno		Polyoxyl-40 stearate	Laboratorios Sophia	75
Glaucoma	Xelpros	Latanoprost	Kolliphor^® HS 15/Castor oil	Sun Pharma	79,80

CsA, cyclosporine A.

Polymeric micelles

Polymeric micelles consist of block copolymers. The polymer is any large molecule substance that contains certain repeating units. They are substances in which one or more atoms or groups of atoms form long chains by nonpolar bonding. It is structurally divided into two groups, synthetics and biopolymers.⁸¹ Hydrophobic or ionic bonds between polymer monomers are effective.⁷² Particle sizes are generally between 10 and 100 nm.²¹ Since the CMC values of polymeric micelles are lower than the micelles produced with a surfactant, their stability is higher.^82,83 Besides, prolonged contact time with tissues due to long stability, low toxicity, and good biological distribution are among the other advantages of polymeric micelles.^84,85

Polymeric micelles provide ocular bioavailability by increasing paracellular or transcellular drug delivery. Permeation enhancement mechanism is one of the theories considered for surfactant micelles. It is believed that by creating physical changes in the structure of the lipid bilayer, they facilitate the separation of phospholipids from the cell membrane, thereby facilitating the passage of the drug through the formed spaces.^70,86

Polymers such as polyethylene glycol, poly(glycolide), poly(ɛ-caprolactone), poly(lactide-co-glycolide), polypropylene oxide, and poly-L-lysine are predominantly used for preparation of micelles in the ocular drugs.²³

Poly-ionic micelles

Poly-ionic micelles consist of electrostatic interactions between poly-ion copolymers and opposite-charged ionic drugs.¹⁰ They are generally preferred as alternative nanosystems for antisense oligonucleotide and gene delivery.²³ PEG, which is a neutral block, is frequently used as a stabilizing agent in the production of poly-ionic micelle.⁸⁷ These micelles become more stable and provide an alternative for ocular drug targeting.²³

Ocular diseases and disorders

Ocular diseases and disorders are phenomena that affect vision and eye health.¹ They can be diagnosed at any age.⁸⁸ Although the disease or disorder can develop directly depending on the eye, it can also be a secondary one. If it is secondary, there may be primary diseases such as immunodeficiency, neurological problems, or idiopathic problems. The eye is a unique organ due to its anatomy and physiology. It is also common for an existing disease to easily affect other tissues of the eye and impairment of eye integrity. For this reason, finding the main reason for the disease and making an accurate diagnosis is very important for treatment.

Diseases of the eye are divided into two groups: ocular and extraocular. Ocular diseases are seen in the eye tissues, whereas extraocular diseases are related to the orbita and the muscle tissue.⁸³ These ocular diseases can be treated by medicine, surgery, or devices. Many parameters that affect the success of the treatment in medical treatment are mentioned in section “2.2. ocular barriers and ocular drug administration routes.” The fact is that the drug administration route may be changed because of the target tissue that is in the anterior or posterior segment. On the other hand, the type carrier or delivery system used in the ocular drug delivery systems, which is one of the innovations in medical treatment, varies according to the segment where the target tissue is located. Table 2 shows anterior and posterior ocular diseases.^25,83

Table 2.

Anterior and Posterior Ocular Diseases^25,8³

Anterior diseases	Posterior diseases
Cataract	Endophthalmitis
Keratitis	Scleritis
Conjunctivitis	Posterior uveitis
Episcleritis	Giant cell arteritis (Horton's disease)
Dacryocystitis	Demyelinating optic neuritis
Anterior uveitis	Macular degeneration
Hordeolum	Diabetic retinopathy
Chalazion	Histoplasmosis
Sjögren syndrome	Chorioretinopathy
Mucin deficiency	Epiretinal membrane
Dry eye syndrome (aqueous tear deficiency)	Cystoid macular edema
Chemical (acid or alkali) burn	Ven or artery occlusion
Corneal foreign body	Posterior vitreous detachment
Conjunctival foreign body	Vitreous hemorrhage
Subconjunctival hemorrhage	Retinal detachment
Corneal laceration	Retinal tears
Corneal perforation	Retinoblastoma
Corneal abrasion	Intraocular foreign body
Medicamentosa	Optic atrophy
Horner syndrome	Papilledema
Anterior ischemic optic neuropathy	Glaucoma^a
Glaucoma^a
Pterygium (surfer's eye)
Recurrent corneal erosion
Keratopathy
Fuchs corneal dystrophy
Keratoconus
Melanoma of the choroid or ciliary body

Glaucoma affects both the anterior and posterior segments of the eye.

Micellar drug delivery systems for treatment of ocular diseases

Conventional dosage forms administered to the eye generally target the anterior segment of eye and have little effect on a possible disease in the posterior segment.^3–6 On the other hand, low bioavailability due to ocular barriers and therefore high dosing frequency and low patient compliance are disadvantages of this dosage form. The fact that gels and ointments cause blurred vision is another factor that decreases patient compliance. To prevent all these negativities, ocular drug delivery systems targeting specific tissues are being developed.

Micro- and nanoparticles,⁷ microemulsions,⁷ nanosuspensions,⁷ solid lipid nanoparticles,¹¹ liposomes,¹² cubosomes,⁷ dendrimers,⁷ niosomes,⁷ discosomes,⁷ hydro gelling system,¹⁰ ocular lens/inserts/implants,^8,13,14 and micelles⁹ have been developed as ocular drug delivery systems. Micelles are one of the drug delivery systems that have been preferred for ocular drug targeting for many years and are examples that have been approved by clinical studies.^75–80 Its main advantages are that they increase the solubility of poorly soluble drugs in water and sustain drug release because of the hydrophobic core.⁹ Another important advantage is that they increase the ocular bioavailability of the drugs, because they have high permeations to the ocular tissues, thus reducing the daily drug frequency and toxicity due to the drug dose.⁷ Other advantages include ease of production and reproducibility, the ability to produce the desired quantity at one time, no discomfort when used, a clear aqueous solution of the final form that increases patient compliance, and adjustable particle sizes.⁹

If we compare these advantages with other ocular drug delivery systems, we can see that they provide superiority to microparticles in terms of particle size. Since microparticles cannot pass through the ocular barriers, it is known that ocular permeations are lower than nanocarriers.^21,43,60 Although nanoparticles are similar in size to micelles, low drug loading capacity creates an important disadvantage against micelles.⁴³ On the other hand, having toxic effects for dendrimers makes micelles superior.⁸⁹ Sustained drug release of ocular inserts, implants, or contact lenses has been demonstrated by many studies, and they also have approved products. However, these products have difficulties in application and cause inflammation.^8,90

The main limitation of micellar carriers is that amphiphilic polymers/surfactants used in their production have been shown to probably cause ocular irritation.⁷² Another disadvantage of micelles is their scale-up problems in production.⁵² The applicability of the lyophilization method, which is suitable for large-scale productions, has been demonstrated in a few studies.^91–93

Micelles for the anterior segment diseases

Although conventional ocular dosage forms are used for the anterior segment, low bioavailability has led to anterior tissues targeting when developing drug delivery systems. Micellar drug delivery system studies have been performed for the treatment of diseases such as keratitis, conjunctivitis, chemical burns, dry eye syndrome, anterior uveitis, and corneal neovascularization.⁹⁴

The studies with micelles have been continuing both intensively and successfully in recent years. In vivo studies of cyclosporine A (CsA) loaded octoxynol-40 micelles developed by Mandal et al. showed statistical improvement in conjunctiva after 5 days of single- and multi-dose administration. Subsequently, phase III studies of micelles, which have been clinically studied, have been finalized and the product has been approved by the FDA for treatment of dry eye disease signs and symptoms.⁷² Dexamethasone (DEX) is an active ingredient that is used in ocular inflammations and is an eye drops solution. Alami-Milani et al. have developed DEX loaded Poly(ɛ-caprolactone)-b-poly(ethylene glycol)-b-poly(ɛ-caprolactone) (PCL-PEG-PCL) micelles. Corneal permeation of sustained-release micelles was found to be 2-fold higher than commercial eye drops.⁹⁵

The studies regarding micellar ocular delivery systems targeting drugs to the anterior segment of the eye published in the past 6 years are given in Table 3.

Table 3.

Micellar Ocular Drug Delivery System Studies Targeting to the Anterior Segment

Disease	Loaded drug	Polymer/surfactant	Form	Particle size	Comments	References
Ocular inflammation	Celecoxib	Pluronic F127	Aqueous micellar solutions without any excipients	In the range of 21–29 nm	• Increased corneal permeation relative to the suspension	96
					• An eye drop containing celecoxib micelles produced in the study might be promising to improve ocular bioavailability
	Natamycin	Soluplus/Pluronic P103/α-cyclodextrin	Aqueous micellar solutions in 0.9% NaCl isotonic medium or pH 6.4 buffer and their Poly(pseudo)rotaxanes form with α-cyclodextrin without any excipients	90 and 102 nm (soluplus), 16 and 20 nm (pluronic), In the range of 110–151 nm (soluplus/pluronic)	• Increased corneal permeation in ex vivo studies than an ocular suspension of natamycin	97
					• Significant increase in viscosity of α-cyclodextrin derived poly(pseudo)rotaxanes compared with micelles
					• Promising drug delivery systems to improve ocular bioavailability of poorly soluble drugs of poly(pseudo)rotaxanes, since increased viscosity is believed to increase eye retention time
	Itraconazole	B-cyclodextrin	Poly(pseudo)rotaxanes form with β-cyclodextrin of aqueous micellar solutions without any excipients	In the range of 117–357 nm	• Significant improvement in ex vivo and in vivo corneal permeation compared with suspension itraconazole suspension (1.5 and 10-fold, respectively)	98
					• High efficacy in the treatment of mycotic keratitis compared with placebo form (reduction of mycotic colony 50 and 13%, respectively)
					• Promising drug delivery systems to improve ocular bioavailability of poorly soluble drugs of poly(pseudo)rotaxanes, since increased viscosity is believed to increase eye retention time
Ocular inflammation	Itraconazole	Pluronic F127/Pluronic F68/Carbopol 934P	In situ gelling systems with Carbopol 934P of aqueous micellar solutions without any excipients	In the range of 77–119 nm	• Increased ex vivo corneal permeation 5-fold compared with itraconazole eye drops and pure drug suspension	52
					• Increased in vitro mucoadhesive strength 40-fold higher than the ocular shear stress
					• Increased in vitro antifungal activity compared with itraconazole eye drops
	Sertaconazole nitrate	Solutol HS15/Pluronic F68/Brij58/Pluronic L121	Aqueous solutions of mixed micelles of HS15, F68, 58 or L121, and transcutol or propylene glycol without any excipients	In the range of 15–26 nm	• Increased ex vivo corneal permeation at least 2-fold compared with sertaconazole suspension	99
					• Increased in vivo corneal uptake at least 2-fold compared with sertaconazole suspension
	Pimecrolimus	mPEG-PCL	Hydrogels of lyophilized polymeric micelles without any excipients	In the range of 21–40 nm	• No statistically differences in aqueous tear production in each group in in vivo studies	100
	Tacrolimus	PEG-CCF	Aqueous solution of mixed micelles without any excipients	45.3 nm	• Reduced corneal fluorescence significantly compared with tacrolimus suspension	101
					• Decreased number of inflammatory cells
					• Could restore corneal epithelial thickness
					• Reduced stromal edema compared with tacrolimus suspension
		mPEG-b-PLGA	Aqueous micellar solution without any excipients	81.3 nm	• Significant increase in ex vivo corneal permeation compared with tacrolimus eye drops (185.15 ± 6.26 and 109.70 ± 5.38 μg/cm², respectively)	102
					• Immune rejection inhibition after corneal allograft in in vivo immunofluorescence
Ocular inflammation	Fluorometholone	Soluplus	Micellar solution in phosphate-buffered saline without any excipients	In the range of 74–102 nm	• Increased corneal permeation compared with suspension form and physical mix	103
	Lornoxicam	Tetronic 701/Synperonic PE-F127/Synperonic PE-P84	Aqueous micellar solution without any excipients	In the range of 20–1383 nm	• Ex vivo penetration of the micelle prepared at 37° and having the ratio T 701: P84 (25:75) is higher than that of RhB aqueous solution.	104
	Gatifloxacin	Pluronic F127	Lyophilized polymeric micelles without any excipients	In the range of 101–209 nm	• Increased corneal permeation compared with commercial eye drops and an aqueous solution of gatifloxacin	105
	Ofloxacin	Pluronic F127/Pluronic F68	In situ gelling systems of aqueous micellar solutions without any excipients	<5 nm	• Increased in vitro and in vivo retention time of hydrogels based on micelles	106
	Terbinafine Hydrochloride	Kolliphor^® HS 15	Aqueous micellar solution with ethylparaben	13.22 nm	• Increased permeation in mouse corneal stroma	107
					• Increased permeation in treated rabbit corneas compared with oily Terbinafine Hydrochloride
					• Unchanged bioavailability in normal rabbit cornea compared with oily Terbinafine Hydrochloride
Ocular inflammation	DEX/Triamcinolone/Triamcinolone Acetonide	Hyaluronic Acid	Aqueous micellar solution with pH 7.4 phosphate buffer and pH 7.4 4-(2-Hydroxyethyl)-piperazine-1-ethanesulfonic acid buffer	In the range of 127–329 nm	• Increased corneal permeation compared with suspension, corneal permeation seen in triamsilone acetate micelles (no permeation in suspension form), and increased corneal retention time compared with suspension form	108
	DEX	PCL-PEG-PCL	Aqueous micellar solution without any excipients	40 nm	• Increased corneal permeation 2-fold compared with commercial eye drops	95
	Myricetin	PVCL-PVA-PEG	Aqueous micellar solution without any excipients	71.43 nm	• Significant improvement in in vitro cellular uptake and in vivo corneal permeation	109
					• Increased in vitro antioxidant and in vivo anti-inflammatory activity compared with diclofenac sodium
		Kolliphor HS15	Micellar solution in phosphate-buffered saline (pH 6.5, 300 mOsmol/kg) without any excipients	12 nm	• Increased in vivo corneal permeation compared with free myricetin (14.3-fold higher)	110
					• Increased anti-inflammatory efficacy compared with diclofenac sodium
Ocular inflammation	Curcumin	PVCL-PVA-PEG	Micellar solution in phosphate-buffered saline (pH 6.8) without any excipients	50 nm	• Increased in vitro cellular uptake and in vivo corneal permeation compared with free curcumin	111
					• Dose-dependent anti-inflammatory effect
		Pluronic P123/TPGS 1000 Succinate/Gellan Gum	In situ gelling systems with Gellan Gum of aqueous micellar solutions without any excipients	10.83 nm	• Increased cumulative corneal penetration	112
		Rebaudioside A	Aqueous micellar solution with pH 7.4 PBS buffer	3.96 nm	• Increased in vitro cell uptake and in vivo corneal permeation compared with free curcumin	113
	Pterostilbene		Aqueous micellar solution without any excipients	3.99 nm	• Increased in vivo corneal permeation compared with pterostilbene solution (6.79-, 9.68-, 4.99-, and 6.39-fold higher at 0.5, 1, 2, and 4 h time points, respectively)	114
					• Increased anti-inflammatory efficacy compared with diclofenac eye drops
	Diclofenac	Ginsenoside Rb1	Micellar solution in phosphate-buffered saline (pH 6.6–6.8) without any excipients	In the range of 6.5–7.5 nm	• Increased in vivo corneal permeation in single and multiple administration and long-period anti-inflammatory effect compared with diclofenac eye drops	115
	Neomycin B/Kanamycin B/DNA aptamer	5DUP3	Aqueous micellar solution without any excipients	No results	• Increased the permeation of corneal tissue and effectiveness on bacterial growing, applicable even for human tissue	116
Dry eye syndrome	CsA	mPEG-PLA	Lyophilized polymeric micelles without any excipients	In the range of 8–42 nm	• Increased corneal permeation compared with emulsion form	117
			Lyophilized polymeric micelles without any excipients		• Reduced CsA elimination from micelles
		Octoxynol-40	Aqueous micellar solution with antimicrobial, pH, and tonicity buffer	In the range of 20–80 nm	• FDA approved as an ophthalmic micellar solution on 14th of August 2018 for the treatment of DED's signs and symptoms	78
		Sympatens AS-200 G/Sympatens ACS-200 G/Solutol HS 15	Aqueous micellar solution with pH 7.4 PBS buffer	In the range of 10–12 nm	• Increased drug intake levels compared with CsA nanoemulsion in phase III study and free CsA in olive oil in in situ porcine model studies (3- and 3.5-fold higher, respectively)	118
		mPEG-PLA	Lyophilized polymeric micelles without any excipients	57 nm	• Biphasic release; rapid release without burst effect in the first 36 h, then prolonged release up to 92 h	119
		PEG-PCL-g-PEI	Micellar solution in 0.9% isotonic NaCl	27.74 and 36.32 nm	• Increased in vivo and in vitro corneal penetration of fluorescein diacetate-labeled micelles	120
	Rapamycin	PEG-DSPE	Aqueous micellar solution without any excipients	11 nm	• Decreased lymphocytic infiltration, cathepsin S activity in tears and lacrimal gland lysates compared with eye drops after 12 weeks of treatment	121
Corneal neovascularization	Axitinib	mPEG-PCL	Lyophilized polymeric micelles without any excipients	In the range of 50–200 nm	• No significant difference in drug release	122
			Lyophilized polymeric micelles without any excipients		• Better results than DEX eye drops in the in vivo anti-corneal neovascularization study
Corneal neovascularization	DEX/Bevacizumab (Avastin^®)	mPEG-PCL/α-cyclodextrin	Hydrogel with α-cyclodextrin of aqueous micellar solutions without any excipients	No results	• Increased retention time on corneal surface	123
					• Reduced inflammation compared with DEX and Avastin^® solution
Oxidative stress	Alpha-tocopherol	Pluronic F127/Pluronic F68/Solutol HS 15/TPGS 1000 succinate/Tween 80/Span 80/Span 60/Glycerol/DSPE-PEG2000/Lipoid E 80	Aqueous micellar solutions with glycerin	In the range of 44–127 nm	• A few drugs are transported through the cornea; cationic micelles lead to a significantly higher amount of TOC in the cornea compared with Lipoid E micelles	124
	Curcumin	PVCL-PVA-PEG	No results	No results	• Ocular effect after intranasal administration affecting trigeminal ganglion promoted corneal epithelial wound healing and recovery of corneal sensation	125
Anterior uveitis	DEX	PCL-PEG-PCL	Aqueous micellar solution with pH 7.2 PBS buffer	40 nm	• Reduced the clinical symptoms of uveitis compared with commercial DEX eye drops	126
Corneal wound healing	Ferulic acid	ɛ-Polylysine/Pluronic F68	Nanogel with ɛ-polylysine of aqueous micellar solutions without any excipients	In the range of 77–214 nm	• Accumulation at normal cornea higher than damaged cornea	127

5DUP3, 5-(dodec-1-ynyl)-uracil phosphoramidite 3; DEX, dexamethasone; DSPE-PEG, 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[amino(polyethylene glycol)]; mPEG-b-PLGA, Methoxy poly(ethylene glycol)-b-poly(lactide-co-glycolide); mPEG-PCL, methoxy poly(ethylene glycol)-block-poly(ɛ-caprolactone); mPEG-PLA, methoxy poly(ethylene glycol)-b-poly(l-lactide); PCL-PEG-PCL, poly(ɛ-caprolactone)-b-poly(ethylene glycol)-b-poly(ɛ-caprolactone); PEG-CCF, cholecalciferol poly(ethylene glycol); PEG-PCL-g-PEI, polyethylene glycol-poly ɛ-caprolactone-polyethylenimine; PVCL-PVA-PEG, polyvinyl caprolactam-polyvinyl acetate-polyethylene glycol; TPGS 1000 succinate, d-α-tocopherol polyethylene glycol 1000 succinate.

Micelles for the posterior segment diseases

It is difficult to reach the posterior segment bypassing the ocular tissues through a conventional dosage form. Therefore, different drug delivery routes have been found, such as scleral, intravitreal, and systemic. However, side effects such as ocular irritation and systemic toxicity may be seen in these applications. Considering all these conditions, drug targeting to the posterior segment becomes very important.

The micellar drug delivery system has been studied so far for neovascularization, macular degeneration, diabetic macular edema, posterior inflammations, and posterior uveitis.⁹⁴ Vaishya et al. developed DEX loaded MPEG-PCL micelles for use in the treatment of posterior uveitis. The permeation of conjunctival cells and sclera of the micelles with sustained drug release was 2 and 2.5 times higher than the DEX suspension, respectively.¹²⁸

The studies regarding micellar ocular delivery systems targeting drugs to the posterior segment published in the past 6 years are given in Table 4.

Table 4.

Micellar Ocular Drug Delivery System Studies Targeting the Posterior Segment

Disease	Loaded drug	Polymer/surfactant	Form	Particle size	Comments	References
Macular degeneration	Sirolimus (Rapamycin)	Cholesterol-PEG	Lyophilized polymeric micelles without any excipients	In the range of 11.7–16.2 nm	• Increased the scleral permeability 14-fold compared with sirolimus solution	129
	DEX/Triamcinolone/Triamcinolone Acetonide	INU-EDA-RA	Lyophilized form of an aqueous micellar solution without any excipients	In the range of 305–350 nm	• Significant increase in scleral permeation of DEX, Triamcinolone, and Triamcinolone Acetonide compared with their solutions (3.5-, 2.5-, and 2-fold in murine cells; 2.5-, 5.5-, and 3-fold human cells, respectively)	130
	DEX	CSO-SA/CSO-VV-SA/Castor oil-40/Octoxynol-40	Aqueous micellar solution without any excipients	100 nm (CSO-SA or CSO-VV-SA), 30.33 nm (Castor oil-40/Octoxynol-40 mixed micelles)	• Castor oil-40/Octoxynol-40 mixed micelles were prepared according to the literature of Cequa⁷²	131
					• Increased in vitro permeability compared with DEX solution
					• Increased DEX concentration at sclera-choroid-retina compared with DEX solution
Proliferative neovascularization	Genistein	Hyaluronic acid/MPEG-b-PAE	Lyophilized form of an aqueous micellar solution without any excipients	84.5 nm	• Increased corneal penetration 1.5-fold compared with free genistein	132
Proliferative neovascularization	Genistein	Hyaluronic acid/MPEG-b-PAE		84.5 nm	• Significant regression in neovascularization (3-fold effective treatment)	132
Posterior uveitis	Sirolimus (Rapamycin)	mPEG-PCL	Lyophilized form of an aqueous micellar solution without any excipients	40 nm	• Dose-dependent anti-inflammatory effect (therapeutic efficacy in each dose group compared with rapamycin suspension)	133
Posterior uveitis	DEX	mPEG-PCL	Aqueous micellar solution without any excipients	In the range of 26–29 nm	• Increased permeation of conjunctival cells and sclera than DEX suspension	128
Inflammation	Resolvin	Hydrogenated castor oil 60/Octoxynol-40	Micellar solution in citrate buffer (pH 5.5) without any excipients or with antimicrobial and viscosity agents	In the range of 10–12 nm	• No significant difference between the control group according to Hackett-McDonald ocular scoring (Microscopic Ocular Grading System)	134

Cholesterol-PEG, cholesterol- poly(ethylene glycol); CSO-SA, chitosan oligosaccharide-stearic acid; CSO-VV-SA, chitosan oligosaccharide-valylvaline-stearic acid; INU-EDA-RA, inulin-ethylendiamine-retinoic acid; MPEG-b-PAE, methyl ether poly(ethylene glycol)-b-poly(b-amino ester); mPEG-PCL, methoxy poly(ethylene glycol)-block-poly(ɛ-caprolactone).

Micelles for the glaucoma

Glaucoma, a disease characterized by an increase in intraocular pressure (IOP), ultimate damage to the optic nerve, fiber layer, and ganglion cells, is the second leading cause of irreversible blindness after cataract.^135,136 It is a disease affecting both the anterior and posterior segments of the eye.

Many active ingredients with different mechanisms of action are used in the medical treatment of glaucoma. Latanoprost and timolol are examples of drugs with different mechanisms that are frequently used in treatment. Latanoprost, the prostaglandin F2α analog, is one of the active substances used in glaucoma treatment by increasing the flow of aqueous humor¹³⁷; timolol, the beta-blocker, inhibits aqueous humor production¹³⁸; and both reduce IOP. No product on the market combines these two drugs with different mechanisms of action. Xu et al. produced contact lenses nano-decorated with latanoprost and timolol loaded mPEG-PLA micelles in their study. It was observed that the micelle loaded contact lenses reached the highest release value in the 120–144 h interval by sustained release. In pharmacokinetic studies, latanoprost was detected for 96 h and timolol was detected for 120 h in tear fluids; bioavailability improved 7.3 times and 2.2 times, respectively. In vivo pharmacodynamic studies showed that a continuous decrease in IOP was detected for 168 h in rabbits with high IOP. The relative pharmacological availability of CLs-M was 9.8 times as high as the eye drops.¹³⁹

All micellar ocular drug delivery system studies for the treatment of glaucoma in the past 6 years are given in Table 5.

Table 5.

Micellar Ocular Drug Delivery System Studies for the Treatment of Glaucoma

Loaded drug	Polymer/surfactant	Form	Particle size	Comments	References
Latanoprost/Timolol	mPEG-PLA	Contact lens of aqueous micellar solution without any excipients	20.96 nm	• Increased mean residence time of timolol and latanoprost by CLs-M compared with eye drops (79.6- and 122.2-fold, respectively)	139
Latanoprost/Timolol	mPEG-PLA		20.96 nm	• Increased bioavailability of timolol and latanoprost by CLs-M compared with eye drops (2.2- and 7.3-fold, respectively)	139
Methazolamide	mPEG-PCL	Aqueous micellar solution without any excipients	In the range of 60–93 nm	• Reduced IOP compared with Methazolamide solution	140
Melatonin	Pluronic F127/Chitosan/Lecithin	Aqueous micellar solution without any excipients	20 nm	• Melatonin loaded F127 micelle showed higher corneal permeability than melatonin aqueous solution	141
Coenzyme Q-10	TPGS 1000 succinate	No results	No results	• Significantly protective in different retinal ganglion cell models	142
Coenzyme Q-10	TPGS 1000 succinate	No results	No results	• Significant neuroprotective effect compared with control with DARC and Brn3	142

IOP, intraocular pressure; mPEG-PCL, methoxy poly(ethylene glycol)-block-poly(ɛ-caprolactone); mPEG-PLA, methoxy poly(ethylene glycol)-b-poly(l-lactide); TPGS 1000 succinate, d-α-tocopherol polyethylene glycol 1000 succinate.

Micelles for the myopia

Myopia is a refractive disorder in which the eye does not refract light properly. Light does not focus correctly so images are not clear. Li et al. developed pirenzepine loaded mPEG-PDLLA micelles. The aqueous solution of micelles that has a 280 nm particle size increased corneal permeability by increasing the partition coefficient. In vivo absorption results showed that bioavailability was increased.¹⁴³

Conclusion

Micelles as ocular drug delivery carriers have significant promise for the treatment of both anterior and posterior segment diseases as well as glaucoma treatment due to their numerous superiorities such as the increasing of aqueous solubility of drugs, providing sustained drug release, and improving ocular permeation of the drugs. In this review, we have highlighted recent research studies that draw on the positive outcomes of micelles as an ocular drug delivery system.

When all the studies were examined, it was seen that the research studies are mostly focused on the treatment of ocular inflammation and dry eye in anterior segment diseases and the treatment of macular degeneration in posterior segment diseases. This fact draws attention that DEX is a frequently studied active drug molecule as a micellar drug delivery system. The data indicated that its micellar carriers showed higher permeation to both anterior and posterior eye segments compared with its commercial eye drops. These results suggest that DEX loaded micelles may successfully pass clinical trials and might become commercial products in the future. In addition, micelles drug delivery systems of CsA have also been studied in many research studies. Cequa, a cyclosporine loaded micelle product that has been the subject of many studies, is highly promising for new studies in this field.

Developments in glaucoma, a disease affecting both segments, suggest that drugs with different mechanisms of action may be loaded in the same micelles. This development, which makes combined treatment possible, promises great hope for the treatment of the disease.

On the other hand, the development of micellar drug delivery systems in the treatment of myopia, which is not a disease but an eye disorder, paves the way for medical treatment in permanent eye disorders. If medical treatment can be performed in such diseases that can be treated by using glasses or surgical procedures under normal conditions, the quality of life of the people will increase significantly.

Future perspective

The development of new drugs instead of the existing molecules is a long and challenging process. Modifying existing drug molecules is a wiser approach to solve all these problems. The drug delivery systems developed for this purpose aim at the administration of any drug to the target tissue in as low doses as possible. Thus, systemic absorption of drugs can be prevented, their toxicity is reduced, and their absorption and bioavailability are increased. In the development of drug delivery systems, a drug's solubility and solubilization, lipophilicity, permeability, gastrointestinal metabolism, degree of ionization, stability in biological fluids, protein binding, systemic pharmacokinetics, and pharmacodynamics properties play a very important role because they affect the pharmacokinetics of that molecule.¹⁴⁴ Although biological membranes are generally hydrophilic, most of the drugs currently in treatment are lipophilic.^145,146 Therefore, the absorption and bioavailability of lipophilic drugs are very low. Drug delivery systems, among other advantages, first improve the aqueous solubility of these lipophilic drugs and increase the absorption.

Micellar drug delivery systems have always been considered promising nanocarriers in ocular targeting, from the moment they were discovered until today. Ophthalmic drug products that contain surfactants to solubilize the drug, which in principle are micellar formulations that have been approved, are available (Table 1). An eye drop, named TJ Cyporin, produced by Taejoon Pharm contains cyclosporin A, which is also in a micellar form. However, polymeric micellar carriers are not yet approved as commercial products; the promising data from recent research studies indicate possible opportunities for ocular delivery of micellar carriers. Having higher ocular permeation compared with conventional dosage forms and suitable particle sizes that are capable of crossing the ocular barriers are the biggest data supporting this opinion. Also, the declaration of some of the used polymers/surfactants as reliable excipients by the FDA,^147,148 ease of production, adjustable stability, and particle size are other factors that favor micelles to be targeted in ocular targeting.

Having high ocular permeation and in vivo efficacy, not causing ocular toxicity are, undoubtedly, very important to develop drug delivery systems and give an idea about whether that system will turn into a commercial product. However, while talking about the future perspective in the development of these systems, only experimental studies are not convincing. The presence of commercial products that are approved or whose phase studies are in progress distinguishes ocular targeted micellar drug delivery systems from other systems.

Footnotes

Author Disclosure Statement

No competing financial interests exist.

Funding Information

No funding was received for this article.

References

Mishra

G.P.

, Bagui

, Tamboli

, and Mitra

A.K.

Recent applications of liposomes in ophthalmic drug delivery. J. Drug Deliv. 2011:863734, 2011.

Rupenthal

I.D.

, and Alany

R.G.

Ocular drug delivery. In: Gad

S.C.

, eds. Ocular Drug Delivery - Pharmaceutical Manufacturing Handbook: Production and Processes. New Jersey: John Wiley & Sons, Inc.; 2008; p. 729–768.

Durairaj

. Ocular pharmacokinetics In: Whitcup

S.M.

, and Azar

D.T.

, eds. Pharmacologic Therapy of Ocular Disease. Switzerland: Springer International Publishing; 2016; p. 32–55.

Urtti

Challenges and obstacles of ocular pharmacokinetics and drug delivery. Adv. Drug Deliv. Rev. 58:1131–1135, 2006.

Winter

K.N.

, Anderson

D.M.

, and Braun

R.J.

A model for wetting and evaporation of a post-blink precorneal tear film. Math. Med. Biol. 27:211–225, 2010.

Nettey

, Darko

, Bamiro

O.A.

, and Addo

R.T.

Ocular barriers. In: Addo

R.T.

, eds. Ocular Drug Delivery: Advances, Challenges and Applications. Cham: Springer Nature; 2016; p. 27–36.

Bachu

R.D.

, Chowdhury

, Al-Saedi

Z.H.F.

, Karla

P.K.

, and Boddu

S.H.S.

Ocular drug delivery barriers—role of nanocarriers in the treatment of anterior segment ocular diseases. Pharmaceutics. 10: pii: e28. DOI: 10.3390/pharmaceutics10010028, 2018.

Bennett

. Topical versus systemic ocular drug delivery In: Addo

R.T.

, eds. Ocular Drug Delivery: Advances, Challenges and Applications. Cham: Springer Nature; 2016; p. 53–74.

Özsoy

, Güngör

, Kahraman

, and Durgun

M.E.

Polymeric micelles: as a novel carrier for ocular drug delivery. In: Grumezescu, A.M., eds. Nanoarchitectonics in Biomedicine. Oxford: Elsevier; 2019. p. 85–118.

10.

Kataoka

, Harada

, and Nagasaki

Block copolymer micelles for drug delivery: design, characterization and biological significance. Adv. Drug Deliv. Rev. 47: 113–131, 2001.

11.

Üstündağ Okur, N., and Gökçe, E.H. Lipid nanoparticles for ocular drug delivery. Int. J. Ophthalmic. Res. 1:77–82, 2015.

12.

Bangham

A.D.

, and Horne

R.W.

Negative staining of phospholipids and their structural modification by surface-active agents as observed in the electron microscope. J. Mol. Biol. 8:660–668, 1964.

13.

Wadhwa

, Paliwal

S.R.

, and Vyas

S.P.

Nanocarriers in ocular drug delivery: an update review. Curr. Pharm. Des. 15:2724–2750, 2009.

14.

Baranowski

, Karolewicz

, Gajda

, and Pluta

Ophthalmic drug dosage forms: characterisation and research methods. Sci. World J. 1–14, 2014

15.

Kompella

U.B.

Nanotechnology and drug delivery. J. Ocul. Pharmacol. Ther. 29:89, 2013.

16.

Molokhia

S.A.

, Thomas

S.C.

, Garff

K.J.

, Mandell

K.J.

, and Wirostko

B.M.

Anterior eye segment drug delivery systems: current treatments and future challenges. J. Ocul. Pharmacol. Ther. 29:92–105, 2013.

17.

Cholkar

, Patel

S.P.

, Vadlapudi

A.D.

, and Mitra

A.K.

Novel strategies for anterior segment ocular drug delivery. J. Ocul. Pharmacol. Ther. 29:106–123, 2013.

18.

Pozo-Rodríguez

A.D.

, Delgado

, Gascón

A.R.

, and Ángeles Solinís

, Lipid nanoparticles as drug/gene delivery systems to the retina. J. Ocul. Pharmacol. Ther. 29:173–188, 2013.

19.

Kambhampati

S.P.

, and Kannan

R.M.

Dendrimer nanoparticles for ocular drug delivery. J. Ocul. Pharmacol. Ther. 29:151–165, 2013.

20.

Novack

G.D.

Eyes on new product development: ophthalmic drug delivery. J. Ocul. Pharmacol. Ther. 29:90–91, 2013.

21.

Pepic

, Lovric

, and Filipovic-Grcic

Polymeric micelles in ocular drug delivery: rationale, strategies and challenges. Chem. Biochem. Eng. Q. 26:365–377, 2012.

22.

Cholkar

, Patel

, Vadlapudi

A.D.

, and Mitra

A.K.

Novel nanomicellar formulation approaches for anterior and posterior segment ocular drug delivery. Recent Pat. Nanomed. 2:82–95, 2012.

23.

Vaishya

R.D.

, Khurana

, Patel

, and Mitra

K. Controlled ocular drug delivery with nanomicelles. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol., 6: 422–437, 2014.

24.

Mandal

, Bisht

, Rupenthal

I.D.

and Mitra, A.K. Polymeric micelles for ocular drug delivery: from structural frameworks to recent preclinical studies. J. Control. Release., 28: 96–116, 2017.

25.

Galloway

N.R.

, Amoaku

W.M.K.

, Galloway

P.H.

, and Browning

A.C.

Common Eye Diseases and their Management. 3rd ed. London: Springer-Verlag Limited;. 2006.

26.

Kels

B.D.

, Grzybowski

, and Grant-Kels

J.M.

Human ocular anatomy. Clin. Dermatol. 33: 140–146, 2015.

27.

April

W.E.

Clinical Anatomy 3rd ed. Egypt: Williams & Wilkins;. 1997.

28.

Kansara

, Budda

, Mitra

A. K.

Advancements in ocular drug delivery. In: Mashkevich

B.O

. ed. Drug Delivery Research Advances. New York: Nova Science Publishers, Inc. 2007, p. 1–37.

29.

Di Fiore

M.S.H.

Atlas of Human Histology. 4th ed. Philadelphia, PA: Lea & Febiger; 2001.

30.

Wheater

P.R.

, Burkitt

H.G.

, and Daniels

V.G.

Functional Histology: A Text and Colour Atlas. 2nd ed. Hong Kong: Churcill Livingstone Medical Division of Longman Group Ltd.; 1987.

31.

Fawcett

D.W.

Bloom and Fawcett. A Textbook of Histology. 12th ed. New York, NY: Chapman & Hall; 1994.

32.

Ross

M.H.

, Pawlina

Histology A Text and Atlas. With Correlated Cell and Molecular Biology. 5th ed. Philadelphia, PA: Lippincott Williams & Wilkins; 2006.

33.

Addo

, Bamiro

O.A.

, and Siwale

, Anatomy of the eye and common diseases affecting the eye. In: Addo, R.T., eds. Ocular Drug Delivery: Advances, Challenges and Applications. Cham: Springer Nature; 2016; p. 11–26.

34.

Watson

P.G.

, and Young

R.D.

Scleral structure, and disease: a review. Exp. Eye Res. 78:609–623, 2004.

35.

Snell

R.S.

Clinical Anatomy for Medical Students. 3rd ed. Edinburgh: Little Brown and Company; 1986; p. 809–875.

36.

Stenkamp

D.L.

, and Cameron

D.A.

Cellular pattern formation in the retina: Retinal regeneration as a model system. Mol. Vision. 8:280–293, 2002.

37.

Chastain

J.E.

General considerations in ocular drug delivery In: Mitra, A.K., eds. Ophtalmic Drug Delivery System. 2nd ed. New Jersey: Marcel Decker Inc.; 2003. p. 59–107.

38.

Mishima

, Gasset

, Klyce

S.D.

Jr., and Baum, J.L. Determination of tear volume and tear flow. Invest. Ophthalmol. 5:264–276, 1966.

39.

Kuno

, and Fujii

Recent advances in ocular drug delivery systems. Polymers. 3: 193–221, 2011.

40.

Dey

, Anand

B.S.

, Patel

, and Mitra

A.K.

Transporters/receptors in the anterior chamber: pathways to explore ocular drug delivery strategies. Expert Opin. Biol. Ther. 3: 23–44, 2013.

41.

Schoenwald

R.D.

Ocular pharmacokinetics and pharmacodynamics In: Mitra, A.K., eds. Ophtalmic Drug Delivery System. 2nd ed. New Jersey: Marcel Decker Inc.; 2003. pp. 135–180.

42.

Olsen

T.W.

, Aaberg

S.Y.

, Geroski

, and Fedelhauser

H.F.

Human sclera: thickness and surface area. Am. J. Ophthalmol. 125:237–241, 1998.

43.

Trivedi

, and Kompella

U.B.

Nanomicellar formulations for sustained drug delivery: strategies and underlying principles. Nanomedicine. 5:485–505, 2010.

44.

Torchilin

V.P.

Structure and design of polymeric surfactant-based drug delivery systems. J. Control. Release. 73:137–172, 2001.

45.

Nehoff

, Parayath

N.N.

, Domanovitch

, Taurin

, and Greish

Nanomedicine for drug targeting: strategies beyond the enhanced permeability and retention effect. Int. J. Nanomed. 9:2539–2555, 2014.

46.

Pepić

, Hafner

, Lovrić

, Pirkić

, and Filipović-Grcić

A nonionic surfactant/chitosan micelle system in an innovative eye drop formulation. J. Pharm. Sci. 99:4317–4325, 2010.

47.

Tsai

Y.T.

, Zhou

, Weng

, Shen

, Tang

, and Hu

WJ.

Real-time noninvasive monitoring of in vivo inflammatory responses using a pH ratiometric fluorescence imaging probe. Adv. Healthc. Mater. 3:221–229, 2014.

48.

Shawn

, Owen

S.C.

, Chan

D.P.Y.

, and Shoichet

M.S.

Polymeric micelle stability. Nano Today. 7:53–65, 2012.

49.

Sawant

R.R.

, and Torchilin

V.P.

Polymeric micelles: polyethylene glycol-phosphatidylethanolamine (PEG-PE)-based micelles as an example. Methods Mol. Biol. 624:131–149, 2010.

50.

, Liu

, Xiong

, et al. Effects of stability of PEGylated micelles on the accelerated blood clearance phenomenon. Drug Deliv. Transl. Res. 9:66–75, 2019.

51.

Gill

K.K.

, Kaddoumi

, and Nazzal

PEG-lipid micelles as drug carriers: physiochemical attributes, formulation principles and biological implication. J. Drug Target. 23:222–231, 2015.

52.

Jaiswal

, Kumar

, and Pathak

Zero order delivery of itraconazole via polymeric micelles incorporated in situ ocular gel for the management of fungal keratitis. Colloids Surf B Biointerfaces. 130:23–30, 2015.

53.

Simões

S.M.

, Figueiras

A.R.

, Veiga

, Concheiro

, and Alvarez-Lorenzo

Polymeric micelles for oral drug administration enabling locoregional and systemic treatments. Expert Opin. Drug Deliv. 12:297–318, 2015.

54.

Tian

, Ding

, Ju

, et al. A multifunctional nanomicelle for real-time targeted imaging and precise near-infrared cancer therapy. Angew Chem. Int. Ed. Engl. 53:9544–9549, 2014.

55.

, Tan

, Li

, Shen

, and Wang

Cancer drug delivery in the nano era: An overview and perspectives. Oncol. Rep. 38:611–624, 2017.

56.

Delavarian

, Pakfetrat

, Ghazi

, et al. Oral administration of nanomicelle curcumin in the prevention of radiotherapy-induced mucositis in head and neck cancers. Spec. Care Dentist. 39:166–172, 2019.

57.

, Xu

, Wang

, Shi

, Han

, and Shuai

A pH and reduction dual-sensitive polymeric nanomicelle for tumor microenvironment triggered cellular uptake and controlled intracellular drug release. Biomater. Sci. 7:3821–3831, 2019.

58.

Kahraman

, Karagöz

, Dinçer

, Özsoy

, Polyethylenimine modified and non-modified polymeric micelles used for nasal administration of carvedilo. J. Biomed. Nanotechnol. 890–899, 2015

59.

, Xin

, Song

, Sun

, Hou

, Li

, et al. Evaluation of polyvinyl caprolactam-polyvinyl acetate-polyethylene glycol graft copolymer nanomicelle for trigeminal ganglion neurons delivering with intranasal administration. Curr. Eye Res. 43:406–414, 2018.

60.

Kahraman

, Neşetoğlu

, Güngör

, Ünal

.Ş., and Özsoy

The combination of nanomicelles with terpenes for enhancement of skin drug delivery. Int. J. Pharm. 551:133–140, 2018.

61.

Kahraman

, Özhan

, Özsoy

, and Güngör

Polymeric micellar nanocarriers of benzoyl peroxide as potential follicular targeting approach for acne treatment. Colloids Surf B Biointerfaces. 146:692–699, 2016.

62.

Cholkar

Gunda, S., Earla, R., Pal, D., and Mitra, A.K. Nanomicellar topical aqueous drop formulation of rapamycin for back-of-the-eye delivery. AAPS PharmSciTech., 16: 610–622, 2014.

63.

Yang

, Yan

, Zhou

, and Amsden

B.G.

Dithiol-PEG-PDLLA micelles: preparation and evaluation as potential topical ocular delivery vehicle. Biomacromolecules. 15: 1346–1354, 2014.

64.

Ban

, Zhang

, Huang

, et al. Corneal permeation properties of a charged lipid nanoparticle carrier containing dexamethasone. Int. J. Nanomedicine. 16:1329–1339, 2017.

65.

Nagarwal

R.C.

, Kant

, Singh

P.N.

, Maiti

, and Pandit

J.K.

Polymeric nanoparticulate system: A potential approach for ocular drug delivery. J. Control. Release. 136:2–13, 2009.

66.

Dutescu

R.M.

, Panfil

, and Schrage

Osmolarity of prevalent eye drops, side effects, and therapeutic approaches. Cornea. 34:560–566, 2015.

67.

Moiseev

R.V.

, Morrison

P.W.J.

, Steele

, and Khutoryanskiy

V.V.

Penetration enhancers in ocular drug delivery. Pharmaceutics. 11:321–332, 2019.

68.

Ibrahim

S.S.

The role of surface active agents in ophthalmic drug delivery: a comprehensive review. J. Pharm. Sci. 108:1923–1933, 2019.

69.

Chevalier

, and Zemb

The structure of micelles and microemulsions. Rep. Prog. Phys. 53: 279–371, 1990.

70.

Jiao

Polyoxyethylated nonionic surfactants and their applications in topical ocular drug delivery. Adv. Drug Deliv. Rev. 60:1663–1673, 2008.

71.

Grimaudo

M.A.

, Pescina

, Padula

, et al. Poloxamer 407/TPGS mixed micelles as promising carriers for cyclosporine ocular delivery. Mol. Pharm. 15:571–584, 2018.

72.

Kaur

I.P.

, and Smitha

Penetration enhancers and ocular bioadhesives: two new avenues for ophthalmic drug delivery. Drug Dev. Ind .Pharm. 28:353–369, 2002.

73.

Ammar

H.O.

, Salama

H.A.

, Ghorab

, and Mahmoud

A.A.

Nanoemulsion as a potential ophthalmic delivery system for dorzolamide hydrochloride. AAPS PharmSciTech. 10:808–819, 2009.

74.

Eljarrat-Binstock

, and Pe'er

Domb, A.J. New techniques for drug delivery to the posterior eye segment. Pharm. Res., 27:530–543, 2010.

75.

Lallemand

, Schmitt

, Bourges

J.L.

, et al. Cyclosporine a delivery to the eye: a comprehensive review of academicand industrial efforts. Eur. J. Pharm. Biopharm. 117:14–28, 2017.

76.

Smyth-Medina

, Johnston

, Devries

D.K.

, et al. Effect of OTX-101, a novel nanomicellar formulation of cyclosporine a, on conjunctival staining in patients with keratoconjunctivitis sicca: a pooled analysis of phase 2b/3 and 3 clinical trials. J. Ocul. Pharmacol. Ther. 35:388–394, 2019.

77.

Malhotra

, Devries

D.K.

, Luchs

, Et al. Effect of OTX-101, a novel nanomicellar formulation of cyclosporine a, on corneal staining in patients with keratoconjunctivitis sicca: a pooled analysis of phase 2b/3 and phase 3 studies. Cornea. 38:1259–1265, 2019.

78.

Mandal

, Gote

, Pal

, Ogundele

, and Mitra

A.K.

Ocular pharmacokinetics of a topical ophthalmic nanomicellar solution of cyclosporine (Cequa) for dry eye disease. Pharm. Res. 36:36, 2019.

79.

Walimbe

, Chelerkar

, Bhagat

, Joshi

, and Raut

Effect of benzalkonium chloride-free latanoprost ophthalmic solution on ocular surface in patients with glaucoma. Clin. Ophthalmol. 2016 May 9; 10:821–827.

80.

Lee

B.S.

, Malhotra

, Sall

K.N.

, Ogundele

, and Peace

Long-term safety evaluation of latanoprost 0.005% without benzalkonium chloride in patients with open-angle glaucoma and ocular hypertension, ARVO Annual Meeting, Vancouver, Canada, April 28- May 2, 2019.

81.

Carraher

C.E.

Jr . Polymer Chemistry. 6th ed. New York-Basel: Marcel Dekker, Inc.; 2003.

82.

Kabanov

A.V.

, Batrakova

E.V.

, and Alakhov

V.Y.

Pluronic block copolymers as novel polymer therapeutics for drug and gene delivery. J. Control. Release. 82: 189–212, 2002.

83.

Batrakova

E.V.

Kabanov, A.V. Pluronic block copolymers: Evolution of drug delivery concept from inert nanocarriers to biological response modifiers. J. Control. Release., 130: 98–106, 2008.

84.

Jones

M.C.

, and Leroux

J.-C.

Polymeric micelles-A new generation of colloidal drug carriers. Eur. J. Pharm. Biopharm. 48: 101–111, 1999.

85.

Di Tommaso

, Torriglia

, Furrer

, et al. Ocular biocompatibility of novel Cyclosporin A formulations based on methoxy poly (ethylene glycol)-hexylsubstituted poly (lactide) micelle carriers. Int. J. Pharm. 416:515–524, 2011.

86.

Kim

, Shi

, Kim

J.Y.

, Park

, and Cheng

J.X.

Overcoming the barriers in micellar drug delivery: loading efficiency, in vivo stability, and micelle-cell interaction. Expert. Opin. Drug Deliv. 7:49–62, 2010.

87.

Castro

, Taboada

, and Mosquera

Behavior of a styrene oxide-ethylene oxide diblock copolymer/surfactant system: A thermodynamic and spectroscopy study. J. Phys. Chem. B. 109:5592–5599, 2005.

88.

American Academy of Ophthalmology. Core Ophthalmic Knowledge 2014–2016. Available at: www.aao.org>assets>core-2014-pdf Accessed April 10, 2020.

89.

Lancina

M.G.

, and Yang

Dendrimers for Ocular Drug Delivery. Can. J. Chem. 95:897–902, 2017.

90.

Dubald

, Bourgeois

, Andrieu

, and Fessi

Ophthalmic drug delivery systems for antibiotherapy-a review. Pharmaceutics. 10:E10, 2018.

91.

Fournier

, Dufresne

M.H.

, Smith

D.C.

, Ranger

, and Leroux

A novel one-step drug-loading procedure for water-soluble amphiphilic nanocarriers. Pharm. Res. 21:962–968, 2004.

92.

Le Garrec

, Gori

, Luo

, et al. Poly(N-vinylpyrrolidone)-block-poly(d,l-lactide) as a new polymeric solubilizer for hydrophobic anticancer drugs: in vitro and in vivo evaluation. J. Control. Release. 99:83–101, 2004.

93.

Le Garrec

, Gori

, Karkan

, et al. Preparation, characterization, cytotoxicity and biodistribution of docetaxel-loaded polymeric micelle formulations. J. Drug Deliv. Sci. Technol. 15:115–120, 2005.

94.

Sowka

J.W.

, Gurwood

A.S.

, and Kabat

A.G.

The Handbook of Ocular Disease Management 19th ed. Review of Optimetry; 2018. Available at: https://www.reviewofoptometry.com/CMSDocuments/2018/06/hod0618i.pdf Accessed April 10, 2020.

95.

Alami-Milani

, Zakeri-Milani

, Valizadeh

, Salehi

, and Jelvehgari

Preparation and evaluation of PCL-PEG-PCL micelles as potential nanocarriers for ocular delivery of dexamethasone. Iran J. Basic Med. Sci. 21:153–164, 2018.

96.

Bao

, Zhou

, Lei

, et al. Facile strategy to generate high drug payload celecoxib micelles for enhanced corneal permeability. J. Biomed. Nanotechnol. 15:822–829, 2019.

97.

Lorenzo-Veiga

, Sigurdsson

H.H.

, Loftsso

, and Alvarez-Lorenzo

Cyclodextrin–Amphiphilic Copolymer Supramolecular Assemblies for the Ocular Delivery of Natamycin. Nanomaterials. 9:745, 2019.

98.

Sayed

, Elsayed

, and Ismail

M.M.

Optimization of β-cyclodextrin consolidated micellar dispersion for promoting the transcorneal permeation of a practically insoluble drug. Int. J. Pharm. 549:249–260, 2018.

99.

Younes

N.F.

, Abdel-Halim

S.A.

, and Elassasy

A.I.

Solutol HS15 based binary mixed micelles with penetration enhancers for augmented corneal delivery of sertaconazole nitrate: optimization, in vitro, ex vivo and in vivo characterization. Drug Deliv. 25:1706–1717, 2018.

100.

Yingfang

, Zhuang

, Wang

, Xu

, and Lv

Pimecrolimus micelle exhibits excellent therapeutic effect for Keratoconjunctivitis Sicca. Colloids Surf B Biointerfaces. 140:1–10, 2016.

101.

Kutlehria

, Vhora

, Bagde

, et al. Tacrolimus loaded PEG-cholecalciferol based micelles for treatment of ocular inflammation. Pharm Res. 35: 117, 2018.

102.

Liu

, Wu

, Chen

, et al. Tacrolimus-loaded methoxy poly(ethylene glycol)-block-poly(D,L)-lactic-co-glycolic acid micelles self-assembled in aqueous solution for treating cornea immune rejection after allogenic penetrating keratoplasty in rats. Eur. J. Pharm Sci. 133:104–114, 2019.

103.

Noh

, Keum

, Seo

J.E.

, et al. Development and evaluation of a water soluble fluorometholone eye drop formulation employing polymeric micelle. Pharmaceutics. 10:E208, 2018.

104.

Salama

A.H.

, and Shamma

R.N.

Tri/tetra-block co-polymeric nanocarriers as a potential ocular delivery system of lornoxicam: in-vitro characterization, and in-vivo estimation of corneal permeation. Int. J. Pharm. 492:28–39, 2015.

105.

Kanoujia

, Kushwaha

P.S.

, and Saraf

S.A.

Evaluation of gatifloxacin pluronic micelles and development of its formulation for ocular delivery. Drug Deliv. Transl. Res. 4:334–43, 2014.

106.

Al Khateb

, Ozhmukhametova

E.K.

, Mussin

M.N.

, et al. In situ gelling systems based on Pluronic F127/PluronicF68 formulations for ocular drug delivery. Int. J. Pharm. 502:70–79, 2016.

107.

Zhou

, Zhu

, Xia

, et al. Micelle carriers based on macrogol-15 hydroxystearate for ocular delivery of terbinafine hydrochloride: In vitro characterization and in vivo permeation. Eur. J. Pharm. Sci. 109:288–296, 2017.

108.

Bongiovì

, Di Prima

, Palumbo

F.S.

, et al. Hyaluronic acid-based micelles as ocular platform to modulate the loading, release, and corneal permeation of corticosteroids. Macromol. Biosci. 17, 2017.

109.

Sun

, Zheng

, Lan

, et al. New micelle myricetin formulation for ocular delivery: improved stability, solubility, and ocular anti-inflammatory treatment. Drug Deliv. 26:575–585, 2019.

110.

Hou

, Zhang

, Lan

, et al. Ultra-small micelles based on polyoxyl 15 hydroxystearate for ocular delivery of myricetin: optimization, in vitro, and in vivo evaluation. Drug Deliv. 26:158–167, 2019.

111.

, Xin

, Guo

, Lin

, and Wu

New nanomicellecurcumin formulation for ocular delivery: improved stability, solubility, and ocular anti-inflammatory treatment. Drug DevInd Pharm. 43:1846–1857, 2017.

112.

Duan

, Cai

, Du

, and Zhai

Novel in situ gel systems based on P123/TPGS mixed micelles andgellan gum for ophthalmic delivery of curcumin. Colloids Surf B Biointerfaces. 128:322–330, 2015.

113.

Song

, Xin

, Yu

, Zheng

, Li

, Guo

, Tan

, and Wu

Novel ultra-small micelles based on rebaudioside A: A potential nanoplatform for ocular drug delivery. Int J Pharm. 552:265–276, 2018.

114.

Song

, Xin

, Zhang

, et al. Novel ultrasmall nanomicelles based on rebaudioside A: A potential nanoplatform for the ocular delivery of pterostilbene. Int. J. Pharm. 577:119035, 2020.

115.

, Lan

, Li

, et al. Novel ultra-small micelles based on ginsenoside Rb1: a potential nanoplatform for ocular drug delivery. Drug Deliv. 26:481–489, 2019.

116.

Willem de Vries

, Schnichels

, Hurst

, Strudel

, Gruszka

, Kwak

, et al.. DNA nanoparticles for ophthalmic drug delivery. Biomater. 157:98–106, 2018.

117.

, Chen

, Li

, et al. Improving the topical ocular pharmacokinetics of lyophilized cyclosporineA-loaded micelles: formulation, in vitro and in vivo studies. Drug Deliv. 25:888–899, 2018.

118.

Luschmann

, Tessmar

, Schoeberl

, et al. Self-assembling colloidal system for the ocular administration of cyclosporine A. Cornea. 33:77–81, 2014.

119.

Shen

, Yu

, Chaurasiya

, et al. Stability, safety, and transcorneal mechanistic studies of ophthalmic lyophilized cyclosporine-loaded polymeric micelles. Int. J. Nanomed. 13:8281–8296, 2018.

120.

, Li

, Zhou

, et al. Positively charged micelles based on a triblock copolymer demonstrate enhanced corneal penetration. Int. J. Nanomed. 10:6027–37, 2015.

121.

Shah

, Edman

M.C.

, Reddy Janga

, et al. Rapamycin eye drops suppress lacrimal gland inflammation in a murine model of Sjögren's syndrome. Invest. Ophthalmol. Vis. Sci. 58:372–385, 2017.

122.

Shi

, Peng

, Zheng

, et al. Micelle-solubilized axitinib for ocular administration in antineovascularization. Int. J. Pharm. 560:19–26, 2019.

123.

Huang

, Wang

, Yu

, et al. Combination of dexamethasone and Avastin^® by supramolecular hydrogel attenuates the inflammatory corneal neovascularization in rat alkali burn model. Colloids Surf B Biointerfaces. 159:241–250, 2017.

124.

Xin

, Tang

, Bu

, et al. A novel eye drop of alpha tocopherol to prevent ocular oxidant damage: improve the stability and ocular efficacy. Drug Dev. Ind. Pharm. 42:525–534, 2016.

125.

Guo

, Li

, Qi

, et al. Intranasal delivery of nanomicellecurcumin promotes cornealepithelial wound healing instreptozotocin-induced diabeticmice. Sci. Rep. 6:29753, 2016.

126.

Alami-Milani

, Zakeri-Milani

, Valizadeh

, et al. Evaluation of anti-inflammatory impact ofdexamethasone-loaded PCL-PEG-PCL micelles onendotoxin-induced uveitis in rabbits. Pharm. Dev. Technol. 24:680–688, 2019.

127.

Grimaudo

M.A.

, Amato

, Carbone

, et al. Micelle-nanogel platform for ferulic acid ocular delivery. Int. J. Pharm. 576:118986, 2020.

128.

Vaishya

R.D.

, Gokulgandhi

, Patel

, Minocha

, and Mitra

A.K.

, Novel dexamethasone-loaded nanomicelles for the intermediate and posterior segment uveitis. AAPS PharmSciTech. 15:1238–51, 2014.

129.

Elsaid

, Somavarapu

, and Jackson

T.L.

Cholesterol-poly(ethylene) glycol nanocarriers for the transscleral delivery of sirolimus. Exp. Eye Res. 121:121–129, 2014.

130.

Di Prima

, Saladino

, Bongiovì

, et al. Novel inulin-based mucoadhesive micelles loaded with corticosteroids as potential transcorneal permeation enhancers. Eur. J. Pharm. Biopharm. 117:385–399, 2017.

131.

Zhang

, Cao

, Qi

, et al. Therapeutic contact lenses for ophthalmic drug delivery: major challenges. J. Biomater. Sci. Polym. Ed. 14:1–12, 2020.

132.

, Chen

, Xu

, et al. Hyaluronic acid modified MPEG-b-PAE block copolymer aqueous micelles for efficient ophthalmic drug delivery of hydrophobic genistein. Drug Deliv. 25:1258–1265, 2018.

133.

, He

, Zhang

, et al. Intravitreal injection of rapamycin-loaded polymeric micelles for inhibition of ocular inflammation in rat model. Int. J. Pharm. 513:238–246, 2016.

134.

Cholkar

, Gilger

B.C.

, and Mitra

A.K.

Topical delivery of aqueous micellar Resolvin E1 analog (RX-10045). Int. J. Pharm. 498:326–334, 2016.

135.

Mantravadi

A.V.

, and Vadhar

Glaucoma. Prim. Care. 42: 437–449, 2015.

136.

Tsai

J.C.

, and Kanner

E.M.

Current and emerging medical therapies for glaucoma. Expert. Opin. Emerg. Drugs. 10:109–118, 2005.

137.

Cheng

Y.H.

, Hung

K.H.

, Tsai

T.H.

, et al. Sustained delivery of latanoprost by thermosensitive chitosan-gelatin-based hydrogel for controlling ocular hypertension. Acta Biomater. 10:4360–4306, 2014.

138.

Jung

H.J.

, Abou-Jaoude

, Carbia

B.E.

, Plummer

, and Chauhan

Glaucoma therapy by extended release of timolol from nanoparticle loaded silicone-hydrogel contact lenses. J. Control. Release. 165: 82–89, 2013.

139.

, Ge

, Bu

, et al. Co-delivery of latanoprost and timolol from micelles-laden contact lenses for the treatment of glaucoma. J. Control. Release. 305:18–28, 2019.

140.

Elmowafy

, Gad

, Biondo

, Casettari

, and Soliman

M.E.

Exploring optimized methoxy poly(ethylene glycol)-block-poly(ɛ-caprolactone) crystalline cored micelles in anti-glaucoma pharmacotherapy. Int. J. Pharm. 566:573–584, 2019.

141.

Hafner

, Lovrić

, Romić

M.D.

, et al. Evaluation of cationic nanosystems with melatonin using an eye-related bioavailability prediction model. Eur. J. Pharm. Sci. 75:142–150, 2015.

142.

Davis

B.M.

, Tian

, Pahlitzsch

, et al. Topical Coenzyme Q10 demonstrates mitochondrial-mediated neuroprotection in a rodent model of ocular hypertension. Mitochondrion. 36:114–123, 2017.

143.

, Zhang

, Li

, et al. Ion-paired pirenzepine-loaded micelles as an ophthalmic delivery system for the treatment of myopia. Nanomedicine. 13:2079–2089, 2017.

144.

Devalapally

, Chakilam

, Amiji

M.M.

Role of nanotechnology in pharmaceutical product development. J. Pharm. Sci. 96:2547–2565, 2007.

145.

Wilding

I.R.

In search of a simple solution for complex molecules. Scrip Magazine. 9–11, 2001.

146.

Lipinski

C.A.

, Lombardo

, Dominy

B.W.

, and Feeney

P.J.

Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 46:3–26, 2001.

147.

Hansson

, and Lindman

Surfactant-polymer interactions. Curr. Opin. Colloid Interface Sci. 1:604–13, 1996.

148.

Suksiriworapong

, Mingkwan

, and Chantasart

Enhanced transmucosal delivery of itraconazole by thiolated d-α-tocopheryl poly(ethylene glycol) 1000 succinate micelles for the treatment of Candida albicans. Eur. J. Pharm. Biopharm. 120:107–115, 2017.
