Personalized Health Care Technology in Managing Postoperative Gastrointestinal Surgery Complications: Proof of Concept Study

Introduction

Anastomotic complications after gastrointestinal surgery can lead to prolonged hospital stay, intensive care unit admission, organ dysfunction, sepsis, and even death. ¹ The management of these complications requires a multidisciplinary approach with a goal to control sepsis and improve nutritional status to promote tissue healing by means of radiographic, endoscopic, and surgical interventions.^2,3 Endoscopic techniques are often the first-line therapy in gastrointestinal surgery-related complications such as leaks and fistulas. ⁴ Traditionally, endoscopy focused on closure of the leak opening by placing a fully covered self-expanding metal stents and/or clips. ⁵

In recent years, the principle of providing endoscopic internal drainage (EID) through placement of double pigtail plastic biliary stents through the fistula opening has shown efficacy. The concept of EID is to facilitate drainage of an abscess cavity into the lumen of the gastrointestinal tract and eventually closure of the fistula tract by secondary intention. Multiple reports have described effective management of acute and chronic leaks following gastrointestinal surgery using this method.^6–8

The current commercially available stents are designed for biliary drainage and not for treatment of gastrointestinal leaks. We have found in our practice that some patients might benefit from asymmetric and uniquely designed stents, based on anatomy. Advances in three-dimensional (3D) printing technology may offer the flexibility to produce tailored medical products according to individualized patient needs. ⁹ The objective of the study is to determine the feasibility of printing customized 3D internal plastic drainage stents over time for treatment of leaks following gastrointestinal surgery.

Materials and Methods

Study design

This is a proof-of-concept study. Patients with a leak after gastrointestinal surgery who underwent EID were identified and included (Fig. 1). Computed tomography (CT) scan images were reviewed to determine volumes and shapes of the extraluminal abscess cavity as well as the gastrointestinal lumen over patients' treatment period. Based on the number of clinical evaluations, including upper endoscopy with stent management, plastic stents were designed and printed corresponding to the unique requirements at that moment in treatment. This is an ex vivo study. The stents were not implanted in patients. This study has been approved by our Institutional Review Board.

OPEN IN VIEWER

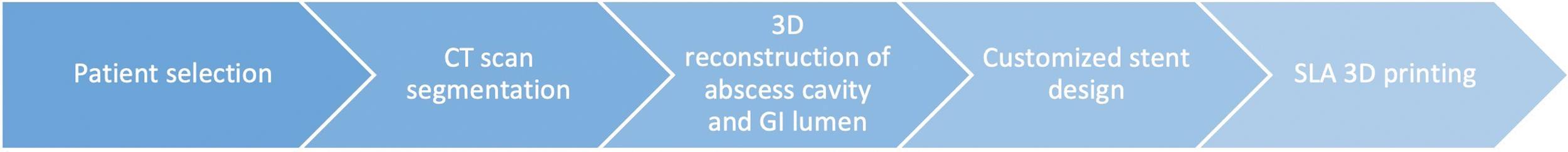

FIG. 1.

Process of 3D printing personalized double pigtail stents. Steps 2–5 were repeated as necessary throughout the treatment course of each patient. 3D, three-dimensional. Color images are available online.

Results

We retrospectively studied 3 patients who were treated for postoperative gastrointestinal surgery anastomotic complications at our hospital. All these patients underwent their initial surgery at an outside facility (Fig. 2). We reviewed multiple abdomen/pelvis CT scans for each patient over a period of time and evaluated the progression or resolution of the intra-abdominal abscess cavity. All these patients underwent standard of care management in our hospital using endoscopic techniques.

OPEN IN VIEWER

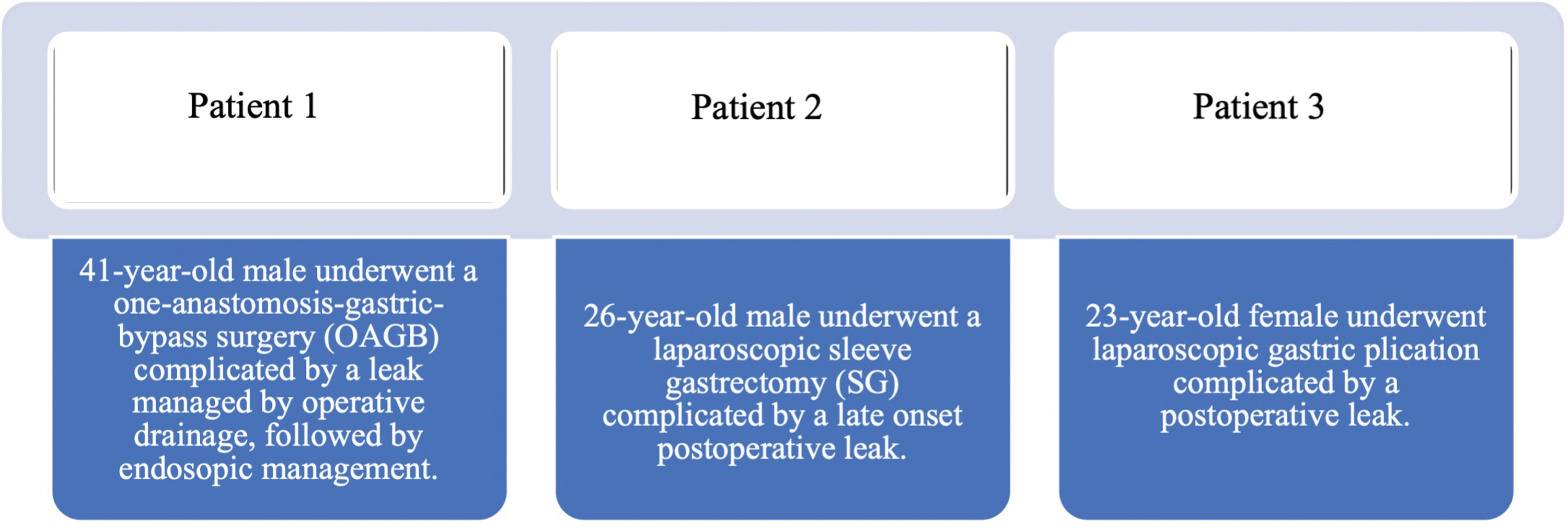

FIG. 2.

Clinical details of patients included in our study. Color images are available online.

Segmentation and 3D reconstruction

Data from CT scans, including the abscess cavity and gastrointestinal lumen, were segmented and then reconstructed to 3D images (Figs. 3 and 4). CT images were obtained by 64 and 128 detector CT. One millimeter axial images were reconstructed to 3D volumetric images. During reconstruction, the gastrointestinal lumen and abscess cavity were separated from the rest of the abdomen using Materialise Mimics software™.

OPEN IN VIEWER

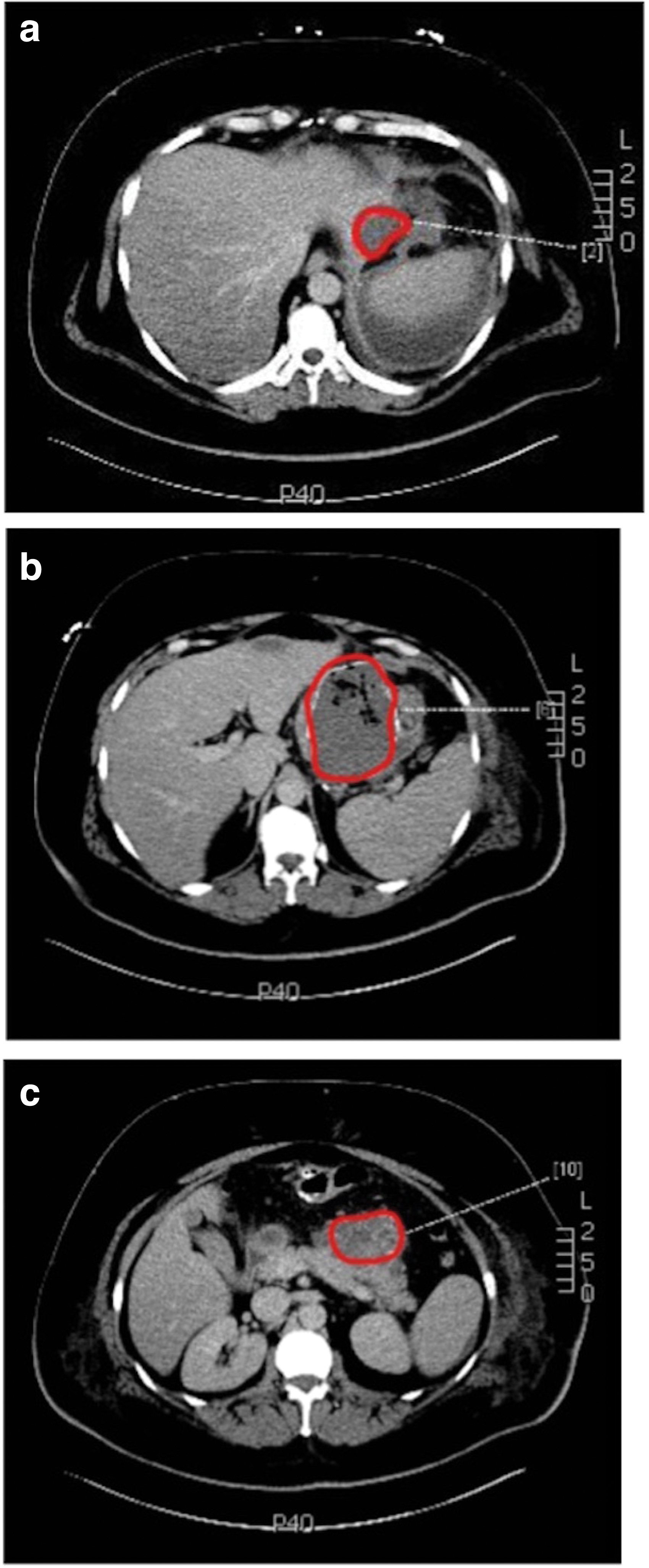

FIG. 3.

(a–c) Abdomen/pelvis CT scan sections for patient 1, showing a large abscess cavity 3 weeks following index surgery. CT, computed tomography. Color images are available online.

OPEN IN VIEWER

FIG. 4.

3D reconstruction of the abscess cavity from patient 1. 3D, three-dimensional. Color images are available online.

Printed stents

We printed the stents, in addition to the abscesses, and gastrointestinal lumens for illustration (Fig. 5a–c).

OPEN IN VIEWER

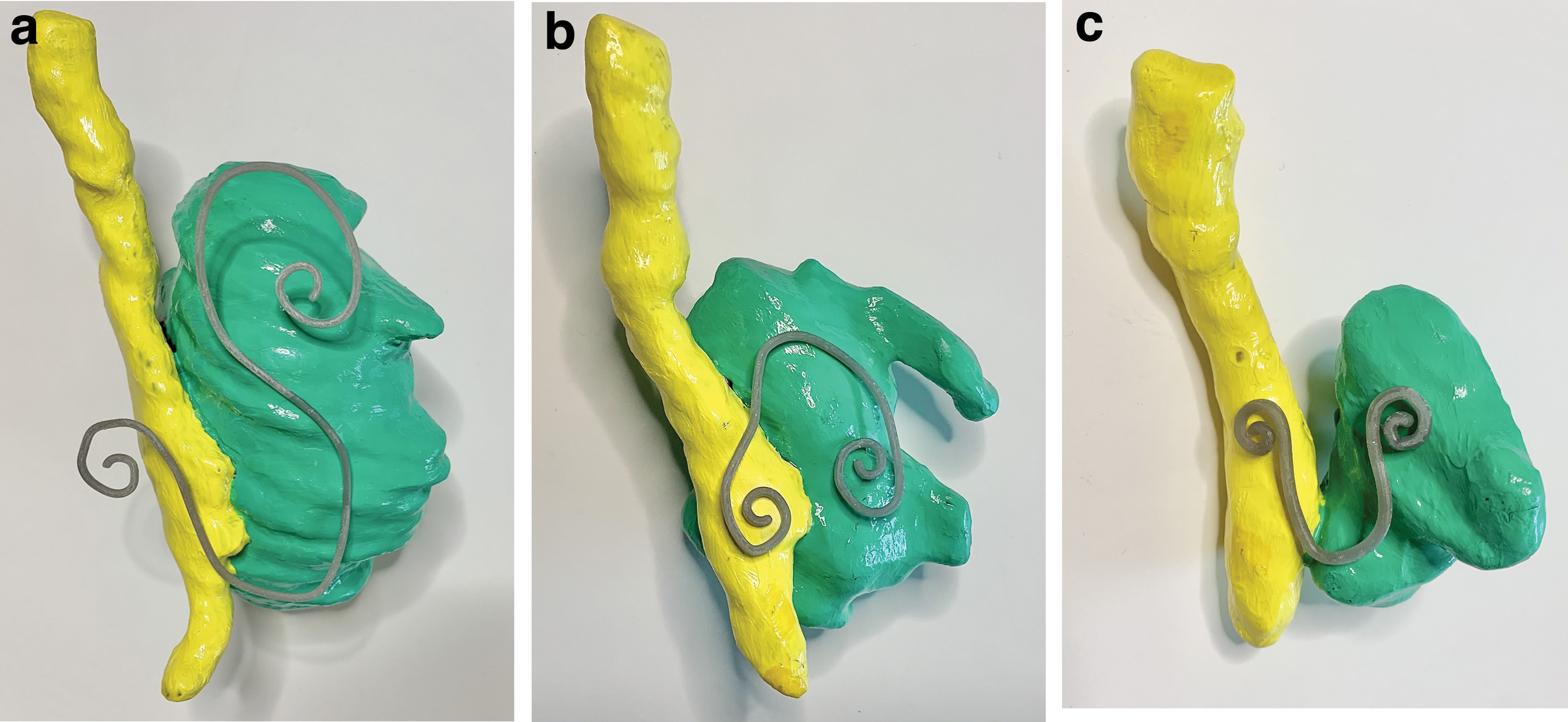

FIG. 5.

(a–c) Printed customized stents for patient 1, corresponding to 3D reconstructions of the abscess cavity and GI lumen in patient 1 overtime. The GI tract is yellow, and abscess cavity is green. The design of the stent was customized to the shape of the abscess cavity. (a) Three weeks. (b) One month. (c) Two months following index surgery. GI, gastrointestinal; 3D, three-dimensional. Color images are available online.

Discussion

Advances in therapeutic endoscopy have transformed the management of gastrointestinal wall defects from reoperating to minimally invasive endoscopic techniques. Clips and covered self-expandable metal stents (SEMS) have been widely used,^10,11 however, EID is emerging as another endoscopic therapy. ⁸ SEMS work by sealing the anastomotic defect, diverting luminal content, and thus allowing mucosal wall healing. ¹²

Despite being an effective therapy for gastrointestinal leaks and fistulas, ¹³ SEMS has its own limitations. Related complications following stent deployment ranges between 20% and 70% in the literature with a stent-related mortality ranging from 0% to 28%.^14–17 Complications include migration, hemorrhage, perforation, and stricture. ¹⁸ Specifically, stent migration is a major limitation, since it accounts for more than one third of cases needing reintervention.^5,19 Those findings suggest that multiple stent deployment may be necessary to achieve clinical healing success of leaks and fistulas, thus increasing costs. ²⁰ Patient tolerance is another limitation to wide application, as it can lead to early removal and incomplete treatment.

In 2012, Pequignot et al. ²¹ described for the first time the use of double pigtail biliary stents across leak orifices. The concept of EID with deployment of one or more stent is to drain any fluid collection into the gastrointestinal lumen, inducing mechanical reepithelization of the fistula tract, allowing orifice closure and early oral intake. ²² In their series, patients were treated with either SEMS or EID following a sleeve gastrectomy complicated by a gastric leak.

The authors reported better tolerability in the pigtail stents group, less procedures per patient with a shorter healing time and lower morbidity and mortality. ²¹ Several reports following that continued to show that EID may be more effective than placement of fully covered SEMS and clips.^20,23,24 In addition, it was shown to be more cost effective.^21,24 Therefore, a gradual shift in large referral centers toward EID as the preferred way to manage postbariatric surgery leaks in select patients has occurred.^25–27

3D printing technology is being used in a variety of medical fields with different applications and purposes of each manufactured product. ²⁸ Several studies have already reported 3D printing of stents customized to patient's anatomy such as utilizing airway stents in central airway obstruction, ²⁹ biosynthetic biliary stents to relive biliary obstruction, ³⁰ esophageal stents for inoperable esophageal cancer, ³¹ and endovascular stents for aortic aneurysms. ³² Despite many publications providing proof of concept studies in different medical fields, there are no studies currently evaluating 3D printed biliary stents to manage postoperative complications in gastrointestinal surgery patients.

In this proof-of-concept study, using 3D printing technology, we have successfully produced customized internal drainage stents based on patients' individual CT scans over time. The customized stents can potentially aid in better drainage of intra-abdominal abscesses with faster resolution of sepsis, and possibly a shorter recovery period. The results of our study may impact future technology that will improve patient's care in a personalized manner and potentially decrease the cost of care.

Although we have presented potential advancement in personalized health care technology, certain limitations should be noted. Our printed stents are made of a resin that is not biocompatible or implantable. In addition, the stents are not flexible. Producing flexible, hollow stents was challenging as it would require extensive support structures to keep the object from failing while printing. Improved printing materials and technology in the future will likely advance the printing process and overall manufacturing technique. Furthermore, the issue of cost is a concern when new technologies are being introduced. The production of a single stent required ∼$40 for design and $27 for printing, and around 60 minutes of time for each. With 3D printing becoming more readily available, we anticipate the costs will be lower and efficiency improved.

Conclusion

We have presented the successful reproduction of personalized, precision internal double pigtail stents through 3D printing technology. We anticipate that these customized stents will provide a framework for future applications and advancements in the field of personalized health care. Furthermore, the results of this study are relevant for designing, creating, and testing many 3D printed products besides double pigtail stents. Although our proof of concept was successfully accomplished, additional work is anticipated to produce stents that are both biocompatible and implantable, to improve production of deployable stents using the current endoscopy equipment while maintaining unique stent configuration and patency.
