Radiation Inhibits Lymph Drainage in an Acquired Lymphedema Mouse Hindlimb Model

Introduction

Lymphedema is a pathophysiologic process characterized by the accumulation of protein-rich fluid in the interstitial space, adipose deposition, and tissue fibrosis resulting from injury, infection, obstruction, or congenital defects in the lymphatic system. Globally, the most common cause of lymphedema is filariasis that occurs owing to infection by the nematode Wuchereria bancrofti. ¹ In the developed world, majority of lymphedema cases are secondary and caused by malignancy or its treatment.^2–6 Lymphedema is a chronic condition that can be managed; however, it is generally not cured. ⁷ As the treatment of chronic lymphedema remains challenging, the preclinical studies of the underlying pathophysiology and therapeutic interventions of lymphedema are urgently warranted. A reliable and reproducible lymphedema animal model is quite essential for such studies. The mouse tail model, by blocking lymphatic collateral vessels located at both sides of a rodent tail, was used to clarify the underlying mechanisms of lymphedema development in most recent studies.^8–10 Tail model has the advantages of low cost, easy handling, and its effectiveness in interpreting the molecular mechanisms of lymphedema; however, as the pattern of lymphatic flow and regeneration in rodent tail is different from that of humans, there is a necessity of an animal model that mimics the secondary lymphedema of humans.

A number of hindlimb models in rodents,^11–16 which are more complex to create but physiologically and anatomically more similar to human postsurgical lymphedema, have been reported with various techniques. Most of previous studies using a hindlimb model reported gain of secondary lymphedema in the affected limb within 1 week after model creation surgery. However, the improvement of lymphedema usually occurred within 2–3 weeks because of wound healing, accompanied by lymphatic channel regeneration. To prolong the duration of secondary lymphedema, radiation therapy was applied before or after surgery.^13,14 Theoretically, radiation therapy is expected to damage the healing competence of tissue and thus augment the duration and degree of secondary lymphedema. However, no comparative study has been conducted to investigate whether radiation therapy truly affects the results of the experimental secondary hindlimb lymphedema.

In this study, we hypothesized that conducting a surgery to create lymphedema preceded by radiation therapy may augment secondary lymphedema by inhibiting lymphangiogenesis and hindering lymphatic channel regeneration compared with conducting a surgery without radiation therapy. Thus, the purpose of this study was to evaluate the effect of radiation therapy on the duration and degree of secondary lymphedema in an experimental hindlimb lymphedema model.

Materials and Methods

This study was approved by the committee for animal research at our institution and conformed to the U.S. National Institutes of Health Guidelines on the care and use of laboratory animals.

A lymphedema mouse hindlimb model

Hindlimb lymphedema was created in 10-week-old female Balb/c mice (Orient Bio, Seong-nam, Korea) as described previously, ¹⁴ but with a modification. We did not inject an indicative blue dye to avoid its toxic effect. In brief, the mice were anesthetized with intramuscular injection of 50 mg/kg zolazepam and tiletamine (Zoletil 50; Virbac, Carros, France) and 10 mg/kg xylazine (Rompun; Bayer HealthCare, Leverkusen, Germany). The right-side inguinal skin was circumferentially incised, followed by location of the popliteal lymph node (Fig. 1a) and complete resection with the surrounding adipose tissue. A hole at the facial layer was noted after the lymph node resection (Fig. 1b). We cauterized the inner wall of the hole using a Bovie cautery to block both afferent and efferent lymphatics. Finally, both the ends of the skin wound were directly sutured with 5-0 nylon sutures. This surgical procedure took ∼30 minutes by a single operator.

OPEN IN VIEWER

FIG. 1.

(a) Arrow heads indicate the ischiatic vein. Asterisk indicates the popliteal lymph node. (b) Arrow indicates the hole formed by the tissue defect after the popliteal lymph node resection. Color images are available online.

Results

Hindpaw thickness measurements

During the observation period, all mice developed an acute lymphedema immediately after surgery. In the radiation group, only one mouse developed hindlimb necrosis. The data of this mouse were excluded from this study.

The thickness of the hind paws in the control and radiation groups rapidly increased and reached the peak value at 0.5 weeks after surgery. The values in both groups gradually reduced from 0.5 weeks after the surgery. The differences of the hindpaw thickness between the radiation and control groups were statistically significant from 0.5 to 2 weeks (5.0 ± 0.2 mm vs. 4.7 ± 0.1 mm, p = 0.026 at 0.5 weeks; 4.8 ± 0.2 mm vs. 4.4 ± 0.1 mm, p = 0.012 at 1 week; 4.6 ± 0.2 mm vs. 4.2 ± 0.1 mm, p = 0.032 at 1.5 weeks; 4.4 ± 0.2 mm vs. 4.1 ± 0.1 mm, p = 0.046 at 2 weeks) (Fig. 2).

OPEN IN VIEWER

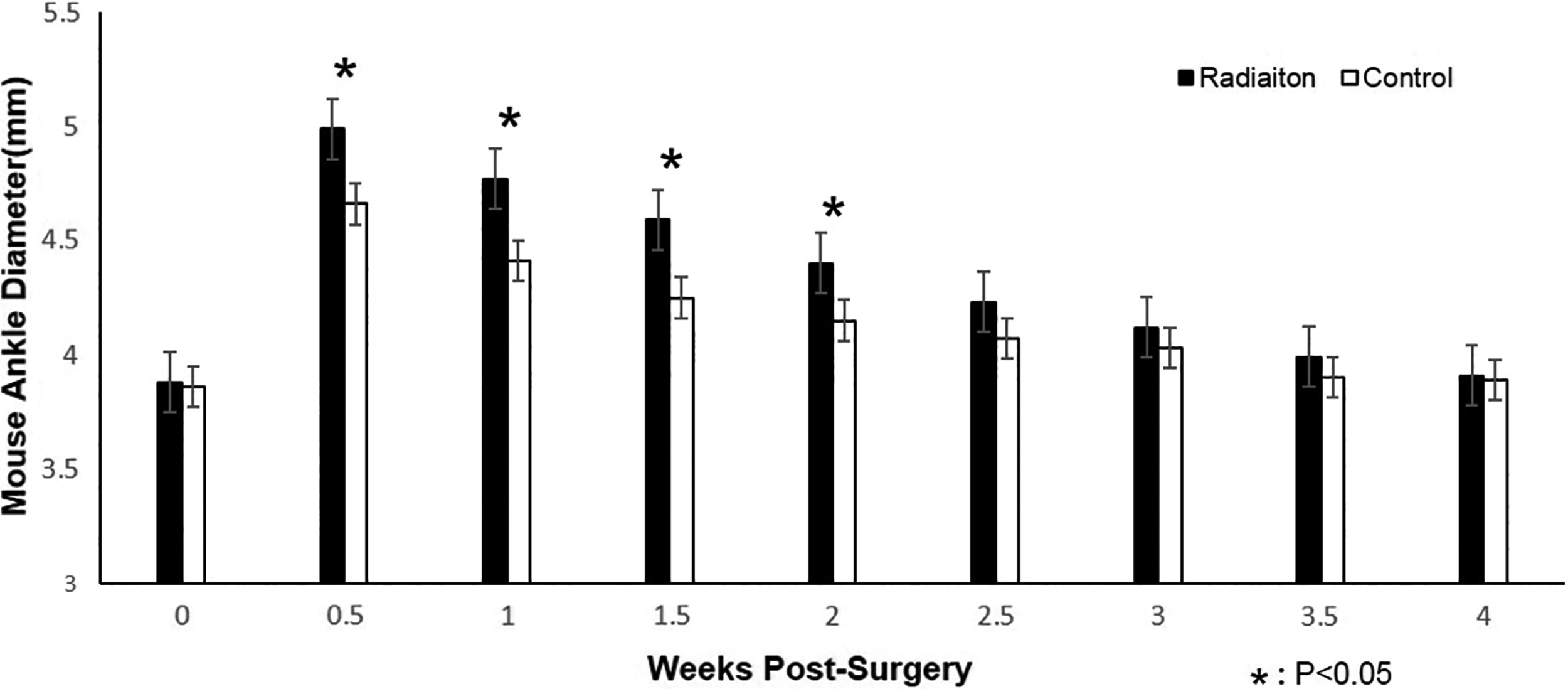

FIG. 2.

Changes in the mice hindpaw thickness after surgery. The radiation group showed a significant augment compared with the control group during 2 weeks after surgery.

Fluorescence lymphography

The radiation group showed a lower number of regenerated lymphatics in the operated limb and more congestion of tracers distal to the surgery site at 1, 2, 3, and 4 weeks after surgery. The image in the radiation group obtained at 3 weeks showed that inguinal lymph node occurred because of the lack of regenerated lymphatics (Fig. 3).

OPEN IN VIEWER

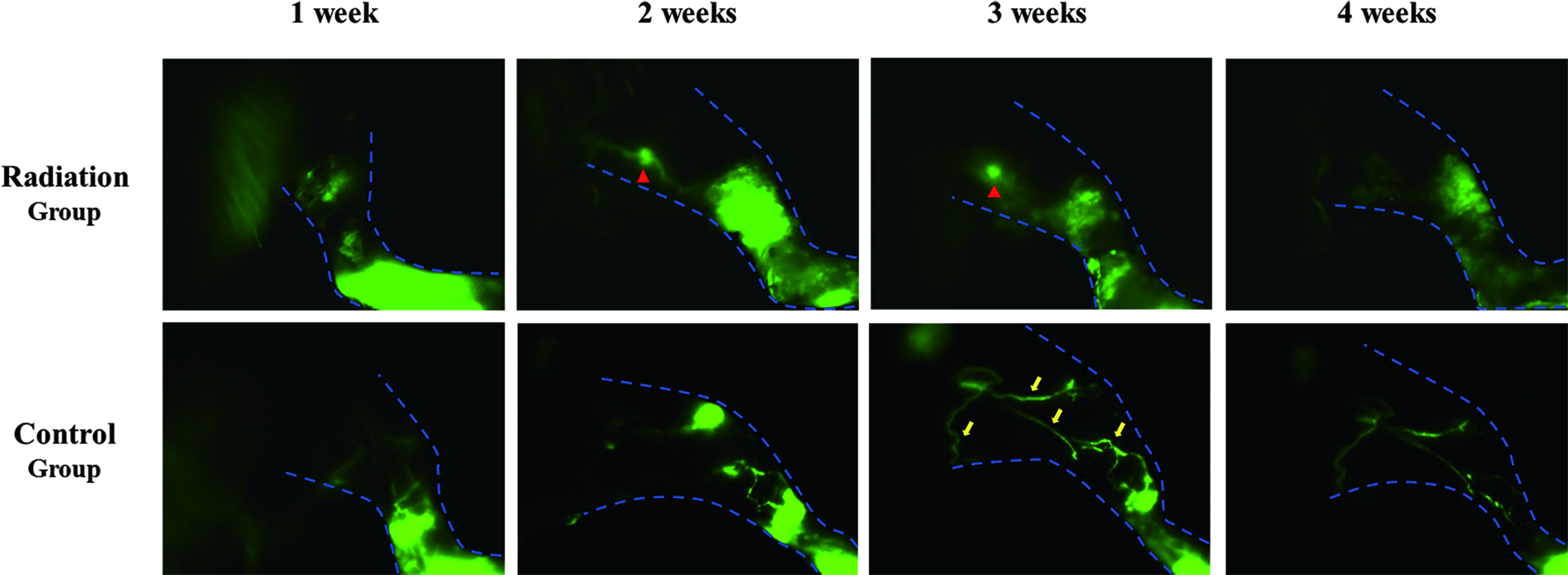

FIG. 3.

The fluorescence lymphography shows less regenerated lymphatics and more congestion of tracers in the radiation group at 1, 2, 3, and 4 weeks after surgery. Arrow heads indicate inguinal lymph node; arrows indicate the regenerated lymphatic vessels. Color images are available online.

IHC staining

The radiation group showed a lower number of regenerated lymphatics per HPF at the surgery site than the control group (3.6 ± 2.4 vs. 6.1 ± 2.4; p < 0.01) (Fig. 4).

OPEN IN VIEWER

FIG. 4.

IHC analysis of dermal lymphatics in the radiation and control groups. (a) Schematic diagram of the surgical area and sample collection. The area between the two parallel dashed lines indicates the range of the sample for IHC staining. The rectangular area indicates the surgical area. (b–e) IHC staining of lymphatics in both groups (anti-LYVE-1 staining, low magnification; 40 × and high magnification; 200 × ). Images were taken from the tissues of 5 mm distal to the surgery sites [(b) and (c): 40 × ; (d) and (e): 200 × ]. Arrows indicate dermal lymphatic vessels. (f) Dermal lymphatics in each group were quantified. AL, afferent lymphatic; EL, efferent lymphatic; IHC, immunohistochemical; LYVE-1, lymphatic endothelial hyaluronan receptor; PN, popliteal lymph node. Color images are available online.

Discussion

In this study, we showed that secondary lymphedema was augmented in the radiation group. We found that the number of regenerated lymphatic channels were lower in the radiation group. This finding is supported by histological analysis that demonstrated a lower number of LYVE-1-stained lymphatic vessels in the radiation group. In our study, an improved method was used to create a lymphedema hindlimb model. We blocked the lymphatic components without injecting blue dues. For the previous hindlimb models,^11,14,15 researchers used various blue dye to identify the lymph nodes and lymphatics. The toxicity of blue dyes caused an inflammatory response, which led to tissue edema. It was not possible to distinguish the tissue edema results from the lymph node excision or toxicity of blue dyes in their studies.

Previous studies have demonstrated the incapability of surgery to create a sustained lymphedema model because the lymphatic endothelial cells' (LECs) proliferation and organization result in spontaneous lymphatic reconnection. Roh et al. ¹¹ devised a mouse hindlimb lymphedema model by excising a popliteal lymph, a subiliac lymph node, a sciatic lymph node, and cauterization of the femoral lymphatic vessels without radiation. In this lymphedema model, a significant difference in the degree of lymphedema between the surgery and control groups was maintained only for 18 days after the surgery. Radiation therapy has been used as an adjunctive method in the creation of tail and hindlimb lymphedema model. Previous study ¹⁸ demonstrated the effects of radiation therapy on the lymphatic vessels in a tail model. Researchers found that radiation therapy decreases the number of dermal capillary lymphatic vessels and LECs and that a single 15 Gy dosage is sufficient to cause the loss of lymphatic vessels. Our fluorescence lymphography and histological finding are consistent with their finding. Lymphangiogenesis was hindered in the radiation group compared with that in the control group, which may contribute to the higher lymphedema degree in the radiation group.

However, we found that the duration of secondary lymphedema was not significantly different between the two groups. Apart from lymphatic vessel drainage, interstitial flow (IF) has been indicated, another important route for lymphatic fluid clearance.^19,20 From the fluorescence image in the radiation group obtained at 3 weeks, we can see that the inguinal lymph node was shown because of the lack of regenerated lymphatics. This finding suggests the tracer mainly passed through the surgical site by interstitial flow rather than regenerated lymphatics, which may result in nonsignificant difference of the lymphedema duration between the two groups. Uzarski et al. ²¹ also indicated that the resolution of lymphedema may become more dependent on IF than on lymphangiogenesis in a mouse tail model.

Lymphangiogenesis has only been considered as a clearance route by most studies using hindlimb models. However, our finding implicates that IF plays an important role in lymphatic fluid clearance. Modified suture technique, such as suturing the skin edges to the underlying muscle or electrocauterizing both edges of the wound, may be valuable for blocking IF. For instance, Oashi et al. ¹⁴ developed a lymphedema mouse hindlimb model. The duration of lymphedema can last several months. To block the dermal backflow, they sutured the skin edges to the underlying muscle with 6-0 nylon sutures leaving a gap of 1–2 mm between skin edges. Similarly, Iwasaki et al. ²² developed a new hindlimb model by removing both the inguinal and popliteal lymph nodes, followed by silicone splint suture in the inguinal region. The lymphedema degree and duration were significantly increased by their revised surgical method. However, in our study, the ends of the skin wound were directly sutured with 5-0 nylon sutures, which means the dermal backflow reconstructed more quickly by the acceleration of wound healing. Therefore, the lymphedema duration can only last <3 weeks. Further studies on the hindlimb lymphedema model should consider both the factors of lymphangiogenesis and interstitial flow.

There are some limitations to this study. First, we did not evaluate the effect of tissue fibrosis on lymphedema. Radiation therapy is known to cause transforming growth factor-beta 1-mediated tissue fibrosis,^23–25 which is another potential mechanism to induce lymphatic stasis. Second, a single 20 Gy radiation was only administered to each mouse, yielding the results of this study. We selected 20 Gy as the dose of radiation because it was widely used in previous studies. However, we cannot exclude the possibility that the results would be affected by different dose. Considered together, the effect of various dosage radiation on the lymphatic stasis and the mechanism associated with the fibrosis are required to be investigated in the future.

Conclusions

This study showed that radiation transiently aggravated the lymphedema degree by inhibiting regenerated lymphatics in a mouse hindlimb model. However, it did not prolong the duration of lymphedema because the cutaneous interstitial flow contributes to lymphatic fluid clearance. A sustained hindlimb lymphedema model may be developed by using the combination of lymphatic components incision, radiation, and the method to block the interstitial flow.
