Development of EMab-51,a Sensitive and Specific Anti-Epidermal Growth Factor Receptor Monoclonal Antibody in Flow Cytometry,Western Blot,and Immunohistochemistry

Cell lines

LN229, A431, Chinese hamster ovary (CHO)-K1, HEK-293T, MCF-10A, Met-5A, and P3U1 cell lines were obtained from the American Type Culture Collection (ATCC, Manassas, VA). HSC-2 and HSC-3 were obtained from the Japanese Collection of Research Bioresources (JCRB) Cell Bank (Osaka, Japan). LN229/EGFR and CHO/EGFR were produced by transfecting pCAG/PA-EGFR-RAP-MAP⁽¹²⁾ into LN229 and CHO-K1 cells using Neon transfection system (Thermo Fisher Scientific, Inc., Waltham, MA) and Lipofectamine LTX (Thermo Fisher Scientific, Inc.), respectively. A few days after transfection, PA tag-positive cells⁽¹³⁾ were sorted using a cell sorter (SH800; Sony Corp., Tokyo, Japan).

CHO-K1, CHO/EGFR, and P3U1 cell lines were cultured in RPMI 1640 medium (Nacalai Tesque, Inc., Kyoto, Japan), and LN229, LN229/EGFR, A431, HSC-2, HSC-3, HEK-293T, MCF-10A, and Met-5A cell lines were cultured in Dulbecco's modified Eagle's medium (Nacalai Tesque, Inc.), supplemented with 10% heat-inactivated fetal bovine serum (Thermo Fisher Scientific, Inc.), 100 units/mL of penicillin, 100 μg/mL of streptomycin, and 25 μg/mL of amphotericin B (Nacalai Tesque, Inc.) at 37°C in a humidified atmosphere containing 5% CO₂ and 95% air.

Animals

Female 4-week-old BALB/c mice were purchased from CLEA Japan (Tokyo, Japan). Animals were housed under specific pathogen-free conditions. The Animal Care and Use Committee of Tohoku University approved all the animal experiments described in this study.

Hybridoma production

The ectodomain of EGFR with N-terminal PA tag⁽¹³⁾ and C-terminal RAP tag⁽¹⁴⁾-MAP tag⁽¹²⁾ (EGFRec) was purified from supernatant of LN229/EGFRec using anti-RAP tag as described previously.⁽¹⁴⁾ BALB/c mice were immunized using intraperitoneal (i.p.) injections of LN229/EGFR cells or 100 μg of EGFRec together with Imject Alum (Thermo Fisher Scientific, Inc.). After several additional immunizations, a booster injection of LN229/EGFR cells or 100 μg of EGFRec was intraperitoneally administered 2 days before harvesting spleen cells. Spleen cells were then fused with P3U1 cells using PEG1500 (Roche Diagnostics, Indianapolis, IN) or GenomONE-CF (Ishihara Sangyo Kaisha, Ltd., Osaka, Japan).

The resulting hybridomas were grown in RPMI medium supplemented with hypoxanthine, aminopterin, and thymidine selection medium supplement (Thermo Fisher Scientific, Inc.). Culture supernatants were screened using enzyme-linked immunosorbent assay (ELISA) with EGFRec, and mAbs were selected using flow cytometry (second screening), Western blot (third screening), and immunohistochemical analyses (fourth screening). MAbs were purified from supernatants of hybridomas cultured in Hybridoma-SFM medium (Thermo Fisher Scientific, Inc.) using Protein G Sepharose 4 Fast Flow (GE Healthcare UK Ltd., Buckinghamshire, England).

Flow cytometry

Cells were harvested by brief exposure to 0.25% trypsin/1-mM ethylenediaminetetraacetic acid (EDTA) (Nacalai Tesque, Inc.). After washing with 0.1% bovine serum albumin (BSA)/phosphate-buffered saline (PBS), the cells were treated with 1 μg/mL of anti-EGFR (clone EMab-51) for 30 minutes at 4°C and then with Alexa Fluor 488-conjugated anti-mouse IgG (1:1000; Cell Signaling Technology, Inc., Danvers, MA). Fluorescence data were collected using EC800 or SA3800 Cell Analyzers (Sony Corp.).

Western blot analysis

Cell lysates (10 μg) were boiled in sodium dodecyl sulfate (SDS) sample buffer (Nacalai Tesque, Inc.) and proteins were then electrophoresed on 5%–20% polyacrylamide gels (Wako Pure Chemical Industries Ltd., Osaka, Japan) and were transferred onto polyvinylidene difluoride (PVDF) membranes (Merck KGaA, Darmstadt, Germany). After blocking with 4% skim milk (Nacalai Tesque, Inc.), membranes were incubated with 10 μg/mL of anti-EGFR (clone EMab-51) and 1 μg/mL of anti-β-actin (clone AC-15; Sigma-Aldrich Corp., St. Louis, MO), then with peroxidase-conjugated anti-mouse IgG (1:1000 diluted; Agilent Technologies, Inc., Santa Clara, CA), and were finally developed using ImmunoStar LD (Wako Pure Chemical Industries Ltd.) using a Sayaca-Imager (DRC Co. Ltd., Tokyo, Japan).

Determination of the binding affinity using flow cytometry

LN229 and A431 (2 × 10⁵ cells) were suspended in 100 μL of serially diluted mAbs (6 ng/mL–50 μg/mL), and Alexa Fluor 488-conjugated anti-mouse IgG (1:200; Cell Signaling Technology, Inc.) was then added. Fluorescence data were collected using a cell analyzer (EC800; Sony Corp.). The dissociation constants (K_D) were calculated by fitting the binding isotherms using the built-in one-site binding models in GraphPad PRISM 6 (GraphPad software, Inc., La Jolla, CA).

Immunohistochemical analyses

Oral cancer tissues were purchased from US Biomax, Inc. (Rockville, MD). Histologic sections of 4-μm thickness were deparaffinized in xylene and were then rehydrated and autoclaved in EnVision FLEX Target Retrieval Solution High pH (Agilent Technologies, Inc.) for 20 minutes. Sections were then incubated with 5 μg/mL of EMab-51 for 1 hour at room temperature and were then treated using an EnVision+ Kit (Agilent Technologies, Inc.) for 30 minutes. Color was developed using 3,3-diaminobenzidine tetrahydrochloride (Agilent Technologies, Inc.) for 2 minutes, and sections were then counterstained with hematoxylin (Wako Pure Chemical Industries Ltd.). The intensity of staining was evaluated as —, 1+, 2+, 3+.

Production of anti-EGFR mAbs

In this study, we immunized mice with LN229/EGFR or purified recombinant EGFRec from culture supernatants of LN229/EGFRec cells. A booster i.p. injection of LN229/EGFR or EGFRec was also administered, and culture supernatants were then screened for binding to purified EGFRec using ELISA. As a second screening, we used flow cytometry to assess reactions with LN229 and LN229/EGFR cells. LN229 cells express endogenous EGFR⁽¹⁵⁾; therefore, a stronger reaction against LN229/EGFR was required.

A total of 38 clones were generated from immunizations with LN229/EGFR, and 62 were generated from immunizations with purified EGFRec. Of 100 mAbs, 94 clones reacted with A431 cells, which express endogenous EGFR.⁽¹⁶⁾ Subsequently, mAbs were further selected according to their efficacy on Western blot analysis. These analyses identified only one clone EMab-51 (IgG₁, kappa) from EGFRec immunizations that were useful for Western blot analysis.

Characterization of EMab-51

On Western blot analyses against LN229,⁽¹⁵⁾ LN229/EGFR,⁽¹²⁾ and A431 cells,⁽¹⁶⁾ EMab-51 detected ∼180-kDa strong signal in LN229/EGFR and A431 cells, and the weak signal in LN229, indicating that EMab-51 is very useful for Western blot analyses (Fig. 1A). Subsequent flow cytometry demonstrated that EMab-51 reacted with LN229/EGFR more strongly than with endogenous EGFR-expressing LN229 brain tumor cells (Fig. 1B). EMab-51 also reacted with CHO/EGFR and did not react with the parental cell CHO-K1, indicating that EMab-51 is specific for EGFR (Fig. 1B). EMab-51 also recognized endogenous EGFR in A431 epidermoid carcinoma cells,⁽¹⁶⁾ HSC-2 and HSC-3 oral squamous cell carcinomas,⁽¹¹⁾ HEK-293T renal epithelial cells,⁽¹⁷⁾ Met-5A mesothelial cells,⁽¹⁸⁾ and MCF-10A breast epithelial cells⁽¹⁹⁾ (Fig. 1C).

OPEN IN VIEWER

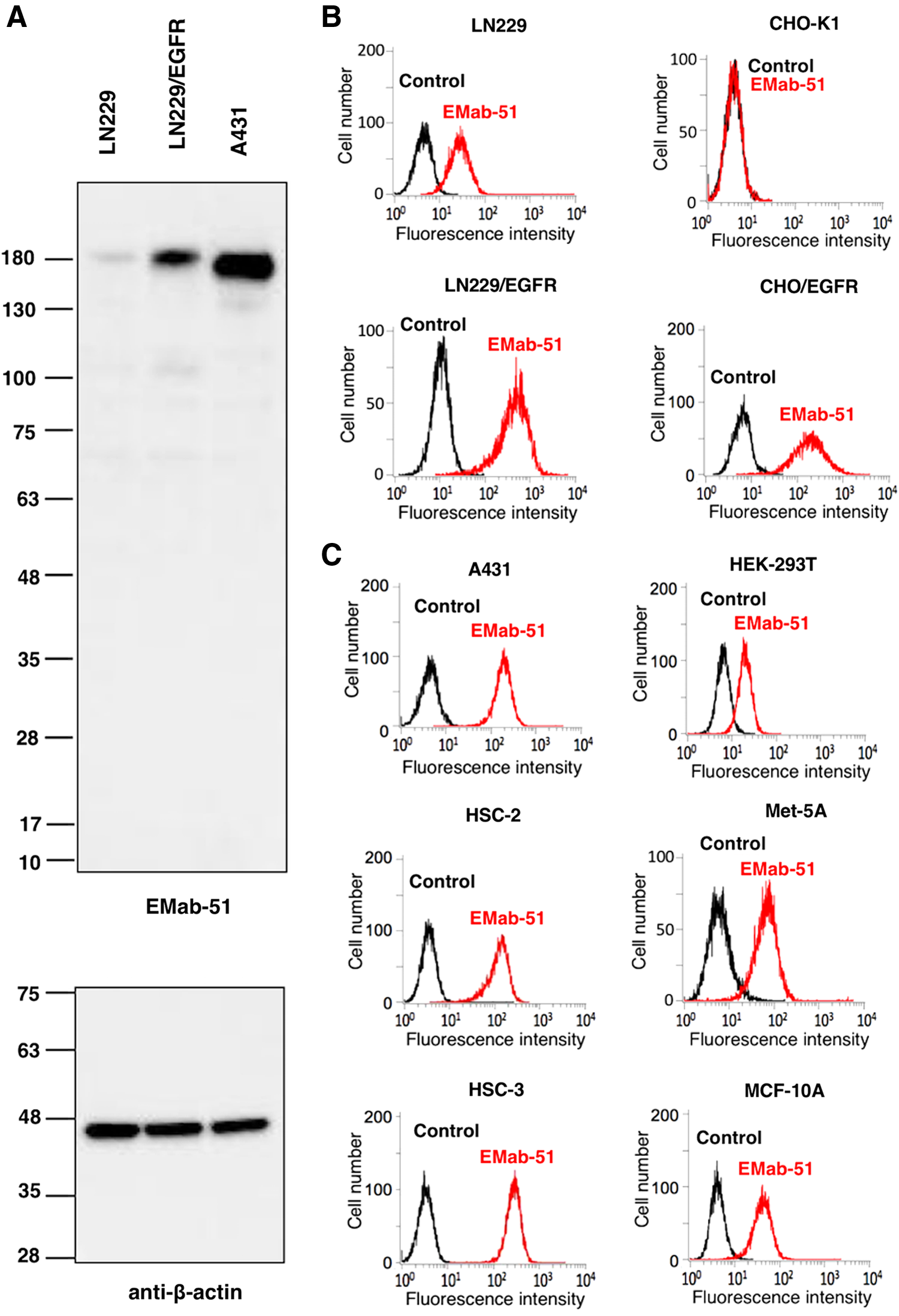

FIG. 1.

Characterization of EMab-51. (A) Western blot using EMab-51; cell lysates (10 μg) were electrophoresed and proteins were transferred onto polyvinylidene difluoride (PVDF) membranes. After blocking, membranes were incubated with 10 μg/mL of EMab-51 or 1 μg/mL of anti-β-actin (AC-15) and then incubated with peroxidase-conjugated anti-mouse IgG. (B, C) Flow cytometry with EMab-51; cells were treated with 1 μg/mL of EMab-51 followed by Alexa Fluor 488-conjugated anti-mouse IgG; black line, negative control.

We further determined binding affinity of EMab-51 for LN229 and A431 cells using flow cytometry (Fig. 2) and calculated K_D values for EMab-51 of 1.5 × 10⁻⁸ M against LN229 or 1.3 × 10⁻⁸ M against A431, indicating that EMab-51 possesses moderate affinity for EGFR-expressing cell lines.

OPEN IN VIEWER

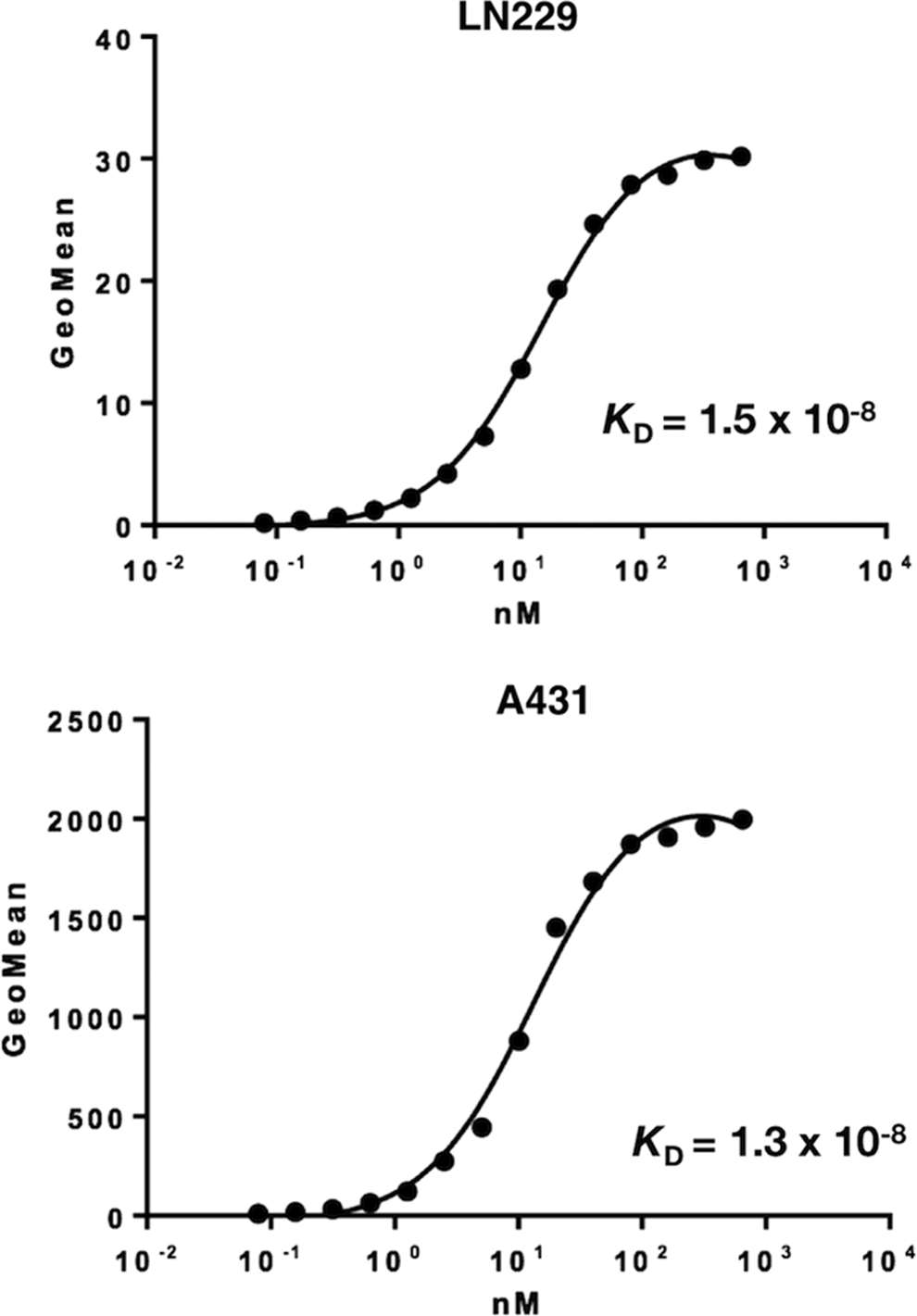

FIG. 2.

Binding affinity of EMab-51 was determined using flow cytometry. LN229 and A431 cells were suspended in 100 μL of serially diluted EMab-51 (6 ng/mL–50 μg/mL), and secondary anti-mouse IgG was then added. Fluorescence data were collected using a cell analyzer.

Immunohistochemical analysis against oral cancers

We investigated the immunohistochemical utility of EMab-51 in human oral cancers because high EGFR expression was observed in oral cancer cell lines, such as HSC-2 and HSC-3 (Fig. 1C). As depicted in Figure 3, EMab-51 stained the membranes of cancer cells of oral squamous cell carcinomas. EMab-51 stained 6 of 38 (15.8%) squamous cell carcinomas in oral cancer tissue array (Supplementary Table S1) and did not stain any other tumor types of oral cancers (Supplementary Table S2).

OPEN IN VIEWER

FIG. 3.

Immunohistochemical analysis by EMab-51 against oral cancers. Sections were incubated with 5 μg/mL of primary EMab-51 for 1 hour at room temperature followed by treatment with EnVision+ Kit for 30 minutes. Color was developed using 3, 3-diaminobenzidine tetrahydrochloride (DAB) for 2 minutes, and sections were then counterstained with hematoxylin. (A–D) Case No. 15; (E–H) case No. 23; (A, B, E, F) immunostaining by EMab-51; (C, D, G, H) hematoxylin and eosin staining; scale bar =100 μm.
