Epitope Analysis of an Anti-Whale Podoplanin Monoclonal Antibody,PMab-237,Using Flow Cytometry

Introduction

Podoplanin (PDPN)/T1alpha/Aggrus/PA2.26 is a type I transmembrane sialoglycoprotein consisting of a heavily glycosylated extracellular domain, a single transmembrane, and a short nine amino acid (AA) cytoplasmic tail.^(1–4) PDPN/Aggrus possesses the EDxxVTPG sequence at its N-terminus, which is known to be the platelet aggregation-stimulating (PLAG) domains (PLAG1, PLAG2, and PLAG3).^(3,5) In addition, the PLAG-like domain (PLD) of the E(D/E)xx(T/S)xx sequence, also known as PLAG4, has been reported to be present in the middle of PDPN.^(6,7) PLAG domains are highly conserved among mammalian PDPNs.⁽⁷⁾

PDPN is expressed in lymphatic endothelial cells and is not expressed in vascular endothelial cells.⁽⁸⁾ The interaction between PDPN⁽³⁾ on lymphatic endothelial cells and C-type lectin-like receptor-2 on platelets was shown to facilitate embryonic blood/lymphatic vessel separation.⁽⁹⁾ Because PDPN/T1alpha is expressed in type I alveolar cells but not in type II alveolar cells, it is used as a specific marker of type I alveolar cells.⁽¹⁰⁾ In recent studies, other functions of PDPN were reported. The PDPN-positive cells, with the immune cells after myocardial infarction, positively affect immune cell recruitment.⁽¹¹⁾ The PDPN-positive stromal cells play a critical role in a network of immunofibroblasts, which can support the earliest phases of tertiary lymphoid structure establishment.⁽¹²⁾ The expression of PDPN in chorionic villous stromal cells is in two important placental pathologies: preeclampsia and hydatidiform mole.⁽¹³⁾ Moreover, PDPN is upregulated in many cancers and is involved in cancer metastasis and malignant progression.^(14–17) Recent reports showed that PDPN is related to a progression in oral epithelial dysplasia and oral squamous cell carcinoma through a co-expression with sex-determining region Y-related Homeo box gene 2.^(18,19) Therefore, PDPN possesses many pathophysiological functions in malignant tissues.

Recently, we developed a novel anti-whale PDPN (wPDPN) monoclonal antibody (mAb), PMab-237, using the Cell-Based Immunization and Screening (CBIS) method.⁽²⁰⁾ The CBIS method was established in our previous study⁽²¹⁾ to produce mAbs using cell lines for immunization and screening. PMab-237 specifically detected wPDPN by flow cytometry, western blotting, and immunohistochemical analyses. PMab-237 also strongly stained pulmonary type I alveolar cells, renal podocytes, and lymphatic endothelial cells of the harbor porpoise by the immunohistochemical analysis.⁽²²⁾ However, the binding epitope of PMab-237 for wPDPN remains unknown. This study aimed to identify the epitope of PMab-237 through flow cytometry using the deletion mutants and point mutants of wPDPN.

Materials and Methods

Results

Epitope analysis using deletion mutants of wPDPN

Ten deletion mutants of wPDPN, such as dN30 (corresponding to 30–161 AA), dN40 (corresponding to 40–161 AA), dN50 (50–161 AA), dN60 (60–161 AA), dN70 (70–161 AA), dN80 (80–161 AA), dN85 (85–161 AA), dN90 (90–161 AA), dN95 (95–161 AA), and dN100 (100–161 AA), or wild type (WT) of wPDPN (corresponding to 23–161 AA) were generated using CHO-K1 cells (Fig. 1).

OPEN IN VIEWER

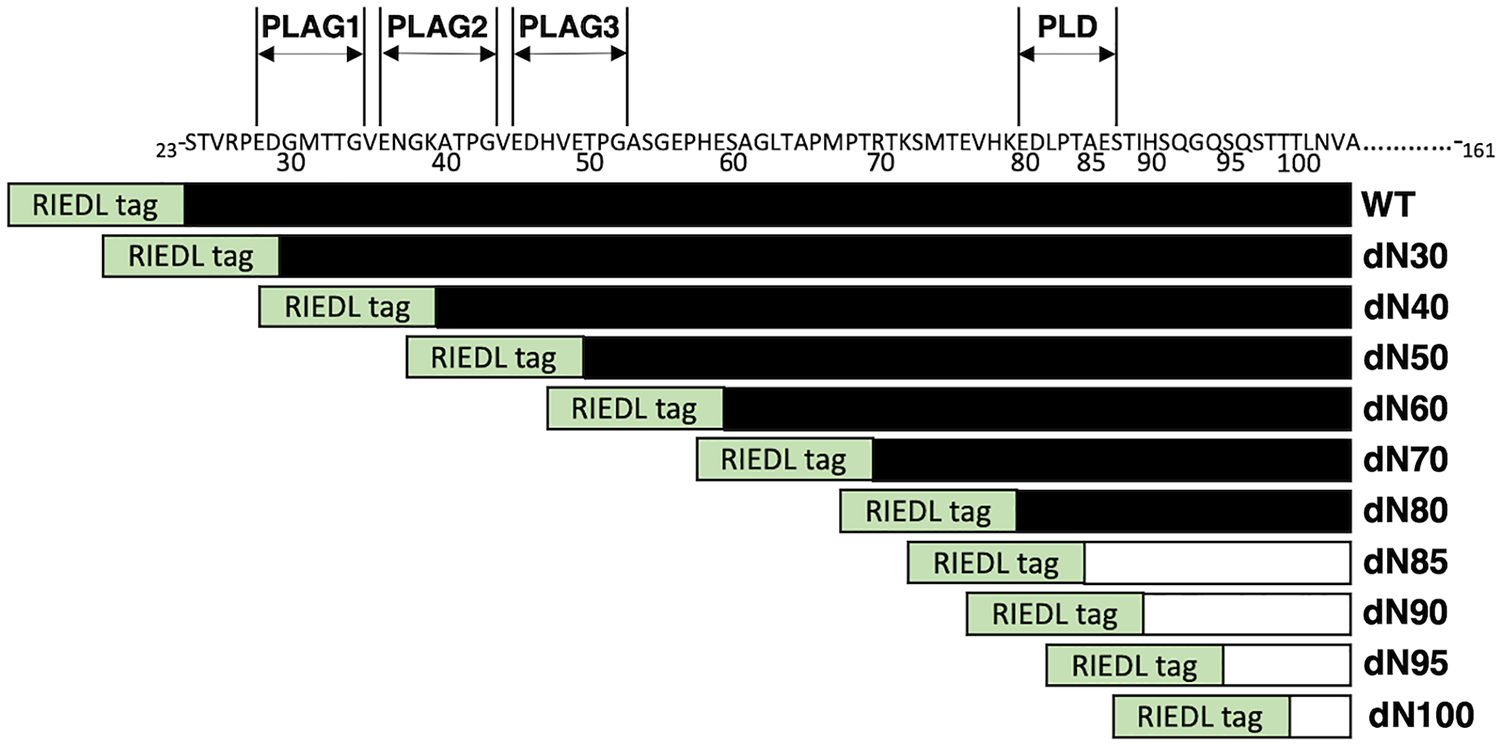

FIG. 1.

Schematic illustration of deletion mutants of anti-wPDPN. Illustration of WT and 10 deletion mutants of wPDPN: dN30, dN40, dN50, dN60, dN70, dN80, dN85, dN90, dN95, and dN100. Black bars: the positive reaction of PMab-237. White bars: the negative reaction of PMab-237. PLAG, platelet aggregation-stimulating; PLD, PLAG-like domain; wPDPN, whale podoplanin; WT, wild type.

All deletion mutants and WT of wPDPN containing an N-terminal RIEDL tag were detected by LpMab-7 (an anti-RIEDL tag mAb), indicating that the expression level of each construct was high (Fig. 2A). In contrast, PMab-237 did not react with dN85, dN90, dN95, or dN100 (Fig. 2B), suggesting that the N-terminus of the PMab-237 epitope might exist between the 80th AA and 85th AA of wPDPN.

OPEN IN VIEWER

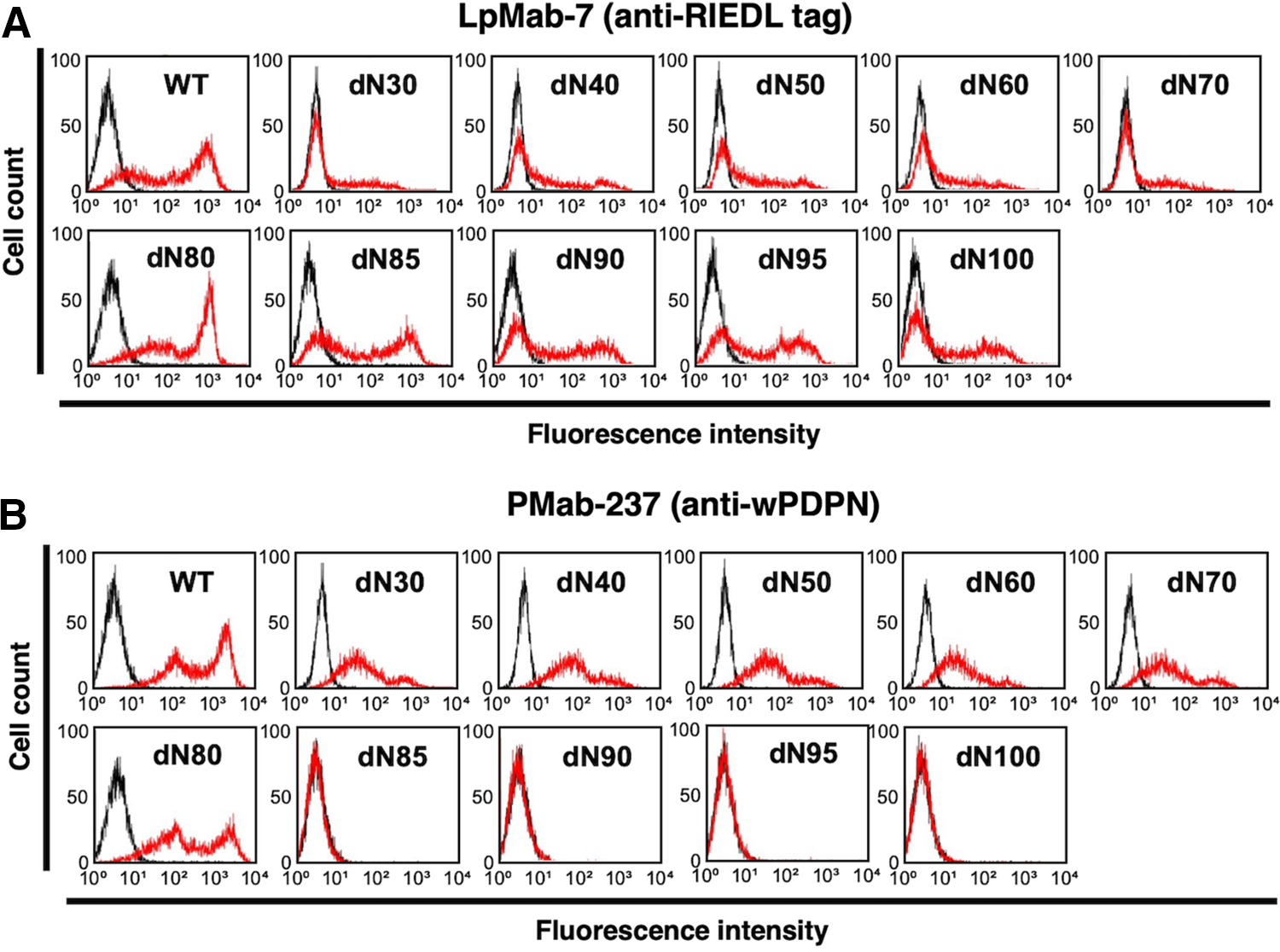

FIG. 2.

Epitope mapping of PMab-237 using deletion mutants of wPDPN. Deletion mutants of wPDPN were analyzed using flow cytometry. Deletion mutants were incubated with LpMab-7 (anti-RIEDL tag; red line, A), PMab-237 (anti-wPDPN mAb; red line, B), or buffer control (black line, A, B) for 30 minutes at 4°C, followed by secondary antibodies. mAb, monoclonal antibody.

Epitope analysis using point mutants of wPDPN

To identify the binding epitope of PMab-237, we then produced a series of point mutants of wPDPN using CHO-K1 cells, including E80A, D81A, L82A, P83A, T84A, A85G, E86A, S87A, T88A, I89A, H90A, S91A, Q92A, G93A, Q94A, S95A, Q96A, S97A, T98A, T99A, T100A, and L101A.

LpMab-7 reacted with all point mutants, indicating that all transfectants express wPDPN (Fig. 3A). In contrast, PMab-237 weakly recognized L82A and did not react with T84A, indicating that the L82A and T84A of wPDPN could be included in the critical epitope of PMab-237 (Fig. 3B). Taken together, the epitope of PMab-237 is located in the PLD of wPDPN (Fig. 4).

OPEN IN VIEWER

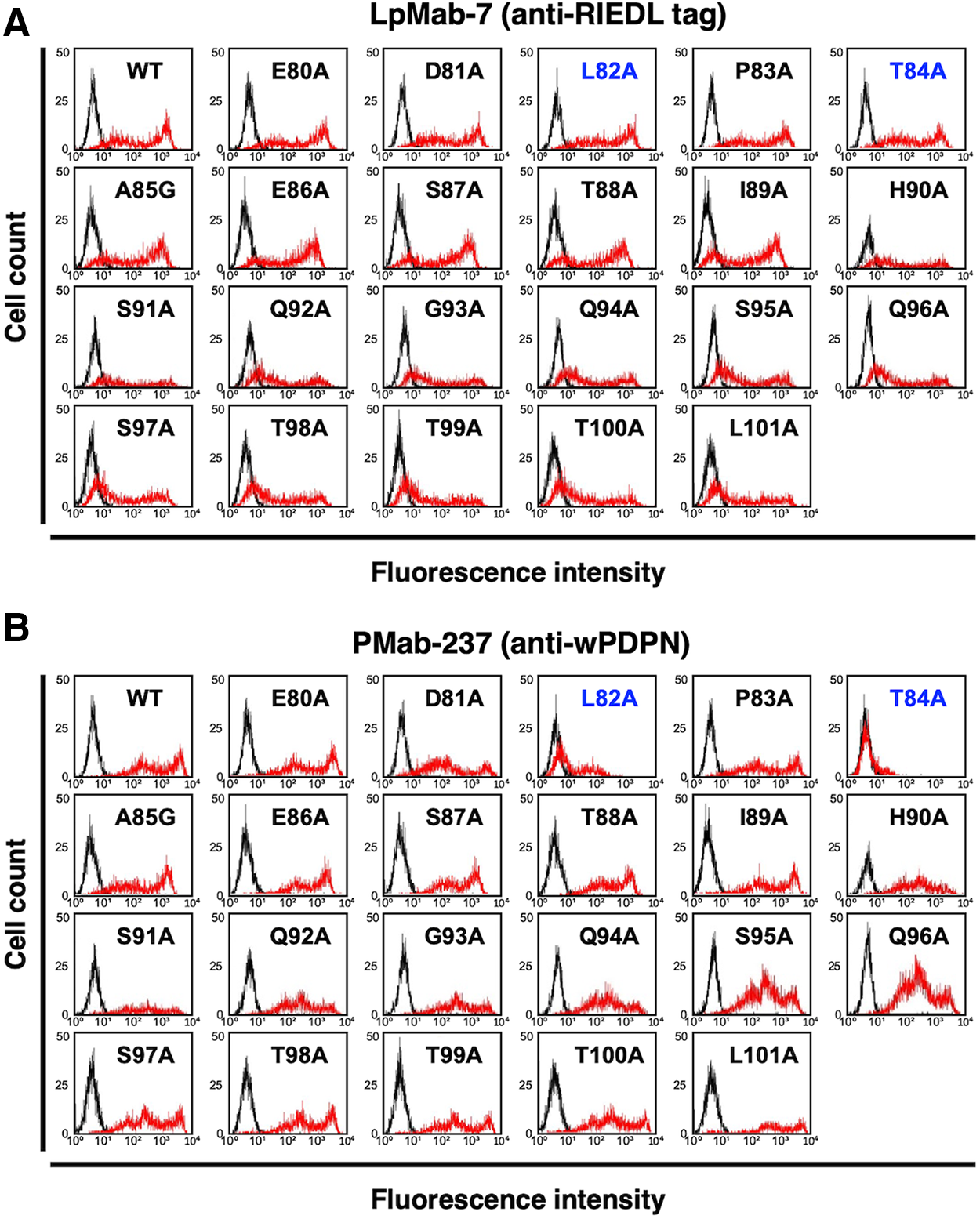

FIG. 3.

Epitope mapping of PMab-237 using point mutants of wPDPN. Transient point mutants expressing E80A, D81A, L82A, P83A, T84A, A85G, E86A, S87A, T88A, I89A, H90A, S91A, Q92A, G93A, Q94A, S95A, Q96A, S97A, T98A, T99A, T100A, and L101A of wPDPN were incubated with LpMab-7 (red line, A), PMab-237 (red line, B), or buffer control (black line, A, B) for 30 minutes at 4°C, followed by secondary antibodies.

OPEN IN VIEWER

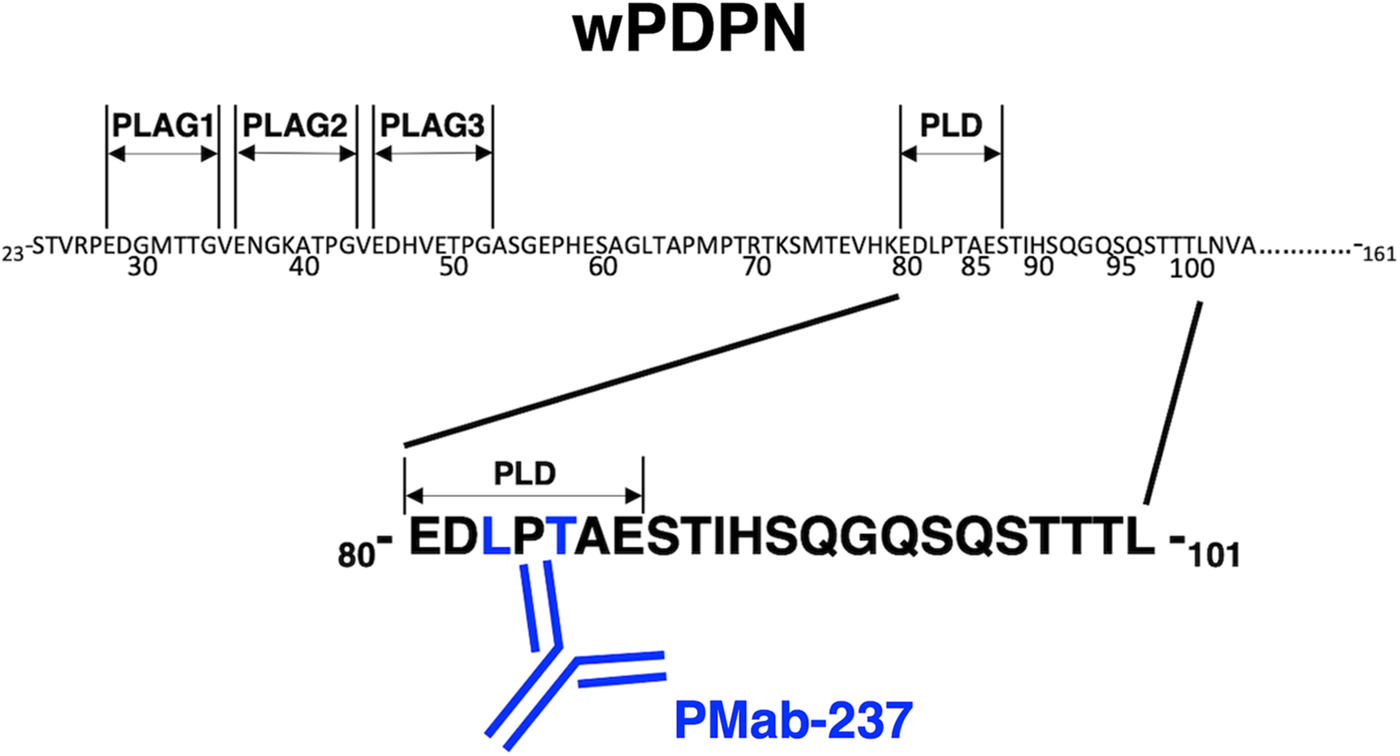

FIG. 4.

Schematic illustration of the epitope recognized by PMab-237. The critical epitope of PMab-237 includes Leu82 and Thr84 of wPDPN. Both Leu82 and Thr84 are included in the PLD.

Discussion

We have demonstrated that the critical epitope of PMab-237 could include Leu82 and Thr84 of wPDPN using the deletion mutants and point mutants of wPDPN in CHO-K1 cells by flow cytometry. In our previous studies, we developed many mAbs against PDPNs of human,⁽²⁴⁾ mouse,⁽²⁵⁾ rat,⁽²⁶⁾ rabbit,⁽²⁷⁾ dog,⁽²⁸⁾ cat,⁽²⁹⁾ bovine,⁽³⁰⁾ horse,⁽³¹⁾ Tasmanian devil,⁽³²⁾ alpaca,⁽³³⁾ bear,⁽³⁴⁾ tiger,⁽³⁵⁾ goat,⁽³⁶⁾ pig,^(37,38) and whale.⁽²⁰⁾ We successfully determined the binding epitope of those mAbs.^{(22,34,39–48)} These epitope mapping results showed that almost all anti-PDPN mAbs react with PLAG domains or PLDs.^{(7,39–41,43,44,49–51)} The critical epitope of PMab-237 was also shown to be located in PLD (Fig. 4), suggesting that PLAG domains and PLD were advantageous to the epitope for several applications such as flow cytometry, western blotting, and immunohistochemical analyses.

Furthermore, using glycan-deficient CHO cell lines, such as Lec1 (N-glycan-deficient), Lec2 (sialic acid-deficient), or Lec8 (galactose-deficient),⁽⁵²⁾ we investigated whether the epitope of PMab-237 could include not only AAs but also glycans. A flow cytometric analysis demonstrated that PMab-237 reacts not only with CHO-K1/wPDPN but also with Lec1/wPDPN, Lec2/wPDPN, and Lec8/wPDPN (data not shown), indicating that glycans of wPDPN might not be included in the PMab-237 epitope. This analysis further suggests that no glycan is attached to Thr84 in the PLD of wPDPN (Fig. 4).

In conclusion, by using deletion mutants and point mutants of wPDPN in CHO-K1 cells, we have demonstrated that the critical epitope of PMab-237 may include Leu82 and Thr84 of wPDPN. PMab-237 could be a useful tool in elucidating the pathophysiological function of wPDPN.
