Epitope Mapping of an Anti-Mouse CCR8 Monoclonal Antibody C 8 Mab-2 Using Flow Cytometry

Abstract

The C-C motif chemokine receptor 8 (CCR8) is highly and selectively expressed in regulatory T (Treg) cells and is associated with tumor progression. The massive accumulation of Treg cells into tumors suppresses the effector function of CD8⁺ cells against tumor cells. Therefore, selective depletion of Treg cells using anti-CCR8 monoclonal antibodies (mAbs) reinvigorates antitumor immune responses and improves responses to cancer immunotherapy. Previously, we developed an anti-mouse CCR8 (mCCR8) mAb, C₈Mab-2, using the Cell-Based Immunization and Screening method. In this study, the binding epitope of C₈Mab-2 was investigated using flow cytometry. The mCCR8 extracellular domain-substituted mutant analysis showed that C₈Mab-2 recognizes the N-terminal region (1–33 amino acids) of mCCR8. Next, 1×alanine (or glycine) scanning and 2×alanine (or glycine) scanning were conducted in the N-terminal region. The results revealed that the _17-DFFTAP_-22 sequence is important for the recognition by C₈Mab-2, and Thr20 is a central amino acid of the epitope. These results revealed the involvement of the N-terminus of mCCR8 in the recognition by C₈Mab-2.

Introduction

The C-C motif chemokine receptor 8 (CCR8) is a member of G protein-coupled receptors (GPCRs) family. The C-C motif chemokine ligands (CCLs), including CCL1, CCL8, CCL16, and CCL18, are known as ligands for human CCR8. CCL1 is the only ligand for CCR8,¹ which is produced by CD11b⁺CD14⁺ myeloid cells during the infiltration of regulatory T (Treg) cells into tumor.² Upon binding of CCL1 to CCR8, the FOXP3 is upregulated by the STAT3 pathway, and the activated CCR8⁺ Treg cells potently suppress antitumor immunity through secretion of granzyme B and IL‐10.³ Increased expression of CCR8 is observed in Treg cells, especially in cancer patients.⁴ Patients with high levels of Treg cells exhibit poor prognoses and clinical outcomes in several cancers.⁵ Therefore, it has been proposed that depletion of tumor-infiltrated Treg cells could restore antitumor immunity and improve responses to tumor immunotherapy.⁶ Recent preclinical mouse models have revealed that depletion of Treg cells using an anti-mouse CCR8 (mCCR8) monoclonal antibody (mAb) exhibited strong antitumor responses through dramatic changes of the intratumor CD8⁺ T-cell profile⁷ or enhanced the antitumor effects of antiprogrammed cell death 1 (PD-1) therapy.⁸

The understanding of the structural-based CCR activation is important for the development of therapeutic agents. Among the CCR family members, CCR2 and CCR5 have been structurally solved in both inactive and active states,^9–12 while inactive state of CCR7 and CCR9 and active state of CCR1 and CCR6 structures are also characterized.^13–16 Furthermore, the structures of CCR8 in complex with either the antagonistic mAb or the endogenous ligand CCL1 were determined, which provides the specific activation mechanism by CCL1 and inhibition by mAb.¹⁷

We have developed anti-mouse GPCR mAbs against CCR1 (clone C₁Mab-6),¹⁸ CCR3 (clones C₃Mab-2, C₃Mab-3, and C₃Mab-4),^19–21 CCR8 (clones C₈Mab-1, C₈Mab-2, and C₈Mab-3),^22–24 CXCR1 (clone Cx₁Mab-1),²⁵ CXCR3 (clone Cx₃Mab-4),²⁶ and CXCR4 (clone Cx₄Mab-1)²⁷ using the Cell-Based Immunization and Screening (CBIS) method. For the determination of the epitopes, we have faced difficulty using conventional methods such as enzyme-linked immunosorbent assay. In this study, epitope mapping of an anti-mCCR8 mAb was conducted by flow cytometry-based approaches.

Materials and Methods

Cell lines

Chinese hamster ovary (CHO)-K1 cell was obtained from the America Type Culture Collection (ATCC, Manassas, VA). Stable transfectants of CHO/mCCR8 were established in our previous study.²⁴ Briefly, synthesized DNA (Eurofins Genomics KK, Tokyo, Japan) encoding mCCR8 (Accession No.: NM_007720.2) was subcloned into a pCAG-Ble vector (FUJIFILM Wako Pure Chemical Corporation, Osaka, Japan). mCCR8 plasmid was transfected using a Neon Transfection System (Thermo Fisher Scientific Inc., Waltham, MA). CHO/mCCR8 cells were sorted using a cell sorter (SH800; Sony Corp., Tokyo, Japan) and cultivated in a medium containing 0.5 mg/mL of Zeocin (InvivoGen, San Diego, CA).

The chimeric and the point mutant plasmids were transfected into CHO-K1 cells using the Neon Transfection System (Thermo Fisher Scientific Inc.). Stable transfectants were selected using SH800. Cells were cultured in Roswell Park Memorial Institute−1640 medium (Nacalai Tesque, Inc., Kyoto, Japan) supplemented with 10% heat-inactivated fetal bovine serum (Thermo Fisher Scientific Inc.), 100 units/mL of penicillin, 100 μg/mL streptomycin, and 0.25 μg/mL amphotericin B (Nacalai Tesque, Inc.) at 37°C in a humidified atmosphere containing 5% CO₂. The stable transfectants were cultivated in a medium containing 0.5 mg/mL of Zeocin.

Plasmid construction

Synthesized DNAs (Eurofins Genomics KK) encoding mouse CCR3 (mCCR3; Accession No.: NM_009914.4) and mCCR8 were subcloned into a pCAG-Ble vector. Chimeric mutants including mCCR3 (mCCR8p1–33), mCCR3 (mCCR8p92–105), mCCR3 (mCCR8p170–200), and mCCR3 (mCCR8p262–278) were produced with a PA16 tag at their N-terminus using the HotStar HiFidelity polymerase kit (Qiagen Inc., Hilden, Germany). Alanine (or glycine) substitutions in the mCCR8 N-terminal region were conducted using QuikChange Lightning Site-Directed Mutagenesis Kits (Agilent Technologies Inc., Santa Clara, CA, USA). PCR fragments bearing the desired mutations were inserted into the pCAG-Ble vector (FUJIFILM Wako Pure Chemical Corporation) using the In-Fusion HD Cloning Kit (Takara Bio, Inc., Shiga, Japan).

Antibodies

C₈Mab-2 was established by the CBIS method.²³ NZ-1 (an anti-PA16 tag mAb) was described previously.²⁸ A secondary Alexa Fluor 488-conjugated anti-rat immunoglobulin G (IgG) was purchased from Cell Signaling Technology, Inc. (Danvers, MA).

Flow cytometry

Cells were harvested after brief exposure to 0.25% trypsin/1 mM ethylenediaminetetraacetic acid (Nacalai Tesque, Inc.). After washing with 0.1% bovine serum albumin in phosphate-buffered saline, cells were treated with C₈Mab-2 (10 μg/mL) or NZ-1 (1 μg/mL) for 30 minutes at 4°C and subsequently with Alexa Fluor 488-conjugated anti-rat IgG (1:2000; Cell Signaling Technology, Inc.). Fluorescence data were obtained using the SA3800 Cell Analyzer (Sony Corp.).

Results

Determination of the epitope of an anti-mCCR8 mAb by flow cytometry using chimeric proteins

We employed the CBIS method to develop an anti-mCCR8 mAb (clone C₈Mab-2).²³ C₈Mab-2 is applicable for flow cytometry and immunocytochemistry. To investigate the binding epitope of C₈Mab-2, we focused on four extracellular regions of mCCR8, including the N-terminal region [1–33 amino acids (aa)], extracellular loop 1 (ECL1; 92–105 aa), ECL2 (170–200 aa), and ECL3 (262–278 aa). The four extracellular regions of mCCR8 were substituted into the corresponding regions of mCCR3, which possesses a similar structure to mCCR8. As shown in Figure 1, mCCR3 (mCCR8p1–33), mCCR3 (mCCR8p92–105), mCCR3 (mCCR8p170–200), and mCCR3 (mCCR8p262–278) were generated. The chimeric proteins were transiently expressed on CHO-K1 cells, and the reactivities to C₈Mab-2 were analyzed using flow cytometry (Fig. 2A). C₈Mab-2 reacted with mCCR3 (mCCR8p1–33) and CHO/mCCR8 cells, but not with other chimeric proteins (Fig. 2A). The cell surface expression of each mutant was confirmed by an anti-PA16 tag mAb, NZ-1 (Fig. 2B). These results indicated that the N-terminal region of mCCR8 is recognized by C₈Mab-2.

FIG. 1.

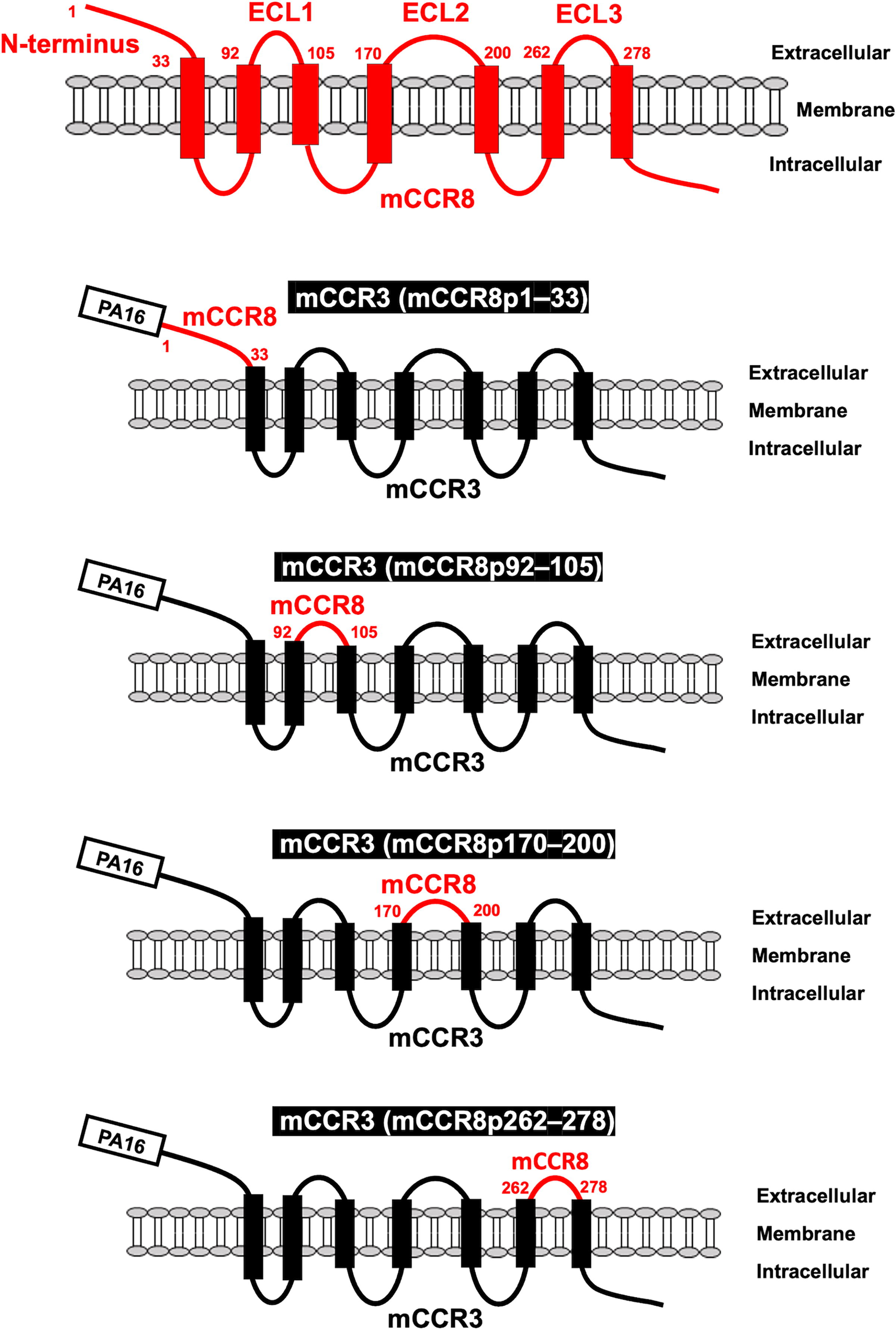

Schematic illustration of chimeric proteins. The four extracellular regions of mCCR8, including the N-terminal region (1–33 aa), ECL1 (92–105 aa), ECL2 (170–200 aa), and ECL3 (262–278 aa), were substituted into the corresponding regions of mCCR3. aa, amino acids; mCCR, mouse C-C motif chemokine receptor; ECL, extracellular loop.

FIG. 2.

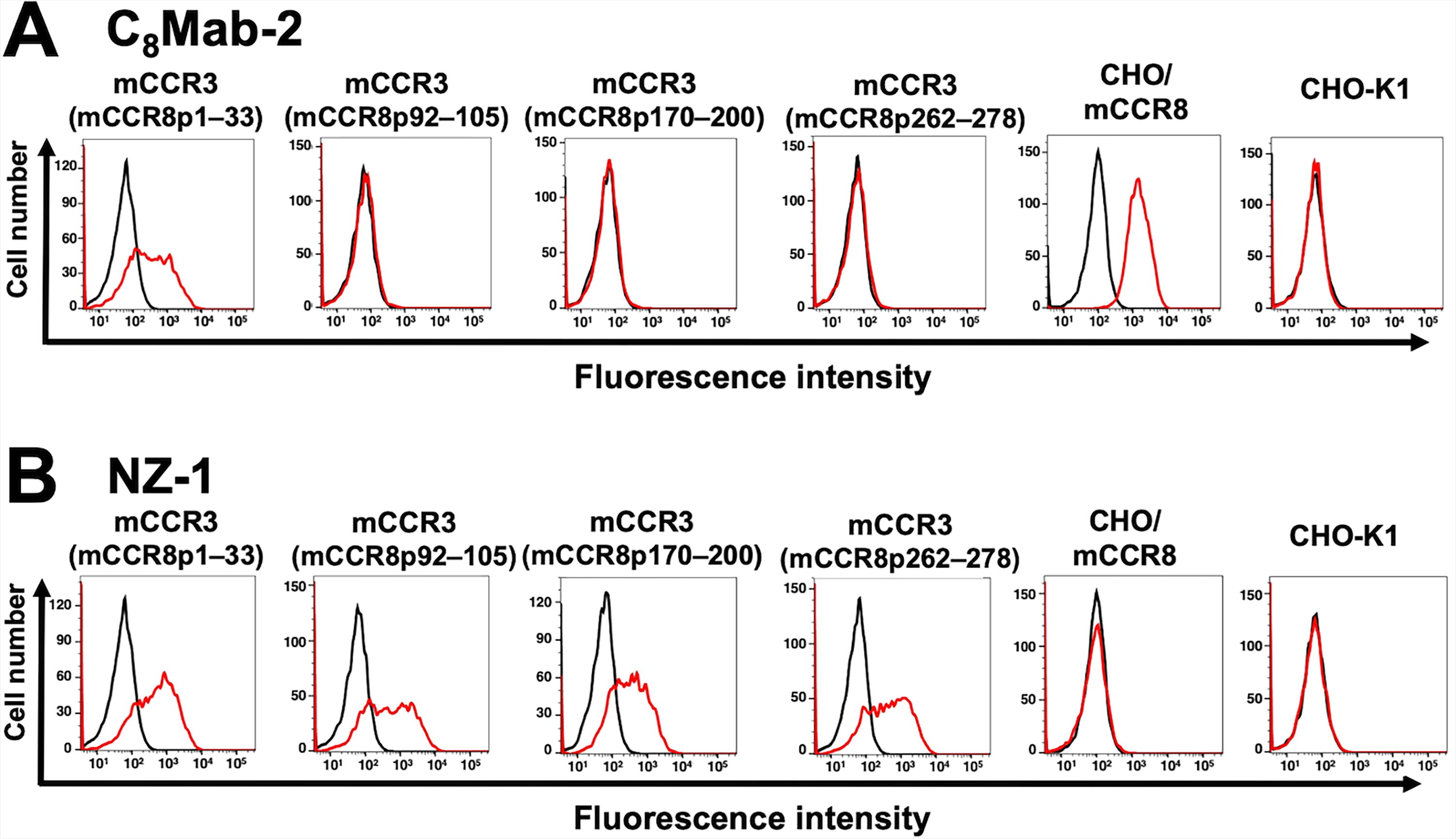

Determination of the epitope of an anti-mCCR8 mAb by flow cytometry using chimeric proteins. C₈Mab-2 (10 μg/mL) (A) and an anti-PA16 tag mAb, NZ-1 (1 μg/mL) (B) were treated with CHO-K1 cells which were transiently expressed the chimeric proteins, CHO/mCCR8 or CHO-K1 cells for 30 minutes at 4°C, followed by the addition of Alexa Fluor 488-conjugated anti-rat IgG. Red lines show the cells with C₈Mab-2 or NZ-1 treatment, and black lines show cells treated with a blocking buffer as a negative control. CHO-K1 cell, Chinese hamster ovary-K1 cell; mCCR, mouse C-C motif chemokine receptor; IgG, Immunoglobulin G.

Determination of the C₈Mab-2 epitope by flow cytometry using 1×alanine scanning

Next, 1×alanine scanning was conducted in the N-terminal region except for Cys23. Thirty-two 1×alanine (or glycine) substitution mutants of mCCR8 were constructed, and the mutant proteins were stably expressed on CHO-K1 cells. The reactivity against C₈Mab-2 was assessed using flow cytometry. As shown in Figure 3A, C₈Mab-2 did not react with a mutant (T20A). In contrast, C₈Mab-2 reacted with the other 31 mutants. The cell surface expression of each mutant was confirmed by NZ-1 (Fig. 3B). These results showed that Thr20 of mCCR8 is important for C₈Mab-2 binding.

FIG. 3.

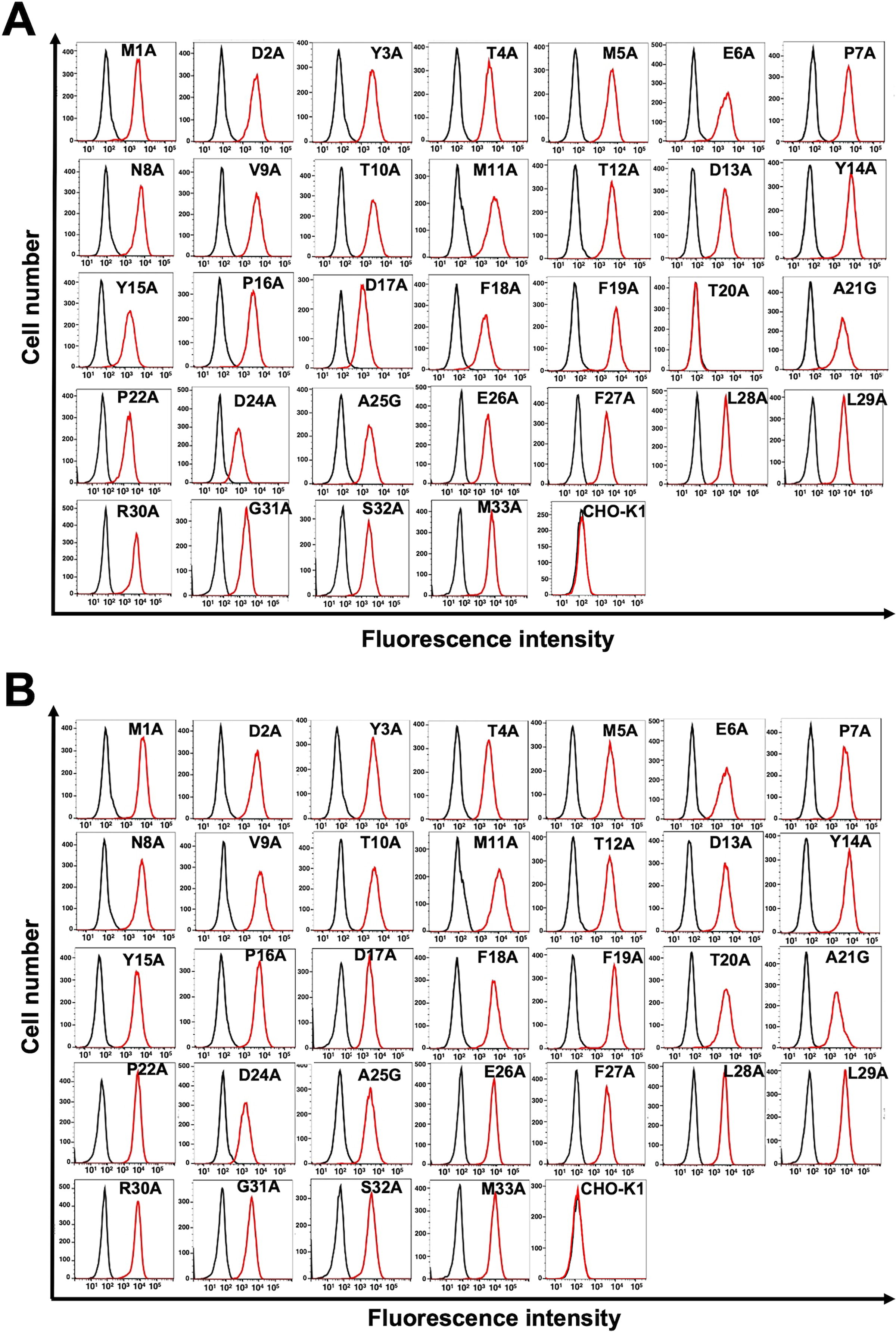

Determination of the C₈Mab-2 epitope by flow cytometry using 1×alanine scanning. C₈Mab-2 (10 μg/mL) (A) and NZ-1 (1 μg/mL) (B) were treated with CHO-K1 cells which were stably expressed mutant proteins or CHO-K1 cells for 30 minutes at 4°C, followed by the addition of Alexa Fluor 488-conjugated anti-rat IgG. Red lines show the cells with C₈Mab-2 or NZ-1 treatment, and black lines show cells treated with a blocking buffer as a negative control. CHO-K1 cell, Chinese hamster ovary-K1 cell; IgG, Immunoglobulin G.

Determination of the C₈Mab-2 epitope by flow cytometry using 2×alanine scanning

We also examined the reactivity of C₈Mab-2 against 2×alanine (or glycine)-substituted mCCR8. We constructed thirty 2×alanine (or glycine)-substituted mutants in the N-terminal region of mCCR8 except for Cys23. The mutant proteins were transiently expressed on CHO-K1 cells. The reactivity against C₈Mab-2 was assessed using flow cytometry. As shown in Figure 4A, C₈Mab-2 did not react with the four mutants (D17A-F18A, F19A-T20A, T20A-A21G, and A21G-P22A). In contrast, C₈Mab-2 reacted with the other 26 mutants. The cell surface expression of each mutant was confirmed by NZ-1 (Fig. 4B). These results showed that a motif from Asp17 to Pro22 in mCCR8 is important for C₈Mab-2 recognition.

FIG. 4.

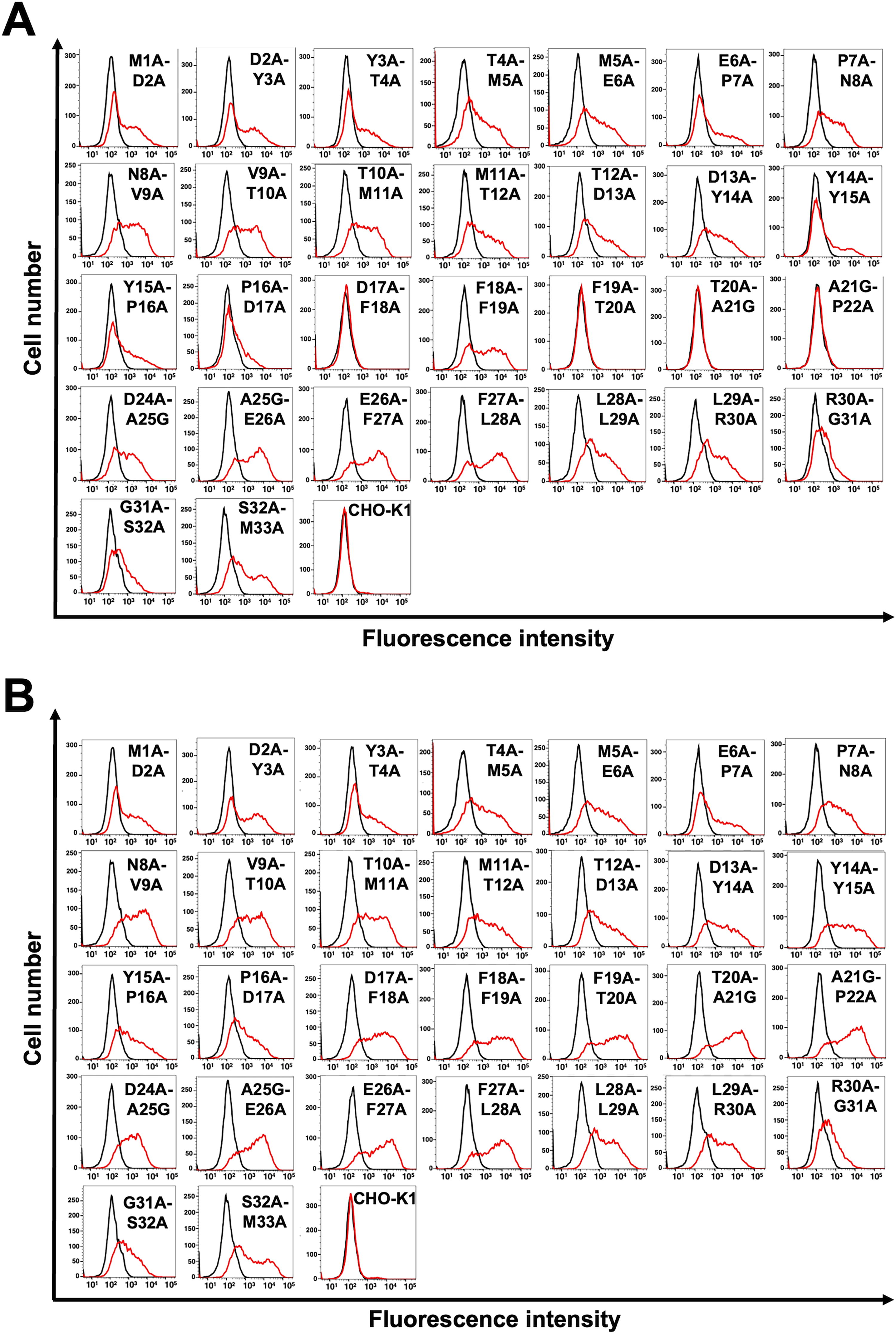

Determination of the C₈Mab-2 epitope by flow cytometry using 2×alanine scanning. C₈Mab-2 (10 μg/mL) (A) and NZ-1 (1 μg/mL) (B) were treated with CHO-K1 cells which were transiently expressed mutant proteins or CHO-K1 cells for 30 minutes at 4°C, followed by the addition of Alexa Fluor 488-conjugated anti-rat IgG. Red lines show the cells with C₈Mab-2 or NZ-1 treatment, and black lines show cells treated with a blocking buffer as a negative control. CHO-K1 cell, Chinese hamster ovary-K1 cell; IgG, Immunoglobulin G.

Discussion

In this study, we performed the flow cytometry-based epitope mapping of an anti-mouse CCR8 mAb (C₈Mab-2) using the chimeric proteins (Figs. 1 and 2). Furthermore, we determined that the _17-DFFTAP_-22 is important for the recognition by C₈Mab-2 in the 2×alanine scanning (Fig. 4), and Thr20 is a central amino acid of the epitope by the 1×alanine scanning (Fig. 3). Figure 5 summarizes the epitope of C₈Mab-2. In the epitope mapping of an anti-human CCR8 mAb (clone mAb1), CCR8 chimeras, in which the N-terminus, ECL1, ECL2, or ECL3 were replaced with the corresponding sequences from human CCR5, were used.¹⁷ The mAb1 did not recognize ECL1-replaced CCR8 and ECL2-replaced CCR8, suggesting that both ECL1 and ECL2 are required for mAb1 binding.¹⁷ Because we could not determine the binding epitope of our other anti-mCCR8 mAbs (C₈Mab-1 and C₈Mab-3) in this study (data not shown), the substitution of two ECLs may be required for the identification of the epitopes of those anti-mCCR8 mAbs.

FIG. 5.

Schematic illustration of the C₈Mab-2 epitope, which was identified by 1×alanine scanning and 2×alanine scanning. _17-DFFTAP_-22 is important for the recognition by C₈Mab-2 in the 2×alanine scanning (underlined). Thr20 (red) is determined to be a central amino acid of the epitope by the 1×alanine scanning.

The “hot” tumor is characterized by the massive infiltration and enrichment with CD8⁺ effector T cells, which is important for the antitumor immune responses. Immune checkpoint inhibitors such as anti-PD-1 mAbs are effective in hot tumors. However, the response rate of immune checkpoint inhibitors is still low due to the lack of CD8⁺ effector T-cell infiltration or accumulation of Treg cells suppressing the effector activities, which is characterized as “cold tumors.”^29,30 Since CCR8 expression is increased in tumor-infiltrated Treg cells, CCR8 is one of the promising target for depleting of Treg cells selectively in tumors.⁴ Anti-mCCR8 mAbs have been used to suppress cancer growth in several cancer models.^7,8,31 Furthermore, an anti-human CCR8 mAb (S-531011) was developed.³² S-531011 has antibody-dependent cellular cytotoxicity activity against tumor-infiltrating CCR8⁺ Treg cells and neutralization activity against the CCR8 signaling.³² Meanwhile, there is no information about the relationship between the Treg cells-depleting activity and epitope of the mAbs. Our strategy for epitope identification would contribute not only to the understanding of mAb-epitope interaction but also to the improvement of those therapeutic mAbs.
