Development of a Novel Anti-human EphA1 Monoclonal Antibody,Ea 1 Mab-30,for Multiple Applications

Abstract

Erythropoietin-producing hepatocellular receptor A1 (EphA1) is one of the Eph receptor family members, the largest group of receptor tyrosine kinases. EphA1 is expressed in various tissues and regulates cellular homeostasis by interacting with its membrane-bound ephrin ligands and other receptors. EphA1 critically correlates with the pathogenesis in several disorders, including Alzheimer’s disease and cancers. Therefore, establishing sensitive monoclonal antibodies (mAbs) for EphA1 has been desired for basic research, diagnosis, and treatment. In this study, a novel specific and sensitive anti-human EphA1 mAb, clone Ea₁Mab-30 (mouse IgG₁, kappa), was established by the Cell-Based Immunization and Screening (CBIS) method. Ea₁Mab-30 demonstrated reactivity with an EphA1-overexpressed Chinese hamster ovary-K1 cell line (CHO/EphA1), an endogenously EphA1-expressing bladder carcinoma cell line (5637), and a colorectal adenocarcinoma cell line (Caco-2) in flow cytometry. Crossreactivities of Ea₁Mab-30 with other Eph receptors were not observed. Furthermore, the values of apparent binding affinity for CHO/EphA1 and 5637 were determined to be 8.9 × 10⁻⁹ M and 1.7 × 10⁻⁹ M, respectively. Furthermore, Ea₁Mab-30 detected EphA1 protein in CHO/EphA1 and 5637 lysates using Western blot analysis. Ea₁Mab-30 also clearly stained EphA1 of formalin-fixed paraffin-embedded CHO/EphA1 using immunohistochemistry. Ea₁Mab-30, established by CBIS method, could help analyze the EphA1-contributed cellular functions and have potential applications in pathological diagnosis and treatment with specificity and high affinity for EphA1-expressing cells.

Introduction

Erythropoietin-producing hepatocellular (Eph) receptors are single-pass transmembrane glycoproteins, which belong to the most prominent family of receptor tyrosine kinases.^1,2 Eph receptors play pivotal roles in tissue homeostasis, including cell proliferation, migration, and angiogenesis by binding to their ligands, ephrin.^1,2 Since it was first identified in hepatocellular carcinoma cell line in 1987, 14 Eph receptors (EphA1 to EphA8, EphA10, EphB1 to EphB4, and EphB6) and eight ephrin ligands [glycosylphosphatidylinositol-anchored ephrin A1 to A5 and transmembrane ephrin B1 to B3] have been identified so far.³ Eph receptors are topics of potential targets for diseases such as cancers because the aberrant functions of Eph receptors disrupt cellular homeostasis and induce tumor development.

EphA1 was first isolated from an erythropoietin-producing human hepato-cellular carcinoma cell line (ETL-1).³ EphA1 is expressed in epithelial and nervous tissues, including skin, neuron, and colon crypt base, and controls many cellular functions, such as cell morphology, motility, axonal guidance, and synaptic plasticity.^4–8 EphA1 expression is also confirmed in T-lymphocytes, monocytes.⁹ EphA1-knockout (KO) mice exhibited abnormal tail development as a kinky-tail, and an uterovaginal defection caused by a deficiency in apoptosis during reproductive tract canalization.¹⁰ EphA1 plays an essential role in normal tissue development. According to the genome-wide association studies (GWAS) of Alzheimer’s disease (AD) patients, EphA1 has been considered as an associated factor for AD.^11–13 AD is a progressive age-associated neurodegenerative disorder leading to loss of autonomy, which pathologically defined by extensive neuronal loss, the accumulation of neurofibrillary tangles, and extracellular amyloid plaques in the brain.^14–16 Missense mutations in EphA1 gene have also been reported that may contribute to the development of AD by disrupting receptor signaling.¹⁷ Some single nucleotide polymorphisms (SNPs), rs11767557 and rs11771145, which affect the EphA1 gene, have been reported to decrease the risk of late-onset AD (patients of over 65 years old).^11,13,18 Furthermore, rs11767557 variant is associated with EphA1 transcription in human whole blood data analysis. Meanwhile, rs11767557 SNP has not shown the significant effect of EphA1 transcription in brain tissue.¹⁹ Moreover, EphA1 transcription is not altered in brain with AD.²⁰ The discrepancies in these results may be due to the size and heterogeneity of the samples. Since few molecular analyses have been conducted to clarify the regulation of EphA1 in AD, further investigation is required to determine whether EphA1 is involved in the risk of AD.

The EphA1 upregulation is also correlated in various cancers, including esophageal,²¹ colon,³ gastric,^22,23 and prostate cancers.^24,25 EphA1 high expression associates with unfavorable overall survival and higher tumor stage.^21,26 EphA1 has been implicated as a marker for aggressive ovarian cancer stem cells with coexpression with aldehyde dehydrogenase 1A1, CD9, and CD24.²⁷ Furthermore, a disintegrin and metalloproteinase 12 (ADAM12)-cleaved ephrinA1 facilitates tumor cell entry into the lungs by activating EphA1.²⁸ While EphA1 is focused as a cancer-promoting factor, tumor suppressor functions of EphA1 have also been proposed. Reduced expression of EphA1 correlates with tumor invasion, lymph node metastasis, and poor outcomes in several cancers, including colon, skin, and ovarian cancers.^29–33 The inhibition of cell spreading and Rac1 activation, which promotes cell motility, is observed by EphA1 activation.⁵ It is necessary to clarify the role of EphA1 in promoting or suppressing tumors.

Previously, we have successfully developed several monoclonal antibodies (mAbs) against Eph receptors, including human EphA2 (clone Ea₂Mab-7),³⁴ human EphB2 (clone Eb₂Mab-12),³⁵ human EphB4 (clone B4Mab-7),³⁶ and human EphB6 (clone Eb₆Mab-3)³⁷ by using the Cell-Based Immunization and Screening (CBIS) method. The CBIS method is an efficient strategy for developing antibodies with a wide variety of epitopes such as structural epitopes and linear epitopes, as well as modifications of cell surface membrane proteins in a short period. In this study, we have established a novel anti-human EphA1 mAb (Ea₁Mab-30) using the CBIS method.

Materials and Methods

Preparation of cell lines

Chinese hamster ovary (CHO)-K1 (CCL-61), LN229 glioblastoma (CRL-2611), P3X63Ag8U.1 (P3U1, CRL-1597) myeloma, and Caco-2 (HTB-37) colorectal adenocarcinoma were obtained from the American Type Culture Collection (Manassas, VA, USA). 5637 bladder carcinoma (TKG 0605) was obtained from the Cell Resource Center for Biomedical Research, Institute of Development, Aging and Cancer, Tohoku University (Miyagi, Japan). The complementary DNA (cDNA) of human EphA1 [Catalog No.: RC213689 (OriGene Technologies, Inc., Rockville, MD, USA), Accession No.: NM_005232] plus an N-terminal MAP tag (GDGMVPPGIEDK)³⁸ recognized by an anti-MAP tag mAb (PMab-1) or an N-terminal PA tag (GVAMPGAEDDVV)³⁹ recognized by an anti-PA tag mAb (NZ-1), were subcloned into a pCAGzeo vector [FUJIFILM Wako Pure Chemical Corporation (Wako), Osaka, Japan]. Afterward, plasmids were transfected into CHO-K1 and LN229 cells and stable transfectants [CHO/MAP-EphA1, CHO/PA-EphA1 (CHO/EphA1), LN229/MAP-EphA1, and LN229/PA-EphA1 (LN229/EphA1)] were subsequently selected using a cell sorter (SH800, Sony Corp., Tokyo, Japan). After sorting, cultivation in a medium containing 0.5 mg/mL of Zeocin (InvivoGen, San Diego, CA, USA) was conducted.

GeneArt™ CRISPR nuclease vectors with OFP plasmid which target human EphA1 (TrueGuide™ Synthetic sgRNA, CRISPR466292_SGM) was purchased from Thermo Fisher Scientific Inc. The EphA1 KO 5637 cell line (BINDS-38) was generated by transfecting the vector using the Neon Transfection System (Thermo Fisher Scientific, Inc.). Stable transfectants were established by cell sorting using SH800 (Sony Corp.).

Other Eph receptor-expressing CHO-K1 cells (e.g., CHO/EphA2) were established and cultured as previously reported.³⁵

Antibodies

A purified anti-human EphA1 Antibody (clone A20047D, rat IgG_2a, kappa) was purchased from BioLegend (San Diego, CA, USA). An anti-isocitrate dehydrogenase 1 (IDH1) mAb (clone RcMab-1) was developed previously.⁴⁰ Alexa Fluor 488-conjugated anti-mouse IgG and anti-rat IgG were purchased from Cell Signaling Technology, Inc. (Danvers, MA, USA). Horseradish peroxidase-conjugated anti-mouse IgG and anti-rat IgG were obtained from Agilent Technologies Inc. (Santa Clara, CA, USA) and Merck KGaA (Darmstadt, Germany), respectively.

Production of hybridomas

Two 5-week-old female BALB/cAJcl mice were purchased from CLEA Japan (Tokyo, Japan). The animal experiment was approved by the Animal Care and Use Committee of Tohoku University (Permit number: 2019NiA-001). For developing anti-human EphA1 mAbs, the immunogen CHO/MAP-EphA1 cells were harvested after brief treatment with 1 mM ethylenediaminetetraacetic acid (EDTA; Nacalai Tesque, Inc.) to avoid antigen digestion.

In the first immunization, the CHO/MAP-EphA1 (1 × 10⁸ cells/mouse) mixed with Imject Alum Adjuvant (Thermo Fisher Scientific Inc.) was immunized via the intraperitoneal route. Three additional injections of CHO/MAP-EphA1 (1 × 10⁸ cells/mouse) without the adjuvant were conducted intraperitoneally in every week. A last booster injection was performed with 1 × 10⁸ cells/mouse of CHO/MAP-EphA1 via intraperitoneal route two days before harvesting spleen cells from mice. We gently executed cell-fusion of P3U1 myeloma cells with the harvested splenocytes from immunized mice using polyethylene glycol 1500 (PEG1500; Roche Diagnostics, Indianapolis, IN, USA) at 37°C.

Hybridomas were cultured in the RPMI-1640 medium added some supplements as shown above, with additional supplements included hypoxanthine, aminopterin, and thymidine (HAT; Thermo Fisher Scientific, Inc.), 5% BriClone (NICB, Dublin, Ireland), and 5 µg/mL of Plasmocin (InvivoGen) as antibiotics into the medium. On days 6 to 7 after cell-fusion, the hybridoma supernatants were screened by flow cytometry using LN229/MAP-EphA1 and parental LN229 cells. The hybridoma supernatant containing Ea₁Mab-30 in serum-free medium was filtered and purified using Ab-Capcher Extra (ProteNova, Kagawa, Japan).

Flow cytometric analysis

Cells were harvested using 1 mM EDTA (Nacalai Tesque, Inc.). Subsequently, cells were gently washed with 0.1% bovine serum albumin in phosphate-buffered saline (PBS) and treated with primary mAbs for 30 minutes at 4°C. After that, cells were treated with Alexa Fluor 488-conjugated anti-mouse or rat IgG (dilution rate; 1:1000) following the fluorescence data collection, using the SA3800 Cell Analyzer (Sony Corp.).

To determine the isotype of mAbs, primary mAb-treated CHO/EphA1 cells were incubated with Alexa Fluor 488-conjugated anti-mouse immunoglobulins, fluorescein isothiocyanate (FITC)-conjugated anti-mouse heavy chains (IgG₁, IgG_2a, IgG_2b, IgG₃, and IgM; SouthernBiotech, Birmingham, AL, USA), or FITC-conjugated anti-mouse light chains (kappa and lambda; SouthernBiotech). The fluorescence data were analyzed using the SA3800 Cell Analyzer.

Determination of the apparent binding affinity by flow cytometry

CHO/EphA1 and 5637 cells were suspended in 100 µL serially diluted of Ea₁Mab-30 (20 µg/mL to 0.0012 µg/mL) and A20047D (25 µg/mL to 0.0015 µg/mL), after which Alexa Fluor 488-conjugated anti-mouse or rat IgG (dilution rate; 1:200) was treated. Fluorescence data were subsequently collected, using the BD FACSLyric (BD Biosciences, Franklin Lakes, NJ, USA), following the analyzing of the apparent binding affinity (K_D) as described previously.³⁵

Western blot analysis

Cells were lysed and boiled in sodium dodecyl sulfate sample buffer (Nacalai Tesque, Inc.). Denatured proteins were electrophoresed and transferred onto polyvinylidene difluoride membranes (Merck KGaA). After blocking with 4% non-fat milk (Nacalai Tesque, Inc.), the membranes were treated with Ea₁Mab-30 (1 µg/mL), A20047D (1 µg/mL), an anti-IDH1 mAb (clone RcMab-1, 1 µg/mL), or an anti-PA tag mAb (clone NZ-1, 1 µg/mL), followed by incubation with horseradish peroxidase-conjugated anti-mouse IgG for Ea₁Mab-30 (dilution rate; 1:2000; Agilent Technologies Inc.) or anti-rat IgG for A20047D, RcMab-1, and NZ-1 (dilution rate; 1:10000; Merck KGaA). Chemiluminescence signals were visualized using ImmunoStar LD (Wako) and imaged with a Sayaca-Imager (DRC Co. Ltd., Tokyo, Japan).

Immunohistochemical analysis

The formalin-fixed paraffin-embedded (FFPE) CHO/EphA1 and CHO-K1 cell blocks were prepared using iPGell (Genostaff Co., Ltd., Tokyo, Japan). The antigen retrieval of paraffin-embedded cell sections was conducted by autoclave in a citrate buffer (pH 6.0; Nichirei Biosciences, Inc., Tokyo, Japan). After blocking using the SuperBlock T20 Blocking Buffer (Thermo Fisher Scientific Inc.), the sections were treated with Ea₁Mab-30 (5 µg/mL) and A20047D (5 µg/mL) and then reacted with the Envision+ Kit (Agilent Technologies Inc.) for Ea₁Mab-30 or Histofine Simple Stain Mouse MAX PO (Rat) (Nichirei Biosciences, Inc.) for A20047D. Color development and counterstaining were performed as described previously.³⁶

Results

Development of anti-EphA1 mAbs using the CBIS method

To establish mAbs targeting human EphA1, we employed the CBIS method using human EphA1-overexpressed cell lines. Anti-human EphA1 mAbs-producing hybridoma were screened by flow cytometric analysis (Fig. 1). Two female BALB/cAJcl mice were immunized with CHO/MAP-EphA1 (1 × 10⁸ cells/time/mouse) every week via intraperitoneal route for a total of 5 times. Subsequently, splenocytes isolated from immunized mice and P3U1 cells were fused by PEG1500 and fused cells were seeded into 96-well plates. After confirming hybridoma formation, flow cytometric high throughput screening was conducted to select LN229/MAP-EphA1-reactive and parental LN229-nonreactive supernatants of hybridomas. Afterward, we obtained highly LN229/MAP-EphA1-reactive supernatants of the hybridoma. After limiting dilution of each positive well, we investigated the reactivity of several anti-EphA1 mAbs to CHO/EphA1 in flow cytometry and Western blot analysis. Finally, we selected the highly sensitive clone Ea₁Mab-30 (mouse IgG₁, kappa). We also established more clones with Ea₁Mab-30. The information has been updated on our website “Antibody bank” (http://www.med-tohoku-antibody.com/topics/001_paper_antibody_PDIS.htm#EphA1).

FIG. 1.

A schematic depiction of anti-human EphA1 mAbs development by CBIS method. (A) CHO/MAP-EphA1 cells were immunized into two female mice via the intraperitoneal route. (B) The spleen cells isolated from antigen-immunized mice were fused with P3U1. (C) The culture supernatants of hybridoma were screened by flow cytometric analysis using LN229 and LN229/MAP-EphA1 to select EphA1-specific mAb-producing hybridomas. (D) Single hybridoma clones were obtained by limiting dilution, followed by additional screening. Finally, Ea₁Mab-30 (mouse IgG₁, kappa) was established. CBIS, Cell-Based Immunization and Screening; Ea₁Mab-30, anti-human EphA1 mAb; EphA1, erythropoietin-producing hepatocellular receptor A1; mAb, monoclonal antibody.

Investigation of antibody reactivities using flow cytometry

We checked the reactivity of Ea₁Mab-30 against CHO-K1 and CHO/EphA1 cells by flow cytometric analysis. A commercially available anti-human EphA1 mAb from BioLegend, A20047D, was used for comparison with Ea₁Mab-30. A20047D is currently the only commercially available mAb that can be used for flow cytometry. Results showed that Ea₁Mab-30 and A20047D recognized CHO/EphA1 dose-dependently (Fig. 2A). Reactivity is almost the same for Ea₁Mab-30 and A20047D to CHO/EphA1 (Fig. 2A). Neither Ea₁Mab-30 nor A20047D reacted with parental CHO-K1 cells (Fig. 2B). Thus, Ea₁Mab-30 can detect exogenously expressed human EphA1 specifically in flow cytometry.

FIG. 2.

Flow cytometric analysis of anti-human EphA1 mAbs against exogenously expressed human EphA1. CHO/EphA1 (A) and CHO-K1 (B) cells were treated with 0.01–10 µg/mL of Ea₁Mab-30 or A20047D (red line), followed by treatment with Alexa Fluor 488-conjugated anti-mouse or rat IgG. Fluorescence data were collected using the SA3800 Cell Analyzer. Black line, control (no primary antibody treatment). A20047D, anti-human EphA1 antibody.

The reactivity of anti-EphA1 mAbs using flow cytometry against endogenous EphA1

Next, we confirmed the reactivity of Ea₁Mab-30 and A20047D in flow cytometry against 5637 and Caco-2 cells which are endogenously human EphA1 expressing cells. The high expression of Eph receptor and ephrin have been reported in bladder cancers.⁴¹ We initially confirmed that EphA1 was endogenously expressed in the bladder cancer cell line, 5637. Furthermore, the expression of EphA1 in colorectal cancer, including Caco-2 cells, has been described in previous reports.^30,42 Results showed that Ea₁Mab-30 and A20047D recognized endogenously expressing EphA1 in 5637 (Fig. 3A) and Caco-2 (Fig. 3B) cancer cells. Ea₁Mab-30 showed slightly higher reactivity than A20047D on all concentrations (Fig. 3A and 3B). Neither Ea₁Mab-30 nor A20047D reacted with BINDS-38, EphA1-KO 5637 cells, even at a concentration of 10 µg/mL (Fig. 3C). Thus, Ea₁Mab-30 can detect endogenously expressing EphA1 specifically in flow cytometry.

FIG. 3.

Flow cytometric analysis of anti-human EphA1 mAbs against endogenously expressing human EphA1 in cancer cells. 5637 (A), Caco-2 (B), and BINDS-38 (C) cells were treated with 0.01–10 µg/mL of Ea₁Mab-30 or A20047D (red line), followed by treatment with Alexa Fluor 488-conjugated anti-mouse or rat IgG. Fluorescence data were collected using the SA3800 Cell Analyzer. Black line, control (no primary antibody treatment). Caco-2, colorectal adenocarcinoma cell line.

Specificity of Ea₁Mab-30 to Eph receptor-overexpressed CHO-K1 cells

We have established the cell lines of all Eph receptor-overexpressed CHO-K1 cells, EphA1 to A8, A10, B1 to B4, and B6, respectively. Using the 14 cell lines, the specificity of Ea₁Mab-30 was analyzed. As shown in Figure 4, 10 µg/mL of Ea₁Mab-30 potently recognized CHO/EphA1. Ea₁Mab-30 never reacted to other Eph receptors. This result complemented the fact that Ea₁Mab-30 is an EphA1-specific mAb.

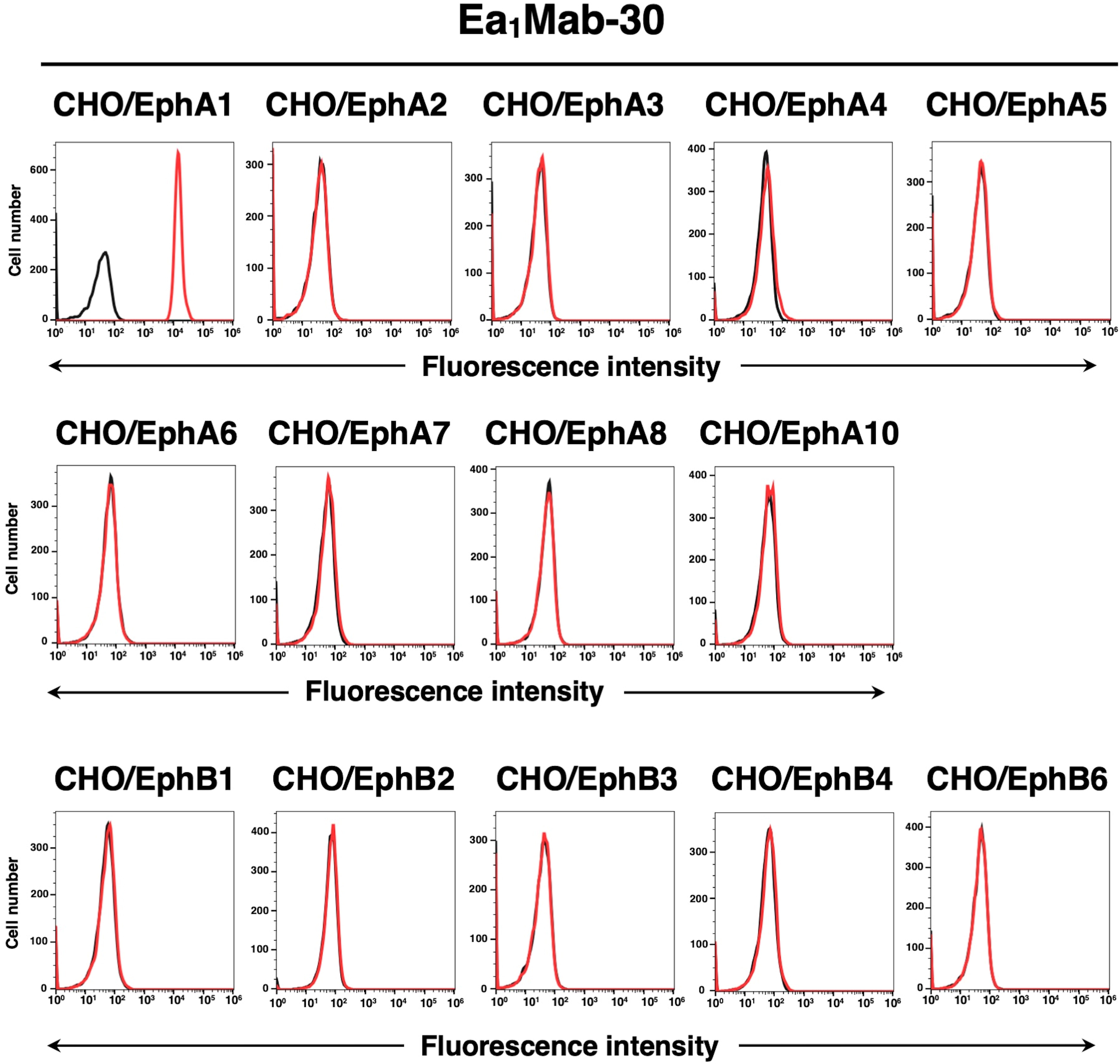

FIG. 4.

Crossreactivity of Ea₁Mab-30 in Eph receptor-expressed CHO-K1 cells. CHO-K1 cells, which overexpressed each of the 14 Eph receptors, were treated with 10 µg/mL of Ea₁Mab-30 (red line) or control blocking buffer (black line) followed by the treatment with anti-mouse IgG conjugated with Alexa Fluor 488. Fluorescence data were collected using the SA3800 Cell Analyzer. Black line, control (no primary antibody treatment).

Calculation of the apparent binding affinity of anti-EphA1 mAbs using flow cytometry

The apparent binding affinity of Ea₁Mab-30 and A20047D was assessed with exogenously EphA1-expressed CHO/EphA1 and endogenously EphA1-expressing 5637 using flow cytometry. The results indicated that the K_D values of Ea₁Mab-30 and A20047D for CHO/EphA1 were 8.9 × 10⁻⁹ M and 8.6 × 10⁻⁹ M, respectively (Fig. 5A). The K_D values of Ea₁Mab-30 and A20047D for 5637 were 1.7 × 10⁻⁹ M and 2.7 × 10⁻⁹ M, respectively (Fig. 5B). Although there was no noticeable difference in binding affinity for CHO/EphA1 between Ea₁Mab-30 and A20047D, Ea₁Mab-30 possessed higher binding affinity for 5637 than A20047D. These results demonstrate that Ea₁Mab-30 can recognize EphA1 with high affinity to EphA1 on cells.

FIG. 5.

Evaluation of the K_D values of anti-human EphA1 mAbs. (A) CHO/EphA1 cells were suspended in 100 µL of serially diluted 20 µg/mL to 0.0012 µg/mL of Ea₁Mab-30 and 20 µg/mL to 0.0012 µg/mL of A20047D. (B) 5637 cells were suspended in 100 µL of serially diluted 25 µg/mL to 0.0015 µg/mL of Ea₁Mab-30 and 25 µg/mL to 0.0015 µg/mL of A20047D. After treatments of primary mAbs, cells were treated with Alexa Fluor 488-conjugated anti-mouse IgG (for Ea₁Mab-30) or anti-rat IgG (for A20047D). Subsequently, the K_D values were determined using the geometric mean.

Western blot analysis using anti-EphA1 mAbs

We investigated whether Ea₁Mab-30 can be used for Western blot analysis by analyzing LN229, EphA1-overexpressed LN229/EphA1, 5637, and EphA1-KO BINDS-38 cell lysates. The estimated molecular weight of EphA1 protein is 108 kDa. As shown in Figure 6A, Ea₁Mab-30 could detect exogenously expressed-EphA1 as the band around 100 to 130 kDa in LN229/EphA1 cell lysates, while no band was detected in parental LN229 cells. Another anti-EphA1 mAb A20047D could not detect any band in LN229/EphA1 cell lysates. Western blot has not been confirmed to apply in the supplier data source from BioLegend. An anti-PA tag mAb NZ-1 was used as a positive control and could also detect a band of the same position around 100 to 130 kDa in LN229/EphA1 cell lysates. An anti-IDH1 mAb (clone RcMab-1) was used for internal control. Furthermore, Ea₁Mab-30 could detect endogenously expressing-EphA1 as the band around 100 to 130 kDa in 5637 cell lysates, while no band was detected in BINDS-38, EphA1-KO 5637 cells (Fig. 6B). A20047D could not show any band in 5637 cell lysates. These results demonstrate that in Western blot analysis, Ea₁Mab-30 can detect EphA1 in exogenously and endogenously EphA1-expressing cells.

FIG. 6.

Detection of EphA1 protein using Ea₁Mab-30 by Western blot analysis. Cell lysates (10 μg/lane) of LN229, LN229/EphA1 (A), 5637, and BINDS-38 (B) were electrophoresed on polyacrylamide gels and transferred onto polyvinylidene difluoride membranes. The membranes were incubated with Ea₁Mab-30 (1 μg/mL), A20047D (1 μg/mL), an anti-PA tag mAb (clone NZ-1, 1 μg/mL), and RcMab-1 (1 μg/mL) and subsequently with horseradish peroxidase-conjugated anti-mouse or anti-rat immunoglobulins. RcMab-1, anti-isocitrate dehydrogenase 1 mAb.

Immunohistochemistry using anti-EphA1 mAbs

To evaluate whether Ea₁Mab-30 can be used for immunohistochemistry (IHC), the FFPE sections of CHO-K1 and CHO/EphA1 were stained with Ea₁Mab-30. Apparent membranous staining by Ea₁Mab-30 was observed in CHO/EphA1 (Fig. 7A). Another anti-EphA1 mAb, A20047D did not stain CHO/EphA1 sections (Fig. 7A). Both Ea₁Mab-30 and A20047D did not react with the parental CHO-K1 sections (Fig. 7B). These results indicate that Ea₁Mab-30 applies to IHC for detecting EphA1-positive cells in paraffin-embedded cell samples.

FIG. 7.

Immunohistochemical staining of paraffin-embedded sections of CHO/EphA1 and CHO-K1. The sections of CHO/EphA1 (A) and CHO-K1 (B) cells were treated with Ea₁Mab-30 (5 μg/mL) or A20047D (5 μg/mL), followed by that with the Envision + Kit (for Ea₁Mab-30) or Histofine Simple Stain Mouse MAX PO (Rat) (for A20047D). Color was developed using 3,3′-diaminobenzidine tetrahydrochloride, and counterstaining was performed using hematoxylin. Scale bar = 100 μm.

Discussion

Currently, no mAbs targeting human EphA1 can be used for flow cytometry, Western blot, and immunohistochemistry. We successfully established a novel anti-human EphA1 mAb, Ea₁Mab-30, which is applicable for various experiments. Ea₁Mab-30 specifically detected EphA1 in flow cytometry (Figs 2 to 4), Western blot (Fig. 6), and immunohistochemistry (Fig. 7). Furthermore, Ea₁Mab-30 recognized EphA1 with higher affinity than A20047D, the only commercially available mAb suitable for flow cytometry (Fig. 5). Since the estimation of K_D by flow cytometry lacks the precision and kinetics, further analyses such as surface plasmon resonance or biolayer interferometry are essential. Nevertheless, Ea₁Mab-30 could contribute to elucidating the EphA1-related cellular functions and diagnosis of disorders such as AD and tumors. Overexpression of EphA1 is observed in various cancers,^23,33,43 EphA1 can be a target for cancer treatments. To evaluate the antitumor efficacy of Ea₁Mab-30, it will be converted to a mouse IgG_2a version to elevate antibody-dependent cellular cytotoxicity in the next step.^44,45

Since overexpression of Eph receptors has been observed regardless of cancer type, they have been widely studied in cancer research and emerged as therapeutic targets.^46–49 However, specific drugs targeting Eph receptors or ephrin ligands have yet to be approved. However, some clinical trials have been conducted such as DS-8895a (a humanized anti-EphA2 afucosylated mAb) against advanced EphA2-expressing cancer and Ifabotuzumab (an anti-EphA3 mAb) against advanced hematological malignancies.^48,50 EphA1-targeting therapeutic challenge has not been confirmed yet. One reason could be that EphA1 has a dual role in promoting and suppressing cancer. Since Ea₁Mab-30 can detect EphA1 in immunohistochemistry using the FFPE sections of CHO/EphA1, further studies are essential whether Ea₁Mab-30 can detect EphA1 in the FFPE sections of various tumors for diagnosis.

AD is the most common chronic neurodegenerative disease characterized by cognitive decline and behavioral change. The most well-known neuropathological hallmarks of AD are aggregation of extracellular amyloid-β peptides into amyloid plaques, and cytotoxic intracellular neurofibrillary tau tangles.^51,52 Large number of GWAS for AD have been conducted and suggested numerous loci as the risk of AD including EphA1.^13,14,18,53 Some SNPs near EphA1 gene, rs11767557 and rs11771145, have been demonstrated in GWAS to decrease the risk of AD.^13,18,54 Several EphA1 missense mutations are considered to increase the risk of AD. P460L mutation in EphA1 is associated with AD by dysregulating EphA1 activity.⁵⁵ P460L variant triggers disruptions of EphA1, including reducing tyrosine phosphorylation, cell surface expression, and decreasing T-cell recruitment to the brain by affecting brain endothelial barrier.⁵⁵ In Drosophila models, P460L mutation causes some AD-like symptoms such as hyperexcitability, less sleep, a more vigorous circadian rhythm and overactivity of clock neuron in the absence of memory loss.⁵⁶ P460 locates in the second fibronectin type III repeat (FNIII-2) of EphA1 adjacent to the cell membrane and highly conserved across species.^3,55,57 Thus, this missense mutation might be necessary for neuropathological research in animal models. EphA-ephrinA axis allows forward and reverse bidirectional signaling in cell-cell contact, followed by playing a role in synaptic formation and plasticity, axonal guidance, and brain development.^5,7,58 EphA1 is an attractive molecule for analyzing AD pathology, but there are few reports of postmortem brain-tissue analysis. Moreover, EphA1 promotes the pathogenesis of Parkinson’s disease, the second most common neurodegenerative disease, through CXCL12-CXCR4 axis.⁵⁹ The developed Ea₁Mab-30 will be helpful for the analysis of the diseases.

Although EphA1 is characterized as the negative risk factor of AD, its structural alteration with missense mutations may provoke the AD.⁶⁰ As with cancer, to clarify the critical mutation of AD-related proteins is essential to make an early diagnosis and treatment. Furthermore, N414 and N478 in EphA1 are glycosylated.¹⁷ Although these N-glycosylation are impaired by P460L mutation, epigenetic modification might contribute to normal EphA1 functions. We have previously identified cancer specific aberrant glycosylation of podoplanin⁶¹ and misfolding of HER2⁴⁴ through the establishment of mAbs targeting these characteristic epitopes. Research into disease-specific epitopes for EphA1, such as those for cancer and AD, is expected to progress. We plan to obtain mutated-EphA1 specific mAbs to clarify the relation between EphA1 and diseases.

Footnotes

Authors’ Contributions

T.T., H.S., H.T., A.S., G.L., and S.F. performed the experiments. M.K.K. and Y.K. designed the experiments. T.T. analyzed the data. T.T. wrote the article. All the authors have read and agreed to the published version of the article.

Author Disclosure Statement

No competing financial interests exist.

Funding Information

This research was supported in part by Japan Agency for Medical Research and Development (AMED) under Grant Numbers: JP25am0521010 (to Y.K.), JP25ama121008 (to Y.K.), JP25ama221339 (to Y.K.), and JP25bm1123027 (to Y.K.), and by the Japan Society for the Promotion of Science (JSPS) Grants-in-Aid for Scientific Research (KAKENHI) grant nos. 24K18268 (to T.T.) and 25K10553 (to Y.K.).
