Aptamer-Mediated Delivery of Splice-Switching Oligonucleotides to the Nuclei of Cancer Cells

Abstract

To reduce the adverse effects of cancer therapies and increase their efficacy, new delivery agents that specifically target cancer cells are needed. We and others have shown that aptamers can selectively deliver therapeutic oligonucleotides to the endosome and cytoplasm of cancer cells that express a particular cell surface receptor. Identifying a single aptamer that can internalize into many different cancer cell-types would increase the utility of aptamer-mediated delivery of therapeutic agents. We investigated the ability of the nucleolin aptamer (AS1411) to internalize into multiple cancer cell types and observed that it internalizes into a wide variety of cancer cells and migrates to the nucleus. To determine if the aptamer could be utilized to deliver therapeutic oligonucleotides to modulate events in the nucleus, we evaluated the ability of the aptamer to deliver splice-switching oligonucleotides. We observed that aptamer-splice-switching oligonucleotide chimeras can alter splicing in the nuclei of treated cells and are effective at lower doses than the splice switching oligonucleotides alone. Our results suggest that aptamers can be utilized to deliver oligonucleotides to the nucleus of a wide variety of cancer cells to modulate nuclear events such as RNA splicing.

Introduction

Standard cancer therapies such as chemotherapeutics and radiation are not only toxic to tumor cells but to healthy cells as well, which causes toxicity to the patient. This toxicity adversely affects patients, creating many serious conditions such as gastrointestinal distress, organ damage, and death. To attempt to reduce the adverse effects of cancer therapy and concurrently increase their efficacy, new therapeutics that specifically target cancer cells are needed. Aptamer-mediated delivery of therapeutic agents to targeted cells represents an emerging strategy that may be useful in treating cancer patients (Chu et al., 2006a; Chu et al., 2006b; Farokhzad et al., 2006; McNamara et al., 2006; Wullner et al., 2008; Dassie et al., 2009; Zhou and Rossi, 2010; Min et al., 2011; Wu et al., 2011).

Aptamers that recognize cell surface receptors have been utilized to deliver various cargos including toxins and small interfering RNA (siRNA) (Chu et al., 2006a; Chu et al., 2006b; Farokhzad et al., 2006; McNamara et al., 2006; Wullner et al., 2008; Dassie et al., 2009; Tiemann and Rossi, 2009; Kim et al., 2010; Li et al., 2010; Zhou and Rossi, 2010). Aptamer–oligonucleotide chimeras may be particularly safe for treating cancer because they can be engineered to contain 2 layers of selectivity: (a) an aptamer domain that binds to a receptor overexpressed on cancer cells and (b) a therapeutic oligonucleotide that affects an essential pathway in cancer but not normal cells. For example, we and others have described the use of an aptamer targeting prostate specific membrane antigen (PSMA) to deliver siRNAs to inhibit the expression of genes that are upregulated in prostate cancer cells such as polo-like kinase 1 (Plk1), elongation factor2 (EEF2), and B-cell lymphoma-extra large (Bcl-xL) (McNamara et al., 2006; Wullner et al., 2008; Dassie et al., 2009; Kim et al., 2010). This double layer of specificity has the potential to dramatically increase the selectivity of therapeutics, which may greatly reduce their side effects.

Recently, our lab and others have generated aptamers that recognize a limited number of other cell surface receptors (Dollins et al., 2008a; Li et al., 2011) and have demonstrated that such aptamers can be internalized into cells and carry cargoes into them. Therefore this approach holds much promise for therapeutic development but unfortunately its utility is still hindered by significant limitations (Dollins et al., 2008b; Tiemann and Rossi, 2009; Zhou and Rossi, 2010). Currently, each aptamer can only bind a specific subset of cancer cells based on the biomarkers expressed on the cell surface. Additionally, such aptamers appear to usually internalize into the cells through receptor-mediated endocytosis, which greatly limits their efficacy because their escape from the endosomal compartment appears to be inefficient. Thus, in these studies we began to explore whether an aptamer could be identified that can circumvent these problems by binding to and internalizing into multiple cancer cell types and escape the endosomal pathway.

Nucleolin, a protein traditionally found in the nucleolus, where it regulates ribosome biogenesis (Ginisty et al., 1998; Ginisty et al., 1999) and binds telomeres (Pollice et al., 2000), has emerged as a unique biomarker found on the cell surface of rapidly proliferating tumor cells (Hovanessian et al., 2010). Cell surface nucleolin has a short half-life and traffics from the cell surface to the nucleus through a nontraditional mechanism (Huang et al., 2006; Hovanessian et al., 2010). AS1411, a G-quartet DNA aptamer (Girvan et al., 2006; Ireson and Kelland, 2006), has been shown to selectively bind to nucleolin (Teng et al., 2007; Soundararajan et al., 2008) and internalize into a variety of cancer cell lines including renal, breast, and other adenocarcinoma cell lines (Bates et al., 2009a; Bates et al., 2009b; Reyes-Reyes et al., 2010). Because of these properties, we hypothesized that an aptamer chimera engineered with the AS1411 nucleolin aptamer might have potential advantages over other aptamer chimeras. Here we examined the cellular localization of the nucleolin aptamer and chimeras, showing that the aptamer and chimeras localize to the nucleus, a unique property compared to previously described aptamers. We began to examine the mechanism responsible for nuclear localization to determine whether the nucleolin aptamer internalized through the receptor-mediated endocytosis pathway, as well as evaluate the aptamer's ability to deliver therapeutic agents that would take advantage of the nuclear localization of aptamer-based chimeras.

We engineered aptamer-based chimeras to contain splice-switching oligonucleotides (SSOs) as cargoes. SSOs are a form of antisense technology, where single-stranded oligonucleotides bind to a splice site or splicing enhancer, blocking access to the endogenous splicing machinery, causing an alternate version of a mature mRNA to be generated and translated (Kang et al., 1998; Kole et al., 2004a; Kole et al., 2004b; Ming et al., 2010). SSOs are an emerging tool for generating phenotypic changes in cells (Kang et al., 1998; Bauman et al., 2009; Wan et al., 2009; Ming et al., 2010), and are easy to append to aptamers because they usually contain 2′O-Me modified bases and a phosphorothioate backbone that render the molecules nuclease resistant (Kang et al., 1998). However, to enhance the potential therapeutic utility of SSOs it would be useful to target and efficiently deliver them to the nuclei of specific cells (Lundin et al., 2008; Bauman et al., 2009; Wan et al., 2009; Alam et al., 2010). The nucleolin aptamer–SSO chimera described here effectively delivered SSOs to the nuclei of cells and enhanced splice correction.

Materials and Methods

RNA and DNA oligonucleotides

Fluorescently tagged DNA aptamers were ordered from IDT. The splice-switching oligonucleotides and chimeras were prepared according to the method previously reported (Alam et al., 2008).

Oligonucleotide sequences

AS1411: 5′- GGTGGTGGTGGTTGTGGTGGTGGTGG-3′

Control: 5′- CCTCCTCCTCCTTCTCCTCCTCCTCC-3′

EGFR aptamer: 5′- GGCGCUCCGACCUUAGUCUCUGUGCCGCUAUAAUGCAC GGAUUUAAUCGCCGUAGAAAAGCAUGUCAAAGCCGGAACCGUGUAGCACAGCAGA-3′

Luciferase splice-switching oligo: 5′- GUUAUUCUUUAGAAUGGUGC-3′

Control splice-switching oligo: 5′- AUGGCCUCGACGUGCGCGCU-3′

AS1411–Luciferase SSO chimera: 5′- TGGTGGTGGTGGTTGTGGTGGTGGTGGAAA GUUAUUCUUUAGAAUGGUGC-3′

All splice-switching oligos have a 2′-O-Me phosphorothioate chemistry backbone.

siRNA transfections

All siRNAs were ordered from Dharmacon. Transfections were performed with Lipofectamine 2000 (Invitrogen: 11668-019) according to manufacturer's protocol with siRNA at specified concentrations.

Cell culture

All cells were maintained at 37°C and 5% CO₂ in appropriate growth media: HeLa, 786-0 renal adenocarcinoma (ATCC: CRL1932), PC-3 prostate adenocarcinoma (ATCC: CRL1435) and Panc-1 pancreatic epithelioid carcinoma (ATCC: CRL1496), human pancreatic ductal epithelial cells, primary prostate epithelial cells (Lonza: CC-255), and human renal proximal tubule epithelial cells (Lonza: CC-2553)

Cellular uptake and localization

Non-confocal microscopy was performed on a Zeiss Axio Imager widefield fluorescence microscope with 63× oil immersion objectives. Cells were seeded and grown on cover slips in multiwell plates for 24 hours before staining.

Aptamer staining

Depending on the assay, aptamers with Alexa 488 or Cy5 conjugated to the 5′ end were ordered from IDT. Fluorescently labeled aptamer was added directly to cell growth media at a concentration of 400nM and incubated at 37°C and 5% CO₂ for 1 hour. Cells were washed 3 in Dulbecco's phosphate-buffered saline (DPBS), then fixed in 4% paraformaldehyde and washed again 3× in DPBS.

Antibody staining

Cells were incubated at 37°C for 1 hour with rabbit anti-nucleolin immunoglobulin G (IgG) antibody (Abcam) at a concentration of (1μg/mL). Cells were then washed 3× in DPBS, then incubated at 37°C for 1 hour with a Cy5 conjugated, goat anti-rabbit IgG antibody (GE Healthcare Lifesciences: PA45011) at a dilution of (1:1000). Cells were washed 3× in DPBS.

For all experiments, cells were then counterstained with 4′,6-diamidino-2-phenylindole (DAPI) (Invtirogen: D3571) and mounted to slides with fluoromount-G (Southern Biotech: 0100-01).

Flow cytometry

Cells were incubated in a 12-well plate with AS1411 (AF488) or control aptamer (AF488) at 100 nM for 3 hours (37°C, 5% CO₂) then treated with DNase for 10 minutes to degrade any noninternalized aptamer. Cells were washed with PBS and trypsinized with 0.05% Trypsin for fluorescence-activated cell sorting (FACs) analysis (Becton Dickinson FACSCalibur flow cytometer).

Internalization assays

HeLa cells in a 24-well plate were incubated with the following drugs: chlorpromazine (7.5 μg/mL, 2 hours at 37°C), amiloride (1 mM, 2 hours at 37°C), and genistein (150 μM, 2 hours at 37°C) then washed with Dulbecco's modified Eagle medium/10% fetal bovine serum (FBS) media. HeLa cells were incubated with 400 nM AS1411 aptamer (AF488) or 400 nM control aptamers (AF488) for 3 hours. HeLa cells were incubated with Alexa 488-transferrin for 30 minutes (10 μg/mL at 37°C). Cells were washed with PBS/4% FBS and trypsinized with 0.05% Trypsin for FACs analysis (Becton Dickinson FACSCalibur flow cytometer).

RNAi assays against nucleolin

Cells were plated to 50% confluence 24hours before treatment with siRNA. The cells were transfected with 50μM siRNA against nucleolin and incubated for 48hours (37°C and 5% CO₂) then collected by trypsinization or prepared for cell staining according to the method described above. Trypsinized cells were then separated into fractions using a subcellular protein fractionation kit (Thermo Scientific: 78840). Fractions were then run on 4%–20% polyacrylamide Ready Gel (BioRad: 161-1237) and transferred to a polyvinylidene difluoride membrane. The membrane was probed with rabbit anti-nucleolin IgG antibody (Abcam) 1:1000 then probed with a Cy5 conjugated, goat anti-rabbit antibody 1:1000 (GE Healthcare Lifesciences: PA45011) secondary antibody. The blot was then analyzed on a Typhoon 9410 variable mode imager (GE Healthcare Lifesciences) and quantified.

Oligonucleotide treatment and luciferase assay

Varying amounts of the Cy5-aptamer-luciferase SSO and free Cy5-luciferase SSO were added to the OPTI-MEM media to give increasing total substrate concentrations. Luciferase induction was determined in the human prostate cancer (PC3)/Luc705 cells over a 24-hour treatment followed by a 2-day culture. The luciferase activity was determined using a Luciferase Assay Kit (Promega). Luciferase assay was performed on a FLUOstar Omega microplate reader (BMG Labtech). Protein content was determined by Bradford protein assay (Pierce) with bovine serum albumin as a standard. Background luciferase expression was determined by measuring luciferase activity in the cells without the oligonucleotide treatment, and these values were then subtracted from the results in the treated cells to obtain response values and the final dynamic data. Calculation of the percentage of transcripts switched was performed as previously described (Kang et al., 1998).

Confocal fluorescence microscopy

Intracellular distribution of the oligonucleotide in living cells was examined using a Zeiss 510 Meta Inverted Laser Scanning Confocal Microscope with 63× oil immersion objectives. PC3/Luc705 cells were plated in 35-mm glass-bottom microwell dishes (MatTek). After transfection of dynamin DN plasmid, intracellular uptake of the oligonucleotide or of Alexa-594-transferrin (Molecular Probes) as a marker for clathrin-coated vesicles was visualized by confocal microscopy.

Data analysis

Data are expressed as mean±standard deviation from 3 measurements unless otherwise noted. Statistical significance was evaluated using t-test. The data were analyzed with GraphPad Prism 5 (GraphPad Software, Inc.).

Results

Differential cellular localization of nucleolin and epithelial growth factor receptor aptamers

We and others have reported the evaluation of aptamer–oligonucleotide chimeras. These chimeras have been shown to internalize through a receptor-mediated endocytosis mechanism that leads to endosomal and cytoplasmic localization of the chimeras (McNamara et al., 2006; Dassie et al., 2009; Li et al., 2010). To determine if the nucleolin aptamer localized to a different compartment within treated cells than previously identified aptamers, we performed internalization studies using fluorescently labeled aptamers and fluorescent microscopy. Pancreatic cancer cells, Panc-1, were simultaneously treated with the nucleolin aptamer AS1411 and an aptamer that binds epithelial growth factor receptor (EGFR) (Li et al., 2011). The nucleolin aptamer was conjugated to the red fluorescent dye Cy5 and the EGFR aptamer was conjugated to the green fluorescent dye Alexa-488. As shown in Fig. 1A, the EGFR aptamer localized to the cytoplasm and did not enter the nuclei of the Panc-1 cells. By contrast, the nucleolin aptamer localized primarily to the nuclei and nucleoli of the Panc-1 cells with a lower percentage localizing to the cytoplasm (Fig. 1B). When we overlaid the images of the two aptamers, the differences in their localization became even more apparent, especially when the DAPI-stained nuclei were highlighted (Fig. 1C, D). Thus a significant fraction of the nucleolin aptamer localizes to the nuclei of Panc-1 cells and as such shows a distinct subcellular localization compared to other aptamers such as the EGFR aptamer, which predominately localize to the endosomal and cytoplasmic compartments.

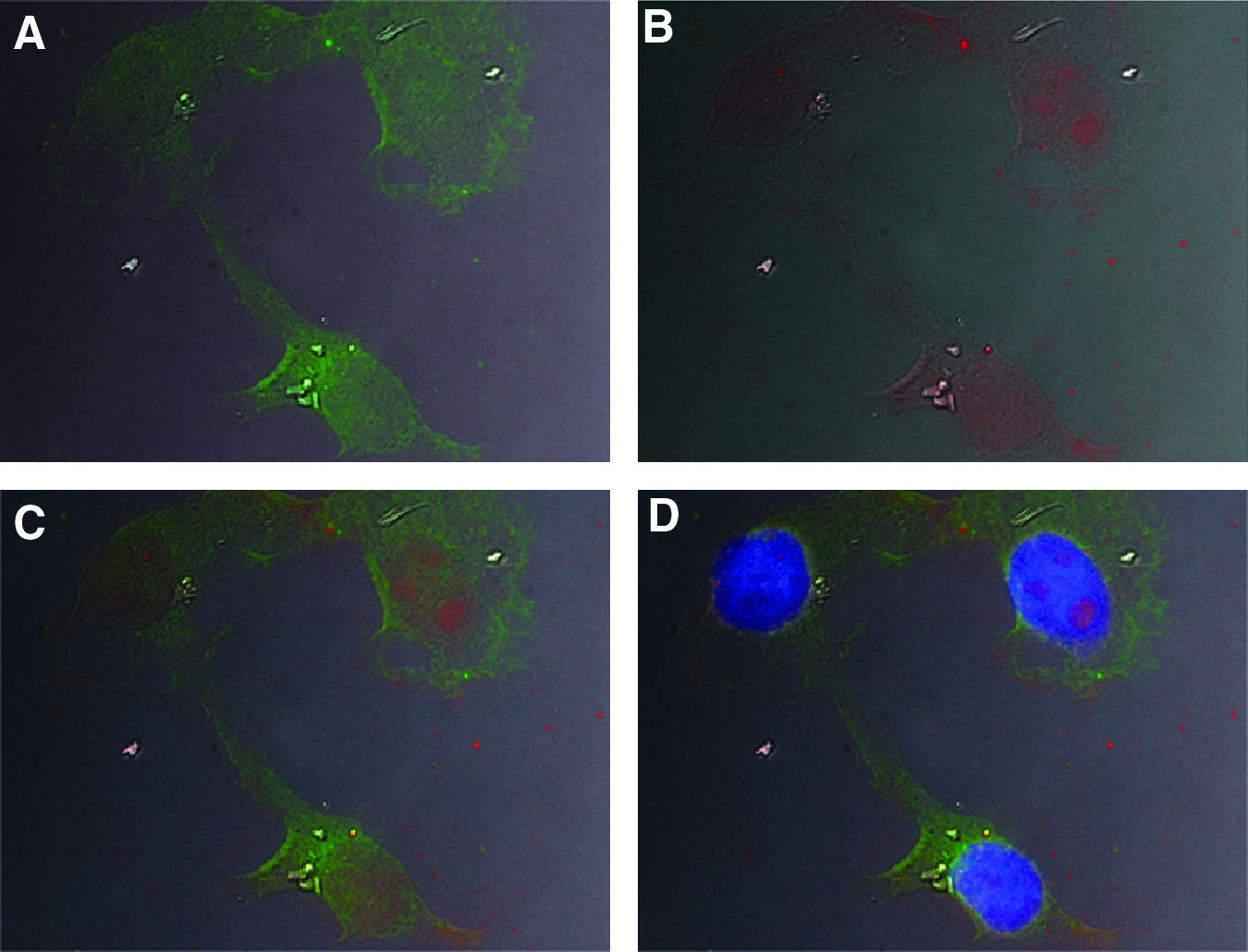

FIG. 1.

The nucleolin and epithelial growth factor receptor (EGFR) aptamers show differential cellular localization. Panc-1 cells were grown to near confluence on coverslips and then incubated with Cy5-AS1411 and Alexa488-EGFR aptamers at a concentration of 100 nM each for 1hour. Cells were then fixed, stained with DAPI, and analyzed by fluorescent microscopy. (A) The Alexa488-EGFR aptamer. (B) The Cy5-AS1411 aptamer. (C) An overlay image of the 2 aptamers. (D) An overlay image of the 2 aptamers with nuclei stained with DAPI.

Selectivity of the nucleolin aptamer

To confirm that the internalization and nuclear localization of the nucleolin aptamer in Panc-1 cells is dependent upon nucleolin, we performed siRNA knockdown studies. Panc-1 cells were treated with siRNA against nucleolin mRNA then analyzed for nucleolin aptamer internalization and localization. As shown in Supplementary Fig. S1A, the nucleolin aptamer internalizes and localizes to the nuclei of Panc-1 cells treated with a control siRNA (Supplementary Data are available online at www.liebertpub.com/nat). However, siRNA-mediated knockdown of nucleolin expression greatly reduced such internalization and localization (Supplementary Fig. S1B). To confirm that cell surface expression of nucleolin was knocked down in the Panc-1 cells treated with the siRNA against nucleolin, we stained the treated cells with an anti-nucleolin antibody (Supplementary Fig. 1C, D). These studies confirmed the effectiveness of the siRNA for knocking down cell surface expression of nucleolin and demonstrated that nucleolin is required for the internalization and nuclear localization of the aptamer in Panc-1 cells.

Next we investigated nucleolin aptamer uptake in a variety of cancer cell types and corresponding noncancerous cell types. Using Western blot analysis, we observed that a much higher level of nucleolin is expressed on the surface of cancer cells compared with their corresponding noncancerous cell types (Supplementary Fig. S2A). Cells were then analyzed to determine whether the difference in surface nucleolin expression would lead to differences in nucleolin aptamer binding and uptake using flow cytometry and fluorescent microscopy. As shown in Supplementary Fig. 2, the nucleolin aptamer bound and internalized into various cancer cell lines (Supplementary Fig. 2B–D and unpublished results), and not the corresponding noncancerous cell types (Supplementary Fig. 2E, and unpublished results). A labeled control aptamer did not bind or internalize into any of the cell types, demonstrating the specificity of the aptamer.

Mechanism of internalization

The observation that the nucleolin aptamer localized to the nucleus and the EGFR aptamer to the cytoplasm suggested that the nucleolin aptamer was internalizing through a distinct mechanism compared with other aptamers tested to date. However, cell surface nucleolin has not been well characterized, and its mechanism of internalization remains largely unknown, though recent publications suggest that nucleolin may associate with a myosin motor that traffics along actin filaments (Huang et al., 2006). To begin to determine the mechanism of the nucleolin aptamer's internalization, we initially evaluated whether the aptamer internalization was dependent upon dynamin using a dominant negative mutant version of the protein. Dynamins are a class of motor proteins responsible for the scission of newly formed vesicles, playing a large role in endocytosis (Vallee et al., 1993); therefore, in cells lacking dynamin, receptor-mediated endocytosis was inhibited. As shown in Fig. 2, the nucleolin aptamer internalized into PC3 cells expressing a dominant negative mutant version of dynamin (dynamin-DN) as well as it did into wild-type PC3 cells (Fig. 2A). By contrast, transferrin, a cell surface receptor that internalizes through endocytosis, was greatly inhibited in the dynamin-DN expressing cells compared with cells not expressing dynamin-DN (Fig. 2A). Cells from these internalization studies were further examined through fluorescent microscopy. PC3 cells expressing the dominant negative dynamin, labeled with green fluorescent protein (GFP), were treated with a Cy5 conjugated nucleolin aptamer. As shown in Fig. 2B (bottom), the aptamer internalized into the cytoplasm and nucleus of the dynamin-DN cells, indicating that the aptamer internalized through a dynamin-independent mechanism. In dynamin-DN/GFP expressing cells, internalization of Alexa-594-transferrin was assessed. Transferrin was not able to internalize into the dynamin-DN expressing cells and was seen associated with only the outer membrane of the dynamin-DN cells (Fig.2B, top, white arrows). However, transferrin was able to internalize into cells lacking the dominant negative mutant protein as noted by the blue arrows (Fig. 2B, top). Thus the nucleolin aptamer enters PC-3 cells through a dynamin-independent mechanism.

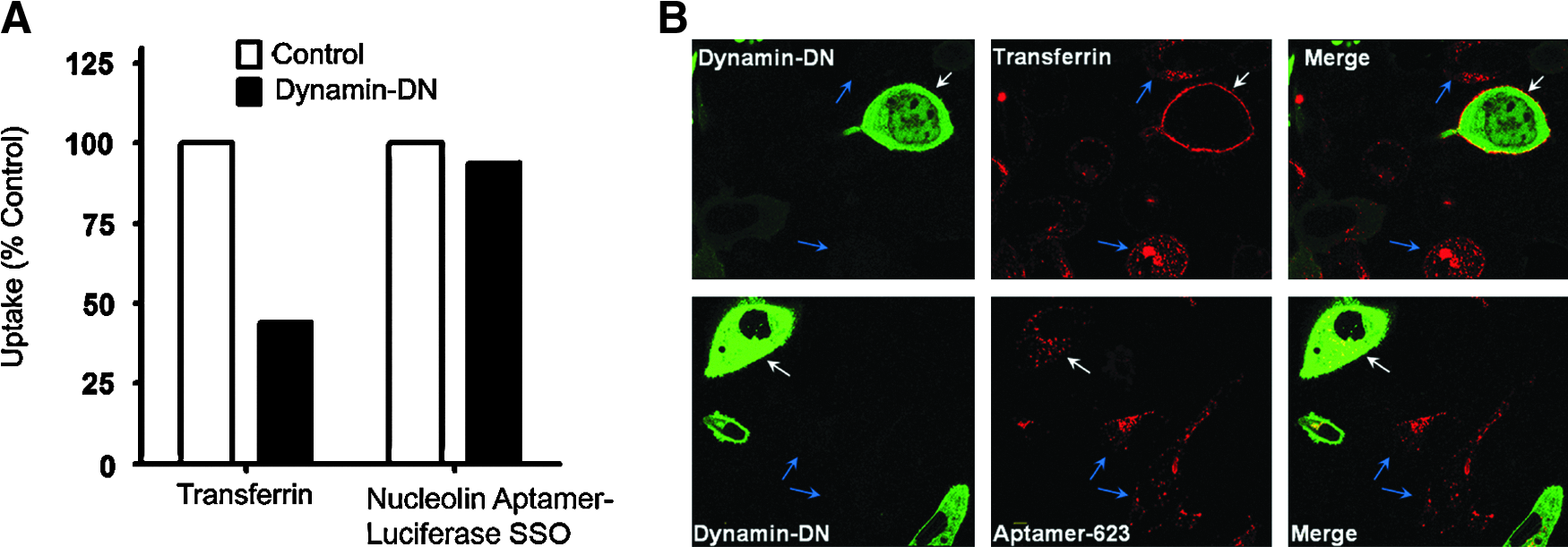

FIG. 2.

The nucleolin aptamer internalizes through a dynamin-independent mechanism. (A) PC-3/Luc 705 cells were grown to near confluence and then transfected with a dynamin-DN/GFP encoding plasmid. Alexa-594 labeled aptamer was added to cells, and intracellular uptake of the nucleolin aptamer or of Alexa-594-labeled transferrin was analyzed and quantified. PC-3/Luc 705 cells that did not contain the dynamin-DN/GFP plasmid were used as the control for the contribution of dynamin. (B) A representative confocal microscopy image of the data from panel A: from the left, the first panel shows the cells transfected with the dynamin-DN/GFP plasmid in green, the second panel shows the location of either transferrin (top) or aptamer (bottom), and the third panel is a merged overlay of the first 2. White arrows indicate GFP/dynamin-DN positive cells, and blue arrows indicate GFP/dynamin-DN negative cells. GFP, green fluorescent protein.

To further evaluate the mechanism of nucleolin aptamer internalization, we employed a panel of internalization inhibitors and HeLa cells. As shown in Fig. 3A, the nucleolin aptamer rapidly internalizes and localizes to the nuclei of HeLa cells. Next we tested 3 uptake inhibitors to determine if they could inhibit aptamer uptake in HeLa cells. Amiloride (AML) lowers submembranous pH, which reduces actin remodeling at the cell membrane (Mercer and Helenius, 2009; Mercer et al., 2010). AML has traditionally been used as an inhibitor of macropinocytosis but has been shown to block some clathrin-mediated endocytosis and internalization through lipid rafts (Ivanov et al., 2004; Wadia et al., 2004; Mercer and Helenius, 2009; Koivusalo et al., 2010; Mercer et al., 2010) (Fig. 3B). Chlorpromazine (CPZ) prevents the recycling of clathrin, which inhibits clathrin-mediated endocytosis, a form of receptor-mediated endocytosis in which small molecules aggregate around an invagination and close a vesicle into the cell (Sieczkarski and Whittaker, 2002) (Fig. 3B). Genistein (GEN) inhibited caveolar endocytosis, which is a form of clathrin-independent endocytosis caused by invagination of lipid rafts (Parton et al., 1994; Sieczkarski and Whittaker, 2002) (Fig. 3B). The uptake of the nucleolin aptamer was moderate but significantly inhibited by both CPZ and AML, but neither totally prevented aptamer internalization (Fig. 3C). GEN had no effect on either transferrin or aptamer uptake, which indicated that neither caveolar endocytosis nor lipid-raft-mediated endocytosis were the mechanisms of internalization (Fig. 3C). Transferrin, a well-characterized cell surface receptor, served as a positive control throughout these uptake studies, and cells treated with dimethyl sulfoxide (DMSO) served as negative control because all uptake inhibitors were dissolved in DMSO. As expected, transferrin was inhibited by CPZ, but it was also inhibited somewhat by AML, which may have been caused by the toxicity of AML or its effects on the clathrin-mediated endocytosis pathway (Fig. 3C). The mechanism of nucleolin aptamer internalization and nuclear localization cannot be explained by the standard model of receptor-mediated endocytosis or macropinocytosis alone and requires further investigation. However, we observed that the aptamer did not internalize through receptor-mediated endocytosis, which is the accepted mechanism of uptake for other aptamers (eg, the PSMA and EGFR aptamers). These data demonstrate that the nucleolin aptamer internalizes through a nonstandard mechanism, which allows for nuclear localization and the apparent ability to escape the endosomal compartment.

FIG. 3.

Evaluating aptamer internalization with uptake inhibitors. (A) HeLa cells were grown to ∼60% confluence on coverslips and then incubated with Alexa488-nucleolin aptamer or Alexa488-control aptamer at a concentration of 100nM for 1hour. Cells were then fixed, stained with DAPI, and analyzed by fluorescent microscopy. (B) The clathrin-mediated pathway was inhibited by chlorpromazine (CPZ). The caveloar-mediated and lipid raft-mediated pathways are inhibited by genistein (GEN). The macropinocytosis pathway is inhibited by amiloride (AML). To some extent, AML also inhibits other pathways that require actin synthesis at the cell membrane. The dynamin-DN mutant protein prevents dynamin dependent pathways. (Adapted from Mercer, J. and Helenius, 2009.) (C) HeLa cells were grown to near confluence then incubated with AML (1 mM, 2 hours at 37°C), CPZ(7.5 μg/mL, 2 hours at 37°C), or GEN(150 μM, 2 hours at 37°C), then washed. The 3 inhibitors were solubilized in dimethyl sulfoxide (DMSO); therefore, the untreated-control group was treated with an equal amount of DMSO. Cells were incubated with Alexa488-nucleolin aptamer or Alexa488-control aptamer for 3 hours at a concentration of 400 nM. The cells were treated with DNase to degrade any aptamer on the cell surface that had not been endocytosed then washed, evaluated by flow cytometry, and quantified (statistical analyses were performed against the nucleolin aptamer treated DMSO control ***P=0.0051, **P=0.0451, *P=0.1353). Uptake of Alexa-488-transferrin was evaluated as well.

Efficacy of nucleolin aptamer–SSO Chimeras

Because the nucleolin aptamer selectively localizes to the nuclei of cancer cells and efficiently internalizes into PC3 cells, we investigated whether the nucleolin aptamer could be utilized to deliver SSOs to the nucleus of PC3 cells containing a splice-switching luciferase report construct (PC3/Luc 705 cells). We examined whether an aptamer–SSO chimera could deliver the SSO to the nucleus and increase the efficacy of SSO activity. In our proof-of-principle experiments we employed PC3/Luc 705 cells, a prostate cancer cell type containing a luciferase reporter construct with a premature stop codon, which prevents full-length luciferase from being translated. When treated by an SSO, the splicing of the pre-mRNA derived from the luciferase gene is altered to exclude the stop codon, allowing the repaired luciferase mRNA to be translated and luciferase to be produced (Ming et al., 2010). PC3/Luc 705 cells were incubated with various oligonucleotides without transfection agent to determine if the aptamer–luciferase SSO chimera could alter splicing and enhance luciferase production. As shown in Fig. 4A, the aptamer–SSO chimera significantly increased luciferase production compared with untreated cells, cells treated with a control SSO, a mutant aptamer–SSO chimera, and the SSO alone. To assess the effect of the oligonucleotide treatments on pre-mRNA splicing, we examined the ratio of mutant versus repaired RNA produced. Total RNA was isolated from treated cells and quantitative competitive reverse transcription-polymerase chain reaction (qcRT-PCR) was performed with primers to differentiate between the 2 versions of the luciferase mRNA (Kang et al., 1998). The products of the qcRT-PCR were separated on a gel and quantified. As shown in Fig. 4B, the aptamer–luciferase SSO chimera increased the percentage of repaired mRNA by 13% over the baseline 10% found in untreated cells and cells treated with a mutant aptamer–SSO. Moreover, even though the nucleolin aptamer–SSO chimera is much longer than the luciferase SSO alone (50 nt vs. 20 nt), the chimera was still more efficient than the SSO alone (Fig. 4B). These results demonstrated that the aptamer–SSOs can alter pre-mRNA splicing in PC-3 prostate cancer cells.

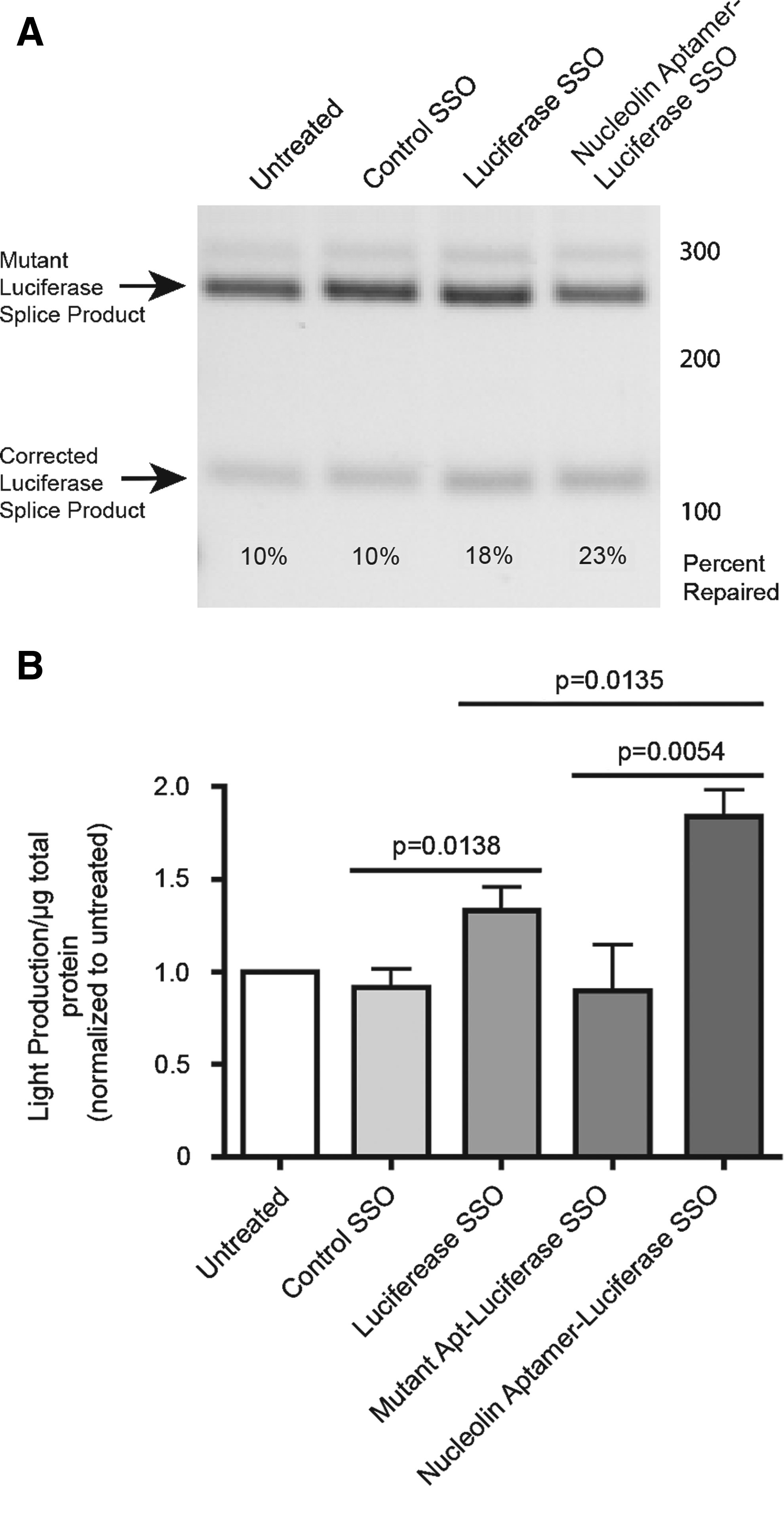

FIG. 4.

Aptamer–splice-switching oligonucleotide (SSO) chimeras alter pre-RNA splicing and induce luciferase production. PC-3/Luc 705 cells were grown to ∼60% confluence then incubated for 48 hours with the various oligonucleotides indicated. (A) RNA was isolated from cells and qcRT-PCR was performed to examine the ratio of unswitched mutant (longer product) to switched or repaired RNA (shorter product) present. The numbers indicate the percent of mRNA repaired by each treatment. Untreated cells show a background level of repaired luciferase mRNA of 10%. (B) Cells were incubated with the various oligonucleotides (100 nM) indicated without transfection reagents. A microplate reader analyzed cell lysates for light emission, and total protein was determined by Bradford assay. Data was normalized to the untreated cell samples. P-values are shown between the various treatment groups. qcRT-PCR, quantitative competitive reverse transcription-polymerase chain reaction.

To further examine the efficiency of the aptamer-luciferase SSO chimera compared to the SSO alone, we treated PC3/Luc 705 cells with various concentrations of either the aptamer–SSO chimera or the SSO alone. At a concentration of 100 nM, the amount of luciferase correction generated by the SSO alone began to plateau and produce a maximal amount of protein. This amount of luciferase was produced in cells treated with ∼20 nM of the aptamer–luciferase SSO chimera and higher levels of aptamer–SSO produced higher levels of luciferase activity than achieved by the SSO alone (Fig. 5). Thus the aptamer–SSO is approximately 5-fold more potent than the SSO alone.

FIG. 5.

Dose response comparing the effects of nucleolin aptamer–SSO chimera and the SSO alone. PC-3/Luc 705 cells were grown to ∼60% confluence then incubated for 48 hours with various concentrations of the nucleolin aptamer–luciferase SSO chimera or the luciferase SSO alone. A microplate reader analyzed cell lysates for light emission, and total protein was determined by Bradford assay.

Discussion

Our results demonstrate that the nucleolin aptamer can be utilized to deliver oligonucleotides to the nucleus of cancerous cells and alter nuclear events such as pre-mRNA splicing. The nucleolin aptamer bound to cell-membrane-associated nucleolin and internalized through a novel mechanism that directs the aptamer chimera to the nucleus. Internalization of the nucleolin aptamer is dynamin independent, while results using other internalization inhibitors suggest that more than one internalization pathway may be involved in nucleolin aptamer uptake. Even though the trafficking mechanism has not been totally elucidated, our results demonstrate that nucleolin is important for the uptake and transport of nucleolin aptamer chimeras to the nucleus and that such aptamer chimeras are not trapped in the endosomal compartment. The ability to avoid or escape the endosomal pathway may make the nucleolin aptamer particularly useful for the delivery of other cargoes to cells.

Aptamer chimeras containing the nucleolin aptamer and a splice-switching oligonucleotide localize to the nucleus and enhance splice-switching activity. Compared to mRNA knockdown approaches, such as siRNA, one major advantage of SSO-based therapies is that only a small percentage of pre-mRNA has to be repaired to generate a phenotypic effect. We observed that the nucleolin aptamer–luciferase SSO increased proper splicing of luciferase by 13% (Fig. 4), a level of repair that would be expected to result in correction of the phenotypes associated with many genetic mutations. For example, encouraging studies from the Kole lab indicate that only a small percentage of Bcl-xL needed to be “switched” to Bcl-xS by SSOs in order to induce apoptosis (Zhang et al., 2007; Bauman et al., 2010; Bauman and Kole, 2011). However, no effective method for selective delivery of proapoptotic SSOs to cancer cells has been described. Our lab and others have shown that aptamer chimeras possess the properties necessary for in vivo targeting of oligonucleotides (McNamara et al., 2006; Dassie et al., 2009) and the work described herein demonstrates for the first time that an aptamer can selectively deliver a cargo to the nucleus. Thus we believe that by appending therapeutic SSOs to the nucleolin aptamer such as the one described for Bcl-xL (42, 44), such aptamer–SSO chimeras may be particularly useful at delivering SSOs to the nuclei of cancerous cells and selectively inducing apoptosis. Within the nucleus, the aptamer chimera appears to further concentrate in the nucleolus, which is likely because nucleolin is more concentrated in the heterochromatin-rich nucleolus. Nevertheless, the splice-switching oligonucleotide is still free to interact with nuclear pre-mRNA and alter impact splicing. However, such aptamer chimeras may be particularly well suited for targeting nucleolar events such as sequestering genes into heterochromatin or ribosome biogenesis. In addition, it may be possible to further optimize the potency of aptamer–SSO chimeras for modulating pre-mRNA splicing by engineering chimeras that release their SSO once they reach the nucleus. Moreover, other types of oligonucleotide-based therapies such as aptamers against intracellular or nuclear targets and other antisense agents such as LNAs can likely be delivered to the nuclei of cancer cells with the nucleolin aptamer.

The use of aptamers as a delivery agent is still a relatively new field. However, several aptamer chimeras have now shown promise to selectively deliver therapeutics to targeted cancer cells (McNamara et al., 2006; Dassie et al., 2009; Zhou and Rossi, 2010). In principle, this approach can reduce the adverse effects associated with therapies and potentially reduce the cost of the therapeutic approach. Our results demonstrate that aptamer chimeras can enter through a mechanism that avoids or escapes the endosomal compartment and localizes to the nucleus, and the nucleolus, which opens new opportunities for delivery of therapeutic agents that target nuclear events. We believe that the results of our study have laid the foundation for future work that will demonstrate the therapeutic value of aptamer chimeras and nuclear delivery.

Footnotes

Acknowledgments

This research was supported in part by an NIH T32 Postdoctoral Fellowship (EDP) and an NIH Grant R01CA129190 (BAS).

Author Disclosure Statement

No competing financial interests exist.

References

ALAM

, MING

, DIXIT

, FISHER

, CHEN

, JULIANO

2010. The biological effect of an antisense oligonucleotide depends on its route of endocytosis and trafficking. Oligonucleotides, 20:103–109.

BATES

, CHOI

, NAYAK

2009a. G-rich oligonucleotides for cancer treatment. Methods Mol. Biol., 542:379–392.

BATES

P.J.

, LABER

D.A.

, MILLER

D.M.

, THOMAS

S.D.

, TRENT

J.O.

2009b. Discovery and development of the G-rich oligonucleotide AS1411 as a novel treatment for cancer. Exp. Mol. Pathol., 86:151–164.

BAUMAN

, JEARAWIRIYAPAISARN

, KOLE

2009. Therapeutic potential of splice-switching oligonucleotides. Oligonucleotides, 19:1–13.

BAUMAN

J.A.

, KOLE

2011. Modulation of RNA splicing as a potential treatment for cancer. Bioeng. Bugs, 2:125–128.

BAUMAN

J.A.

, LI

S.D.

, YANG

, HUANG

, KOLE

2010. Anti-tumor activity of splice-switching oligonucleotides. Nucleic Acids Res., 38:8348–8356.

CHU

, MARKS

J.R.

, LAVERY

, FAULKNER

, ROSENBLUM

, ELLINGTON

, LEVY

2006a. Aptamer:toxin conjugates that specifically target prostate tumor cells. Cancer Res., 66:5989–5992.

CHU

, TWU

, ELLINGTON

, LEVY

. 2006b. Aptamer mediated siRNA delivery. Nucleic Acids Res., 34:e73.

DASSIE

, LIU

, THOMAS

, WHITAKER

, THIEL

, STOCKDALE

, MEYERHOLZ

, MCCAFFREY

, MCNAMARA

J.N.

, GIANGRANDE

2009. Systemic administration of optimized aptamer-siRNA chimeras promotes regression of PSMA-expressing tumors. Nat. Biotechnol., 27:839–849.

10.

DOLLINS

, NAIR

, BOCZKOWSKI

, LEE

, LAYZER

, GILBOA

, SULLENGER

. 2008a. Assembling OX40 aptamers on a molecular scaffold to create a receptor-activating aptamer. Chem. Biol., 15:675–682.

11.

DOLLINS

, NAIR

, SULLENGER

2008b. Aptamers in immunotherapy. Hum. Gene Ther., 19:443–450.

12.

FAROKHZAD

O.C.

, CHENG

, TEPLY

B.A.

, SHERIFI

, JON

, KANTOFF

P.W.

, RICHIE

J.P.

, LANGER

2006. Targeted nanoparticle-aptamer bioconjugates for cancer chemotherapy in vivo. Proc. Natl. Acad. Sci. U. S. A., 103:6315–6320.

13.

GINISTY

, AMALRIC

, BOUVET

1998. Nucleolin functions in the first step of ribosomal RNA processing. EMBO J, 17:1476–1486.

14.

GINISTY

, SICARD

, ROGER

, BOUVET

1999. Structure and functions of nucleolin. J. Cell Sci., 112,6:761–772.

15.

GIRVAN

, TENG

, CASSON

, THOMAS

, JÜLIGER

, BALL

, KLEIN

, PIERCE

W.J.

, BARVE

, BATES

2006. AGRO100 inhibits activation of nuclear factor-kappaB (NF-kappaB) by forming a complex with NF-kappaB essential modulator (NEMO) and nucleolin. Mol. Cancer Ther., 5:1790–1799.

16.

HOVANESSIAN

A.G.

, SOUNDARAMOURTY

, EL KHOURY

, NONDIER

, SVAB

, KRUST

2010. Surface expressed nucleolin is constantly induced in tumor cells to mediate calcium-dependent ligand internalization. PLoS One, 5:e15787.

17.

HUANG

, SHI

, ZHOU

, SONG

, YUAN

, LUO

2006. The angiogenic function of nucleolin is mediated by vascular endothelial growth factor and nonmuscle myosin. Blood, 107:3564–3571.

18.

IRESON

, KELLAND

2006. Discovery and development of anticancer aptamers. Mol. Cancer Ther., 5:2957–2962.

19.

IVANOV

A.I.

, NUSRAT

, PARKOS

C.A.

2004. Endocytosis of epithelial apical junctional proteins by a clathrin-mediated pathway into a unique storage compartment. Mol. Biol. Cell, 15:176–188.

20.

KANG

S.H.

, CHO

M.J.

, KOLE

1998. Up-regulation of luciferase gene expression with antisense oligonucleotides: implications and applications in functional assay development. Biochemistry, 37:6235–6239.

21.

KIM

, JUNG

, CHOI

, YANG

, SUH

J.S.

, HUH

Y.M.

, KIM

, HAAM

2010. Prostate cancer cell death produced by the co-delivery of Bcl-xL shRNA and doxorubicin using an aptamer-conjugated polyplex. Biomaterials, 31:4592–9.

22.

KOIVUSALO

, WELCH

, HAYASHI

, SCOTT

C.C.

, KIM

, ALEXANDER

, TOURET

, HAHN

K.M.

, GRINSTEIN

2010. Amiloride inhibits macropinocytosis by lowering submembranous pH and preventing Rac1 and Cdc42 signaling. J. Cell Biol., 188:547–563.

23.

KOLE

, VACEK

, WILLIAMS

2004a. Modification of alternative splicing by antisense therapeutics. Oligonucleotides, 14:65–74.

24.

KOLE

, WILLIAMS

, COHEN

2004b. RNA modulation, repair and remodeling by splice switching oligonucleotides. Acta Biochim. Pol., 51:373–378.

25.

, LARSON

, NGUYEN

, SOKOLOV

, ELLINGTON

2010. Directed evolution of gold nanoparticle delivery to cells. Chem. Commun. (Camb.), 46:392–394.

26.

, NGUYEN

H.H.

, BYROM

, ELLINGTON

A.D.

2011. Inhibition of cell proliferation by an anti-EGFR aptamer. PLoS One, 6:e20299.

27.

LUNDIN

, JOHANSSON

, GUTERSTAM

, HOLM

, HANSEN

, LANGEL

, EL ANDALOUSSI

2008. Distinct uptake routes of cell-penetrating peptide conjugates. Bioconjug. Chem., 19:2535–2542.

28.

MCNAMARA

J.N.

, ANDRECHEK

, WANG

, VILES

, REMPEL

, GILBOA

, SULLENGER

, GIANGRANDE

2006. Cell type-specific delivery of siRNAs with aptamer-siRNA chimeras. Nat Biotechnol, 24:1005–1015.

29.

MERCER

, HELENIUS

2009. Virus entry by macropinocytosis. Nat. Cell Biol., 11:510–520.

30.

MERCER

, SCHELHAAS

, HELENIUS

2010. Virus entry by endocytosis. Annu. Rev. Biochem., 79:803–833.

31.

MIN

, JO

, SONG

, CHO

, CHUN

Y.S.

, JON

, KIM

W.J.

, BAN

2011. Dual-aptamer-based delivery vehicle of doxorubicin to both PSMA (+) and PSMA (-) prostate cancers. Biomaterials, 32:2124–2132.

32.

MING

, ALAM

, FISHER

, YAN

, CHEN

, JULIANO

2010. Intracellular delivery of an antisense oligonucleotide via endocytosis of a G protein-coupled receptor. Nucleic Acids Res., 38:6567–6576.

33.

PARTON

R.G.

, JOGGERST

, SIMONS

1994. Regulated internalization of caveolae. J. Cell Biol., 127:1199–1215.

34.

POLLICE

, ZIBELLA

, BILAUD

, LAROCHE

, PULITZER

, GILSON

2000. In vitro binding of nucleolin to double-stranded telomeric DNA. Biochem. Biophys. Res. Commun., 268:909–915.

35.

REYES-REYES

E.M.

, TENG

, BATES

P.J.

2010. A new paradigm for aptamer therapeutic AS1411 action: uptake by macropinocytosis and its stimulation by a nucleolin-dependent mechanism. Cancer Res., 70:8617–8629.

36.

SIECZKARSKI

S.B.

, WHITTAKER

G.R.

2002. Influenza virus can enter and infect cells in the absence of clathrin-mediated endocytosis. J. Virol., 76:10455–10464.

37.

SOUNDARARAJAN

, CHEN

, SPICER

, COURTENAY-LUCK

, FERNANDES

2008. The nucleolin targeting aptamer AS1411 destabilizes Bcl-2 messenger RNA in human breast cancer cells. Cancer Res., 68:2358–2365.

38.

TENG

, GIRVAN

, CASSON

, PIERCE

W.J.

, QIAN

, THOMAS

, BATES

2007. AS1411 alters the localization of a complex containing protein arginine methyltransferase 5 and nucleolin. Cancer Res., 67:10491–10500.

39.

TIEMANN

, ROSSI

2009. RNAi-based therapeutics-current status, challenges and prospects. EMBO Mol. Med., 1:142–151.

40.

VALLEE

R.B.

, HERSKOVITS

J.S.

, AGHAJANIAN

J.G.

, BURGESS

C.C.

, SHPETNER

H.S.

1993. Dynamin, a GTPase involved in the initial stages of endocytosis. Ciba Found. Symp., 176:185–193discussion 193–197.

41.

WADIA

J.S.

, STAN

R.V.

, DOWDY

S.F.

2004. Transducible TAT-HA fusogenic peptide enhances escape of TAT-fusion proteins after lipid raft macropinocytosis. Nat. Med., 10:310–315.

42.

WAN

, SAZANI

, KOLE

2009. Modification of HER2 pre-mRNA alternative splicing and its effects on breast cancer cells. Int. J. Cancer, 124:772–777.

43.

, DING

, GAO

, WANG

, FAN

, WANG

, ZHANG

, YE

, ZHANG

, DING

et al. 2011. Second-generation aptamer-conjugated PSMA-targeted delivery system for prostate cancer therapy. Int. J. Nanomedicine, 6:1747–1756.

44.

WULLNER

, NEEF

, ELLER

, KLEINES

, TUR

M.K.

, BARTH

2008. Cell-specific induction of apoptosis by rationally designed bivalent aptamer-siRNA transcripts silencing eukaryotic elongation factor 2. Curr. Cancer Drug Targets, 8:554–565.

45.

ZHANG

, PEAIRS

J.J.

, YANG

, TYRRELL

, ROBERTS

, KOLE

, JAFFE

G.J.

2007. The importance of Bcl-xL in the survival of human RPE cells. Invest. Ophthalmol. Vis. Sci., 48:3846–3853.

46.

ZHOU

, ROSSI

2010. Aptamer-targeted cell-specific RNA interference. Silence, 1:4.
