Antisense Oligonucleotides Targeting Influenza A Segment 8 Genomic RNA Inhibit Viral Replication

Abstract

Influenza A virus (IAV) affects 5%–10% of the world's population every year. Through genome changes, many IAV strains develop resistance to currently available anti-influenza therapeutics. Therefore, there is an urgent need to find new targets for therapeutics against this important human respiratory pathogen. In this study, 2′-O-methyl and locked nucleic acid antisense oligonucleotides (ASOs) were designed to target internal regions of influenza A/California/04/2009 (H1N1) genomic viral RNA segment 8 (vRNA8) based on a base-pairing model of vRNA8. Ten of 14 tested ASOs showed inhibition of viral replication in Madin-Darby canine kidney cells. The best five ASOs were 11–15 nucleotides long and showed inhibition ranging from 5- to 25-fold. In a cell viability assay they showed no cytotoxicity. The same five ASOs also showed no inhibition of influenza B/Brisbane/60/2008 (Victoria lineage), indicating that they are sequence specific for IAV. Moreover, combinations of ASOs slightly improved anti-influenza activity. These studies establish the accessibility of IAV vRNA for ASOs in regions other than the panhandle formed between the 5′ and 3′ ends. Thus, these regions can provide targets for the development of novel IAV antiviral approaches.

Introduction

Seasonal influenza A virus (IAV) causes disease in humans every year, especially in the winter months in temperate climates [1]. The World Health Organization (WHO) estimates that each year, influenza affects 5%–10% of the world's population resulting in between 250,000 and 500,000 deaths [2]. Furthermore, IAV occasionally and unpredictably can cause a pandemic when a novel virus not previously circulating in humans is introduced into humans and is easily transmitted person to person [3 –5].

IAVs are categorized by the antigenic variation of the hemagglutinin (HA) and neuraminidase (NA) proteins. So far, 16 HA and 9 NA IAV variants have been found in wild birds [6,7]. Only two subtypes, H3N2 and H1N1, are currently circulating in humans [8]. The last novel pandemic strain (pH1N1) of IAV appeared in 2009 and became, since then, the dominant H1N1 virus circulating worldwide [9]. In addition, zoonoses can occur, as evidenced by the current outbreaks of H7N9 and H5N1, which may contain pandemic potential of acquiring the ability to readily transmit between humans [10,11].

The IAV genome has eight negative-sense single-stranded RNAs [12,13] that encode for 10–14 proteins [14]. To date, only two classes of anti-influenza therapeutics are available: (1) Adamantanes (amantadine and rimantadine) target the ion channel matrix 2 (M2) protein [2,15], and (2) inhibitors of influenza NA (zanamivir, oseltamivir as well as peramivir and laninamivir licensed in several countries) [2,16,17]. Most circulating IAVs are resistant to amantadine [18], and emerging resistance to zanamivir and oseltamivir has become a serious problem [9,19,20]. The rate of oseltamivir-resistant H1N1 influenza viruses in the United States has increased from 0.7% in the 2006–2007 influenza season to 98.5% in the 2008–2009 influenza season [21,22]. Therefore, there is an urgent need to find new targets and therapeutics for the treatment of influenza viral infections [23].

Influenza RNA is a potential target for therapeutics. Antisense oligonucleotides (ASOs) provide an approach for identifying potential targets, and therefore represent potential therapeutics. Current ASO therapeutics, including Vitraviren [24] and Mipomersen [25], target mRNA. In this study, ASOs were designed against loops in IAV segment 8 vRNA and tested in cell culture. The results suggest that IAV vRNA loops can be targets for therapeutics, including ASOs.

Materials and Methods

Predicted folding of vRNA8 of A/California/04/2009 (H1N1)

The vRNA8 of influenza A/California/04/2009 (H1N1) was folded by comparison to vRNA8 of A/Vietnam/1203/2004 (H5N1) with the Dynalign program [26] in the RNAstructure 5.4 package of software. Dynalign finds the lowest free energy sequence alignment and secondary structure common to two previously unaligned sequences. Folding was guided by the base pairing determined on the basis of chemical mapping and base pair conservation of influenza A/Vietnam/1203/2004 (H5N1) [27]. Base pairs in vRNA8 of A/Vietnam/1203/2004 (H5N1) that are more than 99.9% conserved in a database of over 8,000 nonredundant IAV sequences were used in Dynalign as constraints when submitting the sequence of vRNA8 of A/Vietnam/1203/2004 (H5N1). The pairing from nucleotides 713–718/783–790 was adjusted to maximize alignment of base pairs.

Design and synthesis of ASOs

ASOs were designed based on the predicted self-folding of protein-free vRNA8 of influenza A/California/04/2009 (H1N1). Oligonucleotides were designed to target single-stranded regions that bind to microarray probes and/or are well defined as single stranded based on chemical mapping of vRNA8 of A/Vietnam/1203/2004 (H5N1) (Supplementary Fig. S1; Supplementary Data are available online at www.liebertpub.com/nat) [27]. All oligonucleotides were primarily 2′-O-methyl RNA with some also containing locked nucleic acid (LNA) nucleotides to increase duplex stability. All oligonucleotides were synthesized on MerMade 12 (BioAutomation) synthesizer by phosphoroamidite method and deprotected according to published protocols [28,29]. Oligonucleotides were purified with thin layer chromatography or with denaturing 12% polyacrylamide gel and concentrations were measured with a UV spectrophotometer (NanoDrop—Thermo Scientific).

Cells and viruses

Madin-Darby canine kidney (MDCK) cells (ATCC CCL-34) were maintained in Dulbecco's modified Eagle's medium (DMEM) supplemented with 10% fetal bovine serum (FBS) and 1% PSG (penicillin—100 U/mL, streptomycin—100 μg/mL, l-glutamine—2 mM) at 37°C in air enriched with 5% CO₂.

Influenza A/California/04/2009 (H1N1) and influenza B/Brisbane/60/2008 (Victoria lineage) were propagated in MDCK cells and viral titers were measured with standard plaque assays [plaque-forming units (PFU)/mL]. Briefly, confluent monolayers of MDCK cells (six-well plate format) were infected with 10-fold viral dilutions for 1 h at room temperature (RT), overlaid with agar, and incubated at 33°C in air enriched with 5% CO₂. After 3 days postinfection, cells were fixed with 4% formaldehyde in phosphate-buffered saline (PBS), and the agar layer was removed. One percent crystal violet was used to visualize the viral plaques. Virus stocks consisted of cell-free supernatant and were kept in aliquots at −80°C.

MDCK cell transfections

Lipofectamine^® 2000 (Invitrogen) was used as a lipid-based carrier. One day before transfection, 2.5 × 10⁶ cells were seeded in a 100-mm dish to be sure the cells would be in the exponential growth phase on the day of transfection. Before each transfection, Lipofectamine 2000 was diluted 10-fold with the Opti-MEM^® I Reduced Serum Medium (Opti-MEM) and incubated 10 min at RT. Then 15 μL of this solution was mixed gently with 15 μL of 5 μM ASO in Opti-MEM and incubated 30 min at RT. Next, 300 μL of 7.5 × 10⁴ MDCK cells in media was added. For each ASO, 100 μL of this mixture was added to each of three wells in a 96-well plate (Supplementary Fig. S2A). Cells were incubated at 37°C in air enriched with 5% CO₂ for 6 h and the medium was changed for fresh one. Transfection efficiency was optimized using FAM6-labeled oligonucleotide (FN) observed under a fluorescent microscope (Supplementary Fig. S2B).

Concentrations of oligonucleotide from 0.01 to 2 μM (final concentration in the medium) and different ratios of oligonucleotide to Lipofectamine 2000 (μM oligonucleotide to μL Lipofectamine 2000 = 1:0.5; 1:1; 1:1.5; 1:2; 1:2.5) were tested. Using a fluorescent microscope, FN was observed to accumulate in both the nucleus and cytoplasm (Supplementary Fig. S2B). The optimal condition for uptake was chosen as the ratio of oligonucleotide to Lipofectamine 2000 = 1:2 (Supplementary Fig. S2). According to Invitrogen, the toxicity of undiluted Lipofectamine 2000 is minimized at 0.5 μL/well in a 96-well plate. Accordingly, the maximum concentration of oligonucleotides used in this study was 230 nM. Transfections of all ASOs were performed in triplicate.

Antiviral test of ASOs

At 18 h posttransfection with ASO (6 h with liposome complexes and 12 h with fresh medium, as described above), MDCK cells were infected (multiplicity of infection, of 0.001) with the indicated viruses diluted in PBS supplemented with 0.3% bovine albumin (BA) and 1% PS (PBS/BA/PS). After 1 h incubation at RT on a rocking platform, the infection medium was changed for the postinfection medium containing DMEM supplemented with 0.3% BA, 1% PSG, and 1 μg/mL tosyl–sulfonyl phenylalanyl chloromethyl ketone (TPCK)-treated trypsin (Sigma). Infected MDCK cells were incubated at 33°C in air enriched with 5% CO₂ for 36 h and after that time, cell culture supernatants (CCS) were collected. Viral titers were determined with the immunofocus assay described below.

Immunofocus assay

CCS were 10-fold diluted in PBS/BA/PS. MDCK cells cultured on 96-well plates were infected with 50 μL of CCS dilutions for 1 h at RT. After incubation, the infection medium was changed for the postinfection medium and infected cells were maintained at 33°C in air enriched with 5% CO₂ for 8–10 h. Cells were fixed with 4% paraformaldehyde (PFA) for 15 min and permeabilized with 0.5% Triton X-100 in PBS for 15 min at RT. Next, cells were incubated with a blocking buffer containing 2% bovine serum albumin in PBS for 1 h. After blocking, the solution was replaced with a mouse anti-NP (HB-65 for IAV or B017 for IBV) primary monoclonal antibody diluted in the blocking buffer (1 μg/mL) and incubated for 1 h at 37°C. Primary antibodies were detected with an FITC-conjugated rabbit anti-mouse polyclonal secondary antibody (Dako 1:200). Fluorescent-forming units (FFU/mL) were counted under a fluorescent microscope. The mean titer from triplicates and the standard deviation (SD) were calculated with Microsoft Excel software.

Cell viability assays

For the cell viability assays, MDCK cells were transfected as described above. The medium containing liposome complexes was changed for fresh one after 6 h and after 18 h, cell viability was measured using the CellTiter 96^® Non-Radioactive Cell Proliferation Assay (MTT; Promega) according to the manufacturer's recommendations. The rate of formazan dye formation was determined by measuring the absorbance (570–650 nm). The 570–650 nm reading value is directly proportional to the number of living cells. Cell viability was normalized to viability of cells treated only with Lipofectamine 2000. The mean and SD from triplicates were calculated with Microsoft Excel software.

Statistical analysis

Experimental data were analyzed with a two-tailed t-test with unequal variance in Microsoft Excel Software. Three intervals of statistical confidence were considered, 0.05, 0.01, and 0.001. The statistic was calculated from three independent experiments with each containing three technical repeats, normalized to virus titer from cells treated with Lipofectamine 2000 only.

Results

Design of ASOs

Self-folding of protein-free vRNA8 from A/Vietnam/1203/2004 (H5N1) [27] was used to model A/California/04/2009 (H1N1), which is more representative of influenza strains (H1N1) currently circulating in humans. The sequences are 83% homologous and the predicted secondary structures are similar (Fig. 1 and Supplementary Fig. S1). Single-stranded regions in A/Vietnam/1203/2004 (H5N1) vRNA8 that bind to microarray probes and are well defined by chemical mapping [27] were chosen as targets (Fig. 1 and Supplementary Fig. S1). All designed ASOs were fully complementary to vRNA8 of A/California/04/2009 (H1N1) (Fig. 1 and Table 1). With the exception of ASOs 276-20M & L, 713-10M, and 786-19M, the length of ASOs was dependent on the length of loops and sometimes adjacent pairs with low probability based on results for A/Vietnam/1203/2004 (H5N1) (Fig. 1 and Supplementary Fig. S1) [30]. ASOs 276-20M & L target a hairpin with a stem of highly probable base pairs and ASOs 713-10M and 786-19M also target a helical region with highly probable base pairs in A/Vietnam/1203/2004 (H5N1). In addition, a sequence with random A, G, and U (5′GAGGAGUGUAGAGUUAUA) without (NEG) and with (FN) a 5′FAM fluorophore was also used as a negative control. All ASOs were primarily 2′-O-methyl RNA with half also containing LNA nucleotides to stabilize binding to target sequence (Table 1).

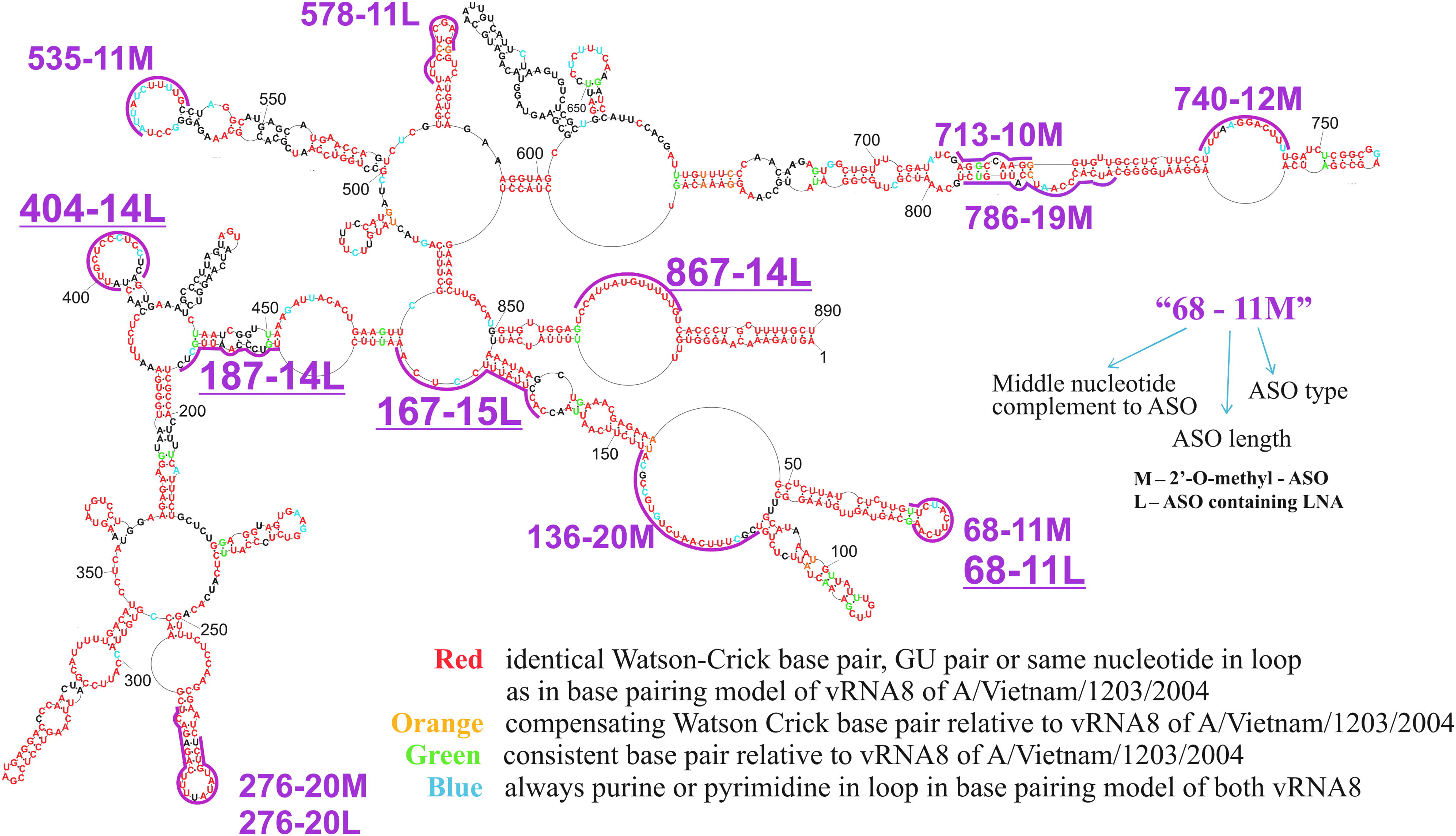

FIG. 1.

Targets of ASOs in predicted secondary structure of vRNA8 of influenza A/California/04/2009 (H1N1). Purple lines indicate regions targeted by ASOs. The nomenclature consists of vRNA8 nucleotide number complementary to the middle nucleotide of ASOs, length of ASOs, and containing modification: M = 2′-O-methyl-RNA and L = 2′-O-methyl-RNA with LNA. Note that relative to influenza A/Vietnam/1203/2004 (H5N1) (Supplementary Fig. S1) there is a 15 nucleotide insert between 614 and 615 so that the nucleotide numbers after 615 are larger by 15 relative to those for A/Vietnam/1203/2004 (H5N1). The numbering of vRNA8 is from its 5′ end. A consistent base pair is one where GU replaces a Watson–Crick pair or vice versa.

Table 1.

Sequences of ASOs Fully Complementary to vRNA8 of Influenza A/California/04/2009 (H1N1)

		ΔG^∘₃₇ (kcal/mol)	ΔG^∘₃₇ (kcal/mol)
Name	Sequence (5′-3′) ^a	Duplex ^b	vRNA8 binding ^c	Predicted K_d	Log₁₀ inhibition	Percent of inhibition
404-14L	GA^LGGA^LGGGA^LGCA^LAU	−32.9	−32.9	7.1E-24	1.4	96.2
187-14L	GA^LGCA^LAU^LUGGGA^LCA	−30.8	−30.6	2.9E-22	1.4	96.0
68-11L	UU^LGAA^LGU^LGGA^LA	−22.1	−18.7	7.0E-14	1.1	92.1
167-15L	UGA^LGGA^LAAU^LAAGGU^LG	−30.1	−27.7	3.1E-20	0.8	84.1
867-14L	CA^LAA^LAA^LCA^LUA^LAUGG	−24.0	−24.0	1.2E-17	0.7	80.0
136-20M	AUGCGGCACAGAUUGAAAGC	−38.5	−38.5	7.2E-28	0.5	68.4
276-20L	AGU^LCUC^LUGAA^LAAUA^LUACA^LGA	−39.2	−25.6	9.4E-19	0.5	68.4
68-11M	UUGAAGUGGAA	−17.0	−13.6	2.8E-10	0.4	60.2
535-11M	CAAAAGAUAAU	−11.2	−11.2	1.4E-08	0.2	36.9
578-11L	CCU^LCGA^LGGA^LAA	−23.3	−17.0	1.1E-12	0.2	36.9
740-12M	AAAGUCCUUAAA	−15.6	−15.6	9.8E-12	0.2	36.9
276-20M	AGUCUCUGAAAAUAUACAGA	−32.5	−18.9	5.0E-14	0.1	20.6
713-10M	CCUUGGCCUC	−20.7	−11.8	5.0E-09	0.0	0.0
786-19M	GACAAUGGAUUGGGUGAUG	−35.8	−15.1	2.2E-11	0.0	0.0
FN	FAM6-GAGGAGUGUAGAGUUAUA	—			−0.1	−25.9
NEG	GAGGAGUGUAGAGUUAUA	—			−0.2	−58.5

ASOs were fully 2′-O-methyl-RNA or 2′-O-methyl-RNA with LNA. Nucleotides followed with superscript L indicate LNA nucleotides. NEG is a scrambled oligonucleotide, not complementary to any sequence of vRNAs of influenza A/California/04/2009 (H1N1). FN-scrambled oligonucleotide labeled with FAM6 at the 5′ end, used to test transfection efficiency.

Predicted ΔG^∘₃₇ of the ASO binding to a complementary single-stranded RNA. Predicted free energy for duplex was calculated with 2′OMeRNA/RNA or LNA-2′OMeRNA/RNA calculator available at www.ibch.poznan.pl/laboratory-of-rna-chemistry.

Predicted ΔG^∘₃₇ for ASO binding to vRNA8. The ΔG^∘₃₇ was calculated by adding to ΔG^∘₃₇ of duplex formation the ΔG^∘₃₇ predicted with OligoWalk [50] for breaking base pairs in the region targeted. For binding of oligonucleotides to large loops, no structure needed to be broken.

ASO, antisense oligonucleotide; LNA, locked nucleic acid.

Certain ASOs inhibit IAV propagation.

ASOs at final total concentration of 230 nM were tested in MDCK cells (Supplementary Fig. S2). Ten of 14 tested ASOs showed significant (P < 0.05) inhibition of IAV replication (Fig. 2A). Five ASOs inhibited virus propagation more than fivefold at 36 h postinfection. ASOs 187-14L and 404-14L showed the highest inhibitory effect, inhibiting virus propagation on average by 25-fold (log₁₀25 = 1.4). Results for all 14 ASOs are listed in Table 1 and shown in Fig. 2A.

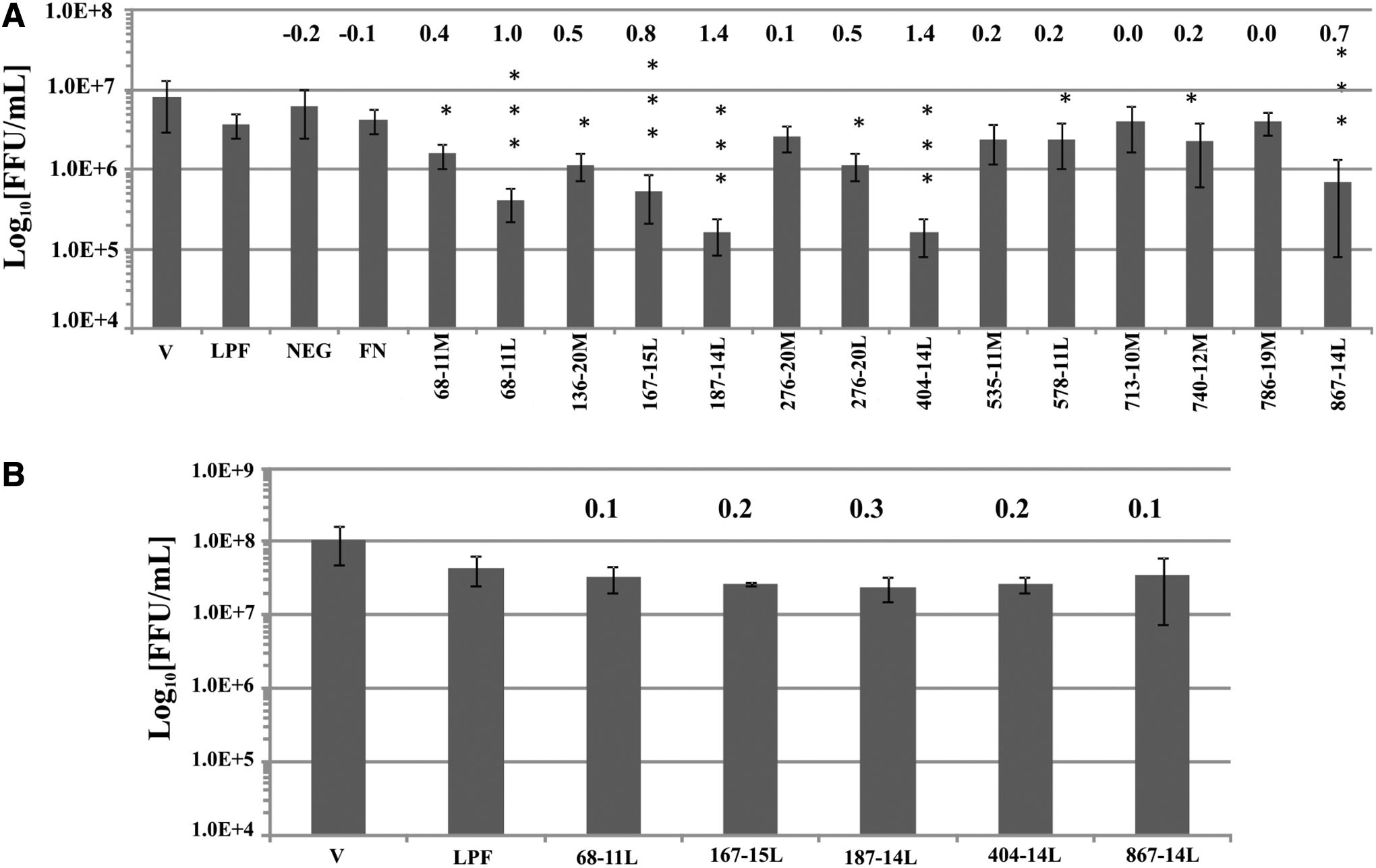

FIG. 2.

Antiviral activity of 230 nM ASOs in MDCK cells. Logarithm of average titer of influenza in CCS was analyzed by the immunofocus assay (FFU/mL): (A) for A/California/04/2009 after 36 h postinfection and (B) for B/Brisbane/60/2008 after 48 h postinfection. The mean was calculated from three independent experiments each containing three technical repeats. Numbers above bars indicate the log₁₀ differences between control virus titer from cells treated with Lipofectamine^® 2000 only (LPF) and with particular ASO added. Statistics were calculated using two-tailed T-test (*P < 0.05; **P < 0.01; ***P < 0.001). No statistically significant differences in virus titer were observed for influenza B/Brisbane/60/2008. CCS, cell culture supernatants; MDCK, Madin-Darby canine kidney.

Further studies were focused on the five ASOs with more than threefold inhibition of viral propagation (68-11L, 167-15L, 187-14L, 404-14L, and 867-14L). In these experiments, ASO 578-11L was used as a negative control because it has three LNAs and a predicted K_d of 1.1 × 10⁻¹².

ASOs do not affect cell viability and are specific to IAV

Five inhibiting ASOs plus two negative control oligonucleotides, NEG and ASO 578-11L, were tested for cytotoxicity (Supplementary Fig. S3). None showed significant (P < 0.05) differences in cell viability at 230 nM, suggesting that the inhibitory effect of the ASOs on influenza A/California/04/2009 H1N1 viral replication is not due to affecting cell viability, but rather due to specifically targeting vRNA8.

To further test if inhibition of IAV replication is specific, the effect of ASOs on IBV infection was studied (Fig. 2B). The sequences of the IBV strain B/Brisbane/60/2008 used for this test do not contain regions fully complementary to the ASOs. The transfection conditions and infection with IBV were the same as for IAV with one exception. The CCS were collected after 48 h postinfection because of the slower growth of IBV in MDCK cells [31]. No significant differences in IBV titer were observed between the control and cells treated with ASOs (Fig. 2B). Evidently, the inhibition of IAV by all five tested ASOs is specific to sequences of IAV.

Dose-dependent effect of inhibition on IAV

Two different concentrations (230 and 115 nM) of ASOs were used on the same assay and with the same amount of Lipofectamine 2000 to test for a dose-dependent inhibition effect against influenza A/California/04/2009 (Fig. 3). The procedures were the same as for single concentration studies except for the different ASO concentrations. All five ASOs showed a dose-dependent inhibitory effect against influenza A/California/04/2009. The dose-dependent effect was most significant for the three ASOs with the highest inhibition effect (68-11L, 187-14L, and 404-14L). The inhibition level went from 25-fold (log₁₀25 = 1.4) relative to control to sixfold (log₁₀6 = 0.8) for ASO 404-14L, from 20-fold (log₁₀20 = 1.3) to fourfold (log₁₀4 = 0.6) for 68-11L, and from 16-fold (log₁₀16 = 1.2) to eightfold (log₁₀8 = 0.9) for 187-14L. Smaller dose effects were observed for 167-15L and 867-14L (Fig. 3). Concentration-dependent differences in inhibition were statistically significant (P < 0.05) for 68-11L, 187-14L, and 404-14L.

FIG. 3.

Dose-dependent antiviral activity of ASOs against influenza A/California/04/2009 (H1N1) in MDCK cells. Logarithm of average titer of influenza A/California/04/2009 (H1N1) in CCS was analyzed after 36 h postinfection by immunofocus assay (FFU/mL). The mean was calculated from three independent experiments each containing three technical repeats. In this study, 230 and 115 nM concentrations of oligonucleotides were tested. Numbers above bars indicate the log₁₀ differences between control virus titer from cells treated with Lipofectamine 2000 only (LPF) and with a particular ASO added. Statistics for comparison to LPF and for effect of concentration were calculated using two-tailed T-test (*P < 0.05; **P < 0.01; ***P < 0.001 for comparison to LPF and ^#P < 0.05 for comparison of concentrations).

Effect of combinations of ASOs on influenza A/California/04/2009 viral replication

All possible combinations of two, three, and four ASOs with 867-14L were tested for an additive effect against viral replication (Fig. 4). The final total concentration (230 nM) of ASOs in mixtures was the same in all single or combined transfections. Transfection and infection protocols were the same as in single ASO tests. ASO 867-14L tested individually showed average inhibition of fivefold relative to control virus titer. After it was combined with other ASOs, the largest inhibition was 20-fold. The additive effect of ASO combinations was relatively small, but statistically significant differences (P < 0.05) were observed in eight cases compared to single ASO 867-14L inhibition (Fig. 4).

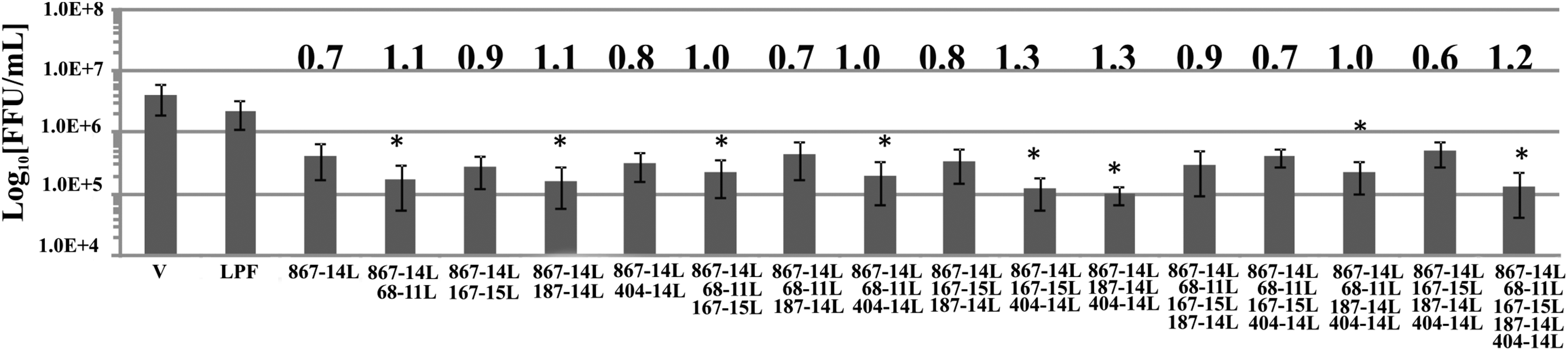

FIG. 4.

Antiviral activity of combinations of ASOs against influenza A/California/04/2009 (H1N1) in MDCK cells. Logarithm of average titer of influenza A/California/04/2009 in CCS was analyzed after 36 h postinfection by immunofocus assay (FFU/mL). The mean was calculated from three independent experiments each containing three technical repeats. In this study, 230 nM total concentration of oligonucleotides was tested with equal concentration of each ASO. Numbers above bars indicate the log₁₀ differences between control virus titer from cells treated with Lipofectamine 2000 (LPF) only and a particular ASO. Statistics were calculated for differences between 230 nM of 867-14L only and 230 nM total ASO concentration for combinations of ASOs using two-tailed T-test (*P < 0.05).

LNA can enhance ASO inhibition

ASOs 68-11 and 276-20 were tested as completely 2′-O-methyl modified RNA and with several LNA substitutions (Figs. 1 and 2; Table 1). For both sequences, inhibition was higher for the ASO containing LNA (Fig. 2A). For ASO 68-11, inhibition increased from 2.5- to 10-fold upon LNA substitution (with P < 0.05 for 68-11M and P < 0.001 for 68-11L). For ASO 276-20, no significant inhibition was observed for 276-20M, but a threefold inhibition (with P < 0.05) was observed for 276-20L. These data suggest that LNA substitutions can enhance the inhibitory effect for the designed ASOs, and this would be important to design future ASOs with therapeutic potential against influenza virus targeting vRNA8 or other vRNAs.

Discussion

IAV yearly infects millions of people and can undergo genetic reassortments to generate a new virus strain for which people do not have preexisting immunity, therefore providing pandemic potential [32,33]. Thus, new antiviral therapeutics and targets are urgently needed for the treatment of these newly introduced human viruses against which vaccines and effective antiviral therapies would not be available. In this study, ASOs were designed to target vRNA of segment 8 of influenza A/California/04/2009 (H1N1), the strain responsible for the pandemic of 2009 [34]. All eight influenza vRNA segments are required for efficient virus replication [35]. Thus, inhibition of any segment can have a significant impact on virus propagation.

Most previous ASOs for IAV were designed to target mRNA (e.g., AUG region of different segments [36 –40], conserved region [41], or structures [42] in NP, or UTRs [43,44]). For IAV vRNA, only the conserved 5′ and 3′ ends forming the panhandle structure have been targeted [45,46]. In this study, ASOs were designed to target internal regions in vRNA8, for which function is not yet known. ASO 867-14L, however, targets a region potentially important for influenza virus packaging because deletion of nucleotides 865–875 reduced vRNA8 packaging into virion by over 90% [47,48].

The ASOs for influenza A/California/04/2009 (H1N1) were designed based on self-folding of vRNA8 of influenza A/Vietnam/1203/2004 (H5N1) [27]. Both strains are important in IAV studies. Influenza A/California/04/2009 (H1N1) was isolated from humans and caused the pandemic in 2009 [34]. Influenza A/Vietnam/1203/2004 (H5N1) is an avian-origin virus, able to also infect humans [3,49]. So far, no transmission from human to human has been observed with influenza A/Vietnam/1203/2004 (H5N1), but this highly pathogenic strain causes severe disease with high mortality in humans and mutations allowing human to human transmission of the virus could potentially result in a pandemic [3,50]. Moreover, it has been shown that influenza A/Indonesia/5/2005 (H5N1) can acquire the ability for air transmission between ferrets [50]. Sequences of IAV in A/Vietnam/1203/2004 (H5N1) and A/California/04/2009 (H1N1) segment 8 vRNAs are 83% homologous with 76% of base pairs conserved (Fig. 1 and Supplementary Fig. S1). Thus, the secondary structure of vRNA8 of influenza A/Vietnam/1203/2004 (H5N1) was used to model vRNA8 of influenza A/California/04/2009 (H1N1) and to select regions to target.

The ASOs generally target predicted single-stranded regions with adjacent stems predicted to be dynamic in protein-free vRNA8 [27]. Seven of 14 tested ASOs inhibited virus growth by at least threefold in MDCK cells (Table 1). ASOs 68-11M, 276-20M, 535-11M, 578-11L, 713-10M, 740-12M, and 786-19M had less antiviral activity. The lack of antiviral activity is likely due to relatively weak binding after considering the predicted cost of breaking target structure (Table 1). This is consistent with the enhanced activity of ASO 276-20L, where five LNA nucleotides were introduced. LNA nucleotides strengthen binding affinity [51] and the antiviral activity increased threefold. Moreover, the lack of inhibition by ASOs 713-10M and 786-19M is consistent with the predicted cost of breaking the helix targeted by these ASOs (Fig. 1 and Table 1).

ASOs 68-11L, 187-14L, and 404-14L reduced viral titer more than 10-fold after 36 h. ASOs 68-11L and 404-14L primarily target single-stranded nucleotides in a hairpin loop and have predicted tight binding (Table 1). ASO 187-14L also is predicted to bind tightly. Moreover, it binds to a region predicted to have base pairs with low probability (Supplementary Fig. S1) and, therefore, likely to be dynamic. While there are many possible reasons for variation in the activity of ASOs, the results in Table 1 are consistent with previous studies that binding affinity is important [52,53].

The results in Table 1 are somewhat surprising. Influenza A genomic vRNA is generally considered not to be a target for ASOs because it is encapsidated by the viral nucleoprotein, NP [54,55]. Moreover, influenza NP binding is expected to disrupt the secondary structure [56]. Nevertheless, when breaking a predicted target structure is considered, with the exception of 276-20M, the ASOs in Table 1 can be categorized in two groups. Those with predicted dissociation constants less than 10⁻¹³ inhibit replication at least 68%, while those with larger dissociation constants inhibit less (Table 1). The exception of 276-20M may be due to potential self-folding into a hairpin. While factors such as ASO chemical stability, target function, and competition with binding to protein or other RNAs are expected to affect response to ASOs, the results are consistent, with target RNA secondary structure being one factor.

Five ASOs (68-11L, 167-15L, 187-14L, 404-14L, and 867-14L) with more than fivefold inhibition were tested in detail. None are cytotoxic (Supplementary Fig. S3) or inhibit IBV (Fig. 2B), consistent with sequence specificity to IAV. The relatively short lengths of 11–15 nucleotides may reduce possible off-target effects even though predicted dissociation constants are very favorable for binding to the predicted self-folding of the naked vRNA8 [57,58]. ASOs 68-11L, 187-14L, and 404-14L showed statistically significant less inhibition at 115 nM compared to 230 nM, but retained the antiviral activity at 115 nM (Fig. 3).

Combinations of ASOs were tested for additive effects (Fig. 4). Of the five ASOs tested extensively, ASO 867-14L alone had the smallest antiviral activity. To see if activity could be enhanced, combinations of other ASOs with 867-14L were tested. Statistically significant differences relative to ASO 867-14L alone were observed for eight combinations, including the combination of all five tested ASOs. However, the largest enhancement of antiviral activity from combinations of ASOs was only fourfold when total ASO concentration was maintained at 230 nM (Fig. 4). The small additive effect could be because multiple ASOs are not binding to a single vRNA molecule. If a combination of ASOs targeting different segments was used, then the antiviral effect could be higher. Self-folding of other vRNA segments, however, has not been published to facilitate design of new ASOs that could be tested in combination with the ASOs from this study.

There are many possible reasons for the effects of ASOs on influenza. Oligonucleotides accumulate in both cytoplasm and nucleus [59] (Supplementary Fig. S2B). Thus, ASOs can interfere with the virus at every stage of the life cycle. Influenza vRNA is involved in replication, transcription, and packaging. For packaging, there is increasing evidence that vRNA interactions play essential roles in selecting and assembling the required 8 segments into nascent virions [60 –62]. For example, vRNA segments can directly interact pairwise in vitro. Packaging of vRNA8 apparently depends on regions corresponding to the 5′ and 3′ UTRs and to part of the open reading frame [47,48]. Mutation of this region can result in inhibition of the virus life cycle [63 –65]. Based on effects of ASOs, we identify new possible regions for study of vRNA function and thus as potential targets for therapeutics.

In summary, new ASOs with anti-IAV activity are reported in this study. Notably, the antiviral activity was observed when targeting genomic sequences outside the panhandle region, which was previously thought to be the only vRNA region accessible for targeting with ASOs. Correlation between in vitro self-folding of protein-free vRNA8 and the anti-IAV activity suggests that studies of in vitro base pairing can guide ASO design and help identify targets for therapeutics. While only vRNA8 was targeted in this study, it is likely that ASO combinations targeting more than one vRNA would have an even larger anti-viral activity.

Footnotes

Acknowledgments

We thank Dr. Daniel R. Perez in the Department of Population Health at University of Georgia for the influenza B/Brisbane/60/2008 virus. This work was supported by NIH grants GM22939 (D.H.T.) and R03TW008739 (D.H.T. and E.K.), as well as National Science Centre grants UMO—2013/08/A/ST5/00295 (R.K.) and UMO—2013/08/M/NZ1/01062 (E.K.), and by the 2014 University of Rochester Research Award (L.M.-S.).

Author Disclosure Statement

No competing financial interests exist.
