Group-Wise Evaluation and Comparison of White Matter Fiber Strain and Maximum Principal Strain in Sports-Related Concussion

Introduction

Sports-related concussion is a major public health problem in the United States that is estimated to occur in 1.6–3.8 million persons annually and is particularly common in football and ice hockey. ¹ Despite the significance and growing concerns about the potential long-term consequences of concussion, its biomechanical mechanisms remain elusive.

On-field brain injury studies measuring head impact exposure (frequency, location, and kinematics of head impact) using the Head Impact Telemetry (HIT) System (Simbex, Lebanon NH) have provided important insight on head impact characteristics in contact sports. ^{2 –8} Kinematic measures such as peak linear and rotational acceleration alone, however, lack specificity in identifying athletes with diagnosed concussions, and no consensus has been reached on an injury tolerance threshold at the kinematics level. ^2,5,6,9 In parallel, studies of neuronal and cellular responses to deformation at the microscale demonstrate that mechanical forces in the brain during traumatic brain injury (TBI) are capable of triggering both acute and chronic changes in function. ¹⁰

Injury thresholds for stretching have also been established in terms of magnitudes of axonal strain and/or strain rate required for nerve fibers, single axons, neural cell cultures, and organotypic brain slice cultures. ¹¹ These in vivo animal and in vitro studies indicate the mechanical conditions under which functional deficits appear or cell death results in the brain, and provide a potential microstructural injury mechanism by stretching white matter (WM) axons to inform how TBI occurs at the cellular level.

To bridge the gap between on-field, kinematics-based brain injury research and the microscale studies that define tissue-level injury thresholds, computational finite element (FE) models of the human head are playing an increasingly important role in understanding how energy from an external head impact is converted into brain mechanical responses sufficient to cause injury. Several research groups have attempted to establish a concussion threshold based on model-estimated regional brain mechanical responses from analyses of reconstructed National Football League (NFL) football impacts, ^{12 –14} pedestrian and motorcycle accidents, ^14,15 and instrumented helmets from collegiate football players. ¹⁶

Our recent work evaluating model-estimated strain and strain rate in the corpus callosum for a group of athletes with a diagnosis of concussion based on on-field head impacts measured with the HIT system also showed promise to relate regional brain responses directly to longitudinal changes in neuroimaging parameters. ¹⁷

Although in vitro investigations suggest an important axonal orientation dependency, most of these studies use isotropic variables such as the maximum principal strain ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} ) to characterize tissue-level mechanical responses that do not incorporate WM axonal orientations. In part, this may explain why efforts to analyze real-world injury scenarios fail to establish consensus on a tissue-level injury threshold.

There has been growing interest in incorporating WM microstructural orientation into injury analysis. For example, Cloots and colleagues ¹⁸ demonstrated the importance of axonal orientation and anisotropy using a two-dimensional (2D) plane strain FE model at the cellular level, and later tried to relate tissue-level mechanical loads to cellular-level brain injury through a “critical volume element” by simulating a reconstructed NFL concussion case with a three-dimensional (3D) head model. ¹⁹ Chatelin and associates ²⁰ developed an efficient post-processing scheme to directly couple FE simulation outcome with axonal structural anisotropy determined from a diffusion tensor imaging (DTI) atlas to localize regions with potential diffuse axonal injury (DAI) and illustrated the technique by simulating two real-world head injury cases.

Kraft and coworkers ²¹ related strains along WM axonal bundles to cellular death for one person using a simulated head impact through a mathematical function based on in vitro injury findings to investigate the temporal evolution of damaged fiber tracts. Wright and Ramesh ²² also developed an axonal strain injury criterion by estimating nominal stretches along WM fiber directions determined from DTI, and later used it to study a reconstructed professional ice-hockey concussion case. ²³ Their results indicate that the degree of WM injury predicted is highly dependent on axonal orientation. Their study, however, utilized 2D instead of 3D FE models based on MR images of a person and a co-registered WM atlas from a different person to identify potential DAI locations. In addition, no model validation was performed against relative brain-skull displacement data measured from cadaveric head impacts that are most relevant to the strain evaluations in their work.

To date, there have been no reports on the significance of WM fiber orientation in strain measures on a sizeable group of contact sports athletes with a clinical diagnosis of concussion. The objectives of this study, therefore, are (1) to evaluate strain along WM fibers (i.e., fiber strain, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} ) and its isotropic counterpart, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} , for the same group of athletes previously analyzed using geometrically accurate subject-specific head FE models, on-field head impacts associated with their diagnosis of concussion, and their post-injury neuroimaging; and (2) to compare the spatial distribution and extent of WM exposure to high strains based on the two strain measures to investigate their similarity or differences in potential injury prediction.

Because strains are strongly model-dependent, ²⁴ we also provide important details regarding development and validation of the Dartmouth Head Injury Model (DHIM) as well as techniques to generate geometrically accurate subject-specific head FE models in the Methods section, which are important components of this study.

Methods

This work is part of a larger effort to investigate the biomechanical basis of mild TBI (mTBI) in collegiate and high school contact sport athletes. Data from varsity athletes on the Dartmouth College football team and men's and women's ice hockey teams, and the Hanover High School football team were collected between 2007 and 2011 as reported previously. ¹⁷ All college participants provided written informed consent; high school athletes gave their assent, and written consent forms were signed by their parents/guardians. Protocol for data collection was approved by the Dartmouth College Committee for the Protection of Human Subjects.

Head impact kinematics and clinical diagnosis

Methods for recording head impacts and associating the kinematic data with diagnosed concussions have been reported earlier.^,17,25 In short, football and hockey players wore helmets instrumented with the HIT System to record in vivo accelerations after head impact (a 40 msec time-varying acceleration data recorded at 1 kHz). The details of the HIT System and its validation have been published previously. ^{7,26 –28} Accelerometer data recorded from each impact were extracted from the HIT System database with a custom software application (Matlab R2013a) and processed using an optimization algorithm to solve for the linear and rotational accelerations at the head center of gravity (CG). ²⁹ The resulting accelerations were used as model inputs. For each athlete, contributions of linear and rotational accelerations at the head CG in the X, Y, and Z directions defined in the head coordinate system (Fig. 1) at the time of peak resultant magnitudes are summarized in Table 1.

OPEN IN VIEWER

FIG. 1.

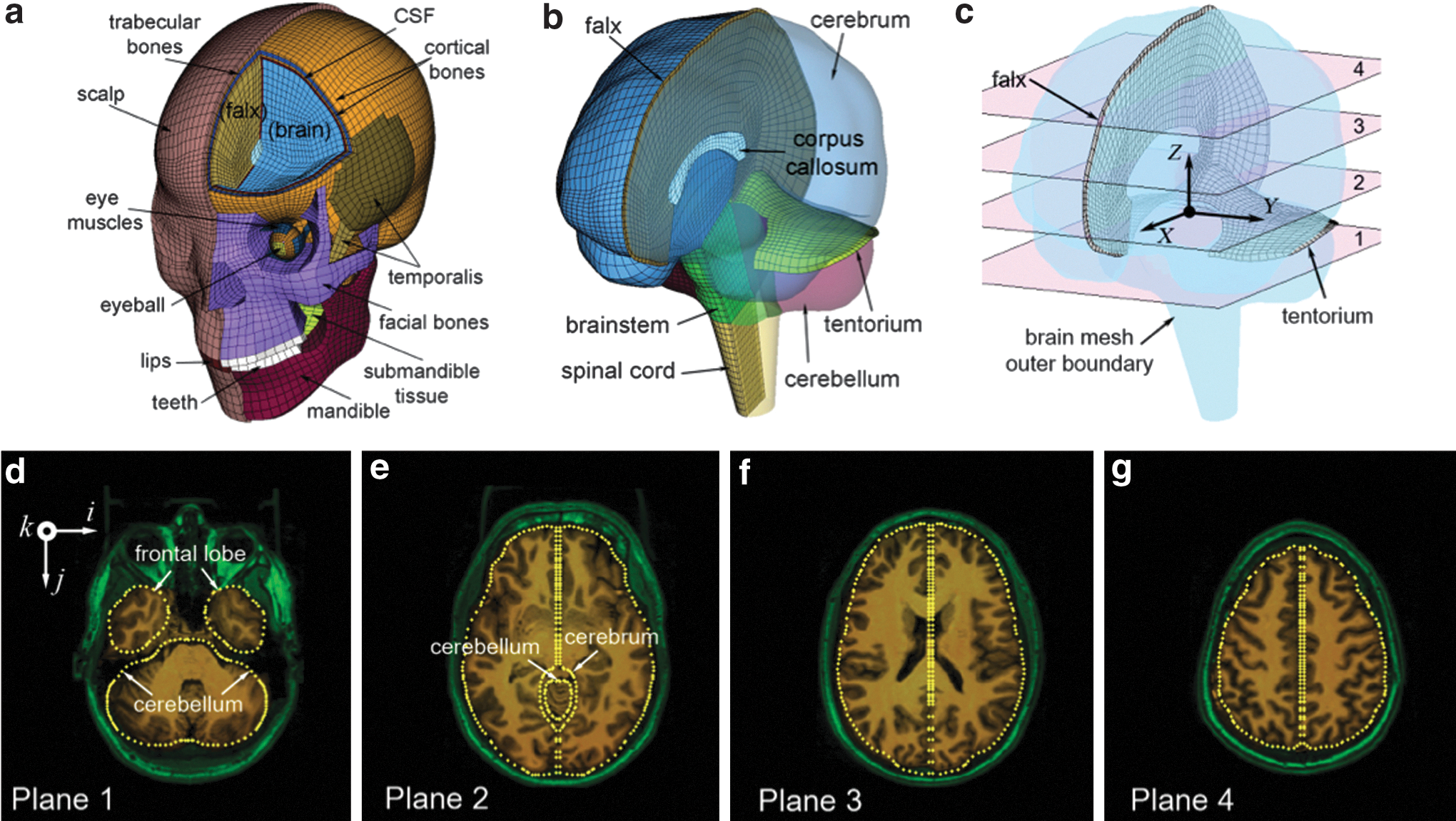

(a–c) The Dartmouth Head Injury Model showing the exterior head features, the brain, and some anatomical features (not all are shown). (d–g): mesh boundary edge intersection points on four representative axial planes in (c), illustrating sufficient mesh geometrical accuracy. The head was properly aligned in the magnetic resonance image (MRI) space to allow a direct correspondence between the anatomy-based coordinate system (XYZ in c) and that of the MRI (ijk in d; i, j, and k correspond to Y, –X, and Z, respectively). CSF, cerebrospinal fluid. Color image is available online at www.liebertpub.com/neu

OPEN IN VIEWER

Table 1.

Summary of Demographic Information for the Concussed Athletes Assessed in this Study and Their Biomechanical Input Parameters

						Peak lin. acc. (g)				Peak rot. acc. (rad/s2)
ID	Sport	School	Age	Height (cm)	Weight (kg)	X	Y	Z	Mag.	X	Y	Z	Mag.
3861	FT	CL	19	190.5	124.7	−33.6	−37.8	−48.5	70.1	1785	−1293	3858	4443
3863	FT	CL	18	177.8	90.7	−22.8	−73.6	−51.4	92.6	4060	−1873	2213	4989
3867	FT	CL	21	182.9	88.5	−63.9	0.7	−29.3	70.3	−100	−4654	769	4718
3871	HC	CL	20	172.7	72. 6	24.7	11.6	−14.0	30.7	−730	591	−1909	1307
3879	HC	CL	23	185.4	86.2	47.8	−21.0	−32.9	61.7	784	1427	5169	5419
3911	FT	CL	18	177.8	96.6	−39.3	−0.8	10.3	40.6	1	−1532	−1542	2174
3915	FT	CL	18	188.0	93.0	−101.3	−12.8	45.0	111.6	350	5140	3670	6325
9216	FT	HS	16	185.4	84.4	−56.7	−14.4	78.1	97.5	302	−4282	−1480	4540
9218	FT	HS	15	185.4	93.4	−37.6	−62.5	−10.8	73.8	3571	−1496	−3082	3571
9224	FT	HS	15	177.8	64.0	−57.3	−11.8	26.7	64.2	65	−4442	−3276	5520
9231	FT	HS	15	176.5	93.9	49.3	−6.6	20.5	53.8	34	552	6536	6560

Lin. acc., linear acceleration; rot. acc., rotational acceleration; Mag., magnitude; FT, football; CL, college; HC, ice-hockey; HS, high school.

All athletes were male except for 3871. ¹⁷

According to our previous work, ¹⁷ concussion was defined as an alteration in mental status reported or observed by the player or team's medical staff in this study. A certified athletic trainer or team physician made the diagnosis and treated all instances of concussion at their professional discretion. After concussion diagnosis, each team's medical staff provided the date and suspected time of injury as well as the approximate time of diagnosis. Anecdotal observations of the events surrounding injury (e.g., description of the impact, method of identifying the injury, and comments from coaches, trainers, teammates, or parents) were also provided. An impact recorded by the HIT System was retrospectively associated with each diagnosed concussion by cross-referencing all the information with the impact time stamp on the day of injury.

To minimize influence from any potential errors in measured impacts, each impact used for model simulation has been manually reviewed and found to be free of typical signs of elevated error (i.e., accelerometer signal noise, signal artifact from electromechanical malfunction, and rapid acceleration/deceleration indicating loss of head contact). The processed acceleration data were further verified against descriptions of general severity and location provided by sideline personnel as an additional qualitative check of accuracy. A total of 11 persons with concussion were evaluated.

Computation of the WM fiber strain

Abaqus/Explicit (Version 6.12) was used to simulate brain responses during head impact. The skull, scalp, and face were simplified as rigid bodies in this study because they do not influence brain mechanical responses when on-field acceleration is directly applied to the skull. ^13,16 The typical run time for a 40 msec impact was ∼50 min on a multicore Linux cluster using 8 CPUs (Intel Xeon X5560, 2.80 GHz, 126 GB memory).

The \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} and the strain tensor were extracted from the simulation results. To compute \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} , fiber orientation at each WM voxel was first obtained based on the primary eigenvector using ExploreDTI. ³⁰ The analysis was limited to the WM region by applying a binary image mask. Figure 2 illustrates a typical axial image with color-coded WM fiber orientations. The WM voxels and their fiber orientation vectors were transformed into the global coordinates for analysis.

OPEN IN VIEWER

FIG. 2.

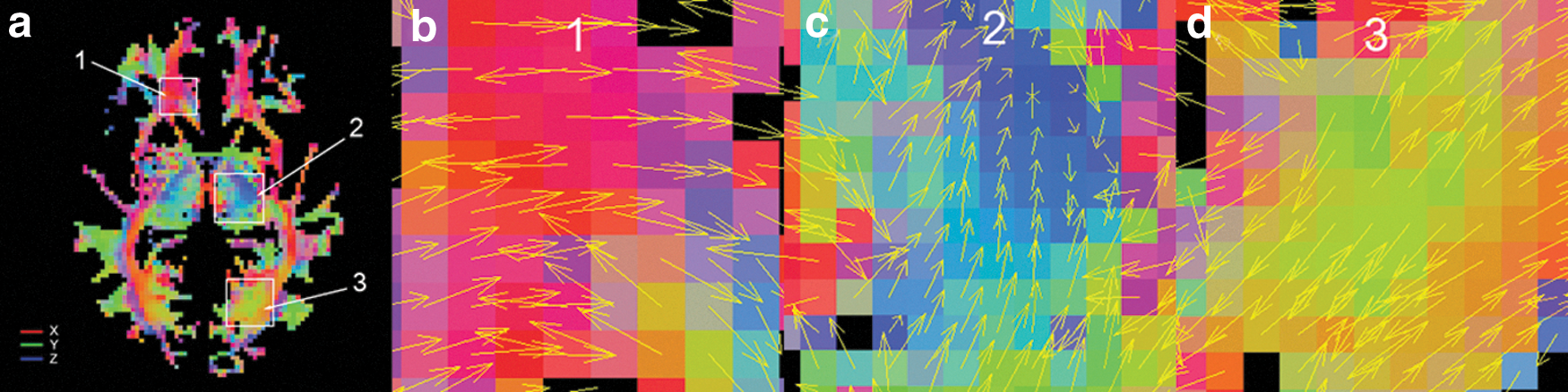

Color-coded white matter (WM) fiber orientation (a; pixel resolution of 2 mm×2 mm) and corresponding magnified views (b–d). The fiber orientation vectors were rigidly transformed from the diffusion tensor imaging image space into the global Cartesian coordinate system defined by the head anatomy before analysis. Color image is available online at www.liebertpub.com/neu

For each transformed voxel or sampling point originally in the DTI image space, a local coordinate system, xyz, was established with its origin identical to the transformed voxel location and the z-axis along the fiber orientation transformed from DTI image space into the coordinate system of the head FE model. The x- and y-axis were arbitrarily established, because they did not influence the strain component of interest. A spatial transformation from the global to the local coordinate systems, T, was determined via singular value decomposition. ⁵⁰ For each sampling point, the strain tensor corresponding to its closest element (typical distance of 1.7±0.6 mm relative to element centroid) was transformed to compute \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon^{ \prime}$$ \end{document} in the local coordinate system after tensor transformation: ⁵¹ \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland,xspace}\usepackage{amsmath,amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6} \begin{document} \begin{align*} \boldsymbol{\epsilon}{\prime} = { \bf T} \times \boldsymbol{\epsilon} \times { \bf T^{ \prime}}. \tag{3} \end{align*} \end{document}

The WM fiber strain or the stretch along the local z-axis was readily obtained: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n = \varepsilon_{33}^{ \prime}.$$ \end{document}

Results

Validation of the DHIM

The CSs for the DHIM and THUMS were compared in Table 5 (except for the parietal impact, C393-T4, not reported for THUMS). Combining the frontal (C383-T1) and occipital (C755-T2) cases, the average CS was 83.37 and 85.52 for DHIM and THUMS, respectively. The average CS for DHIM was 83.74 for all three cases combined. The average correlation coefficient between DHIM-estimated responses and the measurements was 0.84 (range 0.57–0.98) and 0.73 (range 0.33–0.96) for the frontal and occipital impacts, respectively. By comparison, it was 0.63 (range 0.32–0.84) and 0.78 (range 0.31–0.97) for the two cases reported previously. ⁴⁷ Model-estimated brain responses were also compared between the models and the measurements (Figs. 3 –5; results for the parietal impact only available for DHIM).

OPEN IN VIEWER

FIG. 3.

Comparison of model-estimated relative brain-skull displacements with those measured for selected neutral density target (NDT) locations (a1, a6, p1, and p6) in a frontal impact (C383-T1). DHIM, Dartmouth Head Injury Model; THUMS, Total Human Model for Safety.

OPEN IN VIEWER

FIG. 4.

Comparison of model-estimated relative brain-skull displacements with those measured for selected neutral density target (NDT) locations (a1, a5, p1, and p5) in an occipital impact (C755-T2). DHIM, Dartmouth Head Injury Model; THUMS, Total Human Model for Safety.

OPEN IN VIEWER

FIG. 5.

Comparison of the DHIM-estimated relative brain-skull displacements with those measured for selected neutral density target (NDT) locations (4 and 11) in a parietal impact (C394-T4). DHIM, Dartmouth Head Injury Model; THUMS, Total Human Model for Safety.

OPEN IN VIEWER

Table 5.

Summary of Model Validation Performances of the Dartmouth Head Injury Model and Total Human Model for Safety Against Brain-Skull Relative Displacements Measured from Representative Cadaveric Head Impacts

	CSN-phase		CSN-amp		CSN-shape		Average
	DHIM	THUMS	DHIM	THUMS	DHIM	THUMS	DHIM	THUMS
C383-T1
NDT_a1_x	98.97	91.81	69.26	68.90	89.48	81.84	85.90	80.85
NDT_a1_z	76.55	94.40	99.37	99.96	53.35	65.88	76.42	86.75
NDT_a6_x	99.29	83.48	96.39	83.53	81.17	84.46	92.28	83.82
NDT_a6_z	82.27	69.32	77.86	91.58	69.03	60.58	76.39	73.83
NDT_p1_x	99.42	99.95	63.60	82.70	94.37	82.33	85.60	88.33
NDT_p1_z	99.61	88.67	84.56	91.41	37.13	47.26	73.77	75.78
NDT_p6_x	99.58	99.80	86.84	96.41	93.09	82.21	93.17	92.80
NDT_p6_z	99.40	99.68	99.43	97.96	91.09	82.73	96.64	93.46
C755-T2
NDT_a1_x	98.66	99.64	96.11	97.18	82.77	86.77	92.52	94.53
NDT_a1_z	99.04	0	51.03	99.25	59.22	89.75	69.77	63.00
NDT_a5_x	79.11	99.04	94.10	82.73	99.86	83.34	91.02	88.37
NDT_a5_z	87.26	96.51	99.67	99.23	29.51	68.89	72.15	88.21
NDT_p1_x	99.48	94.60	99.84	97.47	81.57	96.29	93.63	96.12
NDT_p1_z	97.25	97.37	44.58	99.14	79.49	80.47	73.77	92.33
NDT_p5_x	64.34	71.71	97.43	83.32	48.33	72.17	69.91	75.74
NDT_p5_z	92.27	99.60	99.68	97.15	79.87	86.50	90.61	94.42
C393-T4
NDT_4_y	99.06	N/A	87.86	N/A	92.41	N/A	93.11	N/A
NDT_4_z	99.88		83.90		28.12		70.63
NDT_11_y	99.93		79.12		93.64		90.90
NDT_11_z	95.45		88.81		74.88		86.38
Average	93.34	86.60	84.97	91.75	72.92	78.22	83.74	85.52

DHIM, Dartmouth Head Injury Model; THUMS, Total Human Model for Safety; NDT, neutral density target.

The area fractions of radial-circumferential strain exceeding three threshold levels obtained from the simulation were compared with the experimental counterparts on an axial plane 2 cm above the reference plane for the selected subject (Fig. 6). ⁴⁸ The average CS was 89.83 and the average correlation coefficient was 0.71.

OPEN IN VIEWER

FIG. 6.

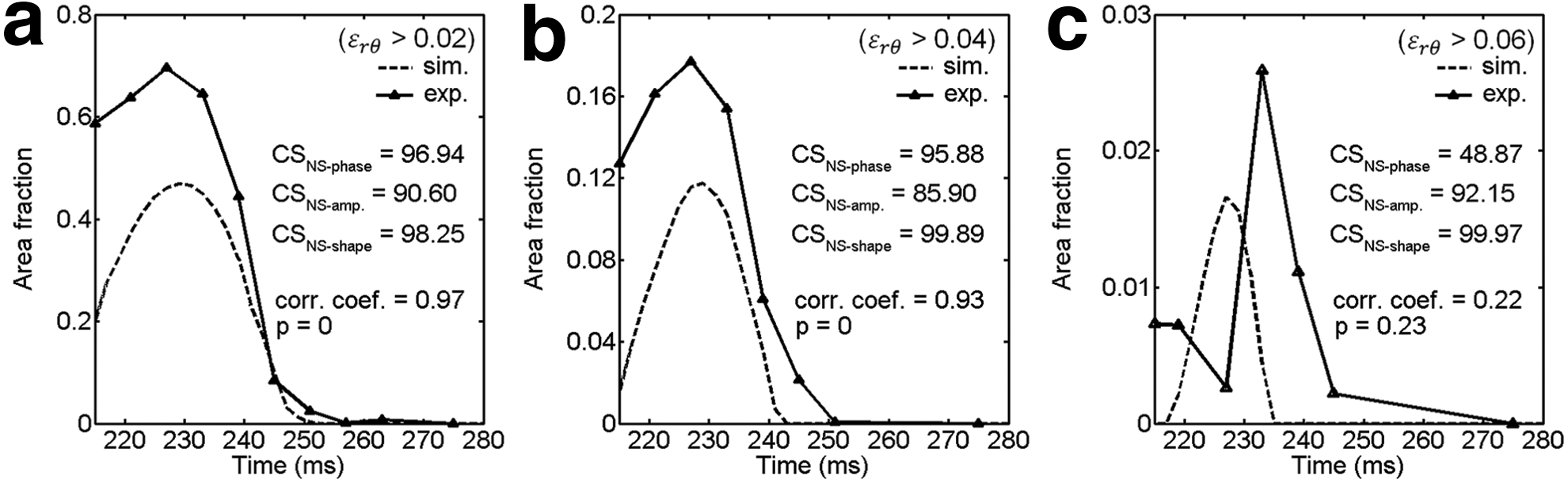

Area fractions of radial-circumferential strain ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{r \theta}$$ \end{document} ) exceeding three threshold levels on a plane 2 cm above the reference plane for Subject 1 in Sabet and associates. ⁴⁸ CS, correlation score.

Accuracy of subject-specific head models

Similarly, mesh accuracy for the subject-specific models was measured by the average distances from the brain mesh outer boundary nodes relative to the segmented brain surface generated from MRI_sub. For all the 11 head models (including the DHIM), the average distance was 2.0±0.9 mm. Brain mesh boundary intersection points on a representative axial image plane are shown for four subjects (Fig. 7), demonstrating good alignment of brain anatomies between FE models and MRI.

OPEN IN VIEWER

FIG. 7.

Brain mesh outer boundary intersection points overlaid on a representative axial magnetic resonance imaging (MRI) for four subjects (a–d). The apparent oblique head orientations (in a, b, and d) and anatomical left-right asymmetry (in b) indicate significant head tilting in the MRI. An additional rigid transformation was applied to align each subject-specific model with the Dartmouth Head Injury Model before simulation. Color image is available online at www.liebertpub.com/neu

Comparison of \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document}

For each subject, the \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} (i.e., the accumulated peak \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} and peak \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} , respectively) were obtained for all sampling points to construct strain images (Fig. 8). Substantial differences existed between the two strains in terms of spatial distribution and extent of WM regions estimated to be exposed to high strains. Because \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} is the upper bound of any normal strain component, including \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} , WM regions with high strains estimated from \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} were much larger than the \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} counterparts for any threshold. This was more evident when comparing the WM volume fractions as a function of the threshold. At each threshold, the WM volume fraction for \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} was substantially smaller than that of \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} .

OPEN IN VIEWER

FIG. 8.

Comparisons of \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} for selected athletes (two FT CL [3863 and 3915]), one female HC CL [3871], and two FT HS [9218 and 9231]; covering the lowest [3871] and highest [9231] peak rot. acc.; see Table 1). The color bar and white matter (WM) volume fractions were truncated at the threshold level of 0.18 and 0.28, respectively, to improve visualization. FT CL, football college; FT HS, football high school.

The time history curves of \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} averaged for the entire WM are shown for two representative cases in Figure 8 along with the corresponding linear and rotational acceleration profiles used to drive the brain responses (Fig. 9). The peak responses in both strain measures lagged behind the peak rotational acceleration for both cases, as expected. Although \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} was positive throughout the simulation by definition, a negative peak in \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} was apparent for 9231 indicating a compression-dominated response at this time (although tension could still occur), which was lacking or less evident for 9218.

OPEN IN VIEWER

FIG. 9.

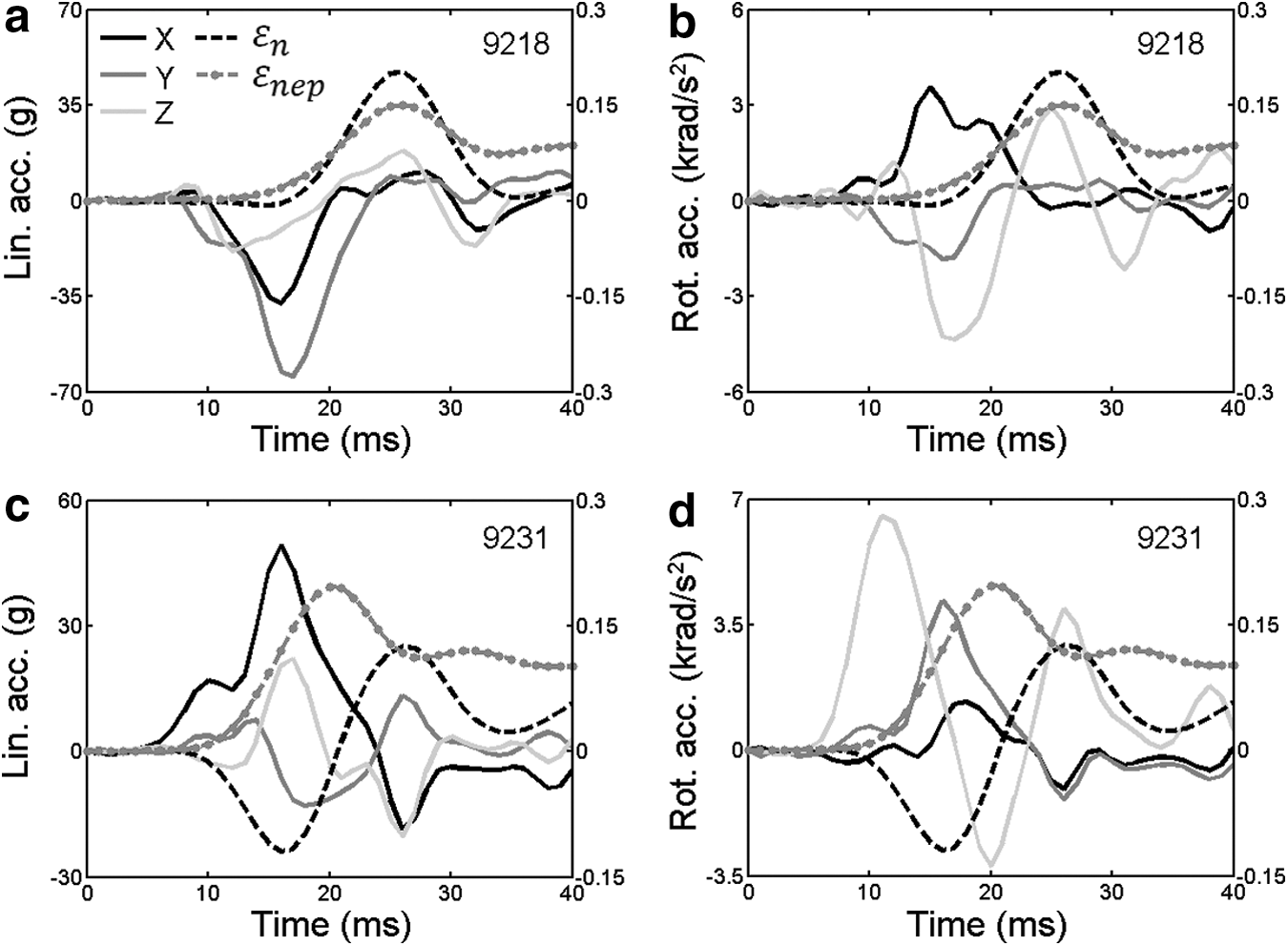

Spatially averaged (for the entire white matter), time-varying \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} for two selected cases along with the corresponding linear (a, c) and rotational (b, d) acceleration (lin. acc., rot. acc.) profiles. To improve visualization, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} was multiplied by 10.

For the thresholds selected, the WM volume fractions for \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} differed by approximately 5- or 10-fold for lower (e.g., 0.09 and 0.13) or higher \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh}$$ \end{document} (e.g., 0.18 and 0.28; Table 6). The WM volume fractions given by the two strain measures were significantly correlated (correlation coefficient range 0.81–0.99; P<0.05). Significant correlations also existed between the Dice coefficients and the two corresponding strain measures (correlation coefficient range 0.74–0.99; P<0.05), except for the highest threshold ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh} = 0.28$$ \end{document} . In addition, significant correlations existed between the WM volume fractions (regardless of the strain measure), the Dice coefficient, and the rotational acceleration magnitudes (correlation coefficient range 0.64–0.76; P<0.05), again except for the highest threshold. Their correlation significance with respect to the linear acceleration magnitudes was not consistent, however.

OPEN IN VIEWER

Table 6.

Summary of White Matter Volume Fractions in Percentages When \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} or \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} Exceeded A Range of Thresholds for the 11 Concussed Athletes and Their Corresponding Dice Coefficients

\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh}$$ \end{document}	0.09			0.13			0.18			0.28
ID	\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document}	\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document}	d	\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document}	\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document}	d	\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document}	\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document}	d	\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document}	\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document}	d
3861	15.6	85.2	0.3	6.1	54.8	0.19	2.0	17.2	0.2	0.003	0.05	0.13
3863	12.4	88.3	0.24	5.1	62.9	0.15	1.9	26.3	0.13	0.006	0.9	0.007
3867	18.2	90.2	0.33	6.4	66.6	0.17	0.9	20.8	0.07	0.002	0.2	0.32
3871	3.1	34.0	0.15	0.9	11.2	0.14	0.1	1.7	0.11	0.00	0.002	0.00
3879	23.1	89.0	0.41	0.9	61.4	0.25	2.6	23.7	0.19	0.02	1.0	0.039
3911	2.8	30.5	0.16	0.3	4.34	0.12	0.002	0.1	0.032	0.00	8E-4	0.00
3915	39.4	98.5	0.57	22.3	93.0	0.39	10.2	68.2	0.26	1.45	16.3	0.16
9216	23.8	96.8	0.39	11.9	88.0	0.24	6.0	61.0	0.18	0.9	10.8	0.15
9218	21.0	94.0	0.36	8.7	75.6	0.2	2.0	35.9	0.1	0.07	3.4	0.04
9224	7.0	61.0	0.2	2.2	26.1	0.15	0.2	3.43	0.1	0.00	0.002	0.00
9231	39.0	97.4	0.57	20.6	90.3	0.37	8.9	69.9	0.22	1.73	18.0	0.17
Avg.	18.7±12.6	78.6±25.1	0.33±0.15	8.5±7.3	57.7±31.1	0.22±0.09	3.2±3.6	29.8±26.0	0.14±0.07	0.4±0.7	4.6±7.0	0.13±0.10

d, Dice coefficient.

Average values (±standard deviation) for all athletes are also shown.

Discussion

Based on 11 athletes with a clinical diagnosis of concussion, we found significant correlations between the WM volume fractions determined by the fiber strain ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} ) and maximum principal strain ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} ). Significant correlations also existed between the WM volume fractions (regardless of the strain measure), their Dice coefficients, and the rotational acceleration magnitudes (except at the highest threshold, likely because no suprathreshold WM regions existed for \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} at this level). There were substantial differences between \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} in both spatial distribution and extent of WM regions estimated to be exposed to high strains, however. For all the athletes with concussion, high \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} (e.g., above \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh}$$ \end{document} of 0.18) appeared isolated and heterogeneous and occurred mostly in peripheral subcortical WM areas and near grey matter/WM interfaces (Fig. 8); this is consistent with typical patterns and common locations of WM disruptions in DAI. ⁵⁴

These observations were similar to those previously reported that used 2D FE models to simulate one reconstructed concussion case. ²³ The Dice coefficients for WM regions identified by the two strain measures ranged from 0.13 ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh} = 0.28$$ \end{document} ) to 0.33 ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh} = 0.09$$ \end{document} ), suggesting a rather poor spatial correspondence for them to identify common sites of potential DAI, especially at higher thresholds. This finding indicates that the two strain measures are not likely to predict the same locations for injury for a given simulation, which is similar to an earlier report in which \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} for two cases (one mild and one severe DAI) were found to occur within the WM and along main axonal fibers whereas \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} mostly occurred in the brain periphery. ²⁰

More importantly, the spatial distribution and extent of WM volume fraction on average based on \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} and the optimal threshold (average of 3.2±3.6% and range 0.002–10.2%; Table 6) were similar to the pattern and extent of significant longitudinal (pre- vs. 72 h post-concussion) changes in fractional anisotropy (FA) and mean diffusivity (MD) for one concussed athlete in a separate independent study (3.2% and 3.44% of WM voxels for FA and MD, respectively). ⁵⁵ In contrast, the WM volume fraction based on \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} was approximately 5–10 times higher (average of 29.8±26.0% and range 1.7–69.9% at \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh}$$ \end{document} of 0.18; Table 6). These substantial differences between the orientation-dependent \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} and the isotropic \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}$$ \end{document} indicate the potential significance of WM fiber orientation in microstructural axonal loading environment during external head impact, and suggest the significance of incorporating WM microstructural anisotropy in future brain injury studies.

Apparently, accuracy in model simulation is critical. To ensure sufficient fidelity in DHIM, we have presented important details on methods to create and validate the model, to efficiently generate multiple subject-specific head models, and to incorporate WM fiber orientations derived from neuroimaging into model-estimated mechanical responses. The mesh quality of the DHIM was sufficiently high based on a variety of mesh element quality measures (Table 5), with the majority of distorted elements in the brainstem far away from the WM in the cerebrum. Its geometrical accuracy in terms of average node-to-surface distance between brain mesh outer boundary nodes and the segmented brain surface from MRI was 1.5 mm, comparable to the diagonal length of a voxel (1.73 mm).

Because the subject-specific head models were generated via “mesh-matching” that maintains the same mesh topology, nearly identical mesh element qualities were retained. The average node-to-surface distance for all subject-specific head models was 2.0 mm, slightly degraded from that of the DHIM likely because of residual errors in image registrations at the boundary. The millimeter node-to-surface error, however, was notably larger than that of our previous head model where submillimeter accuracy was obtained. ⁵⁶ This was because the segmented brain surface was not directly used for block projection in this study but was parameterized to generate geometrical entities to aid the meshing instead.

Besides geometrical biofidelity, the DHIM was also successfully validated. Compared with relative brain-skull displacement data measured from three representative cadaveric head impacts (frontal, occipital, and parietal), validation of DHIM was categorized as “good” or nearly “excellent” according to CS and a fidelity rating previously adopted (average score of 83.74; cutoff CS for “excellent” validation is 86), which was comparable to the validation performance of THUMS (average score of 85.52).

On average, both DHIM and THUMS had an “excellent” validation in phase and a “good” validation in shape, while they had “good” and “excellent” validation in amplitude, respectively. Although THUMS had a slightly higher CS overall, the CS in one location was “unacceptable” (CS_N-phase of 0 for NDT_a1_z in C755-T2; Table 5 and Fig. 4), which did not occur to DHIM (lowest CS of 28.12 in shape for one location in C393-T4; Table 5). In addition, validation performance of DHIM was comparable with that reported in Kleiven (2006) for two cases in terms of average correlation coefficient (0.84 and 0.73 vs. 0.63 and 0.78 for the frontal and occipital impact, respectively). ⁴⁷

An overall “excellent” validation performance (average CS of 89.83; overall average correlation coefficient of 0.71, although with much higher [>0.93] and significant coefficients at the two lower threshold levels; Fig. 6) was also achieved when simulating brain strain responses in a live human brain compared with the measured counterparts in a mild head rotational acceleration experiment (∼250–300 rad/s²). ⁴⁸ Validating each subject-specific model was not necessary because each model would be scaled to match the reported cadaveric or live human head dimension and would result in nearly the same response relative to the scaled DHIM, because of their identical mesh topologies, material properties and loading conditions used.

Regardless, the “good” to “excellent” validation of DHIM for a range of resultant rotational acceleration magnitudes (∼250–300 rad/s² for a live volunteer, ∼1.9–2.3 krad/s² for cadaveric tests C755-T2 and C383-T1, and ∼11.9 krad/s² for C393-T4, respectively) and the high mesh quality and geometrical accuracy suggest sufficient fidelity in model simulation as well as accuracy in aligning simulation results with the corresponding neuroimaging.

While the group-wise results based on WM \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} were encouraging in this study, especially because of the consistency found with a separate longitudinal imaging study, ⁵⁵ several practical limitations must be recognized that are not necessarily specific to our current study but also represent challenges in investigating the mechanisms of sports-related concussion in the research field at present. First, although the HIT System has undergone extensive laboratory and field evaluations, ²⁸ it is still difficult to quantify errors on the field.

Previous laboratory tests have shown that measures of impact location and peak and resultant accelerations are typically robust for a distribution of impacts across a range of conditions ^{7,27,28,57,58} ; however, discrepancy for each impact could be higher because of a number of environmental and individual factors (e.g., head geometry, neck response, helmet fitting, etc.) that are typically unknown or cannot be readily obtained on the field. ²⁸ Regardless, additional precautions have been taken to minimize influence from potential errors in impact measurements, and it is unlikely that these errors would significantly affect the outcome on a group-basis in this study.

Nevertheless, because the WM volume fractions for \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} were significantly correlated to the peak rotational acceleration magnitude, their linear relationships can be readily established to estimate the group-wise relative sensitivities of the two strain measures. For example, with \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh}$$ \end{document} of 0.18, WM volume fractions for \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} were found to be \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$0.78 \times a_{rot}^p$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$7.0 \times a_{rot}^p$$ \end{document} , respectively (with zero intercept), where \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$a_{rot}^p$$ \end{document} is the peak magnitude of rotational acceleration in krad/s². Because of the linear relationships, doubling or halving \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$a_{rot}^p$$ \end{document} to account for possible under- or overestimation would also result in doubling or halving their WM volume fractions on average.

The WM volume fraction based on \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} seems to be significantly less sensitive to \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$a_{rot}^p$$ \end{document} than that based on \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} (approximately 9-fold difference) on a group-basis, however, although the sensitivity to head rotational direction was not considered here. The difference in head rotational direction may also explain why a compression-dominated \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} could occur in time for one case but not for the other (Fig. 9). Nonetheless, a more systematic investigation is warranted to further understand the relative sensitivities of the two strains to head impacts, which will be the subject of a future study.

Second, although material properties of the brain strongly influence model estimation, there is no consensus on what values to use, and there is wide variability even with respect to the grey matter vs. WM interregional relative stiffness. ³² Consequently, studies have used very different material properties of the brain (e.g., viscoelastic vs. hyperelastic ^{12,13,16,17,47} ; with either grey matter up to 43% stiffer than WM, ⁵⁹ or WM 25% stiffer than grey matter, ⁶⁰ by the same research group). While brain material properties may be age-dependent, ⁶¹ no data corresponding to the younger end of our participants (15–23 years old) exist. Because of these inconsistencies, it is perhaps difficult to assess the utility of incorporating material property anisotropy based on fibers derived from DTI, although a recent study does suggest its significance. ⁶² Given these considerations, we have chosen to model the brain as a homogeneous isotropic medium in this study.

Nevertheless, we have further conducted a simple parametric study to evaluate the sensitivity of the extent of WM regions exposed to high strains based on the two measures using case 3879 (selected because the WM volume fraction of 2.6% at \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{thresh} = 0.18$$ \end{document} was closest to the group-wise average at this threshold level; Table 6) by varying the brain material stiffness values to half or twice the baseline counterparts used in this study (i.e., corresponding to the “compliant” and “stiff” models used in Kleiven, ¹³ respectively). The WM volume fraction based on \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} changed to 4.3% and 1.1% (vs. 2.6%; 63.8% increase or 56.2% decrease, respectively), while that based on \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} changed to 30.6% and 15.7% (vs. 23.7%; 29.2% increase or 33.7% decrease, respectively). This finding suggests that the relative sensitivity of WM volume fractions based on the two strain measures with respect to brain material properties could be different and warrants further systematic investigations to establish a confidence interval of the results.

Finally, all athletes included in this study experienced multiple head impacts but only a single impact before the diagnosed concussion was modeled, which is a critical limitation not only for this study but also for current FE model-based brain injury studies in general that focus on single head impacts and do not consider the cumulative effects of repetitive head blows. In addition, there was a wide range of impact magnitudes (range 30.7–111.6 g and 1307–6560 rad/s² in peak linear and rotational acceleration magnitude, respectively; Table 1) in a small sample size (although notably larger than that in previous studies evaluating WM \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n$$ \end{document} ; e.g., two in Chatelin and colleagues ²⁰ and one in Wright and coworkers ²³ ).

The unmodeled exposure to repetitive subconcussive head impacts could also be an important contributor to an athlete's clinical presentation, ^8,9,63,64 which could be especially true for the athletes with very low impact severities (e.g., cases 3871 and 3911; Table 1), and will be the focus of future investigations when simulation of brain responses to longitudinal head impacts becomes feasible.

On the other hand, growing evidence indicates that athletes sustaining repetitive subconcussive impacts without a clinical diagnosis of concussion also experience measurable neurological alterations present on DTI (1–1.5% WM voxels with significant longitudinal changes) or fMRI. ^8,55,64 These findings suggest that a definitive clinical diagnosis of concussion (i.e., via an instrument) may become irrelevant when region-specific responses are to be directly correlated with corresponding changes in neuroimaging. ¹⁷

Regardless of all these practical challenges, however, the consistency found between our modeling results of \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} (as opposed to \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} ) for the group of athletes with concussion and the significant longitudinal changes in FA and MD for one athlete with concusion in a separate independent study does seem to suggest the potential of this line of research. ⁵⁵ Although uncertainties exist in both mechanical modeling and neuroimaging, information from one source is likely to reinforce interpretation of the other, thereby leading to a multifaceted understanding of the mechanisms of sports-related concussion.

There are a few other limitations to note as well. We have only evaluated strain measures to indicate the likelihood of brain injury but did not evaluate strain rate, stress, or pressure responses that have also been hypothesized to be potential injury predictors. ^12,13 The representative strain thresholds were based on morphological injury and electrophysiological impairment found in an animal study, which may not directly correspond to concussive symptoms in human athletes. We did not evaluate thresholds established from other real-world injury analyses (e.g., 0.21 in the corpus callosum or 0.26 in the grey matter, or 0.19 in grey matter), ^12,13 although these values were within the range evaluated, and we anticipate similar results to occur.

Given the substantial differences in \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_n^p$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes {10} {9} {7} {6} \begin{document}$$\varepsilon_{ep}^p$$ \end{document} and the potential significance of axonal anisotropic orientations in injury prediction, it is tempting to evaluate their utility in predicting DAI in different brain regions. ²³ Because the fiber orientation was effectively averaged across each voxel, however, the actual microstructural axonal stretching may not be accurately captured, especially when the DTI image resolution is relatively coarse (therefore, we have termed stretches along WM fibers as “fiber strain” in this study instead of “axonal strain,” ^{18 –23} because a typical DTI voxel (here, 2 mm×2 mm×2 mm) is orders of magnitude larger in physical dimension than “axons”). The voxel-based approach is also unable to resolve crossing fibers and other complex fiber configurations (occurring in as much as 63–90% of the human brain WM), ⁶⁵ which could further degrade the accuracy in fiber strain evaluations. It is possible that a tract-based approach that evaluates fiber orientation along individual fibers instead of voxels may be able to address these limitations.

In addition, evaluating mechanical responses along prominent fiber tracts could also provide an assessment of the likelihood of DAI for functionally important neural pathways that can be directly related to specific clinical symptoms, which are not available with the voxel-based approach. These investigations will be the subjects of future publications.

Conclusion

We have evaluated and compared WM fiber strain and maximum principal strain on a group of 11 athletes with concussion in contact sports. Substantial differences exist between the two strain measures because of WM anisotropy in fiber orientation in both distribution (Dice coefficient of 0.13–0.33) and extent (∼5–10-fold differences) of WM regions estimated to be exposed to high strains using a range of axonal injury thresholds derived from an in vivo animal study. The WM regions with high fiber strains appear to be isolated and heterogeneous, and seem to occur mainly in the peripheral subcortical area and near grey matter/WM interfaces.

To ensure sufficient fidelity in model simulation, we verified that all subject-specific head FE models were geometrically accurate with a node-to-surface distance error of 1.5–2.0 mm, comparable to the diagonal length of an MRI voxel. Validation of the DHIM against relative brain-skull displacements was “good” or nearly “excellent,” which was comparable to the previously validated THUMS and that in Kleiven. ^45,47

An “excellent” validation was also achieved when simulating brain strain responses in a live human volunteer. ⁴⁸ With the optimal injury threshold, the average group-wise WM volume fraction exposed to high fiber strains for all subjects was 3.2±3.6%, similar to the percentage of WM voxels with significant longitudinal changes in DTI parameters for one athlete with concussion in a separate study (3.2% and 3.44% of WM voxels for FA and MD, respectively). ⁵⁵

These efforts and results set the stage for future investigations as to whether incorporating WM fiber orientation in brain mechanical response variables improves the sensitivity and specificity in assessing the risk of concussion and in discriminating between injured and uninjured athletes in contact sports.
