Diffusion Tensor Imaging Parameters in Mild Traumatic Brain Injury and Its Correlation with Early Neuropsychological Impairment: A Longitudinal Study

Abstract

We explored the prognostic value of diffusion tensor imaging (DTI) parameters of selected white matter (WM) tracts in predicting neuropsychological outcome, both at baseline and 6 months later, among well-characterized patients diagnosed with mild traumatic brain injury (mTBI). Sixty-one patients with mTBI (mean age=27.08; standard deviation [SD], 8.55) underwent scanning at an average of 10 h (SD, 4.26) post-trauma along with assessment of their neuropsychological performance at an average of 4.35 h (SD, 7.08) upon full Glasgow Coma Scale recovery. Results were then compared to 19 healthy control participants (mean age=29.05; SD, 5.84), both in the acute stage and 6 months post-trauma. DTI and neuropsychological measures between acute and chronic phases were compared, and significant differences emerged. Specifically, chronic-phase fractional anisotropy and radial diffusivity values showed significant group differences in the corona radiata, anterior limb of internal capsule, cingulum, superior longitudinal fasciculus, optic radiation, and genu of corpus callosum. Findings also demonstrated associations between DTI indices and neuropsychological outcome across two time points. Our results provide new evidence for the use of DTI as an imaging biomarker and indicator of WM damage occurring in the context of mTBI, and they underscore the dynamic nature of brain injury and possible biological basis of chronic neurocognitive alterations.

Introduction

Mild traumatic brain injury (mTBI) constitutes approximately 75–85% of all brain trauma cases.¹ The long-term outcome of mTBI, however, is not well characterized owing to its considerable heterogeneity. One difficulty in accurately diagnosing mild neurotrauma relates to the frequent lack of radiological evidence to support the diagnosis, which often leads clinicians to diagnose mTBI based on clinical or cognitive symptoms known to overlap with other clinical conditions² (e.g., hypoglycemic or vasovagal attacks and certain subtypes of mood disorders). Among the neuropsychological alterations that are commonly reported in patients with mTBI include impairment in attention, memory, psychomotor speed, and executive functions.

Mild neurotrauma is associated with traumatic axonal injury (TAI), which is described as a progressive event gradually evolving from focal axonal alteration to delayed axonal disconnection.³ Importantly, TAI is thought to represent one of the more common injuries observed in the aftermath of mTBI.² These subtle alterations of brain tracts or fiber pathways have been visualized using diffusion tensor imaging (DTI), which enables better visualization of the extent of early microstructural changes post-mTBI.^2,4
–6 A variety of metrics can be generated through DTI scans, including fractional anisotrophy (FA), which is a per-voxel indication of the directionality of underlying water diffusion. FA values range from 0 to 1, where FA=0 would indicate nondirectional diffusion (completely isotropic) and FA=1 would indicate a single direction of diffusion where the water molecules are restricted to diffusion only along a single axis (completely anisotropic).^2,7 Reduced FA in the white matter (WM) is believed to reflect a loss of integrity, indicating possible damage to myelin or the axon membrane, reduced axonal packing, and/or decreased axonal coherence.^2,8 Mean diffusivity (MD), on the other hand, describes the per-voxel average magnitude of water diffusion, regardless of diffusion direction. Differences in MD are thought to reflect overall restrictions to the movement of water diffusion, examples being the variations within the intra- and extracellular space.⁹ Radial diffusivity (RD) is defined as the diffusion of water perpendicular to WM fibers,¹⁰ which increases in response to demyelination¹¹ and dysmyelination.¹² Changes in axonal diameter or density can also influence changes observed in RD.¹³ FA and MD values are usually inversely correlated with one another, given that myelination, which enforces directionality (thus increasing FA), also represents a restriction to overall movement (thus lowering MD).^14,15 The demyelinating changes, as evinced by the changing RD, however, are not expected to occur in the first week post-mTBI, despite the presence of axonal swelling and synaptic disruption.¹⁶

In mTBI, widespread changes in FA are frequently observed, especially in the frontal, mid-line, and temporal regions. Studies have shown that these changes can be detected as early as a few days to weeks after neurotrauma, as well as months or even a year after the initial insult.^14,15,17 The shearing forces of trauma can breach the vascular permeability of vessels (hence rupturing them), sever fibers, and lyse cells, which deregulates the normal homeostasis of the blood–brain barrier, and usually manifests as cerebral vasogenic and cytotoxic edema.¹⁸ Evaluation of DTI indices enables the differentiation of these edemas,¹⁹ which is crucial to predicting long-term neurological outcomes, including neuropsychological performance (NP). Vasogenic edema commonly observed in mTBI is characterized by reduced FA, increased MD, and RD and is considered reversible. In contrast, cytotoxic edema, characterized by an increased FA, reduced MD, and RD, is considered irreversible and therefore confers a poor prognosis.^2,19,20

To date, there are few studies that have been conducted longitudinally with acute mTBI samples to help elucidate the evolution of these DTI-based changes in mTBI over time.^21

–25 Unfortunately, existing studies have yielded generally equivocal findings.^{2,15,26

–29} For example, some studies have reported decreased integrity of several tracts at different time intervals (acute and chronic),^30

–35 although others report elevated FA and reduced MD in the acute stage.^16,21,36 Given that these findings may be inconsistent owing to various methodological differences, including patient recruitment, imaging protocol differences, varying intervals studied, sample-size differences, and heterogeneity of injury severities, we aimed to clarify these longitudinal DTI changes using a whole-brain WM measurement strategy with tract-based spatial statistics (TBSS)³⁷ in mTBI and control groups. From the TBSS WM skeleton of comparison across subjects, we identified significant tract changes and correlated these regions with neuropsychological performances, both at admission and 6 months postinjury, in patients with mTBI. We also examined the relationship between anatomical correlates of tracts and cognition in an effort to improve prognostic values of DTI parameters in mTBI care.

Methods

Participants

Sixty-one patients with mTBI who presented to the emergency department (ED) of University of Malaya Medical Center (Kuala Lumpur, Malaysia) for a consecutive 11-month period between April 1, 2013 and March 1, 2014 were prospectively recruited for this study. Patients were selected based on the inclusion and exclusion criteria as presented in Figure 1. For the purposes of this study, mTBI was defined as acute TBI, consisting of nonpenetrating head trauma resulting in one or more of the following: confusion/disorientation; loss of consciousness (LOC) less than 30 min; post-traumatic amnesia (PTA; less than 24 h in duration) and/or transient focal neurological signs or seizures; and Glasgow Coma Scale (GCS) of 13–15 upon acute clinical evaluation. The flow of the study is presented in Figure 2. Nineteen healthy age-matched control participants were also recruited for this study.

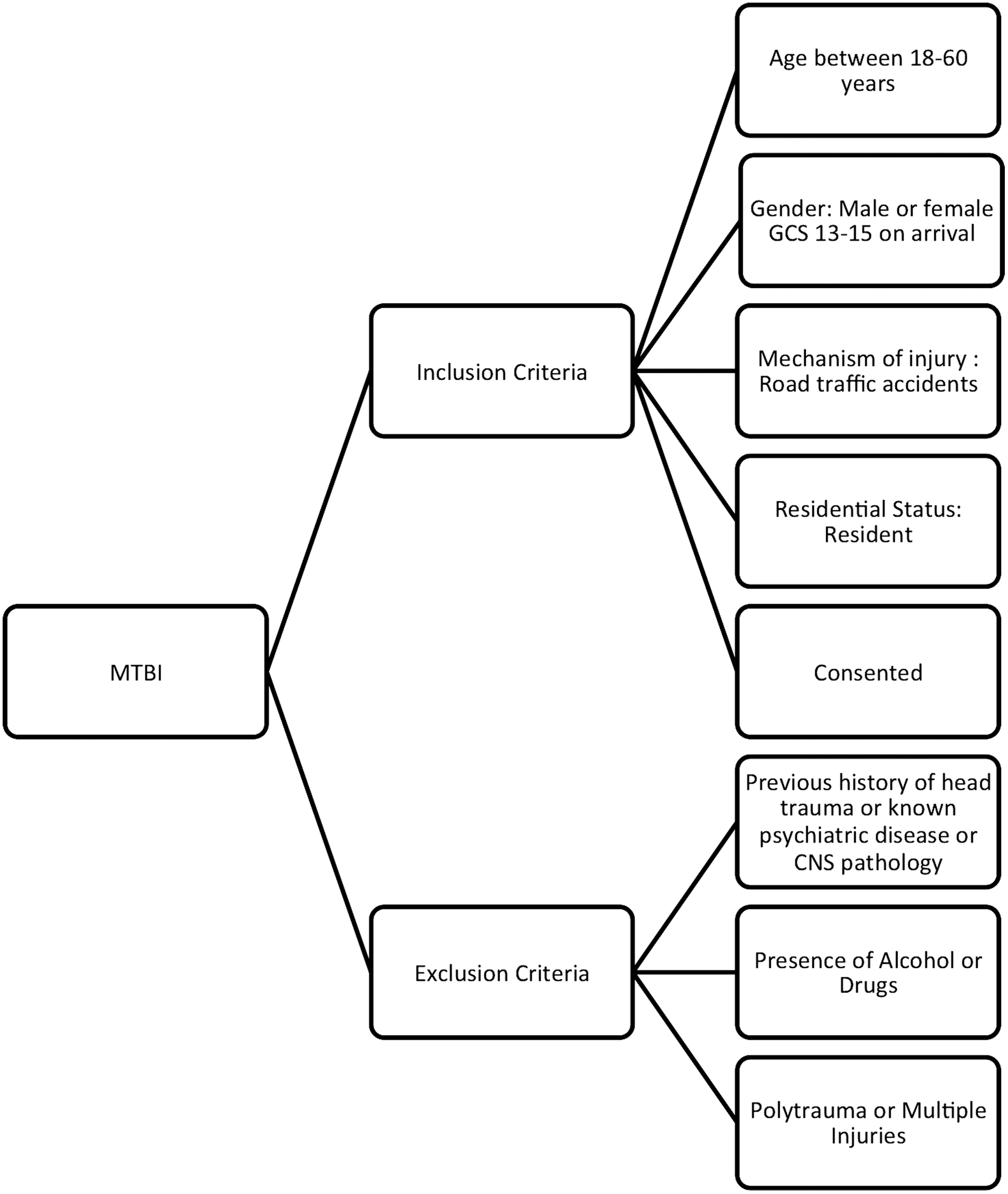

FIG. 1.

Inclusion and exclusion criteria for patients with mTBI. mTBI, mild traumatic brain injury; GCS, Glasgow Coma Scale; CNS, central nervous system.

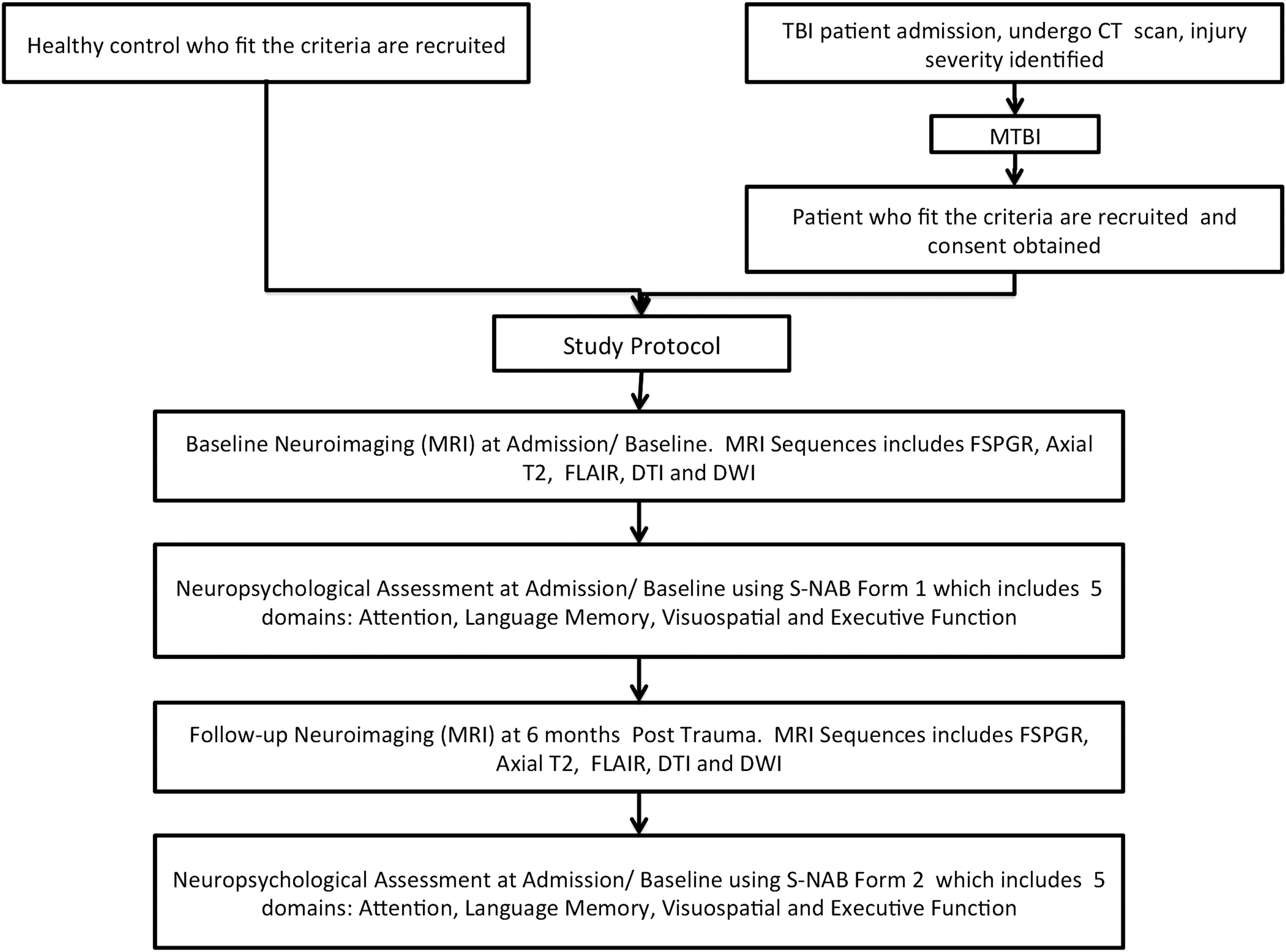

FIG. 2.

Complete flowchart of the study protocols, patient and healthy control recruitment, and neuroimaging and neuropsychological assessments. TBI, traumatic brain injury; CT, computed tomography; mTBI, mild traumatic brain injury; MRI, magnetic resonance imaging; FLAIR, fluid-attentuated inversion recovery; DTI, diffusion tensor imaging; DWI, diffusion-weighted imaging; FSPGR, fast spoiled gradient echo; S-NAB, Neuropsychological Assessment Battery-Screening.

All subjects meeting criteria for the study underwent computed tomography (CT) scans of the brain in the ED using a Siemens Somatom Sensation 16 CT scanner (Siemens AG, Berlin, Germany). Cross-sectional images of the brain were obtained craniocaudally from the base of skull to vertex. Scan parameters used were 120 kVp, 300 mAs, and collimation of 16×0.75 mm with standard brain and bone windowing. A neuroradiologist (N.R.) and a neurosurgeon (V.N.) who were blinded to the clinical diagnosis independently evaluated the images for each patient, and only patients who were deemed not requiring surgical intervention were included in this study. All subjects gave informed consent as required by the institutional research ethics committee and the hospital ethics committee (UM/EC Ref: 947.15)

Study protocols

Magnetic resonance imaging (MRI) and neuropsychological assessments were performed at admission and repeated again at 6 months post-trauma (Fig. 2). Healthy control participants were subjected to the same protocols as patients upon admission (i.e., MRI and neuropsychological assessment).

Magnetic resonance imaging data acquisition

All consented subjects were imaged on a 3T MRI scanner (Signa HDx; General Electric, Harvey, IL) using an eight-channel head coil. The imaging protocol included: 1) axial T1-weighted three-dimensional fast spoiled gradient echo (FSPGR; repetition time [TR]=minimum 6.7 ms; echo time [TE]=minimum 1.9 ms; field of view [FOV]=31 mm; matrix=256×256; slice thickness=1.2 mm; slice overlap=0.6 mm with image scan time of 3 min 48 sec); 2) axial T2-weighted fast spin echo; TR=4240 ms; TE=102 ms; FOV=24 mm; matrix=512×384; thickness=5 mm; spacing=1.5 mm; and image scan time of 2 min 30 sec; and 3) coronal gradient echo (TR=655 ms; TE=20 ms; flip angle=15 degrees; bandwidth=31.25; FOV=24 cm; matrix=320×256; thickness=5.0 m; spacing=1.5 mm; and image scan time of 2 min 7 sec. The DTI sequence was obtained using these parameters: TR=13,000 ms; TE=81.2 ms; FOV=24 mm; matrix=128×128; slice thickness=3.0 mm; 32 directions; diffusion-weighted factor, b=700 s/mm²; and image scan time of 7 min 22 sec.

Magnetic resonance imaging analysis

Tract-based spatial statistics

Voxel-wise statistical analysis of the diffusion-weighted data was carried out using TBSS,³⁷ part of the FSL (v5.0.6; University of Oxford, Oxford UK) software package. Initial preprocessing involved corrections for head movement and eddy currents, brain tissue extraction, and fitting of the diffusion tensor model. These were carried out using the FSL eddy_correct, bet, and dtifit tools, respectively. The standard TBSS analysis workflow was followed (V 1.2; http://fsl.fmrib.ox.ac.uk/fsl/fslwiki/TBSS/UserGuide), with the following specific options: nonlinear registration to the FMRIB58_FA standard-space image; generation of a study-specific mean FA image for skeletonization; and a 0.2 threshold for the mean FA skeleton.

The voxel-wise statistical analysis was carried out using the FSL randomize tool. A two-group unpaired t-test design was used for comparing admission scans of control and mTBI subjects. A paired t-test design was used for comparing admission and follow-up scans of mTBI subjects. These statistical analyses were carried out separately for FA, MD, and RD values. In all cases, cluster-based thresholding was used, and 0.05 was adopted as the threshold for significant clusters.

Region of interest

In addition, we obtained mean FA, MD, and RD for all tracts identified on TBSS using region of interest (ROI) analysis. The image-processing pipeline consisted of preprocessing, image registration, and analysis, utilizing the FSL (v5.0.6; University of Oxford) and AFNI (v2011_12_21_1014; National Institute of Mental Health, Bethesda, MD) software packages. Initial preprocessing involved corrections for head movement and eddy currents, brain tissue extraction, and fitting of the diffusion tensor model. These were carried out using the FSL eddy_correct, bet, and dtifit tools, respectively. For image registration, the FSL tool fnirt was used to carry out nonlinear spatial registration of each subject to the FMRIB58_FA standard-space image, using the built-in FA_2_FMRIB58_1mm config file. This was assumed to be spatially compatible with the International Consortium of Brain Mapping (ICBM) DTI-81 atlas. Postregistration, composite axial slice images of the underlying FA and ICBM atlas tract outlines were generated at z=42 and z=82 for each subject. An experienced neuroradiologist (N.R.) verified the overall registration quality of these images. Finally, the AFNI 3dROIstats tool was used to map the predefined ROIs to each individual subject and calculate the median FA, MD, and RD values for each tract.

Neuropsychological assessment

All subjects underwent cognitive assessment using the Screening Module of the Neuropsychological Assessment Battery (S-NAB Form 1), which was performed by the neuropsychologist once the patient had recovered to a GCS score of 15, which occurred with an average turnaround time of 4.35 h (SD, 7.08) between time of trauma and full GCS recovery. The S-NAB comprises a comprehensive set of neuropsychological tests (refer to Table 1), with demographically corrected norms for adults between the ages of 18 and 97 years, assessing orientation and five cognitive domains (i.e., attention, memory, language, and visuospatial and executive functions). This battery consists of 12 individual tests across the five domains aforementioned. From these 12 tests, a total of 16 T scores are derived, 14 of which contribute toward five separate Screening Index (domain-specific) scores and one Total Screening Index score.³⁸ The same subtests were repeated at 6 months by the same neuropsychologist using the S-NAB Form 2 in order to minimize practice effects.

Table 1.

List of S-NAB Module Subtests and Areas of Cognitive Domains Assessed

Neuropsychological assessment (S-NAB Form 1 and Form 2)
List of S-NAB module tests	Domains assessed
Screening Orientation	Orientation
Screening Digits Forward	Attention
Screening Digits Backward	Attention/Working Memory
Screening Numbering and Letters	Attention
Screening Shape Learning Immediate Recognition	Memory
Screening Story Immediate Recall	Memory
Screening Delayed Shape Learning Delayed Recognition	Memory
Screening Story Learning Delayed Recall	Memory
Screening Naming	Language
Screening Auditory Comprehension (three subtests)	Language
Screening Design Construction	Visuospatial
Screening Visual Discrimination	Visuospatial
Screening Word Generation	Executive Function/Verbal Fluency
Mazes	Executive Function

S-NAB, Neuropsychological Assessment Battery-Screening.

Statistical analysis

An independent-samples t-test was used to establish whether mean values of FA, MD, and RD of selected WM tracts were significantly different between healthy control and mTBI groups during the acute phase (or baseline exam). The same test was also used to investigate whether patients (at admission) performed differently from healthy control participants on the neuropsychological assessment. A paired t-test was used thereafter to ascertain how the WM tracts had changed over time. TBSS skelotonized image of the significant changes observed over time were processed to better visualize any signifcant changes. Spearman's rho correlation coefficient was used to examine the association between WM ROIs (nine selected tracts) and NP over the different phases. Last, a simple frequency analysis of neuropsychological performance at 6 months post-trauma was performed to determine the types of changes observed in neuropsychological status longitudinally (improved, unchanged, or worsened).

Results

Demographic and clinical data

The demographic characteristics of study patients and healthy controls are presented in Table 2. The TBI group ranged in age between 18 and 53 years (mean, 27.08; standard deviation [SD], 8.55), was predominantly male (88.5%), and had a mean age of 29.05 (SD, 5.84). There was no significant difference in the mean age of healthy controls versus the TBI patient group (t ₍₇₈₎=0.937; p=0.256). However, the mean years of education differed significantly between groups (TBI, 11.52 [SD, 1.94] vs. controls: 15.95 [SD, 2.01] years). Admission GCS scores of patients were within the range of 13–15 (mean=14.44; SD, 0.74). Seventy-seven percent of patients had experienced transient LOC whereas 73.8% reported PTA. Average time to scan of patients during the acute phase was 10.01 h (SD, 4.26), whereas the chronic phase scan was performed at 6 months postinjury (mean=6.05; SD, 0.12). Of the 61 patients, 33 underwent the chronic phase repeat scans (3 patients were later dropped during the postscan processing because their scans had major artifacts in echo planar imaging). All healthy controls had no significant neurological findings.

Table 2.

Demographics and Clinical Data of Patients and Healthy Controls at Admission/Baseline

	TBI (n=61)				Healthy control (n=19)
	Median	Mean	SD	Range	Median	Mean	SD	Range
Age	24.0	27.08	8.55	18–53	29.0	29.05	5.83	18–43
Education (years)	11.0	11.52	1.94	6–19	11.0	15.95	2.01	11–20
Time to scan (hours/months)	9.0	10.01	4.26	0–23	n/a	n/a	n/a	n/a
GCS	15.0	14.44	0.74	13–15	15	15	0	0
Time to full GCS (hours)	0.5	4.35	7.08	0–23	n/a	n/a	n/a	n/a
LOC (%)	77.0				n/a
PTA (%)	73.8				n/a
Gender (% male)	88.5				78.9
Ethnicity (% Polynesian Malay)	73.8				57.9
Handedness (% right-handed)	86.9				89.5
GOSE 8 at discharge (%)	88.5				n/a
GOSE 8 at follow-up (%)	n/a				n/a
Types of MVAs involved:
-Motorcycle vs. car (%)	49.2				n/a
-Motorcycle vs. motorcycle (%)	32.8				n/a
-Others (%)	18.00				n/a

GCS, Glasgow Coma Scale; LOC, loss of consciousness; PTA, post-traumatic amnesia; GOSE, Glasgow Outcome Score Extended; MVAs, motor vehicle accidents; TBI, traumatic brain injury; SD, standard deviation; n/a, not applicable.

Diffusion metrics, intergroup differences, and intragroup changes over time

Table 3 presents mean FA, MD, and RD values of both patients and healthy control participants during the acute phase. At baseline, the mTBI group showed significantly lower splenium FA (t ₍₇₈₎=2.196; p=0.04), when compared to the control group, whereas the MD_a value was significantly higher in the mTBI versus control group in the posterior limb of the internal capsule (PLIC; (t ₍₇₈₎=−2.179; p=0.03); cingulum (CG; t ₍₇₈₎=−2.29; p=0.02); optic radiation (OR; t ₍₇₈₎=−3.176; p=0.002); and splenium (SCC; t ₍₇₈₎=−2.514; p=0.02). Group differences for the RD_a values were observed only in the OR (t ₍₇₈₎=2.637; p=0.02) and SCC (t ₍₇₈₎=2.519; p=0.02). See Figure 3 for the TBSS skeletonized image reflecting the significant area of differences between the groups.

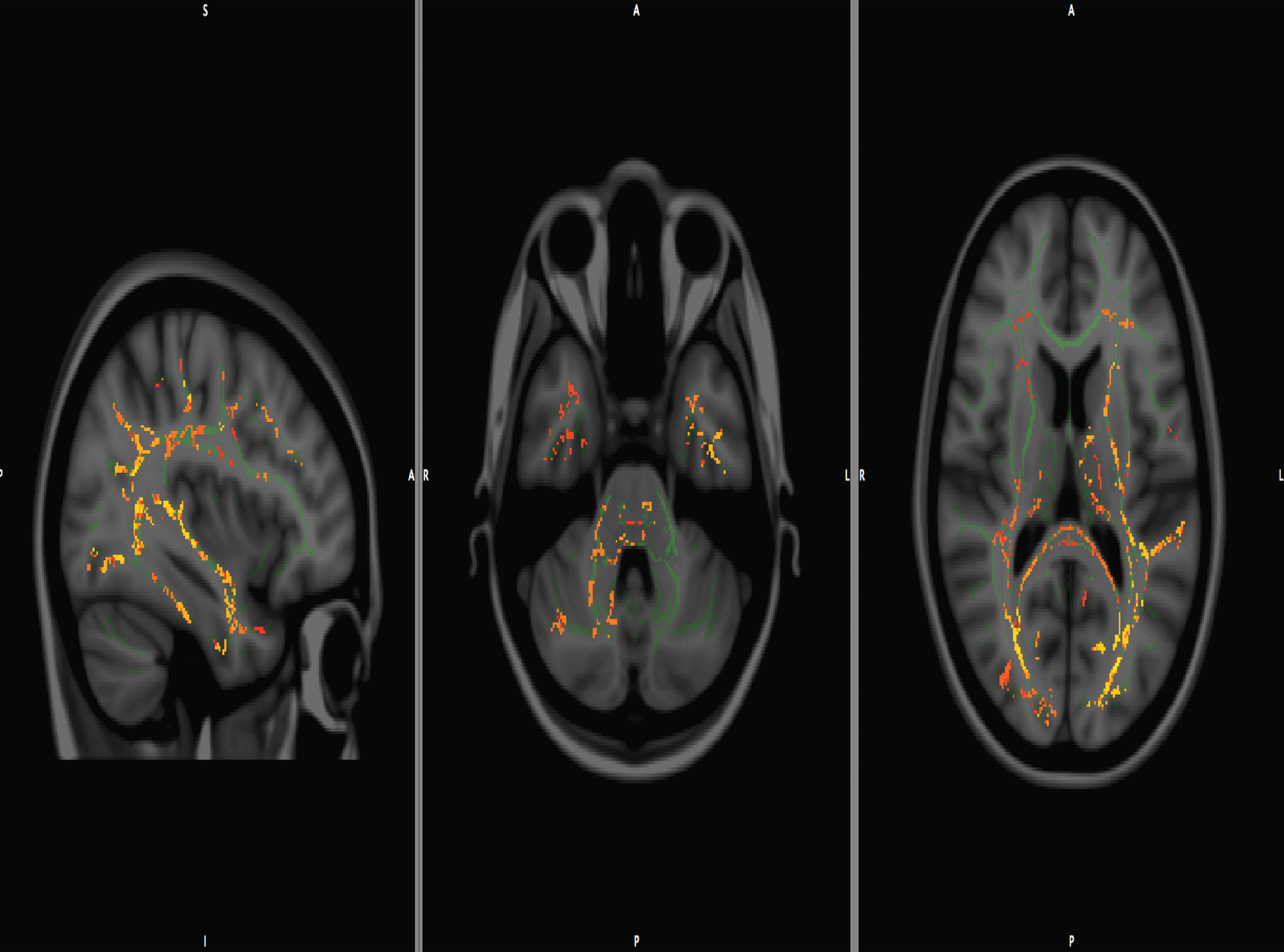

FIG. 3.

Tract-based spatial statistics (TBSS) showing composite of fractional anisotropy/mean diffusivity/radial diffusivity (FA/MD/RD) voxels of the white matter tracts that showed significant difference between control and mild traumatic brain injury. (mTBI).

Table 3.

Differences of DTI Metrics (FA, MD, and RD) between Patients with mTBI Acutely and Baseline Scans of Healthy Controls

			FA			MD			RD
DTI metrics vs. tracts	Group	N	Mean	SD	p value	Mean	SD	p value	Mean	SD	p value
Middle cerebellar peduncle	CTRL	19	0.611	0.032	0.869	0.698	0.034	0.168	0.432	0.038	0.514
	TBI	61	0.612	0.025		0.711	0.036		0.438	0.033
Corona radiata	CTRL	19	0.532	0.028	0.435	0.792	0.019	0.104	0.535	0.029	0.785
	TBI	61	0.538	0.025		0.802	0.025		0.537	0.028
Anterior limb of internal capsule	CTRL	19	0.636	0.024	0.297	0.791	0.018	0.147	0.462	0.023	0.130
	TBI	61	0.629	0.026		0.800	0.027		0.474	0.029
Posterior limb of internal capsule	CTRL	19	0.719	0.028	0.315	0.784	0.028	0.028	0.392	0.031	0.110
	TBI	61	0.712	0.025		0.800	0.027		0.406	0.030
Cingulum	CTRL	19	0.560	0.029	0.561	0.757	0.028	0.020	0.495	0.027	0.064
	TBI	61	0.555	0.030		0.777	0.032		0.510	0.032
Superior longitudinal fasiculus	CTRL	19	0.522	0.024	0.656	0.769	0.022	0.280	0.528	0.028	0.325
	TBI	61	0.519	0.024		0.775	0.024		0.535	0.025
Optic radiation	CTRL	19	0.631	0.036	0.154	0.848	0.039	0.002	0.494	0.048	0.015
	TBI	61	0.619	0.029		0.878	0.035		0.521	0.039
Genu of corpus callosum	CTRL	19	0.766	0.030	0.499	0.811	0.027	0.309	0.360	0.039	0.519
	TBI	61	0.760	0.031		0.820	0.036		0.368	0.043
Splenium of corpus callosum	CTRL	19	0.855	0.028	0.038	0.737	0.034	0.016	0.233	0.045	0.020
	TBI	61	0.842	0.023		0.757	0.030		0.258	0.037

Variances in the group were similar for all comparisons.

DTI, diffusion tensor imaging; FA, fractional anisotropy; MD, medial diffusivity; RD, radial diffusivity; mTBI, mild traumatic brain injury; SD, standard deviation; CTRL, control; TBI, traumatic brain injury.

The paired t-test results (FA, MD, and RD) of patients' WM pathway changes, as observed at 6 months (chronic phase) against the baseline (acute phase) values, are presented in Table 4a, 4b, and 4c, along with their effect sizes (Cohen's d with <0.2=small effect, >0.2 <0.8=moderate effect, and >0.8=large effect). Various differences were observed in all DTI parameters, with greater alterations noted in FA values across regions. Specifically, FA of the corona radiata (CR; t ₍₂₈₎=3.497; p=0.002; d=0.661), anterior limb of internal capsule (ALIC; t ₍₂₈₎=2.582; p=0.016; d=0.488), CG (t(28)=2.973; p=0.006; d=0.562), superior longitudinal fasciculus (SLF; t ₍₂₈₎=2.404; p=0.024; d=0.454), OR (t ₍₂₈₎=2.643; p=0.014; d=0.499), and the genu of corpus callosum (GCC; t ₍₂₈₎=2.732; p=0.011; d=0.516) were significantly lower in the TBI group. Almost all of the MD values across the phases showed no significant changes, except the CG (t ₍₂₈₎=3.189; p=0.004; d=0.603), which was significantly higher in the TBI group. Although the changes in PLIC across the phases were found to be statistically nonsignificant (t ₍₂₈₎=1.494; p=0.15), the effect size, however, suggests a moderate level of change (d=0.282). Finally, there were no significant differences in RD values across time points. However, Cohen's d effect-size calculation indicated moderate effect sizes for changes in the RD of CR (t ₍₂₈₎=1.582; p=0.126; d=0.299), CG (t ₍₂₈₎=1.54; p=0.136; d=0.291), OR (t ₍₂₈₎=1.87; p=0.073; d=0.353), and GCC (t(28)=1.975; p=0.059; d=0.373).

Table 4A.

Paired t-Test Analysis of FA Changes (Acute vs. Chronic) in Tracts of Interest and Cohen's d Effect-Size Calculation

	Acute	Chronic				Effect size
	Mean±SD	Mean±SD	t	df	p value	d
Middle cerebellar peduncle	0.612±0.025	0.607±0.020	1.412	28	0.170	0.267
Corona radiata	0.538±0.025	0.531±0.027	3.497	28	0.002	0.661
Anterior limb of internal capsule	0.629±0.026	0.627±0.025	2.582	28	0.016	0.488
Posterior limb of internal capsule	0.712±0.025	0.710±0.028	1.524	28	0.140	0.288
Cingulum	0.555±0.030	0.550±0.034	2.973	28	0.006	0.562
Superior longitudinal fasiculus	0.519±0.024	0.516±0.022	2.404	28	0.024	0.454
Optic radiation	0.619±0.029	0.614±0.034	2.643	28	0.014	0.499
Genu of corpus callosum	0.760±0.031	0.749±0.034	2.732	28	0.011	0.516
Splenium of corpus callosum	0.842±0.023	0.841±0.029	0.307	28	0.762	0.058

FA, fractional anisotropy; SD, standard deviation.

Table 4B.

Paired t-Test Analysis of the MD Changes (Acute vs. Chronic) in Tracts of Interest and Cohen's d Effect-Size Calculation

	Acute	Chronic				Effect size
	Mean±SD	Mean±SD	t	df	p value	d
Middle cerebellar peduncle	0.711±0.036	0.714±0.025	0.095	28	0.93	0.018
Corona radiata	0.802±0.025	0.805±0.024	0.683	28	0.50	0.129
Anterior limb of internal capsule	0.800±0.027	0.797±0.020	0.487	28	0.63	0.092
Posterior limb of internal capsule	0.800±0.027	0.793±0.019	1.494	28	0.15	0.282
Cingulum	0.777±0.032	0.765±0.026	3.189	28	0.00	0.603
Superior longitudinal fasiculus	0.775±0.024	0.773±0.022	0.288	28	0.78	0.054
Optic radiation	0.878±0.035	0.880±0.036	0.028	28	0.98	0.005
Genu of corpus callosum	0.820±0.036	0.828±0.031	0.622	28	0.54	0.118
Splenium of corpus callosum	0.757±0.030	0.756±0.028	0.262	28	0.80	0.050

MD, medial diffusivity; SD, standard deviation.

Table 4C.

Paired t-Test Table of RD Changes (Acute vs. Chronic) in Tracts of Interest and Cohen's d Effect-Size Calculation

	Acute	Chronic				Effect size
	Mean±SD	Mean±SD	t	df	p value	d
Middle cerebellar peduncle	0.438±0.033	0.443±0.027	0.427	28	0.673	0.081
Corona radiata	0.537±0.028	0.542±0.026	1.582	28	0.126	0.299
Anterior limb of internal capsule	0.474±0.029	0.473±0.024	0.818	28	0.421	0.155
Posterior limb of internal capsule	0.406±0,030	0.403±0.030	0.049	28	0.961	0.009
Cingulum	0.510±0.032	0.504±0.030	1.540	28	0.136	0.291
Superior longitudinal fasiculus	0.535±0.025	0.535±0.022	1.429	28	0.165	0.270
Optic radiation	0.521±0.039	0.528±0.044	1.870	28	0.073	0.353
Genu of corpus callosum	0.368±0.043	0.382±0.041	1.975	28	0.059	0.373
Splenium of corpus callosum	0.258±0.037	0.258±0.043	0.037	28	0.971	0.007

RD, radial diffusivity; SD, standard deviation.

All the above-stated significant differences were reflected in the TBSS images of the skeletonized tracts as well (see Fig. 4).

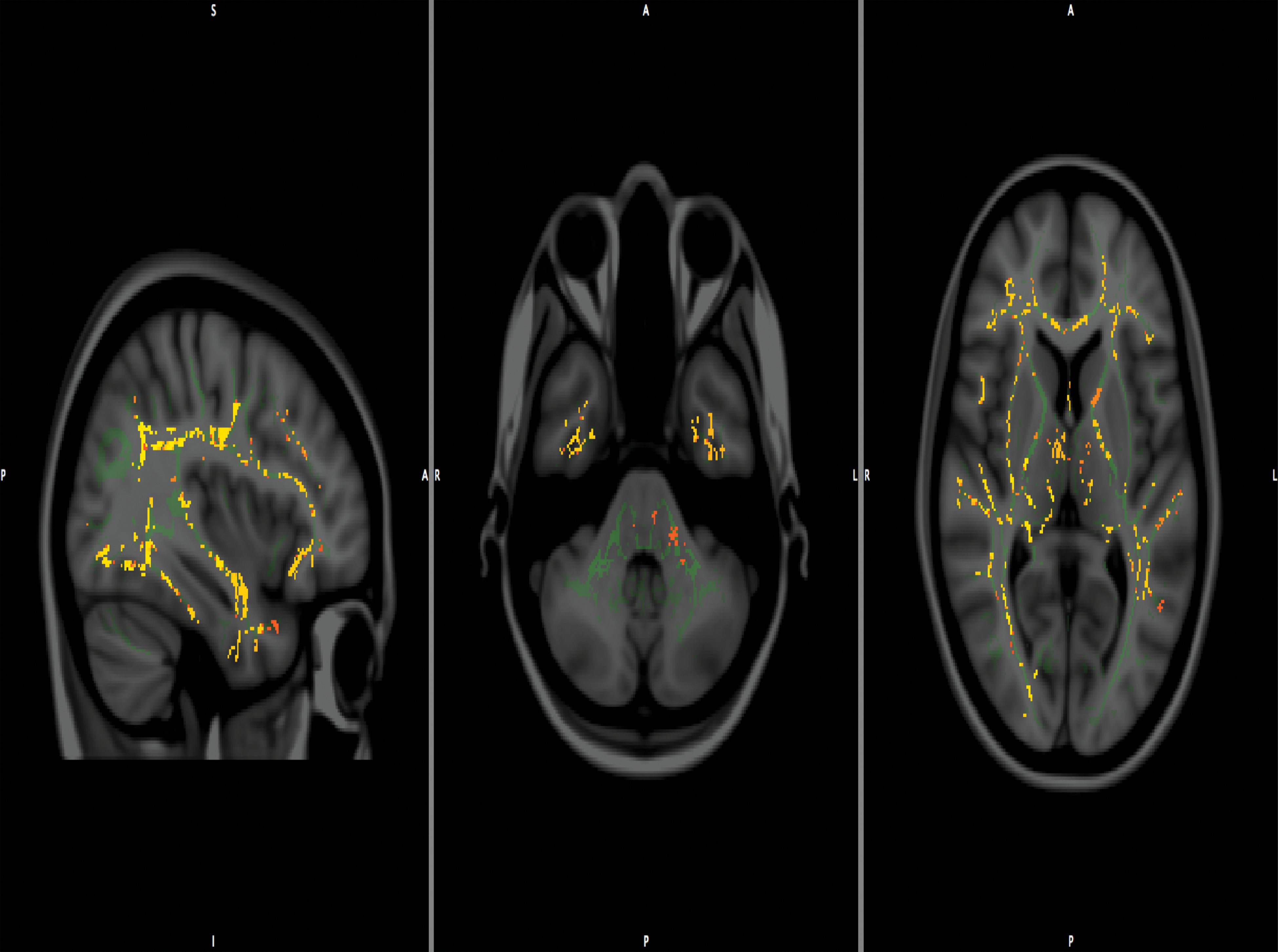

FIG. 4.

Tract-based spatial statistics (TBSS) showing composite of fractional anisotropy/mean diffusivity/radial diffusivity (FA/MD/RD) voxels of the white matter tracts that showed significant different between acute and chronic phase (for patients with mild traumatic brain injury [mTBI]).

Neuropsychological performance

Table 5 presents the mean interpretive categories score comparison for the domain-specific NP among mTBI and healthy control groups. During the acute phase, patients with mTBI performed poorly across all domains, in comparison to the healthy control group. The independent-samples t-tests of both groups and their NPs indicated that the mTBI group was significantly poorer (all p values, <0.001) on all but one of the neuropsychological domains (visuospatial functions, t ₍₇₈₎=0.055; p=0.956). Meanwhile, during the chronic phase, patients with mTBI continued to perform poorly across most domains, in exception of visuospatial functions, where the patients outperformed healthy controls (t ₍₄₈₎=−2.373; p=0.021).

Table 5.

Mean of S-NAB Interpretive Categories Score at Acute and Chronic Phase of Both Patients and Controls and Intergroup Differences (Independent t-Test) in Domain-Specific Neuropsychological Performance

		Acute						Chronic
	Group	N	Mean	SD	t	df	p value	N	Mean	SD	t	df	p value
Attention	CTRL	19	6.263	1.24	4.497	78	0.000	19	6.263	1.240	1.735	48	0.090
	TBI	60	4.367	1.697				30	5.519	1.553
Language	CTRL	19	7.368	1.461	5.408	78	0.000	19	7.368	1.461	5.237	48	0.000
	TBI	60	4.367	2.27				30	4.222	2.309
Memory	CTRL	19	6.842	1.214	2.832	78	0.006	19	6.842	1.214	2.039	48	0.047
	TBI	60	5.633	1.727				30	5.889	1.761
Spatial	CTRL	19	6.158	1.302	0.055	78	0.956	19	6.158	1.302	–2.373	48	0.021
	TBI	60	6.133	1.790				30	7.111	1.368
Executive	CTRL	19	6.316	1.565	5.881	78	0.000	19	6.316	1.565	2.937	48	0.005
	TBI	60	3.900	1.559				30	4.815	1.798
Overall	CTRL	19	6.421	1.387	6.014	78	0.000	19	6.421	1.387	3.547	48	0.001
	TBI	60	4.017	1.557				30	4.852	1.537

Interpretive category score legend: 1=severely impaired; 2=severe to moderately impaired; 3=moderately impaired; 4=mildly to moderately impaired; 5=mildly impaired; 6=below average; 7=average; 8=above average; 9=superior; and 10=very superior.

S-NAB, Neuropsychological Assessment Battery-Screening; SD, standard deviation; CTRL, control; TBI, traumatic brain injury.

Associations between diffusion tensor imaging parameters and neuropsychological performance

Longitudinal analysis of WM tract changes against the NP at different intervals among a subset of study patients (n=30) are presented in Table 6. Most of the observed FA associations with neurocognitive status (acute and chronic) represented negative associations. FA_a negatively correlated with the following acute NP_a: attention versus CR (r=−0.429; p<0.05); language versus CR (r=−0.375; p<0.05); language versus SLF (r=−0.557; p<0.01); and language versus GCC (r=−0.443; p<0.05). Acute FAs (FA_a) were also negatively correlated with NP_c, as follows: language versus middle cerebelar peduncle (MCP; r_s =−0.440; p<0.05); attention versus CR (r_s =−0.441; p<0.05); language versus CR (r_s =−0.415; p<0.05); attention versus SLF (r_s =−0.417; p<0.05); language versus SLF (r_s =−0.409; p<0.05); spatial versus CG (r_s =−0.489; p<0.05). The two positive correlations observed in the chronic phase were the spatial versus CG (r_s =0.489; p<0.05) and spatial versus SCC (r=0.402; p<0.05). The significantly reduced FA_c had only two associations with the NP_c: language versus CR (r=−0.400; p<0.05) and spatial versus SCC (r=0.402; p<0.05)

Table 6A.

Spearman's Rho Correlation Coefficient Table (n=30) of Neuropsychological Performance Against Changes in FA, MD, and RD of the Various Brain Tracts Both at Acute and Chronic Phase

		Acute			Chronic
DTI metrics	White matter tracts of interest	Attention	Language	Spatial	Attention	Language	Spatial	Executive
FA	Middle cerebelar peduncle (acute)					−0.440^*
	Corona radiata (acute)	−0.429^*	−0.375^*		−0.441^*	−0.415^*
	Corona radiata (chronic)					−0.400^*
	Superior longitudinal fasiculus (acute)		−0.557^†		−0.417^*	−0.409^*
	Cingulum (acute)						0.489^*
	Genu of corpus callosum (acute)		−0.443^*
	Splenium of corpus callosum (chronic)						0.402^*
MD	Superior longitudinal fasiculus (acute)				0.404^*
	Cingulum (acute)						−0.390^*
	Genu of corpus callosum (acute)						−0.404^*
RD	Middle cerebelar peduncle (acute)					0.398^*
	Middle cerebelar peduncle (chronic)					0.438^*
	Corona radiata (acute)	0.485^*				0.529^†
	Corona radiata (chronic)							0.389^*
	Superior longitudinal fasiculus (acute)	0.487^*			0.450^*	0.491^*
	Cingulum (acute)					0.423^*	−0.626^†
	Cingulum (chronic)						−0.404^*
	Optic radiation (acute)			−0.378^*
	Genu of corpus callosum (acute)				0.378^*
	Splenium of corpus callosum (chronic)						−0.391^*

Correlation is significant at p<0.05 (two-tailed).

†

Correlation is significant at p<0.01 (two-tailed).

DTI, diffusion tensor imaging; FA, fractional anisotropy; MD, medial diffusivity; RD, radial diffusivity.

MD_a showed limited associations with the NP_c. The following were the only MD_a values associated with the NP_c: attention versus SLF (r_s =0.404; p<0.05); spatial versus CG (r_s =−0.390; p<0.05); and spatial versus GCC (r_s =–0.404; p<0.05). No associations between the MD_c and NP_c were observed.

The RD of seven of nine tracts studied was significantly associated with attention, language, spatial, and executive function in both phases of the study. Specifically, RD_a was associated with three NP_a scores: attention versus CR (r=0.485; p<0.05), attention versus SLF (r=0.487; p<0.05); and spatial versus OR (r=−0.378; p<0.05). Additional associations were subsequently observed between RD_a and NP_c, which were as follows: language versus MCP (r=0.398; p<0.05); language versus CR (r_s =0.529; p<0.01); attention versus SLF (r=0.450; p<0.05); language versus SLF (r=0.491; p<0.05); language versus CG (r=0.423; p<0.05); spatial versus CG (r=0.626; p<0.01); and attention versus GCC (r=−0.378; p<0.05). Increased RD_c values were also associated with some domains of the NP_c, including language versus MCP (r_s =0.438; p<0.05), executive function versus CR (r_s =0.389; p<0.05); executive function versus CG (r_s =−0.404; p<0.05); and executive function versus SCC (r_s =−0.391; p<0.05). No association was found between the domains of memory and any of the WM tracts investigated in this study. We also found no associations between the DTI parameters (FA, MD, and RD) and any domains of the NP in the healthy control group (kindly refer to Table 6b).

Table 6B.

Spearman's Rho Correlation Coefficient Table (n=19) of Neuropsychological Performance Against FA, MD, and RD of the Various Brain Tracts in Healthy Controls

			Cognitive domains
Correlations	Group	Tracts vs. DTI parameters	Attention	Language	Memory	Spatial	Executive	Overall
Spearman's rho	Control	Middle cerebellar peduncle_FA	−0.262	−0.157	−0.344	−0.100	0.071	−0.327
		Corona radiata_FA	0.000	0.282	−0.301	0.000	0.000	0.065
		Anterior limb of internal capsule_FA	0.022	0.282	−0.301	0.100	0.118	−0.044
		Posterior limb of internal capsule_FA	0.022	0.031	0.172	0.020	0.212	0.218
		Cingulum_FA	−0.196	0.000	0.129	0.299	0.071	0.000
		Superior longitudinal fasiculus_FA1	−0.240	−0.063	−0.172	−0.080	0.000	0.087
		Optic radiation_FA	−0.349	0.188	−0.344	−0.279	−0.212	−0.327
		Genu of corpus callosum_FA	−0.109	0.344	−0.129	0.139	−0.212	0.218
		Splenium of corpus callosum_FA	−0.065	0.282	−0.344	−0.040	−0.094	−0.240
		Middle cerebellar peduncle_MD	−0.240	−0.031	0.344	−0.010	−0.083	0.142
		Corona radiata_MD	0.175	−0.282	0.086	−0.219	0.012	−0.131
		Anterior limb of internal capsule_MD	0.131	0.094	0.172	−0.220	−0.189	0.022
		Posterior limb of internal capsule_MD	0.186	0.220	−0.302	−0.060	0.047	0.197
		Cingulum_MD	0.000	−0.141	0.345	0.040	−0.035	0.218
		Superior longitudinal fasiculus_MD	0.372	−0.125	0.000	−0.060	−0.236	−0.109
		Optic radiation_MD	0.295	−0.282	0.387	0.319	0.094	0.218
		Genu of corpus callosum_MD	−0.022	−0.282	0.387	−0.020	−0.047	−0.131
		Splenium of corpus callosum_MD	0.164	−0.031	0.345	0.249	0.283	0.426
		Middle cerebellar peduncle_RD	0.044	0.063	0.344	0.120	−0.189	0.240
		Corona radiata_RD	0.131	−0.251	0.301	−0.040	−0.035	−0.022
		Anterior limb of internal capsule_RD	0.055	−0.110	0.172	−0.229	−0.177	−0.055
		Posterior limb of internal capsule_RD	0.175	0.125	−0.302	0.060	−0.260	−0.131
		Cingulum_RD	0.109	−0.141	0.129	−0.179	0.035	0.131
		Superior longitudinal fasiculus_RD	0.284	−0.094	0.043	−0.020	−0.024	−0.153
		Optic radiation_RD	0.371	−0.219	0.344	0.259	0.165	0.240
		Genu of corpus callosum_RD	0.044	−0.376	0.258	−0.100	0.047	−0.262
		Splenium of corpus callosum_RD	0.044	−0.235	0.345	0.060	0.165	0.251
		N	19	19	19	19	19	19

DTI, diffusion tensor imaging; FA, fractional anisotropy; MD, medial diffusivity; RD, radial diffusivity.

Neuropsychological outcomes

Table 7 presents the neuropsychological profiles of the subset of patients (n=30) who had completed neuropsychological evaluations, as well as imaging, both at admission and at month 6 follow-up. Within the domain of attention, 56.7% of the patients remained impaired at 6 months post-trauma, 3.33% worsened, and the remaining improved or remained unaffected. Within the domain of language function, 63.3% of patients remained impaired, 26.7% improved, 6.67% remained unaffected, and 3.33% worsened. Approximately 33.3% of patients remained impaired within the domain of memory 6 months post-trauma with essentially equivocal changes (26.7% worsened, 26.7% remained unaffected, and 13.3% with improved memory status). The majority of patients (53.3%) remained unaffected for spatial function, although 23.3% showed signs of delayed impairments in the chronic phase. A total of 70.0% of the subset patient group remained impaired with respect to executive functioning, with only 20.0% of these patients showing signs of improvement or recovery after the 6-month period post-trauma.

Table 7.

Frequency Table of Neuropsychological Performance Status at 6 Months Post-Trauma in Comparison to Their Performance at Admission

	Neuropsychological performance status categories
Domains	1,1 (%)	1,2 (%)	2,1 (%)	2,2 (%)	Fisher's exact
Attention	17 (56.7)	9 (30.0)	1 (3.33)	3 (10.0)	0.269
Language	19 (63.3)	8 (26.7)	1 (3.33)	2 (6.67)	0.234
Memory	10 (33.3)	4 (13.3)	8 (26.7)	8 (26.7)	0.253
Spatial	4 (13.3)	3 (10.0)	7 (23.3)	16 (53.3)	0.181
Executive	21 (70.0)	6 (20.0)	2 (6.67)	1 (3.33)	0.530
Overall	24 (80.0)	4 (13.3)	0 (0.0)	2 (6.67)	0.026

Interpretive categories: impaired=1; not impaired=2.

Discussion

We examined the relationship between microstructural changes and neuropsychological functioning that takes place in the immediate aftermath of an mTBI as well as 6 months post-TBI. Specifically, the initial neuropsychological assessment was completed, on average, 4.35 h after full GCS recovery, and the neuroimaging procedure was completed within an average of 10 h post-trauma in order to identify the structural changes at a very early stage before they were subject to confounds, such as changes specific to environmental and recovery parameters. Subsequently, both a repeat imaging and neuropsychological assessment were performed at an average of 6 months post-trauma to characterize any pertinent changes over time.

Results showed associations between DTI and neuropsychological indices at both acute and chronic phases. Specifically, in the acute phase, the TBI group showed significantly poorer WM integrity across several tracts, including the splenium (SCC), PLIC, CG, and OR. Several other WM tracts beyond those initially affected also showed reduced FA at 6 months post-injury (i.e., CR, ALIC, SLF, and GCC). Interestingly, moderate effect sizes for changes in RD were observed from baseline to follow-up in the following regions: CR, CG, and OR. Finally, with respect to neuropsychological functioning, patients with mTBI performed more poorly across all domains in the acute stage, when compared to healthy control participants. The majority of patients remained impaired with respect to executive functioning, and a sizable portion of the sample worsened over time on tasks of attention and language. Moreover, longitudinal analysis of WM tract changes, as they relate to cognition, showed several associations, indicating that reduced WM integrity was associated with specific neuropsychological decrements. Indeed, DTI indices in both acute and chronic stages related to cognition at both time points, and RD values in seven of the nine tracts studied was significantly associated with attention, language, spatial, and executive function in both phases of the study. Interestingly, no association was found between the domains of memory and any of the WM tracts investigated in this study.

Our findings of reduced FA, coupled with increased MD and RD in the acute phase, is considered indicative of vasogenic brain edema, which refers to the release of intracellular proteins into the brain parenchyma, also known as extracellular edema.¹⁸ An increased FA_a, reduced MD_a, and RD_a in the acute phase, on the other hand, may be indicative of cytotoxic edema,^2,36 also known as intracellular edema. This type of cerebral edema in the early course of injury has been implicated in poor outcome,^2,18 which could explain frequently observed neuropsychological impairment months or even years after the initial trauma event. The increased FA, MD, and rather an unchanged RD in the acute phase of this study is most likely indicative of reactive astrogliosis, which is a process where fibrous astrocytes migrate to the site of injury, locally increasing the density of the cells³⁹ and diffusivity of the affected tissue.^39,40

Vasogenic edema occurs in the acute phase, whereas demyelination occurs later.¹⁶ As such, even though the DTI markers for these pathogenic processes are the same, the timeframe of imaging changes rather indicate an ongoing vasogenic edema. These changes in DTI parameters were observed in the SCC, PLIC, CG, and OR (with statistically significant changes in most parameters). Other tracts, including the ALIC, SLF, and GCC, showed similar trends, although they did not reach statistical significance. Results showing minimally reduced FA_a in the context of significantly increased MD of the SLF and GCC in the patient group, and its negative association with language function, are similar to those reported by Ingelese and colleagues³³ and Arfanakis and colleagues.²⁴ Cognitive impairment observed acutely in this group of patients coupled with the changing DTI metrics are likely immediate signs reflecting an ongoing edematous process, which is not observed by conventional CT or MRI.

In contrast, changes observed in CR_a and MCP_a were more suggestive of reactive astrogliosis and dovetails with findings recently reported by Croall and colleagues.⁴¹ Although some of these changes did not reach statistical significance, the effect size of 0.299 for the RD changes in CR, coupled with the effect size of 0.661 for the FA changes of CR, for instance, does provide some moderate-to-large evidence of significant change in this tract. Higher FA value of the CR also negatively correlated with attention and language functions acutely. Its corresponding positive association with RD at baseline best explains the influence of reactive astrogliosis on cognition in the acute stage, as previously stated.^40
–42 The importance of the above finding cannot be understated given that specific types of cerebral edema and gliosis in the acute phase have been implicated to negatively influence long-term neuropsychological performance in patients with mTBI.^43

–46

We also found that acute-phase DTI parameters in selected WM tracts were significantly associated with chronic domain-specific cognitive deficits. This includes those of the MCP, CR, SLF, CG, GCC, and SCC and their association with specific neurocognitive functions chronically, similar to findings of other studies.^{39

–42,47,48} Miles and colleagues, for instance, noted that decreased FA values and increased MD values of the GCC, SCC, and PLIC during the acute phase were significantly related to executive dysfunction at 6 months follow-up.^2,47 Kumar and colleagues and Matshushita and colleagues reported similar findings involving the GCC, SCC, and NP_c in their studies of mild and moderate head injury.^48,49 The mostly positive association between the unchanged or raised RD_a of the MCP, CR, SLF, and CG with specific chronic deficits in attention, language, and spatial function likely reflect the long-term effects of acute vasogenic edema and reactive astrogliosis, a well-known immune response in the immediate aftermath of central nervous system (CNS) injury.⁴¹ It is important to note that cerebral edema and cascading gliosis usually occur concurrently and are not necessarily independent of each other.

Chronically, the continued alteration of DTI parameters, especially the FA_c and RD_c, implies significant changes in WM integrity, where the myelin sheath or the axonal membrane or both may have been permanently damaged.^19,20,36 This disruption may be irreversible, especially when a reduced FA_c and elevated MD_c and RD_c are noted.^2,19 Conversely, a reduced FA_c, unchanged MD, and subtly altered RD_c would mean that the microstructural changes to the WM are independent of gross tissue loss.^43

–46 The subtly altered RD_c in this context would imply minor fiber damage without gross tissue loss.⁴⁴ Such changes have also been implicated as a part of the dual effects of gliosis.^46,50,51

FA measured at follow-up was significantly reduced, in comparison to the acute phase, with mostly unchanged MD_c and subtly increased RD_c across six tracts (i.e., CR, ALIC, CG, SLF, OR, and GCC). Whereas the changes observed in the ALIC and OR are indicative of possible minor fiber damage and thus vasogenic edema, the change pattern observed in CR suggests irreversible consequences of astrogliosis. The mixed association between certain neurocognitive performances in the chronic stage (e.g., executive, spatial, and language function) and FA and RD of several tracts (i.e., MCP, CR, CG, and SCC), though possibly paradoxical, is not completely unexpected. Similar observations were found in a recent study with attribution to the multifaceted chronic phase findings.⁴¹ This included neuronal network reorganisation,⁵² spurting of axons with smaller calibres,⁵³ glial scarring,^46,50,51,54 effects of accumulated phosypholarated neurofilaments,^55

–59 and disruptive neurofibrillary tangles.⁶⁰ Taken together, our findings further strengthen evidence for physiogenic influences on the prolonged functional and neuropsychological sequelae in patients with mTBI.⁶¹ Clearly, disruption of the connectomes (i.e., the connectivities between specific cortical and subcortical structures) by various neuropathological^62,63 events post-trauma and the recovery process over time requires further study.

Interestingly, a common finding in our study was that the more severely affected fibers were generally the long tract fibers (SLF, CR, and CG) and commisural fibers (SCC and GCC). These fibers have an increased susceptibility to injury⁶⁴ given their relatively long length and high membrane-to-cytoplasmic ratios.^65,66 The corpus callosum, for example, as noted by Aoki and colleagues, is the major fiber bundle that enables communication between the hemispheres and is topographically organized.^27,67 The CC in general is divided into the genu (GCC), the body, and the splenium (SCC).²⁷ The CC has been long recognized as a frequently injured region owing to shear strain,⁶⁸ and topographical location and external accelerational forces can seriously injure the fiber.^69,70 The posterior region of the CC, namely, the SCC, often noted to be more vulnerable to injury than the anterior part (GCC),^67,71

–74 was replicated in this study as well; and the SCC was the only tract that showed statistically significant changes in all three DTI parameters at the acute stage.

Our findings lend support to the theory that microstructural changes occur within hours after the initial insult and affect the integrity of the WM, therefore leading to the varied manifestation of neuropsychological impairments, in agreement with some of the earlier studies reported in the literature.^{31,34,41,75,76} Strengths of our study include examination within a short timeframe from time of injury to imaging and neuropsychological testing within the acute phase, as well as consistent test-retest interval at 6-month follow-up. Although FA and MD have been shown to be very sensitive in detecting subtle WM changes that correlate with neuropsychological findings, one other parameter that has been included in this study, namely, RD,⁷⁷ provides further insight into the presumed nature of the microstructural changes^75,78,79 given that it is sensitive to myelin integrity^23,76,80 and also other CNS immune response, such as gliosis.⁴¹ These parameters enabled us to detect the early deep WM microstructural changes, which might otherwise be confounded by ongoing secondary damage or recovery mechanisms. Additionally, the current study is unique in its longitudinal follow-up of DTI indices and cognitive functioning at 6 months post-trauma in a large cohort of well-characterized patients with relatively homogenous types of injuries. That said, findings may be limited owing to the significant heterogenity of the trauma observed in our sample as well as possible obscuring of certain differences owing to the nature of brain morphing and averaging, which is inherent in template-based analyses. Specifically, any deviation present in a small number of voxels within a region may be hidden by the averaging and therefore lead to low sensitivity to detect FA and MD changes.^81,82

Conclusion

DTI is a useful technique used to assess the integrity of WM tracts in patients who have sustained mTBI. This study found significant correlations between neuropsychological deficits and WM tract integrity both within hours of neurotrauma and again 6 months later. These associations are likely attributable to alterations in the integrity of connectomes between specific cortical areas and subcortical structures, which is not evident in conventional MRI or CT procedures. Specific WM changes, as observed through the DTI parameters, especially in the acute period, and the corresponding neuropsychological impairments among the patients in the chronic phase, highlights the need to introduce appropriate imaging techniques early in patient management protocols for early prognostication and rehabilitative intervention. Further, our findings underscore the dynamic nature of brain injury and possible biological basis of cognitive dysfunction in the context of the postconcussive syndrome.

Footnotes

Acknowledgments

This research is partially funded by a University Malaya Research Grant (UMRG; RG008C-13HTM) and a High Impact Research Grant of University of Malaya (HIR-UM.C/625/1/HIR-MOHE/12).

Author Disclosure Statement

No competing financial interests exist.

References

Faul

, Xu

, Wald

M.M.

, and Coronado

V.G.

(2010). TBI in the United States: Emergency department visits, hospitalizations, and deaths 2002–2006. Centers for Disease Control and Prevention, National Center for Injury Prevention and Control: Atlanta, GA.

Shenton

M.E.

, Hamoda

H.M.

, Schneiderman

J.S.

, Bouix

, Pasternak

, Rathi

, Vu

M.A.

, Purohit

M.P.

, Helmer

, Koerte

, Lin

A.P.

, Westin

C.F.

, Kikinis

, Kubicki

, Stern

RA.

, and Zafonte

(2012). A review of magnetic resonance imaging and diffusion tensor imaging findings in mild traumatic brain injury. Brain Imaging Behav., 6, 137–192.

Povlishock

J.T.

, Becker

D.P.

, Cheng

C.L.

, and Vaughan

G.W.

(1983). Axonal change in minor head injury. J. Neuropathol. Exp. Neurol., 42, 225–242; as cited in: Büki

, and Povlishock

J.T.

, (2006). All roads lead to disconnection?—Traumatic axonal injury revisited. Acta Neurochir. (Wien) 148, 181–194.

Bigler

E.D.

(2010). Neuroimaging in mild traumatic brain injury. Psychol. Inj. Law, 3, 36–49.

Bigler

E.D.

, and Bazarian

J.J.

(2010). Diffusion tensor imaging: a biomarker for mild traumatic brain injury?. Neurology, 74, 626–627.

Kou

, Wu

, Tong

K.A.

, Holshouser

, Benson

R.R.

, Hu

, and Haacke

E.M.

(2010). The role of advanced MR imaging findings as biomarkers of TBI. J. Head Trauma Rehabil., 25, 267–282.

Strangman

G.E.

, O'Niel-Pirozzi

T.M.

, Supelana

, Goldstein

, Katz

D.I.

, and Glenn

M.B.

(2012). Fractional anisotropy helps predicts memory rehabilitation outcome after traumatic brain injury. NeuroRehabilitation, 31, 295–310.

Kubicki

K.M.

, McCarley

, Westin

C.F.

, Park

H.J.

, Maier

, Kikinis

, Jolesz

F.A.

, and Shenton

M.E.

(2007). A review of diffusion tensor imaging studies in schizophrenia. J. Psychiatr. Res., 41, 15–30.

Sang

S.K.

, Sun

S.W.

, Ju

W.K.

, Lin

S.J.

, Cross

A.H.

, and Neufeld

A.H.

(2003). Diffusion tensor imaging defects and differentiates axar and myelin degeneration in mouse optic nerve after retinal ischemia. NeuroImage, 20, 1714–1722.

10.

Budde

M.D.

, Xie

, Cross

A.H.

, and Song

S.K.

(2009). Axial diffusivity is the primary correlate of axonal injury in the experimental autoimmune encephalomyelitis spinal cord: a quantitative pixelwise analysis. J. Neurosci., 29, 2805–2813.

11.

Song

S.K.

, Yoshino

, Le

T.Q.

, Lin

S.J.

, Sun

S.W.

, Cross

A.H.

, and Armstrong

R.C.

(2005). Demyelination increases radial diffusivity in corpus callosum of mouse brain. Neuroimage, 26, 132–140.

12.

Song

S.K.

, Sun

S.W.

, Ramsbottom

M.J.

, Chang

, Russell

, and Cross

A.H.

(2002). Dysmyelination revealed through MRI as increased radial (but unchanged axial) diffusion of water. Neuroimage, 17, 1429–1436.

13.

Alexander

A.L.

, Hurley

S.A.

, Samsonov

A.A.

, Adluru

, Hosseinbor

A.P.

, Mossahebi

, Tromp do

P.M.

, Zakszewski

, and Field

A.S.

(2011). Characterization of cerebral white matter properties using quantitative magnetic resonance imaging stains. Brain Connect., 1, 423–446.

14.

Green

, Koshimori

, and Turner

(2010). Research Digest. Understanding the organic basis of persistent complaints in mTBI: findings from functional and structural neuroimaging. Neuropsychol. Rehabil., 20, 471–478.

15.

Niogi

S.N.

, and Mukherjee

(2010). Diffusion tensor imaging of mild TBI. J. Head Trauma Rehabil., 25, 241–255.

16.

Saatman

K.E.

(2012). The complexity of traumatic axonal injury, in: Traumatic Brain and Spinal Cord Injury: Challenges and Developments. Morganti-Kossmann

, Raghupathi

, and Maas

(eds). Traumatic Brain and Spinal Cord Injury: Challenges and Developments. Cambridge University Press: Cambridge, UK.

17.

Belanger

H.G.

, Kretzmer

, Yoash-Gantz

, Pickett

, and Tupler

L.A.

(2009). Symptom complaints following combat-related traumatic brain injury: relationship to traumatic brain injury severity and posttraumatic stress disorder. J. Int. Neuropsychol. Soc., 16, 194–199.

18.

Iffland II

P. H.

, Grant

G. A.

, and Janigro

(2014). Mechanisms of cerebral edema leading to early seizures after traumatic brain injury. In: Vascular Mechanisms in CNS Trauma. Springer: New York, pps. 29–45.

19.

Grossman

E.J.

, Inglese

, and Bammer

(2010). Mild traumatic brain injury: is diffusion imaging ready for primetime in forensic medicine?. Top. Magn. Reson. Imaging, 21, 379–386.

20.

Schaefer

P.W.

, Grant

P.E.

, and Gonzalez

R.G.

(2000). Diffusion-weighted MR imaging of the brain. Radiology, 217, 331–345.

21.

Wilde

E.A.

, McCauley

S.R.

, Barnes

, Wu

T.C.

, Chu

, Hunter

J.V.

, and Bigler

E.D.

(2012). Serial measurement of memory and diffusion tensor imaging changes within the first week following uncomplicated mild traumatic brain injury. Brain Imaging Behav., 6, 319–328.

22.

Farbota

K.D.

, Sodhi

, Bendlin

B.B.

, McLaren

D.G.

, Xu

, Rowley

H.A.

, and Johnson

S.C.

(2012). Longitudinal volumetric changes following traumatic brain injury: a tensor-based morphometry study. J. Int. Neuropsychol. Soc., 18, 1006–1118.

23.

Sidaros

, Engberg

A.W.

, Sidaros

, Liptrot

M.G.

, Herning

, Petersen

, Paulson

O.B.

, Jernigan

T.L.

, and Rostrup

(2008). Diffusion tensor imaging during recovery from severe traumatic brain injury and relation to clinical outcome: a longitudinal study. Brain, 131, 559–572.

24.

Arfanakis

, Haughton

V.M.

, Carew

J.D.

, Rogers

B.P.

, Dempsey

R.J.

, and Meyerand

M.E.

(2002). Diffusion tensor MR imaging in diffuse axonal injury. AJNR Am. J. Neuroradiol., 23, 794–802.

25.

Hassan

K.M.

, Wilde

E.A.

, Miller

E.R.

, Patel

V.K.

, Staewen

T.D.

, Frisby

M.L.

, Garza

H.M.

, McCarthy

J.J.

, Hunter

J.V.

, and Levin

H.S

. (2014), Serial atlas-based diffusion tensor imaging study of uncomplicated mild traumatic brain injury in adults. J. Neurotrauma, 31, 466–475.

26.

Perez

M.A.

, Adler

, Kulkarni

, Strain

J.F.

, Womack

K.B.

, Diaz-Arrastia

, and Marquez de la Plata

C.D.

(2014). Longitudinal white matter changes after traumatic axonal injury. J. Neurotrauma, 31, 1478–1485.

27.

Aoki

, Inokuchi

, Gunshin

, Yahagi

, and Suwa

(2012). Diffusion tensor imaging studies of mild traumatic brain injury: a meta-analysis. J. Neurol. Neurosurg. Psychiatry, 83, 870–876.

28.

Mukherjee

, Miller

J.H.

, Shimony

J.S.

, Philip

J.V.

, Nehra

, Snyder

A.Z.

, Conturo

T.E.

, Neil

J.J.

, and McKinstry

R.C.

(2002). Diffusion-tensor MR imaging of gray and white matter development during normal human brain maturation. AJNR Am. J. Neuroradiol., 23, 1445–1456.

29.

Dodd

A.B.

, Epstein

, Ling

J.M.

, and Mayer

A.R.

(2014). Diffusion tensor imaging in semi-acute mild traumatic brain injury. J, Neurotrauma., 31, 1235–1248.

30.

Nakayama

, Okumura

, Shinoda

, Yasokawa

Y.T.

, Miwa

, Yoshimura

S.I.

, and Iwama

(2006). Evidence for white matter disruption in traumatic brain injury without macroscopic lesions. J. Neurol. Neurosurg. Psychiatry, 77, 850–855.

31.

Henry

L.C.

, Tremblay

, Lee

, Brun

, Lepore

, Theoret

, Ellemberg

, and Lassonde

(2011). Acute and chronic changes in diffusivity measures after sports concussion. J. Neurotrauma, 28, 2049–2059.

32.

Niogi

S.N.

, Mukherjee

, Ghajar

, Johnson

C.E.

, Kolster

, Lee

, Suh

, Zimmerman

R.D.

, Manley

G.T.

, and McCandliss

B.D.

(2008). Structural dissociation of attentional control and memory in adults with and without mild traumatic brain injury. Brain, 131, 3209–3221.

33.

Inglese

, Makani

, Johnson

, Cohen

B.A.

, Silver

J.A.

, Gonen

, and Grossman

R.I.

(2005). Diffuse axonal injury in mild traumatic brain injury: a diffusion tensor imaging study. J. Neurosurg., 103, 298–303.

34.

Toth

, Kovacs

, Perlaki

, Orsi

, Aradi

, Komaromy

, Ezer

, Bukovics

, Farkas

, Janszky

, Doczi

, Buki

, and Schwarcz

(2013). Multi-modal magnetic resonance imaging in the acute and sub-acute phase of mild traumatic brain injury: can we see the difference?. J. Neurotrauma, 30, 2–10.

35.

Kraus

M.F.

, Susmaras

, Caughlin.

B.P.

, Walker

C.J.

, Sweeney

J.A.

, and Little

D.M.

(2007). White matter integrity and cognition in chronic traumatic brain injury: a diffusion tensor imaging study. Brain, 130, 2508–2519.

36.

Bazarian

J.J.

, Zhong

, Blyth

, Zhu

, Kavcic

, and Peterson

(2007). Diffusion tensor imaging detects clinically important axonal damage after mild traumatic brain injury: a pilot study. J. Neurotrauma, 24, 1447–1459.

37.

Smith

S.M.

, Jenkinson

, Johansen-Berg

, Rueckert

, Nichols

T.E.

, Mackay

C.E.

, Watkins

K.E.

, Ciccarelli

, Cader

M.Z.

, Matthews

P.M.

, and Behrens

T.E.

(2006). Tract-based spatial statistics: voxelwise analysis of multi-subject diffusion data. Neuroimage, 31, 1487–1505.

38.

Stern

R.A.

, and White

(2003). Neuropsychological Assessment Battery. Psychological Assessment Resources: Lutz, FL.

39.

Pekny

, and Nilsson

(2005). Astrocyte activation and reactive gliosis. Glia, 50, 427–434.

40.

Budde

M.D.

, Janes

, Gold

, Turtzo

L.C.

, and Frank

J.A.

(2011). The contribution of gliosis to diffusion tensor anisotropy and tractography following traumatic brain injury: validation in the rat using Fourier analysis of stained tissue sections. Brain, 134, 2248–2260.

41.

Croall

I.D.

, Cowie

C.J.

, He

, Peel

, Wood

, Aribisala

B.S.

, Mitchell

, Mendelow

A.D.

, Smith

F.E.

, Millar

, Kelly

, and Blamire

A.M.

(2014). White matter correlates of cognitive dysfunction after mild traumatic brain injury. Neurology, 83, 494–501.

42.

Chen

, and Swanson

R.A.

(2003). Astrocytes and brain injury. J. Cereb. Blood Flow Metab., 23, 137–149.

43.

Gold

B.T.

, Powell

D.K.

, Andersen

A.H.

, and Smith

C.D.

(2010). Alterations in multiple measures of white matter integrity in normal women at high risk for Alzheimer's disease. Neuroimage, 52, 1487–1494.

44.

Burzynska

A.Z.

, Preuschhof

, Backman

, Nyberg

, Li

S.C.

, Lindenberger

, and Heekeren

H.R.

(2010) Age related differences in white matter microstructure: region-specific patterns of diffusivity. Neuroimage, 49, 2104–2112.

45.

Sen

P.N.

, and Basser

P.J.

(2005). A model for diffusion in white matter in the brain. Biophys. J., 89, 2927–2938.

46.

Rovaris

, Gass

, Bammer

, Hickman

S.J.

, Ciccarelli

, Miller

D.H.

, and Filippi

(2005). Diffusion MRI in multiple sclerosis. Neurology, 65, 1526–1532.

47.

Miles

, Grossman

R.I.

, Johnson

, Babb

J.S.

, Diller

, and Inglese

(2008). Short-term DTI predictors of cognitive dysfunction in mild traumatic brain injury. Brain Inj., 22, 115–122.

48.

Kumar

, Gupta

R.K.

, Husain

, Chaudhry

, Srivastava

, Saksena

, and Rathore

R.K.

(2009). Comparative evaluation of corpus callosum DTI metrics in acute mild and moderate traumatic brain injury: its correlation with neuropsychometric tests. Brain Inj., 23, 675–685.

49.

Matsushita

, Hosoda

, Naitoh

, Yamashita

, and Kohmura

(2011). Utility of diffusion tensor imaging in the acute stage of mild to moderate traumatic brain injury for detecting white matter lesions and predicting long-term cognitive function in adults. J. Neurosurg., 115, 130–139.

50.

Werring

D.J.

, Clark

C.A.

, Barker

G.J.

, Thompson

A.J.

, and Miller

D.H.

(1999). Diffusion tensor imaging of lesions and normal-appearing white matter in multiple sclerosis. Neurology, 52, 1626–1632.

51.

Pekny

, Wilhelmsson

, and Pekna

(2014). The dual role of astrocyte activation and reactive gliosis. Neurosci. Lett., 565, 30–38.

52.

Voets

N.L.

, Adcock

J.E.

, Flitney

D.E.

, Behrens

T.E. J.

, Hart

, Stacey

, Carpenter

, and Matthews

P.M.

(2006). Distinct right frontal lobe activation in language processing following left hemisphere injury. Brain, 129, 754–766.

53.

Jafari

S.S.

, Maxwell

W.L.

, Neilson

, and Graham

D.I.

(1997). Axonal cytoskeletal changes after non-disruptive axonal injury. J. Neurocytol., 26, 207–221.

54.

Stichel

C.C.

, and Müller

H.W.

(1998). The CNS lesion scar: new vistas on an old regeneration barrier. Cell Tissue Res., 294, 1–9.

55.

Stein

T.D.

, Alvarez

V.E.

, and McKee

A.C.

(2014). Chronic traumatic encephalopathy: a spectrum of neuropathological changes following repetitive brain trauma in athletes and military personnel. Alzheimers Res. Ther., 6, 4.

56.

Buki

, and Povlishock

J.T.

(2006). All roads lead to disconnection? Traumatic axonal injury revisited. Acta Neurochirurg., 148, 181–194.

57.

Strong

M.J.

, Strong

W.L.

, Jaffe

, Traggert

, Sopper

M.M.

, and Pant

H.C.

(2001). Phosphorylation state of the native high molecular weight neurofilament subunit protein from cervical spinal cord in sporadic amyotrophic lateral sclerosis. J. Neurochem., 76, 1315–1325.

58.

Ghonemi

M.O.

, Rabah

A.A.

, Saber

H.M.

, and Radwan

(2013). Role of Phosphorylated Neurofilament H as a diagnostic and prognostic marker in traumatic brain injury. Egyptian J. Crit. Care Med., 1, 139–144.

59.

Saljo

, Bao

, Haglid

K.G.

, and Hansson

H.A.

(2000). Blast exposure causes redistribution of phosphorylated neurofilament subunits in neurons of the adult rat brain. J. Neurotrauma, 17, 719–726.

60.

Blennow

, Hardy

, and Zetterberg

(2012). The neuropathology and neurobiology of traumatic brain injury. Neuron, 76, 886–899.

61.

Wada

, Asano

, and Shinoda

(2012). Decreased fractional anisotropy evaluated using tract-based spatial statistics and correlated with cognitive dysfunction in patients with mild traumatic brain injury in the chronic stage. AJNR Am. J. Neuroradiol., 33, 2117–2122.

62.

Patt

, and Brodhun

(1999). Neuropathological sequelae of traumatic injury in the brain. An overview. Exp. Toxicol. Pathol., 51, 119–123.

63.

Bigler

E.D.

(2003). Neurobiology and neuropathology underlie the neuropsychological deficits associated with traumatic brain injury. Arch. Clin. Neuropsychol., 18, 595–621.

64.

Bigler

E.D.

, and Maxwell

W.L.

(2012). Neuropathology of mild traumatic brain injury: relationship to neuroimaging findings. Brain Imaging Behav., 6, 108–136.

65.

Korn

, Golan

, Melamed

, Pascual-Marqui

, and Friedman

(2005). Focal cortical dysfunction and blood–brain barrier disruption in patients with postconcussion syndrome. J. Clin. Neurophysiol., 22, 1–9.

66.

McKee

A.C.

, and Robinson

M.E.

(2014). Military-related traumatic brain injury and neurodegeneration. Alzheimers Dement., 10, S242–S253.

67.

Gennarelli

T.A.

, Thibault

L.E.

, Adams

J.H.

, Graham

D.I.

, Thompson

C.J.

, and Marcincin

R.P.

(1982). Diffuse axonal injury and traumatic coma in the primate. Ann. Neurol., 12, 564–574.

68.

Gentry

L.R.

, Godersky

J.C.

, and Thompson

(1988). MR imaging of head trauma: review of the distribution and radiopathologic features of traumatic lesions. Am. J. Roentgenol., 150, 663–672.

69.

Chan

Y.L.

, Chu

W.C.

, Wong

G.W.

, and Yeung

D.K.

(2003). Diffusion-weighted MRI in shaken baby syndrome. Pediatr. Radiol., 33, 574–577.

70.

Bonnier

, Mesples

, and Gressens

(2004). Animal models of shaken baby syndrome: revisiting the pathophysiology of this devastating injury. Pediatr. Rehabil., 7, 165–171.

71.

Wang

J.Y.

, Bakhadirov

, Devous

M.D.

, Abdi

, McColl

, Moore

, Marquez de la Plata , Ding

, Whittemore

, Babcock

, Rickbeil

, Dobervich

, Kroll

, Dao

, Mohindra

, Madden

C.J.

, and Diaz-Arrastia

(2008). Diffusion tensor tractography of traumatic diffuse axonal injury. Arch. Neurol., 65, 619–626.

72.

Takaoka

, Tabuse

, Kumura

, Nakajima

, Tsuzuki

, Nakamura

, Okada

, and Sugimoto

(2002). Semiquantitative analysis of corpus callosum injury using magnetic resonance imaging indicates clinical severity in patients with diffuse axonal injury. J. Neurol. Neurosurg. Psychiatry, 73, 289–293.

73.

Shiramizu

, Masuko

, Ishizaka

, Shibata

, Atsumi

, Imai

, Osada

, Mizokami

, Baba

, and Matsumae

(2008). Mechanism of injury to the corpus callosum, with particular reference to the anatomical relationship between site of injury and adjacent brain structures. Neurol. Med. Chir. (Tokyo), 48, 1–7; discussion, 6–7.

74.

Imperati

, Colcombe

, Kelly

, Di Martino

, Zhou

, Castellanos

F.X.

, and Milham

M.P.

(2011). Differential development of human brain white matter tracts. PLoS ONE, 6; 234–237.

75.

Newcombe

V.F.

, Williams

G.B.

, Nortje

, Bradley

P.G.

, Harding

S.G.

, Smielewski

, Coles

J.P.

, Maiya

, Gillard

J.H.

, Hutchinson

P.J.

, Pickard

J.D.

, Carpenter

T.A.

, and Menon

D.K.

(2007). Analysis of acute traumatic axonal injury using diffusion tensor imaging. Br. J. Neurosurg., 21, 340–348.

76.

Mac Donald

C.L.

, Dikranian

, Bayly

, Holtzman

, and Brody

(2007). Diffusion tensor imaging reliably detects experimental traumatic axonal injury and indicates approximate time of injury. J. Neurosci., 27, 11869–11876.

77.

Zhuo

, Xu

, Proctor

J. L.

, Mullins

R. J.

, Simon

J. Z.

, Fiskum

, and Gullapalli

R. P.

(2012). Diffusion kurtosis as an in vivo imaging marker for reactive astrogliosis in traumatic brain injury. Neuroimage, 59, 467–477.

78.

Alexander

A.L.

, Lee

J.E.

, Lazar

, and Field

A.S.

(2007). Diffusion tensor imaging of the brain. Neurotherapeutics, 4, 316–329.

79.

Chu

, Wilde

E.A.

, Hunter

J.V.

, McCauley

S.R.

, Bigler

E.D.

, Troyanskaya

, Yallampalli

, Chia

J.M.

, and Levin

H.S.

(2010). Voxel-based analysis of diffusion tensor imaging in mild traumatic brain injury in adolescents. AJNR Am. J. Neuroradiol., 31, 340–346.

80.

Sang

S.K.

, Sun

S.W.

, Ju

W.K.

, Lin

S.J.

, Cross

A.H.

, and Neufeld

A.H.

(2003). Diffusion tensor imaging defects and differentiates axar and myelin degeneration in mouse optic nerve after retinal ischemia. NeuroImage, 20, 1714–1722.

81.

Bigler

E.D.

(2013). Neuroimaging biomarkers in mild traumatic brain injury (mTBI). Neuropsychol. Rev., 23, 169–209.

82.

Bach

, Laun

F.B.

, Leemans

, Tax

C.M.

, Biessels

G.J.

, Stieltjes

, and Maier-Hein

K.H.

(2014). Methodological considerations on tract-based spatial statistics (TBSS). Neuroimage, 100, 358–369.
