Glibenclamide Produces Region-Dependent Effects on Cerebral Edema in a Combined Injury Model of Traumatic Brain Injury and Hemorrhagic Shock in Mice

Injury models

All experiments were approved by the Institutional Animal Care and Use Committee of the University of Pittsburgh School of Medicine and Operation Brain Trauma Therapy (approved protocol numbers 14013150, 17019898, and 17091175). Animals were handled in compliance with Animal Research: Reporting of In Vivo Experiments (ARRIVE) guidelines (see online supplementary material at http://www.liebertpub.com). C57/BL6 male mice (Jackson Laboratories, Bar Harbor, ME), 12–15 weeks of age, weighing 25–30 g were used.

Two models were studied: controlled cortical impact (CCI) alone, versus a combined injury model of CCI plus pressure controlled HS. To assess the effect of glibenclamide on cerebral edema at 24 h, mice were randomly divided into five groups (n = 10 per group, Fig. S1) (see online supplementary material at http://www.liebertpub.com): CCI in glibenclamide treatment versus vehicle, CCI+HS in glibenclamide treatment versus vehicle, and naïve. Injury by CCI or CCI+HS was induced in concordance with our standard established models that have been described previously and successfully used in our laboratory for prior investigations. ^{27 –29} The level of injury in both CCI and CCI+HS was moderate at 5 m/sec and 1 mm depth to the left parietal cortex. The craniotomies were sealed closed with Koldmount hardener immediately after impact. Procedures were performed during daylight hours in the surgical laboratory.

In the CCI+HS model, HS was induced per protocol by removing 2.3 mL blood/100 g over 15 min, followed by a controlled mean arterial pressure (MAP) of 25–27 mm Hg for 20 min maintained by removal or infusions of citrated autologous blood from the femoral venous catheter in 0.05 mL aliquots. This produced a 35 min period of severe hypotension. Following 35 min of HS, mice entered a “pre-hospital” phase for 90 min in which they were resuscitated with lactated Ringer's (LR) solution for a MAP goal ≥70 mm Hg (initial bolus 20 mL/kg, and additional 10 mL/kg boluses over 5 min as needed to maintain MAP >70 mm Hg). The subsequent “hospital” phase involved reinfusion of the remaining shed blood over 15 min, to mimic clinical care in emergency departments or combat hospitals.

Following glibenclamide treatment versus vehicle (see subsection for dosing), mice were decapitated at 24 h. The brains were removed immediately and the hemispheres were bisected for quantification of brain edema by a technician blinded to treatment. The same protocol was followed to assess the effect of glibenclamide on cerebral edema at 72 h in the combined injury model CCI+HS (n = 9 per group).

For all experiments, mice were anesthetized per our standard protocol with 4% isoflurane with a gas mixture of 2:1 nitrous oxide to oxygen. Isoflurane was reduced to 1–2% after surgical procedures and mice were placed on room air 10 min prior to injury. Isoflurane was maintained at 1% with room air through the 90 min pre-hospital phase and then switched to 100% O₂ with 1% isoflurane through the hospital phase.

Glibenclamide infusion and level determination

A stock solution of 2.5 μg/μL glibenclamide was made in 100% dimethyl sulfoxide (DMSO) from which a loading dose solution (20 μg/mL) was made in unbuffered normal saline. These solutions were used for all experiments.

The effect of glibenclamide was assessed at 24 h (n = 10/group/model) and 72 h (n = 9/group/model) using an intravenous (IV) loading dose of glibenclamide (20 μg/kg) that was given 10 min post-CCI, or at the start of the pre-hospital phase in CCI+HS, followed by a continuous subcutaneous (SQ) infusion at 0.4 μg/h (Alzet mini-pump). This treatment regimen was derived as the mouse-equivalent based on rat doses of 10 μg/kg used in prior studies of glibenclamide post-TBI and a body-surface-area-adjusted species conversion. ^20,30,31 This protocol was used for all mice and continued for 24 h or 72 h after the insult depending on the group being studied. In addition to studies assessing cerebrovascular and systemic hemodynamics after CCI+HS, we also used this protocol in separate mice to quantify glibenclamide levels in blood. Here, the infusion was continued for 4 days.

Glibenclamide levels (n = 5/group) were determined by ultra performance liquid chromatography (UPLC)-mass spectrometer (MS) MS/MS 15 min post-IV load, 1 h post-loading dose plus SQ pump infusion, and at 4 days post-loading dose plus SQ pump infusion to determine steady state levels of the drug. A separate cohort of uninjured mice were used for this determination, because the volume of plasma required by the UPLC MS/MS method were prohibitive in terms of increasing mortality as well as altering our established model. Repeated withdrawal of blood samples in a model of HS would potentially also alter the fluid resuscitation strategy after HS and further influence edema. Blood samples were obtained using cardiac puncture, to avoid potential confounding/dilution by peripheral line draws. Glibenclamide levels were compared with vehicle (n = 3). The UPLC-MS/MS method ³² involved liquid-liquid extraction and detection with a triple quadrupole mass spectrometer. Serum (0.2 mL), spiked with glimiperide as internal standard was acidified with hydrochloric acid and extracted with hexanes:methylene chloride (50:50), dried under a gentle stream of nitrogen, and reconstituted in 50 μL of 50:50 acetonitrile:deionized water. Glibenclamide and glimiperide were eluted from a Waters Acquity UPLC BEH C18, 1.7 μm, 2.1 × 150 mm reversed-phase column, isocratically with acetonitrile:water (0.1% formic acid) 50:50. Detection and quantitation were achieved in the positive mode with a Thermo Fisher TSQ Quantum Ultra mass spectrometer interfaced via a heated electrospray ionization (HESI) probe with the Waters UPLC Acquity solvent delivery system. Transitions used for analysis were 494.1 → 368.9 for glibenclamide and 491 → 352 for the internal standard. The calibration curves, obtained from extracting known concentrations of glibenclamide from double-stripped serum, ranged from 0.1 ng/mL (lower limit of quantitation) to 16 ng/mL. All back calculations of calibrators, inter-day and intra-day precision and accuracy, and stability were within acceptable limits. Concurrent glucose levels for all animals at baseline and the abovementioned time points (after HS at 35min, PH at 2h, and HOSP at ∼2.5h) were obtained using a blood gas analyzer (Model ABL-90, Radiometer America, Westlake, OH).

Determination of brain edema

Percent brain water (%BW) was quantified for all mice using the established wet-dry weight technique, which represents a gold standard for its assessment. ³³ Because perfusion with normal saline alters water levels and provides inaccurate assessment of edema, mice were not perfused with normal saline before brains were harvested for water measurements. Rather, at the completion of the injury described previously, mice were decapitated at each time point (under 5% isoflurane and 50/50 gas mixture of nitrous oxide and oxygen) and the brain was bisected into hemispheres that were immediately weighed; these weights were recorded as wet weights. Hemispheres were subsequently dehydrated for 72 h in an oven at 110°C and re-weighed to record dry weights. %BW was determined by subtracting the dry weight from the wet weight, dividing this number by the wet weight, and multiplying by 100.

Statistical analysis

Glibenclamide levels, glucose concentrations, and ipsilateral and contralateral %BW were reported as means ± standard error. Normality was determined by Q-Q plots (Fig. S2)(see online supplementary material at http://www.liebertpub.com). Differences between %BW in naive, vehicle-, and glibenclamide-treated animals were assessed using one way ANOVA, and between-group comparisons were made using Student's t test. Multiple comparisons during post-hoc analyses were adjusted for using Bonferroni's correction. Physiological parameters were analyzed by repeated measures ANOVA. Outliers were excluded using Dixon's test. Statistical significance was determined by p values <0.05. All statistical tests were conducted using Stata 13.1 (StataCorp, College Station, TX).

Steady state glibenclamide levels do not decrease glucose levels in mice

Previous studies in rats suggest that a loading dose of 10 μg/kg intraperitoneal (IP) followed by 200 ng/h of glibenclamide SQ infusion yields a plasma concentration of ∼5000 pg/mL (Simard, unpublished observations) and does not affect serum glucose. ^19,34,35 Our protocol estimated the effects of an equivalent dose in mice; the 15 min post-IV load levels of glibenclamide were 3809 ± 683 pg/mL. The 1 h post-load level was higher at 12731 ± 2400 pg/mL, and 4 day steady state levels were 10170 ± 911 pg/mL (Fig. 1A). As expected, levels were undetectable in naïve mice. At these levels, serum glucose remained normal, was not significantly different than baseline, and there were no episodes of hypoglycemia in any individual mouse (Fig. 1B).

OPEN IN VIEWER

FIG. 1.

Studies of glibenclamide pharmacokinetics (A) demonstrating immediate post-load levels of glibenclamide (3808 ± 611 pg/mL) and 4 day steady state concentrations (10170 ± 1823 pg/mL). Levels were not detectible in vehicle animals and are therefore not visible in the figure. Therapeutic levels did not influence normoglycemia. (B) Glucose levels were recorded in vehicle- and glibenclamide-treated animals at baseline, and at four subsequent time points: the end of the hemorrhagic shock phase, the end of the pre-hospital phase, the end of the hospital phase, and at 24 h. Glucose levels were not significantly different than in their vehicle counterparts, or than in naïve.

Glibenclamide treatment does not affect ipsilateral edema, but decreases contralateral edema at 24 h after combined injury

In the contused hemisphere (ipsilateral to TBI), edema was increased at 24 h after CCI+HS (ipsilateral %BW = 80.46 ± 0.14% vehicle [n = 8) vs. 78.31 ± 0.04% naïve [n = 10], p < 0.001) but surprisingly not reduced by glibenclamide (ipsilateral %BW = 80.42 ± 0.24%, p = 1.0, n = 10, power = 1.0 Fig. 2A-i). Edema in the hemisphere ipsilateral to TBI also developed in CCI alone (ipsilateral %BW = 80.20 ± 0.15 vehicle [n = 10] vs. 78.31 ± 0.04% naïve [n = 10] p < 0.001) and again was not attenuated by treatment with glibenclamide (ipsilateral %BW = 80.5 ± 0.13% [n = 10], p = 0.18, power = 1.0, Fig. 2A-ii).

OPEN IN VIEWER

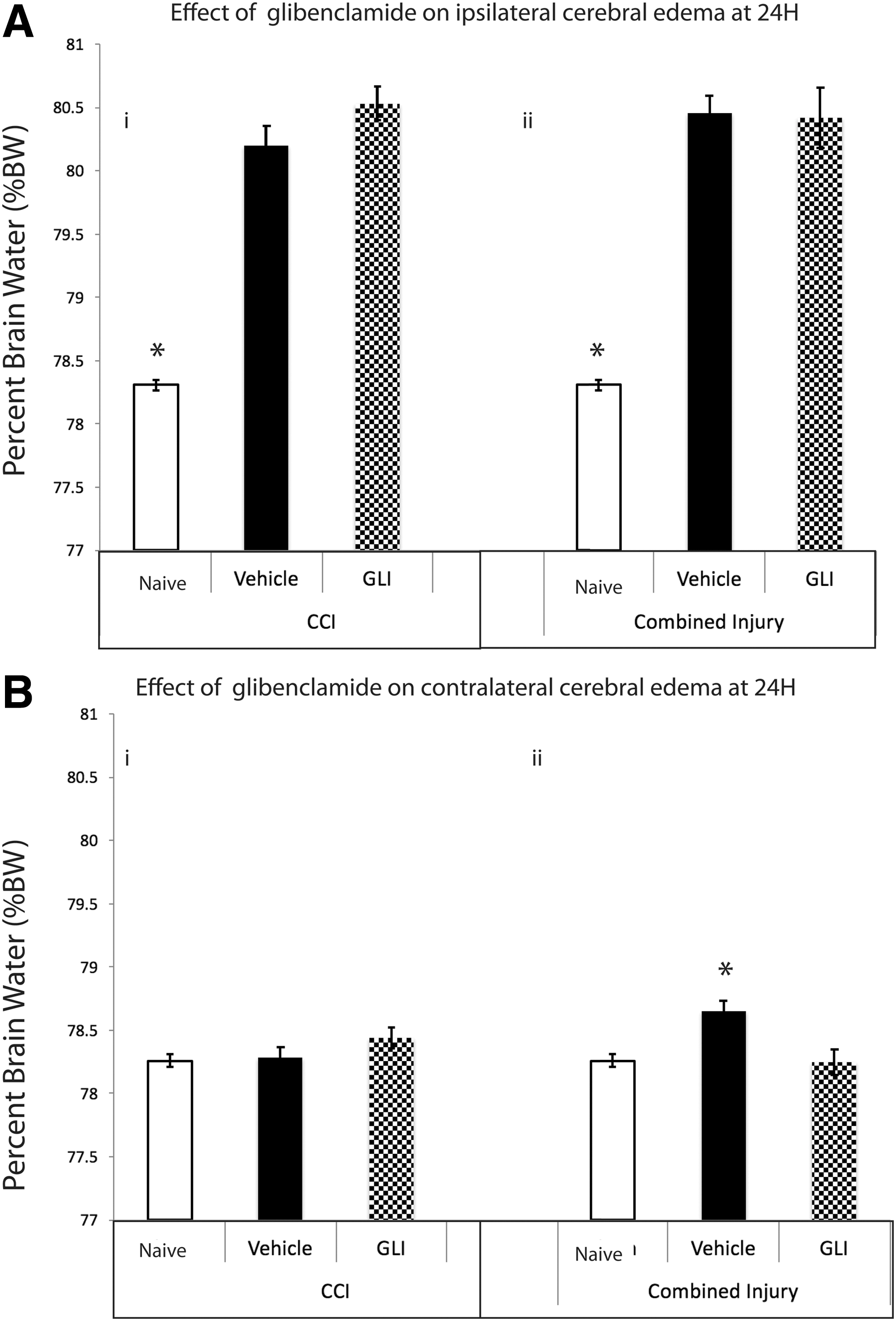

FIG. 2.

(A) At 24 h, %brain water (%BW) in the hemisphere ipsilateral to the contusion was significantly increased in both controlled cortical impact (CCI) (i, vehicle: black bar 80.20 ± 0.15) and CCI+hemorrhagic shock (HS) (ii, vehicle: black bar 80.46 ± 0.14%) versus naïve (white bar, 78.31 ± 0.04%; *p < 0.01). Glibenclamide treatment (shaded gray bar) did not reduce %BW in the hemisphere ipsilateral to contusion in either model. (B) At 24h, %BW in the hemisphere contralateral to the contusion was significantly increased in controlled cortical impact + hemorrhagic shock (CCI+HS) (ii, vehicle: black bar, 78.65 ± 0.10%) versus naive (white bar: 78.24 ± 0.05%, *p = 0.014) but unchanged in CCI alone (i, vehicle: black bar, 78.28 ± 0.08%, p = 1.0). Glibenclamide treatment (shaded gray bar) in CCI+HS (ii) returned %BW to naïve levels (78.25 ± 0.10%, p = 0.011). GLI, glibenclamide.

We also detected cerebral edema in the hemisphere contralateral to injury in the CCI+HS model, but not in CCI alone (Fig. 2B). Contralateral %BW in the combined injury of CCI+HS was increased in vehicle (78.65 ± 0.10%, n = 8) vs. naive (78.24 ± 0.05%, n = 10, p = 0.014) but unchanged versus naïve in CCI alone (78.28 ± 0.08%, n = 10, p = 1.0). However, in contrast to what was observed in the hemisphere ipsilateral to injury, at 24 h, glibenclamide treatment after CCI+HS eliminated this low-grade but diffuse brain edema in the contralateral hemisphere versus vehicle (contralateral %BW = 78.25 ± 0.10%, n = 10, p = 0.011; power = 0.904) returning %BW levels to naïve levels (Fig. 2B-ii). It is of note that one of the vehicle-treated mice in CCI+HS died before 24 h. There were no deaths in the glibenclamide-treated group. One CCI+HS vehicle outlier was excluded. There was no difference in physiological parameters that could influence cerebral edema/ICP including MAP, sodium levels, or serum osmolarity between the vehicle and glibenclamide groups (Fig. 3 A-i, B-i, C-i).

OPEN IN VIEWER

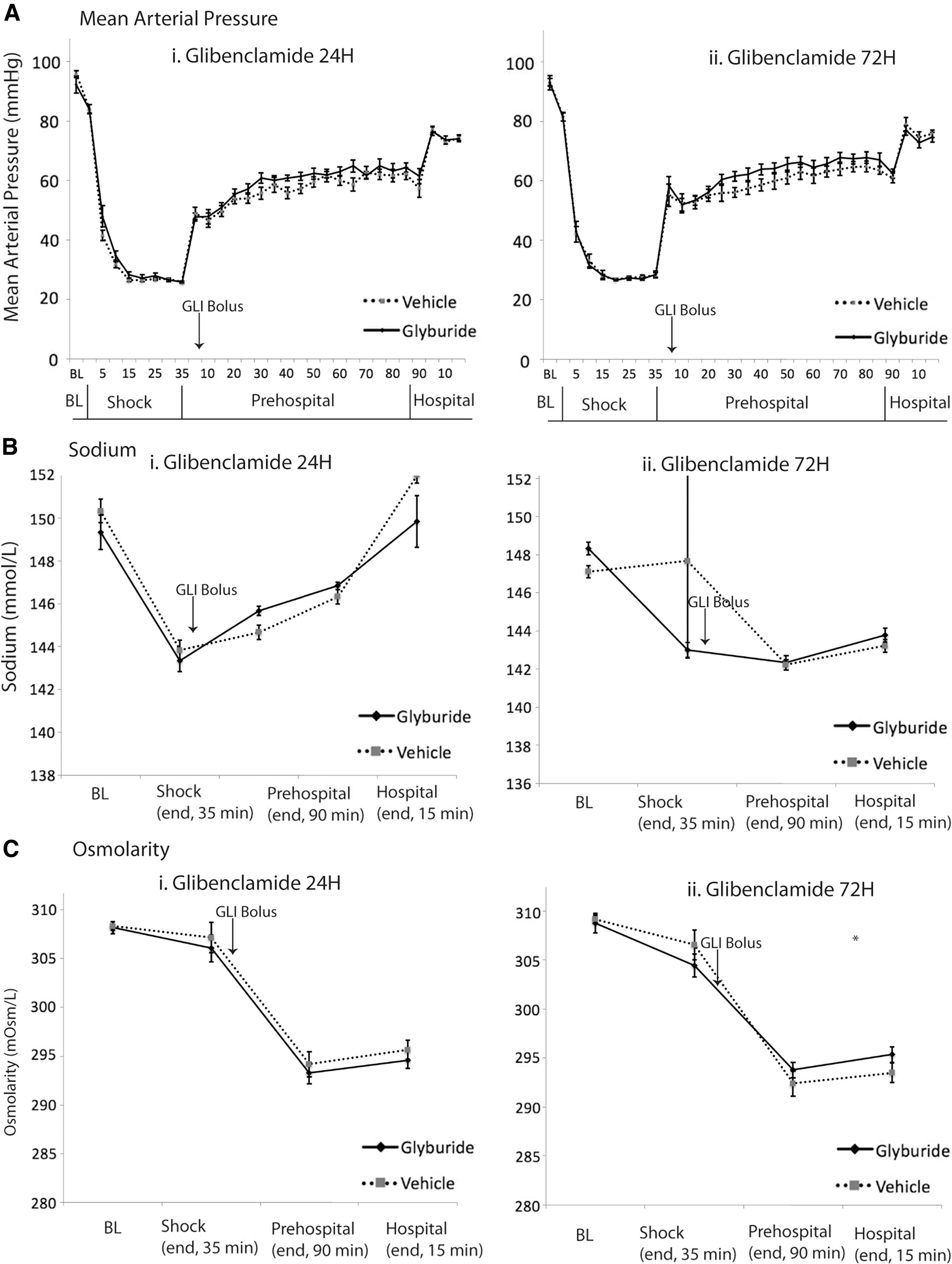

FIG. 3.

Continuous recordings of mean arterial pressure (A) were documented during the three phases of the combined injury experiments: hemorrhagic shock (shock, 35 min), pre-hospital phase (90 min), and hospital phase (15 min). Sodium concentration (B) and serum osmolarity (C) were also measured at the following time points: baseline, at the end of each phase of combined injury (“shock” at 35 min, “pre-hospital” at 125 min,“hospital” at 140 min), and at 24 h in the high-dose experiments. These measurements were performed comparing vehicle- with glibenclamide-treated animals for 24 h (A-i, B-i, C-i) and for 72 h (A-ii, B-ii, C-ii).

Glibenclamide treatment does not affect 72 h ipsilateral edema in combined injury

Ipsilateral edema remained increased at 72 h in CCI+HS (ipsilateral %BW = 80.37 ± 0.04% vehicle vs. 78.31 ± 0.04% naïve, p < 0.001), but again was not reduced by glibenclamide (p = 1.0, power = 1.0, Fig. 4A). Contralateral edema largely resolved in the combined injury model by 72 h (contralateral %BW = 78.45 ± 0.09% vehicle vs. 78.26 ± 0.05% naïve, p = 0.24, power = 0.46, Fig. 4B). Two animals in both vehicle (n = 9) and glibenclamide (n = 9) treated groups died by 72 h after injury, consistent with the observed level of mortality in our prior reports with this severe combined injury model. ²¹ MAP, serum sodium levels, and serum osmolarity were not different between the treatment and vehicle groups (Fig. 3 A-ii, B-ii, C-ii).

OPEN IN VIEWER

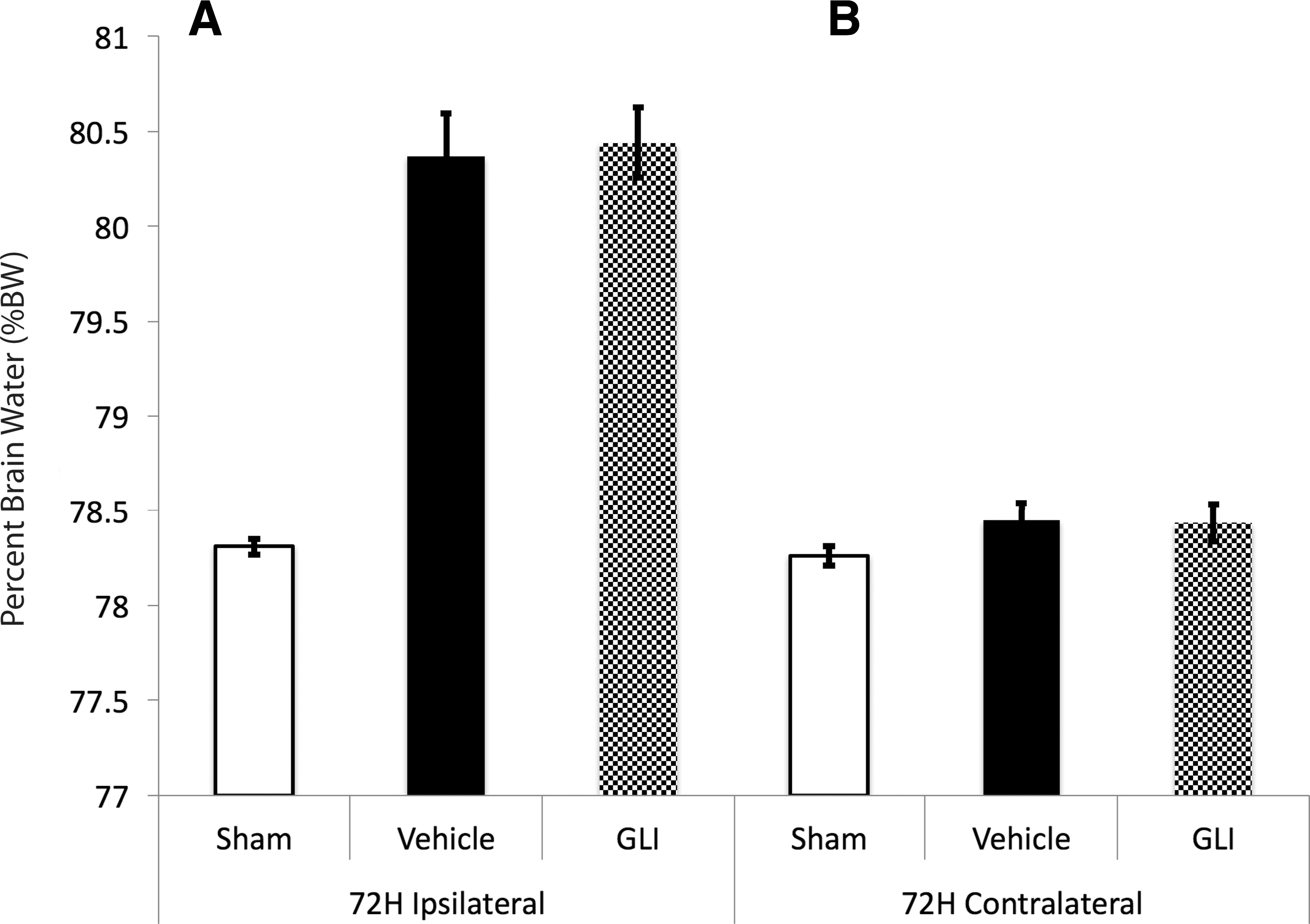

FIG. 4.

At 72 h, (A) in the hemisphere ipsilateral to contusion, %brain water (BW) was increased in vehicle (black bar, 80.37 ± 0.04%) versus naïve (white bar, 78.31 ± 0.04% naïve, p < 0.001). Glibenclamide treatment (shaded gray bar) did not reduce ipsilateral %BW. (B) At this time point, %BW in the hemisphere contralateral to the contusion had resolved (vehicle 78.45 ± 0.09% vs. naïve 78.26 ± 0.05%, p < 0.24).

Diffuse cerebral edema and secondary insults in TBI

The fact that secondary insults such as hypoxia and hypotension increase morbidity and mortality after TBI has been well established. ³⁶ Indeed, hypotension has been cited as the single most important prognostic factor ³⁶ and occurs in a significant proportion of TBI patients. The underlying mechanisms explaining this association, however, remain to be determined. The effects of cerebral edema likely play a critical role in this process, as it is also significantly linked to morbidity and mortality in TBI, and is exacerbated by hypotension and resuscitation efforts. ^{6,12 –15,27} Some insight into the exacerbation of brain edema by secondary insults was provided by important studies conducted in the laboratory of Marmarou and his co-investigators. Using an impact acceleration weight-drop model of diffuse TBI in rats and diffusion-weighted MRI, Ito and coworkers demonstrated that even with an injury level that alone produced no detectible brain edema, 30 min of secondary hypotension to an MAP of 30 mm Hg plus hypoxemia (PaO₂ of 40 mm Hg), produced diffuse edema and substantial intracranial hypertension at 3 h after the combined insult. ⁸ Subsequent studies suggested that the second insult impaired the ability of the brain to restore ion homeostasis, including potassium and sodium. ³⁷ They strongly implicated cytotoxic edema as the mechanism underlying the formation of diffuse edema in their model. Our results are consistent with these findings, broaden them from a diffuse injury model to CCI, and demonstrate that although the degree of ipsilateral edema is similar in CCI with or without a secondary hypotensive insult, diffuse edema in the contralateral hemisphere is seen only in the combined injury model of CCI+HS and is absent in CCI alone.

Ipsilateral edema is not responsive to this dose of glibenclamide therapy in mice (20 μg/kg loading dose followed by 0.4 μg/h SQ infusion)

The failure of glibenclamide to attenuate edema in the contused hemisphere in our study, although unexpected, supports the growing body of literature demonstrating that there are multiple mechanisms underpinning different types of cerebral edema generated in TBI and that these mechanisms may require unique and targeted therapies and specific doses/durations of therapy. It is possible, indeed likely, that the Sur1/glibenclamide pathway is one of many upregulated edema-generating mechanisms, and that the effects of its inhibition may therefore be diluted/overwhelmed by other mechanisms. These mechanisms may include a profound osmolar gradient caused by the contusion resulting in edema refractory to Sur1-targeted therapy even though Sur1 upregulation has been demonstrated in the contusion/pericontusion. ^20,30,38,39 It is also possible that glibenclamide treatment at this dose may influence additional targets other than Sur1 related to cerebral edema and/or neuroprotection. ⁴⁰ The complexity associated with categorization of cerebral edema after TBI was recognized as far back as 1905 when Reichardt coined the term “brain edema” to differentiate underlying cytotoxic “brain swelling” from vasogenic edema caused by vascular engorgement. ⁹ Advances in research have since delineated a number of molecular pathways involved in the pathogenesis of TBIrelated cerebral edema such as aquaporin-4 (AQP4), high-mobility group protein B1 (HMGB1)-toll-like-receptor-4 (TLR4), matrix metalloproteinases (MMP), Na+-K(+)-2Cl(-) cotransporter (NKCC1), and, germane to our investigations, Sur1–Trpm4. ^{21,31,41 –52} These mechanisms affect various processes such as cellular volume regulation, oncotic gradients, BBB integrity, and inflammatory responses, culminating in different forms of brain edema that have been described as contusional versus diffuse, or categorized as vasogenic, cytotoxic, or osmotic. ⁹

The ipsilateral edema in the CCI and CCI+HS models may primarily be contusional in nature, generated because of an osmotic potential across the central necrotic tissue (high osmolality) and the peripheral surrounding brain regions. ^38,39 Katayama and coworkers characterized the spatial and temporal pattern of this edema in animal models by measuring contusion and pericontusional osmolality and water content. ³⁸ This was confirmed in patients with apparent diffusion coefficient imaging. ³⁹ In our study, ipsilateral edema was not responsive to glibenclamide treatment at either 24 or 72 h, suggesting that the Sur1 pathway (or other ion channels) may be less prominent, or overwhelmed by alternative edema-generating mechanisms in the contusional site. Additionally, glibenclamide treatment may have other targets/an alternate role in the ipsilateral hemisphere/contusion compared with diffuse edema generation. A recent study suggests that glibenclamide attenuates BBB disruption after TBI via a c-Jun N-terminal kinase (JNK)/c-jun signaling pathway in endothelial cells. ⁴⁰

Diffuse cerebral edema after combined injury is responsive to this dose of glibenclamide therapy at 24 h (20 μg/kg loading dose followed by 0.4 μg/h SQ infusion)

Earlier theories of the etiology of edema in TBI being caused by vascular engorgement have now been replaced with evidence that there is usually a key cytotoxic component, particularly to peri-lesional and diffuse edema. ^{8,10,53 –57} In addition, some component of vasogenic edema thought to be secondary to BBB compromise may also contribute to diffuse edema. ^10,58,59 BBB permeability to albumin was not seen in the contralateral hemisphere in CCI alone. ⁶⁰ The Sur1 pathway has been implicated in its contributions to both cytotoxic and vasogenic components of brain edema: association with Trpm4 in neurons causes rapid cell depolarization, influx of sodium, followed by intracellular (i.e., cytotoxic) edema, and eventually oncotic death. The same process in CNS vascular endothelial cells results in degradation of the tight junctions and compromises the BBB, allowing extravasation of proteinaceous fluid (i.e., vasogenic edema). ⁶² Prior studies evaluating the effect of glibenclamide in TBI have used standard models of focal cortical contusion and predominantly focused on the ipsilateral hemisphere, hippocampal injury, and impact on parenchymal hemorrhage. ^20,21 Although increased Sur1 expression has been detected in the contralateral hemisphere after injury, ²⁰ its role particularly as it relates to diffuse edema has been characterized to a lesser extent. This is likely because models of CCI alone, at various injury levels, typically do not produce diffuse brain edema as demonstrated by our study and other reports, when water content in contralateral hemispheres is tested separately from hemispheres ipsilateral to injury. ^{8,31,62 –71}

Our model of CCI+HS therefore provides a useful opportunity to evaluate the effect of standard-dose glibenclamide on edema, given the diffuse edema generated in the contralateral hemisphere. Remarkably, this edema was virtually eliminated by treatment with glibenclamide at 24 h. Although this suggests an important role of the Sur1 pathway in the development of this type of edema, potential off-target effects of glibenclamide on secondary brain injury and neuroprotection are also a consideration. A molecular examination of the differential contributions of various pathways to diffuse edema and their response to glibenclamide in an edema-generating model with combined injury merits exploration.

Although deceptively small, a 0.5% increase in BW is often clinically significant. For example, after 9 min asphyxial cardiac arrest, an ∼0.5% global increase in BW is seen and associated with significant neuronal death and neurological impairment. ⁷² After TBI, a 0.5% increase in BW in the uninjured brain appears to contribute to elevations in ICP, suggesting clinical relevance: in CCI alone, ICP increases to ∼13–14 mm Hg and is not affected by glibenclamide; ³¹ however, the addition of shock in our model results in an ICP increase to ∼20 mm Hg by the end of the resuscitation. ²⁷ This diffuse edema is challenging to treat, and in our model of CCI+HS the only agents to decrease contralateral %BW have been an experimental blood substitute (polynitroxylated pegylated hemoglobin-A ²⁷ ), and glibenclamide as shown in our current report. Agents failing to reduce this seemingly minimal contralateral brain edema in our hands have included an AQP4 blocker, 23.4% NaCl, and whole blood (unpublished data). In Operation Brain Trauma therapy (OBTT) which studies pre-clinical therapies in TBI alone, of the many agents investigated, the second most positive therapy to date is glibenclamide. ⁷³ In OBTT, glibenclamide reduced contusion volume and improved motor function specifically in the CCI model; however, consistent with this current report, contusional %BW was not reduced, again suggesting a potential effect of glibenclamide independent of contusional edema. ⁷³

An important limitation of our study is that ICP was not recorded. This was for several reasons. Our previously published work on this model has already demonstrated the clinically relevant increases in ICP by the end of the resuscitation. ²⁷ Given that the Sur1–Trpm4 channel is not present or at very low levels in the uninjured brain, but requires upregulation, ⁵⁹ it was not determined to be high yield to monitor ICP during the glibenclamide infusion during the acute phase, particularly as invasive monitoring can induce some level of damage and cause confounding effects. Although it would have been interesting to follow ICP and CPP out to the 24 h time point in our studies, maintaining mice anesthetized and monitored for extended periods of time is highly problematic.

Although we have previously characterized many of the consequences of the secondary insult, including worsening of functional outcome and neuropathology in our combined injury model, ^{18, 21} we have not defined whether or not the HS leads to BBB dysfunction in the hemisphere contralateral to injury. Therefore, we cannot definitively say whether the benefit of glibenclamide on diffuse edema in our model results from the effects on cytotoxic or vasogenic edema or both.

Because Sur1 is upregulated, its contribution to diffuse edema and inhibition with glibenclamide may not be maximized in the 24 h period. Recent clinical studies in 28 patients with severe TBI demonstrated a strong correlation between early edema and cerebrospinal fluid (CSF) Sur-1 levels, along with a correlation between resolution of intracranial hypertension and a fall in CSF Sur-1 levels between 48 and 72 h after TBI. ⁷⁴ In our mouse model, diffuse edema in injured mice had resolved by 72 h; %BW in both vehicle- and glibenclamide-treated groups was no different than in naive. Additional studies with time points between 24 and 72 h using either a more severe CCI or a more severe second insult (or both) may provide further insights into the optimal timing and duration of glibenclamide treatment. Also, more highly regional assessments than hemispheric %BW are indicated either with focused tissue sampling or MRI. It is also possible that different doses of glibenclamide may be needed to modulate brain edema in various brain regions in either CCI or our combined injury model, depending on the mechanism of edema formation in any given region.

Glibenclamide in TBI

Our work is unique compared with other pre-clinical studies of glibenclamide in TBI in terms of the species (mouse), the model (combined injury vs. CCI alone), and the outcome (beneficial effects of the standard glibenclamide dose was only seen in relatively mild contralateral cerebral edema but not in significant contusional edema). To our knowledge, with the exception of a recent study by Xu and coworkers, ⁴⁰ pre-clinical studies on the effect of glibenclamide in TBI have primarily been conducted in rat models. ^20,30,31,59 Although there have been a few mouse-based reports of Sur1 in spinal cord injury (SCI) ⁷⁵ and CNS preconditioning, ⁷⁶ animal studies investigating Sur1 and glibenclamide in acute ischemic stroke, SCI, cardiac arrest, and subarachnoid hemorrhage have mostly been in rats. ^{19,22,23,35,59,77 –81} One advantage of using a mouse model is that it facilitates future exploration of this pathway in knockout animals. However, this pathway is less well characterized in mice.

There have been four published pre-clinical studies evaluating glibenclamide specifically in TBI. ^20,30,31,40 These studies examine CCI alone, and none evaluate glibenclamide in a combined model of CCI plus a secondary insult such as HS. In two of these studies (using 10 μg/kg glibenclamide in rats) reduced progressive secondary hemorrhage and improved behavioral outcomes were noted; however, cerebral edema was not assessed. ^20,30 Edema was evaluated by Zweckberger and coworkers in a rat model of CCI: 10 μg/kg of glibenclamide treatment did not affect acute ICP but decreased 24 h ipsilateral BW and contusion volume (at 8 h, 24 h, 72 h, and 7 days). ³¹ We cannot rule out the possibility that the variation between these findings and our results are the result of differences in dosing between mice and rats as well as the fact that the therapeutic level achieved by these other studies is unknown/unpublished as distinct from our study with steady state levels of ∼10 ng/mL achieved after a loading dose of 20 μg/kg (calculated murine equivalent of 10 μg/kg in rats) followed by 0.4 μg/h infusion. The most recent study by Xu and coworkers ⁴¹ also evaluated isolated CCI and brain edema in mice. They reported reduction in ipsilateral %BW (at day 3 post-TBI) and BBB disruption after 10 μg intraperitoneal injection of glibenclamide for 3 days, and implicated the role of an alternative pathway (JNK/c-jun mediated apoptosis). Although these reports confirm our finding of no contralateral edema development in rats or mice after CCI alone, contrary to our results, both reported reduction in ipsilateral BW at 24 h.

There are multiple essential differences between these reports and our study including (1) methodologies to determine brain edema, (2) glibenclamide treatment dose, (3) treatment duration, (4) species (5) injury severity, and (6) timing of the assessments. Although we used body-surface-area-adjusted dose conversions to achieve the murine equivalent of 10 μg/kg in rats, and with this regimen achieved similar post-load glibenclamide levels compared with unpublished observations by Simard and coworkers, ³⁵ our steady state levels were ∼10 ng/mL (20 nM). It is unknown how this steady-state level compares with four other studies mentioned previously, because those data were not published. It is of note that the Half maximal effective concentration (EC₅₀) of glibenclamide is 48 nM at a pH of 7.4, which is higher than our level of 20 nM. Glibenclamide potency significantly increases with decreasing pH (that may be encountered in ischemic/damaged tissue); the EC₅₀ of glibenclamide at a pH of 6.8 is 6 nM. ⁸² Therefore, the regional effects of glibenclamide may vary based on the local microenvironment. Other reports of glibenclamide in murine models of non-TBI disease use higher doses (10 μg/mouse) with reduced in vivo neuronal damage, preservation of myelin, preservation of axons, and more numerous/mature oligodendrocytes and reduced in vitro glutamate-induced cell swelling in experimental autoimmune encephalitis. ^83,84 This, combined with the results from Xu and coworkers, indicates that differences in murine dosing may be an important contributor to the variation in results observed between our study and prior reports.

The varied results of these pre-clinical studies highlight the complexity and heterogeneity of TBI, and, therefore, the importance of studying different doses, treatment durations, models, species, and injuries so that pre-clinical models can more accurately inform clinical studies. Indeed, a recent small randomized controlled trial in moderate-severe TBI (diffuse axonal injury) suggested that glibenclamide may be neuroprotective. The mechanism of neuroprotection is currently unclear, and may include pathways distinct from cerebral edema. ⁸⁵ Although negative murine studies may not be directly predictive of results in humans, they can inform optimal treatment regimens and clinical trial design. Our data suggest that the setting of TBI complicated by HS, polytrauma, and fluid resuscitation merits additional study of the potential utility of glibenclamide therapy in pre-clinical and/or clinical studies.
