Characterization of Differences in Functional Connectivity Associated with Close-Range Blast Exposure

Introduction

Combat-related blast exposures are common in service members who served in Afghanistan and Iraq; over 50% of soldiers returning from Iraq reported being near two or more improvised explosive devices (IEDs), in many cases being exposed to high energy explosives, now survivable because of advanced vehicle and body armor. ¹ Hence, the prevalence of survivable blast-related injuries is unprecedented; therefore, it is not surprising that there are critical gaps in knowledge regarding the neurobiological consequences of exposure to these blasts. Animal and human research suggests that blast exposure is associated with a number of pathological changes in brain tissue. In animal models, primary blast exposure, without accompanying blunt trauma, is associated with altered gene expression, ² brain chemistry, ³ and neuroimaging findings. ⁴ Neuroimaging work in humans ^{5 –7} has demonstrated that exposure to blast, even without diagnostic symptoms of concussion, results in measurable changes in the brain, and may even alter brain aging trajectories. ⁸

Our recent work ⁶ revealed differences in functional connectivity magnetic resonance imaging (fcMRI) in veterans of Operations Enduring Freedom, Iraqi Freedom, and New Dawn (OEF/OIF/OND) reporting exposure to blast, regardless of whether the blast was associated with concussion. Specifically, we found that in the group reporting close-range blast exposures (CBE) (self-reported to be within 10 m), areas of anticorrelation (i.e., negative correlation) to the default mode network (DMN) extended into the somatomotor cortex, unlike the no-CBE group. Critically, changes in fcMRI were specific to CBE, and were not dependent on associated concussion symptoms; that is: fcMRI alterations for veterans with CBE were equal for those with and without concussion symptoms. Further, changes in fcMRI were not attributable to factors such as post-traumatic stress disorder (PTSD), sleep quality, pain, or length of or time since deployment. Finally, we observed these changes months to years after the exposures, suggesting that blast-related alterations in fcMRI are long lasting, if not permanent. We observed no similar effect from blasts at greater distances (i.e., 25–100 m), or as a result of concussion from blunt trauma. We concluded that blast exposures at close range – regardless of concussion status – play a unique and largely unexplored role in the brain health of veterans.

The goal of this study is to identify likely biological mechanisms that may have brought about these previously observed changes in functional connectivity in veterans with CBE. Because fcMRI is an indirect measure of neural function, ^9,10 and, therefore, is influenced by nonspecific changes in underlying biological processes including neural function, ¹¹ we seek to further explore the information contained in the fcMRI measurement to attempt to narrow the potential biological interpretations of the effects associated with CBE. fcMRI is often conceptualized as arising from brain regions that co-activate through white matter connections. ¹² Glial cells in the neurovascular unit then mediate a complex metabolically driven vascular response to local activations, resulting in changes in magnetic properties that are MR-visible. ¹³ In healthy brains, fcMRI is largely a reliable tool for the study of brain network activity, and as expected, pathological changes such as degenerating white matter pathways or altered neural function result in aberrant fcMRI patterns. ¹⁴ In addition to these primarily neutrally driven deviations, non-neural sources of variation, which are assumed stable in healthy populations, may affect the fcMRI signal in pathological conditions. For example, pathological changes in the glial neurovascular unit may result in neural activity (that is largely preserved) to be poorly translated into a vascular response, ¹⁵ or the vasculature may be unable to comply with metabolic demands of neurons. ^16,17 It is currently unclear which, if any, of these mechanisms may explain the observed differences in fcMRI in individuals with CBE, as each is corroborated through animal studies of blast (see Table 1) ^{18 –29} .

In general, fcMRI is used to estimate coordinated neural activity, by comparing correlation values either across regions or across participants. However, the technique is susceptible to shared noise in the signal across the brain, such as that arising from physiological variation. ³⁰ This noise can bias the correlation measurements; therefore, efforts are made in post-processing to limit its influence. One method for achieving this is to regress out time-dependent activity common to the entire brain, using what is known as global signal regression (GSR). Somewhat similarly to subtracting the mean correlation, GSR divides the brain into networks that are half positive and half anticorrelated, similar to what is seen during tasks. ³¹ A problem arises, however, because with GSR, anticorrelation would arise mathematically regardless of its biological appropriateness, ³² and without GSR, the brain is almost entirely positively correlated. ³³ Although there is evidence that in healthy individuals GSR provides a reasonable estimation of a neurophysiologically meaningful reference point, ³⁴ the accuracy of that estimate may depend on non-neural factors such as vascular function, which could vary between groups. ³⁵ This could be why the global signal itself can hold clinically meaningful information. ^36,37

The major finding of our previous work was a spread of the anticorrelation to a DMN seed into the somatomotor cortex. The role of the somatomotor cortex was unclear, as the global signal will determine the “zero-point” between positive and negative correlations, suggesting a change in the signal driving the brain-wide average. Therefore, in the present study, we examined the DMN, the global waveform, and the dorsal attention network (DAN), an anticorrelated network. ³¹ We calculated group difference maps, which assume spatial homogeneity; as well as distributions of correlations, which do not. Each analysis was conducted for each network with and without GSR. The results provide further characterization of the nature of the differences between veterans with and those without CBE, and offer directions for the study of neurophysiological mechanisms underlying blast neurotrauma.

Methods

Results

Replication of previous finding

The main findings of our previous work were replicated. We found differences between veterans with and without CBE that could be described as spreading of anticorrelation, although the regions that met significance were more ventral, and stronger on the left rather than the right (Figs. 1 and 2). Somatomotor cortex was minimally significant in the replication. Secondary analyses similar to those in the study by Robinson and coworkers ⁶ can be found in Table S1, demonstrating that these results are independent of other military-related conditions such as PTSD and military concussion (see online supplementary material at http://www.liebertpub.com).

OPEN IN VIEWER

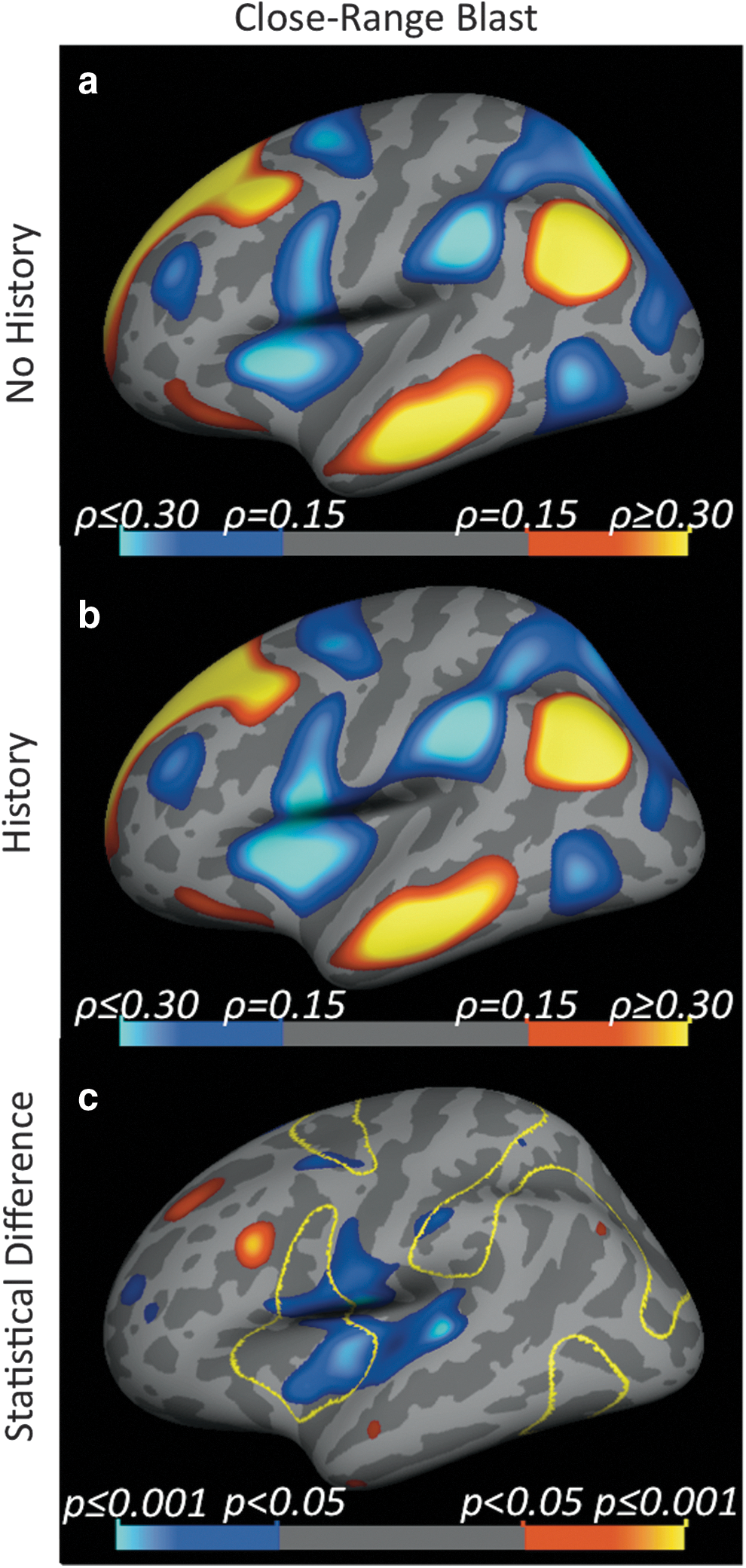

FIG. 1.

Replication of group differences in close-range blast exposure (CBE). For 135 participants, none of whom were included in the prior work, groups were determined based on self-report of being within 10 m of a blast. Groups were compared on connectivity to a seed region in the superior third of the isthmus of the cingulate, a hub in the default mode network. (a) Group mean for participants without CBE. (b) Group mean for participants with CBE. (c) Statistical difference between the two groups, displayed at uncorrected p < 0.05. Clusters that survive correction for multiple comparisons are shown in Figure 2. Note that in both groups, the area of correlation to the seed (yellow-red in [a] and [b]) is similar; however, the area of anticorrelation (blue-cyan in [a] and [b]) covers a greater spatial extent in the CBE group. We refer to this effect as “spreading of the anticorrelation.”

OPEN IN VIEWER

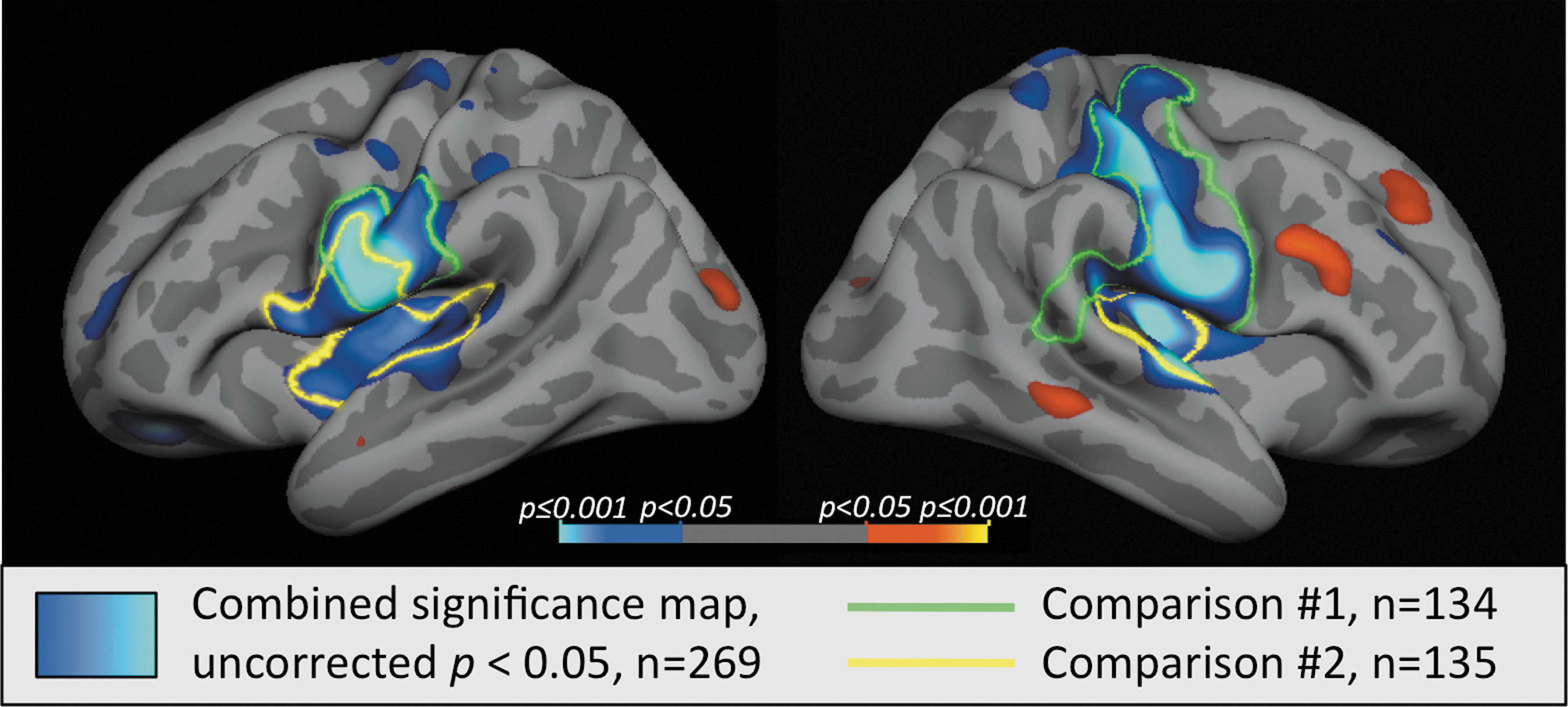

FIG. 2.

Overlap of significance maps across replication groups. Outlines of significance regions from the original finding ⁶ (n = 134) and the replication (n = 135) are shown in outlines over the significance map of the combined group. Although in all cases the effect can be described as a “spreading of the anticorrelation,” the anatomical overlap between replication studies is poor, especially in the right hemisphere.

Role of global signal regression

Figure 3a shows the average of the global signal connectivity map for all participants with seeds and significance regions labeled. We found no group differences in global waveform seed connectivity (Fig. 3b) for either vertex-wise analyses or whole-brain averages, suggesting that there were no overt differences in global signal. Using all participants (n = 269), the DMN analysis was conducted with and without GSR (Fig. 4a,b). Without GSR, groups did not significantly differ. Whole-brain averages were included as subject-level covariates to replace the GSR, resulting in vertex-wise significance differences in similar regions to the spreading anticorrelation observed; however, these did not survive correction for multiple comparisons.

OPEN IN VIEWER

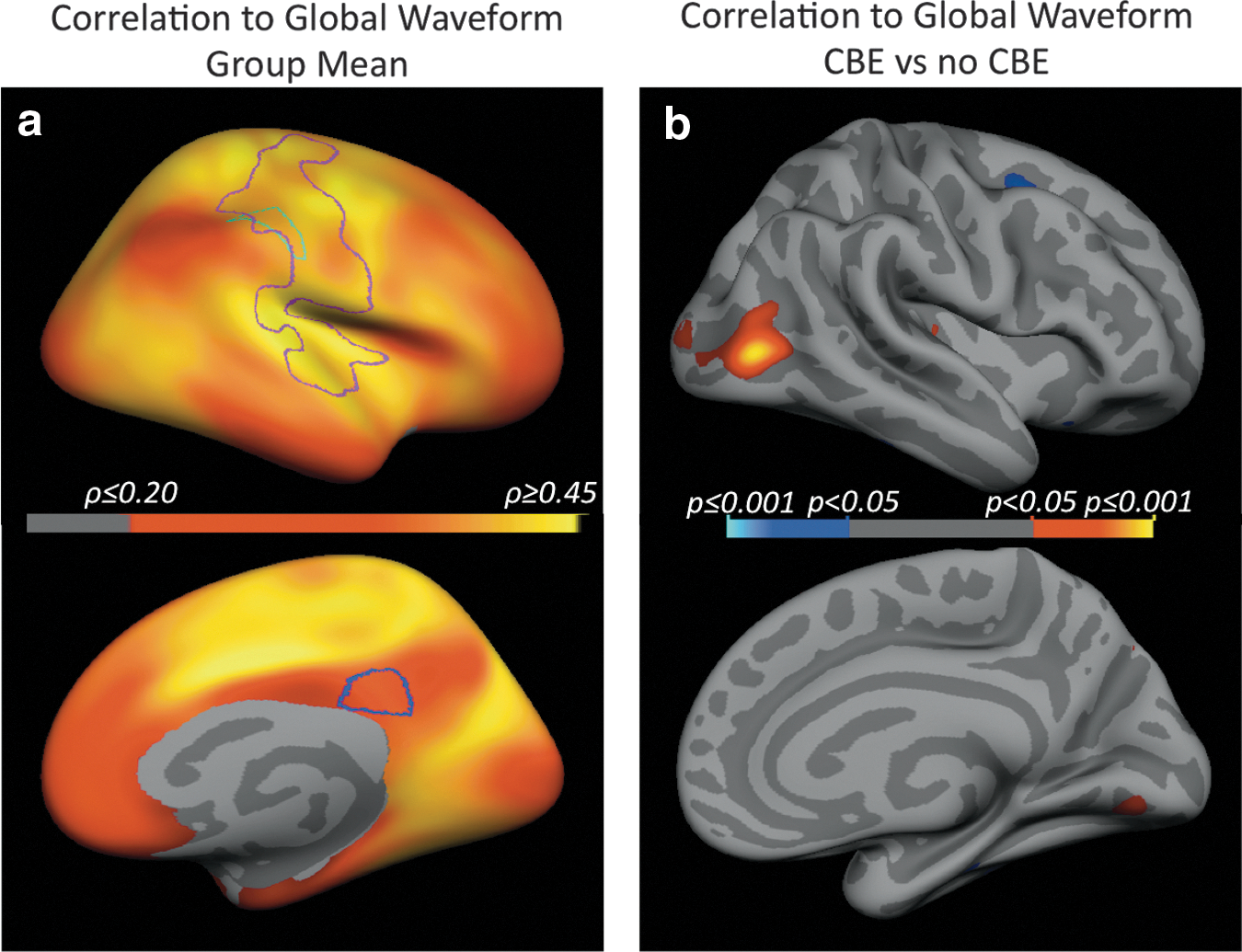

FIG. 3.

Global Signal. Panel (a) shows the mean correlation to the global signal averaged over all participants. Seed regions for each network are labeled, as well as the significance region identified in the main analysis. Purple, significance region; green, dorsal attention network seed; blue, default mode network seed. Panel (b) shows the group difference map for correlation to the global signal. No clusters survived correction for multiple comparisons.

OPEN IN VIEWER

FIG. 4.

Comparison of correlation analyses. Group difference statistical maps are shown for four correlation analyses. (a) Main analysis: correlation to seed in the superior third of isthmus of the cingulate, a default mode network (DMN) hub, using the global signal regression. (b) Correlation to the DMN seed without using the global signal regression. (c) Correlation to the seed in the inferior half of the postcentral sulcus, a dorsal attention network (DAN) hub, using global signal regression. (d) Correlation to the DAN seed without using global signal regression. Note that only the first analysis includes clusters that survived correction for multiple comparisons (denoted with yellow outline).

Correlation distributions

Similar to the group maps, with GSR, the DMN had group differences in distributions of cortical correlations, but the DAN did not (Fig. 5a,c). However, unlike the group maps, both networks demonstrated significant group differences without GSR (Fig. 5b,d), demonstrating that GSR processing does not create the group difference. Connectivity to the global waveform differed on two out of 50 histogram bins, which is the rate expected by chance. Vertices with high correlation to the DMN seed (without GSR) are shown in Figure 6 as an overlap map. It is of note that within the CBE group, regions that are highly correlated to the DMN seed are more widespread, although core areas of the DMN are quite similar.

OPEN IN VIEWER

FIG. 5.

Group differences in correlation distribution. Histograms of vertex-wise correlations across the cortex are shown. Mean histogram for participants with close-range blast exposure (CBE) is shown in red, and for those without CBE it is shown in blue. Significant differences (p < 0.05) at each bin are indicated with circles. Panels a–d show the same analyses as shown in Figure 4. Note that there are significant differences between groups, independent of inclusion of global signal regression.

OPEN IN VIEWER

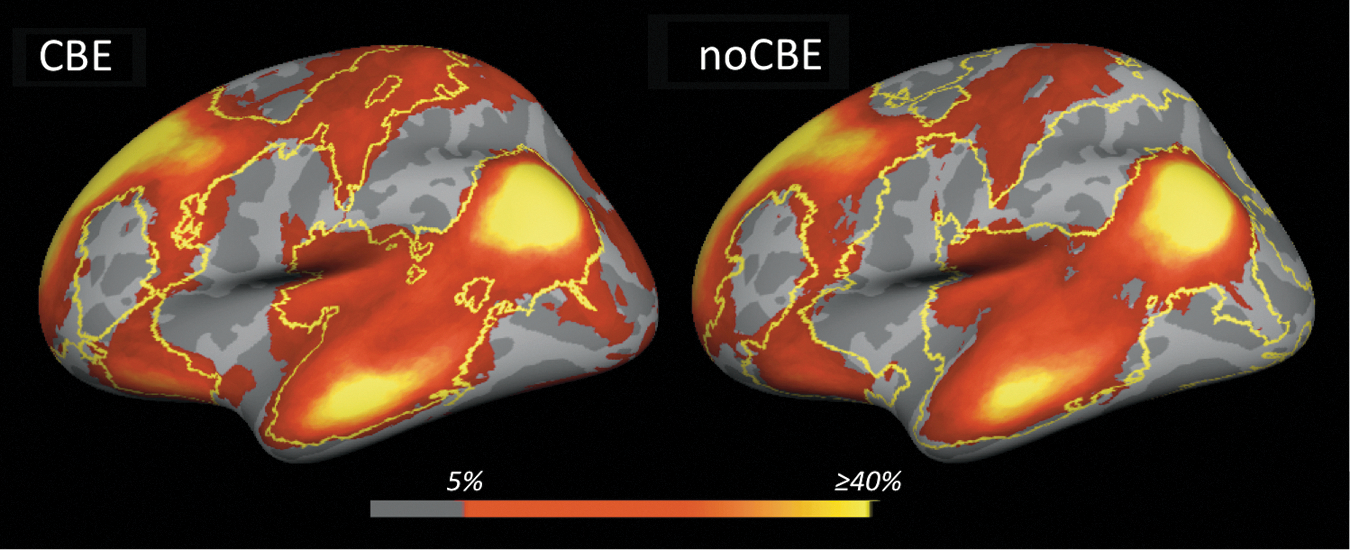

FIG. 6.

Localization of vertices with high correlation to the DMN seed. Vertices with correlation values of 0.66 or greater to the default mode network (DMN) seed (see Figure 5b) were identified for each participant. Areas where this criteria was met are shown as overlap maps indicating the percent of participants in each group where this was the case. For reference, each map includes the outline of the other group's map. Areas of high correlation are more widespread in the close-range blast exposure (CBE) group, although no area outside the core DMN hubs represents a large percentage of the group.

Discussion

In this report, we have, first, replicated our previous finding of connectivity differences associated with CBE in an independent sample of 135 OEF/OIF/OND veterans. Confirmation of this result is important, as it establishes the utility of proximity cutoffs as a meaningful indicator of blasts that may lead to brain injury. The replication was not exact; the anatomical overlap between the two samples was notably poor. However, in both cases, the effect can be described as a spread of the anticorrelation (Fig 1). This may suggest that this type of effect, spreading of anticorrelation, is not highly spatially constrained and may be a more general phenomenon of the global physiology. The remainder of the report seeks to identify potential biological mechanisms that could promote a spread in anticorrelation by simultaneously considering multiple aspects of the functional connectivity data. We believe that this is indicative of disturbance in either vascular health or neurovascular coupling, and our reasoning is as follows.

We examined two networks: the DMN, which was used in the original finding and the replication; and the DAN, one of the networks consistently anticorrelated to the DMN. ³¹ Each network was analyzed both with and without the use of GSR. Group difference maps were calculated along with the distribution of vertex-wise correlations across the cortex. We found that the DMN was associated with spreading anticorrelation when GSR was used, but not without GSR. For the DAN, no significant differences in the group maps were seen with or without GSR (Fig. 4). Both networks had significant differences in the correlation distribution when GSR was not used, but only the DMN differed when it was (Fig. 5). Finally, we found no significant differences in the group map of connectivity to the global signal.

Considering only the results for the DMN, these results seem to indicate DMN hyperconnectivity to regions that are heterogeneous across participants. These positive connections would then bias the global waveform to be similar to the DMN time course, resulting in more negative connections relative to it. Although this is corroborated by the overlap map of DMN connections (Fig. 6), and similar results have been reported elsewhere in association with nonconcussive head trauma, ⁴⁷ it does not explain the results we observed for the DAN. In the DAN, distributions of correlations prior to GSR were even more strikingly different between groups. However, after GSR, the distributions were not different, and the group map showed no significant differences, unlike in the DMN. To explain these results, we examined the topology of the global signal connectivity itself. We found that regions of high correlation to the global signal were very similar to the significance regions, and that hubs of the DMN network were also areas of low global correlation. In this framework, we saw that areas of the brain that became significant after GSR were those most similar to the global signal, and, therefore, if CBE resulted in less correlation to the global signal, there was more “room” to move toward the DMN than toward the DAN. Thus, we find an explanation consistent with all of our findings; namely, that with CBE, areas of the brain become less related to the global signal and begin to appear more DMN-like, although the specific regions in which this occurs are not consistent across individuals.

There are a number of biological mechanisms that may result in these phenomena. Drawing from previously identified tissue injuries associated with blast injuries (Table 1), with white matter damage or impaired neural function, we would expect that the spreading anticorrelation to the DMN would arise from less DMN input to the area (either because of neuronal loss in the DMN or impaired axonal transport from it) such that task-positive network activity dominates. As such, DMN connectivity with and without GSR would be similar, and we would have expected that increased anticorrelation to the DMN would have been associated with complementary findings in the DAN, which were not observed. Rather, altered cerebral blood flow and microvascular changes, or impaired neurovascular coupling were the more likely mechanisms, although we cannot exclude contributions from neural impairment through this study. Either microvascular changes or impaired neurovascular coupling could result in inconsistent translation of typical neural activity into blood-oxygen-level-dependent (BOLD) signal. Histopathological work in veterans exposed to blasts has shown evidence of widespread glial injury, ⁴⁸ consistent with impaired neuro-vascular coupling, as well as prevalent vascular issues. ⁴⁹ Spatial inhomogeneity across participants is not surprising given the nature of the injury, and this is a consistent theme throughout blast concussion literature. ^{50 –54} Ultimately, it is unlikely that exposure to detonated munitions affects only one aspect of the brain's functions, and it may be that some combination of effects is producing the results that we observed. Although this report is a step toward understanding the biological mechanisms of blast injury in the brain, there are still many issues that need to be addressed before a complete mechanistic understanding of blast-related brain injury can be defined.

It has been reported previously that the use of the GSR in connectivity studies can produce regions of statistically significant differences, which do not necessarily reflect the underlying true differences in groups. ⁵⁵ The analyses presented here appear to form another example of this, where a group difference that was present even without GSR in the distribution of correlations was observed as spreading anticorrelation in the group maps using GSR. It is of note that without the use of the GSR, no differences in the DMN connectivity group maps were detected, even with twice as many participants as either analysis using GSR. Therefore, like others, ³⁷ we endorse the need for caution in interpreting results of connectivity analyses using this common technique, especially given the many neurophysiological processes that may differ between groups to ultimately produce a change in observed functional connectivity. However, we note that rather than creating spurious group differences driven by background noise, we were able to detect a group difference that was present in a different aspect of the BOLD activity.

This study adds to a growing understanding that blast exposures need not result in concussion symptoms at the time of the event to produce changes to the brain, and that proximity to blast may serve as a better estimate of injury severity than reported symptoms. Further work is needed to completely understand this phenomenon, including further in vivo studies and histopathological work that is specifically aimed at nearby blast exposure. Our first study ⁶ demonstrated that, among the different ways of assessing head trauma, CBE is highly predictive of differences in functional connectivity. In this study, by using multiple methods of examining that functional connectivity, we found that the most likely biological interpretation of these fcMRI differences was either vascular or glial disturbance. These interpretations are consistent with our findings that nearly half of participants who have had CBE do not report overt symptoms at the time of exposure. Further research to extend these findings may include studies of cerebrovascular reactivity, hemodynamic coupling, or electrical recordings of neural function.
