Whole Brain Magnetic Resonance Spectroscopic Determinants of Functional Outcomes in Pediatric Moderate/Severe Traumatic Brain Injury

Introduction

Moderate/severe traumatic brain injury (msTBI) experienced in childhood is one of the leading causes of neurologic-based functional morbidity in childhood in the United States and worldwide. ¹ Diffuse (multifocal) axonal injuries (DAI), which disrupt the white matter connections in the brain, are very common in these types of injuries. ² This is relevant especially in childhood, because the brain is in a period of rapid growth and myelination, and any disruptions to this process in the course of normal development can have chronic consequences in cognitive, health, social, and emotional outcomes. ^3,4

In addition to structural changes identified by diffusion tensor and related imaging technology, ^{5 –9} the neurometabolic cascade including physiologic, ionic, and metabolic changes initiated by msTBI can cause secondary damage. The resulting functional morbidity can vary in time course and nature, depending on injury severity. Magnetic resonance spectroscopy (MRS) provides noninvasive quantitative metabolite measures that complement measures of structural change.

One of the most studied metabolites in neurological disorders, including msTBI, is N-acetylaspartate (NAA), because it can be measured noninvasively with MRS. NAA is a robust marker of both neuronal and axonal integrity, ¹⁰ plays an important role in oligodendrocytes and myelin production, ^11,12 and is a marker of mitochondrial dysfunction. ¹² Reductions or alternations in MRS-measured NAA may reflect ongoing mitochondrial dysfunction, loss of viable neurons, or disruption in myelination. ¹²

MRS studies in TBI have also focused on choline (Cho) containing compounds, which are precursors and catabolytes of the phospholipids that form cell/organelle membranes and myelin membranes, although the MRS-derived Cho signal is more likely to measure free Cho, glycerophosphorylcholine, and phosphorylcholine. Whereas decreased Cho can reflect cell loss, increased Cho can signify membrane turnover, cellular proliferation, and/or gliosis. ^10,12 Other metabolites of interest that produce quantifiable MRS signals have included creatine (Cre), which can also be an indicator of cellular function and dysfunction. ^{13 –15}

Using single voxel or single slice MRS methods, previous research has shown that in acute pediatric msTBI, there are reductions in NAA and elevations in Cho, which correlate with later neurologic and neuropsychological outcome. ^13,16 Similar neurometabolic alterations have been reported at longer post-injury times, ¹⁷ with correlations observed with neuropsychological and behavioral functioning. ^{18 –20} Advances in imaging technology recently have made whole brain three dimensional (3D)-MRS imaging (MRSI) acquisition possible. In adult patients with TBI of varying injury severities, whole brain 3D-MRSI studies have shown widespread alterations in Cho and NAA, that are correlated with injury severity and neuropsychological functioning. ^{21 –23} No studies, however, have used whole brain 3D-MRSI to evaluate a sample of pediatric patients or evaluated its relationship with functional outcomes.

We found recently that event-related potential (ERP)-based interhemispheric transfer time (IHTT) assessed during the post-acute period may be a valuable biomarker in subgrouping children with msTBI into those who appear more adversely affected by their injury, defined by poor cognitive functioning, and progressive abnormalities in white matter organization. ^{24 –26} We extend those findings in this article by evaluating the neurometabolic status of the subgroups of msTBI defined by IHTT and healthy controls to determine whether neurometabolic abnormalities can explain further the white matter pathophysiology that underlies neurobehavioral morbidity observed in children with slow IHTT post-msTBI.

We applied whole brain MRS technology to characterize the metabolite levels in brain structures sensitive to msTBI (lobes, corpus callosum [CC], hippocampus, and cerebellum) at two discrete times, post-acutely (when the brain is still in a state of recovery) and again at approximately 16 months post-injury (when a substantial degree of repair and recovery has occurred) to delineate the course of disruption and repair during the first year after pediatric msTBI.

Methods

Brain imaging acquisition

Participants were scanned on 3T Siemens Trio MRI scanners (Siemens Healthcare GmbH, Germany). T1-weighted 3D images were acquired with magnetization prepared rapid gradient echo imaging (MPRAGE) using the following acquisition parameters: GRAPPA mode; acceleration factor phase encoding (PE) = 2; repetition time (TR)/echo time (TE)/T1 = 1900/3.26/900 msec; field of view (FOV) = 250 × 250 mm²; an axial plane acquisition with isotropic voxel size = 1 mm, flip angle = nine degrees. A 12-channel head coil was used.

Partway through the study, scanning moved from the UCLA Brain Mapping Center (BMC) to the Staglin IMHRO Center for Cognitive Neuroscience (Staglin). Both scanners were 3T Siemens Trio scanners, and the protocol was maintained. To determine that scanner change did not introduce bias into our data, we scanned six healthy adult volunteers at both the BMC and Staglin centers, 1.5 months apart. We then assessed possible scanner effects based on the T1-weighted image pairs. Extensive details of this process can be found in our previous article. ⁸

MRSI data were obtained using a volumetric spin-echo EPSI sequence (TR/TE = 1710 msec/70 msec, FOV: 280 × 280 × 180 mm³, 100 [read] × 50 [phase] × 18 [slice] spatial samples over a 135-mm slab, and acquisition time of 26 min). This method has been validated and used previously in a number of publications. ^23,29 It included frequency-selective water suppression and inversion-recovery nulling of the lipid signal with T1 = 198 msec. This pulse sequence included both a spin-echo excitation for the metabolite signals and a low flip-angle gradient-echo acquisition of a water reference signal, which was acquired in an interleaved fashion.

The MPRAGE MRI and MRSI acquisitions were performed at the same angulation, with the slice or slab orientations of all acquisitions parallel to the anterior commissure-posterior commissure (AC-PC) plane, or angulated at +15 degrees from the AC-PC, which was found to facilitate improved magnetic field homogeneity over a larger volume of the cerebrum. Figure 1 illustrates the general MRSI quality with data taken from a single spectroscopic imaging slice from a single subject with brain injury. Figure 2 illustrates that the MRSI method produces multiple slices allowing study of almost the entire brain.

OPEN IN VIEWER

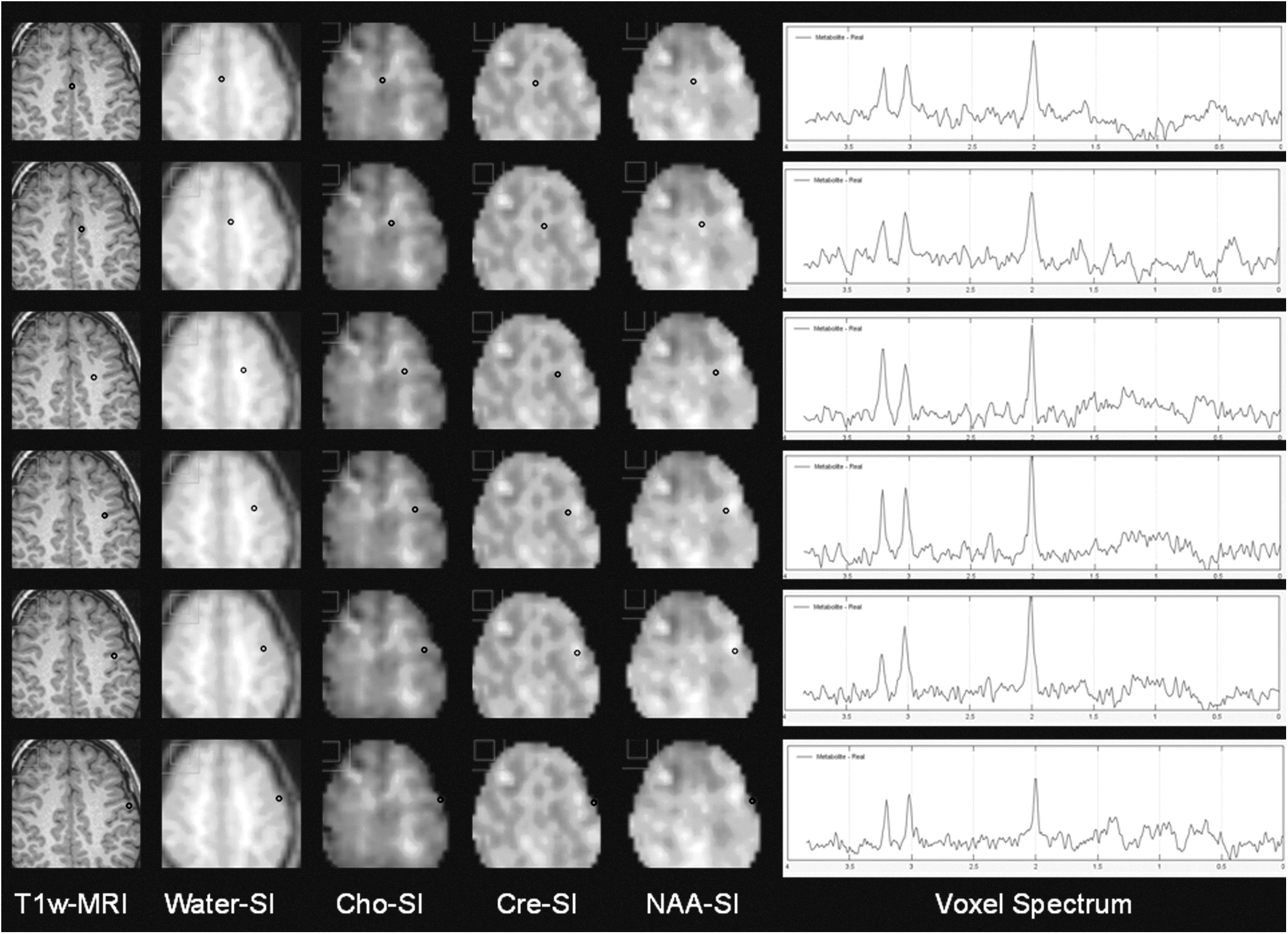

FIG. 1.

This figure illustrates the general magnetic resonance spectroscopy imaging quality with data taken from a single spectroscopic imaging slice from a single subject with brain injury. Thirty-two such slices are produced in each study. The circles illustrate the nominal in plane voxel size (2.5 mm diameter) after spatial filtering and interpolation. Each row in the figure has the voxel position shifted two nominal voxel widths toward the subject's left (the images follow radiological convention). The leftmost column displays the T1-weighted (MPRAGE) image intensity aligned to the spectroscopic images of water, total choline (Cho), total creatine (Cre), total N-acetylaspartate (NAA). The rightmost column displays the voxel spectrum produced by the region identified by the circles. The voxel spectra illustrate the typical signal-to-noise ratio and spectral resolution. They also illustrate that in general for lipid signals produce no interference with the NAA signal within about 5 mm from the head surface. MRI, magnetic resonance imaging.

OPEN IN VIEWER

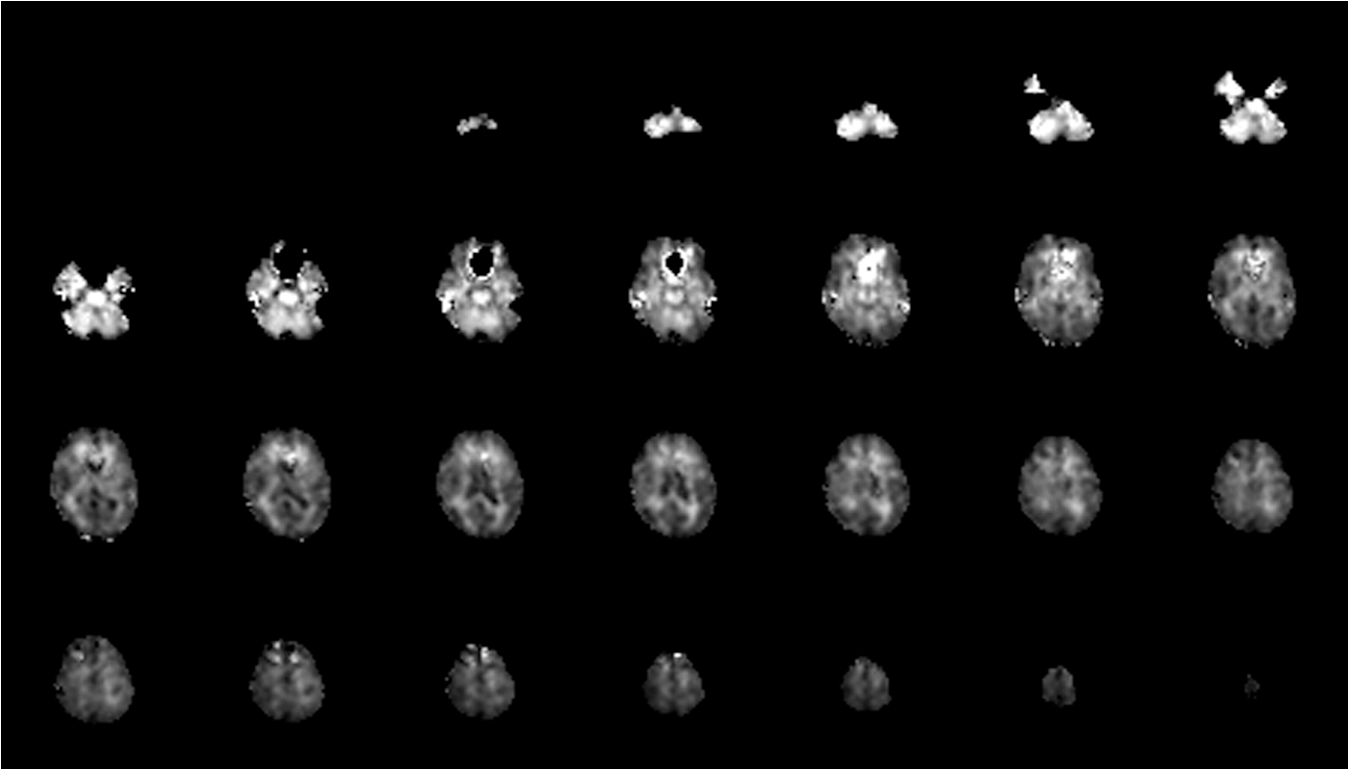

FIG. 2.

This figure illustrates that the MRSI method produces multiple slices allowing study of almost the entire brain. The figure shows the total choline volume image from a single TBI subject in multi-slice format.

MRSI data were processed in a fully automated manner using the MIDAS package, the details of which can be found in previous publications. ^{23 –30} The processing steps included calculation of the MRSI voxel tissue content based on tissue segmentation of the high-resolution T1-weighted MRI; signal normalization to institutional units using the water reference data; and spatial registration to the simulated Montreal Neurological Institute MRI template, ³¹ which was matched to a brain atlas that delineated the eight hemispheric lobes and the cerebellum. ³² Absolute voxel levels of NAA, Cr, and Cho were obtained for all four lobes, right and left hemisphere separately. In addition, metabolite levels for the right and left hemisphere cerebellum, hippocampus, as well as the body, genu, and the splenium of the CC were also derived.

Results

General linear models (GLM) and analyses of variance (ANOVAs) were used to identify group differences in individual and combined brain regions, respectively. Pearson correlations were used to assess associations between pairs of variables, and linear regression models were used to identify proportion of variance explained by predictor variables. Data were evaluated for parametric properties for the utilization of the above methods. There were no between-group and within-group differences in the right and left hemisphere measurements for either the post-acute or chronic data for any of the brain regions; therefore, hemispheric data were combined into individual structures (e.g., temporal lobe, etc.) for the analyses below. Further, there were no group differences in any of the regions for Cre. Therefore, no further analyses were performed with Cre.

Below, we present cross-sectional analyses of post-acute and chronic data. Note that the differences highlighted below between the groups in the post-acute versus chronic time points were remarkably similar when only the subgroup of patients who were seen at both time points were evaluated; therefore, only the cross-sectional data are presented below. Further, GCS (initial and lowest within 24 h) was not significantly correlated with any of the key metabolites explored in this article. Also, when the TBI group was separated into those with GCS in the traditionally defined moderate/severe range (3–12) versus those with GCS in the mild range (13–15) but who had positive imaging findings and thus needed intensive care intervention, there were no differences in any of the metabolite readings in the post-acute period for any of the key variables described below. Thus, we were comfortable in combining this “complicated” mild TBI group with our msTBI group.

Combined lobar and combined CC regions

To minimize the number of analyses performed, and because certain regions performed similarly regarding group differences in NAA and Cho, metabolite data were combined (additive) for the lobar regions and the CC, resulting in a single metabolic measurement for lobar Cho, CC Cho, and CC NAA, the three regions in which group differences were consistently observed in the above analyses. Age at the time of assessment was not correlated with any of the metabolite measurements in either group and was, therefore, not considered in the following analyses.

At the post-acute time, ANOVA for the three groups (slow IHTT msTBI, normal IHTT msTBI, and healthy control) was significant for lobar Cho (p < 0.01), CC Cho (p = 0.03), and CC NAA (p < 0.01). Post hoc analyses (with Bonferroni corrections) showed that the slow IHTT msTBI group exhibited significantly lower CC NAA than the healthy control group (p < 0.05), but no other statistically significant differences were found (Fig. 3a). Both msTBI groups showed higher levels of lobar Cho than the healthy control group (p < 0.05), but did not differ from each other (Fig. 3b). Further, both TBI groups had slightly higher CC Cho than the healthy control group, but the differences were not statistically significant (Fig. 3c).

OPEN IN VIEWER

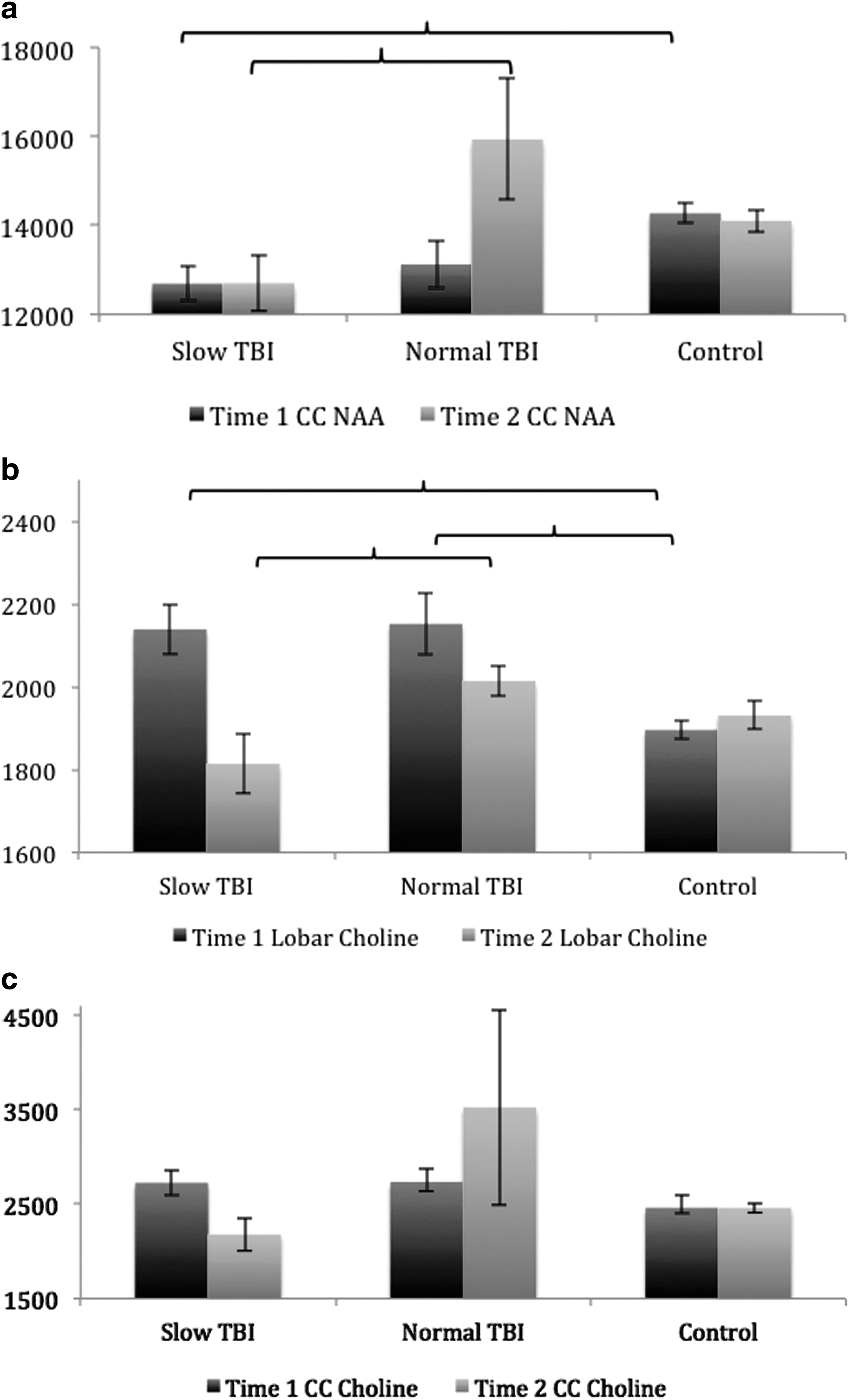

FIG. 3.

Brackets indicate pairwise comparison differences significant at p < 0.05. Time 1: Post-Acute, Time 2: Chronic. Metabolite levels are based on institutional units, as defined in Maudsley (2006). ³⁰ TBI, traumatic brain injury; CC, corpus callosum; NAA, N-acetylaspartate.

At the chronic time, a simple ANOVA showed significant group differences for lobar Cho (p < 0.05) and CC NAA (p < 0.05); no other significant group differences were apparent. Post hoc analyses showed that the slow IHTT msTBI group had lower lobar Cho (p < 0.05) and lower CC NAA than the normal IHTT msTBI group (p < 0.05 for both) (Fig. 3a, 3b). Although the difference between CC NAA between the two TBI groups and the normal control group was not statistically significant, it was noteworthy that the normal IHTT msTBI group appeared to have “overcorrected” for the initial NAA loss as illustrated by a much higher mean CC NAA than the healthy control group (Fig. 3a).

Discussion

This is the first study to examine whole brain proton MRS at multiple timepoints (post-acute and chronic assessments) in pediatric patients with modest to severe TBI and its relation to neurobehavioral correlates. We identified robust group differences in Cho in the lobes and the CC, as well as NAA in the CC regions in our msTBI versus healthy control group analyses, and thus created mean composites for lobar Cho, CC NAA, and CC Cho that were used in subsequent analyses. In previous studies in this sample, we found that a visual ERP measure identified two subgroups of children who differed significantly in the course of brain structure and function in the 18 months after msTBI. In the current study, the two subgroups of msTBI children differed in their levels of NAA and Cho over time.

In the post-acute period, both msTBI groups showed elevations in lobar Cho, a marker for cell/membrane damage in the acute period, relative to the healthy control group. At the chronic timepoint, the more greatly impaired slow IHTT group showed lower Cho compared with the normal IHTT msTBI group. The Cho signal at this chronic time point may reflect membrane synthesis/turnover as part of continued recovery or inflammation/gliosis. Elevations in Cho can have different meanings at different times post-injury.

Elevated Cho may not always predict more impairment or poorer outcome, as previously assumed and reported. ^6,18 Initial (post-acute) elevations in Cho may be indicators of cellular/membrane damage, which would explain its prognostic value as a marker of poor outcome ^6,16 ; however, Cho levels in the chronic timepoint might represent ongoing proliferation and repair processes in the form of membrane synthesis/turnover or gliosis. At the chronic time point, levels of Cho that are too low may suggest cell death or lack of healthy turnover or repair, as may be the case in the subgroup of msTBI patients who showed slow IHTT.

Also of note, the presence of Cho abnormalities in the peripheral brain regions (lobes) rather than only in the white matter tracts suggests that the underlying pathophysiology represented by this metabolite is a global brain phenomenon and perhaps indicative of pathology other than demyelination. Finally, Cho was not a significant predictor of cognition in the slow IHTT group, but chronic Cho was correlated with both post-acute and chronic cognition in the normal IHTT group.

In contrast to the global Cho findings in the brain, alterations (decreases) in NAA were restricted primarily to white matter tracts—namely, segments within the CC. Post-acutely, CC NAA was lower in the two msTBI subgroups relative to the healthy control group, although more so in the slow IHTT subgroup, and did not recover in the first year post-injury in this subgroup. On the other hand, CC NAA in the subgroup of msTBI patients with normal IHTT not only recovered but also “overshot” the mean of the healthy control group in the subgroup of msTBI patients with normal IHTT. Therefore, the subgroup of msTBI patients who showed the best brain function (based on their healthy IHTT) also had a higher mean CC NAA at the chronic time point.

Taken together, our findings suggest that in the msTBI subsample with impairments in brain function (slow IHTT) and disruption of white matter microstructural organization, ^8,26 there is initial neuronal loss (demonstrated by low NAA) and impairment in oligodendrocyte/myelin function, which does not normalize over time. There is also evidence of increased membrane turnover or breakdown, which does not continue at the chronic timepoint. The latter findings suggest that after msTBI, the slow IHTT subgroup of patients does not show the neurometabolic signs of repair and recovery.

In contrast, the normal IHTT subgroup of msTBI patients shows a similar pattern of metabolic disruptions as the slow IHTT group initially, but by the chronic time point, a different metabolic profile emerges. In the normal IHTT group at the chronic time point, there are elevations in NAA in the CC and continued elevation in both lobar Cho and CC Cho (although less pronounced in the latter), suggesting ongoing remyelination, cellular proliferation, and membrane repair/turnover that is ongoing. In both subgroups, lobar Cho and CC NAA levels were highly (positively) correlated. Interestingly, only in the slow IHTT msTBI group, was there a robust negative correlation between post-acute CC NAA and chronic lobar Cho, further supporting the notion that the Cho signal is important in prognosis, but its interpretation as an indicator of positive or negative outcomes varies based on the time of the post-injury reading and its relation to other metabolites.

The limitations of this study include its relatively small sample size, especially after the subgrouping of the msTBI sample, which did not allow us to form more conclusive opinions on the findings or conduct more elegant modeling to more definitively form conclusions. Also, it appears that by our post-acute period, underlying biological processes have already occurred. To elucidate the pathophysiology contributing to the divergence we identified two to four months post-injury, evaluations at earlier time points than we have would be necessary.

Our findings are based on a relatively small sample but provide compelling evidence of differences in the metabolic profiles of the two subgroups of patients with msTBI with slow and normal IHTT identified in our previous studies. The physiological process reported by Cho and NAA may vary depending on the time post-injury, and the dynamic relationship between metabolites over time suggests that the brain is still responding to an msTBI even after the first year of injury. Ongoing longitudinal studies at distinct times along with whole brain analyses of metabolites will continue to help researchers understand the dynamic and interrelated associations, and along with multi-modal structural studies (e.g., diffusion tensor imaging) help further elucidate pathobiological factors that predict long-term outcomes. Doing so will allow us to identify biological therapeutic targets (genetic and/or pharmaceutical) to improve outcomes in this heterogeneous clinical population.
