Poly ( N -Isopropylacrylamide)-Coated Multifunctional Nanoparticles for Cell Tracking

Abstract

Objective:

The objective of this work was to explore a new modality of cell tracking that uses multifunctional nanoparticles. The tracking of transfused cells in vivo is an important step to study the therapeutic course and mechanism of cell therapeutics. Background Data: Several methods of cell tracking have been developed. Our novel method uses multifunctional nanoparticles to track cells via both fluorescence and magnetic resonance. Materials and Methods: Poly (N-isopropylacrylamide) (PNIPAM)-coated multifunctional nanoparticles containing both CdTe quantum dots (QDs) and Fe₃O₄ magnetic particles were used to label Chinese hamster ovary (CHO) cells. The labeled cells were measured by confocal fluorescence microscope in vitro at the photoluminescent band (600 nm) of QDs. When these labeled cells were injected into the mouse, the in vivo images were detected by magnetic resonance imaging (MRI). Results: The nanoparticles easily bound to the plasma membrane of CHO cells after incubation at 37°C. The surface PNIPAM of nanoparticles is a well-known thermoresponsive polymer with a volume phase transition temperature. It is hydrophilic at temperatures below critical solution temperatures (32–34°C) and becomes hydrophobic at higher temperatures. The cellular binding of nanoparticles was stable and nontoxic, and the photoluminescence of nanoparticles could still be seen after 48 h in labeled cells. In addition, the labeled cells can be manipulated by an external magnet. The magnetic resonance images showed that these labeled cells also can be measured in vivo in mice.

Conclusions:

PNIPAM-coated multifunctional nanoparticles showed potential for labeling cells and for tracking cells both in vitro and in vivo with the use of fluorescence and magnetic resonance. This new modality of cell tracking has the merits of simplicity and reliability.

Introduction

C ell therapeutics show great promise for some diseases, such as stem cell transfusion to cure leukemia,¹ and monitoring cell trafficking in vivo is thus needed for emerging therapeutic strategies.² Different imaging methods, including nuclear medicine techniques, fluorescence and bioluminescence, and magnetic resonance imaging (MRI), have been developed for in vivo monitoring of cell transplantation and migration in different animal models of human diseases^3,4 because the accurate delivery and homing of cells to targeted tissues are crucial for clinical success. Radionuclide imaging has been used in humans to evaluate the viability and function of locally transplanted cells in Parkinson's disease and Huntington's disease, but it lacks spatial resolution.^5,6 Fluorescence and bioluminescence have been used in tracing labeled cells in animal models,^7,8 but poor penetration of the light limited clinical application. MRI has high temporospatial resolution and high sensitivity, and it has been used to visualize immune cells and other cells in vivo using magnetic agents such as superparamagnetic iron-oxide nanoparticles.^9,10 In these imaging detections, the cells are first labeled, commonly by incubation with labeling agents that are ingested by the cells. However, the uptake depends on cell endocytosis and is thus cell-type dependent. Moreover, the endocytosed agents may harm cells as well as affect some cellular functions, causing an uncertainty factor in cell tracking. In this work, we developed a new labeling modality of cells by using poly(N-isopropylacrylamide) (PNIPAM)-coated multifunctional nanoparticles. PNIPAM enables nanoparticles to easily bind to the external surfaces of cells at 37°C, which may cause the least effect to living cells. In general, these nanoparticles may label any type of living cell. Additionally, the fluorescent quantum dots (QDs) and magnetic particles contained in these multifunctional nanoparticles could facilitate the tracking of labeled cells with fluorescence or MRI techniques.

Materials and Methods

Nanoparticles

PNIPAM-coated Fe₃O₄–SiO₂–CdTe nanoparticles were synthesized and characterized as described in our previous report.¹¹ In brief, the photoluminescent QDs (λ_em = 600 nm) and magnetic particles were synthesized and then combined to form Fe₃O₄–SiO₂–CdTe particles with silicon shells. The nanoparticles were finally coated by the polymer PNIPAM. PNIPAM is a well-known thermosensitive polymer with a volume phase transition temperature; it is swollen and hydrophilic in water at temperatures below lower critical solution temperatures (32–34°C) and shrunken and hydrophobic at higher temperatures. The diameters of these prepared nanoparticles are about 150 nm, measured by scanning electron microscopy (SEM).¹¹

Biological samples

Chinese hamster ovary (CHO) cells, obtained from the Cell Bank of the Shanghai Science Academy, were used in experiments. Cells were incubated in Dulbecco's modified Eagle's medium, containing calf serum (10%), penicillin (100 U/mL), streptomycin (100 μg/mL), and neomycin (100 μg/mL), in a fully humidified incubator at 37°C with 5% CO₂. The cell labeling was performed by adding nanoparticles to cell dishes at a final concentration of 0.1 mg/mL and incubating for 30 min at 37°C in an incubator. Then cells were washed with phosphate-buffed saline (PBS) to remove unbound nanoparticles and were then ready for further experiments.

Kun-Ming mice were used as the animal model to track the labeled cells. By injecting labeled cells into mice, they could be monitored in vivo.

Imaging measurements

The images of labeled cells were measured in a confocal laser scanning microscope (Olympus, FV-300, IX71, Tokyo, Japan) by a photomultiplier tube and a 580–640 nm band-pass filter, excited with 488 nm Ar⁺ laser. Differential interference contrast (DIC) images were recorded simultaneously in a transmission channel to exhibit the cell morphology. A water immersion objective (×60) and a matched pinhole were used in experiments.

The in vivo MRIs of labeled cells in mice were scanned and recorded under T2 weighted (TR = 4000 msec, TE = 45 msec) gradient echo pulse sequences in a 4.7 Tesla MRI machine (Oxford System).

Results

Cellular binding of nanoparticles

The thermosensitive property of the nanoparticles can be used to control cellular binding. When cells were incubated with nanoparticles (0.1 mg/mL) at 25°C for 30 min, very few nanoparticles adhered on the cell surface (Fig. 1), because at this temperature the surface PNIPAM of nanoparticles is hydrophilic and does not have affinity for cell membranes. In contrast, many nanoparticles were bound on the external surface of cells when the incubation temperature increased to 37°C for 30 min, as shown in Fig. 2, demonstrating that the hydrophobic PNIPAM favored cellular binding at this higher temperature. The result reflects that cellular binding of these PNIPAM-coated nanoparticles is easily controlled by changing only the temperature.

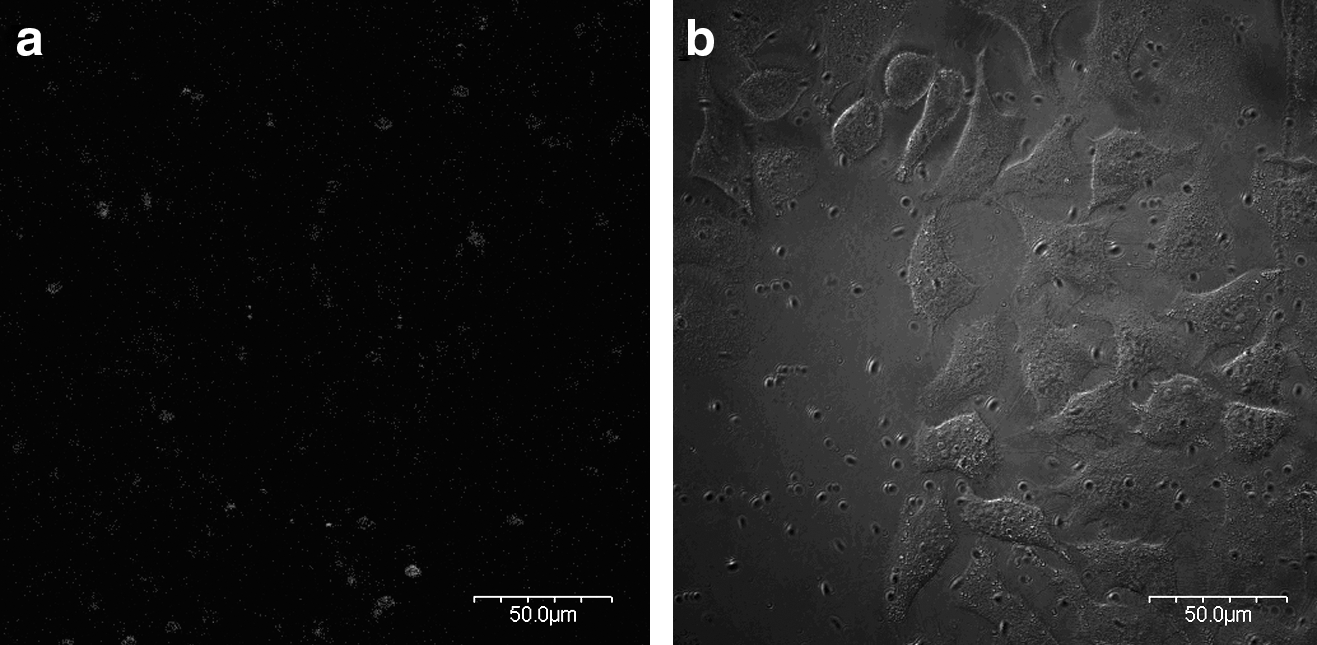

FIG. 1.

The cellular binding of nanoparticles at 25°C: (a) photoluminescence image; (b) differential interference contrast (DIC) image. The incubation concentration of nanoparticles was 0.1 mg/mL.

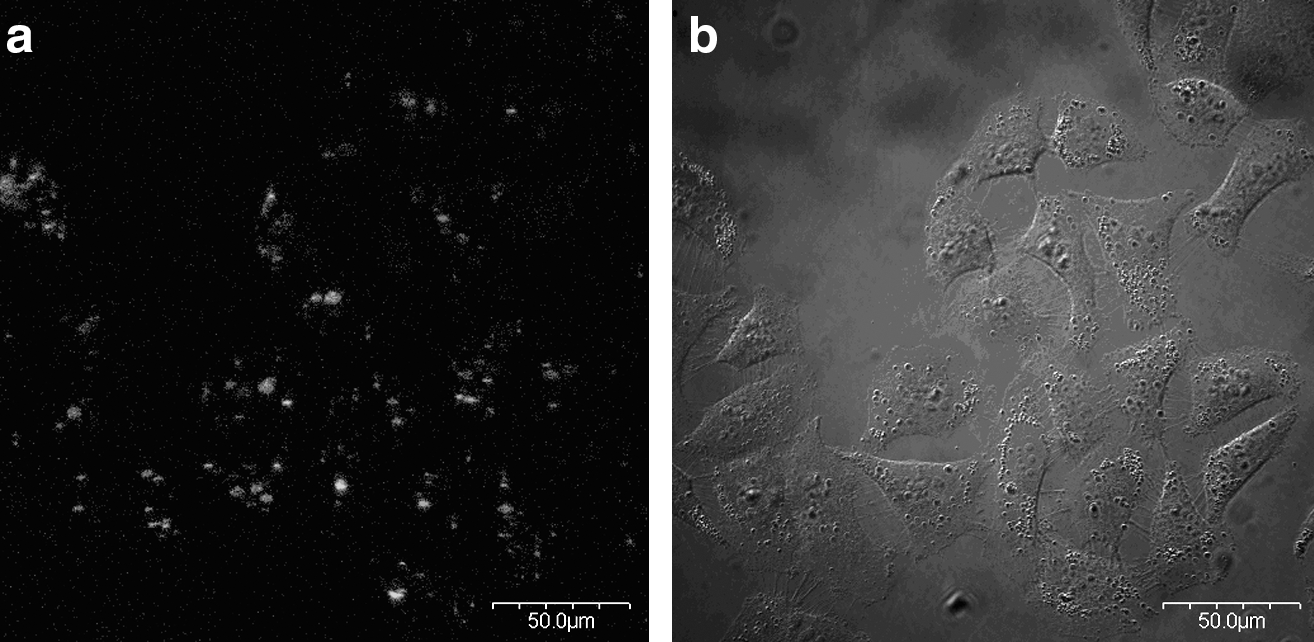

FIG. 2.

The cellular binding of nanoparticles at 37°C: (a) photoluminescence image; (b) DIC image. The incubation concentration of nanoparticles was 0.1 mg/mL.

The stability of the cellular binding of nanoparticles

Figure 3 is a confocal image of the typical cellular binding of nanoparticles. As predicted, the nanoparticles only bound on the outer membrane but did not enter cells, which may cause fewer side effects to cells. The labeled cells were continuously cultured in the incubator for different time periods until 48 h post-labeling, and their images were recorded with the microscope in the different periods accordingly (Fig. 4). As seen in Fig. 4, the labeled cells continued to divide, based on a dividing period of about 8 h for these CHO cells, demonstrating that the nanoparticles did not affect the cell viability and confirming the low toxicity of this labeling modality. Figure 4 also shows that the cell labeling of nanoparticles is very stable because the photoluminescence can still be seen in divided cells though the PL intensities gradually decreased. Therefore, these nanoparticles could provide a safe and reliable way to label living cells.

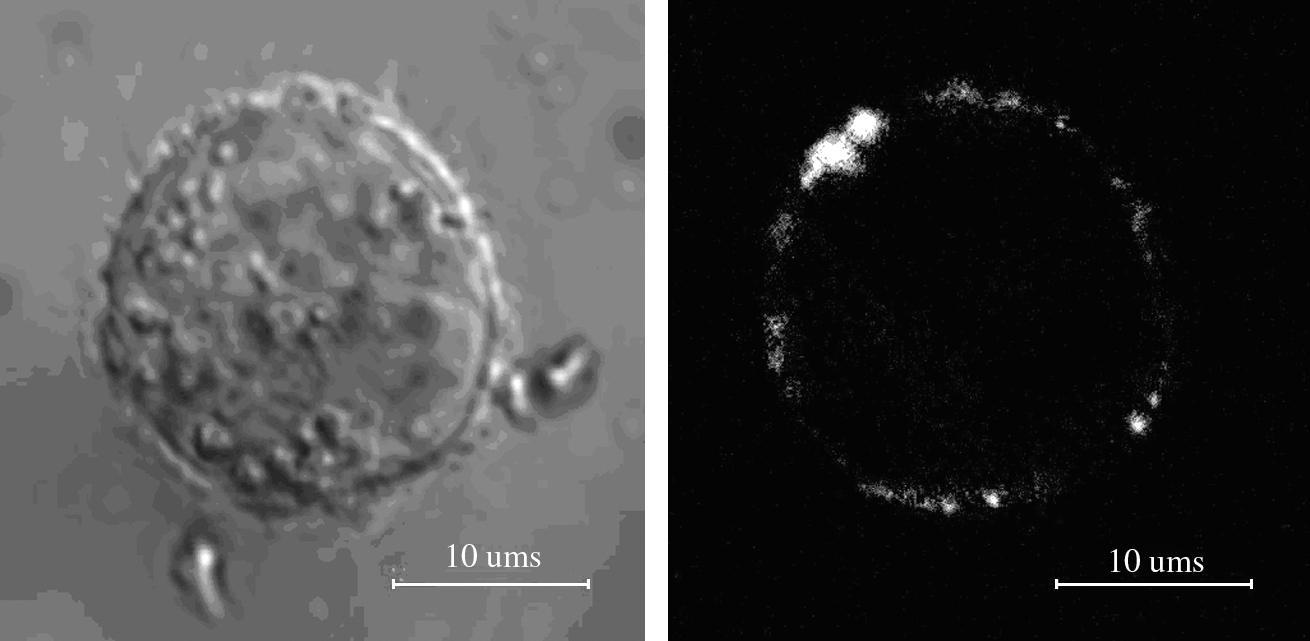

FIG. 3.

The nanoparticle-labeled Chinese hamster ovary (CHO) cell: (left) DIC image; (right) photoluminescence image. The cell has been incubated with 0.1 mg/mL nanoparticles for 30 min at 37°C.

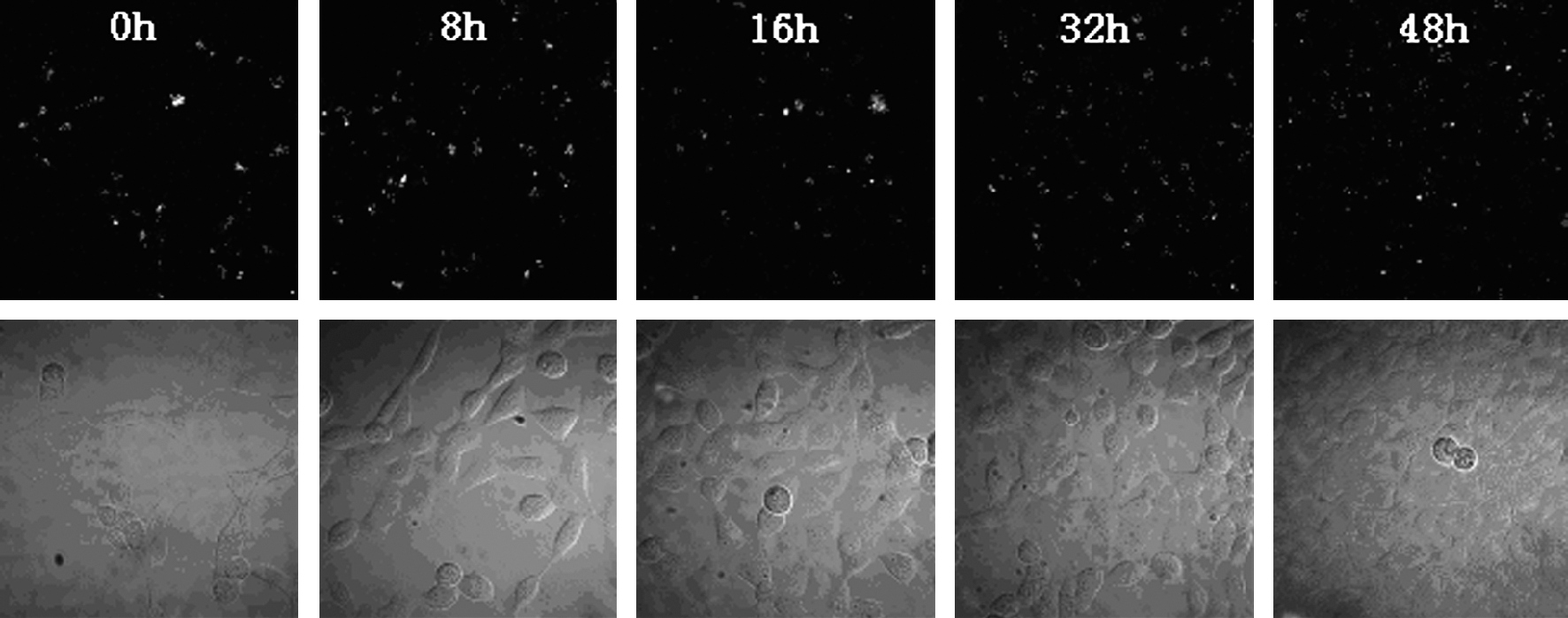

FIG. 4.

The images of nanoparticle-labeled CHO cells at different times post-labeling: (upper row) photoluminescence images of cells; (bottom row) DIC images.

The manipulation of labeled cells with the magnetic field

The nanoparticles contained not only the photoluminescent QDs but also Fe₃O₄ magnetic particles. The magnetic particles inside nanoparticles can be used to manipulate the nanoparticles as well as the labeled cell. The labeled cells and unlabeled cells (control) were placed together in PBS. The labeled cells and control cells suspended in the cell dish could be distinguished from the photoluminescence and DIC images as shown in Fig. 5, because the nanoparticle-labeled cells emit luminescence while control cells have no emission. When a magnet was added with the direction of the magnetic field paralleling the plane of the cell dish producing a gradient of 300 Gs/cm in cell suspension, the labeled cells were forced to move along the direction of the magnetic field while the control cells had no response (Fig. 5). This result indicates that these nanoparticles could be used not only for cell tracking but also for manipulating labeled cell to the targeting area.

FIG. 5.

The movement of the labeled cell in a magnetic field with a gradient of 300 Gs/cm. The control cell has no response to magnetic field. (upper row) photoluminescence images of cells; (middle row) DIC images; (bottom row) merged images.

In vivo imaging labeled cells with MRI

The other merit of these multifunctional nanoparticles is tracking the nanoparticle-labeled cells with MRI. The labeled cells and control cells were injected into opposite parts of a mouse, respectively. Two hours later this mouse was scanned by MRI (Fig. 6). The dark area near the left surface, indicated by the left arrow, indicates the labeled cells. On the right side of the image, where the control cells were injected as indicated by the right arrow, no signal changes can be found. The results show that the nanoparticle-labeled cells can be specifically imaged with MRI.

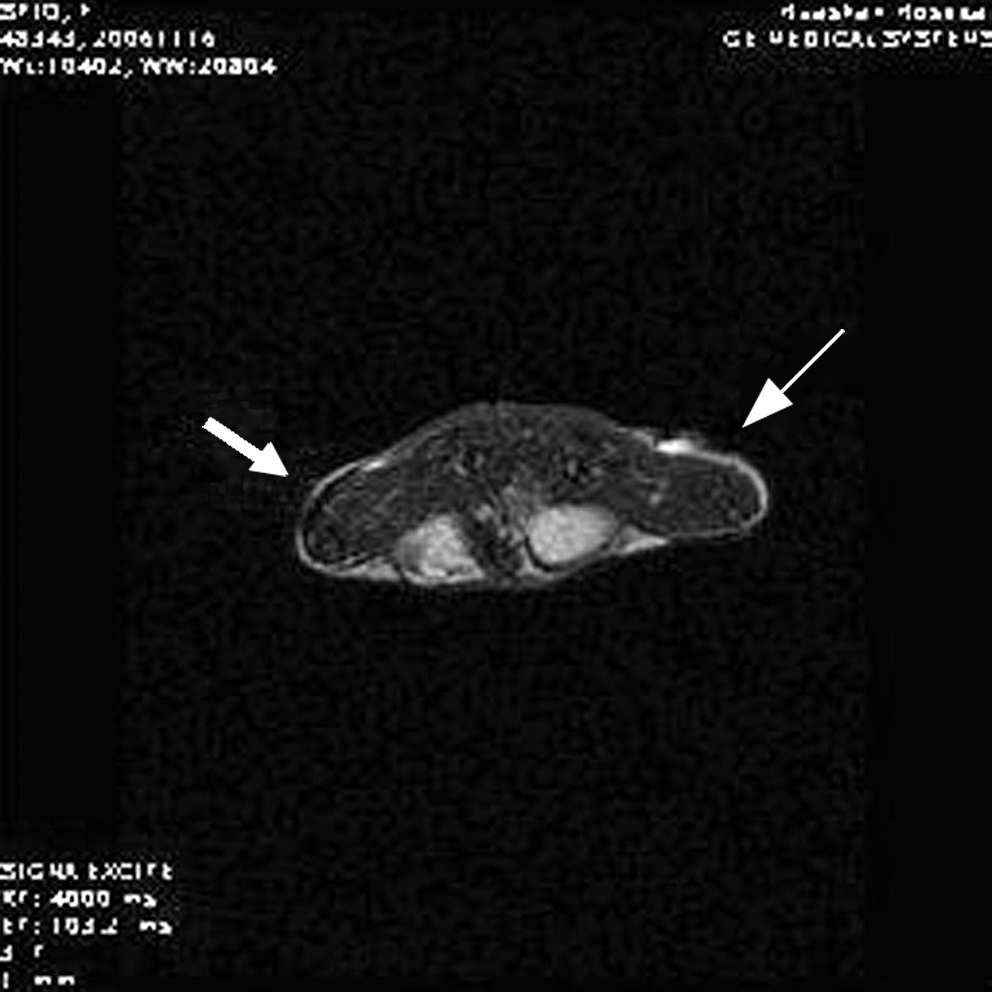

FIG. 6.

The T₂ weighted magnetic resonance imaging (MRI) result in a mouse. The field is 6 × 6 cm. The labelled cells have been injected into the left side of the mouse as the left arrow indicates and the control cells have been injected in the right side of the mouse as the right arrow indicates.

Discussion

Unlike common labeling agents, our nanoparticles have functional PNIPAM on the surfaces. The thermoresponsive characteristic makes PNIPAM undergo a volume phase transition from a hydrophilic state to a hydrophobic state when the temperature becomes higher than the critical temperature (32–34°C). Above this temperature, the PNIPAM easily binds to the external membrane of cells because the lipid components of the plasma membrane are hydrophobic too. Because the binding sites are the external surfaces of cells, these nanoparticles cause the lowest side effect on cells. Due to the temperature-controlled hydrophilic/hydrophobic properties, labeling with these nanoparticles could generally be suitable for any kind of living cell. The QDs and magnetic materials contained in nanoparticles also facilitate the cell tracking both in vitro and in vivo via photoluminescence and MRI. The ability to use two detection techniques enhances the tracking ability for labeled cells.

Conclusion

We designed PNIPAM-coated Fe₃O₄–SiO₂–CdTe multifunctional nanoparticles to track labeled cells both in vitro and in vivo. Our results show that the merits of these nanoparticles are outstanding, and suggest that the PNIPAM-coated multifunctional nanoparticles could be a new modality for cell labeling and cell tracking.
