Electrophysiological Effects of Single Point Transcutaneous 650 and 808 nm Laser Irradiation of Rat Sciatic Nerve: A Study of Relevance for Low-Level Laser Therapy and Laser Acupuncture

Abstract

Objective: The purpose of this study was to evaluate effects of transcutaneous 650 and 808 nm laser irradiation (LI) to a single point overlying rat sciatic nerve; a comparison to four point LI and relevance to the clinical application of low-level laser therapy (LLLT) and laser acupuncture (LA). Background data: Transcutaneous LI inhibits somatosensory and motor conduction when delivered to four points overlying sciatic nerve; however, effects of the same total energy delivered to a single point over the nerve, equating to laser acupuncture, are undefined. M ethods: Transcutaneous 808 nm, 450 mW, (13.5 or 54 J) continuous wave (cw) mode or 650 nm, 35 mW, (1.1 or 4.4 J), cw LI or sham LI, was applied for 30 or 120 sec to a single point overlying the midpoint of rat sciatic nerve. Somatosensory evoked potentials (SSEPs) and compound muscle action potentials (CMAPs) were then recorded after 10 and 20 min, and after 24 and 48 h. Results: 120 sec of 808 nm LI increased SSEP amplitudes only at 10 min, with no effect of 30 or 120 sec at other time points on SSEPs or on CMAPs. LI 650 nm for 30 or 120 sec did not alter SSEPs or CMAPs at any time point. Conclusions: Localized transcutaneous 808 LI to a single point overlying sciatic nerve increases SSEP amplitudes when compared with delivery of the same total energy to four points, which causes decreased SSEP amplitudes and conduction block. Therefore, the area and duration of delivery are important, independent variables with implications for clinical delivery of both LLLT and LA.

Introduction

S ince the first laser was generated from ruby crystal in 1960 (λ=694 nm),¹ the effects of laser irradiation (LI) on neural function have been recognized as one of the many biological responses to light. A recent review of these effects on peripheral mammalian nerves in human studies demonstrated that transcutaneous infrared (IR) LI applied overlying the course of nerves increased compound action potential (CAP) latencies in median, sural, and superficial radial nerves^2
–4, causing conduction block. This finding is particularly relevant to low-level laser therapy (LLLT) in neuropathic pain conditions such as carpal tunnel syndrome,⁵ post-herpetic neuralgia,^6
–8 sciatica,⁹ and trigeminal neuralgia,¹⁰ in which LI is applied over the course of the nerves and to their peripheral endings, specifically to relieve pain. In laser acupuncture (LA), also used in the treatment of painful conditions, LI is applied transcutaneously to a single, anatomically defined acupuncture point, many of which overlie the course of peripheral nerves.¹¹ Such laser irradiation is reported to effect neural response in the same way as needle acupuncture.^12,13

Studies of laser-induced effects on nerves in animals have provided further insight into the analgesic effects of LI. In these studies, LI selectively blocked conduction in small diameter Aδ and C nociceptors in response to noxious stimuli.^14

–18 Further supporting such neural blockade is a dental clinical trial using low-level pulsed Nd:YAG laser at nonablative doses, which established a direct correlation between conduction block in the pulpodental nerve and analgesia.¹⁹ Moreover the analgesia was equivalent to the topical anesthetic agent, EMLA.

Recently, we demonstrated that both 120 sec of transcutaneous 650 and 808 nm LI, applied transcutaneously and sequentially to four points overlying the course of rat sciatic nerve, blocked both somatosensory evoked potentials (SSEPs) and compound muscle action potentials (CMAPs).²⁰ In the current study we further dissect the effects of LI on nerve conduction in relation to the distribution of the total energy, at doses used clinically, and compare transcutaneous 650 nm, continuous wave (cw, 35 mW) or 808 nm (cw, 450 mW) LI to a single point with effects at four points. We also discuss the clinical implications of our findings for LLLT and LA.

Materials and Methods

All procedures were conducted in accordance with protocols approved by the Animal Ethics Committee of the University of Sydney, Australia #K00/4-2009/2/5033. Outbred Sprague Dawley (SD) rats, 10–12 weeks of age, were used for all experiments and were anesthetized with 2% isoflurane at each time point for each experimental procedure. Electrophysiological assessment of baseline SSEPs and CMAPs was determined for all rats prior to any experimental procedures, and to detect animals with abnormal conduction. No animals were identified for exclusion.

Experimental design

Forty rats were randomly assigned into 650 or 808 nm LI studies. The rats in each laser group were further assigned for 30 sec (n=10) or 120 sec LI (n=10) and each of these groups further assigned for SSEPs (n=4) or CMAPs (n=6) (Fig. 1).

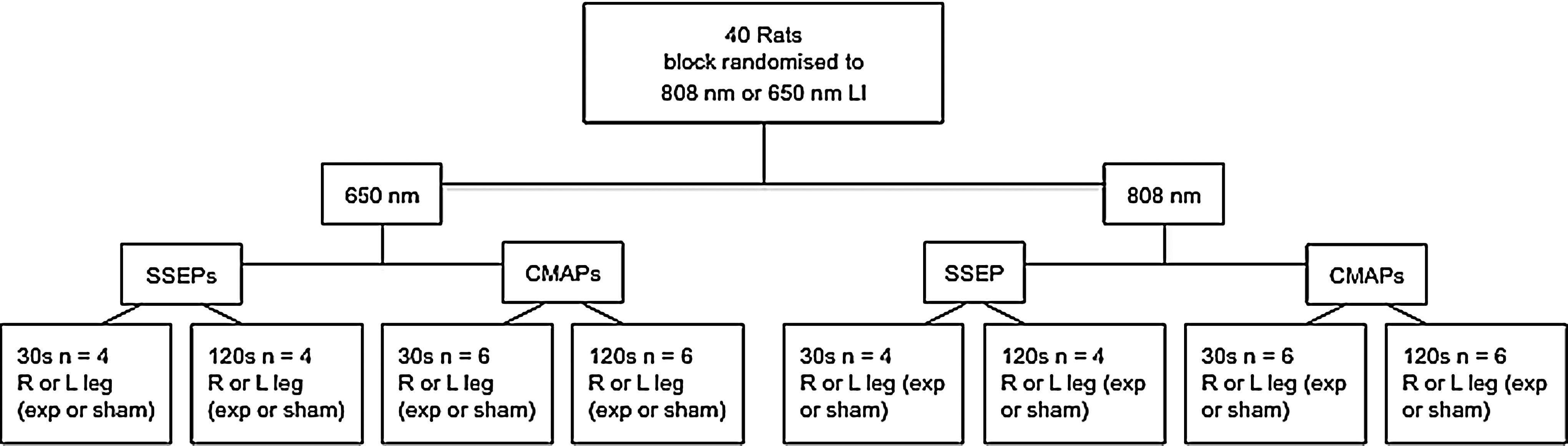

FIG. 1.

Experimental design.

One hind leg of all rats in all groups was randomly assigned as experimental LI and the contralateral leg assigned as control sham LI, delivered as for the experimental leg but with the laser switched to the “off” position.

Laser parameters and LI delivery

The power outputs of the 650 and 808 nm laser probes (Irradia™, Sweden) were 35 mW (Power Density [PD]=∼600 mW/cm²) and 450 mW (PD=∼7.5W/cm²), respectively, as measured by the Australian National Institute of Measurement. The output power of each laser was again checked before each irradiation via the inbuilt optical power meter (Table 1).

Table 1.

Laser Irradiation Parameters

Parameters
Wavelength	650 nm	808 nm
Medium	InGaAlP	GaAlAs
Output	∼35 mW	∼450 mW
Power density	∼600 mW/cm²	∼7.5 W/cm²
Energy density	18 J/cm²	225 J/cm²
Time/point	30 or 120 sec	30 or 120 sec
Joules/point	1.1 or 4.4 J	13.5 or 54 J
Spot size	0.06 cm² (full width half medium)	0.06 cm² (fwhm)
No of points	1	1

LI (650 or 808 nm) was delivered transcutaneously for 30 or 120 sec per point with the laser probe in firm contact on the skin to a single point over the midpoint of the course of the sciatic nerve based on other studies by our group. The midpoint was selected because it corresponds to an acupuncture point on the bladder meridian and its location in comparison with the four points in our previous study is shown (Fig. 2).

FIG. 2.

Location of laser irradiation (LI) application over sciatic nerve at (a) single point with electrodes for somatosensory evoked potentials (SSEPs) (b) single point with electrodes for compound muscle action potentials (CMAPs) (c) relationship of single point to four points for CMAPs.

Electrophysiological recordings

All studies were performed at room temperature using a Neuromax (XLTEK, Ontario, Canada). All stimuli in all experiments were supramaximal and the responses recorded at 10 min, 20 min, 24 h, and 48 h post-LI or sham LI. Amplitude was measured from baseline to the peak of the waveform. Latency was defined as the time from stimulation to the initiation of the waveform and, as a general rule, is inversely proportional to conduction velocity.

SSEPs

The stimulating needle electrode was inserted at the ankle with the recording electrode placed between the spinous processes of T13 and L1 (Fig. 2a). Two averaged traces, of at least 20 responses, were recorded from each leg of all rats in all groups.

CMAPs

Paired stimulating needle electrodes were inserted at the sciatic notch (hip; proximal to LI) and the ankle (distal to LI delivery) (Fig. 2b) and electrophysiological responses recorded from the dorsal foot muscles. The difference between the proximal and distal (P-D) latencies in LI and sham LI groups was compared, a standard measurement of nerve conduction. Amplitude was measured from both proximal and distal peaks and expressed as a ratio (H/A).

Statistical analysis

Data are expressed as means±SEM. Changes in latency and amplitude of SSEPs and H/A ratios of CMAPs were analyzed by Student's t test. All data were analyzed with GraphPad Prism (Version 5) and significance was set at a p value of <0.05.

Results

Effects of 808 nm LI

LI (120 sec) to a single point increased SSEP amplitude by 17.5% at 10 min, returned to baseline by 20 min, and remained unchanged at 24 and 48 h (Fig. 3). LI (808 nm) for 30 sec did not alter latencies or amplitudes of SSEPS or CMAPs, (data not shown), from baseline at any time point. All sham LI conduction remained at baseline values.

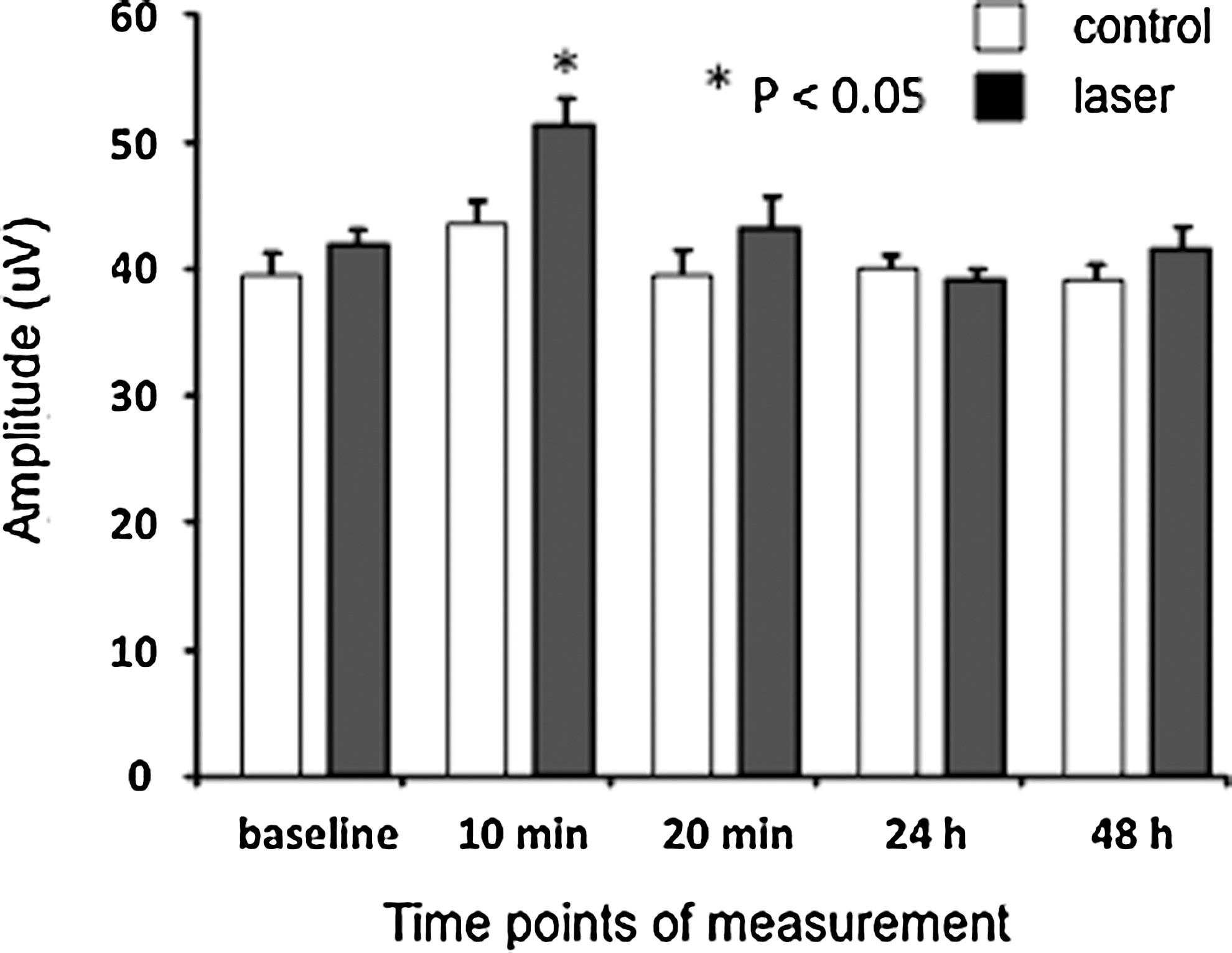

FIG. 3.

Amplitude of somatosensory evoked potentials (SSEPs) following 120 sec 808 nm laser irradiation (LI) to a single point overlying rat sciatic nerve.

Effects of 650 nm LI

LI (650 nm) for 30 or 120 sec to a single point did not alter latency or amplitudes of SSEPs or CMAPs (data not shown).

Discussion

Our study demonstrated that transcutaneous 808 nm LI delivered to a single point for 120 sec (54 J, 18 J/cm²) increased SSEP amplitudes at 10 min with return to baseline by 20 min. There was no change in SSEPs or CMAPs with 30 sec or 120 sec 808 nm LI at any time point other than 10 min. This finding contrasts with our previous study in which the same total energy, delivered sequentially to four separate points for 30 sec per point caused statistically significant conduction block of SSEP and CMAP amplitudes and latencies.²⁰ LI (650 nm) for 30 or 120 sec caused no change in SSEPs or CMAPs at any time point, whereas we reported significant conduction block in our four point LI study. Our two studies are the first to compare how the same total laser energy affects nerve conduction when delivered at single or multiple points.

Although our recent review shows that LI is largely inhibitory,²¹ two earlier studies have reported increased CAP amplitudes following transcutaneous 632.8 nm (HeNe), 8 mW, cw, LI to a single point overlying rat sciatic nerve. These studies applied LI continuously for 30 min.^22,23 The increase in CAP amplitudes occurred 7 min after delivery of ∼7 J, which gradually returned to baseline and then decreased to below normal at 30 min. In contrast, the visible wavelength 650 nm (InGaAlP) 35 mW, cw in our study, for 30 sec (1.1 J) or 120 sec (13.5 J), caused no change in CAP, although the total energy delivered in 2 min is greater than that reported by Rochkind and Nissan over the same time.^22,23 The difference between our study and theirs may be the result of the longer duration of LI or different wavelength characteristics, such as greater coherence with HeNe resulting in greater photon penetration,²⁴ or other laser parameters as yet undefined for InGaAlP diode. The increased amplitude with our IR 808 nm LI, could, in contrast, be the result of the higher total energy delivered of 54 J. These considerations are important, as our review highlighted the inconsistent and patchy reporting of laser parameters in the majority of studies.²¹

Increased CAP amplitudes have also been reported after LI to exposed nerves in vitro. HeNe (632.8 nm), 5.5 mW, 350 mW/cm² to cervical sympathetic ganglia increased intracellular axonal amplitudes and caused hyperpolarization, increasing the resting membrane potential.²⁵ Paradoxically, when Shimoyama et al. recorded CAP amplitudes extracellularly they were reduced. They explained this paradox as being the result of hyperpolarization of some axons, so that fewer axons were responsive to the supramaximal stimulus. Therefore, the overall effect was reduced amplitude. As these nerves are autonomic, it is difficult to compare with our findings with the sciatic nerve composed of both sensory and motor fibers. However, it is possible that our increased SSEP amplitudes after 120 sec LI could be the result of synchronization, that is, some fibers become hyperpolarized with an increased activation threshold, which when activated summate to cause increased amplitudes.^26,27

Although beyond the scope of our electrophysiological experiments, we found that 808 nm LI in cultured neurons significantly reduced ATP via decreased mitochondrial membrane potentials.²⁸ which would downregulate Na⁺K⁺ATPase activity, the major Na⁺/K⁺ channel for maintaining the resting potential of the axon.²⁹ Kudoh et al. found that Na⁺K⁺ATPase activity increased following “low” dose 830 nm, 60 mW, 0.36–0.9J, cw LI to rat saphenous nerve, whereas “high” dose, 1.8–7.2J, decreased activity. These findings are consistent with the biphasic effect of hyperpolarization followed by depolarization, which we propose underpins the findings of our electrophysiological studies.

Our study also has direct relevance to the different clinical applications of LLLT and LA.^12,30,31 In LA many acupuncture points (APs) overlie peripheral nerves such as pericardium 6 (PC 6) overlying the median nerve, used for treating carpal tunnel syndrome.³² Other acupuncture points overlie nerves emerging from foramina, for example, stomach 2 (ST 2) over the infraorbital nerve or where nerves emerge between fascial planes, for example gallbladder 20 (GB 20) or bladder 10 (BL 10) overlying the occipital nerve at the base of the skull, and used to treat headache and neck pain.¹¹ The increase in SSEP amplitude following 120 sec, 808 nm is consistent with acupuncture puncture point “stimulation,” which would also occur in the epidermal peripheral nerve endings of Aδ and C fibers in the dermis, which also mediate needle acupuncture effects.³³

In contrast to LA, in LLLT laser irradiation is applied to multiple tender points at sites of pathology, such as around joint lines directed to synovium, or at entheses or muscle bellies such as in treatment of knee osteoarthritis.³⁴ LLLT for chronic musculoskeletal pain does not specifically target the course of an underlying nerve, however, the dense epidermal neural network of unmyelinated and thinly myelinated Aδ and C fibers^35,36 will receive the maximum number of photons. We therefore propose that conduction block would occur a priori in these nerve endings as well as in the underlying nerve trunk, which receives only 3–10% of transmitted photons.²³ This clearly demonstrates the relevance of multiple point LI for pain relief as demonstrated in clinical trials of, for example, neck pain,³⁷ knee osteoarthritis,³⁸ and lateral epicondylitis.³⁹

Our findings are also relevant for the treatment of neuralgias including carpal tunnel syndrome, for which LLLT reduces symptoms when applied at several points over the wrist.⁵ Other neuropathic pain conditions such as trigeminal neuralgia,¹⁰ which has been successfully treated by LLLT (830 nm) applied to the face,¹⁰ and post-herpetic neuralgia, in which the affected dermatome is treated.^6
–8

We suggest that for the maximum inhibitory effect on pain fibers, LI should be applied over an area of pathology, treating tender points in the related dermatome, myotome and sclerotome. This method would support the use of laser cluster heads for LLLT, rather than single laser diodes, to achieve more efficient coverage of an area of pathology. For laser acupuncture, application at a single acupuncture point can result in the generation of an action potential in the epidermal neural network and in underlying nerves, initiating a pain-modulating response in cortical centers.⁴⁰

Conclusions

The important finding from this and our previous study is that the area over which LI is delivered is a variable with significantly different electrophysiological effects, which we consider is a critical parameter in neural response. Our finding of increased sensory nerve amplitudes with localized high dose LI to a single point in contrast to conduction block with multiple point LI supports a neural hypothesis for laser acupuncture and the clinical use of LI to multiple points in LLLT for maximum analgesia. Further research to define optimal laser parameters for neural inhibition and stimulation would strengthen current evidence-based protocols for relief of pain, a worldwide and enormously costly burden.
