Efficient Derivation of Lateral Plate and Paraxial Mesoderm Subtypes from Human Embryonic Stem Cells Through GSKi-Mediated Differentiation

Abstract

The vertebrae mesoderm is a source of cells that forms a variety of tissues, including the heart, vasculature, and blood. Consequently, the derivation of various mesoderm-specific cell types from human embryonic stem cells (hESCs) has attracted the interest of many investigators owing to their therapeutic potential in clinical applications. However, the need for efficient and reliable methods of differentiation into mesoderm lineage cell types remains a significant challenge. Here, we demonstrated that inhibition of glycogen synthase kinase-3 (GSK-3) is an essential first step toward efficient generation of the mesoderm. Under chemically defined conditions without additional growth factors/cytokines, short-term GSK inhibitor (GSKi) treatment effectively drives differentiation of hESCs into the primitive streak (PS), which can potentially commit toward the mesoderm when further supplemented with bone morphogenetic protein 4. Further analysis confirmed that the PS-like cells derived from GSKi treatment are bipotential, being able to specify toward the endoderm as well. Our findings suggest that the bipotential, PS/mesendoderm-like cell population exists only at the initial stages of GSK-3 inhibition, whereas long-term inhibition results in an endodermal fate. Lastly, we demonstrated that our differentiation approach could efficiently generate lateral plate (CD34 ⁺ KDR ⁺) and paraxial (CD34 ⁻ PDGFRα ⁺) mesoderm subsets that can be further differentiated along the endothelial and smooth muscle lineages, respectively. In conclusion, our study presents a unique approach for generating early mesoderm progenitors in a chemically directed fashion through the use of small-molecule GSK-3 inhibitor, which may be useful for future applications in regenerative medicine.

Introduction

E mbryonic stem cells (ESCs) are endowed with the potential of indefinite self-renewal and the capacity to differentiate into all cell types of the three germ layers [1]. Due to these unique properties, therapeutic applications based on ESCs, an unlimited, renewable source of cells have become an attractive concept in regenerative medicine [2]. The development of ESC-based therapies necessitates an in-depth understanding of the complex signaling pathways involved during the differentiation process. To this end, numerous growth factors/cytokine combinations are currently being evaluated in order to understand the molecular mechanisms governing lineage commitment of ESCs and to establish differentiation protocols that drives their differentiation toward specific cell types.

The derivation of mesoderm lineage cell types, in particular, those with vascular [3 –5] and hematopoietic potential [6,7], has been a focus of many investigators in the field of ESC research. The interest in the generation of these cells stems from their therapeutic potential in the treatment of cardiovascular diseases and applications in tissue engineering [8,9]. Certain cell types are region specific. For example, the skeletal musculature arises from the paraxial mesoderm [10], while cardiac progenitors have been reported to be derived from the lateral plate mesoderm [11]. As such, efficient derivation of these cells may also require efficient differentiation toward their specific mesoderm subtypes. The vascular endothelial growth factor receptor 2 (VEGFR2 or KDR) and platelet-derived growth factor receptor-alpha (PDGFRα) have been identified as useful surface markers that distinguish the lateral plate and paraxial mesoderm [12,13]. Despite the enormous progresses made in differentiating ESCs into these functional cell types, the need for efficient, time- and cost-effective methods of differentiation to reliably commit and expand therapeutically relevant and lineage-specific cells remains a major challenge before ESC-based therapies becomes a clinical reality.

During gastrulation, a specific subset of epiblast cells ingresses into the primitive streak (PS) from which the mesoderm emerges within the posterior region [14]. Since the formation of PS marks the initial specification step that generates all mesodermal and endodermal tissue lineages during early embryogenesis, efficient differentiation toward the PS would be an important first step toward increasing mesoderm yield during in vitro ESC differentiation. The canonical Wnt pathway is among the several identified signaling pathways playing a crucial role the gastrulation process. Genetic studies in mice have shown that embryos deficient in the canonical ligands of Wnt3 and its co-receptors, Lrp5/6 or lacking the downstream effector, β-catenin, are unable to establish the PS and eventually failed to generate the mesoderm [15 –18]. These findings, along with recent reports on the in vitro differentiation of mouse ESCs (mESCs), demonstrated the requirement for Wnt/β-catenin activity in germ layer specification [19 –21], although studies have also implicated its role in the maintenance of mESCs [22 –24]. Instead, the role of Wnt/β-catenin signaling in human ESCs (hESCs) has been more controversial due to contradictory results among recent studies. Activation of the Wnt pathway using Wnt3a or BIO, an inhibitor of glycogen synthase kinase-3 (GSK-3), was observed to maintain hESCs in its undifferentiated state [25,26]. Other reports, however, demonstrated differentiation toward the PS and definitive endoderm lineages under the influence of Wnt signaling [27 –29]. Thus, whether Wnt/β-catenin maintains hESCs in its undifferentiated state, or whether it promotes differentiation remains a subject of debate.

While there are multiple studies demonstrating mesodermal differentiation of hESCs, attention has largely been focused on the derivation of mature mesoderm cell types instead of the early events of germ layer specification, which could play a significant role in the effectiveness of the differentiation approach. In this work, we aimed at demonstrating efficient differentiation of hESCs into the mesoderm by inducing PS formation as an initial differentiation step and at identifying the earliest time point at which the two distinct mesoderm subtypes can be derived. We report that short-term activation of the Wnt/β-catenin pathway through the inactivation of GSK-3 using small-molecule inhibitors is sufficient to induce differentiation into a PS-like population, while long-term inactivation of GSK-3 results in an endodermal fate. The PS-like cells derived from GSK inhibitor (GSKi) treatment are demonstrated to be bipotential, being able to commit toward both the endoderm and mesoderm fate. Based on our findings, we further established a simple, yet efficient protocol by which hESCs can be differentiated into CD34 ⁺ KDR ⁺ and CD34 ⁻ PDGFRα ⁺ mesoderm subsets from which we demonstrated further specification toward vascular endothelial and smooth muscle lineages, respectively. Access to these mesoderm derivatives in an efficient and time-effective approach could present opportunities for cell-based therapeutic strategies while bridging the gap between translational research and clinical applications.

Materials and Methods

hESC feeder-free culture

H1 and H9 hESC lines were purchased from Wicell Research Institute (Madison, WI) and maintained on Matrigel-coated six-well tissue culture plates in complete mTeSR™1 medium (STEMCELL Technologies). Both cell lines were routinely characterized and found to have expression of pluripotency markers OCT4, SSEA4, and alkaline phosphatase (Supplementary Fig. S1; Supplementary Data are available online at www.liebertpub.com/scd). Every 5–7 days, cells were passaged by exposure to 1 mg/mL dispase (Invitrogen) for 5–10 min at 37°C. hESC colonies were then harvested, dissociated into small clumps by gentle vortexing, and re-plated onto Matrigel-coated six-well plates at five colonies per well.

Differentiation of hESCs

All differentiation studies were carried out under feeder-free, chemically defined conditions. To study the effect of GSK inhibition on the fate of hESCs, the colonies were first dissociated into small clumps and re-plated onto Matrigel-coated six-well plates as per normal routine passaging. After 48 h, mTeSR medium was replaced with basal differentiation media (STEMdiff APEL; STEMCELL Technologies) supplemented with 5 μM GSKi (CHIR99021; Stemgent) for 5 days. For endoderm and mesoderm differentiation, the hESCs were first differentiated in the presence of 5 μM GSKi for 24 h, and further differentiated in basal differentiation media supplemented with either 25 ng/mL human recombinant Activin A (R&D Systems) or in 25 ng/mL rh-bone morphogenetic protein 4 (rhBMP4; Peprotech). Mesoderm differentiation was conducted in parallel with continuous GSKi treatment to compare the transcription profiles of endoderm- and mesoderm-associated genes. Concurrently, a separate group was also differentiated in BMP4 without prior GSKi treatment. When applicable, 10 μM SB431542 (Sigma) was added along with BMP4 during mesoderm specification or with Activin A during endoderm differentiation.

To induce further differentiation toward the vascular endothelial and smooth muscle lineages, GSKi-treated hESCs were differentiated in the presence of 25 ng/mL rhBMP4 for 24 h and further treated with basal differentiation media supplemented with 50 ng/mL VEGF (Peprotech) and 25 ng/mL rhBMP4 for 2 days. CD34⁺KDR⁺ and CD34⁻PDGFRα⁺ subpopulations were sorted using fluorescence-activated cell sorting (FACS; Dako Cytomation MoFlo cell sorter) and seeded onto collagen IV-coated plates. The post-sorted CD34⁺KDR⁺ cells were further committed toward the endothelial lineage in ECGM-MV2 (Promocell) endothelial media supplemented with 50 ng/mL VEGF, and the CD34⁻PDGFRα⁺ subpopulation was cultured in SMCGM2 (Promocell) smooth muscle media supplemented with 50 ng/mL PDGF_bb (Molecular Probes) to induce smooth muscle lineage. After three passages, cells were harvested and compared with human umbilical vein endothelial cells (HUVECs) and human coronary artery smooth muscle cells (hCA-SMCs; Lonza) for gene expression levels of CD31, vWF, VE-cadherin, α-SMA, SM22α, and PDGFRβ.

Acetylated-low-density lipoprotein uptake assay

Low-density lipoprotein (LDL) uptake assay was performed by incubating the hESC-derived ECs with 10 μg/mL of Dil-Acetylated-LDL (Invitrogen) for 4 h. After washing twice with phosphate buffered saline (PBS), the nuclei were counterstained with Hoechst 33258 (Sigma). LDL uptake was viewed under an Olympus IX70 fluorescence microscope.

Matrigel tube formation assay

Tube formation assay was done according to the published work of Vo et al. [30]. Briefly, 10 μL of Matrigel (BD Bioscience) was pipetted into each well of a μ-Slide Angiogenesis (iBidi) and allowed to undergo gelation at 37°C for 1 h. To assess the ability of hESC-derived ECs to form vascular tube-like structures, 1×10⁴ hESC-ECs were seeded onto each well of Matrigel-coated ibidi slides and incubated at 37°C for 18 h. Formation of vascular tube-like structures was observed under a phase-contrast microscope (Olympus IX70).

Flow cytometry

Differentiated cells were dissociated into a single-cell suspension using accutase (STEMCELL Technologies) and resuspended in PBS with 0.5% bovine serum albumin (BSA). To block non-specific binding of antibodies, cells were blocked with FcR blocking agent (1:10; Miltenyi Biotec) and incubated for 10 min at 4°C–8°C. For labeling of cell surface antigens, the cells were incubated with the following antibodies for 20 min at 4°C–8°C: KDR-phycoerythrin (PE), PDGFRα-fluorescein isothiocyanate (FITC), VE-Cadherin-allophycocyanin (APC) (all from R&D Systems), KDR-APC, CD34-APC or CD34-FITC, CD31-FITC (all from Miltenyi Biotec), and CXCR4-PE (BD Biosciences). For intracellular labeling of SOX17-Alexa Flour 488 (BD Biosciences), Calponin, and α-SMA, the procedure was performed using BD cytoperm/cytofix™ as per manufacturer's instructions. Indirect labeling of intracellular antigens Calponin and α-SMA was done using goat anti-mouse Alexa Flour 488 as secondary antibody. After incubation of antibodies, cells were washed thrice with PBS (0.5% BSA) to remove unbound antibodies. Flow cytometric data were collected using a Dako Cytomation CyAn ADP cytometer and analyzed with FlowJo Version 7.6.5 (TreeStar).

Quantitative real-time polymerase chain reaction

Total RNA was isolated from the cells using RNeasy Mini plus Kit (Qiagen) and reverse transcribed using iScript™ cDNA synthesis Kit (Biorad) at 500 ng total RNA per sample according to the manufacturer's protocol. All real-time polymerase chain reaction (RT-PCR) experiments were performed in triplicates using ABI StepOnePlus Real-Time PCR System and Fast SYBR-Green Master Mix as per the manufacturer's instructions (Applied Biosystems). The thermal cycling conditions included an initial denaturation step at 95°C for 10 min, 40 cycles at 95°C for 15 s, and 60°C for 1 min. The data are presented as fold changes in target gene expression calculated using the 2^−ΔΔCT method normalized to the internal control gene (β-actin) and relative to control samples (day 0, undifferentiated hESCs). Details of primer sequences used for quantitative RT-PCR (qRT-PCR) are described in Supplementary Table S1. Results are presented as mean±s.e.m. of three independent experiments unless otherwise stated.

Immunoflourescence

For immunofluorescence analysis, cells were fixed with 4% paraformaldehyde for 15 min and permeabilized with 0.2% Triton X-100 for 20 min. To block non-specific staining, cells were incubated with 5% goat serum/PBS for 1 h at room temperature. Subsequently, the cells were incubated with primary antibodies overnight at 4°C, followed by incubation with secondary antibodies, and counterstained with 4′,6-diamidino-2-phenylindole (DAPI). Alexa Fluor 488- and 596-conjugated secondary antibodies were purchased from Molecular Probes. Primary antibodies against the following proteins were used: mouse monoclonal OCT4 (Santa Cruz), rabbit polyclonal Brachyury, rabbit polyclonal beta-Catenin (both from Abcam), mouse monoclonal CD31, mouse monoclonal VE-Cadherin, mouse monoclonal α-SMA (all from R&D Systems), mouse monoclonal Calponin, and rabbit polyclonal vWF (Abcam). Antibodies used for immunoflourescence and flow cytometry are shown in Supplementary Table S2.

Results

Despite the growing body of literature, the role of Wnt/β-catenin signaling in hESCs has remained controversial due to conflicting reports demonstrating either stem cell differentiation or self renewal. In this study, we activated the Wnt/β-catenin pathway using a selective inhibitor of GSK-3 and investigated its effects on the fate of hESCs. The transcriptional profiles of genes associated with both pluripotency and early differentiation were first analyzed using RT-qPCR.

Inhibition of GSK-3 under feeder-free, chemically defined conditions up-regulate PS-associated genes in hESCs in as early as 24 h

Profound changes in gene expression were detected during the time course of GSKi treatment (Fig. 1A). Pluripotency markers SOX2 and NANOG were down-regulated, while OCT4 appears to be maintained at 24 h of differentiation. The transient PS and early mesoderm population is characterized by expression of MIXL1 and T (Brachyury) [31,32], although genes characteristic of early definitive endoderm such as FOXA2 and Goosecoid (GSC) [33,34] are also expressed. Compared with hESCs treated in basal differentiation media alone, the addition of GSKi (CHIR99021) significantly elevated the transcript levels of T in just 24 h. The transcription profiles of both T and OCT4 are comparable, with both reaching a peak at day 1 and down-regulated progressively thereafter. Similarly, MIXL1, as well as FOXA2 and GSC, both of which are expressed in the anterior PS, were observed to follow a similar trend. Based on titration analysis, the up-regulation of T at day 1 is only possible with a concentration of 5 μM CHIR99021 and above (Supplementary Fig. S2A). Immunofluorescence analysis confirmed the up-regulation of T and the presence of OCT4 after 24 h of GSKi treatment in both H1 and H9 hESC lines (Fig. 1B for H1 and Supplementary Fig. S2C for H9). As cells began moving out from the periphery of the colony at day 2, both T and OCT4 were visibly down-regulated. Differentiation in basal media alone is insufficient to induce T expression (Supplementary Fig. S2C). Further, GSKi-treated colonies showed signs of nuclear accumulation of β-catenin as they appeared to be spread throughout individual cells; whereas they were more localized at the cell periphery in hESCs and no-GSKi control groups (Fig. 1C and 20× magnification in Supplementary Fig. S2D). These observations established the involvement of GSKi in the transient up-regulation of T and suggest the existence of a “temporal window” during the early stages of differentiation where the expression of pluripotency and PS markers may overlap.

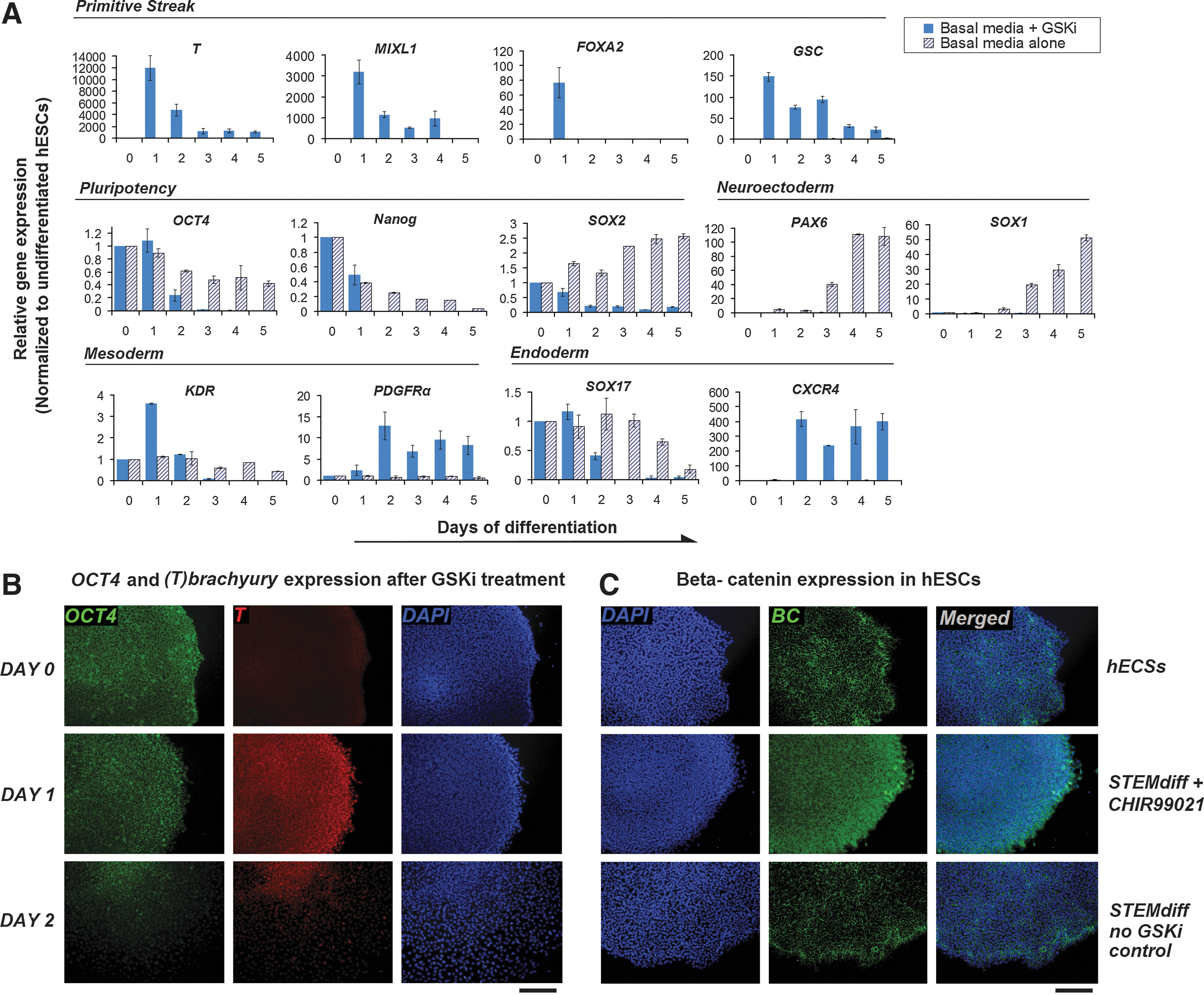

FIG. 1.

Time-course analysis of the transcriptional profiles of genes associated with both pluripotency and early differentiation in GSKi-treated hESCs. (A) H1-hESCs were treated with 5 μM CHIR99021 using STEMdiff APEL as the basal differentiation media without additional growth factors/cytokines under feeder- and serum-free conditions. Subsequently, RNA was extracted from GSKi-treated hESCs at 24 h intervals from day 0 to 5, and quantitative real-time PCR (qRT-PCR) analysis was performed using primers specific to PS (T, MIXL1, GSC, and FOXA2), pluripotency (OCT4, NANOG, and SOX2), mesoderm (KDR and PDGFRα), ectoderm (SOX1 and PAX6), and endoderm (CXCR4 and SOX17) genes. The transcript levels of PS-associated genes were up-regulated in just 24 h of GSKi treatment and were subsequently down-regulated thereafter. All qRT-PCR data were normalized to β-actin as an endogenous control and were presented as expression levels (fold) relative to day 0, with undifferentiated hESCs as controls. (B) T (brachyury) and OCT4 expression was analyzed by immunofluorescence microscopy. T was visibly detected in hESCs after 24 h of GSKi treatment and began to down-regulate by day 2. (C) β-catenin expression in hESCs after GSKi treatment. Top row: β-catenin expression in undifferentiated hESCs, middle row: after 24 h of GSKi treatment, bottom row: no-GSKi control. All scale bars represent 200 μm. GSK, glycogen synthase kinase; GSKi, GSK inhibitor; hESCs, human embryonic stem cells; PS, primitive streak; GSC, Goosecoid. Color images available online at www.liebertpub.com/scd

We further analyzed the expression of endoderm, ectoderm, and mesoderm associated genes in GSKi-treated hESCs. In the absence of GSKi, the up-regulation of SOX1 and PAX6 beginning at day 3 indicates presumptive neuroectoderm induction. Otherwise, the expression levels of these two markers appear to be down-regulated throughout the entire time course, which suggest a non-ectodermal route of differentiation under GSKi treatment. Endoderm marker SOX17 remained at low levels with no noticeable up-regulation, while CXCR4 was markedly increased starting only at day 2. Following the trend of PS markers, the lateral plate mesoderm marker KDR was transiently up-regulated after 24 h of exposure to GSKi. Coincidentally, its down-regulation beginning at day 2 was met with the elevated expression of paraxial mesoderm marker PDGFRα on the same day, suggesting that prolonged GSKi treatment may favor differentiation toward the paraxial mesoderm fate. Using a different GSKi, CHIR98014 (Selleckchem), a similar transcription profile was observed for CXCR4 and T with significant up-regulation occurring at days 2 and 1, respectively (Supplementary Fig. S2B). Similar to CHIR99021, T expression and the nuclear accumulation of β-catenin can be induced by CHIR98014 (Supplementary Fig. S2C and S2D, respectively). Taken together, our findings propose that GSKi treatment is unable to maintain the pluripotent status of hESCs but triggers differentiation to a state resembling the PS in as early as 24 h based on an analysis of the transcription profiles of PS-associated genes.

A PS/mesendoderm-like population exists in the early stages of GSK-3 inhibition, whereas prolonged inhibition results in a pure CXCR4⁺ population

Our analysis on the transcription profiles of PS-associated genes in Fig. 1 suggests that the GSKi-treated hESCs at day 1 may be a source of cells representing the mesendoderm. At this time point, the hESC colonies appear to have shrunk slightly, with the edges of the colony starting to pull away from the plate (Fig. 2A). Prolonged GSKi treatment for more than 24 h resulted in morphological changes that are characterized by small, cobblestone-like cells spreading outward from the edges of the colony. We note that this outgrowth of cells seems to coincide with the transcription profile of CXCR4, which is up-regulated starting at day 2. These observations are in line with our time-course FACS analysis that detected the large emerging population of CXCR4 ⁺ cells after 2 days of GSKi treatment (Fig. 2B). In basal media alone, CXCR4 ⁺ cells remained undetected (Supplementary Fig. S3A). On the same day, the mesoderm marker PDGFRα was also detected in some of the CXCR4 ⁺ cells, although its expression decreased by day 4 and was undetectable at day 7. KDR was lowly expressed in its undifferentiated state, and the number of KDR ⁺ cells increased slightly after 24 h of exposure to GSKi. By day 4, the differentiated cells were almost entirely positive for CXCR4 and negative for KDR, which indicates a purely endodermal fate under prolonged GSKi treatment. Despite the abundance of CXCR4 ⁺ cells, SOX17 was not detected throughout the course of GSKi treatment (data not shown).

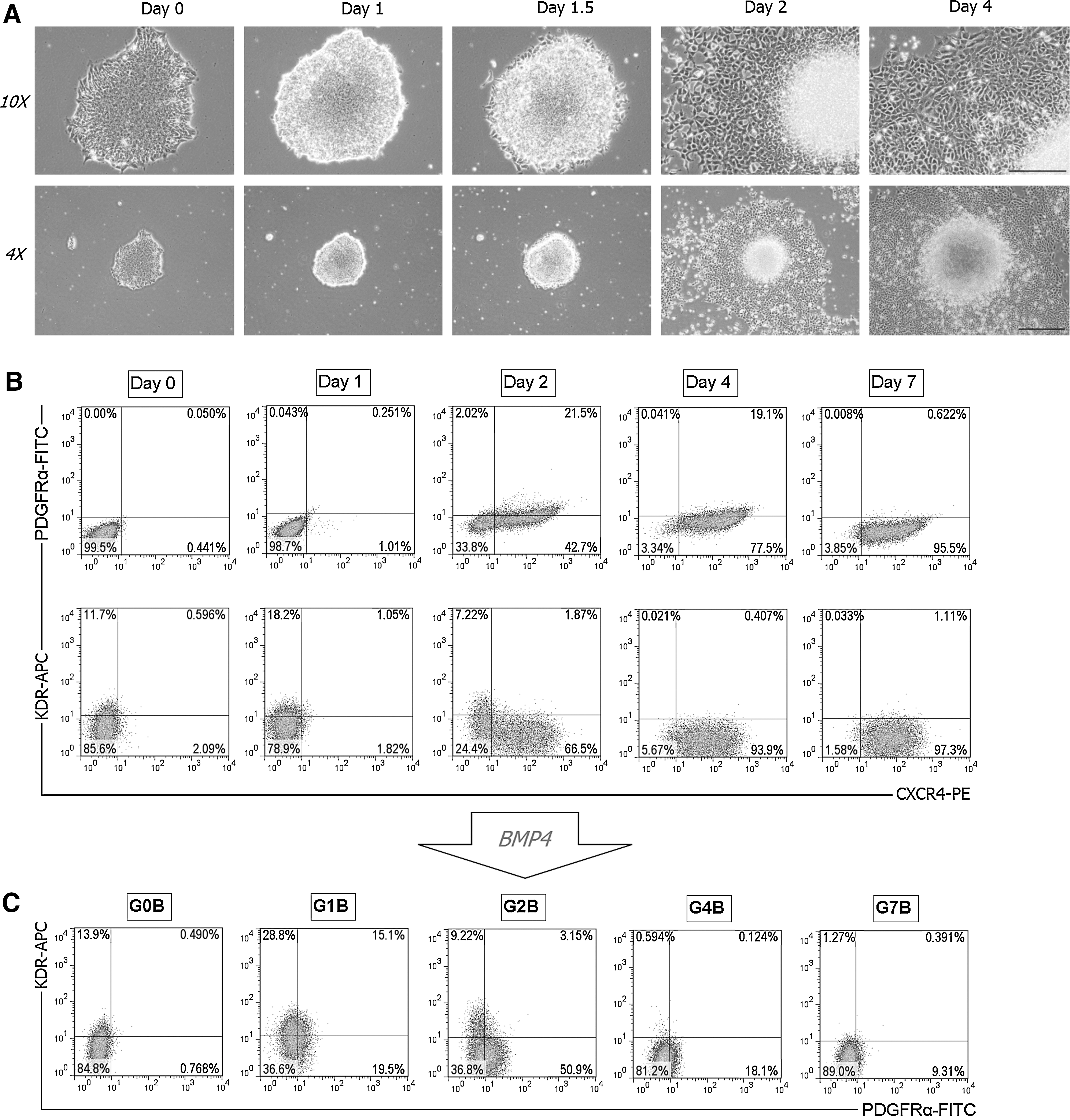

FIG. 2.

A PS/mesendoderm-like cell population exists in the initial stages of GSKi treatment as analyzed by FACS. (A) The representative morphology of the hESC colonies under GSKi treatment at the indicated time points was shown. Scale bars: 500 μm for 10× magnification (top row), 1 mm for 4×(bottom row). (B) Time-course FACS analysis in GSKi-treated hESCs. Cells were harvested at different time points (days 0, 1, 2, 4, and 7) and stained with KDR-APC, PDGFRα-FITC, and CXCR4-PE for FACS analysis. Cells expressing CXCR4 were detected starting at day 2 of GSKi treatment, which is also concurrent with the morphological spreading of cells from the edges of the hESC colony. Prolonged inhibition of GSK-3 eventually resulted in a pure CXCR4 ⁺ cell population. (C) Analysis on the mesoderm potential of hESCs after GSKi treatment. Cells were treated with BMP4 for 24 h after different durations of GSKi treatment as indicated: G1B, G2B, G4B, and G7B, the number representing the days of GSKi treatment. For the G0B group, hESCs were differentiated directly in BMP4 for 48 h without prior GSKi treatment. FACS, fluorescence-activated cell sorting; APC, allophycocyanin; FITC, fluorescein isothiocyanate; PE, phycoerythrin; BMP, bone morphogenetic protein.

We next investigated the mesoderm potential of the GSKi-treated hESCs. BMPs are multifunctional growth factors that comprise a subfamily of the transforming growth factor β (TGFβ) superfamily. Their roles in embryonic development and cellular functions in postnatal and adult animals have been extensively studied in recent years. Typically, BMP4 is known for inducing pluripotent stem cell (PSC) differentiation into both hematopoietic [35] and endothelial cells [36] as well as in trophoblast [37] and extra-embryonic endoderm [38]. In addition, BMP4 signaling is also critical for bone and cartilage formation, as it has been shown to promote chondrogenic and osteogenic differentiation in stem cells [39]. A recent study suggested its role as a mesoderm inducer during hESC differentiation [40]. Here, we administered BMP4 after hESCs had been treated with GSKi for varying durations and analyzed the expression of mesoderm markers KDR and PDGFRα after 24 h of exposure to BMP4. FACS analysis confirmed that BMP4 treatment promoted the development of both mesoderm subtypes in the group that underwent prior GSKi treatment for 1 day (G1B) (Fig. 2C). A small fraction of cells was observed to be double positive for KDR and PDGFRα, which was expected as both lateral and paraxial mesoderm populations emerge adjacent to each other during embryogenesis with overlapping gene expression patterns. For the group that underwent 2 days of GSKi treatment before BMP4 culture (G2B), the number of cells expressing KDR decreased considerably while PDGFRα ⁺ cells increased after 24 h of exposure to BMP4. From the representative dot plot, the KDR and PDGFRα populations appears to be more distinct as compared with the G1B group. The expression of both markers, in particular, PDGFRα was noticeably decreased in the G4B group and was almost undetectable in the G7B group, indicating that exposure to BMP4 after prolonged GSKi treatment had failed to induce mesoderm differentiation. As the differentiated cells become fully committed toward the endoderm fate due to prolonged inactivation of GSK-3, the number of cells that could potentially differentiate toward the mesoderm decreases. These findings demonstrate that cells with mesoderm potential exist only at the initial stages of GSK inhibition, preferably within 2 days after exposure to GSKi. In the next section, we show that the GSKi-treated hESCs at this time point (the G1B group) are also bipotential, with the capability of differentiating toward the endoderm without prolonged GSKi treatment.

GSKi-treated hESCs have potential to commit toward the endoderm under Activin A treatment

Based on our findings pertaining to the use of GSKi, we sought to investigate the endoderm potential of GSKi-treated hESCs. Accordingly, the endodermal differentiation experiment was performed after initial GSKi treatment for 24 h in chemically defined, feeder-free conditions, without additional growth factors/cytokines other than the ones mentioned in this section. Among the growth factors tested, endoderm formation was most pronounced in the presence of exogenous Activin A, while exposure to BMP4 after GSKi treatment induced mesoderm lineage commitment (Fig. 3A, B). Exposure to Activin A for a period of 2 days resulted in significant up-regulation of endoderm markers FOXA2, SOX17, and CXCR4 (Fig. 3B). In addition, the transcripts of mesoderm-associated genes KDR and PDGFRα remained at low levels during Activin A treatment but was markedly up-regulated in the group treated with BMP4 (Fig. 3B). Remarkably, exposure of GSKi-treated hESCs to Activin A alone yielded ∼75% of cells expressing SOX17 and 52% CXCR4 ⁺ cells, while the faction of cells expressing mesoderm markers KDR and PDGFRα remained negligible after 48 h (Figs. 3C and 4A). To further demonstrate the involvement of Activin/Nodal signaling in endoderm commitment, the differentiation media was simultaneously administered with SB431542, a selective inhibitor of the TGFβ type I activin receptor-like kinases (ALK), specifically ALK4, ALK5, and ALK7. Compared with the group treated with Activin A alone, gene expression analyses revealed the distinctively lower transcript level of CXCR4 and the complete abolishment of SOX17 and FOXA2 with the addition of SB431542 (Fig. 3B). This endoderm-suppressing effect of SB431542 was further confirmed by FACS analysis, which detected little or no expression of CXCR4 and SOX17 (Fig. 3C). Interestingly, the combination of SB431542 and Activin A also increases the proportion of both PDGFRα ⁺ and KDR ⁺ cell population. This suggests that the GSKi-treated hESCs which were originally fated for endodermal differentiation during Activin A treatment undergo mesoderm commitment under the effect of SB431542.

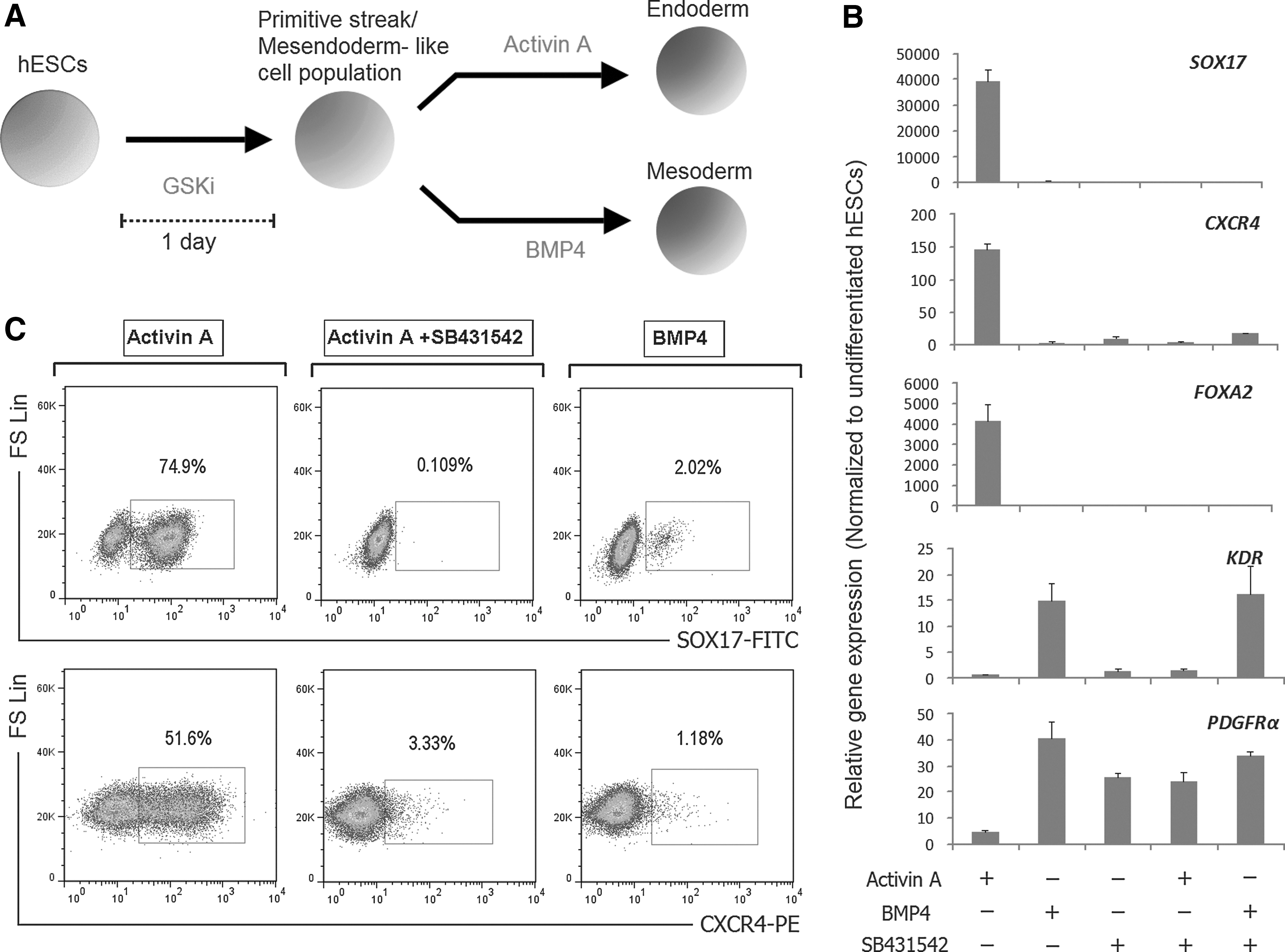

FIG. 3.

hESCs treated with 5 μM GSKi for 24 h and subsequently in Activin A for 48 h differentiate toward the endoderm. (A) Illustration on the differentiation of hESCs based on the inhibition of GSK-3. hESCs were initially treated with 5 μM GSKi for 24 h to induce PS formation and further differentiated toward the endoderm using Activin A, or toward the mesoderm using BMP4. (B) GSKi-treated hESCs were further differentiated for 48 h in different growth factor combinations consisting of BMP4, Activin A, and SB431542. qPCR analysis was performed using primers specific to endoderm (FOXA2, CXCR4, and SOX17) and mesoderm (KDR and PDGFRα) genes. Activin A was shown to up-regulate endoderm-associated markers, while BMP4 up-regulated mesoderm markers. (C) Percentage of CXCR4 ⁺ and SOX17 ⁺ cells after 3 days of differentiation (initial 24 h in 5 μM GSKi, and 48 h in Activin A, Activin A+SB431542, or BMP4) as determined by flow cytometry. Activin A treatment alone resulted in a majority of cells expressing CXCR4 and SOX17, but its endoderm-inducing effect was suppressed with the addition of SB431542.

BMP4 treatment after initial exposure to GSKi drives hESC differentiation toward the mesoderm lineage and blocks endoderm differentiation

To further analyze the mesoderm potential of GSKi-treated hESCs, we administered BMP4 24 h after GSKi treatment and examined the transcription levels of PDGFRα and KDR at 24 h intervals. In contrast to hESCs that underwent continuous GSKi treatment, the gene expression of lateral plate marker KDR was significantly up-regulated after 24 h of exposure to BMP4 (Fig. 4B). Similarly, PDGFRα was up-regulated at day 2, although it decreased to levels comparable with continuous GSKi treatment by day 4. We, therefore, identified day 2 as the time point where the relevant mesoderm subsets were sufficiently specified. Our FACS analysis also confirmed the mesoderm-inducing effect of BMP4 (Fig. 4A).

FIG. 4.

BMP4 drives mesoderm differentiation of GSKi-treated hESCs. (A) Flow cytometric analysis of KDR ⁺ and PDGFRα ⁺ cells demonstrating the mesoderm-inducing effect of BMP4 after 3 days of differentiation (24 h in GSKi and further 48 h in BMP4). Data presented are dot plots from stained samples (dark gray) overlaid with isotype controls (light gray). (B) hESCs were differentiated in 5 μM GSKi for 24 h and further differentiated in BMP4 for an additional 3 days (-♦-). The transcription levels of mesoderm, endoderm, and neuroectoderm-associated genes were compared with hESCs differentiated in GSKi for 4 days (-■-) using qRT-PCR. The transition to BMP4 culture from GSKi up-regulates mesoderm markers KDR and PDGFRα while suppressing FOXA2 and CXCR4. All PCR data were normalized to β-actin expression and presented as relative expression (fold) using day 0 as control samples.

Next, we compared the gene expression of these markers in hESCs that were differentiated in BMP4 without prior GSKi treatment. In a way, this comparison allows us to determine whether the expression of these markers can be influenced by upstream protocols in mesoderm induction. From RT-qPCR analysis, the transcripts of PS/early mesoderm markers T and MIXL1 were elevated in both groups, although it was distinctively higher in the group that had been initially differentiated with GSKi (Supplementary Fig. S3B). Following our protocol, KDR was noticeably up-regulated after 24 h in BMP4 to levels higher than the group that was differentiated directly in BMP4 without using GSKi from the onset. These data correspond well with our FACS analysis in Fig. 2C, where abrogation of the initial GSKi treatment step (the G0B group) resulted in a smaller fraction of KDR ⁺ cells, while cells expressing PDGFRα were not detected at all. This low yield may suggest that hESCs have yet to adopt a PS-like stage before specifying toward the mesoderm. This could also imply that activation of Wnt/β-catenin pathway using GSKi is a more effective approach to induce PS formation in hESCs than using BMP4, whose role, in our opinion, is more suited in transiting from the PS to the mesoderm.

In addition, we analyzed the expression of endoderm- and ectoderm-related genes in response to BMP4 treatment and found that most of these genes appear to be inhibited throughout the course of BMP4 treatment. CXCR4, which was noticeably up-regulated at day 2 under continuous GSKi treatment as shown in Fig. 1, was completely suppressed at all time points after switching to BMP4 culture (Fig. 4B). We also detected little or no expression of FOXA2, PAX6, and SOX1 throughout the course of differentiation. Interestingly, we found that, in the presence of BMP4, the gene expression of SOX17 was up-regulated within 24 h (day 2), although its transcript level was nowhere as high as the group treated under Activin A (see Figs. 3B and 4B). These observations correspond well with FACS data that detected minimal levels of SOX17 ⁺ and CXCR4 ⁺ cells in BMP4 cultures (Fig. 3C). Collectively, we showed that hESCs which underwent differentiation to the PS under the influence of GSKi (for 24 h) have the potential to further commit toward either the endoderm or mesoderm depending on the culture conditions. Along with our findings pertaining to the use of GSKi, we were able to establish a novel, stepwise mesoderm induction protocol for the directed differentiation of hESCs into the mesoderm lineage.

GSKi-derived mesoderm has the potential to further differentiate into endothelial and smooth muscle lineages

Among the three germ layers, the mesoderm is considered a potential source of progenitors giving rise to vascular endothelial cells and SMCs during embryonic development. A variety of markers have been used to identify progenitors that could give rise to ECs and SMCs, including CD34, CD31, KDR, and PDGFRα [4,41,42]. CD34 has generally been associated with progenitors for hematopoietic and endothelial lineages, whereas other studies have related PDGFRα with progenitors for cardiac, smooth muscle, and mesenchymal lineages. To further ascertain the potential of our GSKi-derived mesoderm, we further directed the differentiation of hESCs toward these two lineages. Differentiation was conducted in a stepwise approach that was similar to our mesoderm induction protocol but with an additional VEGF treatment step to induce vascular commitment (Fig. 5A). In just 24 h exposure to VEGF (day 3 of differentiation), the transcript levels for endothelial-associated markers such as CD31 and CD34 were visibly up-regulated (Fig. 5B). This follows after the increase in KDR and PDGFRα expression at day 2, which is in line with the down-regulation of T. Without VEGF, CD34 and CD31 remained down-regulated. Our time-course FACS analysis reveals that the CD34 ⁺ cells starts moving out from the KDR ⁺ population at day 3 and amounts to approximately half of the entire cell population by day 4, of which most co-expressed CD31 (Fig. 5C). Almost all of the CD34 ⁺ cells co-expressed KDR, but all were negative for PDGFRα, which confirms their lateral plate specificity (Fig. 5D). Similarly, the H9 hESC line showed comparable transcription profiles and also demonstrated efficient differentiation under the same protocol, although having a slightly lower percentage of cells expressing CD34, PDGFRα, and KDR (Supplementary Fig. S4A, B). Likewise, the H1 cell line showed comparable differentiation efficiency using CHIR98014 as the GSKi.

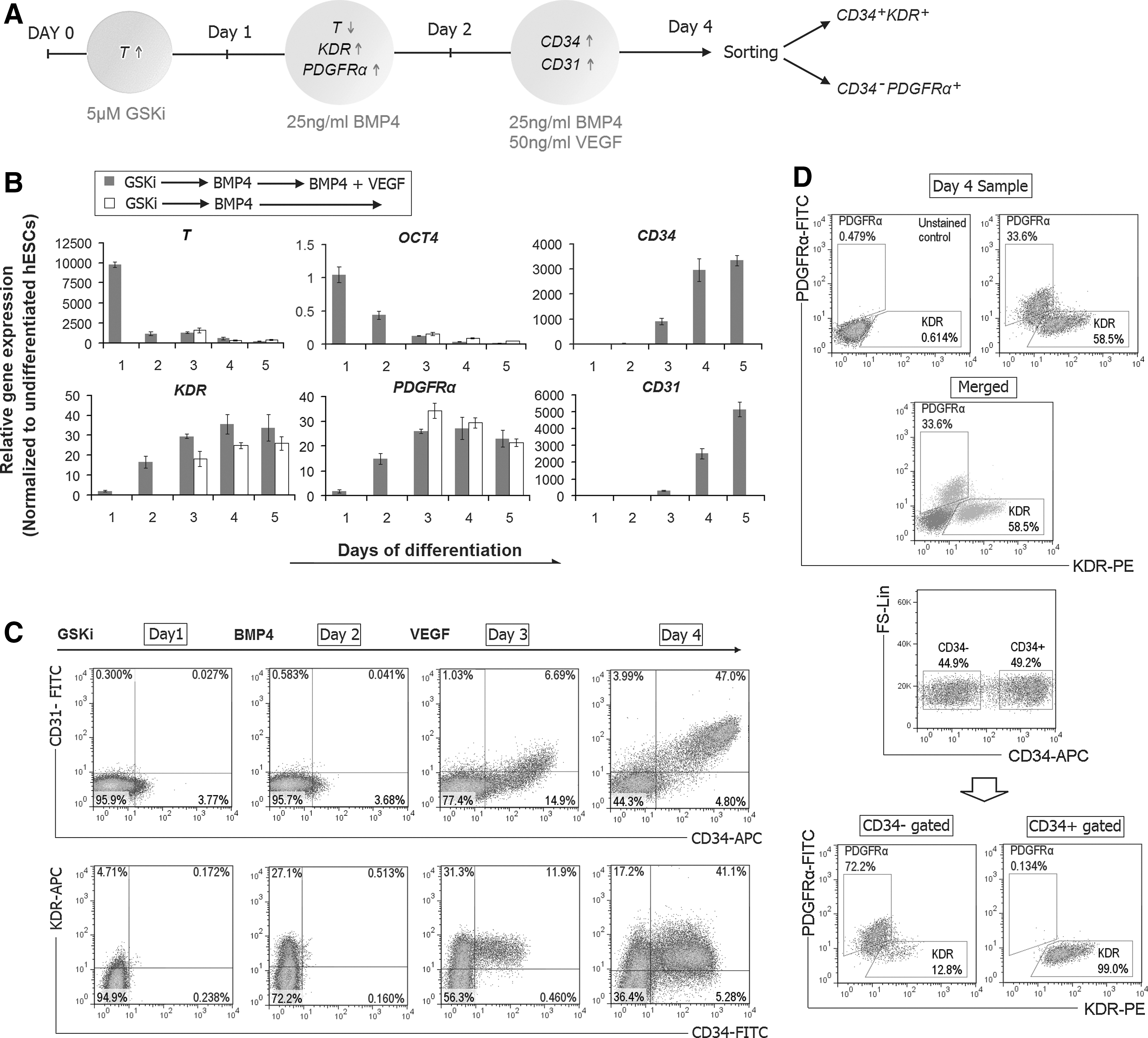

FIG. 5.

Efficient and rapid differentiation of hESCs toward CD34 ⁺ progenitors using a three-step differentiation procedure involving initial GSKi treatment. (A) Illustration of the protocol for hESC differentiation toward endothelial and smooth muscle lineage. After initial GSKi treatment for 24 h and further differentiation toward the mesoderm for an additional 24 h using BMP4, hESCs were further differentiated in VEGF-supplemented conditions. (B) Time-course qRT-PCR analysis on the entire differentiation process. As the mesoderm matures, T expression is down-regulated followed by the up-regulation of mesoderm markers (KDR and PDGFRα). The vascular inducing effect of VEGF is confirmed by the detection of CD34 and CD31 expression at day 3 of differentiation. (C) FACS analysis on the expression of the mesodermal markers KDR, CD34, and CD31. At day 3 of differentiation (after 24 h exposure to VEGF), CD34 ⁺ cells were observed to emerge from the KDR ⁺ population (left column) and began to co-express CD31 by day 4 (right column). (D) FACS analysis for day 4 samples stained with KDR-PE and PDGFRα-FITC. The representative dot plots of stained and unstained samples are overlaid, which revealed two distinct subpopulations representing KDR ⁺ and PDGFRα ⁺ cells (upper panel). KDR and PDGFRα expression in gated CD34 ⁺ and CD34⁻ subpopulations confirmed that all CD34 ⁺ cells are negative for PDGFRα (lower panel). VEGF, vascular endothelial growth factor.

From pre-sort analysis, both the CD34 ⁺ KDR ⁺ and CD34⁻PDGFRα ⁺ cell populations make up ∼51% and 35% of the total population, respectively (Supplementary Fig. S4D). After three passages in endothelial growth conditions, the post-sorted CD34 ⁺ KDR ⁺ cells displayed a flattened, cobblestone-like morphology and strongly expressed endothelial cell-specific proteins: CD31, vWF, and VE-cadherin (Fig. 6A). The gene expression levels of these markers are comparable with HUVECs (Fig. 6B). The majority of the sorted CD34 ⁺ KDR ⁺ cells became CD34⁺CD31⁺ positive and remained negative for PDGFRα, while KDR was down-regulated (Supplementary Fig. S4D). In addition, the cells were able to spontaneously reorganize into tube-like structures on Matrigel and were capable of acetylated-LDL uptake. FACS analyses also revealed that a majority of the pre-sorted CD34 ⁻ cells express PDGFRα, which indicates their paraxial mesoderm origin (Fig. 5D). In other reports, CD34 ⁻ cells that are positive for PDGFRα have also been proposed to differentiate toward smooth muscle lineages [42]. After three passages in PDGF_bb-supplemented medium, the sorted CD34 ⁻ PDGFRα ⁺ population expressed comparable levels of α-SMA, SM22α, and PDGFRβ to hCA-SMCs with no detectable transcripts of endothelial markers (Fig. 6B). While PDGFRα expression is lost after a few passages, CD31 remained unexpressed, confirming their non-endothelial fate (Supplementary Fig. S4D). Further, immunoflourescence analysis corresponds with FACS data, which detected the presence of α-SMA and calponin (Fig. 6A, C). These observations demonstrated the efficacy of our mesoderm induction approach in driving differentiation toward vascular endothelial and smooth muscle lineage under the right growth conditions.

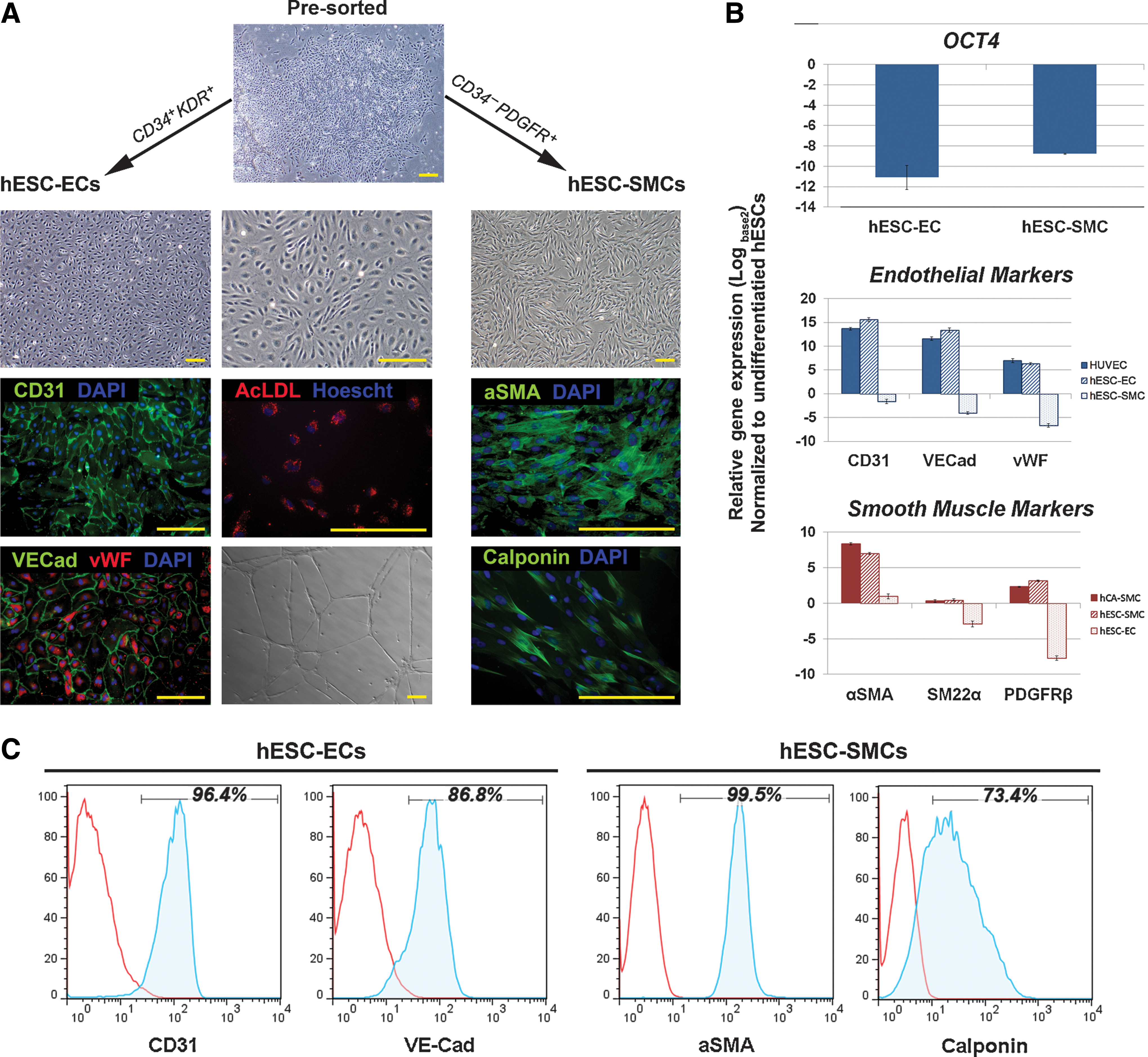

FIG. 6.

The post-sorted CD34 ⁺ KDR ⁺ and CD34 ⁻ PDGFRα ⁺ subpopulations demonstrated endothelial and smooth muscle potential, respectively. (A) Phase-contrast image represents the morphology of pre-sorted cells after 4 days of differentiation (top). Post-sorted CD34 ⁺ KDR ⁺ cells adopted an endothelial-like morphology in endothelial growth conditions and were stained positive for CD31, vWF, and VE-cadherin (left column). They were also capable of forming tube-like structures on Matrigel and demonstrated acetylated-LDL uptake (middle column). In smooth muscle growth conditions, the post-sorted CD34⁻PDGFRα ⁺ cells began to take on a spindle-shaped morphology and were positively stained for α-SMA and calponin (right column). Nuclei were counterstained with DAPI. All scale bars represent 200 μm. (B) hESC-derived endothelial and smooth muscle cells were harvested after three passages from sorting and analyzed for endothelial- and smooth muscle-associated gene expression (CD34, CD31, vWF, VE-cadherin, α-SMA, PDGFRβ, and SM-MHC) by RT-PCR. Relative gene expression levels were compared with umbilical vein endothelial cells (HUVECs) and human coronary artery smooth muscle cells (hCA-SMCs) relative to undifferentiated hESC controls. (C) Expression of CD31, VE-cadherin, α-SMA, and calponin in our hESC-derived endothelial and smooth muscle cells was further confirmed by FACS analysis. LDL, low density lipoprotein. Color images available online at www.liebertpub.com/scd

Discussion

The development of successful ESC-based therapies requires an in-depth understanding of the complex signaling pathways governing lineage commitment and to establish robust, efficient, and reproducible protocols that direct their differentiation toward specific and therapeutically relevant cell types. To realize this potential, a plethora of differentiation methods to generate specific cell types have been devised. However, the rationale of the differentiation approach in a number of these existing protocols is often left unexplained, often involving spontaneous and/or one-step differentiation approaches in undefined conditions, and/or requires long-term culture that generates low yields with other undesirable cell types, rather than recapitulating the early events in germ-layer specification as a basis of their differentiation approach. Here, we presented a step-wise mesoderm induction method based on the use of small-molecule GSK-3 specific inhibitor and minimal growth factors, while elucidating the involvement of each factor at every step of the protocol. We believe that by recapitulating the early events of embryogenesis in culture, effective differentiation strategies can be formulated accordingly.

Inhibition of GSK-3 function leads to stabilization and translocation of β-catenin to the nucleus, where it associates with transcription factors of the T-cell factor (TCF) and lymphoid enhancing factor (LEF) families [43]. In this article, we demonstrated that short-term inhibition of GSK-3 efficiently induced differentiation of hESCs toward a PS/mesendoderm-like state, and that initial GSKi treatment followed by BMP4 supplementation efficiently drives differentiation of hESCs toward the mesoderm lineage. The concomitant peaking of brachyury expression and other PS-related genes in as early as 24 h in response to GSKi and their subsequent down-regulation is reminiscent of the transient nature of the PS during early embryogenesis. It was also interesting to note that the down-regulation of these genes at day 2 begins in tandem with the morphological spreading of cells from the edges of the hESC colony and the emergence of cells expressing CXCR4. While differentiation toward an endodermal fate via long-term inactivation of GSK-3 has been demonstrated, the short-term effects of GSKi treatment were not previously reported. Here, we showed that hESCs treated with GSKi for 24 h is sufficient to induce a mesendoderm-like cell population that is capable of differentiation toward the endoderm or mesoderm. The rapid induction of the mesendoderm in this work may very well depict the events described in the study of Kemler et al. [44], where β-catenin stabilization in mutant mouse embryos leads to premature epithelial-mesenchymal transition and, thus, may be a point to be considered for differentiation protocols where time effectiveness is an issue.

A possible explanation to account for the controversies surrounding the role of Wnt/β-catenin signaling in hESCs is the presence of additional factors in the differentiated media used in various studies that could have interfered with Wnt signaling and/or activated other pathways. In one study that used mouse embryonic fibroblasts (MEF)-conditioned media, hESCs were observed as maintaining their undifferentiated morphology and proliferated when supplemented with Wnt3a [45]. One may argue that the presence of anti-differentiation factors, for example, basic fibroblast growth factor (bFGF) in conditioned media supports the maintenance of hESCs while under the influence of Wnt signaling. Supporting this hypothesis are studies showing the differentiation of hESCs under active Wnt signaling in the absence of bFGF but self renewal in the presence of exogenous bFGF [46,47]. This was, however, contradicted in another report demonstrating differentiation toward the endoderm lineage using mTeSR1 as the basal differentiation media, which is known to contain high concentrations of bFGF and other factors [28]. In our study, we showed that activation of the Wnt/β-catenin pathway using GSKi alone in feeder-free, chemically defined culture conditions without additional growth factors/cytokines drove hESC differentiation toward the PS.

During maturation of the mesoderm, brachyury expression is down-regulated and cells begin expressing KDR and PDGFRα. In the context of mesodermal differentiation, others have reported that initial BMP4 treatment was sufficient to drive hESC differentiation toward the mesoderm lineage [40,48]. In our experience, however, exposure to BMP4 without prior GSKi treatment was permissive, but not effective in mesoderm induction and it also failed to generate the paraxial subtype. Conversely, our findings pertaining to the use of BMP4 demonstrated efficient derivation of both the paraxial and lateral plate mesoderm subtypes in GSKi-mediated differentiation. These observations may be attributed to the addition of the GSKi treatment step, which effectively drove differentiation toward the PS, an essential specification step that generates all mesodermal tissues during the early developmental process. Further, the differences in culture conditions, with hESCs being cultured in MEF-conditioned medium before differentiation in these studies, may also explain the discrepancy in the use of BMP4 in our study. In support of this possible explanation, a study has shown that hESCs cultured under MEF-conditioned media displayed elevated expression of PS genes as compared with hESCs cultured in N2B27 medium, which indicates a pre-PS-like intermediate stage but still adopts an undifferentiated status [49]. Apparently, their differentiation in conditioned media is prevented because of factors present in knockout™ serum that stimulates phosphatidylinositol 3-kinase activity [50]. This may explain the ineffectiveness of using BMP4 as the initial differentiation step to drive PS/mesodermal differentiation in our study, as our hESCs are continuously passaged and cultured in mTeSR1 under feeder-free conditions, thus lacking these factors that would have “conditioned” the hESCs into a pre-PS-like stage. In this study, we were also able to demonstrate endodermal differentiation using Activin A alone in feeder-free, chemically defined conditions, which affirms the bipotential status of our GSKi-treated hESCs.

Collectively, we have established a novel, stepwise mesodermal differentiation approach by exploiting the use of small-molecule inhibitors that are specific to GSK-3. Further differentiation toward the endoderm or mesoderm fate can be modulated by Activin/Nodal and BMP signaling pathways. We have also demonstrated that distinct mesoderm subtypes, the lateral plate (CD34 ⁺ KDR ⁺) and paraxial (CD34 ⁻ PDGFRα ⁺) mesoderm, can be efficiently and rapidly derived as early as the third day of differentiation. The ability to generate various mesoderm derivatives may provide opportunities to establish model systems to study the underlying mechanisms regulating mesoderm specification in humans. More importantly, our study presents a unique approach in driving hESC differentiation toward mesoderm lineage cell types in a chemically directed fashion, which may be useful for future applications in regenerative medicine. Besides ESCs, the landmark discovery of induced PSCs (iPSCs) that are derived from human somatic cells through ectopic expression of transcription factors have also become a major development toward patient-specific cell therapy, drug discovery, and disease modeling in recent years [51,52]. Research is also increasingly focused on combining iPSCs with gene therapy for treatment of human diseases via gene targeting or gene augmentation therapy [53,54]. As such, our findings in this study may also be applicable for iPSC technology.

Footnotes

Acknowledgments

The authors gratefully acknowledge the financial support of the Singapore Agency for Science, Technology, and Research through the Singapore Stem Cell Consortium Grant (SSCC/09/019); the Academic Research Fund (R221000026112) and (R221000023112) from the Singapore Ministry of Education; and research grant (R221000053515) from the National University Health System.

Author Disclosure Statement

The authors declare no financial or other conflict of interest relevant to the subject of this article.
