Terrain Adaptability and Optimum Contact Stiffness of Vibro-bot with Arrayed Soft Legs

Abstract

The terrain adaptability of the state-of-the-art robot is far behind natural animals, partly because of limited sensing, intelligence, controlling, and actuating ability. One possible solution is to explore the flexible locomotion structure and locomotion mode with good adaptability and fault tolerance. Based on this idea, we presented a type of vibro-bot with arrayed soft legs (VBASL) with excellent terrain adaptability by utilizing the rapid vibration of the soft belt array. With the resistance to local terrain blocking and combing the vibrational actuation, the VBASL has an advantage of multi-leg collaboration, so that very simple structure can achieve good terrain adaptability, such as steady locomotion on complex terrains like steep slope, ladders, steps, discrete pillars, and soft sands. Besides, the effects of soft leg geometry, stiffness, and ground topography on terrain adaptability and locomotion speed were also studied, indicating the similar contact stiffness to maximize the locomotion speed on different grounds. Then, a theoretical model was developed to describe the experiments well, which can guide the design of optimum contact stiffness of VBASL to achieve fast locomotion speed and good load capacity. By further modifying the robot structure, more practical functions such as turning, climbing, and anti-impacting were easily realized. The resistance to local terrain blocking and optimum contact stiffness are two important factors to improve the performance of VBASL, which may address the terrain adaptability challenge of robots working in practical unstructured environments.

Introduction

Soft robots are rapidly developing through increasing the flexibility of the structure, where softness-induced inherent terrain adaptability can significantly decrease the structure and control complexity.^1–4 Thus, soft robots working in different environments have been proposed,⁵ such as the sand-adaptive bionic worm^6–8/inchworm^9–11/snake,^12,13 obstacles-adaptive bionic starfish/octopus^3,14–16 and jumping/hopping robots,^9,17–26 and robots of climbing branches,^27,28 crawling in snow,²⁹ crawling in vertical pipeline,^30,31 climbing wall,^32,33 passing through the slit and fast turning.^34,35

Nevertheless, the terrain adaptability of these soft robots is still far behind the natural animals [e.g., the snakes are able to locomote on (in) rough ground/slope, sands and water, through narrow hole, and even climb tree], and one soft robot can only adapt up to two or three terrains (e.g., rough ground and sands). It is worth mentioning that the robots driven by external field (e.g., magnetic field^36–45) demonstrates good terrain adaptability. However, owing to its dependence on the external field, the working space and environment may be limited.

In general, the legged-locomotion structure and locomotion mode exhibit good flexibility, seeming a promising way to adapt different terrains. For example, the flexibility of legs is beneficial to smoothen the disturbance from external environment without feedback control, whereas multi-leg collaboration provides robots excellent survival in different environments.⁵ However, the multi-leg locomotion usually brings complex locomotion structure and mode. For example, to realize good terrain adaptability of legged robot, a leg usually consists of several joints and actuators, and each joint should be online and real-time controlled based on the terrain condition, which is very difficult for current soft robots.

Recently, the vibrational bristle robots have attracted wide research interest, where each bristle can generate a driving force under a single vertical vibration actuation, so that the locomotion structure and controlling are significantly simplified.^46–52 The inherent deformability and fault tolerance of the large number of legs are expected to enable excellent terrain adaptability. But, until now such terrain adaptability was not seen in the practical applications, partly owing to the improper locomotion structure of bristle and stiffness that hinder its terrain adaptability and locomotion ability.

Given the abovementioned challenges, we systematically investigated a type of vibro-bot with arrayed soft legs (VBASL) and finally enabled its adaptability to more than five types of complex terrains (Fig. 2). A series of factors, such as the vibration exciting parameters, material and structure parameters of the inclined legs, load capacity, and terrain features, were comprehensively considered to establish a theoretical model for the locomotion, and further to reveal the underlying mechanism of the excellent terrain adaptability and locomotion ability. It was found the resistance to local terrain blocking and optimum contact stiffness are two important factors for designing high-performance VBASL.

Results

Terrain adaptability of VBASL

The fabrication of untethered VBASL with basic configuration are given in Figure 1A–D. As demonstrated in Figure 1C (or Supplementary Fig. S1), the untethered VBASL (total weight ∼6 g) is composed of a soft locomotion structure of inclined belt array, a thin lithium battery, a wireless controller, and two eccentric vibrator. For the tethered VBASL, the battery and controller can be removed for further decreasing weight (∼3 g).

FIG. 1.

Fabrication of the untethered VBASL of basic configuration (Brick-like): (A, B) Fabrication of the arrayed belt locomotion structure. The locomotion structures made of Dragon Skin 30, Dragon Skin 10 or Ecoflex 30 (Smooth-On, Inc. Referring to the text in Fig. 4) were fabricated by casting the silicone liquid into 3D-printed molds (Creator pro, Flash casting 3D Technology Co. Ltd.). The locomotion structure made of White Resin (Formlabs, Inc.) was directly 3D printed (Formlabs Form2, Formlabs, Inc.). (C) Assembled configuration (35 × 10 × 8 mm³), including the soft locomotion structure, battery (100 mAh, 401119; Dajiamanyi Technology Co. Ltd.), wireless controller (JN1Q-2A; AnnTem, Inc.), and two vibrators (adapted from mobile phones). (D) Geometry of the arrayed belt legs. In the following contents, each VBASL with such configuration (Brick-like) has a locomotion structure of 11 belt legs, $b \equiv 10$ mm, and l, d, θ specified in the content. In addition, for all vibrators used in this work, the vibrator mass and amplitude are m₀ = 0.56 g, A₀ = 2 mm, respectively; and the actuation voltage is kept as 3.1 V (which will enable a vibration frequency of 208 Hz) except that in Figure 4B. VBASL, vibro-bot with arrayed soft legs. Color images are available online.

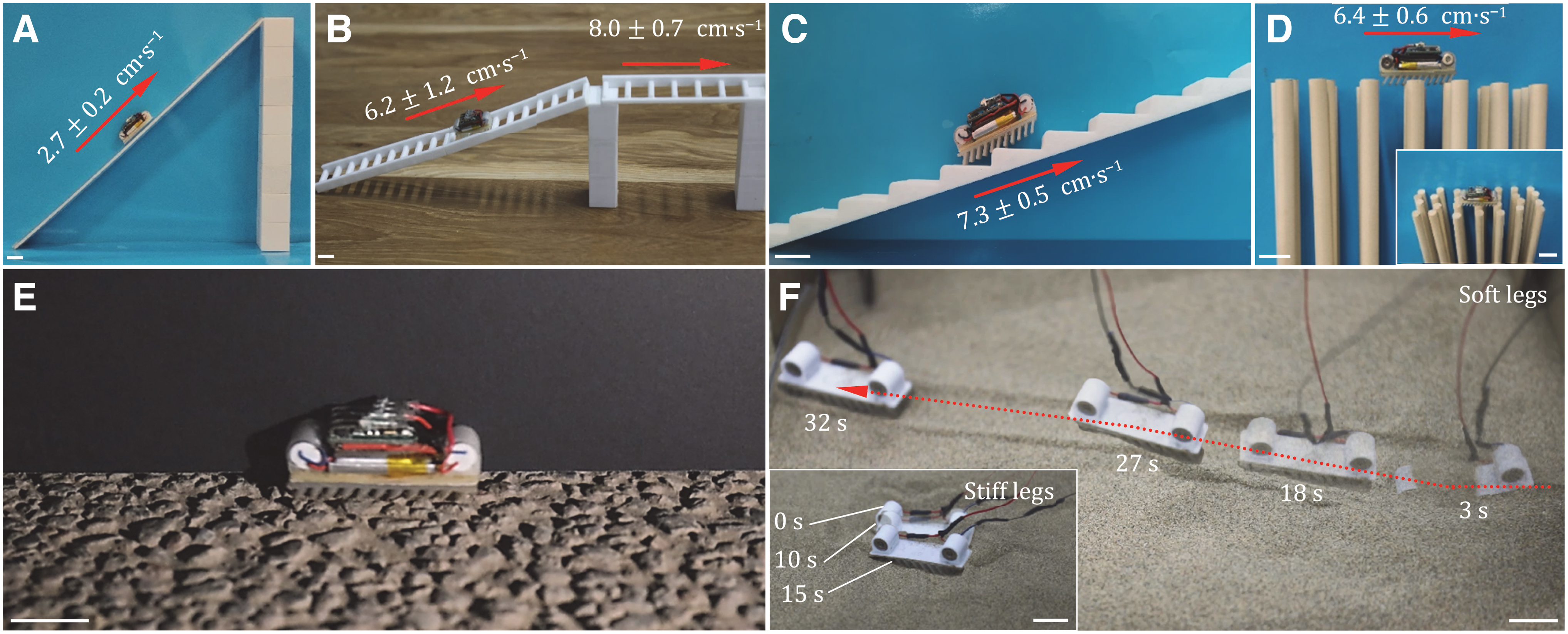

FIG. 2.

Terrain adaptability of VBASL: locomotion on a steep slope of 42° (A), ladders (B), steps (C), discrete pillar array with adjacent distance half of its body length, natural road with stone size comparable with that of the inclined leg (E), and sand (F). The inset in (D) is the top view of VBASL on the discrete pillar, and inset in (F) indicates the locomotion of VBASL with stiff legs on sand. Scale bars in all the figures are 10 mm. The robot in (A–E) is the same with total mass of m = 6.2 g. Two VBASLs with same mass m = 3.3 g but different stiffness are used in (F). Here, the geometrical parameters of belt leg are l = 4 mm, d = 1 mm and θ = 60° and the soft and stiff [inset in (F)] legs are fabricated by Dragon Skin 30 and Ecoflex 30, respectively. Color images are available online.

In principle, the vibration motor actuates the vertical vibration of the VBASL. Combined with the inclined structure, the friction force between the legs and ground is forward under downward vibration, and backward under upward vibration. Although the contact pressure under downward vibration is usually larger than that of upward, the forward friction force is larger to generate net driving force (Supplementary Note S2 and Supplementary Fig. S4). Further considering that all inclined legs can generate collaborative driving forces (Fig. 3), the VBASL holds great potential for locomotion in complex unstructured environments as few contacts between the inclined legs and ground can get sufficient interaction. Indeed, based on our analysis in the following content, the contact stiffness is an important parameter to determine the locomotion speed of VBASL on different terrains.

FIG. 3.

Locomotion mechanism of VBASL: High-speed camera (Photron Mini WX, LEICA Z16 APO; 10,000 fps) observations. Two VBASLs with different geometric parameters of the belt legs (θ, l, and d, refer to Fig. 1) are shown in (A) and (B). m is total mass of the vibro-bot. Different geometric parameters indicate different stiffness of the legs, which can trigger different locomotion modes [refer to the Discussion section or Eq. (1) in the following]. The four frames in right of (A) or (B) indicate the deformation of the belt legs at time t = 0, T/4, T/2, and 3T/4. The vibration period is T = 4.8 ms, corresponding to the vibration frequency of 208 Hz. The yellow solid circles at the upper left corner indicate the vertical positions of the body. The initial configuration of the belt leg is marked by dotted rectangles, whereas the current configurations are marked by solid rectangle. The noncoincidence of the red and white rectangle indicates that the robot is moving rightward. The yellow stripes mark the movement range of the legs (the top points of the white rectangles), and a horizontal red line marks the current position of the top point of corresponding white rectangles. It shows the legs in (A) always keep in contact with the ground, named as sliding mode, whereas the legs in (B) can leave from the ground accompanying the forward locomotion, named as hopping mode. m is the total mass of VBASL and the geometrical parameters of the belt legs are given in the left figures of (A) and (B). Color images are available online.

In our experiments, the VBASL can locomote steadily on a steep slope of 42° (Fig. 2A), ladders (Fig. 2B), steps (Fig. 2C), discrete pillars (Fig. 2D and Supplementary Movie S1) with large spacing, and stony ground (Fig. 2E and Supplementary Movie S2) with particle size comparable with the leg. A comprehensive terrain adaptability test demonstrated that the VBASL can quickly switch the locomotion states to adapt different terrains (Supplementary Movie S3).

Besides, a VBASL with relatively soft inclined leg (elastic modulus of the inclined leg ∼0.6 MPa) can steadily move on sand, even if the VBASL is trapped by sand (Fig. 2F and Supplementary Movie S4). Further studies showed the VBASL with stiff legs cannot move steadily on the stony road, which indicates that the contact stiffness between leg and ground may be crucial (more details refer to Discussion section).

Locomotion modes and performance

The VBASL with basic configuration is selected as an example to analyze its locomotion behaviors. In this study, we observed two locomotion modes, that is, sliding and hopping modes (Fig. 3 and Supplementary Movie S5).

In the sliding mode (Fig. 3A), the legs are in contact with the ground throughout, and the forward locomotion is accompanied by sliding on the ground, which usually occurred for relatively large weight, small leg stiffness, or weak actuation. In the hopping mode (Fig. 3B), the forward locomotion is accompanied by lifting from ground, which usually occurred for relative light weight, large leg stiffness, or strong actuation. However, too large stiffness will also hinder the locomotion, which is given in the Discussion section. The locomotion speeds (v_x) in Figure 3A and B are 4.5 and 16.4 cm/s (Supplementary Movie S6), respectively; and their costs of transport⁵³ are 218 and 56 (current 0.18 A, voltage 3.10 V), respectively.

The relations of total mass (m), leg-ground contact stiffness along z-axis (k), and applied voltage on the locomotion speed (v_x) are given in Figure 4.

The relations of the locomotion speed to m for different k are given in Figure 4A. In general, v_x decreases with the increase of m owing to the decrease of vibration amplitude and increase of sliding friction, and the maximum loading capacity is measured as 100 g (Supplementary Movie S7 and inset of Fig. 4A). The data in Figure 4A also indicates that there should be an optimum stiffness (k = k_optimal) for different m, that is, a too soft or too stiff contact stiffness shows poor locomotion performance (details refer Discussion hereunder). The contact stiffness and loading mass are two important parameters to determine the two locomotion modes [refer to Eq. (1) hereunder], and the VBASL can automatically switch from one mode to another to adapt the load bearing or external environments so as to further improve the adaptability of VBASL.

FIG. 4.

Locomotion speed of VBASL. (A) The relation between the locomotion speed v_x and total mass m. The data points and corresponding curves are obtained from experiments and theoretical predictions, respectively. The solid and dotted curves represents the theoretical predictions of hopping and sliding modes [Eq. (1)], respectively. (B) The relation between the locomotion speed and actuation voltage. Because the vibration frequency of an eccentric-rotor-based vibrator is proportional to the actuation voltage, the linear relation between locomotion speed and actuation voltage indicates the linear dependence of locomotion speed on ω in Equation (1) for the eccentric-rotor actuation. The applied voltage is 3.1 V in (A), which enables a vibration frequency of 208 Hz. Each experimental data point is averaged from three tests, and the error bar denotes standard deviation (calculated by ${[\sum_{i = 1}^{N} {(X_{i} - \bar{X})}^{2} ∕ (N - 1)]}^{1 ∕ 2}$ ). The leg material in (A) is Dragon Skin 30 for the hollow square (“□”), triangle (“Δ”) and circle (“o”) symbols, Ecoflex 30 for black diamond (“◊”) symbols, and White Resin for solid circle (“●”) symbols. In addition, the color, symbol and curve type in (B) represent the same meaning in (A). Color images are available online.

Furthermore, the locomotion speed linearly increases with the applied voltage (Fig. 4B), and the fastest locomotion speed was measured as 27.1 cm/s (∼8 body length per second). Note that the vibration frequency of an eccentric-rotor-based vibrator (ω) is proportional to the actuation voltage, and thus the results actually indicate a linear relation between v_x and ω. It is surprisingly that resonant behaviors do not appear in the voltage-speed curves in Figure 4B, which is quite different from the traditional vibro-bots,^54–56 and will be illustrated in Equation (2) and Supplementary Note S1.

Discussion

Theoretical model and optimal contact stiffness

To analyze the locomotion behavior and guide the subsequent optimization of the locomotion performance of VBASL on different terrains, a theoretical model is developed (Supplementary Note S1). Specifically, the locomotion speed of VBASL can be expressed as (Fig. 5)

FIG. 5.

The relation of normalized locomotion speed $V = m v_{x} ∕ (m_{0} A_{0} ω χ)$ to parameter $λ = k m_{0} A_{0} ∕ (π m^{2} g)$ [Eq. (1)]. The data are normalized from Figure 4 (A), and symbol meaning is the same in Figure 4 (A). Color images are available online.

V = \{\begin{matrix} 1, λ \leq 1 ∕ π (S l i d i n g), \\ sin α_{0}, λ > 1 ∕ π (H o p p i n g), \end{matrix}

(1)

where $V = m v_{x} ∕ (m_{0} A_{0} ω χ)$ is the normalized locomotion speed, $λ = k m_{0} A_{0} ∕ (π m^{2} g)$ is the normalized stiffness, and $α_{0} \in (0, π)$ can be solved by $sin α_{0} - α_{0} cos α_{0} = 1 ∕ λ$ ; m₀, A₀, and ω are the oscillator mass, vertical (along z-axis) vibration amplitude and circular frequency of the vibrators, respectively. χ is an experimentally determined constant that reflects the correlation between the vertical and horizontal motions. In general, χ depends on several factors, such as leg–ground friction, contact pressure (i.e., weight), local deformation of the legs or ground, and the tangential external force generated by the gravity of VBASL on a slope, or the horizontal vibration for the actuation source of eccentric rotor (Supplementary Note S3 and Supplementary Fig. S5).

According to Equation (1), one can approximately describe the effects of the stiffness, total mass and actuation on locomotion as $v_{x} \propto \{\begin{matrix} m_{0} A_{0} ω ∕ m, λ \leq 1 ∕ π, \\ {(m_{0}^{2} A_{0}^{2} g)}^{1 ∕ 3} ω ∕ {(k m)}^{1 ∕ 3}, λ \geq 1, \end{matrix}$ (2)

which agrees with the results in Figure 4 and indicates the absence of resonant behaviors. The locomotion mode trigger conditions in Equations (1) and (2) indicate that a stiffer locomotion structure is more beneficial to activate the hopping mode, but Equation (2) yields that a too stiff locomotion structure will greatly reduce the locomotion speed v_x, which confirms the existence of the optimal stiffness k_optimal. Indeed, the maximum normalized locomotion speed is obtained when sin α₀ = 1 or λ = 1 [Eq. (1); Fig. 5], which determines the optimal stiffness for hopping mode (considering a given ω): $k_{o p t i m a l} = \frac{π m^{2} g}{m_{0} A_{0}} .$ (3)

Note that, k_optimal does not only represent the stiffness of the arrayed legs, it also includes the stiffness of ground (if the ground cannot be treated as rigid) or the effective stiffness of contacted legs for uneven ground. It is interesting that k_optimal appears as an invariant parameter for the VBASL, that is, for given m, g, m₀, and A₀, the VBASL has a unique optimal stiffness independent on the geometrical and elastic properties of the legs (detailed discussion can be found hereunder and in Fig. 6). Furthermore, the same optimal contact stiffness is also found for different terrains with different contact status.

FIG. 6.

Effects of leg geometrical parameter (l) of the belt leg on locomotion speed. The VBASL with d = 1 mm, θ = 60°, m = 6.2 g (Dragon Skin 30) is tested on different grounds with different friction coefficients and l. Refer Figure 1 for actuation parameters. Color images are available online.

Effects of the geometric and elastic properties of the inclined legs

Geometrical and elastic properties of the inclined legs are considered as a group of parameters to affect the locomotion performance of VBASL. Actually, the geometric (l, d, θ, and b; Fig. 1D) and elastic (Young's modulus E) parameters of the inclined legs determine k. Because the soft legs are actually stubby beams with nonideal fixed constraints (as given in Fig. 1, the legs were cast with one soft plate and then bonded to the robot's main body), it is difficult to analyze the deformation field of the joint part between the legs and main body, and k is quantitatively determined by experiments. Nevertheless, simple estimation of k to the geometrical and elastic parameters can be given.

Specifically, assuming small bending deformation of legs, k can be estimated as follows: $k \sim \frac{n E b}{4 δ^{3}} {sec}^{2} θ \sim \frac{n E b}{δ^{3}} (θ - \frac{π}{4} + \frac{1}{2}), 0 < θ ≪ π ∕ 2,$ (4)

where n is number of the legs, $δ = l ∕ d$ is the aspect ratio of a leg. Equation (4) indicates that the stiffness k is linearly related to n, E, b, and θ. However, k seems to be very sensitive to δ because $k \propto 1 ∕ δ^{3}$ . Thus, it is the most efficient way to adjust the stiffness of leg by changing δ, and further to enable the optimal locomotion state [Eq. (3)]. As an experimental verification, Figure 6 provides the relation between l on v_x, which demonstrates a strong effect of the geometric property on locomotion performance, and also the optimal locomotion state in adjusting k.

Resistance of belt array to local terrain blocking

Leg structure is considered as a dominated factor for the terrain adaptability. In previous work, the bristle-like legs were widely adopted. We have conducted a comparative study on performance of bristle and belt array leg. In general, the belt array can effectively strengthen the leg–ground interaction, and avoid local blocking (stuck in gap) and interference between adjacent legs that usually occurs in bristle legs, so as to improve the terrain adaptability. Indeed, in severe environments, especially with gaps/holes, the belt-like legs are not sensitive to the uneven ground, so that they are difficult to be stuck by terrain undulation, that is, the belt array may “float” on a hilly ground as though moving on a flat ground. Figure 7 demonstrates the locomotion speeds when adopting bristle and belt legs on ground with different friction or obstacles.

FIG. 7.

Comparison of locomotion speed on different types of ground for the bristle and belt locomotion structures: locomotion speed and friction coefficient on different grounds (A) and locomotion speed on different artificial obstacles with circular, rectangular, and triangular shapes, along the axial direction of obstacle (B) and perpendicular to the axial direction (C). The geometrical and material parameters of the locomotion structure are the same as those in Figure 3B. Color images are available online.

In general, the belt-inclined legs can steadily locomote on sponge, sandpaper, silicone pad, paper, and acrylic board, and the locomotion speed increases with the friction coefficient μ, whereas the bristle-inclined legs (made of same material) cannot move on sponge and sandpaper (Fig. 7A). Besides, the belt-inclined legs can also move on the ground with cylindrical, square, and triangular obstacles parallel (Fig. 7B) and perpendicular to the axial direction (Fig. 7C) of the barriers, whereas the bristle-inclined legs exhibit poor adaptability on all the three grounds (Fig. 7C and D). Thus, combination of the vibration actuation and resistance to local terrain blocking brings multi-leg collaboration to realize good terrain adaptability.

Optimum design of VBASL on different ground topography

Leg–ground interaction is thought as a crucial determinant to the terrain adaptability. In the theoretical model, leg–ground interaction only influences the parameters χ and k [Eq. (1)].

Specifically, when the characteristic scale of ground topography is much smaller than leg thickness d, the leg–ground interaction can be described by an effective friction coefficient μ (Fig. 7A). Thus, the ground topography affects χ, and a larger μ is preferred. According to Equation (3), such type of ground topography has a negligible effect on the optimal contact stiffness k_optimal, which is verified in Figure 6 where the three curves get the peak speed at the same l.

On the contrary, for the characteristic scale of ground topography comparable with d (Fig. 8C), the leg–ground interaction becomes much more complex. In general, the “hilly” terrain is a good test of terrain adaptability. Typically, the terrain is constructed by an array of “trench” with a height h, thickness a, gap width c, and slope γ (Fig. 8C). Figure 7B and C indicates that the legs are not very sensitive to local morphology at top of the “trenches,” so we just consider a flat top.

FIG. 8.

Effects of ground topography on optimal locomotion states (A) and locomotion performance (B, D–F: λ, c, h, a) when the characteristic scale of ground topography is at the same scale of d (C). All the data points in (A) are the same as in Figure 6, and the ones in (B, D–F) are obtained by testing the same VBASL as Figure 3 (B). The two optimal states in (A) seems contradictory to the predicted unique optimal stiffness k_optimal [Eq. (3)] independent on the geometrical and elastic properties of the legs. It should be pointed out that k_optimal refers to the real contact stiffness k_real, and the increase of gap width (c) implies fewer legs in contact with the ground, so that stiffer [i.e., shorter in (A)] legs are needed to get the optimal contact stiffness (for more details refer to Discussion on Optimum design of VBASL on different ground topography). Color images are available online.

As given in Figure 8C, the contact status is significantly degraded, and the local deformation of the contacted legs is also excessive. Thus, the real contact stiffness (k_real) is much smaller than the stiffness of leg k owing to the excessive deformation and small amount of contacted legs. As a result, the VBASL with optimum contact stiffness (k = k_optimal) on the flat ground may be not at the optimum state on the “hilly” ground because k_real < k_optimal. Thus, on “hilly” ground, stiffer legs should be adopted to maintain the optimum state, which is demonstrated in Figure 8A, and means the optimum contact stiffness may be a universal criterion to optimize the locomotion performance of VBASL on different terrains.

Besides, the myriopod structure makes the robot have enough working legs to locomotion in practical unstructured environments. Even if the working legs are too few to maintain the hopping mode, the VBASL also can automatically adjust the locomotion mode to the sliding mode to maintain the basic locomotion ability.

Furthermore, a series of experiments were conducted to investigate effect of the geometry of trench ground on locomotion. Figure 8B demonstrates the effect of terrain slope. Namely, the locomotion speed approximately lineally decrease with γ because of the increase of resistance from gravity, until it reaches a critical value γ_c. As given in Figure 8D, v _x decreases rapidly to zero with the increase of c partly owing to the decrease of k_real and deterioration of local contact. In Figure 8E, an increase in h results in a slight decrease of v_x, and the speed finally approaches to a constant when h exceeds a critical value h_c.

Actually, if the height of trench is small, the legs can occasionally touch the bottom of gaps, which is beneficial to increase k_real, so as to enable better locomotion performance. The increase of a results in a rapid increase in v_x at first (Fig. 8F), which reflects an edge effect of the legs–trench interaction partly hindering the locomotion. Of interest, locomotion speed approaches a constant when a exceeds a critical value a_c. Indeed, even on flat ground, not all legs are in the same working state because of the heterogeneity of the contact status. Thus, above the critical trench width a_c, the number of working legs is saturated. Overall, the terrain adaptability is most sensitive to the gap width c. Thus, for the practical terrain with small gap width, the VBASL always can adapt it well by utilizing the vibration actuation and multi-leg collaboration.

Extended functionalities of VBASL with variant configurations and adhesion

Variant configurations of VBASL can be introduced to bring new functionalities. For example, the steering function can be realized by a dual-channel VBASL (Supplementary Fig. S2), that is, by parallel arrangement two basic VBASL together and independently controlling the on/off of the two VBASL. As given in Figure 9A (or Supplementary Movie S8), the dual-channel VBASL can be remote controlled to move along any given path. Another example is a VBASL with cylindrical configuration (Supplementary Fig. S3). In addition to the locomotion on flat ground (Fig. 9B and Supplementary Movie S9), the cylindrical VBASL can locomote fast in narrow space such as thin pipes (Fig. 9C–E and Supplementary Movie S10).

FIG. 9.

Variant configurations of VBASL: dual-channel VBASL (battery: 150 mAh, 302323; Bangkai New Energy Co. Ltd; wireless controller: JN1Q-2A; Chuangliwei Wireless Tech Co. Ltd.) moves along a given path “XJTU” by manual controlling (A), cylindrical VBASL (battery: SR920SW; Sony Corp.; vibrator: 614; Huangjunda Electric Motor Co. Ltd.) moves on a flat plane (B) and climbs in pipes with triangular, rectangular, and circular cross-sections (C–E). Scale bars in all the figures are 10 mm. Color images are available online.

Furthermore, because of the soft enveloping, the cylindrical VBASL shows excellent survival ability in severe environment, such as anti-compression/-impacting (Supplementary Movie S11). Meanwhile, as all the outer surface can generate driving force, the cylindrical VBASL is flipping/toppling insensitive. Thus, it is promising for applications of search-and-rescue and transportation in complex environments. Besides, by introducing magnetic adhesion, VBASL can climb the wall rapidly (Supplementary Movie S12).

Conclusions

In this work, we comprehensively explored the terrain adaptability and locomotion speed of the VBASL. The resistance to local terrain blocking and optimum contact stiffness are two general strategies to improve locomotion performance of VBASL. Specifically, by using the arrayed belt legs instead of bristle legs, the locomotion structure is endowed with resistance to local terrain blocking and harmonious multi-leg collaboration, which is the foundation of good terrain adaptability. The VBASL were found to adapt to any ground with a reasonable slope and roughness (or gap/obstacle size) that is comparable or smaller than the size of the belt leg.

Furthermore, the similar optimum contact stiffness was observed to achieve peak locomotion speed on different terrain. Then, a theoretical locomotion model was developed which gives the optimum contact stiffness as $k_{o p t i m a l} = π m^{2} g ∕ (m_{0} A_{0})$ , fitting well with the experiments. The effects of legs geometrical and materials properties, as well as the ground topography on locomotion performance of VBASL were discussed. The optimum design is to make the width of the legs (b) much larger than the terrain undulation and the real contact stiffness equal to the optimum contact stiffness. This work reveals the underlying mechanisms of the excellent terrain adaptability and locomotion performance of vibro-bot, which may guide the design of soft robots working on practical unstructured environments.
