Effects of Glucocorticoid Receptor Small Interfering RNA Delivered Using Poly Lactic-Co-Glycolic Acid Microparticles on Proliferation and Differentiation Capabilities of Human Mesenchymal Stromal Cells

Fabrication of PLGA microparticles

GR siRNA-loaded PLGA microparticles were fabricated using a (water-in-oil)-in-water double-emulsion solvent-evaporation method. Sonication was used to form the primary and secondary emulsions. Briefly, GR siRNA (50 μg) was added to 300 μL of a 1% aqueous solution of PVA ( water₁ phase). The oil phase was prepared by dissolving 6.67% w/v of PLGA polymer in 2 mL of DCM. The water₁ phase was emulsified into the oil phase using a microtip probe sonicator set at level 3 (Sonic Dismembrator Model 100, Fisher Scientific, Pittsburgh, PA). This primary water-in-oil emulsion was then immediately sonicated into 4 mL of aqueous phase containing 1% PVA for 30 seconds at the same setting as above to generate the secondary emulsion. The secondary emulsion was then dropped slowly into a beaker containing 25 mL of 1% aqueous solution of PVA and stirred using a magnetic stirrer until complete evaporation of DCM. The particles were collected by centrifugation at 5000 g for 5 minutes, washed three times with distilled water, and lyophilized overnight (Labconco FreeZone 4.5, Kansas City, MO).

Rhodamine-loaded microparticles were prepared and characterized using a similar single-emulsion solvent-evaporation methodology. For the primary emulsion, 300 μL of a 1% PVA aqueous solution was sonicated into an oil phase containing 200 mg of PLGA and 1 mg of rhodamine B dissolved in 2 mL of DCM. The primary emulsion was sonicated into a 1% aqueous solution of PVA, and particles were obtained as described above.

Characterizations of GR siRNA-loaded PLGA microparticles

Microparticles were suspended in distilled water at a concentration of 0.1 to 0.2 mg/mL, and the average particle size was determined using a particle size analyzer (Zetasizer Nano ZS, Malvern, Southborough, MA). Microparticle morphology was assessed using scanning electron microscopy (SEM, Hitachi S-4000). To determine the entrapment efficiency and loading efficiency, 10 mg of lyophilized GR siRNA-loaded microparticles was dissolved in 500 μL of DCM, and the precipitated siRNA was extracted by adding 2 mL of 10mM Tris-Cl, pH 7.5 and 1mM ethylenediaminetetraacetic acid. The extraction procedure was repeated two to three times, until no further active component could be detected in the aqueous extract. The siRNA content was analyzed using fluorescent spectroscopy as described below.

Loading efficiency was determined using the following equation: \documentclass{aastex} \usepackage{amsbsy} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{bm} \usepackage{mathrsfs} \usepackage{pifont} \usepackage{stmaryrd} \usepackage{textcomp} \usepackage{portland, xspace} \usepackage{amsmath, amsxtra} \pagestyle{empty} \DeclareMathSizes {10} {9} {7} {6} \begin{document} \begin{align*}{\rm Loading \ efficiency} = \frac {{\rm Conc}. \ \left(\frac {\mu \rm g} {\rm ml}\right) \times {\rm Volume} \ ({\rm ml})} {{\hbox {Weight of PLGA particles (mg)}}} \times 100 \tag {1}\end{align*}\end{document}

where “Conc.” is the concentration of GR siRNA obtained in the aqueous extracts, and “Volume” is the total volume of the aqueous extract.

Entrapment efficiency was calculated using the following equation: \documentclass{aastex} \usepackage{amsbsy} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{bm} \usepackage{mathrsfs} \usepackage{pifont} \usepackage{stmaryrd} \usepackage{textcomp} \usepackage{portland, xspace} \usepackage{amsmath, amsxtra} \pagestyle{empty} \DeclareMathSizes {10} {9} {7} {6} \begin{document} \begin{align*}{\rm Entrapment \ efficiency} = \frac {\hbox {Weight of PLGA particles (mg)} \times {\rm Loading} \left(\frac {\mu {\rm g}} {{\rm mg}}\right)} {\hbox {Total weight of Drug} \ (\mu {\rm g})} \times 100 \tag {2}\end{align*}\end{document}

where “Loading” is the loading efficiency as calculated from equation (1).

In vitro release profile of siRNA-incorporated PLGA particles

In vitro release profiles of siRNA were determined using PLGA microparticles loaded with a Cy3-labelled siRNA (Cy3, Integrated DNA Technologies, Coralville, IA). After preparation of Cy3 siRNA–loaded PLGA particles as described above, 30 to 40 mg of PLGA microparticles entrapping GR siRNA was suspended in 1.2 mL of phosphate buffered saline (PBS) (pH 7.4). The samples were shaken in a water bath at 37°C at 100 rpm. One mL of sample was withdrawn at predetermined time intervals. The sample was centrifuged using a microcentrifuge at 5,000 rpm for 5 minutes, and the supernatant was used for release analysis. The microparticle sediment was redispersed in 1 mL of the same release medium and put back into the release sample container. Released siRNA was assayed using fluorescence spectroscopy as described below. All measurements were performed in triplicate.

Quantification of siRNA using fluorescence spectroscopy

SiRNA concentration was measured using the Picogreen reagent (Invitrogen Corp., Carlsbad, CA), which is a fluorescent probe that allows for the quantitative analysis of oligonucleotides. The excitation and emission wavelengths were set at 480 and 520 nm, respectively, and relative fluorescence intensity was used to determine siRNA concentration. A standard solution of siRNA in a concentration range of 0.25 to 2 μg/mL was prepared by serial dilutions of a siRNA stock solution in PBS. The Picogreen detection reagent was prepared using a 200-time dilution in PBS. The samples (100 μL) were pipetted into microplate wells (Microwell-plates, Nunc, Germany) and mixed with 100 μL of detection reagent. The plates were incubated for 5 minutes at room temperature in the dark. The fluorescence intensity was then measured using a Microplate Reader (Spectramax, CA). Following the fluorescence assay of standard solutions of siRNA, a standard curve was generated from the linear relationship between relative fluorescence intensity and the concentration of siRNA. All measurements were done in triplicate.

Preparation of human bone marrow MSCs

Mononuclear cells of fresh human bone marrow were isolated using density gradient centrifugation (Histopaque-1.077, Sigma, St. Louis, MO). The cells were cultured with Dulbecco's modified Eagle medium (DMEM), 10% fetal bovine serum (FBS) (Atlanta Biologicals, Lawrenceville, GA) and 1% antibiotic-antimycotic (Sigma). On day 5, nonadherent cells were removed after medium exchange. The cells were collected when they reached 70% to 80% confluence to test the regulatory functions of intracellular release of GR siRNA-loaded PLGA particles.

Uptake of PLGA microparticles by human MSCs

Rhodamine-labeled PLGA microparticles were used to track the uptake of PLGA particles by human MSCs. Particles selected for these studies were similar in size, zeta potential, surface morphology, and shape to PLGA particles loaded with GR siRNA. MSC (10⁴) were seeded on 8-well glass chamber slides overnight. After MSC were treated with 200 μg of particles per well for 1 or 24 hours, the cells were washed twice with PBS to remove suspended particles and fixed with 4% paraformaldehyde solution. After the cells were mounted with Vectashield containing 4',6-diamidino-2-phenylindole to bind DNA and locate the nucleuses (Vector Laboratories Inc., CA), a confocal microscope (Zeiss-701) was used to assess the uptake of PLGA particles by the human MSC using overlaying stacked images.

Quantification of PLGA microparticle uptake by human MSCs

To quantify uptake of particles, multiple images at the same magnification of randomly chosen areas of glass slides cultured with cells incubated with PLGA microparticles were acquired. Orthogonal sections from stacked images confirmed that particles were predominantly located inside the cell and not just on the surface. For quantitative analysis of the percentage of cells showing particle uptake, we used the following equation: \documentclass{aastex} \usepackage{amsbsy} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{bm} \usepackage{mathrsfs} \usepackage{pifont} \usepackage{stmaryrd} \usepackage{textcomp} \usepackage{portland, xspace} \usepackage{amsmath, amsxtra} \pagestyle{empty} \DeclareMathSizes {10} {9} {7} {6} \begin{document} \begin{align*} \% \ \hbox {positive cells} = \frac {\hbox {cells with particles}} {\hbox {total number of cells in field of view}} \times 100 \end{align*}\end{document}

To quantify the extent of uptake, the total area of rhodamine particles was calculated using ImageJ software (National Institutes of Health, Bethesda, MD). The area was normalized using the total number of particle-positive cells to give the fraction area of each cell covered with particles. Thirty to 50 cells were studied at each time point and the quantification repeated in triplicate.

Effects of transfection using GR siRNA on the expression of GR stemness gene and senescent biomarker of human MSCs

One and 5 mg of GR siRNA-loaded microparticles, loaded with 0.12 and 0.6 μg of GR siRNA, respectively, were suspended in DMEM and added to human MSC cultured on a 100-mm petri dish for 24 hours. The MSC were then washed twice with PBS to remove suspended microparticles. MSC treated with PLGA particles without GR siRNA and prepared using identical double-emulsion solvent-evaporation methodologies served as controls. The gene expression of NR3C1, FGF-2, a stemness gene of MSC, and Sox-11, a gene that participates in MSC self-renewal ²⁵ and functions as a senescence marker of MSC, ²⁶ were measured after 2, 4, and 6 days using real-time polymerase chain reaction (PCR). Each measurement was performed in triplicate.

Proliferation capability of human MSC cultured with GR siRNA transfection in vitro

One and 5 mg of GR siRNA-loaded microparticles loaded with 0.12 and 0.6 μg of GR siRNA, respectively, were transfected to human MSC on a 100-mm petri dish for 24 hours. The MSC were then washed twice with PBS to remove suspended microparticles and cultured in DMEM with 10% FBS. MSC treated with PLGA particles without GR siRNA served as controls. After 1 week, the human MSC were collected and measured for proliferation rates. The MSC cells were plated in 96-well (1,000 cells/well) plates, and the amount of MSC DNA was measured using a FluoReporter Blue Fluorometric dsDNA Quantitation Kit (Invitrogen) according to the manufacturer's protocols every 2 days. This kit works on the principle that the bisbenzimidazole derivative Hoechst 33258 exhibits fluorescence enhancement upon binding to A-T-rich regions of double stranded DNA. DNA binding specificity is enhanced under high ionic strength conditions. The procedure is rapid and requires no extraction reagents for exposure of DNA to the fluorescent probe, and the assay is commonly used for proliferation studies including bone marrow MSC.^27–29 The difference in DNA amounts between 2 days was used to identify the proliferation rate.

Differentiation capacity of human MSCs proliferated in vitro after transfection using GR siRNA

Because transfection using GR siRNA with 1 mg of GR siRNA–loaded PLGA microparticles significantly increases the proliferation rate of MSC, we further investigated the differentiation capabilities of MSC after proliferation in vitro after transfection using GR siRNA. One mg of GR siRNA–loaded microparticles was added to human MSC cultured on a 100-mm petri dish for 24 hours and subsequently cultured in DMEM supplemented with 10% FBS for 1 week. Human MSC treated with empty PLGA microparticles served as controls. The MSC were then collected, placed in 6-well plates at a density of 5×10⁴ cells per well, exposed to osteogenic or adipogenic differentiation medium for up to 2 weeks. The differentiation medium for osteogenesis consisted of the basic medium supplemented with 100nM dexamethasone, 10mM β-glycerophosphate, and 0.05mM ascorbic acid-2-phosphate. ¹⁹ For adipogenesis, the medium is supplemented with 500nM dexamethasone, 10μM insulin, and 0.5mM isobutyl-methylxanthine. ³⁰ Real-time PCR was used to quantify the gene expression of specific markers of MSC differentiations because it is a well-established technique to quantify the gene messenger RNA (mRNA) expressions of differentiation markers to reflect differentiation levels of MSC. The levels of mRNA are generally correlated to protein expression and are more sensitive than protein measurements for short-term observations. Alkaline phosphatase (ALP), core binding factor alpha (Cbfa)-1, and osteocalcin (OCN) were used to indicate osteogenic differentiation of MSC. Peroxisome proliferator-activated receptor gamma 2 (PPARγ2) and lipoprotein lipase (LPL) were used for adipogenic differentiation. Each measurement was performed in triplicate.

Real-time PCR analysis

RNA of cells was isolated using the Aqua Pure RNA Isolation Kit (Bio-Rad Laboratories, Inc., Hercules, CA) as recommended by the manufacturer. Real-time PCR amplification was performed on the iCycler iQ detection system, and the data were collected and analyzed using iCycler iQ version 3.0 software (Bio-Rad Laboratories, Inc.). Table 1 lists real-time PCR primers and probes for multiple differentiation markers of human MSC. The Syber Green real-time PCR primers and probe for human glyceraldehyde 3-phosphate dehydrogenase, FGF-2, and Sox-11 were purchased from ABI. Each measurement was performed in triplicate.

Statistical analysis

All quantitative data were expressed as means±standard deviations. The proliferation rate, FGF-2, and Sox-11 of each group with different doses of GR siRNA treatment were analyzed using one-way analysis of variance, and the differentiation markers of human MSC proliferated with transfection of GR siRNA were analyzed using paired Student t-tests with the use of commercially available statistical software (SPSS, Inc., Chicago, IL). P values less than 0.05 were considered significant.

Characterization of GR siRNA–loaded PLGA microparticles and in vitro release

GR siRNA was encapsulated in PLGA microparticles using a (water-in-oil)-in-water double-emulsion solvent-evaporation technique. Figure 1A shows the photomicrograph of GR siRNA–loaded PLGA particles; particles were smooth and spherical (Fig. 1A). The average diameter of the particles was 2.1±0.36 μm with a polydispersity index (PDI) of 0.42±0.06 as determined by measurements on the Zetasizer Nano ZS. The loading efficiency of GR siRNA in PLGA particles was 53.6%, and the loading quantity was 0.12 μg of siRNA per mg of PLGA particles. Figure 1B shows the release profile of siRNA delivered using PLGA microparticles. The PLGA microparticles exhibit a small initial burst release phase, followed by a slower lag release phase. Approximately 80% of the total amount of siRNA was gradually released by 40 days (Fig. 1B).

OPEN IN VIEWER

FIG. 1.

Scanning electron microscopy photomicrographs (A) and in vitro release profile (B) of small interfering RNA (siRNA)-loaded poly(lactic-co-glycolic acid) (PLGA) particles.

Uptake of PLGA microspheres by human MSC

Figure 2 shows representative confocal microscopy images of MSC after 1 hour (Fig. 2A) and 24 hours (Fig. 2B) of incubation with rhodamine-loaded PLGA particles (1.8 μm±0.33, PDI 0.21±0.04). It was found that 33.7±16.8% of cells showed particle internalization after 1 hour of treatment, increasing to 64.6±24.1% of cells by 24 hours (Table 2). Rhodamine-loaded PLGA particle uptake per cell was also higher after 24 hours than at 1 hour (Table 2), confirming that cellular uptake of the particles is time dependent. To confirm that rhodamine-loaded PLGA particles were inside the cell, and not simply surface bound, we acquired confocal sections throughout the cell. Our previous study demonstrated that uptake of PLGA particles primarily occurs by endocytosis. ¹⁹ No significant toxicity was observed by incubating the PLGA particles with human MSC.

OPEN IN VIEWER

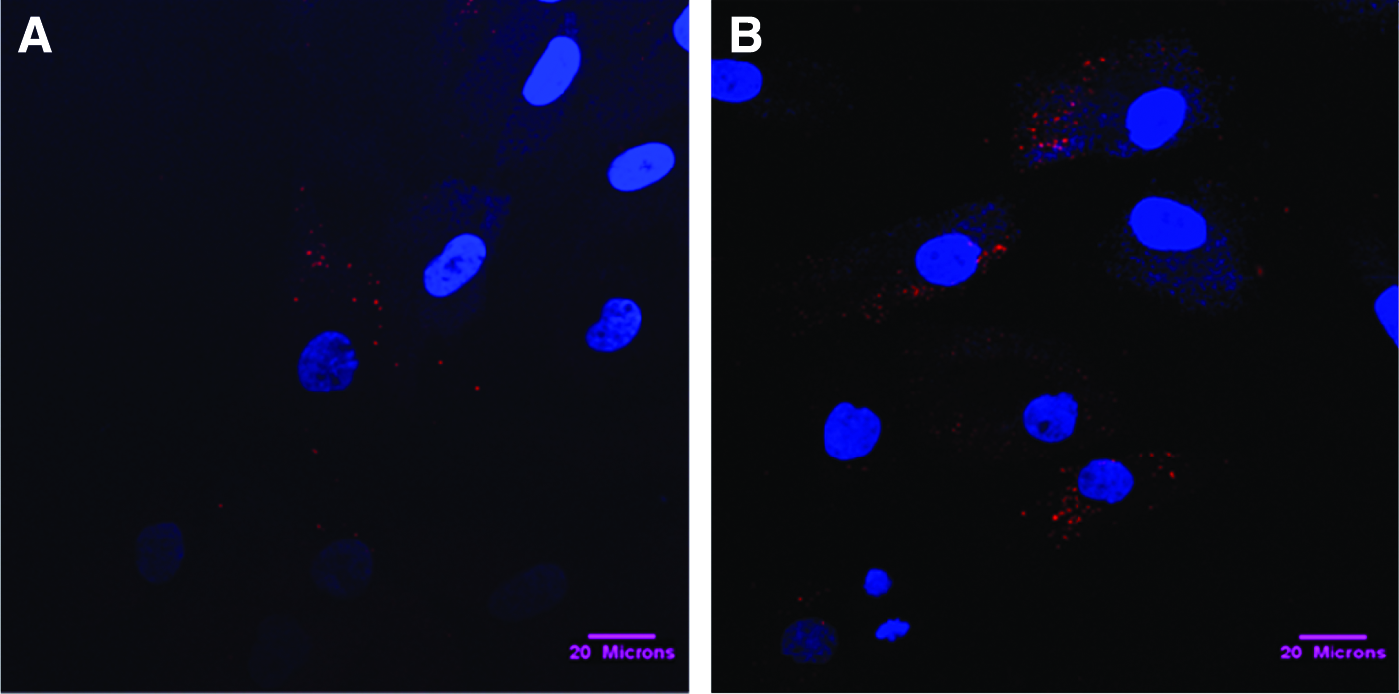

FIG. 2.

Confocal microscopy images of human MSC after 1 (A) and 24 hours (B) of incubation with rhodamine-loaded PLGA particles visualized by overlaying images obtained using a Zeiss-701 confocal microscope. Blue: 4',6-diamidino-2-phenylindole staining of nucleus; Red: rhodamine staining for PLGA particles. Bar=20μm. Color images available online at www.liebertonline.com/tea

Effects of transfection of GR siRNA on the expression of GR, FGF-2. and Sox-11

After 0.12 and 0.6 μg of GR siRNA carried by 1 and 5 mg of particles was used to transfect human MSC, GR expression of human MSC was downregulated after 2 and 4 days. GR expression was back to the parallel level of controls after 6 days (Fig. 3A). Figure 3B shows that transfection of GR siRNA also significantly upregulated FGF-2 expression after 2 days. After 6 days, FGF-2 expression of MSC from five donors with transfection of GR siRNA were notably higher than that of the controls. Because of individual variations, these increases were not statistically significant (Fig. 3B). Figure 3C shows that GR siRNA–loaded particles upregulated the expression of Sox-11 from day 2 after treatment and that the upregulation was statistically significantly higher than that of the controls after 4 days of transfection (Fig. 3C). These data indicated that blocking endogenous GC potentially upregulate the stemness gene and prevent MSC senescence. No significant difference was observed between different doses of GR siRNA on the expression of GR, FGF-2, and Sox-11.

OPEN IN VIEWER

FIG. 3.

Effects of blocking endogenous glucocorticoids (GC) on regulation of human MSC. Fold changes of the expressions of NR3C1 (A), fibroblast growth factor (FGF)-2 (B) and Sox-11 (C) of human MSC after transfection with GR siRNA for different time periods. n=6, Means±standard deviations (SDs); *p<0.05 versus control. The lines represent gene expression levels of controls.

Effects of transfection using GR siRNA on proliferation capability of human MSC

Figure 4 shows the 2-day proliferation rate of human MSC after proliferation in vitro for 1 week after transfection using 0.12 or 0.6 μg of GR siRNA. The MSC that had been transfected with GR siRNA had significantly higher proliferation capability than controls (Fig. 4), although no difference in proliferation rates was observed in the MSC treated with different doses of GR siRNA.

OPEN IN VIEWER

FIG. 4.

The increased percentage of DNA amount of human MSCs 2 days after proliferation in vitro with transfection of different concentrations of GR siRNA. n=6, Means±SDs; *p<0.05 versus controls.

The effects of transfection using GR siRNA on differentiation capacities of human MSC

After cells were transfected with 1 mg of PLGA particles containing 0.12 μg of GR siRNA and cultured in DMEM for 1 week, human MSC were exposed to osteogenic or adipogenic differentiation medium for up to 2 weeks. After exposure to the differentiation medium, osteogenic differentiation markers of untreated MSC or MSC that had proliferated after transfection using GR siRNA, including ALP and OCN, were significantly upregulated (Fig. 5A,B). However, Cbfa-1 expression of human MSC that had proliferated after GR siRNA transfection were upregulated after 1 week of differentiation, whereas untreated control cells were not. Furthermore, the fold change of Cbfa-1 expression of human MSC proliferated after transfection with GR siRNA was significantly greater than that of controls (Fig. 5C), indicating that MSC that have proliferated after transfection with GR siRNA have higher osteogenic differentiation than controls. No significant difference in ALP and OCN expression after GR siRNA treatment was observed between MSC and controls. Adipogenic differentiation markers (PPAR and LPL) of MSC with or without transfection using GR siRNA were also upregulated after exposure to adipogenic differentiation medium (Fig. 6). However, human MSC that had proliferated after transfection using GR siRNA exhibited significantly lower expression of PPARγ-2 (Fig.6A) and LPL (Fig.6B) after differentiation than controls, indicating that MSC proliferated with blocking endogenous GC may inhibit adipogenic differentiation capability of human MSC.

OPEN IN VIEWER

FIG. 5.

Osteogenic differentiation capability of human MSC after proliferation in vitro after transfection using GR siRNA. Fold changes of alkaline phosphatase (ALP) (A), osteocalcin (OCN) (B), and core binding factor alpha (Cbfa)-1 (C) of human MSC after exposure to differentiation medium for different time periods. Cont-DMEM, control cell exposure to Dulbecco's modified Eagle medium; Cont-OS: control cell exposure to osteogenic stimulation medium; GR siRNA-DMEM, MSC proliferated with GR siRNA transfection exposure to DMEM; GR siRNA-OS, MSC proliferated with GR siRNA transfection exposure to osteogenic stimulation medium. n=6, Means±SDs; * p<0.05; #p<0.05. Color images available online at www.liebertonline.com/tea

OPEN IN VIEWER

FIG. 6.

Adipogenic differentiation capability of human MSC after proliferated in vitro with transfection of GR siRNA. Fold changes of peroxisome proliferator-activated receptor gamma (PPARγ) (A) and lipoprotein lipase (LPL) (B) of human MSC after exposure to differentiation medium for different time periods. Cont-AS, control cell exposure to adipogenic stimulation medium; GR siRNA-AS, MSCs proliferated with GR siRNA transfection exposure to adipogenic stimulation medium. n=6, Means±SDs; #, p<0.05. Color images available online at www.liebertonline.com/tea
