Injectable Chitosan Hydrogels with Enhanced Mechanical Properties for Nucleus Pulposus Regeneration

Abstract

Intervertebral disc (IVD) degeneration has been implicated as a major component of spine pathology. As the IVD degenerates, the tissue becomes dehydrated, fibrotic, fissured, acellular, and calcified. These changes can lead to disc bulging, herniation, Schmorl's nodes, inflammation, and hyperinnervation. Injectable hydrogels have received much attention in recent years as scaffold for seeding cells to replenish disc cellularity and restore disc properties and function. However, they generally present poor mechanical properties. In this study, we investigate several novel thermosensitive chitosan hydrogels for their ability to mimic the mechanical properties of the nucleus pulposus (NP) tissue, while being injectable, able to entrap and maintain viability of NP cells, and retain matrix proteins. These new hydrogels were prepared by mixing chitosan (CH) with various combinations of three gelling agents: sodium hydrogen carbonate (SHC) and/or beta-glycerophosphate (BGP) and/or phosphate buffer (PB). The kinetics of gelation was studied at room and body temperature by rheology. Mechanical properties of the hydrogels were characterized under compression and torsion, and compared with human NP tissue. NP cells were seeded in the hydrogel when still liquid at room temperature, before its gelation at 37°C. Hydrogel cytocompatibility and functionality were assessed by measuring cell viability, metabolism, and proteoglycan synthesis. Although all the proposed hydrogels exhibited enhanced strength compared to CH-BGP thermosensitive hydrogels, and suitable cytocompatibility and rheological properties, one formulation (containing 2% chitosan, 7.5 mM of SHC, and 0.1 M of BGP) showed mechanical properties similar to human NP tissue, and stimulated better the synthesis and retention of proteoglycans from NP cells. Thus, this novel thermosensitive CH hydrogel shows promise for IVD regeneration.

Impact Statement

A thermosensitive chitosan-based hydrogel was developed, which mimics the mechanical properties of the human nucleus pulposus (NP) tissue and provides a suitable environment for seeded NP cells to live and produce glycosaminoglycans. This scaffold is injectable through 25G needle and rapidly gels in vivo at body temperature. It has the potential to restore mechanical properties and stimulate biological repair of the degenerated intervertebral disc (IVD). It could therefore be used for the minimally invasive treatment of degenerated IVD, which affects more than one person out of five in the world.

Introduction

Intervertebral discs (IVDs) are highly organized avascular structures with a complex poroelastic and anisotropic behavior.¹ They consist of a peripheral collagen-rich annulus fibrosus (AF) surrounding the inner proteoglycan-rich central nucleus pulposus (NP).² Two thin cartilaginous endplates confine the IVD and link it to the vertebral bodies.³ Although AF and NP have very distinct biomechanical and biochemical properties,⁴ they function as a load-bearing unit, allowing for complex spinal motion⁵ and large cyclic loading.⁶ The NP is thought to resist compressive forces through its high content in aggrecan,⁴ which induces a high swelling pressure that provides much of the compressive stiffness. The AF collagen network helps immobilize proteoglycans within the tissue and provides tensile and shear properties.⁴

IVD degeneration is one of the main causes of low-back pain, the most common type of pain restricting daily activity of elderly and working population.⁷ As the IVD degenerates, NP loses water and changes from a gelatinous to a more fibrotic structure with the appearance of fissures in both NP and AF. Current first-line treatment approaches are targeted to pain management (e.g., drugs, analgesics, and physiotherapy). Patients with late-stage disease and pain refractory to medication are treated surgically (i.e., disc excision and vertebral fusion), which offers short-term pain relief in many instances, but alters spinal mechanics leading to subsequent adjacent-level disc degeneration and elevated early failure rates.^8,9 Therefore, regenerative strategies for biological repair of the degenerated IVD have received much attention in the recent years. One attractive approach is to supplement the disc with cells and/or bioactive factors within an injectable scaffold with suitable characteristics for the IVD tissue.¹⁰ This scaffold can not only enhance the retention of the cells and the extra cellular matrix (ECM) components they produce but can also offer mechanical support during the regeneration process.

The ideal scaffold for the biological repair of the NP should (1) be injectable through small needles to avoid surgeries and large incision that may damage the AF, (2) present rapid solidification after injection to avoid leakage, (3) possess mechanical properties consistent with the native tissue, (4) provide easy loading and excellent viability and function of encapsulated cells, (5) be biocompatible and biodegradable,⁷ and (6) retain the glycosaminoglycans (GAGs) synthesized by the cells.^11,12

In this regard, several injectable biomaterials have been tested, including polyglycolic acid,¹³ collagen and collagen/hyaluronan scaffolds,^14,15 agarose,¹⁶ alginate,¹⁷ and chitosan (CH).¹⁸ However, some of them do not retain GAGs^14,19 and they usually lack the suitable mechanical properties. Among them CH-based scaffolds appear as promising candidates.

CH is an aminopolysaccharide obtained by the alkaline deacetylation of chitin, widely used for tissue engineering applications. Its structural similarities to GAGs and hydrophilic nature make it an attractive IVD scaffold.^18,20,21 CH in association with a weak base, such as beta-glycerophosphate (BGP), can form thermosensitive injectable hydrogels.²² These CH-BGP hydrogels have, however, limited cytocompatibility and low mechanical properties, and the BGP is substrate for alkaline phosphatase, which is known to induce mineralization.²³ It was recently proven that these limitations can be overcome by either removal of BGP or its addition at lower concentrations in formulations with additional gelling agents (GAs),²⁴ namely sodium hydrogen carbonate (SHC) and phosphate buffer (PB). These new CH-based hydrogels are thermosensitive, injectable, cytocompatible, and much stronger than conventional CH-BGP hydrogels. Moreover, their gelation rate, osmolality, and mechanical strength can be adjusted according to their formulation.²⁵

The objective of this study was to identify a suitable CH thermosensitive hydrogel scaffold for biologic repair of the NP.

Several formulations of CH physical hydrogels were selected, based on their mechanical properties, gelation kinetics, and cytocompatibility,²⁵ and were evaluated to identify the formulation that exhibits NP-like mechanical properties, good injectability through small diameter needle, excellent viability of encapsulated NP cells, and the ability to stimulate and retain the produced GAGs.

Materials and Methods

Chitosan hydrogel preparation

CH (Shrimp shell chitosan, Kitomer, PSN 326–501, Premium Quality, Mw 250 kDa, DDA 94%; Marinard Biotech, Rivière-au-Renard, QC, Canada) was first purified, freeze-dried, ground, and sieved as previously described.²⁴ The purified CH powder was then solubilized in HCl (0.1 M) at 3.33% (w/v) and the obtained solution was sterilized by autoclaving (20 min at 121°C) and stored at 4°C.

β-Glycerol phosphate disodium salt pentahydrate (C₃H₇Na₂O₆P · 5H₂O, hereafter BGP), sodium phosphate monobasic NaH₂PO₄ (SPM), and sodium phosphate dibasic Na₂HPO₄ (SPD) were purchased from Sigma-Aldrich (Oakville, ON, Canada). Sodium hydrogen carbonate NaHCO₃ (sodium bicarbonate, hereafter SHC) was purchased from MP Biomedicals (Solon, OH).

BGP, SHC, and phosphate buffer (PB, pH = 8, prepared with NaH₂PO₄ and Na₂HPO₄ at a ratio of 0.06 w/w in milli-Q water) were combined at different concentrations (Table 1). For cell experiments, the solutions were sterilized by filtration through 0.22 μm filters.

Table 1.

Hydrogel Composition and Osmolality

		GA component (M)
Hydrogel	CH (w/v %)	BGP	SHC	PB	Osmolality (mOsmol/L)
BGP0.4	2	0.4		—	837 ± 28
SHC0.075BGP0.1	2	0.1	0.075		434 ± 57
SHC0.075PB0.02	2		0.075	0.02	262 ± 8
SHC0.075PB0.04	2		0.075	0.04	313 ± 10

Mean ± SD (n = 5).

BGP, beta-glycerophosphate; CH, chitosan; GA, gelling agent; PB, phosphate buffer; SHC, sodium hydrogen carbonate.

Hydrogels were prepared by mixing the CH acidic solution with the GA solution at 3:2 (v/v) ratio using syringes connected to each other through a female-to-female luer-lock syringe connector. For cell experiments and osmolality measurements, CH solution was first mixed with doubled concentrated GA solution at 3:1 (v/v) ratio; then, the CH-GA mixture was mixed with the content of a third syringe containing complete culture medium with or without cells at 4:1 (v/v) ratio.

Selection of the chitosan hydrogel formulations

Three gel compositions (Table 1) were selected based on our previous work showing their appropriate characteristics such as mechanical properties, gelation kinetics, and cytocompatibility.^24,25 In addition, BGP0.4 hydrogel was chosen as control because of its ideal gelation kinetic and injectability through small lumen.^14,16 CH was maintained at similar concentration in all selected hydrogel formulations (i.e., 2% w/v). Hydrogels are therefore coded according to their final molar concentrations of GA in their formulations (e.g., SHC0.075BGP0.1 corresponds to a gel containing 2% (w/v) CH, 0.075 M SHC, and 0.1 M BGP).

Hydrogel characterization

Rheological properties

Rheological properties at both room temperature (RT, 22°C) and body temperature (37°C) were investigated using an Anton Paar instrument (Physica MCR 301, Germany) with coaxial cylinder geometry (CC10/T200) in the linear viscoelastic region (strain and frequency at 5% and 1 Hz, respectively). The complex viscosity (η*), storage (G′), and loss (G″) moduli were followed immediately after mixing the gel components (hydrogel mixture: 1.5 mL). Gelation time was defined as the time of crossover of G′ and G″.²⁶

Mechanical properties

Sample preparation

Directly after mixing, the hydrogel solutions were poured into cylindrical containers (12 mm height and 14 mm diameter) and incubated for 24 h at 37°C before mechanical testing.

Human lumbar spines were obtained through the organ donation program of Hema-Québec. NP tissue (6.9 ± 0.4 mm height and 12 ± 3.1 mm diameter) from three lumbar discs (Thompson grade 3) was isolated from a donor (age 44) and used for the mechanical testing. All procedures were approved by our institutional review board.

Unconfined compression

Mechanical properties of the hydrogels were measured on the hydrogel samples (12 mm height and 14 mm diameter) by unconfined compression test with Bose Electroforce^® 3200 equipped by a 225N load cell. Unconfined compression was performed at 100%/min until 50% deformation to determine stress versus strain curve and the secant modulus.

Relaxation tests

To compare mechanical properties of the hydrogels with those of human NP tissue, the equilibrium modulus in unconfined compression was determined using incremental stress relaxation test, as previously defined by Cloyd et al.²⁷ Compression was applied by increments of 5% strain at 5%/s followed by 5 min of relaxation, until reaching 25% strain. The equilibrium stress at each relaxation step was plotted to trace the stress-strain curves, the slope of which defines as the equilibrium modulus. The samples (5 mm height and 14 mm diameter) were immersed in phosphate-buffered saline (PBS) during the test to avoid dehydration.

Dynamic shear stress

Torsional shear test was performed with Anton Paar rheometer on hydrogel samples prepared in six-well plates (1 mL), using a plate-plate geometry with a rough upper plate to avoid sliding. An initial 10% compression was applied to make contact between the sample and the upper plate.²⁸ The complex modulus of hydrogel was measured in the linear viscoelastic region at a constant strain of 1% and different frequencies (1, 10, and 100 rad/s). Sample height was (1.4 ± 0.1 mm) for SHC0.075PB0.02, (1.8 ± 0.4 mm) for SHC0.075BGP0.1, and (2 ± 0.2 mm) for SHC0.075PB0.04.

Osmolality measurements

The osmolality (Advanced^® Micro Osmometer 3300; Advanced Instruments, Inc.) was measured on hydrogel filtrates, obtained by pressing the hydrogels with 0.45 μm filters after 24-h gelation at 37°C.

Hydrogels cytocompatibility

Cell isolation and culturing

NP cells were recovered from the NP region of the bovine coccygeal IVDs of healthy 22–28-month-old steers by sequential digestion with 0.125% pronase and 0.2 mg/mL collagenase.²⁹ After isolation, the cells were expanded and used for study within passage 4 using Dulbecco's modified Eagle's medium (DMEM, low glucose: 1 g/L) supplemented with 10% fetal bovine serum and 1% penicillin/streptomycin (P/S).

For all cell experiments, gels containing cells were prepared by mixing the hydrogel solution and cell suspension, deposited in 48-well plates (0.5 mL/well) through a syringe (without a needle), and the culture medium was added after 3 min of gelation (Hydrogel/media 1:1 ratio). Hydrogels without cells were used as blanks. Culture media were changed every 3 days.

NP cell viability and metabolic activity in the hydrogels

Cell viability in the hydrogels (10⁶ cells/mL) was investigated by LIVE/DEAD assay. After 14 days of culture, hydrogels were washed once with PBS, incubated with the LIVE/DEAD Cell Imaging Kit (Life technologies) reagent for 30 min, and then observed by confocal microscopy (Zeiss LSM confocal laser-scanning microscope equipped with 488 and 543 nm laser lines). Ten z-stacked images were merged representing 100 μm thickness. The ratio of live cells (green) to total number of cells (green and red) was calculated using the cell counter function in ImageJ (National Institute of Health, USA) in four merged images per condition.

The metabolic activity of the encapsulated cells was evaluated using Alamar Blue assay (Biotium, 10%v/v) after 3, 7, and 14 days of culture. Moreover, the hydrogels containing cells were incubated with chitosanase solution (0.3 U/mL in PBS +0.1%BSA, pH = 5; Sigma-Aldrich) for 24 h at 37°C and the DNA content was measured in the solution using the PicoGreen assay (Quant-iT™ PicoGreen™ dsDNA Assay Kit; Thermo Fisher, Waltham, MA) according to the manufacturer's instructions.

GAG synthesis and retention

The total amount of GAG synthesized (released in the media and retained in the gel) by the encapsulated cells in the hydrogels (4 × 10⁶ cells/mL of hydrogel) was quantified using a modified 1,9-dimethylmethylene blue (DMMB) dye-binding assay (Sigma-Aldrich) following 7 days of culture. The culture media were changed every third day, and the GAG released into the media was analyzed as cumulative GAG release. GAG retention in the hydrogels was evaluated at 7 days. Acellular hydrogels were used as controls. Absorbance was read at 570 nm, immediately following the addition of DMMB. Chondroitin sulfate A sodium salt from bovine trachea (Sigma-Aldrich) was used to create the standard curve. Samples were diluted to fall within the middle of the linear range of the standard curve.

Injectability in human NP

Two human lumbar IVDs were isolated from lumbar spines of two donors (51 and 52 years old). One of the best hydrogel formulations in terms of rheological and mechanical properties as well as GAG retention (i.e., SHC0.075PB0.02, see Results section) was colored during preparation with a drop of toluidine blue (Sigma-Aldrich) to facilitate visualization. The hydrogel solution (0.5 mL for donor 1 and 0.3 mL for donor 2) was injected through a 25-gauge needle into the center of the IVDs through AF. After a 30-min incubation at 37°C, discs were transected, macroscopically graded,³⁰ and examined for hydrogel repartition and/or possible extrusion within the IVD.

Statistical analysis

Results are reported as mean ± standard deviation. Statistical analysis was performed using the GraphPad Prism (version 7.0; GraphPad Software, Inc., La Jolla, CA) program. Differences between the gels were assessed with one-way or two-way repeated analysis of variance followed by a post hoc Tukey's multiple comparison test.

Results

Rheological properties

Rheological properties were studied at RT to evaluate the injectability of the hydrogel solution and at body temperature to determine their gelation kinetics once injected. All tested hydrogel formulations showed relatively low complex viscosity immediately after mixing at 22°C (Fig. 1A). SHC0.075BGP0.1 and SHC0.075PB0.02 were the most stable (viscosity still less than 5 Pa·s after 30 min at RT), suggesting easy injectability of the hydrogel solution through small needles and catheters during all this period. In contrast, the viscosity of SHC0.075PB0.04, and more especially BGP0.4, increased more rapidly, suggesting a possible maximum delay for injection after mixing. This difference between the gels was confirmed by the evolution of their storage moduli (G′) at 22°C (Fig. 1B).

FIG. 1.

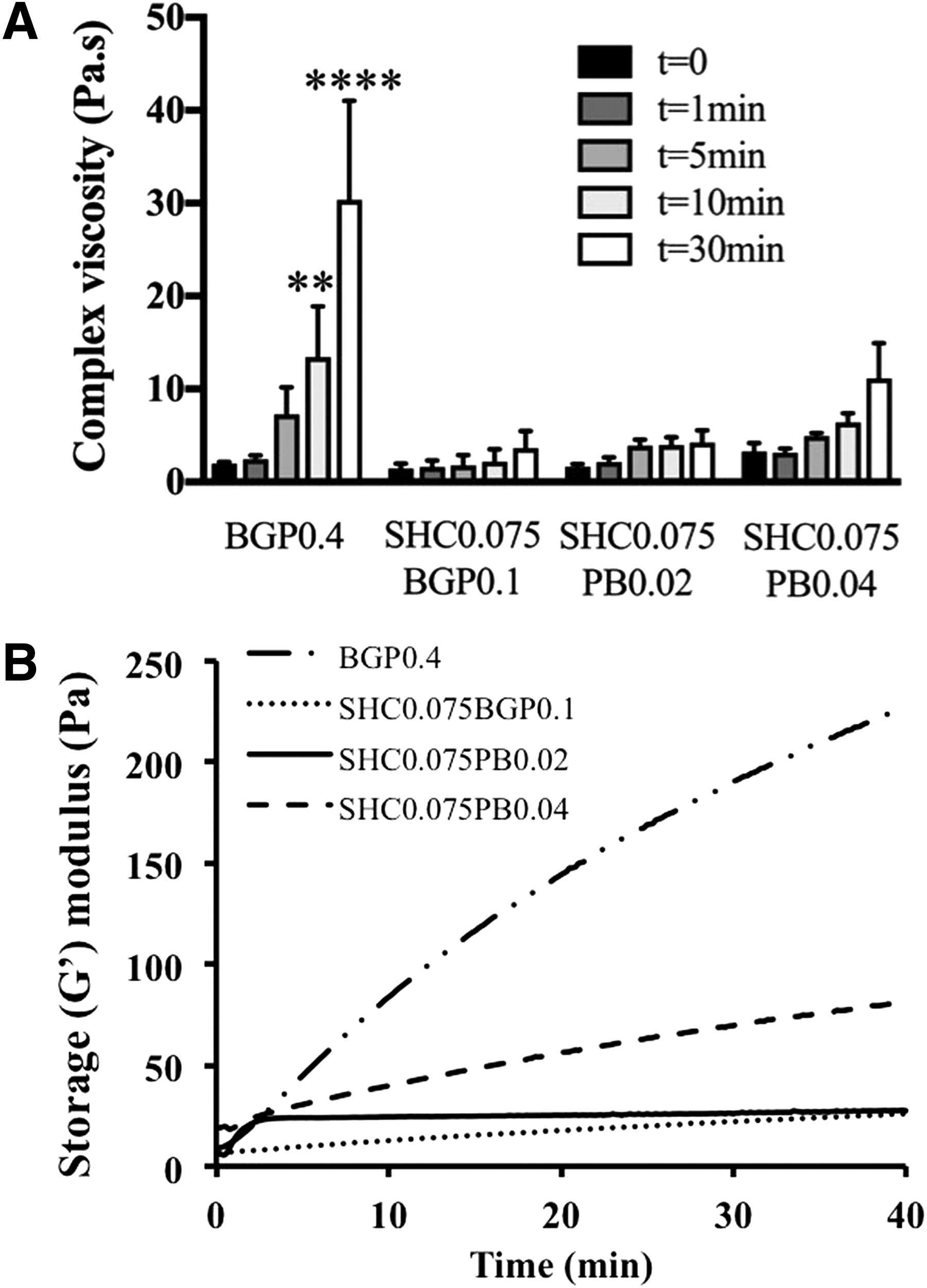

Novel hydrogel formulations are more stable at RT than BGP0.4 hydrogel. (A) Evolution of complex viscosity with time at 22°C immediately after mixing. Mean ± SD (n = 3). **p < 0.01, ****p < 0.0001 compared to t = 15 s for each formulation. (B) Evolution of storage modulus (G′) with time at 22°C. Mean (n = 3). RT, room temperature; SD, standard deviation.

The G′ values of all hydrogels at 37°C increased at a much higher rate than at RT (Fig. 2), confirming their thermosensitive character. While all tested hydrogels exhibited rapid gelation time (G′ = G″ at t < 15 s), their gelation kinetics slightly differed depending on their formulation (The intersection of G′ and G″ is not shown in the figure as the first data point is taken at 15 s). The initial storage moduli of BGP0.4 and SHC0.075PB0.02 was relatively low (less than 100 Pa), but rapidly increased as a function of time, reaching 1200 and 2850 Pa after 1 h, respectively. Both SHC0.075BGP0.1 and SHC0.075PB0.04 presented higher initial G′, and reached more than 4000 Pa after 1 h at 37°C.

FIG. 2.

Chitosan hydrogels are thermosensitive with rapid kinetics of gelation. Evolution of storage (G′) and loss (G″) moduli with time at 37°C (strain 5%, frequency 1 Hz) immediately following preparation. Mean (n = 3–4).

Mechanical properties of hydrogels using unconfined compression and dynamic shear

Unconfined compression test performed on fully formed hydrogels showed that the new hydrogel formulations presented strongly enhanced resistance to compression compared to BGP0.4 (Fig. 3A). Moreover, they withstood compressive forces up to 50% deformation without breakage, while BGP0.4 samples broke between 20% and 30% deformation.

FIG. 3.

Novel hydrogel formulations are more resistant to compressive forces than BGP0.4 hydrogel. (A) Mean stress-strain curve of the hydrogels in unconfined compression test (after 24 h at 37°C) (n = 3–5). (B) Secant modulus of the hydrogels in unconfined compression test at 15% deformation and (C) at 50% deformation (BGP0.4 hydrogels did not withstand 50% deformation and they are shown as NA in the graph). Mean ± SD (n = 3–5). *p < 0.05, **p < 0.01, ****p < 0.0001 compared to BGP0.4 and between hydrogels (using bars). BGP, beta-glycerophosphate; NA, not applicable.

Since the hydrogels presented a viscoelastic behavior, the secant modulus in compression was determined as the slope of a line connecting the point of zero strain to a point at a specified deformation (Fig. 3B). At 15% deformation (the maximum physiological deformation of the IVD³¹), the secant moduli of SHC0.075BGP0.1, SHC0.075PB0.02, and SHC0.075PB0.04 hydrogels were, respectively, 5-, 4-, and 4-fold higher compared with BGP0.4 hydrogel. At 50% deformation, the secant moduli of SHC0.075BGP0.1 and SHC0.075PB0.02 (>120 kPa) were significantly higher (p ≤ 0.01 and p ≤ 0.05 respectively) compared to SHC0.075PB0.04 (≈95 kPa).

The incremental stress-relaxation unconfined compression test confirmed that SHC0.075BGP0.1 exhibited the highest mechanical properties, followed by SHC0.075PB0.02 (Fig. 4). Both gels exhibited an equilibrium modulus similar to the human NP tissue (6.1 ± 1.7 kPa), in agreement with the values previously reported in the literature (5.2 ± 2.56 kPa²⁷), while SHC0.075PB0.04 and BGP0.04 had significantly lower values (p < 0.001).

FIG. 4.

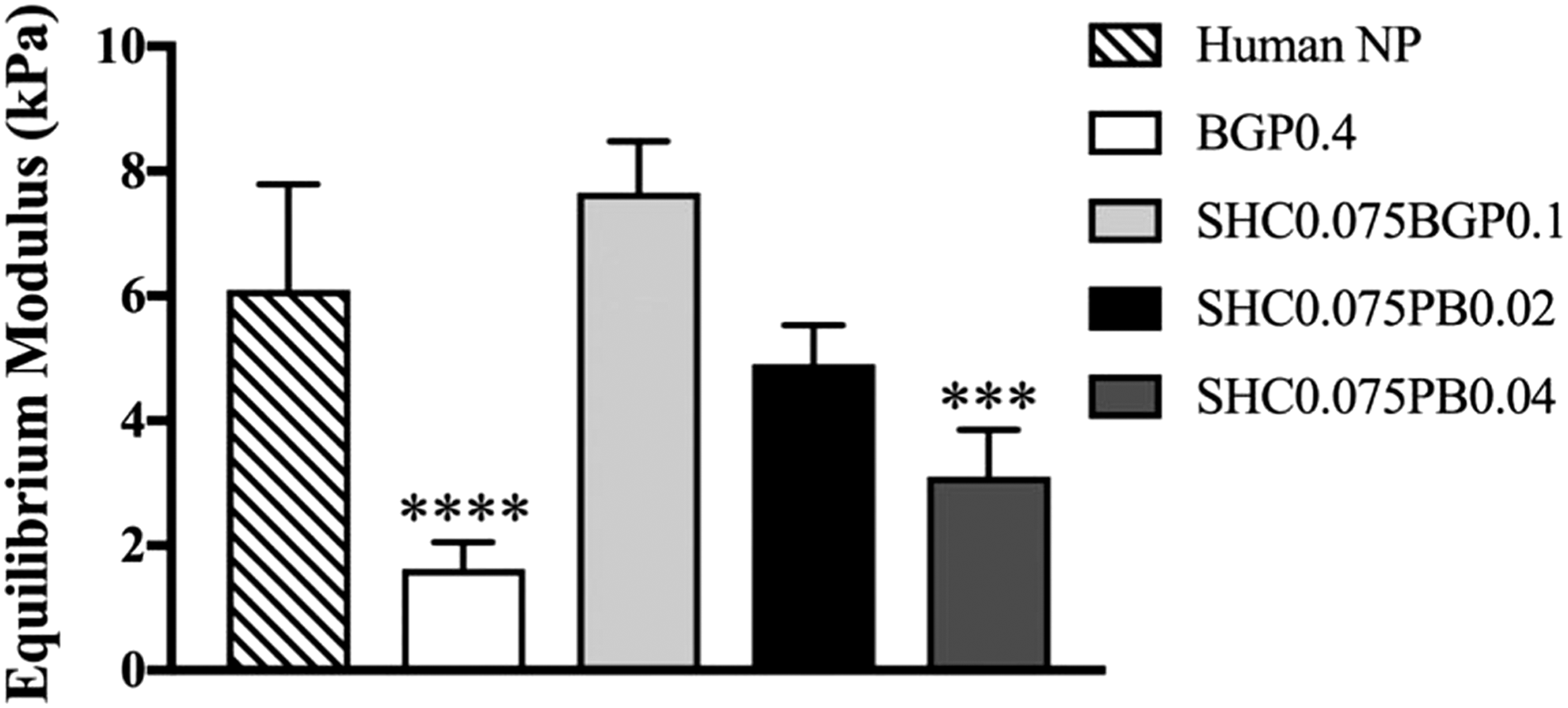

SHC0.075BGP0.1 and SHC0.075PB0.02 hydrogels show mechanical properties like human NP tissue. Equilibrium moduli of hydrogels measured using incremental stress relaxation during unconfined compression (five steps of 5% strain at 5%/s, followed by 5 min of relaxation in PBS). Mean ± SD (n = 5–6). ***p < 0.001, ****p < 0.0001 compared to human NP tissue. NP, nucleus pulposus; PB, phosphate buffer; PBS, phosphate-buffered saline; SHC, sodium hydrogen carbonate.

Finally, the complex shear moduli (G*) of SHC0.075BGP0.1, SHC0.075PB0.02, and SHC0.075PB0.04 hydrogels were found to range from 7 to 14 kPa (Supplementary Fig. S1). These values were similar to human NP (7–21 kPa²⁸) and over 14- to 25-fold higher than BGP0.4 (p < 0.001). No statistically significant differences were observed between the complex shear moduli measured at different angular velocities for each hydrogel.

Osmolality

The BGP0.4 hydrogel was hypertonic (>800 mOsmol/L), while the osmolality of SHC0.075BGP0.1 was close to IVD osmolality (≈430 mOsmol/L) and other formulations were slightly hypotonic for IVD (<430 mOsm/L) (Table 1).³² Part of these values (estimated to 158 mOsmol/L) is due to the culture media added with the cells in the hydrogels.²⁵

Cytocompatibility of the hydrogels with disc cells

The cytocompatibility of the hydrogels was studied by monitoring the viability, metabolic activity, and DNA content of NP cells encapsulated and maintained in culture for 14 days in the different hydrogel formulations. Figure 5A shows representative LIVE/DEAD images after 14 days and Figure 5B shows the percentage of viable cells. Very low viability (16%) was observed for cells encapsulated in BGP0.4 hydrogel after 14 days. Contrarily, NP cells demonstrated significantly higher levels of cell viability in the new hydrogel formulations. Cell survival was greater than 80% in SHC0.075BGP0.1 and SHC0.075PB0.02 hydrogels. Cells encapsulated in the new formulations also showed significantly higher metabolic activity (Fig. 5C) and DNA content after 14 days of incubation (Fig. 5D) compared to cells encapsulated in BGP0.4 hydrogel.

FIG. 5.

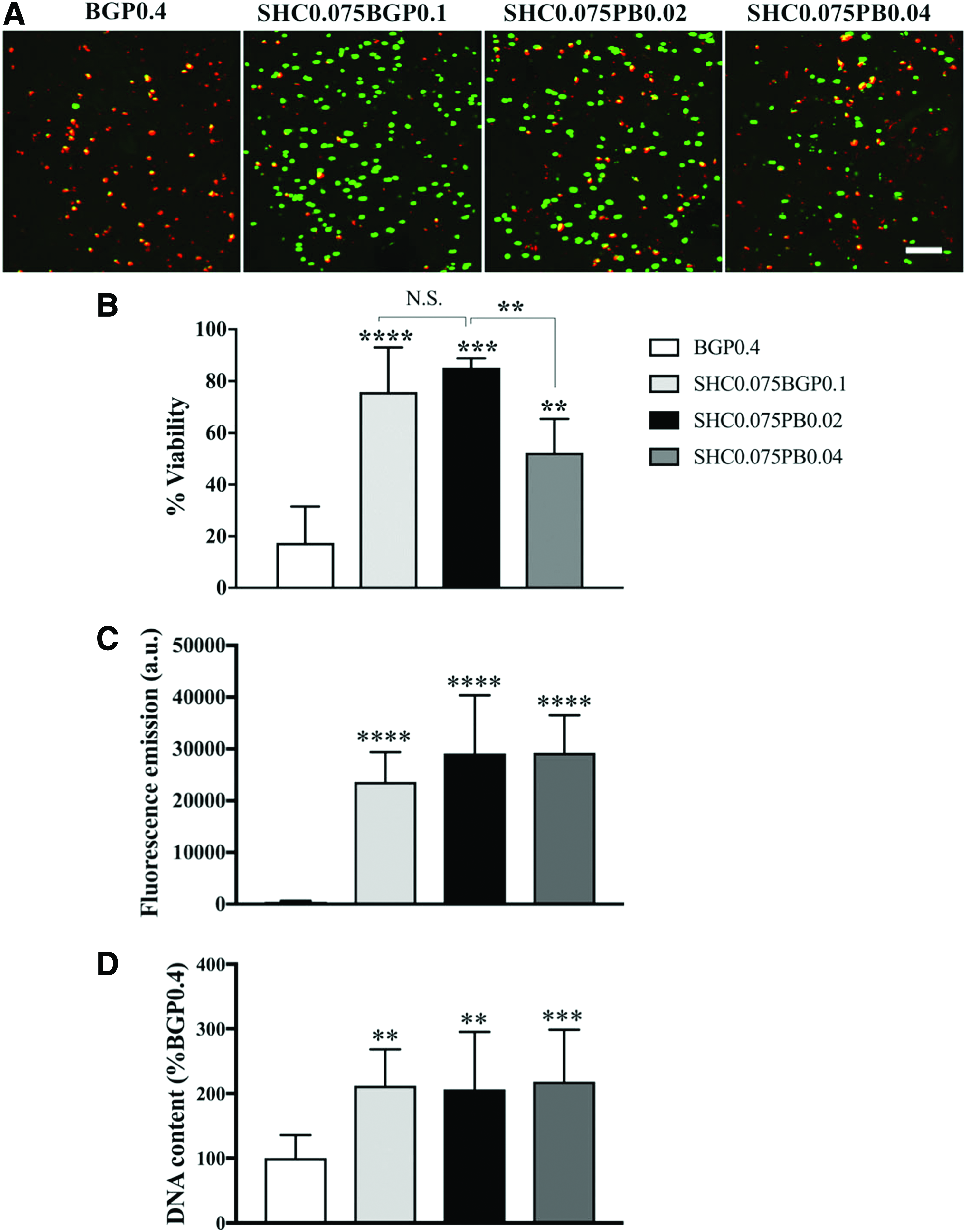

Cytocompatibility of the chitosan hydrogels. (A) LIVE/DEAD assay performed on cells encapsulated in hydrogels and cultured for 14 days. Scale bar represents 100 μm. (B) Percentage of viable cells according to cell counting on LIVE/DEAD images. Mean ± SD (n = 4). (C) Metabolic activity of the cells encapsulated in hydrogels after 14 days. Mean ± SD (n = 9). (D) DNA content in the cell-laden hydrogels after 14 days (expressed as percentage of DNA content in the BGP0.4 hydrogel). Mean ± SD (n = 9). **p < 0.01, ***p < 0.001, ****p < 0.0001 compared to BGP0.4 and between hydrogels (using bars). Color images are available online.

In addition, the Alamar Blue assay performed after 3, 7, and 14 days showed that except the BGP0.4 formulation, which had a cytotoxic effect, no loss of metabolic activity was observed between day 3, 7, and 14 in the cells encapsulated in new formulations, indicating that they did not have any apparent cytotoxic effect on NP cells (Supplementary Fig. S2).

GAG synthesis by the encapsulated NP cells

Proteoglycans are an integral component of the IVD. They are important in providing its unique mechanical properties and maintaining hydrostatic pressure. This is largely due to their GAG chains.³³ To determine whether our novel hydrogel preparations could generate a suitable scaffold for proteoglycan synthesis by NP cells, the constructs were cultured for 7 days, and the content of extractable proteoglycans both released in the media and retained in the hydrogels was quantified by the DMMB assay (Fig. 6). Cells encapsulated in SHC0.075BGP0.1 and SHC0.075PB0.02 produced significantly higher amounts of GAG compared to cells encapsulated in SHC0.075PB0.04 and BGP0.4 hydrogels (Fig. 6A). The total amount of GAG was higher in SHC0.075BGP0.1 hydrogel compared to SHC0.075PB0.02 (Fig. 6B). Interestingly, both SHC0.075BGP0.1 and SHC0.075PB0.02 hydrogels retained similar amounts of GAG (Fig. 6B).

FIG. 6.

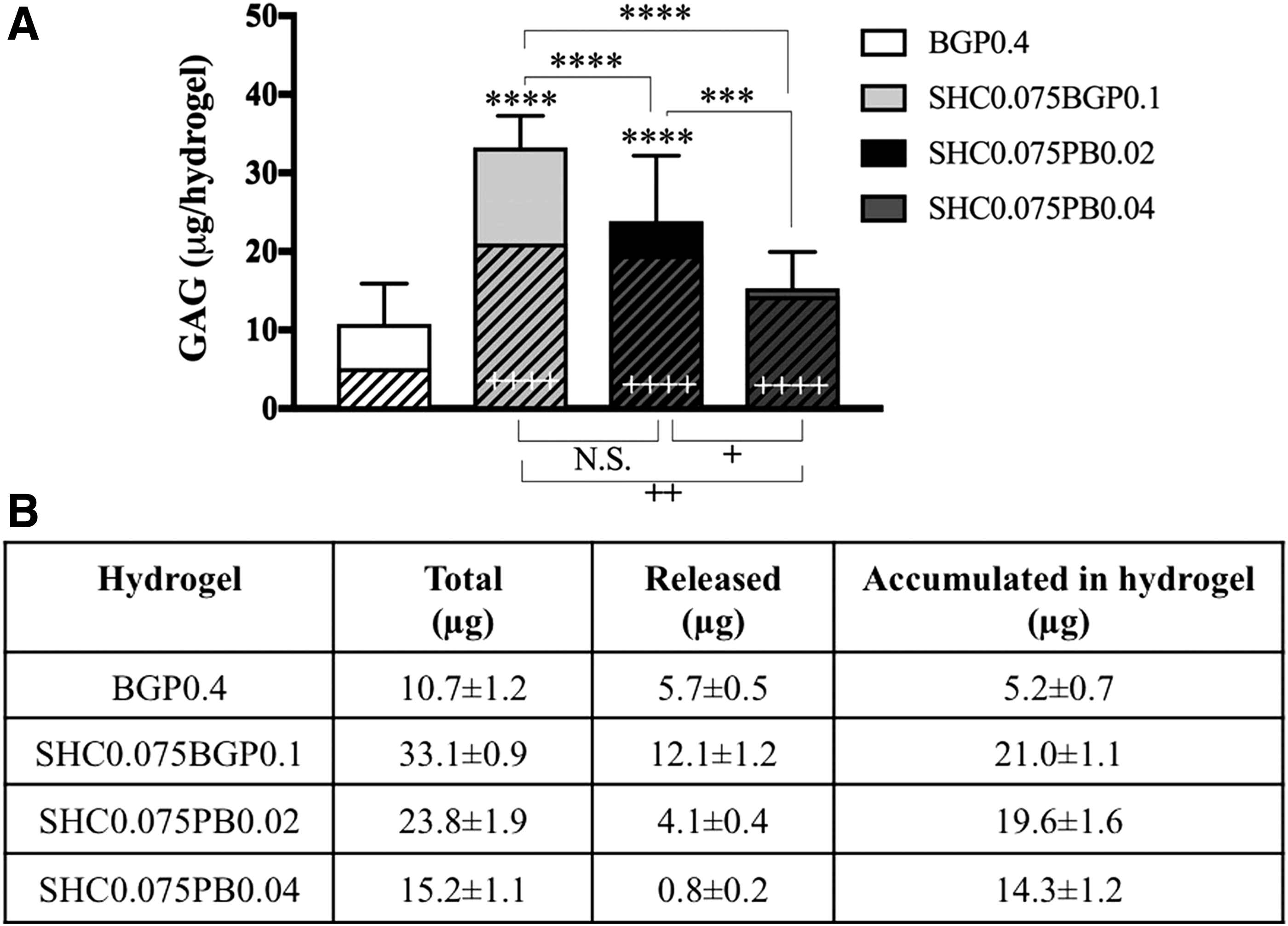

GAG production and retention in hydrogels. (A) Total GAG synthesized by encapsulated NP cells for 7 days (GAG accumulated in the hydrogels is presented as patterned area). Mean ± SD (n = 9). (B) Table of total GAG synthesized, accumulated in hydrogels and released in medium (measured in μg). Mean ± SD (n = 9). For total GAG, ***p < 0.001, ****p < 0.0001 compared to BGP0.4 and between hydrogels (using bars). For accumulated GAG, +p < 0.05, ++p < 0.01, and ++++p < 0.0001 compared to BGP0.4 and between hydrogels (using bars). GAG, glycosaminoglycan.

Hydrogel injectability in human NP

To confirm the feasibility of injecting the hydrogel into the NP through a “clinical size” needle and observe how the hydrogel solution distributes into the clefts of degenerated human disks (Thomson grade 3), one of the best formulations, SHC0.075PB0.02 hydrogel, was injected into two human cadaveric IVDs through a 25G syringe and incubated for 30 min at 37°C (Fig. 7). Macroscopic observation of the disc shows that the hydrogel flowed into the nuclear clefts with no detectable leakage through the AF and out of the disc.

FIG. 7.

SCH0.075PB0.02 hydrogel was injected into human degenerated IVD. (A) Injection of the toluidine blue-stained hydrogel into the degenerated NP of human cadaveric degenerated IVD (grade 3) using a 25-gauge needle. (B, C) Macroscopic evaluation of an axially dissected disc following 30 min of incubation at 37°C for donor 1 and 2. Note that the solution filled the nuclear clefts and no evidence of hydrogel (blue) extrusion was observed. IVD, intervertebral disc. Color images are available online.

Discussion

Recent works have established the proof of concept of cell therapy for IVD repair to reestablish IVD homeostasis and reverse the degeneration process.^34,35 Several clinical trials have been already performed or are in progress,^36–41 a few with injectable biomaterials as cell carrier.^36,40,41 Those carriers (i.e., atelocollagen, fibrin, hyaluronic acid, and hyaluronic acid derivative gels),³⁴ however, present very poor mechanical properties. As recently reviewed by Bowles and Setton,⁴² promising results have been obtained with other biomaterials in vitro and in animal models.^43,44 Among them, several CH containing matrices have been reported,^18,45–47 which mostly present limited mechanical properties^47–50 as well. Therefore, the search for a suitable injectable scaffold, which could not only increase cell retention but could also help initial restoration of disk height and mechanical properties, is still ongoing. A few materials were capable of presenting both injectability and suitable mechanical strength. They are mostly multiple component networks, containing CH as well as other proteins, polymers, and/or bioactive agents.^51–53 In comparison, the injectable hydrogels presented in this study are simple, without protein, bioactive agents, and/or chemical products, which may be an advantage in terms of FDA approval.

The three novel hydrogels tested in this work (SHC0.075BGP0.1, SHC0.075PB0.02, and SHC0.075PB0.04) allowed injection in liquid form at RT, followed by rapid gelation at body temperature, reaching mechanical properties, which were far above those of conventional CH-BGP thermogels (BGP0.4). Two of the new formulations (i.e., SHC0.075BGP0.1 and SHC0.075PB0.02) showed mechanical properties comparable to human NP tissue, both in compression and shear, suggesting their potential to restore the mechanical properties of the IVD, at least temporarily, before the injected cells create the new ECM.

Mimicking the mechanical properties of the native tissue is important, since a scaffold with lower mechanical properties cannot withstand IVD load, while a scaffold with higher mechanical properties may induce instability and increase the degeneration rate.⁵⁴

These strong mechanical properties are one of the main advantages of these new scaffolds, as most of the physical injectable hydrogels, such as the previously studied CH-BGP hydrogels, are not mechanically strong enough for IVD regeneration requirements.^18,24 Notably, the good mechanical properties of our hydrogels were obtained without any crosslinker. Previous work showed that this is due to the use of sodium hydrogen carbonate (SHC) at a precise concentration as GA. CH-BGP physical hydrogel formation involves heat-induced proton transfer from CH to BGP. This results in CH chain neutralization, decreasing repulsive forces and increasing attractive forces between CH chains.⁵⁵ In the case of SHC, the small size of the molecule and its decomposition in CO₂ may keep the chitosan chains closer during gelation, allowing formation of a stronger network. Its combination with either PB or BGP enables to reach both good mechanical properties and rapid gelation kinetics,²⁴ making them advantageous compared to previously developed CH physical thermogels made with BGP alone, sodium hydrogen carbonate,⁵⁶ dibasic sodium phosphate,⁵⁷ or ammonium hydrogen phosphate.⁵⁸ The absence of chemical initiators, crosslinkers, radiation, and high temperature during gelation is favorable for cell survival and may facilitate clinical transfer, compared to many other hydrogel systems.^59–62

In this study, we applied unconfined compression test to compare the mechanical properties of the hydrogels, both among each other and with that of isolated human NP tissue. However, it should be noted that although unconfined compression test is widely applied in the literature to characterize the mechanical properties of the NP,^27,53,63 it can only partially represent the mechanical strength of the NP tissue. Ideally, both confined and unconfined compressions are required to fully characterize a potential replacement of the NP because despite the fact that the NP is restricted by the AF and endplate cartilage in vivo, compressive load on the NP can be transferred to the AF when it expands radially. Therefore, physiologically, the NP is neither completely confined nor completely unconfined.²⁷ In the future, we plan to conduct ex vivo tests with injected hydrogels, which will be more effective and relevant to conclude about the capability of the hydrogel to restore the mechanical properties of the degenerated IVD.

Another advantage of our two best gels (i.e., SHC0.075BGP0.1 and SHC0.075PB0.02) is their relative stability in liquid form at RT, which facilitates mixing of cells and therapeutic agents and provides a suitable time frame for manipulation and injection of the hydrogel.

The novel CH thermogels also showed better cytocompatibility to the NP cells compared to conventional CH-BGP hydrogels, as shown by Live dead, Alamar Blue, DNA, and GAG content. This improvement, previously observed with encapsulated fibroblastes,²⁵ T lymphocytes,⁶⁴ and mesenchymal stem cells,²⁵ is likely due to the lower salt content of the new hydrogels. In the case of CH-BGP hydrogels, high concentrations of BGP are required to achieve rapid gelation kinetics, which result in cytotoxic effect on cells due to hyperosmolarity (≥800 mOsm/L for BGP0.4 gels).^24,65 In the new formulations, the osmolality is close to physiological values (262–434 mOsm/L).

While knowing how the native cells would respond to the hydrogel is certainly a good first step; eventually, the cytocompatibility of a more translationally relevant cell source (e.g., MSCs) will need to be evaluated before clinical translation.

The higher GAG production by NP cells observed in SHC0.075BGP0.1 (434 mOsm/L) compared to SHC0.075PB0.02 (262 mOsm/L) could be explained by its osmolality close to IVD osmolality. Indeed, the IVD is hyperosmolar compared to other tissues (430–496 mOsm).^32,66 The expression level of aggrecan was shown to increase in hyperosmotic conditions (500 mOsm) in human NP and AF cells,⁶⁷ as well as bovine NP cells.⁶⁸ Spillekom et al. found that the expression of brachyury, a phenotypic indicator of the NP, as well as aggrecan and GAG synthesis, was at optimal levels when cells were cultured in a medium adjusted to 400 mOsm/L.⁶⁹ For this reason, even though SHC0.75PB0.02 also showed suitable kinetics of gelation, mechanical properties comparable to the human NP, and good cytocompatibility with the NP cells, SHC0.075GP0.1 showed, in addition, the ability to produce the highest GAG amount, and therefore is the best of all tested hydrogel formulations for IVD repair.

The GAG production by encapsulated cells in three-dimensional hydrogels remains, however, considerably lower than in a mature NP.⁵³ In a normal bovine NP, the proteoglycan content increases with age from 3.1 to 4.7 mg/100 mg tissue.¹⁵ It was shown that 2 × 10⁶ NP cells embedded in a collagen/hyaluronic scaffold cultured in DMEM supplemented by FCS and stimulated with TGFβ1/bFGF produce about 2% of the total GAG amount in mature NP after 20 days.¹⁵ Therefore, it would be very interesting to evaluate the effect of stimulating factors/agents that can augment proteoglycan synthesis by NP and stem cells on the GAG production of the encapsulated cells.

Conclusion

In summary, new CH hydrogels, synthesized by mixing CH solution with sodium hydrogen carbonate in combination with PB and BGP, were evaluated for their potential for biological repair of the NP. These physical hydrogels, made of polysaccharide biopolymers without chemical products, are thermosensitive, injectable, and biodegradable. One of the tested formulations (SHC0.075BGP0.1) exhibited mechanical properties similar to the human NP tissue, provided the most suitable environment to maintain NP cells alive and active, and was able to induce the highest GAG amount produced by the encapsulated cells and retained in the hydrogel. This formulation is a particularly promising candidate toward the development of biological repair strategies for the treatment of degenerated IVD.
