Can Tissue Engineering Bring Hope to the Development of Human Tympanic Membrane?

Abstract

The tympanic membrane (TM), more commonly known as the eardrum, consists of a thin layer of tissue in the human ear that receives sound vibrations from outside of the body and transmits them to the auditory ossicles. The TM perforations (TMPs) are a common ontological condition, which in some cases can result in permanent hearing loss. Despite the spontaneous healing capacity of the TM to regenerate in the majority of cases of acute perforation, chronic perforations require surgical interventions. However, the disadvantages of the surgical procedure include infection, anesthetic risks, and high failure of graft patency. The tissue engineering strategy, which includes the applications of a three-dimensional (3D) scaffold, cells, and biomolecules or a combination of them for the closure of chronic perforation, has been considered as an emerging treatment. Using this approach, emerging products are currently under development to regenerate the TM structure and its properties. This research aimed to highlight the problems with the current methods of TMP treatment, and critically evaluate the tissue engineering approaches, which may overcome these drawbacks. The focus of this review is on recent literature to critically discuss the emerging advanced materials used as a 3D scaffold in the development of a TM with cellular engineering, biomolecules, cells, and the fabrications of the TM and its pathway to the clinical application. In this review, we discuss the properties of TM and the advantages and disadvantages of the current clinical products for repair and replacement of the TM. Furthermore, we provide an overview of the in vitro and preclinical studies of emerging products over the past 5 years. The results of recent preclinical studies suggest that the tissue engineering field holds significant promise.

Impact statement

This review highlights the problem with conventional surgical treatment of the tympanic membrane (TM), and critically focuses on the literature on emerging technology of tissue engineering and advanced materials in manufacturing the TM and its application to clinical setting. The advancement of the materials such as graphene as three-dimensional (3D) scaffold, stem cells technology with its growth factor, and fabrication through 3D printing made this biotechnology a possible option for treatment of TM perforations.

Introduction

Tympanic membrane (TM), also called eardrum, is a thin layer of tissue in the human ear that receives sound waves from the outer air and transmits them to the mechanical vibration to the cochlea of the inner ear (Fig. 1A). Infection in the middle ear, ventilation tube extrusion, and trauma can cause deterioration in sound transmission and TM perforation (TMP).¹ TMPs may lead to otorrhea, otitis media recurrence, conductive hearing loss and speech problems, and cholesteatoma formation.³ Wound healing is a complicated physiological procedure, which includes epithelial migration, fibroblastic activity, and vascular proliferation.⁴ Usually, most TMPs heal spontaneously within 7–10 days^4,5; these rapidly healing perforations are classified as acute TMPs. Chronic perforation of the TM has been determined as a perforation that is present from 8 to 12 weeks. Large or chronic TMPs often fail to heal and may require surgery for closure.^4,6 To date, tympanoplasty has been considered the most effective way to treat TMPs; also various autografts and allografts, such as paper patch, fascia temporalis have been used for repairing TM.^4,7 This research aimed to critically review and give an overview of the most recent studies on the conventional and novel treatment methods of TMP. The cellular engineering/tissue regeneration is the next generation of the TMP treatment; the methodologies and its pathway to clinical setting will be discussed.

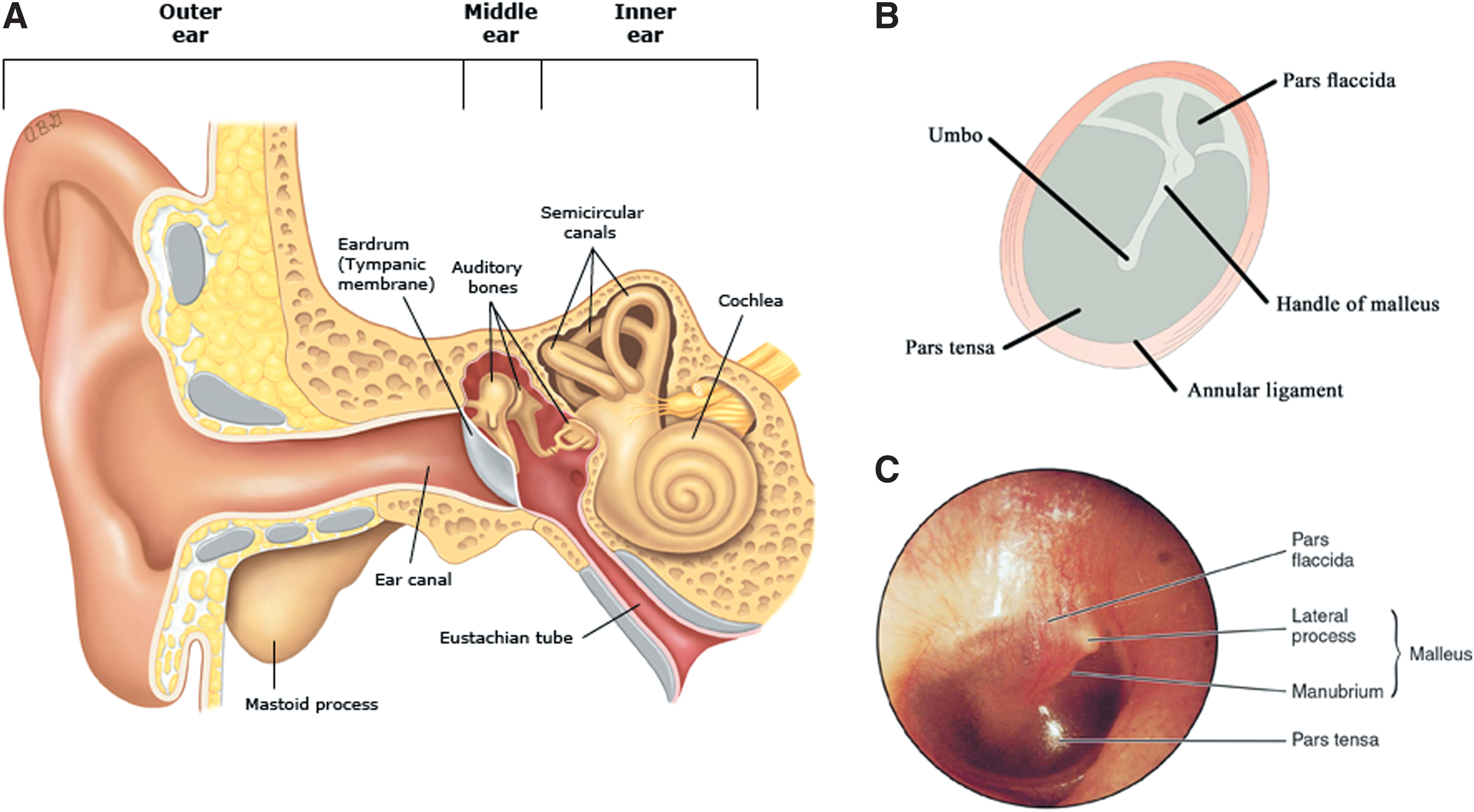

FIG. 1.
Illustration of ear anatomy and tympanic membrane (both schematic and real): (A) the normal parts of the outer, middle, and inner ear (reproduced with permission from: Patient education: Outer ear infection (The Basics). In: UpToDate, Post TW (Ed), UpToDate, Waltham, MA. Copyright © 2020 UpToDate, Inc. For more information visit www.uptodate.com.); (B) schematic of normal tympanic membrane; and (C) normal tympanic membrane (photograph used from Handler SD, Myer CM. Atlas of Ear, Nose and Throat Disorders in Children. Ontario: BC Decker; 1998:28). Color images are available online.

Ultrastructure of the TM

Anatomically, ear is composed of three main parts: the outer, middle, and inner ear (Fig. 1A). The outer ear consists of the visible portion called the pinna and the external auditory canal. The middle ear is a thin air-filled cavity in the temporal bone; it consists of three little bones, known as the malleus, incus, and stapes. The TM is an intermediate layer between the outer and middle ear. The inner ear consists of the cochlea, the balance mechanism, the vestibular and the auditory nerve. The function of the outer and the middle ear is to transmit sound to the inner ear. The sound waves transmutation to the external auditory canal impacts the TM, which subsequently results in TM vibration. The vibrations are conducted from the TM to the inner ear and into the fluid-filled hearing organ by three bones (Fig. 1A).^8–10

The TM is in oval form located in the ear canal with a particular orientation (Fig. 1B, C). The horizontal and vertical axis length of TM is 8–9 mm and 8.5–10 mm, respectively. The TM circumference is tightly attached to the wall of the tympanic cavity that separates the outer from the middle ear. The manubrium of the malleus coupled to TM stretches from a spot on the superior edge of the TM to the umbo (its center). The manubrium may be placed symmetrically, or near to the anterosuperior edge of the TM (Fig. 1C).^2,11 Round of the TM surrounded by annular ligament, this ligament is a fibrous thickening firmly anchored to a sulcus in the bony tympanic ring except for superior region. Annular ligament divides the TM into two main areas called the pars tensa (PT) and the pars flaccid (PF) (Fig. 1).²

PT is a tightly stretched membrane covering a significant section of TM (Fig. 1B, C). The PT is composed of the following three layers from external to internal: epidermis, lamina propria, and lamina mucosa (Fig. 2). PF is a small portion of the TM, which is thicker and much more compliant. The PF of the TM layers includes two epithelial layers with a lamina propria layer (Fig. 2).^8,12

FIG. 2.
A schematic of the various layers and cell types of tympanic membrane. The outer epithelial layer, entailing keratinocytes, is arranged within four layers: stratum corneum, stratum granulosum, stratum spinosum, and stratum basale. The middle layer, fibrous connective tissue (lamina propria), including fibroblasts and collagen, is arranged in the subepidermal layer, radial fibrous layer, circular fibrous layer, and submucosal layer. At last, an inner mucosal layer that consists of columnar epithelium. Reproduced from⁷ (illustration prepared by Biorender). Color images are available online.

TM Physical Properties

Elasticity

Mechanical properties of the TM play a crucial role in the functionalization of the middle ear system. The hardness of a particular section of the TM depends on the density of the fibers in that zone. The hardness varies in various parts of the TM under the physiological conditions. Collagen is massively abundant in the extracellular matrix (ECM) in the TM, which aids in maintaining the resilience and integrity of the TM. Besides, the collagen fibers are responsible for the mechanical hardness of the TM. Young's modulus of a human TM at strain rates 300–2000 s⁻¹ is reported as 45.2–58.9 MPa in the radial orientation and 34.1–56.8 MPa in the circumferential orientation.¹³ The linear viscoelastic behavior of human TM has been measured in vivo using a novel nanoindentation technique. The viscoelastic values were 17.4 MPa and 19.0 MPa for posterior and anterior portions of TM, respectively.¹⁴ TM also has some stretchability.¹⁵

Thickness

The TM thickness is nonuniform, narrowed from the annular ring to the umbo. By moving away from the annular ring, the circular fiber layer becomes thinner; also, the thickness at the umbo reaches approximately zero. The radial fiber layer is tapered, although thickness decreases slightly.^2,8,16 Thickness values across the PT ranged between 79 and 97 μm; thickness was found to be 50–70 μm in the central region between umbo and manubrium, and 100–120 μm near the peripheral rim of the PT and around the umbo.¹⁶ Results from new technology using confocal laser microscopy and optical coherence tomography indicated that the mean across TM thickness is approximately between 50 and 120 μm.¹⁷

Density

The volume density of the TM is variable, somewhere between that of water (1000 kg/m³) and that of undehydrated collagen (1200 kg/m³). The epidermal, mucosal, and loose connective tissue layers are maybe somewhat less thick than the fibrous layers.^18,19

Cause of TM Perforations and Conventional Treatments

The TM is perforated by factors such as high-rise sounds, hot and sharp objects, middle ear infections, water entering with high pressure, accident, and during cleaning with sharp subjects.^20,21 The conventional methods for the repair of the TMPs are tympanoplasty and myringoplasty. Tympanoplasty entails grafting of the TM with inspection of ossicular chain (three bones namely malleus, incus, and stapes that transmit the sounds from the TM to the inner ear) with/without reconstruction of the middle ear hearing mechanism (Fig. 1A). In other words, tympanoplasty is a clinical procedure for the reconstruction of the TM and sometimes alongside the ossicles.^4,22 Myringoplasty refers to the grafting of the TM without inspection of the ossicular chain, and it is an operation performed only on TM.²³

Type I tympanoplasty is a surgical technique that involves the repair of the TM in cases where the merely existing lesion is a TMP; it is the most common otological procedure after myringotomy. It is classified based on the placement of graft concerning the remnant TM: (a) the underlay technique: a graft is placed medial to the mucosal layer; (b) the overlay technique: a graft is placed lateral to the fibrous layer of TM after elevating all squamous epithelium; and (c) the interlay technique: a graft is placed between the fibrous layer and the endothelial (mucosal) layer of the drum remnant.^24–27

Today, cartilage, perichondrium, and temporalis fascia “golden standard” is commonly used as graft materials.^23,28,29 In addition to the common grafts, numerous other graft materials are applied, including autologous (e.g., perichondrium, fat, vein, periosteum, sclera, and dura), cadaveric (e.g., fascia, dura, and skin), xenograft (e.g., bovine collagen, porcine pericardium, and intestinal basement membrane), and nonorganic sources (e.g., Gelfoam^®, gelfilm, silastic, and paper) (Fig. 3). Autologous grafts compared with other grafts have some disadvantages, such as the scarcity of the donor tissue and surgical risks.^30,31 Although temporalis fascia has long been regarded as the ideal graft material for TM repair, other ENT surgeons dismissed its application as it often failed to withstand negative middle ear pressure in the postoperative period. Therefore, some surgeons considered tragal perichondrium cartilage as a suitable alternative to temporalis fascia. This is due to the customizing of the cartilage with appropriate thickness. The thickness of <500 μm considered to have similar acoustic properties to the TM.²³ The cadaveric and xenograft may suffer from biocompatibility and immunogenicity. In general, all the grafts have a series of complications and disadvantages, such as the return of TMP, nerve damage, hearing loss, tinnitus, ear canal constriction, middle ear injury, adhesion in the middle ear, otorrhea, facial nerve injury, middle ear infection, cholesteatoma, and squamous cysts. These limitations created the impetus for alternative materials (Table 1).^7,32–34

FIG. 3.
A timeline overview for the treatment of tympanic membrane perforations. Color images are available online.

Table 1.
The Key Conventional Surgical Repair of Tympanic Membrane with Various Materials

Graftl Supporting material Type of P. Country No of pts Surgical type/technique Outcomes Complications Year^Ref

CPI & temporalis fascia Gelfoam^® S subtotal India 168 ^Underlay CPI had higher healing rate compared with fascia. ↓ air-bone gap Retractions
Reperforations 2018¹¹¹

Porcine S intestinal submucosal (PSIS) Chronic USA 37 ^Lateral to malleus underlay ↑ healing with PSIS.↓ in air-bone gap Return of P. 2018¹¹²

A. Double layer graftB. Single layer fasciaC. Single layer cartilage Gelfoam Chronic & subtotal India 144 ^Overlay or underlay and sandwich Successful graft takes up in all groups.↓ air-bone gap in all groups. InfectionRejectionLateralization 2018¹¹³

WsCCG & TempF Manubrium mallei Chronic Turkey 90 ^Traditional ↑ treatment by WsCCG & TF in 6 and 12 months Retraction 2018¹¹⁴

Temporalis fascia & perichondrial Gelfoam Chronic Libya 20 ^*Interlay ↑ healing for both groups FtRInfection 2018³²

Bacterial cellulose (I) & fat graft (II) Gelfoam S & M Egypt 120 ^** ↑ healing in S TMP.↑ healing in moderate TMP. Both I > II FtR 2018²⁹

Dry temporalis fascia & wet temporalis fascia S, M & L India 60 ^*Underlay The graft uptake rate with dry group and wet group was 73.33% and 63.33%, respectively. FtR cases, Graft uptake ↓, edematous 2016¹¹⁵

Bacterial cellulose Sponge p. size <50% TM Turkey 12 ^**Overlay grafting ↑ healing (81.3%) and air threshold↓ air-bone gap RetractionReturn of P. 2016¹¹⁶

HAFGM FGM & temporal fascia Sponge S, 1–3 mm L, 3–6 mm Turkey 136 ^*Underlay No difference between the success rates of the groups according to the location of P. Recurrent P. 2016¹¹⁷

Porcine S intestinal submucosa (SIS) autologous temporalis fascia (PTF) Curaspon™ Subtotal ½ of TM surface ¼ of TM Italy 404 ^Underlay ↑ healing↓ in operation time SIS FtR Return of P. 2015¹¹⁸

Bovine pericardium or butterfly & inlay tragal cartilage Fibrin glue Chronic Belgium 106 ^Butterfly & Tutopatch ↑ healing↑ air-bone gap was > in the butterfly group. BluntingMyringitis 2015¹¹⁹

HAFGM & modified FGM (MFGM) Gelfoam soaked + ofloxacin S, M & L Canada 24 ^**Conventional ↑ healing & audiometry with HAFGM. Fatty granulationResidual P. 2015¹²⁰

Boomerang-shaped chondroperichondrial graft (BSCPG) Gelfoam Chronic Turkey 99 ^*Boomerang ↓ air-bone gapsSuitable technique to replace other methods Residual P.Retraction 2014²²

Fat graft 30% of the TM India 50 ^** ↑ healing (92%)↓ air-bone gap FtR abnormal sounds in ear, hearing loss 2013¹²¹

Fat Chronic Turkey 30 ^Classical ↑ healing with the new technique (90%)↓ air-bone gap Graft failureBulging 2013¹²²

HAFGM Gelfoam^® Small, medium & large Canada 246 Myringoplasty ↑healing with HAFGM (92.7%)↓ operation time (16 min) FtR Residual P.CholesteatomaBlunting 2011¹²³

Surgical type tympanoplasty.

**
Surgical type myringoplasty.

CPI, Cartilage perichondrium island; FGM, fat graft myringoplasty; FtR, failure to repair; HAFGM, hyaluronic acid fat graft myringoplasty; L, large; M, medium; S, small; P, perforation; Pts, patients; TempF, temporalis fascia; WsCCG, wheel-shaped composite cartilage; TM, tympanic membrane; ↑, improved or increased; ↓, decreased.

Regeneration of TM Tissue Engineering Strategy

The healing of TMPs encounters difficulties, especially in the chronic case due to severe deficiencies, namely the absence of structural support, the lack of ECM, and the need for regenerative factors (e.g., angiogenesis and growth factors, GFs).⁷ For overcoming these features, the tissue-engineered strategy has been applied to the development of functional TM (Figs. 3 and 4).³⁵

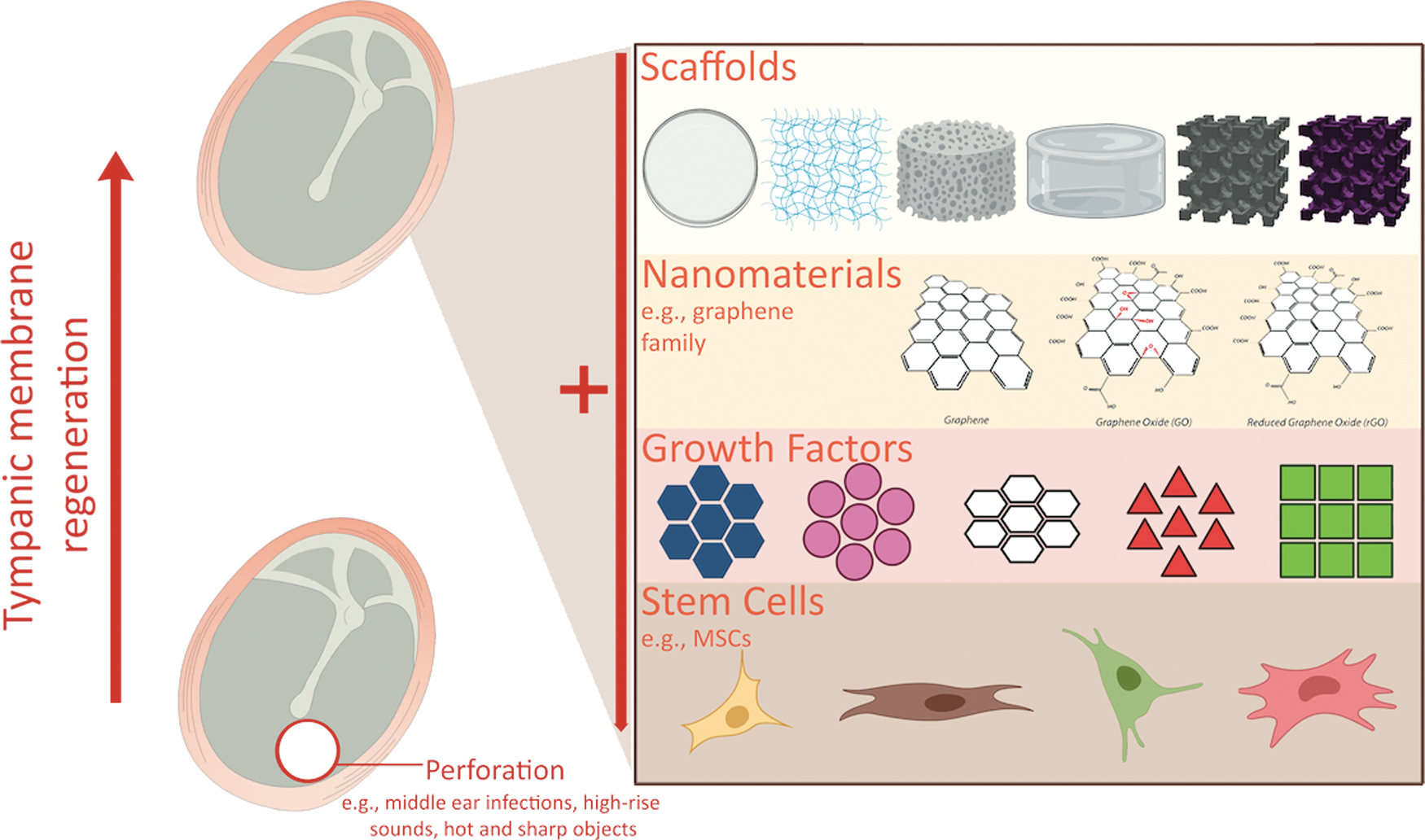

FIG. 4.
A tissue engineering TM consisting of 3D scaffold made from synthetics or biological biomaterials, cells/stem cells, and growth factors. Currently graphene-based materials are emerging 3D scaffolds, due to their superior mechanical and physiochemical properties (illustration prepared by Biorender). TM, tympanic membrane. Color images are available online.

In general, TE comprised of a three-dimensional (3D) scaffold, cells, and GFs/molecules (Fig. 4). The use of cells responds to various signals, and the seeding of cells into matrices involves creating tissue-like constructs to repair or replace the damaged organs. Besides, the use of bioactive molecules, such as GFs, encourages tissue induction. TE enables the regeneration of a patient's tissues, and thus provides the potencies for reducing the need for donor organ transplants.³⁶ All of these components play significant roles in either cell differentiation, proliferation, and migration or providing the proper biochemical microenvironment for preparation and stimulation of healing.^7,37 A variety of manufacturing techniques and biomaterials have been used to create a 3D scaffold.^38–40 Up to now, various forms of scaffolds such as films, electrospun membranes, sponges/foams, hydrogels, and 3D printed based on myriads of biomaterials have been developed for the treatment of TMPs^41–43 (Fig. 4).

The utilization of tissue-engineered scaffolds brings prominent advantages such as reducing the difficulty of surgery, reducing costs, increasing the percentage of recovery, using bioactive agents, and the possibility of generating a commercially available TM. It also eliminates some of the disadvantages of other methods, such as poor biocompatibility, functionality, and immune rejection.^4,7,46 The otoscopic observations related to the various forms of tissue-engineered scaffolds [film: silk fibroin scaffold (SFS), sponge/foam: acellular collagen type I/III scaffold (ACS), film: paper patch, and sponge/foam: Gelfoam] during TM healing are given in Figure 5. Each scaffold brings specific characteristics and results; for instance, SFS (fully transparent) and ACS (semitransparent) allowed observation of the TM healing directly and after complete treatment (after 28 days); there is no sign of scar formation. Unfortunately, some scaffolds cause difficulties and act improperly for TM regeneration. To exemplify, in Figure 4 it is observed that paper patch and Gelfoam caused difficulty with examination due to their opacity, partial detachment (at 7 days), and scar formation.⁴⁰

FIG. 5.
Otoscopic observation of TM healing by utilizing SFS, acellular collagen type I/III scaffold (ACS), paper patch, and Gelfoam^®. White arrows indicate scaffolds; white arrowheads indicate the scar formation; asterisk indicates perforation. Photograph used with permission from Tissue Engineering: Part A⁴⁰ and Mary Ann Liebert, Inc. SFS, silk fibroin scaffold. Color images are available online.

In this review, the outcomes of different types of tissue-engineered scaffolds (films, electrospun membranes, sponges/foams, hydrogels, and 3D/bioprinted) have been reported. To the best of our knowledge, this categorization was done for the first time. The summary of studies related to the various types of scaffolds is listed in Table 2 (restricted to clinical studies), Table 3 (restricted to preclinical studies), and Supplementary Table S1 (restricted to in vitro studies). Table 4 highlights the disadvantages and advantages of emerging tissue engineering products with different 3D scaffolds.

Table 2.
The Clinical Study of Tissue Engineering Composite for Tympanic Membrane Healing

Biomaterial Fabrication technique No of pts Country Outcomes Year^Ref

Films

Bacterial cellulose film (Bionext^®) 24 Brazil ↓ P, ↑ auditory frequencies, complication(s): HL 2019¹²⁴

Egg shell From hen NR Korea ↓ healing time, ↓ cost, complication(s): OA & No ↑ healing 2017^125,126

Paper patch From cigarette paper 63 & 43 Turkey & Korea CR was 78–90% (p < 5%), ↑ hearing functionComplication(s): not for Ps >5%, OA, detachment, & IR 2014¹²⁷,2013⁴⁷

Collagen & PDMS Oxygen plasma to immobilize the collagen & fibroblasts 10 Iran CR was 70%, ↑ CPAM, ↓ air boneComplication(s): OA & infections 2012¹²⁸

Gelatin Growth factor: bFGF 63⁶⁷&12¹²⁹ Japan & Australia ↑ CR, ↑ hearing (↑ bone conduction & ↑ speech discrimination)Complication(s): cholesteatoma, infections, dissolvement, second operation, & HL 2017⁶⁷,2015¹²⁹

Sponges/foams

Gelfoam Growth factor: FGF-2 138 China ↓ CT, ↑ CR, complication(s): FGF-2 solution (once a day) & removing Gelfoam to avoid re-P 2017⁴³

Silk fibroin 40⁵¹&52⁵⁰ Korea Transparent, elastic, adhesive, & hyperkeratinizing↓ CT, ↓ mean operative time, ↓ air-bone gap, ↑ hearing function, complication(s): OA 2016⁵¹,2015⁵⁰

74 &91 China ↓ CT, ↑ CR, ↓ scab formation, complication(s): OA, infections, ↑ granulation, and edematous in p > 5% 2015⁶⁵, 2011⁶⁴

Hyaluronic acid ester (Epifilm) 25 United Kingdom No IR, complication(s): epifilm displacement & dissolvement 2012⁷¹

Hyaluronic acid & carboxymethylcellulose (Seprafilm^®) NR Australia Keratinizing, epithelium migration, complication(s): sensorineural HL, dissolvement, & randomized results 2012⁷¹

CR, closure rate; CT, closure time; OA, oral antibiotics; IR, inflammatory response; HL, hearing loss; CPAM, cellular proliferation, adhesion, and migration; P, perforation; Pts, Patients; PDMS, polydimethylsiloxane; FGF, fibroblast growth factor; ↑, improved or increased; ↓, decreased; NR, not reported.

Table 3.
The Preclinical Study of Tissue Engineering Composite for Tympanic Membrane Healing

Biomaterial Fabrication technique Growth factor Cell Model (no.) Country Outcomes Year,^Ref

Films

Chitosan Casting IGFBP2 CPAM TM cells Sprague-Dawley rats (25) Korea Suitable mechanical properties, ↑ CR, ↑ CPAM)↑ TM regeneration, ↑ healing in large Ps (>3 mm) 2019⁵⁴

Chitosan Casting Epidermal growth factor (EGF) & fibroblast growth factor (FGF) Primary TM cells Adult Sprague-Dawley rats (25) Korea EGF: ↓ costCR of chitosan/EGF was 56.5%Regeneration of thin TMNo scar formationComplication(s): OA 2014¹³⁰

Collagen (duck feet) Casting followed by UV irradiation NIH3T3 fibroblasts Sprague-Dawley rats (24) Korea Transparent, no detachment, ↑ CPAM, ↑ healingComplication(s): OA 2017⁴¹

Paper patch From cigarette paper Rats (36) Australia CR was 90.9%, ↑ hearing function, Not for large perforations. Complication(s): OA detachment 2014¹³¹

Silk fibroin Casting L929 fibroblasts¹³² Sprague-Dawley rat (36, 50, & 180)& Guinea pig⁵² Australia & Korea,⁴⁸,¹³² TransparentAppropriated mechanical property like human TMSuitable trilaminar morphology (well-organized collagen fibers), ↓ CT, ↑ CR, ↑ hearing restoration, ↑ TM regeneration, Complication(s): OA 2014^{48,40,132,52,131}

Bacterial cellulose Nanofibrillar Primary TM cells Sprague-Dawley rats (NR) Korea Transparent↑ guided CPAMAppropriate mechanical properties↑ CR 2013³¹

Poly (glycerol sebacate) Casting Chinchilla (43) USA NeovascularizationFabrication of the confluent cell layer 2010¹³³

Electrospun membranes

Poly (L-lactic acid) & poly lactic-co-glycolic Fibroblasts and keratinocytes Rats (15) Brazil ↓ mechanical properties, ↓ CT, Fabrication of 3 layers of TM (skin, fibrous tissue, & mucosa), no IR 2017⁶¹

Polycaprolactone, silk fibroin, & umbilical cord serum Primary human dermal fibroblasts Guinea pigs (25) Korea ↑ mechanical properties, ↑ CPAM, ↑ TM regeneration↓ CT, ↑ auditory healing 2014¹³⁴

Sponges/Foams

Collagen (duck feet) Lyophilization Sprague-Dawley rats (68) Korea ↑ CR, ↑ CPAM, & cell nuclear antigen (PCNA), ↑ adhesion at the P margin, complication(s): OA 2017⁴⁹

3D bioprinted scaffolds

Collagen & human umbilical cord serum Robot dispensing and low-temperature plate systems Guinea pigs (20) Korea Suitable mechanical properties↑ hearing recoveryVibration velocity was similar to the normal TM.Complication(s): Regenerated TM was thicker & OA 2013¹³⁵

Calcium alginate Injection molding process by fused deposition modeling Chinchilla (23) USA Connective tissue regenerationNo IRComplication(s): Potential of being ototoxic 2006¹³⁶

Gelatin methacrylate & fibronectin Bioprinting the butterfly-like structure & UV crosslinking EGF Murine fibroblast cell line NIH/3T3 Chinchilla lanigera (10) United States ↑ CPAM,↑ matrix metalloproteinases, ↑ healing, complication(s): regenerated TM was focally thicker 2018⁷⁵

Polycaprolactone/collagen/alginate Bioprinting Mesenchymal stem cells (MSCs) Sprague-Dawley rats (14) Korea ↑ Healing, ↑ hearing recovery, vibration of regenerated TM was close to the normal TM.Complication(s): regenerated TM was thicker 2017⁴⁵

CR, closure rate; CT, closure time; OA, oral antibiotics; IR, inflammatory response; IGFBP2, insulin-like growth factor-binding protein 2; cellular proliferation, adhesion, and migration; P, perforation; ↑, improved or increased; ↓, decreased; NR, not reported.

Table 4.
Advantages and Disadvantages of Various Tissue Engineering Strategies for the Tympanic Membrane Perforations Treatment

Tissue engineering strategies for TM treatment Advantages Disadvantages

Various forms of tissue-engineered scaffolds

Film (Tables 1–4) Simplest fabricationCost-effectivenessTransparencyAdjustable thickness, resembling TMSuitable mechanical properties, resembling TM Generally low or nonporosity, essential cells seeding, and integration

Electrospun membranes Mimicking the ECM structurehigh porosity Low mechanical propertiesOpacity

Sponges/foams High porosity Low mechanical propertiesMoisteningOpacity

Hydrogels Cell encapsulationLoading bioactive moleculesResemblance of ECMhigh keeping moisture Remoistening (during the healing time, 28 days)Low mechanical properties

3D/bioprinted scaffolds Precise complex designbioprinting:Loading cells and bioactive moleculesCreating tissue-like structures Finding suitable biomaterial for printing

Cell therapy

Cells and stem cells Better integration of regenerated tissuefaster TMP closureStem cells:generating TM cells and layers

Biomolecule delivery

Growth factors Decrease in closure time of TMPsdecrement in risk of failure of closureTMPs healing acceleration Hardship of achieving controllable and sustained delivery

Platelet-derived growth factor (PDGF)

Matrix metalloproteinase (MMP)

Serum eardrops

For specific materials or cells, see Tables 1–3 and Supplementary Table S1.

ECM, extracellular matrix; TMP, tympanic membrane perforations.

Films

Undoubtedly, making films mostly by casting technique is the simplest way of scaffold fabrication. Owing to the simplicity and cost-effectivity of this method, in TM treatment, it is the most popular using strategy of patch production. The most common patch in the form of film that has been used worldwide is a paper patch⁴⁷ (Fig. 6A). Despite lots of studies conducted on scaffolds for TM regeneration, the paper patch still has its particular proponents mainly due to the low cost and availability. Howbeit, the paper patching process also has noticeable issues, for instance, displacement, inflammation, nontransparency, nonflexibility, nonbiocompatibility, and nonbiodegradability.^48,49 For eliminating the mentioned disadvantages, further surveys have been carried out. To overcome the displacement and detachment, other biopolymers such as collagen and silk fibroin have been utilized. These biomaterials also result in the enhancement of cell adhesion.^41,50,51 Fabricated patches through casting method are mostly transparent (e.g., from collagen, silk fibroin, chitosan, and bacterial cellulose) (Fig. 6B). One of the essential characteristics of film patches is transparency that lets the examination during the TM healing, and if the infection occurs, proper antibiotics will be prescribed.^31,41,52,53 The thickness of the films is attempted to resemble the human/natural TM, although due to the nonuniform thickness of the natural TM (as mentioned in section TM physical properties, Thickness), usually an average is considered for film making (casting).^40,54,55 The usage of the abovementioned biomaterials also leads to flexibility, biocompatibility, and biodegradability.

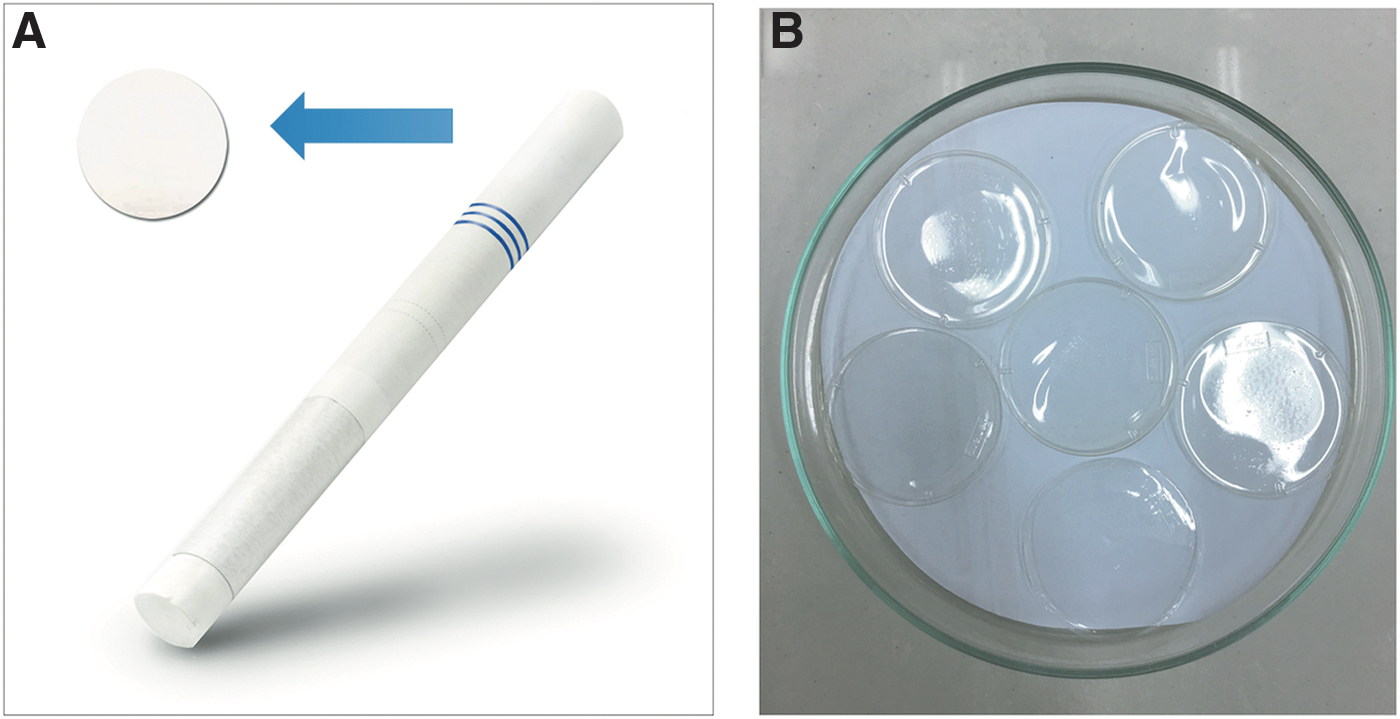

FIG. 6.
(A) paper patch (cut from the filter of cigarette) and (B) films of silk fibroin, gelatin, and collagen fabricated by casting (the pictures are related to the currently running projects in our research group). Color images are available online.

Electrospun membranes

Electrospinning is a well-known method in biomedicine that has been utilized extensively over the past decades. The most attractive characteristic of the electrospun fibers is mimicking the ECM structure.⁵⁶ This initiation is related to the nonadhesive (e.g., collagen and elastin) and adhesive proteins (e.g., laminin and fibronectin) in the range of 5–500 nm, and amorphous matrix, proteoglycans, in the range of 450–1000 nm, which was counted as a primary reason for this popularity.⁵⁷ Based on the piles of studies, mimicking the ECM structure steers to higher regeneration by improving cellular behavior. To exemplify, the electrospun fibers supply adequate porosity that is massively beneficial for cell migration and attachment.^58,59 Compared with conventional patches, nanofibrous scaffolds could lessen the inflammation during the process of implantation, and as a result, the healing and regeneration can accelerate.⁶⁰ Recently, for TM regeneration, the electrospun mat has been employed. For instance, Danti et al. have reported that the high porosity of poly(ethylene oxide terephthalate)-co-poly(butylene terephthalate) (PEOT/PBT) electrospun scaffolds resulted in improvement of cell infiltration and viability.⁴⁶ In another study, by preparing an electrospun patch made of poly (L-lactic acid) and poly (lactic-co-glycolic acid), it was shown that the fabricated scaffold had no inflammatory response.⁶¹ Unfortunately, the critical drawback of electrospun patches is low mechanical properties in comparison with films.⁶² However, in recent electrospun technology with nanofiber production and emerging materials such as graphene-based composite, the outcome of the membranes is much stronger, as well as the stiffness and elasticity of the membranes can be changed to simulate the natural TM.

The utilization of electrospun fibers as a scaffold for TM regeneration is still unique. Thus, the recognition of various influences of electrospun membranes on the process of healing is mandatory.

Sponges/foams

Sponges or foams are 3D porous scaffolds; the porosity could facilitate cell migration and infiltration. Being porous enhances the rate of biodegradation, which was counted as another advantage.⁶³ Lyophilization is one of the usual techniques that has been used for the fabrication of this type (sponges/foams) of scaffold. It is worthwhile to notice that Gelfoam is the utmost type among the sponges for TM regeneration (Fig. 7).⁶⁴ Gelfoam facilitates the closure of perforations in a short time,^64,65 although it has some hindrances such as infection^64,66 and scar, edematous and granulation formation.⁶⁵ Howbeit, the mentioned issues also could be seen in chitosan and collagen sponges.^49,63 Another attempt for developing the function of sponges is the addition of GF [e.g., fibroblast growth factor (FGF),⁶⁶ FGF-2,⁴³ and basic fibroblast growth factor (bFGF)⁶⁷], which in turn enhances the cellular proliferation and tissue regeneration. The immersion is a method that has been used for loading the GFs, so low efficiency and moistening are the main limitations within this process.^43,66,67

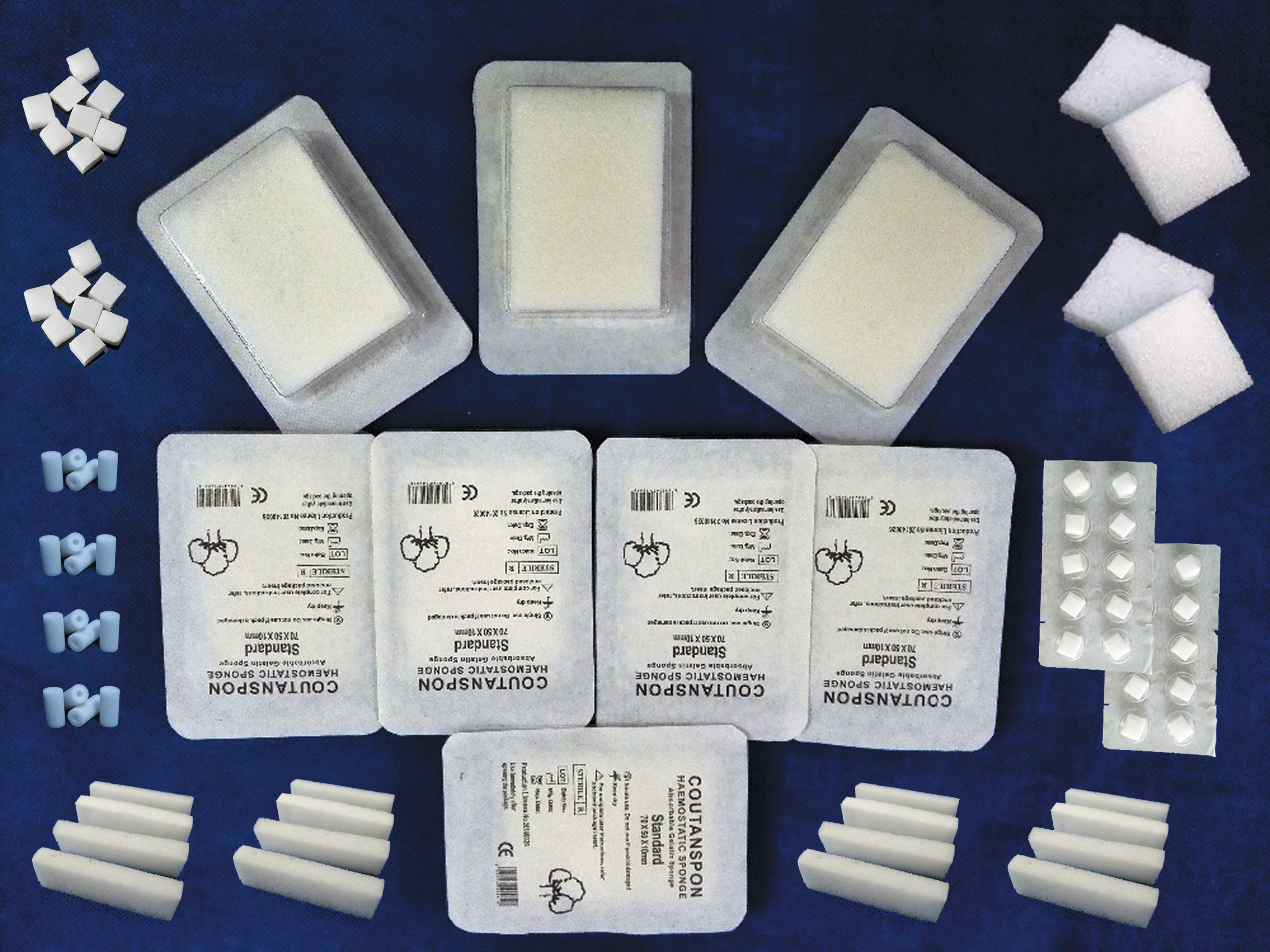

FIG. 7.
Various shapes of Gelfoam in the clinics and markets. Color images are available online.

Hydrogels

A hydrogel is a 3D network made by chemical or physical crosslinking among the hydrophilic polymer chains; therefore, it can significantly absorb a large amount of water while preserving its structure. Hydrogels also have a great capacity for cell encapsulation and loading the bioactive molecules.^68,69 In other words, hydrogels are remarkable candidates for TE and regenerative medicine due to the resemblance of ECM.⁷⁰ Keeping the moisture plays a critical role in wound healing, so hydrogels have high potency for all kinds of tissue regeneration like TM. So far, hydrogels have been made of gelatin and hyaluronic acid (HA) for TM applications.^44,71 These hydrogels not only lead to the complete perforation closure but also the generation of three layers of TM tissue (skin, fibrous tissue, and mucosa). However, the possibility of sensorineural hearing loss (in particular for HA)⁷¹ and moistening for several times during the healing are serious barriers.⁴⁴ The enhancement of mechanical properties of hydrogel with nanofiller has been successful in the development of the orthopedic and cardiac field. This may also help in the development of TM.

Three-dimensional printed scaffolds

Three-dimensional printing has been a very popular tool for industrial application; in medical 3D printing has been used to print synthetic materials. It is simply a tool that can print precise complex design.^72,73 A clinical example is the surgical treatment of intra-articular distal radius fractures with the assistance of 3D printing methodology.⁷⁴ In TM, 3D printer can be used with synthetic materials with different thicknesses and different mechanical properties.⁷⁵ However, although a very useful tool, the translational to the clinic has been slow due to the suitability of material be able to use as a melting for 3D printer and with melting not easy to get viscoelasticity required on the membrane for TM.

Bioprinted scaffolds

Bioprinting is an additive manufacturing process (like 3D printing) where a combination of biomaterials (e.g., hydrogels or other biopolymers) with cells and GFs is defined as a bioink. Using bioink in bioprinting, it is possible to create tissue-like structures that imitate natural tissues.^75,76 In a study, a cell-laden scaffold has been fabricated by utilizing the hydrogels (fabricated by bioprinting) entailing the mesenchymal stem cells (MSCs) and micro/nanofibers (made by the centrifugal spinning process). The prepared polycaprolactone/collagen/alginate-MSC enhanced the cell viability and resulted in complete TM healing in Sprague-Dawley rat model. The main problem of this scaffold was the regeneration of thicker fibrous layers of TM.⁴⁵ Owing to limited studies in this field, more surveys need to be performed.

According to the outcomes listed in Table 2, it could be concluded that the mere hydrophilic biomaterials (i.e., gelatin and HA) despite some effects on the healing are not suitable for TM regeneration due to the severe complications such as hearing loss, infections, and quick dissolvement. The scaffolds based on HA not only led to sensorineural hearing loss but also randomized treatment; therefore, it is not an appropriate candidate, and even after 2012, very few surveys have been performed on this material. Among the obtained results, silk fibroin has adequate potencies to be named as the best choice. It seems the biomaterials have played a dominant role in the given outcomes of the healing process. Howbeit, it could be mentioned that no significant difference was observed between the scaffold forms (i.e., films, foams/sponges, and hydrogels); hence owing to the lower cost, films are a notable option.

Myriads of studies are conducted on various biomaterials, as listed in Tables 2, 3, and Supplementary Table S1, although chitosan, silk fibroin, and crosslinked collagen and gelatin have promising results (particularly in Table 3). In other words, the mentioned materials are essentially drastic on TM treatment, and by adding other factors such as GFs, their effectiveness (e.g., healing large perforations) increases. In terms of several forms of the scaffold, based on the in vivo experiments (Table 3), electrospun membranes and hydrogels could lead to the formation of three layers of TM (skin, fibrous tissue, and mucosa), which is a plus. Still, these forms also have a lack of suitable mechanical properties. With regard to the 3D printed or bioprinted scaffolds, yet, there are no adequate research studies, but it is noticeable that it resulted in resembling vibration velocity to TM.

Cell Therapy for TM Regeneration

Utilizing cells is a crucial component in TE that facilitates the regeneration of tissues and organs remarkably. Besides, the utilization of cells enhances the likelihood of better integration of regenerated tissue with the surrounding tissues. To this aim, various cell types, mainly stem cells (SCs), have been used.^77–79 SCs are promising candidates among other cells due to their specific characteristics: (1) releasing various factors, (2) recruiting other host cells by different cytokines and matrix protein release, (3) differentiating into the cells of target tissue under appropriate stimulation, and (4) being self-renewable.⁸⁰ This strategy, the usage of cells, was carried out for the TM regeneration, based on the concept of in situ TE.¹ Some surveys correlated with cell therapy for TMP treatments have been conducted.⁸¹ For instance, the potency of latent progenitor cells, SCs within TM epithelial layers, for TM regeneration has been studied. The presence of SCs could be seen in all areas of normal TM tissue, and even at the perforated TM; therefore, staining of epithelial SC markers is additionally possible. Through this study, it has been found that latent SCs of TM have high potential for regulating the TM regeneration.⁸² Due to the significant features of SCs, other kinds of SCs (i.e., except the SCs of TM) have been employed for the treatment of TMPs. Unge et al. have investigated the influences of embryonic SCs on TM healing after 5 days of myringotomy in Mongolian gerbils. According to their findings, these SCs enhance the healing of TMPs (tested by closure time, functional measures by moiré interferometry, and morphological changes by fluorescence microscopy), probably by differentiation and integration into the TM tissue. To exemplify, in this study, the strength of the SCs treated TM was 120 daPa, which compared with the treated TM (control), 60 daPa, was significantly higher.⁸³

The effects of MSCs on TM healing have been evaluated; some studies conducted on delivery of either MSCs alone or a combination of MSCs with GFs and biomaterials at the perforated TM sites. With the hope that these surveys may affect the activation of epithelial stem cell markers and enhance the migration and proliferation of keratinocytes, and as a result, faster closure of TMPs.⁸⁴ Through research, murine bone marrow cocultured with bone marrow MSCs (BM-MSCs) embedded within porcine-derived collagen [Gelita-Spon (GS)] or hyaluronate-derived [EpiDisc (ED)] scaffolds in C57BL/6 mice. These scaffolds accelerated the closure of TMP almost within 7–14 days, although BM-MSCs/ED had higher closure and thicker neotympanum.⁸⁵ In a mice animal model, a composite product of HA membranes seeded with BM-MSC tested for the regeneration of TM. It was concluded that BM-MSC is good cell type for cell therapy of chronic TMPs.⁸⁶

Epidermal cells are located in the umbo and annulus regions TM; these cells with stem cell-like features play an essential role in TM regeneration. In a study, Liew et al. illustrated the impacts of these cells on the reconstruction of TM. After the TMP, the biomarkers of the epidermal cell (e.g., Integrin β1 and cytokeratin 19) have been observed; then the activation of the perforated TM to proliferation and cell production indicated.⁸⁷ There are a number of reports as alluded above on cell therapy and tested in rodents but the translation to clinically been slow. This is maybe due to not easy standardized the protocol and carry out under GMP/GLP. This involved industrial collaboration and sources of the cells and cost.

Biomolecule Delivery for TM Healing

Biomolecules such as GFs have played a key role in the regeneration of TM. GFs has shown specially beneficial when the long closure time of TMPs and risk of failure of closure, in the acceleration of the TMPs healing.^88–90 GFs are naturally occurring biomolecules, and are essential for regulating a variety of cellular processes and pathways. Typically, GFs remarkably increase wound healing and stimulate cellular growth.⁹¹ Recently, GFs, such as epidermal growth factor (EGF), bFGF, hepatocyte growth factor, and vascular endothelial growth factors, have been used experimentally and clinically to promote TM healing and improve the closure rate.^92,93 Therefore, several recent studies have evaluated the effect of these GFs and their effective delivery systems in preclinical and clinical trials.

EGF, a cytokine that exists in many mammalian species, simulates the in vitro and in vivo proliferation of keratinocytes, endothelial, epithelial cells, and fibroblasts. Due to the common EGF receptor (EGFR) has been found in TM of animals and humans, many studies have investigated the potential of EGF for the acceleration of TM regeneration.⁹⁴ Santa Maria et al. reported that in a mouse model with chronic TMP, heparin-binding EGF-like growth factor (HB-EGF) delivered by an injectable hydrogel could restore the vibration characteristics of TM.^95,96 Based on other surveys, EGF also acts remarkably in TM keratinocyte proliferation and migration during the treatment process of TMP.⁸⁴ Many other studies proved that the usage of EGF for treatment of TMP decreases the closure time and increases the healing rate.^93,94,97 A clinical study, in China, represented that the time of closure was shortened by the treatment of EGF in 44 patients with traumatic TMPs. By following up for ∼6 months, complete closure in the EGF-treated group was 96.2%, with 9.1 ± 3.9 of days closure time, which were significantly higher than the control group.⁹⁴

Several clinical and experimental studies have proved that the local application of bFGF, either direct or combined with a patch, can reduce the TM closure time and amend the closure rate without conventional operative procedures.^1,98–100 As an example, a clinical study carried out in China recruited 104 patients with small (<25%) perforations. The bFGF-treated group utilized bFGF drops directly each day for 3 months. The closure rate was 100% and was significantly higher in comparison with the control group, 77%. The average closure time was 12.6 ± 1.2 days for the bFGF-treated group, notably <43.1 ± 2.5 days for the control group.¹⁰¹ Despite the beneficial effect of bFGF on the acceleration of tissue formation and wound healing, there are many disagreements between research studies surrounding the appropriate dose and time of bFGF application.^102,103 Many studies explored the best dose of bFGF for direct application to achieve the greatest treatment effect and manage its side effect.¹⁰³ Lou et al. in a clinical study in China have demonstrated that the combination of EGF, FGF-2, and 0.3% (w/v) ofloxacin drops could expedite the closure of large TMPs.⁹²

Several studies have examined the involvement of other GFs [such as keratinocyte growth factor and transforming growth factor (TGF)-a], their receptors, cytokines (e.g., IL-19, IL-24), and various enzymes (e.g., hyaluronan synthase 2) in TM regeneration.^96,104,105 It is found that the TGF-a TGF-a/HA treatment increased cell–cell adhesion, cell proliferation, and migration that lead to the promotion of TM healing.¹⁰⁶

Platelet-derived growth factor (PDGF) releases from platelet c-granules, endothelial cells, fibroblasts, smooth muscle cells, and macrophages, is one of the several GFs that are involved in wound healing, besides it has an impact on TM closure. A clinical trial was carried out in Switzerland with 25 patients (with chronic perforated TM and chronic suppurative otitis media) by applying PDGF weekly to the TM for 6 weeks. The outcomes of this study were not satisfying; hence, it was reported that the topical application of PDGF for chronic otitis media is not a favorable alternative to surgery.¹⁰⁷ On the contrary, utilizing the platelet-rich plasma (PRP) increases the complete healing rate of TMP and acts as a growth-promoting agent.^108,109 A clinical study in Egypt entailed 50 patients who had the TMPs. Randomly patients underwent myringoplasty with group 1, fat graft enriched with PRP or group 2, cartilage perichondrium graft as “gold standard.” After a 3-month follow-up, the improvement in pure-tone average was 18.08 dB for group 1 and 18.24 dB for group 2, and successful closure rate was 88% (group 1) and 92% (group 2), which shows that fat graft enriched with PRP is a promising choice for treatment of TM, comparable with conventional cartilage perichondrium myringoplasty.¹⁰⁹

KB-R7785[4-(N-hydroxyamino)-2R-isobutyl-3S-methylsuccinyl)-L-phenylglycine-N-methylamide] is a matrix metalloproteinase (MMP) that has been used to inhibit TM regeneration through an inhibitory action on MMP-2, MMP-9, disintegrin, and metalloproteinase domain-containing protein 12 (ADAM12). It has been reported that the TMPs would need to persist for ∼6 months. Therefore, they delivered KB-R7785 within a sustained-release chitosan hydrogel to 20 mice with bilateral acute TMPs and preserved 75% of perforations beyond 6 months.^95,96

The autologous serum eardrops also have illustrated the successful therapy for TMP treatment; to this aim, serum eardrops are introduced within a chitin membrane as a promising noninvasive and office-based procedure for the closure of chronic TMPs. However, they must perform the additional studies to separately analyze the specific benefits of the serum drops and the chitin membrane.¹¹⁰

Conclusion and Future Perspective

TMP present significant morbidity to the patients and challenge both for the clinician in term of management and surgical treatment as well as to multidisciplinary research team to bring their preclinical development to the clinical setting. There have been many surgical grafts and techniques for the treatment of TMPs, which are highlighted in Table 1. These grafts include cartilage perichondrium island with supporting materials associated with complications such as retraction, infection, and reperforation. Tissue engineering as emerging biotechnology over the past 20 years has promised a product for replacement of diseased TM, but unfortunately it has been slow to the clinical applications. This is due to complication in terms of ethics using cells/stem cells, cost and reproductivity of the product. There have been billions of dollars spent on tissue engineering products by grant councils and industries, but no products emerged as replacement or treatment of TM or any other organs. However, recently advances in material science, a large number of materials have emerged into the market, such as nanomaterials and smart materials, these stand-alone or combination with cellular engineering may bring hope to the treatment of TMP. Despite the challenges, a significant progress has been made toward the development of TM using these technologies. The listed cons and pros of tissue engineering techniques for TMP treatment are given in Table 4. The mechanical properties and biocompatibility of the materials for the 3D scaffold are important components of the TM construct. The other important factor is the integration of TM product to the surrounding tissue.

We have been working toward the development of TM using graphene-based nanocomposite copolymer.¹⁴³ Graphene is a two-dimensional honeycomb, mono- or multilayer, with sp2 hybridization. It harbors unique electrical, chemical, optical, and mechanical properties. It is 200 times stronger than steel; at the same time it is elastic and very light.^144,145 Graphene can withstand enormous deformation without permanent damage; this is a crucial factor in the development of TM. We have been using a 3D printer to print a thin membrane from functionalized graphene oxide nanocomposite with different thicknesses to simulate the mechanical and physical properties of the TM. The data on 3D printing are compared with those on electrospinning membranes. The biocompatibility and toxicity of the product are also important for cellular engineering. These types of materials can also be used as a 3D scaffold for tissue engineering products.

The results of recent preclinical studies obtained from the tables suggest that the tissue engineering field holds significant promise. We hope there would be several products toward clinical application within the next 5 years.

Graftl	Supporting material	Type of P.	Country	No of pts	Surgical type/technique	Outcomes	Complications	Year^Ref
CPI & temporalis fascia	Gelfoam^®	S subtotal	India	168	^*Underlay	CPI had higher healing rate compared with fascia. ↓ air-bone gap	Retractions Reperforations	2018¹¹¹
Porcine S intestinal submucosal (PSIS)		Chronic	USA	37	^*Lateral to malleus underlay	↑ healing with PSIS.↓ in air-bone gap	Return of P.	2018¹¹²
A. Double layer graftB. Single layer fasciaC. Single layer cartilage	Gelfoam	Chronic & subtotal	India	144	^*Overlay or underlay and sandwich	Successful graft takes up in all groups.↓ air-bone gap in all groups.	InfectionRejectionLateralization	2018¹¹³
WsCCG & TempF	Manubrium mallei	Chronic	Turkey	90	^*Traditional	↑ treatment by WsCCG & TF in 6 and 12 months	Retraction	2018¹¹⁴
Temporalis fascia & perichondrial	Gelfoam	Chronic	Libya	20	^*Interlay	↑ healing for both groups	FtRInfection	2018³²
Bacterial cellulose (I) & fat graft (II)	Gelfoam	S & M	Egypt	120	^**	↑ healing in S TMP.↑ healing in moderate TMP. Both I > II	FtR	2018²⁹
Dry temporalis fascia & wet temporalis fascia		S, M & L	India	60	^*Underlay	The graft uptake rate with dry group and wet group was 73.33% and 63.33%, respectively.	FtR cases, Graft uptake ↓, edematous	2016¹¹⁵
Bacterial cellulose	Sponge	p. size <50% TM	Turkey	12	^**Overlay grafting	↑ healing (81.3%) and air threshold↓ air-bone gap	RetractionReturn of P.	2016¹¹⁶
HAFGM FGM & temporal fascia	Sponge	S, 1–3 mm L, 3–6 mm	Turkey	136	^*Underlay	No difference between the success rates of the groups according to the location of P.	Recurrent P.	2016¹¹⁷
Porcine S intestinal submucosa (SIS) autologous temporalis fascia (PTF)	Curaspon™	Subtotal ½ of TM surface ¼ of TM	Italy	404	^**Underlay	↑ healing↓ in operation time SIS	FtR Return of P.	2015¹¹⁸
Bovine pericardium or butterfly & inlay tragal cartilage	Fibrin glue	Chronic	Belgium	106	^**Butterfly & Tutopatch	↑ healing↑ air-bone gap was > in the butterfly group.	BluntingMyringitis	2015¹¹⁹
HAFGM & modified FGM (MFGM)	Gelfoam soaked + ofloxacin	S, M & L	Canada	24	^**Conventional	↑ healing & audiometry with HAFGM.	Fatty granulationResidual P.	2015¹²⁰
Boomerang-shaped chondroperichondrial graft (BSCPG)	Gelfoam	Chronic	Turkey	99	^*Boomerang	↓ air-bone gapsSuitable technique to replace other methods	Residual P.Retraction	2014²²
Fat graft		30% of the TM	India	50	^**	↑ healing (92%)↓ air-bone gap	FtR abnormal sounds in ear, hearing loss	2013¹²¹
Fat		Chronic	Turkey	30	^*Classical	↑ healing with the new technique (90%)↓ air-bone gap	Graft failureBulging	2013¹²²
HAFGM	Gelfoam^®	Small, medium & large	Canada	246	Myringoplasty	↑healing with HAFGM (92.7%)↓ operation time (16 min)	FtR Residual P.CholesteatomaBlunting	2011¹²³

Biomaterial	Fabrication technique	No of pts	Country	Outcomes	Year^Ref
Films
Bacterial cellulose film (Bionext^®)		24	Brazil	↓ P, ↑ auditory frequencies, complication(s): HL	2019¹²⁴
Egg shell	From hen	NR	Korea	↓ healing time, ↓ cost, complication(s): OA & No ↑ healing	2017^125,126
Paper patch	From cigarette paper	63 & 43	Turkey & Korea	CR was 78–90% (p < 5%), ↑ hearing functionComplication(s): not for Ps >5%, OA, detachment, & IR	2014¹²⁷,2013⁴⁷
Collagen & PDMS	Oxygen plasma to immobilize the collagen & fibroblasts	10	Iran	CR was 70%, ↑ CPAM, ↓ air boneComplication(s): OA & infections	2012¹²⁸
Gelatin	Growth factor: bFGF	63⁶⁷&12¹²⁹	Japan & Australia	↑ CR, ↑ hearing (↑ bone conduction & ↑ speech discrimination)Complication(s): cholesteatoma, infections, dissolvement, second operation, & HL	2017⁶⁷,2015¹²⁹
Sponges/foams
Gelfoam	Growth factor: FGF-2	138	China	↓ CT, ↑ CR, complication(s): FGF-2 solution (once a day) & removing Gelfoam to avoid re-P	2017⁴³
Silk fibroin		40⁵¹&52⁵⁰	Korea	Transparent, elastic, adhesive, & hyperkeratinizing↓ CT, ↓ mean operative time, ↓ air-bone gap, ↑ hearing function, complication(s): OA	2016⁵¹,2015⁵⁰
	74 &91	China	↓ CT, ↑ CR, ↓ scab formation, complication(s): OA, infections, ↑ granulation, and edematous in p > 5%	2015⁶⁵, 2011⁶⁴
Hyaluronic acid ester (Epifilm)		25	United Kingdom	No IR, complication(s): epifilm displacement & dissolvement	2012⁷¹
Hyaluronic acid & carboxymethylcellulose (Seprafilm^®)		NR	Australia	Keratinizing, epithelium migration, complication(s): sensorineural HL, dissolvement, & randomized results	2012⁷¹

Biomaterial	Fabrication technique	Growth factor	Cell	Model (no.)	Country	Outcomes	Year,^Ref
Films
Chitosan	Casting	IGFBP2 CPAM	TM cells	Sprague-Dawley rats (25)	Korea	Suitable mechanical properties, ↑ CR, ↑ CPAM)↑ TM regeneration, ↑ healing in large Ps (>3 mm)	2019⁵⁴
Chitosan	Casting	Epidermal growth factor (EGF) & fibroblast growth factor (FGF)	Primary TM cells	Adult Sprague-Dawley rats (25)	Korea	EGF: ↓ costCR of chitosan/EGF was 56.5%Regeneration of thin TMNo scar formationComplication(s): OA	2014¹³⁰
Collagen (duck feet)	Casting followed by UV irradiation		NIH3T3 fibroblasts	Sprague-Dawley rats (24)	Korea	Transparent, no detachment, ↑ CPAM, ↑ healingComplication(s): OA	2017⁴¹
Paper patch	From cigarette paper			Rats (36)	Australia	CR was 90.9%, ↑ hearing function, Not for large perforations. Complication(s): OA detachment	2014¹³¹
Silk fibroin	Casting		L929 fibroblasts¹³²	Sprague-Dawley rat (36, 50, & 180)& Guinea pig⁵²	Australia & Korea,⁴⁸,¹³²	TransparentAppropriated mechanical property like human TMSuitable trilaminar morphology (well-organized collagen fibers), ↓ CT, ↑ CR, ↑ hearing restoration, ↑ TM regeneration, Complication(s): OA	2014^{48,40,132,52,131}
Bacterial cellulose	Nanofibrillar		Primary TM cells	Sprague-Dawley rats (NR)	Korea	Transparent↑ guided CPAMAppropriate mechanical properties↑ CR	2013³¹
Poly (glycerol sebacate)	Casting			Chinchilla (43)	USA	NeovascularizationFabrication of the confluent cell layer	2010¹³³
Electrospun membranes
Poly (L-lactic acid) & poly lactic-co-glycolic		Fibroblasts and keratinocytes	Rats (15)	Brazil	↓ mechanical properties, ↓ CT, Fabrication of 3 layers of TM (skin, fibrous tissue, & mucosa), no IR	2017⁶¹
Polycaprolactone, silk fibroin, & umbilical cord serum		Primary human dermal fibroblasts	Guinea pigs (25)	Korea	↑ mechanical properties, ↑ CPAM, ↑ TM regeneration↓ CT, ↑ auditory healing	2014¹³⁴
Sponges/Foams
Collagen (duck feet)	Lyophilization			Sprague-Dawley rats (68)	Korea	↑ CR, ↑ CPAM, & cell nuclear antigen (PCNA), ↑ adhesion at the P margin, complication(s): OA	2017⁴⁹
3D bioprinted scaffolds
Collagen & human umbilical cord serum	Robot dispensing and low-temperature plate systems			Guinea pigs (20)	Korea	Suitable mechanical properties↑ hearing recoveryVibration velocity was similar to the normal TM.Complication(s): Regenerated TM was thicker & OA	2013¹³⁵
Calcium alginate	Injection molding process by fused deposition modeling			Chinchilla (23)	USA	Connective tissue regenerationNo IRComplication(s): Potential of being ototoxic	2006¹³⁶
Gelatin methacrylate & fibronectin	Bioprinting the butterfly-like structure & UV crosslinking	EGF	Murine fibroblast cell line NIH/3T3	Chinchilla lanigera (10)	United States	↑ CPAM,↑ matrix metalloproteinases, ↑ healing, complication(s): regenerated TM was focally thicker	2018⁷⁵
Polycaprolactone/collagen/alginate	Bioprinting		Mesenchymal stem cells (MSCs)	Sprague-Dawley rats (14)	Korea	↑ Healing, ↑ hearing recovery, vibration of regenerated TM was close to the normal TM.Complication(s): regenerated TM was thicker	2017⁴⁵

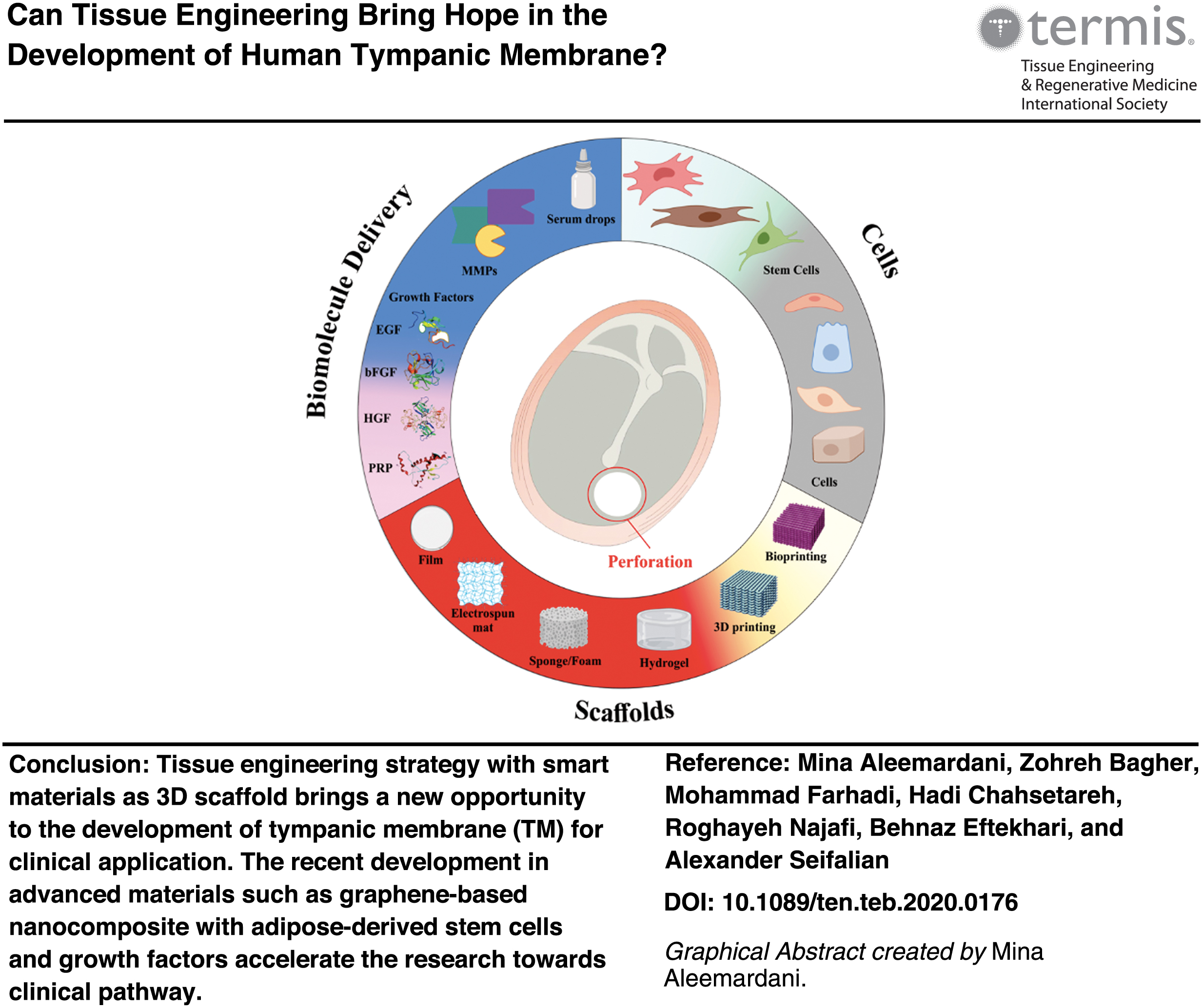

Tissue engineering strategies for TM treatment	Advantages	Disadvantages
Various forms of tissue-engineered scaffolds
Film (Tables 1–4)	Simplest fabricationCost-effectivenessTransparencyAdjustable thickness, resembling TMSuitable mechanical properties, resembling TM	Generally low or nonporosity, essential cells seeding, and integration
Electrospun membranes	Mimicking the ECM structurehigh porosity	Low mechanical propertiesOpacity
Sponges/foams	High porosity	Low mechanical propertiesMoisteningOpacity
Hydrogels	Cell encapsulationLoading bioactive moleculesResemblance of ECMhigh keeping moisture	Remoistening (during the healing time, 28 days)Low mechanical properties
3D/bioprinted scaffolds	Precise complex designbioprinting:Loading cells and bioactive moleculesCreating tissue-like structures	Finding suitable biomaterial for printing
Cell therapy
Cells and stem cells	Better integration of regenerated tissuefaster TMP closureStem cells:generating TM cells and layers
Biomolecule delivery
Growth factors	Decrease in closure time of TMPsdecrement in risk of failure of closureTMPs healing acceleration	Hardship of achieving controllable and sustained delivery
Platelet-derived growth factor (PDGF)
Matrix metalloproteinase (MMP)
Serum eardrops

Footnotes

Disclosure Statement

No competing financial interests exist.

Funding Information

No funding was received for this article.

Supplementary Material

References

Kanemaru

S.-I.

, Umeda

, Kitani

, Nakamura

, Hirano

, and Ito

Regenerative treatment for tympanic membrane perforation. Otol Neurotol, 32, 1218, 2011.

Volandri

, Di Puccio

, Forte

, and Carmignani

Biomechanics of the tympanic membrane. J Biomech, 44, 1219, 2011.

Hong

, Bance

, and Gratzer

P.F.

Repair of tympanic membrane perforation using novel adjuvant therapies: a contemporary review of experimental and tissue engineering studies. Int J Pediatr Otorhinolaryngol, 77, 3, 2013.

Villar-Fernandez

M.A.

, and Lopez-Escamez

J.A.

Outlook for tissue engineering of the tympanic membrane. Audiol Res, 5, 117, 2015.

Timna

C.J.

, and Kumar

A rare cause of acute tympanic membrane perforation: a case report. Int J Otorhinolaryngol Head Neck Surg, 5, 181, 2019.

Lou

, Lou

, Liu

Y.-C.

, and Chang

Healing human moderate and large traumatic tympanic membrane perforations using basic fibroblast growth factor, 0.3% ofloxacin eardrops, and Gelfoam patching. Otol Neurotol, 37, 735, 2016.

Teh

B.M.

, Marano

R.J.

, Shen

, Friedland

P.L.

, Dilley

R.J.

, and Atlas

M.D.

Tissue engineering of the tympanic membrane. Tissue Eng B Rev, 19, 116, 2013.

Szymanski

, and Geiger

Anatomy, Head and Neck, Ear Tympanic Membrane. StatPearls Publishing, 2019.

Cheng

J.T.

, Aarnisalo

A.A.

, Harrington

, et al. Motion of the surface of the human tympanic membrane measured with stroboscopic holography. Hear Res, 263, 66, 2010.

10.

Zhang

, and Gan

R.Z.

A comprehensive model of human ear for analysis of implantable hearing devices. IEEE Trans Biomed Eng, 58, 3024, 2011.

11.

, Chen

, Al-Furjan

M.S.H.

, Ni

, and Yang

Free vibration model and theoretical solution of the tympanic membrane. Comput Assist Surg, 21, 61, 2016.

12.

Kurabi

, Beasley

K.A.

, Chang

, McCann

, Pak

, and Ryan

A.F.

Peptides actively transported across the tympanic membrane: functional and structural properties. PLoS One, 12, e0172158, 2017.

13.

Luo

, Jiang

, Nakmali

D.U.

, Gan

R.Z.

, and Lu

Mechanical properties of a human eardrum at high strain rates after exposure to blast waves. J Dynam Behav Mater, 2, 59, 2016.

14.

Zhou

, and Lu

On the measurements of viscoelastic functions of a sphere by nanoindentation. Mech Time-Dependent Mater, 14, 1, 2010.

15.

Caminos

, Garcia-Manrique

, Lima-Rodriguez

, and Gonzalez-Herrera

Analysis of the mechanical properties of the human tympanic membrane and its influence on the dynamic behaviour of the human hearing system. Appl Bionics Biomech, 2018, 2018.

16.

Van der Jeught

, Dirckx

J.J.J.

, Aerts

J.R.M.

, Bradu

, Podoleanu

A.G.

, and Buytaert

J.A.N.

Full-field thickness distribution of human tympanic membrane obtained with optical coherence tomography. J Assoc Res Otolaryngol, 14, 483, 2013.

17.

Cai

, Stomackin

, Perez

N.M.

, Lin

, Jung

T.T.

, and Dong

Recovery from tympanic membrane perforation: effects on membrane thickness, auditory thresholds, and middle ear transmission. Hear Res, 384, 107813, 2019.

18.

Ahn

T.-S.

, Baek

M.-J.

, and Lee

Experimental measurement of tympanic membrane response for finite element model validation of a human middle ear. SpringerPlus, 2, 527, 2013.

19.

Kim

C.-H.

, and Shin

J.E.

Hemorrhage within the tympanic membrane without perforation. J Otolaryngol Head Neck Surg, 47, 1, 2018.

20.

Herkal

, Ramasamy

, Saxena

S.K.

, Ganesan

, and Alexander

Hearing loss in tympanic membrane perforations: an analytic study. Int J Otorhinolaryngol Head Neck Surg, 4, 1233, 2018.

21.

Sogebi

O.A.

, Oyewole

E.A.

, and Mabifah

T.O.

Traumatic tympanic membrane perforations: characteristics and factors affecting outcome. Ghana Med J, 52, 34, 2018.

22.

Dündar

, Soy

F.K.

, Kulduk

, Muluk

N.B.

, and Cingi

A new grafting technique for tympanoplasty: tympanoplasty with a boomerang-shaped chondroperichondrial graft (TwBSCPG). Eur Arch Oto Rhino Laryngol, 271, 2687, 2014.

23.

Ayache

Cartilaginous myringoplasty: the endoscopic transcanal procedure. Eur Arch Oto Rhino Laryngol, 270, 853, 2013.

24.

Mohamad

S.H.

, Khan

, and Hussain

S.S.M.

Is cartilage tympanoplasty more effective than fascia tympanoplasty? A systematic review. Otol Neurotol, 33, 699, 2012.

25.

Hardman

, Muzaffar

, Nankivell

, and Coulson

Tympanoplasty for chronic tympanic membrane perforation in children: systematic review and meta-analysis. Otol Neurotol, 36, 796, 2015.

26.

Ribeiro

J.C.

, Rui

, Natercia

, Jose

, and Antonio

Tympanoplasty in children: a review of 91 cases. Auris Nasus Larynx, 38, 21, 2011.

27.

Patil

B.C.

, Misale

P.R.

, Mane

R.S.

, and Mohite

A.A.

Outcome of interlay grafting in type 1 tympanoplasty for large central perforation. Indian J Otolaryngol Head Neck Surg, 66, 418, 2014.

28.

Mundra

R.K.

, Sinha

, and Agrawal

Tympanoplasty in subtotal perforation with graft supported by a slice of cartilage: a study with near 100% results. Indian J Otolaryngol Head Neck Surg, 65, 631, 2013.

29.

Mandour

Y.M.H.

, Mohammed

, and Menem

M.A.

Bacterial cellulose graft versus fat graft in closure of tympanic membrane perforation. Am J Otolaryngol, 40, 168, 2018.

30.

Shehata

, and Mohamed

Chitosan patch scaffold for repair of chronic safe tympanic membrane perforation. Egypt J Otolaryngol, 30, 311, 2014.

31.

Kim

, Kim

S.W.

, Park

, et al. Bacterial cellulose nanofibrillar patch as a wound healing platform of tympanic membrane perforation. Adv Healthcare Mater, 2, 1525, 2013.

32.

El-Feky

A.E.-D

.M., Abdelmaksod

M.K.

, Mohamed

S.A.-M.

, Aldaem

R.A.

, and Yousuf

Interlay technique tympanoplasty: surgical difficulties with variable grafts. Zagazig Univ Med J, 25, 539, 2019.

33.

Kanemaru

, Kanai

, Yoshida

, Kitada

, Omae

, and Hirano

Application of regenerative treatment for tympanic membrane perforation with cholesteatoma, tumor, or severe calcification. Otol Neurotol, 39, 438, 2018.

34.

Indorewala

, Adedeji

T.O.

, Indorewala

, and Nemade

Tympanoplasty outcomes: a review of 789 cases. Iranian J Otorhinolaryngol, 27, 101, 2015.

35.

Rubinstein

B.J.

, Ranney

J.D.

, Khoshakhlagh

, Strasnick

, and Horn-Ranney

E.L.

A novel gel patch for minimally invasive repair of tympanic membrane perforations. Int J Pediatr Otorhinolaryngol, 115, 27, 2018.

36.

Akter

F. W

, hat is Tissue

Engineering

. Tissue Engineering Made

Easy

. UK: Academic

Press

. 2016.

37.

Harrison

R.H.

, St-Pierre

J.-P.

, and Stevens

M.M.

Tissue engineering and regenerative medicine: a year in review. Tissue Eng B Rev, 20, 1, 2014.

38.

, Hoshiba

, Kawazoe

, Koda

, Song

, and Chen

Cultured cell-derived extracellular matrix scaffolds for tissue engineering. Biomaterials, 32, 9658, 2011.

39.

, Liao

, Zhang

, and Liu

Tissue induction, the relationship between biomaterial's microenvironment and mesenchymal stem cell differentiation. J Biomed Sci Eng, 6, 85, 2013.

40.

Shen

, Redmond

S.L.

, Teh

B.M.

, et al. Scaffolds for tympanic membrane regeneration in rats. Tissue Eng A, 19, 657, 2012.

41.

Kim

S.H.

, Lee

H.J.

, Yoo

J.-C.

, et al. Novel transparent collagen film patch derived from duck's feet for tympanic membrane perforation. J Biomater Sci Polym Ed, 29, 997, 2018.

42.

Huang

, Li

, Chen

, Zhou

, and He

Preparation of CS/PVA nanofibrous membrane with tunable mechanical properties for tympanic member repair. Macromol Res, 26, 892, 2018.

43.

Jin

, Dong

Y.-H.

, and Lou

Z.-H.

The effects of fibroblast growth factor-2 delivered via a Gelfoam patch on the regeneration of myringosclerotic traumatic eardrum perforations lying close to the malleus. Am J Otolaryngol, 38, 582, 2017.

44.

Hakuba

, Tabata

, Hato

, Fujiwara

, and Gyo

Gelatin hydrogel with basic fibroblast growth factor for tympanic membrane regeneration. Otol Neurotol, 35, 540, 2014.

45.

Jang

C.H.

, Ahn

, Lee

J.W.

, Lee

B.H.

, Lee

, and Kim

Mesenchymal stem cell-laden hybrid scaffold for regenerating subacute tympanic membrane perforation. Mater Sci Eng C, 72, 456, 2017.

46.

Danti

, Mota

, D'alessandro

, et al. Tissue engineering of the tympanic membrane using electrospun PEOT/PBT copolymer scaffolds: a morphological in vitro study. Hear Balance Commun, 13, 133, 2015.

47.

Park

S.-N.

, Kim

H.-M.

, Jin

K.-S.

, Maeng

J.-H.

, Yeo

S.-W.

, and Park

S.-Y.

Predictors for outcome of paper patch myringoplasty in patients with chronic tympanic membrane perforations. Eur Arch Oto Rhino Laryngol, 272, 297, 2015.

48.

Kim

, Kim

C.H.

, Park

C.H.

, et al. Comparison of methods for the repair of acute tympanic membrane perforations: silk patch vs. paper patch. Wound Repair Regen, 18, 132, 2010.

49.

Kim

S.H.

, Jeong

J.Y.

, Park

H.J.

, et al. Application of a collagen patch derived from duck feet in acute tympanic membrane perforation. Tissue Eng Regen Med, 14, 233, 2017.

50.

Lee

J.H.

, Lee

J.S.

, Kim

D.-K.

, Park

C.H.

, and Lee

H.R.

Clinical outcomes of silk patch in acute tympanic membrane perforation. Clinical and experimental otorhinolaryngology. Korean Soc Otorhinolaryngol Head Neck Surg, 8, 117, 2015.

51.

Lee

J.H.

, Kim

, Park

H.S.

, et al. A prospective cohort study of the silk fibroin patch in chronic tympanic membrane perforation. Laryngoscope, 126, 2798, 2016.

52.

Shen

, Redmond

S.L.

, Teh

B.M.

, et al. Tympanic membrane repair using silk fibroin and acellular collagen scaffolds. Laryngoscope, 123, 1976, 2013.

53.

Kim

J.H.

, Bae

, Lim

K.T.

, et al. Development of water-insoluble chitosan patch scaffold to repair traumatic tympanic membrane perforations. J Biomed Mater Res A, 90, 446, 2009.

54.

Seonwoo

, Kim

S.W.

, Shin

, et al. Latent stem cell-stimulating therapy for regeneration of chronic tympanic membrane perforations using IGFBP2-releasing chitosan patch scaffolds. J Biomater Appl, 34, 198, 2019.

55.

Geão

, Costa-Pinto

A.R.

, Cunha-Reis

, et al. Thermal annealed silk fibroin membranes for periodontal guided tissue regeneration. J Mater Sci Mater Med, 30, 27, 2019.

56.

Farokhi

, Mottaghitalab

, Reis

R.L.

, Ramakrishna

, and Kundu

S.C.

Functionalized silk fibroin nanofiber as drug carriers: advantages and challenges. J Controll Release, 321, 324, 2020.

57.

Yang

, Li

, He

, Ma

, Ni

, and Zhou

From nano to micro to macro: electrospun hierarchically structured polymeric fibers for biomedical applications. Prog Polym Sci, 81, 80, 2018.

58.

Gouma, P.-I., and Han, D. Electrospun bioscaffolds that mimic the topology of extracellular matrix. In: Balogh

L.P.

, ed. Nanomedicine in Cancer. New York, USA: Pan Stanford, 2017, pp. 185–96.

59.

Braghirolli

D.I.

, Steffens

, and Pranke

Electrospinning for regenerative medicine: a review of the main topics. Drug Discov Today, 19, 743, 2014.

60.

Saino

, Focarete

M.L.

, Gualandi

, et al. Effect of electrospun fiber diameter and alignment on macrophage activation and secretion of proinflammatory cytokines and chemokines. Biomacromolecules, 12, 1900, 2011.

61.

Immich

A.P.S.

, Pennacchi

P.C.

, Naves

A.F.

, et al. Improved tympanic membrane regeneration after myringoplastic surgery using an artificial biograft. Mater Sci Eng C, 73, 48, 2017.

62.

, Zhang

, Huang

, et al. Preparation of gelatin/genipin nanofibrous membrane for tympanic member repair. J Biomater Sci Polym Ed, 29, 2154, 2018.

63.

Kim

, Kim

S.W.

, Choi

S.J.

, Lim

K.T.

, et al. A healing method of tympanic membrane perforations using three-dimensional porous chitosan scaffolds. Tissue Eng A, 17, 2763, 2011.

64.

Lou

, and He

A randomised controlled trial comparing spontaneous healing, gelfoam patching and edge-approximation plus gelfoam patching in traumatic tympanic membrane perforation with inverted or everted edges. Clin Otolaryngol, 36, 221, 2011.

65.

Lou

Z.C.

, Tang

Y.M.

, Chen

H.Y.

, and Xiao

The perforation margin phenotypes and clinical outcome of traumatic tympanic membrane perforation with a Gelfoam patch: our experience from a retrospective study of seventy-four patients. Clin Otolaryngol, 40, 389, 2015.

66.

Lou

, Xu

, Yang

, and Wu

Outcome of children with edge-everted traumatic tympanic membrane perforations following spontaneous healing versus fibroblast growth factor-containing gelfoam patching with or without edge repair. Int J Pediatr Otorhinolaryngol, 75, 1285, 2011.

67.

Omae

, Kanemaru

, Nakatani

, et al. Regenerative treatment for tympanic membrane perforation using gelatin sponge with basic fibroblast growth factor. Auris Nasus Larynx, 44, 664, 2017.

68.

Xue

, Wang

, Yong

P.W.

, et al. Hydrogels as emerging materials for translational biomedicine. Adv Ther, 2, 1800088, 2019.

69.

Farokhi

, Jonidi Shariatzadeh

, Solouk

, and Mirzadeh

Alginate based scaffolds for cartilage tissue engineering: a review. Int J Polym Mater Polym Biomater, 69, 230, 2020.

70.

Hoffman

A.S.

Hydrogels for biomedical applications. Adv Drug Deliv Rev, 64, 18, 2012.

71.

Teh

B.M.

, Shen

, Friedland

P.L.

, Atlas

M.D.

, and Marano

R.J.

A review on the use of hyaluronic acid in tympanic membrane wound healing. Expert Opin Biol Ther, 12, 23, 2012.

72.

Murphy

V, and Atala, A. 3D bioprinting of tissues and organs. Nat Biotechnol, 32, 773, 2014.

73.

Radenkovic

, Solouk

, and Seifalian

Personalized development of human organs using 3D printing technology. Med Hypotheses, 87, 30, 2016.

74.

Kong

, Yang

, Yu

, et al. Surgical treatment of intra-articular distal radius fractures with the assistance of three-dimensional printing technique. Medicine, 99, e19259, 2020.

75.

Kuo

C.-Y.

, Wilson

, Fuson

, et al. Repair of tympanic membrane perforations with customized bioprinted ear grafts using chinchilla models. Tissue Eng A, 24, 527, 2018.

76.

Kuo

C.-Y.

, Eranki

, Placone

J.K.

, et al. Development of a 3D printed, bioengineered placenta model to evaluate the role of trophoblast migration in preeclampsia. ACS Biomater Sci Eng, 2, 1817, 2016.

77.

Bružauskaitė

, Bironaitė

, Bagdonas

, and Bernotienė

Scaffolds and cells for tissue regeneration: different scaffold pore sizes—different cell effects. Cytotechnology, 68, 355, 2016.

78.

Upadhyay

R.K.

Role of biological scaffolds, hydro gels and stem cells in tissue regeneration therapy. Adv Tissue Eng Regen Med Open Access, 2, 20, 2017.

79.

Seetharaman

, Mahmood

, Kshatriya

, Patel

, and Srivastava

An overview on stem cells in tissue regeneration. Curr Pharm Design, 25, 2086, 2019.

80.

Duscher

, Barrera

, Wong

V.W.

, et al. Stem cells in wound healing: the future of regenerative medicine? A mini-review. Gerontology, 62, 216, 2016.

81.

El Baba

, Barake

, Moukarbel

, Jurjus

, Sertel

, and Jurjus

Stem cells in the management of tympanic membrane perforation: an update. In: Pham

, ed. Neurological Regeneration. Stem Cells in Clinical Applications. Cham: Springer, 2017, p. 181.

82.

Kim

S.W.

, Kim

, Seonwoo

, et al. Latent progenitor cells as potential regulators for tympanic membrane regeneration. Sci Rep, 5, 11542, 2015.

83.

von Unge

, Dirckx

J.J.J.

, and Olivius

N.P.

Embryonic stem cells enhance the healing of tympanic membrane perforations. Int J Pediatr Otorhinolaryngol, 67, 215, 2003.

84.

Maharajan

, Cho

G.W.

, and Jang

C.H.

Application of mesenchymal stem cell for tympanic membrane regeneration by tissue engineering approach. Int J Pediatr Otorhinolaryngol, 133, 109969, 2020.

85.

Goncalves

, Bas

, Goldstein

B.J.

, and Angeli

Effects of cell-based therapy for treating tympanic membrane perforations in mice. Otolaryngol Head Neck Surg, 154, 1106, 2016.

86.

Goncalves

, Bas

, Langston

, Grobman

, Goldstein

B.J.

, and Angeli

Histologic changes of mesenchymal stem cell repair of tympanic membrane perforation. Acta Oto-Laryngol, 137, 411, 2017.

87.

Liew

L.J.

, Chen

L.Q.

, Wang

A.Y.

, Von Unge

, Atlas

M.D.

, and Dilley

R.J.

Tympanic membrane derived stem cell-like cultures for tissue regeneration. Stem Cells Dev, 27, 649, 2018.

88.

Kurabi

, Schaerer

, Noack

, et al. Active transport of peptides across the intact human tympanic membrane. Sci Rep, 8, 1, 2018.

89.

, Nandgude

, and Poddar

Vesicles as a tool for enhanced topical drug delivery. Asian J Pharm, 10, S196, 2016.

90.

Lou

, Tang

, and Yang

A prospective study evaluating spontaneous healing of aetiology, size and type-different groups of traumatic tympanic membrane perforation. Clin Otolaryngol, 36, 450, 2011.

91.

Lou

Z.C.

, Lou

Z.H.

, and Xiao

Regeneration of the tympanic membrane using fibroblast growth factor-2. J Laryngol Otol, 132, 470, 2018.

92.

Lou

Z.C.

, Yang

, Tang

, and Fu

Y.H.

Topical application of epidermal growth factor with no scaffold material on the healing of human traumatic tympanic membrane perforations. Clin Otolaryngol, 41, 744, 2016.

93.

Zhengcai-Lou

, Zihan-Lou

, and Yongmei-Tang

Comparative study on the effects of EGF and bFGF on the healing of human large traumatic perforations of the tympanic membrane. Laryngoscope, 126, E23, 2016.

94.

Lou

Z.-C.

, Dong

, and Lou

Z.-H.

Comparative study of epidermal growth factor and observation only on human subacute tympanic membrane perforation. Am J Otolaryngol, 40, 209, 2019.

95.

Santa Maria

P.L.

, Kim

, Varsak

Y.K.

, and Yang

Y.P.

Heparin binding–epidermal growth factor-like growth factor for the regeneration of chronic tympanic membrane perforations in mice. Tissue Eng A, 21, 1483, 2015.

96.

Santa Maria

P.L.

, Santa Maria

, Kim

, and Yang

Y.P.

Single administration of a sustained-release formulation of KB-R7785 inhibits tympanic membrane regeneration in an animal model. J Int Adv Otol, 12, 237, 2016.

97.

Lou

, and Lou

A comparative study to evaluate the efficacy of EGF, FGF-2, and 0.3%(w/v) ofloxacin drops on eardrum regeneration. Medicine, 96, e7654, 2017.

98.

Lou

, Tang

, and Wu

Analysis of the effectiveness of basic fibroblast growth factor treatment on traumatic perforation of the tympanic membrane at different time points. Am J Otolaryngol, 33, 244, 2012.

99.

Lou

, Lou

, Tang

, and Xiao

Utility of basic fibroblast growth factor in the repair of blast-induced total or near-total tympanic membrane perforations: a pilot study. Am J Otolaryngol, 36, 794, 2015.

100.

Lou

, Huang

, Yang

, Xiao

, and Chang

Direct application of bFGF without edge trimming on human subacute tympanic membrane perforation. Am J Otolaryngol, 37, 156, 2016.

101.

Zhang

, and Lou

Impact of basic fibroblast growth factor on healing of tympanic membrane perforations due to direct penetrating trauma: a prospective non-blinded/controlled study. Clin Otolaryngol, 37, 446, 2012.

102.

Lou

, Wang

, and Yu

Effects of basic fibroblast growth factor dose on traumatic tympanic membrane perforation. Growth Factors, 32, 150, 2014.

103.

Lou

, and Wang

Evaluation of the optimum time for direct application of fibroblast growth factor to human traumatic tympanic membrane perforations. Growth Factors, 33, 65, 2015.

104.

Yamamoto-Fukuda

, Akiyama

, and Kojima

Keratinocyte growth factor (KGF) induces stem/progenitor cell growth in middle ear mucosa. Int J Pediatr Otorhinolaryngol, 128, 109699, 2020.

105.

Atlas

, Dilley

, Allardyce

, and Rajkhowa

Improved silk fibroin glycerol membranes. Google Patents.

106.

Teh

B.M.

, Redmond

S.L.

, Shen

, Atlas

M.D.

, Marano

R.J.

, and Dilley

R.J.

TGF-α/HA complex promotes tympanic membrane keratinocyte migration and proliferation via ErbB1 receptor. Exp Cell Res, 319, 790, 2013.

107.

Röösli

, von Büren

, Gassmann

N.B.

, and Huber

A.M.

The impact of platelet-derived growth factor on closure of chronic tympanic membrane perforations: a randomized, double-blind, placebo-controlled study. Otol Neurotol, 32, 1224, 2011.

108.

Saeedi

, Ajalloueian

, Zare

, et al. The Effect of PRP-enriched gelfoam on chronictympanic membrane perforation: a double-blind randomized clinical trial. Int Tinnitus J, 21, 108, 2017.

109.

Mandour

M.F.

, Elsheikh

M.N.

, and Khalil

M.F.

Platelet-rich plasma fat graft versus cartilage perichondrium for repair of medium-size tympanic membrane perforations. Otolaryngol Head Neck Surg, 160, 116, 2019.

110.

Kakehata

, Hirose

, Kitani

, et al. Autologous serum eardrops therapy with a chitin membrane for closing tympanic membrane perforations. Otol Neurotol, 29, 791, 2008.

111.

Mohanty

, Manimaran

, Umamaheswaran

, Jeyabalakrishnan

, and Chelladurai

Endoscopic cartilage versus temporalis fascia grafting for anterior quadrant tympanic perforations—A prospective study in a tertiary care hospital. Auris Nasus Larynx, 45, 936, 2018.

112.

Yawn

R.J.

, Dedmon

M.M.

, O'Connell

B.P.

, Virgin

F.W.

, and Rivas

Tympanic membrane perforation repair using porcine small intestinal submucosal grafting. Otol Neurotol, 39, e332, 2018.

113.

Nemade

S.V.

, Shinde

K.J.

, and Sampate

P.B.

Comparison between clinical and audiological results of tympanoplasty with double layer graft (modified sandwich fascia) technique and single layer graft (underlay fascia and underlay cartilage) technique. Auris Nasus Larynx, 45, 440, 2018.

114.

Ciğer

, Balcı

M.K.

, İşlek

, and Önal

The wheel-shaped composite cartilage graft (WsCCG) and temporalis fascia for type 1 tympanoplasty: a prospective, randomized study. Eur Arch Oto Rhino Laryngol, 275, 2975, 2018.

115.

Islah

S.A.M.

, and Palliyalippadi

T.B.T.

Evaluation of graft uptake in type 1 tympanoplasty with dry and wet temporalis fascia graft. J Evol Med Dent Sci, 5, 7684, 2016.

116.

Biskin

, Damar

, Oktem

S.N.

, Sakalli

, Erdem

, and Pakir

A new graft material for myringoplasty: bacterial cellulose. Eur Arch Oto Rhino Laryngol, 273, 3561, 2016.

117.

Gün

, Boztepe

O.F.

, Atan

, İkincioğulları

, and Dere

Comparison of hyaluronic acid fat graft myringoplasty, fat graft myringoplasty and temporal fascia techniques for the closure of different sizes and sites of tympanic membrane perforations. J Int Adv Otol, 12, 137, 2016.

118.

D'Eredità

Porcine small intestinal submucosa (SIS) myringoplasty in children: a randomized controlled study. Int J Pediatr Otorhinolaryngol, 79, 1085, 2015.

119.

De Dorlodot

, De Bie

, Deggouj

, Decat

, and Gérard

J.-M.

Are bovine pericardium underlay xenograft and butterfly inlay autograft efficient for transcanal tympanoplasty? Eur Arch Oto Rhino Laryngol, 272, 327, 2015.

120.

Alzahrani

, and Saliba

Hyaluronic acid fat graft myringoplasty vs fat patch fat graft myringoplasty. Eur Arch Oto Rhino Laryngol, 272, 1873, 2015.

121.

Mukherjee

, and Paul

Minimyringoplasty: repair of small central perforation of tympanic membrane by fat graft: a prospective study. Indian J Otolaryngol Head Neck Surg, 65, 302, 2013.

122.

Koc

, Akyuz

, Gurbuzler

, and Aksakal

Fat graft myringoplasty with the newly developed surgical technique for chronic tympanic membrane perforation. Eur Arch Oto Rhino Laryngol, 270, 1629, 2013.

123.

Saliba

, and Woods

Hyaluronic acid fat graft myringoplasty: a minimally invasive technique. Laryngoscope, 121, 375, 2011.

124.

Pinho

A.M.

de M.R., Kencis, C.C.S., Miranda, D.R.P., and de Sousa Neto, O.M. Traumatic perforations of the tympanic membrane: immediate clinical recovery with the use of bacterial cellulose film. Braz J Otorhinolaryngol, S1808-8694, 30595, 2019.

125.

Jung

J.Y.

, Yun

H.-C.

, Kim

T.-M.

, et al. Analysis of effect of eggshell membrane patching for moderate-to-large traumatic tympanic membrane perforation. J Audiol Otol, 21, 39, 2017.

126.

Jun

H.J.

, Oh

K.-H.

, Yoo

, et al. A new patch material for tympanic membrane perforation by trauma: the membrane of a hen egg shell. Acta Oto Laryngol, 134, 250, 2014.

127.

Simsek

, and Akin

Early paper patching versus observation in patients with traumatic eardrum perforations: comparisons of anatomical and functional outcomes. J Craniofac Surg, 25, 2030, 2014.

128.

Farhadi

, Mirzadeh

, Solouk

, et al. Collagen-immobilized patch for repairing small tympanic membrane perforations: in vitro and in vivo assays. J Biomed Mater Res A, 100, 549, 2012.

129.

Acharya

A.N.

, Coates

, Tavora-Vieira

, and Rajan

G.P.

A pilot study investigating basic fibroblast growth factor for the repair of chronic tympanic membrane perforations in pediatric patients. Int J Pediatr Otorhinolaryngol, 79, 332, 2015.

130.

Seonwoo

, Kim

S.W.

, Kim

, et al. Regeneration of chronic tympanic membrane perforation using an EGF-releasing chitosan patch. Tissue Eng A, 19, 2097, 2013.

131.

Shen

, Redmond

S.L.

, Papadimitriou

J.M.

, et al. The biocompatibility of silk fibroin and acellular collagen scaffolds for tissue engineering in the ear. Biomed Mater, 9, 15015, 2014.

132.

Lee

O.J.

, Lee

J.M.

, Kim

J.H.

, et al. Biodegradation behavior of silk fibroin membranes in repairing tympanic membrane perforations. J Biomed Mater Res A, 100, 2018, 2012.

133.

Wieland

A.M.

, Sundback

C.A.

, Hart

, Kulig

, Masiakos

P.T.

, and Hartnick

C.J.

Poly (glycerol sebacate)-engineered plugs to repair chronic tympanic membrane perforations in a chinchilla model. Otolaryngol Head Neck Surg, 143, 127, 2010.

134.

Lee

, Jang

C.H.

, and Kim

G.H.

A polycaprolactone/silk-fibroin nanofibrous composite combined with human umbilical cord serum for subacute tympanic membrane perforation; an in vitro and in vivo study. J Mater Chem B, 2, 2703, 2014.

135.

Jang

C.H.

, Cho

Y.B.

, Yeo

, et al. Regeneration of chronic tympanic membrane perforation using 3D collagen with topical umbilical cord serum. Int J Biol Macromol, 62, 232, 2013.

136.

Weber

D.E.

, Semaan

M.T.

, Wasman

J.K.

, Beane

, Bonassar

L.J.

, and Megerian

C.A.

Tissue-engineered calcium alginate patches in the repair of chronic chinchilla tympanic membrane perforations. Laryngoscope, 116, 700, 2006.

137.

Allardyce

B.J.

, Rajkhowa

, Dilley

R.J.

, Redmond

S.L.

, Atlas

M.D.

, and Wang

Glycerol-plasticised silk membranes made using formic acid are ductile, transparent and degradation-resistant. Mater Sci Eng C, 80, 165, 2017.

138.

Levin

, Redmond

S.L.

, Rajkhowa

, Eikelboom

R.H.

, Atlas

M.D.

, and Marano

R.J.

Utilising silk fibroin membranes as scaffolds for the growth of tympanic membrane keratinocytes, and application to myringoplasty surgery. J Laryngol Otol, 127, S13, 2013.

139.

Lee

M.C.

, Seonwoo

, Garg

, et al. Chitosan/PEI patch releasing EGF and the EGFR gene for the regeneration of the tympanic membrane after perforation. Biomater Sci, 6, 364, 2018.

140.

Altuntaş

E.E.

, and Sümer

Biocompatibility evaluation of cigarette and carbon papers used in repair of traumatic tympanic membrane perforations: experimental study. Eur Arch Oto Rhino Laryngol, 270, 81, 2013.

141.

Kozin

E.D.

, Black

N.L.

, Cheng

J.T.

, et al. Design, fabrication, and in vitro testing of novel three-dimensionally printed tympanic membrane grafts. Hear Res, 340, 191, 2016.

142.

Hott

M.E.

, Megerian

C.A.

, Beane

, and Bonassar

L.J.

Fabrication of tissue engineered tympanic membrane patches using computer-aided design and injection molding. Laryngoscope, 114, 1290, 2004.

143.

Seifalian

A.M.

, Hancock

Composite material and its method of production. Patent GB (GB1811090, 2017), WO, EP and US (2020).

144.

Nezakati

. Development of a graphene-POSS-nanocomposite conductive material for biomedical application [PhD thesis]. London University

College

, London. 2016. Supervisor Professor Alexander Seifalian

145.

Nezakati,T., Seifalian

, Tan

, and Seifalian

A.M.

Conductive Polymers: opportunities and Challenges in Biomedical Applications. Chem Rev, 118, 6766, 2018.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.02 MB

0.00 MB
