Characteristics of Large Animal Models for Current Cell-Based Oral Tissue Regeneration

Abstract

The recent advances in the field of cell-based therapeutics open promising perspectives for oral tissue regeneration. The development of large animal models, which overcome the limits of the rodent models and allow to emulate clinical situations, is crucial for the validation of regenerative strategies to move toward clinical application. Currently, porcine, canine, and ovine models are mainly developed for oral regeneration and their specific characteristics have an impact on the outcomes of the studies. Thus, this systematic review investigates the application of porcine, canine, and ovine models in present cell-based oral regeneration, according to the species characteristics and the targeted tissue to regenerate. A customized search of PubMed, EMBASE, Scopus, and Web of Science databases from January 2015 to March 2020 was conducted. Relevant articles about cell-based oral tissues engineering in porcine, canine, and ovine models were evaluated. Among the evaluated articles, 58 relevant studies about cell-based oral regeneration in porcine, canine, and ovine models matched the eligibility criteria and were selected for full analysis. Porcine models, the most similar species with humans, were mostly used for bone and periodontium regeneration; tooth regeneration was reported only in pig, except for one study in dog. Canine models were the most transversal models, successfully involved for all oral tissue regeneration and notably in implantology. However, differences with humans and ethical concerns affect the use of these models. Ovine models, alternative to porcine and canine ones, were mainly used for bone and, scarcely, periodontium regeneration. The anatomy and physiology of these animals restrain their involvement. If consistency was found in defect specificities and cell trends among different species animal models of bone, dentin-pulp complex, or tooth regeneration, variability appeared in periodontium. Regeneration assessment methods were more elaborate in porcines and canines than in ovines. Risk of bias was low for selection, attrition and reporting, but unclear for performance and detection. Overall, if none of the large animal models can be considered an ideal one, they are of deemed importance for oral cell-based tissue engineering and researchers should consider their relevance to establish favorable conditions for a given preclinical cell-based therapeutics.

Impact statement

This systematic review investigates porcine, canine, and ovine models for current oral cell-based regeneration procedures, and researchers could refer to it for the choice of the most pertinent preclinical model for a given cell-based therapeutics.

Introduction

Injuries and pathologies affecting the oral region, as well as lesions resulting from invasive and destructing therapeutic approaches can determine extensive loss of tissues and function. Moreover, due to the heterogeneity of the tissues of this area, their reconstruction is particularly complex.¹

In recent years, thanks to the exponential growth of tissue engineering, new perspectives have been opened in cell-based oral regeneration.² In fact, the use of new sources of stem cells,^2,3 the development of high-performance biomaterials, and promising biotechnologies, such as tridimensional (3D) bioprinting,^3,4 allowed a considerable progress toward human application of cell-based oral tissue regeneration procedures. Before clinical trials, validation in animal models is required.

It has been established that rodents' substantial anatomic and physiologic dissimilarities with humans affect extrapolation of results from murine studies to patients. Thus, the development of large animal models, overcoming the limits of the rodent ones and allowing the reproduction of near-to-real clinical situations, plays a crucial role in the translation of cell-based regenerative procedures from bench to bedside.^5,6

The identification of the most relevant animal model is a crucial step of the study conception. However, this selection is far from being a simple process, since multiple factors are at stake. Literature on oral regeneration reports large animal models that significantly contributed to the current knowledge on the field. In particular, nonhuman primates, porcines, and canines have been involved, over decades, to investigate surgical procedures, pathogenesis of periodontal and endodontic diseases, guided-tissue regeneration, and implantology.^7–9

The identification and characterization of dental stem cells, in 2000, allowed a significant development of cell-based approaches of oral tissue regeneration.^10–12 Therefore, the above-mentioned animal species have been used to validate key models of bone,^3,9,13 periodontium,^14,15 dentin-pulp complex,^16–18 and tooth organ regeneration,¹⁹ which opened the way to current research and still represent the benchmarks in the field.

More recently, animal research faced considerable changes. Indeed, the introduction of the Animal Research: Reporting of In Vivo Experiments (ARRIVE) guidelines supported transparency and systematization in reporting on animal studies, addressing the problem of poor reproducibility of scientific findings.²⁰ Moreover, an emerging debate on the protection of animals used for scientific purposes led to substantial revisions of the existing regulation, notably introducing the 3Rs principle (Replacement, Reduction, and Refinement) and restricting the use of specific species, with an actual full application by different countries only in the last few years.

This results in the exclusion of nonhuman primates' models for cell-based oral tissue regeneration, leaving the choice of porcines, canines, and ovines.^21–23

Porcines are widely used due to their similitudes with humans in terms of anatomy (Table 1 and Fig. 1), physiology, and pathology, as well as for ethical reasons. Nevertheless, their temperament can be difficult to manage.⁵

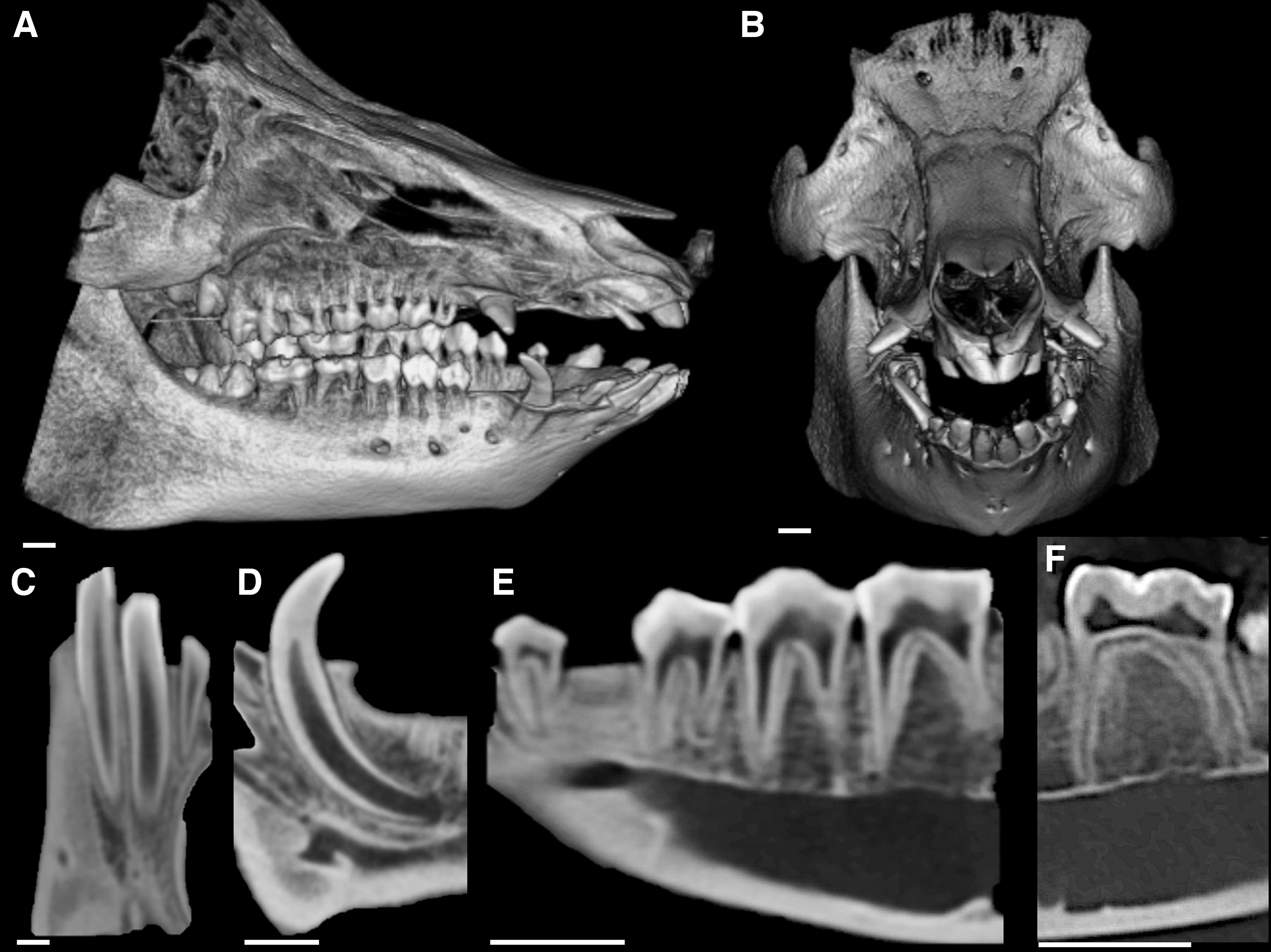

FIG. 1.

Pig anatomy—Cone beam CT. (A) Skull: lateral view. (B) Skull: frontal view. (C) Lower incisor region. (D) Lower canine. (E) Lower premolars region. (F) Lower molar anatomy. Scale bar: 1 cm. CT, computed tomography.

Table 1.

Characteristics of the Large Animal Models

Animal model	Similarities with humans	Dissimilarities with humans	Advantages	Disadvantages
Porcines	• Size of the body • Jaws bone anatomy, morphology, healing, remodeling, and mechanical properties • Mineral density and concentration of lamellar bone • Jaw blood supply • Diphyodonty, dental formula, eruption sequence	• Denser jawbone trabecular system • Continuously growing canine	• Reduced ethical issues	• Voluminous size • Uncooperative behavior
Canines	• Growth, physiology and pathology • Bone turnover, composition, and mechanical properties • Diphyodonty, dental anatomy, dental formula	• Size and shape of the oral cavity • Denser and more resistant jaws bone	• Extensive knowledge of the model for orofacial tissue engineering • Easy handling	• Ethical issues
Ovines	• Size of the body • Diphyodonty, dental formula and shape of permanent teeth	• Ruminant digestion • pH of saliva • Absence of upper incisors, upper and lower canines • Jawbone density and biomechanical properties • Age-related bone structure and remodeling	• Reduced ethical issues • Extensive availability • Easy handling • Less expensive housing	• Lack of literature • Limits of comparisons between studies using different ages animals

Canines are one of the most common large animal models for oral and dental regeneration, notably due to their familiar behavior and the comparable growth, physiology and pathology with humans. However, dogs are considered companion animals and their use in medical research is negatively perceived by society⁷ (Table 1 and Fig. 2).

FIG. 2.

Dog anatomy—Cone beam CT. (A) Skull: lateral view. (B) Skull: frontal view. (C) Lower incisor region. (D) Lower canine. (E) Lower premolars region. (F) Lower molar anatomy. Scale bar: 1 cm.

As an alternative, the use of ovines increased over the last decade, but the ruminant nature leads to substantial anatomical differences in comparison with humans⁷ (Table 1 and Fig. 3).

FIG. 3.

Sheep anatomy—Cone beam CT. (A) Skull: lateral view. (B) Skull: frontal view. (C) Upper jaw dental pad and lower incisor regions. (D) Diastema (absence of the canine between incisors and premolars). (E) Lower premolars region. (F) Lower molar anatomy. Scale bar: 1 cm.

Hence, this review aimed to investigate porcine, canine, and ovine models for current cell-based oral tissue regeneration procedures, to (1) provide an exhaustive analysis of the present potential application of each model and (2) support researchers in the choice of the most pertinent one for a given study, according to the animal characteristics and the tissue to regenerate.

Methods

Search strategy

The review process followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines²⁴ and the protocol was registered in PROSPERO (International Prospective Register of Systematic Reviews) under the number CRD42020201550.

The peer-reviewed literature reporting about large animal models on most recent cell-based oral regeneration procedures was systematically searched in PubMed (National Library of Medicine, NCBI), Embase, Web of Science and Scopus databases, from January 2015 to March 2020. The following combination of key words was used: Oral AND (regeneration OR tissue engineering) AND stem cells AND (pig OR dog OR sheep). A manual review of articles' references was also performed.

Eligibility criteria

Inclusion criteria were as follows: (1) cell-based oral tissues regeneration studies, (2) large animal studies, (3) English language available full text, and (4) publication between 2015 and 2020.

Exclusion criteria were as follows: (1) murine studies, (2) in vitro studies, (3) noncell-based studies, (4) ectopic and semiorthotopic regeneration models, and (5) literature reviews.

Two independent reviewers (F.M. and S.V.) screened all relevant titles and abstracts against eligibility criteria. If the abstract did not provide sufficient information, the full text article was analyzed. A third reviewer (B.S.) was involved to resolve disagreements.

Data extraction and analysis

The selected articles were assigned, depending on the regenerated tissue, as follows: (1) bone regeneration, (2) periodontium regeneration, (3) dentin-pulp complex regeneration, and (4) tooth/tooth-root regeneration studies.

For each tissue, articles were subsequently classified according to the involved animal; reproduced clinical context/pathology, source of stem cells, scaffolds, follow-up, and assessment techniques were considered.

Assessment of quality of the studies

Risk of bias for the included studies was evaluated by SYstematic Review Centre for Laboratory animal Experimentation (SYRCLE) risk of bias tool. The following criteria were used: (1) selection bias, (2) performance bias, (3) detection bias, (4) attrition, and (5) reporting bias. Studies were scored with a “yes” for low risk of bias, “no” for high risk of bias, and “?” for unclear risk of bias by the two reviewers independently. Disagreements were resolved by a third reviewer (B.S.).

Results

As presented in the flowchart based on PRISMA (Fig. 4), the initial search resulted in a total of 148 articles. Eight relevant publications were manually added from reference lists of the articles identified. After duplicate removal, a total of 123 articles was identified. The review and selection procedure resulted in the exclusion of 43 articles at title screening stage and 11 articles based on the content of the abstract. Of the remaining 69 articles, 11 were excluded at the full-text reading stage for the following reasons: (1) 3 articles were not in vivo studies, (2) 1 article reported ectopic cell-based regeneration, (3) 3 articles reported studies not developed on large animal models, and (4) 4 studies presented noncell-based regeneration. The entire selection process therefore resulted in a total of 58 articles, included in this systematic review.

FIG. 4.

Flowchart of the article selection process.

Characteristics of included studies

Results are summarized in Tables 2 –5. Considering the regenerated tissues, 24 articles focused on bone,^25–48 17 on periodontium,^49–65 10 on dentin-pulp complex,^66–75 and 7 on tooth or tooth root.^76–82 Regarding bone regeneration, 8 studies developed a porcine model,^25–32 14 a canine,^33–46 and 2 an ovine one.^47,48 Eight studies reported periodontium regeneration in pig,^49–56 eight in dog,^57–64 and one in sheep.⁶⁵ Among the articles about dentin pulp-complex regeneration, two studies were developed in pig^66,67 and eight in dog.^68–75 Except for one canine model,⁸² in all the studies, tooth or tooth root regeneration was reported in porcines.^76–81

Table 2.

Bone Regeneration

Author/year	Clinical context	Follow-up	Cells/scaffold	Assessment
Porcine models
Caballero et al. (2015)²⁵	Alveolar cleft^a	30 days	pUC-MSCS/nano-microfiber PLGA	Histology Immunohistochemistry CT
Konopnicki et al. (2015)²⁶	Mandible inferior border bone defect^a	8 weeks	pBMPCs/3D printed b-TCP-polycaprolactone	Histology Immunohistochemistry Histomorphometry
Kuo et al. (2015)²⁷	Mandibular corner critical size bone defect^a	8 weeks	hDPSCs/b-TCP	Histology Histomorphometry
Bhumiratana et al. (2016)²⁸	Ramus and condyle critical size bone defect^a	6 months	pASCs/decellularized bovine trabecular bone	Histology μCT
Tee et al. (2016)²⁹	Mandible lateral aspect critical size bone defect^a	12 weeks	pMSCs/PGLA	Histology CT/μCT
Caballero et al. (2017)³⁰	Alveolar cleft^a	90 days	pUC-MSCS/nano-microfiber PLGA	Histology Immunohistochemistry CT Mechanical tests
Cui et al. (2018)³¹	Mandible inferior border critical size bone defect^a	4 weeks	pBMSCs/DBM	Histology μCT
Mu et al. (2018)³²	Mandible extraction socket	6 weeks	pMCS sheets	Histology Florescence microscopy Histomorphometry
Canine models
Bressan et al. (2015)³³	Mandible premolar-molar region peri-implant bone defect^a	4 weeks	hADCs/HA-TCP	Histology Histomorphometry
Du et al. (2015)³⁴	Mandible body bone defect^a	16 weeks	cBMSCs/PLGA	Histology Histomorphometry Mechanical analysis
Huang et al. (2015)³⁵	Alveolar cleft^a	12 weeks	cBMSCs/b-TCP	Histology Histomorphometry
Park et al. (2015)³⁶	Mandible premolar-molar region peri-implant bone defect^b	3 months	BMP2-dPDLSCs/HA-collagen	Histology Histomorphometry
Alvira-Gonzalez et al. (2016)³⁷	Mandible premolar-molar region critical size alveolar ridge bone defect^a	3 months	cADSCs/fibronectin-TCP	Histology Histomorphometry
Wang et al. (2016)³⁸	Bilateral sinus lift	6 months	cBMSCs/HA	Histology Histomorphometry μCT Microhardness test
Xu et al. (2016)³⁹	Mandible premolar region peri-implant bone defect^a	12 weeks	rhPDGF- cBMSCs/b-TCP	Histology Histomorphometry CLSM Fluorescence microscopy
Xu et al. (2016)⁴⁰	Mandible premolar region peri-implant bone defect^b	10 months	BMP2or GFP-cADSCs/TCP	Histology Histomorphometry 2D radiographies μCT
Zeng et al. (2016)⁴¹	Mandible segmental defect^a	8 weeks	cBMSC sheets/FDB	Histology Immunohistochemistry 2D radiographies
Khojasteh et al. (2017)⁴²	Mandible bone defect^a	8 weeks	cEPCs/b-TCP coated with PLGA microspheres releasing VEGF	Histology Histomorphometry
Sánchez-Garcés et al. (2017)⁴³	Mandible peri-implant bone defect^a	3 months	cADSCs/TCP-fibronectin	Histology Histomorphometry
Shafeian et al. (2017)⁴⁴	Mandible critical size bone defect^a	8 weeks	PRP-assisted hADSCs/HA-TCP	Histology, histomorphometry μCT 2D radiographies
Wang et al. (2018)⁴⁵	Mandible peri-implant bone defect^a	12 weeks	Alveolar cBMSCs/b-TCP	Histology Histomorphometry BIC
Washio et al. (2018)⁴⁶	Mandible peri-implant bone defect^a	11 weeks	cPDLSC sheets	Histology, histomorphometry
Ovine models
Ardjomandi et al. (2015)⁴⁷	Sinus lift	16 weeks	oMSCs/BBM	Histology, histomorphometry
Gallego et al. (2015)⁴⁸	Mandible segmental bone defect^a	32 weeks	oBMSCs/autologous serum	Histological Histomorphometry CT/μCT

Acute defect model.

Chronic defect model.

μCT, micro-CT; 2D, bidimensional; 3D, tridimensional; BIC, bone to implant contact; BMM, bovine bone mineral; BMP2, bone morphogenetic protein 2; b-TCP, beta tricalcium phosphate; cADSCs, canine adipose-derived stem cells; cBMSCs, canine bone marrow stem cells; cEPCs, canine endothelial progenitor cells; CLSM, confocal laser scanning microscopy; cPDLSCs, canine periodontal ligament stem cells; CT, computed tomography; DBM, demineralized bone matrix; dPDLSCs, dog periodontal ligament stem cells; EPCs, endothelial progenitor cells; FDB, freeze-dried bone; GFP, green fluorescence protein; HA, hydroxyapatite; hADCs, human adipose-derived cells; hADSCs, human adipose-derived stem cells; hDPSCs, human dental pulp stem cells; oBMSCs, ovine bone marrow stem cells; oMSCs, ovine mesenchymal stem cells; pASCs, porcine adipose-derived stromal/stem cells; pBMPCs, porcine bone marrow progenitor cells; pBMSCs, porcine bone marrow stem cells; PLGA, poly-co-glycolic acid; pMSCs, porcine mesenchymal stem cells; PRP, platelet-rich plasma; pUC-MSCS, porcine umbilical cord-mesenchymal stem cells; rhPDGF, recombinant human platelet-derived growth factor; TCP, tricalcium phosphate; VEGF, vascular endothelial growth factor.

Table 3.

Periodontium Regeneration

Author/year	Clinical context	Follow-up	Cells/scaffold	Assessment
Porcine models
Cao et al. (2015)⁴⁹	Mesial mandible and maxillary first molar three-wall bone defect^a	12 weeks	hPDLSCs transfected with HGF	Clinical examination Histology Histomorphometry CT
Fawzy El-Sayed et al. (2015)⁵⁰	Mesial mandible and maxillary premolar-molar three-wall bone defect^a	16 weeks	pMSCs/(HyA-sECM)	Clinical examination Histology CT
Liu et al. (2015)⁵¹	Mesial mandible first molar three-wall bone defect^a	12 weeks	Injected IGFBP5-hMSCs	Clinical examination photography Histology
Hu et al. (2016)⁵²	Mesial mandible and maxillary first molar three-wall bone defect^a	12 weeks	hDPSC sheets or injection	Clinical examination Histology CT
Basan et al. (2017)⁵³	Mandible third premolar and first molar class II furcation defect^b	120 days	pPDLSCs/collagen	Histology Fluorescence microscopy Histomorphometry
Li et al. (2018)⁵⁴	Mesial mandible first molar three-wall bone defect^a	12 weeks	hSCAPs	Clinical examination Histology Histomorphometry CT
Li et al. (2019)⁵⁵	Mesial mandible first molar three-wall bone defect^a	12 weeks	SFRP2-hSCAPs	Clinical examination Histology Histomorphometry CT
Venkataiah et al. (2019)⁵⁶	Mandible premolars class II furcation defect^b	4 weeks	pADMPC/fibrin gel complex	Histology Histomorphometry μCT
Canine models
Lee et al. (2015)⁵⁷	Tooth reimplantation onto maxillary extraction socket	8 weeks	cPDLSCs/decellularized dental root + (CaP)-fibronectin coating	Histology μCT
Nagahara et al. (2015)⁵⁸	Mandible first, second, and third premolar class III furcation defect^a	8 weeks	cBMMSC/atelocollagen-b-TCP	Histology Immunohistochemistry TRAP Histomorphometry
Liu et al. (2016)⁵⁹	Mandible alveolar buccal plate defect^b	6 months	cBMSCs/HA collagen	Histology Histomorphometry μCT
Luo et al. (2016)⁶⁰	Mandible class II furcation defect^a	8 weeks	ESEHT- PAB /not specified two graft materials	Histology Histomorphometry
Zhu et al. (2017)⁶¹	Mandible and maxillary third premolar, fourth premolar, and first molar defect^c	8 weeks	Beta-defensin-3-cPDLC sheets	Histology, Immunohistochemistry
Shi et al. (2018)⁶²	Mandible second premolar buccal plate dehiscence^b	12 weeks	hPDLCs/BCP	Histology Fluorescence microscopy μCT
Rezaei et al. (2019)⁶³	Mandible and maxillary premolar class II furcation defect^b	8 weeks	GFP-transfected cBMMSCs/fibrin glue and PRP	Histology Histomorphometry
Zhou et al. (2019)⁶⁴	Mandible premolar defect^c	2 weeks	TRL2-transfected cBMSCs/collagen	Histology μCT
Ovine model
Vaquette et al. (2019)⁶⁵	Mandible premolar-molar buccal plate dehiscence^b	10 weeks	oPDLSC and oBMSC sheets/polycaprolactone biphasic scaffold	Histology Histomorphometry μCT

Acute-chronic defect model.

Acute defect model.

Chronic defect model.

BCP, biphasic calcium phosphate; CaP, calcium phosphate; cBMMSC, canine bone marrow mesenchymal stem cells; cPDLCs, canine periodontal ligament cells; ESEHT, extraction socket early healing tissue stem cells; HGF, hepatocyte growth factor; hMSCs, human mesenchymal stem cells; hPDLCs, human periodontal ligament cells; hPDLSCs, human periodontal ligament stem cells; hSCAPs, human stem cells from apical papilla; HyA-sECM, hyaluronic acid-synthetic extracellular matrix; IGFBP5, insulin-like growth factor binding protein 5; oPDLSCs, ovine periodontal ligament stem cells; PAB, proper alveolar bone; pADMPC, adipose-derived multilineage progenitor cells; pMSCs, porcine mesenchymal stem cells; pPDLSCs, porcine periodontal ligament stem cells; SFRP2, secreted frizzled-related protein 2; TRAP, tartrate-resistant acid phosphatase; TRL2, toll-like receptor 2.

Table 4.

Dentin-Pulp Complex Regeneration

Author/year	Clinical context	Follow-up	Cells/scaffold	Assessment
Porcine models
Mangione et al. (2017)⁶⁶	Partial pulp regeneration on mature multirooted posterior mandible and maxillary teeth^a	3 weeks	pDPCs/nanopeptide hydrogel	Histology Immunohistochemistry Histomorphometry μCT
Zhu et al. (2018)⁶⁷	Total pulp regeneration on mature multirooted posterior mandible and maxillary teeth^a	4 moths	pDPSCs/HyA or collagen hydrogel	Histology Immunohistochemistry 2D radiographies
Canine models
Chen et al. (2015)⁶⁸	Total pulp regeneration on mature upper premolars and lower double-rooted premolars^a	8 weeks	cDPSCs/PRF granules	Histology Histomorphometry
Murakami et al. (2015)⁶⁹	Total pulp regeneration on mature upper and lower incisors^a	2 weeks	(G-CSF)cMDPSCs, (G-CSF)cMBMSCs, (G-CSF)cMADSCs/atelocollagen	Histology Histomorphometry In situ hybridization Immunohistochemistry
Iohara et al. (2016)⁷⁰	Total pulp regeneration on mature lower second and third incisors^a	180 days	(G-CSF)cMDPSCs/atelocollagen	Histology MRI
Jia et al. (2016)⁷¹	Partial pulp regeneration on immature upper and lower premolars^a	10 weeks	SIM + cDPSCs + absorbable gelatin sponge	Histology 2D radiographies
Bakhtiar et al. (2017)⁷²	Pulp chamber floor perforation on mature upper and lower premolars^a	3 months	cDPSCs/TDM or TCP	Histology Histomorphometry
El Ashiry et al. (2018)⁷³	Total pulp regeneration on immature necrotic upper incisors with periapical periodontitis^b	4 months	cDPSCs/chitosan hydrogel + VEGF-2, PDGF, NGF, BMP7	Histology 2D radiographies
Iohara et al. (2018)⁷⁴	Total pulp regeneration on mature upper and lower incisors^a	12 weeks	cMDPSCs with DLA/atelocollagen	Histology Blood tests Urine tests
El-Zekrid et al. (2019)⁷⁵	Partial pulp regeneration on mature upper and lower multirooted teeth^a	9 weeks	Injected cBMSCs	Histology

Acute defect model.

Chronic defect model.

cDPSCs; (G-CSF)cMADSCs, granulocyte colony-stimulating factor canine-mobilized adipose-derived stem cells; (G-CSF)cMBMSCs, granulocyte colony-stimulating factor canine-mobilized bone marrow stem cells; (G-CSF)cMDPSCs, granulocyte colony-stimulating factor mobilized dental pulp stem cells; BMP7, bone morphogenetic protein-7; DLA, dog leukocyte antigen; HyA, hyaluronic acid; MRI, magnetic resonance imaging; NGF, nerve growth factor; PDGF, platelet-derived growth factor; pDPC, porcine dental pulp cells; pDPSCs, porcine dental pulp stem cells; PRF, platelet-rich fibrin; SIM, simvastatin; TDM, treated dentin matrix; VEGF-2, vascular endothelial growth factor-2.

Table 5.

Tooth/Tooth Root Regeneration

Author/year	Clinical context	Follow-up	Cells/scaffold	Assessment
Porcine models
Chen et al. (2015)⁷⁶	Tooth root regeneration on lower premolar region	12 weeks	GFP-transfected pDFCs/TDM	Histology Immunohistochemistry μCT
Luo et al. (2015)⁷⁷	Tooth root regeneration on lower premolar region	6 moths	pDFCs/TDM	Clinical examination 2D radiographies Histology Immunohistochemistry μCT
Gao et al. (2016)⁷⁸	Tooth root regeneration on lower incisors region	6 months	hDPSC + hPDLSC sheets/HA-TCP	Clinical examination CT/μCT Biomechanical tests Elemental analysis
Yang et al. (2016)⁷⁹	Whole tooth regeneration on lower premolar and molar	13.5 months	pDPSCs + epithelial cells from gingiva/gelatin-chondroitin-hyaluronan	Histology Immunohistochemistry 2D radiographies
Zhang et al. (2017)⁸⁰	Whole tooth regeneration on lower canine and premolar region	6 months	pECs + hDPCs + hUVEC/dTBs	Histology Immunohistochemistry μCT
Wu et al. (2019)⁸¹	Whole tooth regeneration on upper incisor, canine and premolar region	150 days	Re-associated human tooth germs cells and systemically infused hBMMSCs	Histology Immunohistochemistry CT CBCT
Canine model
Ono et al. (2017)⁸²	Whole tooth regeneration on lower premolar region	180 days (+30 days of orthodontic treatment)	Canine tooth buds cells	Histology CBCT/μCT SEM Energy-dispersive X-ray spectroscopy

CBCT, cone beam computed tomography; dTBs, decellularized tooth buds; HA-TCP, hydroxyapatite- tricalcium phosphate; hBMMSCs, human bone marrow mesenchymal stem cells; hDPCs, human dental pulp cells; hUVECs, human umbilical vein endothelial cells; pDFCs, porcine dental follicles cells; pECs, porcine epithelial cells; SEM, scanning electron microscopy.

Bone regeneration (Table 2)

Porcine models

The clinical situations were exclusively acute defects such as mandible noncritical²⁶ and critical size bone defects,^27,29,31 mandible extraction socket,³² alveolar cleft,^25,30 as well as ramus and condyle defects.²⁸

Employed cells were mostly porcine cells such as porcine mesenchymal stem cells (pMSCs),^25,30,32 porcine bone marrow stem cells (pBMSCs),^26,29,31 and porcine adipose-derived stem cells (pADSCs),²⁸ except in one study in which human dental pulp stem cells (hDPSCs) were used.²⁷ The used scaffolds were poly-co-glycolic acid (PLGA),^25,29,30 beta tricalcium phosphate (b-TCP),^26,27 and decellularized bone scaffolds.^28,31 In one article, cell sheets were involved.³²

Follow-up was performed at 4 weeks (or 30 days),^25,31 6 weeks,³² 8 weeks,^26,27 12 weeks (or 90 days),^29,30 and 6 months.²⁸

Regenerated tissues were assessed by histology in all studies,^25–32 in association with computed tomography (CT) and/or microcomputed tomography (μCT) evaluation,^25,28–31 immunohistochemistry,^25,26,30 histomorphometry,^26,27,32 mechanical tests,³⁰ and fluorescence microscopy.³²

Canine models

The studies focused on acute models of mandible peri-implant bone defects,^{33,39,43,45,46} mandible noncritical³⁴ and critical size bone defects,^37,42,44 alveolar cleft,³⁵ bilateral sinus lift,³⁸ and mandible segmental defect.⁴¹ Two studies developed chronic mandible peri-implant bone defects.^36,40

The employed cells were canine bone marrow stem cells (cBMSCs),^{34,35,38,41,45} recombinant human platelet-derived growth factor (rhPDGF)-cBMSCs,³⁹ canine adipose-derived stem cells (cADSCs),^37,43 canine epithelial progenitor cells,⁴² bone morphogenetic protein 2 (BMP2)-cADSCs,⁴⁰ BMP2-canine periodontal ligament stem cells (cPDLSCs),³⁶ and cPDLSCs.⁴⁶ Only two studies used human adipose-derived cells (hADCs).^33,44 Cell sheets were used in two articles.^41,46

Cells were seeded into various scaffolds such as b-TCP,^35,39,45 tricalcium phosphate (TCP),⁴⁰ hydroxyapatite-tricalcium phosphate (HA-TCP),^33,44 TCP-fibronectin,^37,43 PLGA,⁴⁴ b-TCP coated with PLGA releasing vascular endothelial growth factor (VEGF),⁴² freeze-dried bone,⁴¹ and hydroxyapatite (HA) collagen.³⁶

The follow-up was performed during 4 weeks,³³ 8 weeks,^41,42,44 11 weeks,⁴⁶ 12 weeks or 3 months,^{35–37,39,43,45} 16 weeks,³⁴ 6 months,³⁸ and 10 months.⁴⁰

In 13 out of 14 studies, assessment was made by histology and histomorphometry^{33–40,42–46}; these techniques were also associated with bidimensional (2D) and/or 3D (μCT) radiographic analysis,^{38,40,41,44,45} bone to implant contact evaluation,^{33,36,39,40,43,45,46} hardness mechanical tests,^34,38 and fluorescence microscopy.³⁹ Only one study evaluated regenerated tissues by combining histology, immunohistochemistry, and radiographies.⁴¹

Ovine models

One study focused on sinus lift⁴⁷ and the other one on acute mandible segmental bone defect.⁴⁸ Ovine mesenchymal stem cells (oMSCs)⁴⁷ and ovine bone marrow stem cells (oBMSCs)⁴⁸ were used, respectively, associated with autologous serum and BBM scaffold. Follow-up was made for 16⁴⁷ and 32 weeks.⁴⁸

Histology and histomorphometry were performed in both studies,^47,48 one case also combined with CT and μCT evaluations.⁴⁸

Periodontium regeneration (Table 3)

Porcine models

The experimental models of periodontitis reproduced acute or acute-chronic mandibular class II furcation defects^53,56 and acute-chronic maxillary and/or mandibular alveolar three walls bone defects.^{49–52,54,55}

Porcine cells such as pMSCs,⁵⁰ porcine adipose-derived cells (pADCs),⁵⁶ and porcine periodontal ligament stem cells (pPDLSCs)⁵³ were used in three studies. Human cells like human periodontal ligament stem cells (hPDLSCs) transfected with hepatocyte growth factor,⁴⁹ hDPSCs,⁵² insulin like growth factor binding protein 5 (IGFBP5), human mesenchymal stem cells (hMSCs),⁵¹ and human stem cells from apical papilla (hSCAPs)⁵⁴ transfected or not with secreted frizzled-related protein 2 (SFRP2)⁵⁵ were employed in the other articles.

Cells were seeded into fibrin gel complex,⁵⁶ IL1-hyaluronic acid (HyA)-synthetic extracellular matrix ⁵⁰ hydrogel, and collagen⁵³ scaffolds. In the other studies cells were injected^{49,51,52,54,55} and in one case also associated with cell sheets.⁵²

The follow-up was performed during 4 weeks,⁵⁶ 12 weeks or 3 months,^49,51–55 and 16 weeks.⁵⁰

Assessment was made by clinical, radiographic, and histological evaluations in five studies,^{49,50,52,54,55} three out of which also performed histomorphometry.^49,54,55

One article presented clinical, photographic, and histological, but no radiographic analysis.⁵¹ Two articles reported histology and histomorphometry, respectively, associated with μCT and immunohistochemistry,⁵⁶ as well as fluorescence microscopy,⁵³ but no clinical evaluation.

Canine models

The experimental models of periodontitis reproduced acute mandible alveolar bone dehiscence⁵⁹ and maxillary-mandibular class II furcation defects,⁶³ acute-chronic mandible class III or II furcation defects,^58,60 mandibular alveolar bone dehiscence,^62,64 as well as chronic maxilla and mandible alveolar bone defects.⁶¹ One model of tooth reimplantation was reported.⁵⁷

The employed cells were cBMSCs^58,59,63 also transfected with green fluorescence protein (GFP)⁶³ or toll-like receptor 2 (TRL2),⁶⁴ canine extraction socket early healing tissue stem cells with proper alveolar bone,⁶⁰ cPDLSCs,⁵⁷ and b-defensin-3-canine periodontal ligament cells.⁶¹ Human cells (human periodontal ligament cells) were used once.⁶²

One study used cell sheets.⁶¹ Each article reported a different scaffold material such as atelocollagen combined with b-TCP,⁵⁸ HA collagen,⁵⁹ collagen,⁶⁴ BCP,⁶² platelet-rich plasma, and fibrin glue,⁶³ decellularized dental root coated with calcium phosphate-fibronectin.⁵⁷ In one study, grafting materials were not specified.⁶⁰

The follow-up was performed at 2 weeks,⁶⁴ 8 weeks,^{57,58,60,61,63} 12 weeks,⁶² and 6 months.⁵⁹

The assessment was performed in half of the studies by histology and histomorphometry,^58–60,63 also associated with μCT analysis,⁵⁹ immunohistochemistry, and tartrate-resistant acid phosphatase.⁵⁸ Histology and μCT analysis,^57,62,64 in one case also associated with fluorescence microscopy,⁶² were reported. In one study, assessment consisted of histology and immunohistochemistry.⁶¹

Ovine model

The periodontal defect was an acute dehiscence in the mandibular premolar-molar area. Ovine periodontal ligament stem cells (PDLSCs) and BMSC sheets were used, associated with polycaprolactone biphasic scaffold.

The follow-up was 10 weeks. The assessment of regenerated tissues was made by histology, histomorphometry, and μCT.⁶⁵

Dentin-pulp complex regeneration (Table 4)

Porcine models

One study focused on partial pulp regeneration,⁶⁶ the other one investigated total pulp regeneration.⁶⁷ In both cases, upper and lower mature multirooted teeth were involved and the pulp defects were acutely induced.

Porcine dental pulp cells (pDPCs) and porcine dental pulp stem cells (pDPSCs) were used. The cells were seeded in a nanopeptide⁶⁶ and in HyA or collagen hydrogels,⁶⁷ respectively.

The follow-up was performed at 21 days⁶⁶ and 4 months.⁶⁷

In one study, assessment was made by histology, immunohistochemistry, μCT, and histomorphometry⁶⁶; in the other one, histological, immunohistochemical, and 2D radiographic analysis were performed.⁶⁷

Canine models

Models of partial pulp regeneration involving upper and lower multirooted teeth were reported in two studies.^71,75 Authors used immature⁷¹ and mature⁷⁵ teeth, respectively. Five studies focused on total pulp regeneration.^{68–70,73,74} The involved teeth were upper and lower mature incisors,^69,70,74 upper immature incisors,⁷³ as well as upper and lower mature multirooted teeth.⁶⁸ Only one study evaluated a model of pulp chamber floor perforation in upper and lower mature premolars.⁷² Expect for one article,⁷³ dentin-pulp complex defects were acutely generated.

Regarding the source of cells, canine dental pulp stem cells (cDPSCs),^68,71–73 granulocyte-colony stimulating factor mobilized dental pulp stem cells,^69,70,74 as well cBMSCs⁷⁵ were involved.

Cells were implanted with atelocollagen scaffold,^69,70,74 platelet-rich fibrin,⁶⁸ treated dentin matrix (TDM) or TCP,⁷² gelatin sponge associated with simvastatin⁷¹ and chitosan hydrogel releasing VEGF-2, PDGF, nerve growth factor, and bone morphogenetic protein-7 (BMP7).⁷³ In one study, cells were injected.⁷⁵

Follow-up was performed at 2 weeks,⁶⁹ 8 weeks,⁶⁸ 9 weeks,⁷⁵ 10 weeks,⁷¹ 3 months or 12 weeks,^72,74 4 months,⁷³ and 6 months.⁷⁰

Histological assessment was reported in all studies,^68–75 associated with histomorphometric analysis,^68,69,72 2D radiographies,^71,73 magnetic resonance imaging (MRI),⁷⁰ in situ hybridization,⁶⁹ immunohistochemistry,⁶⁹ as well as blood and urine tests.⁷⁵

Tooth or tooth root regeneration (Table 5)

Porcine models

Three studies focused on tooth root regeneration in the mandibular incisor⁷⁸ and premolar area.^76,77 Three articles described whole tooth regeneration^79–81 in the upper incisor and premolar region,⁸¹ in lower canine and premolar region,⁸⁰ as well as in lower premolar and premolar region.⁷⁹

Porcine dental follicles cells (DFCs) transfected or not with GFP were used in two studies.^76,77 One article described re-associated tooth germ implantation associated with BMSCs systemically infused.⁸¹ In two cases, pDPSCs were combined with pPDLSC sheets⁷⁸ or epithelial cells from gingiva.⁷⁹ In one study, porcine epithelial cells were associated with human dental pulp cells (hDPCs) and hUVEC1.⁸⁰

The scaffolds in which cells were seeded were TDM,^76,77 HA-TCP,⁷⁸ gelatin-chondroitin-hyaluronan scaffold,⁷⁹ and decellularized tooth bud (dTB).⁸⁰

The follow-up was performed at 12 weeks,⁷⁶ 150 days,⁸¹ 6 months,^77,78,80 and 13.5 months.⁷⁹

Histology, radiography (2D, μCT, CT, and cone beam computed tomography [CBCT]), and immunohistochemistry analysis were reported in five studies,^{76,77,79–81} in one of which clinical oral assessment was performed too.⁷⁷

In only one study, clinical, radiographic (CT, μCT), biomechanical, and elemental analysis were combined.⁷⁸

Canine model

Whole tooth regeneration was performed in lower premolar area. The regenerated teeth underwent orthodontic traction to test periodontal ligament remodeling.

Canine tooth bud cells were used. The follow-up consisted of 6 months plus 1 month for orthodontic treatment evaluation. The assessment was made by histology, 3D radiography (CBCT and μCT), scanning electron microscopy, and energy dispersive X-ray spectroscopy.⁸²

Assessment of quality of studies

In 98% of the studies, a low risk of selection bias (baseline characteristics) was found.^{25–42,44–64,66–82} Performance bias was considered unclear in 98% of cases,^{25–47,49–82} because no information about random housing was given. Random outcome assessment was scored as low risk for 24% of the studies^{25–29,33,34,36–40,42,43,46–48,50,52,54,57–60,62–74,76–82} and unclear for the rest of them. In none of studies, blinding was described and the risk was rated as unclear.^25–82 A low risk of attrition and reporting bias was estimated for all studies^25–82 (Fig. 5 and Supplementary Figs. S1–S4).

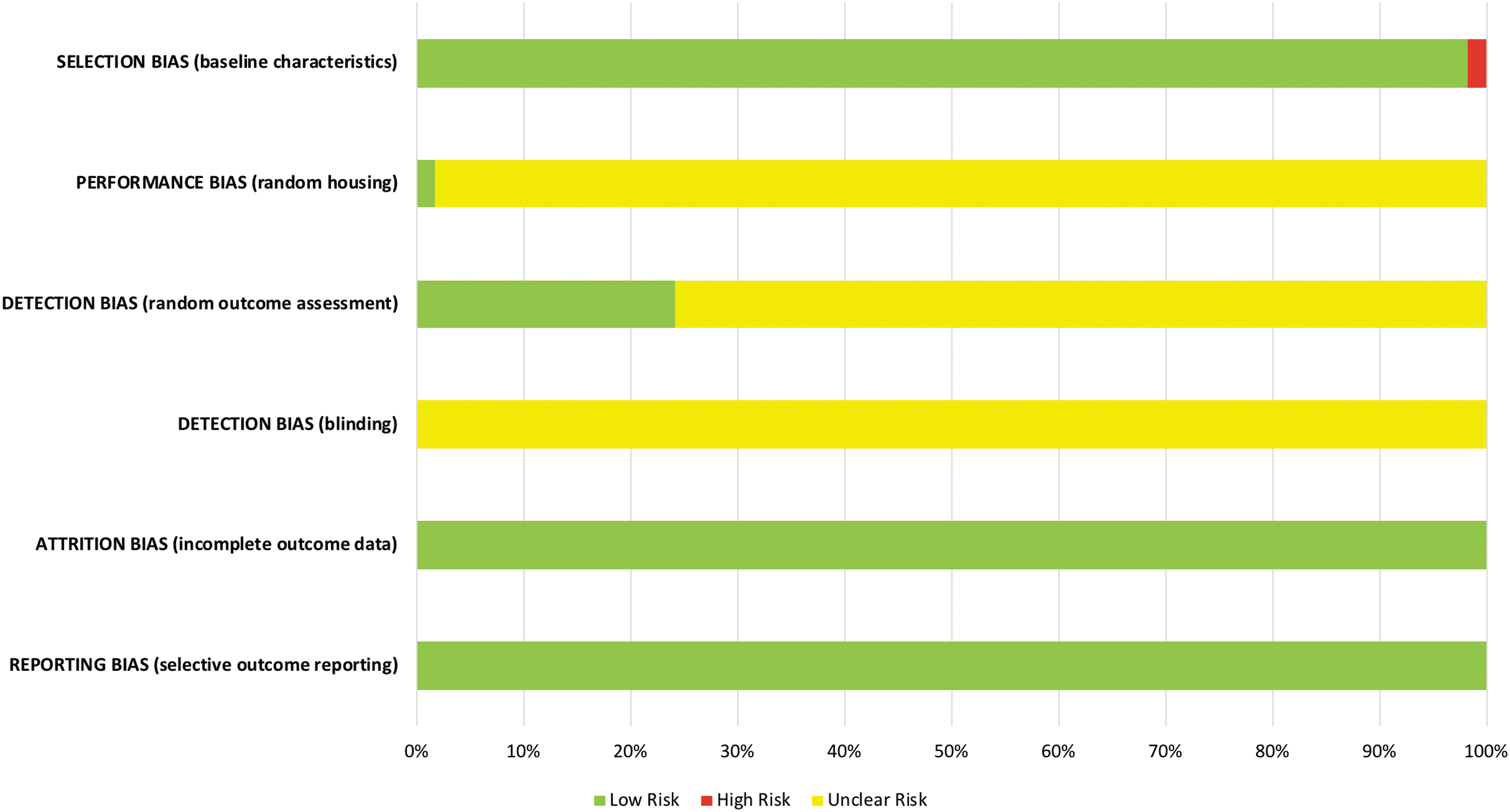

FIG. 5.

Risk of bias assessment evaluated according to the SYRCLE. Selection bias: baseline characteristics. Performance bias: random housing. Detection bias: random outcome assessment; blinding. Attrition bias: incomplete outcome data. Reporting bias: selective outcome reporting. SYRCLE, SYstematic Review Centre for Laboratory animal Experimentation.

Discussion

Large animal models according to regenerated tissues

Bone regeneration

Our research highlights that porcine, canine, and ovine models were developed for cell-based regeneration of acute critical maxillary and mandible jawbone defects, mimicking congenital lack of tissues as well as traumatic or postsurgical sequels, such as clefts or segmental osteotomies.^25–48 Moreover, procedures requiring long healing process were possible, since reported follow-up went from 1 month even up to 10 months.^25–48

As supported by broad literature on cell-based bone regeneration in large animals,⁸³ these models make up for multiple limitations of widespread murine calvarial defects, such as the impossibility to perform long-term studies, the lack of biomechanical loading, and faster tissue healing than in humans.^5,84,85

In accordance with previous studies,^86–88 it appears that porcine models are preferred to the other models for higher challenge bone regeneration procedures, because of their similarities with humans, in terms of anatomy, morphology, healing, remodeling, and mechanical properties.^25,28,30

For instance, Bhumiratana et al. demonstrated regeneration of ramus-condyle unit by using an autologous, anatomically shaped, living graft, made by decellularized bovine trabecular bone and pADSCs.²⁸

Furthermore, since congenital clefts occurring in pig resemble those in humans, Caballero et al. reported porcine alveolar cleft regeneration using porcine umbilical cord mesenchymal stem cell (MSC) sheets associated with nano-microfiber PLGA scaffold.^25,30

In implantology, canines play a key role.^14,89 In this review, numerous peri-implant bone defects and re-osteointegration models were identified^{33,36,39,40,43,45,46}; in fact, dogs' bone turnover, composition, and mechanical properties are the most similar to humans among large animal models, even if jaws show a denser and more resistant bone.^7,89

Even if ovine models of cell-based bone regeneration are reported in literature,^90,91 in our research, only two studies developed maxillary sinus lift and mandible segmental osteotomy. Indeed, ovine bone dissimilarities with humans such as higher density and mechanical resistance, as well as age-related changes in structure and remodeling can limit the relevance of ovine models for follow-up studies.^{7,14,25,89,92}

Periodontium regeneration

Since murine periodontium and bacterial resistance sensibly differ from humans, porcine, canine, and ovine models of periodontitis are developed.^14,89

In this review, similar types of periodontal lesions were reported in pig and dog. However, variability in defects' standardization and follow-up was encountered between the two species.

Only one study developed an acute ovine model of mandible dehiscence.⁶⁵ Sheep periodontium displays constant cement apposition as a compensation response to teeth ware, which is typical in ruminants.¹⁴ Hence, this periodontal physiology is likely to have an impact on regeneration mechanisms, which represents a non-neglecting bias for the potential extrapolation to patients.^14,92,93

Dentin-pulp complex regeneration

Regenerative endodontics opens up the perspective of an alternative to millions of endodontic treatments each year.^94–96

Validated in murine ectopic models, dentin-pulp regeneration is hardly performed orthotopically due to frequent dental fractures and differences with human pulp reparation process. Thus, large animals are required to address these limitations.^97,98

Interestingly, despite a more important similarity of pig dental anatomy and physiology with humans in comparison with dogs, mostly canine and only two porcine models were developed.^66–75

Besides, in both animals, partial and total dentin-pulp complex regeneration procedures, involving upper and lower mature or immature single-rooted or multirooted teeth, were evaluated, meaning that several clinical situations can be reproduced in these models. In addition, in dog also, a pulp chamber floor perforation model was reported.⁷²

However, regarding partial pulp regeneration, contrasting findings were reported. In 2017, our team demonstrated, after 3 weeks of follow-up, no pulp regeneration, but reparative osteodentinogenesis in minipig mature multirooted permanent teeth by implanting pDPCs into a self-assembling injectable hydrogel scaffold in a pulpotomy model.⁶⁶ In dog, after 9 to 10 weeks, normally organized pulp tissue with a complete dentin bridge was found in single-rooted immature teeth as well as in multirooted mature teeth, using cDPSCs seeded in a gelatin sponge scaffold releasing simvastatin and injected cBMSCs, respectively.^71,75

In line with previous studies,^99–102 canine models as well as the only porcine model of total pulp regeneration used autologous dental pulp stem cells (DPSCs)^{67–70,73,74} mostly combined with collagen-based scaffolds^67,69,73,74 in mature single-rooted upper and lower teeth.^69,70,73,74 However, the role of neoangiogenesis was solely investigated in dog, since cells were constantly conditioned or associated with angiogenetic factors. One could assume that such a difference in regenerative environments between animal models influenced the duration of the regenerative process⁸⁴ since functional dentin-pulp complex was obtained after 4 months in pig⁶⁷ and in 2 weeks to 6 months in dog.^{68–70,73,74}

Tooth regeneration

The challenging regeneration of tooth organ, which depends on the recombination of dental mesenchymal and epithelial stem cells, has been demonstrated in several animal models.^19,103,104 However, it has been shown that the dental functionality can only be assessed in large animals.^19,103

In this review, tooth regeneration was reported in numerous porcine models^76–81 and in only one canine model.⁸² In particular, in pig, consistent with literature,^87,105,106 two procedures were studied: tooth root and whole tooth regeneration. Functional bioroot formation was reported after implantation of HA/TCP/DPSC/PDLSC sheets.⁷⁸ Positives outcomes were obtained, also combining TDM with minipig DFCs.^76,77 Whole single-rooted tooth regeneration was achieved by allotransplanted re-associated tooth germs into minipigs jaws associated with systemic infusion of porcine bone marrow mesenchymal stem cells as well as recellularized dTBs seeded with porcine dental epithelial cells, hDPCs, and human umbilical vein endothelial cells, with an average follow-up of 6 months.^80,81

In line with porcine models, premolar regeneration was achieved, in dog, 6 months after transplantation of bioengineered tooth germs made with autologous germs cells, in the lower jaw. Periodontal functionality was eventually confirmed by 4-week-long orthodontic traction.⁸²

Defect characteristics

The reported oral tissue defects were mostly acute.^{25–35,37–39,41–48,53,56,57,59,62,63,65–72,74,75} Indeed, surgically made lesions imply standardized configuration, clear understanding of the regenerative process, and reduced experimental time. However, these models reproduce simplified regenerative environments.⁸⁹

The bacterial component of oral pathologies was considered in few chronic^{36,40,61,64,73} or acute-chronic^{49–52,54,55,58,60} models of peri-implantitis, periodontitis, and pulp necrosis. Certainly, these models, requiring time-consuming procedures, result in a variable degree of standardization of the defect, complicating the comparisons between studies.⁸⁹

Stem cell trends

The pertinence of an animal model for oral tissue engineering also relies on the potential to study different stem cell populations/sources. Thus, the accessibility to autologous stem cells as well as the feasibility of allogenic grafts are crucial criteria of choice.

Similar trends of cell-based bone regeneration were reported in all large animal models with comparable results. In fact, most of the studies demonstrated increased bone formation in critical size defects using autologous BMSCs, ADCs, or MSCs principally seeded into b-TCP, PLGA, or demineralized bone matrix scaffolds.^{25,26,28–32,34,35,37–45,47,48}

Unlike the ovine models, in pig and dog, large jaw reconstruction and peri-implant defects were also successfully treated by implanting autologous or human ADSCs and/or MSCs co-seeded with endothelial progenitor cells associated with b-TCP and/or PLGA,^{25,28–30,32,33,40,42–44} as well as autologous or human stem cells from dental tissues alone or combined with b-TCP or HA/collagen.^27,36,46

A substantial discrepancy between trends of periodontal defect regeneration was found; in fact, in pig, hMSCs, hPDLSCs, and hSCAPs^{49,51,52,54,55} were mostly involved, while in dog and sheep, mostly autologous MSCs or PDLSCs and no stem cells from apical papilla were used.^{57–61,63–65} Moreover, porcine stem cells were mostly injected or used as sheets,^{49,51,52,54,55} whereas in dog and sheep, they were implanted combined with a large variety of grafting materials,^{57–61,63–65} which even more complicate comparisons within studies.^28,89

Regarding pulp and root or whole tooth regeneration, in both porcine and canine models, mostly autologous dental stem cells^{66–71,73–79,82} were used, which is coherent with the manageable accessibility to this source of cells in animals showing similar locoregional anatomy and dental eruption physiology with humans.^6,7,25

Regeneration assessment

Regeneration assessment is essential for the validation of tissue engineering procedures. A pertinent large animal model should allow an appropriate follow-up duration for a given procedure as well as the quali-quantification of the newly formed tissues and their relation with the surrounding structures.^7,25

In the porcine, canine, and ovine studies included in this systematic review, mineralized as well as nonmineralized oral tissue regeneration was assessed within periods even up to 13.5 months and the analysis was performed by similar approaches in the three models.

Overall, most of the studies reported histological, histomorphometric, and/or 2D/3D imaging analysis.^{25–40,42–60,62–73} Regardless for the μCT, which is an ex-vivo technique, imaging assessment was made by technologies currently used in patients such as intraoral 2D radiography, CT, CBCT, and MRI. Furthermore, reiterative blood and urine tests, impossible in murine, were reported,⁷⁴ which highlights the importance of large animals for mimicking clinical conditions.^5,25

However, specific animals' characteristics, data/means unavailability, and the necessity to contain the number of samples, according to the 3Rs principle, give rise to some technical boundaries restraining tissue assessment.^5,25,66,107

For example, immunohistochemistry was not constantly performed in pig or dog and not reported at all in sheep models; indeed, some tissue-specific markers cannot be revealed, because of the lack of suitable antibodies. Moreover, due to their size, specimens require even up to several months for the demineralization before histological analysis. Thus, aggressive acids or techniques used to accelerate the process can impair antigenic sites and limit antibody bond.^66,107

Risk of bias

Overall, the included studies presented a low risk of bias in terms of animal selection (notably ARRIVE guidelines were respected), attrition, and reporting. However, poor reporting in terms of performance and detection affected evaluations and synthesis of results. Thus, SYRCLE guidelines should be followed, especially for randomization protocols, animal housing facilities, and blinding, which could improve homogeneity of large animal models' trials in oral cell-based regeneration.

Conclusion

The development of large animal models for oral tissue engineering is crucial for human application. Pig, dog, and sheep are the most relevant species allowed by current regulation, but they can have significant drawbacks, including functional dissimilarities when compared to the human craniofacial and dental anatomy.

Porcine models, the most similar with humans, were successfully developed for bone and periodontium regeneration, but very little was demonstrated about dentin-pulp complex. Interestingly, tooth/tooth root regeneration was reported only in pig, except for one canine study.

Canines are indeed the most transversal models as they showed positive outcomes for the regeneration of bone, in particular in implantology, as well as periodontium and dentin-pulp complex; however, canines substantially differ from humans and ethical concerns arise from their involvement.

Ovines are the least developed models, as they emerged as an alternative to dog and pig. Besides the economic and ethical advantages, these animals display essential dissimilarities with humans. Hence, ovines were mainly used for bone and very little for periodontium regeneration.

If a consistency was found in defect specificities and cells trends among different species, animal models of bone, dentin-pulp complex, or tooth regeneration, a variability appeared in periodontium.

Indeed, methods of regeneration assessment were more elaborate in porcines and canines than in ovines.

Overall, preclinical models display specific properties to take into account for oral tissue engineering. Thus, studies of different regenerative procedures should be related to the choice of the most pertinent large animal model for a given cell-based therapeutics.

Footnotes

Authors' Contribution

Conceptualization, F.M. and S.V.; writing/original draft preparation, F.M.; writing/review and editing, F.M., S.V., M.E., B.S., C.C., and R.J.

Acknowledgments

We would like to thank Elisabeth Dursun for her support as well as Fondation des Maladies Rares.

Disclosure Statement

No competing financial interests exist.

Funding Information

No funding was received for this article.

Supplementary Material

References

Smirani

, Rémy

, Devillard

, and Naveau

Engineered prevascularization for oral tissue grafting: a systematic review. Tissue Eng Part B Rev, 26, 383, 2020.

Matichescu

, Ardelean

L.C.

, Rusu

L.C.

, et al. Avanced biomaterials and techniques for oral tissue engineering and regeneration-a review. Materials (Basel), 13, 5303, 2020.

Hutchings

, Moncrieff

, Dompe

, et al. Bone regeneration, reconstruction and use of osteogenic cells; from basic knowledge, animal models to clinical trials. J Clin Med, 9, 139, 2020.

Ong

C.S.

, Yesantharao

, Huang

C.Y.

, et al. 3D bioprinting using stem cells. Pediatr Res, 83, 223, 2018.

McGovern

J.A.

, Griffin

, and Hutmacher

D.W.

Animal models for bone tissue engineering and modelling disease. Dis Model Mech, 11, dmm033084, 2018.

Štembírek

, Kyllar

, Putnová

, Stehlík

, and Buchtová

The pig as an experimental model for clinical craniofacial research. Lab Anim, 46, 269, 2012.

Pearce

A.I.

, Richards

R.G.

, Milz

, Schneider

, and Pearce

S.G.

Animal models for implant biomaterial research in bone: a review. Eur Cell Mater, 13, 1, 2007.

Weinberg

M.A.

, and Bral

Laboratory animal models in periodontology. J Clin Periodontol, 26, 335, 1999.

Ripamonti

, Herbst

N.N.

, and Ramoshebi

L.N.

Bone morphogenetic proteins in craniofacial and periodontal tissue engineering: experimental studies in the non-human primate Papio ursinus. Cytokine Growth Factor Rev, 16, 357, 2005.

10.

Gronthos

, Mankani

, Brahim

, and Robey

P.G.

, Shi

Postnatal human dental pulp stem cells (DPSCs) in vitro and in vivo. Proc Natl Acad Sci U S A, 97, 13625, 2000.

11.

Tatullo

, Marrelli

, Shakesheff

K.M.

, and White

L.J.

Dental pulp stem cells: function, isolation and applications in regenerative medicine. J Tissue Eng Regen Med, 9, 1205, 2015.

12.

La Noce

, Paino

, Spina

, et al. Dental pulp stem cells: state of the art and suggestions for a true translation of research into therapy. J Dent, 42, 761, 2014.

13.

Liu

, and Lv

Reconstructing bone with natural bone graft: a review of in vivo studies in bone defect animal model. Nanomaterials (Basel), 8, 999, 2018.

14.

Fawzy El-Sayed

K.M.

, and Dörfer

C.E.

Animal models for periodontal tissue engineering: a knowledge-generating process. Tissue Eng Part C Methods, 23, 900, 2017.

15.

Magan

, and Ripamonti

Biological aspects of periodontal tissue regeneration: cementogenesis and the induction of Sharpey's fibres. SADJ, 68, 304, 308, 314 passim, 2013.

16.

Huang

G.T.

, Sonoyama

, Liu

, Wang

, and Shi

The hidden treasure in apical papilla: the potential role in pulp/dentin regeneration and bioroot engineering. J Endod, 34, 645, 2008.

17.

Gong

, Heng

B.C.

, Lo

E.C.

, and Zhang

Current advance and future prospects of tissue engineering approach to dentin/pulp regenerative therapy. Stem Cells Int, 2016, 9204574, 2016.

18.

Del Fabbro

, Lolato

, Bucchi

, Taschieri

, and Weinstein

R.L.

Autologous platelet concentrates for pulp and dentin regeneration: a literature review of animal studies. J Endod, 42, 250, 2016.

19.

Onda

M.J.

, Imaizumi

, Tsuchiya

, and Morsczeck

Dental follicle stem cells and tissue engineering. J Oral Sci, 52, 541, 2010.

20.

Schulz

K.F.

, Altman

D.G.

, and Moher D; CONSORT

Group.

CONSORT 2010 statement: updated guidelines for reporting parallel group randomised trials. BMJ, 340, c332, 2010.

21.

Directive 63/2010/EU of the European Parliament and of the Council of 22 September 2010 on the protection of animals used for scientific purposes. Off J Eur Union L 276 vol. 53:33–79 of 20/10/2010.

22.

Olsson

I.A.S.

, Silva

S.P.D.

, Townend

, and Sandøe

Protecting animals and enabling research in the european union: an overview of development and implementation of directive 2010/63/EU. ILAR J, 57, 347, 2016.

23.

Vasbinder

M.A.

, and Locke

Introduction: global laws, regulations, and standards for animals in research. ILAR J, 57, 261, 2016.

24.

Moher

, Liberati

, Tetzlaff

, and Altman DG; PRISMA

Group.

Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. PLoS Med, 6, e1000097, 2009.

25.

Caballero

, Morse

J.C.

, Halevi

A.E.

, et al. Juvenile swine surgical alveolar cleft model to test novel autologous stem cell therapies. Tissue Eng Part C Methods, 21, 898, 2015.

26.

Konopnicki

, Sharaf

, Resnick

, et al. Tissue-engineered bone with 3-dimensionally printed β-tricalcium phosphate and polycaprolactone scaffolds and early implantation: an in vivo pilot study in a porcine mandible model. J Oral Maxillofac Surg, 73, 1016. e1, 2015.

27.

Kuo

T.F.

, Lee

S.Y.

, Wu

H.D.

, Poma

, Wu

Y.W.

, and Yang

J.C.

An in vivo swine study for xeno-grafts of calcium sulfate-based bone grafts with human dental pulp stem cells (hDPSCs). Mater Sci Eng C Mater Biol Appl, 50, 19, 2015.

28.

Bhumiratana

, Bernhard

J.C.

, Alfi

D.M.

, et al. Tissue-engineered autologous grafts for facial bone reconstruction. Sci Transl Med, 8, 343ra83, 2016.

29.

Tee

B.C.

, Desai

K.G.

, Kennedy

K.S.

, et al. Reconstructing jaw defects with MSCs and PLGA-encapsulated growth factors. Am J Transl Res, 8, 2693, 2016.

30.

Caballero

, Jones

D.C.

, Shan

, Soleimani

, and van Aalst

J.A.

Tissue engineering strategies to improve osteogenesis in the juvenile swine alveolar cleft model. Tissue Eng Part C Methods, 23, 889, 2017.

31.

Cui

, Lu

, Chen

, et al. Restoration of mandibular bone defects with demineralized bone matrix combined with three-dimensional cultured bone marrow-derived mesenchymal stem cells in minipig models. J Mater Sci Mater Med, 29, 147, 2018.

32.

, Tee

B.C.

, Emam

, Zhou

, and Sun

Culture-expanded mesenchymal stem cell sheets enhance extraction-site alveolar bone growth: an animal study. J Periodontal Res, 53, 514, 2018.

33.

Bressan

, Botticelli

, Sivolella

, et al. Adipose-derived stem cells as a tool for dental implant osseointegration: an experimental study in the dog. Int J Mol Cell Med, 4, 197, 2015.

34.

, Yao

, Li

, Wang

, Feng

, and Yang

Cell sheet-engineered bones used for the reconstruction of mandibular defects in an animal model. Exp Ther Med, 10, 2216, 2015.

35.

Huang

, Tian

, Chu

, et al. Rapid maxillary expansion in alveolar cleft repaired with a tissue-engineered bone in a canine model. J Mech Behav Biomed Mater, 48, 86, 2015.

36.

Park

S.Y.

, Kim

K.H.

, Gwak

E.H.

, et al. Ex vivo bone morphogenetic protein 2 gene delivery using periodontal ligament stem cells for enhanced re-osseointegration in the regenerative treatment of peri-implantitis. J Biomed Mater Res A, 103, 38, 2015.

37.

Alvira-González

, Sánchez-Garcés

.À., Cairó

J.R.

, Del Pozo

M.R.

, Sánchez

C.M.

, and Gay-Escoda

Assessment of bone regeneration using adipose-derived stem cells in critical-size alveolar ridge defects: an experimental study in a dog model. Int J Oral Maxillofac Implants, 31, 196, 2016.

38.

Wang

, Li

, and Wang

A comparative study of the effect of Bio-Oss^® in combination with concentrated growth factors or bone marrow-derived mesenchymal stem cells in canine sinus grafting. J Oral Pathol Med, 46, 528, 2017.

39.

, Zhang

, Lv

, Yu

, Jiang

, and Zhang

Peri-implant bone regeneration using rhPDGF-BB, BMSCs, and β-TCP in a canine model. Clin Implant Dent Relat Res, 18, 241, 2016.

40.

, Sun

, Bai

, et al. Reosseointegration following regenerative therapy of tissue-engineered bone in a canine model of experimental peri-implantitis. Clin Implant Dent Relat Res, 18, 379, 2016.

41.

Zeng

J.J.

, Guo

, Zhou

, Xie

Q.T.

, and Liao

F.C.

Treatment of large bone defects with a novel biological transport disc in non-vascular transport distraction osteogenesis. Int J Oral Maxillofac Surg, 45, 670, 2016.

42.

Khojasteh

, Fahimipour

, Jafarian

, et al. Bone engineering in dog mandible: coculturing mesenchymal stem cells with endothelial progenitor cells in a composite scaffold containing vascular endothelial growth factor. J Biomed Mater Res B Appl Biomater, 105, 1767, 2017.

43.

Sánchez-Garcés

.À., Alvira-González

, Sánchez

C.M.

, Barbany Cairó

J.R.

, Del Pozo

M.R.

, and Gay-Escoda

Bone regeneration using adipose-derived stem cells with fibronectin in dehiscence-type defects associated with dental implants: an experimental study in a dog model. Int J Oral Maxillofac Implants, 32, e97, 2017.

44.

Shafieian

, Matin

M.M.

, Rahpeyma

, et al. Effects of human adipose-derived stem cells and platelet-rich plasma on healing response of canine alveolar surgical bone defects. Arch Bone Jt Surg, 5, 406, 2017.

45.

Wang

, Zhou

, et al. Comparison of intraoral bone regeneration with iliac and alveolar BMSCs. J Dent Res, 97, 1229, 2018.

46.

Washio

, Tsutsumi

, Tsumanuma

, et al. In vivo periodontium formation around titanium implants using periodontal ligament cell sheet. Tissue Eng Part A, 24, 1273, 2018.

47.

Ardjomandi

, Duttenhoefer

, Xavier

, Oshima

, Kuenz

, and Sauerbier

In vivo comparison of hard tissue regeneration with ovine mesenchymal stem cells processed with either the FICOLL method or the BMAC method. J Craniomaxillofac Surg, 43, 1177, 2015.

48.

Gallego

, Pérez-Basterrechea

, García-Consuegra

, et al. Repair of segmental mandibular bone defects in sheep using bone marrow stromal cells and autologous serum scaffold: a pilot study. J Clin Periodontol, 42, 1143, 2015.

49.

Cao

, Liu

, Xie

, et al. Adenovirus-mediated transfer of hepatocyte growth factor gene to human dental pulp stem cells under good manufacturing practice improves their potential for periodontal regeneration in swine. Stem Cell Res Ther, 6, 249, 2015.

50.

Fawzy El-Sayed

K.M.

, Mekhemar

M.K.

, Beck-Broichsitter

B.E.

, et al. Periodontal regeneration employing gingival margin-derived stem/progenitor cells in conjunction with IL-1ra-hydrogel synthetic extracellular matrix. J Clin Periodontol, 42, 448, 2015.

51.

Liu

, Wang

, Jia

, et al. Demethylation of IGFBP5 by histone demethylase KDM6B promotes mesenchymal stem cell-mediated periodontal tissue regeneration by enhancing osteogenic differentiation and anti-inflammation potentials. Stem Cells, 33, 2523, 2015.

52.

, Cao

, Xie

, et al. Periodontal regeneration in swine after cell injection and cell sheet transplantation of human dental pulp stem cells following good manufacturing practice. Stem Cell Res Ther, 7, 130, 2016.

53.

Basan

, Welly

, Kriebel

, et al. Enhanced periodontal regeneration using collagen, stem cells or growth factors. Front Biosci (Schol Ed), 9, 180, 2017.

54.

, Han

, Zhang

, et al. Local injection of allogeneic stem cells from apical papilla enhanced periodontal tissue regeneration in minipig model of periodontitis. Biomed Res Int, 2018, 3960798, 2018.

55.

, Han

, Yang

, et al. SFRP2 promotes stem cells from apical papilla-mediated periodontal tissue regeneration in miniature pig. J Oral Rehabil, 47 Suppl 1, 12, 2020.

56.

Venkataiah

V.S.

, Handa

, Njuguna

M.M.

, et al. Periodontal regeneration by allogeneic transplantation of adipose tissue derived multi-lineage progenitor stem cells in vivo. Sci Rep, 9, 921, 2019.

57.

Lee

J.S.

, Kim

H.S.

, Park

S.Y.

, et al. Synergistic effects of a calcium phosphate/fibronectin coating on the adhesion of periodontal ligament stem cells onto decellularized dental root surfaces. Cell Transplant, 24, 1767, 2015.

58.

Nagahara

, Yoshimatsu

, Shiba

, et al. Introduction of a mixture of β-tricalcium phosphate into a complex of bone marrow mesenchymal stem cells and type I collagen can augment the volume of alveolar bone without impairing cementum regeneration. J Periodontol, 86, 456, 2015.

59.

Liu

, Yin

, Ye

, et al. Periodontal regeneration with stem cells-seeded collagen-hydroxyapatite scaffold. J Biomater Appl, 31, 121, 2016.

60.

Luo

, Xu

, Cai

, Wang

, Sun

, and Yang

The in vitro and in vivo osteogenic capability of the extraction socket-derived early healing tissue. J Periodontol, 87, 1057, 2016.

61.

Zhu

, Miao

, Zhu

, Wang

, and Zhou

Transplantation of periodontal ligament cell sheets expressing human β-defensin-3 promotes anti-inflammation in a canine model of periodontitis. Mol Med Rep, 16, 7459, 2017.

62.

Shi

, Zong

, Xu

, and Chen

Improved biphasic calcium phosphate combined with periodontal ligament stem cells may serve as a promising method for periodontal regeneration. Am J Transl Res, 10, 4030, 2018.

63.

Rezaei

, Jamshidi

, Saffarpour

, et al. Transplantation of bone marrow-derived mesenchymal stem cells, platelet-rich plasma, and fibrin glue for periodontal regeneration. Int J Periodontics Restorative Dent, 39, e32, 2019.

64.

Zhou

, Gu

, Dong

, et al. The use of TLR2 modified BMSCs for enhanced bone regeneration in the inflammatory micro-environment. Artif Cells Nanomed Biotechnol, 47, 3329, 2019.

65.

Vaquette

, Saifzadeh

, Farag

, Hutmacher

D.W.

, and Ivanovski

Periodontal tissue engineering with a multiphasic construct and cell sheets. J Dent Res, 98, 673, 2019.

66.

Mangione

, EzEldeen

, Bardet

, et al. Implanted dental pulp cells fail to induce regeneration in partial pulpotomies. J Dent Res, 96, 1406, 2017.

67.

Zhu

, Liu

, Yu

, et al. A miniature swine model for stem cell-based de novo regeneration of dental pulp and dentin-like tissue. Tissue Eng Part C Methods, 24, 108, 2018.

68.

Chen

Y.J.

, Zhao

Y.H.

, Zhao

Y.J.

, et al. Potential dental pulp revascularization and odonto-/osteogenic capacity of a novel transplant combined with dental pulp stem cells and platelet-rich fibrin. Cell Tissue Res, 361, 439, 2015.

69.

Murakami

, Hayashi

, Iohara

, Osako

, Hirose

, and Nakashima

Trophic effects and regenerative potential of mobilized mesenchymal stem cells from bone marrow and adipose tissue as alternative cell sources for pulp/dentin regeneration. Cell Transplant, 24, 1753, 2015.

70.

Iohara

, Fujita

, Ariji

, et al. Assessment of pulp regeneration induced by stem cell therapy by magnetic resonance imaging. J Endod, 42, 397, 2016.

71.

Jia

, Zhao

, Yang

, Wang

, Ling

, and Ge

Simvastatin promotes dental pulp stem cell-induced coronal pulp regeneration in pulpotomized teeth. J Endod, 42, 1049, 2016.

72.

Bakhtiar

, Mirzaei

, Bagheri

M.R.

, et al. Histologic tissue response to furcation perforation repair using mineral trioxide aggregate or dental pulp stem cells loaded onto treated dentin matrix or tricalcium phosphate. Clin Oral Investig, 21, 1579, 2017.

73.

El Ashiry

E.A.

, Alamoudi

N.M.

, El Ashiry

M.K.

, Bastawy

H.A.

, El Derwi

D.A.

, and Atta

H.M.

Tissue engineering of necrotic dental pulp of immature teeth with apical periodontitis in dogs: radiographic and histological evaluation. J Clin Pediatr Dent, 42, 373, 2018.

74.

Iohara

, Utsunomiya

, Kohara

, and Nakashima

Allogeneic transplantation of mobilized dental pulp stem cells with the mismatched dog leukocyte antigen type is safe and efficacious for total pulp regeneration. Stem Cell Res Ther, 9, 116, 2018.

75.

El-Zekrid

M.H.

, Mahmoud

S.H.

, Ali

F.A.

, Helal

M.E.

, and Grawish

M.E.

Healing capacity of autologous bone marrow-derived mesenchymal stem cells on partially pulpotomized dogs' teeth. J Endod, 45, 287, 2019.

76.

Chen

, Chen

, Yang

, et al. Combination of aligned PLGA/Gelatin electrospun sheets, native dental pulp extracellular matrix and treated dentin matrix as substrates for tooth root regeneration. Biomaterials, 52, 56, 2015.

77.

Luo

, Yang

, Sheng

, et al. CAD based design sensitivity analysis and shape optimization of scaffolds for bio-root regeneration in swine. Biomaterials, 57, 59, 2015.

78.

Gao

Z.H.

, Hu

, Liu

G.L.

, et al. Bio-Root and implant-based restoration as a tooth replacement alternative. J Dent Res, 95, 642, 2016.

79.

Yang

K.C.

, Kitamura

, Wu

C.C.

, Chang

H.H.

, Ling

T.Y.

, and Kuo

T.F.

Tooth germ-like construct transplantation for whole-tooth regeneration: an in vivo study in the miniature pig. Artif Organs, 40, E39, 2016.

80.

Zhang

, Vazquez

, Oreadi

, and Yelick

P.C.

Decellularized tooth bud scaffolds for tooth regeneration. J Dent Res, 96, 516, 2017.

81.

, Wang

, Fan

, et al. Whole-tooth regeneration by allogeneic cell reassociation in pig jawbone. Tissue Eng Part A, 25, 1202, 2019.

82.

Ono

, Oshima

, Ogawa

, et al. Practical whole-tooth restoration utilizing autologous bioengineered tooth germ transplantation in a postnatal canine model. Sci Rep, 7, 44522, 2017.

83.

Zhang

Bone regeneration by stem cell and tissue engineering in oral and maxillofacial region. Front Med, 5, 401, 2011.

84.

Gorin

, Rochefort

G.Y.

, Bascetin

, et al. Priming dental pulp stem cells with fibroblast growth factor-2 increases angiogenesis of implanted tissue-engineered constructs through hepatocyte growth factor and vascular endothelial growth factor secretion. Stem Cells Transl Med, 5, 392, 2016.

85.

Devlin

Early bone healing events following rat molar tooth extraction. Cells Tissues Organs, 167, 33, 2000.

86.

Abukawa

, Shin

, Williams

W.B.

, Vacanti

J.P.

, Kaban

L.B.

, and Troulis

M.J.

Reconstruction of mandibular defects with autologous tissue-engineered bone. J Oral Maxillofac Surg, 62, 601, 2004.

87.

Abukawa

, Zhang

, Young

C.S.

, et al. Reconstructing mandibular defects using autologous tissue-engineered tooth and bone constructs. J Oral Maxillofac Surg, 67, 335, 2009.

88.

Zheng

, Liu

, Zhang

C.M.

, et al. Stem cells from deciduous tooth repair mandibular defect in swine. J Dent Res, 88, 249, 2009.

89.

Donos

, Park

J.C.

, Vajgel

, de Carvalho Farias

, and Dereka

Description of the periodontal pocket in preclinical models: limitations and considerations. Periodontol 2000, 76, 16, 2018.

90.

Ribitsch

, Baptista

P.M.

, Lange-Consiglio

, et al. Large animal models in regenerative medicine and tissue engineering: to do or not to do. Front Bioeng Biotechnol, 8, 972, 2020.

91.

Valbonetti

, Berardinelli

, Scarano

, et al. Translational value of sheep as animal model to study sinus augmentation. J Craniofac Surg, 26, 737, 2015.

92.

Altaii

, Broberg

, Cathro

, and Richards

Standardisation of sheep model for endodontic regeneration/revitalisation research. Arch Oral Biol, 65, 87, 2016.

93.

Ackermans

N.L.

, Martin

L.F.

, Codron

, et al. Confirmation of a wear-compensation mechanism in dental roots of ruminants. Anat Rec (Hoboken), 304, 425, 2021.

94.

Diogenes

, and Hargreaves

K.M.

Microbial modulation of stem cells and future directions in regenerative endodontics. J Endod, 43, S95, 2017.

95.

Nakashima

, Iohara

, Bottino

M.C.

, Fouad

A.F.

, Nör

J.E.

, and Huang

G.T.

Animal models for stem cell-based pulp regeneration: foundation for human clinical applications. Tissue Eng Part B Rev, 25, 100, 2019.

96.

Nakashima

, Iohara

, Murakami

, et al. Pulp regeneration by transplantation of dental pulp stem cells in pulpitis: a pilot clinical study. Stem Cell Res Ther, 8, 61, 2017.

97.

Yoneda

, Noiri

, Matsui

, et al. Development of a root canal treatment model in the rat. Sci Rep, 7, 3315, 2017.

98.

Nakatomi

, Quispe-Salcedo

, Sakaguchi

, Ida-Yonemochi

, Okano

, and Ohshima

Nestin expression is differently regulated between odontoblasts and the subodontoblastic layer in mice. Histochem Cell Biol, 149, 383, 2018.

99.

Iohara

, Zheng

, Ito

, et al. Regeneration of dental pulp after pulpotomy by transplantation of CD31(−)/CD146(−) side population cells from a canine tooth. Regen Med, 4, 377, 2009.

100.

Iohara

, Imabayashi

, Ishizaka

, et al. Complete pulp regeneration after pulpectomy by transplantation of CD105+ stem cells with stromal cell-derived factor-1. Tissue Eng Part A, 17, 1911, 2011.

101.

Iohara

, Murakami

, Takeuchi

, et al. A novel combinatorial therapy with pulp stem cells and granulocyte colony-stimulating factor for total pulp regeneration. Stem Cells Transl Med, 2, 521, 2013.

102.

Zheng

, Wang

X.Y.

, Wang

Y.M.

, et al. Dentin regeneration using deciduous pulp stem/progenitor cells. J Dent Res, 91, 676, 2012.

103.

Otsu

, Kumakami-Sakano

, Fujiwara

, et al. Stem cell sources for tooth regeneration: current status and future prospects. Front Physiol, 5, 36, 2014.

104.

Oshima

, Tsuji

Whole tooth regeneration as a future dental treatment. Adv Exp Med Biol, 881, 255, 2015.

105.

Sonoyama

, Liu

, Fang

, et al. Mesenchymal stem cell-mediated functional tooth regeneration in swine. PLoS One, 1, e79, 2006.

106.

Zhang

, Abukawa

, Troulis

M.J.

, Kaban

L.B.

, Vacanti

J.P.

, and Yelick

P.C.

Tissue engineered hybrid tooth-bone constructs. Methods, 47, 122, 2009.

107.

Yamamoto-Fukud

, Shibata

, Hishikawa

, et al. Effects of various decalcification protocols on detection of DNA strand breaks by terminal dUTP nick end labelling. Histochem J, 32, 697, 2000.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.16 MB

0.12 MB

0.08 MB

0.06 MB

0.00 MB
