Development of a Micromanipulator-Based Loading Device for Mechanoregulation Study of Human Mesenchymal Stem Cells in Three-Dimensional Collagen Constructs

Abstract

Mechanical signal is important for regulating cellular activities, including proliferation, metabolism, matrix production, and orientation. Bioreactors with loading functions can be used to precondition cells in three-dimensional (3D) constructs so as to study the cellular responses to mechanical stimulation. However, full-scale bioreactor is not always an affordable option considering the high cost of equipments and the liter-sized medium with serum and growth factor supplements. In this study, a custom-built loading system was developed by coupling a conventional camera-equipped inverted research microscope with two micromanipulators. The system was programmed to deliver either cyclic compressive loading with different frequencies or static compressive loading for 1 week to investigate the cellular responses of human mesenchymal stem cells (hMSCs) entrapped in a 3D construct consists of reconstituted collagen fibers. Cellular properties, including their alignment, cytoskeleton, and cell metabolism, and properties of matrix molecules, such as collagen fiber alignment and glycosaminoglycan deposition, were evaluated. Using a MatLab-based image analysis program, reorientation of the entrapped cells from a random distribution to a preferred alignment along the loading direction in constructs with both static and cyclic compression has been demonstrated, but no such alignment was found in the free-floating controls. Fluorescent staining on filamentous actin cytoskeleton also confirmed the finding. Nevertheless, the collagen fiber meshwork entrapping the hMSCs remained randomly distributed, and no change in cellular metabolism and glycosaminoglycans production was noted. The current study provides a simple and affordable option toward setting up a mechanoregulation facility based on existing laboratory equipments and sheds new insights on the effect of mechanical loading on the alignment of hMSCs in 3D collagen constructs.

Introduction

The importance of mechanical stimulation as regulators of cellular activities and tissue function is well known for more than a decade through the promoting effects of loading and the deleterious effects of immobilization on healing of tissue injuries.¹ The potential impact of mechanical stimulation on stem cells or progenitor cells such as the limb bud cells^2,3 and bone marrow–derived mesenchymal stem cells (MSCs)⁴ has also received increasing attention recently. Most, if not all, previous mechanoregulation studies applied mechanical stimulation such as cyclic stretching⁴ and shear stress⁵ to cells in monolayers. However, it is known that in native tissues, cells are surrounded by three-dimensional (3D) extracellular matrix, and sense mechanical signals through cell–matrix interactions.⁶ Hence, recent mechanoregulation studies started to utilize 3D tissue-engineered constructs. Natural materials such as type I collagen,^7–10 agarose,^3,11–17 alginate,^18–21 and fibrin gel²² are widely used as biomaterials in fabricating 3D tissue constructs.

Development of bioreactors with complicated mechanical loading functions facilitates functional tissue engineering by preconditioning the cells in 3D tissue constructs with appropriate growth-stimulating mechanical signals simulating that in the native tissues.²³ These bioreactors can certainly be used for mechanoregulation studies to investigate the responses of cells to mechanical stimulation and the underlying mechanisms. However, these technologies are not always affordable and cost effective because of the high cost on the equipment and the consumption of liter-sized culture medium with growth factor and serum supplements. It is therefore a first objective of this study to compile a simple, affordable, and high-throughput mechanoregulation facility by coupling a conventional inverted microscope with two controllable micromanipulators.

MSCs are excellent cell sources for tissue engineering because of their relatively safe and easy accessibility from the donor, genetic stability, and the ability of self-renewal and differentiating into multiple lineages of cells.^24,25 They also have the unique immunologically privileged status that can ignore the human leukocyte antigen histocompatibility barrier^25,26 and are more socially and ethically acceptable than stem cells from embryonic sources. The biological factors inducing differentiation of MSCs into multiple lineages such as osteogenic,^24,27 chondrogenic,^24,28,29 and adipogenic^24,30 are well defined. Nevertheless, how does mechanical loading regulate MSC activities is not fully understood, although cyclic tensile strain or stretching^31–36 and fluid shear stress^37,38 have been demonstrated to enhance osteogenic differentiation, while cyclic compressive loading,^{11,15,17–19,21,39–41} low intensity ultrasound,^42,43 and cyclic hydrostatic pressure^44,45 have been reported to enhance chondrogenic differentiation.

In our lab, a collagen-based microencapsulation technique has been developed recently to fabricate cell–collagen construct with even and random distribution of cells. This encapsulation technique overcomes the time-consuming, inefficient cell seeding procedure in traditional approach of using prefabricated porous scaffolds. The collagen gel matrix consists of randomly distributed collagen nanofibers with characteristic D-bands.⁴⁶ This matrix has been shown to provide excellent matrix microenvironment to support growth of many cells, including human MSCs (hMSCs),⁴⁶ fibroblasts (data not shown), chondrocytes,⁴⁷ HEK293 cells,^48,49 and embryonic stem cells.⁵⁰ Moreover, the fibrous meshwork also provides an excellent matrix template or scaffold for cells such as chondrocytes⁴⁷ and differentiating stem cells⁵¹ to remodel and then deposit their specific extracellular matrix. The cell-encapsulated collagen construct represents an excellent 3D experimental model for mechanoregulation studies. It is therefore the second objective of the current study to use this 3D model to investigate the effects of compression loading on hMSC activities, including cell orientation, metabolism, and extracellular matrix production. The underlying hypothesis is that mechanical loading delivered to hMSCs may affect these activities. To testify this hypothesis, 3D collagen–hMSC constructs were fabricated and exposed to daily static or cyclic compression loading, at different frequencies, in the mechanoregulation setup compiled in the current study for 1 week. The constructs were then evaluated for activities such as cell alignment, metabolism, and extracellular matrix production.

Materials and Methods

Compression loading system

A pair of micromanipulators (MP-285; Sutter Instrument, Novato, CA) was coupled to an inverted research microscope (DMIRB; Leica Microsystems, Wetzlar, Germany) equipped with heat-generating plate (Leica Microsystem). The micromanipulators were used to provide programmed cyclic movement with resolution up to 40 nm. A pair of compression platens was modified from metal spatulas and affixed to the micromanipulators via cylindrical holders. Two-compartment Petri dish with 100 mm diameter (BD Biosciences, San Jose, CA) was used as the sample holder and was affixed to the heat plate, which was adjusted to 37°C during compression loading. A digital camera (CoolSNAP ES; Roper Scientific, Göttingen, Lower Saxony, Germany) coupled to the microscope was used to record the movement of the compression platens and the deformation of the samples during compression at a rate of 200 frames per minute (Fig. 1). A maximum of two loading conditions can be tested at the same time when the two micromanipulators were programmed separately to deliver different loading conditions. A maximum of four samples per loading condition can be loaded at the same time. Disc-shaped samples subjected to the same loading condition were placed between the partition walls of the two-compartment Petri dish. The long axis of the disc-shaped samples was parallel to the partition wall of the Petri dish, while the short axis was along the compression loading axis. The Petri dish was filled with 7 mL culture medium, which was covered by a thin layer of silicon oil to prevent contamination. The micromanipulators were programmed to deliver cyclic movement so that the compression platens moved toward and away from the wall of two-compartment Petri dish to compress the constructs (Fig. 1B).

FIG. 1.

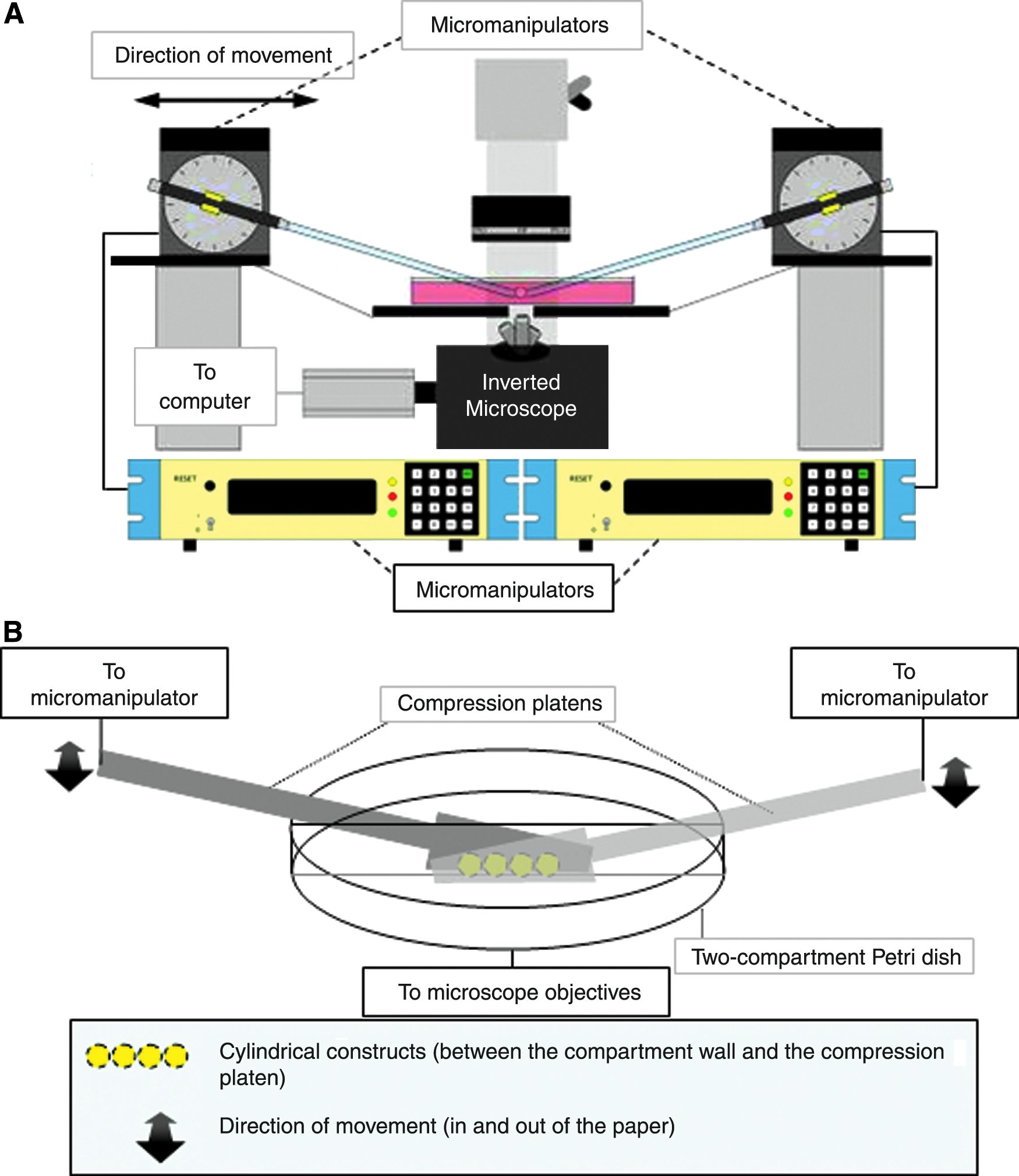

Schematic diagram showing the loading device. (A) Coupling of the micromanipulators and control boxes with inverted microscope. (B) Sample chamber. Color images available online at www.liebertonline.com/ten.

Culture of hMSCs

hMSCs from human bone marrow were kindly provided by Dr. G.C.F. Chan from Department of Paediatrics & Adolescent Medicine of the same institution. All procedures were approved by the Combined Clinical Ethical Committee of the University of Hong Kong and Hong Kong West Cluster Hospitals of Hospital Authority. hMSCs were isolated and cultured as previously reported.⁵² In brief, hMSCs were cultured in Dulbecco's modified Eagle's medium–low glucose (Gibco, Grand Island, NY) supplemented with 10% fetal bovine serum (Gibco), 100 U/mL penicillin (Gibco), 100 μg/mL streptomycin (Gibco), and 2 mM L-glutamine (Gibco), and incubated in a humidified condition with 5% CO₂ at 37°C. Culture medium was changed every 3 days. Cells at 80–90% confluence were trypsinized using 0.05% trypsin-ethylenediaminetetraacetic acid (Gibco) and subcultured by replating the cells at a density of 2 × 10⁵ cells per 75 cm² flask. Cells at passage 6 were used for subsequent construct preparation. The immunophenotype, self-renewal capacity, and multiple differentiating potential of the isolated and cultured hMSCs were verified in our previous study.⁴⁶

Preparation of disc-shaped collagen–hMSC constructs

A custom-made cylindrical container with nonadhesive surface was used to cast the constructs. Rat-tail collagen type I solution (BD Biosciences, San Jose, CA) was neutralized with sodium hydroxide (Sigma-Aldrich, St. Louis, MO) before mixing with single-cell suspension of hMSC in culture medium. The cell collagen mixture was diluted by culture medium to a final cell density of 1 × 10⁶ cells/mL and a final collagen concentration of 2 mg/mL. The mixture was kept in an ice-bath throughout the preparation to prevent collagen gelation. An aliquot of 100 μL of the cell–collagen mixture solution was pipetted into the container and incubated at 37°C for 1 hour for gelation. The cell-entrapped collagen gel was detached from the container and transferred to a 24-well plate (Iwaki, Tokyo, Japan) with its bottom covered by a parafilm to prevent migration of hMSCs from the construct to the culture well. The construct was then cultured and allowed to contract for 4 days before compression.

Loading regime

The height of the disc-shaped construct before compression (h, the undeformed height) was measured under the microscope. In the static compression control (loaded at 0 Hz), the construct was subjected to a static compression to 0.9h deformed height. In the cyclic compression group, the construct was first subjected to a static compression to 0.9h deformed height and then further deformed in a cyclic manner such that its deformed height varied between 0.8h and 0.9h at 1, 0.5, and 0.1 Hz. Micromanipulators were programmed with appropriate traveling distance and frequency. The loading regime was looped until it was interrupted by the user. The constructs were loaded 1 hour per day for 7 consecutive days with daily medium change. All samples were cultured in 24-well plate at 37°C in 5% CO₂ incubator.

Histological evaluations

The constructs were fixed in 4% paraformaldehyde for overnight at 4°C and embedded for preparation of 10-μm-thick paraffin sections at the cross sections of the disc-shaped constructs. Turning of samples was prevented by carefully sectioning and mounting the sections with the same direction. Even though the sections were accidentally turned upside down, the loading direction was easily identified by differentiating the short and the long axes. Moreover, the outcome measure is how far the cell alignment is deviating from the vertical compression loading axis (90°) from either left or right (±N° away from 90°); as a result, even though the sections were accidentally turned from left to right during mounting, the deviation would change from +ve to −ve sign. This would not affect the results at all as the signs would be ignored during the subsequent data analysis for peak angle. Hematoxylin and eosin staining was performed to reveal the morphology of the entrapped cells in collagen constructs, while hematoxylin staining was used for subsequent image analysis for cell alignment.

Fast Fourier image analysis

Images of the sectioned samples were captured by an inverted microscope (Eclipse TE2000-U; Nikon, Tokyo, Japan) and rotated such that the short axis of the samples was parallel to the compression loading axis. The edge effect of the stained sections was removed by cropping the central 650 × 650 square-pixel-sized region of the images, which covered 32–52% of total pixel area of the sample for all constructs. Fast Fourier Transform (FFT) was previously employed as a method to quantify the alignment of collagen fiber⁵³ and cells.⁵⁴ An ad hoc Matlab program based on the algorithm of FFT technique was developed to quantify the alignment of cells in the edited images. In brief, the colored image was converted into grayscale where the information was treated as a matrix array by the program. Welch windowing was applied to remove the edge effect. FFT was carried out to transform the matrix into spatial frequency. Summation of the frequency components of each degree ranging from 0° to 179°, respectively, would give a power spectrum showing the intensity of the signals versus angle in degrees. The power spectrum was then analyzed for preferred cell alignment by measuring the peak angle, which was the angle with maximum intensity and the presence of dominant peak, which statistically compared the intensity signal above and below the median in the power spectrum. Since the intensity of the power spectrum was affected by factors like the intensity of staining, it could not be directly used to represent the number of cells in any particular angle, yet it could tell the angle at which most cells aligned.

Scanning electron microscopy

The constructs were fixed with 2% glutaraldehyde (Sigma-Aldrich) for 3 hours at room temperature and dehydrated by a gradient of ethanol from 50% to 100%, followed by critical point drying in a critical point dryer (Bal-Tec, Balzers, Switzerland, CPD 030). The dried constructs were fractured to expose its cross sections. The constructs were mounted to the metal stub with carbon cement to expose the cross sections, followed by gold–palladium coating by sputter coater (Bal-Tec SCD 005). Images were taken by a field emission scanning electron microscope (Leo 1530, Carl Zeiss SMT, Peabody, MA).

Phalloidin staining for cytoskeleton

F-actin filament of hMSCs was stained with rhodamine phalloidin (Invitrogen, Carlsbad, CA) for fluorescent microscopy examination. Briefly, the constructs were fixed with 2% paraformaldehyde, and then they were preincubated with 1% bovine serum albumin (Sigma-Aldrich) to reduce nonspecific background staining. They were stained with 165 nM rhodamine phalloidin for overnight at 4°C. Images of the sectioned samples were obtained by fluorescent microscopy.

Glycosaminoglycan quantification

Glycosaminoglycan (GAG) was quantified by dimethylmethylene blue (DMMB) assay.⁵⁵ Briefly, the constructs were digested by papain solution for 6 hours. About 1,9-DMMB (Sigma-Aldrich) solution was added to the digested samples with regular agitation. GAG-DMMB complex formed was dissociated with a dissociation reagent consisted of guanidine hydrochloride (International Laboratory, San Bruno, CA), sodium acetate trihydrate (Sigma-Aldrich), and isopropanol (BDH, Dorset, United Kingdom). The resulting solution was transferred to a 96-well plate and absorbance for optical density measurement at 656 nm using a microplate reader (Safire 2).

Cell metabolism quantification

The metabolic activity of cells entrapped in the collagen construct was assessed by MTT assay (thiazolyl blue tetrazolium bromide) (Sigma-Aldrich) assay.^56–58 Briefly, the constructs were incubated in 5 mg/mL MTT solution for 4 hours in a humidified condition and 5% CO₂ at 37°C. About 0.04 N acidic isopropanol was used to dissolve and extract the insoluble formazan. The resulting solutions were transferred to a 96-well plate, and absorbance at 540 nm was measured using a microplate reader (Safire 2).

Statistical analysis

Dominance of the peaks of the power spectrums was analyzed by comparing the intensities above and below the sample median using nonparametric Wilcoxon Signed Rank Test. Differences in the amounts of GAG and relative intensities of MTT assay in different treatment groups (1, 0.5, and 0.1 Hz cyclically loaded groups, statically preloaded group, and the free-floating control group) were analyzed using nonparametric Kruskal–Wallis test. Statistical tests were performed using (SPSS 16.0, Chicago, IL)T and a significance level was set at 0.05.

Results

A maximum throughput of eight samples can be loaded simultaneously

Disc-shaped hMSC–collagen constructs of approximately 1.9 ± 0.1 mm in diameter and 1.2 ± 0.1 mm in height were fabricated. A maximum throughput of eight samples can be loaded at the same time (Fig. 2) when both micromanipulators were programmed for the same loading condition.

FIG. 2.

Phase contrast microscopy showing the sample chamber and the samples during compression.

Morphology and distribution of cells in the collagen constructs

As shown in Figure 3, hMSCs randomly distributed within the constructs although small amount of cells aggregated at the peripheral region in some constructs. After removing the edge effect (Fig. 3A–E), both the cyclically loaded (Fig. 3F–H) and the statically loaded (Fig. 3I) groups showed preferred cell alignment parallel to the direction of the compressive loading (Y-axis of Fig. 3F–I). No difference in cell alignment was observed among different loading frequencies. However, the free-floating control showed no observable alignment of cells in any preferred direction (Fig. 3J). Moreover, elongation of the cell body and extension of cell processes (Fig. 3F–I) were observed in all loaded groups, while round cells were found in the free-floating group (Fig. 3J).

FIG. 3.

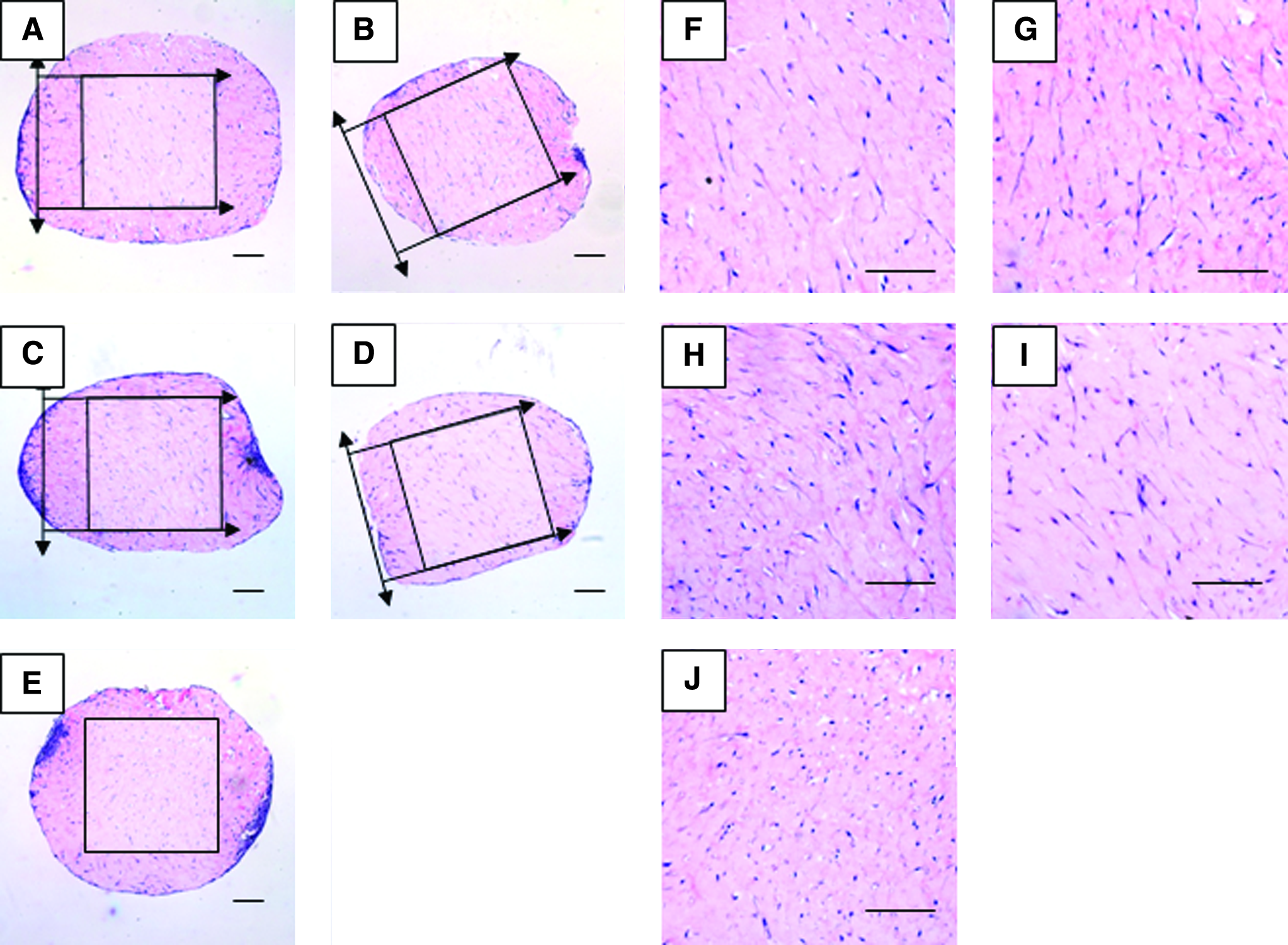

Hematoxylin and eosin staining showing the cross sections of the constructs. (A–E) Images of the constructs before removing the edge effects (scale bar = 100 μm). (F–J) Magnified images of the constructs after removing the edge effects (scale bar = 100 μm). Cyclic loading at (A, F) 1 Hz, (B, G) 0.5 Hz, and (C, H) 0.1 Hz; (D, I) static loading; (E, J) free-floating control. Color images available online at www.liebertonline.com/ten.

Quantitative analysis of cell alignment

Images were first undergone FFT (Fig. 4) to generate power spectra (Fig. 5), which were then analyzed for both the peak angle and the presence of dominant peaks (Fig. 6). Specifically, Figure 4A showa a representative hematoxylin-stained image, which was converted into grayscale (Fig. 4B) before filtering by Welch Window to remove the edge effect (Fig. 4C). Figure 4D showed the frequency domain after FFT and the output of the program was in the form of a power spectrum of intensity against angle (Fig. 5). In Figure 5, the angle 90° represented the direction of compressive loading, while the angle 0° represented the horizontal axis of the image perpendicular to the compression loading axis. Peak angle was defined as the angle at which the intensity was maximum, and theoretically, the angle at which most cells aligned. Peak angle ranged from 0° to 90° rather than 0° to 180° was counted because the section might be vertically or horizontally inverted during sample preparation. Deviation of the peak angle from 90°, which is the direction of the compressive loading showed the direction of the cell alignment, if any. The upper panel of Figure 6 shows the dot plot of the peak angles measured from the power spectra versus their respective net change in intensity. Most if not all cyclically loaded samples clustered between 80° and 90°, while for the statically loaded samples, the peak angles deviated within a narrow range of 20° from the compression loading axis at 90°. However, for samples in the free-floating control group, peak angles were found to range from 4° to 72° without obvious clusters, suggesting randomness or arbitrariness. The lower panel of Figure 6 tabulates the peak angles of the power spectra from different groups and confirms that the mean angles (±standard deviations) at which most cells in the cyclically loaded groups aligned were 85 ± 4°, 87 ± 2°, and 81 ± 6° for 1, 0.5, and 0.1 Hz, respectively, while those in the statically loaded group was 75 ± 5°. However, the mean peak angle for the free-floating control group was 36 ± 24°. The dot plot also showed higher relative intensities in the cyclic compression groups comparing with that of the free-floating control group, implying the dominance of peaks. The lower panel of Figure 6 also showa the statistical analysis results on the presence of dominant peak in different groups. In the compression loaded groups, the majority of samples showed significant results in the presence of dominant peaks (*p < 0.05) but in the free-floating control group, more than half of the peaks were not dominant.

FIG. 4.

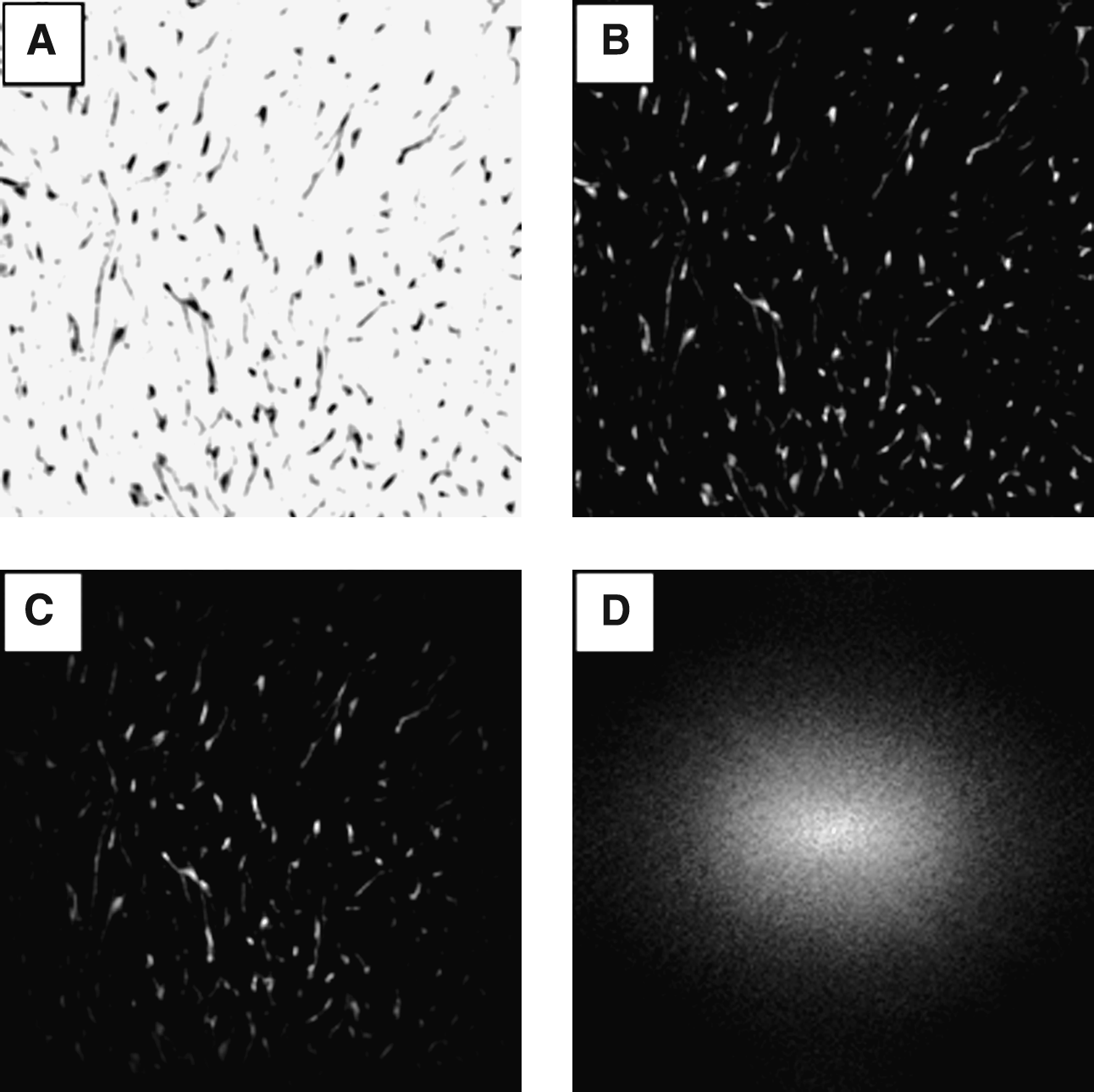

Fast Fourier Transform (FFT) image analysis for cell alignment. (A) Hematoxylin-stained image. (B) Grayscale image. (C) Welch windowed image. (D) Frequency domain of the image after FFT.

FIG. 5.

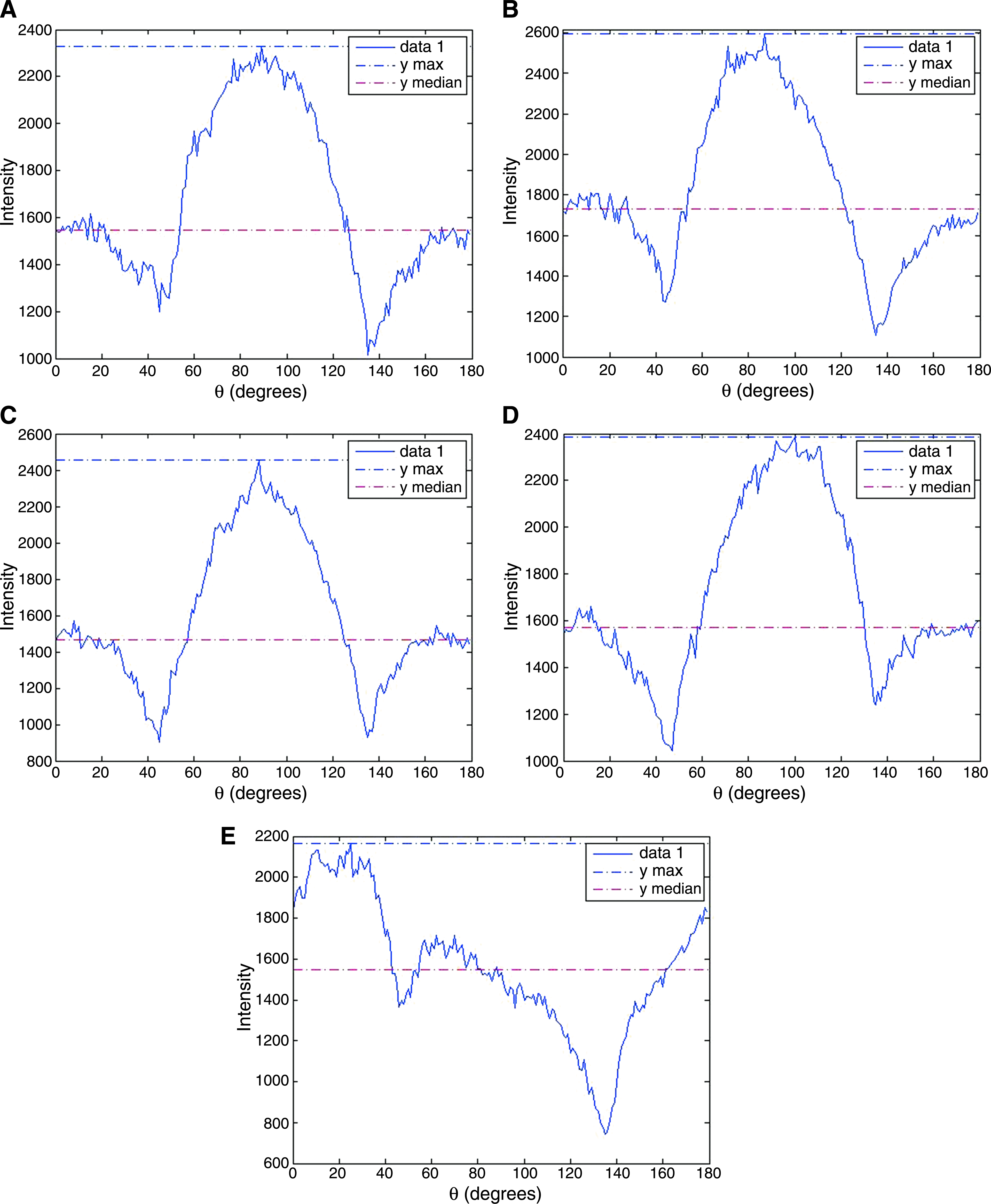

Representative power spectra of FFT-processed images. (A) 1 Hz, (B) 0.5 Hz, (C) 0.1 Hz, (D) static, and (E) free-floating. Color images available online at www.liebertonline.com/ten.

FIG. 6.

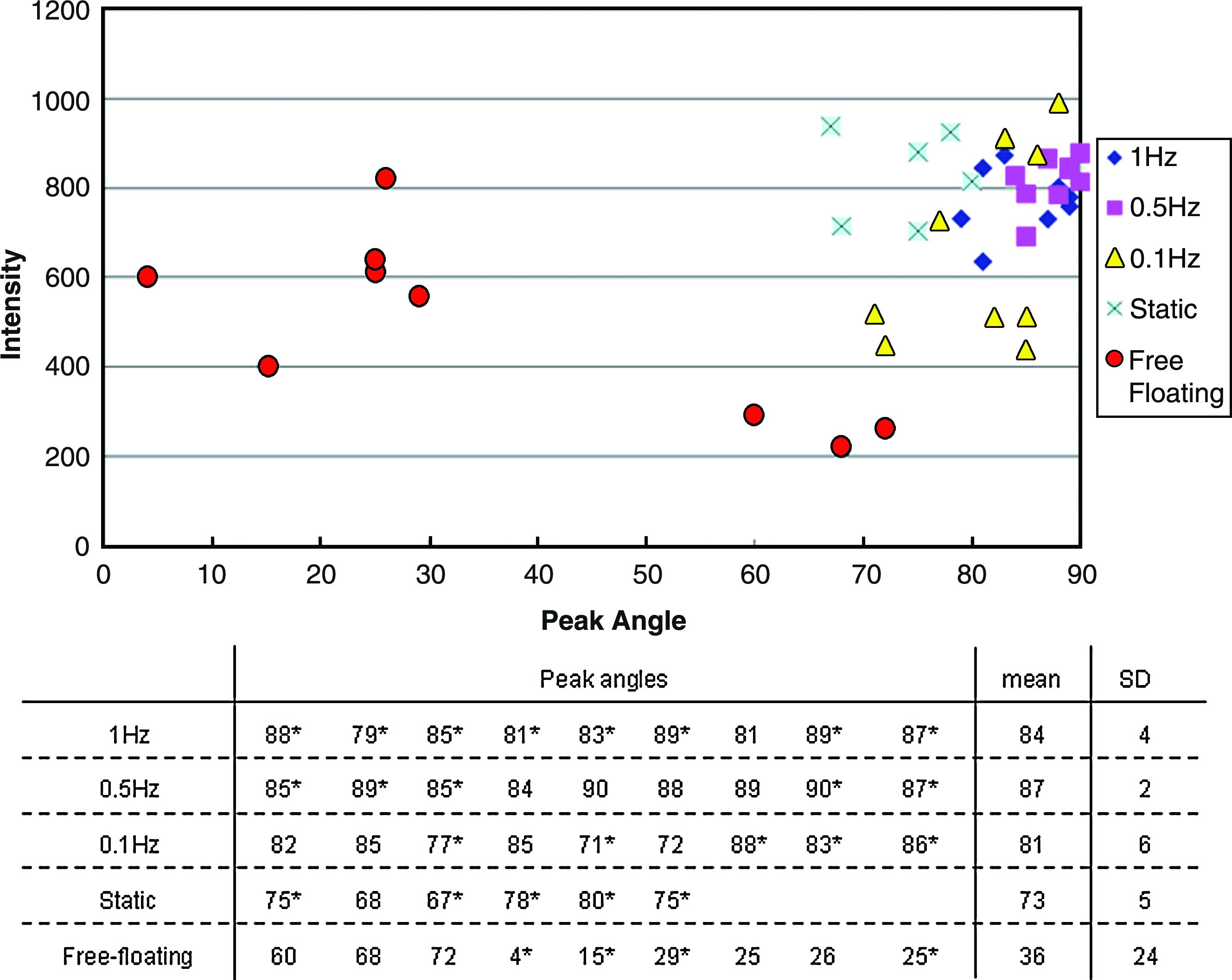

Analysis for peak angles at which most cells aligned in different groups. Upper panel: Dot plot showing the normalized peak intensities (net difference between maximum intensities and medians) against peak angles. Lower panel: Tabulated peak angles and their means and standard deviations in different treatment groups (n = 6–9). Color images available online at www.liebertonline.com/ten.

Fluorescent staining for cytoskeleton confirmed the alignment

Cytoskeleton F-actin filament has been used as an intracellular fluorescent staining for MSCs in collagen constructs. The fluorescent signals also showed elongated morphology of the cells and obvious alignment along the compression loading axis, which was predetermined under the phase contrast image of the same section, in all compression loaded groups (Fig. 7A–D), while the free-floating control group showed no elongated morphology and alignment of cells (Fig. 7E).

FIG. 7.

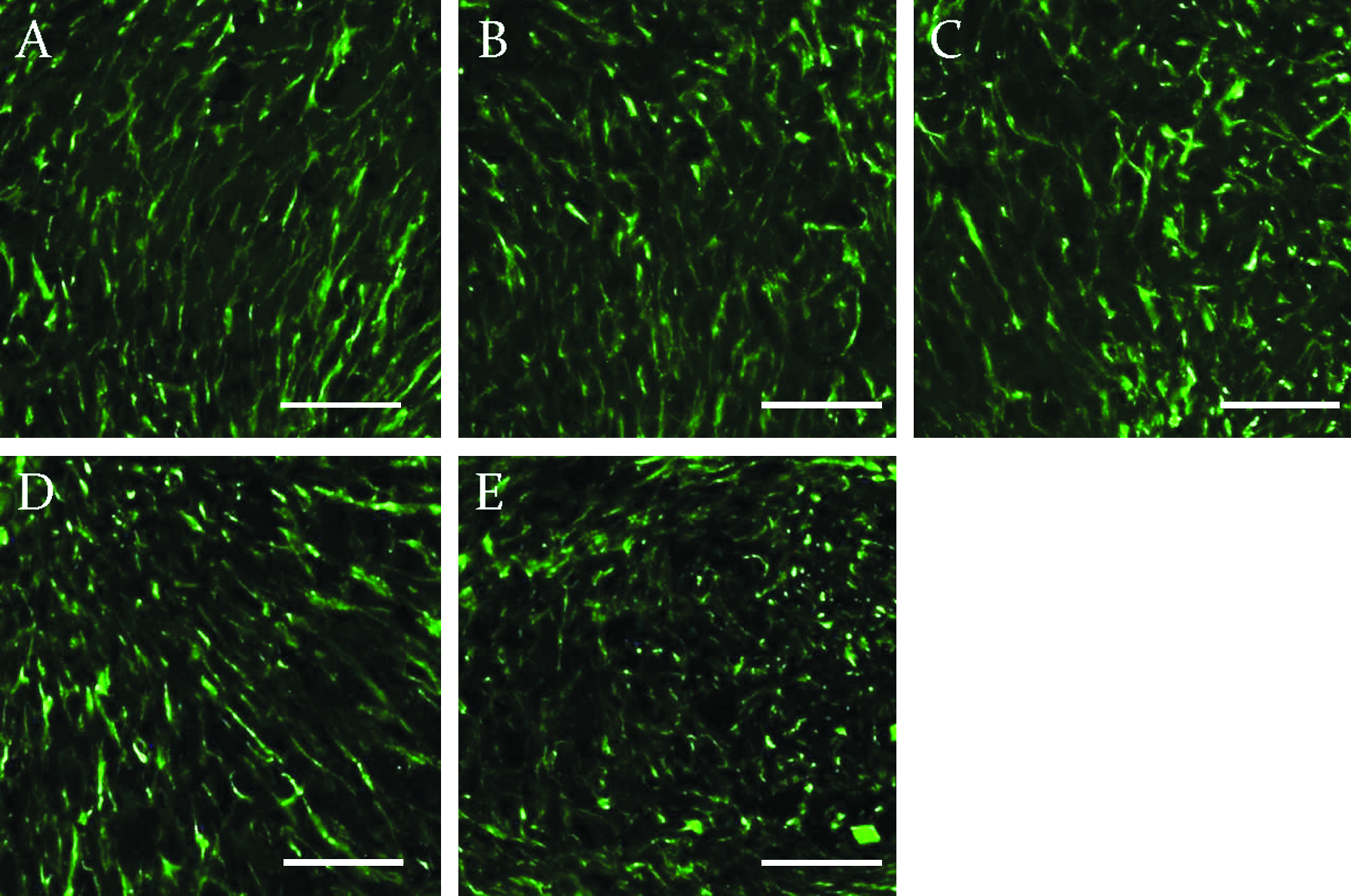

Confocal laser scanning microscopy showing rhodamine phalloidin staining for F-actin filaments in constructs. (A) 1 Hz, (B) 0.5 Hz, (C) 0.1 Hz, (D) static loading, and (E) free-floating control. Scale bar = 100 μm. Color images available online at www.liebertonline.com/ten.

Randomly distributed collagen fiber meshwork

The ultrafine microstructures of the collagen constructs entrapping the hMSCs showed meshwork of nano-sized collagen fibers (Fig. 8). In all cyclic compression loaded groups (Fig. 8A–C), the static compression loaded group (Fig. 8D), and the free-floating control group (Fig. 8E), collagen fibers were found randomly distributed throughout the samples without any preferred alignment.

FIG. 8.

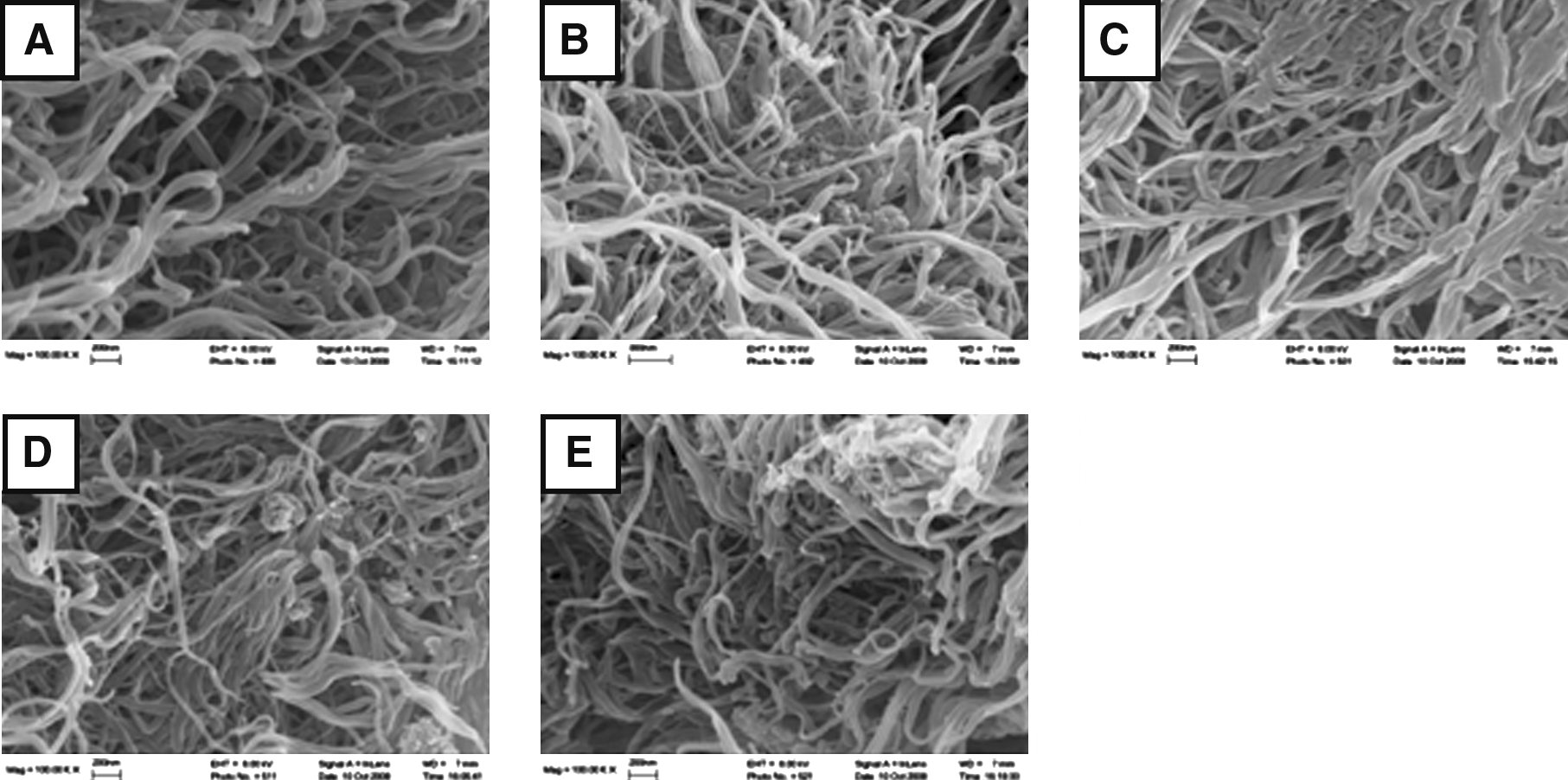

Scanning electron microscopy images showing the random orientation of collagen fibrils in contents of different treatment groups. (A) 1 Hz, (B) 0.5 Hz, (C) 0.1 Hz, (D) static loading, and (E) free-floating control.

Unaltered cellular metabolism

From the result of MTT assay (Fig. 9), the metabolism of cells was not altered by mechanical compressive loading. All groups showed similar level of cellular metabolism without significant difference (p > 0.05). The optical density values were normalized with the free-floating control.

FIG. 9.

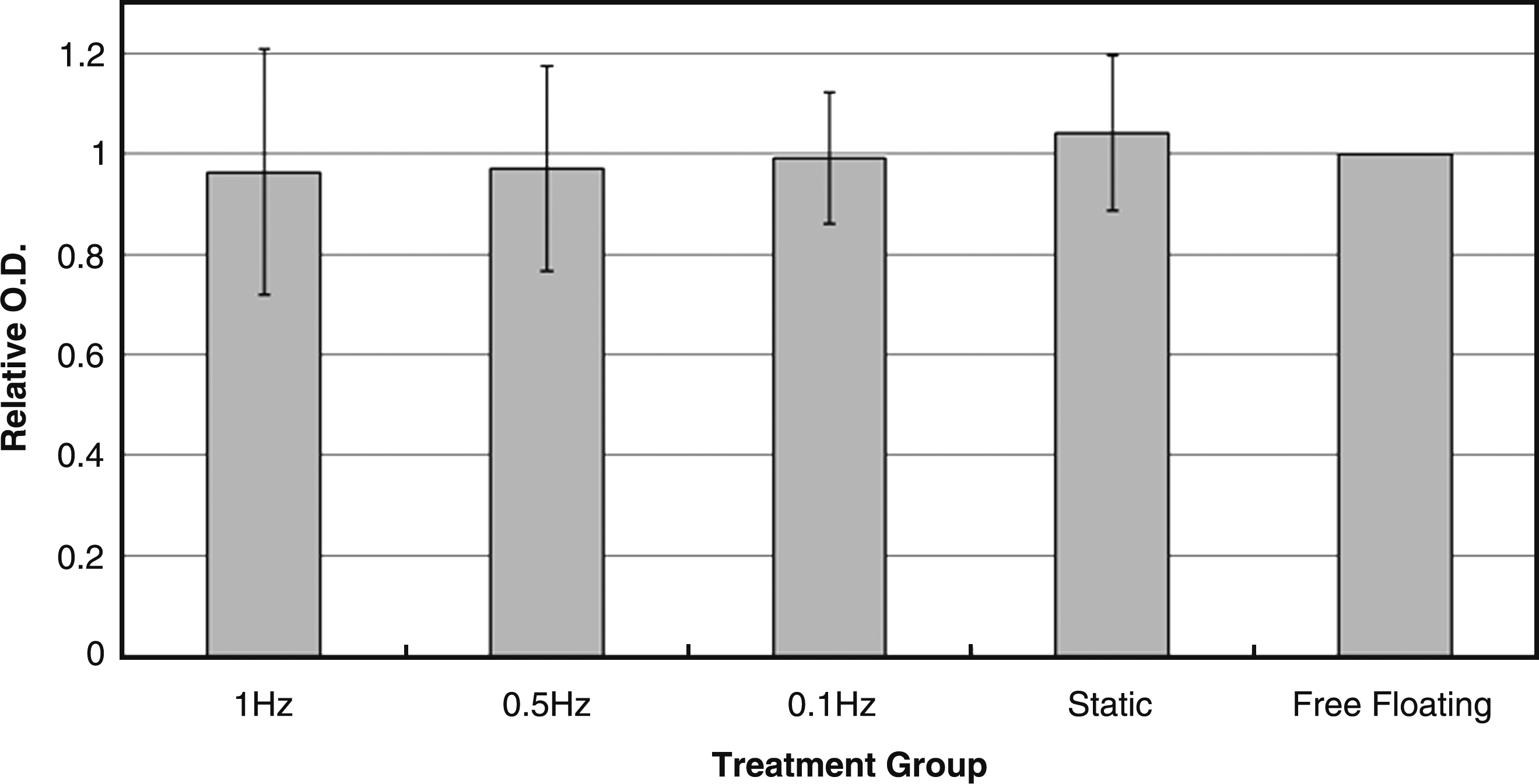

Bar chart showing the normalized absorbance at optical density 540 of the MTT assay in different treatment groups (n = 4).

Unaltered GAG production

Figure 10 shows that the amount of GAG content in different treatment groups was similar, and nonparametric Kruskal–Wallis test shows that no statistically significant difference was found among different groups (p > 0.05).

FIG. 10.

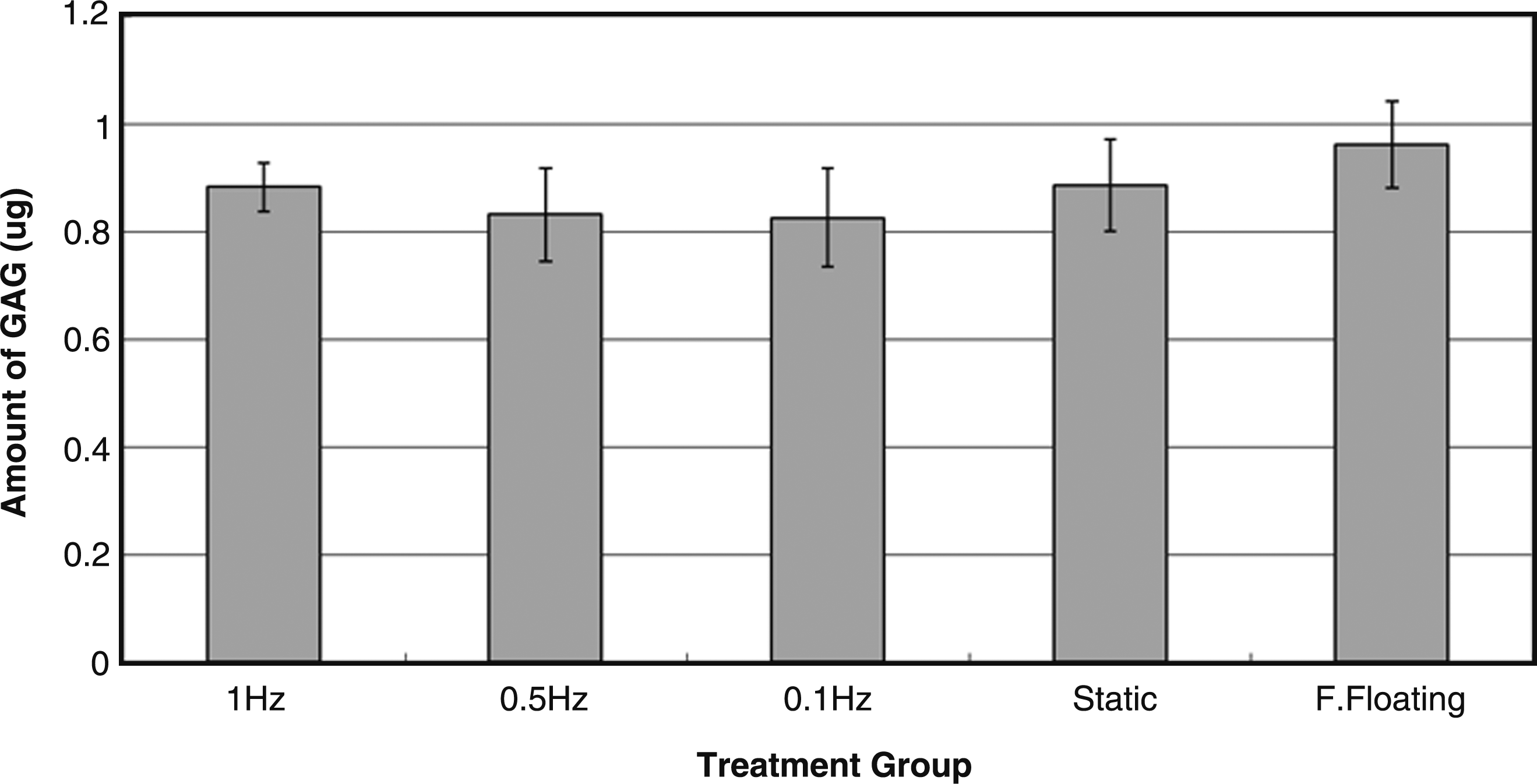

Bar chart showing the amount of glycosaminoglycan (GAG) content in constructs of different treatment groups (n = 5 to 6).

Discussion

A micromanipulator-based mechanical loading system capable of delivering cyclic compressive loading to multiple samples simultaneously was developed. We demonstrated that hMSCs entrapped in a collagen fiber meshwork responded to compressive loading by reorienting themselves to a preferred alignment along the axis of compressive loading. This study provides a simple and affordable option for cellular mechanoregulation studies and can be used in screening and optimizing parameters during scaffold and loading regime design.

Favorable features and limitations of the current mechanoregulation setup

With this micromanipulator-based loading system, smaller constructs can be used, requiring less scaffold materials and cells for mechanoregulation studies. As a result, only several milliliters of culture medium was sufficient for mechanical loading of as many as eight samples in contrast to 100 mL or liter-sized culture medium for a single sample in full size bioreactors, making the setup a very affordable and efficient system for mechanoregulation studies. Moreover, the loading process and hence the construct deformation can be viewed in real time. This feature also enables investigation of real-time cellular response to mechanical loading if a confocal laser scanning microscope is coupled with the setup. Further, this system can be easily modified to provide other modes of mechanical loading such as tensile loading (data not shown) and to perform other functions such as measuring the elastic modulus of single cells and soft hydrogel constructs.⁵⁹ However, this system does have several limitations. First, it is currently a displacement-controlled system and cannot provide the force-control option without modifications. Second, loading frequency higher than 2 Hz cannot be achieved due to the limitation of the micromanipulators used in this system. Finally, the waveforms of loading are not exactly the same for different loading frequencies due to the limitation of the micromanipulators.

Significance of cell alignment in tissue engineering and differential response of cell alignment in two-dimensional and 3D culture models

Cell alignment is important for the proper functioning of native tissues such as ligament,^60,61 tendon,^62,63 and muscle.^64,65 The mechanical property of tendon and ligament is associated with the collagen matrix organization, which is closely related to the alignment of cells^63,66 and is mediated through cytoskeleton such as actin filaments.⁶² The proper transduction of electrical signals of heart muscle has been facilitated by the alignment of cardiomyocytes, which gives the anisotropic structure of the heart tissue.^65,67 Moreover, the significance of cell alignment has also been demonstrated in engineered tissues with better functional properties. In particular, cell alignment comparable to that in the normal tendon has been shown related to the improved mechanical properties of repaired patellar tendon using MSC-seeded collagen matrix.^68,69 As a result, incorporating cell alignment into the construct design is important to assure better functional properties of the engineered tissues. A number of physical factors, including electrical stimulus,^70–74 mechanical loading such as tensile stretching and interstitial fluid flow,^{7,54,70–72,74–80} and surface topology such as microgrooves^66,81–91 and electrospun fibers,^92,93 were found to induce cell alignment. In most previous studies on the effect of mechanical loading on cell alignment, two-dimensional (2D) deformable culture substrates such as a fibronectin-coated silicon membrane have been used. In these studies, cells such as fibroblasts^73,74 and endothelial cells⁷¹ have been shown to orient themselves away from or perpendicular to the tensional loading axis. This has been described as the “avoidance response to stretch.”⁷³ However, the cellular responses to loading become very different when the cells are embedded in a hydrogel material, therefore giving a 3D tissue-like construct. Specifically, when the cell-embedded 3D structures are mechanically stretched, cells align along the axis of stretching no matter whether they are fibroblasts^70,94 or bone marrow MSCs.⁹⁵ This big difference in cellular alignment may be due to the differential pattern of cell–matrix interaction in 2D and 3D experimental models. For example, cells in 3D matrix express a different pattern of cell–matrix interacting molecules such as integrin comparing with that in 2D configuration.⁶ Moreover, the presence of matrix may serve as an important function to transfer load to other parts of the matrix as well as to cells and hence the mechanical compliance or stiffness of the matrix may also contribute to the load transfer to cells in 3D constructs. In fact, the intrinsic mechanical properties of matrix did affect cellular activities.^96,97 Further, cells cultured on 2D substrates have more freedom to migrate and move particularly when they are in subconfluence,^71,73,74 but cells embedded in 3D extracellular matrix have more constraints to movement. All in all, cells in 3D matrix interact with the matrix, sense the force applied, and migrate in a different manner comparing with that on 2D substrates and therefore may result differently in cell alignment. In this study, we are the first to demonstrate that compressive loading, both static and cyclic, induced the alignment of hMSCs in a direction parallel to the axis of loading in a 3D collagen matrix. Although the exact mechanism of the cellular response to loading has not be fully delineated, this has been suggested as a phenomenon where cells under mechanical loading tend to orient themselves in a way that the strain applied to them was reduced to the minimum level.⁷⁰ The same explanation may also be applicable in the current study as the strain applied to hMSCs in a collagen gel under compressive loading would also be minimal if the cells are in alignment with the axis of loading (Supplemental Fig. S1, available online at www.liebertonline.com). Further investigations are warranted to find out the significance of such alignment response in hMSCs and whether the same alignment response is found in other cell types.

Effects of compressive loading on MSC differentiation

Previous studies reported the effects of compressive loading on chondrogenic differentiation of MSCs with and without supplementation of transforming growth factor-beta,^{11,15,17–19,39–41} which is a well-known biological factor inducing chondrogenic differentiation. Among some of these studies, cyclic compression without transforming growth factor-beta stimulated the production of GAGs, an extracellular matrix marker for chondrogenic differentiation, comparing with the unloaded controls.^11,15,19 In the current study, no significant increase in GAGs has been noted in the loaded groups. In-house data on other intra- and extracellular markers for chondrogenic differentiation including sox-9 and type II collagen (Supplemental Figs. S2 and S3, respectively) also confirmed the results. Given a number of comparable parameters such as unconfined compression with same frequency of loading (1 Hz) and similar magnitude of loading (10–15%), the discrepancy in results on chondrogenic differentiation may be due to other differences in culture conditions and loading protocols between the current and the previous studies (Table 1). First, the 3D matrix used to embed the rabbits MSCs in these studies was 4% agarose. Agarose is normally not interactive with cells, but the matrix system used in the current study is collagen, which usually interacts specifically with hMSCs via cell–matrix molecules such as integrin.⁹⁸ Second, the species from which the MSCs were isolated was different. Specifically, rabbit MSCs have been used in previous studies,^11,15,19 while hMSCs were used in this study. Third, the duration of loading varied among different studies. For instance, in some studies,^11,15 cyclic compression of 4 hours per day for 3, 7, and 14 consecutive days was applied, while in other, 10 min of loading was applied twice a day for 3, 5, and 7 consecutive days.¹⁹ In this study, compression of 1 hour per day for 7 consecutive days was used. This suggests that factors in relation to cell, matrix, and loading regime are all important factors affecting the effects of mechanical loading on MSC differentiation.

Table 1.

Comparison in the Experimental Conditions Between the Current Study and Previous Studies

Similarities		Differences
Loading protocol			Current study	Previous study	References
Nature	Unconfined	Species	Human	Rabbit or goat	11, 15, 19, 41
Frequency	1 Hz	Matrix system	Collagen	Agarose	11, 15
Magnitude	10–15%	Loading duration	1 h/day	4 hours or 20 min/day	11, 15, 19

Future directions

It is important to investigate the status of differentiation of the compressively loaded hMSCs in detail although the collective evidence so far suggested that hMSCs are unlikely to differentiate toward chondrogenic (Fig. 10 and Supplemental Figs. 2 and 3) and osteogenic (Supplemental Fig. 4) lineages. Expression of differentiation markers in gene level using real-time polymerase chain reaction can be used to study the early onset of differentiation. Moreover, it is also important to investigate the multiple differentiating potential of the aligned hMSCs after compressive loading by supplementing well-known chemical induction medium to the constructs^99–101 so as to explore the significance of cell alignment in modulating the functional properties of tissue constructs. In addition, transmission of external forces to cells embedded in a matrix is dependent on the matrix stiffness.¹⁰² The assembly of cytoskeleton of cells with fibronectin on cell surface was also associated with the stiffness of the matrix. In particular, bundles of actin microfilaments and fibronectin were well defined in cells embedded in collagen gel anchored to the rigid substratum of a culture dish, while no bundles of actin microfilaments and fibronectin could be found in free-floating collagen gel,¹⁰³ similar to what has been observed in the current study. As a result, how the embedded cells perceive the stiffness of their matrix microenvironment does affect their interaction with the extracellular matrix and hence the forces they experience via these cell–matrix interactions. It is therefore of our interest to study the effects of matrix stiffness on the cellular responses to mechanical loading so as to further understand the matrix-mediated force transmission in cells embedded in 3D constructs.

Conclusion

A simple, affordable, and high-throughput mechanical loading system based on modifications of existing laboratory setup has been developed to deliver controlled compressive loading to 3D tissue-engineered constructs. hMSCs embedded in collagen gel consisting of fibrous meshwork have been demonstrated to respond to both static and cyclic compression by reorienting themselves in an alignment parallel to the direction of loading in contrast to the absence of such alignment in unloaded controls. Nevertheless, the collagen fiber meshwork entrapping the hMSCs remained randomly distributed as it was and no sign of enhanced cellular metabolism and increased GAG production was noted, suggesting that hMSCs do not actively remodel the matrix meshwork upon compressive loading alone. This study presents an experimental model for mechanoregulation studies and can be used in screening and optimizing parameters during scaffold and loading regime design.
