Aminated 3D Printed Polystyrene Maintains Stem Cell Proliferation and Osteogenic Differentiation

Abstract

As 3D printing becomes more common and the technique is used to build culture platforms, it is imperative to develop surface treatments for specific responses. The advantages of aminating and oxidizing polystyrene (PS) for human mesenchymal stem cell (hMSC) proliferation and osteogenic differentiation are investigated. We find that ammonia (NH₃) plasma incorporates amines while oxygen plasma adds carbonyl and carboxylate groups. Across 2D, 3D, and 3D dynamic culture, we find that the NH₃- treated surfaces encouraged cell proliferation. Our results show that the NH₃-treated scaffold was the only treatment allowing dynamic proliferation of hMSCs with little evidence of osteogenic differentiation. With osteogenic media, particularly in 3D culture, we find the NH₃ treatment encouraged greater and earlier expression of RUNX2 and ALP. The NH₃-treated PS scaffolds support hMSC proliferation without spontaneous osteogenic differentiation in static and dynamic culture. This work provides an opportunity for further investigations into shear profiling and coculture within the developed culture system toward developing a bone marrow niche model.

Impact statement

Surface treatment can be leveraged to enhance human mesenchymal stem cell response when transitioning polystyrene from a 2D to a 3D culture substrate. Understanding how the underlying surface chemistry influences the adhered cells could help build complex culture environments, with multiple cell types and work toward more biomimetic models of the bone marrow niche. Toward this goal, it is imperative to establish how the cells respond under static and dynamic culture and ensure the scaffolds support osteogenesis under typical induction conditions.

Introduction

As 3D printing technologies become more integrated into culture systems, the properties of culture substrate must not be overlooked. Polystyrene (PS) presents many unique opportunities as a custom-functionalized culture substrate. The relative ease of culture on disposable (recyclable) materials has generally shifted culture strategies away from reusable glass dishes, reducing the need for manual cleaning procedures.^1,2

A variety of PS culture substrates are on the market, suiting the needs of biologist, engineers, and researchers across disciplines. However, the base material lacks the surface chemical functionality to best facilitate protein adhesion and cell spreading.^3,4 To address this shortcoming, tissue culture polystyrene (TCPS) undergoes an oxygen (O₂) plasma treatment to generate a surface conducive to cell adhesion and proliferation,^5,6 although several plasma compositions have been investigated.⁷ The competing chemical, thermodynamic, and electrostatic forces at the surface makes quantifying every interaction difficult, but understanding the link between chemistry, surface energy, and cell response provides a good summary for building culture systems.

Understanding the impact of surface properties and proteins on cell-substrate interactions within the culture environment is essential in tissue engineering and regenerative medicine applications. The complex interplay between substrate properties and adhered proteins is crucial to achieving populations with expected differentiation capacity in pluripotent stem cells.⁸ PS culture surfaces grafted with poly(allylamine) have been shown to support human mesenchymal stem cell (hMSC) adhesion and chondrogenesis, a phenomenon not seen with poly(acrylic acid) grafted surfaces.⁹ Carboxylic acid-modified surfaces have been shown to enhance chondrogenic differentiation,^10–12 and amines have been shown to enhance calcification and osteogenic marker expression.^13,14 Positively charged poly(acrylic acid)-modified surfaces have been found to increase hMSC proliferation and support osteogenic differentiation.¹⁵ Further biomimicry can be gained by transitioning to 3D substrates, with hydrogels continuing to demonstrate cell differentiation trends.¹⁶ Linking chemical influences to 3D culture systems serves the research community by mimicking the natural environment of adherent cell culture and provides a tool to investigate hMSC processes under flow.

Continuing to develop complex, 3D culture systems serves the research community well, better mimicking the natural cell culture environment. Specifically, transitioning PS from a 2D to a 3D platform capable of supporting dynamic culture would provide a unique tool to investigate hMSC processes under flow¹⁷ while growing on a standard culture substrate. The assumed biomimicry afforded by dynamic 3D culture by rapid modeling, tuning, and testing various physiological stressors, including fluid flow,¹⁸ compression,¹⁹ O₂ content,²⁰ cellular distribution,²¹ cellular patterning,²² and overall geometry,²³ justifies continued inquiry. Developing defined, easily producible, and predictable culture platforms for dynamic culture provides an opportunity to improve culture practices broadly.

Along this rational, we sought to develop a plasma treated, 3D printed PS scaffold and bioreactor system for hMSC culture. Particularly, we sought to understand how the surface treatment influences both proliferation and osteogenic differentiation. To accomplish this goal, we first characterized the effect of our surface treatment on PS and determined the saturation point of our plasma treatment system. Next, we sought to understand proliferation and osteogenic differentiation with and without induction media in 2D and 3D culture conditions. Finally, we investigated the performance of our scaffold within a perfusion bioreactor. Overall, this study focused on the impact of surface treatment on hMSC expansion and differentiation, working to advance PS to a 3D culture substrate.

Materials and Methods

3D scaffold fabrication

A 3D Bioplotter (EnvisionTEC GmbH, Gladbeck, Germany) was used to fabricate scaffolds, as described.²⁴ In brief, a sugar-glass support material (EnvisionTEC GmbH) was printed and used as a support substrate with PS (>50,000 MW atactic flakes; Polysciences, Inc., Warrington, PA) extruded to fabricate 15 mm diameter scaffolds of five layers with a center-to-center fiber distance of 1 mm extruded at 155°C through a 0.4 mm ID needle tip, at 900 kPa, at 3–5 mm/s. Each layer in the scaffold was set at an 85.5° offset to the previous layer, creating a structure which did not repeat over the scaffold height. At the completion of prints, support material was solubilized with ddH₂O cleaned in 100% ethanol (EtOH) for 30 min and air dried.

Surface activation through plasma treatment

Test samples were activated using a Femto Diener Electronic vacuum plasma system (Ebhausen, Germany) (typically below 150 Pa). The entire chamber was filled with test gases O₂ (Roberts Oxygen, Gaithersburg, MD) and ammonia (NH₃; Matheson, Bernards Township, NJ) added at 10 SCCM and system power set to 80 W. Settings were found to produce consistent plasma activation and chamber filling. The chamber was evacuated and flooded two times before activation. Six-well nontreated (NT) dishes were used for 2D experiments and 3D printed scaffolds for 3D experiments. Samples were sterilized under UV light for at least 20 min before use in cell studies. Experiments were generally performed at least the day following treatment.

Surface characterization through water contact angle

Water contact angle was measured using Drop Shape Analysis (First Ten Angstroms, Inc., Portsmouth, VA) on ∼3 μL drops of deionized water dispensed from a vertically mounted syringe. The pendant droplet, viewed through a high-resolution camera (Zoom 6000 Lens System; Navitar, Rochester, NY), was lowered to touch the surface and detach from the syringe. Five measurements were taken of each surface.

Chemical surface property assessment through X-ray photoelectron spectroscopy

Quantitative spectroscopic measurements using a Kratos Axis Ultra delay-line detector (Kratos Analytical Ltd, Manchester, UK) used in hybrid mode with a monochromatic Al Kα1, 2 X-ray source (hν = 1486.6 eV) determined sample elemental distribution and bonding stoichiometry with survey scans (0–1100 eV, resolution of 1 eV) and high-resolution scans (pass energy of 40 eV, resolution of 0.1 eV). A Gaussian-Lorentzian distribution with a full width at half maximum constraint of ∼1.7 eV was used for peak fitting with three spectra per sample. Charging was accounted for with a low energy electron flood-gun with a filament current of 1.8 A and charge bias of 2.5 V. Differential charging on the surface was not suspected based on a lack of significant peak broadening. Binding chemistry was identified by deconvolving peaks into components based on the overall peak shape.

Structural characteristics of 3D printed constructs through microcomputed tomography

Samples were scanned by μCT (SkyScan 1272; Bruker, Kontich, Belgium) to generate 3D models of the printed constructs following established protocols.^25–27 In brief, three samples were imaged using 180° rotation at 40 kV and 220 mA. A resolution of 8 μm/pixel was used with an Al 0.25 mm filter. Raw images were reconstructed, sliced, and analyzed using NRecon and CTAn software packages (Bruker, Billerica, MA). Data were then imported into LabView (National Instruments, Austin, TX) with 10 different longitudinal slices used to measure the maximum feret diameter, Waddel disk diameter, and spacing of fibers (n ≥ 13/scaffold).

Cell culture

hMSCs (RoosterBio, Frederick, MD) were expanded in RoosterNourish media (RoosterBio). Cells were maintained in a humidified 37°C incubator with 5% CO₂. To seed studies, culture flasks were washed with pH 7.4 phosphate-buffered saline (PBS) and lifted with 0.25% trypsin-ethylenediaminetetraacetic acid (EDTA) (ThermoFisher, Watham, MA) and neutralized with media. Passage 2–5 hMSCs were used from maintained banks and treated as passage 1 upon receipt. Cells were passed into Dulbecco's modified Eagle's medium with 10% fetal bovine serum, 0.1 mmol/L minimum essential media nonessential amino acids, and 100 U/mL penicillin—100 μg/mL streptomycin (ThermoFisher) at the start of cell studies. This media was used as the growth media for all studies.

Osteogenic media contained 1 mmol/L sodium pyruvate (ThermoFisher), 100 nmol/L dexamethasone, 50 μg/mL ascorbic acid 2-phosphate, and 10 mmol/L β-glycerophosphate (Sigma-Aldrich, St. Louis, MO), as described.²⁸ Cells were seeded at 5,000 cells/cm² for 4 h and then sufficient growth media was added to cover samples. Cell counting accomplished using the Trypan Blue (Sigma-Aldrich) exclusion method with a hemocytometer. Media was changed at each time-point for 10-day studies, with induction media added at day 1, as appropriate, and twice per week for 3-week studies.

DNA quantification

Cells were dissociated to understand usable cell quantities from three samples with Trypsin and 0.25% EDTA. Samples were rinsed with PBS and added to lifted cell suspension. Cells were pelleted and resuspended in PBS with DNA isolated following the procedures for DNeasy Blood & Tissue Kit (Qiagen, Hilden, Germany). Isolated DNA was mixed with the diluted dye in technical triplicate and compared to a standard DNA ladder, following protocols for Quant-iT PicoGreen (ThermoFisher). Fluorescence measurements were read on a M5 SpectraMax plate reader (Molecular Devices, San Jose, CA) with an excitation wavelength of 490 nm and emission read at 538 nm. DNA proliferation was evaluated from the D1 timepoint.

Reverse transcriptase polymerase chain reaction

Sample RNA was isolated using TRIzol (ThermoFisher) phase separation techniques. In brief, three samples were washed with a single volume of TRIzol solution and gently mixed to generate a pooled sample. TRIzol solution was transferred to microcentrifuge tubes, chloroform added, and vigorously mixed. The mixture was centrifuged at 12,000g for 15 min at 4°C with the aqueous phase removed. Seventy percent EtOH was added to account for 35% of the total solution volume and transferred to an RNeasy mini column (Qiagen). Complete RNA isolation followed kit instructions.

cDNA conversion was completed using a High Capacity cDNA Archive Kit (ThermoFisher) following manufacturer's procedures. ΔΔCT gene expression was completed in technical triplicate, comparing TaqMan probes for genes of interest (RUNX2, ALP, and OPN) to GAPDH (endogenous control) with Universal Master Mix (ThermoFisher). A 7900HT RT-PCR system (Applied Biosystems, Foster City, CA) cycled reaction vessels as follows: 2 min at 50°C, 10 min at 95°C, 40 cycles of 15 s at 95°C, and 1 min at 60°C. NT day 1 growth media samples were used for normalization.

Alizarin Red S staining, imaging, and solubilized stain quantification

At least two samples were washed with Hank's buffered salt solution (Sigma-Aldrich), fixed with 4% buffered formaldehyde 1% sucrose solution for 15 min, and rinsed three times with PBS. Calcification was stained with 40 mM pH 4.1 Alizarin Red S (ARS; Sigma-Aldrich) as previously described.^29,30 In brief, samples were washed four times with PBS and imaged (Nikon, Tokyo, Japan). To solubulize the stain, samples were incubated for 30 min at room temperature in 10% (v/v) acetic acid. Samples were mechanically detached and supernatant transferred to microcentrifuge tubes (3D scaffolds transferred as well), vortexed, and overlaid with mineral oil. Samples were heated at 85°C for 10 min, cooled on ice, mineral oil removed, and centrifuged at 15,000g for 15 min. The supernatant was transferred and neutralized with 10% (v/v) ammonium hydroxide with absorbance at 405 nm determined in technical triplicate on a plate reader (M5 SpectraMax; Molecular Devices). Absorbance was normalized to NT growth media samples.

Bioreactor fabrication and assembly

Bioreactor chambers were designed in SolidWorks (Dassault Systemes, Velizy-Villacoublay, France) with STL files exported, aligned, and support structures generated (Magics, Materialise, Leuven, Belgium), and fabricated with Eshell 300 on a Perfactory 4 DSP printer (EnvisionTEC) following manufacturer's procedures. Excess resin was removed from objects by soaking in 99% isopropyl alcohol (IPA) for ∼5 min, rinsing with IPA, and blowing the objects dry with air. This process was repeated until complete resin removal. Support structures were removed and chambers fully cured with up to 2000 flashes of broad-spectrum UV light (Otoflash; EnvisionTEC). Chambers were cleaned in 100% EtOH for 30 min and sterilized under UV light in fresh 100% EtOH for 20 min, and rehydrated as described.³¹ Chambers were stored in fresh sterile PBS at 4°C until use and cleaned between uses.

Fourteen-gauge pump tubing was connected to cut 1/8″ ID platinum-cured silicone tubing by 1/16″ × 1/8″ Kynar connectors and fed into 2-hole #5 stoppers (Cole-Parmer, Vernon Hills, IL). Open connections to the media reservoir and bioreactor chamber were covered in aluminum foil. One hundred twenty-five milliliter Erlenmeyer flasks were used as media reservoirs. 50 A durometer silicone sheet of 0.5 mm thickness (Small Parts) was cut using an Epilog laser fusion M2 laser engraver to make gaskets. Stainless steel hardware was used to seal chambers. These components were autoclaved.

Following overnight static cell seeding, three scaffolds containing seeded cells were placed in each chamber, sealed, closed, and attached to Erlenmeyer flasks filled with 50 mL of growth media. A Masterflex L/S digital drive multichannel pump (Cole-Parmer) set at 3.4 mL/min was used to drive flow within a cell incubator. Flow rate was determined by simulating the bioreactor assembly in SolidWorks Flow Simulation to determine a shear stress approximately an order of magnitude lower than typically used to induce osteogenic differentiation (1.5 mPa surface shear stress).^32,33 At media changes, media was removed from the flasks and fresh 50 mL was added. At time points, chambers were disassembled and scaffolds processed.

Confocal imaging

Ten day samples were washed with Hank's buffered salt solution (Sigma-Aldrich), fixed with 4% buffered formaldehyde 1% sucrose solution for 15 min, and washed three times with PBS. Permeabilization was performed for 5 min with a 300 mmol/L sucrose, 50 mmol/L sodium chloride, 6 mmol/L magnesium chloride, 20 mmol/L 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid, and 0.5% Triton-X-100 solution. Actin was stained with 2.5% AlexaFluor 594 phalloidin (ThermoFisher) in PBS and counterstained with 1 μg/mL diamidino-2-phenylindole. A SP5 X Leica Microsystems confocal microscope (Buffalo Grove, IL) captured Z-stacks. ImageJ projected images along the imaging axis and generated 3D renderings.

Statistical analysis

Statistical significance was determined through a one-way two-sided analysis of variance (ANOVA) at the 95% confidence interval (p < 0.05) using the Games-Howell comparison method in Minitab 18 (Minitab, Inc., State College, PA). Data are presented as mean ± standard deviation with replicates stated in methods and figure captions.

Results

NH₃ plasma treatment successfully aminated surfaces

We sought to define surface properties which translate from 2D to 3D in creating culture environment amenable for hMSC proliferation with tunable osteogenic response. We found that the plasma treatment saturated (i.e., no further chemical modification) after 5 min for O₂ (21.1 ± 1.8% O₂) and NH₃ (12.1 ± 0.4% nitrogen) (Fig. 1A–C). This plasma treatment exposure was used for all remaining experiments. The increases in surface O₂ with the O₂ treatment and surface nitrogen on the NH₃-treated surface were statistically significant (p < 0.05, Fig. C).

FIG. 1.

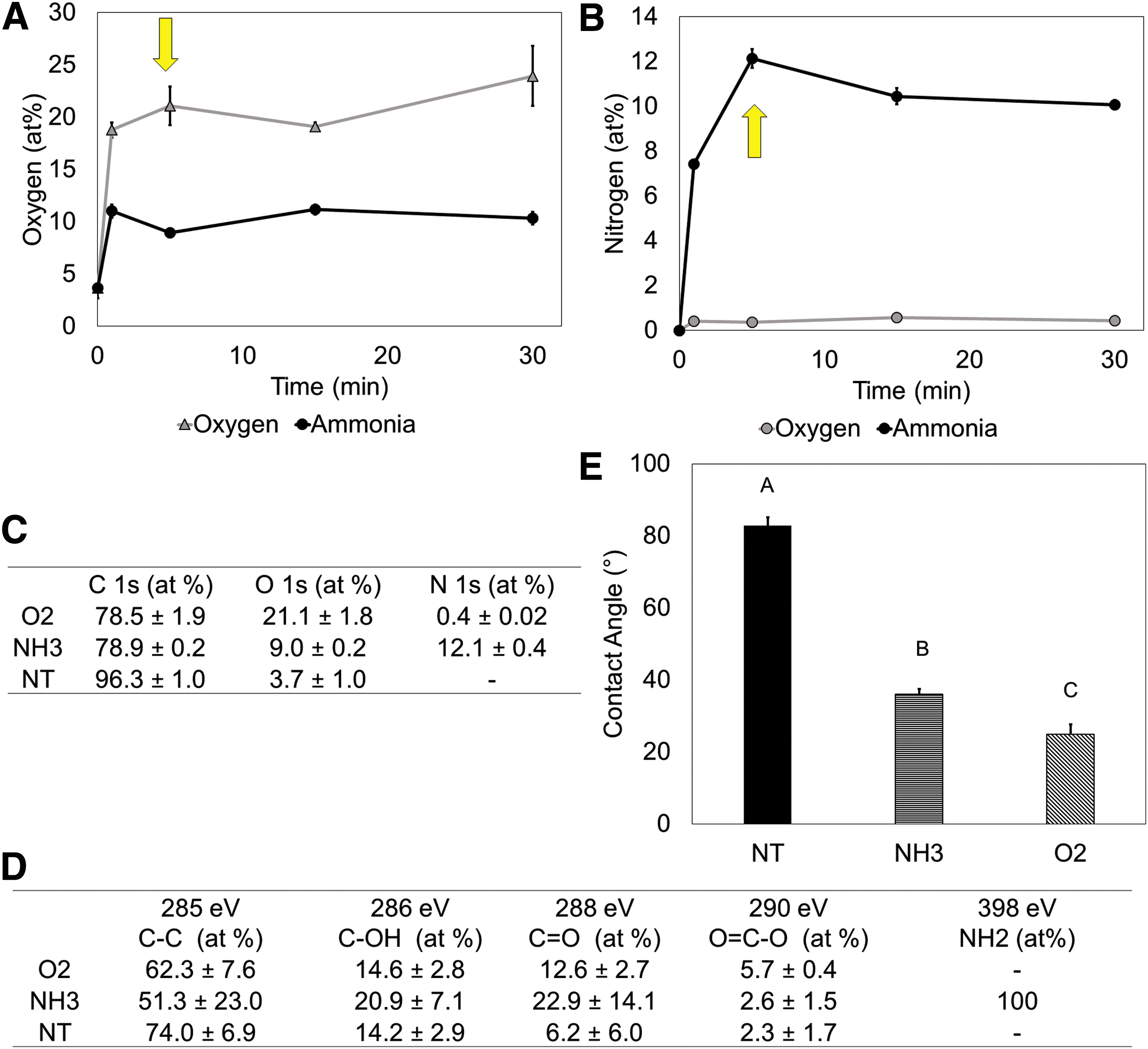

Characterization of surface treatment. (A) O₂ atomic percentage (atomic [at] %) versus time for the two treated surfaces, as determined by XPS. (B) Nitrogen at% versus time for the two treated surfaces, as determined by XPS. From (A, B), it is observed that the oxygen and nitrogen content remain relatively constant after 5 min, indicating surface saturation. (C) Table shows the survey XPS data. The NT surface contained little base oxidation, where plasma treatment increased both oxygen and nitrogen content. (D) Table shows the high-resolution XPS data, detailing the binding stoichiometry of present carbon and nitrogen species. Many oxygen species are observed on the O₂ and NH₃ surfaces, with amines incorporated into the NH₃ surface. (A–D) Data are shown as mean ± SD, three scans per sample. (E) Static water contact angle for the treated surfaces. Significant reduction in the contact angle is observed after treatment, with the lowest contact angle observed on the O₂ surface. Groups with different uppercase letters indicate statistical difference (p < 0.05), data are shown as mean ± SD, n = 5. NT, nontreated; O₂, oxygen; SD, standard deviation; XPS, X-ray photoelectron spectroscopy.

High-Resolution X-ray photoelectron spectroscopy spectra revealed that nitrogen species on the NH₃-treated surfaces were predominantly amines (Fig. 1D). Limited oxidation was present on the native NT surfaces (3.7 ± 1.0% O₂). Surface treatments significantly decreased the water contact angle for both NH₃ (36.0 ± 1.4°) and O₂ (24.9 ± 2.9°) surface treatments, consistent with increased surface energy through plasma surface activation (p < 0.05, Fig. 1C).

Surface amines facilitated proliferation and osteogenic differentiation in 2D cultures

Over the course of 10 days, it was observed that generally the NH₃-treated surface promoted greater hMSC proliferation compared to the O₂-treated or NT-treated surfaces (Fig. 2A). Throughout the study, the greatest amount of DNA was present on the NH₃-treated surfaces. It is interesting to note that, while the quantified DNA is similar at the D1 time point, statistically significant differences were observed after 10 days. The DNA content present on the NH₃-treated surface (0.63 ± 0.03 μg) was greater than the NT (0.50 ± 0.01 μg) or O₂ surfaces (0.53 ± 0.07 μg) (p < 0.05).

FIG. 2.

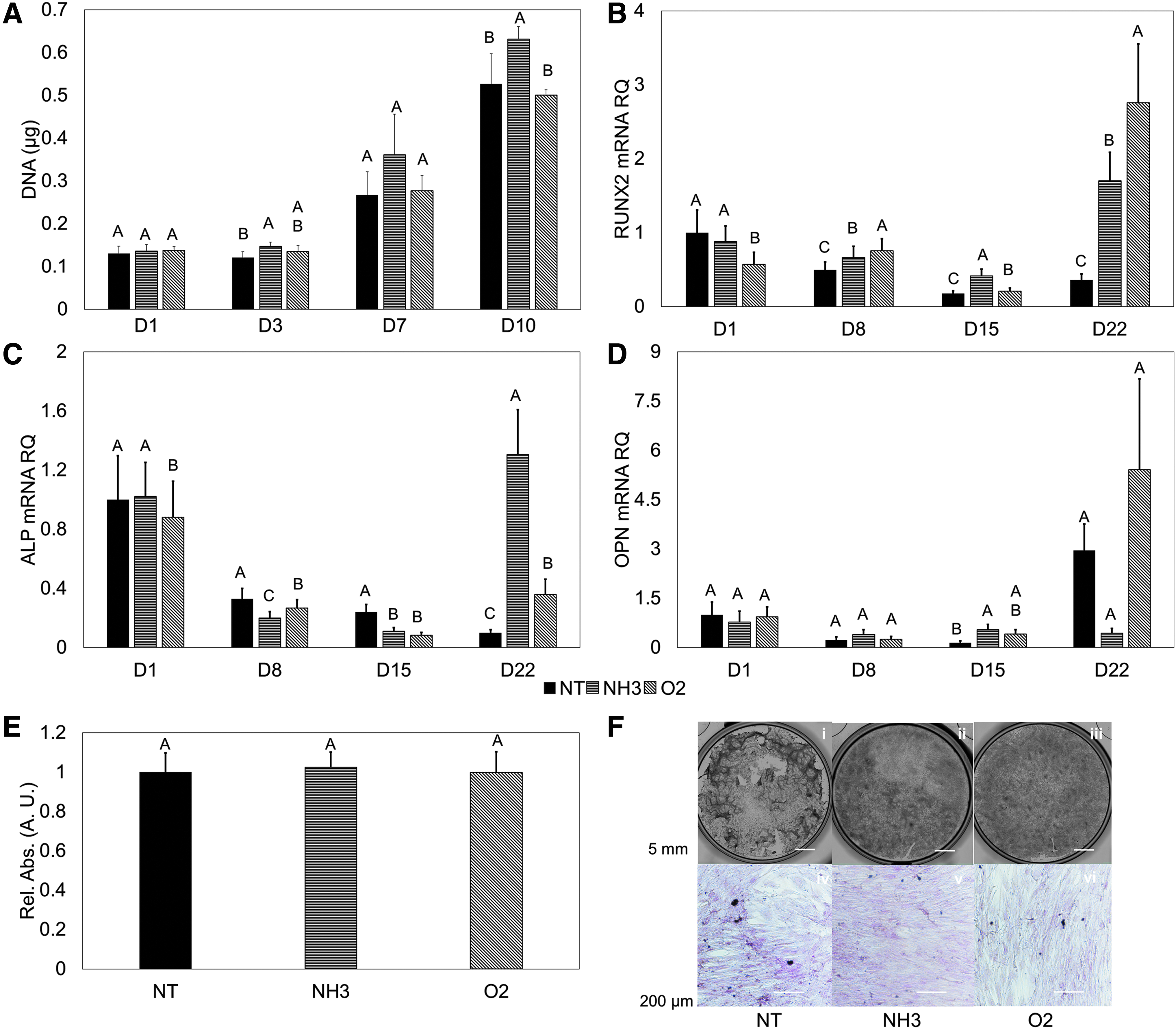

hMSC response in 2D without osteogenic media. (A) Total DNA content on 2D-treated surfaces. NH₃ has significantly higher DNA after 10 days of growth compared to NT and O₂ surfaces. Data shown as mean ± SD, n = 3. (B) mRNA expression of RUNX2. Surfaces showed downregulation until the 22-day time-point. (C) mRNA expression of ALP. Surfaces showed downregulation until the 22-day time-point. (D) mRNA expression of OPN. Surfaces showed downregulation until the 22-day time-point, but was not statistically significant. (E) Relative ARS absorbance as normalized to the NT surface in growth media (n = 3: NT, O₂, n = 2: NH₃). Little relative differences in calcification were observed, and confirmed (F) with representative images. Note: (A–D) the abbreviation “D” as in D1 refers to day 1, (A–E) groups with different uppercase letters indicate statistical difference (p < 0.05) at each time-point, data displayed as mean ± SD. For (B–D) data are in technical triplicate. (F—i–iii) Tiled images taken at 2 × and stitched with the scale bar = 5 mm. (iv–vi) Images taken at 10 × with scale bar = 200 μm. ARS, Alizarin Red S; hMSC, human mesenchymal stem cell.

Over a 22-day study, early osteogenic markers (RUNX2 and ALP) were generally downregulated. At the 22-day time point, RUNX2 began to have upregulation. The highest expression was observed on the O₂-treated surface, followed by the NH₃, and NT surfaces (p < 0.05, Fig. 2B). The only upregulation of ALP expression was observed on the NH₃-treated surface at the 22-day time point (p < 0.05, Fig. 2C). OPN saw increasing expression only on the NT- and O₂-treated surfaces over the course of the study. Where the greatest differences would be expected, at the final time point, no statistical differences were found (p > 0.05, Fig. 2D). Similarly, ARS staining was performed after 22 days. Semiquantitative assessment determined no statistical differences between cells grown on these surfaces (p > 0.05, Fig. 2E), with little characteristic bright red staining present (Fig. 2F).

When osteogenic media was used, characteristic differentiation traits were observed. RUNX2 expression increased up until the 8- and 15-day time points for hMSCs on the NH₃ surfaces, with expression decreasing at the 22-day time point (Fig. 3A). hMSCs on the O₂ surfaces showed continually increasing expression of RUNX2 (Fig. 3A). Peaking expression of ALP between 8 and 15 days was observed for hMSCs on all test surfaces (Fig. 3B). Greater expression of ALP was seen for hMSCs on the NT and O₂ surfaces compared with the NH₃ surface. Downregulation was observed at the 22-day time point for the NH₃ surfaces (p < 0.05). OPN expression generally increased on the NT and NH₃ over the time course, with the greatest expression observed on the NH₃ surface at 22 days (p < 0.05, Fig. 3C), although values were lower compared with the growth media condition. Characteristic red staining was observed with ARS on all test surfaces, with significantly more solubilized stain present with the O₂ treatment (p < 0.05, Fig. 3D, E).

FIG. 3.

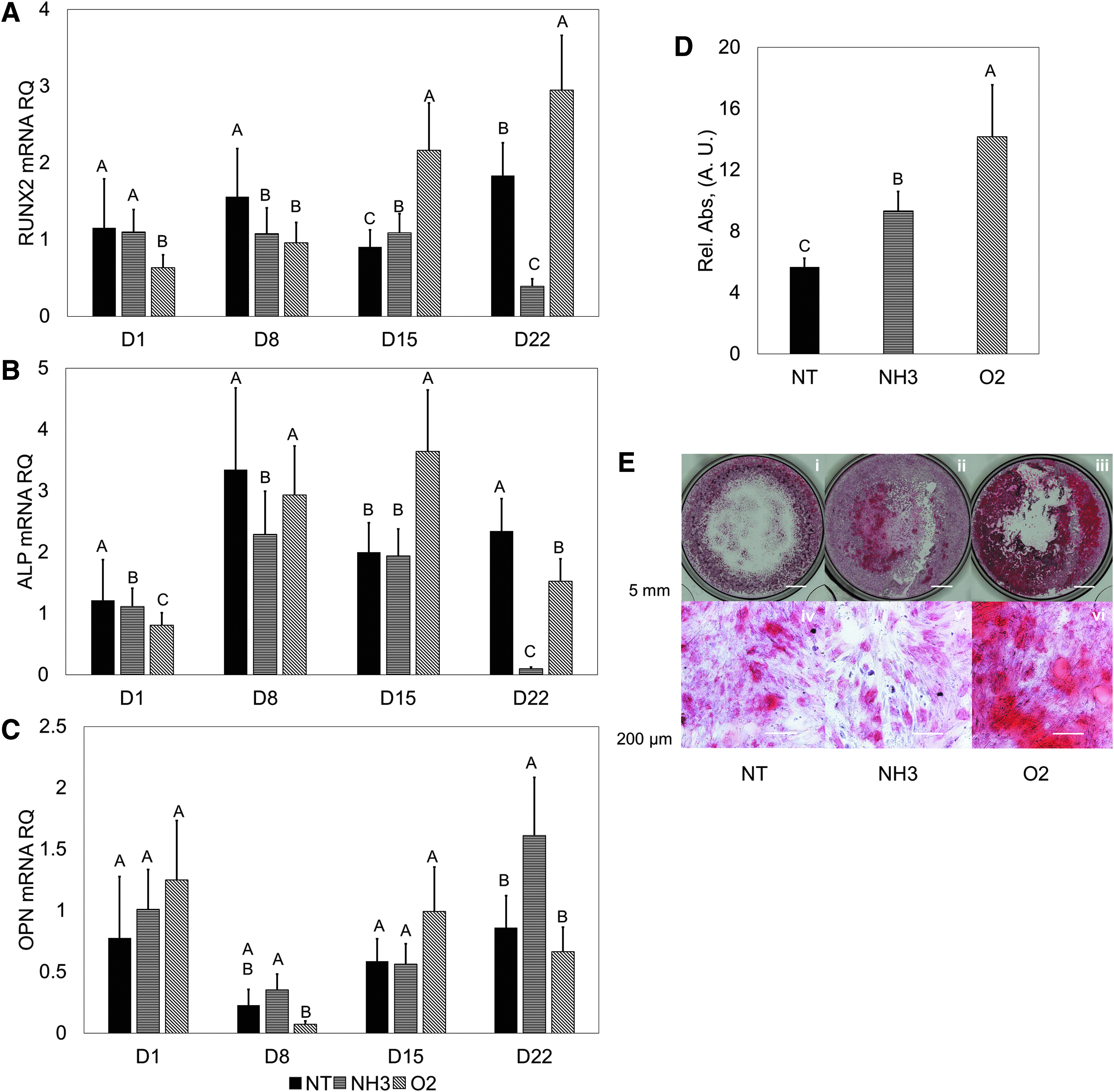

hMSC response in 2D with osteogenic media. (A) mRNA expression of RUNX2. Surfaces showed upregulation, with earlier, greater expression on NT and O₂ surfaces. (B) mRNA expression of ALP. Surfaces showed upregulation, with earlier, greater expression on NT and O₂ surfaces and characteristic peaking at the middle time-points on all. (C) mRNA expression of OPN. NH₃ surfaces showed upregulation at the 22 day time-point. (D) Relative ARS absorbance as normalized to the NT surface in growth media (n = 3). Significantly more calcification was observed on the O₂ and NH₃ surfaces compared to the NT. The high degree of calcification was confirmed (E) with representative images. Note: (A–D) the abbreviation “D” as in D1 refers to day 1, (A–D) groups with different uppercase letters indicate statistical difference (p < 0.05) at each time-point, data displayed as mean ± SD. For (A–C) data are in technical triplicate. (E—i–iii) Tiled images taken at 2 × and stitched with the scale bar = 5 mm. (iv–vi) Images taken at 10 × with scale bar = 200 μm.

Effect of surface amination persists when translated from 2D to 3D culture

Having established our treatment method facilitated hMSC expansion and osteogenic differentiation in 2D, we then investigated using short (five layer, ∼10.5 cm² surface area) scaffolds. Fabricated scaffolds were found to have open internal geometry and the fabricated structures were very near the intended design (Supplementary Fig. S1).

Under static conditions, we saw that the treated scaffolds (O₂ and NH₃) had consistent proliferation over the time-course (Fig. 4A). The NT scaffolds appeared to have inconsistent proliferation: little change was observed between days 4 and 7 and increases of 8.7 × and 3.9 × from days 1 and 3 and days 7 and 10, respectively (Fig. 4A). Characteristic hMSC spreading on and between the fibers on the treated scaffolds was observed, similar to behavior imaged on flat TCPS (Fig. 4B, Supplementary Fig. S2). Spreading was seen within the complex 3D surface on the NH₃-treated scaffold through 3D rendering (Fig. 4B, Supplementary Fig. S2). On the NT scaffolds, more crowded and overlaid cells were observed (Fig. 4B, Supplementary Fig. S2).

FIG. 4.

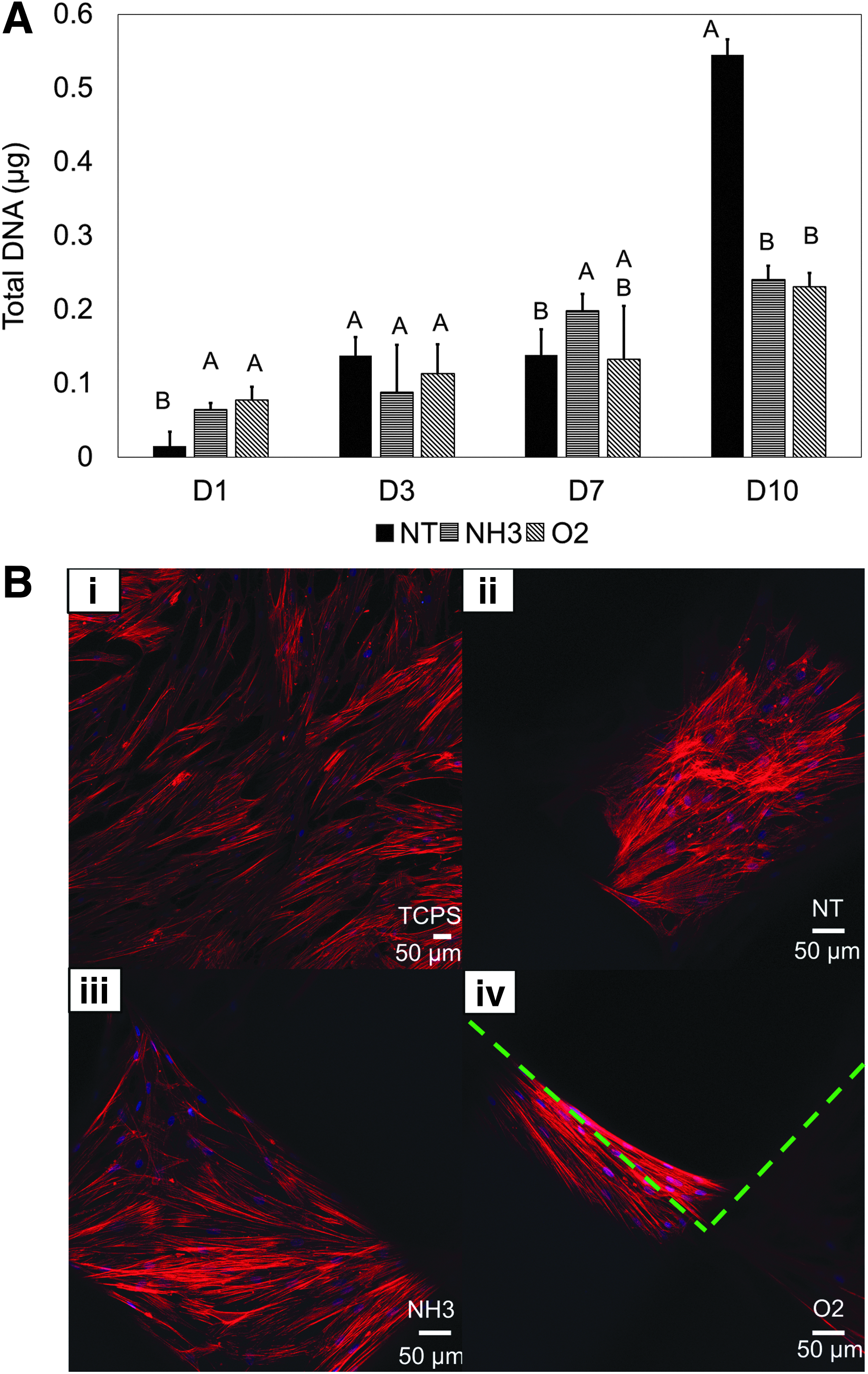

hMSC growth in 3D without osteogenic media. (A) Total DNA content on 3D-treated scaffolds. NH₃ has significantly higher DNA after 7 days of growth compared to NT scaffolds. Data shown as mean ± SD, n = 3. (B) Confocal Z-stack maximum projections on the treated scaffolds under static culture for 10 days. (i) Tissue culture polystyrene is included to compare morphology. (ii) Highly crowded hMSCs are observed on the NT fiber surface. (iii) Expected spreading is occurring on and around the fibers on the NH₃ scaffolds. (iv) Bridging between O₂ fibers and spreading on the fiber surface in the scaffold is observed. Cells appear to be bridging a gap between individual fibers, utilizing the 3D space. The green lines indicate the edge. Scale bar = 50 μm, F-actin is stained red, nuclei are stained blue.

Similar to the 2D surfaces without osteogenic media, downregulation of RUNX2 was observed across the time course on all surfaces. hMSCs had greater expression of RUNX2 on the NT scaffold than on the NH₃-treated scaffold during the 8 and 15 day time points (p < 0.05, Fig. 5A). ALP was consistently downregulated during the entire time-course Fig. 5B). OPN expression did not see consistent increasing expression (Fig. 5C). Quantified solubilized ARS stain showed statistically greater calcification on the NH₃- and O₂-treated scaffolds compared with the NT scaffold, and characteristic red staining was confirmed visually (p < 0.05, Fig. 5D, E).

FIG. 5.

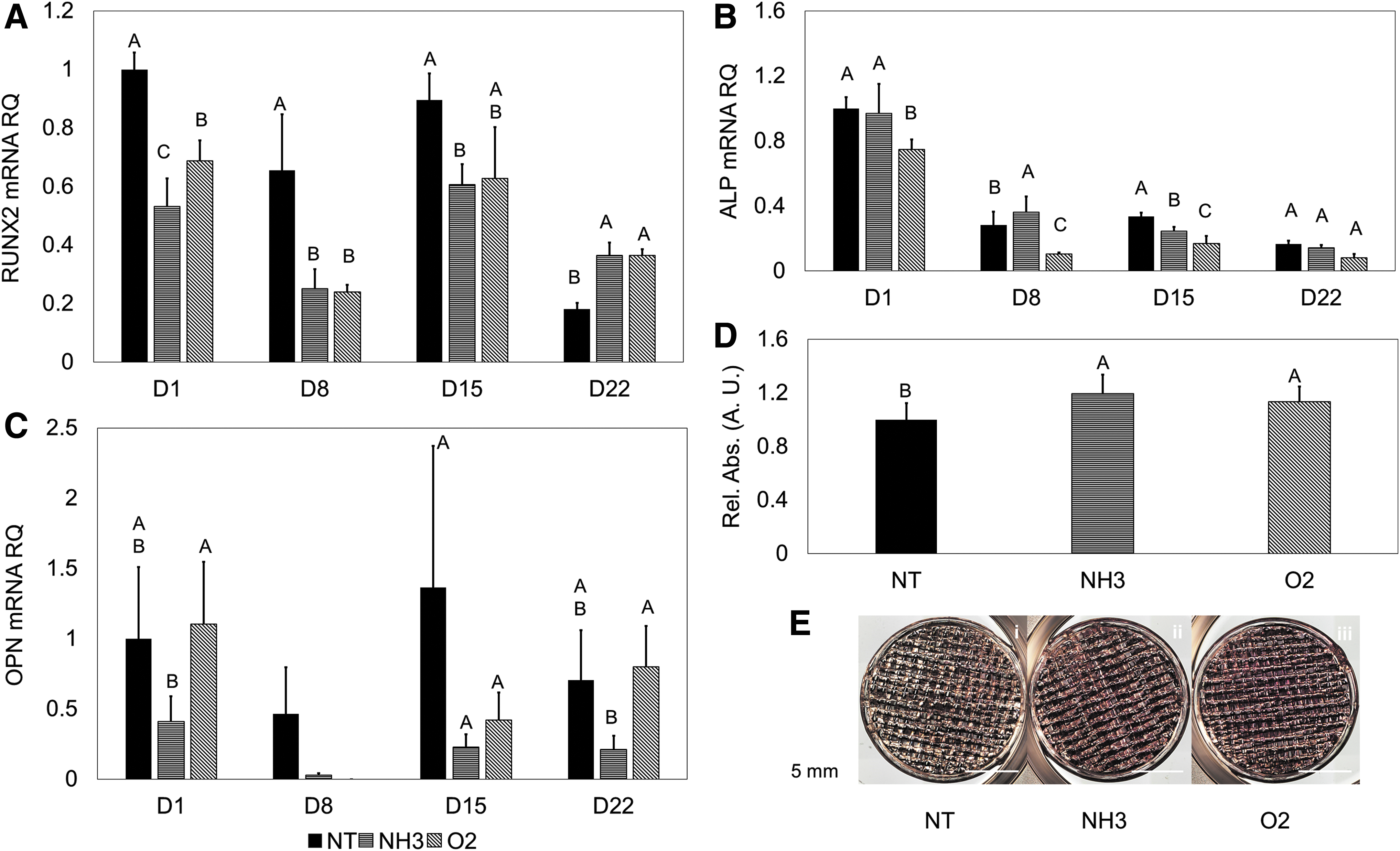

hMSC expression in 3D without osteogenic media. (A) mRNA expression of RUNX2. Scaffolds showed downregulation during the time course, with the highest levels generally on the NT scaffolds. (B) mRNA expression of ALP. Scaffolds consistently showed downregulation, trending to decrease over time. (C) mRNA expression of OPN. Scaffolds generally showed downregulation during the study. Note: (1) NT, (2) NH₃, and (3) O₂ 8 day replicates failed to amplify and were not included in analysis. (D) Relative ARS absorbance as normalized to the NT surface in growth media (n = 3). Slightly higher calcification was observed on the NH₃ and O₂ surfaces, confirmed to have little overall stain with (E) representative images. Note: (A–D) the abbreviation “D” as in D1 refers to day 1, (A–E) groups with different uppercase letters indicate statistical difference (p < 0.05) at each time-point, data displayed as mean ± SD. For (B–D) data are in technical triplicate. (F—i–iii) tiled images taken at 2 × and stitched with the scale bar = 5 mm.

When osteogenic media was used to direct differentiation, the seeded hMSCs began to undergo osteogenic differentiation. Upregulation of RUNX2 was observed during the time course, with characteristic peaking between days 8 and 15 (Fig. 6A) of the hMSCs on the surfaces. Particularly, the greatest expression was seen on the NH₃-treated scaffolds on days 8 and 15 (p < 0.05, Fig. 6A). Similar expression trends during the time-course were seen with ALP expression, with peaking expression occurring between days 8 and 15. Of note, the NH₃-treated scaffolds had earlier peaking expression than NT or O₂ scaffolds (Fig. 6B). The late osteogenic marker OPN showed the greatest expression at the final time-point in the NT-treated scaffolds, where one would expect continued increasing expression over the time course (p < 0.05, Fig. 6C). Solubilized ARS stain showed no significant differences between the treatments at 22 days (Fig. 6D), with characteristic red staining observed on the scaffolds (Fig. 6E).

FIG. 6.

hMSC response in 3D with osteogenic media. (A) mRNA expression of RUNX2. Scaffolds showed upregulation with the addition of osteogenic media, with the highest, earliest expression seen on the NH₃ scaffolds. (B) mRNA expression of ALP. Scaffolds consistently showed upregulation with the addition of osteogenic media, with the earliest expression seen on the NH₃ scaffolds. (C) mRNA expression of OPN. Scaffolds only showed significant upregulation on the NT surface at the day 22 time point. Note: (3) NT, (2) NH₃, and (3) O₂ 8 day and (1) NH₃ 15-day replicate failed to amplify and were not included in analysis. (D) Relative ARS absorbance as normalized to the NT scaffold in growth media (n = 3). Slightly higher calcification was observed on the NH₃ and O₂ scaffolds, but not statistically significant. Areas of higher stain can be observed on the O₂ scaffold in (E) representative images. Note: (A–D) the abbreviation “D” as in D1 refers to day 1, (A–D) groups with different uppercase letters indicate statistical difference (p < 0.05) at each time-point, data displayed as mean ± SD. For (A–C) data are in technical triplicate. (E—i–iii) Tiled images taken at 2 × and stitched with the scale bar = 5 mm.

Surface amination supported expansion without differentiation in 3D culture under flow

Moving our scaffolds into the bioreactor (Fig. 7A–C) resulted in consistent proliferation for at least 7 days. Particularly, the NH₃-treated scaffolds contained the most DNA at days 3 and 7 time (p < 0.05, Fig. 8A). Comparatively, the NT- and O₂-treated scaffolds did not appear to support continued dynamic proliferation. Spontaneous differentiation was not apparent on the treated surfaces. hMSC RUNX2 expression generally decreased over time, similar to the static 2D and 3D conditions (Fig. 8B). ALP expression was downregulated across all time-points and treatments (Fig. 8C).

FIG. 7.

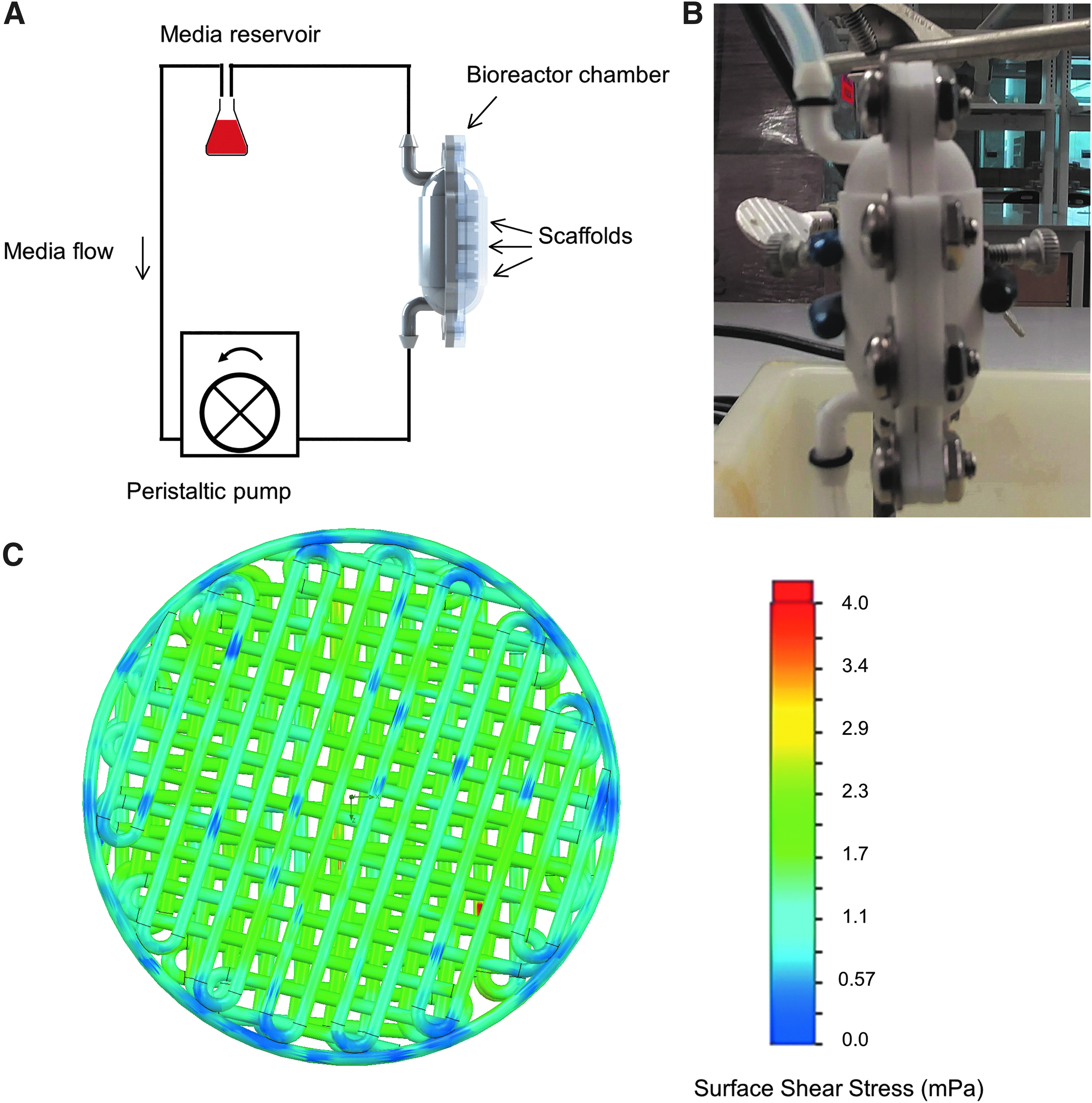

Bioreactor design and shear stress determination. (A) A diagram and (B) an image of the bioreactor chamber. Fluid is pumped antiparallel to gravity to remove air and provides consistent flow through the assembly. The bioreactor is sealed and assembled in a laminar flow cabinet with aliquoted media. The entire pump and fluid line is then placed inside a cell culture incubator. (C) Verification of the design with drawn scaffolds shows the average shear stress across the three scaffolds to be 1.5 ± 0.06 mPa at 3.4 mL/min. The top view of the central scaffold is shown with a heat map of the surface shear stress showing uniform shear distribution throughout the object.

FIG. 8.

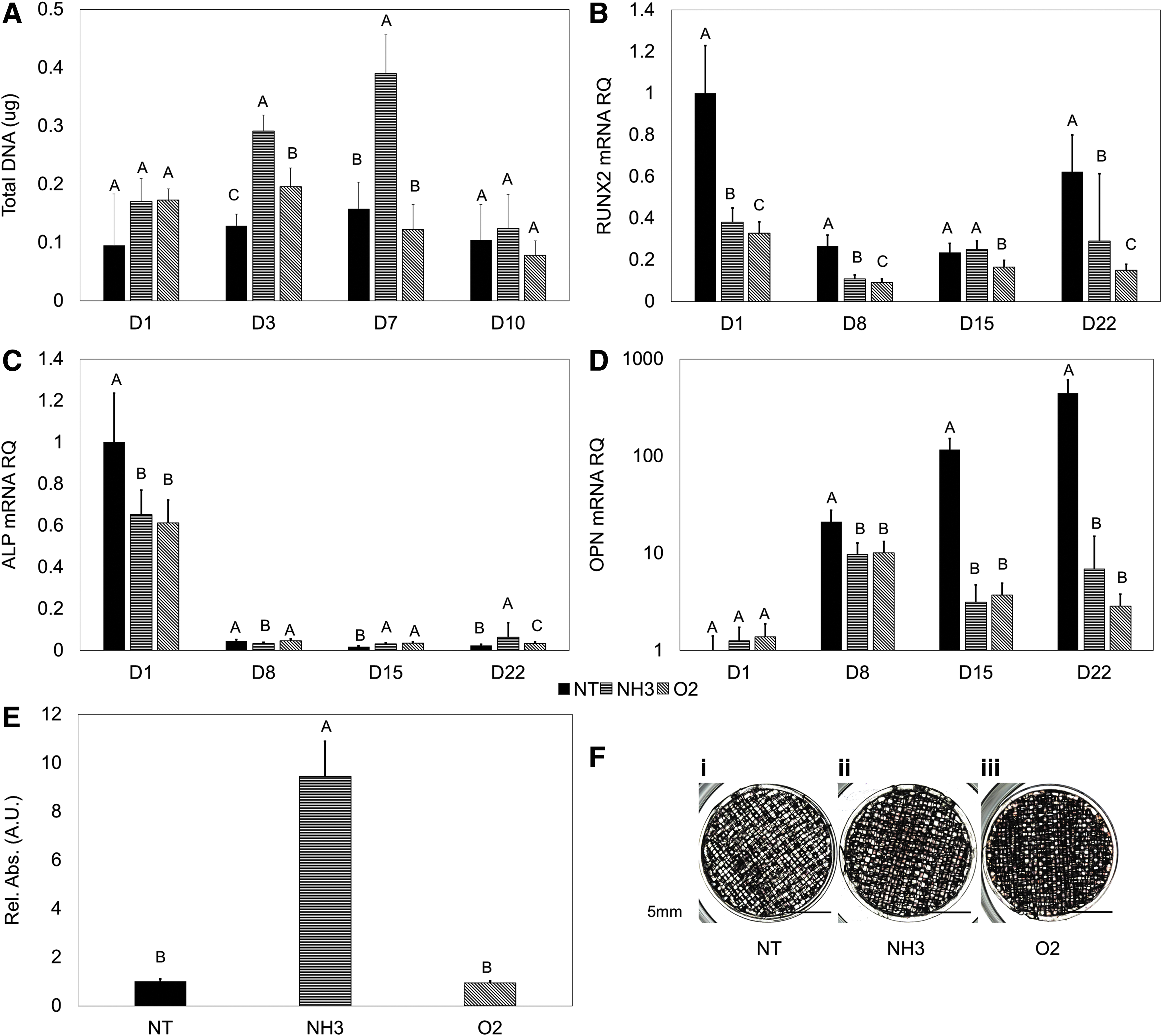

hMSC response in 3D dynamic culture. (A) Total DNA content on 3D dynamic-treated scaffolds. NH₃ has significantly higher DNA after 3 and 7 days of dynamic proliferation compared to NT and O₂ surfaces. Data shown as mean ± SD, n = 3. O₂ day 1 two scaffolds cells were combined and subsequently split before DNA extraction and analysis. (B) mRNA expression of RUNX2. Scaffolds showed downregulation during the time course, with the highest levels generally on the NT scaffolds. (C) mRNA expression of ALP. Scaffolds consistently showed downregulation. (D) mRNA expression of OPN. The NT scaffolds showed significant upregulation during the study, with NH₃ and O₂ showing modest upregulation as well. (E) Relative ARS absorbance as normalized to the NT scaffold in growth media (n = 3). Higher calcification was observed on the NH₃ scaffolds, confirmed to have little overall stain with (F) representative images. Note: (A–D) the abbreviation “D” as in D1 refers to day 1, (A–E) groups with different uppercase letters indicate statistical difference (p < 0.05) at each time-point, data displayed as mean ± SD. For (B–D) data are in technical triplicate. (F—i–iii) Tiled images taken at 2 × and stitched with the scale bar = 5 mm.

Without added chemical signals to initiate differentiation, the NT-treated surfaces experienced significantly greater, continually increasing OPN upregulation while under flow (p < 0.05, Fig. 8D). OPN expression was seen on the NH₃ and O₂ scaffolds as well, with no statistical difference between these two groups (p < 0.05, Fig. 8D). NH₃ scaffolds were seen to have relatively higher ARS stain after 22 days (p < 0.05, Fig. 8E), but little total calcification observed on all groups (Fig. 8F).

Discussion

As culture systems utilize 3D printing to recapitulate human body stems, focus on the base substrate is warranted. For example, surface properties can influence how hMSCs respond in culture in the development of targeted substrates for tissue engineering applications. Particularly, we sought to establish how hMSCs respond to osteogenic stresses to define an in vitro bone marrow niche model. In the pursuit of a self-contained bioreactor model, we built up from the culture substrate and investigated how hMSCs respond to the culture conditions. As part of this, it remains pertinent to understand both how hMSCs expand and respond to osteogenic stresses.

We began by characterizing treatment surfaces and found vacuum plasma treatments significantly reduced surface carbon (p < 0.05). This is consistent with an extensively modified surface and a greater proportion of functional groups detected, which work with proteins to facilitate cell adhesion and spreading.^34,35 The slight surface O₂ on the NT surface appeared as a few different species, but with greater oxidation after plasma treatment (p < 0.05), a greater fraction of these chemical species is likely present. The incorporation of O₂ and nitrogen outside of the intended treatment (e.g., O₂ in the NH₃ treatment) likely comes from reacting with the ambient air. The NH₃ treatment produced a surface with nitrogen primarily bound as amines, and with water contact angles closest to the range (40°–60°) previously shown to best facilitate cell adhesion.³⁶ The O₂-treated surfaces had lower water contact angles (p < 0.05). Cumulatively, these results demonstrate three distinct surfaces to investigate the influence of surface properties on hMSC response under different culture conditions.

To verify functionality of the constructs, we first investigated hMSC proliferation. The selected scaffold geometry sought to gain inspiration from trabecular bone geometry while creating an object which could be reliably printed. Trabecular bone has a highly porous (9–26% bone volume/tissue volume) structure with trabecular thickness between 120 and 219 μm and trabecular spacing between 667 and 712 μm.³⁷ The intended design with 400 μm fibers and 600 μm spacing without a repeating layer structure over the scaffold height allows for fluid to penetrate throughout the scaffold without narrowing flow to individual channels as would be seen in a highly structured pattern.

Consistent across the static culture conditions (2D, 3D), aminated surfaces supported hMSC proliferation without spontaneous osteogenic differentiation. Similar results have been previously observed.³⁸ Doubling times of bone marrow derived hMSCs have been observed to be as high as 2.5 days and higher for hMSCs from other sources.³⁹ In this study, the doubling time was 3–4 days, within the range of reported doubling times for MSCs (e.g., up to 5 days).³⁹ We attribute the improved hMSC response on the NH₃ treated surfaces and scaffolds to a likely combination of suspected positive surface charge, moderate surface energy, and decreased surface carbon content leading to appropriate protein conformation at the surface.^40–45

In addition, we observed that seeding media was rapidly drawn into plasma activated scaffolds, where the NT scaffolds allowed the seeding media sit on top and slowly be drawn into the scaffold bulk during seeding. This could be potentially contributed to poor cell distribution across the NT scaffolds and result in crowding. In addition, the change in geometry could impact how the hMSCs respond and grow on these surfaces, especially having first been accustomed to 2D culture. The data collected suggest that the bulk of the treated objects were activated and allowed hMSCs to interact, adhere, and grow throughout.

We intended to understand how our scaffolds and treatments influence osteogenic differentiation. Geometry of scaffolds can influence hMSC fate,^46,47 with the research goal to reduce spontaneous osteogenic differentiation. Two early and two late osteogenic markers were surveyed to ensure that our treatments produced culture platforms for hMSCs to expand and not undergo spontaneous osteogenic differentiation. Without osteoinduction media, osteogenic markers remained primarily downregulated, consistently so on the NH₃-treated 3D printed scaffolds. In 2D, the hMSC population only began to upregulate osteogenic markers at day 22, where this behavior was lacking during the time course in 3D. This suggests that the gained biomimicry from the 3D platform helps to maintain the population.⁴⁸ The compliment of 3D geometry and underlying chemistry was sufficient to expand hMSCs without osteogenic differentiation.

With the addition of osteogenic media, hMSCs began to express early osteogenic markers (RUNX2 and ALP). RUNX2 has been theorized as a master regulator, and marker for osteogenic differentiation.^49,50 ALP expression during osteogenic differentiation typically peaks, and then expression should decrease as later osteogenic markers begin to be expressed and mineralized matrix is deposited.⁵¹ These early markers typically peak after 1–2 weeks of culture.^52,53 With the hMSCs on NH₃ treated constructs, earlier peaking expression was observed, consistent with previous results.^11,13 The differences in early osteogenic marker expression indicate that hMSCs adhered to O₂ and NT substrates may react more slowly to soluble chemical signaling in the media.

As osteogenesis progress, later osteogenic markers, including calcified matrix and OPN, will typically increase with osteogenic differentiation time.⁵⁴ This behavior was generally observed under induced osteogenic conditions. Particularly, increasing OPN expression was observed on the NT 3D scaffold under directed differentiation, indicating that the lack of surface functionality could be supporting the later stages of osteoblastic differentiation. Cumulatively, these data show the NH₃-treated surfaces and scaffolds supported directed osteogenic differentiation. With osteogenic commitment not solely observed based on surface chemistry, an interaction between the soluble chemistry in the induction media and underlying surface chemistry could be helping to regulate differentiation.

Following directed differentiation, we investigated our scaffold construct under dynamic culture. The chosen flow was expected to encourage proliferation without differentiation, as the estimated shear stress is an order of magnitude below typical values used to induce osteogenesis.^32,33 With a flow rate of 3.4 mL/min, we aimed to develop a bioreactor where flow would aid in nutrient and O₂ exchange without spontaneous osteogenic differentiation, leading to long-term proliferation of contained hMSCs.

Continued development of this culture system could see the possibility of coculture and using an adherent hMSC population to direct a nonadherent population, as is an approach in hematopoietic stem cell (HSC) expansion.⁵⁵ The greatest promise was observed with the NH₃-treated scaffolds, maintaining expansion in the bioreactor for at least 7 days. We suggest that the dynamic culture environment has sheared adhered proteins or cells from the NT and O₂ scaffolds, where the NH₃ treatment aided in retaining these.

The bioreactor system developed with the NH₃-treated scaffolds was capable of expanding hMSCs without spontaneous osteogenic differentiation, as demonstrated by the consistent downregulation of early osteogenic markers across treatments. The higher relative calcification measured is likely due to the low number of cells present on the NT surface, as confirmed visually, reducing the total amount of stain available to solubilize and amplifying relative increases. Interestingly, OPN expression increased exponentially on the NT scaffolds inside the bioreactor. This could indicate a link between (a lack of) surface functionality and flow within the dynamic bioreactor environment on this later-stage differentiation marker. In addition to being known as a later-stage osteoblastic marker, OPN is thought to regulate population size in the HSC niche by inhibiting proliferation.⁵⁶ Continued investigation into intercellular communication molecules has future use in a targeted bioreactor for the bone marrow niche, with coculture of up to 4 cell populations per line possible.

Conclusions

The goal of this study was to develop a 3D printed, plasma activated PS culture substrate, which encouraged hMSC expansion without inducing osteogenesis. We found that the NH₃ treatment is a particularly effective approach for treated 3D printed PS scaffolds and cell systems, supporting hMSC proliferation in 2D, 3D, and 3D dynamic conditions superiorly to NT and O₂-treated surfaces and scaffolds. The underlying surface chemistry was insufficient to solely induce differentiation, but supported directed osteogenic differentiation. With osteogenic media, the NH₃ scaffolds enhanced early osteogenic differentiation, in agreement with previous literature. PS scaffolds with an NH₃ treatment best supports hMSC proliferation and intended osteogenic differentiation. This method results in consistent hMSC expansion on 3D printed PS scaffolds in both static and dynamic culture for up to 7 days within a self-contained bioreactor model. This creates a platform for dynamic culture modeling and studying multicellular interactions found in the bone marrow niche in vitro. Future work seeks to continue developing the system to target coculture interactions within the bone marrow niche.
