Simulation of Post-Thyroidectomy Treatment Alternatives for Triiodothyronine or Thyroxine Replacement in Pediatric Thyroid Cancer Patients

Abstract

Background:

As in adults, thyroidectomy in pediatric patients with differentiated thyroid cancer is often followed by ¹³¹I remnant ablation. A standard protocol is to give normalizing oral thyroxine (T₄) or triiodothyronine (T₃) after surgery and then withdraw it for 2 to 6 weeks. Thyroid remnants or metastases are treated most effectively when serum thyrotropin (TSH) is high, but prolonged withdrawals should be avoided to minimize hypothyroid morbidity.

Methods:

A published feedback control system model of adult human thyroid hormone regulation was modified for children using pediatric T₄ kinetic data. The child model was developed from data for patients ranging from 3 to 9 years old. We simulated a range of T₄ and T₃ replacement protocols for children, exploring alternative regimens for minimizing the withdrawal period, while maintaining normal or suppressed TSH during replacement. The results are presented with the intent of providing a quantitative basis to guide further studies of pediatric treatment options. Replacement was simulated for up to 3 weeks post-thyroidectomy, followed by various withdrawal periods. T₄ vs. T₃ replacement, remnant size, dose size, and dose frequency were tested for effects on the time for TSH to reach 25 mU/L (withdrawal period).

Results:

For both T₃ and T₄ replacement, higher doses were associated with longer withdrawal periods. T₃ replacement yielded shorter withdrawal periods than T₄ replacement (up to 3.5 days versus 7–10 days). Higher than normal serum T₃ concentrations were required to normalize or suppress TSH during T₃ monotherapy, but not T₄ monotherapy. Larger remnant sizes resulted in longer withdrawal periods if T₄ replacement was used, but had little effect for T₃ replacement.

Conclusions:

T₃ replacement yielded withdrawal periods about half those for T₄ replacement. Higher than normal hormone levels under T₃ monotherapy can be partially alleviated by more frequent, smaller doses (e.g., twice a day). LT₄ may be the preferred option for most children, given the convenience of single daily dosing and familiarity of pediatric endocrinologists with its administration. Remnant effects on withdrawal period highlight the importance of minimizing remnant size.

Introduction

T hyroidectomy is the primary treatment for differentiated thyroid cancer (1 –3), and ¹³¹I therapy is recommended for patients at risk for disease progression (4). For most patients, chronic thyroxine (T₄) replacement is titrated to maintain a suppressed serum thyrotropin (TSH) (usually ≤0.1 mU/L) (5). This TSH suppression is designed to minimize the stimulation of residual thyroid cancer cells, and it is only briefly interrupted when hyperthyrotropinemia is required for radioiodine administration or stimulated thyroglobulin measurements.

After thyroidectomy, patients are usually given synthetic T₄ and/or triiodothyronine (T₃) as initial replacement during their postoperative recovery (the replacement period in Fig. 1) (6). Then, to prepare for ¹³¹I administration, patients begin a low iodine diet (1,7,8) and thyroid hormone (TH) is withdrawn to achieve the hyperthyrotropinemia required to stimulate radioiodine uptake into remaining thyroid follicular cells (6,7,9 –11). We have recently shown that children with thyroid cancer achieve adequate hyperthyrotropinemia within 14 days of levothyroxine (LT₄) withdrawal, even from a suppressed serum TSH (1, 6). We speculated that this accelerated rise in serum TSH was due to the more rapid T₄ clearance and higher TSH to free T₄ ratio observed in children (6) compared with adults.

FIG. 1.

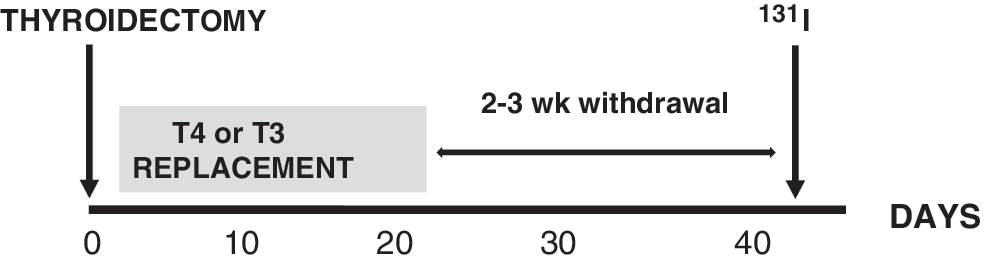

Typical thyroid cancer treatment and withdrawal protocol for children. Patients undergo thyroidectomy on day 0, followed by 3 weeks of hormone replacement and 2- to 3-week withdrawal before radioiodine treatment.

The goal of the current work was to use feedback control system modeling and computer simulation methodology to predictively explore the impact of different dosing regimens and other patient variables on withdrawal time in children. To quantitatively achieve this objective, a pediatric thyroid system regulation model was developed. Our starting point was an adult dynamic system simulation model of hypothalamic–pituitary–thyroid (HPT) axis regulation (12 –15), quantified and validated using a variety of adult human clinical data, spanning a wide range of normal (12,13) to extreme hypothyroid function (12,14). The adult model has been applied in several clinical conditions, including optimization of adult remnant ablation protocols in thyroid cancer (14), criteria for testing bioequivalence of LT₄ preparations (12,15), and central hypothyroidism and circadian rhythm relationships (14). Children have different kinetic parameters governing this control system, with faster hormone metabolism and more pronounced dynamic responses to feedback system perturbations (6). The adult model was modified to account for differences in parameters representing these dynamic processes.

Methods

Pediatric model development

The pediatric thyroid regulation system model (Fig. 2) is structured like the adult HPT-axis model, with a TH secretion, distribution and elimination (D&E) submodel (bottom), and a brain submodel (top) (12 –15). All pediatric model equations and optimized parameter estimates are given in Tables 1 and 2.

FIG. 2.

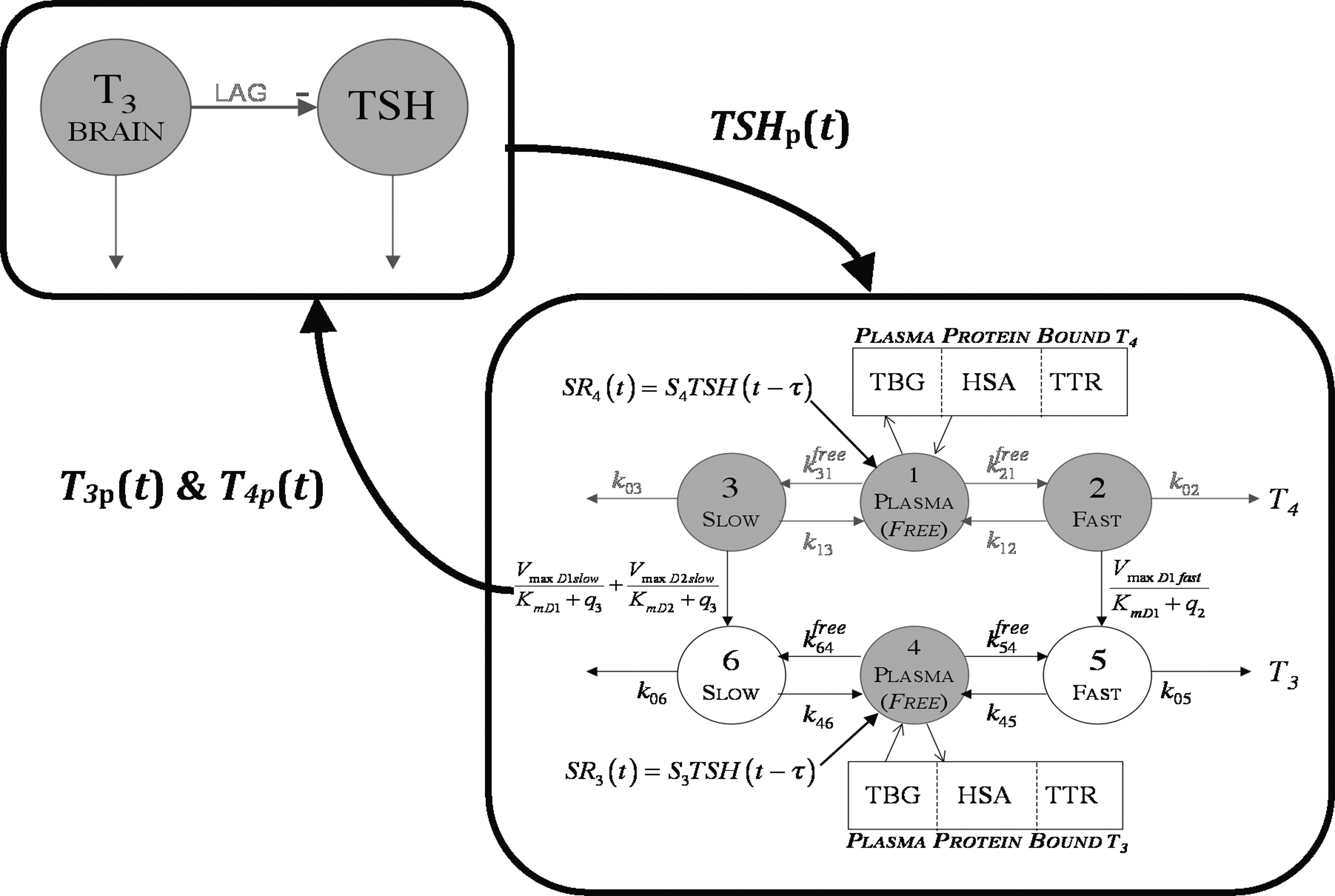

Pediatric hypothalamic–pituitary–thyroid (HPT) axis model, with pediatric modifications shaded. The adult model (14) was updated for pediatric thyroid hormone (TH) regulatory differences, including faster pediatric thyroxine (T₄) clearance, altered free T₄ to thyrotropin (TSH) ratio, and smaller distribution volumes.

Table 1.

Pediatric Model Equations

Brain-pituitary submodel equations (14)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$SR_ { TSH } ( t ) = \left[ B_0 + A_0 f_ { CIRC } \ \sin \left( \frac { 2 \pi } { 24 } t - \phi_ { phase } \right) \right] e^ { - T_ { 3B } ^ { LAG } ( t ) } $$ \end{document}	TSH secretion rate (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$T \dot{S}H_{P} ( t ) = SR_{TSH} \ ( t ) - f_{ \rm deg}^{TSH} {TSH}_{P} \ ( t )$$ \end{document}	DE for plasma TSH (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot { T } _ { 3B } ( t ) = \frac { f_4^ { } } { T_ { 4P } ^ { EU } } T_ { 4P } ( t ) + \frac { k_3 } { T_ { 3P } ^ { EU } } T_ { 3B } ( t ) - k_ { \rm deg } ^ { T_ { 3B } } T_ { 3B } ( t )$$ \end{document}	DE for T₃ in the brain (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot{T}_{3B}^{LAG} ( t ) = f_{LAG} \left[ T_{3B} ( t ) - T_{3B}^{LAG} ( t ) \right]$$ \end{document}	DE for lagged T₃ in the brain (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$f_ { \rm deg } ^ { TSH } = 0.53 + \frac { V_ { \max } ^ { TSH } } { K_ { 50 } ^ { TSH } + { TSH } _ { P } ( t ) } $$ \end{document}	Nonlinear TSH degradation rate function (h⁻¹)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$f_ { LAG } \equiv k_ { LAG } ^ { HYPO } + \frac { 2T_ { 3B } ^ { 11 } ( t ) } { K_ { LAG } ^ { 11 } + T_ { 3B } ^ { 11 } ( t ) } $$ \end{document}	Nonlinear lag time function for T _3B(t) (h⁻¹)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$f_4 \equiv k_3 + \frac { 5k_3 } { 1 + e^ { 2T_ { 3B } ( t ) - 7 } } $$ \end{document}	Nonlinear rate function for T₄ transport and T₄→T₃ conversion in brain (h⁻¹)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$f_ { CIRC } \equiv 1 + \left[ \frac { A_ { \max } } { A_0 e^ { - T_ { 3B } ^ { LAG } ( t ) } } - 1 \right] \left[ \frac { 1 } { 1 + e^ { 10T_ { 3B } ^ { LAG } ( t ) - 55 } } \right]$$ \end{document}	Circadian rhythm saturation function (h⁻¹)f_CIRC ≈1 for eu- and mild hyperthyroidism

Thyroid secretion and D&E submodel equations (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$SR_3 ( t ) = S_3 TSH_P ( t - \tau ) \quad SR_4 ( t ) = S_4 TSH_P ( t - \tau )$$ \end{document}	TH secretion rates (μmol/h) with time delay τ
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot{T}_{4P} ( t ) \equiv \dot{q}_1 ( t ) = SR_4 ( t ) + k_{12} q_2 ( t ) + k_{13}q_3 ( t ) - ( k_{31}^{free} + k_{21}^{free} ) FT_{4P} ( t ) + k_4^{absorb} T_4^{GUT} ( t )$$ \end{document}	DE for plasma T₄ (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot { q } _2 ( t ) = k_ { 21 } ^ { free } FT_ { 4P } ( t ) - \left[ k_ { 12 } + k_ { 02 } + \frac { V_ { \max } ^ { D1fast } } { K_ { m } ^ { D1fast } + q_2 ( t ) } \right] q_2 ( t )$$ \end{document}	DE for fast tissue T₄ (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot { q } _3 ( t ) = k_ { 31 } ^ { free } FT_ { 4P } ( t ) - \left[ k_ { 13 } + \frac { V_ { \max } ^ { D1slow } } { K_ { m } ^ { D1slow } + q_3 ( t ) } + \frac { V_ { \max } ^ { D2slow } } { K_ { m } ^ { D2slow } + q_3 ( t ) } \right] q_3 ( t )$$ \end{document}	DE for slow tissue T₄ (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot{T}_{3P} ( t ) \equiv \dot{q}_4 ( t ) = {SR}_3 ( t ) + k_{45}q_5 ( t ) + k_{46}q_6 ( t ) - ( k_{64}^{free} + k_{54}^{free} ) {FT}_{3P} ( t ) + k_3^{absorb}{T}_3^{GUT} ( t )$$ \end{document}	DE for plasma T₃ (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot { q } _5 ( t ) = k_ { 54 } ^ { free } { FT } _ { 3P } ( t ) + \frac { V_ { \max } ^ { D1fast } q_2 ( t ) } { K_ { m } ^ { D1fast } + q_2 ( t ) } - ( k_ { 45 } + k_ { 05 } ) q_5 ( t )$$ \end{document}	DE for fast tissue T₃ (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot { q } _6 ( t ) = k_ { 64 } ^ { free } { FT } _ { 3P } ( t ) + \frac { V_ { \max } ^ { D1slow } q_3 ( t ) } { K_ { m } ^ { D1slow } + q_3 ( t ) } + \frac { V_ { \max } ^ { D2slow } q_3 ( t ) } { K_ { m } ^ { D2slow } + q_3 ( t ) } - ( k_ { 46 } ) q_6 ( t )$$ \end{document}	DE for slow tissue T₃ (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${FT}_{3P} ( t ) = [ a + b{T}_{4P} ( t ) + c{T}_{4P}^2 ( t ) + d {T}_{4P}^3 ( t ) ] {T}_{3P} ( t )$$ \end{document}	Plasma free T₃ (μmol)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${FT}_{4P} ( t ) = [ A + BT_{4P} ( t ) + CT_{4P}^2 ( t ) + D T_{4P}^3 ( t ) ] T_{4P} ( t )$$ \end{document}	Plasma free T₄ (μmol)

Two-compartment gut input submodels (13,16)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot{T}_4^{PILL} ( t ) = - k_4^{dissolve} T_4^{PILL} ( t ) , \quad T_4^{PILL} ( 0 ) = LT_4 \ Dose$$ \end{document}	DE for LT₄ pill dissolution in gut (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot{T}_4^{GUT} ( t ) = k_4^{dissolve} T_4^{PILL} ( t ) - ( k_4^{excrete} + k_4^{absorb} ) {T}_4^{GUT} ( t )$$ \end{document}	DE for absorbable LT₄ in gut (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot{T}_3^{PILL} ( t ) = - k_3^{dissolve} T_3^{PILL} ( t ) , \quad T_3^{PILL} ( 0 ) = {LT}_3 \ Dose$$ \end{document}	DE for LT₃ pill dissolution in gut (μmol/h)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\dot{T}_3^{GUT} ( t ) = k_3^{dissolve}T_3^{PILL} ( t ) - ( k_3^{excrete} + k_3^{absorb} ) {T}_3^{GUT} ( t )$$ \end{document}	DE for absorbable LT₃ in gut (μmol/h)

Measurement equations
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$y_{T_{4P}} ( t ) = 777\ {T_{4P}}( t )\ / 10V_P$$ \end{document}	Plasma T₄ concentration (μg/dL)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$y_{T_{3P}} ( t ) = 651\ {T_{3P}}( t )\ / V_P$$ \end{document}	Plasma T₃ concentration (μg/L=ng/mL)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$y_{TSH_{P}} ( t ) = 5.6\ {TSH_{P}}( t )\ / V_{TSH}$$ \end{document}	Plasma TSH concentration (mU/L)

TSH, thyrotropin; DE, differential equation; T₃, triiodothyronine; T₄, thyroxine; TH, thyroid hormone.

Table 2.

Parameter Estimates, Units, Uncertainties, Nomenclature, and Sources for the Pediatric Hypothalamic-Pituitary-Thyroid Axis Model

Parameter ^a	Units	Estimate±%CV ^b	Definition & Source ^c
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$K_{deg}^{T_{3B}}$$ \end{document}	h⁻¹	0.037±12.6%	Degradation rate constant for brain T₃ [T _3B(t)] (13)
ϕ_phase	h	−3.71±1.04%	Phase constant such that TSH circadian rhythms peak at ∼2 a.m. (13)
A ₀	μmol/h	581±61.4%	TSH circadian amplitude scaling parameter (13)
B ₀	μmol/h	1166±60.7%	Maximal TSH basal secretion rate (13)
k ₃ = k ₄	μmol/h	0.118±6.43%	Influx rate of plasma T₃ to TSH-regulatory brain areas (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$K_m^{D1fast}$$ \end{document}	μmol	2.85	D1 enzyme Michaelis–Menten constant in fast tissue compartment (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$K_m^{D1slow}$$ \end{document}	μmol	95	D1 enzyme Michaelis–Menten constant in slow tissue compartment (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$K_m^{D2slow}$$ \end{document}	μmol	0.075	D2 enzyme Michaelis–Menten constant in slow tissue compartment (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$V_{max}^{D1fast}$$ \end{document}	μmol/h	3.85 × 10⁻⁴±30.6%	D1 enzyme V_max in fast tissue compartment (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$V_{max}^{D1slow}$$ \end{document}	μmol/h	6.63 × 10⁻⁴±6.27%	D1 enzyme V_max in slow tissue compartment (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$V_{max}^{D2slow}$$ \end{document}	μmol/h	0.00109±6.27%	D2 enzyme V_max in slow tissue compartment (13)
S ₃	h⁻¹	3.71 × 10⁻⁴±6.49%	T₃ secretion rate constant (13)
S ₄	h⁻¹	0.00168±7.4%	T₄ secretion rate constant (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_4^{dissolve}$$ \end{document}	h⁻¹	1.3	T₄ oral pill dissolution rate constant (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_4^{excrete}$$ \end{document}	h⁻¹	0.119±16.3%	T₄ excretion rate constant from gut (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_4^{absorb}$$ \end{document}	h⁻¹	0.881±2.2%	T₄ absorption rate constant from gut (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_3^{absorb}$$ \end{document}	h⁻¹	0.882±7.2%	T₃ absorption rate constant from gut (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_3^{excrete}$$ \end{document}	h⁻¹	0.118±7.2%	T₃ excretion rate constant from gut (13)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_3^{dissolve}$$ \end{document}	h⁻¹	1.78±32.0%	T₃ oral pill dissolution rate constant (13)
A	unitless	0.00289	T₄ plasma protein binding constant (12)
B	mmol⁻¹	0.000214	T₄ plasma protein binding constant (12)
C	mmol⁻²	0.000128	T₄ plasma protein binding constant (12)
D	mmol⁻³	−8.83 × 10⁻⁶	T₄ plasma protein binding constant (12)
a	unitless	0.00395	T₃ plasma protein binding constant (12)
b	mmol⁻¹	0.00185	T₃ plasma protein binding constant (12)
c	mmol⁻²	0.000610	T₃ plasma protein binding constant (12)
d	mmol⁻³	0.000505	T₃ plasma protein binding constant (12)
k ₀₅	h⁻¹	0.207±12.8%	T₃ D&E degradation rate constant (12)
k ₄₅	h⁻¹	5.37±16.3%	T₃ D&E exchange rate constant (12)
k ₄₆	h⁻¹	0.0689±4.79%	T₃ D&E exchange rate constant (12)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{54}^{free}$$ \end{document}	h⁻¹	2043	Free T₃ D&E exchange rate constant (12)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{64}^{free}$$ \end{document}	h⁻¹	127	Free T₃ D&E exchange rate constant (12)
A _max	mmol/h	2.37±61.4%	Extreme hypothyroid model maximum TSH circadian amplitude; yields a plasma TSH circadian amplitude of ∼5 mU/L (14)
f ₄	h⁻¹	0.118–0.708	Influx and conversion rate constant for plasma T₄ to TSH-regulatory brain areas (14)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{{\rm deg} TSH}^{hypo}$$ \end{document}	h⁻¹	0.53	TSH degradation rate constant in extreme hypothyroidism (14)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{LAG}^{hypo}$$ \end{document}	h⁻¹	0.0034±5.87%	T _3B(t) lag rate constant (14)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{50}^{TSH}$$ \end{document}	mmol	23	TSH D&E Michaelis-Menten constant (14)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$V_{max}^{TSH}$$ \end{document}	mmol/h	6.9	TSH D&E V_max constant (14)
V_TSH	L	2.5	Pediatric TSH apparent distribution volume (this study, see Methods)
V_p	L	1	Pediatric plasma volume (this study, see Methods)
k ₀₂	h⁻¹	0.0114±17%	T₄ D&E degradation rate (this study, see Methods)
k ₁₂	h⁻¹	0.523±19.2%	T₄ D&E exchange rate constant (this study, see Methods)
k ₁₃	h⁻¹	0.0514±28.8%	T₄ D&E exchange rate constant (this study, see Methods)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\textbf{\textit{k}}_{\bf 21}^{free}$$ \end{document}	h⁻¹	2275±14.4%	Free T₄ D&E exchange rate constant (this study, see Methods)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\textbf{\textit{k}}_{\bf 31}^{free}$$ \end{document}	h⁻¹	255±36.0%	Free T₄ D&E exchange rate constant (this study, see Methods)
K_LAG	unitless	6.5	T _{3 B} ( t ) lag Michaelis–Menten constant (this study, see Methods)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\textbf{\textit{T}}_{{\bf 3}P}^{EU}$$ \end{document}	nmol/L	2.6	T _{3 B} ( t ) normalization constant (this study, see Methods; 14)
\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\textbf{\textit{T}}_{{\bf 4}P}^{EU}$$ \end{document}	nmol/L	100.8	T _{3 B} ( t ) normalization constant (this study, see Methods; 14)

Pediatric model parameter updates in boldface; other parameter estimates same as adult model.

\documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$ { \rm \% } CV = 100 \times \frac { SD } { parameter \ estimate } $$ \end{document} with SD (standard deviation) from the parameter covariance matrix.

Source information in references.

TH D&E submodel modifications

The basic six-compartment D&E model structure consists of three compartments for T₄ and three for T₃, representing fast and slow tissue compartments, as well as free plasma hormone concentrations, as illustrated in Fig. 2, bottom. To reflect the faster pediatric T₄ clearance rates, all five T₄ distribution parameters (k ₁₂, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{21}^{free}$$ \end{document} , k ₁₃, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{31}^{free}$$ \end{document} , and k ₀₂) were fitted to data (Fig. 3) from a previously published ¹³¹I-labeled T₄ tracer kinetic study performed on euthyroid institutionalized children ages 3 to 9 years (17).

FIG. 3.

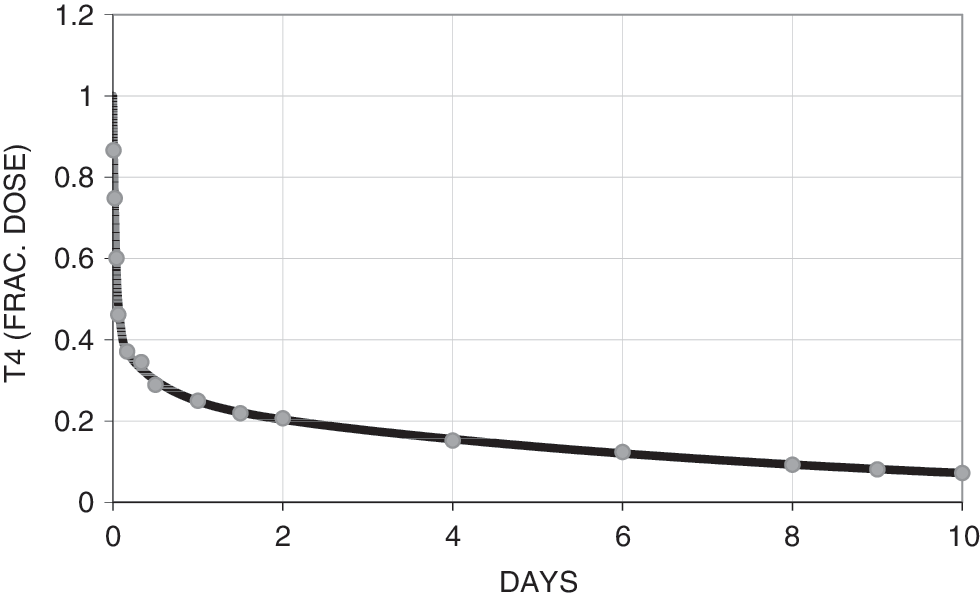

Fit of T₄ distribution parameters to T₄ tracer data from Haddad (17) scaled to fraction of the dose. No error bars are shown because none were reported in the reference.

For fitting the model to the tracer data, we assumed linearity of the tracer experiment, as we did in developing the original TH D&E model in Fig. 2 (12), and thus used a linearized model to fit the five model parameters k ₁₂, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{21}^{free}$$ \end{document} , k ₁₃, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$k_{31}^{free}$$ \end{document} , and k ₀₂. The optimizer (weighted extended least squares) in SAAM II modeling software (18) was used for parameter estimation and parameter variability estimation. SAAM II also was used for all simulation studies, with these new parameter values updating the fully quantified nonlinear model. The subject children in reference (17) were about one fourth the size of adults, and scaling for size differences yields a V_p (plasma volume) estimate of ∼1 L (19).

Brain submodel modifications

The brain submodel replicates hypothalamic and pituitary regulation of TSH secretion in response to plasma T_3P and T_4P feedback signals, as well as distribution and elimination of TSH in plasma (13). The TSH secretion rate (SR_TSH) includes both basal and circadian components, each regulated by T₃ in the brain, denoted globally as T_3B. A one-compartment model, quantified by TSH half-life, models TSH D&E well (12).

The adult model includes a “lag” function, f _LAG, which represents the combined effects of type-3 deiodinase (D3) down-regulation and “exhausted” pituitary TSH secretion in extreme hypothyroidism (14). This function switches from normal D3 degradation to down-regulated D3 degradation as T_3B levels in the brain fall. Because pediatric TH levels tend to be slightly higher than adult levels (19), we adjusted the lag function to down-regulate D3 at slightly higher values of T_3B for the onset of pediatric hypothyroidism (see Table 1). TSH distribution volume \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\rm V_{D}^{TSH}$$ \end{document} also was adjusted, to match simulated normal daytime TSH with measured TSH levels in 4- to 6-year-old children (1.6 mU/L) (19), yielding \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\rm {V}_{D}^{TSH}$$ \end{document} =2.5 L.

Quantified model validation

We simulated the quantified model and compared predicted hormone output signals with several sets of clinical data not used in model development. These included the serum TSH/free T₄ (FT₄) ratio, which is higher in children than adults (20) and the average steady state values of T₃ and T₄ in children ages 4–8 years (19). We also compared simulation results to two clinical radioiodine ablation protocols post-thyroidectomy (6). In the first, clinicians found patients had elevated TSH levels >25 mU/L 7 days after stopping normal replacement dosing. In the second, if patients were given a larger daily LT₄ dose to suppress TSH <0.1 mU/L during replacement, the withdrawal time to TSH levels >25 mU/L was 12.3±0.7 days.

Post-thyroidectomy protocol alternatives

Our quantified model approximates average thyroid system physiology of children ranging in age from 3 to 9 years—the age range of the data used to quantify the model. Due to the wide variation in size and other factors in children treated this way, the specific doses used in the following simulations and results do not correspond to a specific age.

Thyroid remnant range for simulation studies

Thyroid remnants are assumed to secrete TH in response to TSH stimulation in proportion to remnant size relative to intact thyroidal tissue (14). We simulated protocols using thyroid remnants ranging from 0.1% to 5% of normal secretion (10–200 mg), to allow for variations in surgery techniques. Based on thyroid size data in children ranging from 3 to 9 years (21), this is equivalent to 0.1% for 9-year-olds with a 10-mg remnant, to 5% for 3-year-olds with ∼200-mg remnant. Of note, while the terms of near-total and total thyroidectomy are variably defined in the literature (sometimes including patients with up to 1 g of residual thyroid tissue) (22), highly experienced thyroid surgeons can achieve small thyroid remnant sizes of 10 mg or less, regardless of the patient's age (personal communication from Dr. Michael Yeh, Departments of Medicine/Endocrinology and Surgery, UCLA, January 2011). To incorporate remnant size into the model, we multiplied the normal TH secretion rates SR₃ and SR₄ by the desired percent remnant for the simulations, as in Eisenberg et al. (14).

Full replacement and TSH suppression doses

Simulated full replacement is the T₃ or T₄ dose rate that approximately normalizes simulated plasma TSH (26 μg/d LT₃ or 60 μg/d LT₄ for 1.5–2 mU/L TSH) (19) during replacement in Fig. 1. A suppressive dose yields TSH <0.1 mU/L for the majority of the replacement period (50 μg/d LT₃ or 90 μg/d LT₄) (5,6).

Withdrawal period

This is the time between stopping replacement and plasma TSH reaching 25 mU/L. In some of our simulations, TSH levels reached 25 mU/L before the end of the replacement period. These are designated as a withdrawal time of 0 days.

Because TSH has a significant circadian rhythm, night-time TSH may exceed 25 mU/L while average TSH remains below the threshold. For practical purposes, we measured withdrawal time in our simulations as the time when the 24-h moving average of TSH crosses 25 mU/L, as shown in the graphs.

Withdrawal protocol simulations

We simulated several withdrawal protocols to examine which best minimized withdrawal period while maintaining normal TSH levels during replacement.

1. T₃ vs. T₄ protocols

We compared the simulated effects of T₃ versus T₄ replacement on withdrawal time, for a range of remnant (i) and dose (ii) sizes.

i. Remnant size. Three weeks of full replacement dosing with either LT₃ or LT₄, for remnant sizes ranging from 0.1% to 5%.

ii. Dose size. Assuming a remnant size of 2.5% (the approximate midpoint of the range above), we simulated 3 weeks full replacement of T₃ and T₄, using doses ranging from no replacement to full replacement to suppressive doses (0–50 μg T₃/d, 0–90 μg T₄/d).

2. Additional T₃ protocols

Since T₃ has a shorter half-life than T₄, we simulated two additional T₃ protocols to investigate how replacement duration and number of T₃/day doses affect withdrawal period.

i. Duration of treatment. Two and 4 days, and 1, 2, and 3 weeks of full replacement T₃, for 2.5% (midrange) remnant.

ii. Doses/day. Three weeks full replacement T₃, but altered dose frequency (1, 2, 3 times/day), for 2.5% remnant.

Results

Model development

Figure 3 shows that the simulated pediatric TH D&E submodel plasma T₄ output fitted exceptionally well to the T₄ tracer data, with parameter estimates and variabilities (14%–36% CV range) given in Table 3. Simulated full replacement doses were found to be 26 μg/d LT₃ or 60 μg/d LT₄. Quantified model parameters and equations are given in Tables 1 –4.

Table 3.

Pediatric Thyroid Hormone D&E Model Parameter Estimates and Their Variabilities Based on Model Fitting to Haddad Data

Parameter	Pediatric model estimate (h⁻¹)±%CV ^a
k ₀₂	0.0114±17%
k ₁₂	0.523±19%
k ₁₃	0.0514±29%
k ₂₁ ^free	2275±14%
k ₃₁ ^free	255±36%

Data derived from Haddad, 1960 (17) (see Fig. 3).

%CV=(SD/mean)×100.

Table 4.

Comparison of Pediatric and Adult Estimates

		Estimate±%CV		Source reference ^a
Parameter	Units	Pediatric	Adult	Pediatric	Adults
V _TSH	L	2.5	3.5	This study (see Methods)	Eisenberg et al., 2006 (12)
V _p	L	1	3	This study (see Methods )	Eisenberg et al., 2006 (12)
k ₀₂	h⁻¹	0.0114±17%	0.0189±25.7%	This study (see Table 3)	Pacini et al., 2002 (11)
k ₁₂	h⁻¹	0.523±9.2%	0.868±18.3%	This study (see Table 3)	Pacini et al., 2002 (11)
k ₁₃	h⁻¹	0.0514±28.8%	0.108±12.4%	This study (see Table 3)	Pacini et al., 2002 (11)
k ₂₁ ^free	h⁻¹	2275±14.4%	1503	This study (see Table 3)	Pacini et al., 2002 (11)
k ₃₁ ^free	h⁻¹	255±36.0%	584	This study (see Table 3)	Pacini et al., 2002 (11)
K _LAG	unitless	6.5	5	This study (see Methods)	Eisenberg et al., 2008 (13)
T _3P ^EU	nmol/L	2.6	2	Fisher et al., 2000 (20)	Eisenberg et al., 2008 (13)
T _4P ^EU	nmol/L	100.8	93.3	Fisher et al., 2000 (20)	Eisenberg et al., 2008 (13)

Source information in references.

Model validation

Plasma TSH/FT₄ ratio

The simulated average daily TSH/FT₄ ratio was 0.1 mU/pmol, similar to the clinical value of 0.0924 mU/pmol in 4–6 year olds (19).

T₄-based remnant ablation validation

For full T₄ replacement (60 μg/d), simulated withdrawal times were 7–10 days for 0.1%–5% remnants, similar to clinical results of 1 week (6). For suppressed T₄ replacement (90 μg/d), the simulated withdrawal times were 12–15 days, similar to reported clinical data, 12.3±0.7 days (6).

Protocol simulations

1. T₃ vs. T₄ protocols (Figs. 4 –7)

FIG. 4.

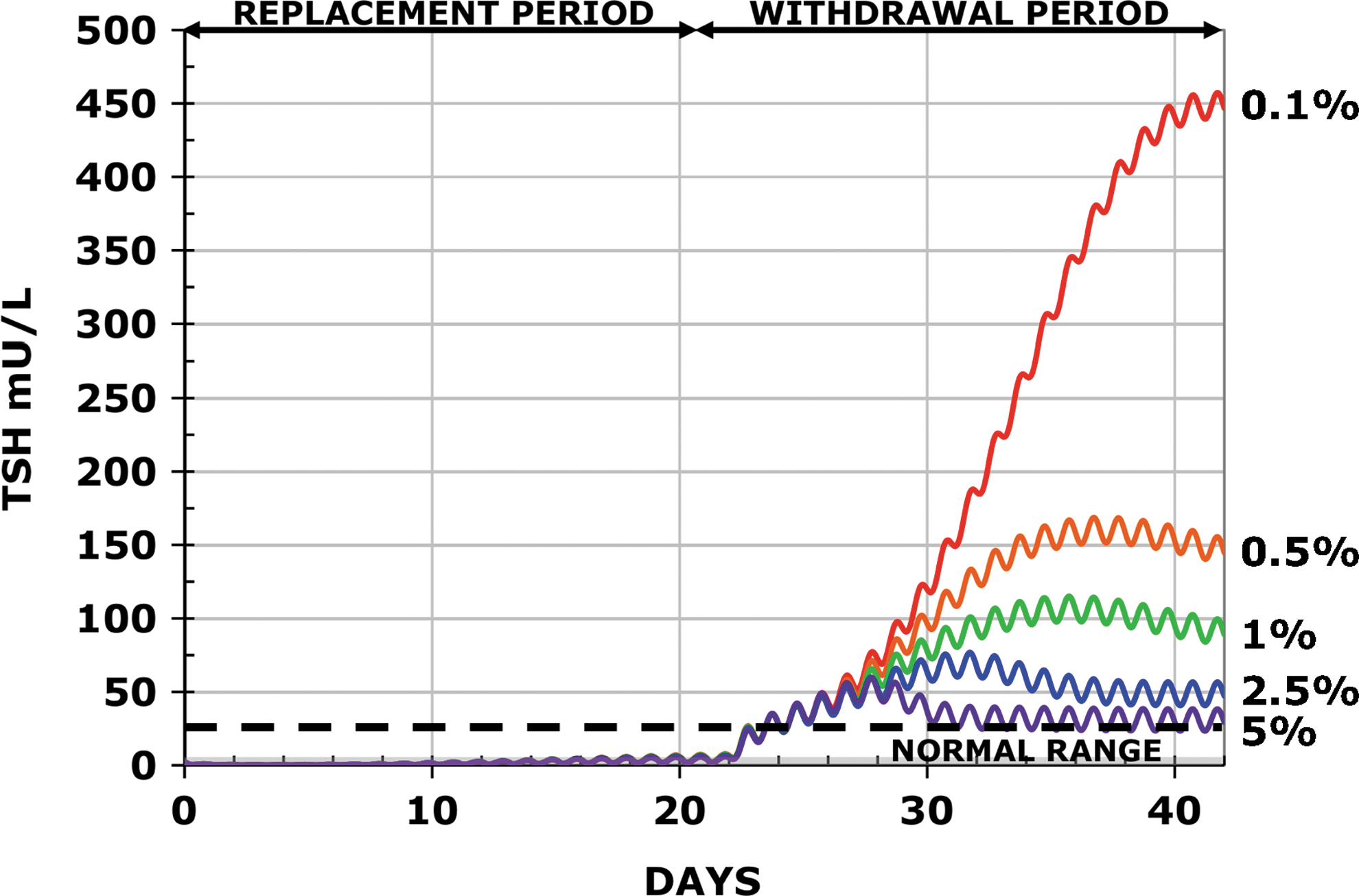

Predicted impact of thyroid remnant size on triiodothyronine (T₃) withdrawal time. T₃-based remnant ablation protocols with full replacement (26 μg/d T₃) for differing remnant percentages (0.1%–5%). For all remnant sizes, TSH is within the normal range (shaded gray region) during replacement, reaching 25 mU/L (dashed black line) 3.5 days after withdrawal. Color images available online at www.liebertonline.com/thy

FIG. 5.

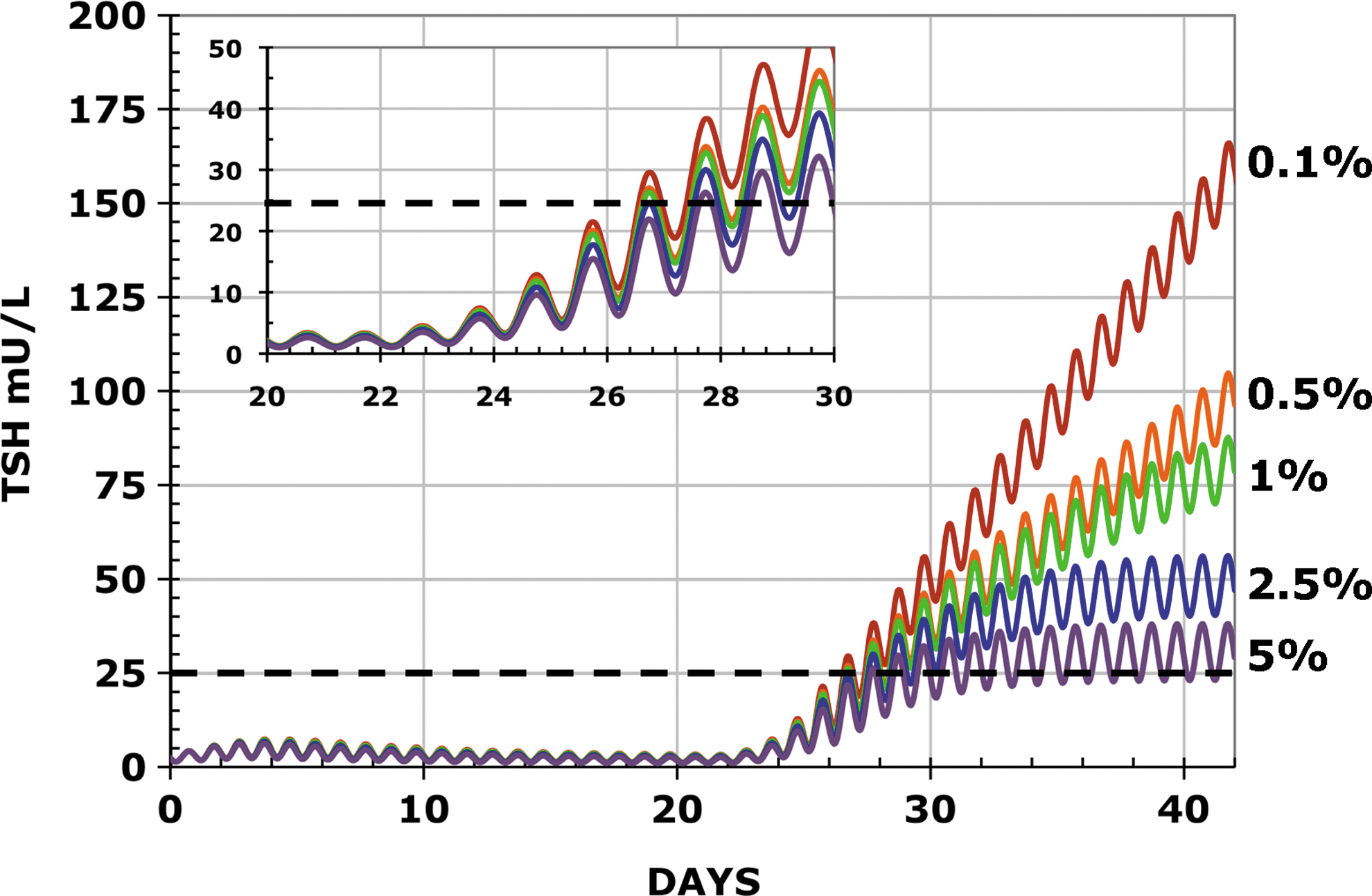

Predicted impact of thyroid remnant size on T₄ withdrawal time. T₄-based remnant ablation protocol with full replacement (60 μg/d T₄) for remnant percentages from 0.1% to 5%. Withdrawal time increased from 7 to 10 days with larger remnant size (see inset graph). In inset, remnant sizes are ordered the same, min to max, top to bottom. Color images available online at www.liebertonline.com/thy

FIG. 6.

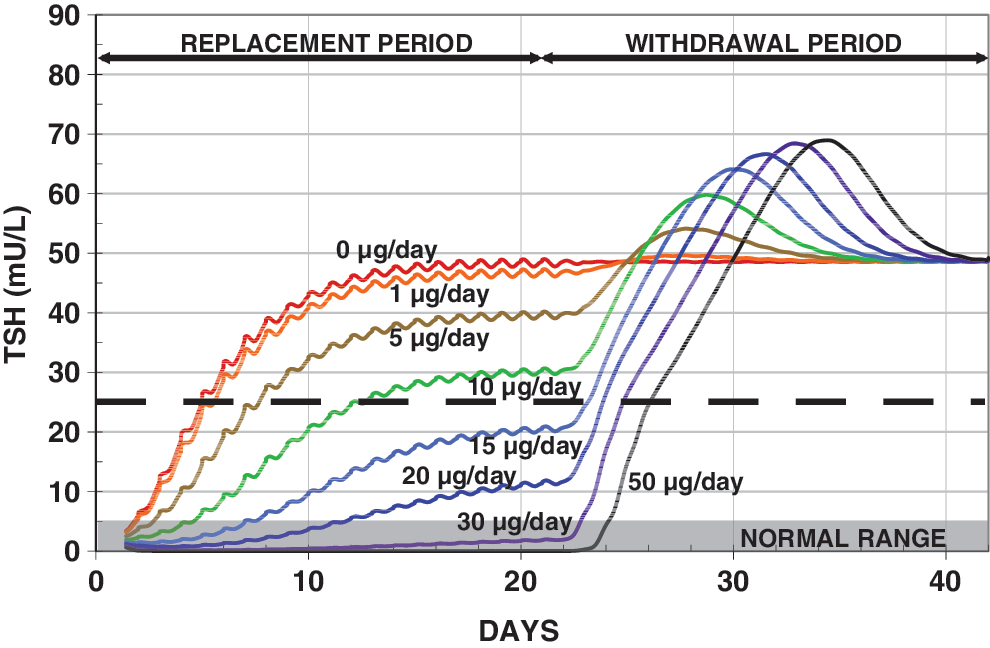

Predicted impact of T₃ dose on withdrawal time. T₃-based remnant ablation protocols for dose sizes 0–50 μg T₃/d. Twenty-four hour moving average of TSH concentrations. Average TSH levels are maintained in the normal to suppressed range (shaded gray area) during replacement, for both full replacement and suppressing doses. Withdrawal times ranged from 0 to 5 days, with shorter withdrawal for smaller doses. Color images available online at www.liebertonline.com/thy

FIG. 7.

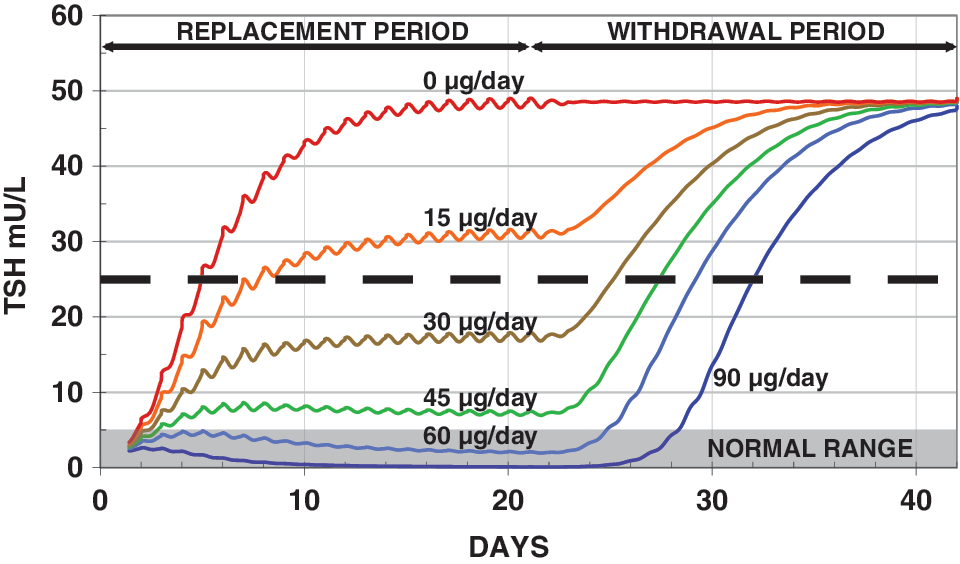

Predicted impact of T₄ dose on withdrawal time. T₄-based remnant ablation protocol for differing dose size (0–90 μg T₄/d). Twenty-four hour moving average of TSH concentrations during. Average TSH levels are maintained in the normal range (shaded gray area) during replacement period and for full repressed and suppressed doses. Withdrawal times ranged from 0 to 14 days, with shorter withdrawal for smaller doses. Color images available online at www.liebertonline.com/thy

Overall, T₃ treatment (Figs. 4 and 6) resulted in shorter withdrawal times than T₄ (Figs. 5 and 7), for both full replacement and suppressed dosing, regardless of remnant size. For smaller doses, the withdrawal times for both T₄ and T₃ were similar to giving no replacement following thyroidectomy, with TSH reaching 25 mU/L before the replacement period ended.

i. Remnant size. Protocol simulation results are shown in Figs. 4 and 5. For T₃ replacement, withdrawal time was 3.5 days for all remnant sizes. For T₄ replacement, the withdrawal time ranged from 7 to 10 days (0.1% remnant, 7.2 days; 0.5% remnant, 7.4 days; 1%, 7.5 days; 2.5%, 8 days; 5%, 9.5 days).

ii. Dose size. Simulation results are given in Figs. 6 and 7. For both T₃ and T₄ replacement, higher doses yielded longer withdrawal times, and lower doses resulted in TSH rising above normal during the replacement period, in some cases exceeding 25 mU/L before the replacement period ended.

For T₃-only replacement, up to 10 μg T₃/d yielded TSH values >25 mU/L during the replacement period. TSH was above 10m U/L for 15- and 20-μg doses during replacement and remained within the normal range for larger T₃ doses, 30 and 50 μg. During withdrawal of T₃, 15 μg doses required 2 days withdrawal and 20-, 30-, and 50-μg doses required 3, 4, and 5 days for withdrawal, respectively.

For T₄ replacement, results were similar, but with somewhat longer withdrawal times were needed to maintain normal TSH levels. They were 4, 6.5, 8.25, and 11 days for 30-, 45-, 60-, and 90-μg doses, respectively. TSH was within the normal range only for 60 and 90 μg T₄ doses during the replacement period.

2. Additional T₃ protocols

Overall, as shown in Fig. 8, neither duration of treatment nor dose frequency had a significant effect on TSH level objectives or withdrawal times.

FIG. 8.

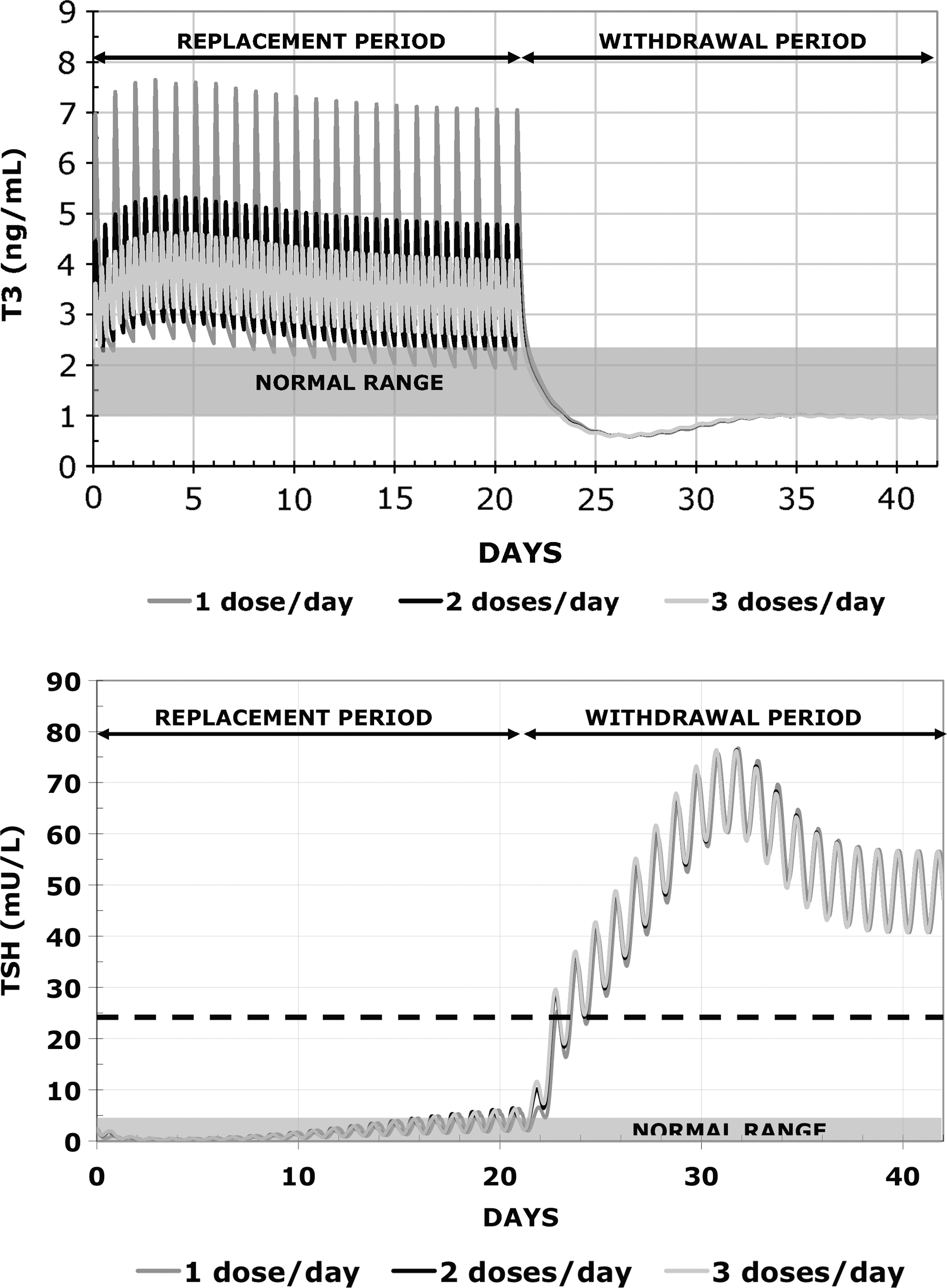

Top panel: Simulated plasma T₃ during T₃-based remnant ablation protocol for one, two, or three doses per day totaling 26 μg T₃/d, for 2.5% remnant. Average T₃ per day is the same regardless of dose frequency, but T₃ range decreases with more doses per day. Bottom panel: TSH dynamics remained the same regardless of dose frequency.

i. Replacement duration. For replacement periods ≥1 week, withdrawal time was constant at ∼4 days. Withdrawal time for 2 and 4 days of replacement was 5 days.

ii. Dose frequency. TSH and T₃ simulation responses to T₃-only dosing are illustrated in Fig. 8. Average T₃ levels during replacement were the same regardless of dose frequency (3.35 ng/mL), but—as shown—daily plasma T₃ oscillations were substantially reduced by dosing more frequently. With one time/day, they ranged from 1.9 to 7.5 ng/mL; for two times/day, 1.8 to 5.26 ng/mL; and for three times/day, 1.7 to 4.6 ng/mL. Simulated TSH was unchanged with dose frequency, and all required a minimum withdrawal time of 3.5 days.

Discussion

Model development and validation

This model was developed on an existing framework (14), updating the brain and thyroid D&E submodels to reflect pediatric physiology and data. The pediatric model was quantified using published pediatric T₄ kinetic data (Fig. 3) as well as steady state T₄, T₃, and TSH serum concentration data, and validated using independent clinical data not used in model development. The model fitted all data well.

In our simulations, we used replacement periods up to 3 weeks prior to testing various withdrawal periods. We recognize that, in clinical settings, the replacement period might be longer than 3 weeks and the dynamics of the rise in plasma TSH following hormone withdrawal might vary as a function of replacement period. For lack of data, the model does not account for this possibility, or other clinical variants not tested. We would not, however, anticipate any major changes in our primary results if this were the case. Rather than specify regimens to follow, our results are meant to provide quantitative guidance for developing improved treatment protocols for children, for thyroid surgery as well as in preparation for radioiodine ablation of thyroid remnants following surgery.

Remnant ablation protocols

Different TH withdrawal protocols were simulated in hypothetical 3- to 9-year-old children after thyroidectomy for differentiated thyroid cancer. We compared short-term replacement with T₃ vs. T₄ monotherapy, and predicted the impact of different dosing regimens and thyroid remnant size.

Overall, because TH requirements vary widely across the pediatric age range, dosing designed to either normalize or suppress TSH must be individualized and empirically titrated on the basis of serial thyroid function tests (23). Our simulation results are meant to augment these tests, providing some quantitative kinetics guidelines for finalizing individual protocols. They first of all confirmed that the TSH rise after TH withdrawal is accelerated in children compared with adults (10), consistent with findings in a clinical study of 11 children in which adequate hyperthyrotropinemia was documented within 14 days of LT₄ withdrawal (6). The new model demonstrates a strong positive relationship between either LT₄ or LT₃ replacement and withdrawal, with lower doses yielding shorter withdrawal times (Figs. 6 and 7). Simulated doses ranging from zero to suppressive amounts clearly illustrate that excessive LT₄ dosing prolongs withdrawal times. The “full replacement” LT₄ dose of 60 μg/d was predicted to maintain serum TSH of 1.5–2.0 mU/L during treatment, with a rapid TSH rise to >25 mU/L only 6.5 days after withdrawal. While clinical validation is required, this suggests that certain children could be offered the convenient option of a full replacement postoperative LT₄ dose (rather than a suppressive LT₄ dose), followed by an abbreviated withdrawal of only about a week after complete recovery from surgery. This approach might be appropriate for some cases in which early ¹³¹I therapy is desired.

Comparison between T₃ and T₄ full replacement monotherapy (Figs. 4 and 5) predicts much shorter withdrawal times with T₃ (3.5 days) than with T₄ (7–10 days). These several day differences may not be clinically important for some patients, but could be helpful for others. For example, T₃ monotherapy could be used in patients that are kept on T₃ replacement for as long as needed to recover from surgery, then undergo a shorter withdrawal period prior to radioiodine therapy.

Simulated T₃ doses that normalized serum TSH did generate greater than normal plasma T₃ levels, with broad swings over the course of a day (Fig. 8). Dividing administration into two or three separate doses per day substantially decreased the amplitude of these T₃ peaks (Fig. 8) and such T₃ regimens are an established option for withdrawal (24). T₃ values increased to a mean of 3.35 ng/mL (normal range 1.2–2.3 ng/mL) (19). The same trend is observed in available adult data, where T₃-only replacement yielded heightened plasma T₃ levels, with some adult patients outside the normal range (0.8–1.9 ng/mL) (25).

Our simulation results also highlight two potentially complicating factors in treatment of thyroid cancer patients following thyroidectomy, namely large thyroid remnants (Fig. 5) or excessive LT₄ replacement (Fig. 7). Both can prolong withdrawal times needed to achieve appropriate TSH levels. The remnant size issue emphasizes the importance of referral to a thyroid surgeon with extensive experience in thyroidectomy as well as a low personal complication rate, to optimize the extent of resection as well as operative risk (26). The excessive replacement issue illustrates the value of postoperative biochemical monitoring to avoid both over- and under-treatment. In contrast to most hypothyroid children who have partial thyroid insufficiency from autoimmune thyroiditis or dyshormonogenesis, postoperative patients are functionally athyreotic and, combined with their rapid T₄ clearance, this leads to early derangement of thyroid status when initial postoperative T₄ or T₃ doses are suboptimal (illustrated in Figs. 6 and 7). Thyroid function tests obtained in all children 2–3 weeks after thyroidectomy could alleviate this complication to assess the adequacy of their replacement.

The simulation results presented here should be useful in formalizing and otherwise guiding new experiment designs specifically addressing thyroid remnant-size effects and enhancements in TH replacement therapy following thyroidectomy in children.

Footnotes

Acknowledgments

This material is based upon work supported by the National Science Foundation under Agreement No. 0635561 and grant DK76099 from the National Institutes of Health. We also thank the Mathematical Biosciences Institute for their generous travel support to R.B., and the UCLA Academic Senate Committee on Research for support to J.D.

Disclosure Statement

No competing financial interests exist.

References

Waguespack

, Wells

. 2007. Thyroid cancer. Bleyer

, Barr

. Cancer in Adolescents and Young Adults. Springer: Heidleberg, Germany, 259–270.

Sklar

, LaQuaglia

. 2003. Thyroid cancer in childhood, adolescents. Radovick

, MacGillivray

. Pediatric Endocrinology: A Practical Clinical Guide. Humana Press: Totowa, NJ, 327–339.

Feinmesser

, Lubin

, Segal

, Noyek

. 1997. Carcinoma of the thyroid in children—a review. J Pediatr Endocrinol Metab, 10:561–568.

Waguespack

, Francis

. 2010. Initial management and follow-up of differentiated thyroid cancer in children. J Natl Compr Canc Netw, 8:1289–1300.

Cooper

, Doherty

, Haugen

, Kloos

, Lee

, Mandel

, Mazzaferri

, McIver

, Pacini

, Schlumberger

, Sherman

, Steward

, Tuttle

. 2009. Revised American Thyroid Association management guidelines for patients with thyroid nodules and differentiated thyroid cancer. Thyroid, 19:1167–1214.

Kujit

, Huang

. 2005. Children with differentiated thyroid cancer achieve adequate hyperthyrotripinemia within 14 days of levothyroxine withdrawal. J Clin Endocrinol Metab., 90:6123–6125.

Pacini

, Schlumberger

, Dralle

, Elisei

, Smit

, Wiersinga

. 2006. European consensus for the management of patients with differentiated thyroid carcinoma of the follicular epithelium. Eur J Endocrinol, 154:787–803.

Hennemann

LDG

. Thyroid Disease Manager: The thyroid and its diseases. www.thyroidmanager.org/Chapter4/ch01s02.html. 2010 April .

Hilts

, Hellman

, Anderson

, Woolfenden

, Van Antwerp

, Patton

. 1979. Serial TSH determination after T3 withdrawal or thyroidectomy in the therapy of thyroid carcinoma. J Nucl Med, 20:928–932.

10.

Leboeuf

, Perron

, Carpentier

, Verreault

, Langlois

. 2007. L-T3 preparation for whole-body scintigraphy: a randomized-controlled trial. Clin Endocrinol (Oxf), 67:839–844.

11.

Pacini

, Molinaro

, Castagna

, Lippi

, Ceccarelli

, Agate

, Elisei

, Pinchera

. 2002. Ablation of thyroid residues with 30 mCi (131)I: a comparison in thyroid cancer patients prepared with recombinant human TSH or thyroid hormone withdrawal. J Clin Endocrinol Metab, 87:4063–4068.

12.

Eisenberg

, Samuels

, DiStefano

3rd . 2006. L-T4 bioequivalence and hormone replacement studies via feedback control simulations. Thyroid, 16:1279–1292.

13.

Eisenberg

, Samuels

, DiStefano

3rd . 2008. Extensions, validation, and clinical applications of a feedback control system simulator of the hypothalamo-pituitary-thyroid axis. Thyroid, 18:1071–1085.

14.

Eisenberg

, Santini

, Marsili

, Pinchera

, DiStefano

3rd . 2010. TSH regulation dynamics in central and extreme primary hypothyroidism. Thyroid, 20:1215–1228.

15.

Eisenberg

, DiStefano

. 2009. TSH-based protocol, tablet instability, and absorption effects on L-T4 bioequivalence. Thyroid, 19:103–110.

16.

DiStefano

3rd , Mak

. 1979. On model and data requirements for determining the bioavailability of oral therapeutic agents: application to gut absorption of thyroid hormones. Am J Physiol, 236:R137–141.

17.

Haddad

. 1960. Rates of I 131-labeled thyroxine metabolism in euthyroid children. J Clin Invest, 39:1590–1594.

18.

Barrett

, Bell

, Cobelli

, Golde

, Schumitzky

, Vicini

, Foster

. 1998. SAAM II: Simulation, Analysis, and Modeling Software for tracer and pharmacokinetic studies. Metabolism, 47:484–492.

19.

Elmlinger

, Kuhnel

, Lambrecht

, Ranke

. 2001. Reference intervals from birth to adulthood for serum thyroxine (T4), triiodothyronine (T3), free T3, free T4, thyroxine binding globulin (TBG) and thyrotropin (TSH) Clin Chem Lab Med, 39:973–979.

20.

Fisher

, Nelson

, Carlton

, Wilcox

. 2000. Maturation of human hypothalamic-pituitary-thyroid function and control. Thyroid, 10:229–234.

21.

Kay

, Abrahams

, McClain

. 1966. The weight of normal thyroid glands in children. Arch Pathol, 82:349–352.

22.

Cooper

, Doherty

, Haugen

, Kloos

, Lee

, Mandell

, Mazzaferri

, McIver

, Sherman

, Tuttle

. 2006. Management guidelines for patients with thyroid nodules, differentiated thyroid cancers. Thyroid, 16:109–142.

23.

Lafranchi

. 1992. Thyroiditis and acquired hypothyroidism. Pediatric Ann, 21:29–39.

24.

Halac

, Zimmerman

. 2007. Thyroid tumors in children. Lifshitz

. Pediatric Endocrinology, 5th. Informa Healthcare: New York.

25.

Celi

, Zemskova

, Linderman

, Babar

, Skarulis

, Csako

, Wesley

, Costello

, Penzak

, Pucino

. 2010. The pharmacodynamic equivalence of levothyroxine and liothyronine: a randomized, double blind, cross-over study in thyroidectomized patients. Clin Endocrinol (Oxf), 72:709–715.

26.

Scholz

, Smith

, Chiagnaud

, Shamberger

, Huang

. 2011. Thyroid surgery at Children's Hospital Boston: a 35- year- single institution experience. J Pediatr Surg, 46:437–442.

Simulation of Post-Thyroidectomy Treatment Alternatives for Triiodothyronine or Thyroxine Replacement in Pediatric Thyroid Cancer Patients

Abstract

Background:

Methods:

Results:

Conclusions:

Introduction

Methods

Pediatric model development

TH D&E submodel modifications

Brain submodel modifications

Quantified model validation

Post-thyroidectomy protocol alternatives

Thyroid remnant range for simulation studies

Full replacement and TSH suppression doses

Withdrawal period

Withdrawal protocol simulations

1. T3 vs. T4 protocols

2. Additional T3 protocols

Results

Model development

Model validation

Plasma TSH/FT4 ratio

T4-based remnant ablation validation

Protocol simulations

1. T3 vs. T4 protocols (Figs. 4 –7)

2. Additional T3 protocols

Discussion

Model development and validation

Remnant ablation protocols

Footnotes

Acknowledgments

Disclosure Statement

References

1. T₃ vs. T₄ protocols

2. Additional T₃ protocols

Plasma TSH/FT₄ ratio

T₄-based remnant ablation validation

1. T₃ vs. T₄ protocols (Figs. 4 –7)

2. Additional T₃ protocols
