Autoimmune Thyroid Disease Elicited by NY-ESO-1 Vaccination

Introduction

Unlike cytotoxic agents, thyroid dysfunction is relatively frequent among toxicities associated with newer antineoplastic agents such as targeted therapies or immunotherapies (1). In a recent review on thyroid dysfunction caused by antineoplastic agents, cancer vaccination was overlooked (1). Vaccine immunotherapy for malignancies is based on the administration of tumor-associated antigens that are bound by specific HLA molecules. Tumor-associated antigens, which are proteins not expressed or underexpressed in normal cells (2), can elicit an immune response against tumoral cells in cancer patients (3). For instance, testicular cancer antigens can be expressed by a variety of nontesticular cells when they become malignant (4). One testicular cancer antigen is NY-ESO-1, which was discovered from an esophageal cancer cDNA library, and has been tested in over 30 clinical trials for a number of malignancies, such as esophageal, bladder, ovarian, prostate, non-small-cell lung cancer, melanoma, and sarcoma (5). Around 40% of patients with tumors expressing NY-ESO-1 produce antibodies against it (6). The case reported here demonstrates that HLA typization helps select responsive patients.

Vaccine immunotherapy with tumor-associated antigen administration is emerging as a standard treatment for several malignancies (5). However, immunotherapies and targeted therapies are frequently associated with thyroid dysfunction, which is in contrast with the rare thyroid abnormalities induced by cytotoxic agents (1). The case reported here is the first description of NY-ESO-1–induced Graves' disease in a HLA-A2–negative woman.

Patient

A 32-year-old Chinese-American woman was found to have a synovial sarcoma of the right infratemporal fossa in February 2008. Intensity-modulated radiotherapy to the head and neck (total dose 66 Gy) from March to April 2008 was given, followed by chemotherapy (doxorubicin plus ifosfamide plus mesna, for five cycles) from June to October 2008 (Fig. 1). Her general condition remained fair (Eastern Cooperative Oncology Group [ECOG] score grade 1). From February through April and from August through September 2010, she received two cycles of NY-ESO-1 combined with immune adjuvant Poly-ICLC emulsified in Montanide ISA-51, each cycle consisting of five administrations. To establish the eligibility for NY-ESO-1 vaccination, the oncologists performed class I HLA antigens typing by the microlymphocytotoxicity test. The patient was found to have HLA A11/A33(19), B13/B56(22), Cw3/−. HLA class II typization was not performed. One month after the beginning of immunotherapy, thyroid dysfunction was clinically suspected. Indeed, biochemical assays indicated mild hyperthyroidism caused by Graves' disease, with an elevated free triiodothyronine (4.8 pg/mL [7.4 pmol/L], normal range 2.3–4.3 pg/mL [3.5–6.6 pmol/L]), a subnormal thyrotropin (TSH; 0.13 mU/L, normal range 0.34–4.82 mU/L), and elevated thyroid-stimulating immunoglobulins (TSI; 152%, normal value <140%). Unwilling to risk side effects of antithyroid drugs, she elected to be treated with a beta-blocker (propranolol, 80–20 mg/day). Hyperthyroidism progressively worsened, in parallel with a progressive increase of serum TSI and thyroid size. In December 2010, her serum free thyroxine was >50 pg/mL (60 pmol/L; normal range 5.9–16.1 pg/mL [7.6–20.7 pmol/L]), her free triiodothyronine was >20 pg/mL (30 pmol/L), and the TSI was >500%. In February 2011, the patient underwent total thyroidectomy, and the diagnosis of Graves' disease was histologically confirmed (Fig. 1).

OPEN IN VIEWER

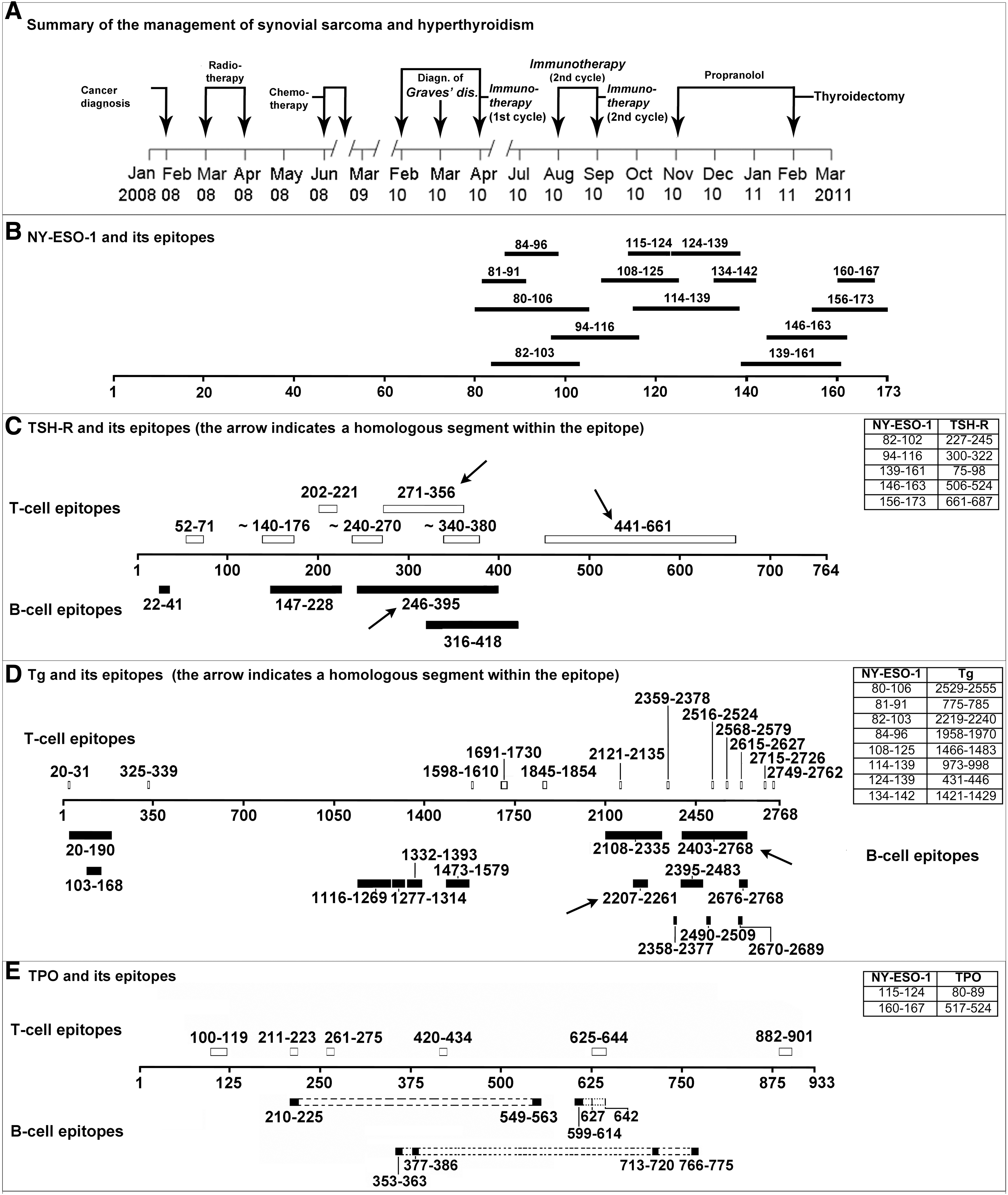

FIG. 1.

(A) Summary of the clinical management in this patient with synovial sarcoma and hyperthyroidism. (B) Scheme of the epitopes in NY-ESO-1. (C–E) Schemes of the epitopes in thyroid autoantigens and homologs with NY-ESO-1.

We looked for amino acid sequence homologies between NY-ESO-1 and thyroid autoantigens (TSH-receptor [TSH-R], thyroperoxidase, and thyroglobulin [Tg]) using BLAST software of the National Center for Biotechnology Information (7). Next, we used the HLA ligand/motif database (8) to search HLA/T-cell receptor binding motifs in the regions of NY-ESO-1 and thyroid autoantigens that were homologous. Fifteen regions of NY-ESO-1, all epitopic, were homologous to 15 regions of thyroid autoantigens: 5 segments with the TSH-R (3/5 containing 3 epitopes), 8 with Tg (2/8 containing 2 epitopes), and 2 with thyroperoxidase (none epitopic) (Fig. 1). These homologous segments contain binding motifs belonging to several HLA class I antigens, including the patient's A11 and A33. Furthermore, two homologous segments of NY-ESO-1 and TSH-R contain two HLA A2 binding motifs (Table 1).

Discussion

Thyroid dysfunction after administration of newer antineoplastic agents, such as tyrosine-kinase inhibitors, is a relatively frequent side effect, since it can affect 20–50% of patients. Thyroid dysfunction is either monophasic (hypothyroidism more frequent than hyperthyroidism) or biphasic (transient hyperthyroidism followed by hypothyroidism) (1,9,10). The thyroid complications triggered by interferon-α, alemtuzumab, ipilimumab, and tremelimumab can range from destructive thyroiditis to Graves' disease (11,12). Rarely, hypothyroidism is caused by pituitary dysfunction (ipilimumab, tremelimumab, bexarotene) (1,13,14).

Although in a recent review, immunotherapies have been taken into account as a potential cause of thyroid dysfunction in cancer patients, vaccine immunotherapy is not mentioned (1). Actually, in a recent pilot study, NY-ESO-1 vaccination was reported to cause persistent hypothyroidism requiring levothyroxine therapy in one HLA-A2 patient after five doses of vaccine, and transient subclinical hyperthyroidism three months after completion of vaccination in another A2-positive patient (6).

Because NY-ESO-1 is expressed in 80% of patients with synovial sarcoma, NY-ESO-1 is used when this malignancy has become refractory to all standard treatments (15). Tumor cells process the NY-ESO-1 protein generating peptides, whose epitopes are recognized by HLA-restricted T-cells. These peptides, currently used as vaccines, are administered in HLA-restricted patients, in order to increase immunogenicity of NY-ESO-1 (6). Hence, all cancer patients who are candidates for NY-ESO-1 immunotherapy have to be typed for HLA loci to select responsive patients. For instance, the NY-ESO-1 peptides 60–72, 92–100, 87–100, 95–107, 124–134, 157–165, and 157–170 are recognized by the following HLA-restricted T cells: A2, B7, Cw3, DRB1*0901, DQB1*0401, DRB1*0803, and DP4 (16 –19).

Autoimmune thyroid disease can be triggered by exposure to proteins sharing at least partial homology with thyroid autoantigens (the so-called molecular mimicry mechanism) in individuals genetically predisposed (e.g., by having certain HLA alleles) (20).

We hypothesized that NY-ESO-1 contained segments of amino acid sequence homology with one or more thyroid autoantigens and that at least one pair of homologous sequences contained amino acid sequence binding motifs to a restricted number of HLA molecules for the corresponding T-cell receptor. Because of the major role of the TSH-R in the pathogenesis of Graves' disease through its activation by autoantibodies (TSI) and subsequent stimulation of both thyroid growth and function, we hypothesized that one autoantigen involved could be TSH-R. We found that NY-ESO-1 shared epitopic homologous regions with at least two major thyroid autoantigens, the TSH-R and Tg. These homologous sequences contain HLA class I and class II binding motifs. NY-ESO-1 sequences 82–103 and 146–163 and their homologous counterparts Tg 2219–2240 and TSH-R 506–524 contain one HLA A11 binding motif each. The NY-ESO-1 sequence 156–179 and the homologous TSH-R sequence 661–687 contain one HLA A33 binding motif, respectively. Indeed, our patient was HLA A11/A33 positive. Moreover, several homologous segments contain binding motifs within other HLA molecules (A2, DP4, DR9), which are known to present NY-ESO-1 peptides (Tables 1 and 2).

Since vaccines are emerging as a standard treatment for malignancies, vaccine-induced thyroid dysfunctions are expected to increase in genetically predisposed patients over the next years. Therefore, physicians should be alerted not only to targeted therapies but also to cancer vaccination as a possible cause of thyroid abnormalities. Because of the symptomatology (e.g., asthenia, nervousness, insomnia, weight loss), cardiac consequences or complications (tachyarrhythmias, ischemic heart disease), the possibility of thyroid storm with an associated mortality as high as 75% (21), and because of the side effects of antithyroid drugs (particularly hematological and hepatic), Graves' disease is not a desirable complication in these seriously ill patients.

Hence, complete HLA typization in cancer patients who receive NY-ESO-1 vaccination is important not only to predict the effectiveness of immunotherapy but also to identify patients who are at high risk to develop thyroid dysfunction. We predict that NY-ESO-1–treated patients carrying any of the HLA antigens A2, A11, A24(9), A26(10), A30(19), A33(19), B27, B39(16), B53, B54(22), B62(15), DP2, DP4, DQ2, DQ6(1), DQ7(3), DQ8(3), DR1, DR4, DR9, DR15(2), DR17(3), DR51, and DR53 (Fig. 1) are at risk of developing autoimmune hyperthyroidism or hypothyroidism. Among these, a number of HLA molecules (A2, DQ2, DQ3, DR3, DR4, DR9) are known to genetically predispose to Graves' disease (22 –27).
