Small-Molecule Screening in Zebrafish Embryos Identifies Signaling Pathways Regulating Early Thyroid Development

Introduction

Thyroid hormones (TH) are critically important regulators of vertebrate growth and development (1). The thyroid gland is the only known site of de novo synthesis of TH in vertebrates. The minimal functional units of thyroid tissue are thyroid follicles consisting of a single layer epithelium of thyroid follicular cells (TFC) enclosing a luminal cavity that is filled with a proteinous matrix containing TH precursors (2,3). Although thyroid tissue differs in shape, size, and anatomical position between vertebrate species, these variations in thyroid anatomy appear to have no major impact on thyroid functionality (3). The key requirement for normal thyroid function is the formation of sufficient amounts of functional thyroid follicles to meet physiological demands for TH synthesis.

The thyroid is the anterior-most organ derived from the embryonic gut tube in vertebrates. The initial event in TFC development is the specification of thyroid precursor cells (TPC) within a restricted domain of the anterior endoderm (2 –4). Molecularly, TPC are characterized by co-expression of a unique combination of transcription factors including orthologs or paralogs of human NKX2-1, PAX8, FOXE1, and HHEX (5 –7). This TPC population constitutes the thyroid anlage, formed as early as embryonic day 8.5 (E8.5) in mouse and around E20 in human (8,9). TPC represent a committed cell state, but functional differentiation genes are not yet expressed and TPC are not capable of TH synthesis. Current concepts also hold that the size of this population of committed cells is likely one key determinant of later organ size (6).

Morphologically, the earliest evidence of thyroid organogenesis is the formation of the thyroid placode recognizable as a thickening of the ventral foregut epithelium in a region where the cardiac outflow tract (OFT) is in close contact with the pharyngeal endoderm (8,10,11). The placodal thickening rapidly transforms into a true organ bud that eventually detaches from the pharyngeal floor followed by a relocation of the thyroid diverticulum toward its final adult position. The thyroid primordium then expands by proliferation and attains a species-specific shape.

Along with the initiation of folliculogenesis, thyroid functional differentiation genes are induced, encoding among others for thyroglobulin (tg), thyroid-stimulating hormone receptor (tshr), thyroid peroxidase (tpo), and sodium–iodide symporter (slc5a5) (2). This induction also marks the transition of TPC into terminally differentiated TFC capable of TH synthesis. Thyroid organogenesis is complete in mice at E16.5 (8) and around the 11th week of gestation in humans (12).

Although the morphological events of thyroid organogenesis have been outlined in much detail in diverse model organisms (8,13 –16), the understanding of the specific molecular mechanisms regulating cell and tissue dynamics during these processes remains at best preliminary (3,6,16). Organ development relies on the tightly regulated interplay between extrinsic signaling cues and cell intrinsic factors (i.e., lineage-specific transcription factors).

While core aspects of the transcription factor network regulating thyroid cell development have been experimentally dissected in mouse and zebrafish (7,17 –20), there is still a paucity of data on the extrinsic signaling cues that regulate foregut endoderm patterning, thyroid cell specification, and subsequent morphogenetic processes (21). From recent reviews on these topics (6,21,22), it becomes apparent that current knowledge is largely based on a patchwork collection of experimental observations made in diverse experimental systems and species. This makes it challenging to formulate robust hypotheses on the role of distinct signals for specific morphogenetic processes and to infer the potential contribution of perturbed signaling to the etiopathology of developmental thyroid diseases (2,6,21).

Thus, there is a need for more systematic analyses with test systems meeting some important demands. First, a recurrent theme in the developmental biology of endoderm-derived organs is that adjacent mesodermal tissues play a critical role as a source of inductive and permissive signals for organ specification and differentiation (23 –25). Fate mapping and tissue recombination experiments in various species revealed that precardiac anterior lateral plate mesoderm and the OFT-forming cardiac mesoderm are major sources of signaling cues instructing early thyroid development (10,26). Complex tissue–tissue interactions are difficult to replicate in classical in vitro systems arguing for whole organisms as experimental systems.

In addition, current models of endodermal organ development highlight that mesoderm–endoderm interactions can be transient, and specific signaling cues can have diverse and even opposite regulatory activities depending on the temporal context (27 –29). Accordingly, experimental models preferably should offer a temporal control over the phenotype. Here, chemical genetic approaches based on small molecules can provide distinct advantages over classical genetic models.

Zebrafish embryos represent one such powerful in vivo model system to investigate cellular and molecular mechanisms of thyroid organogenesis combining the tractability of worm or fly models with physiological and anatomical characteristics of higher vertebrates (30). Morphogenetic events during early thyroid development are well conserved from fish to men (7,11,13 –15,18,22,31). In zebrafish, thyroid specification can be observed as early as 23/24 hours postfertilization (hpf) when a small number of endodermal cells starts to co-express the three transcription factors nkx2.4b, pax2a, and hhex in a region closely apposed to the apical pole of the primitive heart tube (7,14,31).

Lack of differentiated thyroid tissue in loss-of-function for these early thyroid transcription factors indicates that they have roles comparable to their mammalian counterparts NKX2-1, PAX8, and HHEX, respectively (7,18,31). A few hours later, the thyroid anlage also starts expression of pax8 (28 hpf) and foxe1 (30 hpf), but the functional roles of pax8 and foxe1 for zebrafish thyroid cell differentiation remain unknown. Up to 30 hpf, the zebrafish thyroid anlage is morphologically characterized as a monolayer sheet of epithelial cells, and first signs of the budding process can be seen at about 32 hpf. Budding of the thyroid from the pharyngeal epithelium is completed by 48 hpf, and first follicular structures are formed by 55 hpf. Interestingly, expression of the functional differentiation markers tg, tshr, tpo, and slc5a5 is already initiated along with the budding process (14).

Zebrafish offers additional salient features that are particularly attractive for larger scale chemical genetic studies on organ development (32). In contrast to the intrauterine development of mammalian embryos, zebrafish embryos develop externally, which greatly facilitates experimental manipulations and permits monitoring of developmental processes and pathological deviations in real time. Addition and removal of bioactive compounds at specific developmental stages offer temporal control of embryonic signaling activities to characterize phenotypes within specific developmental contexts.

The high fecundity of zebrafish permits generation of thousands of developmentally synchronized embryos that can then be housed conveniently in well plates or small petri dishes. Combined with small size, optical transparency, and rapid development of embryos, these advantageous properties permit the realization of in vivo screening approaches requiring large numbers of test organisms (32,33).

In this study, we harnessed advantages of the zebrafish model to perform pharmacological screens on the role of major signaling pathways during early thyroid organogenesis. We treated embryos during defined developmental periods with a panel of small molecules known to modulate specific signaling pathways and performed comprehensive phenotypic analyses with respect to thyroid morphogenesis and cardiovascular development. A systematic assessment of drugged embryos recovered a range of different thyroid phenotypes including expansion, reduction or lack of the early thyroid anlage and the thyroid primordium, defective thyroid budding, as well as overtly disorganized anatomical presentation of the thyroid primordium.

Our results highlight key roles for fibroblast growth factor (FGF) and bone morphogenetic protein (BMP) signaling during thyroid specification, demonstrate the importance of low Wnt/β-catenin signaling activities for early morphogenetic events, and implicate drug-induced cardiac and vascular anomalies as an indirect mechanism causing abnormal thyroid development.

Methods

Experimental conditions of gastrula screen

For signaling pathway manipulation during gastrula stages (treatment period I in Fig. 1), embryos were treated with small-molecule compounds from 6 to 10 hpf. Normally developing embryos were collected from different clutches and pooled at 4 hpf. Embryos were then randomly allocated into petri dishes (60 × 15 mm; Sarstedt) so that dishes contained either 30 tg-nlsEGFP embryos or a pool of 10 sox17-EGFP, 10 myl7-EGFP, and 10 kdrl-EGFP embryos. At 6 hpf, embryo media were removed and 6 mL of treatment solution was added per dish. All treatments were performed in duplicate. Embryos were incubated in the dark at 28.5°C until 10 hpf. Treatments were stopped by replacing treatment solutions with embryo medium followed by three 10-minute washes of embryos in fresh medium.

OPEN IN VIEWER

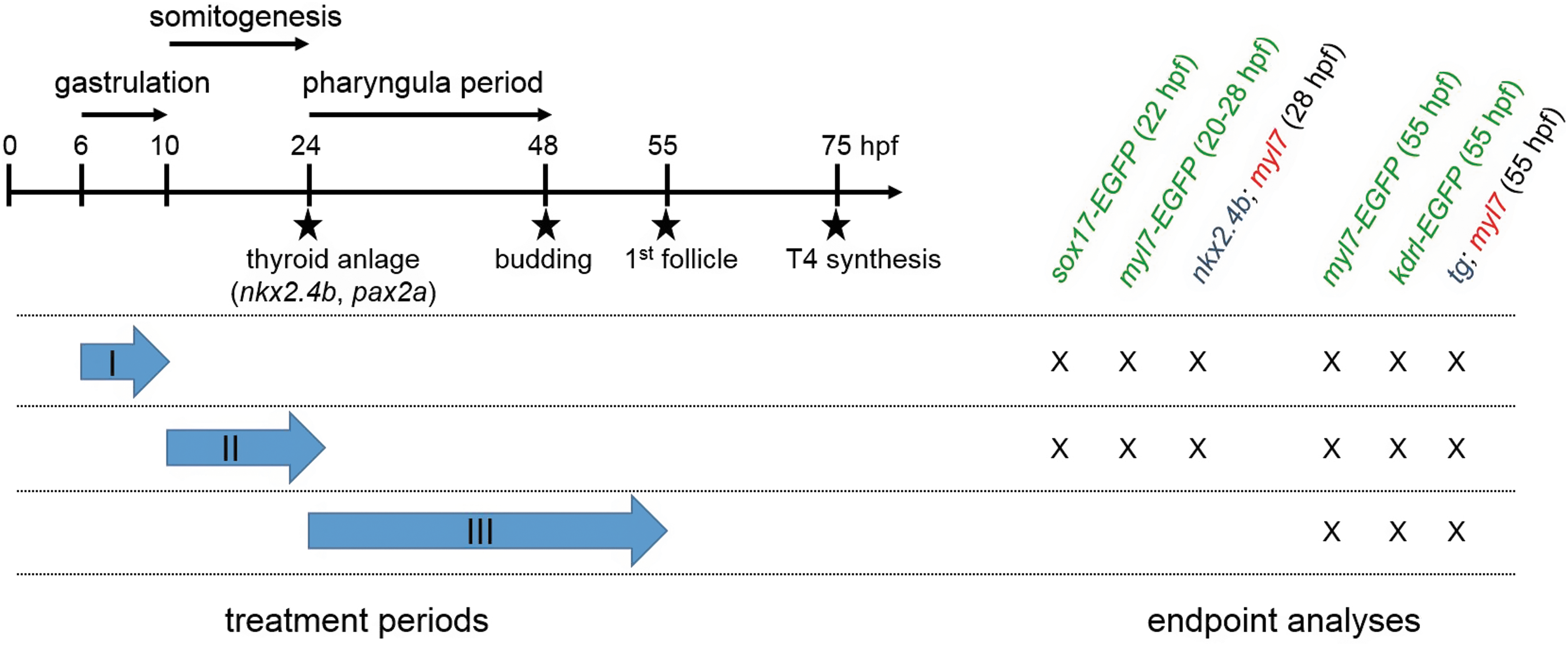

FIG. 1.

Timing of small-molecule treatments and main endpoint analyses. Experimental design. The left of the schematic illustration highlights how periods of small-molecule treatment during screening assays I (gastrula screen), II (somitogenesis screen), and III (pharyngula screen) relate temporally to early zebrafish development and key events of thyroid morphogenesis. Time points along the arbitrarily scaled axis are given in hpf. Note that treatment periods in the gastrula screen (6–10 hpf) and somitogenesis screen (10–26 hpf) cover developmental periods preceding thyroid anlage formation (around 23/24 hpf), whereas the treatment period in the pharyngula screen (24–54 hpf) covers the developmental period after the onset of thyroid anlage formation. The right part of the scheme summarizes the timing of main endpoint analyses for each assay. Endpoints include examination of thyroid (nkx2.4b, tg) and cardiac (myl7) marker expression by in situ hybridization and evaluation of GFP reporter expression patterns in transgenic zebrafish embryos (marked by green letters). GFP, green fluorescent protein; hpf, hours postfertilization; tg, thyroglobulin.

Thereafter, embryos were transferred to clean petri dishes containing 10 mL of embryo medium and were further raised under standard conditions. At 20/21 hpf, all embryos were dechorionated and transferred to medium containing PTU. At 22 hpf, all sox17-EGFP embryos were inspected for gross organismal effects and GFP reporter expression and then fixed in 4% PFA. At 26/27 hpf, all remaining embryos were inspected for gross organismal effects and reporter expression. At 28 hpf, half of the tg-nlsEGFP embryos from each dish were fixed in 4% PFA. Remaining embryos were raised in medium containing PTU until 54/55 hpf, inspected for gross organismal effects, analyzed for reporter expression, and then fixed in 4% PFA for further analyses.

Results

Pathway manipulation during gastrula stages

A first pharmacological screen addressed thyroid development following manipulation of signaling pathways during gastrula stages. This treatment (6–10 hpf) coincides with the developmental period during which the three germ layers (ectoderm, mesoderm, and endoderm) and the major body axes are formed. In zebrafish, the endoderm is specified at the blastula margin under the influence of elevated levels of Nodal signaling. Anterior endodermal derivatives are mainly derived from more dorsal cells within the margin, but distinct fate maps for endodermal progenitors of the thyroid lineage have not been generated for these early stages.

Many of the pathways targeted in our experiments have critical regulatory roles during these processes, most notably BMP, FGF, Wnt, and Nodal pathways (43,44). Accordingly, the presence of characteristic developmental anomalies in drugged embryos allowed us to verify the efficacy of pathway disruption. Small-molecule-induced abnormalities included C2 dorsalized phenotypes after BMP inhibition (45), loss of caudal tissue in FGF inhibitor-treated embryos (Supplementary Fig. S2A) (46), cyclopic eyes, and loss of forebrain following Nodal inhibitor treatment (47) and neural posteriorization phenotypes in embryos treated with Wnt activators (48).

Thyroidal effects

Small-molecule treatment of zebrafish embryos covering gastrula stages revealed alterations in early thyroid development in response to nine drugs affecting five different pathways. Specifically, abnormal thyroid development resulted from treatment with inhibitors of FGF, platelet-derived growth factor (PDGF), Nodal/transforming growth factor β (TGFβ) and BMP pathways, and activators of Wnt signaling (Figs. 2 and 3).

OPEN IN VIEWER

FIG. 2.

Major thyroid phenotypes recovered in the gastrula screen. Zebrafish embryos were treated from 6 to 10 hpf with inhibitors (i) or activators (a) of major signaling pathways. At 28 and 55 hpf, expression of thyroid (nkx2.4b, tg) and cardiac (myl7) markers was assessed by single and dual-color in situ hybridization. Note that nkx2.4b is expressed in the thyroid anlage and the ventral forebrain (fb). Black arrowheads point to domains of thyroid marker expression, and red arrows point to the developing heart. Phenotypic comparison of thyroid development in treated and control embryos (DMSO) at 28 hpf revealed enhanced expression of the early thyroid marker nkx2.4b (#8, 13), aberrant posterior expansion of the thyroidal nkx2.4b expression domain (#6, 8, 17, 18), and severe reduction or complete absence of thyroidal nkx2.4b expression (#21–23, 26 –28). Analysis of tg expression in 55 hpf embryos showed irregular morphologies of the thyroid primordium (#9, 10, 15, 19, 20, 29), enlarged thyroids (#15), smaller thyroids (#20, 24, 30), or complete absence of tg expression (#25). See text for more details on treatment-dependent thyroid phenotypes. Dorsal (28 hpf) and ventral (55 hpf) views are shown, anterior is to the top. Scale bars: 100 μm. DMSO, dimethylsulfoxide.

OPEN IN VIEWER

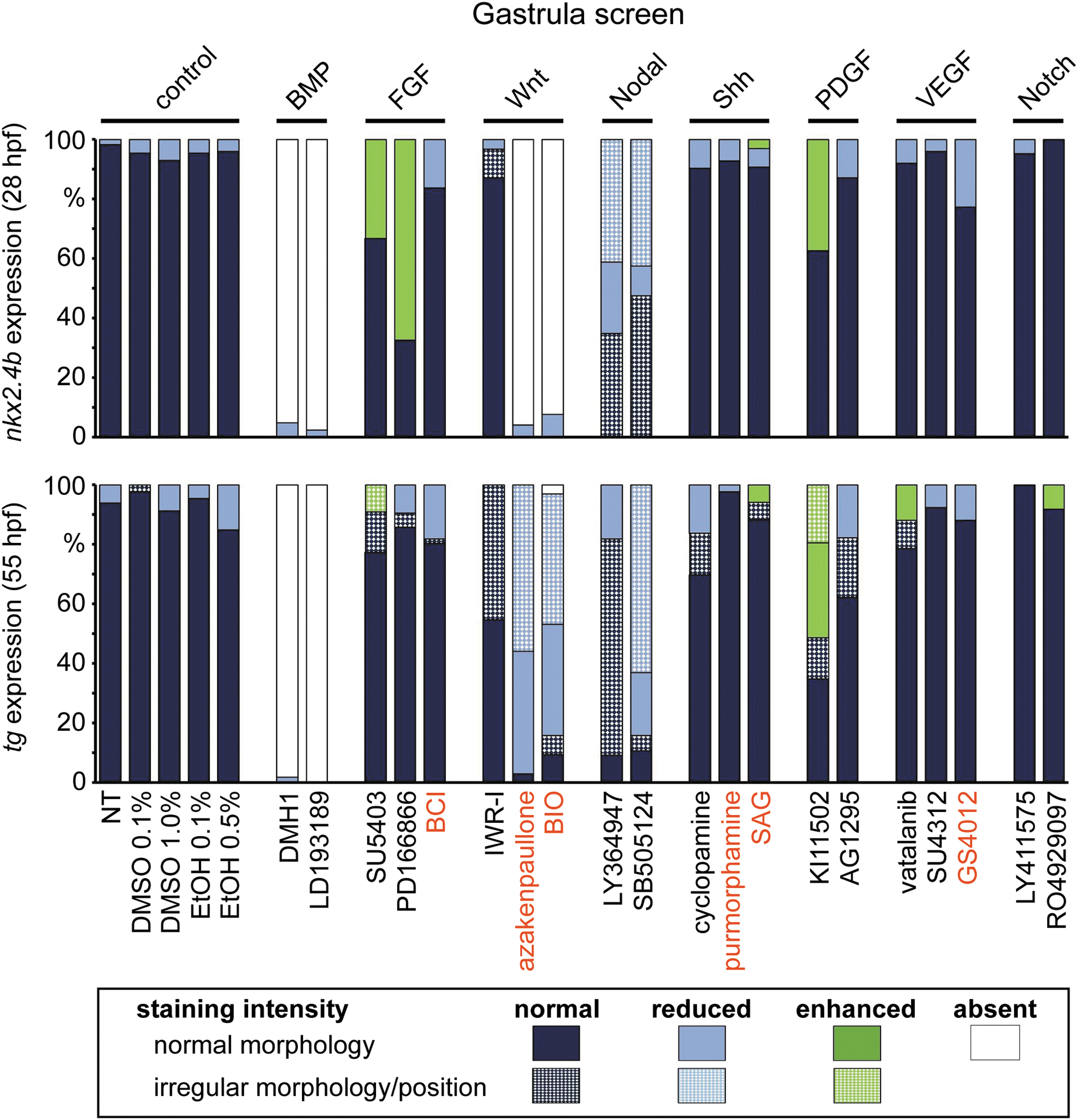

FIG. 3.

Distribution of thyroid phenotypes recovered in the gastrula screen. Zebrafish embryos were treated from 6 to 10 hpf with a panel of 20 small-molecule compounds known to inhibit (black letters) or activate (red letters) specific signaling pathways. Control groups included NT and embryos treated with DMSO or EtOH. Bar graphs depict quantification of the proportion of specimen displaying abnormal thyroid development as determined by nkx2.4b staining of 28 hpf embryos (upper panel) and tg staining of 55 hpf embryos (lower panel). Results are shown for the highest test concentration of each compound, and data are presented as the percentage of embryos displaying a particular phenotype. Thyroid phenotypes were classified into seven categories according to the overall staining intensity of the marker gene and apparent deviations from normal morphology and/or positioning of the expression domain (highlighted by texture overlays). BMP, bone morphogenetic protein; EtOH, ethanol; FGF, fibroblast growth factor; NT, nontreated embryos; PDGF, platelet-derived growth factor; Shh, Sonic hedgehog; VEGF, vascular endothelial growth factor.

At 28 hpf, embryos treated with two different FGF pathway inhibitors (PD166866, SU5402) showed a more rapid evolution of the staining for the early thyroid marker nkx2.4b compared with vehicle-treated embryos (Fig. 2). In addition, we frequently detected a posterior expansion of the thyroidal nkx2.4b expression domain (see embryo #8 in Fig. 2) or additional ectopic domains of nkx2.4b expression (Supplementary Fig. S1). Analysis of sox17-EGFP embryos did not reveal discernible effects of FGF inhibition on anterior endoderm formation (Fig. 4). Notably, comparative analyses of tg staining between drugged embryos and control embryos did not reveal gross differences in thyroid size at 55 hpf (Fig. 2).

OPEN IN VIEWER

FIG. 4.

Effects of small-molecule treatment during gastrulation on anterior endoderm formation. Transgenic Tg(sox17:EGFP) embryos were treated from 6 to 10 hpf with inhibitors (i) or activators (a) of specific signaling pathways, and GFP reporter expression was analyzed by immunofluorescence staining at 22 hpf to assess the formation of the anterior endoderm (ae). The prospective region of thyroid anlage (ta) formation within the anterior endoderm is highlighted by brackets. Phenotypic comparison between treated and control embryos (DMSO) revealed a severe reduction of anterior endoderm in embryos treated with inhibitors of Nodal signaling and perturbed morphogenesis of lateral and most rostral endoderm following overactivation of Wnt signaling. Dorsal views are shown, anterior is to the top. Scale bars: 100 μm.

However, FGF inhibitor-treated embryos presented at 55 hpf a less compact mass of thyroid cells (see embryo #9 in Fig. 2) and irregular thyroid morphology (see embryo #10 in Fig. 2 and Supplementary Fig. S2B). Conversely, treatment with BCI, a dusp6 inhibitor that locally enhances FGF signaling, did not cause clear thyroid effects as small reductions in thyroid size were limited to embryos displaying an overall developmental delay.

Enhanced nkx2.4b expression at the thyroid anlage stage was also observed in embryos treated with KI11502, a receptor tyrosine kinase inhibitor with selectivity for PDGF signaling (Fig. 2). A modest mediolateral expansion of the thyroidal nkx2.4b expression domain was observed in approximately one third of KI11502-treated embryos (see embryo #13 in Fig. 2). Endoderm formation was unaffected by Ki11502 treatment (Fig. 4). Thyroid anomalies due to Ki11502 treatment were also apparent at later stages including frequent detection of an irregular mediolateral expansion of tg expression in 55 hpf embryos (see embryo #15 in Fig. 2). The increased thyroid size in KI11502-treated embryos was particularly remarkable given that these embryos displayed reduced whole body and head size at 55 hpf (see embryo #15 in Fig. 2).

Consistent with the crucial role of Nodal signaling in early embryonic development, inhibitors of this pathway (LY364947 and SB505124) caused, in a concentration-dependent manner, severe gross morphological defects including loss of ventral forebrain structures (see lack of forebrain nkx2.4b expression in embryos #17, 18 in Fig. 2), cyclopia (see embryos #19, 20 in Fig. 2), and a dramatic reduction of anterior endoderm (Fig. 4). Despite these overt developmental anomalies, thyroidal nkx2.4b expression was robustly detectable in 28 hpf embryos, even in embryos completely lacking forebrain nkx2.4b expression (see embryos #17, 18 in Fig. 2).

However, shape and position of the thyroid anlage was abnormal in most inhibitor-treated embryos. Specifically, the thyroidal domain of nkx2.4b expression showed a reduced mediolateral extension but expanded further caudally (see embryo #18 in Fig. 2). In embryos treated with high concentrations of inhibitors, additional ectopic clusters of nkx2.4b-expressing cells were frequently detected in posterior positions (Supplementary Fig. S3). At 55 hpf, the thyroid primordium of most embryos from LY364947 and SB505124 treatments displayed an irregular shape and the number of tg-expressing cells appeared reduced in SB505124-treated embryos if compared with controls (see embryo #20 in Fig. 2).

The most severe defects in early thyroid development resulted from inhibition of BMP signaling and from overactivation of canonical Wnt signaling. Treatment of gastrulating embryos with two BMP pathway inhibitors (DMH1 and LDN193189) consistently caused a concentration-dependent loss of thyroidal nkx2.4b expression at 28 hpf. Almost all embryos treated with the highest inhibitor concentrations displayed a complete lack of detectable nkx2.4b expression in the thyroid region. The absence of a thyroid anlage was not associated with any discernible reduction of foregut endoderm formation as judged from analyses of sox17-EGFP embryos (Fig. 4). For both BMP pathway inhibitors, early defects in thyroid specification correlated closely with a severe reduction or absence of detectable tg staining in embryos at later stages (see embryos #24, 25 in Fig. 2).

Overactivation of canonical Wnt signaling in gastrulating embryos by treatment with BIO and azakenpaullone caused complex developmental phenotypes. At 28 hpf, drugged embryos showed a concentration-dependent loss of anterior neural tissue concurrent with severe inhibition of cardiac development and a dramatic reduction of thyroidal nkx2.4b expression (see embryos #26–28 in Fig. 2). At the highest test concentrations of BIO (5.0 μM) and azakenpaullone (5.0 μM), nkx2.4b expression was no longer detectable in the thyroid region. Although the formation of anterior endoderm was evident in embryos treated with Wnt activators, perturbed morphogenesis was frequently observed in lateral and most rostral regions of the anterior endoderm (Fig. 4).

Interestingly, despite the absence of detectable nkx2.4b expression in the majority of 28 hpf embryos treated with high drug concentrations, all 55 hpf embryos had detectable tg expression, although tg expression was restricted to tiny and often ectopically positioned domains (see embryo #30 in Fig. 2). Conversely, inhibition of Wnt signaling by IWR1 treatment did not affect thyroid specification. Deviations from normal thyroid development were limited to an aberrant shape of the thyroid primordium in 55 hpf embryos when viewed laterally (Supplementary Fig. S2B).

Pathway manipulation during somitogenesis stages

A second pharmacological screen involved treatment of embryos from 10 to 26 hpf and covered the somitogenesis period of zebrafish embryonic development. In zebrafish, the endoderm becomes morphologically distinctive at the beginning of the somitogenesis period as two converging sheets of cells that will fuse at the midline by the 15–17 somite stage (49). While the posterior endoderm rapidly remodels into a rod-like structure, the prospective foregut endoderm region will maintain a sheet-like morphology until after completion of the somitogenesis.

Fate maps of the foregut endoderm at the 8-somite stage showed that thyroid cells are derived from endodermal precursors that are located bilaterally at an anterior–posterior level of the mid-hindbrain boundary and develop in close contact with precardiac mesoderm (10). Toward the end of the somitogenesis period (around 23/24 hpf), TPC co-expressing nkx2.4b, pax2a, and hhex become detectable in the anterior endoderm region (31).

Thyroidal effects

Somitogenesis treatment of zebrafish embryos with small molecules revealed alterations of early thyroid development in response to 11 drugs affecting seven different pathways (Figs. 5 and 6). Drug-induced deviations from normal thyroid development were detectable following treatment with inhibitors of PDGF, vascular endothelial growth factor (VEGF), Sonic hedgehog (Shh), Nodal/TGFβ, BMP and FGF signaling, and activators of Wnt signaling (Fig. 7).

OPEN IN VIEWER

FIG. 5.

Thyroid and vascular phenotypes recovered in the somitogenesis screen. (A) Embryos treated from 10 to 26 hpf with inhibitors (i) of PDGF, VEGF, Shh, and Nodal signaling pathways were analyzed by single and dual-color in situ hybridization for expression of thyroid (nkx2.4b, tg) and cardiac (myl7) markers. Note that nkx2.4b is expressed in the thyroid anlage and the ventral forebrain (fb). Black arrowheads point to domains of thyroid marker expression, and red arrows point to the developing heart. Phenotypic comparison of thyroid development in treated and control embryos (DMSO) at 28 hpf revealed a mediolateral expansion (PDGF-i, #6–8) or mediolateral reduction of the thyroidal nkx2.4b expression domain (Shh-i, #17–18) as well as diminished levels of nkx2.4b expression (Nodal-i, #22, 23). Analysis of tg expression in 55 hpf embryos showed irregularly expanded domains of tg expression (PDGF-i, #9, 10; VEGF-i, #15), irregularly positioned and reduced domains of tg expression (Shh-i, #20), and overtly smaller thyroids (Nodal-i, #25). See text for more details on treatment-dependent thyroid phenotypes. Dorsal (28 hpf) and ventral (55 hpf) views are shown, anterior is to the top. Scale bars: 100 μm. (B) Transgenic Tg(kdrl:EGFP) embryos were treated from 10 to 26 hpf with small-molecule compounds, and GFP reporter expression was analyzed by immunofluorescence staining at 55 hpf to assess morphogenesis of the pharyngeal vasculature. Confocal analysis of vascular development in control embryos (DMSO) and embryos treated with inhibitors (i) of PDGF, VEGF, and Shh signaling revealed treatment-induced dysplasia of major vessels proposed to guide thyroid localization. Highlighted are defects in the formation of the hypobranchial artery (yellow arrowheads) and the first aortic arch arteries (yellow arrows). Three-dimensional reconstructions of confocal images are shown, ventral view, anterior is to the top. Scale bars: 50 μm. a, atrium; PDGF-i, PDGF inhibitors; Shh-i, Shh inhibitors; v, ventricle; VEGF-i, VEGF inhibitors.

OPEN IN VIEWER

FIG. 6.

Manipulation of BMP, FGF, and Wnt signaling during somitogenesis results in thyroid agenesis. Embryos treated from 10 to 26 hpf with inhibitors (i) of BMP and FGF or activators (a) of Wnt signaling pathways were analyzed by single and dual-color in situ hybridization for expression of thyroid (nkx2.4b, tg) and cardiac (myl7) markers. Note that nkx2.4b is expressed in the thyroid anlage and the ventral forebrain (fb). Black arrowheads point to domains of thyroid marker expression, and red arrows point to the developing heart. Phenotypic comparison of thyroid specification in treated and control embryos (DMSO) at 28 hpf revealed severe reduction or complete absence of thyroidal nkx2.4b expression after treatment with BMP-i (#6–8), FGF-i (#11–13), and Wnt-a (#16–18). Analysis of 55 hpf embryos similarly showed severe reduction or complete absence of tg expression in response to these treatments (BMP-i, #9, 10; FGF-i, #14, 15; Wnt-a, #19, 20). See text for more details on treatment-dependent thyroid phenotypes. Dorsal (28 hpf) and ventral (55 hpf) views are shown, anterior is to the top. Scale bars: 100 μm. BMP-i, BMP inhibitors; FGF-i, FGF inhibitors; Wnt-a, activators of Wnt signaling.

OPEN IN VIEWER

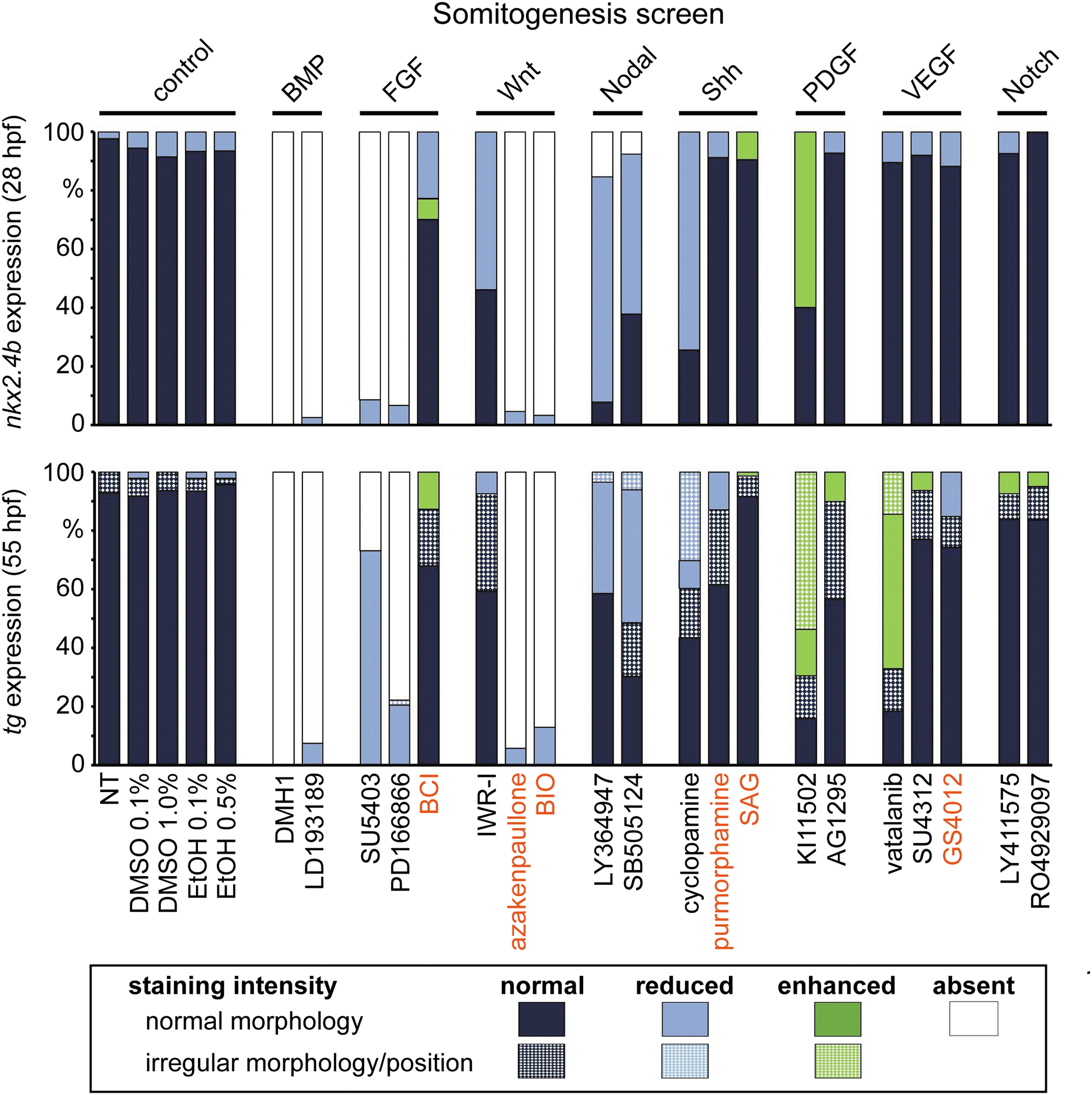

FIG. 7.

Distribution of thyroid phenotypes recovered in the somitogenesis screen. Zebrafish embryos were treated from 10 to 26 hpf with a panel of 20 small-molecule compounds known to inhibit (black letters) or activate (red letters) specific signaling pathways. Control groups included NT and embryos treated with DMSO or EtOH. Bar graphs depict quantification of the proportion of specimen displaying abnormal thyroid development as determined by nkx2.4b staining of 28 hpf embryos (upper panel) and tg staining of 55 hpf embryos (lower panel). Results are shown for the highest test concentration of each compound, and data are presented as the percentage of embryos displaying a particular phenotype. Thyroid phenotypes were classified into seven categories according to the overall staining intensity of the marker gene and apparent deviations from normal morphology and/or positioning of the expression domain (highlighted by texture overlays).

Inhibition of PDGF signaling during somitogenesis by KI11502 treatment caused a marked mediolateral expansion of the nkx2.4b expression domain at 28 hpf (see embryos #6–8 in Fig. 5A). This enlargement of the thyroid anlage occurred concomitantly with an abnormal heart morphology characterized by a widened arterial pole region of an otherwise shorter heart tube (see embryo #7 in Fig. 5A). While endoderm formation was unaffected by PDGF inhibition, live analyses of the heart development in inhibitor-treated myl7-EGFP embryos revealed delayed cardiac fusion and heart tube assembly (Supplementary Fig. S4) as previously described in zebrafish pdgfra mutants (50).

At 55 hpf, the thyroid primordium of KI11502-treated embryos appeared enlarged compared with control embryos. The expanded domains of tg expression in drugged embryos had an aberrant morphology often characterized by an irregular bilateral expansion (see embryos #9, 10 in Fig. 5A). Confocal analyses of 55 hpf tg-mCherry transgenic embryos (expressing mCherry specifically in thyroid cells) confirmed that treatment with 2 μM KI11502 caused a significant increase in thyroid cell number relative to control embryos (Supplementary Fig. S5).

A very similar late thyroid phenotype was observed in embryos following treatment with the VEGF inhibitor vatalanib (see embryo #15 in Fig. 5A). Concurrent analyses of pharyngeal vasculature development in kdrl-EGFP embryos revealed another commonality between KI11502 and vatalanib treatments in that irregularly enlarged thyroids were predominantly observed in treatment groups with defective OFT vessel morphogenesis (Fig. 5B). Three-dimensional reconstructions of confocal images of the pharyngeal vasculature in KI11502- and vatalanib-treated embryos showed dysplasia of specific vessels (e.g., hypobranchial artery) previously identified as vital structures guiding the localization of zebrafish thyroid tissue (15).

Inhibition of Shh signaling during somitogenesis by treatment with the Smoothened antagonist cyclopamine resulted in complex phenotypic alterations. Cyclopamine treatment between 10 and 26 hpf efficiently phenocopied many malformations previously described in zebrafish mutants with impaired Shh signaling including “curly tail down” body shape, mild-to-severe cyclopia, hemorrhage, as well as OFT malformations (51,52).

Despite these severe developmental defects, cyclopamine treatment caused only mild alterations of the thyroid anlage in 28 hpf embryos (Fig. 5A). While the intensity of nkx2.4b staining in cyclopamine-treated embryos was similar to control levels, a unique topological characteristic of the thyroid anlage in cyclopamine-treated embryos was that TPC were restricted to more medial positions so that the anlage had an overall reduced mediolateral size (see embryo #17 in Fig. 5A). Prevalence of this early thyroid phenotype in cyclopamine treatments was correlated with concentration-dependent decrements in the mediolateral size of the anterior endoderm (Supplementary Fig. S6).

At 55 hpf, cyclopamine-treated embryos displayed severe malformations of pharyngeal development. Embedded in a grossly abnormal subpharyngeal environment, multiple clusters of tg-expressing cells were detectable at ectopic locations along the pharyngeal midline (Fig. 5A). Additional confocal analyses of the pharyngeal vasculature confirmed dysgenesis of major OFT vessels in cyclopamine-treated kdrl-EGFP embryos (Fig. 5B).

Somitogenesis treatment with inhibitors of Nodal/TGFβ signaling (LY364947, SB505124) caused moderate thyroid phenotypes (Fig. 5A). At the thyroid anlage stage, the major phenotype was a reduced intensity of nkx2.4b staining while size, shape, and location of the nkx2.4b expression domain was similar to controls (see embryo #23 in Fig. 5A). In later stage embryos, inhibition of Nodal/TGFβ signaling resulted in a concentration-dependent decrease of the size of the thyroid primordium (see embryo #25 in Fig. 5A).

In the somitogenesis screen, the most severe thyroid defects were observed following treatment of embryos with inhibitors of BMP (DMH1 and LDN193189) and FGF signaling (PD166866, SU5402) and compounds stimulating canonical Wnt signaling (BIO, azakenpaullone).

For all six compounds, a concentration-dependent loss of thyroidal nkx2.4b expression was evident in 28 hpf embryos (Fig. 6). At the highest test concentration, each of the compounds caused a complete lack of detectable nkx2.4b expression in the thyroid region. Conversely, drug treatment did not cause gross defects in anterior endoderm formation as judged from analyses of sox17-EGFP embryos (data not shown). However, dual-color WISH of nkx2.4b and myl7 expression showed that the concentration-dependent loss of thyroid marker expression caused by BIO and azakenpaullone treatment was accompanied by concurrent depletion of myocardial cells and failure of heart tube formation at high test concentrations (see embryo #17 in Fig. 6).

Although inhibition of BMP and FGF signaling also resulted in the heart malformations (i.e., jogging and looping defects) in a high proportion of embryos, there was no similar dramatic loss of cardiac tissue. For all treatments, impaired TPC specification in 28 hpf embryos was associated with a dramatic diminution or even complete absence of tg-expressing cells in 55 hpf embryos (Fig. 6). Yet, there were notable differences among differentially treated embryos with respect to the phenotypic presentation of the small remaining thyroid tissue. The small thyroid primordium of 55 hpf embryos treated with activators of Wnt signaling was mostly restricted to the expected midline position (see embryo #19 in Fig. 6).

In embryos treated with BMP inhibitors, tg-expressing cells were frequently detected off the midline, predominantly in tiny bilateral cell clusters located on either side of the cardiac OFT (see embryo #9 in Fig. 6). Conversely, inhibition of FGF signaling caused a much more variable localization of tg-expressing cells with irregularly positioned clusters of thyroid cells expanding uni- or bilaterally away from the midline (see embryo #15 in Fig. 6).

Pathway manipulation during pharyngula stages

In a third screen, embryos were treated with small molecules from 24 to 54/55 hpf covering the pharyngula period of zebrafish embryogenesis. During this period, the endoderm undergoes further dramatic remodeling to finally form a primitive gut tube (53). The thyroid anlage, which is formed during early pharyngula stages, transforms into a thyroid bud during the second half of the pharyngula period. Notably, thyroid bud formation in zebrafish is accompanied by the onset of expression of functional differentiation markers including tg, tshr, tpo, and slc5a5 between 34 and 42 hpf (14). This thyroid primordium detaches from the then formed ventral floor of the foregut at around 48 hpf and relocates into the subpharyngeal mesenchyme in close apposition to the cardiac OFT.

According to these timelines, this screen specifically addressed the role of signaling cues for thyroid budding, bud detachment, and relocation of the thyroid diverticulum.

Thyroidal effects

Small-molecule treatment of zebrafish embryos from 24 to 54/55 hpf revealed alterations of thyroid development in response to 10 drugs affecting six different pathways (Figs. 8, and 9). In this screen, embryos were analyzed only at 55 hpf and drug-induced thyroid anomalies were detectable after treatment with inhibitors of BMP, FGF, Shh, Nodal/TGFβ, PDGF, and VEGF signaling.

OPEN IN VIEWER

FIG. 8.

Thyroid phenotypes recovered in the pharyngula screen. (A) Embryos treated with small molecules from 24 to 54 hpf were analyzed at stage 55 hpf by dual-color in situ hybridization for thyroidal tg (arrowheads) and cardiac myl7 (red arrows) expression. Phenotypic comparison of treated and control embryos (DMSO) revealed reduced thyroid size after treatment with BMP-i (#3, 4) and FGF-i (#5, 6) and irregular bilateral thyroid expansion after treatment with Shh-i (#7, 8). Ventral views are shown, anterior is to the top. Scale bars: 100 μm. (B) The left panel of images (#1′, 5′, 6′) in (B) shows magnified ventral views of the cardiac OFT region for embryos shown in (A). Note the apparent gap between thyroid marker expression (arrowheads) and the distal portion of the myl7-expressing cardiac OFT as observed in several embryos treated with FGF-i (#5, 6). In the right panel of images, mid-sagittal vibratome sections (anterior to the left) of stained embryos from the same experiment show that inhibition of FGF signaling results in aberrant thyroid detachment from the pharyngeal floor (indicated as dotted line). Scale bars: 50 μm. (C) Bar graph depicts quantification of the proportion of embryos displaying abnormal tg staining at stage 55 hpf in the pharyngula screen. Results are shown for NT, vehicle control embryos treated with DMSO or EtOH, and for the highest test concentration of each compound. Data are presented as the percentage of embryos displaying a particular phenotype. Compounds with activating activity on specific signaling pathways are highlighted in red letters. Thyroid phenotypes were classified into seven categories according to the overall tg staining intensity and apparent deviations from normal morphology and/or positioning of the expression domain (highlighted by texture overlays). OFT, outflow tract.

Pharyngula treatment with inhibitors of BMP (Fig. 8A), FGF (Fig. 8A), and TGFβ (Fig. 9A) signaling caused concentration-dependent decrements in thyroid size in 55 hpf embryos. Penetrance and severity of these effects were stronger for BMP and FGF inhibitors (Fig. 8C) with many treated embryos displaying only very tiny patches of tg-expressing cells (see embryos #4, 6 in Fig. 8A). In the BMP inhibitor treatment groups, up to one third of embryos displayed supernumerary clusters of tg-expressing cells located bilaterally to the cardiac OFT (see embryo #3 in Fig. 8A). Cardiac looping was not affected in these treatments, but inhibition of BMP signaling was associated with an increased ventricle size compared with controls (see embryo #3 in Fig. 8A).

OPEN IN VIEWER

FIG. 9.

Ectopic thyroid positioning concurs with cardiac OFT malformation. (A) Dual-color in situ hybridization of thyroidal tg (black arrowheads) and cardiac myl7 (red arrows) expression in 55 hpf embryos treated with Nodal/TGFβ inhibitors LY364947 and SB505124 from 24 to 54 hpf. The left panel of images show ventral views, anterior is to the top. The right panel of images shows mid-sagittal vibratome sections (anterior to the left) of stained embryos from the same experiment. Phenotypic comparison of inhibitor-treated and control embryos (DMSO) revealed reduced thyroid size after treatment with both inhibitors (#3, 5) as well as an apparent ectopic location of the thyroid primordium close to the pharyngeal floor (indicated as dotted line in #4, 6). Note the apparent gap between thyroid marker expression (black arrowheads) and the distal portion of the myl7-expressing cardiac OFT in ventral views (see #3, 5) and the large accumulation of blood cells (yellow arrowheads) in the distal part of the OFT as evident from vibratome sections (#4, 6). Scale bars: 100 μm. (B) Transgenic Tg(kdrl:EGFP) embryos were treated from 24 to 54 hpf with Nodal/TGFβ inhibitors LY364947 and SB505124, and endothelial/endocardial GFP reporter expression was analyzed by immunofluorescence staining at 55 hpf. The left panel of epifluorescence images (#7, 8, 9) shows large field views of the head region (ventral view, anterior to the top), while the right panel shows magnified views (#7′, 8′, 9′) of the OFT region (corresponding to the boxed area shown for embryo #7). Note the massive ballooning of the aortic sac (as) in inhibitor-treated embryos compared with control embryos. Scale bars: 100 μm. (C) Double transgenic Tg(tg:mCherry;kdrl:EGFP) embryos treated from 24 to 54 hpf with SB505124 were analyzed by immunofluorescence for the expression of mCherry (thyroid cells), EGFP (endothelial/endocardial cells), and E Cadherin (pharyngeal endoderm) at 55 hpf. Sagittal sections were imaged by confocal microscopy, and three-dimensional reconstructions of the thyroid/cardiac OFT region showed failure of the thyroid to relocate away from the pharyngeal floor (white arrowheads) in SB505124-treated embryos (#11). Red arrowhead indicates the site of origin of the thyroid primordium within the pharyngeal endoderm in normally developing embryos (#10). Note that ectopic localization of thyroid tissue in SB505124-treated embryos always coincided with an enlargement of the aortic sac (compare regions encircled by the white dotted lines in #10′ and #11′). Additional information on this phenotype is presented in Supplementary Fig. S7. Lateral views with anterior to the left are shown. Scale bars: 50 μm. a, atrium; aa1, first pair of aortic arch arteries; TGFβ, transforming growth factor β; v, ventricle.

Treatment with inhibitors of FGF signaling caused a more complex phenotype. Treated embryos had a much smaller head size, a reduced head–trunk angle (35) indicative of delayed development, and showed compromised morphogenesis of the pharyngeal region (Fig. 8B). Interestingly, treatment with the FGF inhibitor PD166866 resulted in delayed or even incomplete detachment of the thyroid primordium from the pharyngeal floor (Fig. 8B). From dual-color WISH analyses, we noted an increased space between the thyroid and the cardiac OFT indicating that inhibition of FGF signaling disrupted the normal coordination of thyroid budding and the heart descent into the subpharyngeal region (Fig. 8B).

A similar budding defect appeared to occur following inhibition of Nodal/TGFβ signaling (Fig. 9A). During the initial phenotyping of double stained embryos, we observed a high proportion of Nodal/TGFβ inhibitor-treated embryos with a thyroid primordium positioned close to the pharyngeal floor but at large distance to myl7-expressing cardiac tissue (see embryos #3, 5 in Fig. 9A). These embryos also presented mild pericardial edema. Subsequent vibratome sections of stained embryos revealed large accumulations of blood cells in the distal part of the OFT (see embryos #4, 6 in Fig. 9A).

When analyzing Nodal/TGFβ inhibitor-treated embryos carrying the kdrl-EGFP transgene to visualize endocardial and endothelial cells, we observed a massive ballooning of the aortic sac (Fig. 9B), a transient embryonic structure connecting the cardiac OFT to the first pair of aortic arch arteries and the ventral aorta (15). Since the aortic sac is not covered by a myocardial cell layer, this ballooning effect was not visualized by myl7 staining.

In additional experiments, we treated double transgenic tg-mCherry/kdrl-EGFP embryos with Nodal/TGFβ inhibitors from 24 to 54 hpf, performed immunofluorescence staining at 55 hpf, and used confocal microscopy to analyze at high resolution the localization of thyroid tissue relative to the pharyngeal endoderm and the cardiac OFT (Fig. 9C and Supplementary Fig. S7). These analyses revealed that the thyroid primordium of Nodal/TGFβ inhibitor-treated embryos indeed failed to relocate away from the pharyngeal endoderm and that this failure coincided in all cases with the presence of a massively enlarged aortic sac (see embryo #11 in Fig. 9C).

Detailed analyses of the ectopically located thyroids indicate that the budding process was actually completed (Supplementary Fig. S7A′–C′) but that the ballooning aortic sac seemingly pushed the thyroid diverticulum toward the pharyngeal floor preventing an effective relocalization of the thyroid. Additional analyses of live kdrl-EGFP embryos indicated that the aortic sac ballooning and blood cell accumulation were due to defective blood flow (data not shown). Upon removal of the inhibitors from the medium at 55 hpf, we observed a gradual recovery of cardiac functionality, a concomitant regression of the aortic sac, and, within 24 to 48 hours of drug withdrawal, relocalization of the thyroid into the hypobranchial region became evident (data not shown).

Although thyroids of cyclopamine-treated embryos at 55 hpf had a comparable size as their control counterparts, approximately half of the treated embryos displayed an aberrant thyroid morphology (Fig. 9). Most prevalent were uni- or bilateral expansions of the tg expression domain (see embryo #8 in Fig. 8A). Incidence of thyroid anomalies in cyclopamine-treated embryos increased concomitantly with the prevalence and severity of vascular alterations (data not shown). Co-occurrence of vascular and thyroidal abnormalities (irregularly enlarged thyroids) was also observed for embryos treated with the PDGF inhibitor KI11502 and VEGF inhibitors (vatalanib and SU4312). Disorganized and enlarged thyroids detected in these treatment groups resembled thyroid phenotypes described in embryos treated with these compounds in the somitogenesis screen (this study, see Fig. 5B) and in previous studies (15).

Discussion

In this study, we employed a pharmacological strategy to gain insights into the role of major signaling pathways during early stages of zebrafish thyroid development. Given the experimentally supported concept that cardiac mesoderm provides a source of instructive signals for different steps of thyroid development (10,11,15,26,54,55), our screening approach included a comprehensive phenotyping of drug-induced deviations of thyroid morphogenesis and concomitant cardiovascular anomalies. One advantage of pharmacological approaches is that they can afford a level of temporal control of pathway modulation that is often difficult to achieve by genetic model systems (32,56). This is an important asset as the literature of endoderm organ development is rich in instances where specific signaling pathways have reiterative, diverging, and even opposite roles during organ development depending on the temporal context (29,57,58).

Analyses of thyroid phenotypes following timed small-molecule treatment in the present study provide several such examples for the importance of developmental context. For instance, while FGF inhibition during gastrula stages caused enhanced thyroidal nkx2.4b expression at 28 hpf (Fig. 2), the application of the same FGF inhibitors during somitogenesis completely abolished expression of this early thyroid marker in the prospective thyroid region (Fig. 6). For the purpose of this first screening study, we temporally restricted small-molecule treatments to cover three important phases of early zebrafish development (gastrula, somitogenesis, and pharyngula).

We expect that results from these screens will provide valuable guidance for further temporal refinements of treatments periods to more precisely describe iterative pathway functions and identify critical developmental periods at a higher temporal resolution.

When probing the role of different pathways during gastrulation, thyroid phenotypes became evident following manipulation of four major signaling pathways (Wnt, FGF, BMP, Nodal/TGFβ) implicated in endoderm formation and early endodermal anterior-posterior patterning. For example, chemical blockage of FGF signaling, a pathway that normally exerts posteriorizing activity on endoderm patterning (59), caused enhanced thyroidal nkx2.4b expression in the anterior endoderm of zebrafish embryos.

Such promoting effects on the specification of an anterior cell lineage fit well into concepts that drug-induced dampening of posteriorizing signals during gastrula promotes development of anterior tissue at the expense of posterior tissues (28). Corroborating this concept, we observed that treatment with FGF signaling inhibitors caused a dramatic truncation of the body at the level of the first somites (Supplementary Fig. S2A), a gross phenotype reminiscent of what has previously been observed following dominant-negative FGF receptor overexpression (46,60). However, still other morphogenetic effects might contributed to this specific thyroid phenotype given that early FGF blockage was previously shown to increase also total numbers of endodermal cells in Xenopus and zebrafish embryos (43,61,62).

Our gastrula screen faithfully recovered thyroid phenotypes for other pathways with reported posteriorizing effects on early anterior-posterior patterning of the endoderm (63). For example, overactivation of canonical Wnt signaling during gastrulation strongly suppressed TPC specification in the anterior endoderm. The contribution of posteriorizing activities of Wnt signaling to impaired TPC specification is further supported by a striking correlation between prevalence and severity of thyroid specification defects and neural posteriorization phenotypes in embryos treated with Wnt-activating compounds. Combined with the lack of prominent thyroid phenotypes following chemical blockage of early Wnt signaling, our observations indicate that endodermal progenitors of the thyroid cell lineage require an environment with low endogenous Wnt signaling during early development.

However, referring only to known anterior–posterior patterning activities of signaling pathways falls short in explaining some other phenotypes observed in our gastrula screen.

For example, inhibition of BMP signaling in gastrula embryos severely impaired thyroid specification, a phenotype that is difficult to interpret in the light of reported posteriorizing activity of BMP on early endoderm patterning (64). Yet, it is important to note that BMP also plays a central role in dorsal–ventral (DV) patterning (65). Recent studies on early endoderm patterning showed that BMP is indeed required to promote ventral fates in the foregut endoderm, while it represses dorsal fates (66). Although the zebrafish anterior endoderm at the time of thyroid specification is still a simple epithelial sheet lacking apparent morphological correlates of a DV axis (53), the thyroid bud will later develop from the ventral foregut endoderm.

In the light of the reported downregulation of ventral foregut markers in Xenopus embryos treated with the BMP inhibitor DMH1 (66), our findings in DMH1-treated zebrafish embryos suggest that a ventral identity might be assigned to the prospective endodermal thyroid progenitors already during gastrula stages and that such early DV patterning of the endoderm requires BMP.

Nodal/TGFβ signaling is yet another important, early acting pathway for endoderm formation and anterior–posterior axis patterning (67). During zebrafish blastula and early gastrula stages, Nodal activity is essential for the specification of mesendoderm in the marginal zone (68), and zebrafish mutants with compromised Nodal/TGFβ activity exhibit deficient endoderm formation along with severe thyroid specification defects (7,31). However, when temporally restricting the inhibition of Nodal/TGFβ signaling to stages between 6 and 10 hpf, as in our gastrula screen, thyroid specification was only modestly affected. Notably, despite a marked reduction in the amount of anterior endoderm, inhibitor-treated embryos displayed only small reductions in the size of the thyroidal nkx2.4b expression domain.

It appears, therefore, that the development of endodermal progenitors with a competence to differentiate into thyroid cells is largely independent of Nodal/TGFβ signaling in the period from 6 to 10 hpf. Conversely, the high prevalence of embryos displaying ectopic nkx2.4b expression at more posterior positions implies a possible posteriorizing activity of Nodal/TGFβ signaling during endodermal anterior–posterior patterning. Collectively, results from our gastrula screen indicate that Wnt and FGF signaling during gastrulation stages are dispensable for the development of endodermal progenitors of the thyroid lineage, whereas gastrula BMP signaling is absolutely required for later thyroid specification.

During somitogenesis, the prepatterned endoderm undergoes further intricate patterning accompanied by the acquisition of regionalized cell fates. This process results in the definition of stereotypic regions at which endoderm-derived organ buds will be induced along the primitive gut tube. In contrast to the induction of hepatic, pancreatic, and lung cells fates (24,25,29), very little is known about the identity of permissive and inductive signaling cues regulating thyroid cell specification. Thus, thyroid phenotypes arising from pathway manipulation during somitogenesis stages are of particular interest to fill this gap of knowledge.

One key finding of our somitogenesis screen was a strict requirement of FGF and BMP signaling for thyroid cell specification to occur in zebrafish embryos. Inhibition of either pathway caused severe impairments of thyroid development, and the thyroid phenotypes observed at high concentrations of BMP and FGF signaling inhibitors could be classified as true thyroid agenesis because of a complete lack of thyroid cell specification and later thyroid tissue formation. Moreover, it is of particular note that our somitogenesis screen identified with BMP and FGF the same two signaling pathways that are currently considered the most potent signals to induce thyroid cell differentiation in human and murine stem cell models (69,70). This screening outcome underscores the value of the zebrafish model as a powerful in vivo system to interrogate signaling cues controlling vertebrate thyroid organogenesis.

Several previous in vivo studies have documented a pivotal role of FGF signaling in regulating embryonic thyroid development in mouse (71 –73), Xenopus (69,74), and zebrafish (10). The thyroid cell specification defects observed in our somitogenesis screen following treatment with two different FGF inhibitors (PD166866, SU5402) are qualitatively similar to results from a previous zebrafish study using SU5402 treatment during somitogenesis (10).

In zebrafish, fgf8 has been identified as one important factor for thyroid specification based on the thyroid dysgenesis present in fgf8 mutants (10). Since zebrafish fgf8 is expressed in the cardiac mesoderm adjacent to the converging anterior endoderm throughout somitogenesis stages, this finding adds further evidence to the presumed critical role of cardiac mesoderm as a source of instructing factors for thyroid cell specification. Previous studies suggested that, although required for thyroid cell specification, FGF signaling might not exert inductive activity in zebrafish but rather acts as a permissive factor (10).

This contention is supported by our observations that somitogenesis treatment with BCI, a compound that enhances local FGF signaling (75), did not cause expanded or ectopic nkx2.4b expression. Notably, although diverse defects during thyroid organogenesis were observed in murine genetic models with impaired FGF signaling (55,72,73), none of these genetic studies reported a severe thyroid specification defect as observed in zebrafish. It is likely that redundant activities among different branches of FGF signaling prevented such early thyroid phenotypes in genetic models. However, similar to what we observed in zebrafish embryos, global pharmacological FGF inhibition in mouse embryonic explant cultures effectively blocks induction of thyroidal Nkx2.1 expression in foregut endoderm (70).

In contrast to FGF, no data were previously available on the importance of BMP signaling for early thyroid development in zebrafish, and no conclusive information has been obtained from genetic mouse models with perturbed BMP signaling. In Twisted null mice, for example, thyroidal expression of Hhex is reportedly absent at the 10-somite stage, but these mice later develop macroscopically visible thyroid glands of unknown functionality (76). In mutant mice lacking the endogenous BMP inhibitor chordin, hypoplastic thyroids develop in a severely disorganized tracheal region, but no data are available about the development of the early thyroid anlage in these mutants (77).

While our somitogenesis screen results provide the first demonstration of an absolute requirement of BMP signaling for thyroid cell specification in zebrafish, these findings compare well to recent observations in Xenopus embryos (69) and mouse embryonic explant cultures (69,70), corroborating an evolutionary conserved role of BMP for early thyroid development across vertebrates. Notably, in all three experimental systems, pharmacological inhibition of BMP signaling during somitogenesis stages completely blocked the induction of early thyroid marker expression in the prospective thyroid region.

Our screening revealed further that FGF and BMP are still required at later stages of thyroid morphogenesis. The presence of small and tiny thyroids in stage 55 hpf embryos treated with FGF inhibitors during the pharyngula period is reminiscent of the hypoplastic thyroid phenotypes reported for various murine models with impaired FGF signaling (55,73). Moreover, similar to reports of anomalous thyroid budding in mouse embryos with defective FGF signaling (55), we confirmed that distorted thyroid budding is one component of the thyroid phenotype in FGF inhibitor-treated zebrafish embryos.

BMPs and FGFs are diffusible growth factors, and several FGFs and BMPs are expressed in the cardiac mesoderm adjacent to the developing thyroid (55,73,78). While pharmacological inhibition of FGF and BMP signaling clearly results in failure of thyroid development, it is conceivable that perturbed development of cardiac mesoderm or abnormal positioning of cardiac mesoderm relative to the population of endodermal thyroid progenitors could similarly affect early thyroid development as a consequence of altered local signaling activities. Proof-of-principle experiments with embryonic foregut endoderm explants have shown that endoderm cultured in the absence of mesoderm fails to induce TPC specification, whereas addition of exogenous FGF2 and BMP4 to mesoderm-depleted endoderm explants effectively induces early thyroid marker expression including nkx2.1, pax2, and hhex (69).

In fact, our combined analyses of cardiac and thyroid development suggest that altered mesoderm–endoderm interactions might be involved in some thyroid phenotypes recovered in our screens. One such example is the thyroid agenesis caused by overactivation of canonical Wnt signaling during somitogenesis stages. While the overall normal thyroid anlage formation following IWR1 treatment indicates that Wnt signaling during somitogenesis is dispensable for thyroid specification, the complete lack of thyroid marker expression following treatment with Wnt inducers has, to our knowledge, no precedent in other model organisms. Wnt signaling is required for development of several endoderm-derived organs including pancreas, liver, and swim bladder in zebrafish (24,58,79), but the role of this pathway for thyroid induction has not yet been addressed.

At a first glance, thyroid specification phenotypes resulting from Wnt overactivation during gastrula and somitogenesis stages appear quite similar, but there are several notable differences. First, whereas gastrula stage-treated embryos displayed severe posteriorization phenotypes indicating thyroid loss as a consequence of early anterior–posterior patterning defects, such global posteriorization effects were less prominent in somitogenesis-treated embryos. Second, almost all embryos treated with Wnt inducers during gastrula stages displayed at least some small domains of tg expression at 55 hpf, whereas Wnt overactivation during somitogenesis caused a permanent lack of thyroid marker expression. Third, combined analysis of cardiac and thyroid development revealed a very close correlation between diminished cardiac mesoderm formation and reduced thyroid marker expression.

The latter observation is particularly intriguing as other zebrafish models with severely impaired cardiac formation also showed marked deficits in thyroid specification (10). Consistent with previous reports (57), we found that drug-induced overactivation of Wnt signaling at stages after the heart tube formation no longer impairs thyroid marker expression. Further analyses of Wnt-induced phenotypes in cardiac and thyroid development are warranted to shed light on the underlying developmental mechanisms leading to thyroid agenesis.

Disturbed positioning of cardiac mesoderm relative to endodermal thyroid progenitors might also be involved in the expanded expression domain of the early thyroid marker nkx2.4b following inhibition of PDGF signaling. Although the PDGF receptor tyrosine kinase inhibitor KI11502 causing this thyroid specification effect is known to effectively phenocopy various developmental defects of pdgfra zebrafish mutants (50), a mechanistic interpretation of this phenotype remains quite puzzling.

First, similar to the normal endoderm development reported in pdgfra-deficient zebrafish (50,80), anterior endoderm formation was unaffected in KI11502-treated embryos. Second, while ligands of the PDGF receptor are expressed in anterior endoderm of zebrafish (pdgfaa, pdgfab) and in murine ventral foregut endoderm (Pdgfa), expression of PDGF receptors is essentially absent in the anterior endoderm during periods of thyroid specification in mouse and zebrafish (50,81). Together, these findings point to a noncell autonomous mechanism possibly involving interactions between endoderm and adjacent tissues.

Accordingly, it was of particular interest that KI11502-treated embryos displayed a very specific cardiac developmental phenotype, a delay of midline fusion of the bilateral heart fields and heart tube assembly. Around the time of thyroid specification (23/24 hpf), this cardiac-specific delay resulted in a peculiar anatomical constellation where the prospective thyroid region within the anterior endoderm is juxtaposed to an enlarged cardiac field if compared to the anatomically more discrete and smaller arterial pole structures of the forming heart tube present at this stage in control embryos.

One intriguing hypothesis is that due to the mispositioning of an enlarged field of cardiac mesoderm, an expanded region of anterior endoderm could be exposed to cardiac-borne signals with instructive capacity to induce endodermal nkx2.4b expression. Since KI11502 treatment effectively phenocopied the cardiac fusion defects of zebrafish pdgfra mutants (50,80), such mutant models will provide an important resource for further experimental studies to verify or refute this hypothesis in genetic model systems.

During phenotyping of embryos at 55 hpf, we noticed that global manipulation of signaling pathways often results in grossly disorganized morphogenesis of the pharyngeal region including tissues surrounding the developing thyroid. This was particularly evident for the OFT region and the pharyngeal vasculature. Accordingly, caution is required in such cases when attempting to mechanistically link early signal perturbations to late-stage thyroid phenotypes. Likely, certain late thyroid phenotypes could result from an overall maldevelopment of the tissue neighborhood rather than from specific signaling perturbations acting directly on developing thyroid cells.

In mouse and zebrafish, the nascent thyroid bud is associated with tissues of the cardiac OFT, most prominent is the direct apposition to the aortic sac (8,15). A number of previous studies demonstrated that aberrant vessel development is often associated with irregular thyroid morphogenesis (11,15,54,82), suggesting that the thyroid primordium is responsive to instructive cues from pharyngeal vessels influencing size, shape, and localization of the diverticulum after detachment from the pharyngeal floor epithelium.

Results from our screen reinforced this view as, in fact, most experimental treatments causing irregular and enlarged domains of tg expression in stage 55 hpf embryos showed concurrent defects in formation of the anterior arch arteries and the hypobranchial artery; that is, vessels previously shown to guide positioning of thyroid tissue in zebrafish embryos and larvae (15,82). The identification of a massively enlarged aortic sac due to cardiac dysfunction as the cause for a seemingly ectopic positioning of thyroid buds in TGFβ inhibitor-treated embryos further underscored the value of a combined thyroid and cardiovascular phenotyping approach for enhanced phenotype interpretation.

We also identified signaling pathways that appeared to have, if any, only a subordinate role in early zebrafish thyroid development. Consistent with conclusions reached in previous mouse and Xenopus studies (11,17,54,83), results from our three screens indicate that Shh signaling is dispensable for thyroid specification. If detected, abnormalities in thyroid anlage formation coincided with impaired anterior endoderm formation (somitogenesis screen), and treatment with potent inducers of Shh signaling (i.e., purmorphamine) did not evoke detectable thyroid abnormalities in any of our screens. Moreover, cyclopamine-induced thyroid abnormalities present in later stage embryos always occurred along with defective cardiac OFT and pharyngeal vessel morphogenesis.

Thyroid phenotyping of embryos in all three screens failed to detect effects of Notch pathway inhibition on early zebrafish thyroid development indicating if any only a minor role of Notch-mediated lateral inhibition in the regulation of thyroid anlage specification and thyroid primordium formation during normal development.

Consistent results were obtained using two new generation Notch pathway inhibitors, LY411575 and RO4929097, both of which inhibit γ-secretase activity, an accepted pharmacological approach to effectively block the Notch pathway in multiple model systems (84). Embryos treated with LY411575 and RO4929097 in our screens displayed well-documented phenotypes of Notch pathway inhibition (85,86), indicating that the Notch signaling was effectively blocked by our experimental conditions. One previous zebrafish study reported significant increases in the size of the thyroid anlage (24 hpf) and the thyroid primordium (48 hpf) in Delta-Notch signaling-deficient mindbomb mutants compared with their WT siblings and significantly enlarged thyroid primordia following treatment with another γ-secretase inhibitor, (2S)-N-[(3,5-difluorophenyl)acetyl]-L-alanyl-2-phenylglycine 1,1-dimethylethyl ester (DAPT) (87).

Although the reasons for the conflicting findings are currently unknown, it remains possible that the prominent pharyngeal vessel anomalies detected in mindbomb mutants and DAPT-treated embryos contributed to a stronger thyroid phenotype. In our experiments, only few embryos treated with high concentrations of RO4929097 showed mild thyroid anomalies, cardiac edema, and vascular defects at stage 55 hpf. Given recent data on a possible association of defective JAG1-Notch signaling with congenital hypothyroidism (88), further experimental studies are needed to examine NOTCH-dependent developmental processes during thyroid morphogenesis.

In summary, our studies showed that small-molecule screening approaches are a valuable tool to uncover the role of major signaling pathways during thyroid morphogenesis in zebrafish.

Our pharmacological screens identified BMP and FGF signaling as key factors for thyroid specification and early thyroid organogenesis in zebrafish, revealed the importance of low Wnt activities during early development for normal thyroid specification, and corroborated further evidence for the contention that pharyngeal vessels provide guidance for size, shape, and localization of thyroid tissue. Moreover, we identified several cases where the specific thyroid phenotype is likely due to perturbed local signaling as a result of defective cardiac mesoderm development. Given the plentiful signaling biosensor models available to the zebrafish community (89), studies are now required to map sites of action for critical pathways such as BMP and FGF signaling during early zebrafish development.

By comparing our results with available data from other model organisms including Xenopus, chicken, and mouse, we found that signaling cues regulating thyroid development appear broadly conserved across vertebrates. Thus, we expect that findings in the zebrafish model can inform mammalian models of thyroid organogenesis to further our understanding of the molecular mechanisms of congenital thyroid diseases. Moreover, we are confident that our data sets will provide a valuable resource enabling the formulation of new and testable hypotheses with respect to patterning cues that could improve the efficiency of in vitro stem cell-based protocols to generate thyroid cells.
