Class III PI3K Vps34 Controls Thyroid Hormone Production by Regulating Thyroglobulin Iodination,Lysosomal Proteolysis,and Tissue Homeostasis

Abstract

Background:

The production of thyroid hormones [triiodothyronine (T3), thyroxine (T4)] depends on the organization of the thyroid in follicles, which are lined by a monolayer of thyrocytes with strict apicobasal polarity. This polarization supports vectorial transport of thyroglobulin (Tg) for storage into, and recapture from, the colloid. It also allows selective addressing of channels, transporters, ion pumps, and enzymes to their appropriate basolateral [Na⁺/I⁻ symporter (NIS), SLC26A7, and Na⁺/K⁺-ATPase] or apical membrane domain (anoctamin, SLC26A4, DUOX2, DUOXA2, and thyroperoxidase). How these actors of T3/T4 synthesis reach their final destination remains poorly understood. The PI 3-kinase isoform Vps34/PIK3C3 is now recognized as a main component in the general control of vesicular trafficking and of cell homeostasis through the regulation of endosomal trafficking and autophagy. We recently reported that conditional Vps34 inactivation in proximal tubular cells in the kidney prevents normal addressing of apical membrane proteins and causes abortive macroautophagy.

Methods:

Vps34 was inactivated using a Pax8-driven Cre recombinase system. The impact of Vps34 inactivation in thyrocytes was analyzed by histological, immunolocalization, and messenger RNA expression profiling. Thyroid hormone synthesis was assayed by ¹²⁵I injection and plasma analysis.

Results:

Vps34 conditional knockout (Vps34^cKO) mice were born at the expected Mendelian ratio and showed normal growth until postnatal day 14 (P14), then stopped growing and died at ∼1 month of age. We therefore analyzed thyroid Vps34^cKO at P14. We found that loss of Vps34 in thyrocytes causes (i) disorganization of thyroid parenchyma, with abnormal thyrocyte and follicular shape and reduced PAS⁺ colloidal spaces; (ii) severe noncompensated hypothyroidism with extremely low T4 levels (0.75 ± 0.62 μg/dL) and huge thyrotropin plasma levels (19,300 ± 10,500 mU/L); (iii) impaired ¹²⁵I organification at comparable uptake and frequent occurrence of follicles with luminal Tg but nondetectable T4-bearing Tg; (iv) intense signal in thyrocytes for the lysosomal membrane marker, LAMP-1, as well as Tg and the autophagy marker, p62, indicating defective lysosomal proteolysis; and (v) presence of macrophages in the colloidal space.

Conclusions:

We conclude that Vps34 is crucial for thyroid hormonogenesis, at least by controlling epithelial organization, Tg iodination as well as proteolytic T3/T4 excision in lysosomes.

Introduction

The main function of the thyroid gland is to produce the hormones, thyroxine (T4), triiodothyronine (T3), which are essential for the regulation of metabolic processes, and calcitonin (1,2). The production of T3 and T4 depends on the correct tissue organization of thyroid epithelial cells, the thyrocytes, into functional and independent units, the follicles. These are composed of a single layer of polarized thyrocytes that form a spherical structure delineating an internal space or lumen where the thyrocyte secretory product, thyroglobulin (Tg), is stored in a colloidal form, thus called the colloid lumen. As thyrocytes communicate through gap junctions, each follicle functions as an integrated unit.

Thyroid hormone synthesis depends on apicobasal cell polarity that allows the specific localization of channels, transporters, pumps, and enzymes at the appropriate membrane domains. Iodide from the bloodstream freely traverses the fenestrated endothelium of the thyroid capillaries and is taken up into thyrocytes through the basolaterally localized NIS, thanks to a Na⁺ gradient generated by the Na⁺/K⁺-ATPase. An alternative basolateral transporter, SLC26A7, has been recently reported to also control iodide uptake, although its role might be indirect (3). Iodide diffuses freely within thyrocytes and is next transported across the apical membrane into the colloid space through apically localized transporters such as anoctamin or pendrin (SLC26A4).

Iodide is then rapidly oxidized into iodine by thyroperoxidase (TPO) located at the apical membrane, in the presence of hydrogen peroxide (H₂O₂), generated by the DUOX2/DUOXA2 apical membrane complex. Iodine is incorporated into accessible tyrosine residues, many of them close to the N- and C-termini of Tg, a large protein secreted by thyrocytes into the colloid space. Iodotyrosine rearranges into hormonogenic peptides, which are the direct T3 and T4 precursors. Thyroid hormone synthesis thus requires basal localization of NIS, SLC26A7, and Na⁺/K⁺-ATPase, apical localization of anoctamin, pendrin, TPO, DUOX2, and DUOXA2, as well as apical delivery of Tg into the colloid lumen and endocytic uptake of iodoTg into thyrocyte lysosomes (1,2).

Specific regulators of thyroid follicular organization have recently been identified (4). Transcriptomic comparison of thyroid FRT cells cultured in two-dimensional monolayers and in three-dimensional (3D) spherical follicles indeed revealed involvement of structural and functional cell elements such as adherens and tight junctions (cadherin-16), cytoskeleton proteins, ion channels, proteins involved in differentiation, and components of the trafficking machinery (e.g., myosin-Vb, Rab17) (4).

There is strong evidence that vesicular trafficking is critical for apicobasal polarization and epithelial function (5 –7), but the role of vesicular trafficking in thyroid function is incompletely understood. Vps34/PIK3C3 (also referred to as type III PI 3-kinase) has long been recognized as a main actor involved in the general control of endocytic vesicular trafficking (8 –13). Vps34/PIK3C3 also plays an important role in epithelial organization in Drosophila (14) and in autophagy (12,15), both in the initiation of autophagosome formation and in the progression toward autophagosome–lysosome fusion (16,17).

We recently inactivated Vps34 in kidney proximal tubular cells using Wnt4-Cre and Pax8-Cre (18,19). Wnt4-Cre-driven Vps34 excision caused major perinatal lethality, with abnormalities in kidney cortex development and proximal tubular cell apical differentiation in the surviving mice. With the Pax8-Cre, which triggers recombination in nephrogenic tubules and in nonvascular components of glomeruli 2 days later than Wnt4-Cre (20,21), we observed normal mouse growth until postnatal day 14 (P14) (19). Then, body weight leveled off, and all pups died at ∼3 to 5 weeks of age, probably due to kidney failure. Structural and functional studies of Vps34 conditional knockout (Vps34^cKO) kidneys revealed preserved proximal tubular cell membrane polarity, but impaired apical membrane protein trafficking, thus causing a general proximal tubular cell dysfunction known as renal Fanconi-like syndrome, manifested by polyuria and low-molecular weight proteinuria. Vps34^cKO also displayed impaired lysosome size/positioning and blocked autophagy, thereby causing cell vacuolization. We concluded that Vps34 is a crucial component of the trafficking machinery necessary for differentiated proximal tubular cell function and is essential for their overall homeostasis (19). Given that Pax8-Cre also triggers recombination in thyrocytes (21), we here investigated the role of Vps34/PIK3C3 in thyroid function and homeostasis.

Materials and Methods

Mice

Vps34 ^fl/fl mice have been described (22). Pax8-Cre mice were obtained from Bouchard et al. (21). Vps34 ^fl/fl mice were crossed with Pax8-Cre;Vps34 ^fl/+ mice to generate conditional targeted excision of Vps34 exon 21 in the thyroid of 25% of offspring (Vps34^cKO). All the other mice (Vps34 ^fl/+, Vps34 ^fl/fl, and Pax8-Cre;Vps34 ^fl/+) were considered as controls as no differences were observed between these groups. Mice were treated according to the NIH Guide for Care and Use of Laboratory Animals, and experiments were approved by the University Animal Welfare Committee, Université Catholique de Louvain (2016/UCL/MD/006 and 2018/UCL/MD/026).

Plasma, tissue collection, and histology

Blood was collected by eye sinus puncture at sacrifice (P14) under irreversible anesthesia by xylazine 2% and ketamine 50 mg/mL (200 μL/mice i.p.). Thyroid lobes were excised, fixed by immersion in neutral-buffered formaldehyde (4% F) at 4°C under stirring overnight. Samples were paraffin embedded or equilibrated overnight in 20% sucrose and embedded in Tissue-Tek Optimal Cutting Medium (Sakura Finetek) for cryostat sections.

Thyrotropin and T4 plasma concentrations

Plasma thyrotropin (TSH) concentrations were measured by a sensitive, heterologous, disequilibrium double-antibody precipitation radioimmunoassay (RIA) as described (23). T4 concentration was measured by coated-tube RIA (Siemens Medical Solution Diagnostics, Los Angeles, CA).

Immunofluorescence

Immunofluorescence was performed on 5 μm-thick frozen sections or on 6 μm-thick paraffin sections (19). Antigen retrieval was promoted in citrate buffer, pH 6.0, at 98°C for 20 min using a Lab Vision Pretreatment Module™ (Thermo Scientific). After permeabilization with phosphate-buffered saline (PBS)/0.3% Triton X-100 for 5 minutes, nonspecific sites were blocked by 1-hour incubation in PBS/0.3% Triton X-100 with 10% bovine serum albumin (BSA) and 3% milk, followed by primary antibodies (described in Supplementary Table S1) in blocking buffer at 4°C overnight. After extensive washing, sections were incubated with the appropriate AlexaFluor-secondary antibodies in PBS/10% BSA/0.3% Triton X-100 at room temperature for 1 hour, extensively washed, mounted with Faramount Aqueous Mounting Medium (Dako), and imaged on a spinning disk confocal microscope using a Plan Apochromat 100 × /1.4 Oil DIC objective (Cell Observer Spinning Disk; Zeiss). For whole thyroid section recording, images were acquired using Zeiss Pannoramic P250 slide scanner, stitched and analyzed using Case Viewer software.

Real-time quantitative polymerase chain reaction

Total RNA was extracted from thyroid lobes using TRIzol Reagent (Thermo Scientific), as described (24). Aliquots of 500 ng RNA were reverse transcribed by M-MLV Reverse Transcriptase (Invitrogen) with random hexamers, as described (25). Primer sequences used are described in Supplementary Table S2. Real-time quantitative polymerase chain reaction (qPCR) was performed as described (25), in the presence of 250 nM of specific primers with Kappa SYBR Fast qPCR Master Mix (Kapa Biosystems) on a CFX96 touch real-time PCR Detection System (Bio-Rad). Data were analyzed using the ΔΔCT method, using the geometric mean of β-Actin and Rpl27 as reference genes (26).

¹²⁵I uptake and organification

At postnatal day 8, mothers and litters were fed with an iodine-free diet for 24 hours. At postnatal day 9 (P9), pups were injected intraperitoneally with 1 μCi ¹²⁵I (Perkin Elmer) and left for another 24 hours before sacrifice and thyroid dissection. Both lobes were collected in 2 mM methimazole (Sigma) and homogenized with a glass Potter. Total thyroid ¹²⁵I was measured with an automatic gamma counter “Wizard²” (Perkin Elmer) before protein precipitation using 10% trichloroacetic acid (TCA; Merck). After a single wash in TCA, radioactivity was measured in the protein pellet. Percentage of protein-bound iodide was calculated using the ratio of precipitated cpm/total thyroid cpm (27).

H₂O₂-level measurements

The H₂O₂ Assay kit from Abcam (ab102500) was used. At P14, thyroid lobes were collected in ice-cold PBS and homogenized with a glass Potter. Proteins were precipitated with 4 M perchloric acid, and supernatant was neutralized with 3 M KCl then 1 M KCl until pH was comprised between 6.5 and 8.0. Fifty microliters, corresponding to a ninth of a thyroid, was incubated with OxiRed probe and horseradish peroxidase, according to the instructions from the manufacturer. Fluorescence was measured with a GloMax fluorimeter (Promega; Ex/Em = 535/587 nm).

Statistical analyses

All statistical analyses were performed with Prism software (GraphPad Software, La Jolla, CA). Real-time qPCR values were obtained by the ΔΔCT method and are expressed as boxplots with median, 25th and 75th percentiles, and min–max whiskers. Each graph represents the results from a minimum of eight independent thyroid lobes from at least three different litters. Nonparametric statistical tests were used: Mann–Whitney for single comparisons. Differences were considered statistically significant when p < 0.05 (*); ** stands for p < 0.01; *** for p < 0.001.

Results

Genetic construction and assessment of Vps34 inactivation

Ubiquitous Vps34 inactivation is embryonically lethal, with embryos dying around embryonic day E8.5 (28). To study tissue-specific roles of Vps34 in vivo, we used a mouse line, which carries a floxed Vps34 allele (Vps34 ^fl) that allowed us to conditionally delete the loxP-flanked exon 21 of the Vps34 gene, which encodes a critical sequence of the lipid kinase domain of Vps34 (22). This approach was designed to allow for the expression of a minimally truncated, catalytically inactive Vps34 protein. However, upon conditional expression in megakaryocytes, the level of this truncated Vps34 and its obligatory partner, Vps15, was found to be decreased by 80–90% in the megakaryocyte lineage (thrombocytes), indicating instability of the truncated Vps34 protein (22). We thus hereafter refer to the result of this Vps34 truncation as Vps34^cKO.

We crossed homozygous Vps34 ^fl/fl mice with Pax8-Cre;Vps34 ^fl/+ mice, which is expected to lead to a tissue-specific (thyroid and kidney) conditional excision of exon 21 from both Vps34 alleles in 25% of the pups, which are further referred to as Vps34^cKO mice. Vps34^cKO mice were born at the expected Mendelian ratio and showed normal development until P14, then stopped growing and died at ∼1 month of age (19). We therefore analyzed the thyroid of Vps34^cKO mice at P14. Of note, eye opening, a marker of cerebral maturation, was usually delayed till postnatal day 10 (P10).

We first assessed the extent of Vps34 excision in the thyroid by quantification of Vps34 messenger RNA (mRNA) using primers that are specific for the total Vps34 or are exon 21-specific. Compared with control littermate pups, we found a ∼70% reduction of exon 21-containing Vps34 mRNA in cKO thyroid extracts. In comparison, we found no significant difference in the abundance of Vps34 mRNA containing exons 22–24 (Fig. 1A). Assuming that Vps34 is equally expressed in all thyroid cell types (expressing and nonexpressing the Cre recombinase), this ∼70% decrease suggests that most thyrocytes in Vps34^cKO mice had undergone Cre-mediated recombination.

FIG. 1.

Genetic and histopathological characterization. (A) Extensive genetic excision of Vps34 exon 21. Compared with control (black boxes), Vps34^cKO thyroid (red boxes) shows ∼70% reduction in exon 21 mRNA level at P14. The unchanged mRNA level spanning exons 22–24 serves as control. Boxes with median and percentiles of 10 WT and 11 cKO samples; ***p < 0.0001 by Mann–Whitney nonparametric test. (B) Increased thyroid weight. Compared with control (black boxes), Vps34^cKO thyroid (red boxes) shows a twofold increase in thyroid weight. Boxes with median and percentiles of 8 WT and 6 cKO samples; **p < 0.01 by Mann–Whitney nonparametric test. (C) Histopathological evidence for colloid exhaustion. As compared with control thyroid tissues (n = 3) where all follicles show regular lumen filling with homogeneous and intense PAS staining, Vps34^cKO thyroids (n = 3) present fewer, mostly centrally located, PAS-stained follicles and with weaker staining intensity, and other follicles that appear empty (for further quantification; Supplementary Fig. S1). (D) Vps34^cKO thyrocytes are altered and follicles contain abundant nonepithelial cells. Nuclei are labeled by Hoechst (shown in white); thyrocyte basolateral contours are labeled for E-cadherin (red); two lumen boundaries are delineated by broken lines. As compared with control thyroid follicles, Vps34^cKO follicular structures are frequently irregular and contain additional cells inside the lumen (arrowheads). These cells are not labeled for E-cadherin. cKO, conditional knockout; mRNA, messenger RNA; PAS, Periodic-Acid–Shiff; WT, wild type.

Vps34^cKO thyroids show signs of hyperstimulation by TSH

At P14, thyroid glands from Vps34^cKO were almost twice as heavy as control glands (Fig. 1B). Histological staining using Periodic-Acid–Schiff (PAS; which in the thyroid reflects production of the Tg glycoprotein) readily revealed striking differences between thyroid glands of control and Vps34^cKO mice (Fig. 1C). Thyroid glands of control mice appeared as assemblies of round follicular sections of variable diameter, filled intensely with colloid and homogenously stained by PAS. Although the histological pattern of Vps34^cKO was more variable, three representative individual thyroid sections shown in Figure 1C illustrate irregular follicle shape, especially at the periphery of the gland, and weaker or absent PAS staining (Fig. 1C; Supplementary Fig. S1). In addition, the PAS-negative follicular spaces were often filled with nuclei (see Vps34^cKO no. 3). Quantification revealed that 90% of control follicles had a regular shape and intense (+++) PAS staining (Supplementary Fig. S1). In contrast, only 50% of Vps34^cKO follicles displayed a regular shape, and most of the follicles were weakly positive for PAS (++ or +) (Supplementary Fig. S1). In addition, 10–50% of the Vps34^cKO follicles showed no PAS staining (−), and luminal cells were found in 40–70% of the follicles (Supplementary Fig. S1). Confocal immunofluorescence microscopy for the epithelial marker E-cadherin confirmed heterogeneity of Vps34^cKO follicles but also of thyrocytes. Hoechst labeling revealed the presence of several nuclei in a significant fraction of lumina (Fig. 1D). These histological features of follicle remodeling and colloid consumption up to exhaustion suggested perturbed thyroid function.

Vps34^cKO causes severe noncompensated hypothyroidism

To directly test the hypothesis that Vps34^cKO could impair thyroid hormone production, plasma was collected at P14 and analyzed for the levels of T4 and TSH. In P14 control pups, values were 6.4 ± 1.5 μg/dL for T4 and 75 ± 110 mU/L for TSH (Fig. 2). In Vps34^cKO mice, we found extremely low T4 values (0.75 ± 0.62 μg/dL) and very high plasma levels of TSH (19,311 ± 10,482 mU/L) (Fig. 2). These data indicate severe, noncompensated hypothyroidism. This observation, compatible with the growth retardation observed after postnatal day 15 (19), could be explained by mislocalization of one or several basolateral and/or apical actors involved in thyroid hormone synthesis, as we reported in Vps34^cKO kidney proximal tubular cells (19).

FIG. 2.

Vps34^cKO mice display severe hypothyroidism associated with high TSH levels. As compared with control mice (black boxes), T4 plasma level in Vps34^cKO is extremely low (red boxes). Conversely, TSH levels are dramatically elevated (10 WT and 9 cKO samples; ***p = 0.0003 by Mann–Whitney nonparametric test). T4, thyroxine; TSH, thyrotropin.

Vps34 cKO display reduced iodine organification

The reduced or absent PAS staining (Fig. 1C) and the low T4 plasma levels in Vps34^cKO mice (Fig. 2) might be caused by defective basolateral iodine uptake, apical transport, and/or apical organification into Tg. Due to lack or very poor specificity of antibodies directed against murine proteins involved in these processes, we first measured their mRNA expression levels in total thyroids at P14 (Fig. 3). We observed no change in mRNA expression of Nis, Ano1, Tg, Tpo, and Duox2, a significant increase in Tshr and Slc26a4 expression, and a significant decrease of Slc26a7 and Duoxa2 mRNA levels. At this stage, we cannot conclude if these changes contribute to the observed hypothyroidism of Vps34^cKO.

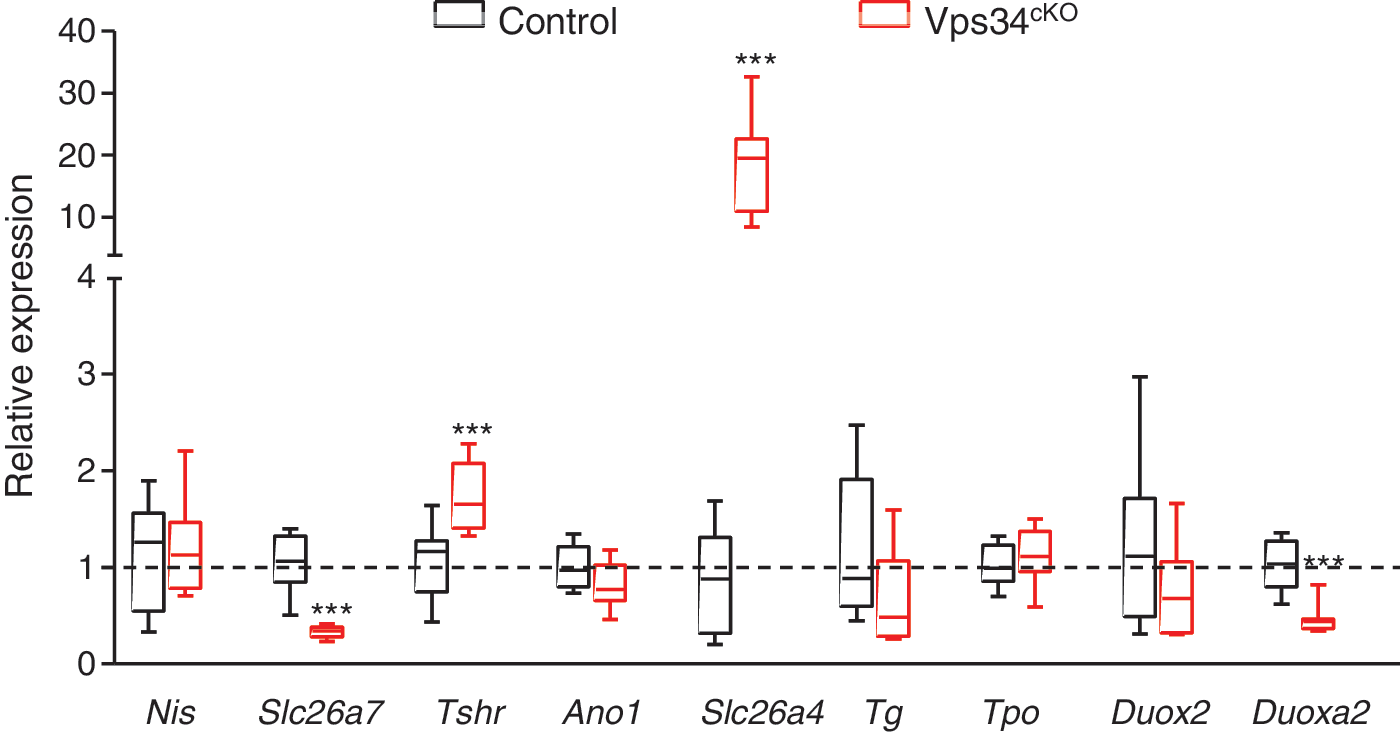

FIG. 3.

Relative expression level of main actors of thyroid hormonogenesis at postnatal day 14. Gene expression analysis by real-time qPCR, presented as boxes with median and percentiles. As compared with control thyroid (black boxes), expression in Vps34^cKO (red boxes) is preserved for the thyroid-specific genes Nis, Tpo, Tg, and Duox2. Expression of the TSH receptor (Tshr) and of Slc26a4 is significantly increased in Vps34^cKO, while expression of Slc26a7 and Duoxa2 is significantly decreased. Boxes with median and percentiles of ∼9 control and 9 Vps34^cKO samples; ***p < 0.001 by Mann–Whitney nonparametric test.

To further test whether basolateral NIS and SLC26A7 and apical ANO1, SLC26A4, TPO, DUOX, and DUOXA were all correctly localized, we functionally assayed their combined activity by injecting iodine-deprived pups at P9 with ¹²⁵I. At P10, 24-hour postinjection, thyroid lobes were collected and radioactivity measured before and after protein precipitation by TCA (Fig. 4A). ¹²⁵I uptake was not statistically different in Vps34^cKO as compared with controls (Fig. 4A), suggesting normal NIS and SLC26A7 function and thus basolateral localization. In marked contrast, only 10% of thyroid ¹²⁵I was bound to proteins in Vps34^cKO compared with ∼55% in controls at this stage (Fig. 4A). This indicates a major effect of Vps34 on one or several apical proteins involved in iodine organification.

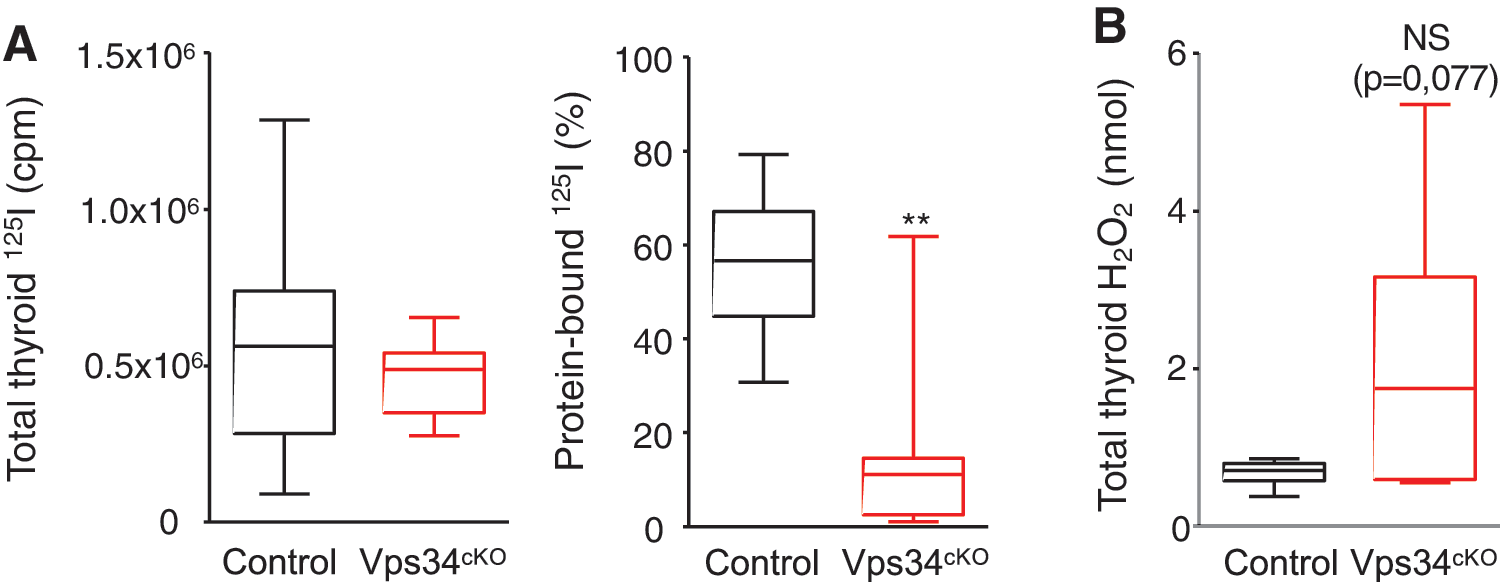

FIG. 4.

Normal uptake of iodine but major defect of organification in Vps34^cKO thyroid. (A) Comparable ¹²⁵I-iodine uptake in the thyroid in control genotypes (black box) and Vps34^cKO thyroid (red box), but much reduced ¹²⁵I bound to protein (in %) in Vps34^cKO thyroid, suggesting defective organification. Boxes with median and percentiles of 39 (10 Flox/+, 19 Flox/Flox, 10 Cre;Flox/+) and 12 Vps34^cKO (Cre;Flox/Flox) samples; ***p < 0.001 by Mann–Whitney nonparametric test. (B) Level of H₂O₂ in total thyroid extracts shows a trend to an increase in Vps34^cKO thyroid. Boxes with median and percentiles of 9 control and 9 Vps34^cKO samples; p = 0.077 by Mann–Whitney nonparametric test. H₂O₂, hydrogen peroxide; NS, non significant.

Normal Ano1 and increased Slc26a4/Pendrin mRNA levels suggested correct, or even increased, transfer of iodine in the follicular lumen. On the contrary, decreased Duoxa2 might impact H₂O₂ production. We thus measured the production of H₂O₂ in control and Vps34^cKO thyroid lobes. Surprisingly, the median level of H₂O₂ production in Vps34^cKO was higher, even if we observed variability (Fig. 4B), indicating that the DUOX/DUOXA pair is functional in Vps34^cKO thyroid tissue. Altogether, these results suggest defective localization of one or several apical actors involved in iodine organification.

Apical polarity is impaired in Vps34^cKO

Apicobasal polarity is essential for thyrocyte function, and defects in polarity might impact the delivery, and thus localization, of actors involved in thyroid hormone synthesis. As general markers to assess polarity, we used the basement membrane protein laminin, the basolateral Na⁺/K⁺-ATPase, E-cadherin and β-catenin, the apically localized ezrin (as representative of ezrin, radixin, moesin family), and the tight junction-associated protein ZO-1. Control thyrocytes displayed a well-defined apicobasal polarity with laminin assembled on the basal side, with Na⁺/K⁺-ATPase, E-cadherin, and β-catenin restricted to the basolateral membrane and separated from apical ezrin by the tight junction, visualized by ZO-1 (Fig. 5A, B). In Vps34^cKO thyrocytes, basal laminin was correctly assembled and Na⁺/K⁺-ATPase, E-cadherin, and β-catenin were restricted to the basolateral membrane, indicating the presence of functional tight junctions. However, on the apical side of Vps34^cKO thyrocytes, the ezrin signal was weaker or absent from the lumen-facing pole of some thyrocytes (Fig. 5A), and most cells also lacked ZO-1 protein labeling (Fig. 5B). These data suggest impaired apical polarity in Vps34^cKO, which might contribute to defective localization of apical actors involved in iodine organification.

FIG. 5.

Normal basolateral but impaired apical organization of thyrocytes. (A) Thyroid sections from control (left) and Vps34^cKO (right) labeled for laminin (red), ezrin (green), and E-cadherin (white). Nuclei are labeled by Hoechst (shown in blue). In control thyroid, laminin surrounds follicles composed of thyrocytes delineated by basolateral E-cadherin and apical ezrin. In Vps34^cKO, laminin normally surrounds follicles composed of thyrocytes with well-defined basolateral E-cadherin but weaker and less regular apical ezrin. Note here apical membrane bulging in the colloidal space. (B) Thyroid sections from control (left) and Vps34^cKO (right) labeled for ZO-1 (red), Na⁺/K⁺-ATPase (green), or β-catenin (white). Nuclei are labeled by Hoechst (shown in blue). In control and Vps34^cKO thyroid, Na⁺/K⁺-ATPase and β-catenin are correctly localized and restricted to the basolateral pole of the thyrocytes, indicating the presence of a tight junction. However, the tight junction-associated protein ZO-1 is only detected at few apico/basolateral junctions.

Vps34^cKO mice display defective Tg iodination

To further analyze the significance of the lack of PAS staining in a fraction of Vps34^cKO follicles (Fig. 1C) and the defect in iodine organification (Fig. 4), we assessed Tg protein expression and its associated T4 hormonogenic peptide (iodinated thyroglobulin or I-Tg) by immunofluorescence. Low magnification of control sections showed an identical distribution pattern of Tg and I-Tg, homogeneously filling all round colloidal spaces (Fig. 6A). In Vps34^cKO, the Tg labeling was more heterogeneous, mainly due to the presence of cells in the colloid. Remarkably, antibodies recognizing the T4 hormonogenic peptide often failed to label colloidal spaces even when containing Tg in the adjacent section (Fig. 6A), thereby confirming the organification defect (Fig. 4A). Quantifications of 5 control thyroids revealed that 96% of the follicles are positive for I-Tg (2712 follicles counted; Supplementary Fig. S2). In contrast, only a quarter (25.2 ± 11.9%) of Vps34^cKO follicles were positive for the T4-containing hormonogenic peptide (3436 follicles counted in 7 independent thyroids; Supplementary Fig. S2). Of specific interest, whereas the Tg signal was restricted to the follicle lumen in control thyroid tissue, high magnification revealed that the Tg signal was frequently seen within Vps34^cKO thyrocytes (Fig. 6B, arrowheads). These observations indicate that Vps34 deletion is associated with defective Tg iodination, as well as reduced Tg exocytosis and/or excessive Tg endocytosis.

FIG. 6.

Evidence for defective iodide organification in Vps34^cKO thyroid: follicular lumina with Tg but devoid of I-Tg. (A) Thyroid sections from control (left) and Vps34^cKO (right) labeled for E-cadherin (green) and Tg (red), recognized either for a core protein epitope (Tg), or a hormonogenic peptide (I-Tg). Control follicular lumina are round and uniformly labeled for both Tg and I-Tg. In Vps34^cKO, follicular structures are less regular, with the majority containing Tg, but not the hormonogenic peptide. In Vps34^cKO, two serial (tilted) sections are shown. (B) Comparison of Tg labeling in control and Vps34^cKO thyrocytes. In control follicles, Tg is essentially restricted to lumen, with little or no signal inside thyrocytes. In Vps34^cKO, Tg is readily detected within thyrocytes as collections of submicrometric dots or larger spheres (arrowheads). Of note, some luminal cells (broken line in middle panel) also contain Tg-labeled spheres, indicating active endocytosis (arrow). I-Tg, iodinated thyroglobulin; Tg, thyroglobulin.

Impaired lysosomal function and I-Tg proteolysis in Vps34^cKO thyroid

Vps34 is involved in endocytic trafficking, and cKO of Vps34 in postnatal kidney glomeruli podocytes causes a strong increase of the overall immunofluorescence signal for the lysosomal membrane marker LAMP-1, indicating enhanced lysosome biogenesis (29,30). We further reported that absence of Vps34 in kidney proximal tubular cells causes an increase in the actual size of lysosomes that were sometimes enlarged and mislocalized toward the basal pole of the cell (19). Given that lysosomal proteases in thyrocytes are important to excise hormonogenic peptides to release free T3 and T4, we investigated LAMP-1-labeled structures in Vps34^cKO thyrocytes as a proxy for lysosomal function, and its colocalization with Tg and I-Tg to demonstrate endocytosis. In our conditions, immunofluorescence on control thyroid sections only produced a weak LAMP-1 signal in the E-cadherin-positive epithelial thyrocytes (Fig. 7A, B). On the contrary, a strong and widespread LAMP-1 signal was observed in all Vps34^cKO thyrocytes. As shown in the enlarged boxes of Figure 7A and B (separate emission channels in white), LAMP-1-positive late endosomes/lysosomes were more abundant, and sometimes enlarged in Vps34^cKO thyrocytes as compared with controls. In addition, the intracellular Tg protein, found in most Vps34^cKO thyrocytes (Fig. 7A, arrowheads), most often colocalized with LAMP-1-positive structures. This indicates that colloidal Tg was endocytosed by thyrocytes, but that trafficking to or Tg proteolysis within the lysosomes was slower or impaired, as compared with controls. Of note, luminal cells also contained LAMP-1 structures positive for Tg (Fig. 7A, right).

FIG. 7.

Vps34^cKO thyrocytes display increased LAMP-1 signal and impaired I-Tg proteolytic processing. (A) Thyroid sections from control (left) and Vps34^cKO (right) labeled for Tg (red), E-cadherin (green), and lysosomal LAMP-1 (white). Nuclei are labeled by Hoechst (shown in blue). In control, thyrocytes rarely contain intracellular Tg and LAMP-1 signal is weak. In Vps34^cKO, most thyrocytes have intracellular Tg (arrowheads) and LAMP-1 signal is much increased. Insets show magnification with separate emissions, then merged, channels. Note colocalization of Tg with LAMP-1 in luminal cells (at right). (B) Thyroid sections from control (left) and Vps34^cKO (right) labeled for I-Tg (red), E-cadherin (green), and lysosomal LAMP-1 (white). Nuclei are labeled by Hoechst (shown in blue). As compared with control follicles which show a weak signal for LAMP-1, and rare intracellular I-Tg, LAMP-1 signal is intense in Vps34^cKO thyrocytes and intracellular I-Tg dots are frequently observed (arrowheads). As shown in the enlargements below, LAMP-1-labeled structures in Vps34^cKO thyrocytes are enlarged or vacuolated as compared with control.

Additional supporting evidence for impaired lysosomal proteolysis is based on the analysis of I-Tg (Fig. 7B). Indeed, Vps34^cKO thyrocytes often contain intracellular signal for I-Tg, colocalizing within LAMP-1 structures (Fig. 7B, enlarged boxes). Thus, in addition to reduced iodine organification, defective lysosomal excision of T3/T4, if/when hormonogenic peptides were still formed on Tg, is potentially contributing to the low T3/T4 plasma levels observed in Vps34^cKO mice (Fig. 2).

Evaluation of autophagy in Vps34^cKO thyroid

The deletion of Vps34 in the kidney also causes a block of autophagy (19). We therefore assessed the expression of p62 (also called sequestosome-1 or SQSTM1), a polyubiquitin-binding protein that interacts with LC3b (microtubule-associated protein 1 light chain) on the autophagosome membrane and is normally continuously degraded by the autophagy process (31). Since p62 accumulates when completion of autophagy is inhibited, p62 can be used as a marker to study autophagic flux (32). Although we found a weak punctiform LC3 signal in control thyrocytes, we observed no p62 signal, indicating normal autophagic flux in control thyroid tissue (Fig. 8A). As reported, few LAMP-1-labeled structures were found in control thyroids. In contrast, much larger structures, mostly double-labeled for p62 and LC3, were easily detected in the cytoplasm of Vps34^cKO thyrocytes (Fig. 8A). As the LAMP-1 signal was increased in Vps34^cKO, these p62/LC3-positive punctae sometimes colocalized with LAMP-1. We conclude that LC3 could be recruited on p62 aggregates but that progression to autophagosome maturation and fusion with, and degradation by, lysosomes is arrested. This suggests that deletion of Vps34 in thyrocytes abrogates the autophagic flux.

FIG. 8.

Vps34^cKO thyrocytes show strong accumulation of p62 and LC3b dots. (A) Thyroid sections from control (left) and Vps34^cKO (right) labeled for p62 (red), LC3b (green), and lysosomal LAMP-1 (white). Nuclei are labeled by Hoechst (shown in blue). Compared with control follicles, which show low LAMP-1 and almost no signal for p62 and LC3b, all three markers are very strong in Vps34^cKO thyroid sections. p62 perfectly colocalizes with LC3b and labels large aggregates. These aggregates are adjacent to LAMP-1-positive structures. (B) Increased NRF2 signaling. Gene expression analysis by RT-qPCR, presented as boxes with median and percentiles. As compared with control thyroid (black boxes), expression of Nrf2 is reduced in Vps34^cKO (red boxes), but level of two of three NRF2 target genes, Txnrd1 and Nqo1, is increased. Boxes with median and percentiles of ∼9 control and 9 Vps34^cKO samples; *p < 0.05 and ***p < 0.001 by Mann–Whitney nonparametric test.

Recent evidence has demonstrated that p62 is also an activator of the antioxidant KEAP1/NRF2 pathway, which impacts thyrocyte physiology and Tg biology (33). We thus examined the possibility that stabilized p62 would compete with NRF2 for KEAP1 binding in Vps34^cKO, thus allowing NRF2 to reach the nucleus and activate gene expression. We quantified the mRNA levels of Nrf2 and its target genes Nqo1, Gpx2, and Txnrd1. Although we measured a slight decrease of Nrf2 mRNA in Vps34^cKO, two of its target genes, namely the quinone reductase, Nqo1, and the thioredoxin reductase 1, Txnrd1, were upregulated 1.9- and 3.5-fold, respectively (Fig. 8B). This observation supports the hypothesis that KEAP1 interaction with p62 is favored in Vps34^cKO, and that NRF2 is thus displaced and able to migrate to the nucleus to regulate gene expression.

We also evaluated macroautophagy/mitophagy by immunolocalizing TOM20 and LAMP-1. In Vps34^cKO thyrocytes, TOM20-labeled structures did not colocalize with the more abundant, enlarged LAMP-1+ structures (Supplementary Fig. S3A), as we also reported in Vps34^cKO kidney proximal tubular cells (19). This suggested that sequestration of mitochondria into autophagosomes is either not triggered, which is unlikely for altered cells, or abortive at P14 in Vps34^cKO thyrocytes, and/or that fusion of autophagosomes with lysosomes is prevented. We then evaluated the chaperone-mediated autophagy by immunolocalizing LAMP-2A. As compared with control thyroid, LAMP-2A-labeled structures were more abundant in Vps34^cKO thyrocytes (Supplementary Fig. S3B), as we also reported in Vps34^cKO kidney proximal tubular cells (19).

Luminal cells present in Vps34^cKO follicles are macrophages

Finally, we investigated the origin of the cells present in the colloidal space. As shown by Figure 7A, cells trapped in the follicular lumen showed a strong LAMP-1 signal (Fig. 7A). However, they were negative for E-cadherin (Figs. 1D and 5A). In addition, we found that luminal cells were also negative for the permanently expressed thyrocyte-restricted transcription factor TTF-1 (NKX2.1) (Fig. 9A), indicating that these cells were not derived from the thyrocyte lineage. Lineage-tracing experiments on Pax8-Cre; Vps34 ^fl/fl; ROSA-STOP-YFP pups at P14 further revealed YFP-positive signal only in follicle-delineating thyrocytes and not in the luminal cells (Fig. 9B). Thus, luminal cells had never expressed Pax8 and are therefore not derived from thyrocyte progenitors. Although infiltration by C-cells is a possibility, we failed to label luminal cells for the Prox1 transcription factor. As luminal cells displayed LAMP-1 signal and were also positive for Tg (Fig. 7A), we tested the possibility that luminal cells were infiltrating macrophages. This is indeed the case because luminal cells were positive for the macrophage marker F4/80 (Fig. 10A), but not by E-cadherin. To confirm that colloid was consumed by infiltrated macrophages, we performed a triple immunolabeling for F4/80, LAMP-1, and I-Tg. Luminal F4/80-positive cells displayed huge LAMP-1-positive lysosomes filled with I-Tg (Fig. 10B). Thus, colloid consumption (Tg in Fig. 7A and I-Tg in Fig. 9D) by infiltrated macrophages provides a third potential explanation for the low T4 plasma level observed in Vps34^cKO.

FIG. 9.

Luminal cells in Vps34^cKO thyroid are not thyrocytes. (A) Immunolabeling for thyrocyte transcription factor-1 (TTF-1, green); nuclei are visualized with the Hoechst stain (shown in white). In both control and Vps34^cKO thyroid, nuclei of thyrocytes circumscribing the follicular lumina are all labeled by the thyrocyte-specific transcription-factor-1, TTF-1. As indicated by the arrowheads, nuclei of luminal cells show no signal for TTF-1 (only white signal representing Hoechst). (B) Immunolabeling for E-cadherin (red) and YFP (green); nuclei are visualized with the Hoechst stain (shown in blue). Representative images of Vps34^cKO thyroid sections reveal expression of YFP only in cells surrounding the follicular lumina, that is, in cells where Pax8-Cre has been active. Luminal cells do not derive from thyrocyte progenitors as they are negative for YFP.

FIG. 10.

Luminal cells in Vps34^cKO thyroid are macrophages. (A) Immunolabeling for E-cadherin (red), and for the conventional macrophage marker (F4/80, green); nuclei are visualized with the Hoechst stain (shown in white). In Vps34^cKO thyroid, F4/80 signal can be found in the interstitium (arrows), but also in the colloidal space, thus identifying luminal cells as infiltrating macrophages. (B) Luminal cells are taking up the colloid. Immunolabeling for I-Tg (red), F4/80 (green), and LAMP-1 (white). Nuclei are visualized with the Hoechst stain (shown in blue). Luminal cells in Vps34^cKO have abundant LAMP-1 structures that surround I-Tg droplets. Arrowheads show additional I-Tg in thyrocytes. Broken lines indicate luminal contours.

Discussion

In this study, we report that deleting Vps34 in thyrocytes by Pax8-Cre-driven recombination causes several defects in the thyroid: (i) doubling of thyroid weight and perturbed thyroid parenchyma organization, with reduced PAS⁺ colloidal spaces; (ii) severe hypothyroidism with collapsed plasma T4 levels and very high TSH; (iii) a strong decrease of ¹²⁵I organification, at comparable ¹²⁵I uptake, and of T4 formation on Tg [detected by immunofluorescence as early as postnatal day 3 (P3)]; (iv) defective apical polarization; (v) impaired lysosomal proteolysis; and (vi) infiltration of macrophages in the colloid. Some of these features, combined with delayed “eye opening” and impaired postnatal growth after 2 weeks (18), phenocopy the impact of the Duoxa2 KO in the thyroid (34).

DUOXA2 is a chaperone protein required for the correct localization of DUOX2 at the apical pole of thyrocytes, where the complex (DUOX2/DUOXA2) produces H₂O₂. In the absence of DUOXA2, H₂O₂ is not produced, and subsequent TPO-mediated oxidation of iodide into reactive compounds and Tg iodination are abolished (34). The similarity of the severity of hypothyroidism in Vps34^cKO and Duoxa2 KO mice prompted us to have a closer look at DUOXA2 in Vps34^cKO. We found that the expression of Duoxa2 started decreasing after P3, reaching twofold lower values at P14. It is interesting to note that expression of Duox2 and Duoxa2 mRNAs was quantitatively different, despite the fact that they share the same promoter (35). Whether decreased Duoxa2 mRNA expression is reflected by an equivalent twofold decrease of DUOX2/DUOXA2 complex at the apical pole is unknown. However, it is very unlikely that a twofold decrease would by itself impact Tg iodination to such a severe extent, since heterozygous mice for Duoxa2 deletion have virtually no phenotype. In addition, our measurements of H₂O₂ levels in total Vps34^cKO thyroid extracts support normal, or increased, function of the DUOX2/DUOXA2 complex.

Instead, based on the known functions of Vps34 in kidney proximal tubular cells, where its inactivation causes lack of apical localization of endocytic receptors (megalin, cubilin) and solute transporters (NaPi-IIa, SGLT-2) (19), it would be extremely interesting to localize actors of thyroid hormonogenesis on thyroid sections, and assess their basolateral or apical addressing in Vps34^cKO thyrocytes. Unfortunately, reliable antibodies to detect most of these proteins are not yet available for mice. Nevertheless, ¹²⁵I uptake and processing experiments suggest normal localization and function of the NIS, and/or the putative alternative transporter SLC26A7 (3), and rather support the hypothesis of defective apical localization of one or several actors involved in thyroid hormonogenesis (Ano1, pendrin (SLC26A4), TPO, DUOX, DUOXA).

Characteristic histopathological alterations combined with the very high plasma TSH levels and a twofold increase in Tshr expression in Vps34^cKO thyroid could suggest that thyrocytes are in a hyperstimulated state. For example, DuoxA2 KO mice, which display very high TSH levels, present a 20- and 5-fold higher expression level of Nis and Tpo, as compared with controls (34). However, the expression of these two sensitive target genes of the TSH signaling pathway, Nis and Tpo, was surprisingly unchanged in Vps34^cKO mice, thus arguing against thyrocyte hyperstimulation.

We favor instead the hypothesis of TSHR mistrafficking into intracellular vesicles. Recent work in Drosophila revealed that Vps34 inactivation or pharmacological inhibition using the small molecule inhibitor SAR405 causes alteration of cell polarity and disruption of epithelial architecture by relieving LKB1 inhibition and triggering JNK activation (14). A role of Vps34 in epithelial organization and polarity was also observed in 3D cultures of Caco-2 kidney cells (14). It would be interesting to analyze the activation states of LKB1 and JNK in Vps34^cKO thyroid tissue, and, if modified, to cross Vps34^cKO with floxed LKB1 alleles.

The expression patterns of the two SLC transporters, Slc26a7 and Slc26a4, in Vps34^cKO mice are surprising. The decreased expression of Slc26a7 (fourfold) in Vps34^cKO may affect entry of iodine in the thyroid. However, it should be mentioned that this alternative basolateral transporter, SLC26A7, may only play an indirect role in iodine uptake (3). In addition, expression of the main transporter, Nis, is ∼16-fold more important than that of Slc26a7. This may explain why ¹²⁵I uptake is not affected. Expression of the apical Slc26a4 (pendrin) in Vps34^cKO was even more dramatic with a 20-fold increase in expression. However, we do not favor the view that this would have affected apical transport of iodine. Indeed, in control thyroids, the expression levels of Slc26a4 were 60-fold lower than those of anoctamin1 (6 Ct). This is compatible with a more prominent role for anoctamin1 in apical iodide transport (36).

These changes in expression of Slc26a7 and Slc26a4 could however impact thyrocyte ion balance. Indeed, SLC26A7 and SLC26A4 transporters have opposite actions on chloride ions at the basolateral and apical membranes, respectively. Decreased levels of SLC26A7 at the basolateral membrane may decrease the export of chloride out of the thyrocyte (3). On the contrary, increased levels of SLC26A4 at the apical membrane may increase the entry of chloride in the thyrocyte. Accumulation of chloride may in turn decrease intracellular pH and causes cellular stress in Vps34^cKO.

The weak PAS staining in Vps34^cKO could be due to decreased exocytosis of Tg or increased Tg endocytosis. We frequently observed intracellular Tg in Vps34^cKO mice. We suggest that the defective process is the endocytic route rather than exocytosis because we readily observed intracellular structures positive for I-Tg. This is rarely the case in control thyrocytes where I-Tg is rapidly proteolytically processed. In addition, our work demonstrates increased abundance and size of LAMP-1-positive late endosomes/lysosomes in Vps34^cKO thyrocytes, with accumulation of Tg and the autophagic marker p62, which is indicative of a defective lysosomal trafficking and/or function. In addition to impaired Tg iodination, low T4 plasma levels thus presumably result from impaired endocytic transport of I-Tg to lysosomes and/or proteolytic excision of T3/T4 therein.

Several studies have indeed reported a role for Vps34 in endocytic trafficking to lysosomes (13,15,30,37) and activation of lysosomal proteases (15). In our study on Vps34^cKO renal proximal tubular cells, we also observed an enlargement of lysosomes and their filling by undigested material, labeled for a variety of antigens (19). In Vps34^cKO thyrocytes, we also observed an increased abundance and size of LAMP-1-positive compartments filled with Tg and I-Tg. Based on these and previous findings showing that Vps34 deletion leads to late endosome/lysosome enlargement and defective lysosomal function (37), we assume a defective proteolytic excision of T3/T4 from I-Tg, analogous to what we reported in cystinotic Ctns ^−/− mice (38).

Cystinosis is a lysosomal storage disease caused by deletion or inactivating mutations of the lysosomal cystine transporter cystinosin (39). Defective cystinosin impacts lysosomal proteolysis, presumably due to endolysosomal mislocalization, impaired procathepsin maturation, and altered luminal redox status; moreover, autophagic flux is altered (40). Like cystinotic patients, Ctns ^−/− mice show compensated hypothyroidism with moderate increase of TSH, thyrocyte hyperplasia, and proliferation, combined with progressive colloid depletion and evidence of increased endocytosis into colloid droplets. Iodo-Tg could be detected in Ctns ^−/− but not wild-type thyrocyte lysosomes, under identical labeling conditions, further indicating defective proteolysis.

It has recently become clear that Vps34 may act on lysosome positioning, which is crucial to autophagosome formation (41,42). Similar to the kidney proximal tubular cell defect, we observed an increased p62 signal in Vps34^cKO thyroids at P14. Accumulation of p62 and LC3b in Vps34^cKO indicates a block in the autophagy process. In addition, p62 accumulation suggests activation of the antioxidant NRF2 pathway by competitive binding of p62 to KEAP1 (33,43). We indeed observed increased expression of two NRF2 target genes, namely the quinone reductase, Nqo1, and the thioredoxin reductase 1, Txnrd1. Considering the expected key role of Vps34 in macroautophagy, our data on mitophagy do not prove, but are compatible with the suggestion that this important homeostatic process is abrogated upon Vps34 deficiency.

A final observation deserving discussion is the occurrence of viable cells in the follicular lumens of Vps34^cKO thyroids. Our first hypothesis was that defective endocytic and autophagic routes to the lysosomes could impact thyrocyte homeostasis, thus causing cellular stress. Cellular stress, induced by defective autophagosome and lysosomal function, or by activation of stress kinase such as JNK, could explain shedding of thyrocytes into the colloidal space. However, luminal cells of Vps34^cKO thyroids were negative for E-cadherin and the thyrocyte-specific transcription factor TTF-1 (NKX2.1). Furthermore, lineage-tracing experiments demonstrated that these luminal cells had never expressed Pax8 and thus did not derive from thyrocytes.

A second hypothesis was that the cellular stress and loss of tissue homeostasis would recruit macrophages. Indeed, we found that luminal cells were labeled for the conventional macrophage marker F4/80, are proliferating and display a high LAMP-1 signal. In addition, Tg and I-Tg colocalized with these macrophage lysosomes, demonstrating active endocytosis of the colloid “from within.” This observation contributes to explaining the colloid exhaustion observed in Vps34^cKO mice and could thus be responsible for the low levels of circulating T4. Although the signal(s) attracting macrophages to the colloid is(are) unknown, the loss of tight junction integrity might facilitate their invasion.

Author Contributions

G.G. and T.S.W. performed the initial morphological and molecular studies and analyzed the data. O.D. and C.S. performed all the other experiments and prepared the figures for the revision. V.J. and A.S. participated in data collection and analysis. H.P.G.C. was involved in supervision of G.G. B.B. and B.V. provided the Vps34 mice, X.H.L. and S.R. assayed T4 and TSH levels, and C.M. provided expertise with 125I experiments. P.J.C. and C.E.P. conceived, designed, and supervised the project, and wrote the article. All authors have approved the final version of the article.

Footnotes

Acknowledgments

The authors thank Prof. C. Ris-Stalpers for iodothyroglobulin antibody, and Abdelkadder El Kaddouri and Claude Massart for technical help.

Author Disclosure Statement

B.V. is a consultant for Karus Therapeutics (Oxford, UK), iOnctura (Geneva, Switzerland), and Venthera (Palo Alto, CA) and has received speaker fees from Gilead. The other authors have no competing financial interest.

Funding Information

This work was supported by grants from the Fonds pour la Recherche Scientifique (F.R.S-FNRS, No. J.0076.18, Belgium), Université catholique de Louvain (Actions de Recherche concertées to CEP, ARC 15/20-065), and Fondation Roi Baudouin. S.R. and X.H.L. were supported by a grant DK15070 from the National Institutes of Health. Work in the laboratory of BV was supported by grants from the MRC (G0700755) and BBSRC (BB/I007806/1 and BB/M013278/1). The core facility for Imaging Cells and Tissues was also financed by National Lottery, Région bruxelloise, Région wallonne, Université catholique de Louvain, and de Duve Institute. G.G. held a fellowship from the Fonds pour la formation à la Recherche dans l'Industrie et l'Agriculture (FRIA, Belgium), T.W. was postdoctoral researcher supported by UCLouvain, O.D. is supported by Télévie, V.J. by the Cystinosis Research Foundation, C.S. is a UCLouvain teaching assistant, H.P.G.C. was a postdoctoral researcher, P.J.C is active Emeritus at UCLouvain/de Duve Institute, and C.E.P. is a senior research associate at F.R.S-FNRS.
