A Promising Mouse Model of Graves' Orbitopathy Induced by Adenovirus Expressing Thyrotropin Receptor A Subunit

Abstract

Background:

Graves' orbitopathy (GO) is the most common and serious manifestation of Graves' disease (GD). It is characterized by orbital inflammation and tissue remodeling. Although several GO models have been reported, most lack a full assessment or mechanistic evaluation. Here, we established a promising mouse model mimicking many aspects of human GO with a frequency of 70% and characterized the key role of T cells in the progression of GO.

Methods:

An adenovirus expressing the human thyrotropin (TSH) receptor A subunit (Ad-TSHRA) was injected in the muscles of female BALB/C mice nine times to induce GO. At predetermined time points, histological examinations of retrobulbar tissues and thyroid glands were performed to dynamically monitor changes; serum autoantibodies and total thyroxine levels were examined to evaluate thyroid function. Flow cytometry of CD4+ T cell subgroups and RNA sequencing (RNA-Seq) of splenocytes were also performed to explore the underlying mechanism.

Results:

After nine injections, 7 of 10 mice challenged with Ad-TSHRA developed the orbital changes associated with GO. Seven mice manifested retrobulbar fibrosis, and four mice showed adipogenesis. Exophthalmia, conjunctival redness, and orbital lymphocyte infiltration were also observed in a subset of mice. The orbitopathy was first detected after seven injections and followed the hyperplastic change observed in thyroids after four injections. Flow cytometry revealed increased proportions of Th1 cells and decreased proportions of Th2 cells and regulatory T (Treg) cells in the splenocytes of GO mice. This change in CD4+ T cell subgroups was confirmed by orbital immunohistochemical staining. Genes involved in T cell receptor signaling, proliferation, adhesion, inflammation, and cytotoxicity were upregulated in GO mice according to the RNA-Seq; a trend of upregulation of these GO-specific genes was observed in mice with hyperthyroidism without orbitopathy after four injections.

Conclusions:

A GO mouse model was successfully established by administering nine injections of Ad-TSHRA. The model was achieved with a frequency of 70% and revealed the importance of T cell immunity. A potential time window from Graves' hyperthyroidism to GO was presented for the first time. Therefore, this model could be used to study the pathogenesis and novel treatments for GO.

Introduction

Graves' disease (GD) is an organ-specific autoimmune disease and the most common cause of hyperthyroidism in adults (1). Approximately 20–50% of GD patients suffer from Graves' orbitopathy (GO), which manifests as exophthalmos, swelling, diplopia, and decreased visual acuity. As an autoimmune-mediated inflammatory disorder, GO is characterized by adipogenesis, hyaluronic acid synthesis, and an enlargement of the extraocular muscles; however, the pathogenesis remains unclear (2 –4). As the therapeutic options for GO are currently quite limited and unsatisfactory, there is a pressing need to develop novel strategies for the management of GO (2,5).

Animal models have contributed to a better understanding of disease pathogenesis and the development of novel treatments. Since the last century, scientists have been working to establish an ideal animal model of GO. In the 1990s, the transfer of human thyrotropin (TSH) receptor (TSHR)-primed T cells to naive syngeneic BALB/c mice resulted in orbitopathy, as manifested by the disorganization of muscle fibers, accumulation of adipose tissue, and infiltration of immune cells, accompanied by severe thyroiditis (6). Genetic immunization with TSHR cDNA has been a valid method to induce the production of serum autoantibodies (TRAbs) and hyperthyroidism in both mice and monkeys (7 –9). Recently, plasmid transfection through electroporation reproduced several orbital features of GO, including fibrosis, adipogenesis, glycosaminoglycan deposition, and infiltration by CD3+ T lymphocytes and F4/80+ macrophages (10,11). In another study, hyperthyroidism and orbitopathy, as evidenced by adipogenesis and hyaluronic acid deposition, were induced (12). However, differences in thyroid function were observed in the animal models constructed using the same technology in different locations (11,13). More recently, a study involving nine injections of an adenovirus expressing the human TSHR A subunit (Ad-TSHRA), which led to long-term hyperthyroidism and orbital fibrosis, was reported, and no other orbital changes were mentioned (14 –17). Thus, additional studies are needed to develop a GO model for use in practice.

In the clinic, orbital symptoms often occur after the onset of hyperthyroidism (predominantly within 18 months), even though they have been shown to evolve from a single systemic process (2,18). The progression from Graves' hyperthyroidism (GH) to GO has been described as a “double whammy,” recapitulating thyroid dysfunction and the subsequent development of orbital complications over time (19). Reproducing this progression in an animal model will help researchers explore the relationship between GH and GO, which has not been reported in previous studies.

In this study, we established a mouse model of GO by administering nine injections of Ad-TSHRA and revealed a time window from GH to GO for the first time. This model mimicked many aspects of human GO and achieved a frequency of up to 70%. The progression from GH to GO was highlighted by a series of changes in T cell immunity. This promising model might accelerate studies of the pathogenesis and novel treatments for GO.

Materials and Methods

Animal study

Six-week-old female BALB/C mice were purchased from Charles River Laboratory (Beijing, China). They were housed in cages with filter-top lids and maintained at 18–22°C on a 12-hour light–dark cycle. All animal care procedures and treatments were performed according to the Guide for the Care and Use of Laboratory Animals and were approved by the local authorities at Jiaotong University School of Medicine, Xi'an, China.

The animals were randomly divided into two groups based on body weight. Twenty-two mice received Ad-TSHRA, and eight mice received the same dose of an adenovirus expressing green fluorescent protein (Ad-EGFP). A prolonged immunization protocol was followed with three injections administered at a 3-week interval as the initiation phase and six additional booster injections at a 4-week interval as the maintenance phase (14). A volume of 25 μL of the adenovirus was injected into the left and right femoral muscles each time (10⁸ PFU). After nine injections (at the 34th week after the first injection), 10 mice challenged with Ad-TSHRA and 8 mice challenged with Ad-EGFP were euthanized. After four and seven injections (at the 11th and 23rd week, respectively, after the first injection), six randomly selected mice challenged with Ad-TSHRA were euthanized for dynamic observations (Fig. 1A).

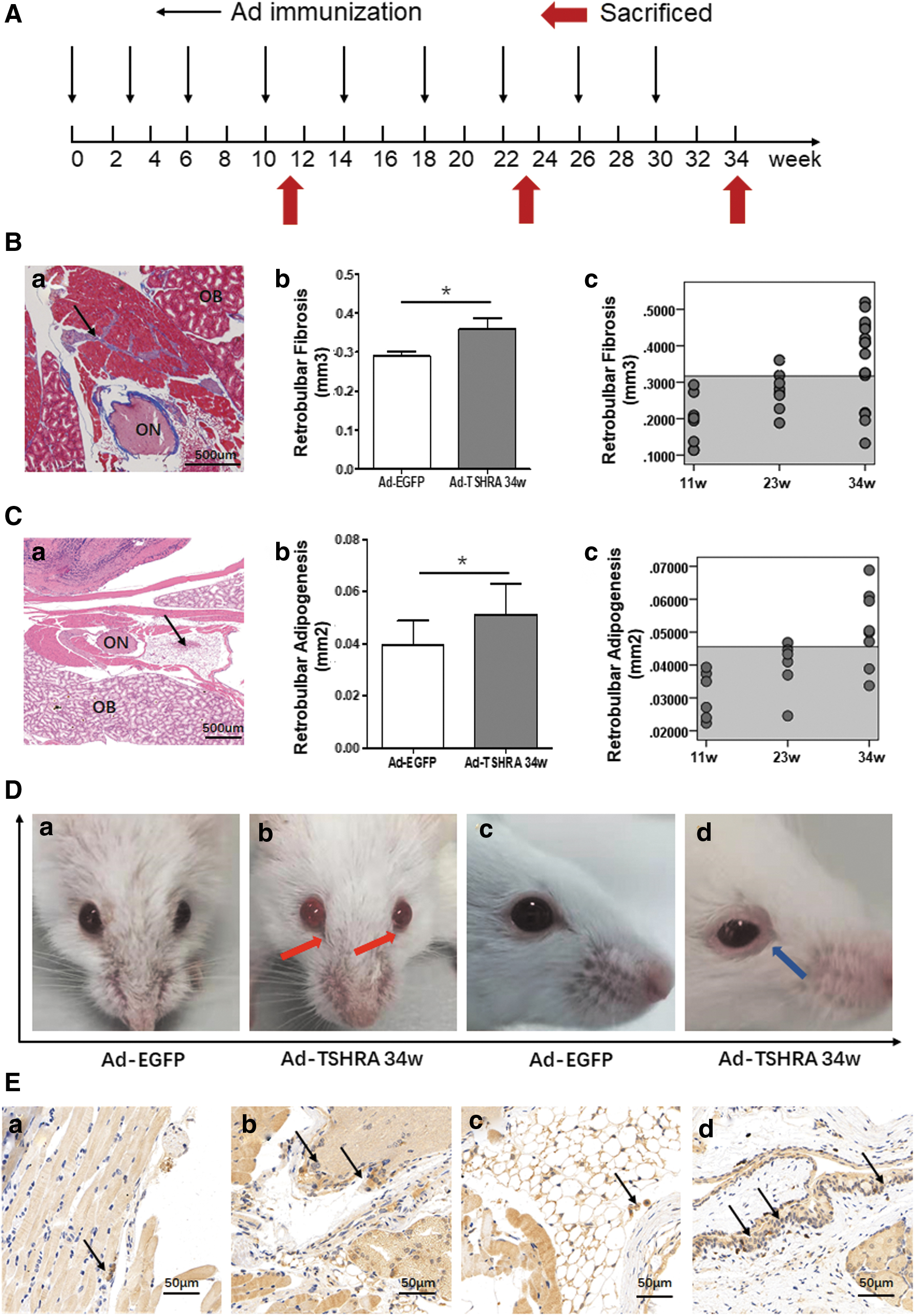

FIG. 1.

(A) Animal study schema. (B) OB, orbital bone; ON, optic nerve. (a) Masson-stained section. The arrow indicates retrobulbar fibrosis. (b) Total fibrosis volume in the retrobulbar space of each orbit of the Ad-EGFP- and Ad-TSHRA-challenged mice at week 34. (c) Total fibrosis volume at different times, with the mean ± 2 SD of the Ad-EGFP-challenged mice as the normal range. (C) (a) HE-stained section. The arrow indicates retrobulbar adipose tissue. (b) Adipose tissue area in the retrobulbar space of each orbit of the Ad-EGFP- and Ad-TSHRA-challenged mice at week 34. (c) Adipose tissue area at different times, with the mean ± 2 SD of the Ad-EGFP-challenged mice as the normal range. (D) Frontal and lateral appearance of the head regions. (a, c) Ad-EGFP-challenged mice. (b, d) Ad-TSHRA-challenged mice at week 34. Red arrows indicate eyes with exophthalmia and conjunctiva redness, and blue arrows indicate eyes with eyelid broadening. (E) Lymphocyte infiltration in different parts of the orbit. (a) Muscle bundles, (b) perioptic nerve, (c) connective tissue, and (d) adipose tissue. *p < 0.05. Ad-EGFP, adenovirus expressing green fluorescent protein; Ad-TSHRA, adenovirus thyrotropin receptor A subunit; GH, Graves' hyperthyroidism; SD, standard deviation.

Histological examinations of orbital tissues

The orbital tissues were completely dissected, fixed, decalcified, embedded, and sliced into four coronal sections at 1-mm intervals across the entire orbit. Then, the sections (5 μm) were stained with hematoxylin–eosin (HE) or Masson's trichrome (14). Images were captured using a 4 × objective lens (Olympus BX53, Japan).

The fibrotic areas in the retrobulbar adipose tissue and retrobulbar muscle were stained blue with Masson's trichrome. An analysis of the blue pixels in digital images was performed using the luminescence tool in Adobe Photoshop version CS5 (Adobe Systems, San Jose, CA) (20). The total fibrosis volume (mm³) in the retrobulbar region of each orbit was calculated without the eyelids and eyeballs. Quantitative analysis of HE-stained retrobulbar adipose tissues was also performed in Adobe Photoshop, with the optic nerve serving as an anatomical landmark.

Most of the pathological features were confirmed by quantitative evaluations. In contrast to a previous study (15), only the fibrosis in the retrobulbar region was calculated rather than the fibrosis in the entire orbit because exophthalmos stems from the increased pressure within the bony cavity of the eye (2).

Measurements of serum TRAbs and thyroid function

TRAbs were measured using a TSH-binding inhibition assay according to the manufacturer's protocol (Medipan GmbH, Berlin, Germany) (21). Total thyroxine (TT4) levels were measured with commercial kits as previously described (21).

Histological examinations of thyroid glands

After euthanasia, cross-sectional incisions were generated above the larynx and below the seventh cartilage ring, and the thyroid glands were removed. Tissue blocks were immersed in 4% neutral paraformaldehyde, dehydrated, and embedded in paraffin. Sections (5 μm) were stained with HE.

Immunohistochemical examinations of the thyroid glands and orbits

Both the thyroid sections (5 μm) and orbital sections (5 μm) were incubated with CD3 antibodies (Servicebio, Wuhan, China). In addition, orbital sections were incubated with interferon-gamma (IFN-γ) (Huaan, Hangzhou, China), interleukin (IL)-4 (Huaan), Foxp3 (Servicebio), and IL-17a (Servicebio) antibodies. Images were captured, and the numbers of IFN-γ+ and IL-4+ cells were counted in three random nonreplicated 400 × fields of each orbit and reported as a ratio (6). The numbers of Foxp3+ and IL-17a+ cells in orbits were similarly enumerated.

Flow cytometry analysis

Spleen lymphocytes were suspended at a concentration of 1 × 10⁷ cells/mL and then stained with FITC-CD4 antibodies (eBioscience, San Diego, CA, USA). Foxp3 expression in CD4+ T cells was detected using a mouse regulatory T (Treg) cell staining kit according to the manufacturer's protocol (eBioscience). CD4+IL-4+, CD4+IFN-γ+, and CD4+IL-17a+ cells were stimulated and detected as previously described (8,21). A four-color flow cytometry analysis was performed (FACSAria; BD Biosciences, San Jose, CA, USA), and data were analyzed using FlowJo 7.6.1 software (BD Biosciences).

RNA sequencing analysis

RNA was isolated from splenocytes and then sequenced after reverse transcription–PCR. Differentially expressed genes (DEGs) were identified through fold change filtering (p < 0.05), as described previously (21). A pathway analysis was performed using Gene Set Enrichment Analysis (GSEA) in the R program (package msigbd, C5) to further explore differences.

Statistical analyses

All data are presented as means and standard deviations (SD). Differences between groups were analyzed using ANOVA or the independent samples t-test. All statistical analyses were performed using SPSS (SPSS 19.0), and p < 0.05 was considered significant.

Results

Orbital histopathology of GO mice

Histopathology and thyroid function were analyzed at predetermined time points (11th, 23rd, and 34th week, namely after four, seven, and nine injections) to thoroughly assess the progression of GO in the mouse model (Fig. 1A). After nine injections, the volume of retrobulbar fibrotic tissue in the Ad-TSHRA-challenged group was markedly increased compared with the corresponding volumes in the Ad-EGFP-challenged group (p = 0.044) [Fig. 1B(b)]. The area of retrobulbar adipose tissue was also increased in the Ad-TSHRA-challenged group (p = 0.022) (Fig. 1C). Using the mean ± 2 SD in the Ad-EGFP-challenged group as the normal range, 7 of 10 mice (12 of 20 orbits) exhibited retrobulbar fibrosis, and 4 of 10 mice (6 of 20 orbits) exhibited retrobulbar adipogenesis in the Ad-TSHRA-challenged group [Fig. 1B(c), C(c) and Table 1]. In addition, one mouse developed exophthalmia and conjunctiva redness, and another mouse developed eyelid hyperplasia and thickening (Fig. 1D). T lymphocyte infiltration in the orbital tissue was also evident in GO mice (Fig. 1E). In summary, the frequency of GO in the Ad-TSHRA-challenged group was 70% (7 of 10 mice) at the end of the study (Table 1). Retrobulbar fibrosis and adipose deposition were first detected after seven injections (23rd week) (Fig. 1B(c), C(c) and Table 1).

Table 1.

Serological and Morphological Changes in the Adenovirus Thyrotropin Receptor A Subunit-Challenged Mice

Week	Injections	Mouse no.	Serum		Pathogenesis					Diagnosis^e
			TRAbs (positive >5.443 IU/L)^a	TT4 (positive >37.773 μg/dL)^b	Thyroid^c	Retrobulbar^d
						Fibrosis		Adipogenesis
						L	R	L	R
11	4	1	43.684	28.128	+	/	/	/	/	NO
11	4	10	75.728	57.431	+	/	/	/	/	GH
11	4	14	47.346	93.351	+	N	N	N	N	GH
11	4	35	37.769	101.625	+	N	N	/	/	GH
11	4	38	21.556	25.516	−	N	N	N	N	NO
11	4	39	54.525	138.732	+	N	N	N	N	GH
23	7	8	25.096	/	+	/	/	/	/	ND
23	7	12	29.573	53.229	+	/	/	/	/	GH
23	7	18	/	/	+	N	N	/	/	ND
23	7	33	65.658	41.645	+	N	+	N	N	GO
23	7	41	82.254	186.912	+	N	N	N	N	GH
23	7	46	25.186	26.772	−	+	N	N	N	GO
34	9	13	28.417	37.855	+	+	+	/	/	GO
34	9	15	44.315	48.359	+	/	/	/	/	GH
34	9	16	60.621	52.567	+	/	/	/	/	GH
34	9	31	29.891	76.006	+	+	+	/	/	GO
34	9	32	24.924	22.991	−	+	N	/	/	GO
34	9	34	105.355	41.275	+	+	+	+	+	GO
34	9	42	49.180	39.691	+	N	+	N	+	GO
34	9	43	149.032	36.691	−	N	N	/	/	NO
34	9	44	29.069	44.986	−	+	+	+	+	GO
34	9	45	12.333	45.549	+	+	+	+	N	GO

A total of nine mice diagnosed with GO (seven after nine injections and two after seven injections), and all of them showed positive TRAbs. Among them, two mice showed negative TT4 (Nos. 32 and 46) and four mice suffered unilateral ocular changes (Nos. 33, 46, 32, and 42).

TRAbs: Ad-EGFP-challenged mice, mean ± 2 SD = 5.443 IU/L. Higher values indicated significant positivity.

TT4: Ad-EGFP-challenged mice, mean ± 2 SD = 37.773 μg/dL. Higher values (bold) indicated hyperthyroidism.

Pathogenesis of thyroid glands: −, normal thyroid morphology; +, proliferation and hypertrophy of follicular cells were observed (Fig. 2D).

Pathogenesis of orbits: +, higher than mean ± 2 SD of the Ad-EGFP-challenged mice; N, normal.

Diagnosis: GO, existing orbital pathogenesis; GH, elevated TT4 without evidence of existing orbital pathogenesis; NO, normal TT4 without evidence of existing orbital pathogenesis; ND, no diagnosis.

/, not determined; Ad-EGFP, adenovirus expressing green fluorescent protein; GH, Graves' hyperthyroidism; GO, Graves' orbitopathy; SD, standard deviation; TRAb, serum autoantibody; TT4, total thyroxine.

Hyperthyroidism in mice immunized with Ad-TSHRA

During the experiment, the daily food intake normalized to body weight was higher in the Ad-TSHRA-challenged group than in the Ad-EGFP-challenged group (Fig. 2A). Persistent hyperthyroidism was confirmed by measuring serum TRAbs and TT4 levels. At all three time points, TRAb levels were elevated in all the Ad-TSHRA-challenged mice, whereas for the Ad-EGFP-challenged mice, TRAbs could not be detected (Fig. 2B and Table 1). After setting the mean ± 2 SD of the TT4 levels in the Ad-EGFP-challenged group as the normal range, TT4 levels were increased in most of the Ad-TSHRA-challenged mice (67%, 50%, and 80% after four, seven, and nine injections, respectively) (Fig. 2C and Table 1).

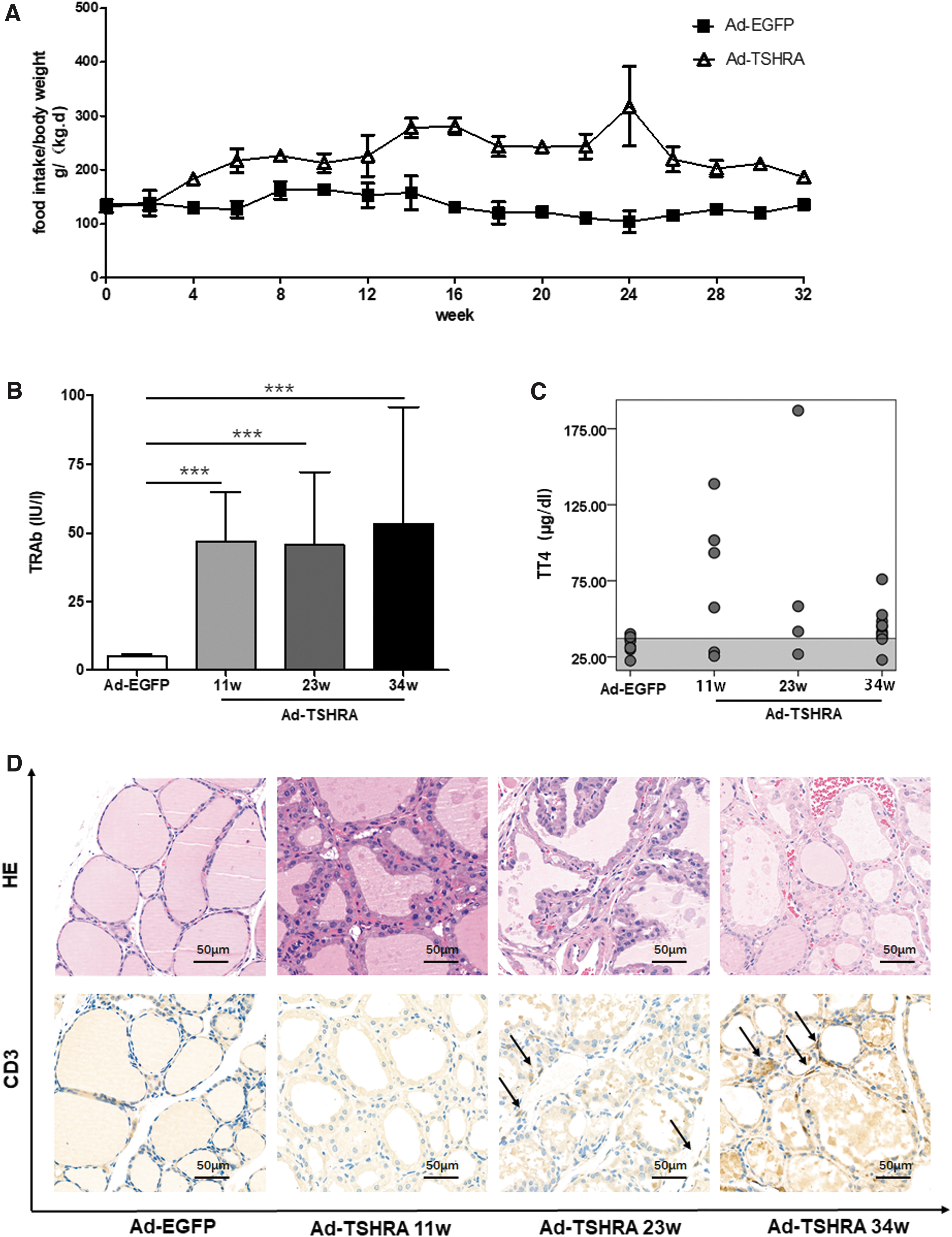

FIG. 2.

(A) Daily food intake normalized to body weight during the entire experiment. (B) TRAb levels of the Ad-EGFP- and Ad-TSHRA-challenged mice at different times. (C) Using the mean ± 2 SD TT4 level of the Ad-EGFP-challenged mice as the normal range, most mice challenged with Ad-TSHRA had high TT4 levels (4/6, ¾, and 8/10 in weeks 11, 23, and 34, respectively). (D) Thyroid pathology of the Ad-EGFP- and Ad-TSHRA-challenged mice at different times ( × 40). Infiltrating lymphocytes are indicated by arrows. ***p < 0.001. TRAb, serum autoantibody; TT4, total thyroxine.

Histopathological changes in the thyroid glands

Thyroid glands from all mice were harvested and stained with HE (Fig. 2D). Unlike the Ad-EGFP-challenged mice, hyperplastic changes in the thyroid could be observed in the Ad-TSHRA-challenged mice at all three time points (after four, seven, and nine injections). In particular, thyroid follicular cells exhibited a cuboidal or tall columnar morphology and had papillary folds and protrusions into the follicular cavity.

Immunohistochemistry for CD3 was also performed in the thyroid glands (Fig. 2D). No T lymphocyte infiltration was observed after four injections (at the 11th week) in our study or in the adenovirus-induced GD mouse model reported in previous studies (7,9). However, T lymphocyte infiltration was observed in the thyroid gland after seven and nine injections (at the 23rd and 34th week, respectively).

Changes in CD4+ T cell subsets during immunization

The relationship between T cells and autoimmune diseases has been extensively studied (18,22 –27). Several subsets of T helper (Th) cells were analyzed to further explore the changes in the immune status during the experiment. Among human peripheral blood cells, CD4+IFN-γ+ T cells secrete IFN-γ, which is a representative Th1-type cytokine, and CD4+IL-4+ T cells secrete IL-4, which is a representative Th2-type cytokine (28). Foxp3 is a specific transcription factor in Treg cells that play an important role in regulating development and function (29). Therefore, in this study, IFN-γ+, IL-4+, and Foxp3+CD4+ T cells were chosen to reflect Th1, Th2, and Treg cell functions, respectively.

The percentage of Th1 cells was significantly increased (p = 0.024), and the percentage of Th2 cells was significantly decreased (p < 0.001) in the Ad-TSHRA-challenged mice after nine injections (at the 34th week) compared with the Ad-EGFP-challenged mice (Fig. 3B). A noticeably lower proportion of Treg cells was detected in the Ad-TSHRA-challenged group than in the Ad-EGFP-challenged group (p = 0.001) (Fig. 3A). However, the Th17 proportion in the two groups was not significantly different (Fig. 3B), which was most likely related to the genetic background of the mice (30). In addition, the proportion of Th2 cells was lower after nine injections (at the 34th week) than after four injections (at the 11th week) (p = 0.022). No other differences were observed among the three time points.

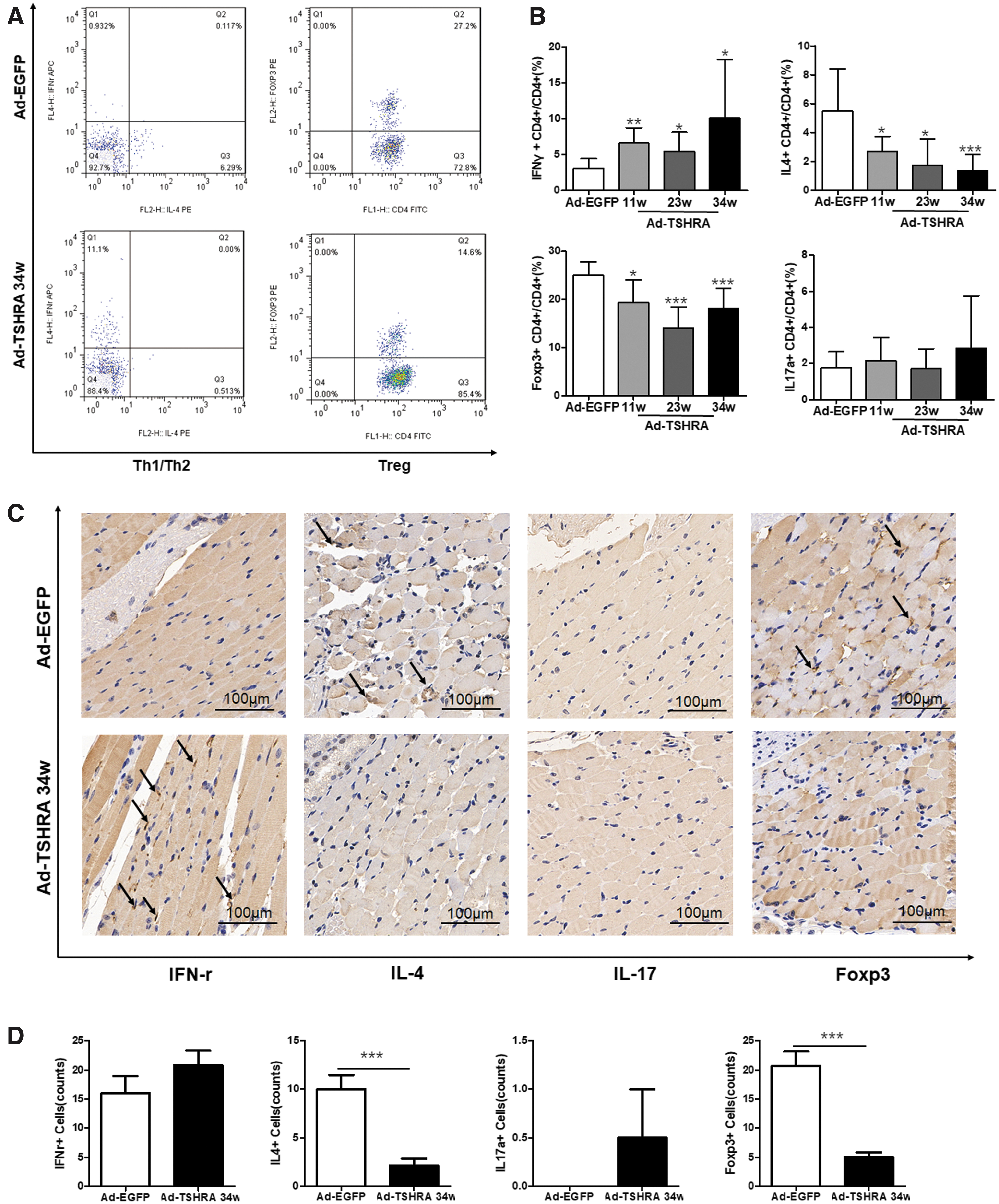

FIG. 3.

(A) Flow cytometric analysis of Th1 and Th2 cells and Tregs of the Ad-EGFP- and Ad-TSHRA-challenged mice at week 34. (B) Ratios of Th1, Th2, and Th17 cells and Tregs of the Ad-EGFP- and Ad-TSHRA-challenged mice at different times. (C) Orbital immunohistochemical results of the Ad-EGFP- and Ad-TSHRA-challenged mice at week 34. The positive cells are shown in black arrows. (D) Numbers of interferon-gamma+, interleukin-4+, IL-17a+, and Foxp3+ cells in orbits of the Ad-EGFP- and Ad-TSHRA-challenged mice. *p < 0.05, **p < 0.01, ***p < 0.001.

The Th1 dominance in the Th1/Th2 balance and Treg cell elimination were confirmed by orbital immunohistochemical staining. After nine injections, the Ad-TSHRA-challenged mice displayed a significantly decreased number of IL-4+ and Foxp3+ cells in the orbits compared with the Ad-EGFP-challenged mice (p = 0.001 and p < 0.001, respectively) (Fig. 3C, D). Noticeably, IFN-γ+ cells had infiltrated in the two orbits of the Ad-TSHRA-challenged mice (Fig. 3C). Although the number of IFN-γ+ cells was not significantly different in the two groups, the ratio of IFN-γ+:IL-4+ cells was significantly increased in the Ad-TSHRA-challenged mice (p = 0.042). No IL17a+ cells were observed in the orbits of both groups.

DEGs and pathways in RNA sequencing analysis

RNA sequencing was performed in nine mice: three mice challenged with Ad-EGFP, three mice that received three injections of Ad-TSHRA (at the 11th week) and were diagnosed with GH (Nos. 14, 35, and 39), and three mice that received nine injections of Ad-TSHRA (at the 34th week) and were diagnosed with GO (Nos. 34, 42, and 44).

Compared with the mice challenged with Ad-EGFP, 1061 downregulated genes and 160 upregulated genes were identified in the gene expression profile of GO mice (at the 34th week) (Fig. 4A). An analysis of gene ontology terms revealed that the top 20 upregulated signatures in the GO mice included the T cell receptor (TCR) pathway, leukocyte proliferation, and regulation of cell–cell adhesion (Fig. 4B). Moreover, terms related to positive regulation of the acute inflammatory response (p = 0.035, normalized enrichment score [NES] = 1.537) and regulation of cell killing (p = 0.011, NES = 1.823) were also upregulated in the GO mice.

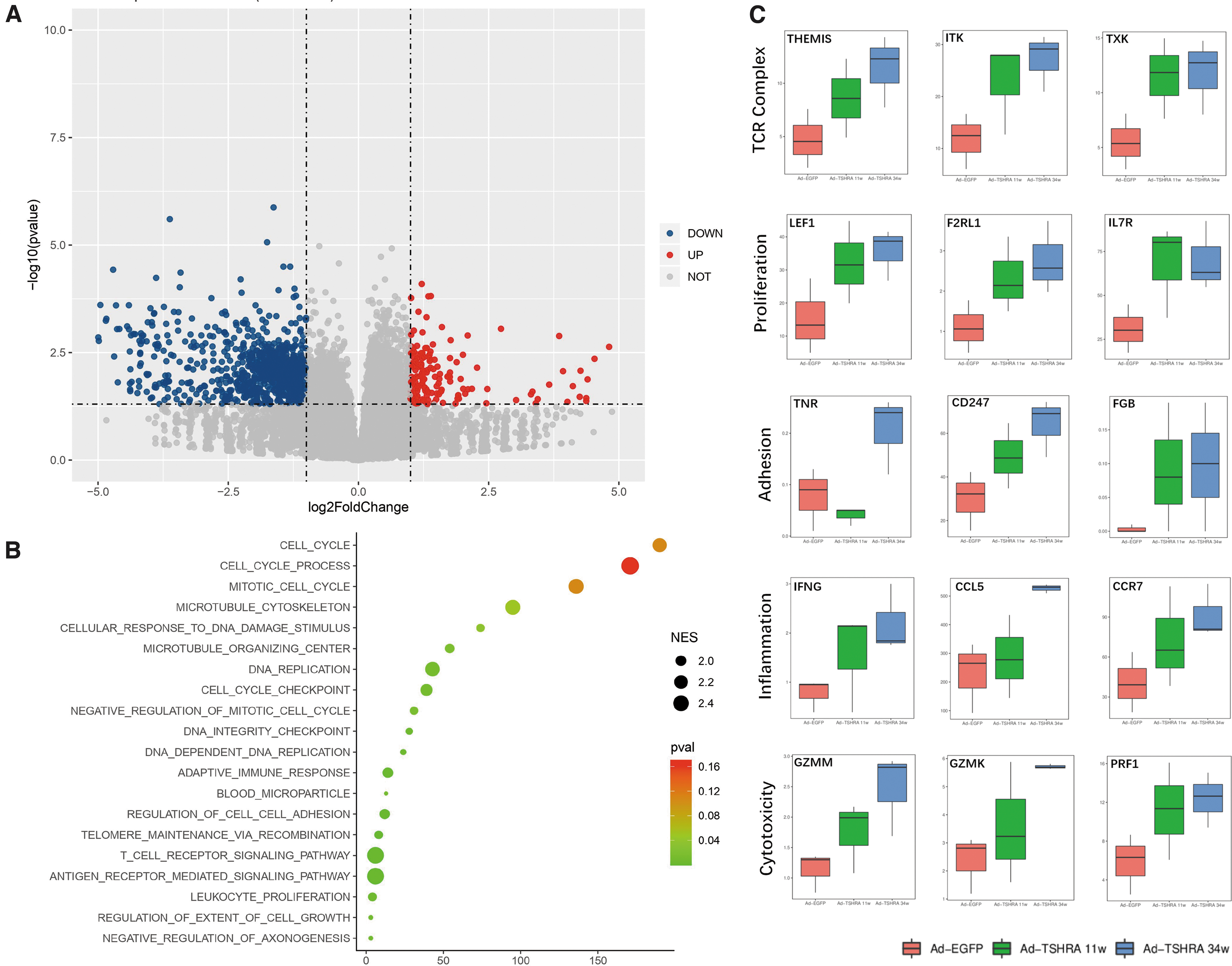

FIG. 4.

(A) DEGs in GO mice compared with normal mice. (B) Top 20 upregulated signatures revealed by GSEA in GO mice compared with normal mice. (C) Fragments per kilobase of exon model per million mapped fragments of genes expressed in normal, GH, and GO mice. DEGs, differentially expressed genes; GH, Graves' hyperthyroidism; GO, Graves' orbitopathy; GSEA, Gene Set Enrichment Analysis.

A more detailed analysis confirmed that spleen cells expressed TCR complex-, proliferation-, inflammation-, and cytotoxicity-related genes at significantly higher levels in GO mice than in mice challenged with Ad-EGFP (Fig. 4C). Furthermore, a tendency toward upregulation of genes, particularly inflammation- and cytotoxicity-related genes (IFNG, CCL5, CCR7, GZMM, and GZMK), in the GH mice (after four injections) was observed, although it was not statistically significant (Fig. 4C). Based on these findings, changes in the T cell immunity associated with GO evolved in mice with hyperthyroidism without orbitopathy.

Discussion

In the present study, we established a mouse model of GO with a high frequency (70%) by administering nine injections of Ad-TSHRA. The progression from GH to GO was also observed and highlighted by a series of changes in T cell immunity.

After prolonged immunizations with Ad-TSHRA, retrobulbar adipogenesis, lymphocyte infiltration, and several clinical signs, in addition to the previously reported fibrosis, were observed for the first time in this long-term animal model (14 –17). The frequency of the orbital changes was 70% and was consistent with the incidence of subclinical eye involvement (2,31). Hyperthyroidism was also observed and was manifested as positive TRAbs, elevated TT4 levels, and hyperplastic thyroid morphology compared with the most orbitopathy models reported in previous studies (6,19,32). In summary, this model recapitulated most of the characteristics of an ideal GO model (32).

Both GO and GH mainly depend on T cells (2,18). In our GO model, CD3+ lymphocytes were observed in both the thyroid gland and the orbit. The Th1 dominance in the Th1/Th2 cell balance and Treg cell elimination were present both in the spleen and in the orbit (24,33 –38). Moreover, in splenocytes of GO mice, the expression of genes involved in pathways related to the TCR complex, proliferation, adhesion, inflammation, and cytotoxicity was upregulated. Cytokines secreted by Th1 cells regulate the recruitment of inflammatory cells and subsequently promoting orbital remodeling (2). Additionally, the increased activity of the TCR complex may also be related to positive TRAbs from B cells, due to its importance in antigen recognition (2,39). Thus, we postulated that T cell immunity was a critical component of the pathogenesis of GO, particularly in initiating and perpetuating the autoimmune-inflammation cascade.

The progression from GH to GO was reproduced in the model, and the GO-specific T cell immunity observed during the progression should be of particular concern. Hyperthyroidism, similar to other reported studies (7,9), was observed after four injections, whereas orbitopathy was identified after seven injections. CD3+ T lymphocyte infiltration and an imbalance of CD4+ Th cells in the orbits also followed these changes in the thyroid or the spleen. In addition to positive TRAbs (19), the functional changes in T cell immunity described above are responsible for the onset of GO, which already existed in the splenocytes of mice with hyperthyroidism after four injections. Thus, a time window for the progression from GH to GO (after four injections) corresponding to clinical findings was identified in our model (18); this time window might be defined as a “latent phase” of GO, during which GO-specific T cell immunity evolves in mice with hyperthyroidism before ophthalmopathy occurs.

Although much of the orbital changes coexisted with hyperthyroidism, two mice only exhibited orbital lesions (Ad-TSHRA-injected mouse Nos. 32 and 46) (Table 1). This phenomenon is consistent with a few cases called euthyroid Graves' ophthalmopathy (EGO), which is defined as the presence of thyroid-associated ophthalmopathy in patients with normal thyroid function (40,41). Most of the patients with EGO proved to be TRAb-positive (including stimulating and inhibiting antibodies), but the underlying mechanism is currently unknown (41). Only a few antibodies generated in BALB/c mice immunized with human TSHRA cross-react with the mouse TSHR to induce GH, likely due to the heterogeneity of TSHR between humans and mice (42). Therefore, further studies are needed to clarify the mechanism.

There are several limitations of this study. First, both stimulating and blocking antibodies coexist in the serum of mice immunized with the TSHR cDNA (10,11,13); however, only the total levels of TRAbs were measured in this study due to technical limitations. We suggest that the detected antibodies were predominantly stimulating antibodies because of the elevated TT4 levels. Second, we did not perform orbital 7-T magnetic resonance imaging to observe changes in extraocular muscles, which should be conducted in future studies. Finally, the area of adipose tissue was not calculated in all mice because of technical limitations.

Taken together, a murine model of GO was successfully induced by immunizations with Ad-TSHRA, with a high frequency (70%). The important role of T cells in the pathogenesis of GO was characterized, and the progression from GH to GO was reproduced for the first time in our study. This model will be a useful tool for further pathogenesis studies and therapeutic management of GO.

Footnotes

Author Disclosure Statement

No competing financial interests exist.

Funding Information

This study was supported by the National Key R&D Program of China [Grant No. 2018YFC1311500 (B.-Y.S.)], the National Science Foundation of China (NSFC) [Grant Nos. 81500690 (Y.W.) and 81970679 (B.-Y.S.)], the Natural Science Foundation of Shaanxi Province [Grant No. 2018JM70990 (Y.W.)], the Key Research and Development Project of Shaanxi Province [Grant No. 2017ZDXM-SF-060 (B.-Y.S.)], the Fundamental Research Funds for the Central Universities [Grant No. 1191329875 (Y.W.)], and the China Postdoctoral Science Foundation [Grant No. 224646 (Y.W.)].
