Enhancing Radioiodine Incorporation in BRAF -Mutant,Radioiodine-Refractory Thyroid Cancers with Vemurafenib and the Anti-ErbB3 Monoclonal Antibody CDX-3379: Results of a Pilot Clinical Trial

Abstract

Background:

Oncogenic activation of mitogen-activated protein kinase (MAPK) signaling is associated with radioiodine refractory (RAIR) thyroid cancer. Preclinical models suggest that activation of the receptor tyrosine kinase erbB-3 (HER3) mitigates the MAPK pathway inhibition achieved by BRAF inhibitors in BRAF^V600E mutant thyroid cancers. We hypothesized that combined inhibition of BRAF and HER3 using vemurafenib and the human monoclonal antibody CDX-3379, respectively, would potently inhibit MAPK activation and restore radioactive iodine (RAI) avidity in patients with BRAF-mutant RAIR thyroid cancer.

Methods:

Patients with BRAF^V600E RAIR thyroid cancer were evaluated by thyrogen-stimulated iodine-124 (¹²⁴I) positron emission tomography–computed tomography (PET/CT) at baseline and after 5 weeks of treatment with oral vemurafenib 960 mg twice daily alone for 1 week, followed by vemurafenib in combination with 1000 mg of intravenous CDX-3379 every 2 weeks. Patients with adequate ¹²⁴I uptake on the second PET/CT then received therapeutic radioactive iodine (¹³¹I) with vemurafenb+CDX-3379. All therapy was discontinued two days later. Treatment response was monitored by serum thyroglobulin measurements and imaging. The primary endpoints were safety and tolerability of vemurafenib+CDX-3379, as well as the proportion of patients after vemurafenb+CDX-3379 therapy with enhanced RAI incorporation warranting therapeutic ¹³¹I.

Results:

Seven patients were enrolled; six were evaluable for the primary endpoints. No grade 3 or 4 toxicities related to CDX-3379 were observed. Five patients had increased RAI uptake after treatment; in 4 patients this increased uptake warranted therapeutic ¹³¹I. At 6 months, 2 patients achieved partial response after ¹³¹I and 2 progression of disease. Next-generation sequencing of 5 patients showed that all had co-occurring telomerase reverse transcriptase promoter alterations. A deleterious mutation in the SWItch/Sucrose Non-Fermentable (SWI/SNF) gene ARID2 was discovered in the patient without enhanced RAI avidity after therapy and an RAI-resistant tumor from another patient that was sampled off-study.

Conclusions:

The endpoints for success were met, providing preliminary evidence of vemurafenib+CDX-3379 safety and efficacy for enhancing RAI uptake. Preclinical data and genomic profiling in this small cohort suggest SWI/SNF gene mutations should be investigated as potential markers of resistance to redifferentiation strategies. Further evaluation of vemurafenib+CDX-3379 as a redifferentiation therapy in a larger trial is warranted (ClinicalTrials.gov: NCT02456701).

Introduction

B RAF ^V600E is associated with radioactive iodine (RAI; ¹³¹I)–refractoriness in follicular cell-derived thyroid cancers. In RAI-refractory (RAIR) preclinical models, mutant BRAF abolishes RAI uptake through activation of the mitogen-activated protein kinase (MAPK) signaling pathway and suppression of the transcriptional program required for iodine concentration (1,2). Pharmacologic MAPK pathway inhibition can restore thyroid-specific gene expression and tumor RAI avidity (“redifferentiation”).

In a proof-of-principle clinical trial with the MEK1/2 inhibitor selumetinib and quantitative iodine-124 (¹²⁴I) positron emission tomography–computed tomography (PET/CT) lesional dosimetry, we demonstrated that RAI uptake and efficacy could be restored in a subset (8/20) of patients with RAIR thyroid cancer (3). However, only one of nine participants with BRAF^V600E tumors benefited (3). With the BRAF inhibitor vemurafenib, we observed enhanced ¹²⁴I uptake in 4 of 10 patients; after ¹³¹I, 2 patients achieved partial response (PR) and 2 stable disease (SD) (4). Paired biopsies showed that the tumor with the most robust MAPK pathway inhibition, and restoration of thyroid gene expression also had the highest enhancement of RAI avidity (4). Similar clinical outcomes were reported in a trial with the BRAF inhibitor dabrafenib and in retrospective series (5 –7).

Preclinical data suggest that only incremental increases in MAPK inhibition (∼10–15%) is necessary to evince significantly enhanced redifferentiation (2). Inhibitors that selectively inhibit monomeric BRAF^V600E release negative feedback signals leading to increased expression of epidermal growth factor receptor 3 (ERBB3; or HER3), which in the context of high neuregulin-1 (HER3 ligand) levels heterodimerizes with ERBB2 (HER2) to induce MAPK and PI3K/Akt pathway reactivation (8). Lapatinib, an inhibitor of ERBB2/ERBB3, extinguishes these rebound signaling events and enhances vemurafenib antitumor effects (8).

We hypothesized that potent inhibition of MAPK signaling through combined targeting of BRAF and ERBB3 would enhance iodine avidity in BRAF^V600E RAIR thyroid cancer patients. CDX-3379 (formerly KTN3379; Celldex), a human monoclonal antibody with specificity for the extracellular domain of ERBB3, locks the protein into an inactive conformation to inhibit both ligand-dependent and ligand-independent pathway activation (9). We conducted a pilot trial to evaluate the safety, tolerability, and redifferentiation potential of vemurafenib plus CDX-3379 in BRAF^V600E RAIR patients.

Materials and Methods

Patients

The Memorial Sloan Kettering Cancer Center (MSK) Institutional Review Board (IRB) approved this research. All patients provided written informed consent. Eligible patients had RAIR thyroid carcinoma of follicular cell origin with BRAF^V600E and measurable disease defined by the Response Evaluation Criteria in Solid Tumors, version 1.1 (RECIST v1.1). Tumors were classified according to the World Health Organization classification of endocrine tumors (10), except for poorly differentiated thyroid carcinoma (PDTC), which was diagnosed using MSK criteria (11). RAIR disease was defined as: (a) a non-RAI-avid metastatic lesion on a diagnostic scan ≤2 years before enrollment; (b) an RAI-avid lesion of stable size or which progressed despite therapeutic RAI ≥6 months before study entry; or (c) ≥1 18F-fluorodeoxyglucose-avid lesion(s) with SUV_max ≥5. Full eligibility criteria are given in Supplementary Figure S1.

Study design

This was a single-arm, single-center trial. Figure 1 provides the study schema. Patients underwent thyrogen-stimulated (Sanofi Genzyme) ¹²⁴I PET/CT for lesional dosimetry on a low-iodine diet and then received oral vemurafenib 960 mg twice daily. After a 1-week vemurafenib run-in, 1000 mg CDX-3379 was concurrently administered intravenously (IV) during weeks 3 and 5 (vem+CDX-3379). During week 6, patients underwent a second (on-treatment) thyrogen-stimulated ¹²⁴I PET/CT scan; if lesional dosimetry met the threshold to warrant therapeutic ¹³¹I (≥2000 cGy could be delivered to ≥1 tumor using ≤300 mCi of ¹³¹I), patients received a third dose of CDX-3379 during week 7 while continuing vemurafenib. These patients underwent whole body and blood ¹³¹I dosimetry to determine ¹³¹I maximum tolerated activity (MTA). Each patient's clinical data, ¹²⁴I PET lesional dosimetry results, and MTA were reviewed in a multidisciplinary meeting to determine the ¹³¹I activity to be administered. ¹³¹I was given on week 8. Vemurafenib was discontinued two days after ¹³¹I or discontinued after the second ¹²⁴I PET/CT for patients who did not meet the lesional dosimetry threshold.

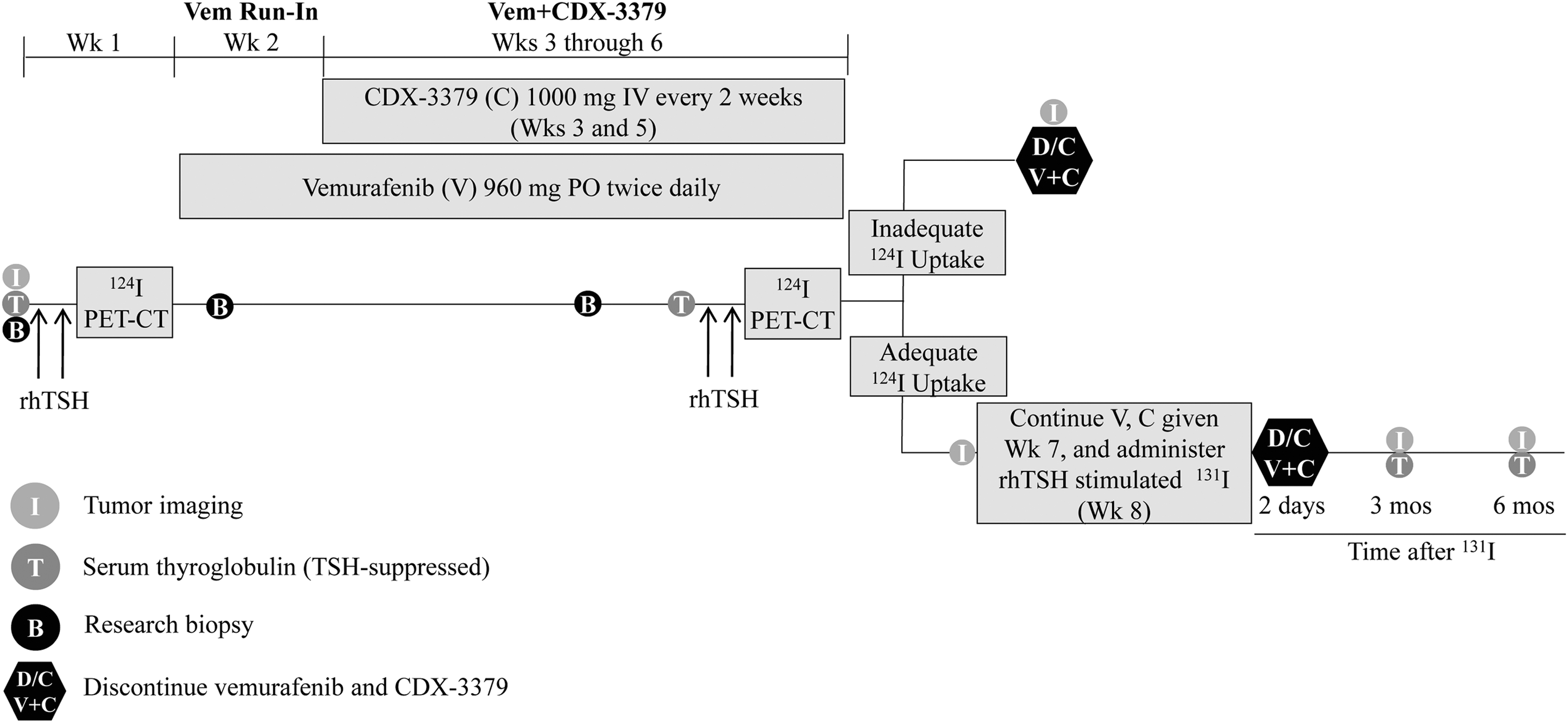

FIG. 1.

Study schema. Vem or V, vemurafenib; C, CDX-3379; D/C, discontinue; B, research biopsy; I, tumor imaging; ¹²⁴I PET-CT, iodine-124 positron emission tomography–computed tomography; ¹³¹I, radioactive iodine; IV, intravenous; mos, months; PO, orally once a day; rhTSH, recombinant human thyrotropin or thyrogen; T, serum thyroglobulin (TSH-suppressed); Wk, week.

Tumor imaging (CT without contrast or MRI) was performed at baseline, before therapeutic ¹³¹I, and 3 months (±1 month) and 6 months (±1 week) post-¹³¹I. Patients who did not receive ¹³¹I had imaging performed ≤3 weeks after the second ¹²⁴I PET/CT scan. Analyses of research biopsies and associated tumor genetic data for two patients obtained in this trial have been published previously (12).

Next-generation sequencing

Five cases were evaluated using the next-generation sequencing (NGS) MSK-IMPACT (MSK-Integrated Mutation Profiling of Actionable Cancer Targets) platform, an FDA-approved assay for evaluating genetic alterations in >300 cancer-related genes (13,14). Genomic data were analyzed through the cBioPortal for Cancer Genomics (15,16).

Data analysis

The primary objectives were to determine the proportion of BRAF-altered RAIR thyroid cancer patients who had sufficiently increased tumoral iodine incorporation after vem+CDX-3379 to warrant therapeutic ¹³¹I as determined by ¹²⁴I PET/CT lesional dosimetry, and to evaluate the safety and tolerability of vem+CDX-3379. Secondary objectives were to evaluate whether vem+CDX-3379 enhanced ¹³¹I activity as assessed by overall response and progression-free survival rates at six months by RECIST v1.1, and to evaluate changes in serum thyroglobulin in patients treated with ¹³¹I. Toxicity was assessed through 30 days following the last dose of CDX-3379 using the Common Terminology Criteria for Adverse Events version 4.0 (CTCAE v4.0).

Statistical considerations

Target accrual for the study was 10 patients. For the redifferentiation primary objective, the prespecified threshold for a positive study was 2 of 10 patients with sufficiently increased tumoral iodide incorporation to warrant therapeutic ¹³¹I. If the true response rate in the population was <5%, the probability of seeing ≥2 responses in 10 patients would be <10%, making the threshold of ≥2 responses indicative of study drug activity. For the safety primary objective, a run-in phase was planned such that if ≥2 of the first 6 patients developed a grade 3 or 4 toxicity attributed to CDX-3379, then the regimen would be deemed unsafe and accrual would be halted.

Results

Patient baseline characteristics

After enrolling seven patients with RAIR BRAF^V600E thyroid cancer between August 2015 and June 2016 (Supplementary Fig. S2), the study was terminated before target accrual was met owing to sponsor decision. Table 1 summarizes the clinicopathological characteristics of patients enrolled. The median age was 67 years (range, 50–83 years); 6 patients were male and 1 was a female patient. Four patients had papillary thyroid carcinoma (PTC; two classical variant, two tall cell variant); three had PDTC (11). Six patients had prior ¹³¹I (one treatment each; range, 29.4–241.9 mCi). One patient who had locally aggressive tumor with tracheal and esophageal invasion had been treated with surgical resection followed by doxorubicin plus intensity-modulated radiation. Only one other patient was previously treated with doxorubicin chemoradiation, and none had prior exposure to tyrosine kinase inhibitors. The trial did not require progressive disease (PD) for enrollment, although all seven patients had evidence of increased tumor growth or appearance of new tumor deposits within one year of baseline study imaging.

Table 1.

Baseline Clinicopathological Characteristics of All Patients (n = 7)

Characteristic	n (%)^a
Age, years
Median	67
Range	50–83
Sex
Male	6 (86)
Female	1 (14)
Tumor histology
Classical variant papillary thyroid cancer	2 (29)
Tall cell variant papillary thyroid cancer	2 (29)
Poorly differentiated thyroid cancer^b	3 (42)
Tumor genotype
BRAF^V600E mutation	7 (100)
Prior treatments of ¹³¹I per patient
0	1 (14)
1	6 (86)
Other prior treatments for thyroid cancer
Doxorubicin (concurrently with RT)	2 (29)
VEGFR-targeted TKI	0 (0)
Sites of disease
Local (thyroid bed, neck nodes or mediastinal extension/nodes)	7 (100)
Lungs	6 (86)
Distant nodes (hilar, paraaortic, subcarinal)	2 (29)
Soft tissue nodules	1 (14)
Bone	1 (14)

Values are given as number of patients (%) unless otherwise specified; percentages are calculated based on the total number of patients enrolled (n = 7).

Poorly differentiated thyroid carcinoma was defined by mitoses and tumor necrosis (11).

131

I, radioactive iodine; RT, radiation therapy; TKI, tyrosine kinase inhibitor; VEGFR, vascular endothelial growth factor receptor.

Safety analysis

All seven patients were treated with vemurafenib. One patient had a grade 3 maculopapular rash on vemurafenib alone in the context of an infectious respiratory illness and was removed from the study before receiving CDX-3379 (Patient 6); 3 received three doses of CDX-3379 and therapeutic ¹³¹I (Patients 2, 4, and 5); 1 received four doses of CDX-3379 and therapeutic ¹³¹I because of a vemurafenib-related toxicity delay (Patient 1); and 2 did not qualify for therapeutic ¹³¹I and received only two doses of CDX-3379 (Patients 3 and 7). Vemurafenib dosing was modified for three patients, including a hold followed by reduction to 720 mg twice daily for grade 3 maculopapular rash/mucositis and grade 2 hand-foot syndrome (HFS; Patient 1); reduction to 720 mg twice daily for grade 3 diarrhea (Patient 4); and a hold for grade 1 fever but later resumed at full dose (Patient 3) (Table 2). The most frequent CDX-3379-related toxicities were diarrhea, nausea, arthralgia, HFS, alkaline phosphatase elevation, and maculopapular rash (Table 3). No dose reductions or delays were required for CDX-3379-related toxicity, and no grade 3 or 4 toxicities were attributable to CDX-3379. The most common toxicities overall were maculopapular rash, diarrhea, arthralgia, HFS, nausea, and alkaline phosphatase elevation.

Table 2.

Toxicity Attributable to Vemurafenib

Toxicity possibly, probably, or definitely related to vemurafenib	Grade 1	Grade 2	Grade 3	Total
Maculopapular rash	3		2	5
Nausea	4			4
Diarrhea	2		1	3
Arthralgia	2	1		3
Alanine aminotransferase elevation	2			2
Alkaline phosphatase elevation	2			2
Fatigue	2			2
Plantar-palmar erythrodysesthesia syndrome^a	1	1		2
Pruritus	2			2
Acneiform rash	2			2
Actinic keratosis	1			1
Alopecia	1			1
Anemia	1			1
Anorexia	1			1
Aspartate aminotransferase elevation	1			1
Bloating		1		1
Creatinine increased	1			1
Dehydration	1			1
Dry skin	1			1
Dysgeusia	1			1
Elevated bilirubin		1		1
Fever	1			1
Hoarseness	1			1
Hypophosphatemia		1		1
Mucositis			1	1
Myalgia		1		1
Pain with swallowing	1			1
Watering eyes	1			1
Weight loss	1			1
Hypokalemia	1			1

Plantar-palmar erythrodysesthesia syndrome is also known as hand-foot syndrome.

Table 3.

Toxicity Attributable to CDX-3379

Toxicity possibly, probably, or definitely related to CDX-3379	Grade 1	Grade 2	Total
Diarrhea	2	1	3
Nausea	3		3
Arthralgia	2		2
Plantar-palmar erythrodysesthesia syndrome^a	1	1	2
Alkaline phosphatase elevation	2		2
Maculopapular rash	2		2
Acneiform rash	1		1
Actinic keratosis	1		1
Anorexia	1		1
Dehydration	1		1
Dysgeusia	1		1
Fever	1		1
Hoarseness	1		1
Pain with swallowing	1		1
Weight loss	1		1
Bloating/PT = abdominal distension		1	1
Hypokalemia	1		1

Plantar-palmar erythrodysesthesia syndrome is also known as hand-foot syndrome.

Efficacy

All seven enrolled subjects had multiple tumors negative for ¹²⁴I uptake at baseline, including three patients without any detectable RAI avidity, verifying RAIR disease status (Table 4). Six patients were evaluable for redifferentiation and response to vem+CDX-3379 with or without ¹³¹I (Table 4). Imaging was repeated in three patients on treatment before therapeutic ¹³¹I; all had minor tumor regressions (−10%, −13%, and −21%) after vem+CDX-3379 alone. Of the 5 patients (83%) with increased ¹²⁴I avidity after vem+CDX-3379 alone, 4 (67%) had sufficient change to warrant therapeutic ¹³¹I (Fig. 2); they underwent whole-body and blood dosimetry and were treated with a range of ¹³¹I doses below the calculated MTA (range, 197–299 mCi; 30–97% of MTA) (Table 4).

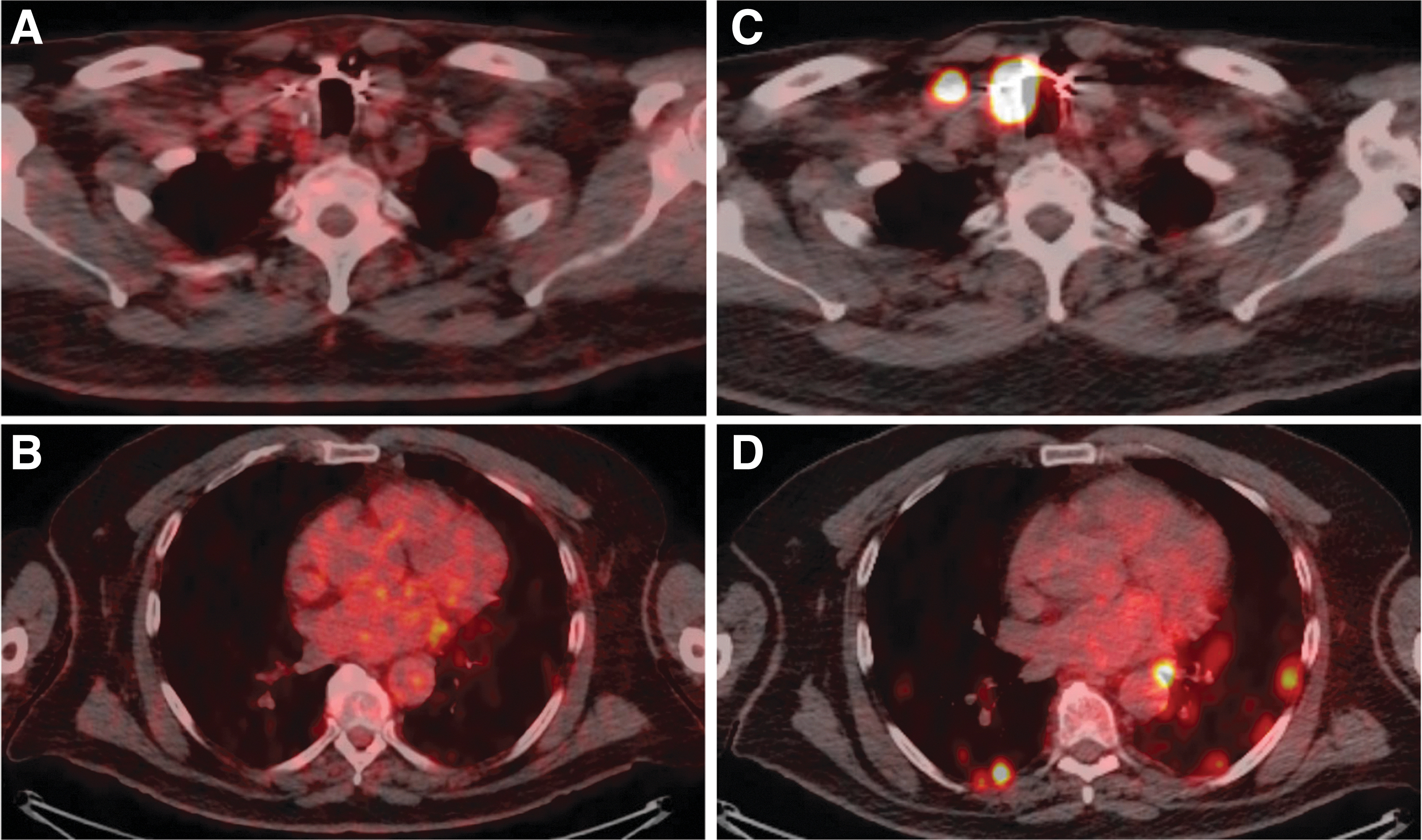

FIG. 2.

Imaging of ¹²⁴I avidity in Patient 4 at baseline and after combination vemurafenib plus CDX-3379. Baseline imaging of Patient 4 from the first ¹²⁴I PET-CT lesional dosimetry showed no avidity in either the (A) thyroid bed, metastatic lymph node, or (B) lung metastases. Imaging from the second ¹²⁴I PET-CT lesional dosimetry showed increased avidity after vemurafenib plus CDX-3379 in both the (C) thyroid bed, metastatic lymph node, and (D) lung metastases.

Table 4.

Redifferentiation and ¹³¹I Efficacy Outcomes Achieved for All Patients (N = 7)

Patient no.	Thyroid pathology	Metastatic disease sites^a	Lifetime ¹³¹I received before study, mCi (no. doses given)	Baseline ¹²⁴I avidity (avid organ site)	Increased ¹²⁴I avidity with V+C/lesional dosimetry threshold for ¹³¹I met?	¹³¹I given/MTA, mCi (% of MTA given)	Tumor size change with V + C alone relative to baseline, %	Tumor size change 3 months post-tx with ¹³¹I relative to baseline, %	Tumor size change 6 months post-tx with ¹³¹I relative to baseline, %	Best overall response at 6 months
¹³¹I treated
1	PDTC	L, TB, ML	29 (1)	+ (ML, TB)	Yes/Yes	284/293 (97)	−21%	−42%	−42%	PR
2	PTC (TCV)	TB, L, NL	200 (1)	None	Yes/Yes	197/588 (34)	−13%	−10%	—	PD
4	PTC	TB, NL, PT, L	125 (1)	None	Yes/Yes	299/571 (52)	−10%	−30%	−50%	PR
5	PDTC	TB, PT, HL, ML, OL. ST^b	0	+ (PT, TB)	Yes^b /Yes	201/668 (30)	—	6%^b	—	PD^b
No¹³¹I given
3	PTC	L, TB	242 (1)	+ (TB, L)	Yes^c/No	—	−8%^d	Brain metastasis detected/treated almost 3 years after study treatment
6	PTC (TCV)	TB, NL, ML, L	175 (1)	None	—	—	5%^e	Did not receive CDX-3379, treated with vem only on study; initiated systemic therapy ∼3 years after vem
7	PDTC	TB, NL, L, B, ST	102 (1)	+ (TB, L)	No/No	—	−31%^f	Initiated systemic therapy immediately after coming off study

Italicized metastatic disease site indicates metastatic sites identified by ¹²⁴I PET/CT only.

Heterogeneous response with increased ¹²⁴I was noted in the thyroid bed and paratracheal disease, but not in the hilar, mediastinal, and obturator lymph nodes or the soft tissue deposit. Tumor growth after three months of ¹³¹I was noted at sites lacking ¹³¹I avidity, resulting in a RECIST designation of PD.

New, increased ¹²⁴I uptake with study therapy that met lesional dosimetry criteria for ¹³¹I therapy but was not treated because a structural correlate for the former could not be identified on imaging.

Imaging performed ∼7 months after last dose of study drugs.

Imaging performed ∼7 months after last dose of vemurafenib; did not receive CDX-3379.

Comparison of neck disease was carried out between MRI at baseline and CT performed within ∼1 month of drug therapy. Lung nodules that were measured were compared between CT scans.

124

I PET-CT, iodine-124 positron emission tomography–computed tomography; B, bone; HL, hilar lymph node; L, lung; ML, mediastinal lymph node; MTA, maximum tolerable activity (calculated by blood dosimetry); NL, neck lymph node; OL, obturator lymph node; PD, progression of disease; PDTC, poorly differentiated thyroid carcinoma; PR, partial response; PT, paratracheal disease; PTC, papillary thyroid carcinoma; post-tx, post-treatment; ST, soft tissue deposit; TB, thyroid bed; TCV, tall cell variant; V+C, vemurafenib plus CDX-3379.

Two of these patients had a confirmed PR 6 months after receiving therapeutic ¹³¹I (−42%, −50%) while remaining off other therapy for >3 years (Patient 1, > 36 months [lost to follow-up]; Patient 4, >47 months [surveillance ongoing]). Patient 2 had SD at three months post-therapeutic ¹³¹I but was designated PD owing to initiating new thyroid cancer treatment before the six-month response assessment. Patient 5 had PD at three months; details of that case are described below. Patient 3 had increased ¹²⁴I avidity, including a thyroid bed focus that met criteria for therapeutic ¹³¹I and new/increased iodine uptake in lung metastases, but was not treated because a structural correlate for the former could not be identified on CT imaging. Outcomes for all three patients not treated with ¹³¹I are detailed in Table 4. Table 5 provides the changes in serum thyroglobulin and thyrotropin values for all vem+CDX-3379-treated patients.

Table 5.

Serum Thyroglobulin and Thyrotropin Levels in Six Patients Who Received Vemurafenib Plus CDX-3379

Patient no.	Tg at baseline (TSH)	Tg on W6D1 V+C (TSH)	Tg at ∼5 weeks post-tx with ¹³¹I (TSH)	Tg at ∼3 months post-tx with ¹³¹I (TSH)	Tg at ∼6 months post-tx with ¹³¹I (TSH)
¹³¹I treated
1	18.7 (2.30)	22.9 (6.22)	75.6 (17.89)	19.8 (0.87)	11.3 (0.02)
2	101.3 (0.25)	79.1 (1.56)	118.4 (0.47)	132.3 (0.4)	NA
4	196.8 (0.88)	11.5 (0.53)	25.8 (5.44)	6.7 (2.40)	3.7 (0.05)
5	0.2 (0.14)	0.1 (3.48)	0.1 (0.26)	<0.1 (0.19)	NA
No ¹³¹I given
3	549.0 (0.02)	176.3 (0.19)	NA	NA	323.8 (0.02)^b
7	<0.1^* (0.09)	<0.1^* (0.40)	NA	<0.1^* (3.87)^c	NA

Levels of serum Tg (TSH) are expressed as the following units: ng/mL (mIU/mL).

Checked ∼7 months after study.

Checked ∼3 months after study.

Patient 7 Tg was undetectable owing to the presence of thyroglobulin antibodies.

NA, not available; post-tx, post-treatment; Tg, thyroglobulin; TSH, thyrotropin; V+C, vemurafenib plus CDX-3379; W6D1, week 6 day 1.

NGS analysis and redifferentiation

Genetic analysis of primary thyroid samples from Patients 2, 3, 5, and 6 detected three genetic mutations per patient, whereas analysis of a neck lymph node sample from Patient 7 detected seven genetic alterations (Table 6). All five patients evaluated by NGS had telomerase reverse transcriptase (TERT) promoter alterations, which portend poor prognosis in patients with the BRAF^V600E sequence variant (17,18). The two patients who did not receive ¹³¹I had noteworthy genetic alterations: Patient 3 had an inactivating RMB10^Q915* nonsense variant, which has been associated with increased risk of death related to thyroid cancer (19); Patient 7 had an inactivating ARID2^Q1462* variant, which is a SWItch/Sucrose Non-Fermentable (SWI/SNF) chromatin remodeling gene mutation that mediates insensitivity to MAPK inhibitor–induced redifferentiation in mouse models (12).

Table 6.

Genomic Profiles of Enrolled Patients

Patient no.	BRAF	TERT promoter mutation	Other mutations
2	V600E	C228T	CD274 L190V
3	V600E	C228T	RBM10 Q915^*
5	V600E	C228T	9p21 loss (CDKN2B, CDKN2Ap16INK4A, CDKN2Ap14ARF), SMO D255N
6	V600E	C228T	DNMT3A F752L
7	V600E	C228T	ARID2 (A1318^, Q1462^), APC P119A, HIST1H3D E98Q, MDC1 P342S, TSHR V558M

The bolded genes are alterations with known implications re: patient prognostics and impact on thyroid differentiation, as discussed in the text.

TERT, telomerase reverse transcriptase.

Serial genomic analysis of tumor samples from Patient 5 further demonstrated the potential role for ARID2 inactivation in mediating resistance to MAPK inhibitor redifferentiation (Table 7). Enrolled on study <1 year after undergoing resection of an invasive primary tumor into the trachea/esophagus and requiring tracheal stent placement with chemoradiation, Patient 5 received vem+CDX-3379 and showed a heterogeneous but promising response, including intense locoregional uptake and shrinkage of ¹²⁴I-negative left flank, soft tissue, and obturator lymph node metastases. Specifically, this patient had, enhanced ¹²⁴I uptake in paratracheal and thyroid bed tumors relative to baseline, but no detectable avidity in mediastinal/hilar/obturator lymph node, lung, and left flank soft tissue metastases.

Table 7.

Genomic Profiles of the Poorly Differentiated Thyroid Carcinoma and Anaplastic Thyroid Cancer Tumors from Patient 5

Tumor site profiled	Total no. of alterations	BRAF^V600E	TERT C228T	9p21 loss	SMO D255N	ARID2 E108^*	Other mutations
PDTC (RAI-positive primary)	4	X	X	X	X		None
ATC (RAI-negative pelvic lymph node)	20	X	X	X	X	X	RB1 X738_splice, SOX9 K398N, APC D1570N, CSF1R ^973Sext^43, EPHA5 E657K, IDH1 R343K, JAK1 S397C, PTCH1 E1428Q, KMT2D E4781K, NCOA3 H618D, RAD54L E297K, NUP93 E19Q, CDK12 D962H, PBRM1 Q170E, ASXL1 S62C

ATC, anaplastic thyroid carcinoma; PDTC, poorly differentiated thyroid carcinoma; RAI, radioactive iodine.

As predicted by ¹²⁴I PET/CT lesional dosimetry, three months after therapy was discontinued Patient 5 had a mixed response, including neck disease regression (36 mm →30 mm) and off-therapy growth of ¹³¹I nonavid tumors (soft tissue metastatic lesion: 14 mm →25 mm); growth of the nontarget lesions resulted in the overall PD designation. Patient 5 received another drug treatment that produced tumor regression except in the obturator node; biopsy of this RAI-resistant node >7 months after study completion revealed anaplastic thyroid cancer (ATC) transformation, including emergence of new alterations such as an inactivating ARID2-truncating mutation not previously detected in the primary tumor. These findings and preclinical modeling suggest that inactivating SWI/SNF mutated genes, such as mutant ARID2, may contribute to resistance to MAPK inhibitor redifferentiation.

Discussion

The premise of this study is that intrinsic resistance of thyroid cancers to BRAF inhibitors is mediated by adaptive HER3 upregulation, which leads to HER3/HER2-mediated reactivation of MAPK signaling (8). We hypothesized that combined BRAF/HER3 targeting with vem+CDX-3379 would potently inhibit MAPK signaling to enhance ¹³¹I efficacy. Despite early termination of accrual, the study met the prespecified threshold for safety and redifferentiation. None of the six patients who received ≥1 dose(s) of combination therapy developed grade ≥3 CDX-3379-related toxicity, and 4 patients (67%) met ¹²⁴I lesional dosimetry criteria for ¹³¹I. These outcomes compare favorably with the 40% of patients who qualified for ¹³¹I with vemurafenib alone using the same ¹²⁴I lesional dosimetry criterion (4).

Another trial with the BRAF inhibitor dabrafenib reported that 60% of patients with RAIR tumors developed new ¹³¹I uptake on whole-body scintigraphy (20). Results from a redifferentiation trial of dabrafenib plus the MEK inhibitor trametinib (MERAIODE trial; ClinicalTrials.gov: NCT03244956) has reported promising results in abstract form: ∼65% redifferentiation rate and 6-month 38% overall response rate (21). The vem+CDX-3379 study results here should be considered preliminary given the small sample size; potential selection biases make cross-trial comparisons with other small studies difficult and precludes adopting these results as definitive evidence of efficacy. The promising findings do justify conducting a full phase II evaluation to establish efficacy. A randomized trial comparing BRAF inhibition alone versus in combination with either MEK or HER3 targeting will be required to establish the advantage of combination therapy for redifferentiation.

While all patients had multiple RAI nonavid tumors on the baseline ¹²⁴I PET to verify RAIR disease status, four of seven patients also had at least one lesion with some evidence of RAI uptake before drug therapy. Susceptibility to redifferentiation may differ between RAIR patients with completely RAI nonavid tumors versus those with a mix of RAI avid and nonavid disease. This also highlights a need to revisit how RAIR disease is defined in the context of our evolving understanding of the clinical and biologic basis of RAI susceptibility.

In addition to more conventional RAIR criteria, this study allowed RAIR disease to be defined as having a tumor with an FDG PET SUV_max ≥5 based on the inverse correlation between FDG and RAI tumor avidity (22). Of the two patients who were enrolled based only on the FDG-PET criterion, both had RAI nonavid tumors that failed to redifferentiate on study: one failed to qualify for ¹³¹I (Patient 7) and the other experienced ATC transformation in the refractory tumors (Patient 5). Further study is required to guide how FDG avidity may be used as a marker of RAIR disease, and if SUV_max thresholds should be used.

Among the four patients who met lesional dosimetry criteria and received vem+CDX-3379 and ¹³¹I, 50% (2/4) had a confirmed PR at 6 months post-therapy; the other 2 patients had PD at 3 months (Patient 5) and initiation of systemic therapy after the 3-month scans (Patient 2). Both patients received <50% of the determined ¹³¹I MTA (34% and 30%), while the two responders received higher percentages (97% and 52%). Higher ¹³¹I doses relative to predicted MTA may mediate better clinical responses by overcoming the potentially short effective half-lives of ¹³¹I. Alternatively, serial administration of redifferentiation therapy followed by ¹³¹I may be more effective than giving just one high-activity bolus of ¹³¹I.

Another important consideration is tumor-to-tumor heterogeneity. This is illustrated by the genomic profiles of two tumors from Patient 5, which revealed that the RAI-negative ATC tumor possessed a higher mutation burden and an inactivating ARID2 mutation that was not present in the PDTC primary tumor. Patient 7, the only patient whose tumors failed to demonstrate any enhanced ¹²⁴I uptake on vem+CDX-3379, had an ARID2 mutation that was identified before trial enrollment (Table 6). Mutated SWI/SNF genes such as ARID2 are enriched in PDTC and ATC, which suggests that these alterations may lead to dedifferentiation. Studies in Braf^V600E -mutant thyroid cancer mouse models showed that concomitant SWI/SNF loss-of-function rendered tumors refractory to the redifferentiation effects of MAPK pathway inhibition (12). This preclinical observation is consistent with an analysis of serial research biopsies obtained from a responder (Patient 2, wild-type ARID2) and nonresponder (Patient 7, ARID2 alteration) to vem+CDX-3379 on this study; despite achieving MAPK pathway inhibition with study treatment in both patients, thyroid differentiation (quantified with the enhanced Thyroid Differentiation Score) increased only in the responder (12). Hence, some SWI/SNF mutations may mediate resistance to redifferentiation and serve as biomarkers to identify patients who will not benefit from this strategy. Analysis of larger datasets is necessary to validate this hypothesis.

TERT promoter alterations are associated with increased mortality when co-occurring with BRAF alterations in patients with PTC (23); all five patients whose tumors were analyzed using the NGS platform had TERT promoter mutations. Of interest, Patient 3, who did not qualify for ¹³¹I, had a truncating alteration in RBM10, a tumor suppressor that regulates alternative mRNA splicing. RBM10 loss-of-function mutations are enriched in fatal forms of non-ATC thyroid cancer (19), suggesting that they could contribute to increased thyroid cancer virulence. While it is not known if mutant RBM10 would alter mRNA splicing programs to prevent MAPK pathway inhibitors from restoring the thyroid-specific gene expression programs requisite for redifferentiation, mutant RBM10 has been associated with vemurafenib resistance in vitro (24).

In summary, data from this small pilot trial suggest that HER3-targeting combined with vemurafenib is a promising redifferentiation approach, although the findings are preliminary given the small sample size. A phase II and/or randomized clinical trial is necessary to definitively demonstrate the advantage of this combination. These data also illustrate that beyond optimizing the redifferentiation approach, determining the optimal level of ¹³¹I incorporation needed for efficacy and identifying molecular markers to predict redifferentiation success will be critical for maximizing the benefit of this treatment strategy for patients.

Data Sharing Statement

Memorial Sloan Kettering Cancer Center supports the international committee of medical journal editors (ICMJE) and the ethical obligation of responsible sharing of data from clinical trials. Data collected for the study are available in this article and the Supplementary Data. The protocol summary, a statistical summary, and informed consent form will be made available on ClinicalTrials.gov when required as a condition of Federal awards, other agreements supporting the research, and/or as otherwise required.

Footnotes

Acknowledgments

Editorial support was provided by Crystal Tran, BS, on behalf of the Memorial Sloan Kettering Cancer Center Editorial Service.

Authors' Contributions

Study conception and design: A.L.H. and J.A.F.; Drafting of article: V.T. and A.L.H.; PET/CT analysis: K.S.P. and R.K.G.; RECIST interpretation/analysis: S.H.; Genomic data analysis: A.L.H., J.A.F., and J.K.; Study investigators: L.D., E.S., S.S.B., S.M.L., R.K.G., K.S.P., S.H., R.M.T., M.M.S., S.F., L.B., J.W., R.A.G., and D.G.P.; Interpretation of data: all authors; Review and approval of article: all authors.

Author Disclosure Statement

V.T. reports holding stock in Infinity Pharmaceuticals. L.D. has an advisory board role for Pfizer, Regeneron, Cue Biopharma, and Eisai; and reports research support from Cue Biopharma, Merck, and Regeneron. E.S. serves on the advisory board or as a consultant for Bristol-Myers Squibb, Eisai, Loxo Oncology, Novartis, Lily, and Regeneron, and reports research funding from Eisai, Plexxikon, Roche/Genentech, Lily, and Regeneron. S.S.B. is an employee of Flatiron Health and reports holding stock in Roche, prior consulting fees from Bristol Myers Squibb and AstraZeneca, and prior research support from AstraZeneca. R.K.G., K.S.P., S.H., R.M.T., M.M.S., S.F., L.B., J.W., R.A.G., V.E.S., J.A.K., and D.G.P. have no competing financial interests. S.M.L. reports receiving commercial research grants from Y-mAbs Therapeutics, Inc., Genentech, Inc., WILEX AG, Telix Pharmaceuticals Limited, and Regeneron Pharmaceuticals, Inc.; and holding ownership/equity interests in Elucida Oncology, Inc., Voreyda Theranostics Inc., Y-mAbs Therapeutics, Inc., and ImaginAb, Inc., S.M.L. is the inventor of issued patents both currently unlicensed and licensed by Memorial Sloan Kettering Cancer Center to Samus Therapeutics, Inc., Elucida Oncology, Inc., and Y-mAbs Therapeutics, Inc., S.M.L. serves or has served as a consultant both compensated and/or uncompensated for Cardinal Health, Fonds de recherche du Quebec, Cynvec LLC, Eli Lilly and Company, Prescient Therapeutics Limited, Advanced Innovative Partners, Inc., Gerson Lehrman Group, Progenics Pharmaceuticals, Inc., EXINI Diagnostics AB, and Janssen Pharmaceuticals, Inc. J.A.F. has an advisory board role for Loxo Oncology/Lilly and reports research support from Eisai. A.L.H. has served on the advisory boards/consulting for Eisai Pharmaceuticals, Sanofi Genzyme, Novartis, Kura Oncology, AstraZeneca, Merck, Bristol-Myers Squibb, Genentech/Roche, Sun Pharmaceuticals, Ayala Pharmaceuticals, Regeneron, CureVac, Prelude Therapeutics, Rgenta, Exelixis, Inxmed, Cellestia. He serves on the DSMC of an Affyimmune clinical trial. Koltan Pharmaceuticals provided funding for this clinical trial, including support for A.L.H.'s effort. He also serves as the Principal Investigator on clinical trials funded by AstraZeneca, Genentech/Roche, Bayer, Novartis, Bristo-Myers Squibb, Merck, Pfizer, Eisai, Ayala Pharmaceuticals, Elevar Therapeutics, Astellas, Kura Oncology.

Funding Information

Kolltan Pharmaceuticals (now Celldex) provided KTN3379 (now CDX-3379) and funding. Kolltan, along with the contracted CRO Chiltern, monitored the study, managed the study database, and ran study analyses including the final tables and listings. Celldex is currently the study sponsor of record. The study was also funded in part through the National Institutes of Health/National Cancer Institute (NIH/NCI) Memorial Sloan Kettering Cancer Center Support Grant P30 CA008748, NIH/NCI R01 CA184724, NIH/NCI R01 CA201250, NIH/NCI R01 CA249663, and NIH/NCI SPORE in Thyroid Cancer Grant P50 CA172012. Support was also provided by the Geoffrey Beene Cancer Research Center and Cycle for Survival at Memorial Sloan Kettering Cancer Center. The ASCO Conquer Cancer Foundation provided support for L.D. through a Young Investigator Award.
