Improving the Communication Reliability of Body Sensor Networks Based on the IEEE 802.15.4 Protocol

General Configurations

The hardware platform used in the tests was the CC2530 development kit, which is provided by Texas Instruments (Dallas, TX), a leading supplier of ZigBee products. It is based on the CC2530 ¹⁹ system on chip, which integrates a microcontroller and a transceiver in the same chip. The microcontroller is based on the 8051 architecture, whereas the transceiver is compliant with the IEEE 802.15.4 standard in the 2.4-GHz frequency band. The ZigBee stack provided by Texas Instruments is called Z-Stack. This work uses the version Z-Stack-CC2530-2.4.0-1.4.0, which supports the two stack profiles of the ZigBee 2007 specification: ZigBee and ZigBee Pro.

All tests were made using a star topology composed by ZigBee end devices (EDs) (representing the BSN sensor nodes) that generate and send data packets periodically to the ZigBee coordinator using the IEEE 802.15.4 unslotted CSMA-CA algorithm. The main quality of service metric evaluated was the DR, which is the ratio of the number of successfully delivered packets to the number of packets generated by the source node application.

The IEEE 802.15.4 channel 26 was used in the tests because of the absence of interference from other sources, such as nearby Wi-Fi networks, which was verified using a spectrum analyzer. Likewise, the transmission power and placement of the nodes were set to assure there were no packet losses due to path loss or shadowing effects between the EDs and the coordinator because the purpose of this study was to evaluate only the losses due to collisions caused by contention, clock drift, and hidden nodes.

Table 1 displays relevant IEEE 802.15.4 parameters, in the context of the experiments presented in this article, and their respective values. For the variable parameters, the default values were used. In the tests without retransmissions, the acknowledgment frame was not transmitted. Each test finished after the coordinator received 5,000 packets from the end devices. The tests presented in this article used the ZigBee Pro stack profile. In these tests, the periodic ZigBee Pro link status messages and IEEE 802.15.4 data requests commands were disabled. Other tests were performed using the ZigBee stack profile and with these commands enabled, but no relevant differences were observed.

The tests used traffic parameters from a wearable motion capture system ²⁰ for body posture monitoring, based on inertial sensors that were developed using the same CC2530 modules used in this article. Each sensor node in this system contained six sensors (three accelerometers and three magnetometers). Typical motion capture applications require a frame rate of 30 frames per second; therefore, the sensors are sampled at 30 Hz. The data packet generation interval was set to 100 ms, which means that each packet carries three samples from each one of the six sensors, for a total of 18 samples of 12 bits each. A 16-bit sample of the node's battery voltage was also included; therefore, the payload length for the data packets was 232 bits (29 bytes). The overhead introduced by all ZigBee layers accounts for a total of 33 bytes, which results in a data packet length of 62 bytes, which corresponds to a packet transmission time (T _Packet) of 1.984 ms at 250 Kbps. Similar data-intensive traffic can be found in other BSN applications, such the monitoring of ECG signals from patients, where the sampling rate can be as high as 250 Hz per electrode. ²¹

Clock Drift Model

This section presents a model that uses the differential clock drift between two ZigBee end devices to estimate the duration of two parameters: the contention period (T _Cnt), defined as the period during which the two EDs using the unslotted CSMA-CA algorithm will contend for the channel due to the clock drift, and the contention repetition interval (T _CntRep).

In order to obtain the clock drift of the EDs, each EDn was physically connected to the coordinator (base station [BS]), in order to measure the number of added or missing oscillations (ticks _drifted), within a period T, in comparison with the coordinator's clock. The differential clock drift between the BS and EDn can be calculated through Eq. 1: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}D_ { { \rm BS , ED } n } = \frac { ticks_ { { \rm drifted } } } { f_ { { \rm osc } } \times T } \tag { 1 } \end{align*} \end{document}

where f _osc is the nominal clock frequency of the CC2530 microcontroller (32 MHz). The differential clock drift between ED1 and ED2 can be obtained, without the knowledge of the absolute clock drift of the EDs (D _EDn ), from the respective differential clock drifts in relation to the BS: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}D_{{ \rm ED1 , ED2}} = D_{{ \rm BS , ED1}} - D_{{ \rm BS , ED2}} = D_{{ \rm ED2}} - D_{{ \rm ED1}} \tag{2}\end{align*} \end{document}

Several unsynchronized devices transmitting periodic traffic with the same nominal period will eventually contend for the wireless channel because of the clock drift effect. If the differential clock drift between ED1 and ED2 is D _ED1,ED2 and the nominal transmission period of the nodes is given by T _ED, then both nodes will start to contend for the wireless channel every T _CntRep seconds. The value of T _CntRep can be obtained through Eq. 3: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}T_ { { \rm CntRep } } = \frac { T_ { ED } } { D_ { { \rm ED1 , ED2 } } } \tag { 3 } \end{align*} \end{document}

The T _Cnt during which two devices will compete for the channel can be obtained through the following equation: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}T_ { { \rm Cnt } } = \frac { T_ { { \rm Vul } } } { D_ { { \rm ED1 , ED2 } } } \tag { 4 } \end{align*} \end{document}

where T _Vul is the vulnerability window, which is the time window under which the transmissions of two nodes may interfere with each other.

Experimental Setups

Three different experimental setups were conceived to evaluate the suitability of the IEEE 802.15.4 CSMA-CA protocol for BSN applications. The corresponding results are presented in the next section.

The first experiment evaluates the effect of contention on the performance of a BSN without hidden nodes. In this experimental setup, a periodic trigger signal from the coordinator was used to generate an interrupt on a pin of the ZigBee EDs. The main objective of the trigger is to create a scenario of contention where the EDs generate packets simultaneously, which represents the worst-case contention scenario.

The other two experiments were performed using two EDs hidden from each other (but visible to the coordinator). For that purpose, these tests were performed inside an anechoic chamber, to avoid multipath propagation, and metal plates were placed between the EDs to obstruct each other's signal. Except for the use of hidden nodes, the second experiment is similar to the first one.

In the third experiment, the trigger signal that was used to force the simultaneous generation of data packets in the previous experiments was removed. The purpose of this experiment is to evaluate the effect of the node's clock drift on the network performance along the time and to validate the proposed clock drift model. In order to facilitate the identification of the values for T _Cnt and T _CntRep, two measures were taken. The first one was the use of hidden nodes, so nodes are unable to backoff because of carrier sense. The second measure was to perform the experiment with the retransmission mechanism disabled. Under such conditions, the length of the vulnerability window can be calculated using the following expression: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}T_{\rm Vul} = 2 \times (T_{\rm Backoff \_max} + T_{\rm Packet}) \tag{5}\end{align*} \end{document}

where T _{Backoff_max} is the maximum backoff time, which has a value of 2.24 ms when the backoff exponent is 3, and T _Packet is the packet transmission time.

Contention Without Hidden Nodes

Table 2 presents the results obtained in the first experiment regarding the following metrics: DR; mean and maximum end-to-end delay; and energy consumption per packet at the ED. The end-to-end delay is the time elapsed since the packet is sent by the source node (ED) application layer until it reaches the destination node (coordinator) application layer. The energy consumption was evaluated for the CC2530, considering a supply voltage of 3.3 V, a current consumption of 27.7 mA during the active periods, and a negligible current consumption (around 1 μA) during inactive periods.

Because the first two rows of results in Table 2 concern a BSN with a single ED, the DR is 100% even without retransmissions because there is no contention. In contrast, for the BSN with two EDs, the contention causes packet errors because of collisions, decreasing the DR to 91.7% without retransmissions. Nevertheless, the retransmission mechanism is able to correct the errors and restore the DR to 100%.

At the MAC level, the packet delay is the sum of the backoff time (T _Backoff), turnaround time (T _TA), and T _Packet. However, the measured delays presented in Table 2 are larger than the sum of these components. Two other relevant delay components introduced by the software stack were identified: a delay from the moment the sender application calls the application programming interface function to transmit the packet until the data reach the MAC layer (T _APP→MAC) and a delay at the receiver in the opposite direction (T _MAC→APP). These delays depend on the payload length and processing load at the nodes. The mean values of these delays for the Z-Stack, measured for different payload lengths, are shown in Table 3.

The higher delay and energy consumption values with two EDs in Table 2, compared with the corresponding values with one ED, are due to additional backoffs (and retransmissions, when enabled) caused by contention. Additional energy is also spent in the scenarios with retransmission for the acknowledgment notification to propagate from the MAC layer to the application layer.

Contention with Hidden Nodes

In this experiment, the measured DR with retransmissions enabled was approximately 90%, whereas for the test without retransmissions the DR was approximately 13%. Previous measurements without hidden nodes (Table 2) resulted in DRs of 100% and 91.7% for the tests with and without retransmissions, respectively. Therefore, when compared with the results without hidden nodes, the experimental results with hidden nodes show a substantial decrease in the DR during periods of contention. Even with the retransmissions enabled, the network was not able to recover from all the packet errors. Given that the presence of hidden nodes is expected in the normal operation of a BSN, these results show that contention may severely degrade the communication reliability of the network and, consequently, make it unable to satisfy the quality of service requirements of BSN applications.

Clock Drift Effect

For this experiment, the differential clock drifts, in parts per million (ppm), between five EDs (ED0–ED4) and the BS were measured. Table 4 shows the differential clock drifts between a device n and the BS (D _BS,EDn ), measured using the process described in the previous section, as well as the respective drift values between devices m and n (D _EDm,EDn ), calculated using Eq. 2.

We have chosen ED0 and ED1 for the experimental performance evaluation and model validation. For these nodes, the differential clock drift is D _ED0,ED1=3.5 ppm. Using these values, in Eq. 4, we obtain a T _Cnt value of approximately 40 min. The T _CntRep period, which can be obtained through Eq. 3, is approximately 7 h 56 min. If the average differential clock drift among the five EDs that were tested was used (1.62 ppm), T _Cnt and T _CntRep would be 1 h 27 min and 17 h 9 min, respectively, which means that, on average, the contention between devices, and the consequent network performance degradation, would take a longer period to repeat but would also last longer.

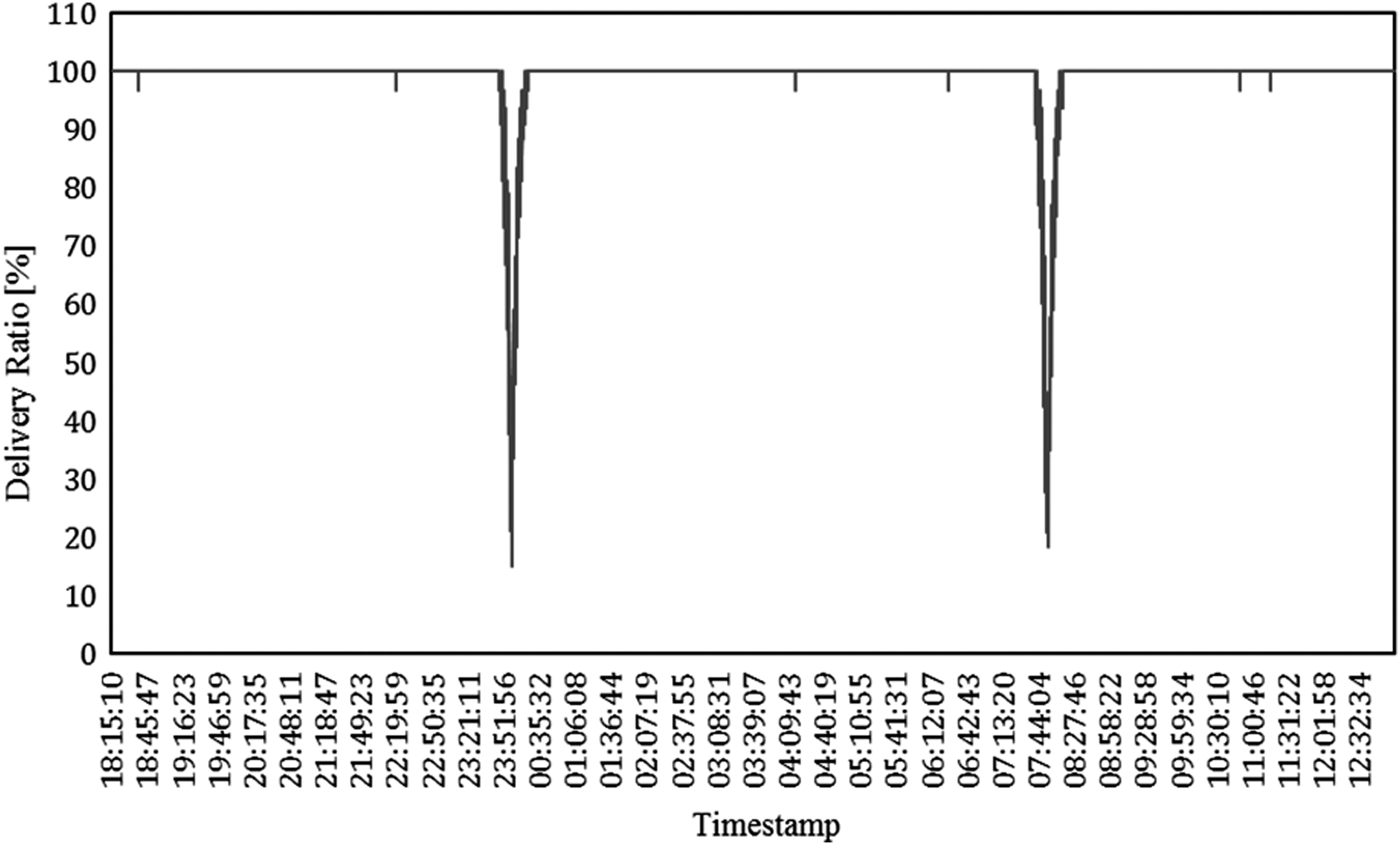

Figure 1 shows the results obtained in this experiment, which started at 18:15:10 and ended at 13:02:44 the next day. The DR was 100% most of the time of this experiment, which corresponds to noncontention periods. The DR decreases when a contention period starts, reaches a minimum (which is very close to the DR of 13% obtained in the previous section) when both devices are generating packets simultaneously, and then increases again until the end of the contention period. Taking into account these boundaries, the interference period lasted for approximately 40 min. The value of contention repetition interval obtained from Figure 1 is approximately 7 h 53 min. Therefore, the measured T _Cnt and T _CntRep periods are very close to the values predicted by the proposed theoretical model.

OPEN IN VIEWER

Fig. 1.

Delivery ratio over time with clock drift and two hidden nodes.

Related Work

Several authors ^{22 –24} have proposed solutions to the hidden node problem in IEEE 802.15.4/ZigBee WSNs. These solutions are based on grouping strategies, where the nodes are grouped according with their hidden node relationships in a way that each group contains only nodes that are not hidden from each other. The network bandwidth is then divided into slots, and each slot is attributed to a group.

In some cases, the grouping strategy assumes that the coordinator can distinguish a hidden node collision from a normal collision, based on the time when the collision occurs. ²⁴ This distinction be very hard to achieve and implies a non-negligible change to the IEEE 802.15.4 physical layer. The grouping and regrouping procedures include the discovery of hidden node situations, information collection from the nodes, group assigning, and notification of grouping results to the nodes. These procedures are relatively complex and consume substantial bandwidth and energy from the nodes, which is problematic given the resource constraints of these devices. Furthermore, unlike WSNs, the mobile nature of BSN nodes (for instance, a group of patients being monitored at a hospital) may increase the frequency of the regrouping events and, consequently, the overhead introduced by the grouping strategy.

Proposed Mechanism

The grouping strategies referred in the previous section may be suitable for WSNs, where sensor nodes normally generate sporadic traffic, enabling several nonhidden nodes to share the same slot. However, given that the traffic of BSNs is mostly periodic, nodes in the same group would have to contend for the same slot repeatedly, which would increase the probability of collisions.

Therefore, in the proposed BCA mechanism, each slot is assigned to a single BSN node, regardless if it is hidden or not from other nodes. One advantage of this mechanism is that it can be implemented at the application level; therefore, it does not require any change in the IEEE 802.15.4/ZigBee protocol layers.

Figure 2 presents an example of the superframe structure defined by the BCA mechanism, where the beacons are used for synchronization, and the virtual time slots (VTSs) are assigned to the nodes. The number of VTSs and the superframe period are broadcast in the beacon. The actual number of VTSs per superframe and the VTS intervals can be higher than the values provided on this example.

OPEN IN VIEWER

Fig. 2.

Example of the superframe structure and slot allocation in the body sensor network contention avoidance mechanism. n, node; VTS, virtual time slot.

Many BSN applications are characterized by heterogeneous sensor nodes that generate traffic at different bit rates ^21,25 (e.g., ECG and body temperature). The BCA mechanism allows multiple nodes that generate traffic at lower rates to share the same VTS in different superframes, thereby increasing the number of sensor nodes supported by the network. According to the example of Figure 2, the superframe period is set to the packet generation interval of the sensor node with higher data rate (n1), which was assigned to VTS number 3. On the other hand, nodes n2 and n3, which have half the packet rate of n1, share the VTS 1 on alternate superframes, with a VTS interval of two superframes.

The IEEE 802.15.4 MAC layer provides an optional scheme, called GTS, which allows the allocation of dedicated slots for the nodes. However, there are several drawbacks on its utilization compared with the BCA mechanism. The GTS scheme is limited to a maximum of seven allocations. Moreover, unlike the BCA mechanism, nodes cannot share the same slot in different superframes. These limitations make the GTS scheme unsuitable for many BSN applications that may require more nodes, such as motion capture (which require in the order of 15 nodes per user to track all body movements) or the monitoring of physiological signals from multiple patients in a hospital ward at the same time. The nodes also have to listen to the beacon in all superframes before transmitting and cannot transmit their data packet in a superframe if they miss the corresponding beacon, which have impact on the energy consumption and reliability, respectively. Another drawback is that the GTS scheme is not available on ZigBee stacks such as the Z-Stack, owing to the increased complexity of introducing it in mesh or tree topologies. Finally, in the GTS scheme, a node starts the transmission of its packet in the beginning of the allocated slot, regardless of the presence of interference from another source (e.g., a Wi-Fi transmission) that may corrupt the packet. In contrast, the BCA mechanism, which uses the CSMA-CA protocol, is able to sense the busy channel and back off in this case.

Figure 3 shows the BCA algorithm in the coordinator application. When a packet arrives at the coordinator, the algorithm verifies if the packet is a VTS request from a sensor node, which contains the desired VTS interval (expressed as an integer multiple of the superframe period), or if it is a data packet. If it is a VTS request, the algorithm searches for a suitable available VTS, assigns it to the node, and transmits a VTS response to the node. The VTS response contains the following fields: the assigned VTS number; the VTS interval; and the VTS offset, which is the identification of the first superframe at which the node can start to use the VTS, starting from the current superframe.

OPEN IN VIEWER

Fig. 3.

Body sensor network contention avoidance algorithm in the coordinator. VTS, virtual time slot.

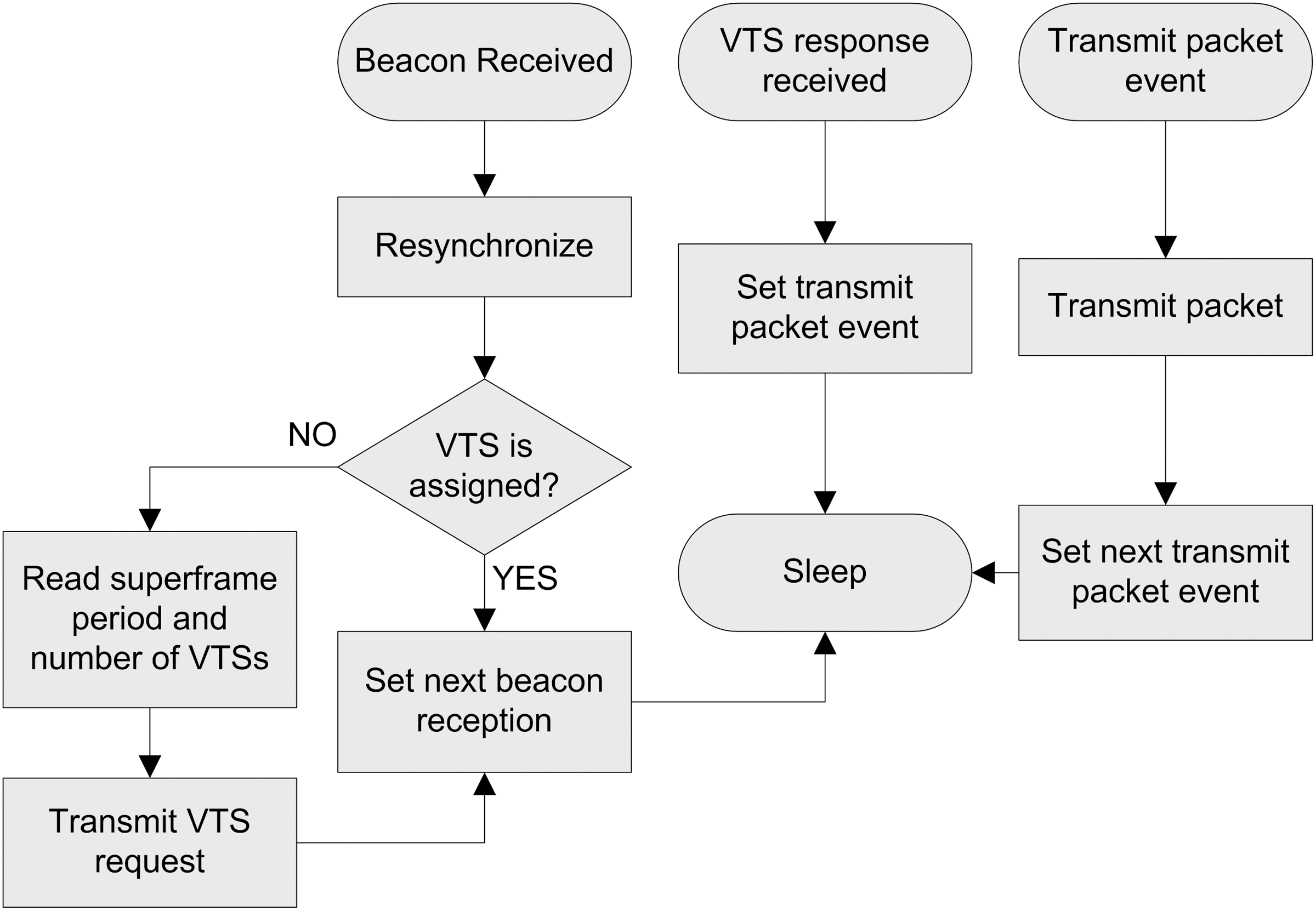

The BCA algorithm in the sensor node application is shown in Figure 4. When a beacon is received, the node resynchronizes with the coordinator. After that, if the node does not have a VTS assigned, it will read the superframe period and number of VTSs per superframe from the beacon. Next, it will transmit a VTS request containing the required VTS interval, using VTS 0, which is reserved for this purpose. On the other hand, if the VTS is already assigned, the node will just set a timer for the reception of a next beacon and enter in the sleep state to save energy. When the node receives the VTS response, it sets an event for the transmission of a data packet in the next assigned VTS, according to the VTS number, interval, and offset information provided by the VTS response. When the node receives the transmit packet event, it transmits the data packet. After that, it sets an event (based on the VTS interval) for the transmission of the next data packet in the next assigned VTS and returns to the sleep state.

OPEN IN VIEWER

Fig. 4.

Body sensor network contention avoidance algorithm in the sensor node. VTS, virtual time slot.

The sensor node does not need to wake up at every superframe to listen to the corresponding beacon and resynchronize. Instead, the next beacon reception can be scheduled to occur after a number of superframes calculated based on the desired clock accuracy. For example, considering a maximum accepted clock deviation of 200 μs and the maximum clock drift accepted by the IEEE 802.15.4 standard (40 ppm), the sensor nodes would only have to wake up to listen to a beacon every 2.5 s, which corresponds to 1 beacon out of 25 for a superframe period of 100 ms. If a drift compensation mechanism is used for time synchronization, the sensor nodes may be even allowed to sleep during longer times. ²⁶

An issue regarding the implementation of all functionalities of the BCA mechanism at the application layer is the limited accuracy on the identification of the assigned VTS boundary at the sensor node, due to the errors introduced by T _MAC→APP on synchronization and T _APP→MAC on the packet sending time. One way to reduce the errors is to take into account the effect of these delays, characterized on Table 3, on the corresponding functionalities of the mechanism. Another option is to implement these functionalities at the MAC layer level.

Experimental Setup and Results

In order to evaluate the effectiveness of the BCA mechanism, tests were performed using the same experimental setup as the third experiment described previously, which is composed by two hidden nodes sending data to a coordinator with the retransmission mechanism disabled. Because the functionality of generation of periodic beacons was not yet available on the Z-Stack at the time the tests were done, we opted to use the TIMAC (version TIMAC-CC530-1.3.1), also from Texas Instruments, which only implements the IEEE 802.15.4 MAC layer. Nevertheless, because of the use of the star topology, the absence of the upper ZigBee layers does not have influence in the results of these tests. The number of bytes introduced by the ZigBee headers was added to the payload of the data packets, in order to produce packets with the same size as those used in the previous tests.

Because the IEEE 802.15.4 protocol only allows a limited set of superframe periods, the superframe period was configured to 122.88 ms, which is the closest value to the 100 ms used in the previous tests. Each node transmits a data packet per superframe in the VTS assigned by the BCA mechanism. The number of VTSs was set to eight, which means that each VTS has a length of 15.36 ms, which is more than sufficient for a node to transmit its packet inside the assigned VTS.

The longest test was executed during a period of 26 h 34 min. During this test, the measured DR remained at 100% all the time. Other tests were made under the same conditions, with the same outcome. These results contrast with those presented in Figure 1, where the DR was affected by the clock drift and the hidden node problem, reaching values as low as 13%.

Because the nodes are scheduled to transmit their data packets at different times, no energy is wasted on contention. Therefore, the energy consumption per packet with the use of the BCA mechanism (0.63 mJ, for a clock accuracy of 200 μs) is only slightly higher than the value shown in Table 2 for one ED, owing to the periodic beacon listening, but yet much lower than the value for the scenario with two EDs.
