Development of a Telehealthcare Decision Support System for Patients Discharged from the Hospital

Abstract

Objective: This article presents the development of a telehealthcare decision support system (TDSS) for patients discharged from the hospital, where symptom data are important indications of the recovery progress for patients. Symptom data are difficult to quantify in a telehealthcare application scenario because the observations and perceptions on symptoms by the patient themselves are subjective. In the TDSS, both symptom data from patients and clinical histories from the hospital information system are collected. Machine learning algorithms are used to build a predictive model for classifying patients according to their symptom data and clinical histories, to provide a degree of urgency for the patient to return to the hospital. Materials and Methods: During a 1-year period, 1,467 patient cases were collected. Symptom data and clinical histories were preprocessed into 49 parameters for machine learning. The training data of patients were validated manually with their actual clinical histories of returning to the hospital. The performances of predictive models trained by five different machine learning algorithms were evaluated and compared. Results: The Bayesian network algorithm had the best performance among the machine learning algorithms tested in this application scenario and was selected to be implemented in the TDSS. On the 1,467 patient cases collected, its precision in 10-fold cross-validation was 79.3%. The most important six parameters were also selected from the 49 parameters by feature selection. The performance of correct prediction by the TDSS is comparable to that by the nursing team at the call center. Conclusions: The TDSS provides a degree of urgency for patients to return to the hospital and thereby assists the telehealthcare nursing team in making such decisions. The performance of the TDSS is expected to improve as more cases of patient data are collected and input into the TDSS. The TDSS has been implemented in one of the largest commercialized telehealthcare practices in Taiwan administered by Min-Sheng General Hospital.

Introduction

Telehealthcare is an important trend of health management and care. Most telehealthcare applications focus on care either for patients with chronic diseases or for elderly patients. Min-Sheng General Hospital in Taiwan has offered a telehealthcare service platform, “Smart Care,” specifically for patients discharged from the hospital. In order to most effectively utilize medical resources, doctors allow patients to be discharged from the hospital if those patients have recovered sufficiently that their medical needs can be met by themselves or by a caregiver. However, such patients need to be monitored remotely, given nursing suggestions and instructions, and, if necessary, told to return to the hospital.

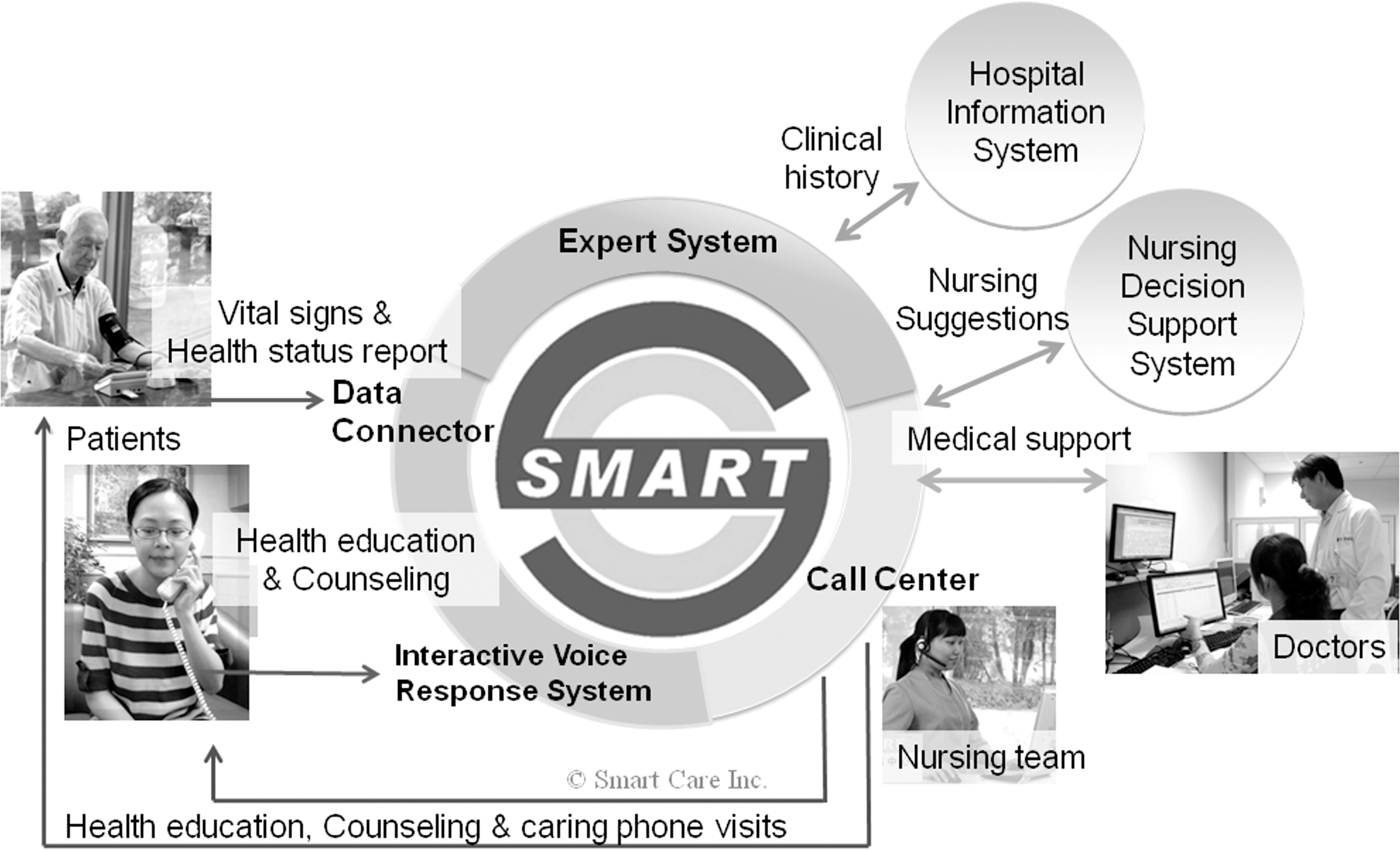

Figure 1 illustrates the telehealthcare service platform of Smart Care. Patients discharged from the hospital can join the service on the recommendation of their doctors. Patients regularly measure vital signs at home according to the measurement prescription issued by their doctors. They then upload the measured data and report their current health status and symptoms by the home gateway or interactive voice response system. The nursing team at the call center, which is composed of professional nurses and doctors, phones patients in order to periodically assess patients' health status and to address any patient concerns. The nursing team gives nursing suggestions and instructions to the patient or caregiver by drawing on their professional training and experience and with assistance from information systems.

Fig. 1.

The telehealthcare service platform of Smart Care.

There are special needs for such a telehealthcare system for patients discharged from the hospital. The nursing team at the call center must make judgments on the need for patients to return to the hospital for further checkup, based on the symptoms described by the patients themselves and the clinical histories of the patients. Symptom data are important keys to assessing recovery progress for patients who were recently discharged from the hospital. However, symptom data are difficult to quantify because each patient case is unique, and the observations and perceptions on symptoms by the patients themselves are subjective.

Several studies currently exist about information systems that aid doctors in making clinical decisions. A clinical decision support system (CDSS) links health observations with health knowledge to influence health choices by clinicians for improving healthcare. A CDSS uses several items of patient data to generate case-specific advice.¹

The first well-known CDSS, AAPHelp, was developed in 1972. It was a computer-aided diagnosis system to support clinical assessment and decision-making for acute abdominal pain and was based on clinical evidence and best practices from the United Kingdom and Europe. It implemented an electronic data collection protocol and prompted clinicians to make a thorough and accurate clinical assessment. It provided definitions of clinical symptoms and signs, access to large databases of information about patients with acute abdominal pain, and a display of real outcomes for patients with clinical presentation similar to that of the patient who was being evaluated.²

DXplain and Quick Medical Reference were successful and commercialized systems originating in the 1980s. DXplain was developed in 1987 and used a set of clinical findings (signs, symptoms, and laboratory data) to produce a ranked list of diagnoses that might explain (or be associated with) the clinical manifestations. DXplain included 2,200 diseases and 5,000 symptoms in its knowledge base. DXplain provided justification for why each of these diseases should be considered, suggested what further clinical information would be useful to collect for each disease, and listed what clinical manifestations, if any, would be unusual or atypical for each of the specific diseases.³

Quick Medical Reference, developed in 1989, was a diagnostic decision support system with a knowledge base of diseases, diagnoses, findings, disease associations, and laboratory information. It was designed for three types of purposes: as an electronic textbook, as an intermediate-level spreadsheet for the combination and exploration of simple diagnostic concepts, and as an expert consultant program with information from the primary medical literature on almost 700 diseases and more than 5,000 symptoms, signs, and laboratory values.⁴

From reviews of previous studies, CDSSs provide clinical decision support through correlation of patient symptom data, diseases, and patient outcomes by the implementation of information technologies (such as expert system and machine learning). CDSS have been used in medical and healthcare practice for several years, but their application to telehealthcare is rarely found.

This article presents the development of a telehealthcare decision support system (TDSS) for patients recently discharged from the hospital. The TDSS collects symptom data from patients and clinical histories from the hospital information system and uses machine learning algorithms to generate a predictive model to classify patients and provide a degree of urgency for the patient to return to the hospital, which is probably the most important decision to be made by the nursing team at the call center, and has critical impact to the medical cost and recovery progress of the patient in such a telehealthcare application scenario.

Materials and Methods

System Overview

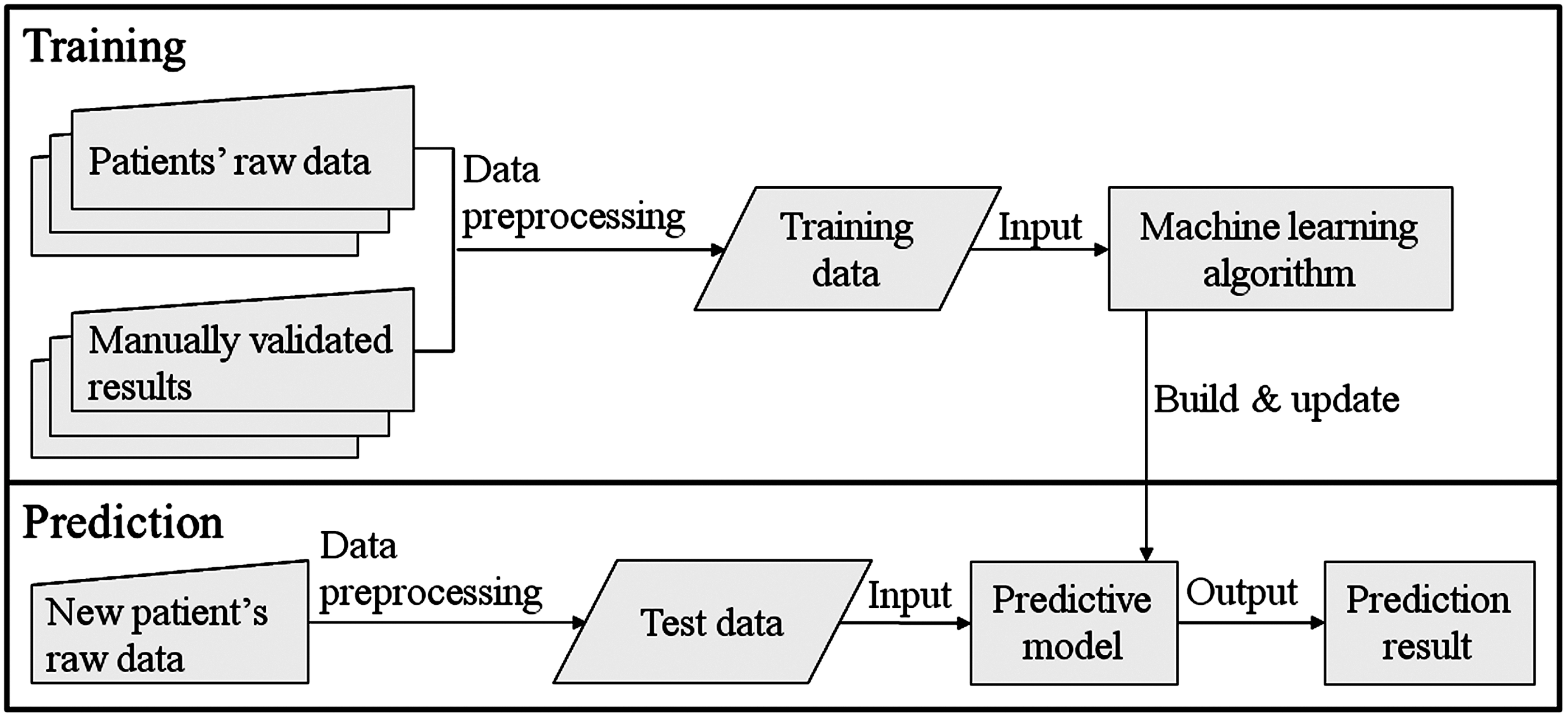

Figure 2 depicts the flowchart of constructing the proposed system. In the training phase, training data are preprocessed data that are composed from patients' raw data and manually validated results (the actual clinical histories of the patient returning to the hospital). The predictive model is built by a machine learning algorithm with the training data as input and can be updated periodically to improve the precision of prediction by increasing the numbers of patient cases. In the prediction phase, test data are preprocessed data that are composed from new patients' raw data. Test data are classified by the predictive model to generate prediction results (a degree of urgency for the patient to return to the hospital). Details of each item in the flowchart are described as follows.

Fig. 2.

The flowchart of constructing the telehealthcare decision support system.

Input Data

“Patients' raw data” are the combination of symptom data and clinical histories of the patients. Symptom data are observed at home by the patients themselves. Clinical histories are input from the hospital information system. “Data preprocessing” converts the text data of clinical records into numeric options. After data preprocessing, data are organized into 49 parameters for each patient case. Values for each parameter are simplified into positive integers. Parameters that involve a date are input as a calculation of difference in days from the relevant date. These 49 parameters are categorized as follows:

1. Status of the patient, which includes a survey of medication compliance, sleep conditions and emotions, date of discharge from hospital, etc. (Table 1)

2. Symptoms of the patient, which includes a survey of symptoms of pain, redness, swelling, and wound fluid, such as frequency of pain, level of pain, temperature to touch of the wounded area, color of wound fluid, etc. (Table 2)

3. Observations of wound, which includes locations of wounds, biggest size of wounds, etc. (Table 3)

4. Clinical history of surgery, which includes the primary department for diagnosis, surgery method, and surgery date (Table 4)

Table 1.

Parameters for Input: Status of the Patient

NUMBER	ITEM	VALUE OPTIONS	EXAMPLE
1	Apply the medicine to the wound regularly or not	0=no	1
		1=yes
2	The frequency of applying the medicine	x times in y days	1, 1
3	Take the medicine on time (obey the prescription)	0=no	1
		1=yes
4	The frequency of taking the medicine	x times in y days	4, 1
5	The condition of sleep	0=normal	0
		1=lost sleep
		2=sleepy (drowsy)
6	The condition of emotions	0=normal (stable)	0
		1=depressed
		2=angry (irritable)
		3=other
7	Other problems	0=no	0
		1=yes
8	Date of discharge from the hospital	yyyy/MM/dd	2012/07/17
9	Days after discharge from the hospital	x days	4

Table 2.

Parameters for Input: Symptoms of the Patient

NUMBER	TYPE	ITEM	VALUE OPTIONS	EXAMPLE
	Pain
10		Pain	0=no	1
			1=yes
11		Frequency of pain	0=all the time	0
			1=only in the day
			2=only at night
			3=sometimes
12		Level of pain	0=no pain	1
			1=little pain
			2=some pain
			3=much pain
			4=very painful
			5=extremely painful
13		Take the painkillers	0=no	1
			1=yes
	Red and swollen
14		Redness in the wound	0=no	0
			1=yes
15		Swelling in the wound	0=no	0
			1=yes
16		Take the anti-inflammatory	0=no	0
			1=yes
17		Circulation color of the wound	0=normal skin color	0
			1=white
			2=purple
			3=black
18		Temperature to touch of wound	0=normal	0
			1=feels cold
			2=feels hot
	Wound fluid
19		Fluid in the wound	0=no	1
			1=yes
20		Color of wound fluid	0=transparent	0
			1=white
			2=light yellow
			3=yellow
			4=red
			5=green
			6=yellow green
			7=brown (coffee color)
21		Bad smell of wound fluid	0=no	0
			1=yes

Table 3.

Parameters for Input: Observations of the Wound

NUMBER	ITEM	VALUE OPTIONS	EXAMPLE
22	Wound	0=no	1
		1=yes
23	Wound due to surgery or accident	0=accident	1
		1=surgery
Location of the wound
24	Head	0=no	0
		1=yes
25	Neck	0=no	1
		1=yes
26	Chest	0=no	0
		1=yes
27	Abdomen	0=no	0
		1=yes
28	Back	0=no	0
		1=yes
29	Arm	0=no	0
		1=yes
30	Hand	0=no	0
		1=yes
31	Ham	0=no	0
		1=yes
32	Crus	0=no	0
		1=yes
33	Foot	0=no	0
		1=yes
34	Number of wounds	0–999	1
35	Biggest size of wounds	0=less than 5 cm	0
		1=6–15 cm
		2=16 cm and above
36	Stitches removed or not	0=no	1
		1=yes
37	Wound healed (closed)	0=no	1
		1=yes
38	Patient's history with diabetes	0=no	0
		1=yes

Table 4.

Parameters for Input: Clinical History of Surgery

NUMBER	ITEM	VALUE OPTIONS	EXAMPLE
39	Surgery	0=no	1
		1=yes
40	Primary department for diagnosis	Division of Surgery	1
		Division of Orthopedics
		Division of Gynecology
		Division of Obstetrics
		Division of Cardiology and Cardiovascular Surgery
		Division of Ophthalmology
		Division of Otolaryngology
		Division of General Medicine
		Division of Metabolism and Endocrinology
Surgery method
41	External fixation	0=no	0
		1=yes
42	Encased in plaster	0=no	0
		1=yes
43	Incision	0=no	0
		1=yes
44	Puncture	0=no	0
		1=yes
45	Drainage	0=no	0
		1=yes
46	Endoscopic examination and operation	0=no	1
		1=yes
47	Suture	0=no	0
		1=yes
48	Surgery date	yyyy/MM/dd	2012/06/17
49	Days after surgery	x days	34

Prediction Result

The prediction result of the TDSS is a single output, the urgency degree for the patient to return to the hospital, with five possible options of assigned degrees of urgency (Table 5). In other words, each patient case will be classified into one of these five groups.

Table 5.

The Prediction Result of the Telehealthcare Decision Support System

NUMBER	URGENCY DEGREE	INDICATION OF THE NEED TO RETURN TO THE HOSPITAL
1	1	No need for advanced tracking
2	3	Tracking needed in 1 week
3	5	Tracking needed in 3 days
4	7	Suggest that an appointment be made with the doctor in 3 days and tracking needed again in 3 days
5	9	Suggest that the patient return to the hospital immediately and tracking needed again in 24 h

Manual Validation of Training Data

The training data of patient cases are validated manually with their actual clinical histories of returning to the hospital (Table 6), which is referred to as “retrospective chart reviews” to provide clinical evidence-based results. Details of how each patient case (instance) is manually validated with his or her actual clinical histories of returning to the hospital are described in Table 7.

Table 6.

Clinical History of Returning to the Hospital

NUMBER	ITEM	VALUE OPTIONS	EXAMPLE
1	Date of returning to the hospital	yyyy/MM/dd	2012/07/20
2	Type of returning to the hospital	Scheduled	1
	Unscheduled
	Emergency
3	Primary department for diagnosis	Division of Surgery	1
		Division of Orthopedics
		Division of Gynecology
		Division of Obstetrics
		Division of Cardiology and Cardiovascular Surgery
		Division of Ophthalmology
		Division of Otolaryngology
		Division of General Medicine
		Division of Metabolism and Endocrinology
4	Progress	Becoming better: progressing favorably, doing well, making favorable progress, relief, remission, palliation, lessen, diminish	1
		Becoming worse: taking an unfavorable course, making unsatisfactory progress, getting worse, aggravated, worsen, unfavorable progress, recurrence, relapse, flare-up, recrudescence
5	Days after discharge from the hospital	x days	14
6	Days after last tracking date	x days	7

Table 7.

Logic of Manual Validation of Clinical History of Returning to the Hospital

NUMBER	DAYS AFTER DISCHARGE FROM THE HOSPITAL OR THE LAST TRACKING DATE	TYPE OF RETURNING TO THE HOSPITAL	PROGRESS	URGENCY DEGREE	CORRESPONDING INDICATION OF RETURNING TO THE HOSPITAL
1	>7 days and ≤30 days	Any	Any	1	No need for advanced tracking
2	>3 days and ≤7 days	Any	Any	3	Tracking needed in 1 week
3	≤3 days	Scheduled	Becoming better	5	Tracking needed in 3 days
4	≤3 days	Scheduled	Becoming worse	7	Suggest that an appointment be made with the doctor in 3 days and tracking needed again in 3 days
5		Unscheduled or emergency	Any
6	≤1 days	Any	Any	9	Suggest that the patient return to the hospital immediately and tracking needed again in 24 h

In 1 year of clinical practice of the Smart Care telehealthcare service, data for 1,568 patients were collected. This study was performed in accordance with the ethical standards of the 1964 Declaration of Helsinki. Participants gave informed consent prior to their inclusion in the study. Table 8 shows the distribution for the primary departments for diagnosis of the 1,568 patients.

Table 8.

Distribution for the Primary Departments for Diagnosis of the 1,568 Patients

NUMBER	MAIN DIAGNOSED DEPARTMENT	NUMBER OF PATIENTS	PERCENTAGE
1	Division of Surgery	456	29.1%
2	Division of Orthopedics	430	27.4%
3	Division of General Medicine	342	21.8%
4	Division of Gynecology	160	10.2%
5	Division of Obstetrics	64	4.1%
6	Division of Cardiology and Cardiovascular Surgery	60	3.8%
7	Division of Otolaryngology	47	3%
8	Division of Ophthalmology	9	0.6%
9	Division of Metabolism and Endocrinology	0	0%
Total		1,568	100%

Patient data from only 1,467 patient cases were used in this study. The remaining 101 patient cases were not included because of lack of clinical histories of returning to the hospital. The distribution of these patients' validated output value is shown in Table 9. For most of the patients, the indication for a need to return to the hospital was validated as either “tracking needed in 1 week” with a degree of urgency of 3 (67.6%) or “no need for advanced tracking” with a degree of urgency of 1 (19.7%). This distribution also shows that the baseline precision of classifying patients is 67.6% because of the biggest group.

Table 9.

Distribution of Validated Output Value of the 1,467 Patients

NUMBER	URGENCY DEGREE	INDICATION OF RETURNING TO THE HOSPITAL	PATIENTS	PERCENTAGE
1	1	No need for advanced tracking	289	19.7%
2	3	Tracking needed in 1 week	992	67.6%
3	5	Tracking needed in 3 days	71	4.8%
4	7	Suggest that an appointment be made with the doctor in 3 days and tracking needed again in 3 days	100	6.8%
5	9	Suggest that the patient return to the hospital immediately and tracking needed again in 24 h	15	1.0%
Total			1,467	100%

Machine Learning Algorithms

The core of the TDSS is the predictive model. In this special application scenario for patients discharged from the hospital, the predictive model is built and updated by machine learning algorithms for learning properties from symptom data and clinical histories within the training data to classify patient cases into five groups of different degrees of urgency for the patient to return to the hospital. Supervised learning that has known labels of desired outputs (five degrees of urgency) is used in this study. Five well-known machine learning algorithms—Bayesian network, decision trees, logistic regression, neural networks, and support vector machines, which have proven their effectiveness for classification of complicated data by statistics-based methodologies in previous studies—were evaluated in this research. The predictive model with best performance would be selected and deployed into the TDSS.

Predictive models were generated by these five classic machine learning algorithms. The performance of each predictive model was evaluated by a standard experiment, 10-fold cross-validation, and leave-one-out cross-validation (LOOCV), which are common techniques for estimating the performance of predictive models. In the standard experiment, the original samples are randomly partitioned into 70% for training, 20% for validation, and 10% for testing. In the 10-fold cross-validation, the original samples are randomly partitioned into 10 subsets. A single subset is retained as the validation data for testing the model, and the remaining nine subsets are used as training data. This step is repeated 10 times. Each subset is used exactly once as the validation data. Finally, 10 results from 10 subsets are averaged to produce single performance estimation. The advantage of this method is that all observations are used for both training and validation, and each observation is used for validation exactly once. In the LOOCV, a single observation from the original sample is used as the validation data, and the remaining observations are the training data. This is repeated such that each observation in the sample is used once as the validation data. The LOOCV is particularly suited for a sparse dataset. It can train on as many examples as possible to increase the precision of predictive model.

Results

The performances of the five classic machine learning algorithms for this application scenario are evaluated and compared. In Table 10, the collected data from the 1,467 patient cases are separated into a training set (70%), a validation set (20%), and a test set (10%). Each machine learning algorithm was trained by the training set of 1,027 instances, and its performance was evaluated by the test set of 147 instances in Table 10. The Bayesian network had the best performance in this application scenario. It correctly classified 112 instances (76.2%) in the test set with 147 instances, which is 8.6% higher than the baseline precision (67.6%).

Table 10.

Performance Comparison Among Machine Learning Algorithms by Using the Training Set (70%), Validation Set (20%), and Test Set (10%)

	TRAINING SET (70%), VALIDATION SET (20%), AND TEST SET (10%)
MACHINE LEARNING ALGORITHM	CORRECTLY CLASSIFY	INCORRECTLY CLASSIFY	PERFORMANCE
Bayesian network	112	35	76.2%
Tree J48	111	36	75.5%
Support vector machine	111	36	75.5%
Logistic	110	37	74.8%
Neural networks	106	41	72.1%

Each predictive model generated by the different machine learning algorithms was also trained and validated by 10-fold cross-validation and LOOCV in Table 11. Tree J48 had the best performance in both validations. It correctly classified 1,166 instances (79.5%, 11.9% higher than the baseline precision) in the 10-fold cross-validation and 1,174 instances (80.1%, 12.4% higher than the baseline precision) in the LOOCV. The performance of the Bayesian network was also very close.

Table 11.

Performance Comparison Among Machine Learning Algorithms by Using the 10-Fold Cross-Validation and Leave-One-Out Cross-Validation

	10-FOLD CROSS-VALIDATION			LEAVE-ONE-OUT CROSS-VALIDATION
MACHINE LEARNING ALGORITHM	CORRECTLY CLASSIFY	INCORRECTLY CLASSIFY	PERFORMANCE	CORRECTLY CLASSIFY	INCORRECTLY CLASSIFY	PERFORMANCE
Tree J48	1,166	301	79.5%	1,174	293	80.1%
Bayesian network	1,163	304	79.3%	1,170	297	79.8%
Support vector machine	1,147	320	78.2%	1,147	320	78.2%
Logistic	1,142	325	77.9%	1,150	317	78.4%
Neural networks	1,045	422	71.2%	1,084	383	73.9%

Note that in the first experiment (Table 10), predictive models are trained by 1,027 instances. In the second and third experiment (Table 11), predictive models are trained by 1,321 instances (10-fold cross-validation) and 1,466 instances (LOOCV). The performance of all machine learning algorithms improves when more patient cases (instances) are involved. The best performance is 80.1% with 1,466 instances learned. The performance is expected to continue improving with increased number of instances and further refinement of the input parameters. In this study, the same 49 input parameters were used for all patients, considering we had to obtain enough patient cases for machine learning. A better performance of the predictive models may result if different input parameters are designed for patients from different departments of diagnosis.

On the other hand, the input parameters may contain many redundant or irrelevant features that provide no useful information. If the number of input parameters can be reduced without apparent loss of precision, the cost of patient data collection and the complication for classification of patient cases will also be reduced, which results in a more practical system. Feature selection is such a technique for selecting a subset of relevant features from the input parameters. Feature selection will also help the understanding of the most important input parameters in the model.

After the trainings were completed, this research used the “best first” technique for feature selection to find which features (parameters) are important for prediction. As shown in Table 12, the most important six features for prediction were suggested. Note that three features are related to the frequency and level of pain reported by the patients. As shown in Table 13, the performances of predictive models that were trained by six important features only were close to the performances of predictive models that were trained by the full 49 features. Again, the Bayesian network had the best all-around performance and finally was selected to be the machine learning algorithm of the TDSS.

Table 12.

The Result of Feature Selection

ORDER	NUMBER	TYPE	ITEM	VALUE OPTIONS
1	11	Pain	Frequency of pain	0=all the time
				1=only in the day
				2=only at night
				3=sometimes
2	37	Wound healed (closed)		0=no
				1=yes
3	12	Pain	Level of pain	0=no pain
				1=little pain
				2=some pain
				3=much pain
				4=very painful
				5=extremely painful
4	19	Wound fluid	Fluid in the wound	0=no
				1=yes
5	41	Surgery method	External fixation	0=no
				1=yes
6	10	Pain	Is pain or not	0=no
				1=yes

Table 13.

Performance of Predictive Models That Are Trained by Six Features

	PERFORMANCE
MACHINE LEARNING ALGORITHM	TRAINING SET (70%), VALIDATION SET (20%), AND TEST SET (10%)	10-FOLD CROSS-VALIDATION	LEAVE-ONE-OUT CROSS-VALIDATION
Neural networks	76.9%	79.4%	79.5%
Bayesian network	76.2%	79.3%	79.8%
Logistic	76.2%	78.9%	78.5%
Tree J48	75.5%	79.7%	79.3%
Support vector machine	75.5%	78.5%	78.5%

During the 1-year period, the nursing team at the call center was also requested to make recommendations (predictions) of degrees of urgency for the patients to return to the hospital, based on symptoms and clinical histories for these 1,467 patients. Table 14 shows the result of this manual classification. This confusion matrix, also known as a contingency table or an error matrix, is a specific table layout that visualizes the performance of classification result. Each column of the matrix represents the instances in a predicted class, and each row represents the instances in an actual class. The name stems from the fact that it makes it easy to see if this system is confusing two classes (i.e., commonly mislabeling one as another). The numbers in the diagonal marked in boldface type are the correctly classified patient cases (instances). Nurses correctly classified in 1,173 instances, and the precision is 79.96%, which is slightly lower than that of the TDSS (80.08%). A detailed comparison is shown in Table 15.

Table 14.

The Confusion Matrix of the Nursing Team (Clinical Personnel)

	CLASSIFIED AS
REAL CLASS	1	3	5	7	9
1=no need for advanced tracking	184	95	10	0	0
3=tracking needed in 1 week	51	925	15	1	0
5=tracking needed in 3 days	4	16	36	14	1
7=suggest that an appointment be made with doctor in 3 days and tracking needed again in 3 days	5	43	27	21	4
9=suggest that patient return to hospital immediately and tracking needed again in 24 h	2	3	1	2	7
Correctly classified 1,173 instances of 1,467 patients (79.96%)

Table 15.

Performance Comparison of the Telehealthcare Decision Support System and the Nursing Team

PERFORMANCE EVALUATION ITEM	CALCULATION	NURSES	TDSS	CHANGE
Sensitivity	TP/(TP+FN)=1−FNR	0.296	0.209	−8.7%
Specificity	TN/(TN+FP)=1−FPR	0.988	0.990	+0.2%
PPV	TP/(TP+FP)	0.680	0.632	−4.8%
NPV	TN/(TN+FN)	0.923	0.936	+1.3%
FPR	FP/(FP+TN)=1−Specificity	0.012	0.010	−0.2%
FNR	FN/(FN+TP)=1−Sensitivity	0.704	0.791	+8.7%

FN, false negative; FNR, false-negative rate; FP, false positive; FPR, false-positive rate; NPV, negative predictive value; PPV, positive predictive value; TDSS, telehealthcare decision support system; TN, true negative; TP, true positive.

Discussion and Conclusions

This article presents the development of the TDSS for patients recently discharged from the hospital. Symptom data from patients and clinical histories from the hospital information system were collected, and a predictive model was built to provide a degree of urgency for the patient to return to the hospital. The performance of predictive models generated by five classic machine learning algorithms was evaluated, and finally the Bayesian network was selected to implement in the TDSS. Based on the 1,467 patient cases collected over a 1-year period, the performance of correct prediction by the TDSS is comparable to that by the nursing team at the call center.

The predictive model trained by the six most important features has satisfactory performance. Therefore the TDSS can be reduced to six input features only. The performance of the TDSS is expected to improve continuously, as more cases of patient data are collected and input into the TDSS.

This TDSS has been implemented in one of the largest commercialized telehealthcare practices in Taiwan administered by Min-Sheng General Hospital and is currently assisting the nursing team at the call center to make judgments on the need for patients to return to the hospital for further checkup.

Footnotes

Acknowledgments

This research is sponsored by the Department of Industrial Technology, Ministry of Economic Affairs, Taiwan, the National Science Council, Taiwan, and the Ministry of Education, Taiwan. This research is also supported by Smart Care Inc., Taiwan. These supports are gratefully acknowledged.

Disclosure Statement

M.-S.H. and C.-M.C. are employees of Smart Care Inc. H.L. and Y.-L.H. declare no competing financial interests exist.

References

Wyatt

. A method for developing medical decision-aids applied to ACORN, a chest pain advisor [DM Thesis]. Oxford, United Kingdom: Oxford University, 1991.

de Dombal

, Leaper

, Staniland

, et al. Computer-aided diagnosis of acute abdominal pain. BMJ, 1972; 2:9–13.

Barnett

, Cimino

, Hupp

, et al. DXplain. An evolving diagnostic decision-support system. JAMA , 1987; 258:67–74.

Miller

, Masarie

Jr.

Use of the Quick Medical Reference (QMR) program as a tool for medical education. Methods Inf Med, 1989; 28:340–345.
