Transient Ischemia Induces an Early Decrease of Synaptic Transmission in CA1 Neurons of Rat Hippocampus: Electrophysiologic Study in Brain Slices

METHODS

Transient global ischemia was produced in adult male Wistar rats (200 to 350 g) using the method established by Pulsinelli and Brierley (1979) with minor modifications. Briefly, on day 1, rats were anesthetized with 1.5% halothane in a 2:1 nitrous oxide–oxygen mixture, and the vertebral arteries were electrocauterized through the alar foramina. Both carotid arteries were isolated and encircled by loose ligatures. Twenty-four hours later, one femoral artery was catheterized under halothane anesthesia (0.8%) to monitor blood gases and arterial blood pressure. After discontinuing halothane, both carotid arteries were clamped with aneurysm clips for 15 minutes. Blood gas measurements were done 10 minutes before applying clips, and 1 minute before and 10 minutes after removing clips. Rectal temperature was maintained at 36.5 to 37.5°C throughout the experiment with a warming lamp. Morphologic and electrophysiologic examinations were performed only if animals showed an isoelectric EEG during the entire occlusion period and recovered EEG activity within 30 minutes after the occlusion. The blood gas parameters of these animals were in the following range: 7.30 < pH < 7.55, 25 < Pco₂ < 50 mm Hg, and Po₂ > 90 mm Hg. Sham animals received identical surgical exposure without vessel occlusion.

For morphologic examinations, rats were anesthetized with halothane and perfused with a 4% phosphate-buffered formalin solution by transcardiac puncture. After perfusion, the brain was removed and left in a 10% phosphate-buffered formalin solution (pH 7.4) overnight. Sacrifice was done at these different in vivo reperfusion times: 3 hours, 24 hours, 3 days, and 7 days. Coronal brain sections of 6 μm were cut at five specific septotemporal levels identified by their configuration and stained with cresyl violet (Smith et al., 1984; Rod and Auer, 1992). We quantified neuronal injury by direct light microscopic examination on these sections. CA1 neurons were scored as injured if they displayed shrunken, irregular cell bodies with darkly stained granules (Kirino et al., 1985). At each level, three to four sections were examined, and the number of injured CA1 neurons was divided by the total number of the neurons and multiplied by 100 to give the percent neuronal damage. Mean values for each animal were included in data analysis. Analysis of variances on ranks (Dunn's method) was used to detect statistical difference.

Brain slices for electrophysiologic recordings have been previously described (Zhang et al., 1991). Slices were taken from rats after in vivo reperfusion of 1, 6, 12, and 24 hours, and 6 to 7 days, respectively. The rats were anesthetized with halothane and decapitated immediately. The brain was removed and maintained in an ice-cold artificial cerebrospinal fluid (ACSF) for 3 to 5 minutes before slicing. The hemisectioned brain was mounted on an aluminum block and sliced in the ice-cold ACSF using a vibrotom (series 1000, Technical Products International Incorporated, St. Louis, U.S.A.). Eight to nine transverse brain slices of 400-μm thicknesses were obtained from each half-brain. Slices then were kept in oxygenated ACSF at room temperature for at least 1 hour before recording and not more than 7 hours after dissection. The components of the ACSF are (in mmol/L): NaCl 125, KCl 2.5, NaH₂PO₄ 1.25, CaCl₂ 2, MgCl₂ 1.3, NaHCO₃ 26, and glucose 10. When aerated with 5% CO₂−95% O₂, the pH value of the ACSF is 7.4. Osmolarity of the ACSF is 300 ± 5 mOsm.

For electrophysiologic recordings, slices were transferred to a fully submerged chamber and perfused with the oxygenated ACSF continuously. The perfusion rate was 4 to 5 mL/min. We also applied humidified, warmed 5% CO₂−95% O₂ over the perfusate to ensure a warm, oxygenated local environment. All recordings were performed at slice temperatures of 33° to 34°C. Field potentials were recorded extracellularly through glass pipettes filled with 150 mmol/L NaCl, and the electrode was placed in the somatic or apical dendritic layer of the CA1 region. Electrical stimulation of Schaffer collateral afferents was performed using a bipolar tungsten electrode placed in the stratum radiatum at the CA1−CA2 border. Constant current pulses of 0.1- to 0.2-millisecond durations were generated through a Grass S88 stimulator and delivered through an isolation unit every 15 seconds. Data were collected only if stable field potentials were recorded, and averages were obtained from 5 to 10 recordings. Because a submerged chamber and bipolar stimulating electrode were used, the current pulses released from the stimulation isolation unit may not represent the actual current passing through slice tissue because of current shunting. Thus, we normalized the stimulation strength as multiple times of the threshold intensity, and this normalized stimulation strength was used to generate the stimulation–response plot. To examine the paired pulse facilitation (PPF) in dendritic responses, two identical stimulating current pulses at 50% of maximal intensity were delivered with a separation interval of 50 milliseconds. The PPF was determined by measuring the percentage increase in the peak amplitude of the second response, taking the first response as 100%.

For whole-cell patch recordings, we used a standard solution to fill patch pipettes, and this solution contained the following in millimoles: 150 potassium methylsulfate, 2 HEPES, 0.5 ATP, and 0.1 EGTA (Zhang et al., 1994). In some experiments, 1 to 1.5 mmol/L BAPTA or 4,4′-difluoro BAPTA was added to the standard internal solution to improve the seal formation. The calculated dissociation constant values are 220 nmol/L and 1.7 μmol/L for BAPTA and difluoro BAPTA, respectively (Adler et al., 1991; Zhang et al., 1995). All patch pipette solutions had a pH of 7.25 adjusted with potassium hydroxide and osmolarity of 280 ± 10 mOsm. When filled with these solutions, the patch pipette had resistances from 3 to 5 MΩ. An Ag–AgCl reference electrode was placed in an agar–saline bridge to attenuate junctional potentials (Zhang et al., 1991; Zhang and Krnjević, 1993).

Electrical signals were recorded using an Axon-clamp amplifier 2A (Axon Instrument, Foster City, CA, U.S.A.), and data were stored and analyzed with Pclamp software (version 5.5, Axon Instrument). Input resistance was estimated by passing square current pulses (duration of 500 milliseconds to 1.0 second) at low intensities (30 to 50 picoamperes), and measurements were taken at the steady state of the voltage responses. The peak amplitude and the duration to half-maximal amplitude of the action potential were measured. To activate the slow afterhyperpolarization maximally, a train of action potentials of about 10 spikes (Zhang et al., 1994, 1995) was generated by depolarizing current pulses (200 to 300 milliseconds, 2 to 3 nanoamperes) at membrane potentials near −60 mV. The amplitude of the slow afterhyperpolarization was measured at 200 milliseconds after the end of the depolarizing pulse.

All solutions were made with deionized sterile water (pH 5 to 6, resistance 18.2 MΩ/cm) from a Milli-Q UV plus system. Chemicals for making the patch pipette solutions were purchased from Fluka (New York, New York, U.S.A.), except potassium methylsulfate (ICN, New York, New York, U.S.A.). BAPTA derivatives (potassium salt) were purchased from Molecular Probes (Eugene, OR, U.S.A.). Other drugs were purchased from Sigma (St. Louis, MO, U.S.A.).

RESULTS

Morphologic examinations

The morphologic features of CA1 neurons after ischemia were examined by direct light microscopic visualization at five specific septo-hippocampal levels (Smith et al., 1984; Rod and Auer, 1992; see Methods). The percentage of injured neurons is summarized in Fig. 1. Less than 6% of CA1 neurons were morphologically damaged when examined at 3 or 24 hours after reperfusion (Fig. 1). CA1 neuronal injury became pronounced at 3 days after reperfusion, and more than 90% of the CA1 neurons were injured at 7 days after reperfusion. These results are consistent with previous studies using similar transient global ischemic paradigms (Pulsinelli and Brierley, 1979; Rod and Auer, 1992; Smith et al., 1984).

OPEN IN VIEWER

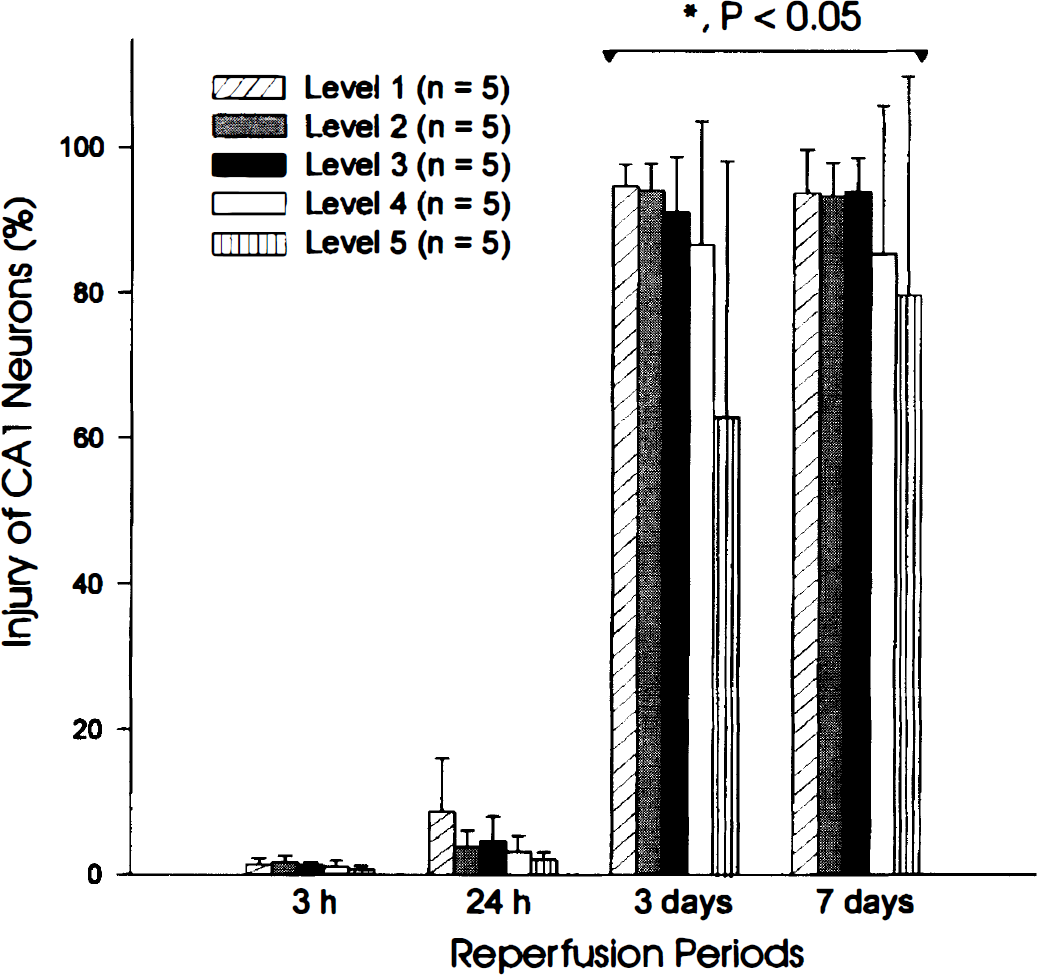

Fig. 1.

Morphologic examination of injured hippocampal CA1 neurons after transient global ischemia. The ischemic insult was conducted using the 15-minute four-vessel occlusion method, and the animals were allowed to recover for different times after reperfusion. At different reperfusion times as indicated, animals were sacrificed, and coronal brain sections of 6 μmol/L were cut at five specific septal levels and stained with cresyl violet (see Methods). At each level, three to four adjacent sections were examined, and data were collected from five animals for each time point after postischemia reperfusion. Neuronal injury was assessed by direct visualization under a light microscope. To calculate the percentage change, the number of injured CA1 neurons was divided by the total number of neurons examined at each level. Analysis of variance on ranks (Dunn's method) were used to detect significance from sham controls (P < 0.05). Notice the large proportion of cell injury observed after 3 days of reperfusion.

Electrophysiologic studies in brain slices

Sham-controlled slices were obtained at 24 hours (six rats) and 48 hours (three rats) after surgery. No change in any response examined was observed between sham animals of either postsurgery recovery times. Postischemic slices were taken after in vivo reperfusion of 1 hour (two rats), 6 hours (three rats), 12 hours (four rats), 24 hours (nine rats), and 6 to 7 days (two rats). To avoid potential differences in regional hippocampal responses (Ashton et al., 1989), we restricted our recordings to slices obtained from the dorsoseptal portion of the hippocampus. In the following text, we refer to each group according to their recovery time after surgery or ischemia. In whole-cell experiments performed on sham and 6-hour postischemia CA1 neurons, data were collected from two to four rats for each time point. Each recording was carried out on separate slices, and more than three CA1 neurons were collected per rat. Because of the difficulty in seal formation when performing whole-cell recordings on CA1 neurons 12 to 24 hours after ischemia (see later), one or two neurons were recorded from each slice, and data were collected from four to seven animals for 12- or 24-hour postischemia time points. No intention was made in the current experiments to compare the electrophysiologic parameters of CA1 neurons between sham and naive groups, and the sham responses presented here are used as standards to control for changes induced by surgery or anesthesia.

Extracellular recordings of field potentials. Sham controls. Synaptic field potentials were induced by electrical stimulation of the Schaffer collateral afferents at the stratum radiatum of the CA1 region (Lynch and Schubert, 1980). After orthodromic stimulation, the response recorded from CA1 somatic areas started with an upward waveform followed by a sharp downward stroke, which is called the population spike (PS) (Fig. 2, al). The PS represents the synchronized firings of a group of neurons, and its magnitude is largely determined by the number of neurons firing and the extent of their synchrony. The PS was consistently evoked in the CA1 somatic region and displayed maximal amplitudes from 3.5 to 5.0 mV in sham slices prepared at either 24 or 48 hours after sham surgery (Table 1). When recorded from the dendritic areas of the CA1 region, a downward waveform was consistently observed, which is referred to as the field excitatory postsynaptic potential (EPSP) and represents excitatory synaptic activities from the dendrites of a population of CA1 neurons (Fig. 2, b1). The maximal amplitudes of the field EPSP were 1.6 to 2.0 mV in sham slices (Table 1). Because field potentials were evoked by stimulating a group of afferent fibers to CA1 neurons, we varied stimulation intensities to examine the synaptic transmission resulting from different afferents. Synaptic field responses were increased with increments in stimulation intensities, and were saturated as the stimulation intensities reached a level of about 10 times the threshold, indicating the involvement of more activated synapses with strong afferent stimulation. The stimulation–response plot collected from a group of sham slices is illustrated in Fig. 3 (open circles), where the stimulation strength was normalized as multiple times the threshold stimulus (see Methods). Overall, we observed neither spontaneous synaptic activity nor a time-dependent deterioration in evoked responses in sham slices maintained in the ACSF at room temperature for up to 7 hours. This indicates that the electrophysiologic properties of the hippocampal neurons are stable in isolated slices throughout the time frame of our experiments.

OPEN IN VIEWER

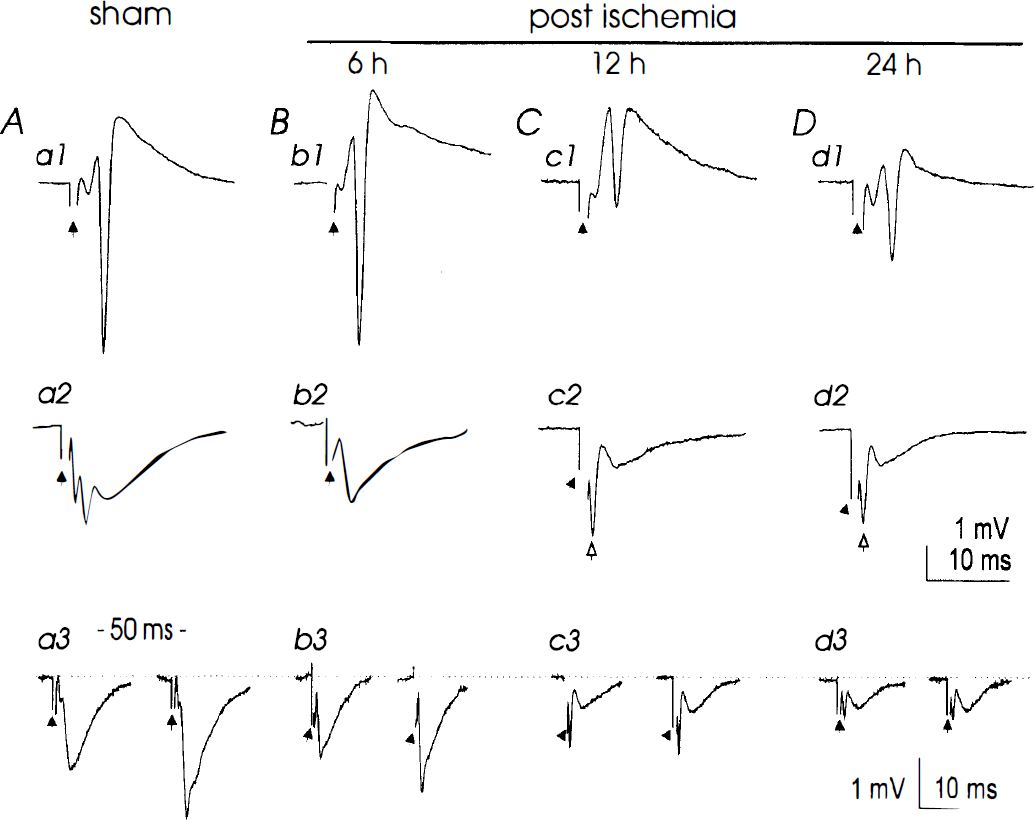

Fig. 2.

Decreased synaptic field potentials in the hippocampal CA1 region after ischemia. Representative records were collected from four individual slices prepared at 24 hours after surgery (A), and at 6 hours (B), 12 hours (C), and 24 hours (D) after ischemia. Somatic and dendritic responses evoked by maximal stimulation of Schaffer collateral afferents are illustrated in the top and middle panels, respectively. The paired pulse facilitation (PPF) in the dendritic field excitatory postsynaptic potential (EPSP) is shown in the bottom panel. Stimulation artifacts are indicated by filled arrows. The stimulation strength for testing the PPF was near 50% of the maximum, and the two pulses were separated by 50 milliseconds. In slices prepared 12 and 24 hours after ischemia (c2, d2), stimulation of Schaffer collateral afferents induced small CA1 field EPSP, but evident presynaptic volleys (i.e., the downward spike elicited immediately after the stimulus; open arrows) were observed for each time.

OPEN IN VIEWER

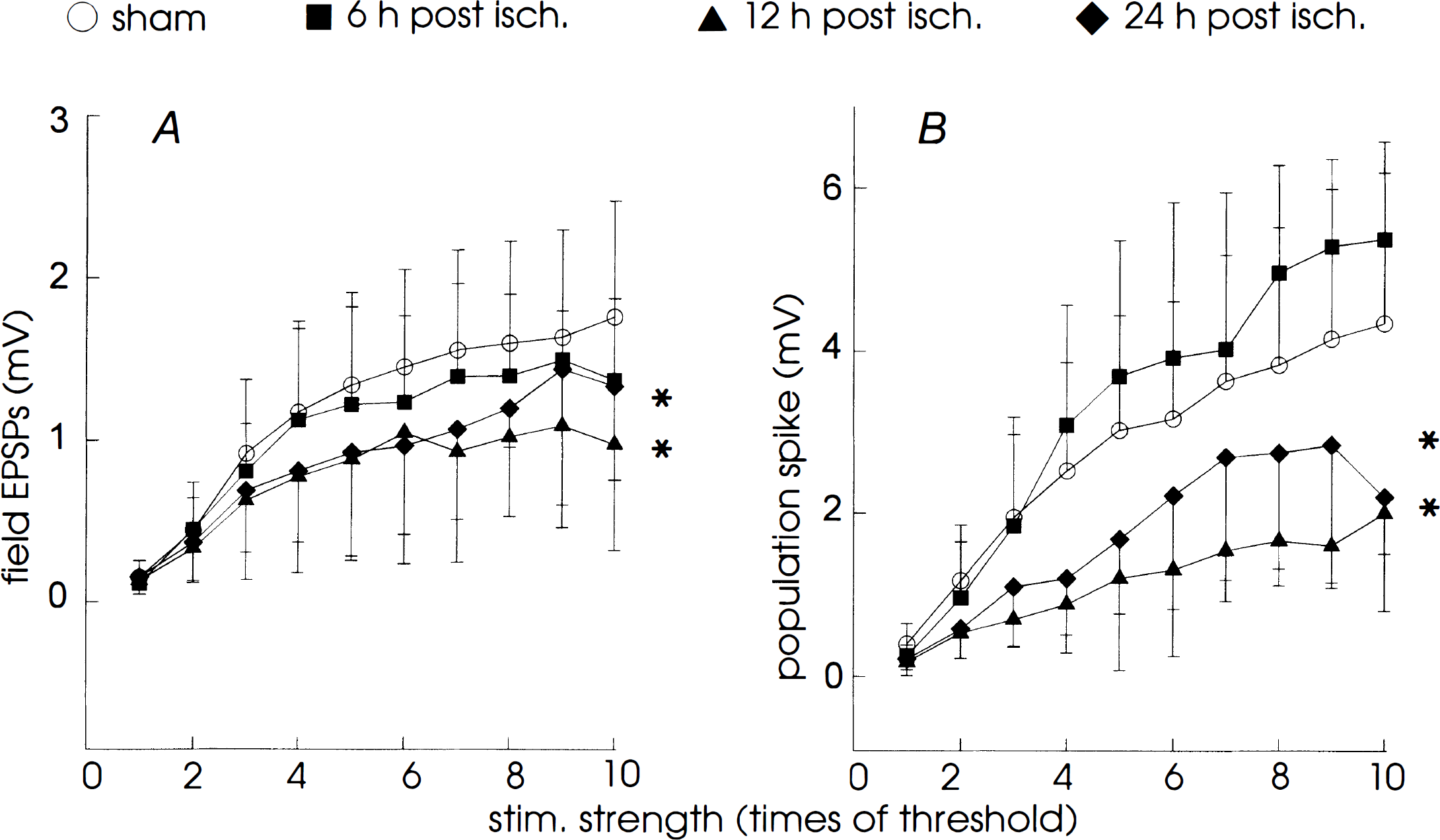

Fig. 3.

Stimulation–response relation of synaptic field potentials in sham control and postischemic slices. Amplitudes of dendritic field EPSP (A) and somatic population spikes (B) are plotted verses stimulation strengths, which were normalized as multiple times of threshold stimulus (see Methods). Data points are means and standard deviations calculated from 5 to 10 measurements. For postischemic slices, data collection was restricted to those slices that showed graded synaptic responses. Notice the responses in slices obtained at 12 and 24 hours after reperfusion are significantly smaller than sham controls (*P < 0.05, Kruskal-Wallis one-way analysis of variance). ○, data collected from slices prepared at 24 hours after surgery (n = 30); ▪, ▴, and ♦: data collected from slices prepared at 6 hours (n = 8), 12 hours (n = 15), and 24 hours (n = 25) after ischemia reperfusion, respectively.

OPEN IN VIEWER

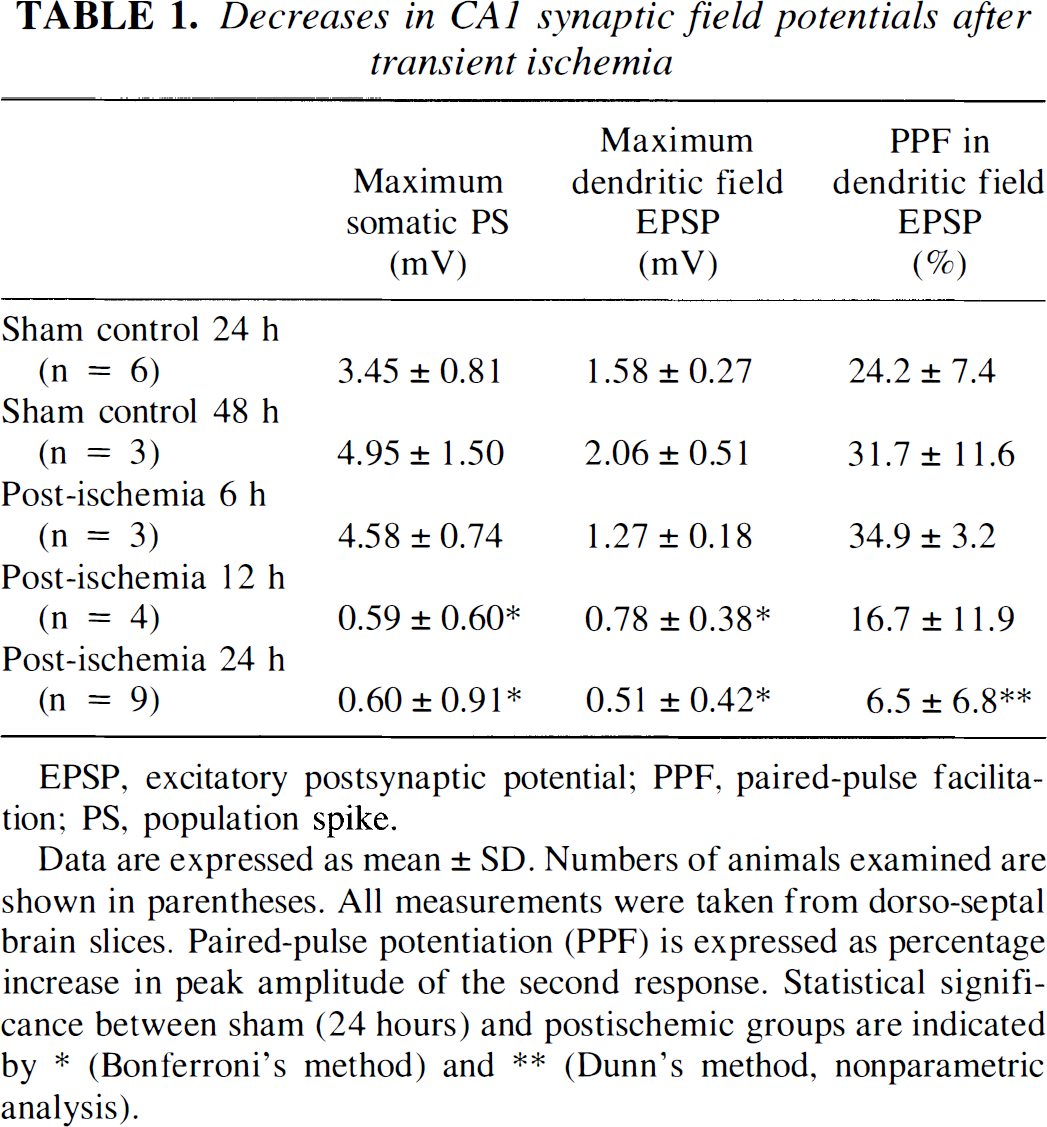

Table 1.

Decreases in CA1 synaptic field potentials after transient ischemia

	Maximum somatic PS(mV)	Maximum dendritic field EPSP(mV)	PPF in dendritic field EPSP(%)
Sham control 24 h
(n = 6)	3.45 ± 0.81	1.58 ± 0.27	24.2 ± 7.4
Sham control 48 h
(n = 3)	4.95 ± 1.50	2.06 ± 0.51	31.7 ± 11.6
Post-ischemia 6 h
(n = 3)	4.58 ± 0.74	1.27 ± 0.18	34.9 ± 3.2
Post-iscnemia 12 h
(n = 4)	0.59 ± 0.60*	0.78 ± 0.38*	16.7 ± 11.9
Post-ischemia 24 h
(n = 9)	0.60 ± 0.91*	0.51 ± 0.42*	6.5 ± 6.8**

EPSP, excitatory postsynaptic potential; PPF, paired-pulse facilitation; PS, population spike.

Data are expressed as mean ± SD. Numbers of animals examined are shown in parentheses. All measurements were taken from dorso-septal brain slices. Paired-pulse potentiation (PPF) is expressed as percentage increase in peak amplitude of the second response. Statistical significance between sham (24 hours) and postischemic groups are indicated by * (Bonferroni's method) and ** (Dunn's method, nonparametric analysis).

Postischemia slices. Graded synaptic responses were consistently recorded from the CA1 region in slices obtained 6 hours after reperfusion (Fig. 2, b1, b2). The maximal amplitudes of the somatic and dendritic responses and the stimulation–response relations were comparable with those observed in sham groups (Table 1). Neither spontaneous activity nor a time-dependent deterioration in the synaptic field potentials was observed in these slices maintained in the ACSF for up to 7 hours, which is consistent with the observations obtained in sham slices. Because decreases in CA1 synaptic field potentials were readily detected in slices prepared 12 hours after in vivo reperfusion (see later), these results indicate that impairments in CA1 electrophysiologic responses do not evolve after incubation of slices in the isolated, low-temperature in vitro condition.

Synaptic field potentials with varied amplitudes were observed in slices prepared from ischemic animals after 12 and 24 hours of in vivo reperfusion. Strikingly, in about half of the slices examined (13 of 25 and 23 of 51 slices for the 12- and 24-hour groups, respectively), we observed no somatic PS after a single, maximal stimulus of Schaffer collateral afferents (Fig. 4, a1, b1). In the remaining slices, PS were observed, but these events displayed a small amplitude (Fig. 2, c1), or a lack of an initial upward waveform (Fig. 2, d1). No correlation was noticed between the inability to fire PS and the time the slices were maintained in ACSF. As shown in Table 1, the maximal amplitude of the somatic PS in postischemic slices was significantly smaller than that observed in sham controls. Similar decreases also were found in the dendritic field EPSP (Fig. 2, c2, d2) and the PPF (Fig. 2, c2, d2; Table 1). We generated a stimulation–response plot by collecting data from a group of slices that showed graded field EPSP (Fig. 3, filled triangles and diamonds). The normalized responses were significantly smaller in these ischemic slices than those obtained from sham controls at a wide range of stimulating strengths, suggesting decreased synaptic efficacy exists in most of the Schaffer collateral–CA1 synapses after prolonged reperfusion.

OPEN IN VIEWER

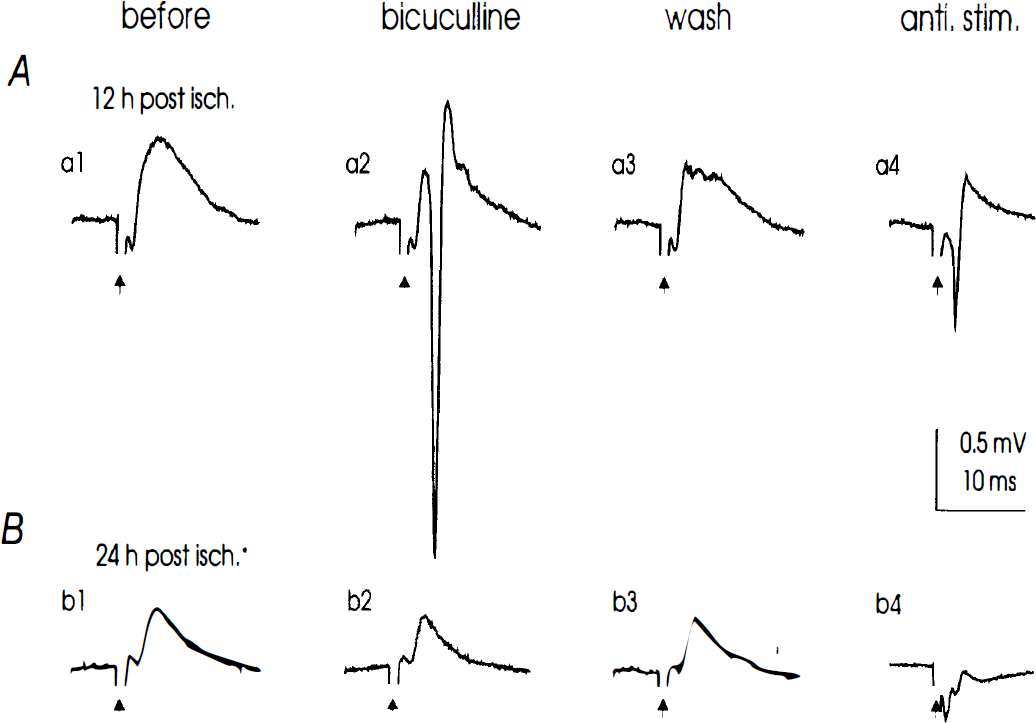

Fig. 4.

Effects of bicuculline methiodide (BMI) on somatic synaptic field potentials recorded from postischemic slices. Records were collected form two slices prepared at 12 (A) and 24 hours (B) after ischemia. CA1 somatic responses after a maximal stimulus at Schaffer collateral afferents were collected before (a1), during (a2), and after (a3) application of bicuculline (10 μmol/L for 5 minutes). Averaged records from four to five measurements are presented. Stimulation artifacts are indicated by filled arrows. Notice that in the presence of bicuculline, a large population spike was induced in the slice prepared at 12 hours (a2) but not 24 hours after ischemia (b2). The records in a4 and b4 illustrate somatic responses after an antidromic stimulus at the Alveus in the same slices. Notice the lack of the antidromic population spike in the slice prepared 24 hours after ischemia (b4), which is preserved in the 12-hour postischemia slice (a4).

Paired-pulse facilitation. To examine the plasticity in synaptic transmission, we used a PPF paradigm by stimulating Schaffer collateral afferents with twin stimuli separated by 50 milliseconds (see Methods). Previous studies demonstrate that multiple presynaptic mechanisms are involved in the PPF, including an inhibition of γ-aminobutyric acid (GABA) release by activation of presynaptic GABA_B receptors (Nathan and Lambert, 1991) and direct enhancement of α-amino-3-hydroxy-5-methyl-4-isoxazole propionic acid (AMPA) receptor-mediated responses (Clark et al., 1994), likely through an elevation of basal intracellular Ca²⁺ in presynaptic terminals (Wu and Saggau, 1993). Thus, the PPF represents a convenient experimental protocol to test the function of Schaffer collateral afferents in addition to the amplitudes of CA1 field responses. In slices prepared 6 hours after reperfusion, the dendritic PPF in the CA1 region was comparable with that measured from sham controls (Fig. 2, a3, b3; Table 1). Significant decreases (P < 0.05) in the CA1 PPF were observed in slices obtained at 12 and 24 hours after reperfusion (Fig. 2, c3, d3; Table 1). These results suggest that the presynaptic mechanisms that promote synaptic excitation in sham Schaffer collateral–CA1 synapses are suppressed after prolonged postischemia reperfusion.

Effects of the GABA_A receptor antagonist bicuculline. The lack of orthodromic PS in some postischemic slices prompted us to investigate the level of GABA_A-mediated inhibition in these slices, since a strong GABA_A-inhibition over glutamate excitation reduces the likelihood of neuronal firing. Thus, we examined the effect of bicuculline, a selective GABA_A receptor antagonist, on the CA1 somatic field responses to reveal the potential synaptic excitation after the blockade of the GABA_A-mediated inhibition. For comparison, only slices that failed to show a somatic PS after a maximal stimulus of Schaffer collateral afferents were treated with bicuculline (10 μmol/L, for 5 to 6 minutes). In 8 of 12 slices prepared from four rats at 12 hours after ischemia, orthodromic PS, which were not observed before treatment (Fig. 4, a1), were reversibly induced after application of bicuculline (Fig. 4, a2); however, the similar application of bicuculline failed to restore somatic PS in any slice (7 of 7) prepared from three rats at 24 hours after ischemia (Fig. 4, b1, b2).

Antidromic stimulation. In slices prepared 24 hours after reperfusion, the failure to restore CA1 PS after bicuculline application could result from decreased intrinsic excitability in postsynaptic CA1 neurons. To address this possibility, we recorded somatic responses after antidromic stimulation of CA1 axons in the Alveus. In five of five slices prepared from two animals after 12 hours of reperfusion, somatic PS were not induced after the orthodromic stimulation of Schaffer collateral afferents, but were clearly elicited after antidromic stimulation of the Alveus (Fig. 4, a4). The peak amplitude of the antidromic PS was 1.3 ± 0.3 mV. In similar experimental settings, antidromic PS were induced in only 3 of 14 slices prepared from four rats after 24 hours of reperfusion (Fig. 4, b4). These observations, taken together with the differential effects of bicuculline mentioned earlier and an elevation of spiking threshold (see later), strongly suggest that the intrinsic excitability of CA1 neurons is decreased after 24 hours of postischemic reperfusion.

Whole-cell recordings. Sham CA1 neurons. When performing whole-cell recordings on CA1 neurons of sham slices, we readily achieved a 2 to 6 GΩ seal between the patch pipette tip and the cell membrane. After membrane rupture and dialysis with our standard patch pipette solution (see Methods), sham CA1 neurons displayed electrophysiologic properties that were comparable with those previously measured from naive neurons (Table 2; Zhang et al., 1994, 1995). When stimulated with depolarizing current pulses injected through the patch pipette, these neurons showed repetitive discharges with strong adaptation, such that firing ceased within 200 to 300 milliseconds despite depolarizing pulses lasting 500 to 600 milliseconds (Fig. 5, a1, a2). The strong adaptation during repetitive discharge is characteristic of normal CA1 neurons recorded using either sharp electrodes or patch pipettes filled with our standard patch pipette solution (Zhang et al., 1994, 1995). To assess intrinsic excitability of CA1 neurons, we measured the minimum depolarizing current required to evoke the action potential. In sham neurons, the threshold current for action potential generation was 320 to 379 pA at resting membrane potentials near −60 mV (Table 2).

OPEN IN VIEWER

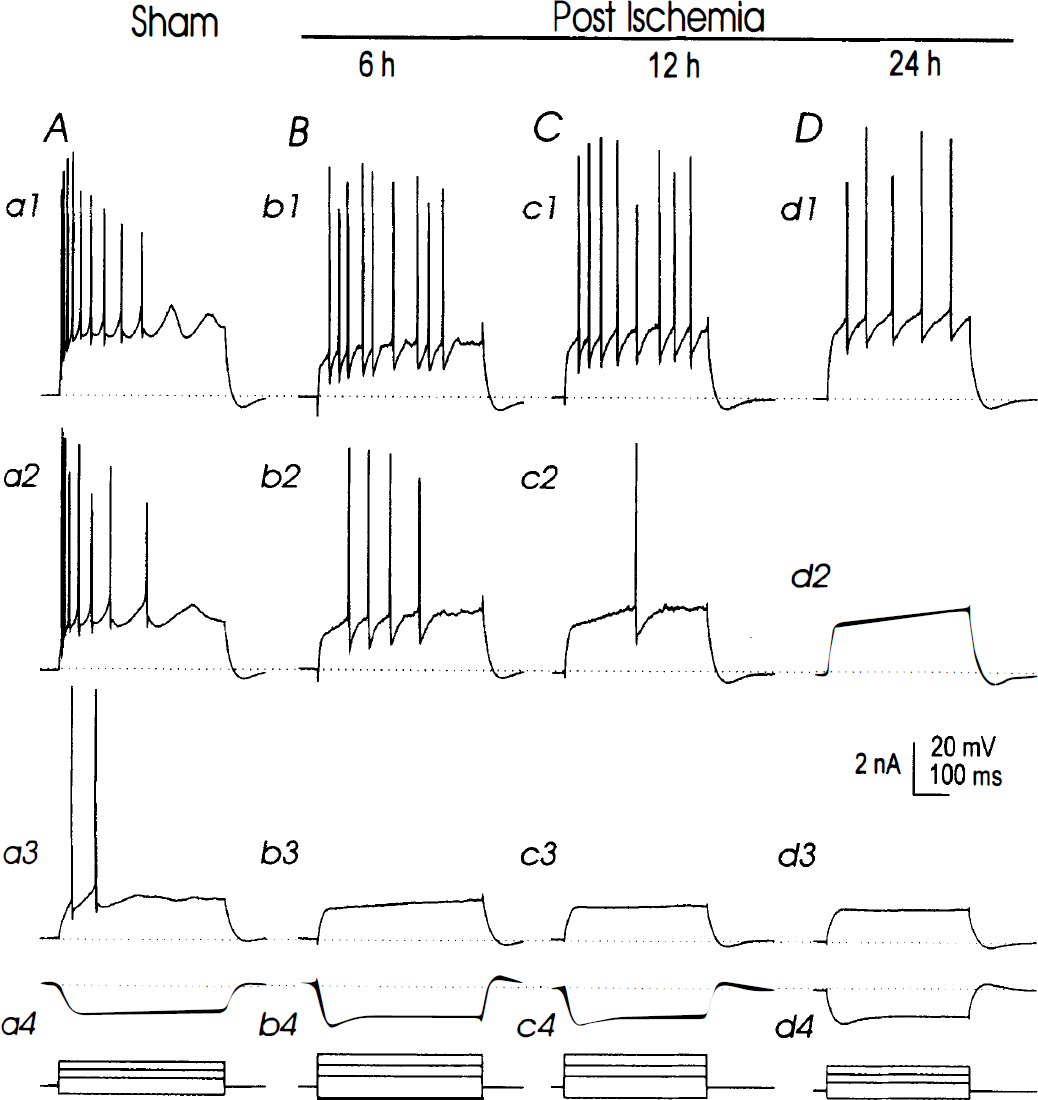

Fig. 5.

Increased firing threshold and decreased firing adaptation in postischemic CA1 neurons. Records were collected from four individual neurons in slices prepared 24 hours after sham surgery (A), and at 6 (B), 12 (C), and 24 (D) hours after ischemia. Superimposed traces at the bottom are four square current pulses of varied polarities and intensities that were injected intracellularly through patch pipettes. Voltage responses corresponding to these current pulses are illustrated above. The membrane potentials of these neurons were held constant at −60 mV (dotted lines) by passing DC currents through patch pipettes, from original levels of −58 to −62 mV. In the sham neuron, action potentials could be induced by a small positive current pulse (a3), and repetitive discharges were associated with strong firing adaptation (a1, a2). In postischemic neurons, the voltage responses corresponding to negative current pulses (b4, c4, d4) are comparable with the sham control (a4), but no action potential was induced by small positive current pulses (b3, c3, d3). Also, postischemic neurons displayed little adaptation during repetitive discharges (b1, c1, d1).

OPEN IN VIEWER

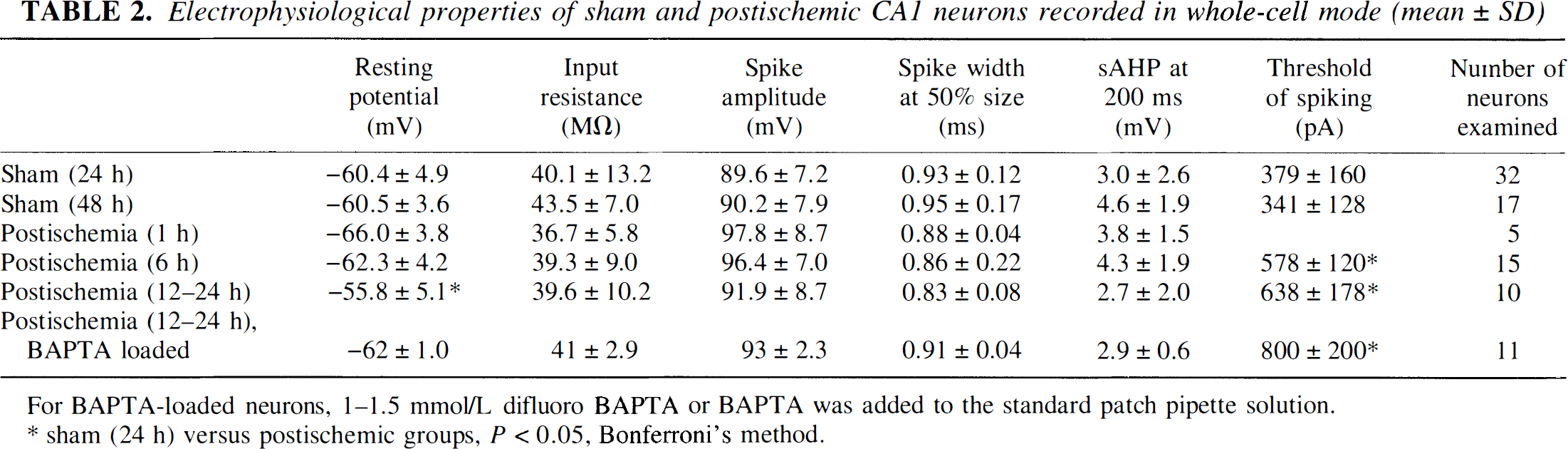

Table 2.

Electrophysiological properties of sham and postischemic CA1 neurons recorded in whole-cell mode (mean ± SD)

	Resting potential(mV)	Input resistance(MΩ)	Spike amplitude(mV)	Spike width at 50% size(ms)	sAHP at 200 ms(mV)	Threshold of spiking(pA)	Number of neurons examined
Sham (24 h)	−60.4 ± 4.9	40.1 ± 13.2	89.6 ± 7.2	0.93 ± 0.12	3.0 ± 2.6	379 ± 160	32
Sham (48 h)	−60.5 ± 3.6	43.5 ± 7.0	90.2 ± 7.9	0.95 ± 0.17	4.6 ± 1.9	341 ± 128	17
Postischemia (1 h)	−66.0 ± 3.8	36.7 ± 5.8	97.8 ± 8.7	0.88 ± 0.04	3.8 ± 1.5		5
Postischemia (6 h)	−62.3 ± 4.2	39.3 ± 9.0	96.4 ± 7.0	0.86 ± 0.22	4.3 ± 1.9	578 ± 120*	15
Postischemia (12−24 h)	−55.8 ± 5.1*	39.6 ± 10.2	91.9 ± 8.7	0.83 ± 0.08	2.7 ± 2.0	638 ± 178*	10
Postischemia (12−24 h), BAPTA loaded	−62 ± 1.0	41 ± 2.9	93 ± 2.3	0.91 ± 0.04	2.9 ± 0.6	800 ± 200*	11

For BAPTA-loaded neurons, 1−1.5 mmol/L difluoro BAPTA or BAPTA was added to the standard patch pipette solution.

*

sham (24 h) versus postischemic groups, P < 0.05, Bonferroni's method.

Individual sham neurons recorded in whole-cell mode showed graded synaptic responses after stimulation of Schaffer collateral afferents. In current-clamp recordings, these synaptic responses consisted of a fast EPSP after by a monophasic inhibitory postsynaptic potential (IPSP) (Fig. 6, a1). When neurons were voltage-clamped at potentials near −80 mV, which is close to the reversal potentials for Cl⁻- and K⁺-mediated conductances, Schaffer collateral stimulation induced an inward, excitatory postsynaptic current (EPSC) (Fig. 6, a2). At the negative holding potential, paired stimuli of Schaffer collateral afferents induced an enhancement of the EPSC by 55 ± 19% (n = 25) and 56 ± 17% (n = 14) in slices prepared 24 and 48 hours after surgery, respectively.

OPEN IN VIEWER

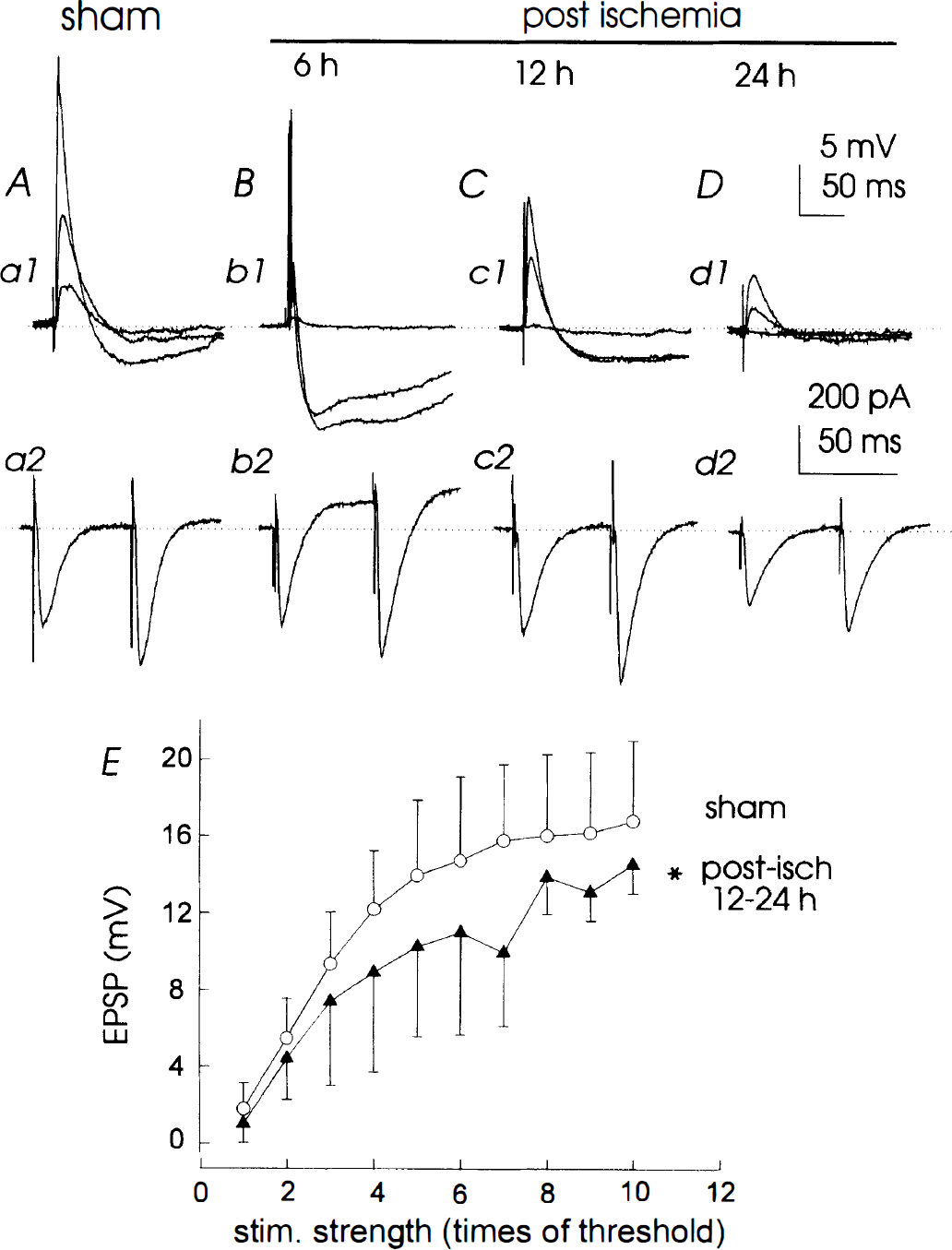

Fig. 6.

Decreased synaptic responses in postischemic CA1 neurons recorded in the whole-cell mode. Synaptic events were collected from four individual CA1 neurons in slices prepared at 24 hours after sham surgery (A), and at 6 (B), 12 (C), and 24 (D) hours after postischemia reperfusion. Superimposed records in the top panel (a1 to d1) are synaptic potentials evoked by stimulation of Schaffer collateral afferents. The stimulation strength was set at the maximum, half-maximum, or near threshold. For comparison, membrane potentials of these neurons were held near −60 mV by passing DC current through patch pipettes. Traces in the middle panel are synaptic currents recorded in the voltage clamp mode from the same neurons, as above (a2 to d2). Holding potentials were −75 to −80 mV, and paired stimuli of Schaffer collateral afferents were separated by 50 milliseconds. In the neuron 6 hours after ischemia, stimulation of Schaffer collaterals induced large IPSP, which masked the depolarizing EPSP, leading to a narrowed positive waveform at the membrane potential of −60 mV (b1). Similar stimulation evoked clearly excitatory (depolarizing) synaptic currents when the neuron was held at the negative potential in voltage clamp mode (b2). E: The amplitude of EPSP is plotted against normalized stimulation intensity, and symbols ○ and ▴ represent data collected from neurons 24 hours after sham surgery (n = 22) and 12 to 24 hours postischemia (n = 12), respectively. Data points are mean and standard deviation, and statistical significance (*) between these two groups is presented (P < 0.05, Kruskal-Wallis one-way analysis of variance).

Postischemic CA1 neurons. We had no difficulty in performing whole-cell recordings on CA1 neurons from slices prepared 6 hours after reperfusion. CA1 neurons recorded from these slices exhibited basic membrane properties that were similar to those of sham controls (Table 2). However, large depolarizing current pulses were required to evoke action potentials in these neurons, suggesting that an elevated spiking threshold exists in postischemia neurons, even after 6 hours of reperfusion (Table 2). At the single-cell level, individual CA1 neurons clearly showed synaptic events after stimulation of Schaffer collateral afferents, and the EPSC were enhanced by 48 ± 15% (n = 6) after the paired afferent stimulation at negative holding potentials. Interestingly, stimulating Schaffer collateral afferents often induced large, biphasic IPSP that became dominant at the resting potentials near −60 mV, thus masking the depolarizing EPSP (Fig. 6, b1). To reveal the potential excitatory synaptic events, neurons were voltage-clamped at −80 mV to decrease the driving force for the Cl⁻ and K⁺ conductances. EPSC of similar magnitude to sham were revealed after afferent stimulation at the negative holding potential (Fig. 6 b2). These observations suggest that the large IPSP we observed in these neurons results from enhanced synaptic inhibition, rather than diminished excitatory synaptic events.

Whole-cell recordings on CA1 neurons were difficult to achieve in slices prepared 12 or 24 hours after reperfusion, mainly because of the lack of a tight seal between patch pipette tip and the cell membrane. This may result from ischemia-induced alterations in membrane structures of the vulnerable CA1 neurons (Kirino et al., 1992). To circumvent this, we have used different patch pipette glasses or patch pipette filling solutions, including the solution containing 1 to 1.5 mmol/L potassium salt of BAPTA or 4,4′-difluoro BAPTA. However, no consistent improvement was noted when doing whole-cell recordings on these neurons. We listed separately the whole-cell measurements in neurons dialyzed with the standard or BAPTA-containing patch pipette solutions (see Table 2). Although no major difference was observed between these two solutions, a small hyperpolarization of the membrane potential by 5 mV in BAPTA-dialyzed neurons was noted. In these limited whole-cell recordings, CA1 neurons 12 to 24 hours after ischemia displayed basic membrane properties comparable with those of sham controls (Table 2). In response to depolarizing current pulses, however, these neurons, dialyzed with either the standard or BAPTA-containing patch pipette solution, displayed tonic discharges with little firing adaptation in comparison with sham controls (Fig. 5, c1, d1). The current threshold for the generation of action potentials was significantly increased to 638 to 800 pA, which is nearly double that of sham controls (Table 2). Furthermore, the synaptic responses, as well as the enhancement after paired stimulation of Schaffer collateral afferents at negative holding potentials (41 ± 12%, n = 12), were significantly smaller in neurons 12 and 24 hours after ischemia than those observed in sham controls (Fig. 6E; Table 2).

Responses recorded after 6 to 7 days of reperfusion. In slices prepared from rats 6 to 7 days after ischemia, no synaptic field potential was detected in the CA1 region after stimulation of Schaffer collateral afferents. However, in the absence of synaptic responses, some slices (6 of 10) displayed a downward, spike-like waveform immediately after the afferent stimulation, with a mean amplitude of 0.6 ± 0.1 mV (Fig. 7A, a1). This spike-like waveform is referred to as a presynaptic volley (Lynch and Schubert, 1980; Schwartzkroin, 1981), and it reflects axonal action potentials elicited from stimulated Schaffer collateral afferent fibers. The presence of the presynaptic volley indicates that at least some Schaffer collateral fibers maintain local electrical responsiveness at the times after insult when greater than 90% of the CA1 neurons have been lost (Fig. 1).

OPEN IN VIEWER

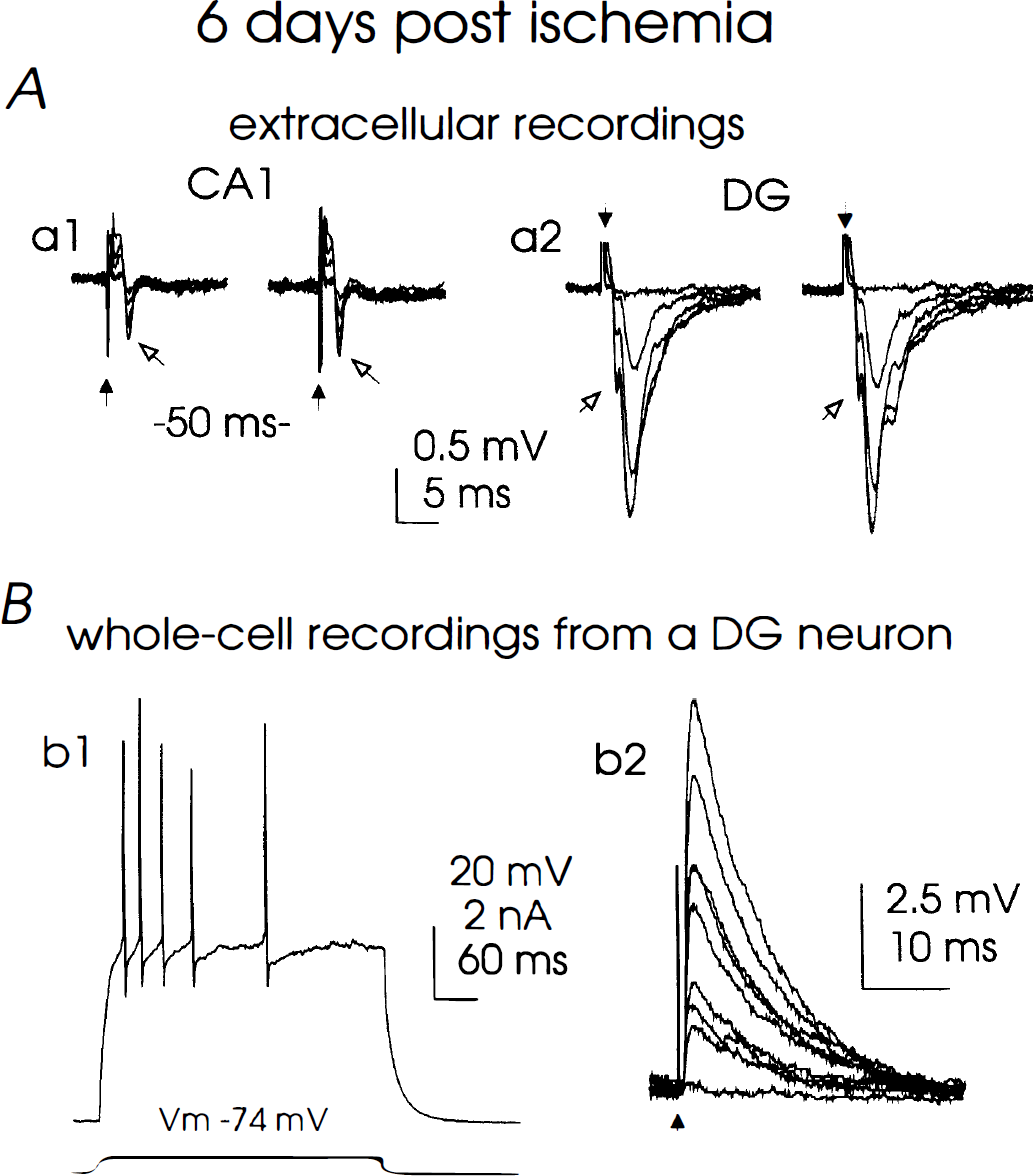

Fig. 7.

Electrophysiologic responses at 6 to 7 days after ischemia reperfusion. (A) Records were collected from a slice prepared 6 days after ischemia, and superimposed traces are dendritic responses collected from the CA1 region (a1) and the dentate gyrus (DG) region (a2) in the same slice. The stimulation intensities are listed below, and stimulation artifacts are shown by filled arrows. In the CA1 region (a1), stimulation of Schaffer collateral afferents failed to induce detectable synaptic response, but presynaptic volleys (open arrows) are present. (B) Whole-cell records were taken from a dentate gyrus neuron in another slice prepared 7 days after ischemia. The standard solution was used to fill the patch pipette (see Methods). This dentate gyrus neuron displayed repetitive discharges with firing adaptation when it was stimulated intracellularly by a positive current pulse (b1), and graded EPSP induced by stimulating the perforant pathway with varying intensities (b2).

In contrast to the abolished synaptic responses in the CA1 region, stimulation of the perforant pathway induced synaptic field potentials in the region of the dentate gyrus in the same slices prepared 6 to 7 days after ischemia (Fig. 7A, a2). The maximal dendritic field EPSP in the dentate gyrus was 0.94 ± 0.15 mV, which was significantly smaller than that measured from sham slices (1.82 ± 0.39 mV, n = 8 from 2 rats). We readily achieved whole-cell recordings on dentate gyrus neurons 6 to 7 days after ischemia, using patch pipettes filled with our standard solution. These neurons displayed resting potentials of −75 ± 2 mV, input resistances of 115 ± 3 MΩ, spike amplitudes of 109 ± 5 mV, and slow after-hyperpolarizations of 8.9 ± 0.5 mV at −60 mV (n = 4). At the single-cell level, all dentate gyrus neurons examined displayed repetitive discharges and graded synaptic responses (Fig. 7B, b1, b2), and these electrophysiologic parameters are within the range measured from naive dentate gyrus neurons under the whole-cell mode (Staley et al., 1992; Zhang, unpublished data). Taken together, these results indicate that electrophysiologic activities of dentate gyrus neurons are largely preserved at prolonged times after postischemia reperfusion.

DISCUSSION

The key finding we present in this study is that transient global ischemia promotes alterations in the functionality of hippocampal CA1 neurons at times preceding their degeneration as identified by morphologic criteria. We demonstrate that within 24 hours after ischemia reperfusion, CA1 neurons display a dramatic, time-dependent alteration in synaptic activities. CA1 synaptic responses are largely intact after 6 hours of postischemia reperfusion, become significantly impaired by 12 hours, and continue to deteriorate until and after 24 hours of reperfusion. Furthermore, decreased synaptic responses observed at 12 hours after ischemia differ from those observed 24 hours after ischemia. This is shown by the restoration of synaptically evoked PS after the blockade of GABA_A receptors after 12 hours, but not after 24 hours of reperfusion. Additionally, we observed a time-dependent increase in the firing threshold in postischemic CA1 neurons, which is consistent with the idea that both synaptic and intrinsic activities of postischemic CA1 neurons are down-regulated before substantial changes in their morphologic features at the light-microscopic level.

The decrease in intrinsic excitability in postischemic neurons is manifested by an increase in the firing threshold, as the minimum positive current required to generate action potentials through patch pipettes is doubled in postischemic neurons. Since the resting potential, input resistance, and action potential waveform of postischemic neurons do not differ substantially from those of sham controls, the increase in the firing threshold must result from alterations in the magnitude or the kinetics of tetrodotoxin-sensitive Na⁺ currents. It is well known that the activities of Na⁺ channels are down-regulated through kinase-dependent modulation (Catterall, 1992), and we propose that a similar negative modulation of Na⁺ channels may occur in these postischemic neurons. It will be of considerable interest for future experiments to characterize Na⁺ channel activities and their modulation after ischemia.

We demonstrate that although the magnitudes of CA1 synaptic responses are decreased to a similar extent at 12 and 24 hours after reperfusion, the responses to bicuculline, a selective GABA_A receptor antagonist, are different. The blockade of GABA_A receptors by bicuculline restored synaptically induced neuronal discharge in some CA1 neurons 12 hours after ischemia, but failed to do so in CA1 neurons 24 hours after the insult. Explanations for these findings are multiple. First, it is likely that the GABA_A-mediated synaptic inhibition in the CA1 region is only partially impaired in slices prepared 12 hours after ischemia. Thus, a blockade of functional GABA_A receptors boosts the synaptic excitation in these slices. Whereas if the GABA_A-mediated synaptic inhibition is severely impaired in slices prepared 24 hours after ischemia, the blockade of dysfunctional GABA_A receptors would have little influence on the state of synaptic activity. However, it is equally possible that glutamate-mediated synaptic events decrease similarly during postischemia reperfusion. Thus, because of a substantial loss in the excitatory drive to CA1 neurons at 24 hours after ischemia, the rebound excitation resulting from GABA_A blockade would not be evident, even if some functional GABA_A receptors do remain. Although we have not investigated these possibilities in the current experiments, it is suspected that several mechanisms coexist in the postischemic state. Nevertheless, the current results are consistent with previous studies, which show that GABA-ergic neurons in the CA1 region are more resistant to ischemic insults than pyramidal neurons (Johansen et al., 1989; Nitsch et al., 1989; Schandler et al., 1988), and support the recent study (Schwartz et al., 1995) that potentiation of GABA_A-mediated inhibition by diazepam early during reperfusion is protective in a similar global ischemia model.

Postischemic CA1 neurons in brain slices displayed decreased synaptic responses after stimulation of Schaffer collateral afferents. The decrease in CA1 synaptic events was substantial when examined at 12 hours after ischemia, and the synaptic responses continued to deteriorate throughout our recording times in the CA1 region. This differs from previous studies using a similar four-vessel occlusion model, where CA1 synaptic activity was found intact at 24 hours after reperfusion (Petito and Pulsinelli, 1984; Jensen et al., 1991). The reasons for the discrepancy between our results and these reports are not clear. We conducted the four vessel occlusion model a modified method as per Pulsinelli and Brierley (1979). Morphologic and electrophysiologic assessments from isolated slices were done only if EEG activities of these animals were completely abolished during ischemia, and the blood gas parameters were maintained within restricted ranges (see Methods). In our hands, the insult we conducted reproducibly produced a neuronal loss of 95% or more in the CA1 region by day 7 after ischemia. It is speculated that severe ischemic insults conducted in the current experiments promotes the early appearance of postischemia dysfunction, and that differences in the severity of ischemic injury may influence the time frame of neuronal degeneration, as has been suggested by Du and associates (1996) in a focal ischemic model.

In the current experiments, we examine the electrophysiologic properties of postischemic CA1 neurons in brain slices as a function of time. Brain slices were chosen for our investigations because local synapses are largely preserved in this isolated preparation, and electrophysiologic recordings in brain slices are conducted without the complications that often accompany in vivo experimental conditions such as anesthesia and stress. Synaptic field potentials in brain slices have been widely used to assess the efficiency of synaptic transmission in hippocampal neurons (Lynch and Schubert, 1980; Schwartzkroin, 1981). We propose that delayed neuronal death must be associated with or preceded by functional alternations of the CA1 neurons, or related local structures that influence these neurons. The current observations (i.e., that altered electrophysiologic properties are observed in CA1 neurons of isolated brain slices starting at 12 hours or less after reperfusion) are consistent with this hypothesis. However, the use of brain slices has limitations, and one main drawback is the lack of synaptic innervation to the hippocampus from extrahippocampal structures. These structures not only undergo postischemic degeneration themselves (Rod and Auer, 1992) but also may participate in the genesis of the delayed neuronal death that occurs in the CA1 neurons (Buchan et al., 1991a). Thus, it is conceivable that the electrophysiologic activities of postischemic CA1 neurons are far more complex in vivo than in vitro (Buzsaki et al., 1989; Chang et al., 1989; Furukawa et al., 1990; Miyazaki et al., 1993; Suzuki et al., 1983; Xu and Pulsinelli, 1996). The current results demonstrate changes observed in our slice preparation, primarily involving CA1 synapses and their local structures.

Another complication regarding electrophysiologic studies on brain slices is that the observed changes may include factors induced by slicing procedures. Although the sham and postischemic slices were prepared similarly in the current experiments, it is possible that postischemic brain tissues are more susceptible than sham to the damage or deterioration resulting from slicing procedures and incubation in vitro, thereby leading to altered electrophysiologic responses. However, because the electrophysiologic activities observed in dentate gyrus neurons were largely preserved in slices prepared from animals 6 to 7 days after reperfusion, and the activities of CA1 neurons in the same slices were completely abolished, we suggest that decreased synaptic activities in postischemic CA1 neurons result predominantly from ischemic insults rather than damage incurred by slicing procedures.

We show here that postischemic CA1 neurons display hypoactivity rather than hyperactivity in glutamate-mediated synaptic transmission, at least in the Schaffer collateral–CA1 synapses examined in our isolated brain slices. Although we have not identified the presynaptic or postsynaptic components of this alteration, our description of decreased activities is consistent with a previous molecular study that demonstrates decreases after ischemia in the expression levels for genes encoding the AMPA/kainate subtype of glutamate receptors (Pellegrini-Giampietro et al., 1992). Since these receptors represent the major participants involved in fast glutamatergic synaptic transmission, such a decrease in mRNA prevalence could lead to fewer receptors, and therefore less glutamate activity, as we demonstrate in this study. Although the pathophysiologic significance of the decreased synaptic activities early during reperfusion has not been demonstrated, we speculate that any alteration of neuronal function from normal may participate in or represent some form of the pathologic process underlying the delayed neuronal death.

It has been recognized that the survival of developing neurons in vitro requires neurotrophic factors as major supporting elements (Purves et al., 1985), and this neurotrophic support is not promoted unless some ongoing neuronal activities are present (Meyer-Franke et al., 1995). In mammalian CNS preparations, neuronal activities and neurotrophic factors interact reciprocally such that external applications of neurotrophins, such as BDNF and NT-3, produce persistent potentiation of glutamate transmission at Schaffer collateral–CA1 synapses in adult rat hippocampal slices (Kang and Schuman, 1995). Furthermore, the release of nerve growth factor is positively regulated in hippocampal slices and in cultured hippocampal neurons in an activity-dependent manner (Blöchl and Thoenen, 1995). Considering that the delayed neuronal death after transient ischemia is at least partly mediated by apoptotic mechanisms (Nitatori et al., 1994), the early and persistent decreases in synaptic activities in vulnerable postischemic CA1 neurons may have significant impact that leads toward the apoptotic process, perhaps through disruption of neurotrophic support. It remains to be tested whether maintenance of synaptic activities to a certain level benefits the survival of CA1 neurons, particularly after prolonged postischemic reperfusion.

Acknowledgments: The authors thank K. Shinno and L. Zhang for their contributions to this project. L. Zhang is a Scholar of Canadian Heart and Stroke Foundation.
